Quadra-Fire QV-PIER, QV-ST User Manual

Download

Models: QV-Pier QV-ST Series: HV-IPI

Owner’s Manual

Installation and Operation

CAUTION

DO NOT DISCARD THIS MANUAL

Important operating

•• •

and maintenance instructions included.

WARNING: If the information in these instructions is not followed exactly , a fire or explosion may result causing property damage, personal injury , or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• What to do if you smell gas

- Do not try to light any appliance

- Do not touch any electrical switch. Do not

use any phone in your building.

- Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call

the fire department.

• Installation and service must be performed by a qualified installer , service agency, or the gas supplier.

Quadra-Fire, a brand of Hearth & Home Technologies Inc. 1445 North Highway, Colville, WA 99114

Read, understand and follow these instructions for safe installation and operation.

DO NODO NO

DO NO

DO NODO NO

DISCARDDISCARD

DISCARD

DISCARDDISCARD

Leave this manual with party responsible for use and operation.

WARNING: IMPROPER INSTALLATION, ADJUSTMENT , AL TERA TION, SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER TO THIS MANUAL. FOR ASSISTANCE OR ADDITIONAL INFORMATION CONSULT A QUALIFIED INSTALLER, SERVICE AGENCY, OR THE GAS SUPPLIER.

This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

In the Commonwealth of Massachusetts:

• installation must be performed by a licensed plumber or gas fitter;

• a CO detector shall be installed in the room where the appliance is installed.

Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer,

please call 1-800-926-4356.

This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 481 1534, 5000162, 5016609, 5076254, 51 13843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Safety and Warning Information

READ and UNDERSTAND all instructions carefully

before starting the installation. FAILURE TO FOLLOW these installation instructions may result

in a possible fire hazard and will void the warranty.

Prior to the first firing of the fireplace, READ the

Using Your Fireplace section of the Owners Guide.

DO NOT USE this appliance if any part has been

under water. Immediately CALL a qualified service technician to inspect the unit and to replace any part of the control system and any gas control which has been under water.

THIS UNIT IS NOT FOR USE WITH SOLID FUEL.

Installation and repair should be PERFORMED by a qualified service person. The appliance and venting

system should be INSPECTED before initial use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is IMPERATIVE that the unit’s control compartment, burners, and circulating air passageways adequate combustion and ventilation air.

BE KEPT CLEAN to provide for

These units MUST use one of the vent systems described in the Installing the Fireplace section of

the Installers Guide. NO OTHER vent systems or components MAY BE USED.

This gas fireplace and vent assembly MUST be

vented directly to the outside and MUST NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each gas appliance MUST USE a separate vent system. Common vent systems are

PROHIBITED.

INSPECT the external vent cap on a regular basis to

make sure that no debris is interfering with the air flow.

The glass door assembly MUST be in place and

sealed, and the trim door assembly MUST be in place on the fireplace before the unit can be placed into safe operation.

DO NOT OPERATE this appliance with the glass

door removed, cracked, or broken. Replacement of the glass door should be performed by a licensed or qualified service person. DO NOT strike or slam the glass door.

Always KEEP the appliance clear and free from

combustible materials, gasoline, and other flammable vapors and liquids.

NEVER OBSTRUCT the flow of combustion and

ventilation air. Keep the front of the appliance CLEAR of all obstacles and materials for servicing and proper operations.

Due to the high temperature, the appliance should be LOCATED out of traffic areas and away from

furniture and draperies. Clothing or flammable material SHOULD NOT BE PLACED on or near the appliance.

Children and adults should be ALERTED to the

hazards of high surface temperature and should STAY AWAY to avoid burns or clothing ignition. Y oung children should be CAREFULL Y SUPERVISED when they are in the same room as the appliance.

The glass door assembly SHALL ONLY be

replaced as a complete unit, as supplied by the gas fireplace manufacturer. NO SUBSTITUTE material may be used.

DO NOT USE abrasive cleaners on the glass door

assembly. DO NOT ATTEMPT to clean the glass door when it is hot.

Turn off the gas before servicing this appliance. It is recommended that a qualified service technician

perform an appliance check-up at the beginning of each heating season.

Any safety screen or guard removed for servicing

must be replaced before operating this appliance.

DO NOT place furniture or any other combustible

household objects within 36 inches of the fireplace front.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Safety and Warning Information.................................................. 2

Service Parts List ......................................................................... 4

Approvals and Codes .................................................................. 9

Appliance Certification ................................................................................... 9

Installation Codes .......................................................................................... 9

Getting Started............................................................................ 10

Introducing the Quadra-Fire Gas Fireplaces ................................................. 10

Pre-install Preparation ................................................................................. 10

Installing the Fireplace............................................................... 13

Step 1. Locating the Fireplace .................................................................... 13

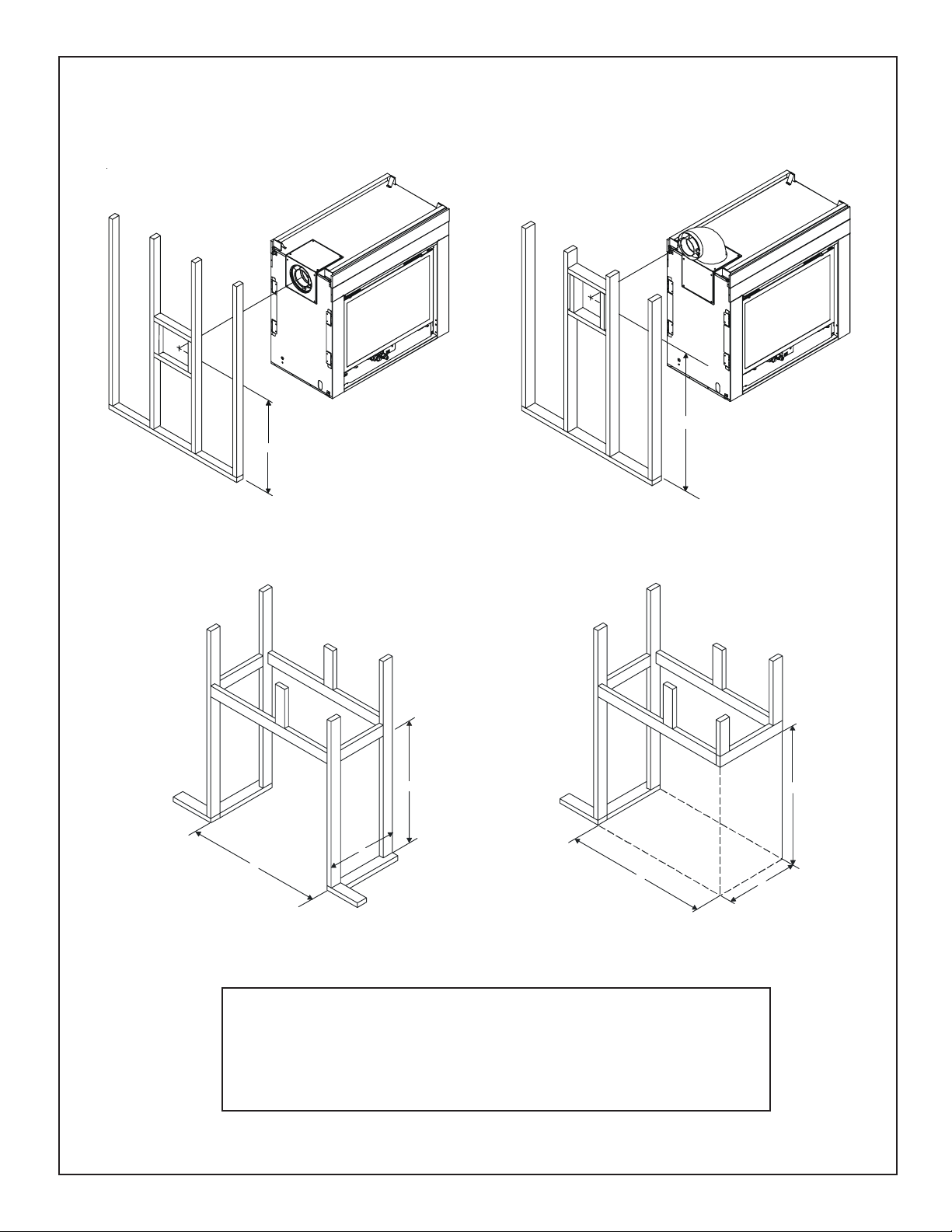

Step 2. Framing the Fireplace..................................................................... 14

Step 3. Inst alling the Vent System.............................................................. 17

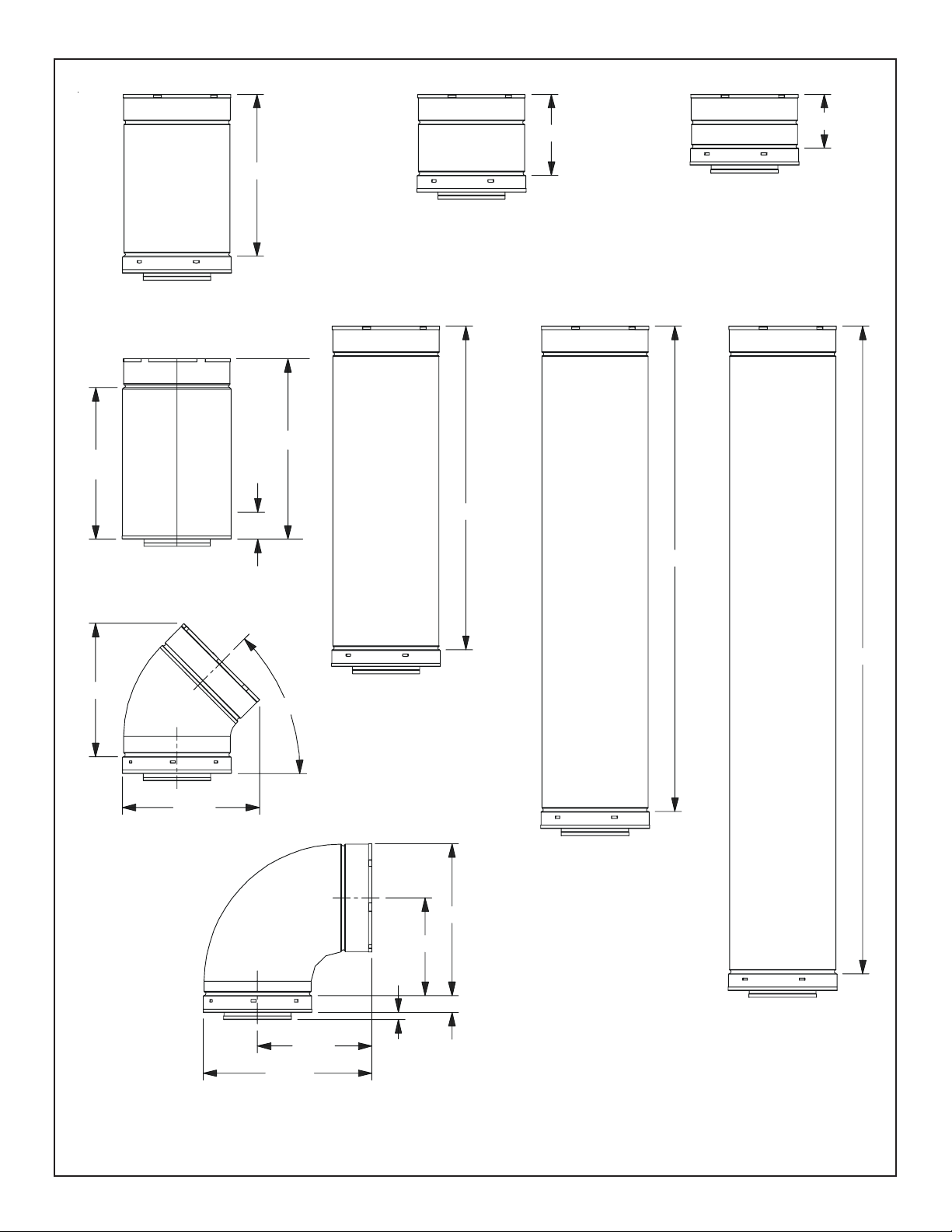

A. Vent System Approvals ......................................................... 17

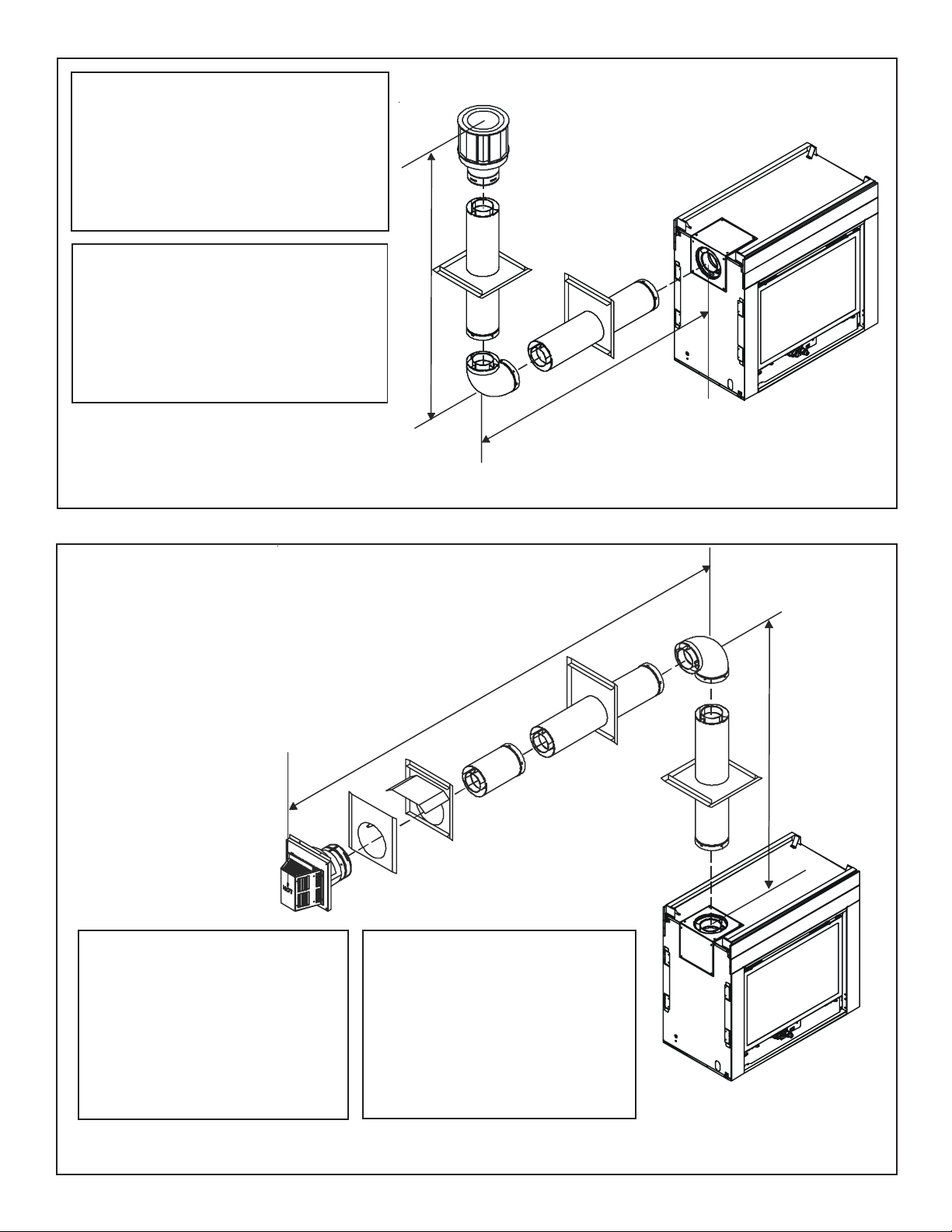

B. Installing V ent Components ................................................... 24

C. Vent Termination.................................................................... 26

Step 4. Positioning, Leveling, and Securing the Fireplace ........................... 29

Step 5. The Gas Control System ................................................................ 29

Step 6. The Gas Supply Line ...................................................................... 30

Step 7. Gas Pressure Requirement s........................................................... 30

Step 8. W iring the Fireplace........................................................................ 31

Step 9. Finishing......................................................................................... 33

Step 10. Inst alling T rim, Logs & Ember Material........................................... 34

Installing the Trim........................................................................ 34

Positioning the Logs ................................................................... 34

Shutter Settings.......................................................................... 34

Glass Specifications ................................................................... 34

Preparing Electric Ember Bed and Lava Rock ............................. 34

Placing the Ember Material ......................................................... 36

Ember Light Replacement........................................................... 37

Step 11. Before Lighting the Fireplace........................................................ 37

Step 12. Lighting the Fireplace ................................................................... 37

After the Installation..................................................................................... 37

Maintaining and Servicing Your Fireplace ................................ 38

Troubleshooting ......................................................................... 39

Warranty...................................................................................... 41

Î = Contains updated information.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Service Parts List

QV-Pier-HV-IPI

(NG, LP) Exploded Parts Diagram

Beginning Manufacturing Date: 6-03 Ending Manufacturing Date: ______

6 Log Assembly

Part number list on following page.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

SERVICE PARTS LIST

QV-PIER-HV-IPI

IMPORT ANT: THIS IS DA TED INFORMA TION. The most current information is located on your dealers VIP site. When ordering,

supply serial and model numbers to ensure correct service parts.

ITEM COMMON PART SERIAL # PART NUMBER

Burner Orifice NG (#33DMS) 582-833 Burner Orifice LP (#50DMS) 582-850

1 End Glass Assembly GLA-MS 2 Glass Door Assembly GLA-6TROC 3 Burner Assembly 2005-006 4Log Grate 2005-012

5 Side Refractory SRV2005-730 6 Log Set Assembly LOGS-MSR 7Log 1 SRV2005-701

8Log 2 SRV2005-700 9Log 3 SRV2005-702

10 Log 4 SRV2005-703

11 Log 5 SRV2005-704 12 Log 6 SRV2005-705 13 Log 7 SRV703-703

Andirons 80784

Lav a Rock Bag 2005-790 Flu e R estrictor 385-128

Teco-S il, 5 lb. bag 700-790 Mineral Wool 050-721

Fiberglass Rope 060-455 Bracket, Andiron 2005-149

Kapton , Lens 2005-165 Gl as s Latch Support Assembly 386-122A

Insullation Boar d (side) 2006-136 Insullation Boar d (end) 2006-137 Ember Mesh Assembly 2006-008

Junction Box 4021-013 3V Plug 593-593A Conversion Kit NG NGK-MS Conversion Kit LP LPK-MS Pilot Tube SRV485-301 Battery Pack 593-594A

ACCESSORIES

Fan Kit GFK-160A Remote Control Kit RC-SMART -H NG Remote Control Kit SMART-STAT-HNG Remote Control - Multi-functional RCT-MLT-HNG Wall Switch, Multi-functional WSK-MLT Plug Adapator Kit (f or WSK-MLT PLUG-ADP

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Service Parts

QV-ST-HV -IPI

(NG , LP) Exploded Parts Diagram

Beginning Manufacturing Date: 6-03

Ending Manufacturing Date: ______

5 Log Assembly

Part number list on following page.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

SERVICE PARTS LIST

QV-ST-HV-IPI

IMPORT ANT: THIS IS DA TED INFORMA TION. The most current information is located on your dealers VIP site. When ordering,

supply serial and model numbers to ensure correct service parts.

ITEM COMMON PART SERIAL # PART NUMBER

Burner Orifice NG (#32DMS) 582-832 Burner Orifice LP (#50DMS) 582-850

1 Glass Door Assembly GLA-6TROC 2 Bur ner Assembly 2005-006 3Log Grate 2005-012

4Side Refractory SRV2005-730 5 Log Set Assembly LOGS-MSR 6Log 1 SRV2005-701

7Log 2 SRV2005-700 8Log 3 SRV2005-702 9 Log 4 SRV2005-703

10 Log 5 SRV2005-704

11 Log 6 SRV2005-705

12 Log 7 SRV703-703

Andirons 80784

Lava Rock Bag 2005-790 Flue Restrictor 385-128

Teco-Sil, 5 lb. bag 700-790 Hood, Black SRV60-143-BK Glass Latch Support Assembly 386-122A

Mineral Wool 050-721 Fiberglass Rope 060-455

Bracket, Andiron 2005-149 Kapton, Lens 2005-165 Non-Combustible board 2005-172

Ember Mesh Assembly 2005-008

Junction Box 4021-013 3V Plug 593-593A Conversion Kit NG NGK-MS Conversion Kit LP LPK-MS Pilot Tube SRV485-301 Battery Pack 593-594A

ACCESSORIES

Fan Kit GFK-160A Remote C o ntrol K i t RC-SMART-HN G Remote C o ntrol K i t SMART-STAT-HNG Remote Control - Multi-functional RCT-MLT-HNG Wall Switch, Multi-functional WSK-MLT Plug Adapator Kit (for WSK-ML PLUG-ADP

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Service Parts

QV -PIER-HV-IPI

QV -ST-HV-IPI

(NG , LP) Exploded Parts Diagram

Beginning Manufacturing Date: 6-03 Ending Manufacturing Date: ______

ITEM DESCRIPTION SERIAL # PART NUMBER

1 ON/OFF Rocker Switch 060-511

2 ON/OFF Wire Assembly 060-521A 3Valve NG 750-500

3Valve LP 750-501 4 Flexible Gas Connector 2005-009 5 Module 593-592 6 Wi re Assembly 593-590A 7 Emb er Bo x Assemb ly 2005-114

8Pilot Assembly NG 385 -510A 8Pilot Assembly LP 385-511A 9 Pilot Bracket 2005-118

10 Gasket Orifice 2005-166

11 Valve Bracket 2005-120 12 F le x Ba ll V a lve As s embly 302-320A 13 Pilot Assembly Support 385-120 14 Ground Strap 385-512

Reg ulato r, NG NGK-DXV Regulator, LP LPK-DXV Pilot Tube 446-301 Orifice Spud NG 446-505 Orifice Spud LP 446-517

NOTE: Replacement bulbs to be supplied by homeowner. Recommended replacements: Sylvania Mini Candelabra 75 watts.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Approvals and Codes

Appliance Certification

The Quadra-Fire fireplace models discussed in this Installers Guide have been tested to certification standards and listed

by the applicable laboratories.

Certification

MODELS: QV-PIER-HV-IPI, QV-S T- HV -IPI LABORATORY: Underwriters Laboratories TYPE: V ented Gas Fireplace Heater STANDARD: ANSI Z21.88•CGA2.22•UL307B

Installation Codes

The fireplace installation must conform to local codes. Before installing the fireplace, consult the local building code agency to ensure that you are in compliance with all applicable codes, including permits and inspections.

In the absence of local codes, the fireplace installation must conform to the National Fuel Gas Code ANSI Z223.1 (in the United States) or the CAN/CGA-B149 Installation Codes (in Canada). The appliance must be electrically grounded in accordance with local codes or, in the absence of local codes with the National Electric Code ANSI/NFPA No. 70 (in the United St ates), or to the CSA C22.1 Canadian Electric Code (in Canada).

High Altitude Installations

U.L. Listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2,000 feet in the U. S. A. and in Canada.

When installing this appliance at an elevation above 2,000 feet, it may be necessary to decrease the input rating by changing the existing burner orifice to a smaller size. Input rate should be reduced by 4% for each 1000 feet above a 2000 foot elevation in the U.S.A. or 10% for elevations between 2000 and 4500 feet in Canada. If the heating value of the gas has been reduced, these rules do not apply . To identify the proper orifice size, check with the local gas utility.

If installing this appliance at an elevation above 4,500 feet (in Canada), check with local authorities.

These models may be installed in a bedroom or bed-sitting room in the U.S.A. and Canada.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Getting Started

Introducing the Quadra-Fire Gas Fireplaces

Quadra-Fire direct vent gas fireplaces are designed to operate with all combustion air siphoned from outside of the building and all exhaust gases expelled to the outside.

The information contained in this Installers Guide, unless noted otherwise, applies to all models and gas control systems. Gas fireplace diagrams, including the dimensions, are shown in this section.

Pre-install Preparation

This gas fireplace and its components are tested and safe when installed in accordance with this Installers Guide. Report to your dealer any parts damaged in shipment, particularly the condition of the glass. Do not install any

unit with damaged, incomplete, or substitute parts.

The vent system components are shipped in separate packages. The gas logs are packaged separately and must be field installed.

Read all of the instructions before starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and benefit. Failure to follow these instructions will void the owner’s warranty and may present a fire hazard.

The Quadra-Fire Warranty will be voided by , and QuadraFire disclaims any responsibility for, the following actions:

• Installation of any damaged fireplace or vent system component.

• Modification of the fireplace or direct vent system.

• Installation other than as instructed by Quadra-Fire.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not manufactured and approved by Quadra-Fire, not withstanding any independent testing laboratory or other party approval of such component part or accessory .

ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE HAZARD.

When planning a fireplace installation, it’s necessary to determine:

• Where the unit is to be installed.

• The vent system configuration to be used.

• Gas supply piping.

• Electrical wiring.

• Framing and finishing details.

• Whether optional accessories—devices such as a fan,

wall switch, or remote control—are desired.

If the fireplace is to be installed on carpeting or tile, or on any combustible material other than wood flooring, the fireplace should be installed on a metal or wood panel that extends the full width and depth of the fireplace.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

5-1/4

(133mm)

(13mm)

(306mm)

Ø8

(205mm)

1/2

34-3/4

(883mm)

4-1/16

(102mm)

4-1/2

(114mm)

(305mm)

TOP VENT

COLLARS

Ø8

(205mm)

ELECTRICAL

ACCESS

(121mm)

GAS LINE

ACCESS

2-5/16

(58mm)

4-3/4

(1067mm)

TOP STANDOFFS

42-5/8

(1082mm)

32-5/16

(820mm)

37-7/16

(950mm)

21-9/16

(547mm)

(610mm)

REAR VENT

COLLARS

17-15/16 (455mm)

21-9/16

(547mm)

GAS CONTRO LS

& LABELS

Figure 1. Diagram of the QV-PIER-HV -IPI

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

SIDE GLASS

DOOR

ELECTRICAL

ACCESS

GAS LINE ACCESS

34-3/4

(882mm)

(305mm)

Ø8

(205mm)

ELECTRICAL

ACCESS

GAS LINE

ACCESS

(306mm)

Ø8

(205mm)

(1067mm)

5-14

(133mm)

46-5/8

(1183mm)

32-5/16

(821mm)

21-9/16

(548mm)

8-1/2

(216mm)

1/2

(13mm)

(4)

4-1/2

(114mm)

4-1/16

(102mm)

4-1/2

(114mm)

2-5/16

(58mm)

4-3/4

(121mm)

Figure 2. Dimensions of the QV-ST-HV-IPI

TOP VENT

COLLARS

TOP STANDOFFS

36-3/16

(919mm)

(610mm)

REAR VENT

COLLARS

2-9/16

(64mm)

GAS CONTROLS

& LABELS

Figure 3. Diagram of the QV -ST-HV-IPI

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

SIDE GLASS

DOOR

ELECTRICAL

ACCESS

GAS LINE ACCESS

Installing the Fireplace

Step 1. Locating the Fireplace

The diagram below shows space and clearance requirements for locating a fireplace within a room.

Note: Refer to Figure 4B for dimensions and appliance

locations if installing a QV-PIER-HV unit with a Catalina shelf and/or marble package.

GLASS

36"

QV-PIER-HV-IPI

TOP VIEW

GLASS

36"

GLASS

36"

Note: This location diagram MUST be followed when installing a QV-Pier-HV with a Cat alina shelf/marble package since the fireplace is installed further from finished wall.

FINISHED

WALL

45 -1/4 in. (1149mm)

50-1/2 in.

34-1/2 in.

36"

QV-ST-HV-IPI

TOP VIEW

36"

Figure 4A. Fireplace Dimensions and Locations

Note: Refer to the Catalina installation instruction included with kit for assembly and installation.

GLASS

7 in.

47-1/ 2 in .

13/16 in.

45-1/4 in.

Marble sizes (inches):

Header.................................. 26 x 8

Side headers .................. 45-1/2 x 8

Legs ................................ 33-1/2 x 7

Figure 4B.

Clearance Requirements

The top, back, and sides of the fireplace are defined by stand-offs. The minimum clearance to a perpendicular wall extending past the face of the fireplace is one inch (25 mm). The metal ends of the fireplace may NOT be recessed into combustible construction.

Fireplace Locations/Dimensions with

Catalina Shelf/Marble Package ONL Y

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Minimum Clearances

from the Fireplace to Combustible Materials

Inches mm

Glass Sides or Ends.......... 36 .................... 91 4

Floor ................................... 0 ....................... 0

Rear Vent...........................1/2 ..................... 13

Metal Sides or Ends ..........1/2 ..................... 13

Top................................... 2 1/2 ................... 64

Ceiling* ..............................31 .................... 787

* The clearance to the ceiling is measured from the top of

the unit, excluding the standoffs (see Figures 35 & 36).

The distance from the unit to combustible construction is to be measured from the unit outer wrap surface to the combustible construction, NOT from the screw heads that secure the unit together.

Minimum Clearances

from the Vent Pipe to Combustible Materials

Step 2. Framing the Fireplace

Fireplace framing can be built before or after the fireplace is set in place. Framing should be positioned to accommodate wall coverings and fireplace facing material. The diagram below shows framing reference dimensions.

CAUTION: MEASURE FIREPLACE DIMENSIONS AND VERIFY FRAMING METHODS AND WALL COVERING DET AILS BEFORE FRAMING .

WARNING: FRAMING DIMENSIONS ASSUME

USE OF 1/2 INCH THICK WALL COVERING MA TERIALS ON EXTERIOR OF FRAMING ONL Y AN D NO SHEETROCK ON INTERIOR OF FRAMING .

Inches mm

Vertical Sections. ............. 1 ................ 25

Horizontal Sections

Top..................................... 3 ................ 75

Bottom ............................... 1 ................ 25

Sides ................................. 1 ................ 25

At Wall Firestops

Top.................................. 2 1/2 ............63.7

Bottom ..............................1/2............... 13

Sides ................................. 1 ................ 25

For minimum clearances, see the direct vent termination clearance diagrams on pages 25 and 26 in this manual.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Shows center of 10” x 12” vent framing holes for top and rear venting. The center of the hole is one inch (25.4mm) above the center of the horizontal vent pipe.

Framing should be constructed of 2 X 4 lumber or heavier .

QV-ST-HV-IPI

QV-PIER-HV-IPI

Model A B C D E

QV-PIER-HV-IPI 42-1/8 42-1/2 23 35-3/4 48 QV-ST-HV -IPI 47-5/8 42-1/2 23 35-3/4 48

Figure 5. Framing Dimensions

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

NOTE: DIMENSIONS SHOWN IN INCHES

12-3/16

MAX.

DVP12

MIN.

DVP4

DVP6

14-1/4

9-7/8

DVP12A

10-1/4

DVP45

45.0

DVP24

DVP36

11-1/4

7-1/4

1-1/4 TYP

DVP48

1/2 TYP

NOTE: PIPES OVERLAP 1-1/4 INCHES

AT EACH JOINT.

12-9/16

8-9/16

Figure 6. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Step 3. Installing the Vent System

A. Vent System Approvals

These models are approved to use DVP series direct vent pipe components and terminations (see Figures 6 and 7). Approved vent system components are labeled for identification. This pipe is tested and listed as an approved component of the fireplace. The pipe is tested to be run inside an enclosed wall. There is no requirement for inspection openings at each joint within the wall. There is no required pitch for horizontal vent runs. NO OTHER VENTING SYS- TEMS OR COMPONENTS MA Y BE USED.

Detailed installation instructions are included with each vent termination kit and should be used in conjunction with this Installers Guide.

The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used.

Identifying Vent Component s

The vent systems installed on this gas fireplace may include one, two, or three 90°

elbow assemblies. The relationships of vertical rise to horizontal run in vent configurations using 90° elbows MUST BE strictly adhered to. The rise to run relationships are shown in the venting drawings and tables. Refer to the diagrams on the next several pages.

NOTE: Two 45° elbows may be used in place of one 90° elbow. Rise to run ratios in the vent system must be followed if 45° elbows are used.

This model has 45

elbow built into this unit. It may be positioned to vent either horizontal or vertical. Depending on the installation, decide which direction the elbow should be facing. Remove the 8 screws from the corner cover plate. Position the 450 elbow as desired and replace the corner cover plate with the 8 screws.

T ermination kits

VERTICAL TERMINATION

HORIZONTAL TERMINATION

STORM COLLAR

ROOF FLASHING

WALL FIRESTOP

PIPE LEN GTH

90 DEGREE ELBOW

CEILING FIRESTOP

DVP-TB1

DVK-01D DVK-TVCD

DVP-TRAP

DVP-TVHW

PVK-80

(IPI models only)

Figure 7. V ent System Components and Termination Kits

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

STRAIGHT UP

VERTICAL VENTING

V (FT.)

50' MAX. (15.2 M)

CAP

BREAK

HERE

NOTE: On vertical venting

configurations you may want to install the flue restrictor (385-128). See flue restrictor installation instructions.

Figure 8

Flue Restrictor Instructions

1. Locate the flue restrictor which is in the manual

bag.

Figure 10. Flue Restrictor

3. Match the amount of

vertical you have in the system with the chart to find the appropriate position to set the Flue Restrictor.

- CHART -

Vertical Settings

4' 1-1

8' 1-2 15' 2-2 20' 2-3 25' 3-3 30' 4-3 35' 4-4 40' 4-4 50' 4-5

4.Center the Flue Restrictor on vent and secure in place using two self-tapping screws (see Figure 11).

1 2 3 4 5

SETTINGS

FLUE

RESTRICTOR

Figure 9

2. Break the Flue Restrictor into two pieces. Do this

by bending the part back and forth until it breaks (see Figure 10).

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Figure 11

1 2 3 4 5

STRAIGHT OUT

HORIZONT AL VENTING

Max. Run

24" (610 mm)

Figure 12.

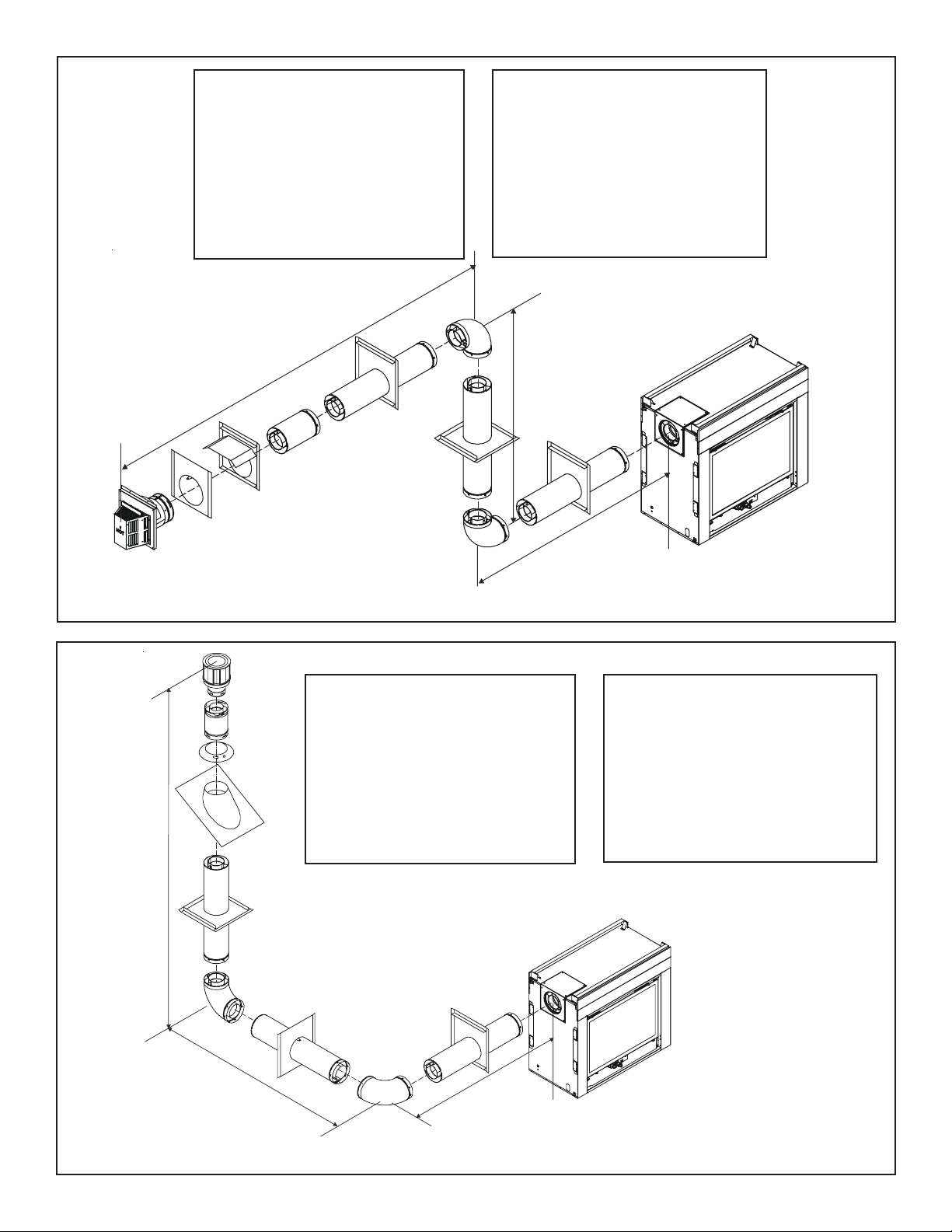

NATURAL GAS - VENTING WITH ONE 90° ELBOW

V (FT.) H (FT.)

1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

V + H = 50’ MAX. (15.2m)

PROPANE - VENTING WITH ONE 90° ELBOW

(11.3m)

V (FT.) H (FT.)

1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

V + H = 50’ MAX. (15.2m)

Figure 13. Venting with One 90° Elbow

NATURAL GAS

VENTING WITH ONE 90° ELBOW

V (FT.) H (FT.)

900 Elbow on top 2.5’ MAX. (64mm) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

V + H = 50’ MAX. (15.2m)

PROP ANE

VENTING WITH ONE 90° ELBOW

V (FT.) H (FT.)

900 Elbow on top 2’ MAX. (610mm) 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

V + H = 50’ MAX. (15.2m)

Figure 14. Venting with One 90° Elbow

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

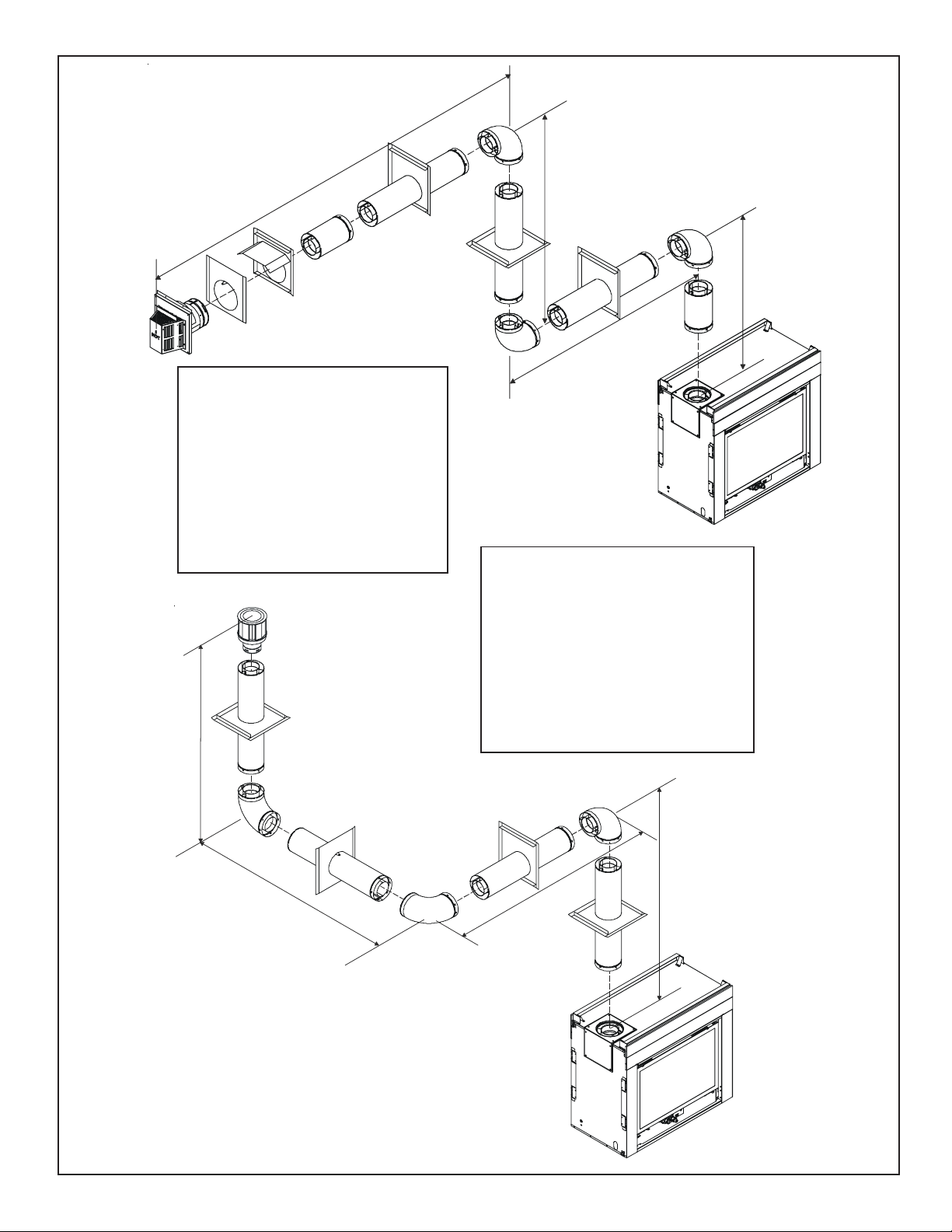

NATURAL GAS

VENTING WITH TWO 90° ELBOWS

V (FT.) H + H

(FT.)

V + H + H

= 50’ MAX. (15.2m)

H + H1 = 18’ MAX. (5.5m)

PROP ANE

VENTING WITH TWO 90° ELBOWS

V (FT.) H + H

(FT.)

V + H + H1 = 50’ MAX. (15.2m)

H + H1 = 12’ MAX. (3.6m)

NATURAL GAS

VENTING WITH TWO 90° ELBOWS

V + V

(FT.) H (FT.)

V + V1 + H = 50’ MAX. (15.2m)

PROP ANE

VENTING WITH TWO 90° ELBOWS

V + V

(FT.) H (FT.)

V + V1 + H = 50’ MAX. (15.2m)

Figure 15. Venting with Two 90° Elbows

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

NATURAL GAS

VENTING WITH TWO 90° ELBOWS

V (FT.) H + H

(FT.)

1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

V + H + H1 = 50’ MAX. (15.2m)

H + H1 = 18’ MAX. (5.5m)

PROP ANE

VENTING WITH TWO 90° ELBOWS

V (FT.) H + H

(FT.)

1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

V + H + H1 = 50’ MAX. (15.2m)

H + H1 = 12’ MAX. (3.6m)

Figure 16. Venting with Two 90° Elbows

NATURAL GAS

VENTING WITH TWO 90° ELBOWS

V (FT.) H + H

(FT.)

1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

V + H + H1 = 50’ MAX. (15.2m)

H + H1 = 18’ MAX. (5.5m)

PROP ANE

VENTING WITH TWO 90° ELBOWS

V (FT.) H + H

(FT.)

1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

V + H + H1 = 50’ MAX. (15.2m)

H + H1 = 12’ MAX. (3.6m)

Figure 17. Venting with Two 90° Elbows

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

NATURAL GAS

VENTING WITH THREE 90° ELBOWS

V + V

(FT.) H + H1 (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

+ H + H1 = 50’ MAX. (15.2m)

V+ V

VENTING WITH THREE 90° ELBOWS

V + V

(FT.) H + H1 (FT.) 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

V+ V1

H + H1 = 18’ MAX. (5.5m)

PROPANE

+ H + H1 = 50’ MAX. (15.2m)

H + H1 = 12’ MAX. (3.6m)

NATURAL GAS

VENTING WITH THREE 90° ELBOWS

V + V

(FT.) H + H1 + H2 (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

V+ V1 + H + H1 + H2 = 50’ MAX. (15.2m)

H + H

= 18’ MAX. (5.5m)

+ H

PROP ANE

VENTING WITH THREE 90° ELBOWS

V + V

(FT.) H + H1 + H2 (FT.) 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

V+ V1 + H + H1 + H2 = 50’ MAX. (15.2m)

H + H

= 12’ MAX. (3.6m)

+ H

Figure 18. Venting with three 90° elbows

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

NATURAL GAS

VENTING WITH THREE 90° ELBOWS

V + V

(FT.) H + H1 (FT.) 900 Elbow on top 2.5’ MAX. (64mm) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.83m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5’ MIN. (1.5m) 15’ MAX. (4.5m) 6’ MIN. (1.83m) 18’ MAX. (5.5m)

V+ V1 + H + H1 = 50’ MAX. (15.2m)

H + H1 = 18’ MAX. (5.5m)

PROPANE

VENTING WITH THREE 90° ELBOWS

V + V

(FT.) H + H1 (FT.) 900 Elbow on top 2’ MAX. (610mm) 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6’ MAX. (1.83m) 4' MIN. (1.22m) 8' MAX. (2.4m) 5’ MIN. (1.5m) 10' MAX. (3.0m) 6’ MIN. (1.83m) 12' MAX. (3.6m)

+ H + H1 = 50’ MAX. (15.2m)

V+ V1

H + H1 = 12’ MAX. (3.6m)

Figure 19. Venting with three 90° elbows

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

B. Installing V ent Component s

After determining which direction the 45O elbow will be used follow venting instructions accordingly .

• This fireplace comes ready to vent horizontally .

• T o vent off the unit vertically , the elbow cover plate must first be removed from the unit (see Figure 20).

• The elbow can be removed from the unit by aligning the seams of the elbow to the arrows on the surrounding heat shield (see Figure 21).

• Position the elbow in the vertical position. Snap in place with the starting collar.

• Replace the elbow cover plate aligning it with the elbow and secure in place with the 8 screws.

• Place rope ring around the first section of pipe and slide it up against the cover plate.

NOTE: The rope ring is required for the heat management and to prevent cold air infiltration.

ELBOW COVER P L ATE

Venting Out Vertically

If your vertical vent component is over 4 feet, you may want to install the flue restrictor (located in the bag containing the install manual) to improve flame appearance. Center the flue restrictor on the 5” flue being used, and with self tapping screws secure the restrictor to the inside of the firebox as shown in Figure 22.

FLUE

RESTRICTOR

Figure 20

HEAT

SHIELD

ARROWS

ELBOW

SEAM

Figure 22

1. Att ach the First Vent Component to the Starting Collars

To attach the first vent component to the starting collars of the fireplace:

• Slide the first vent section onto the unit and push in until they snap lock in position.

• Rotate this section to the desired position.

• Using the two tabs provided on the elbow cover plate, secure the first section of venting to the fireplace with two screws.

Refer to Cinch Pipe and Termination Cap installation instructions.

If the installation is for a termination cap attached directly to the fireplace, skip to the sections, Install Firestops and

Vent Termination.

Figure 21

FRONT VIEW

TOP VIEW

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

2. Continue Adding V ent Component s

Refer to Cinch Pipe and Termination Cap installation instructions.

• Continue adding vent components, locking each succeeding component into place.

• Ensure that each succeeding vent component is securely fitted and locked into the preceding component in the vent system. Securing pipe sections with a maximum of two screws is recommended.

• 90° elbows may be installed and rotated to any point around the preceding component’s vertical axis. If an elbow does not end up in a locked position with the preceding component, attach with a minimum of two (2) sheet metal screws.

3. Install Support Brackets

Refer to Cinch Pipe and Termination Cap installation instructions.

4. Install Firestops For Horizontal Runs - Firestops are REQUIRED on both

sides of a combustible wall through which the vent passes.

NOTE: Model DVP-TRAP does not need an exterior firestop on an exterior combustible wall. The firestop is built into the cap.

T o install firestops for horizontal runs that p ass through either interior or exterior walls:

• Cut a 10” x 12” (254mm X 305mm) hole through the wall.

NOTE: The center of the hole is one (1) inch (25.4mm) above the center of the horizontal vent pipe.

• Position the firestops on both sides of the hole previously cut and secure the firestops with nails or screws.

• The heat shields of the firestops MUST BE placed towards the top of the hole.

• Continue the vent run through the firestops.

10"

INTERIOR

WALL SHIELD

12"

Figure 23. 10" x 12" Hole and Vent Pipe

HEAT SHIELD

INTERIOR FIRESTOP

TRIM HEAT SHIELD IF TOO LONG, ADD TO SHIELD IF TOO SHORT

EXTERIOR FIRESTOP

Figure 24 Heat Shield, Interior & Exterior Firestops

NOTE: There must be NO INSULA TION or other combustibles inside the framed firestop opening.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

For Vertical Runs - One ceiling firestop is REQUIRED at the hole in each ceiling through which the vent passes.

T o install firestops for vertical runs that pass through ceilings:

• Position a plumb bob directly over the center of the vertical vent component.

• Mark the ceiling to establish the centerpoint of the vent.

• Drill a hole or drive a nail through this centerpoint.

• Check the floor above for any obstructions, such as wiring or plumbing runs.

• Reposition the fireplace and vent system, if necessary, to accommodate the ceiling joists and/or obstructions.

• Cut an 10-inch X 10-inch (254mm x 254mm) hole through the ceiling, using the centerpoint previously marked.

• Frame the hole with framing lumber the same size as the ceiling joists.

10" (254mm) 10" (254mm)

NOTE: There must be NO INSULA TION or other combustibles inside the framed firestop opening.

CHIMNEY HOLE

EXISTING CEILING JOISTS

CEILING

NEW FRAMING MEMBERS

Figure 25 Hole & New Framing Members

If the area above the ceiling is NOT an attic, position and secure the ceiling firestop on the ceiling side of the previously cut and framed hole.

JOIST

CEILING

C. Vent Termination For Horizontal Terminations - To attach and secure the

termination to the last section of horizontal vent refer to the Cinch Pipe and Termination Cap installation instructions.

• Push on and snap lock as described at the beginning of the Installing Vent Components section.

• The termination kit should pass through the wall firestops from the exterior of the building.

• Adjust the termination cap to its final exterior position on the building and interlock the flue sections.

WARNING: THE TERMINA TION CAP MUST BE POSITIONED SO THAT THE ARROW IS

POINTING UP .

For trapezoidal cap termination kits:

• Using screws secure the cap to the exterior wall through the flanges in the cap.

WARNING: VENTING TERMINALS SHALL

NOT BE RECESSED INTO A W ALL OR SIDING . VENT TERMINA TION CLEARANCES MUST BE FOLLOWED TO AVOID FIRE DANGER. SEE VENT TERMINA TION MINIMUM CLEARANCES DIAGRAM ON FOLLOWING P AGE.

NAILS (4 REQUIRED )

CEILING FIRESTOP

Figure 26. Ceiling Firestop (Ceiling Side)

If the area above the ceiling IS an attic, position and secure the firestop on top of the previously framed hole.

NOTE: Keep insulation away from the vent pipe at least 1 inch (25mm).

NAILS (4 REQUIRED)

RAFTER

CEILING

7 1/4"

(184mm)

Figure 28. Trapezoid Termination Cap

CEILING FIRESTOP

Figure 27. Attic Firestop

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

= VENT TERMINAL

= AIR SUPPLY INLET

A = 12" ....................... clearances above grade, veran-

(See Note 1)

da, porch, deck or balcony

B = 12" ....................... clearances to window or door

that may be opened, or to permanently closed window.

D* = 18" ....................... vertical clearance to unventilat-

ed soffit or to ventilated soffit located above the terminal

*30” min. .............. for vinyl clad soffits and below

electrical service

F = 9" ........................ clearance to outside corner

G = 6" ......................... clearance to inside corner

H = 3 ft. (Canada) ...... not to be installed above a gas

meter/regulator assembly within

3 feet (90cm) horizontally from the

center-line of the regulator I = 3 ft. (U.S.A.)

6 ft. (Canada) ...... clearance to gas service regu-

lator vent outlet J = 9" (U.S.A.)

12" (Canada) ........ clearance to non-mechanical air

supply inlet to building or the

combustion air inlet to any other

appliance

U.S.

(3 FT)

J or K

(See Note 2)

Electrical

Service

= AREA WHERE TERMINAL IS NOT PERMITTED

K = 3 ft. (U.S.A.)

6 ft. (Canada) ......... clearance to a mechanical

air supply inlet

L** = 7 ft. ......................... clearance above paved

(See Note 1)

sidewalk or a paved driveway located on

public property

M*** = 18" ......................... clearance under veranda,

porch, deck or balcony

N = 6” ........................... non-vinyl sidewalls

12” ......................... vinyl sidewalls

O = 18” ......................... non-vinyl soffit and overhang

42” ......................... vinyl soffit and overhang

P = 8 ft.

______________________________________________________________________

1 cap 3 feet 2 x Q

______________________________________________________________________

2 caps 6 feet 1 x Q

______________________________________________________________________

3 caps 9 feet 2/3 x Q

______________________________________________________________________

MIN

4 caps 12 feet 1/2 x Q

= # termination caps x 3 R

MIN

= (2 / # termination caps) x Q

MAX

ACTUAL

S = 6" MIN................... clearance from sides of elec-

(See Note 5)

trical service

T = 12" MIN. ................ clearance above electrical

(See Note 5)

service

** a vent shall not terminate directly above a sidewalk or paved

driveway which is located between two single family dwellings and serves both dwellings.

*** only permitted if veranda, porch, deck or balcony is fully open on

a minimum of 2 sides beneath the floor.

NOTE 1: On private property where termination is less than 7 feet above a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap shield is suggested.

NOTE 2: Termination in an alcove space (spaces open only on one side and with an overhang) are permitted with the dimensions specified for vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum between termination caps. 2. All mechanical air intakes within 10 feet of a termination cap must be a minimum of 3 feet below the termination cap. 3. All gravity air intakes within 3 feet of a termination cap must be a minimum of 1 foot below the termination cap.

Figure 29. Vent Termination Minimum Clearances

NOTE 3: Local codes or regulations may require different

clearances. NOTE 4: T ermination caps may be hot. Consider their proximity to

doors or other traffic areas. NOTE 5: Location of the vent termination must not interfere with

access to the electrical service. WARNING: In the U.S: V ent system termination is NOT permitted

in screened porches. You must follow side wall, overhang and ground clearances as stated in the instructions.

In Canada: Vent system termination is NOT permitted in screened porches. Vent system termination is permitted in porch areas with two or more sides open. You must follow all side walls, overhang and ground clearances as stated in the instructions.

Quadra-Fire assumes no responsibility for the improper performance of the fireplace when the venting system does not meet these requirements.

CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

For Vertical Terminations - To locate the vent and inst all

the vent sections:

• Locate and mark the vent centerpoint on the underside of the roof, and drive a nail through the centerpoint.

• Make the outline of the roof hole around the centerpoint nail.

• The size of the roof hole framing dimensions depend on the pitch of the roof. There MUST BE a 1-inch (25.4mm) clearance from the vertical vent pipe to combustible materials.

• Mark the roof hole accordingly.

T o seal the roof hole, and to divert rain and snow from the vent system:

• Attach a flashing to the roof using nails, and use a nonhardening mastic around the edges of the flashing base where it meets the roof.

• Attach a storm collar over the flashing joint to form a water-tight seal. Place non-hardening mastic around the joint, between the storm collar and the vertical pipe.

• Slide the termination cap over the end of the vent pipe and snap into place.

• Cover the opening of the installed vent pipes.

• Cut and frame the roof hole.

• Use framing lumber the same size as the roof rafters and install the frame securely . Flashing anchored to the frame must withstand heavy winds.

• Continue to install concentric vent sections up through the roof hole (for inside vent installations) or up past the roof line until you reach the appropriate distance above the roof (for outside terminations).

WARNING: MAJOR U.S. BUILDING CODES

SPECIFY MINIMUM CHIMNEY AND/OR VENT HEIGHT ABOVE THE ROOF TOP. THESE MINIMUM HEIGHTS ARE NECESSARY IN THE INTEREST OF SAFETY . SEE THE FOLLOWING DIAGRAM FOR MINIMUM HEIGHTS, PROVIDED THE TERMINA TION CAP IS A T LEAST 20 INCHES FROM A VERTICAL WALL AND 2-FEET BELOW A HORIZONT AL OVERHANG.

NOTE: This also pertains to vertical vent systems installed on the outside of the building.

HORIZONTAL

2 FT. MIN.

TERMINATION

CAP

20 INCH MIN.

LOWEST

DISCHARGE

OPENING

ROOF PITCH

H (MIN.) - MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHAR GE OPENING

Roof Pitch H (min.) ft.

flat to 6/12 1.0 over 6/12 to 7/12 1.25 over 7/12 to 8/12 1.5 over 8/12 to 9/12 2.0 over 9/12 to 10/12 2 .5 over 10/12 to 1 1/12 3.25 over 1 1/12 to 12/12 4.0 over 12/12 to 14/12 5.0 over 14/12 to 16/12 6.0 over 16/12 to 18/12 7.0 over 18/12 to 20/12 7.5 over 20/12 to 21/12 8.0

OVERHANG

ERTICAL

WALL

IS X/ 12

Figure 30. Minimum Height from Roof to Lowest Discharge Opening

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Step 4. Positioning, Leveling, and Securing the Fireplace

The diagram below shows how to properly position, level, and secure the fireplace.

Step 5. The Gas Control System

WARNING: THIS UNIT IS NOT FOR USE WITH

SOLID FUEL.

NAILING

TABS

(BOTH SIDES)

IPI PILOT

FLAME

SENSOR

ROD

Figure 32. Gas Control System

Intermittent Pilot Ignition (IPI) System

This system includes a 3V control valve, electronic module and intermittent pilot.

WARNING: CONTINUOUS 110-120 VAC

SERVICE MUST BE WIRED DIRECTLY TO

THE FIREPLACE JUNCTION BOX IN A IPI SYSTEM.

Figure 31. Proper Positioning, Leveling, and Securing of a Fireplace

• Place the fireplace into position.

• Level the fireplace from side to side and from front to back.

• Shim the fireplace with non-combustible material, such as sheet metal, as necessary.

• Secure the fireplace to the framing by nailing or screwing.

• Holes are provided in the base pan for securing the unit to the floor.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Step 6. The Gas Supply Line

NOTE: Have the gas supply line installed in accordance with local building codes by a qualified installer approved and/or licensed as required by the locality . (In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter).

NOTE: Before the first firing of the fireplace, the gas supply line should be purged of any trapped air.

NOTE: Consult local building codes to properly size the gas supply line leading to the 1/2 inch (13 mm) hook-up at the unit.

This gas fireplace is designed to accept a 1/2 inch (13 mm) gas supply line.

To install the gas supply line:

• A listed (and Commonwealth of Massachusetts approved) 1/2 inch (13mm) tee-handle manual shut-off valve and a listed flexible gas connector are connected to the 1/2 inch (13mm) inlet of the control valve. NOTE: If substituting for these components, please consult local codes for compliance.

• Locate the gas line access hole in the outer casing of the fireplace.

• The gas line may be run from either side of the fireplace provided the hole in the outer wrap does not exceed 2” in diameter and it does not penetrate the actual firebox.

• Open the fireplace lower grille, insert the gas supply line through the gas line hole, and connect it to the shut-off valve.

• When attaching the pipe, support the control so that the lines are not bent or torn.

• After the gas line installation is complete, all connections must be tightened and checked for leaks with a commercially-available, non-corrosive leak check solution. Be sure to rinse off all leak check solution following testing.

WARNING: DO NOT USE AN OPEN FLAME

TO CHECK FOR GAS LEAKS.

• Insert insulation from the outside of the fireplace and pack the insulation tightly to totally seal between the pipe and the outer casing.

USE A WRENCH ON SHUT-OFF VALVE WHEN TIGHTENING GAS LINE.

MANUAL

SHUT-OFF

VALVE

FLEX CONNECTOR

GAS VALVE

GAS LINE

ACCESS

CONTROL VALVE

Figure 33. Gas Supply Line

Step 7. Gas Pressure Requirements

Pressure requirements for Quadra-Fire gas fireplaces are shown in the table below.

Pressure Natural Gas Propane

Minimum 5.0 inches 11.0 inches Inlet Pressure w .c. w.c.

Maximum Inlet 14.0 inches 14.0 inches Gas Pressure w.c. w.c.

Manifold 3.5 inches 10.0 inches Pressure w.c. w.c.

A one-eighth (1/8) inch (3 mm) N.P.T. plugged tapping is provided on the inlet and outlet side of the gas control for a test gauge connection to measure the manifold pressure.

The fireplace and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of one-half (1/2) psig (3.5 kPa).

The fireplace must be isolated from the gas supply piping system by closing its individual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than one-half (1/2) psig (3.5 kPa).

• At the gas line access hole the gap between the supply piping and gas access hole can be plugged with noncombustible insulation to prevent cold air infiltration.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

PLUG-IN

3V TRANSFORMER

ON/OFF

WALL SWITCH

FLAME SPARKER/

SENSOR

IGNITION MODULE

(3V)

GROUND

LOW VOL TAGE

SEE NOTE 1

REMOTE CONTROL

VALVE

NEUTRAL

Note: An alternate electronic ember

switch can be installed on the wall by connecting a minimum 18 gage Romex™ to the leads supplied on the back of the electric ember switch.

HOT

ELECT RO NIC EMBERS

BULB SOCKET ASSEMBLY (3)

BLK

IGNITION MODULE 3 VAC

BLK

WHT

BLK

WHT

BRN

SCALE 1/1

TERMINAL BLOCK

FLAME ON/OFF

TRANSFORMER

WHT

3 VA C

GROUND TO FIREPLACE CHASSIS

BRN

WHT

ORG

INTERMITTENT PILOT IGNITOR

ORG

GRN

BLACK WIRE CAN BE

PLUGGED INT O A NY OF

#1 - #5 LOCATIONS ON THE HOT SIDE

Figure 34. Intermittent Pilot Ignition (IPI) Wiring Diagram

Step 8. Wiring the Fireplace

NOTE: Electrical wiring must be installed by a licensed electrician.

CAUTION: DISCONNECT REMOTE CONTROLS IF ABSENT FOR EXTENDED TIME PERIODS. THIS WILL PREVENT ACCIDENT AL FIREPLACE OPERA TION.

For Intermittent Pilot Ignition Wiring

Appliance Requirements

This appliance requires that 1 10-120 VAC be wired to the junction box. Maintain correct polarity when wiring the junction box.

WHITE WI RE CAN BE PLUGGED INTO ANY OF #1 - #5 LOCATIONS ON THE NEUTRAL SIDE

PLUG IN

LCOR & RCOR JUNCTION BOX

VALVE

Operation using Battery Power

This fireplace has an optional battery operation. The system is fully functional with the use of two “D” size batteries without ordinary 1 10-120 V AC power.

Wiring to the battery pack should be left disconnected in order to conserve battery life. In the case of a loss of power, simply connect red and black wire leads to activate battery power (connect red to red, black to black). The fireplace can be used as necessary. Once power (110 VAC) is restored, disconnect red and black wire leads to extend battery life.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

TEMPERATURE

SENSOR SWITCH

SPEED CONTRO L

(RHEOSTAT)

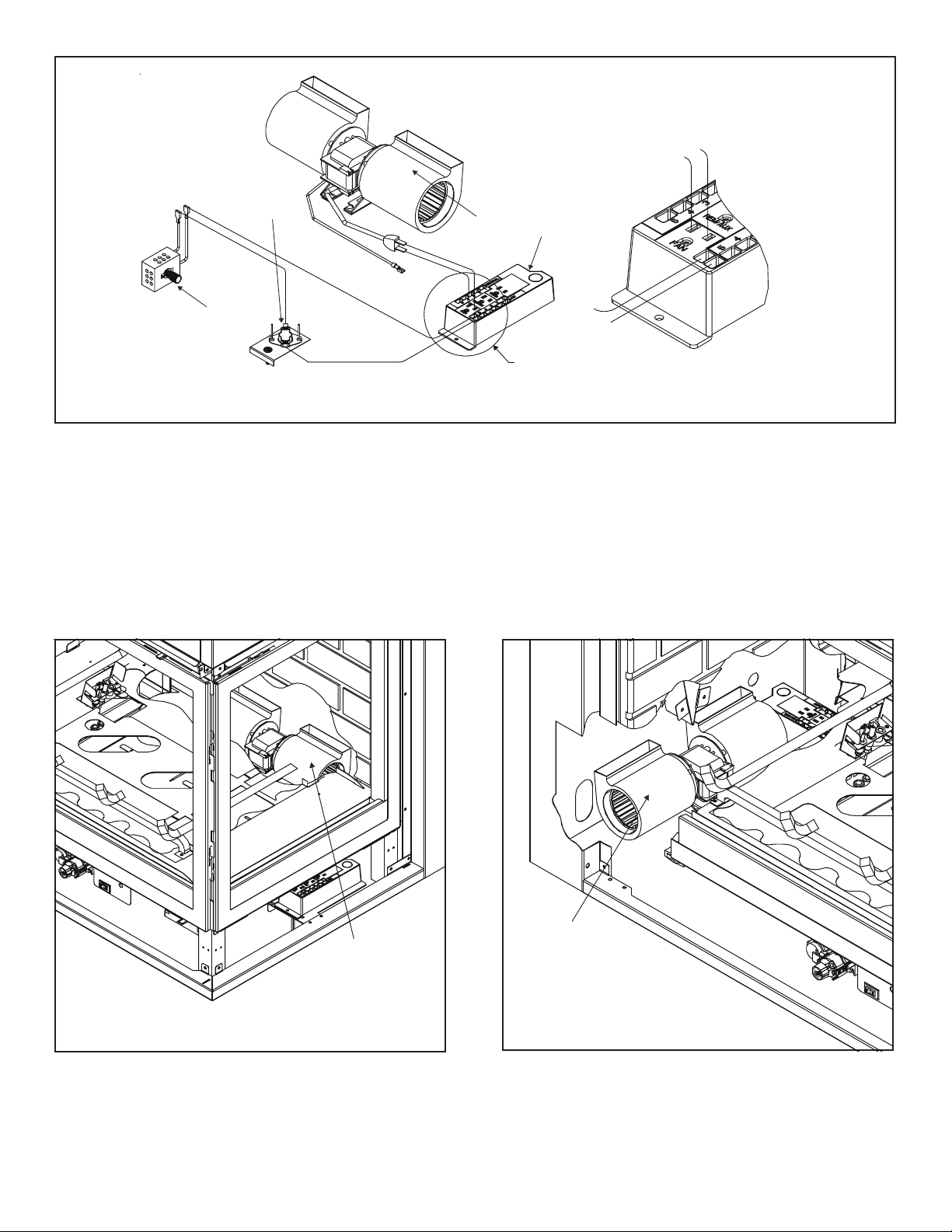

Figure 35. Fan Wiring Diagram

FAN

JUNCTION

BOX

SEE DETAIL A

NOTE: If any of the original wire as supplied with the appliance must be replaced, it must be replaced with the type 105oC rated wire.

DETAIL A

SCALE 1/1

Optional Accessories

Optional fan and remote control kits require that 110-120 VAC be wired to the factory installed junction box before the fireplace is permanently installed.

Fan Installation

Recommended fan locations for the type of fireplace you have (see Figures 36 and 37).

Wall Switch

Position the wall switch in the desired position on a wall. Run a maximum of 25 feet (7.8 m) or less length of 18 A.W .G . minimum wire and connect it to the fireplace ON/OFF switch pigtails.

CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERA TION. VERIFY PROPER OPERATION AFTER SERVICING.

FAN

Figure 36. Corner fan location

Corner fan location

It is recommended to position the fan in this location as shown. This will provide the best air flow (see Figure 36).

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

FAN

Figure 37. ST & PIER fan location

ST & Pier fan location

It is recommended to position the fan on the same side of the fireplace as the vent collars are on. This will provide the best air flow (see Figure 37).

Step 9. Finishing

Figure 38 shows the minimum vertical and corresponding maximum horizontal dimensions of fireplace mantels or other combustible projections above the top front edge of the fireplace. See Figures 4 and 5 for other fireplace clearances. Only non-combustible materials

may be used to cover the black fireplace front.

WARNING: WHEN FINISHING THE FIREPLACE, NEVER

OBSTRUCT OR MODIFY THE AIR INLET/OUTLET GRILLES IN ANY MANNER.

MANTEL

8”

7”

6”

5”

4”

3”

2”

1”

6”

5”

HOOD

10”

9”

8”

7”

12”

11”

10”

9”

16”

15”

14”

13”

12”

11”

NOTE: 12” mantel at 16” above hood.

Mantel dimensions shown are

for standard hood on models:

QV-PIER-HV-IPI.

To use mantel dimensions

shown the fireplace must have the standard hood replaced with a larger hood (060-143) on model: QV-ST-HV-IPI.

CAUTION: IF JOINTS BETWEEN THE FINISHED WALLS AND THE FIREPLACE SURROUND (TOP AND SIDES) ARE SEALED, A 300° F. MINIMUM SEALANT MATERIAL MUST BE USED. THESE JOINTS ARE NOT REQUIRED TO BE SEALED. ONLY NONCOMBUSTIBLE MATERIAL (USING 300° F. MINIMUM ADHESIVE, IF NEEDED) CAN BE APPLIED AS FACING TO THE FIREPLACE SURROUND. SEE THE DIAGRAM BELOW .

NOTE: Sheetrock or other combustible material such as wood can be placed on the top

edge and sides of the fireplace.

QV-ST-HV-IPI

TOP EDGE

SIDE EDGE

0” GAP

QV-PIER-HV-IPI

TOP EDGE

SIDE EDGE

Figure 38.

Minimum Vertical and Maximum Horizontal Dimensions of Combustibles above Fireplace

MANTEL

7”

6”

5”

4”

3”

2”

1”

17”

16”

15”

14”

13”

12”

HOOD

12”

11”

10”

9”

8”

22”

21”

20”

19”

18”

Mantel dimensions shown are

for standard hood on model:

QV-ST-HV-IPI

23”

NOTE: 12” mantel at 23” above hood.

0” GAP

Figure 40. Sealant Material

Hearth Extensions

A hearth extension may be desirable for aesthetic reasons. However, ANSI or CAN/CGA testing standards do not require hearth extensions for gas fireplace appliances.

Figure 39.

Minimum Vertical and Maximum Horizontal Dimensions of Combustibles above Fireplace

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Step 10. Installing T rim, Logs & Ember Material

Installing the Trim

Combustible materials may be brought up to the specified clearances on the side and top front edges of the fireplace, but MUST NEVER overlap onto the front face. The joints between the finished wall and the fireplace top and sides can only be sealed with a 300° F . (149° C) minimum sealant.

WARNING: WHEN FINISHING THE FIREPLACE,

NEVER OBSTRUCT OR MODIFY THE AIR INLET/ OUTLET GRILLES IN ANY MANNER.

Install optional marble and brass trim surround kits as desired. Marble, brass, brick, tile, or other non-combustible materials can be used to cover up the gap between combustible material (sheetrock or wood) and the fireplace.

Do not obstruct or modify the air inlet/outlet grilles. When overlapping on both sides, leave enough space so that the bottom grille can be lowered and the trim door removed.

Positioning the Logs

If the gas logs have been factory installed they should not need to be positioned. If the logs have been packaged separately, refer to the instructions that accompany the logs. Save the log instructions with this manual.

If sooting occurs, the logs might need to be repositioned slightly to avoid excessive flame impingement.

Preparing Electric Ember Bed and Lava Rock

St art with fitting your grate with the andirons found in your manual bag assembly . Y ou will find four andirons and four andiron tabs as shown (see Figure 41).

ANDIRONS

Figure 41.

Slip the tabs onto the bottom of the andiron as shown. Bend the tab at the cut closest to the andiron. Repeat this step for all four andirons (see Figure 42).

ANDIRON T ABS

Shutter Settings

___________________________________________

QV-PIER-HV-IPI 3/8” FULL OPEN

___________________________________________

QV-ST-HV-IPI 3/8” FULL OPEN

Glass Specifications Model Type

QV-PIER-HV -IPI TEMPERED QV-ST-HV-IPI TEMPERED

Quadra-Fire fireplaces manufactured with tempered glass may be installed in hazardous locations such as bathtub enclosures as defined by the CPSC. The tempered glass has been tested and certified to the requirements of ANSI Z97.1-1984 and CPSC 16 CFR 1202. (Safety Glazing Certification Council SGCC # 1595 and 1597. Architectural T esting, Inc. Reports 02-31919.01 and 02-31917.01.)

This statement is in compliance with CPSC 16 CFR Section 1201.5 “Certification and labeling requirements” which refers to 15 USC 2063 stating “…Such certificate shall accompany the product or shall otherwise be furnished to any distributor or retailer to whom the product is delivered.”

Some local building codes require the use of tempered glass with permanent marking in such locations. Glass meeting this requirement is available from the factory . Please contact your dealer or distributor to order.

NG LP

Figure 42.

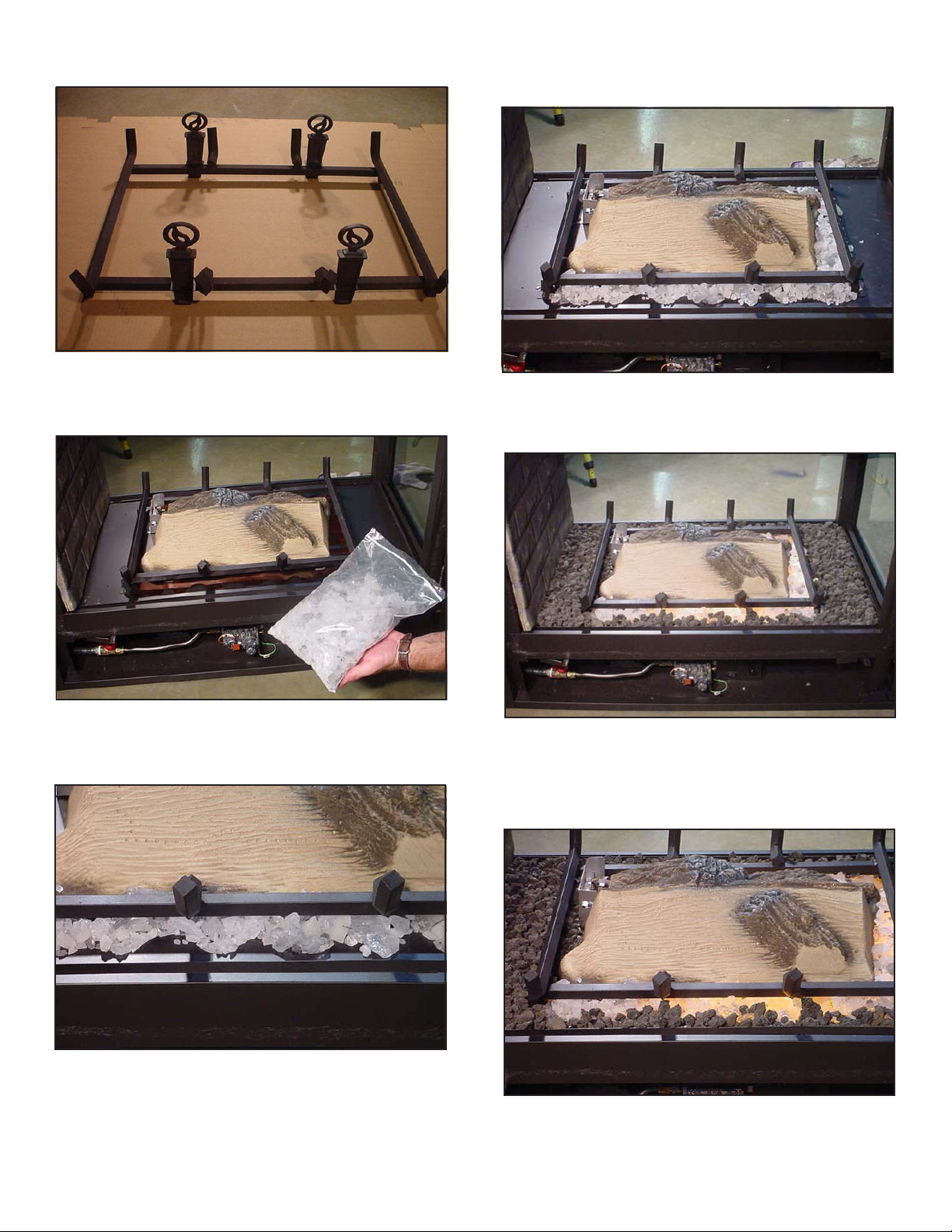

Place the andiron on the grate as shown and bend the tab under the grate bar, positioning the andiron about 1/2” from the grate tine (see Figure 43).

1/2”

BEND T AB UNDER

Figure 43.

GRATE BAR

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Repeat for all four andirons as shown (see Figure 44).

Figure 44.

The electric ember bed must be prepared before the logs are set up (see Figure 45).

Pile a thin layer and follow the pattern on the base pan (see Figure 47).

Figure 47.

Now the Lava rock can be applied (see Figure 48).

Figure 45.

St art by applying the teco-sil (granulated glass) to the base pan (see Figure 46).

Figure 46.

Figure 48.

The lava rock should cover the remaining base pan area (see Figure 49). Do not put lava rock on top of the glass (teco-sil).

Figure 49.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

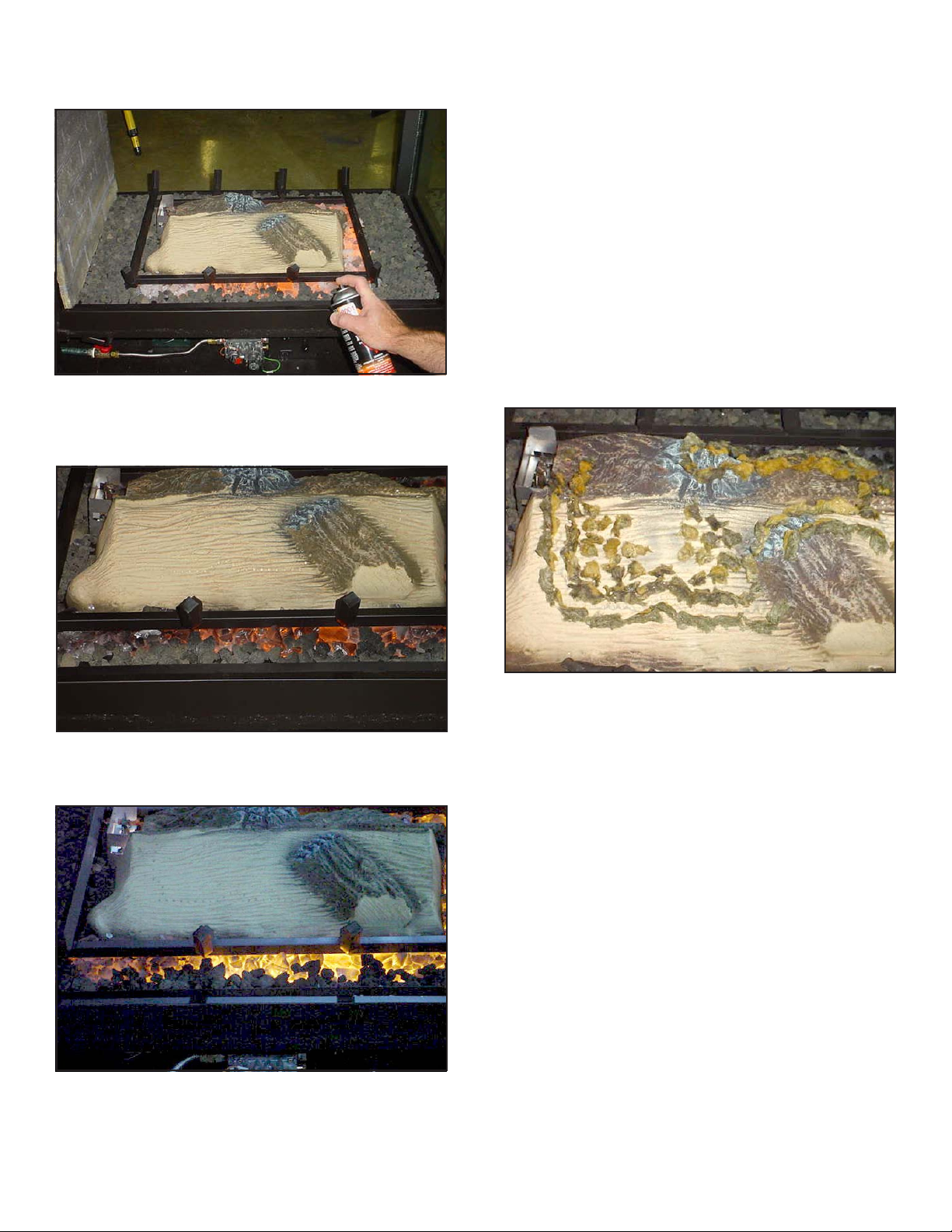

Turn on the electric ember lights and paint the glass to a darkness as desired (see Figure 50).

Figure 50.

Make sure to paint the glass from both sides (see Figure 51).

Placing the Ember Material

Ember material is shipped with this gas fireplace. The bag labeled Glowing Ember (050-721) is standard glowing ember material.

T o place the ember material:

• Remove the glass door from the unit.

• Place dime size pieces of ember material about 1/2 inch apart near port holes in burner top. Do NOT press embers into burner ports. Cover the top of the burner with a single layer of ember material.

• Save the remaining ember materials for use during fireplace servicing. The bag of embers provided is sufficient for 3 to 5 applications.

• Replace the glass door and a front trim door on the unit.

Figure 51.

The ember bed is now complete (see Figure 52).

Figure 52.

Figure 53. Placement of the Ember Material

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Ember Light Replacement Bulb

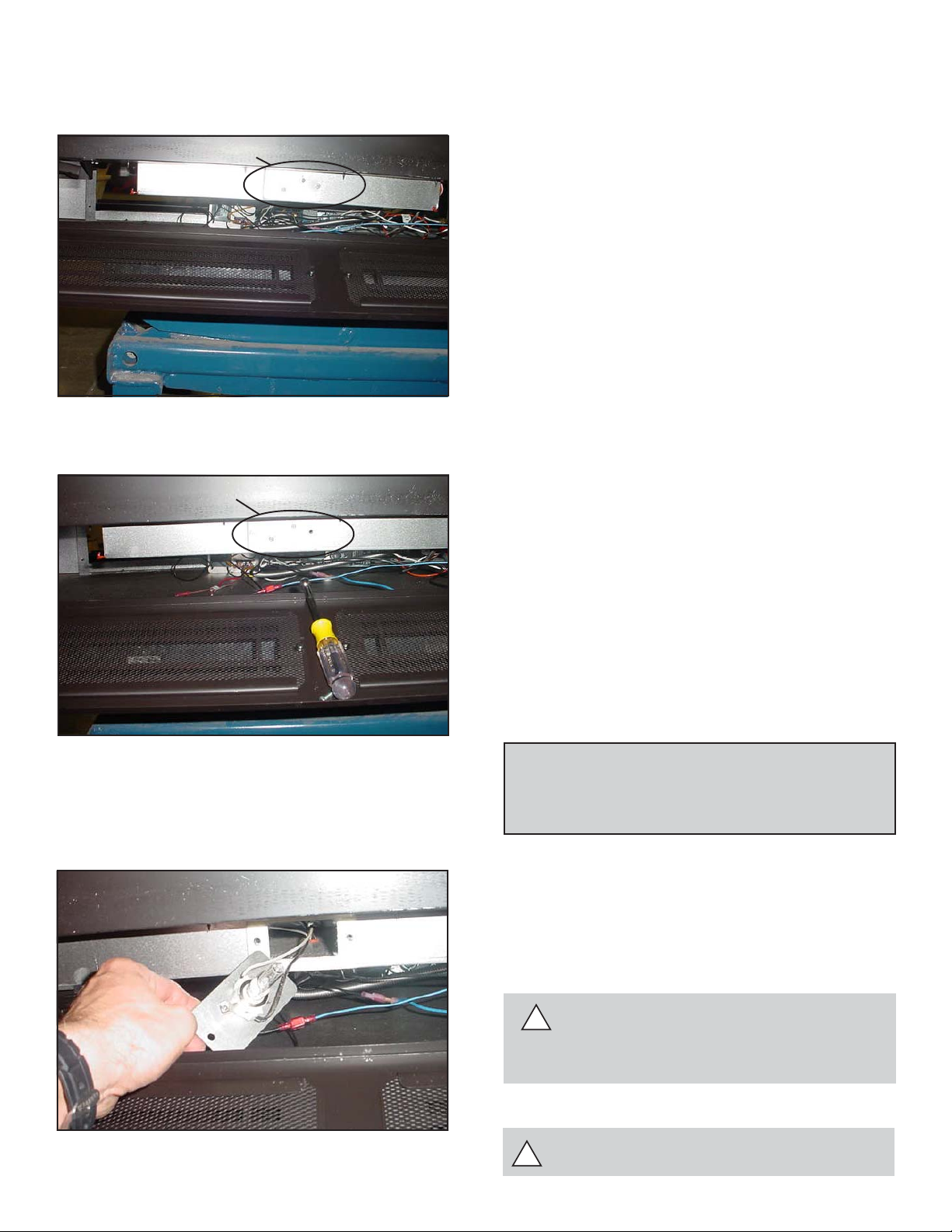

In the lower gas valve compartment you will find three access panels for the three light bulbs (see Figure 54).

ACCESS PANEL

Figure 54.

Using a 5/16” nut driver remove the two bolts (see Figure 55).

ACCESS PANEL

Figure 55.

Step 1 1. Before Lighting the Fireplace

Before lighting the fireplace, be sure to do the following: Remove all paperwork from underneath the fireplace. Review safety warnings and cautions

• Read the Safety and Warning Information section at the beginning of this Installers Guide.

Double-check for gas leaks

• Before lighting the fireplace, double-check the unit for

possible gas leaks.

Double-check vent terminations and front grilles for obstructions.

• Before lighting the fireplace, double-check the unit for possible obstructions that could be blocking the vent terminations or the front grilles.

Double-check for faulty components

• Any component that is found to be faulty MUST BE replaced with an approved component. Tampering with the fireplace components is DANGEROUS and voids all warranties.

A small amount of air will be in the gas supply lines. When first lighting the fireplace, it will take a few minutes for the lines to purge themselves of this air. Once the purging is complete, the fireplace will light and will operate normally .

Subsequent lightings of the fireplace will not require this purging of air from the gas supply lines, unless the gas valve has been turned to the OFF position, in which case the air would have to be purged.

NOTE: The fireplace should be run 3 to 4 hours on the initial start-up. T urn it off and let it cool completely. Remove and clean the glass. Replace the glass and run the fireplace for an additional 8 hours. This will help to cure the products used in the paint and logs.

Pull the access panel to expose the light bulb. Wearing clean cotton gloves replace the bulb. Any skin oils which get on a new bulb will greatly shorten the life of the bulb. The bulb can be cleaned with isopropyl alcohol (see Figure 56).

Figure 56

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

During this break-in period it is recommended that some windows in the house be opened for air circulation. This will help avoid setting off smoke detectors, and help eliminate any odors associated with the fireplace’s initial burning.

Step 12. Lighting the Fireplace

You’ve reviewed all safety warnings, you’ve checked the fireplace for gas leaks, you know the vent system is unobstructed, and you’ve checked for faulty components. Now you’re ready to light the fireplace.

WARNING: PLEASE REFER TO THE USER’S

MANUAL FOR ALL CAUTIONS, SAFETY , AND WARNING INFORMATION PERTAINING TO THE LIGHTING AND OPERA TION OF THE FIREPLACE.

After the Installation

LEAVE THIS INSTALLATION MANUAL WITH

THE APPLIANCE FOR FUTURE REFERENCE.

Maintaining and Servicing Your Fireplace

Fireplace Maintenance

Although the frequency of your fireplace servicing and maintenance will depend on use and the type of installation, you should have a qualified service technician perform an appliance check-up at the beginning of each heating season. See the table below for specific guidelines regarding each fireplace maintenance task.

IMPORT ANT : TURN OFF THE GAS BEFORE SERVICING YOUR FIREPLACE.

Replacing old ember material Frequency: Once annually , during the checkup. By: Qualified service technician. Task: Brush away loose ember material near the burner.

Replace old ember material with new dime-size and shape pieces of Golden Ember (GE-93) and Glowing Ember (050-

721). New ember material should be placed alternately on top of the burner - a layer of Golden Ember, a layer of Glowing Ember, and so on. Save the remaining ember material and repeat this procedure at your next servicing. For more information, see Placing Ember Material.

Cleaning Burner and Controls Frequency: Once annually . By: Qualified service technician. Task: Brush or vacuum the control compartment, fireplace

logs and burner areas surrounding the logs.

Cleaning Flame Sensor Rod (IPI Systems) Frequency: Periodically . By: Qualified service technician. Task: Make a visual check of the straight flame sensor rod

(see Figure 32). Use emery cloth to carefully remove any existing white film or deposits.

Checking Flame Patterns, Flame Height Frequency: Periodically .

By: Qualified service technician/Home owner. Task: Make a visual check of your fireplace’ s flame patterns.

Make sure the flames are steady - not lifting or floating. See Figure 57. The flame sensor (IPI) should be covered with flame. See Figure 32.

MAKE SURE THE FLAMES ARE STEADY—NOT LIFTING OR FLOATING.

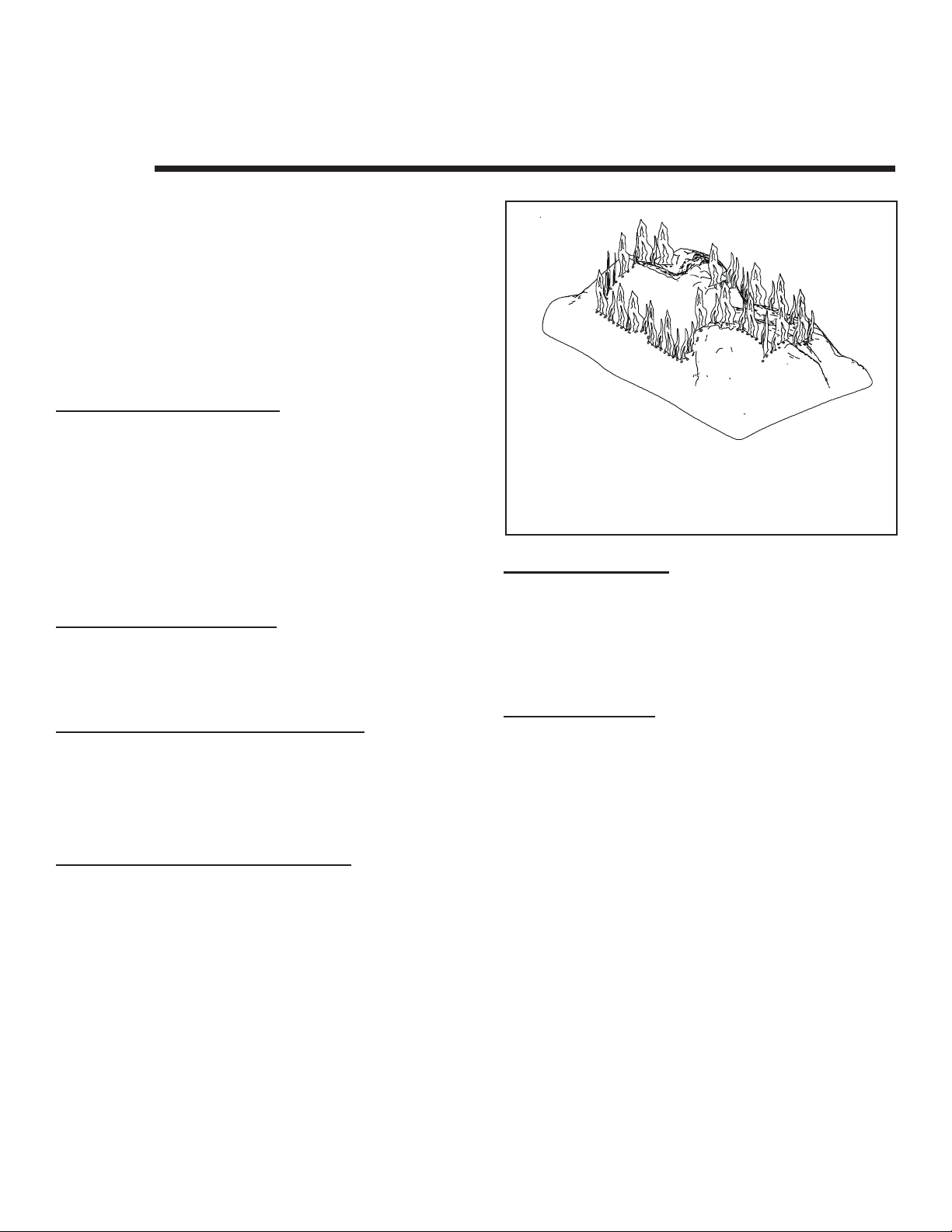

Figure 57. Burner Flame Patterns

Checking Vent System Frequency: Before initial use and at least annually

thereafter, more frequently if possible.

By: Qualified service technician/Home owner. Task: Inspect the external vent cap on a regular basis to

ensure that no debris is interfering with the flow of air. Inspect entire vent system for proper function.

Cleaning Glass Door Frequency: After the first 3 to 4 hours of use. As neces-

sary after initial cleaning.

By: Home owner. Task: Remove and clean glass after the first 3 to 4 hours of

use. Af ter the initial cleaning, clean as necessary , particularly after adding new ember (flame colorant) material. Film deposits on the inside of the glass door should be cleaned off using a household glass cleaner . NOTE: DO NOT handle

or attempt to clean the door when it is hot and DO NOT use abrasive cleaners.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Troubleshooting

With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician.

Intellifire Ignition System

Symptom Possible Causes Corrective Actions

1. The

ignitor/module makes noise, but no spark.

2. Pi lo t wo n't lig ht, there is no noise or

spark.

3. Pi lo t lig hts b ut

c ont inues t o spark, and main burner will not ig ni te . (If the pilot continues to spark after the pilot

flame has been lit, flame rectification

has not occurred.)

Continued...

a. Incorrect wiring. Verify "S" wire (white) for sensor and "I" wire (orange) for ignitor are

connected to correct terminals on module and pilot assembly. Reversed wires at the module may cause system to make sparking noise, but spark may not

be present at pilot hood.

b. Loose

connections or electrical shorts in

the wiring.

c. Ignitor gap is too

large.

d. Faulty module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor

a. Transformer

installed correctly.

b. A shorted or loose connection in

wir ing configur at ion or wi ring harness .

c. Improper wall switch wiring.

d. Module not grounded.

e. Faulty module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove i gnitor

a. A shorted or

loose connection in

sensor rod.

b. Poor flame rectification or

contaminated sensor rod.

Verify no loose connections or electrical shorts in wiring from module to pilot assembly. Rod closest to pilot hood should be ignitor. Verify connections

underneath pilot assembly are tight; also verify connections are not grounding

out to metal chassis, pilot burner, pilot enclosure, mesh screen if present, or any other metal object.

Verify gap of igniter to pilot hood. The gap should be approximately .17 inch or 1/8 inch.

wire "I" from module. Place ON/OFF Rocker switch or wall switch in ON

position. Hold ground wire about 3/16 inch away from "I" terminal on module.

If there is no spark at "I" terminal module must be replaced. If there is a spark at "I" terminal, module is fine. Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.

Verify that transformer is installed and plugged into module. Check voltage of transformer under load at spade connection on module with ON/OFF switch in ON position. Acceptable readings of a good transformer are between 3.2 and

2.8 volts AC.

Remove and reinstall the wiring harness that plugs into module. Verify there is

a tight fi t. Ve rify pi lot as s emb ly wiring to m o dule. Remove and verify continuity of ea c h wire i n wiring harness.

Verify black ground wire from module wire harness is grounded to metal chassis of appliance.

wire "I" from module. Place ON/OFF Rocker switch or wall switch in ON

position. Hold ground wire about 3/16 inch away from "I" terminal on module.

Verify all connections to wiring diagram in manual. Verify connections

underneath pilot assembly are tight. Verify connections are not grounding out

to metal chassis, pilot burner, pilot enclosure or screen if present, or any other

metal object.

Verify that flame is engulfing sensor rod. If the pilot assembly does not have a ground strap, consider installing one to increase flame rectification. Verify

correct pilot orifice is installed and inlet gas specifications. Flame carries rectification current, not the gas. If flame lifts from pilot hood, the circuit is broken. A wrong orifice or too high an inlet pressure can cause pilot flame to lift. The sensor rod may be contaminated. Clean sensor rod with emery cloth.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Intellifire Ignition System - (continued)

Symptom Possible Causes Corrective Actions

4. Pilot sparks, but

Pilo t will not li ght.

c. Module is not grounded.

d. Damaged pilot assembly or dirty sensor rod.

Verify that module is securely grounded to metal chassis of appliance. Verify that wire harness is firmly connected to module.

Verify that ceramic insulator around the sensor rod is not cracked, damaged, or loose. Verify connection from sensor rod to white sensor wire. Clean sensor rod with emery cloth to remove any contaminants that may have accumulated on sensor rod. Verify continuity with a multimeter with ohms set at lowest range.

e. Faulty module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor

wire "I" from module. Place ON/OFF Rocker switch or wall switch in ON

position. Hold ground wire about 3/16 inch away from "I" terminal on module.

a. Correct gas supply.

Verify that incoming gas line ball valve is "open". Verify that inlet pressure

reading is within acceptable limits, inlet pressure must not exceed 14 in.

W.C.

b. Ignitor gap is

Verify that spark gap from ignitor to pilot hood is .17 in. or 1/8 in.

too large.

c. Module is not

Verify module is securely grounded to metal chassis of appliance.

grounded.

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Lifetime Warrant

LIMITED LIFETIME WARRANTY

The Hearth & Home Technologies limited Lifetime Warranty guarantees that the following components will work as designed for the lifetime of the stove or Hearth & Home Technologies will repair or replace them. These items include but are not limited to steel and cast iron components, all gas burners, gas logs, combustion chambers, heat exchanger systems, stainless steel firebox components, plating, doors, glass damaged by thermal breakage, steel baffle supports, steel and ceramic baffles and manifold tubes. Labor is for the first five years.

THREE YEAR WARRANTY

Our EZ Clean firepots are covered under Hearth & Home Technologies three-year warranty program. Labor is for 3 years.

TWO YEAR WARRANTY

All electrical components such as but not limited to blowers, wiring, vacuum switches, speed controls, control boxes, thermodisc switches, igniters, pilot assembly, gas valves, thermostats and remotes are covered under Hearth & Home Technologies two-year warranty program. Effective April, 2005 igniters are also covered under the two year warranty. Labor is for two years.

ONE YEAR WARRANTY

Porcelain and powdercoat finishes are warranted against manufacturer defects for one year. Labor to repair or replace these parts is covered for one year, reimbursed per our warranty service fee schedule.

CONDITIONS

This warranty is nontransferable and is made to the original retail purchaser only provided that the purchase was made through an authorized dealer of Hearth & Home Technologies. It must be installed and operated at all times in accordance with the Installation and Operating Instructions furnished with this product, as well as any applicable local and national codes. Any alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.

Labor to repair or replace items covered under the limited Lifetime Warranty will be covered for the first five years per our warranty service fee reimbursement schedule. Parts covered under the limited Lifetime Warranty will be covered for the lifetime of the appliance up to a maximum of ten (10) years after Hearth & Home Technologies discontinues the model and two (2) years for optional accessories. Adjustments, regular maintenance, cleaning and temporary repairs do not qualify for a service call fee and will not be covered. The replacement of consumer replaceable items and installation of upgraded component parts do not quality for a service call fee, and will not be covered.

This limited Lifetime Warranty does not extend to or include surface finish on the appliance, door gasketing, glass gasketing, glass, firebrick, pellet logs, kaowool or other ceramic insulating materials. It does not cover installation or operational-related problems such as overfiring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, or negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers, etc.

Any installation, construction, transportation, or other related costs or expenses arising from defective part(s), repair, replacement, etc., will not be covered by this warranty, nor will Hearth & Home Technologies assume responsibility for them. Further, Hearth & Home Technologies will not be responsible for any incidental, indirect, or consequential damages, except as results in damage to the interior or exterior of the building in which this appliance is installed. This limited Lifetime Warranty does not apply to the venting components, hearth components or other accessories used in conjunction with the installation of this product not manufactured by Hearth & Home Technologies

This warranty is void if the stove has been overfired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals, the stove is subjected to prolonged periods of dampness or condensation, or there is any damage to the stove or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. Hearth & Home Technologies may, at its discretion, fully discharge all obligations with respect to this warranty by either repairing or replacing the unit, or refunding the wholesale price of the defective part(s).

This limited Lifetime Warranty is effective on all appliances sold after May 1, 2002 and supersedes any and all warranties currently in existence.

250-8620J 12/05

Quadra-Fire • QV-PIER, QV-ST Series: HV-IPI • 2005-901 Rev. G • 2/06

Quadra-Fire QV-PIER, QV-ST User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Service Parts List
