Q-See QC444-403-411-426 User Manual

Quick Installation
For Bundles Featuring the QC444 H.264 Network DVR
QC444-403/411/426
Guide
4 Channel H.264 Compression DVR with
Variable CIF and D1 Recording Options
PART 1 - PACKAGE CONTENTS
4 Color Cameras with Stands
2 Color Cameras with Stands
QC444 DVR
(403 & 411)
2 Decoy Cameras
(426)
Manual and
Software CD
PART 2 - DVR CAMERA AND POWER CONNECTIONS
STEP 1: Connect the Cameras to the Cables
Connect both camera leads to the matching
1A
ends on the power/video cable. Repeat for all cameras.
Pre-Installed
Hard Drive
Power Supply
for DVR
2 BNC(M) to RCA(F)
Adapters
Power Supply & 4-Way Splitter
(403 & 411)
2-Way Splitter
(426)
manuals and software
QC Serie s
Ethernet
Cable
Video and Power
Camera Cable
Attach the BNC connector on the power/video cable to a
1B
Video In port on the DVR. Repeat for all cameras.
1C
Connect the remaining connector to one of the ends on the power splitter. Repeat for all cameras.
STEP 2:
Connect the single end of the power splitter to the included power supply.
STEP 4:
Connect both power supplies to a surge protector.
12341
STEP 3:
Connect the other power supply to the DVR .
AUDIO OUT
2
VIDEO OUT
DC 12V
VGA
STEP 5:
Connect thesurge protector to an outlet.
IMPORTANT! It is STRONGLY recommended to use a surge protector that
is UL-1449 rated. Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time of 10 nanoseconds or less.
The appearance of contents may differ from images shown.
USB 2.0
Mouse
Remote
Control
Revised
5/18/11
PART 3 - CONNECTING THE DVR TO YOUR DISPLAY
To Connect to a TV:
1. Plug the BNC to RCA adapter in to Video Out port then connect the RCA cable (not included) to the DVR.
2. Connect the other end of the RCA cable to the Video Input on the TV.
To Connect to a Computer Monitor:
3. Plug the VGA cable (not included) to the VGA port on the DVR.
4. Connect the other end of the VGA cable to the monitor.
NOTE! You may use both a video monitor and a television simultaneously with this DVR.
AUDIO OUT
2
12341
VIDEO OUT
1
2
DC 12V
VGA
3
4
PART 4 - DVR CONTROLS
This DVR can be controlled through the USB mouse, the remote control or by using the buttons on the front panel of the device. We have found that the majority of our customers prefer to operate their DVRs using the USB mouse because of its ease of use and flexibility and our manual is set up with this in mind. The remote control allows you to perform most of the day-to-day functions from a convenient distance. It functions as a typical remote control with additional buttons allowing you to navigate through menus and control functions. We recommend that you configure your DVR using the mouse controls, reserving the remote control for operations such as live viewing, file search and playback.
FRONT PANEL
1 2
Number Item Function
Function
1
Button
2 IR Sensor Infrared Receiver for Remote Control
3 Escape Button Exit any menu or current operation
4 Enter Button
Directional
5
Buttons
6 Power Button Puts DVR into Standby mode or wakes it up.
7 Status Lights
8 USB Port
Single Channel Viewing Mode: Opens Color Adjustment
Virtual Keyboard: Backspace function
Viewing Mode: Go To Menu
In Menu: Acts as mouse click
Navigate through menus.
Change selections in pull down menus (Up/Down buttons)
Toggle settings (Up/Down buttons)
Alarm: Not functional on this model
Net: Red light indicates that network connection is lost
HDD: Red light indicates that hard drive is operating
Power: Red light indicates that DVR is powered up
For use with flash drive when backing up or updating firmware. Not for use with mouse.
3 4 5 6
7 8
IMPORTANT! The default resolution of this DVR is 1024x768 pixels. Some
monitors smaller than 19” may have problems displaying this resolution.
REMOTE CONTROL
The buttons on the Remote Control operate in the same manner as on a conventional DVR remote. Some buttons have multiple functions depending on which menu is being accessed.
Num Name Function
1 Multiple-window
switch
2 0-9 number key Input password, channel or switch channel.
3 Record Start or stop recording manually
4 Enter /Menu key Go to default button
5 Direction keys Switch current activated control, go to left or right.
6 Previous In playback mode, playback the previous video.
7 Next In playback mode, playback the next video.
8 Slow Play Multiple slow play speeds or normal playback.
9 Address Click to input device serial number
10 Function/Aux Key In 1-channel monitor mode: pop up assistant function
11 Escape/Cancel Go back to previous menu or cancel current operation (close
12 Stop In playback mode, stop current playback.
13 Forward Various forward speeds and normal speed playback.
14 Backward Various backward speeds and normal speed playback.
15 Play/Pause Reverse playback or paused mode, click this button to realize
16 Fast Forward Various fast speeds and normal playback.
Switch between multiple-window and one-window view
In record interface, working with the direction buttons to select the channel to record
Go to the menu
In playback mode, it is to control the playback process bar.
In motion detection interface, functions as a directional key to complete setup
Backspace: Press for 1.5 seconds to clear all contents in current text box.
In HDD information interface, used to switch between HDD record time and other information
Special combined operation in some menus.
upper interface or control)
In playback mode, it goes to real-time monitor mode.
normal playback.
In normal playback click this button to pause or resume playback.
In real-time monitor mode, click this button to enter video search menu.
1
2
3
4
5
6
7
8
Mult Add
., ABC DEF
2
1
GHI JKL MNO
5
4
PQRS TUV WXYZ
8
7
0
Record Fn
Enter/Menu
DVR
9
3
6
9
-/--
10
Esc
11
12 13
14
15 16
MOUSE CONTROL
The mouse operates in a manner similar to how it is used on a conventional computer; point-and­click, right-click, double click and so on. How these functions are used is based on the context of where they are used. Some examples are:
LEFT CLICK: Selecting an item
Opening a menu
Checking a box or motion detection status
Selecting letters, numbers or symbols on the virtual keyboard.
DOUBLE CLICK: Selecting an event for playback
Selecting a screen to zoom into from multi-screen mode
View 1
RIGHT CLICK
Opens Pop-Up
MOUSE WHEEL Page up or page down
Switch items in check box
Increase or decrease numerical value in numerical input box
CLICK-AND-DRAG Select motion detection zone
Select privacy mask zone
Exits any window. Exits
any menu or reopens previous menu.
Shortcut Menu
View 4
Color Setting
Search Record Main Menu

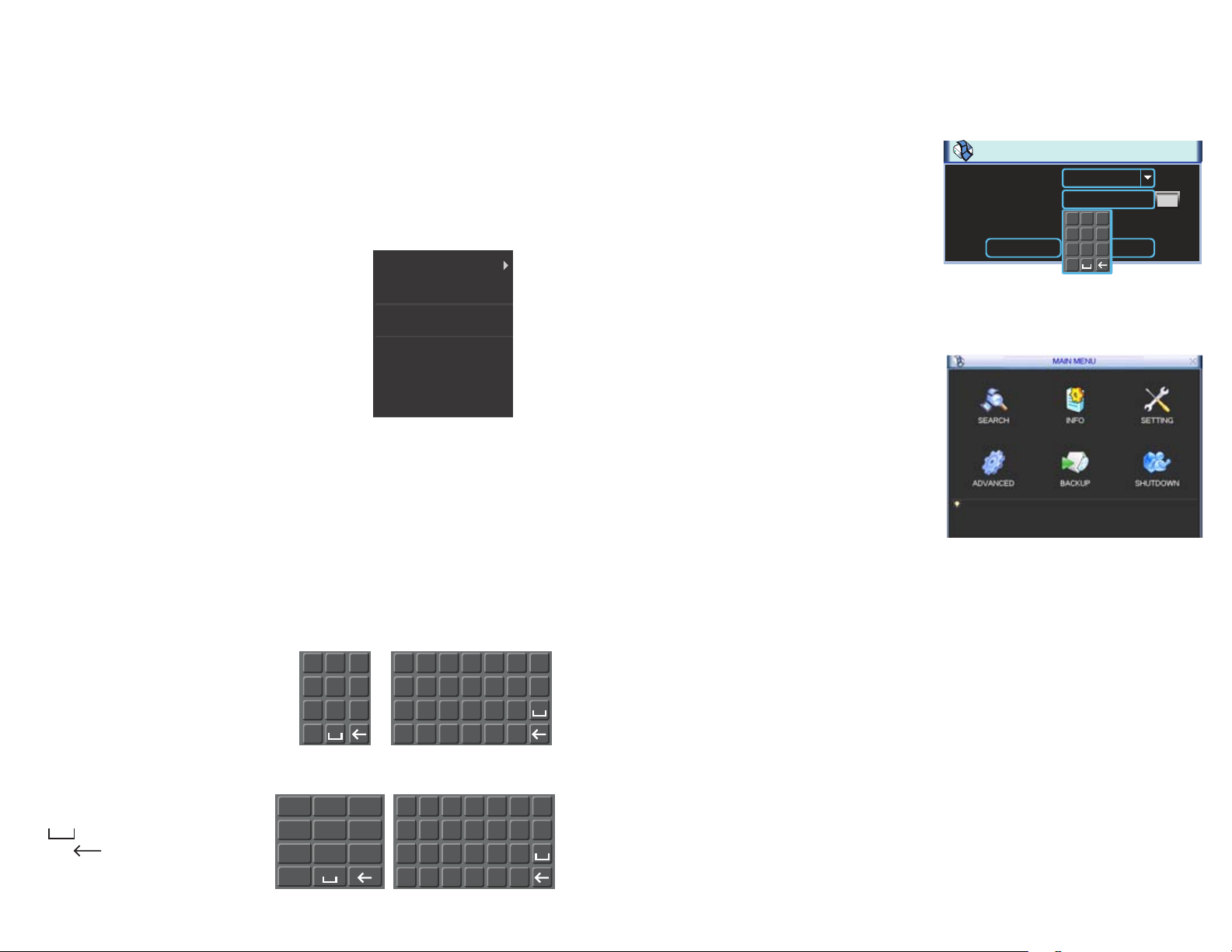

PART 5 - ACCESSING THE DVR’S MENUS
When the system boots up, it will be in multi-screen mode. Press Enter on the front panel, the Enter/Menu button on the remote control to bring up the System Login window. You can also
right-click the mouse to bring up the Pop-Up Shortcut menu where you select Main Menu.
Log in using the Admin account using the virtual keyboard.
Username: admin
Password: admin
Once you have logged in, you will be presented with the Main Menu. There are 6 icons; Search, Info, Setting, Advanced, Backup and Shutdown.
SYSTEM LOGIN
User Name
Password
OK Cancel
PICTURE 5-1
admin
2 3
1
54 6 87 9
0
123
VIRTUAL KEYBOARD
The virtual keyboard is contextual. For example, it will only show digits when the field is for numeral entries. In fields where letters and symbols can be entered, users can switch between various formats – numbers, upper case, lower case and symbols – by selecting the white keyboard symbol that will appear to the right of a field where text can be entered. The symbol itself will change to show which keyboard format is available next.
Available keyboards include:
The keyboards are used by clicking on the desired character. Spaces are entered using the symbol and characters are deleted with the key. Clicking outside of the keyboard will close it.
1 / 4 ? 7 @
0 &
2 3
1
54 6 87 9
0
NUMBERS
2 : 5 ­8 #
SYMBOLS
6 9%
3 .
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
UPPER CASE
LETTERS
A
B
C
D
E
F
G
_
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
LOWER CASE
LETTERS
PICTURE 5-2
SEARCH: Find and playback files from the hard drive.
INFO: Contains hard drive info, system log, version information, and online users.
SETTING: Most system configuration takes place in this window and its submenus. Access General
settings to set system time, language, hard drive overwrite, file size, and video display format. The Encode submenu is where you set compression, frame rate, bit rate, audio, and sub stream. You will also find chedule setup, network setup, motion detection setup, display setup, and default settings here.
ADVANCED: Used for hard drive management, manual recording, account setup, auto mainte­nance, and TV output adjustment.
BACKUP: Backup files from the hard drive.
SHUTDOWN: Use this icon to safely shut down the system.

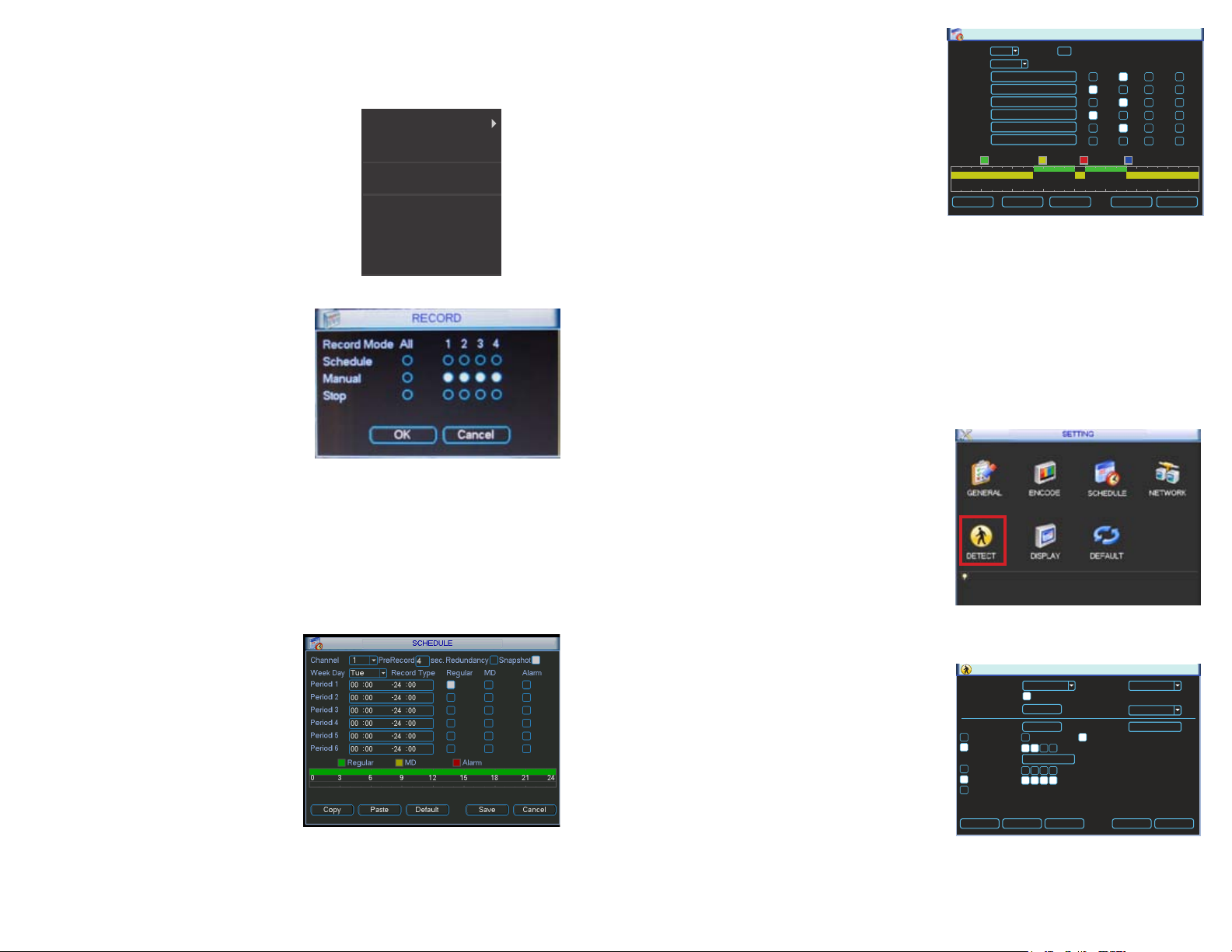

PART 6 - SETTING DVR TO RECORD
There are two modes for recording: Manual Recording and Scheduled Recording.
MANUAL RECORDING
You can get to the Manual Record menu by right clicking on the screen with the mouse and se­lecting Record.
This will take you to the Record menu. You can click the All option on the Manual row to start recording on all channels, or you can select only the cameras that you want to begin recording. To stop recording, select the Stop option under each camera to cause that camera to cease re­cording, or you can selecting the All option in the Stop row to cause all cameras to stop.
SCHEDULED RECORDING
View 1 View 4
Color Setting
Search Record Main Menu
PICTURE 6-1
PICTURE 6-2
An example of such a mixed schedule is shown in Picture 6-4. In this example, Camera 1 is scheduled to record if motion is detected (MD) from midnight to 8am and then records continu­ously from 8am to noon (Regular) followed by a one-hour motion detection recording segment until 1pm before returning to continuous record­ing after that. Then, at the end of the day, it is in motion detection mode from 5pm to midnight. The scale running along the bottom of the menu ranges from 0 to 24, representing the hours of a day. You can set starting and ending times to any specific minute you choose.
Channel
1 4
Week Day
Wed
Period 1
00 :00 -08 :00
Period 2
08 :00 -12 :00
Period 3
12 :00 -13 :00
Period 4
13 :00 -17 :00
Period 5
17 :00 -24 :00
Period 6
00 :00 -24 :00
Regular
0 3 6 9 12 15 18 21 24
Copy Paste Default Save Cancel
SCHEDULE
PreRecord sec.
Record Type Regular MD Alarm MD/Alarm
MD Alarm MD/Alarm
PICTURE 6-4
Please note that this DVR does not support external alarms. Schedule settings utilizing Alarm record­ing will not produce any recordings.
MOTION DETECTION RECORDING
There are three steps to scheduling the DVR to record on motion.
STEP 1. Return to the Record menu (Picture 6-2) and designate which cameras will be
recording in Motion Detection mode.
STEP 2. Next, go to the Schedule (Picture 6-3) menu as described above and set schedule
for each camera.
STEP 3. After setting up the schedule go to
the Main Menu and select the Setting menu. Inside, select the Detect window (Red square in Picture 6-5)
To record on a schedule you will need to get to the Record menu as described above and select the cameras on the Schedule row instead of the Manual row. Next, go to the Main Menu, and click on Settings, and select Schedule. This will open the Sched- ule menu. The DVR is programmed with all cameras set to record constantly by default. You may set up your own schedule to meet your specific requirements.
There are six blocks of time you can use to schedule recording and each camera can be individually configured or they all may share the same schedule. In addition, you may set up indi­vidual schedules for each day, or you may share the same schedule across every day. Cameras may be scheduled to record in different modes at different times of the day.
PICTURE 6-3
The Detect window will allow you to
configure your camera and the actions the DVR will perform when motion is detected. Under Event Type select Motion Detect, Select your Channel, or All, and select the enable option to enable the camera for motion detection.
PICTURE 6-5
Event Type
Enable
Region
Period
Show Message Alarm upload Send Email
Record Channel
Delay
Tour
Snapshot
Buzzer
Copy Paste Default Save Cancel
DETECT
Motion Detect 1
1 2 3 4
10
1 2 3 4 1 2 3 4
Channel
Sensitivity
Select
Anti-dither sec.
Set
sec.
PICTURE 6-7
3
0
PICTURE 6-6

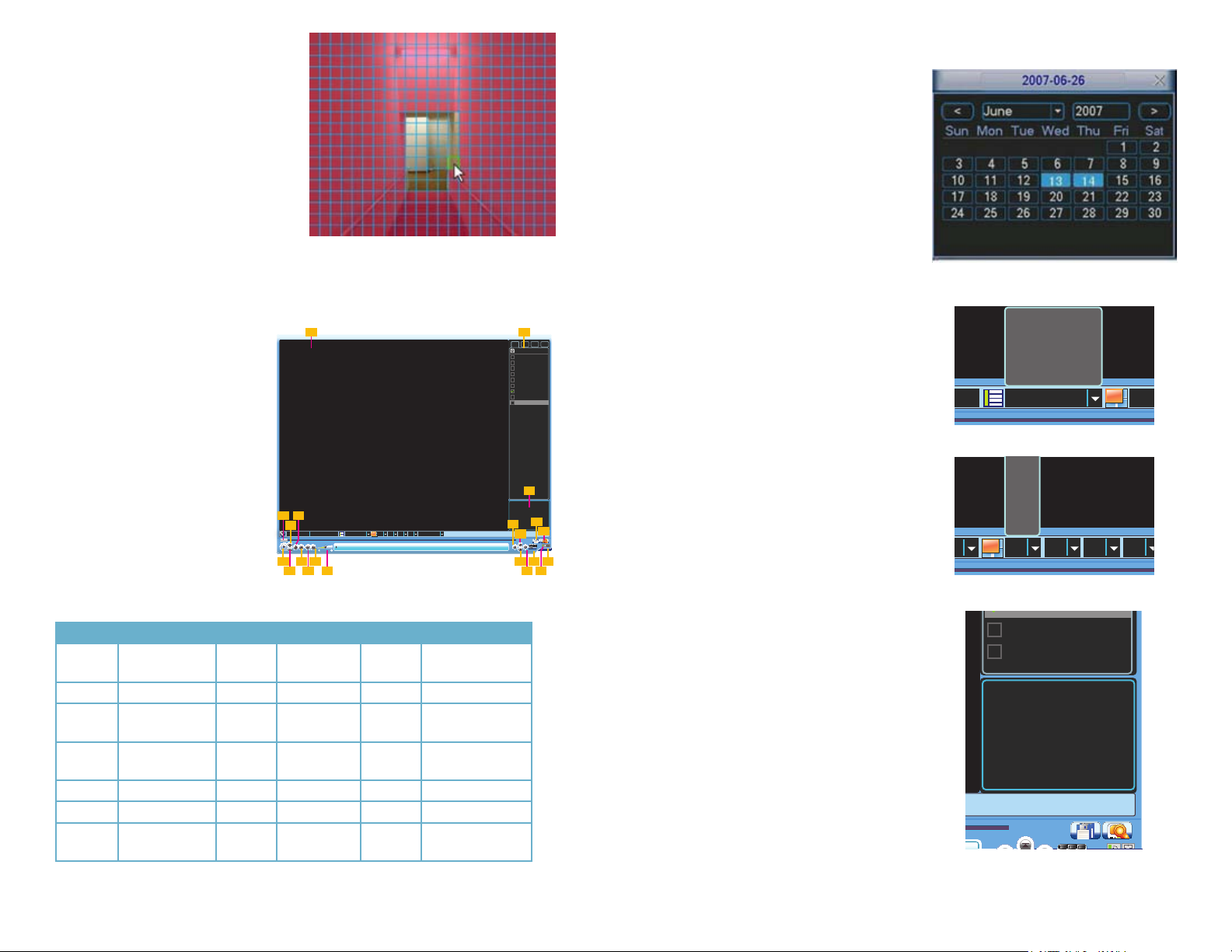

Next under Region click the Select button to
11:37:22 M 11:48:00 R 11:54:00 A 12:10:00 M 13:00:00 R 14:00:00 R
15:00:00 R
set up the area of the camera display that you want to be sensitive to motion.
You will then see the camera’s view overlaid with a grid. The green box is the current loca­tion of the cursor. The red area is the sensi­tive area and the black area is not sensitive to motion. Click the Fn button on the remote control to adjust the sensitivity of your mouse as you move the cursor. After you have finished the setup click the Enter button on the remote control to exit. Next set your sensitivity level from 1 to 6 (6 being the most sensitive), then click the Save button on the Detect screen to save the setting.
PICTURE 6-7
PART 7 - PLAYING BACK FILES
The Search and Playback window can be accessed through the Shortcut menu. You can view the playback from any camera that was activate during the recording session.
Number Function Number Function Number Function
1 Playback
Window
2 File List 9 Fast Play 16 Search
3 File Information 10 Previous
4 Playback
Progress Bar
5 Stop 12 Volume 19 Video Clip
6 Slow Play 13 Previous File 20 Repeat Playback
7 Play 14 Previous
PICTURE 7-1
8 Reverse 15 Backup
11 Next Frame 18 Next File
1
4 6
5
08-19-2010 00: 00: 00
7 9 11
8 10 12
Frame
Channel
CH
All 1 ALL2 3 4
17 Next Channel
21 Full Screen
2
1p 2p 3p 4p
StartTime Type
11:37:22 M 11:48:00 R 11:54:00 A 12:10:00 M 13:00:00 R 14:00:00 R
15:00:00 R
16:00:00 R 17:00:00 R
3
Start Time
08-19-10 13:20:00
End Time
08-19-10 13:26:00
13
Size(KB) 52736
14
171819 21
SEARCH
To begin a search for an event:
STEP 1. Enter the date to be searched.
You can also click on the clock icon to open the Calendar. Highlighted dates have recorded files.
PICTURE 7-2
STEP 2. Enter the start time (if known) or
skip this field to search the entire day. Select the type of event; All, Alarm, or Motion Detection (MD).
STEP 3. Select which channels you wish
to view. Each of the four slots is a pull­down which allows you to select a specific channel. You can leave these
15
16
empty to view 1-3 channels. You can also choose to view all four channels at a time simultaneously.
20
STEP 4. Click on the Search icon and any
records fitting your criteria will be listed in the column to the right of the screen. Up to 128 files can be displayed and multiple tabs (pages) may be displayed in the search results depending on the number of cameras you have as well as how you configured your playback display. In the event that a camera is set to manually record, the events will be broken up by hour.
All
Alarm MD Alarm/MD
All 1
PICTURE 7-3
13 14 15 16
CH
1 2 3 4
PICTURE 7-4
16:00:00 R 17:00:00 R
Start Time
08-19-10 15:00:00
End Time
08-19-10 15:59:00
Size(KB) 52736
PICTURE 7-5
CH
The playback screen can be set to display the recordings from one camera or as many channels as you have.
Files will be listed by their start time. In addition, when the DVR records a file, it also indicates the type of recording and it will indicate this one-letter code after the file name.
R = Regular recording
A = External alarm triggered recording
M = Motion detection triggered recording
1p 2p 3p 4p
StartTime Type
11:37:22 M 11:48:00 R 11:54:00 A 12:10:00 M 13:00:00 R 14:00:00 R
15:00:00 R
PICTURE 7-6
PLAYBACK
Once you’ve run your search, you may select which videos you wish to review.
Fast
Next
Play
Start, Stop and Play
Double-click on the desired video file and playback will begin. The playback controls operate as with a normal DVD player or computer media player with pause, rewind, etc. In the case of multiple views, the channel with the green outline around its video is the one that is being controlled. You can switch between channels by clicking on the one you wish to control.
Stop
Play
Play
Reverse
Frame
Previous
Frame
PICTURE 7-7
While all channels will display video from the same event, individual playbacks can be controlled separately. A single channel can be paused, rewound or sped up without affecting the playback of other channels.
Selecting the Stop button will end playback of that channel while the others (if any) continue to play back. To end playback on all channels, simply right-click the mouse or move to another file using the buttons to the right of the playback bar.
08-19-2010 00: 00: 00
CH
All 1 ALL2 3 4
PICTURE 7-8
Playback
VolumeSlow
Slider
1p 2p 3p 4p
StartTime Type
11:37:22 M 11:48:00 R 11:54:00 A 12:10:00 M 13:00:00 R 14:00:00 R
15:00:00 R
16:00:00 R 17:00:00 R
Start Time
08-19-10 13:20:00
End Time
08-19-10 13:26:00
Size(KB) 52736
PART 8 - BACKING UP FILES
The DVR supports backing up to USB flash drives, hard drives, burners, and SD cards.
Plug in a USB device and go to the Main Menu and then clicking on the Backup icon will open the Backup window.
The Backup window will display any connected devices along with available space and status. If you have a device connected to the USB port on the side of the DVR and it does not appear, press the Detect button. If it still does not appear, then use a different USB device.
Once an external USB device is detected, pressing the Backup button will open a new window allowing you to select which files to back up. You can select by channel, start and end times, as well as which type of event; regular recording, alarm, motion detection or all of them.
Only files with a check mark in front of them will be backed up. You can deselect whichever files you choose or select them all by selecting the box at the top of the list.
If you need to clear space on your external drive, you can use the Erase button. This will delete ALL files on that device.
IMPORTANT! USB hard drives must be formatted as FAT 32.
Once you have selected the files, press Start to begin the download. A progress bar will be displayed showing estimated time remaining. During the download, the Start button will change to Stop. You can stop the process at any time by pressing the button again.
You can also right-click out of the menu once the file transfer has begun to go on to other activities without cancelling the download.
The files will be saved with the following naming format:
SN_CH(channel number)_TYPE_TIME(Year, Month, Date, Hour, Minute, Second)
Therefore, a file shown on the DVR as being a regular record (R), being recorded on 01/04/11 starting at 2:00:00 would have a file name of: 1_01_R_010411020000.dav
The files can be played back using the software included on the CD accompanying this DVR.
PICTURE 7-9
PICTURE 7-10
PICTURE 7-11
QUESTIONS OR COMMENTS? CONTACT US
MAILING ADDRESS
Q-See Products
Digital Peripheral Solutions, Inc.
8015 E. Crystal Drive
Anaheim, CA 92807
FAX
714-998-3509
WEBSITE
www.Q-See.com
PRODUCT SUPPORT, DOWNLOADS, FIRMWARE UPDATES & MANUALS
www.Q-See.com
CUSTOMER SUPPORT
Live Chat at www.Q-See.com (M-F, 9-5 PST)
Email: support@dpsi-usa.com Phone: 877-998-3440 (M-F, 9-5 PST)
Loading...
