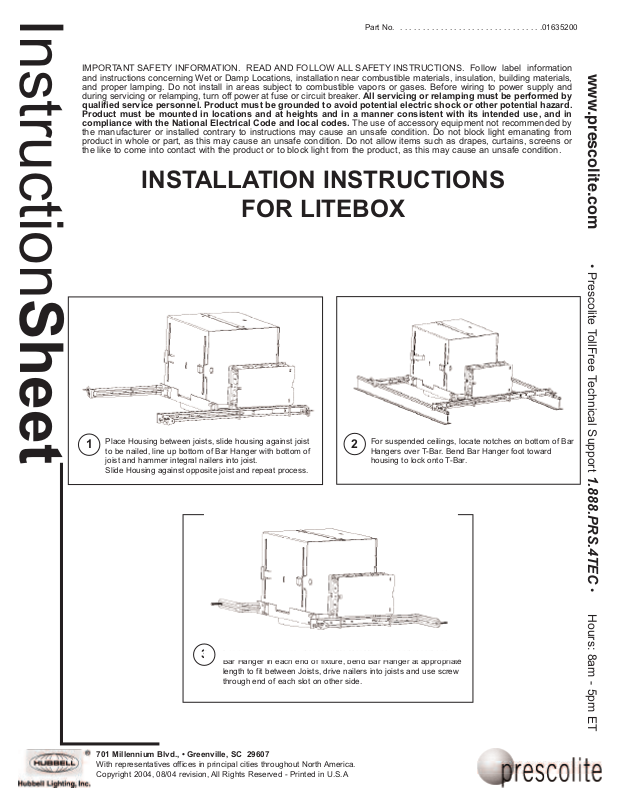

InstructionSheet
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .01635200
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS
FOR LITEBOX
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
Place Housing between joists, slide housing against joist
1
to be nailed, line up bottom of Bar Hanger with bottom of
joist and hammer integral nailers into joist.
Slide Housing against opposite joist and repeat process.
For narrow openings, disassemble Bar Hangers and insert one
3
Bar Hanger in each end of fixture, bend Bar Hanger at appropriate
length to fit between Joists, drive nailers into joists and use screw
through end of each slot on other side.
For suspended ceilings, locate notches on bottom of Bar
2
Hangers over T-Bar. Bend Bar Hanger foot toward
housing to lock onto T-Bar.
701 Millennium Blvd., • Greenville, SC 29607
With representatives of
Copyright 2004, 08/04 revision, All Rights Reserved - Printed in U.S.A
fices in principal cities throughout North
America.
InstructionSheet
Twist ends of support brackets with pliers to
4
secure position of housing along bar hangers.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .01635200
Wire to supply leads.
5
For Non-Metallic Sheathed Cable (Romex):
Remove appropriate rectangular knockout. Push
cable through pryout and past cable clamp.
For Metal Conduit: Remove appropriate round
pryout and connect conduit to junction box with
proper connector.
Make electrical splices as shown below. Push
splices back into junction box and replace cover.
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
6
Snap socket into trim bracket.
WHITE SUPPLY
WIRE
BLACK SUPPLY
WIRE
BARE OR GREEN
GROUND WIRE
FROM SUPPLY
BARE OR GREEN
GROUND WIRE
FROM SUPPLY
GREEN GROUND
SCREW
MOUNTING SCREW
FROM GROUNDED
METAL OUTLET
BOX ONLY
WHITE FIXTURE
WIRE
BLACK SUPPLY
WIRE
BARE OR GREEN
FIXTURE GROUND
WIRE
OR
BARE OR GREEN
FIXTURE GROUND
WIRE
OR
BARE OR GREEN
FIXTURE GROUND
WIRE
Insert torsion springs into housing
7
brackets and push trim up into housing.
701 Millennium Blvd., • Greenville, SC 29607
With representatives of
Copyright 2004, 08/04 revision, All Rights Reserved - Printed in U.S.A
fices in principal cities throughout North
America.
