Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161610300
IMPORTANT SAFETY INFORMATION. READAND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS
LITEFRAME
®
INCANDESCENT
LF6INC & LF8INC

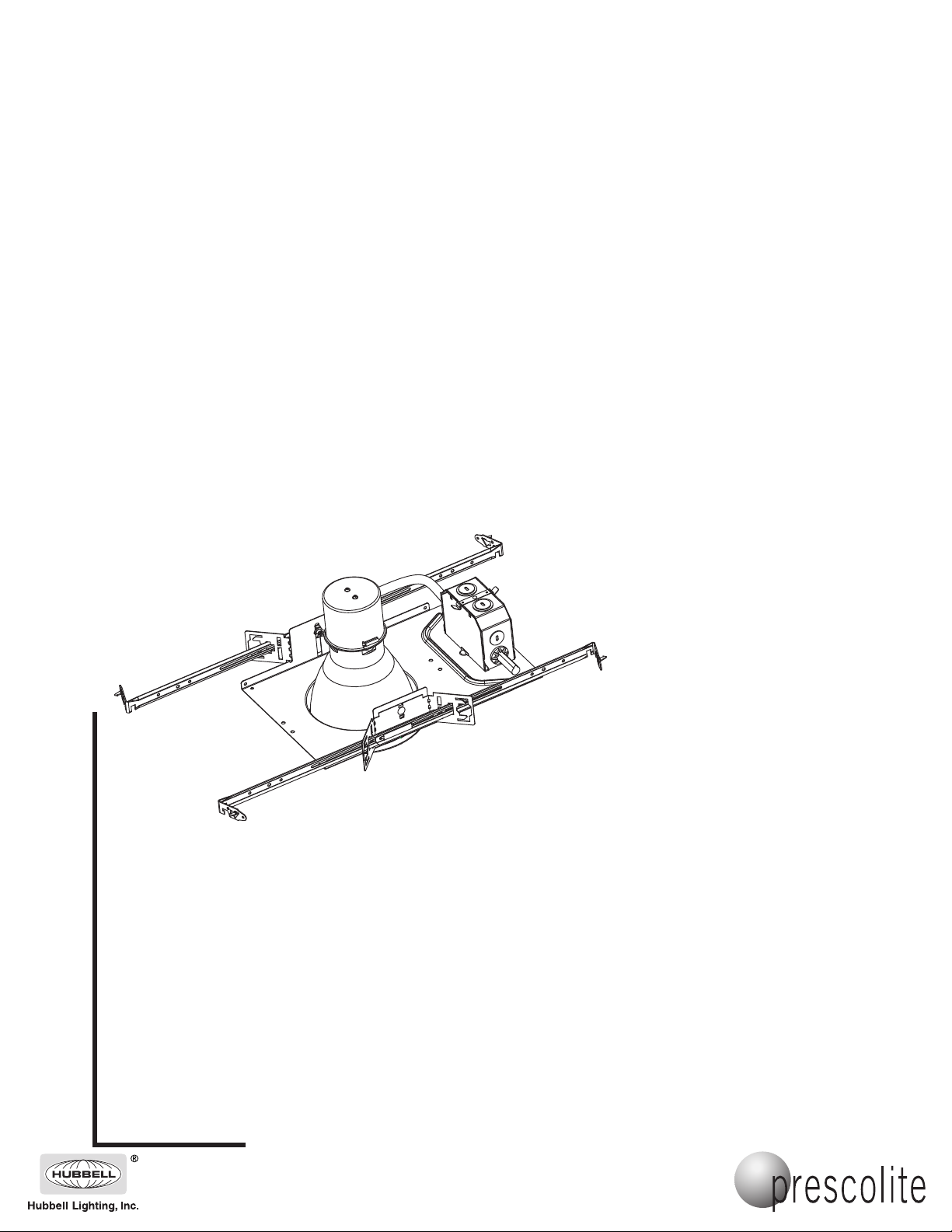

1.
Disconnect hanger bars and brackets and
re-install as shown. Install the fixture in the
ceiling using hanger bars (supplied), or
mounting channel or bar (by others)
placed in the adjustable mounting
brackets. Mount the fixture in the ceiling so
that the weight of the fixture is supported
by the hanger bars, mounting channel, or
bar and/or hanger wires secured to the
building structure.
2. Adjust the fixture so the bottom of the
plaster flange is flush with the finished
ceiling line and in alignment with adjacent
fixtures. Secure mounting brackets by
tightening wing nuts on either side of the
fixture.
3. Determine where the supply wiring conduit
will enter the J-Box and attach it in
conformance with the National Electric
Code.
4. Remove J-Box cover plate. Remove
appropriate knockout and assemble appropriate connector for the supply wire used.
Connect ground wires to green ground
leads. Connect white (common) to white
(leads). Connect power supply (line) to
black lead(s). Reinstall J-Box cover.
WARNING: DO NOT pinch wires
between J-Box/ballast cover and J-Box.
Consult a qualified electrician for all
other options that require other wiring
configurations.
Install the reflector after all ceiling
5.
installation and finishing work is complete.
Insert ends of socket cup spring into
reflector neck in alignment with slots, then
push the socket cup down until the desired
position is obtained. Use top position for A
lamps or bottom position for PAR lamps.
6. Push reflector up into the plaster flange
until the reflector is flush against the
ceiling.
7. Install the proper lamp (by others).
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER
OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITYOF THE WIRING.
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2004, 03/05 revision, All Rights Reserved - Printed in U.S.A.
