InstructionSheet
InstructionSheet
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .03352800
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

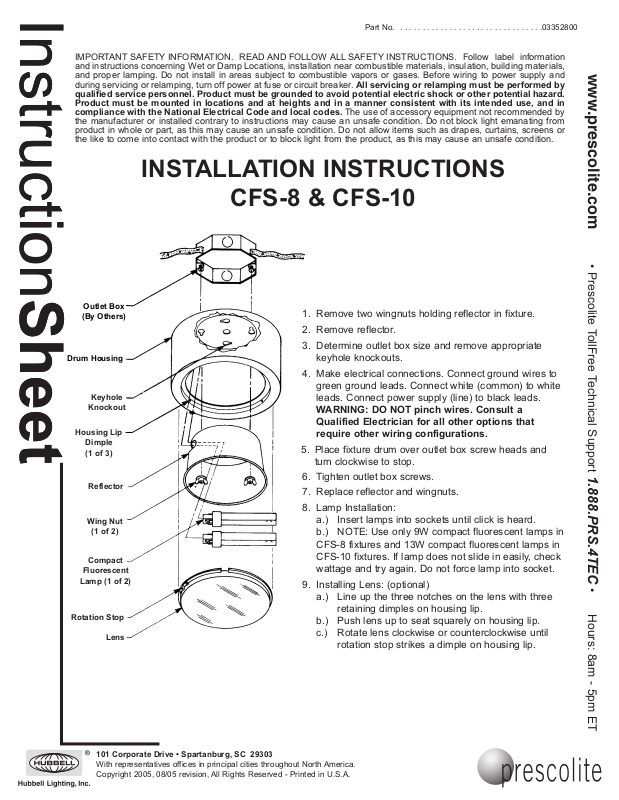

CFS-8 & CFS-10
Outlet Box
(By Others)
Drum Housing
Keyhole
Knockout
Housing Lip
Dimple (1 of 3)
Reflector
ing Nut
W
(1 of 2)
Compact
Fluorescent
Lamp (1 of 2)
Rotation Stop
Lens
1. Remove two wingnuts holding reflector in fixture.
2. Remove reflector.
3. Determine outlet box size and remove appropriate keyhole knockouts.
4. Make electrical connections. Connect ground wires to green ground leads. Connect white (common) to white leads. Connect power supply (line) to black leads.
WARNING: DO NOT pinch wires. Consult a Qualified Electrician for all other options that require other wiring configurations.
5. Place fixture drum over outlet box screw heads and turn clockwise to stop.
6. Tighten outlet box screws.
7. Replace reflector and wingnuts.
8. Lamp Installation: a.) Insert lamps into sockets until click is heard.
NOTE:
b.) CFS-8 fixtures and 13W compact fluorescent lamps in CFS-10 fixtures. If lamp does not slide in easily, check wattage and try again. Do not force lamp into socket.
9. Installing Lens: (optional) a.) Line up the three notches on the lens with three
retaining dimples on housing lip.
b.) Push lens up to seat squarely on housing lip.
Rotate lens clockwise or counterclockwise until
c.)
rotation stop strikes a dimple on housing lip.
Use only 9W compact fluorescent lamps in
101 Corporate Drive • Spartanburg, SC 29303
With representatives of Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
