IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

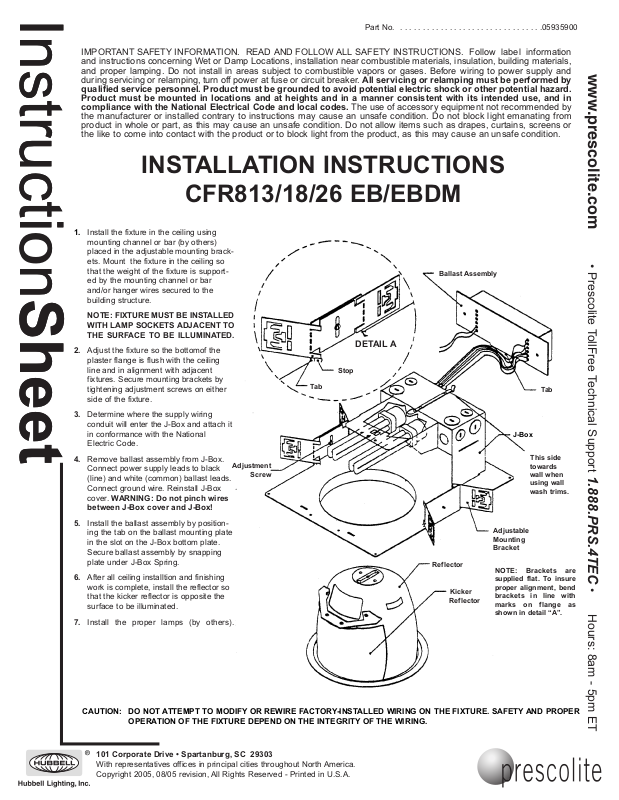

INSTALLATION INSTRUCTIONS
1.
Install the fixture in the ceiling using
mounting channel or bar (by others)
placed in the adjustable mounting brackets. Mount the fixture in the ceiling so
that the weight of the fixture is supported by the mounting channel or bar
and/or hanger wires secured to the
building structure.
NOTE: FIXTURE MUST BE INSTALLED
WITH LAMP SOCKETS ADJACENT TO
THE SURFACE TO BE ILLUMINATED.
Adjust the fixture so the bottomof the
2.
plaster flange is flush with the ceiling
line and in alignment with adjacent
fixtures. Secure mounting brackets by
tightening adjustment screws on either
side of the fixture.
3. Determine where the supply wiring
conduit will enter the J-Box and attach it
in conformance with the National
Electric Code.
4. Remove ballast assembly from J-Box.
Connect power supply leads to black
(line) and white (common) ballast leads.
Connect ground wire. Reinstall J-Box
cover
between J-Box cover and J-Box!
5. Install the ballast assembly by position-
ing the tab on the ballast mounting plate
in the slot on the J-Box bottom plate.
Secure ballast assembly by snapping
plate under J-Box Spring.
6. After all ceiling installtion and finishing
work is complete, install the reflector so
that the kicker reflector is opposite the
surface to be illuminated.
7. Install the proper lamps (by others).
ARNING: Do not pinch wires
.
W
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05935900
CFR813/18/26 EB/EBDM
Ballast
DETAIL A
Stop
Tab
Adjustment
Screw
Reflector
Kicker
Reflector
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
Assembly
Tab
J-Box
This side
towards
wall when
using wall
wash trims.
Adjustable
Mounting
Bracket
NOTE: Brackets are
supplied flat. To insure
proper alignment, bend
brackets in line with
marks on flange as
shown in detail “A”.
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE. SAFETY AND PROPER
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
TION OF THE FIXTURE DEPEND ON THE INTEGRITY
OPERA
fices in principal cities throughout North
America.
OF THE WIRING.
