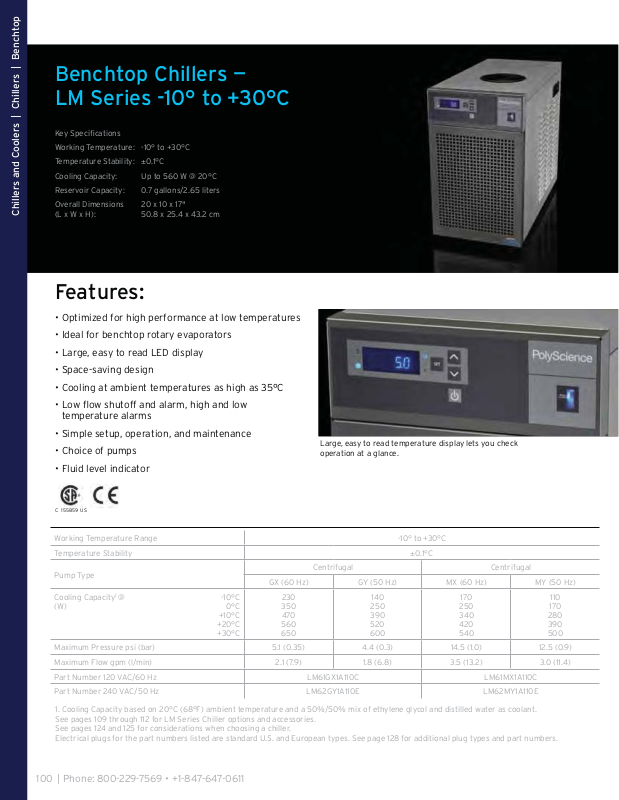

Chillers and Coolers | Chillers | Benchtop
Benchtop Chillers —
LM Series -10° to +30°C
Key Specifications
Working Temperature: -10° to +30°C
Temperature Stability: ±0.1°C
Cooling Capacity: |
Up to 560 W @ 20°C |
Reservoir Capacity: |
0.7 gallons/2.65 liters |
Overall Dimensions |
20 x 10 x 17" |
(L x W x H): |
50.8 x 25.4 x 43.2 cm |
Features:
•Optimized for high performance at low temperatures
•Ideal for benchtop rotary evaporators
•Large, easy to read LED display
•Space-saving design
•Cooling at ambient temperatures as high as 35°C
•Low flow shutoff and alarm, high and low temperature alarms
•Simple setup, operation, and maintenance
•Choice of pumps
•Fluid level indicator
C 155859 US
Large, easy to read temperature display lets you check operation at a glance.
Working Temperature Range |
|
|
|
|
-10° to +30°C |
|
|
|
|
|
|
|
|
|
|
|
|
Temperature Stability |
|
|
|
|
±0.1°C |
|
|
|
|
|
|
|
|
|
|
|
|
Pump Type |
|
|
Centrifugal |
|
|
Centrifugal |
||
|
|
|
|
|
|
|
|
|
|
GX (60 Hz) |
|
GY (50 Hz) |
|
MX (60 Hz) |
|
MY (50 Hz) |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
Cooling Capacity1 @ |
-10°C |
230 |
|
140 |
|
170 |
|
110 |
(W) |
0°C |
350 |
|
250 |
|
250 |
|
170 |
|
+10°C |
470 |
|
390 |
|
340 |
|
280 |
|
+20°C |
560 |
|
520 |
|
420 |
|
390 |
|
+30°C |
650 |
|
600 |
|
540 |
|
500 |
|
|
|
|
|
|
|
|
|
Maximum Pressure psi (bar) |
|
5.1 (0.35) |
|
4.4 (0.3) |
|
14.5 (1.0) |
|
12.5 (0.9) |
|
|
|
|
|
|
|
|
|
Maximum Flow gpm (l/min) |
|
2.1 (7.9) |
|
1.8 (6.8) |
|
3.5 (13.2) |
|
3.0 (11.4) |
|
|
|
|
|
|
|
||
Part Number 120 VAC/60 Hz |
|
LM61GX1A110C |
|
LM61MX1A110C |
||||
|
|
|
|
|
||||
Part Number 240 VAC/50 Hz |
|
LM62GY1A110E |
|
LM62MY1A110E |
||||
|
|
|
|
|
|
|
|
|
1. Cooling Capacity based on 20°C (68°F) ambient temperature and a 50%/50% mix of ethylene glycol and distilled water as coolant. See pages 109 through 112 for LM Series Chiller options and accessories.
See pages 124 and 125 for considerations when choosing a chiller.
Electrical plugs for the part numbers listed are standard U.S. and European types. See page 128 for additional plug types and part numbers.
100 | Phone: 800-229-7569 • +1-847-647-0611
