Pioneer SC-77, SC-79 Operating Instruction

Operating Instructions
AV Receiver
SC-79 SC-77
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
WARNING
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.
WARNING
To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.
VENTILATION CAUTION
When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 20 cm at top, 10 cm at rear, and 20 cm at each side).
WARNING
Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
D3-4-2-1-3_A1_En
D3-4-2-1-7a_A1_En
D3-4-2-1-7b*_A1_En
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
D3-4-2-1-1b_A1_En
Operating Environment
Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
CAUTION
The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).
D3-4-2-1-7c*_A1_En
D3-4-2-2-2a*_A1_En
11)
Read these instructions.
1)
Keep these instructions.
2)
Heed all warnings.
3)
Follow all instructions.
4)
Do not use this apparatus near water.
5)
Clean only with dry cloth.
6)
Do not block any ventilation openings. Install in
7)
Only use attachments/accessories specified by the manufacturer.
12)
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over. accordance with the manufacturer’s instructions. Do not install near any heat sources such as
8) radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized
9) or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or
10) pinched particularly at plugs, convenience
13)
Unplug this apparatus during lightning storms or when unused for long periods of time.
14)
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
receptacles, and the point where they exit from the apparatus.
D3-7-13-69_En
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_A1_En
Caution
To prevent fire hazard, the Class 2 Wiring Cable should be used for connection with speaker, and should be routed away from hazards to avoid damage to the insulation of the cable.
D3-7-13-67*_A1_En
Information to User
Alterations or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.
2
WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.
D36-P5_B1_En
D8-10-2_A1_En
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOTTOM. RECORD THESE NUMBERS ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
D36-AP9-1_A1_En
CAUTION
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.
D8-10-3a_A1_En
This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.
K041_A1_En
This Class B digital apparatus complies with Canadian ICES-003.
D8-10-1-3_A1_En
CAUTION: HOT SURFACE. DO NOT TOUCH.
The top surface over the internal heatsink may become hot when operating this product continuously.
D3-9-5_A1_En
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Once you have established a comfortable sound level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
Do not turn up the volume so high that you can’t hear what’s around you.
Use caution or temporarily discontinue use in potentially hazardous situations.
Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.
S001a_A1_En
WARNING
Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.
SC-79 only
FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: Model Number:
AV Receiver SC-79
Responsible Party Name: PIONEER ELECTRONICS (USA) INC. SERVICE SUPPORT DIVISION Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A. Phone: 1-800-421-1404 URL: http://www.pioneerelectronics.com
D41-6-4_A1_En
D8-10-4*_C1_En
3
Thank you for buying this Pioneer product. Please read through these operating instruc­tions so you will know how to operate your model properly.
Contents
01 Before you start
Checking what’s in the box ................................................................................................................................................ 8
Our philosophy .................................................................................................................................................................... 8
Features ............................................................................................................................................................................... 8
Installing the receiver .......................................................................................................................................................10
Loading the batteries ........................................................................................................................................................10
Operating range of remote control unit..........................................................................................................................10
About using AVNavigator (included CD-ROM)..............................................................................................................10
02 Controls and displays
Remote control .................................................................................................................................................................13
Display ...............................................................................................................................................................................15
Front panel ........................................................................................................................................................................16
03 Connecting your equipment
Connecting your equipment ............................................................................................................................................19
Rear panel .........................................................................................................................................................................19
Determining the speakers’ application ..........................................................................................................................20
Placing the speakers ........................................................................................................................................................23
Connecting the speakers .................................................................................................................................................24
Installing your speaker system ........................................................................................................................................25
About the audio connection ............................................................................................................................................31
About the video converter ................................................................................................................................................31
About HDMI ......................................................................................................................................................................32
Connecting your TV and playback components ............................................................................................................32
Connecting an HDD/DVD recorder, BD recorder and other video sources ...............................................................35
Connecting a satellite/cable receiver or other set-top box ...........................................................................................36
Connecting other audio components .............................................................................................................................37
Connecting additional amplifiers ....................................................................................................................................37
Connecting AM/FM antennas .........................................................................................................................................38
MULTI-ZONE setup ...........................................................................................................................................................39
Connecting to the network through LAN interface .......................................................................................................41
Connecting optional Bluetooth ADAPTER .....................................................................................................................42
Connecting an iPod ..........................................................................................................................................................42
Connecting a USB device ................................................................................................................................................43
Connecting an MHL-compatible device .........................................................................................................................43
Connecting an HDMI-equipped component to the front panel input .........................................................................43
Using a USB cable to connect to a computer ...............................................................................................................43
Connecting to a wireless LAN .........................................................................................................................................44
Connecting an IR receiver ...............................................................................................................................................44
Switching components on and off using the 12 volt trigger .........................................................................................45
Plugging in the receiver ...................................................................................................................................................45
04 Basic Setup
Automatically conducting optimum sound tuning (Full Auto MCACC) .....................................................................47
The Input Setup menu ......................................................................................................................................................48
Operation Mode Setup .....................................................................................................................................................49
Changing the OSD display language (OSD Language) ................................................................................................50
About the Home Menu.....................................................................................................................................................50
05 Basic playback
Playing a source ...............................................................................................................................................................52
Playing an iPod .................................................................................................................................................................53
Playing a USB device .......................................................................................................................................................54
Playing an MHL-compatible device ................................................................................................................................55
Playing music from a computer ......................................................................................................................................56
Listening to the radio ........................................................................................................................................................56
Bluetooth ADAPTER for Wireless Enjoyment of Music ................................................................................................57
06 Listening to your system
Enjoying various types of playback using the listening modes ....................................................................................61
Selecting MCACC presets ...............................................................................................................................................63
Choosing the input signal ................................................................................................................................................63
Better sound using Phase Control ..................................................................................................................................64
Better sound using Phase Control and Full Band Phase Control ...............................................................................64
07 Playback with NETWORK features
Introduction ....................................................................................................................................................................... 67
Playback with Network functions....................................................................................................................................68
About network playback...................................................................................................................................................70
About playable file formats ..............................................................................................................................................71
08 Control with HDMI function
About the Control with HDMI function ...........................................................................................................................73
Making Control with HDMI connections ........................................................................................................................73
HDMI Setup.......................................................................................................................................................................73
Before using synchronization ..........................................................................................................................................74
About synchronized operations ......................................................................................................................................74
Setting the PQLS function ...............................................................................................................................................74
About Sound Retriever Link and Stream Smoother Link ..............................................................................................74
Cautions on the Control with HDMI function ................................................................................................................75
09 Using other functions
Setting the Audio options ................................................................................................................................................77
Setting the Video options .................................................................................................................................................79
Switching the speaker terminals ....................................................................................................................................81
Using the MULTI-ZONE controls .....................................................................................................................................81
Making an audio or a video recording ............................................................................................................................82
Network settings from a web browser ............................................................................................................................82
Using the sleep timer .......................................................................................................................................................83
Dimming the display ........................................................................................................................................................83
Switching the HDMI output .............................................................................................................................................83
Checking your system settings .......................................................................................................................................83
Resetting the system ........................................................................................................................................................84
4
10 Controlling the rest of your system
About the Remote Setup menu.......................................................................................................................................86
Operating multiple receivers ...........................................................................................................................................86
Setting the remote to control other components ..........................................................................................................86
Selecting preset codes directly .......................................................................................................................................86
Programming signals from other remote controls .......................................................................................................87
Erasing one of the remote control button settings ........................................................................................................87
Erasing all learnt settings that are in one input function .............................................................................................88
Direct function ..................................................................................................................................................................88
Setting the backlight mode .............................................................................................................................................88
About the ALL ZONE STBY (All Zone Standby) and DISCRETE ON (Discrete On) functions ....................................88
Resetting the remote control settings ............................................................................................................................89
Controlling components ..................................................................................................................................................89
11 The Advanced MCACC menu
Making receiver settings from the Advanced MCACC menu ......................................................................................93
Automatic MCACC (Expert) .............................................................................................................................................93
Manual MCACC setup .....................................................................................................................................................95
Checking MCACC Data ....................................................................................................................................................98
Data Management............................................................................................................................................................99
12 The System Setup and Other Setup menus
Making receiver settings from the System Setup menu.............................................................................................101
Manual speaker setup ....................................................................................................................................................101
Network Setup menu .....................................................................................................................................................104
Checking the Network Information ...............................................................................................................................105
MHL Setup ......................................................................................................................................................................105
The Other Setup menu ...................................................................................................................................................105
Making network settings using Safari ..........................................................................................................................108
Using Safari to set a friendly name ...............................................................................................................................109
Using Safari to update the firmware .............................................................................................................................109
14 Additional information
Surround sound formats ...............................................................................................................................................121
About THX .......................................................................................................................................................................121
About HDMI ....................................................................................................................................................................122
HDBaseT .........................................................................................................................................................................122
HTC Connect ...................................................................................................................................................................122
About iPod .......................................................................................................................................................................123
Windows 8 .......................................................................................................................................................................123
MHL..................................................................................................................................................................................123
Software license notice ..................................................................................................................................................123
Auto Surround, ALC and Stream Direct with different input signal formats ............................................................124
Speaker Setting Guide....................................................................................................................................................124
About messages displayed when using network functions .......................................................................................125
Important information regarding the HDMI connection ............................................................................................126
Cleaning the unit ............................................................................................................................................................126
Glossary ...........................................................................................................................................................................127
Features index .................................................................................................................................................................130
Specifications .................................................................................................................................................................131
Preset code list................................................................................................................................................................132
13 FAQ
Troubleshooting ..............................................................................................................................................................111
Power ...............................................................................................................................................................................111
No sound .........................................................................................................................................................................111
Other audio problems ....................................................................................................................................................112
ADAPTER PORT terminal ..............................................................................................................................................113
Video ................................................................................................................................................................................113
Settings ............................................................................................................................................................................113
Professional Calibration EQ graphical output .............................................................................................................114
Display .............................................................................................................................................................................114
Remote control ...............................................................................................................................................................115
HDMI ................................................................................................................................................................................115
MHL..................................................................................................................................................................................116
AVNavigator ....................................................................................................................................................................116
USB interface ..................................................................................................................................................................117
iPod ..................................................................................................................................................................................117
Network ...........................................................................................................................................................................117
USB-DAC .........................................................................................................................................................................118
Web Control ....................................................................................................................................................................118
Wireless LAN ...................................................................................................................................................................119
5
Flow of settings on the receiver
Flow for connecting and setting the receiver
The unit is a full-fledged AV receiver equipped with an abundance of functions and terminals. It can be used eas­ily after following the procedure below to make the connections and settings.
Required setting item: 1, 2, 3, 4, 5, 7, 9 Setting to be made as necessary: 6, 8, 10, 11, 12, 13
Important
The receiver’s initial settings can be made on the computer using Wiring Navi on the AVNavigator CD-ROM included with the receiver. In this case, virtually the same connections and settings as in steps 2, 3, 4, 5, 6, 7 and 8 can be made interactively. For instructions on using AVNavigator, see About using AVNavigator (included
CD-ROM) on page 10.
1 Before you start
! Checking what’s in the box on page 8 ! Loading the batteries on page 10
j
2 Determining the speakers’ application (page 20)
! [A] 9.2 channel surround system (Front height/Front wide) connection ! [B] 7.2 channel surround system & Speaker B connection ! [C] 7.2 channel surround system & Front Bi-amping connection (High quality surround) ! [D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi Zone) ! [E] 7.2 channel surround system (Front height/Front wide) & ZONE 2 connection (Multi Zone) ! [F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection
(Multi Zone)
! [G-1] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone) ! [G-2] Multi-ZONE Music ! [H] 5.2 channel surround system & Speaker B Bi-amping connection ! [I] 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround) ! [J] 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround) ! [K] 5.2 channel surround system & Center and Surround Bi-amping connection (High quality surround)
j
3 Connecting the speakers
! Placing the speakers on page 23 ! Connecting the speakers on page 24 ! Installing your speaker system on page 25 ! Bi-amping your speakers on page 24
j
4 Connecting the components
! About the audio connection on page 31 ! About the video converter on page 31 ! Connecting your TV and playback components on page 32 ! Connecting AM/FM antennas on page 38 ! Plugging in the receiver on page 45
j
5 Power On
j
6 Changing the OSD display language (OSD Language) (page 50)
j
7 MCACC speaker settings
! Automatically conducting optimum sound tuning (Full Auto MCACC) on page 47
j
8 The Input Setup menu (page 48)
(When using connections other than the recommended connections)
j
9 Basic playback (page 51)
j
10 Switching the HDMI output (page 83)
j
11 Adjusting the sound and picture quality as desired
! Using the various listening modes (page 60) ! Better sound using Phase Control (page 64) ! Better sound using Phase Control and Full Band Phase Control (page 64) ! Measuring the all EQ type (SYMMETRY/ALL CH ADJ/FRONT ALIGN) (page 93) ! Changing the channel level while listening (page 102) ! Switching on/off the Acoustic Calibration EQ, Auto Sound Retriever or Dialog Enhancement (page 77) ! Setting the PQLS function (page 74) ! Setting the Audio options (page 77) ! Setting the Video options (page 79)
j
12 Other optional adjustments and settings
! Control with HDMI function (page 72) ! The Advanced MCACC menu (page 92) ! The System Setup and Other Setup menus (page 100)
j
13 Making maximum use of the remote control
! Operating multiple receivers (page 86) ! Setting the remote to control other components (page 86)
6
Before you start
Checking what’s in the box ............................................................................................................8
Our philosophy ................................................................................................................................ 8
Features ............................................................................................................................................ 8
Installing the receiver .................................................................................................................... 10
Loading the batteries .................................................................................................................... 10
Operating range of remote control unit ......................................................................................10
About using AVNavigator (included CD-ROM) ........................................................................... 10
7
01
Before you start
Checking what’s in the box
Please check that you’ve received the following supplied accessories:
! Setup microphone (cable: 5 m (16.4 ft.)) ! Remote control unit ! AAA size IEC R03 dry cell batteries (to confirm system operation) x2 ! AM loop antenna ! FM wire antenna ! Power cord ! CD-ROM (AVNavigator) ! Quick start guide ! Safety Brochure ! Warranty sheet
Our philosophy
Pioneer is dedicated to making your home theater listening experience as close as possible to the vision of the moviemakers and mastering engineer when they created the original soundtrack. We do this by focusing on three important steps:
1 Achieving the highest possible sound quality
2 Allowing for customized acoustic calibration according to any listening area
3 Fine-tuning the receiver with the help of world-class studio engineers
With the cooperation of AIR Studios, this receiver has been designated AIR Studios Monitor:
Features
% Class D Amplifier
This unit is an AV receiver developed based on the latest high performance Class D amplifier and integrating the essence of Pioneer’s high sound quality designs. This new generation reference amplifier offers outstanding performance with high sound quality and reproduces the latest in multi-channel digital contents.
% ESS-DAC-equipped
All channels are equipped with ESS SABRE 32 Ultra Audio DACs. The Jitter Eliminators achieve clearer sound.
% AIR Studios Sound Tuning
The SC-79 and SC-77 have received the AIR Studios Monitor certification. Pioneer has a proven track record of applying its audio expertise to the creation of multi-channel sound environments. Established in 1969 in London, AIR Studios is now an acclaimed recording complex, favoured by many of the world’s most popular and renowned musical talents.
% THX Ultra 2 Plus
THX Ultra2 Plus is the highest level THX certification, featuring THX Loudness Plus technology, designed to main­tain the impact and integrity of audio content even when played at lower volume settings. THX Ultra2 Plus helps to deliver sound just as it was mixed in the studio, regardless of volume level.
% Audio Scaler
The combined effect of Hi-bit 32 Audio Processing, the digital filter and the up-sampling function can be used to convert the signals of music files or CDs to up to 192 kHz/32 bits to achieve even clearer sound with higher definition.
% Hi-Bit 32 Audio Processing
Creates a wider dynamic range with digital sources like CDs, DVDs or BDs. 16-, 20- and 24-bit PCM as well as compressed audio is requantized to 32 bits, and the high frequency component is interpolated upon data pro­cessing to enable smoother, more subtle musical expression.
% Auto Phase Control Plus
For discs created with standards other than Phase Control, the LFE channel is delayed upon recording in the first place. This function automatically corrects for phase shifting on such discs and broadcast. This function is particularly effective when playing multi-channel music containing low frequency effects (LFE).
% Full Band Phase Control (compatible with FRONT ALIGN)
The further advanced Full Band Phase Control technology focuses on the group delay in the speaker network filter, and compensates with special digital signal processing (DSP), to adjust the phase of each unit as well as the group delay for each speaker. Full Band Phase Control gives multi-range speakers the sound coherence of full-range speakers, while retaining the wide frequency range advantage. This is compatible with the FRONT ALIGN function for matching the characteristics of the speakers other than the front speakers with those of the front speakers.
% PQLS Bit-stream
Jitterless high quality playback is possible by connecting a PQLS-compatible player with HDMI connections. This feature is only available when the connected Pioneer Blu-ray Disc Player supporting the PQLS function.
% dts Neo:X compatible
This receiver supports the latest DTS processing format. The quality of Neo:X, originally designed for 9 channels or more, can be enjoyed in a 7-channel environment.
% Various Speaker Channel Assign
With this receiver, 12 types of speaker systems, including bi-amp connections, can be assigned to achieve the optimum speaker system for the user’s home theater environment and the speakers the user owns.
% Multi-Zone Music
All the speakers connected to this receiver in the main zone and all the sub zones can be played at once to enjoy music contents.
% HDMI (3D, Audio Return Channel)
- SC-79: 9in/4out (Dual out + HDBaseT and HDZONE out)
- SC-77: 9in/3out (Dual out + HDZONE out)
A compatible component is required to use the above function.
% Ultra HD (with 4K video support) – Pass-through and upscaling –
4K resolution images can be passed through and displayed as such, and the Hi-Vision or Full Hi-Vision images of DVDs, Blu-ray discs and HD broadcasts can be upscaled to a resolution of up to 4K and displayed. A separate monitor supporting Ultra HD (4K video) is required.
% HDBaseTTM output terminal
SC-79 only The SC-79 is equipped with HDBaseT output terminals supporting 4K/3D/Full-HD video and multi-channel audio. The HDMI video output signals are converted for LAN cable transmission, so they can be output to sub-zone rooms up to 100 meters away.
8
01
Before you start
% HDZONE output
This receiver supports output of the HDMI output to a subzone room. Powerful images can be enjoyed simply by connected this receiver to a TV supporting 4K/Full-HD/3D. In addition, a multi-channel environment can be cre­ated by connecting this receiver to another AV receiver in the subzone room.
% MHLTM (Mobile High-definition Link)-compatible device playback
An incorporates MHL 2 mobile device can be connected to enjoy 3D videos, full-HD videos, high quality multi­channel audio, and photos etc., with charge the battery on the receiver.
% HTC Connect
HTC Connect makes it easy to wirelessly stream your favorite music straight from your HTC phone. There’s no need for a separate app; HTC Connect is built right into your phone’s music player.
% USB-DAC (NATIVE DSD and LPCM transmission supported)
SC-79 only Music files on a computer can be played by connecting the receiver with the computer using a commercially available USB cable. Files can be played with high sound quality when the exclusive driver is installed on the computer. The driver software can be installed from the included CD-ROM (AVNavigator). Native DSD playback by DoP (DSD over PCM) transmission is supported.
% DSD Music playback (via USB-DAC, Front USB and HDMI)
Playback of high sound quality DSD music (DSD files and DSD discs (SACDs)) is supported. With USB-DACs (SC-79 only), USB devices and SACDs, DSD Direct playback bypassing the DSP circuitry is also possible.
% High Resolution Music Playback
High resolution music files with resolutions of 96 kHz/24 bit to 192 kHz/24 bit can be played. Playback of AIFF, Apple Lossless, WAV and FLAC files via the front USB port and network is supported.
% Gapless Playback
The silent section between tracks is skipped when playing music files, eliminating the interruptions that usually occur when playing live or concert contents.
% Apple AirPlay
With AirPlay you can stream music from iTunes to the SC-79/SC-77 and play it through your home theater system. You can even use the receiver to view metadata including song title, artist as well as album art on a connected display. With Pioneer’s Air Play-compatible receivers, you can easily enjoy your iTunes music in any room in the house.
% iPod playback
Your iPod, iPhone or iPad can be connected to the receiver’s USB terminal and RCA video terminal to play the music/video files on the iPod, iPhone or iPad. Also, the iPod, iPhone or iPad is charged when it is connected to the receiver.
% Play ZONE
When playing music contents on smartphones or other terminals via the network, the zone in which the music is to be played can be specified.
% Input Volume Absorber
Differences in the volume between inputs can be adjusted manually. If the volume seems different for certain inputs, individual inputs can be adjusted to the user’s tastes by ±12 dB.
% Windows 8 Compatible
The AV receivers are compatible with Windows 8, letting you easily stream music from compatible PCs on your home network.
% iControlAV2013 Remote Application
This is an application for smartphones and tablets allowing intuitive operation of many of the AV receiver’s func­tions. Versions are available for iPhone, iPod touch, iPad and Android devices. The application can be down­loaded free of charge from the App Store or Google Play.
®
% AVNavigator 2013 (for Windows PC, Macintosh and iPad)
The CD-ROM (AVNavigator) included with this unit provides a variety of functions, such as Wiring Navi with a guide for connecting the unit and setting up from the computer and an Interactive Manual for operating the unit while reading the manual. Also, Operation Guide describes the receiver’s playback operations and how to use several functions through videos and illustrations.
! The provided CD-ROM includes the Windows version of AVNavigator. ! The Mac OS version of AVNavigator can be downloaded from http://www.pioneerelectronics.com. ! AVNavigator is available not only for Windows and Mac OS but also for iPad (downloadable free of charge). For
details, see http://pioneer.jp/product/soft/iapp_avnavi/en.html.
% Energy Saving Design
This AV receiver has an ecological design. In addition to even lower power consumption in standby, the receiver is equipped with an “eco mode” for low power consumption when playing contents as well. Furthermore, the eco mode can easily be set with a dedicated button on the remote control or using the application.
% Dolby Pro Logic llz compatible
Adding a pair of speakers above the front left and right speakers adds expressiveness in the vertical direction to the previous horizontally-oriented sound field. The height channel strengthens the sound field’s sense of three­dimensionality and air, producing presence and expansion.
% Virtual Speakers
By turning on “Virtual Surround Back”, “Virtual Height”, and “Virtual Wide” modes realize a maximum of 11.2 channels combining the actually installed speakers and the virtual speakers is possible. This makes for smoother connection between the sounds and an improved 3D feel.
% Auto Sound Retriever
The Auto Sound Retriever feature employs DSP technology to restore sound pressure and smooth jagged arti­facts left over after compression.
% Sound Retriever Link
By connecting a Pioneer player supporting the Sound Retriever Link function, compressed audio files played on the player can be corrected automatically to play the sound with higher density. This feature is only available when the connected Pioneer Blu-ray Disc Player supporting the PQLS function.
% Stream Smoother Link
By connecting a Pioneer player supporting the Stream Smoother Link function, compressed video or movie files played on the player can be corrected automatically to play them with a more natural, easily viewable picture. This feature is only available when the connected Pioneer Blu-ray Disc Player supporting the PQLS function.
% Internet Radio
By connecting this receiver to the network via the LAN terminal, you can listen to Internet radio stations.
% Bluetooth compatible
Using the Bluetooth ADAPTER (AS-BT100 or AS-BT200) lets you enjoy music files on an iPhone or other Bluetooth wireless technology device wirelessly.
% Wireless LAN Converter Ready
With the AS-WL300 wireless LAN converter (Optional), you can enjoy wireless LAN connection for the AV receiv­ers. The AS-WL300 works with power supply from the AV receiver’s dedicated USB terminal, so no AC adapter is required.
% Easy setup using Advanced MCACC
The Auto MCACC Setup provides a quick but accurate surround sound setup, which includes the advanced fea­tures of Professional Acoustic Calibration EQ.
9
01
Before you start
Installing the receiver
! When installing this unit, make sure to put it on a level and stable surface. ! Don’t install it on the following places:
on a color TV (the screen may distort) near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound. in direct sunlight in damp or wet areas in extremely hot or cold areas in places where there is vibration or other movement in places that are very dusty in places that have hot fumes or oils (such as a kitchen)
! Do not touch this receiver’s bottom panel while the power is on or just after it is turned off. The bottom panel
becomes hot when the power is on (or right after it is turned off) and could cause burns.
Loading the batteries
The batteries included with the unit are to check initial operations; they may not last over a long period. We rec­ommend using alkaline batteries that have a longer life.
WARNING
! Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a
heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or perfor­mance of batteries.
Operating range of remote control unit
The remote control may not work properly if:
! There are obstacles between the remote control and the receiver’s remote sensor. ! Direct sunlight or fluorescent light is shining onto the remote sensor. ! The receiver is located near a device that is emitting infrared rays. ! The receiver is operated simultaneously with another infrared remote control unit.
30°
30°
7 m (23 ft.)
About using AVNavigator (included CD-ROM)
The included AVNavigator CD-ROM contains Wiring Navi allowing you to easily make the receiver’s connections and initial settings in dialog fashion. High precision initial settings can be completed easily simply by following the instructions on the screen to make the connections and settings. There are also other features enabling easy use of various functions, including an Interactive Manual that oper­ates in association with the receiver, updating of various types of software, and MCACC Application that lets you check the MCACC measurement results on 3D graphs.
! The Mac OS version of AVNavigator can be downloaded from http://www.pioneerelectronics.com. ! The iPad version of AVNavigator can be downloaded from the App Store. ! The provided CD-ROM includes the Windows version of AVNavigator.
CAUTION
Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:
! Never use new and old batteries together. ! Insert the plus and minus sides of the batteries properly according to the marks in the battery case. ! When inserting the batteries, make sure not to damage the springs on the battery’s (–) terminals. This can
cause batteries to leak or overheat.
! Batteries with the same shape may have different voltages. Do not use different batteries together. ! When disposing of used batteries, please comply with governmental regulations or environmental public insti-
tution’s rules that apply in your country/area.
Installing AVNavigator for Windows
1 Launch the desktop from the start screen (for Windows 8 only).
2 Load the included CD-ROM into your computer’s CD drive.
The CD-ROM’s top menu screen appears.
! A screen for selecting the CD-ROM’s operation (“Open with Explorer”, “Launch ‘MAIN_MENU.exe’”, etc.) may
be displayed. When the operation for launching “MAIN_MENU.exe” is performed, the AVNavigator menu appears. A caution regarding security may appear during this operation, but there is no security problem, so continue the operation.
! If the CD-ROM’s top menu screen is not displayed, double-click “MAIN_MENU.exe” on the CD-ROM. When
this is done, a caution regarding security is displayed, but there is no security problem, so continue the operation.
3 Click “AVNavigator” on the “Installing Software” menu.
4 Follow the instructions on the screen to install.
When “Finish” is selected, installation is completed.
5 Remove the included CD-ROM from the computer’s CD drive.
10
01
Before you start
Handling the CD-ROM
Operating Environment
! AVNavigator can be used with Microsoft® Windows® XP/Windows Vista®/Windows® 7/Windows® 8. ! A browser is at times used for AVNavigator functions. The supported browser is Microsoft Internet Explorer
9 or 10.
®
! Adobe For details, see http://www.adobe.com/downloads/.
Precautions For Use
! This CD-ROM is for use with a personal computer. It cannot be used with a DVD player or music CD player.
License
! Please agree to the “Terms of Use” indicated below before using this CD-ROM. Do not use if you are unwilling
Terms of Use
! Copyright to data provided on this CD-ROM belongs to PIONEER CORPORATION. Unauthorized transfer,
General Disclaimer
! PIONEER CORPORATION does not guarantee the operation of this CD-ROM with respect to personal com-
Flash® Player 10 must be installed to use some of the functions in AVNavigator.
Attempting to play this CD-ROM with a DVD player or music CD player can damage speakers or cause impaired hearing due to the large volume.
to consent to the terms of its use.
duplication, broadcast, public transmission, translation, sales, lending or other such matters that go beyond the scope of “personal use” or “citation” as defined by Copyright Law may be subject to punitive actions. Permission to use this CD-ROM is granted under license by PIONEER CORPORATION.
puters using any of the applicable OS. In addition, PIONEER CORPORATION is not liable for any damages incurred as a result of use of this CD-ROM and is not responsible for any compensation. The names of private corporations, products and other entities described herein are the registered trademarks or trademarks of their respective firms.
®
Using AVNavigator for Windows
1 Click [AVNavigator 2013.V] on the desktop to launch AVNavigator.
AVNavigator is launched and Wiring Navi starts up. The language selection screen appears. Follow the instruc­tions on the screen to make the connections and automatic settings.
Wiring Navi only starts up automatically the first time AVNavigator is launched.
2 Select and use the desired function.
AVNavigator includes the following functions:
! Wiring Navi – Guides you through connections and initial settings in dialog fashion. High precision initial
settings can be made easily.
! Operation Guide – Describes the receiver’s playback operations and how to use several functions through
videos and illustrations.
! Interactive Manual – Automatically displays the pages explaining the functions that have been operated on
the receiver. It is also possible to operate the receiver from the Interactive Manual.
! Glossary – Displays glossary pages. ! MCACC Appli – Displays Advanced MCACC measurement results vividly on the computer.
There are special operating instructions for MCACC Application. These instructions are included in the
AVNavigator Interactive Manual’s menus. Refer to them when using MCACC Application.
! Software Update – Allows various types of software to be updated. ! Settings – Used to make various AVNavigator settings. ! Detection – Used to detect the receiver. Press Detection before using the Interactive Manual,
MCACC Appli and Software Update to connect the receiver to the network.
Deleting the AVNavigator
You can use the following method to uninstall (delete) the AVNavigator from your PC.
% Delete from the Control Panel of the PC.
8,
! With Windows XP/Windows Vista/Windows 7, AVNavigator can also be uninstalled using the following
operation.
From the Start menu, click “Program” d “PIONEER CORPORATION” d “AVNavigator 2013.V” d “Uninstall
AVNavigator 2013.V”.
Installing AVNavigator for Mac
1 Download “AVNavigator 2013.pkg” from http://www.pioneerelectronics.com.
2 Launch “AVNavigator 2013.pkg” from the “Downloads” folder.
3 Follow the instructions on the screen to install.
Operating Environment
! AVNavigator for Mac can be used with Mac OS X (10.7 or 10.8). ! A browser is at times used for AVNavigator for Mac functions. The supported browser is Safari 6.0.
Using AVNavigator for Mac
1 Launch “AVNavigator 2013”.
The file is located in the “Applications” folder just under the hard disk (Macintosh HD).
2 Select and use the desired function.
For details, see Using AVNavigator for Windows on page 11. The Mac OS version includes the same types of functions.
Deleting the AVNavigator
You can use the following method to uninstall (delete) the AVNavigator from your Mac.
1 Delete “AVNavigator 2013”.
The file is located in the “Applications” folder just under the hard disk (Macintosh HD).
2 Delete the “jp.co.pioneer.AVNavigator 2013” folder.
The folder is located in the hard disk (Macintosh HD) d “Library” folder d “Application Support” folder.
11
Controls and displays
Remote control ..............................................................................................................................13
Display ............................................................................................................................................ 15
Front panel ..................................................................................................................................... 16
12
02
Controls and displays
Remote control
This section explains how to operate the remote control for the receiver.
2,3
10
ALL ZONE STBY
STANDBY/ON
1
4
DISCRETE ON
RCU SETUP
BD DVDDVR
CDTV
USB CBL
SATTUNERMHL
iPod
INPUT
SELECT
5
TV CONTROL
6
7
CH
AUDIO
PARAMETER
TOP MENU
8
HOME MENU
iPod CTRL
9
5
FEATURES
P.CTRL
PHASE
MPX
PRESET TUNE
AUTO/ALC/
STANDARDADV SURR
DIRECT
2
13
MCACC
SIGNAL SEL
546
DIMMER SLEEP
SPEAKERS
8
79
HDMI OUT
D.ACCESS
0
ZONE 2 ZONE 3
Z2 Z3 HDZ
RECEIVER
SOURCE
BDR
HDMI
NET
ADPT
RECEIVER
STATUS
VOLUME
INPUT
VOL
MUTE
VIDEO
PARAMETER
TOOLS
MENU
ENTER
RETURN
+
A.SCAL
BAND PTY
+Favorite
AUDIO
AUTO
S.RTRV
CH LEVEL
DISP
CLASS
ENTER / CLR
LIGHT
HD ZONE
ECO
THX
CH
CH
11
12
13
14
15
The remote has been conveniently color-coded according to component control using the following system:
! White – Receiver control, TV control ! Blue – Other controls (See pages 53, 54, 56, 57 and 89.)
1 u STANDBY/ON
This switches between standby and on for this receiver.
2 ALL ZONE STBY DISCRETE ON
Use this button to perform unique operations (page 88).
3 RCU SETUP
Use to input the preset code when making remote control settings and to set the remote control mode (page 86).
4 Input function buttons
Press to select control of other components (page 86). Use INPUT SELECT c/ d to select the input function (page 52).
5 Receiver Control buttons
Press first to access:
! STATUS – Press to check selected receiver settings (page 83). ! AUTO/ALC/DIRECT – Switches between Auto Surround (page 61), Auto Level Control mode and Stream
Direct mode (page 63).
! STANDARD – Press for Standard decoding and to switch various modes (2 Pro Logic, Neo:X, etc.) (page
61).
! ADV SURR – Use to switch between the various surround modes (page 62). ! THX – Press to select a Home THX listening mode (page 62). ! SIGNAL SEL – Use to select an input signal (page 63). ! MCACC – Press to switch between MCACC presets (page 63). ! CH LEVEL – Press repeatedly to select a channel, then use k/l to adjust the level (pages 52 and 102). ! AUTO S.RTRV – Press to restore CD quality sound to compressed audio sources (page 77). ! SPEAKERS – Use to change the speaker terminal (page 81). ! DIMMER – Dims or brightens the display (page 83). ! SLEEP – Use to put the receiver in sleep mode and select the amount of time before sleep (page 83). ! HDMI OUT – Switch the HDMI output terminal (page 83).
6 TV CONTROL buttons
These buttons can be used to perform operations on the TV to which the TV CONTROL INPUT button is assigned. The TV can be operated with these buttons regardless of the input set for the remote control’s operation mode (page 86).
7 Receiver setting buttons
Press first to access:
! AUDIO PARAMETER – Use to access the Audio options (page 77). ! VIDEO PARAMETER – Use to access the Video options (page 79). ! HOME MENU – Use to access the Home Menu (pages 48, 50, 73, 93 and 101). ! RETURN – Press to confirm and exit the current menu screen.
8 i/j/k/l/ENTER
Use the arrow buttons when setting up your surround sound system (see page 93) and the Audio or Video options (page 77 or 79).
9 FEATURES buttons
These let you operate the receiver’s features directly.
! PHASE – Press to switch on/off Phase Control or Full Band Phase Control (page 64). ! P.CTRL+ – Use to switch the setting of the Auto Phase Control Plus function (page 77). ! A.SCAL – Use to switch the Audio Scaler function’s setting (page 77). ! ECO – Use to switch the eco mode type (page 62).
13
02
10 MULTI-ZONE select buttons
Switch to perform operations in ZONE 2, ZONE 3 and HDZONE (page 81).
11 Remote control LED
Lights when a command is sent from the remote control.
12
Switches the remote to control the receiver (used to select the white commands). Switch to perform operations in the main zone. Also use this button to set up surround sound.
13 VOLUME +/–
Use to set the listening volume.
14 MUTE
Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound).
15 LIGHT
Press to turn on/off the illumination for the buttons. The way the buttons light can be selected from four modes (page 88).
Controls and displays
14
02
Controls and displays
Display
21 3 64 1175 12 14 15
2
AUTO
HDMI
DIGITAL
ANALOG
AUTO SURROUND STREAM DIRECT
2
PROLOGIC x THX ADV.SURROUND
STANDARD
SP AB
6
L C R SL SR XL XR
XC
LFE
Neo:6
SLEEP
DIGITAL PLUS
2
TrueHD
DTS HD ES 96/24
CD
MSTR
DSD PCM MULTI-ZONE S.RTRV SOUND UP MIX
TUNER
PHONO
iPod
FULL BAND
PQLS
DVD
BD
2120 2217 18 19
ALC
TV
DVR
1 Signal indicators
Light to indicate the currently selected input signal. AUTO lights when the receiver is set to select the input sig­nal automatically (page 63).
2 Program format indicators
Light to indicate the channels to which digital signals are being input.
! L/R – Left front/Right front channel ! C – Center channel ! SL/SR – Left surround/Right surround channel ! LFE – Low frequency effects channel (the (( )) indicators light when an LFE signal is being input) ! XL/XR – Two channels other than the ones above ! XC – Either one channel other than the ones above, the mono surround channel or matrix encode flag
3 Digital format indicators
Light when a signal encoded in the corresponding format is detected.
! 2 DIGITAL – Lights with Dolby Digital decoding. ! 2 DIGITAL PLUS – Lights with Dolby Digital Plus decoding. ! 2 TrueHD – Lights with Dolby TrueHD decoding. ! DTS – Lights with DTS decoding. ! DTS HD – Lights with DTS-HD decoding. ! 96/24 – Lights with DTS 96/24 decoding. ! DSD – Lights during playback of DSD (Direct Stream Digital) signals. ! DSD PCM – Light during DSD (Direct Stream Digital) to PCM conversion. ! PCM – Lights during playback of PCM signals. ! MSTR – Lights during playback of DTS-HD Master Audio signals.
4 MULTI-ZONE
Lights when the MULTI-ZONE feature is active (page 81).
5 FULL BAND
Lights when the Full Band Phase Control is switched on (page 64).
6 Listening mode indicators
! AUTO SURROUND – Lights when the Auto Surround feature is switched on (page 61). ! ALC – Lights when the ALC (Auto level control) mode is selected (page 61). ! STREAM DIRECT – Lights when Direct/Pure Direct is selected (page 63). ! ADV.SURROUND – Lights when one of the Advanced Surround modes has been selected (page 62). ! STANDARD – Lights when one of the Standard Surround modes is switched on (page 61). ! THX – Lights when one of the Home THX modes is selected (page 62).
AT T
OVER
8 9
VIDEO
HDMI
10 13
TUNED STEREO MONO
USB
[ 2 ]
[ 3 ]
dB
[ 4 ]
7 (PHASE CONTROL)
Lights when the Phase Control (page 64) or Full Band Phase Control (page 64) is switched on.
16
8 ATT
Lights when the input signal level is lowered to reduce distortion (page 77).
9 OVER
Lights when excessive analog signals are being input.
10 PQLS
Lights when the PQLS feature is active (page 74).
11 Tuner indicators
! TUNED – Lights when a broadcast is being received. ! STEREO – Lights when a stereo FM broadcast is being received in auto stereo mode. ! MONO – Lights when the mono mode is set using MPX.
12
Lights when the sound is muted.
13 SOUND
Lights when the DIALOG E (Dialog Enhancement) or TONE (tone controls) features is selected (page 77).
14 Master volume level
Shows the overall volume level. “---” indicates the minimum level, and “+12dB” indicates the maximum level.
15 Input function indicators
Light to indicate the input function you have selected.
16 Scroll indicators
Light when there are more selectable items when making the various settings.
17 Speaker indicators
Lights to indicate the current speaker system using SPEAKERS (page 81).
18 SLEEP
Lights when the receiver is in sleep mode (page 83).
19 Matrix decoding format indicators
! 2PRO LOGIC IIx – This lights to indicate 2 Pro Logic II / 2 Pro Logic IIx decoding (page 61).
20 S.RTRV
Lights when the Auto Sound Retriever function is active (page 77).
21 Character display
Displays various system information.
22 Remote control mode indicator
Lights to indicate the receiver’s remote control mode setting. (Not displayed when set to 1.) (page 106)
15
02
35
Controls and displays
Front panel
1 2 4
ADVANCED
MCACC
FL OFF
INPUT SELECTOR
STANDBY/ON
8910 1211 13 15
AUDIO
PARAMETER
7
HOME MENU RETURN
VIDEO
PARAMETER
TUNE
ENTER
TUNE (HDMI)
ZONE 2 ON/OFF
ZONE 3 ON/OFF
PRESETPRESET
HDZONE
ON/OFF
MULTI-ZONE
CONTROL
PHONES
SPEAKERS
MCACC
SETUP MIC
iPod iPhone iPad
DIRECT CONTROL
with USB
AUTO/ALC/
DIRECTHOME THX BAND TUNER EDIT
5V 2.1 A
16 17 1918 20 21
1 u STANDBY/ON
This switches between standby and on for this receiver.
2 INPUT SELECTOR dial
Use to select an input function.
3 Indicators
! ADVANCED MCACC – Lights when EQ is set to ON in the AUDIO PARAMETER menu (page 77). ! FL OFF – Lights when “off” (nothing displayed) is selected with the display’s dimmer adjustment (page 83). ! HDMI – Blinks when connecting an HDMI-equipped component; lights when the component is connected
(page 32).
! iPod iPhone iPad – Lights to indicate iPod/iPhone/iPad is connected (page 42).
4 Character display
See Display on page 15.
14
3
iPod iPhone iPadHDMI
HDMI 5 INPUT/
5V 0.9 A
MHL (
)
MASTER VOLUME
5 Remote sensor
Receives the signals from the remote control (page 10).
6 MASTER VOLUME dial
6
7 Front panel controls
To access the front panel controls, catch the sides of the door with your fingers and pull forward.
INPUT SELECTOR
STANDBY/ON
MASTER VOLUME
8 AUDIO PARAMETER
Use to access the Audio options (page 77).
9 i/j/k/l (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your Home Menu. Use TUNE i/j to find radio frequencies and use PRESET k/l to find preset stations (page 56).
10 VIDEO PARAMETER
Use to access the Video options (page 79).
11 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections (page 39) use these controls to control the sub zone from the main zone (page 81).
12 SPEAKERS
Use to change the speaker terminal (page 81).
13 iPod iPhone iPad DIRECT CONTROL
Change the receiver’s input to the iPod and enable iPod operations on the iPod (page 53).
14 Listening mode buttons
! AUTO SURR/ALC/STREAM DIRECT – Switches between Auto Surround (page 61), Auto Level Control and
Stream Direct mode (page 63).
! HOME THX – Press to select a Home THX listening mode (page 62).
15 TUNER controls
! BAND – Switches between AM and FM radio bands (page 56). ! TUNER EDIT – Use with TUNE i/j, PRESET k/l and ENTER to memorize and name stations for recall
(page 57).
16 HOME MENU
Use to access the Home Menu (pages 50, 48, 73, 93 and 101).
17 RETURN
Press to confirm and exit the current menu screen.
18 PHONES jack
Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.

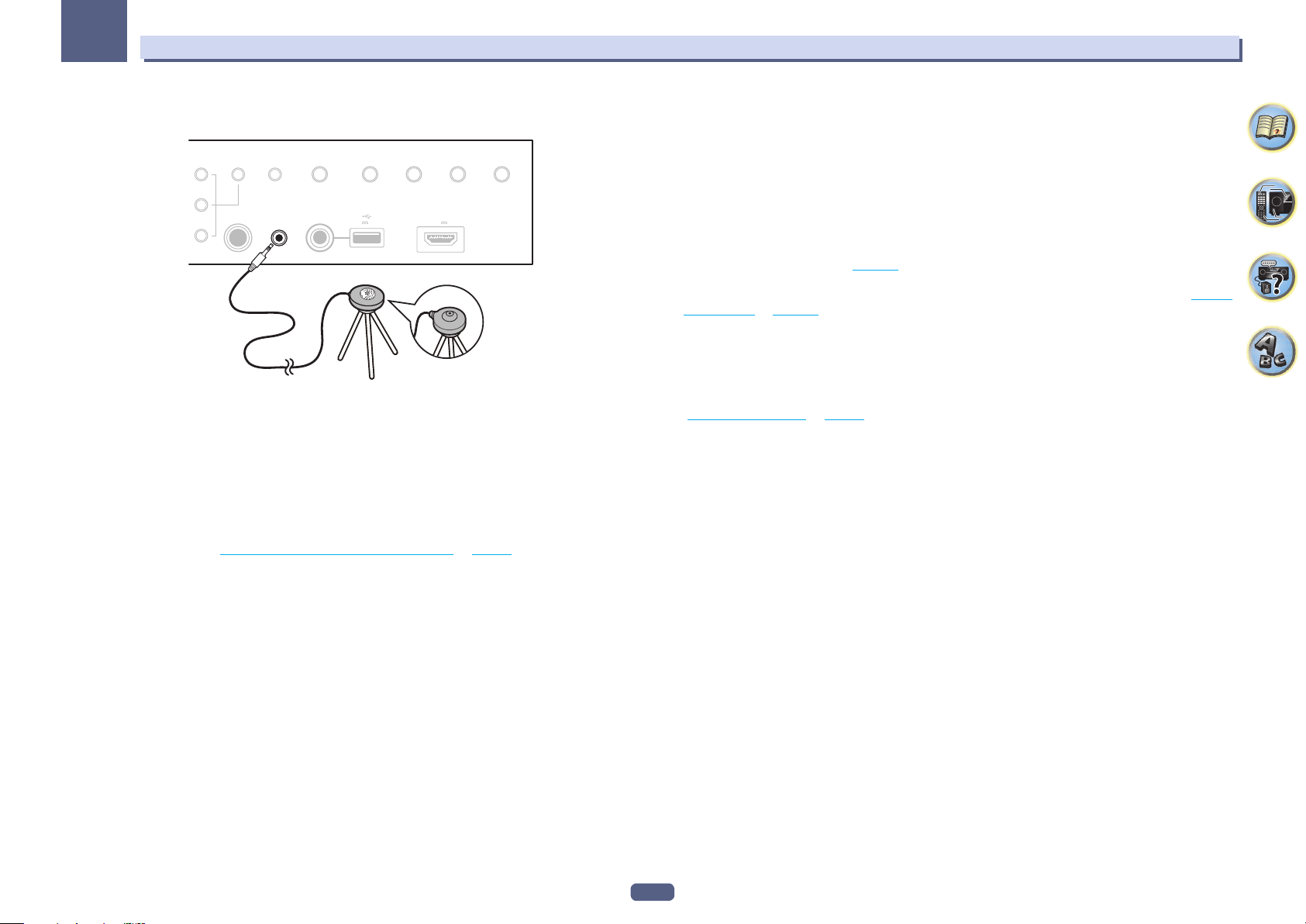

19 MCACC SETUP MIC jack
Use to connect the supplied microphone (page 47).
16
02
20 iPod/iPhone/iPad terminals
Use to connect your Apple iPod/iPhone/iPad as an audio and video source (page 42), or connect a USB device for audio and photo playback (page 43).
21 HDMI input/MHL connector
Use for connection to a compatible HDMI device (Video camera, etc.) (page 43). An MHL-compatible mobile device can also be connected here using the MHL cable (page 43).
Controls and displays
17
Connecting your equipment
Connecting your equipment .........................................................................................................19
Rear panel ......................................................................................................................................19
Determining the speakers’ application ........................................................................................20
Placing the speakers ...................................................................................................................... 23
Connecting the speakers ...............................................................................................................24
Installing your speaker system ..................................................................................................... 25

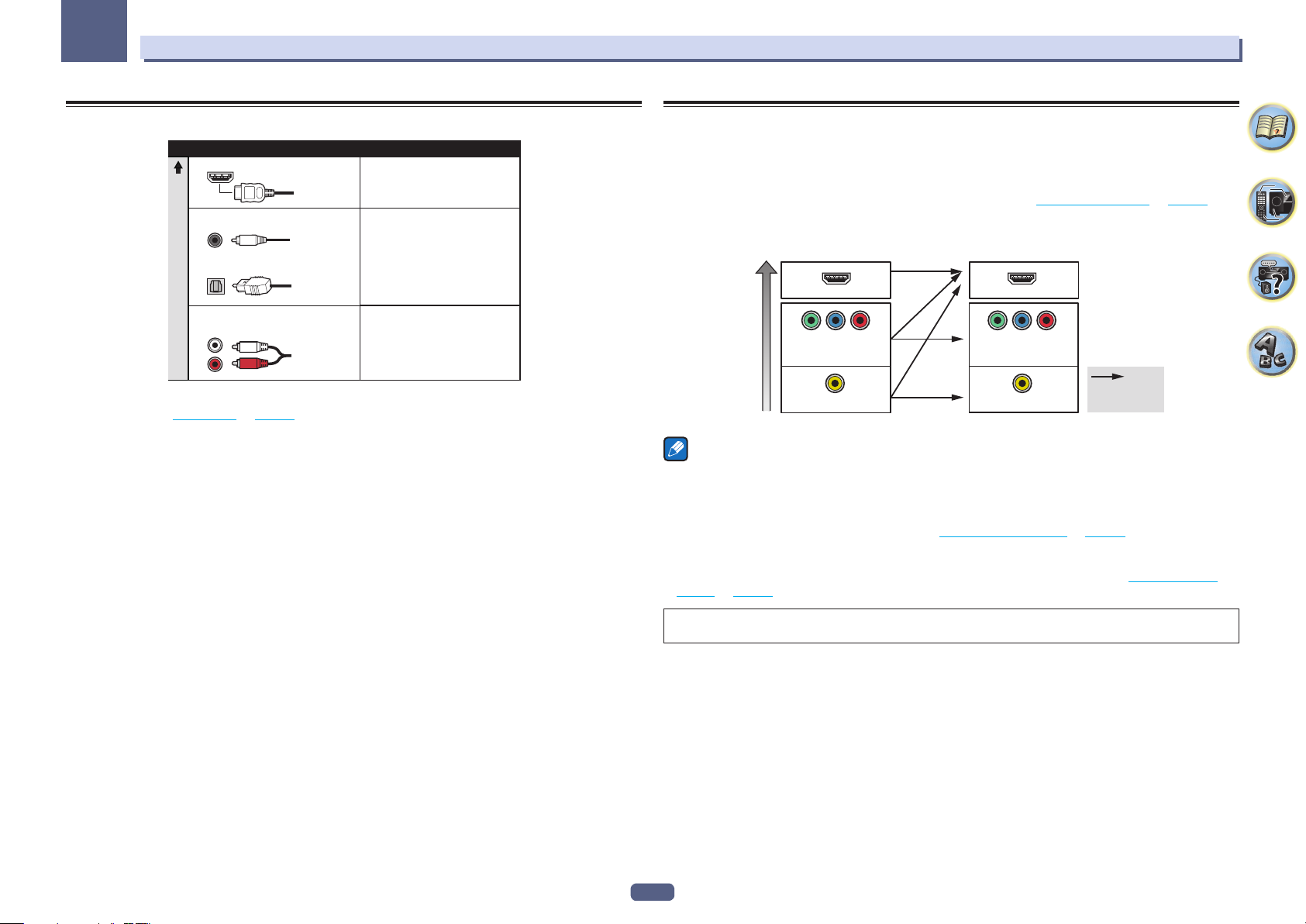

About the audio connection ......................................................................................................... 31
About the video converter ...........................................................................................................31
About HDMI ................................................................................................................................... 32
Connecting your TV and playback components .........................................................................32
Connecting an HDD/DVD recorder, BD recorder and other video sources ............................... 35
Connecting a satellite/cable receiver or other set-top box ........................................................36
Connecting other audio components .......................................................................................... 37
Connecting additional amplifiers ................................................................................................. 37
Connecting AM/FM antennas .......................................................................................................38
MULTI-ZONE setup ........................................................................................................................39
Connecting to the network through LAN interface ...................................................................41
Connecting optional Bluetooth ADAPTER ...................................................................................42

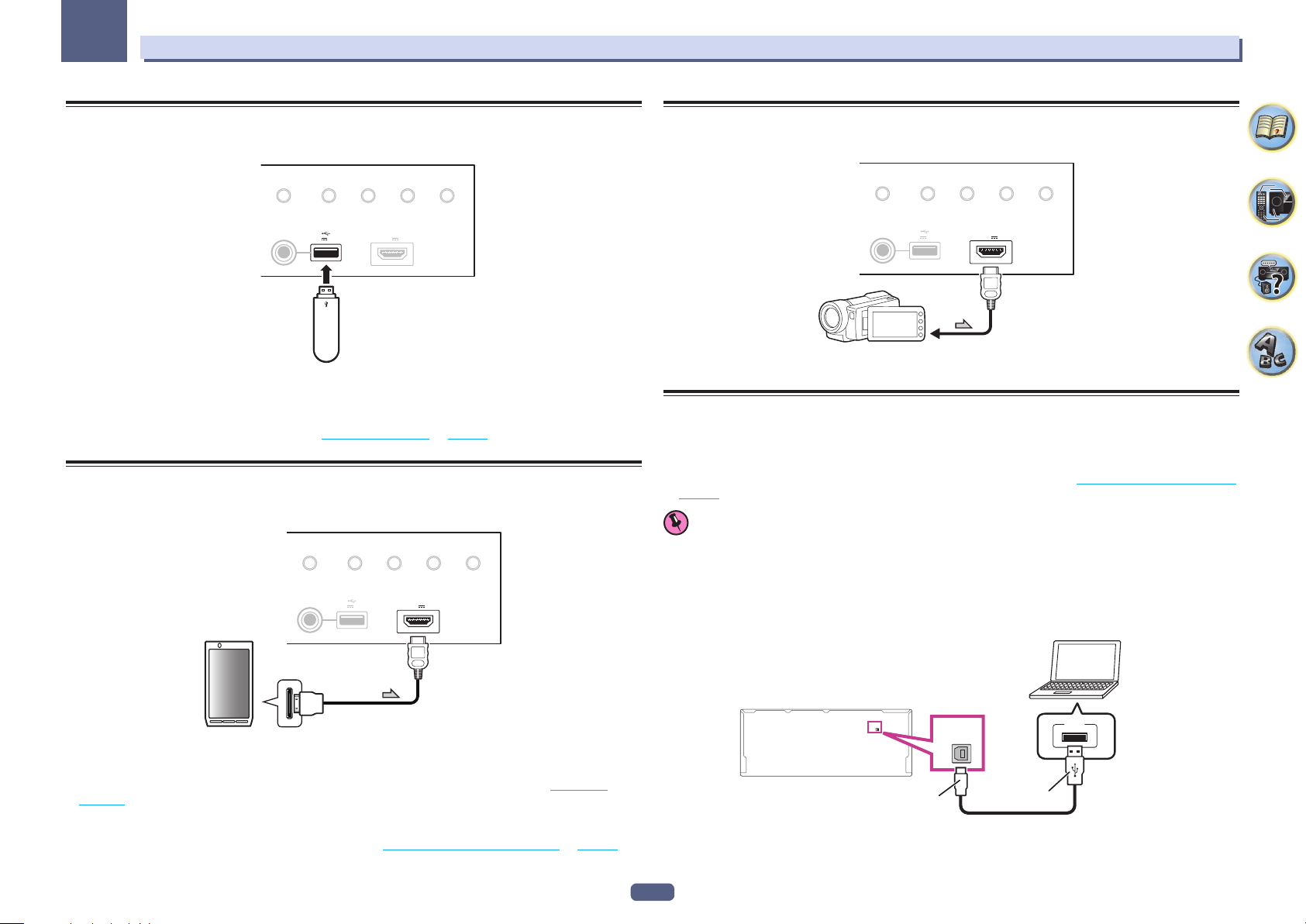

Connecting an iPod........................................................................................................................42
Connecting a USB device ..............................................................................................................43
Connecting an MHL-compatible device ....................................................................................... 43
Connecting an HDMI-equipped component to the front panel input ...................................... 43
Using a USB cable to connect to a computer ...............................................................................43
Connecting to a wireless LAN ....................................................................................................... 44
Connecting an IR receiver .............................................................................................................44
Switching components on and off using the 12 volt trigger ..................................................... 45
Plugging in the receiver ................................................................................................................ 45
18
03
Connecting your equipment
Connecting your equipment
This receiver provides you with many connection possibilities, but it doesn’t have to be difficult. This chapter explains the kinds of components you can connect to make up your home theater system.
CAUTION
! Before making or changing the connections, switch off the power and disconnect the power cord from the
power outlet. Plugging in should be the final step.
! When making connections, also keep the power cords of the devices being connected unplugged from the
power outlets.
! Depending on the device being connected (amplifier, receiver, etc.), the methods of connection and terminal
names may differ from the explanations in this manual. Also refer to the operating instructions of the respec­tive devices.
Important
! Illustration shows the SC-79, however connections for the SC-77 are the same except where noted.
Rear panel
SC-79
DC OUTPUT
(
)
LAN
ASSIGNABLE
IN
(
DVD
IN
(
DVR/
BDR
IN
(
VIDEO
MONITOR
OUT
ZONE 2
OUT
1
)
2
)
3
)
RS-232C
HDMI
ASSIGNABLE
1 - 8
COMPONENT VIDEO
PBYP
R
AM LOOP FM UNBAL 75
ANTENNA
12V TRIGGER
IR
OUT
IN
IN
(
DVD
ZONE 2
OUT
1
2
IN
(
OUTPUT 12 V
TOTAL 150 mA MAX
1
)
OUT
ZONE 2 SUBWOOFER
1
2
2
3
BD IN
IN
(
)
SAT/CBL
VIDEO
DVDINZONE 3
SAT/CBL
IN
IN OUT
A A
RL RLRLRLRL
4
IN
IN
(
)
(
)
DVR/BDR
VIDEO
MONITOR OUT
VIDEO
DVR/BDR
PHONO
IN
IN
AUDIO
FRONTCENTER
IN 6IN 7IN
(CD)
1
IN
ASSIGN­ABLE
ADAPTER PORT
(
OUTPUT 5 V
0.1 A MAX
SIGNAL GND
FRONT
1
CENTER
FRONT HEIGHT
)
SUBWOOFER
8
OUT 2OUT 1
ASSIGNABLE
1
IN
(
)
DVD
SURROUND SURR BACK
2
IN
(
SAT/CBL
(CONTROL)
OPTICALCOAXIAL
2
)
F HEIGHT
(Single)
FRONT WIDE /
SPEAKERS
)
IN
(TV)
1
(
DVR/BDR
F WIDE
PRE OUT
B
ASSIGNABLE
IN
10/100
for WIRELESS LAN
AC IN
(
OUTPUT 5 V
)
0.6 A MAX
2
OUT
HDBaseT
OUT 4
(HDZONE)
SURROUND
USB-DAC
IN
SURROUND BACK
(Single)
)
L
R
OUT 3
(HDZONE)
SC-77
DC OUTPUT
(
)
LAN
IN
(TV)
1
(
DVR/BDR
F WIDE
PRE OUT
B
ASSIGNABLE
IN
10/100
for WIRELESS LAN
AC IN
(
OUTPUT 5 V
)
0.6 A MAX
2
OUT
)
L
R
SURROUND
SURROUND BACK
(Single)
HDMI
ASSIGNABLE
ASSIGNABLE
IN
(
DVD
IN
(
DVR/
BDR
IN
(
VIDEO
MONITOR
OUT
ZONE 2
OUT
1 - 8
1
2
3
)
)
)
RS-232C
OUT 3 (HD ZONE)
SELECTABLE
COMPONENT VIDEO
PBYP
R
ZONE 2
OUT
AM LOOP FM UNBAL 75
ANTENNA
12V TRIGGER
IR
1
OUT
IN
IN
(
OUTPUT 12 V
TOTAL 150 mA MAX
IN
(
DVD
2
1
)
OUT
ZONE 2 SUBWOOFER
1
2
)
SIGNAL GND
SUBWOOFER
1
CENTER
8
OUT 2OUT 1
ASSIGNABLE
1
IN
(
)
DVD
SURROUND SURR BACK
2
IN
(
SAT/CBL
(CONTROL)
OPTICALCOAXIAL
2
)
F HEIGHT
(Single)
FRONT WIDE /
2
3
BD IN
IN
(
)
SAT/CBL
VIDEO
DVDINZONE 3
SAT/CBL
IN
IN OUT
A A
RL RLRLRLRL
4
IN
IN
(
)
(
)
DVR/BDR
VIDEO
MONITOR
VIDEO
OUT
DVR/BDR
PHONO
IN
IN
AUDIO
FRONTCENTER
IN 6IN 7IN
ADAPTER PORT
(
OUTPUT 5 V
0.1 A MAX
(CD)
1
FRONT
IN
ASSIGN­ABLE
FRONT HEIGHT
SPEAKERS
)
Notes
! The RS-232C terminal is exclusively for the installer. ! The input functions below are assigned by default to the receiver’s different input terminals. Refer to The Input
Setup menu on page 48 to change the assignments if other connections are used.
Input function
BD
HDMI Audio Component
(BD)
DVD IN 1 COAX-1 IN 1
SAT/CBL IN 2 COAX-2
DVR/BDR IN 3 OPT-2 IN 2
VIDEO IN 4 IN 3
HDMI 5/MHL
(front panel)
IN 5
HDMI 6 IN 6
HDMI 7 IN 7
HDMI 8 IN 8
TV OPT-1
CD ANALOG-1
Input Terminals
19
03
Connecting your equipment
Determining the speakers’ application
This unit is equipped with speaker terminals for 11 channels, allowing users to select a variety of speaker layouts/ usage patterns according to their tastes. The terminals to which the speakers should be connected differ accord­ing to the speaker layout/usage pattern. Select one speaker layout/usage pattern before connecting the speakers. For instructions on connections, see Installing your speaker system on page 25. However, the 5.1ch + ZONE 2+3 and Multi-ZONE Music settings can be used separately according to the situa­tion. Normally set this to 5.1ch + ZONE 2+3 and use this for multi-zone/multi-source playback, and when using the system for home parties for example, set this to Multi-ZONE Music to associate all zones with the main zone.
! Be sure to connect speakers to the front left and right channels (L and R). ! It is also possible to only connect one of the surround back speakers (SB) or neither. ! If you have two subwoofers, the second subwoofer can be connected to the SUBWOOFER 2 terminal.
Connecting two subwoofers increases the bass sound to achieve more powerful sound reproduction. In this case, the same sound is output from the two subwoofers.
Important
! The Speaker System setting must be made if you use any of the connections shown below other than [A] (see
Speaker system setting on page 101).
! The speakers from which sound is output can be switched according to the speaker layout/usage pattern
(sound is not necessarily output from all connected speakers). Use the SPEAKERS button to switch the speak­ers from which sound is output. For details, see Switching the speaker terminals on page 81.
[A] 9.2 channel surround system (Front height/Front wide) connection
*Default setting
! Speaker System setting: 9.1ch FH/FW
FHR
FHL
L
SW 2
FWL
SL
R
FWR
SW
1
C
SBL
SR
SBR
[B] 7.2 channel surround system & Speaker B connection
! Speaker System setting: 7.1ch + Speaker B
FHR
FHL
L
2
SW
SL
With these connections you can simultaneously enjoy 7.2-channel surround sound in the main zone with stereo playback of the same sound on the B speakers. The same connections also allow for 9.2-channel surround sound in the main zone when not using the B speakers. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching
the speaker terminals on page 81.
R
SW 1
C
SBL
SR
SBR
R
L
Speaker B
[C] 7.2 channel surround system & Front Bi-amping connection (High quality surround)
! Speaker System setting: 7.1ch Front Bi-Amp Bi-amping connection of the front speakers for high sound quality with 7.2-channel surround sound.
Front Bi-Amp
R
L
SW
SL
SW 1
C
2
SBL
SR
SBR
A 9.2 ch surround system connects the left and right front speakers (L/R), the center speaker (C), the left and right front height speakers (FHL/FHR), the left and right front wide speakers (FWL/FWR), the left and right surround speakers (SL/SR), the left and right surround back speakers (SBL/SBR), and the subwoofers (SW 1/SW 2). It is not possible to produce sound simultaneously from the front height speakers and the front wide speakers. This surround system produces a more true-to-life sound from above. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching
the speaker terminals on page 81.
20
03
Connecting your equipment
[D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi Zone)
! Speaker System setting: 7.1ch + ZONE 2 With these connections you can simultaneously enjoy 7.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.) This speaker layout/usage pattern provides 7.2-channel playback using the surround back channels in the main zone. To achieve 7.2-channel playback using the front height and front wide channels with ZONE 2 connections, see [E].
Main zone
R
L
SW
SL
SW 1
C
2
SBL
SR
SBR
ZONE 2
Sub zone
R
L
[E] 7.2 channel surround system (Front height/Front wide) & ZONE 2 connection (Multi Zone)
! Speaker System setting: 7.1ch FH/FW + ZONE 2 With these connections you can simultaneously enjoy 7.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.) This speaker layout/usage pattern provides 7.2-channel playback using the front height and front wide channels in the main zone. To achieve 7.2-channel playback using the surround back channels with ZONE 2 connections, see [D]. It is not possible to produce sound simultaneously from the front height speakers and the front wide speakers. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching
the speaker terminals on page 81.
Main zone
FHR
SL
R
FWR
SW 1
C
SR
ZONE 2
Sub zone
R
L
FWL
FHL
L
2
SW
[F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection (Multi Zone)
! Speaker System setting: 5.1ch Bi-Amp + ZONE 2 With these connections you can simultaneously enjoy Bi-amping connection of the front speakers for high sound quality with 5.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2. (The selection of input devices is limited.)
Front Bi-Amp
Main zone
R
L
SW
SW 1
C
2
SR
SL
ZONE 2
Sub zone
R
L
[G-1] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone) [G-2] Multi-ZONE Music
! [G-1] Speaker System setting: 5.1ch + ZONE 2+3 ! [G-2] Speaker System setting: Multi-ZONE Music
With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo playback on another component in ZONE 2 and ZONE3. (The selection of input devices is limited.) However, the 5.1ch + ZONE 2+3 and Multi-ZONE Music settings can be used separately according to the situa­tion. Normally set this to 5.1ch + ZONE 2+3 and use this for multi-zone/multi-source playback, and when using the system for home parties for example, set this to Multi-ZONE Music to associate all zones with the main zone.
Main zone Sub zone
R
L
SW 1
C
2
SW
SR
SL
L
ZONE 2
R
ZONE 3
R
L
21
03
Connecting your equipment
[H] 5.2 channel surround system & Speaker B Bi-amping connection
! Speaker System setting: 5.1ch + SP-B Bi-Amp With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo playback of the same sound on the B speakers. The B speakers can be bi-amped to achieve high quality sound. The speakers from which sound is output can be switched using the SPEAKERS button. For details, see Switching
the speaker terminals on page 81.
Speaker B Bi-Amp
R
L
SW
SW 1
C
2
SL
R
L
SR
[I] 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround)
! Speaker System setting: 5.1ch F+Surr Bi-Amp Bi-amping connection of the front and surround speakers for high sound quality with 5.2-channel surround sound.
Front Bi-Amp
[J] 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)
! Speaker System setting: 5.1ch F+C Bi-Amp Bi-amping connection of the front and center speakers for high sound quality with 5.2-channel surround sound.
Front Bi-Amp
R
L
SW
Center Bi-Amp
SW 1
C
2
SR
SL
[K] 5.2 channel surround system & Center and Surround Bi-amping connection (High quality surround)
! Speaker System setting: 5.1ch C+Surr Bi-Amp Bi-amping connection of the center and surround speakers for high sound quality with 5.2-channel surround sound.
R
Center Bi-Amp
L
SW
SL
SW 1
C
2
Surround Bi-Amp
SR
R
L
SW
SL
SW 1
C
2
Surround Bi-Amp
SR
22
03
Connecting your equipment
Other speaker connections
! Your favorite speaker connections can be selected even if you have fewer than 5.2 speakers (except front left/
right speakers).
! When not connecting a subwoofer, connect speakers with low frequency reproduction capabilities to the front
channel. (The subwoofer’s low frequency component is played from the front speakers, so the speakers could be damaged.)
! After connecting, be sure to conduct the Full Auto MCACC (speaker environment setting) procedure. See
Automatically conducting optimum sound tuning (Full Auto MCACC) on page 47.
Placing the speakers
Refer to the chart below for placement of the speakers you intend to connect.
2SW 1
FHL
FWL
SL
! Place the surround speakers at 120º from the center. If you, (1) use the surround back speaker, and, (2) don’t
use the front height speakers / front wide speakers, we recommend placing the surround speaker right beside you.
! If you intend to connect only one surround back speaker, place it directly behind you. ! Place the left and right front height speakers at least one meter (3.3 ft.) directly above the left and right front
speakers.
THX speaker system setup
If you are using a THX certified subwoofer, use the THX INPUT jack on the subwoofer (if your subwoofer has one) or switch the filter position to THX on your subwoofer. See also THX Audio Setting on page 103 to make the settings that will give you the best sound experience when using the Home THX modes (page 62).
Some tips for improving sound quality
Where you put your speakers in the room has a big effect on the quality of the sound. The following guidelines should help you to get the best sound from your system. ! The subwoofer can be placed on the floor. Ideally, the other speakers should be at about ear-level when you’re
listening to them. Putting the speakers on the floor (except the subwoofer), or mounting them very high on a wall is not recommended.
! For the best stereo effect, place the front speakers 2 m to 3 m (6 ft. to 9 ft.) apart, at equal distance from the TV. ! If you’re going to place speakers around your CRT TV, use shielded speakers or place the speakers at a suffi-
cient distance from your CRT TV.
! If you’re using a center speaker, place the front speakers at a wider angle. If not, place them at a narrower
angle.
! Place the center speaker above or below the TV so that the sound of the center channel is localized at the TV
screen. Also, make sure the center speaker does not cross the line formed by the leading edge of the front left and right speakers.
! It is best to angle the speakers towards the listening position. The angle depends on the size of the room. Use
less of an angle for bigger rooms.
! Surround and surround back speakers should be positioned 60 cm to 90 cm (2 ft. to 3 ft.) higher than your
ears and tilted slightly downward. Make sure the speakers don’t face each other. For DVD-Audio, the speakers should be more directly behind the listener than for home theater playback.
! Try not to place the surround speakers farther away from the listening position than the front and center speak-
ers. Doing so can weaken the surround sound effect.
23
SW
C
L
30 30
60
120 120
60
SBL
SB
FHR
R
FWR
60
SR
SBR
03
Connecting your equipment
Connecting the speakers
Each speaker connection on the receiver comprises a positive (+) and negative (–) terminal. Make sure to match these up with the terminals on the speakers themselves. This unit supports speakers with a nominal impedance of 4 W to 16 W.
CAUTION
! These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when con-
necting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
! Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any
of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.
Bare wire connections
CAUTION
Make sure that all speakers are securely installed. This not only improves sound quality, but also reduces the risk of damage or injury resulting from speakers being knocked over or falling in the event of external shocks such as earthquakes.
1 Twist exposed wire strands together.
2 Loosen terminal and insert exposed wire.
3 Tighten terminal.
123
10 mm (3/8 in.)
Banana plug connections
If you want to use speaker cables terminated with banana plugs, screw the speaker terminal fully shut, then plug the banana plug into the end of the speaker terminal.
Bi-amping your speakers
Bi-amping is when you connect the high frequency driver and low frequency driver of your speakers to different amplifiers for better crossover performance. Your speakers must be bi-ampable to do this (having separate termi­nals for high and low) and the sound improvement will depend on the kind of speakers you’re using.
Front right Front left
High
Low
SPEAKERS
Bi-amp compatible speaker
A
FRONT CENTER
RL RL
Bi-amp compatible
speaker
FRONT HEIGHT
High
Low
Note
! Please refer to the manual that came with your speakers for details on how to connect the other end of the
speaker cables to your speakers.
! Use an RCA cable to connect the subwoofer. It is not possible to connect using speaker cables. ! If you have two subwoofers, the second subwoofer can be connected to the SUBWOOFER 2 terminal.
Connecting two subwoofers increases the bass sound to achieve more powerful sound reproduction. In this case, the same sound is output from the two subwoofers.
FRONTCENTERAFRONT HEIGHT
RL RL
SPEAKERS
CAUTION
! Most speakers with both High and Low terminals have two metal plates that connect the High to the Low
terminals. These must be removed when you are bi-amping the speakers or you could severely damage the amplifier. See your speaker manual for more information.
! If your speakers have a removable crossover network, make sure you do not remove it for bi-amping. Doing so
may damage your speakers.
24
03
RL
Connecting your equipment
Bi-wiring your speakers
Your speakers can also be bi-wired if they support bi-amping. ! With these connections, the Speaker System setting makes no difference.
CAUTION
! Don’t connect different speakers from the same terminal in this way. ! When bi-wiring as well, heed the cautions for bi-amping shown above.
% To bi-wire a speaker, connect two speaker cords to the speaker terminal on the receiver.
Using a banana plug for the second connection is recommended.
Installing your speaker system
At the very least, front left and right speakers only are necessary. Note that your main surround speakers should always be connected as a pair, but you can connect just one surround back speaker if you like (it must be con­nected to the left surround back terminal).
[A] 9.2 channel surround system (Front height/Front wide) connection
! If necessary, select ‘9.1ch FH/FW’ from the Speaker System menu. See Speaker system setting on page 101 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
SPEAKERS
Front height leftFront height right
Front leftFront right Center Subwoofer 2Subwoofer 1
F HEIGHT
PRE OUT
F WIDE
B
LINE LEVEL
INPUT
L
R
SURROUND
LINE LEVEL
INPUT
SUBWOOFER
FRONT
12
A A
FRONT CENTER
RL RLRLRL
CENTER
FRONT HEIGHT
SURROUND SURR BACK
FRONT WIDE /
(Single)
Front wide leftFront wide right
SURROUND BACK
(Single)
25
Surround right
Surround back right Surround back left
Surround left
03
RL
RL
Connecting your equipment
[B] 7.2 channel surround system & Speaker B connection
! Select ‘7.1ch + Speaker B’ from the Speaker System menu. See Speaker system setting on page 101 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
SPEAKERS
Front height leftFront height right
Front leftFront right Center Subwoofer 2Subwoofer 1
F HEIGHT
PRE OUT
F WIDE
B
LINE LEVEL
INPUT
L
R
SURROUND
LINE LEVEL
INPUT
SUBWOOFER
FRONT
12
A A
FRONT CENTER
RL RLRLRL
CENTER
FRONT HEIGHT
SURROUND SURR BACK
FRONT WIDE /
(Single)
Speaker B- leftSpeaker B- right
SURROUND BACK
(Single)
[C] 7.2 channel surround system & Front Bi-amping connection (High quality surround)
! Select ‘7.1ch Front Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 101 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
Bi-amp compatible speaker
Front right
High
Low
A A
FRONT CENTER
RL RLRLRL
SPEAKERS
LINE LEVEL
INPUT
Center Subwoofer 2Subwoofer 1
SUBWOOFER
FRONT
12
CENTER
FRONT HEIGHT
SURROUND SURR BACK
F HEIGHT
(Single)
FRONT WIDE /
F WIDE
PRE OUT
B
LINE LEVEL
INPUT
L
R
Bi-amp compatible speaker
Front left
High
Low
SURROUND
SURROUND BACK
(Single)
Surround right
Surround back right Surround back left
Surround left
26
Surround right
Surround back right Surround back left
Surround left
03
RL
RL
Connecting your equipment
[D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi Zone)
! Select ‘7.1ch + ZONE 2’ from the Speaker System menu. See Speaker system setting on page 101 to do this. ! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
ZONE 2 - leftZONE 2 - right
SURROUND BACK
(Single)
SPEAKERS
Center Subwoofer 2Subwoofer 1
SUBWOOFER
LINE LEVEL
INPUT
SURROUND SURR BACK
LINE LEVEL
INPUT
FRONT
12
A A
FRONT CENTER
RL RLRLRL
CENTER
FRONT HEIGHT
Front leftFront right
F HEIGHT
(Single)
FRONT WIDE /
F WIDE
PRE OUT
B
L
R
SURROUND
[E] 7.2 channel surround system (Front height/Front wide) & ZONE 2 connection (Multi Zone)
! Select ‘7.1ch FH/FW + ZONE 2’ from the Speaker System menu. See Speaker system setting on page 101 to do this.
Front height leftFront height right
Front leftFront right Center Subwoofer 2Subwoofer 1
F HEIGHT
PRE OUT
F WIDE
B
LINE LEVEL
INPUT
L
R
SURROUND
SURROUND BACK
SPEAKERS
LINE LEVEL
INPUT
SUBWOOFER
FRONT
12
A A
FRONT CENTER
RL RLRLRL
CENTER
FRONT HEIGHT
SURROUND SURR BACK
FRONT WIDE /
(Single)
Front wide leftFront wide right
(Single)
Surround right
Surround back right Surround back left
Surround left
27
Surround right
Surround left ZONE 2 - right
ZONE 2 - left
03
RL
RL
Connecting your equipment
[F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection (Multi Zone)
! Select ‘5.1ch Bi-Amp + ZONE 2’ from the Speaker System menu. See Speaker system setting on page 101 to do this.
Bi-amp compatible speaker
Front right
High
Low
A A
FRONT CENTER
RL RLRLRL
SPEAKERS
LINE LEVEL
INPUT
Center Subwoofer 2Subwoofer 1
SURROUND SURR BACK
SUBWOOFER
FRONT
12
CENTER
FRONT HEIGHT
F HEIGHT
(Single)
FRONT WIDE /
F WIDE
PRE OUT
B
LINE LEVEL
INPUT
L
R
Bi-amp compatible speaker
Front left
High
Low
SURROUND
SURROUND BACK
(Single)
[G-1] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone) [G-2] Multi-ZONE Music
See Speaker system setting on page 101 to do this.
! [G-1] Speaker System setting: 5.1ch + ZONE 2+3 ! [G-2] Speaker System setting: Multi-ZONE Music
ZONE 3 - leftZONE 3 - right
SURROUND BACK
(Single)
SPEAKERS
Center Subwoofer 2Subwoofer 1
SUBWOOFER
LINE LEVEL
INPUT
SURROUND SURR BACK
LINE LEVEL
INPUT
FRONT
12
A A
FRONT CENTER
RL RLRLRL
CENTER
FRONT HEIGHT
Front leftFront right
F HEIGHT
(Single)
FRONT WIDE /
F WIDE
PRE OUT
B
L
R
SURROUND
Surround left ZONE 2 - right ZONE 2 - leftSurround right
Surround left ZONE 2 - right ZONE 2 - leftSurround right
28
03
RL
RL
Connecting your equipment
[H] 5.2 channel surround system & Speaker B Bi-amping connection
! Select ‘5.1ch + SP-B Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 101 to do this.
Front leftFront right
SURROUND
High
Low
Surround leftSurround right
SPEAKERS
Center Subwoofer 2Subwoofer 1
F WIDE
B
speaker
L
R
LINE LEVEL
INPUT
LINE LEVEL
INPUT
SURROUND SURR BACK
SUBWOOFER
FRONT
12
A A
FRONT CENTER
RL RLRLRL
High
Low
CENTER
FRONT HEIGHT
Bi-amp compatible speaker Speaker B right
F HEIGHT
(Single)
PRE OUT
FRONT WIDE /
Bi-amp compatible
Speaker B left
SURROUND BACK
(Single)
[I] 5.2 channel surround system & Front and Surround Bi-amping connection (High quality surround)
! Select ‘5.1ch F+Surr Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 101 to do this.
Bi-amp compatible speaker
Front right
High
Low
A A
FRONT CENTER
RL RLRLRL
SPEAKERS
LINE LEVEL
INPUT
SUBWOOFER
FRONT
12
CENTER
FRONT HEIGHT
High
Low
Bi-amp compatible speaker Surround right
Center Subwoofer 2Subwoofer 1
SURROUND SURR BACK
Bi-amp compatible speaker
F HEIGHT
(Single)
FRONT WIDE /
F WIDE
PRE OUT
B
Surround left
LINE LEVEL
INPUT
L
R
Bi-amp compatible speaker
Front left
High
Low
SURROUND
High
Low
SURROUND BACK
(Single)
29
03
Connecting your equipment
[J] 5.2 channel surround system & Front and Center Bi-amping connection (High quality surround)
! Select ‘5.1ch F+C Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 101 to do this.
Bi-amp compatible speaker
Front right
High
Low
A A
FRONT CENTER
RL RLRLRLR L
SPEAKERS
LINE LEVEL
INPUT
Bi-amp compatible speaker
Center
High
Low
SURROUND SURR BACK
SUBWOOFER
FRONT
12
CENTER
FRONT HEIGHT
F HEIGHT
(Single)
FRONT WIDE /
F WIDE
PRE OUT
B
Subwoofer 2Subwoofer 1
LINE LEVEL
INPUT
L
R
Bi-amp compatible speaker
Front left
High
Low
SURROUND
SURROUND BACK
(Single)
[K] 5.2 channel surround system & Center and Surround Bi-amping connection (High quality surround)
! Select ‘5.1ch C+Surr Bi-Amp’ from the Speaker System menu. See Speaker system setting on page 101 to do this.
Bi-amp compatible speaker
Center
Front leftFront right
SURROUND
SPEAKERS
F HEIGHT
PRE OUT
F WIDE
B
Subwoofer 2Subwoofer 1
LINE LEVEL
INPUT
L
R
High
LINE LEVEL
INPUT
SUBWOOFER
FRONT
12
A A
FRONT CENTER
RL L R RL RR L L
CENTER
FRONT HEIGHT
Low
SURROUND SURR BACK
FRONT WIDE /
(Single)
SURROUND BACK
(Single)
High
Low
Bi-amp compatible speaker
Surround leftSurround right
Surround right
High
Low
Bi-amp compatible speaker Surround left
30
