Operating Instructions

Thank you very much for purchasing this PIONEER product. Before using your Plasma Display, please carefully read the “Important Information” and these “Operating Instructions” so you will know how to operate the Plasma Display properly. Keep this manual in a safe place. You will find it useful in the future.

English

Notes on Installation Work:

This product is marketed assuming that it is installed by qualified personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. PIONEER cannot assume liabilities for damage caused by mistake in installation or mouting, misuse, modification or a natural disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.

Important Information

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

English

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Information

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

2Eni

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure” on the next page. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

2. Do not use this unit’s polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

NOTE: When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding DVI and power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the DVI cable.

DVI cable (not supplied)

band

core (small)

Power cable (supplied)

core (large)

band

Connector

core (small)

core (large)

To avoid damage and prolong operating life:

1. Use only with 100-120V 50/60Hz AC power supply. Continued operation at line voltages greater than 100120 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

9. Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.

10. Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.

Plasma monitor cleaning procedure:

1. Use a wiping cloth (attached) or a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished

using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability. * Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible. * Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

Note:

Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

CAUTION:

WHEN POSITIONING THIS EQUIPMENT ENSURE THAT

THE MAINS PLUG AND SOCKET IS EASILY ACCES-

SIBLE.

Information to User

Alteration or modifications carried out without appro-

priate authorization may invalidate the user's right to

operate the equipment.

WARNING:

Handling the cord on this product or cords associated

with accessories sold with the product will expose you

to lead, a chemical known to the State of California and

other governmental entities to cause cancer and birth

defects or other reproductive harm. Wash hands after

handling.

English

Important Information

3Enii

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT NOTICE

The serial number for this equipment is located on the

rear panel. Please write this serial number on your en-

English

closed waranty card and keep in a secure place. This is

for your security.

This Class B digital apparatus complies with Canadian

ICES-003.

Caution

This model is for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.

Speakers: PDP-S29-LR Table top stand: PDK-TS06 Wall mount unit: PDK-WM03

Important Information

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device ma not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DECLARATION OF CONFORMITY

U.S. Responsible Party: Address:

Tel. No.:

Type of Product:

Equipment Classification:

Models:

We hereby declare that the equipment specified above

conforms to the technical standards as specified in the FCC Rules.

PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, LONG BEACH, CA., 90801-1760 U.S.A. 800 (421-1625)

Plasma Display

Class B Peripheral

PDP-614MX

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong.The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged;

B. Objects have fallen, or liquid has been spilled into

the appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally

or exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure

damaged.

16. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by

applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing

electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

17. Wall Mounting - The appliance should be mounted to a wall only as recommended by the manufacturer.

18. Power Lines - An outdoor antenna should be located away from power lines.

19. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode.

20. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

English

Important Information

4Eniii

5Eniv

Contents

English

Important Information

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer Authorized Independent Service Company, or if you wish to purchase replacement parts, operating instructions, service manuals, or accessories, please call the number shown below.

8 0 0 – 4 2 1 – 1 6 2 5

Please do not ship your product to Pioneer without first calling Pioneer Electronics (USA) Inc. at the above listed number for assistance.

Pioneer Electronics (USA) Inc. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada. Alternatively, please contact the Customer Satisfaction Department at the following address:

Pioneer Electronics of Canada, Inc. Customer Satisfaction Department 300 Allstate Parkway, Markham, Ontario L3R OP2 (905)479-4411 1(877)283-5901

For warranty information please see the Limited Warranty sheet included with your product.

S021_EF

Installation ...................................................... 2

Ventilation Requirements for enclosure mounting .......... 2

How to use the safety metal fittings and the screws for

safety metal fittings ................................................ 2

Creating a video wall ............................................... 3

Cable Management.................................................. 3

Caution on when the plasma monitor is installed vertically ...

How to use the remote control.................................... 4

Battery Installation and Replacement ........................... 4

Using the wired remote control mode .......................... 4

Operating Range .......................................................... 4

Handling the remote control ......................................... 4

Part Names and Function .................................. 5

Front View .............................................................. 5

Rear View/ Terminal Board ....................................... 6

Remote Control ........................................................ 7

Basic Operations ............................................... 8

POWER .................................................................. 8

To turn the unit ON and OFF: ...................................... 8

VOLUME ................................................................ 8

To adjust the sound volume:......................................... 8

MUTING ................................................................. 8

To mute the sound:....................................................... 8

DISPLAY .................................................................. 8

To check the settings: ................................................... 8

DIGITAL ZOOM ....................................................... 8

AUTO SET UP .......................................................... 8

To adjust the size or quality of the picture automatically: ......

OFF TIMER .............................................................. 8

To set the off timer: ...................................................... 8

To check the remaining time: ....................................... 8

To cancel the off timer: ................................................ 8

WIDE Operations ............................................... 9

SCREEN SIZE Operation (manual) ............................. 9

When viewing videos or digital video discs ................. 9

SCREEN SIZE Operation with Computer Signals ........ 10

When “PICTURE SIZE” is set to “OFF” ................... 10

OSD (On Screen Display) Controls ..................... 11

Menu Operations ................................................... 11

Setting the language for the menus ........................... 11

Menu Tree ............................................................. 12

Picture Settings Menu.............................................. 14

Adjusting the picture .................................................. 14

Setting the picture modes according to

the brightness of the room ....................................... 14

Reducing noise in the picture ..................................... 14

Setting the color temperature ..................................... 14

Adjusting the color to the desired level ...................... 15

Changing the Gamma Curve ...................................... 15

Making the Low Tone adjustments ............................ 15

Adjusting the colors ................................................... 15

SOUND Settings Menu ........................................... 16

Adjusting the treble, bass and left/right balance

and audio input select .............................................. 16

Setting the allocation of the audio connectors ............ 16

SCREEN Settings Menu ........................................... 16

Adjusting the Position, Size, PHASE, CLOCK ................

Option1 Settings Menu ........................................... 17

Setting the on-screen display ...................................... 17

Setting the BNC connectors ....................................... 17

Checking the signal being transmitted to PC1 terminal .......

Setting a computer image to the correct RGB select screen ......

Setting high definition images to the suitable screen size ....

Setting the Input Skip ................................................. 18

Resetting to the default values .................................... 18

17 17 18

Option2 Settings Menu ........................................... 19

Setting the power management for computer images .....

STANDBY/ON indicator ........................................... 19

Setting the picture to suit the movie ........................... 19

Reducing burn-in of the screen .................................. 19

Setting the gray level for the SIDE MASK ................ 21

Setting the screen size for S1/S2 video input .............. 22

Setting the picture size for RGB input signals ............ 22

Setting the signal and black level for DVI signal ........ 22

Option3 Settings Menu ........................................... 23

Using the timer .......................................................... 23

Setting the power on mode ......................................... 24

Enabling/disabling the front panel controls ................ 24

Enabling/disabling remote control wireless transmission ....

Loop Out setting ........................................................ 24

ID number setting ...................................................... 25

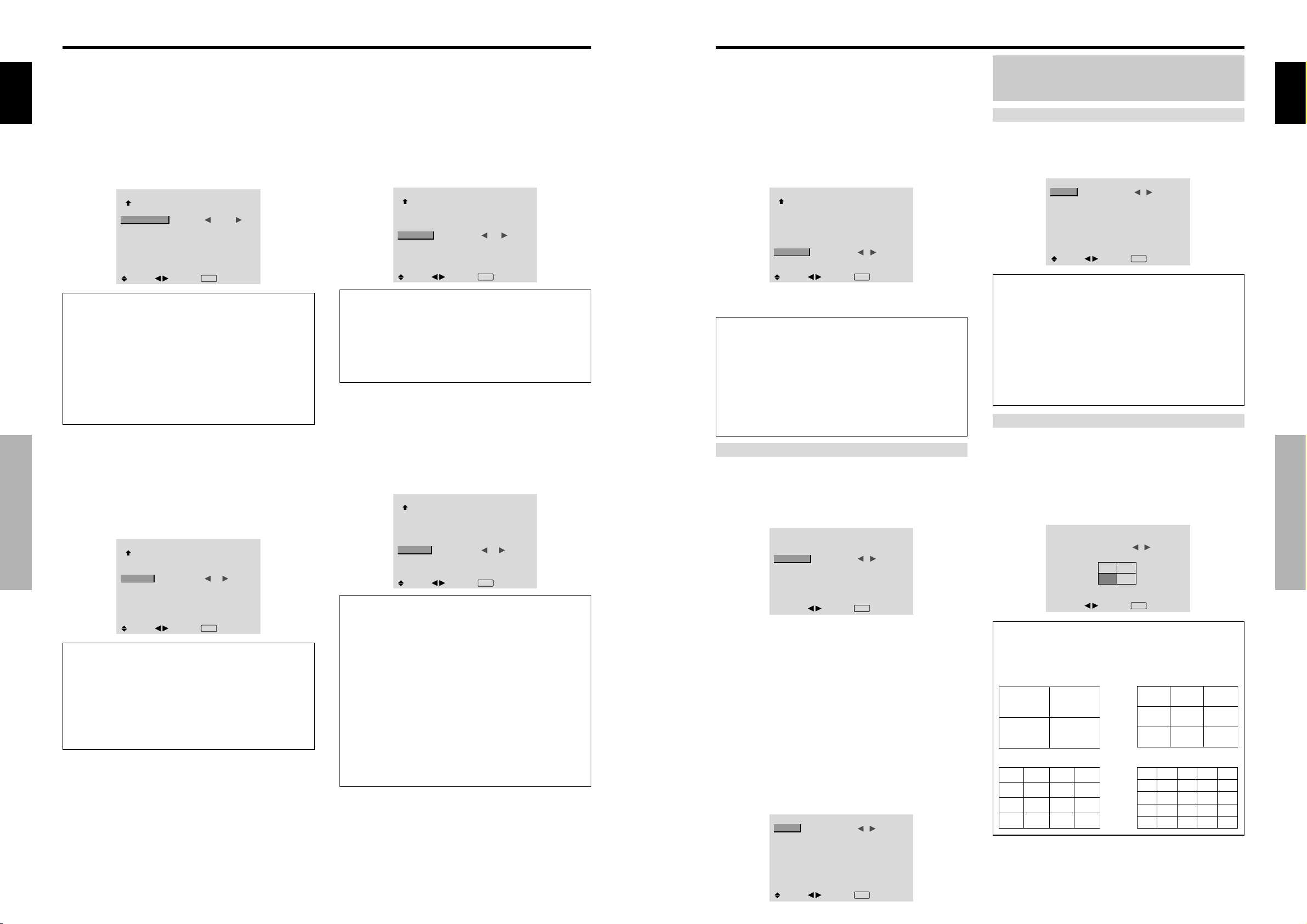

Video Wall setting ...................................................... 25

Advanced OSD Settings Menu ................................. 27

Setting the menu mode .............................................. 27

Color System Settings Menu .................................... 28

Setting the video signal format ................................... 28

Source Information Menu ........................................ 28

Checking the frequencies, polarities of input signals,

and resolution .......................................................... 28

English

Pin Assignments ............................................. 29

mini D-Sub 15-pin connector (Analog) ..................... 29

DVI-D 24-pin connector (Digital) .............................. 29

Table of Signals Supported .............................. 30

Troubleshooting .............................................. 32

Specifications ................................................. 33

Contents

Contents of the Package

 Plasma monitor  Power cord  Remote control with two AAA Batteries  Manual  Warranty  Safety metal fittings (2pcs)

 Ferrite cores (large 2pcs, small 2pcs)  Bands (2pcs)  Cable clamps (5pcs)  Wiping cloth

* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws (see page 2).

Options

• Wall mount unit

• Stand

• Speakers

Installation

English

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways: * While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the

monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page 1.

• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided by manufacturer and listed under Options.

Drawing A

Drawing B

When installing or carrying, use the handles attached to the upper back of the display.

Creating a video wall

With built-in matrix display capability, you can create a 4-25 video wall.

• Connect signal cables and remote cables as shown below. Video signal PC/COMPONENT signal

BNC connector

VIDEO signal

Remote control

BNC connector

RCA phono plug

OUT

VIDEO signal

Remote control

Note:

1. The VIDEO1 and PC1 terminals can be used for either INPUT or OUTPUT. When LOOP OUT is ON, do not connect an OUTPUT signal from another unit, that will place an extraordinary load on the other unit and may damage it.

2. LOOP OUT can not be turned ON while signals are input to the PC1 terminal.

3. LOOP OUT can be turned ON while signals are input to the PC1 terminal if the POWER is switched ON.

Information

• To loop signals out to another plasma display, set the LOOP OUT to ON.

• To create a video wall, set the VIDEO WALL menu items properly.

• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).

• If the image quality is poor, do not use the monitor’s out terminal. Use a distribution amplifier (any commercially available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.

• Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024768, 60Hz signal.

• A distribution amplifier is particularly recommended when using 9-screen and over video wall.

• From the second monitor onward, connections require a BNC-RCA conversion cable or connector, a mini D-Sub 15 pin cable-BNC (5) cable or a conversion connector.

PC signal/ COMPONENT signal

Remote control

PC signal/

OUT

COMPONENT signal

OUT

Remote control

English

Installation

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Wall

50mm (2")

(2")

(2") 50

Wall

50mm (2")

How to use the safety metal fittings and the screws for safety metal fittings

These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Screw hole

Screw or Hook etc. (Not supplied)

Safty metal fittings

Wall

Metal chain

(Not supplied)

Table Top

Cable Management

Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.

To attach To detach

1. 2.

mounting hole

clamp

cables

Back of the unit

mounting holes

Installation

Part Names and Function

English

Caution on when the plasma monitor is installed vertically

• Use the optional unit. Contact your store of purchase when installing.

• Rotate 90° clockwise as seen from the front when installing.

• After installing, check with the PIONEER logo mark as seen from the front.

• Be sure to set “OSD ANGLE” to “V” when using.

* Failure to heed the above cautions may lead to malfunction.

How to use the remote control

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct

2.Align the batteries according to the (+) and (–) indication inside the case.

sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

Top side

OPTION1 OSD  BNC INPUT

RGB 

 D-SUB INPUT

RGB 

 RGB SELECT

AUTO 

 HD SELECT

1080B 

 INPUT SKIP

OFF 

 ALL RESET

OFF

1024 768

SEL. OK

RETURN

EXIT

Bottom side

Front View

English

Installation

3.Replace the cover.

Using the wired remote control mode

Connect the remote cable* to the remote control’s remote jack and the “REMOTE IN” terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period, remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.

• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area.

q Power ( )

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e STANDBY/ON indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT/EXIT

Switches the input. The available inputs depend on the setting of “BNC INPUT”, “RGB SELECT” and “DVI SET UP”. Functions as the EXIT buttons in the On-Screen Display (OSD) mode.

t LEFT/– and RIGHT/+

Functions as the CURSOR (



/ ) buttons in the On-

Screen Display (OSD) mode.

y VOLUME

and

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Display (OSD) mode.

u MENU/SET

Sets the On-Screen Display (OSD) mode and displays the main menu.

WARNING

The Power on/off switch does not disconnect the plasma display completely from the supply mains.

Part Names and Function

* The 1/8 Stereo Mini cable must be purchased separately.

Rear View/ Terminal Board

English

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the

EXT SPEAKER terminal and the (negative)

speaker wire to the

Part Names and Function

both LEFT and RIGHT channels. Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here. VIDEO1 can be used for Input or Output (see page

24).

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them from the SOUND menu screen.

E COMPONENT1

Connect DVD’s, High Definition or Laser Discs, etc. here.

F PC2/COMPONENT2

PC2: You can connect an analog RGB signal

COMPONENT2

(positive) speaker wire to the

EXT SPEAKER terminal on

and the syncronization signal.

: You can connect DVDs, High

Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source (see page

17).

G PC1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output (see page 24).

H PC3

(DVI 24pin)

Connect a digital signal (TMDS) from a source with a DVI output.

I RS-232C

Never connect any component to this connector without first consulting your Pioneer installation technician.

This connector is used for plasma display setup adjustments.

J REMOTE IN

Connect the remote cable* to the remote control’s remote jack to obtain wired remote control.

K REMOTE OUT

Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.

* The 1/8 Stereo Mini cable must be purchased separately.

Remote Control

q POWER ON/STANDBY

Switches the power on/standby. (This does not operate when STANDBY/ON indicator of the main unit is off.)

w RGB/PC

Press this button to select RGB/PC as the source. RGB/PC can also be selected using the INPUT/EXIT button on the monitor.

e COMPONENT

Press this button to select COMPONENT as the source. COMPONENT can also be selected using the INPUT/ EXIT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source.

A VIDEO1 A VIDEO2 A VIDEO3

VIDEO can also be selected using the INPUT/EXIT button on the monitor.

t MENU/SET

Press this button to access the OSD controls. Press this button during the display of the main menu to go to the sub menu.

y CURSOR (▲ / ▼ /

Use these buttons to select items or settings and to adjust settings.



/ )

u EXIT

Press this button to exit the OSD controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

i POINT ZOOM

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the sound volume.

!1 MUTING

Mutes the sound.

!2 SCREEN SIZE

Automatically detects the signal and sets the aspect ratio. SCREEN SIZE button is not active for all signals.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 AUTO SET UP

Press this button to adjust PHASE, CLOCK, Position, and Contrast automatically, or to switch the screen size to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

!6 ID NO. SET

Set the ID number in the remote control. The remote control can then be used only for a display with the same ID number. When several displays are used together they can be controlled individually.

!7 CLEAR

Clears the number set by the ID NO. SET button.

!8 Remote control signal transmitter

Transmits the remote control signals.

!9 Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo Mini cable) here when using the supplied remote control in the wired condition.

English

Part Names and Function

Basic Operations

WIDE Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

English

2. Press the Power button (on the unit). The monitor’s STANDBY/ON indicator turns red and the standby mode is set.

3. Press the POWER ON button (on the remote control) to turn on the unit. The monitor’s STANDBY/ON indicator will light up (green) when the unit is on.

Press the POWER STANDBY button (on the remote control)

4. or the Power button (on the unit) to turn off the unit. The monitor’s STANDBY/ON indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

MUTING

To mute the sound:

Press the MUTING button on the remote control to mute the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

Basic Operations

1. Press the POINT ZOOM button to display the pointer. ( )

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the POINT ZOOM button to delete the pointer.

AUTO SET UP

To adjust the size or quality of the picture automatically:

Press the AUTO SET UP button.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

A 30 A 60 A 90 A 120 A 0

OFF TIMER 30

SCREEN SIZE Operation

With this function, you can select one of six screen sizes.

(manual)

When viewing videos or digital video discs

1. Press the SCREEN SIZE button on the remote control.

2. Within 3 seconds ... Press the SCREEN SIZE button again. The screen size switches as follows:

A 4:3 A FULL A WIDE A ZOOM A 2.35:1 A 14:9

When a 720P or 1080I signal is input:

FULL C 2.35:1

4:3 size screen

To check the remaining time:

button (on the remote

)

 

buttons.

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

The normal size screen is displayed. * The picture has the same size as video pictures with a 4 : 3

aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

WIDE size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

ZOOM size screen

2.35:1 size screen



Original image

Information is lost on both sides.

The squeezed film image is expanded to fulfill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.

• This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).

* If black bands appear on the top and bottom in the full size

screen, select the 2.35:1 size screen to avoid phosphor burnin.

14:9 size screen

The image is displayed at a 14:9 aspect ratio. * This feature is available when the input signal is video,

component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

English

WIDE Operations

Information

 AUTO SET UP ON setting

When RGB (still picture) input is selected:

PHASE, CLOCK, Position, and Contrast will be adjusted automatically.

When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input is selected:

The screen size switches to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

OSD (On Screen Display) Controls

English

SCREEN SIZE Operation with Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1. Press the SCREEN SIZE button on the remote control.

2. Within 3 seconds ...

Press the SCREEN SIZE button again. The screen size switches as follows:

A 4:3 A FULL A ZOOM

4:3 size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

FULL size screen

The image is expanded in the horizontal direction.

ZOOM size screen

FULL size screen

The image is expanded in the horizontal and vertical direction.

ZOOM size screen

When wide signals are input.

FULL

DOT BY DOT

Menu Operations

The OSD window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSD may be

displayed differently. In the explanation, the OSD section is shown close up.

1 / 2

MAIN MENU PICTURE SOUND SCREEN OPTION1

ADVANCED OSD NEXT PAGE

The following describes how to use the menus and the selected items.

1. Press the MENU/SET button on the remote control to display the MAIN MENU.

PICTURE SOUND SCREEN OPTION1

ADVANCED OSD NEXT PAGE

PREVIOUS PAGE LANGUAGE COLOR SYSTEM SOURCE INFORMATION

: OFF

SEL.

EXIT

MAIN MENU

: OFF

SEL. EXIT

MAIN MENU

EXIT

1 / 2

2 / 2

Note:

The main menu disappears by pressing the EXIT

button.

Information

 Advanced menu mode

When “ADVANCED OSD” is set to “ON” in the main menu (1/2), full menu items will be shown.

PICTURE SOUND SCREEN OPTION1 OPTION2 OPTION3 ADVANCED OSD NEXT PAGE

SEL.

MAIN MENU

: ON

EXIT EXIT

1 / 2

Setting the language for the menus

The menu display can be set to one of seven languages.

Example: Setting the menu display to “DEUTSCH”

On “MAIN MENU”, select “LANGUAGE”, then press the MENU/SET button. The “LANGUAGE” screen appears.

On “LANGUAGE”, select “ DEUTSCH”, then press the MENU/SET button.

LANGUAGE

: DEUTSCH

English

WIDE Operations

When wide signals are input.

FULL size screen

When “PICTURE SIZE” is set to “OFF”

* This cannot be set in some models. “DOT BY DOT” will

not be displayed in such cases.

The screen size switches as follows:

A D BY D A FULL A ZOOM

DOT BY DOT screen (VGA, SVGA 4:3)

The image is dot by dot resolution.

The image is dot by dot resolution. * “D BY D” can be switched only when a 1280 dot  768

line signal is input.

Information

 Supported resolution

See page 30 for details on the display output of the various VESA signal standards supported by the monitor.

 “PICTURE SIZE” setting

When the setting of “PICTURE SIZE” is OFF, the size of RGB-input pictures will be D BY D in place of 4:3.

 When 852 (848) dot  480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page

30.

* “VGA”, “SVGA” and “SXGA” are registered

trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended period. This can cause a phosphor burn-in.

SEL.

EXIT EXIT

2. Press the cursor buttons ▲ ▼ on the remote control to highlight the menu you wish to enter.

3. Press the MENU/SET button on the remote control to select a sub menu or item.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT AV SELECTION DNR NEXT PAGE

SEL.


ADJ.

: STD : OFF

EXIT RETURN

1 / 2

4. Adjust the level or change the setting of the selected item by using the cursor buttons

 

on the remote control.

5. The adjustments or the settings that are stored in memory. The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

* When adjusting using the bar at the bottom of the screen,



press the

or  button within 5 seconds. If not, the

current setting is set and the previous screen appears.

ADJ.

EXIT RETURNOK

The “LANGUAGE” is set to “DEUTSCH” and return to the main menu.

Information

 Language settings

ENGLISH ........ English

DEUTSCH .......German

FRANÇAIS ...... French

ITALIANO ........ Italian

SVENSKA .......Swedish

................ Japanese

ESPAÑOL ....... Spanish

OSD (On Screen Display) Controls

Menu Tree

:Shaded areas indicate the default value.

English

@A

:Menu items in a ruled box are available when the ADVANCED OSD is set to ON.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

PICTURE CONTRAST @A 0@52A72 YES 14

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

SOUND BASS @A 0@13A26 YES 16

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

SCREEN SCREEN SIZE 4:3/FULL/WIDE/ZOOM/2.35:1/14:9 — 16

: Press the

OSD (On Screen Display) Controls

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

OPTION1 OSD DISPLAY OSD OFF@AON YES 17



BRIGHTNESS @A 0@32A64 YES 14 SHARPNESS @A 0@16A32 YES 14 COLOR @A 0@32A64 YES 14 TINT R@AG 0@32A64 YES 14 AV SELECTION DYNAMIC/STD/MOVIE1/MOVIE2/DEFAULT YES 14 DNR OFF/LOW/MID/HIGH YES 14 COLOR TEMP. LOW/MID LOW/MID/HIGH YES 14 WHITE BALANCE R.HIGH @A 0@40A70 YES 15

GAMMA 1@A2@…A4 YES 15 LOW TONE AUTO@A1@…A3 YES 15 C. DETAIL ADJ RED Y@AM0@32A64 YES 15

TREBLE @A 0@13A26 YES 16 BALANCE L@AR -22@0A+22 YES 16 AUDIO INPUT1 VIDEO 1-3 / COMPNT 1-2 / PC1DSUB / PC2-BNC / PC3-DVI YES 16 AUDIO INPUT2 VIDEO 1-3 / COMPNT 1-2 / PC1DSUB / PC2-BNC / PC3-DVI YES 16 AUDIO INPUT3 VIDEO 1-3 / COMPNT 1-2 / PC1DSUB / PC2-BNC / PC3-DVI YES 16

V.POSITION @A -64@0A+64 YES 16 H.POSITION @A -128@0A+127 YES 16 V.SIZE @A 0@A64 YES 16 H.SIZE @A 0@A64 YES 16 AUTO PICTURE OFF@AON* PHASE* CLOCK*

BNC INPUT RGB@ACOMP. YES 17 D-SUB INPUT RGB —17 RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/WIDE3/WIDE4/DTV YES 17 HD SELECT 1080B/1035I/1080A NO 18 INPUT SKIP OFF@AON YES 18 ALL RESET OFF@AON —18

or  button to adjust.

G.HIGH @A 0@40A70 YES 15 B.HIGH @A 0@40A70 YES 15 R.LOW @A 0@40A70 YES 15 G.LOW @A 0@40A70 YES 15 B.LOW @A 0@40A70 YES 15 RESET OFF@AON YES 15

GREEN C@AY0@32A64 YES 15 BLUE M@AC0@32A64 YES 15 YELLOW G@AR0@32A64 YES 15 MAGENTA R@AB0@32A64 YES 15 CYAN B@AG0@32A64 YES 15 RESET OFF@AON YES 15

@A*20@A64 YES 16 @A*20@64A128 YES 16

OSD ADJUST 1@…A6 YES 17 OSD ANGLE H@AV YES 17 OSD ORBITER OFF@AON YES 17 OSD CONTRAST LOW@ANORMAL YES 17

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

OPTION2 PWR. MGT. OFF@AON YES 19

PURECINEMA OFF@AON YES 19 LONG LIFE ABL AUTO/LOCK 1/LOCK 2/LOCK 3 YES 19

ORBITER AUTO 1 YES 20

REFERENCE

INVERSE OFF YES 20

SCREEN WIPER OFF YES 21

SOFT FOCUS OFF/1/2/3/4 YES 21 SIDE MASK 0@…A3@…A15 YES 21 S1/S2 AUTO@AOFF YES 22 PICTURE SIZE OFF@AON YES 22 DVI SET UP PLUG/PLAY PC@ASTB/DVD NO 22

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

OPTION3 TIMER PRESENT TIME

PWR. ON MODE LAST / VIDEO 1-3 / COMPNT 1-2 / PC1DSUB / PC2-BNC / PC3-DVI YES 24 KEY LOCK OFF@AON YES 24 IR REMOTE OFF@AON YES 24 LOOP OUT OFF@AON YES 24 ID NUMBER ALL@A1@…A256 YES 25 VIDEO WALL DIVIDER OFF/1/4/9/16/25 YES 25

REFERENCE

NO 16

REFERENCE

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

ADVANCED OSD OFF@AON YES 27 LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/ COLOR SYSTEM AUTO/3.58NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM NO 28 SOURCE INFORMATION

— —28

BLACK LEVEL LOW@AHIGH NO 22

PROGRAM OFF YES 23

POSITION

DISP. MODE NORMAL@AADJUST YES 26

AUTO ID OFF@AON YES 26

SCREEN SCREEN SIZE 4:3/FULL/WIDE/ZOOM/2.35:1/14:9 — 26

P. ON DELAY OFF/ON/MODE1/MODE2 YES 26

ABL LINK OFF@AON YES 27

REPEAT TIMER OFF YES 27

AUTO 2 YES 20 MANUAL H-DOT/V-LINE/TIME YES 20 OFF YES 20

ON WORKING TIME/WAITING TIME YES 20 WHITE YES 20

ON WORKING TIME/WAITING TIME/SPEED YES 21

DAYLIGHT SAIVING TIME DAY/HOUR/MINUTES NO 23

ON DATE/ON/OFF(HOUR, MINUTE)/INPUT/FUNCTION YES 23

No.1@…ANo.4/No.7@…ANo.15/No.16@…ANo.31/No.32@…ANo.56

V.POSITION @A -64@0A+64 YES 26 H.POSITION @A -128@0A+127 YES 26 V.SIZE @A 0@A64 YES 26 H.SIZE @A 0@A64 YES 26 AUTO PICTURE OFF@AON*

PHASE*

CLOCK*

ON DIVIDER/SOURCE/WORK TIME YES 27

OFF@AON NO 23

—25

@A*20@A64 YES 26 @A*20@64A128 YES 26

NO 26

NO 11

REFERENCE

English

REFERENCE

OSD (On Screen Display) Controls

REFERENCE

*1 Only when AUTO PICTURE is OFF *2 RGB/PC only

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be

English

adjusted as desired.

Example: Adjusting the contrast

On “CONTRAST” of “PICTURE” menu, adjust the contrast.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT AV SELECTION DNR NEXT PAGE

SEL.

Note:


ADJ.

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure AV SELECTION is not set to DEFAULT.

Information

 Picture adjustment screen

CONTRAST: Changes the picture’s white level. BRIGHTNESS: SHARPNESS: Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR: Changes the color density. TINT: Changes the picture’s tint. Adjust for natural

colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “DEFAULT” under the “AV SELECTION” settings.

Setting the picture modes according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “MOVIE 1” mode

OSD (On Screen Display) Controls

On “AV SELECTION” of “PICTURE” menu, select “MOVIE 1”.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT AV SELECTION DNR NEXT PAGE

SEL.


ADJ.

Information

 Types of AV SELECTIONs

MOVIE 1, 2: Set this mode when watching video in a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. For a darker image, select MOVIE 2. STD: Set this mode when watching video in a bright room. This mode provides pictures with distinct differences between light and dark sections. DYNAMIC: This mode provides brighter pictures than STD. DEFAULT: Use this to reset the picture to the factory default settings.

1 / 2

: STD : OFF

EXIT RETURN

CONTRAST

Changes the picture’s black level.

1 / 2

: STD : OFF

EXIT RETURN

AV SELECTION

: MOVIE 1

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting “HIGH”

On “DNR” of “PICTURE” menu, select “HIGH”.

OFF

1 / 2

DNR

: HIGH

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT AV SELECTION DNR NEXT PAGE

SEL.


ADJ.

: STD :

EXIT RETURN

Information

 DNR

* “DNR” stands for Digital Noise Reduction. * This function reduces noise in the picture.

 Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction. The effect increases stronger in the order of LOW, MID and High. OFF: Turns the noise reduction function off.

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “HIGH”

On “COLOR TEMP.” of “PICTURE” menu, select “HIGH”.

PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE C.DETAIL ADJ.

SEL.


ADJ.

: HIGH : 2 : AUTO

EXIT RETURN

2 / 2

Information

 Setting the color temperature

LOW: Redder MID LOW: Slightly red MID: Standard (slightly bluer) HIGH: Bluer

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the “R.HIGH” of “HIGH” color temperature

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “COLOR TEMP.” of “PICTURE” menu, select “HIGH”, then press the MENU/SET button. The “WHITE BALANCE” screen appears.

On “R.HIGH”, adjust the white balance.

WHITE BALANCE

COLOR TEMP. HIGH R.HIGH G.HIGH B.HIGH R.LOW G.LOW B.LOW RESET : OFF

SEL.

ADJ.

EXIT RETURN

R.HIGH

Information

 Adjusting the white balance

R/G/B.HIGH: White balance adjustment for white level R/G/B.LOW: White balance adjustment for black level RESET: Resets settings to the factory default values.



and  buttons to select “ON”, then press the

Use MENU/SET button.  Restoring the factory default settings Select “RESET” under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting “3”

Set “ADVANCED OSD” to “ON” in the MAIN MENU (1/2), then perform the following operations.

On “GAMMA” of “PICTURE” menu, select “3”.

PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE C.DETAIL ADJ.

SEL.


ADJ.

: MID : 3 : AUTO

EXIT RETURN

2 / 2

Information

 GAMMA settings

The picture becomes darker as the number increases (in the sequence of 1, 2, 3, 4).

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in the dark area.

Example: Setting “2”

Set “ADVANCED OSD” to “ON” in the MAIN MENU (1/2), then perform the following operations.

On “LOW TONE” of “PICTURE” menu, select “2”.

PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE C.DETAIL ADJ.

SEL.


ADJ.

: MID : 2 : 2

EXIT RETURN

2 / 2

Information

 LOW TONE settings

AUTO: Will automatically appraise the picture and make adjustments.

1: Will apply the dither method suitable for still pictures. 2: Will apply the dither method suitable for motion

pictures. 3: Will apply the error diffusion method.

Adjusting the colors

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan. You can accentuate the green color of trees, the blue of the sky, etc.

Example: Adjusting the color detail adj for blue

Set “ADVANCED OSD” to “ON” in the MAIN MENU (1/2), then perform the following operations.

On “PICTURE” menu, select “C. DETAIL ADJ”, then press the MENU/SET button. The “C. DETAIL ADJ” screen appears.

On “BLUE” of “C. DETAIL ADJ”, adjust the color detail.

RED GREEN BLUE YELLOW MAGENTA CYAN RESET : OFF

SEL.

C.DETAIL ADJ.

ADJ.

EXIT RETURN

Information

 C. DETAIL ADJ settings

RED: Makes red’s adjustment

English

OSD (On Screen Display) Controls

GREEN: Makes green’s adjustment BLUE: Makes blue’s adjustment YELLOW: Makes yellow’s adjustment MAGENTA: Makes magenta’s adjustment CYAN: Makes cyan’s adjustment RESET: Resets settings to the factory default value.



and  buttons to select “ON”, then press the

Use MENU/SET button.

SOUND Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

English

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

On “BASS” of “SOUND” menu, adjust the bass.

BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3

SEL.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the SOUND menu correctly.

Information

 SOUND settings menu

BASS: Controls the level of low frequency sound. TREBLE: Controls the level of high frequency sound. BALANCE: Controls the balance of the left and right

channels.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

On “AUDIO INPUT1” of “SOUND” menu, select “VIDEO2”.

The available sources depend on the settings of input.

BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3

SEL.

OSD (On Screen Display) Controls

Information

 AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

SOUND

ADJ.

SOUND

ADJ.

: VIDEO1 : COMPNT1 : PC1DSUB

EXIT RETURN

: VIDEO2 : COMPNT1 : PC1DSUB

EXIT RETURN

SCREEN Settings Menu

Adjusting the Position, Size, PHASE, CLOCK

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

On “V.POSITION” of “SCREEN” menu, adjust the position.



The mode switches as follows each time the pressed:

4:3 C FULL

* The mode can also be switched by pressing the SCREEN

SIZE button on the remote control.

* The settings on the SCREEN menu are not preset at the

factory.

SCREEN SIZE V.POSITION H.POSITION V.SIZE H.SIZE AUTO PICTURE PHASE CLOCK

SEL.

SCREEN

ADJ.

: 4 : 3

: OFF

EXIT RETURN

V.POSITION

Information

 When “AUTO PICTURE” is “OFF”

SCREEN SIZE V.POSITION H.POSITION V.SIZE H.SIZE AUTO PICTURE PHASE CLOCK

SEL.

SCREEN

ADJ.

: FULL

: OFF

EXIT RETURN

When Auto Picture is off, the PHASE and the CLOCK items are displayed so that you can adjust them.

 Adjusting the Auto Picture

ON: The CLOCK, PHASE and Position adjustments are made automatically. Not available for digital ZOOM. OFF: The CLOCK, PHASE and Position adjustments are made manually.

* If PHASE can’t be adjusted, set Auto Picture to OFF

and adjust manually.

 Adjusting the position of the image

V.POSITION: Adjusts the vertical position of the image. H.POSITION: Adjusts the horizontal position of the image. V.SIZE: Adjusts the vertical size of the image. (Except for WIDE mode) H.SIZE: Adjusts the horizontal size of the image. (Except for WIDE mode)

PHASE*: Adjusts for flickering. CLOCK*: Adjusts for striped patterns on the image.

* The CLOCK and PHASE features are available only

when the “Auto Picture” is off.

* The AUTO PICTURE, PHASE and CLOCK are

available only for RGB signals. But, these features are not available for moving pictures on RGB, VIDEO or COMPONENT.

or  button is

+64

Option1 Settings Menu

Setting the on-screen display

This sets the position of the menu, the display format (horizontal or vertical) etc.

Example: Turning the DISPLAY OSD off

On “OPTION1” menu, select “OSD”, then press the MENU/ SET button. The “OSD” menu appears.

On “DISPLAY OSD” of “OSD” menu, select “OFF”.

ADJ.

OSD

: OFF : 1 : H : OFF : LOW

EXIT RETURN

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

SEL.

OPTION1

: RGB

: AUTO

: 1080B

: OFF

: OFF 1024768

EXITRETURN

DISPLAY OSD OSD ADJUST OSD ANGLE OSD ORBITER OSD CONTRAST

SEL.

Information

 DISPLAY OSD settings

ON: The informations on screen size, volume control, etc. will be shown. OFF: The informations on screen size, volume control, etc. will not be shown. The DISPLAY button on the remote control will not function either.

 OSD ADJUST settings

Adjusts the position of the menu when it appears on the screen. The position can be set between 1 to 6.

 OSD ANGLE settings

Sets the display format (landscape “H” or portrait “V”). When the unit is installed vertically set the OSD ANGLE at “V”.

“H” “V”

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

: RGB : RGB : AUTO : 1080B : OFF : OFF

EXITRETURNOK

1 / 3

OPTION1

 OSD ORBITER settings

ON: The position of the menu will be shifted by eight dots each time OSD is displayed. OFF: OSD will be displayed at the same position.

 OSD CONTRAST settings

NORMAL: OSD brightness is set to normal. LOW: OSD brightness is set to lower.

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB and component.

Example: Set the BNC INPUT mode to “COMP.”

On “BNC INPUT” of “OPTION1” menu, select “COMP.”.

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: COMP. : RGB : AUTO : 1080B : OFF : OFF

EXIT RETURN

1 / 3

Information

 BNC INPUT Settings

RGB: Use the 5BNC terminals for PC2/ COMPONENT2 input. COMP.: Use the 3BNC terminals for PC2/ COMPONENT2 input.

Checking the signal being transmitted to PC1 terminal

Use this to confirm the signal being transmitted to the PC1 terminal. It is set to RGB and can not be adjusted.

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE CAN NOT ADJUST

OPTION1

: RGB : RGB : AUTO : 1080B : OFF : OFF

1 / 3

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the “RGB SELECT” mode to “MOTION ”

On “RGB SELECT” of “OPTION1” menu, select “MOTION”.

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: RGB : RGB : MOTION : 1024 : OFF : OFF

EXIT RETURN

1 / 3

768

Information

 RGB SELECT modes

One of these 8 modes must be selected in order to display the following signals correctly. AUTO: Select the suitable mode for the specifications of input signals as listed in the table “Computer input signals supported by this system” on page 30. STILL: To display VESA standard signals. (Use this mode for a still image from a computer.) MOTION: The video signal (from a scan converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

English

OSD (On Screen Display) Controls

WIDE1: When an 852 dot 480 line signal with a horizontal frequency of 31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB

English

SELECT to WIDE1. WIDE2: When an 848 dot 480 line signal with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2. WIDE3: When an 1920 dot 1200 line signal with a horizontal frequency of 74.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE3. WIDE4: When an 1280 dot 768 line signal with a horizontal frequency of 59.8 kHz or an 1680 dot 1050 line signal with a horizontal frequency of 60 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE4. DTV: Set this mode when watching digital broadcasting (480P).

See page 30 for the details of the above settings.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the “HD SELECT” mode to “1035I”

On “HD SELECT” of “OPTION1” menu, select “1035I”.

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

Information

 HD SELECT modes

These 3 modes are not displayed in correct image

OSD (On Screen Display) Controls

automatically.

1080B: Standard digital broadcasts 1035I: Japanese “High Vision” signal format 1080A: Special Digital broadcasts (for example :

DTC100)

Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed. This setting is valid only for the INPUT/EXIT button on the unit.

Example: Set to “ON”

On “INPUT SKIP” of “OPTION1” menu, select “ON”.

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

OPTION1

ADJ.

: RGB : RGB : AUTO : 1035

: OFF : OFF

EXIT RETURN

: RGB : RGB : AUTO : 1080B : ON : OFF

EXIT RETURN

1 / 3

Information

 INPUT SKIP settings

OFF: Regardless of the presence of the signal, scan and display all signals. ON: If no input signal is present, skip that signal.

* “SETTING NOW” will appear during the input search.

Resetting to the default values

Use these operations to restore all the settings (PICTURE, SOUND, SCREEN, OPTION1~3, etc) to the factory default values.

Refer to page 12 for items to be reset.

On “ALL RESET” of “OPTION1” menu, select “ON”, then press the MENU/SET button.

OSD BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

: RGB : RGB : AUTO : 1080B : OFF :

EXIT RETURN

1 / 3

ALL RESET

SETTING NOW

When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

Option2 Settings Menu

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example:

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PWR. MGT.” of “OPTION2” menu, select “ON”.

Information

 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating instructions.

 Power management settings

ON: In this mode the power management function is turned on. OFF: In this mode the power management function is turned off.

 Power management function and STANDBY/ ON indicator

The STANDBY/ON indicator indicates the status of the power management function. See below for indicator status and description.

STANDBY/ON indicator

Power management mode

Off

Turning the power management function on

PREVIOUS PAGE PWR. MGT. PURECINEMA LONG LIFE SIDE MASK S1/S2 PICTURE SIZE DVI SET-UP NEXT PAGE

SEL.

STANDBY/ ON indicator

Green

Red

Power management operating status

Not activated.

Activated.

OPTION2

ADJ.

: ON : ON

: 3 : OFF : ON

EXIT RETURN

Description

Horizontal and vertical synchronizing signals are present from the computer.

Horizontal and/or vertical synchronizing signals are not sent from the computer.

2 / 3

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “PURECINEMA” to “OFF”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PURECINEMA” of “OPTION2” menu, select “OFF”.

PREVIOUS PAGE PWR. MGT. PURECINEMA LONG LIFE SIDE MASK S1/S2 PICTURE SIZE DVI SET-UP NEXT PAGE

SEL.

OPTION2

ADJ.

: OFF : OFF

: 3 : OFF : ON

EXIT

2 / 3

RETURN

Information

 PURECINEMA

ON: Automatic discrimination of the image and projection in PURECINEMA. OFF: PURECINEMA does not function.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION2” menu, select “LONG LIFE”, then press the MENU/SET button. The “LONG LIFE” screen appears.

ABL ORBITER INVERSE SCREEN WIPER SOFT FOCUS

SEL.

LONG LIFE

ADJ.

: AUTO : OFF : OFF : OFF : OFF

EXIT RETURN

ABL (Auto Brightness Limiter)

Use this to activate the brightness limiter.

Example: Setting “ABL” to “LOCK1”

On “ABL” of “LONG LIFE” menu, select “LOCK1”.

ABL ORBITER INVERSE SCREEN WIPER SOFT FOCUS

SEL.

LONG LIFE

ADJ.

: LOCK1 : OFF : OFF : OFF : OFF

EXIT RETURN

Information

 ABL settings

AUTO: The brightness of the screen is adjusted automatically to suit the picture quality. LOCK1, 2, 3: Sets maximum brightness. The brightness level decreases in the order of LOCK 1, 2, 3. LOCK 3 provides minimum brightness.

English

OSD (On Screen Display) Controls

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

English

On “ORBITER” of “LONG LIFE” menu, select “AUTO1”.

ABL ORBITER INVERSE SCREEN WIPER SOFT FOCUS

SEL.

Information

 ORBITER settings

OFF: Orbiter mode does not function. This is the default setting when PC signal is input. AUTO1: The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a COMPONENT signal is input. Set to “OFF” when these signals are not used. AUTO2: The picture moves around the screen intermittently, making the picture bigger. MANUAL: User can adjust the orbiter function (Horizontal Dot, Vertical Line and Time) manually. See the following explanation.

* When a Video or a COMPONENT signal is input, the

AUTO1 and 2 functions will affect only the moving picture and will not make the screen smaller or bigger.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots horizontally and 4 lines vertically every 3 minutes.

On “ORBITER” of “LONG LIFE” menu, select “MANUAL”, then press the MENU/SET button. THE “ORBITER” screen appears.

Adjust the items.

OSD (On Screen Display) Controls

H-DOT V-LINE TIME

SEL.

Information

 ORBITER Function settings

H-DOT: Moves from 1 to 20 dots in the horizontal direction. V-LINE: Moves from 1 to 20 lines in the vertical direction. TIME: Interval of 1~5 minutes (1 horizontal dot or 1 vertical line per interval).

LONG LIFE

ADJ.

ORBITER

ADJ.

: AUTO : AUTO1 : OFF : OFF : OFF

EXIT RETURN

: 2 DOT : 4 LINE : 3 M

EXIT RETURN

INVERSE

Use this to set the inverse mode or to display a white screen.

Example: Setting “INVERSE” to “WHITE”

On “INVERSE” of “LONG LIFE” menu, select “WHITE”.

ABL ORBITER INVERSE SCREEN WIPER SOFT FOCUS

SEL.

LONG LIFE

ADJ.

: AUTO : OFF : WHITE : OFF : OFF

EXIT RETURN

Information

 INVERSE Settings

ON: The picture is displayed alternately between positive image and negative image. You can set the time by pressing the MENU/SET button while “ON” is set.

OFF: Inverse mode does not function. WHITE: The entire screen turns white.

You can set the time by pressing the MENU/SET button while “ON” is set.

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts in 2 hours and proceeds for one hour and a half.

On “INVERSE” of “LONG LIFE” menu, select “ON”, then press the MENU/SET button. THE “INVERSE/WHITE” screen appears.

Adjust the times.

WORKING TIME WAITING TIME

SEL.

INVERSE/WHITE

ADJ.

: 01H30M : 02H00M

EXIT RETURN

Information

 Setting the time

WORKING TIME: Set the time duration for “INVERSE/WHITE”. When the WORKING TIME is set to “ON” the mode will stay on. WAITING TIME: Set the standby time until the “INVERSE/WHITE” mode starts.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON. THE “WORKING TIME” and “WAITING TIME” can be

set for up to 12 hours and 45 minutes in units of 3 minutes.

* Ending a WORKING TIME function, the monitor will

be STAND BY.

[Example]

WORKING TIME: 01H30M WAITING TIME: 02H00M

@<<<< 2 H <<<<A@<< 1.5 H <<A@<<<<

Start INVERSE/WHITE Start STAND BY

 To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.

SCREEN WIPER

When this is set to ON, a white vertical bar moves repeatedly from the left and of the screen to the right end at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

On “SCREEN WIPER” of “LONG LIFE” menu, select “ON”.

ABL ORBITER INVERSE SCREEN WIPER SOFT FOCUS

SEL.

LONG LIFE

ADJ.

: AUTO : OFF : OFF : ON : OFF

EXIT RETURN

Information

 SCREEN WIPER

ON: The white vertical bar appears. You can set the time by pressing the MENU/SET button while “ON” is set.

OFF: Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting so that the SCREEN WIPER mode starts in 30 minutes and proceeds for one and a half hours.

On “SCREEN WIPER” of “LONG LIFE” menu, select “ON”, then press the MENU/SET button. THE “SCREEN WIPER” screen appears.

Adjust the times and speed.

WORKING TIME WAITING TIME SPEED

SEL.

SCREEN WIPER

ADJ.

: 01H30M : 00H30M : 3

EXIT RETURN

Information

 Setting the time

WORKING TIME: Set the time duration for “SCREEN WIPER”. When the WORKING TIME is set to “ON” the mode will stay on. WAITING TIME: Set the standby time until the “SCREEN WIPER” mode starts. SPEED: Set the moving speed for the “SCREEN WIPER”. The speed decreases as the number increases.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “WAITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3 minutes.

 To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “2”

On “SOFT FOCUS” of “LONG LIFE” menu, select “2”.

ABL ORBITER INVERSE SCREEN WIPER SOFT FOCUS

SEL.

LONG LIFE

ADJ.

: AUTO : OFF : OFF : OFF : 2

EXIT RETURN

Information

 SOFT FOCUS settings

OFF: Turns the SOFT FOCUS function off. 1, 2, 3, 4: Activates the SOFT FOCUS setting. The

higher numbers create a softer image. “SHARPNESS” can not be adjusted in the “PICTURE” menu.

Setting the gray level for the SIDE MASK

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Setting “SIDE MASK” to “5”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “SIDE MASK” of “OPTION2” menu, select “5”.

PREVIOUS PAGE PWR. MGT. PURECINEMA LONG LIFE SIDE MASK S1/S2 PICTURE SIZE DVI SET-UP NEXT PAGE

SEL.

OPTION2

ADJ.

: OFF : ON

: 5 : OFF : ON

EXIT

2 / 3

RETURN

Information

 SIDE MASK settings

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

English

OSD (On Screen Display) Controls

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when

English

this S1/S2 is set to AUTO. This feature is available only when an S-video signal is input via the VIDEO3 terminal.

Example: Setting “S1/S2” to “AUTO”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “S1/S2” of “OPTION2” menu, select “AUTO”.

PREVIOUS PAGE PWR. MGT. PURECINEMA LONG LIFE SIDE MASK S1/S2 PICTURE SIZE DVI SET-UP NEXT PAGE

SEL.

Information

 S1/S2 settings

AUTO: Adjusts the screen size automatically according to the S1/S2 video signal. OFF: Turns the S1/S2 function off.

Setting the picture size for RGB input signals

Use this procedure to switch the setting to “ON” or “OFF”.

Example: Setting the “PICTURE SIZE” mode to “OFF”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PICTURE SIZE” of “OPTION2” menu, select “OFF”.

PREVIOUS PAGE PWR. MGT. PURECINEMA LONG LIFE SIDE MASK S1/S2

OSD (On Screen Display) Controls

PICTURE SIZE DVI SET-UP NEXT PAGE

SEL.

See page 10 for the details of the above settings.

Setting the signal and black level for DVI signal

Choose the signal for the DVI connector (PC or STB/ DVD) and set the black level.

Example: Setting the “PLUG/PLAY” mode to “STB/ DVD”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION2” menu, select “DVI SET UP”, then press the MENU/SET button.

The “DVI SET UP” screen appears. On “PLUG/PLAY” of “DVI SET UP” menu, select “STB/

DVD”.

PLUG/PLAY BLACK LEVEL

OPTION2

ADJ.

OPTION2

ADJ.

DVI SET-UP

: OFF : ON

: 3 : AUTO : ON

EXIT

RETURN

: OFF : ON

: 3 : OFF

OFF

EXIT

RETURN

: STB/DVD : HIGH

2 / 3

Information

 PLUG/PLAY settings

PC: When connected to the PC signal. BLACK LEVEL is set to “LOW” automatically. STB/DVD:

When connected to the SET TOP BOX, DVD etc.

BLACK LEVEL is set to “HIGH” automatically.

 BLACK LEVEL settings

LOW: When connected to the PC signal. HIGH:

When connected to the SET TOP BOX, DVD etc.

Change “HIGH” into “LOW” if the black level appears gray.

Option3 Settings Menu

Using the timer

This function sets the monitor to turn ON/OFF automatically at a set time.

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION3” menu, select “TIMER”, then press the MENU/SET button. The “TIMER” screen appears.

PRESENT TIME PROGRAM

SEL.

PRESENT TIME

This sets the day of the week and present time.

Example: Setting “WEDNESDAY”, “22:05”

On “TIMER” menu, select “PRESENT TIME”, then press the MENU/SET button. The “PRESENT TIME” screen appears.

Adjust the items.

RETURN DAYLIGHT SAVING TIME

SET

SEL.

Select “SET”, then press the MENU/SET button. The adjustments are stored and return to the TIMER menu.

* If you press the EXIT button instead of the MENU/SET

button, the settings can not be made.

RETURN DAYLIGHT SAVING TIME

SET

SEL.

Information

 PRESENT TIME settings

DAYLIGHT SAVING TIME: Use to set DAYLIGHT SAVING TIME. ON: The present time + 1 hour. OFF: Cancelled

Day: Set the day of the week (e.g. Sunday). Hour: Set the hour in the 24-hour format (range 00 to

23). Minutes: Set the minutes (range 00 to 59).

TIMER

PRESENT TIME

WEDNESDAY

22 : 05 : 00

ADJ.

PRESENT TIME

WEDNESDAY

22 : 05 : 00

: OFF

EXIT RETURNOK

: OFF

RETURN

EXIT

: OFF

EXIT RETURN

PROGRAM TIMER

This sets the day and time at which the power will be switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched on at 8:30 A.M., Monday, displaying PC2 source, and switched off at 10:30 A.M.

On “PROGRAM” of “TIMER” menu, select “ON”, then press the MENU/SET button. The “PROGRAM TIMER” screen appears.

Adjust the items. Each mode switches each time the ZOOM / button is

pressed.

DATE MON

— — — — — —

SEL.

08 : 30

- - : - -

PROGRAM TIMER

OFF

10 : 30

- - : - -

ZOOM

ADJ.

INPUT

PC2

— — — — — —

EXIT

FUNCTION

INVERSE

RETURN

— — — — — —

Information

 PROGRAM TIMER settings

DATE: Set the day of the week (e.g. Sunday). ON (hour, minutes): Set the time at which the power

will be turned on in the 24-hour format. OFF (hour, minutes): Set the time at which the power will be turned off in the 24-hour format. INPUT: Set the input mode that will be displayed when the timer is on. FUNCTION: Set the LONG LIFE function.

 To reset the program

Align the cursor with the DATE field that you wish to reset, then press the CLEAR button.

 To reset the data

Align the cursor with the field (ON/OFF/INPUT/ FUNCTION) that you wish to reset, then press the CLEAR button.

 Special characters in the PROGRAM TIMER

screen

DATE MON

TUE SAT *FRI

—

SAT

SEL.

08 : 30

- - : - 08 : 30 08 : 30

- - : - 08 : 30 15 : 30

PROGRAM TIMER

OFF 10 : 30 18 : 15 12 : 15 10 : 00

- - : - 12 : 15 16 : 00

ZOOM

ADJ.

INPUT

PC2

— VIDEO1 COMP.1

— VIDEO1

PC1

EXIT

FUNCTION

INVERSE

WHITE

RETURN

—

— —

—

• An asterisk “*” in the DATE field An asterisk “*” means “every”. For example, “*FRI” means every Friday and “*” means everyday.

• A hyphen “-” in the ON field or OFF field If any hyphen remains in the ON field or OFF field, the FUNCTION can not be set.

• A hyphen “-” in the FUNCTION field A hyphen “-” means last mode (the mode that was last selected at the time the power was switched off).

English

OSD (On Screen Display) Controls

SEL.

ADJ.

EXIT RETURN

Setting the power on mode

This function sets the input mode at the time the power is switched on.

English

Example: Setting “VIDEO2”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PWR. ON MODE” of “OPTION3” menu, select “VIDEO2”.

The available inputs depend on the setting of input.

PREVIOUS PAGE TIMER PWR. ON MODE KEY LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

Information

 PWR. ON MODE settings

LAST: Last mode (the input that was last selected at the time the power was switched off).

VIDEO1, 2, 3: VIDEO input mode. PC1, 2, 3: PC input mode. COMPONENT1, 2: COMPONENT input mode.

Follow the procedure used for PROGRAM TIMER. See page 23.

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting “ON”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “KEY LOCK” of “OPTION3” menu, select “ON”, then press the MENU/SET button.

PREVIOUS PAGE TIMER PWR. ON MODE

OSD (On Screen Display) Controls

KEY LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

Information

 KEY LOCK settings

ON: Disables the buttons on the front panel. OFF: Enables the buttons on the front panel.

* Even when the KEY LOCK is set, the POWER switch

will not be locked.

* This becomes effective when the OSD goes out.

OPTION3

ADJ.

OPTION3

ADJ.

: VIDEO2 : OFF : ON : OFF : ALL

RETURN

EXIT

: LAST : ON : ON : OFF : ALL

RETURN

EXIT

3 / 3

Enabling/disabling remote control wireless transmission

This function enables/disables remote control wireless transmission.

Example: Setting “OFF”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “IR REMOTE” of “OPTION3” menu, select “OFF”, then press the MENU/SET button.

PREVIOUS PAGE TIMER PWR. ON MODE KEY LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : OFF : OFF : OFF : ALL

EXIT

3 / 3

RETURN

Information

 IR REMOTE settings

ON: Enables remote control wireless transmission. OFF: Disables remote control wireless transmission.

Set “OFF” to avoid unwanted control from other remote controls.

Loop Out setting

When this feature is set to ON, the received signal will be looped out.

Example: Setting “ON”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “LOOP OUT” of “OPTION3” menu, select “ON”.

PREVIOUS PAGE TIMER PWR. ON MODE KEY LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : OFF : ON : ON : ALL

EXIT

3 / 3

RETURN

Information

 LOOP OUT settings

ON: The received signal will be looped out via PC1 terminal or VIDEO1 terminal. OFF: The received signal will not loop out.

* Even if LOOP OUT is ON, signals won’t be sent out if

POWER is being turned off.

 To connect another display...

See page 3.

 If the PC1 signal is present at the time the

power switched on...

The PC1 input will be displayed regardless of the setting of LOOP OUT.

ID number setting

When using more than one of these displays, this function sets ID numbers so that operation of the remote control does not cause multiple monitors to operate at the same time.

Example: Setting “2”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “ID NUMBER” of “OPTION3” menu, select “2”.

PREVIOUS PAGE TIMER PWR. ON MODE KEY LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : OFF : ON : OFF : 2

EXIT

3 / 3

RETURN

* To reset back to ALL

Press the CLEAR button.

Information

 ID NUMBER settings

ALL: ID NUMBER will not be set. 1 to 256: ID NUMBER will be set.

 When the ID NUMBER have been set

You can also set ID NUMBER for each remote control to operate the plasma display individually. To do so, see below.

To set the ID number for the remote control

Example: Setting “2”

Press the ID NO. SET button on the remote control. The “ID NO. SET” screen appears.

On “ID NUMBER” of “ID NO. SET” menu, select “2”.

ID NUMBER

ID NO.SET

POSITION : 1

ADJ.

: 2

EXIT

RETURN

* To reset back to ALL

Press the CLEAR button.

Video Wall setting

When creating a video wall, use a distribution amplifier (any commercially available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals. Use this feature to configure a 4-25 video wall.

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION3” menu, select “VIDEO WALL”, then press the MENU/SET button. The “VIDEO WALL” screen appears.

DIVIDER POSITION DISP. MODE AUTO ID SCREEN P. ON DELAY ABL LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: NORMAL : OFF

: OFF : OFF : OFF

EXIT RETURN

Note:

A contingency method of shutting off the electric power should be used in cases of emergency during video wall setup.

DIVIDER

Set the 4-25 video wall.

Example: Setting “4”

On “DIVIDER” of “VIDEO WALL” menu, select “4”.

DIVIDER POSITION DISP. MODE AUTO ID SCREEN P. ON DELAY ABL LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 4

: NORMAL : OFF

: OFF : OFF : OFF

EXIT RETURN

Information

 DIVIDER settings

OFF, 1: 1 Screen (Matrix display function does not work) 4: 4 Screens (2×2 video wall) 9: 9 Screens (3×3 video wall) 16: 16 Screens (4×4 video wall) 25: 25 Screens (5×5 video wall)

* When you select 4-25, set the VIDEO WALL

POSITION.

VIDEO WALL POSITION

Set the position of each display.

Example: Setting “4”

On “VIDEO WALL” menu, select “POSITION”, then press the MENU/SET button. The “VIDEO WALL POSITION” screen appears.

Select “NO. 4” of “POSITION NO.”.

VIDEO WALL POSITION

POSITION NO. 4

RETURN

EXIT

ADJ.

Information

 VIDEO WALL POSITION settings

1 Screen: There is no need to set POSITION. 4 Screens 9 Screens

NO. 1

NO. 4

NO. 2

NO. 3

NO. 7

NO. 10

NO. 13

NO. 8

NO. 11

NO. 14

NO. 9

NO. 12

NO. 15

16 Screens 25 Screens

NO. 16 NO. 17 NO. 18 NO. 19

NO. 20 NO. 21 NO. 22 NO. 23

NO. 24 NO. 25 NO. 26 NO. 27

NO. 28 NO. 29 NO. 30 NO. 31

NO. 32 NO. 33 NO. 34 NO. 35 NO. 36

NO. 37 NO. 38 NO. 39 NO. 40 NO. 41

NO. 42 NO. 43 NO. 44 NO. 45 NO.46

NO. 47 NO. 48 NO. 49 NO. 50 NO. 51

NO. 52 NO. 53 NO. 54 NO. 55 NO. 56

English

OSD (On Screen Display) Controls

DISP. MODE

Select the screen mode from between two options (NORMAL, ADJUST).

English

Example: Setting “ADJUST”

On “DISP. MODE” of “VIDEO WALL” menu, select “ADJUST”.

DIVIDER POSITION DISP. MODE AUTO ID SCREEN P. ON DELAY ABL LINK REPEAT TIMER

SEL.

Information

 DISP. MODE settings

NORMAL: Combines enlarged screens and creates multiple screens. ADJUST: Corrects misalignment of combined screen portions and creates multiple screens

AUTO ID

This feature automatically sets the ID numbers of multiple displays connected to each other.

Example: Setting “ON”

Set the ID number for the No. 1 display on ID NUMBER menu.

On “AUTO ID” of “VIDEO WALL” menu, select “ON”, then press the MENU/SET button.

AUTO ID

WIRED CABLE CONNECTION TURN

OSD (On Screen Display) Controls

Information

 AUTO ID settings

ON: Enables Auto ID function. In the case shown below, display 1 will be set as ID 1, display 2 as ID2, etc. This can be set only when a 2×2 or 3×3 video wall is selected.

No.1

REMOTE

OUT

No.2

No.3No.4

Display 1

No.1

No.2 No.3No.4

Display 4

OFF: Disables Auto ID function.

VIDEO WALL

ADJ.

AUTO ID

ADJ.

REMOTE OUT

REMOTE

OUT

REMOTE IN

: 1

: ADJUST : OFF

: OFF : OFF : OFF

RETURN

EXIT

: ON

RETURN

EXIT

No.1

Display 2

No.1

Display 3

No.2 No.3No.4

SCREEN

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position

On “VIDEO WALL” menu, select “SCREEN”, then press the MENU/SET button.

The “SCREEN” screen appears. On “V.POSITION” of “SCREEN” menu, adjust the position.

SCREEN SIZE V.POSITION H.POSITION V.SIZE H.SIZE AUTO PICTURE PHASE CLOCK

SEL.

SCREEN

ADJ.

: 4 : 3

: OFF

EXIT RETURN

V.POSITION

+64

Information

 SCREEN settings

These are the same functions as the SCREEN menu on page 16.

P. ON DELAY (Power on delay)

Use this function to activate power-on delay. Turn on the AUTO ID before the following operations.

Example: Setting “ON”

On “P. ON DELAY” of “VIDEO WALL” menu, select “ON”.

DIVIDER POSITION DISP. MODE AUTO ID SCREEN

P. ON DELAY ABL LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: NORMAL : OFF

: ON : OFF : OFF

RETURN

EXIT

Information

 P. ON DELAY settings

ON: Turns on the main power of each display after a delay time. OFF: Turns on the main power of all displays at the same time.

(Only for 16 and 25 screens) MODE1: Turns on the main power of each display delayed.

REMOTE OUT

MODE2: Turns on the main power of each display more delayed.

* Once this function has been set to “ON”, the POWER

ABL LINK

Use this function to set a uniform brightness for each display. Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.

Example: Setting “ON”

On “ABL LINK” of “VIDEO WALL” menu, select “ON”, then press the MENU/SET button.

DIVIDER POSITION DISP. MODE AUTO ID SCREEN P. ON DELAY ABL LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: NORMAL : OFF

: OFF : ON : OFF

RETURN

EXIT

Information

 ABL LINK settings

ON: Sets a uniform brightness for each screen in a video wall. This can be set only when a 2×2 or 3×3 video wall is selected. OFF: Sets the individual screen brightness for each screen in a video wall.

* When this function is set “ON”, connect your plasma

displays with the remote cable (optional) in the order of the position numbers for the 2×2 video wall. See the drawing below.

* If there are changes in the DIVIDER or POSITION,

the ABL LINK will automatically turn OFF.

REMOTE

OUT

No.1

No.2 No.3No.4

Display 1

No.1

No.2 No.3No.4

Display 4

OUT

REMOTE

REMOTE IN

OUT

No.1

No.2

REMOTE OUT

No.3No.4

Display 2

No.1

No.2 No.3No.4

Display 3

REMOTE IN

* With the 3×3 video wall, connect the final display to

the first display the same way as with 2×2 video wall.

Note:

The remote control can be operated unless the

IR REMOTE is set to “OFF”.

REPEAT TIMER

Use this to set two timers. Each timer can use the DIVIDER, SOURCE and WORK TIME functions. Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.

Example: TIMER1...VIDEO1 will be displayed for 3 minutes.

TIMER2...PC1 will be displayed for 6 minutes in a

2×2 video wall.

On “REPEAT TIMER” of “VIDEO WALL” menu, select “ON”, then press the MENU/SET button. The “REPEAT TIMER” screen appears.

Adjust the items.

1 DIVIDER SOURCE WORK TIME

2 DIVIDER SOURCE WORK TIME

SEL.

REPEAT TIMER

ADJ.

: 1 : VIDEO1 : 00H03M

: 4 : PC1DSUB : 00H06M

EXIT

RETOUR

Information

 REPEAT TIMER settings

DIVIDER: Divide the screen into 1, 4 or 9 sections. SOURCE: Set the input mode to be displayed. WORK TIME: Can be set to up to 4 hours 15 minutes

in units of 1 minute. If you set both timers, Timer 1 and Timer 2 run consecutively. In the case of the Video wall, timer No.1 can be used to control all the displays simultaneously.

* This becomes effective when the on-screen menu goes

out.

Advanced OSD Settings Menu

Setting the menu mode

This allows you to access full menu items. When P. ON DELAY or ABL LINK is ON, this won’t be turned OFF.

Example: Setting “ON”

On “ADVANCED OSD” of “MAIN MENU”, select “ON”.

PICTURE SOUND SCREEN OPTION1

ADVANCED OSD NEXT PAGE

SEL.

MAIN MENU

ADJ.

EXIT

OFF

EXIT

1 / 2

PICTURE SOUND SCREEN OPTION1 OPTION2 OPTION3 ADVANCED OSD NEXT PAGE

SEL.

MAIN MENU

ADJ.

EXIT

1 / 2

EXIT

English

OSD (On Screen Display) Controls

ON/OFF button on the remote control does not function

REMOTE IN

except for the No.1 monitor. By pressing the POWER ON button on the remote control the No.1 monitor will turn on and the others will be turned on one by one automatically.

* From the second monitor onward, neither the POWER

button on the unit nor the POWER ON button on the

Information

 ADVANCED OSD settings

ON: All of the main menu items are available for advanced users. OFF: Some of the main menu items are not available (e.g. OPTION2 and OPTION3).

remote control works. However, by pressing and holding the POWER ON button for more than 3 seconds, the monitor will be turned on.

Pin Assignments

English

Color System Settings Menu

Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

On the MAIN MENU, select “COLOR SYSTEM”, then press the MENU/SET button. The “COLOR SYSTEM” screen appears.

On “COLOR SYSTEM”, select “ 3.58NTSC ”.

COLOR SYSTEM

Information

 Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country. AUTO: The color systems are automatically identified and the format is set accordingly. PAL: This is the standard format used mainly in the United Kingdom and Germany. SECAM: This is the standard format used mainly in France and Russia.

4.43 NTSC, PAL60: This format is used for videos in countries using PAL and SECAM video signals.

3.58 NTSC: This is the standard format used mainly in the United States and Japan. PAL-M: This is the standard format used mainly in Brazil. PAL-N: This is the standard format used mainly in Argentina.

ADJ.

: 3.58NTSC

EXIT RETURN

mini D-Sub 15-pin connector (Analog)

PC 1

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock

Signal (Analog)

DVI-D 24-pin connector (Digital)

The unit is equipped with a type of connector commonly used for digital. (This cannot be used for an analog input.) (TMDS can be used for one link only.)

PC 3

12345678 910111213141516

20191817 21 22 23 24

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

T.M.D.S Data 2 T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T.M.D.S Clock Shield T.M.D.S Clock + T.M.D.S Clock -

Signal (Digital)

English

Pin Assignments

Source Information Menu

OSD (On Screen Display) Controls

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

On “MAIN MENU”, select “SOURCE INFORMATION”, then press the MENU/SET button.

The “SOURCE INFORMATION” is displayed.

H. FREQUENCY V. FREQUENCY

H. POLARITY V. POLARITY

MEMORY RESOLUTION

PC: MEMORY will be displayed. Others: MODE will be displayed.

SOURCE INFORMATION

: 48.4kHz : 60.0Hz

: NEG. : NEG.

: 24 : 1024

EXIT RETURN

768

Table of Signals Supported

Supported resolution

• When the screen size is 4:3, each signal is converted to a 1024 dots768 lines signal. (Except for *

• When the screen size is Dot by Dot, the picture is displayed in the original resolution.

• When the screen size is FULL, each signal is converted to a 1365 dots768 lines signal. (Except for *

English

Table of Signals Supported

Computer input signals supported by this system

Model

Signal Type

IBM PC/AT* compatible computers

Apple Macintosh*

Work Station (EWS4800)

Work Station(HP) Work Station (SUN)

Work Station (SGI) IDC-3000G

PAL625P

NTSC525P

6 *8

Dots  lines

640400 640480

848480

852480*

800600

1024768

1152864

1280768

1280800* 1280854*

1360765 1360768 1376768

12801024

16801050*

16001200

19201200* 19201200RB

640480 832624

1024768

1152870

1440900*

12801024

1152900

12801024

1024768

12801024

768576 640480

Vertical frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

59.8

69.8*

60.0

59.9

60.0

75.0

85.0

100.1

60.0

65.0

70.0

75.0

85.0

60.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

56.0*

49.7

53.1

47.7

48.3

64.0

80.0

91.1

108.5

65.3

75.0

81.3

87.5

93.8

106.3

74.6

74.0

35.0

49.7

60.2

68.7

56.0

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

Sync Polarity Presence

Horizontal

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS NEG NEG NEG NEG NEG POS POS NEG POS POS POS POS NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS NEG POS POS NEG NEG POS POS POS POS POS POS POS NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES YES

– –

YES YES

Vertical

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES YES

– –

YES YES

2, 3, 4

)

4:3

YES*

YES YES YES YES YES YES

– –

– – YES YES YES YES YES YES YES

YES* YES* YES* YES* YES*

YES

– –

YES* YES* YES* YES*

– – YES YES YES YES YES

– –

– – YES YES

YES*

YES

– –

YES* YES* YES*

YES YES

YES* YES* YES*

YES* YES*

Screen size

D BY D

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– –

– – YES YES YES

– –

– – YES YES

– –

FULL (16:9)

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES YES* YES*

YES

YES* YES*

RGB

select*

– –

STILL

– –

STILL

– – – –

– – WIDE2 WIDE1

STILL STILL

– –

STILL

– –

STILL

– –

STILL WIDE1 WIDE4 WIDE1 WIDE1 WIDE2

WIDE1

WIDE1 WIDE2

STILL

– – – – – –

WIDE4

– – – – – – – –

– – WIDE2 WIDE3

– –

– – WIDE1 WIDE1

– –

MOTION

DVI

NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

NO YES YES YES YES

NO YES YES YES YES YES

NO YES YES

NO YES

NO YES YES YES YES YES YES YES YES YES

Memory

4 5 7 8

9 41 42 19 17 11 12 13 14 15 43 44 24 25 26 27 45 51 52 23 66 21 37 22 22 53 29 30 40 47 38 54 55 56 57 58 81 88

6 16 28 39 89 29 48 59 60 61 30 62 29

31 32

*1 Only when using a graphic accelerator board that is capable of displaying 852480. *2 This signal is converted to a 1024 dots  640 lines signal. *3 The picture is displayed in the original resolution. *4 The aspect ratio is 5:4. This signal is converted to a 960 dots768 lines signal. *5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the

RGB mode prepared for the input signals listed in the table above. *6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port. *7 Other screen sizes (ZOOM and WIDE) are available as well. *8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy).

If this occurs, please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when

sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”. *9 CVT standard compliant.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the

picture or the fine picture because of errors in synchronization of your computer.



• When a 1280 dots

• This monitor has a resolution of 1365 dots

1024 lines signal or 1600 dots  1200 lines signal is input to the monitor, the picture will be compressed.



768 lines. It is recommended that the input signal should be XGA, wide XGA, or

equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

What is HDCP/HDCP technology? HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI). If you are unable to view material via the DVI input, this does not necessarily mean the PDP is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

• “IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.

• “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

English

Table of Signals Supported

Troubleshooting

Specifications

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Mechanical sound is heard.

English

Troubleshooting

The unit emits a crackling sound.

Picture is disturbed. Sound is noisy. Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on when the remote control’s power button is pressed.

Monitor does not operate when the remote control’s buttons are pressed.

The front panel buttons of the main unit do not function.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak. Nothing appears on screen.

Part of picture is cut off or picture is not centered.

Image is too large or too small.

Picture is unstable. STANDBY/ON indicator is lighted in red.

STANDBY/ON indicator is blinking in red.

STANDBY/ON indicator is blinking in green and red, or green.

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the STANDBY/ON indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

Symptom

Checks

• Maybe the sound from the cooling fans used to prevent over heating.

• Are the image and sound normal?

• Is a connected component set directly in front or at the side of the display?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main unit?

• Is the monitor’s power cord plugged into a power outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to OFF?

• Has an ID number been set for the main unit?

• Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?

• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?

•

Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired).

• The front panel buttons do not function during KEY Lock.

• Is the monitor’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the MUTING mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting. Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect RGB connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the standby or off mode?

• Is LOOP OUT set to ON?

• Is the position adjustment appropriate?

• Is the screen size adjustment appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

——————

• If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in temperature. This will not affect performance.

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Set IR REMOTE OFF on OPTION3 menu.

• Set an ID number with the ID NO. SET button, or set the ID number to ALL.

• Plug the monitor’s power cord into a power outlet.

• Press the power button on the monitor to turn on the power.

• Replace both batteries with new ones.

• Set IR REMOTE ON.

• Set an ID number with the ID NO. SET button, or set the ID number to ALL.

• Point the remote control at the monitor’s remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the monitor.

• Set the KEY Lock to OFF.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

• Press the remote control’s MUTING button.

• Connect the speakers properly.

• Set AUDIO INPUT on the SOUND menu correctly.

• Adjust picture control as needed. Try another location for the monitor. Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse, etc.).

• Set LOOP OUT OFF.

• Adjust the SCREEN properly.

• Press the SCREEN SIZE button on the remote control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See *2.

Remedy

Screen Size 53.2"(H)29.9"(V) inches

1351(H)760(V) mm diagonal 61"

Aspect Ratio 16 : 9 Resolution 1365(H)768(V) pixels Signals

Synchronization Range Horizontal : 15.5 to 110 kHz

(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*

, DVD*1 , DTV*

Input Terminals (VIDEO1 and PC1 can also be used as OUTPUT terminals)

Visual 1 (Analog) mini D-sub 15-pin1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)1* Visual 3 (Digital) DVI-D 24-pin1*

Video

Visual 1 BNC1 Visual 2 RCA-pin1 Visual 3 S-Video: DIN 4-pin1

COMPONENT

Visual 1 RCA-pin (Y, PB[CB], PR[CR])1* Visual 2 BNC (Y, PB[CB], PR[CR])1*

1, *2

Audio Stereo RCA3 (Selectable)

RS-232C D-sub 9-pin1 Sound output 9W+9W at 6 ohm Power Supply AC100-120V 50/60Hz Current Rating 8.0A (maximum) Power Consumption 540W (standby 0.9W) Dimensions 57.9 (W)34.7 (H)4.7 (D) inches

1470 (W)880 (H)119(D) mm

Weight 134.5 lbs / 61.0 kg (without stand) Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Other Features Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 4-25 multi screen, Self Diagnosis, Image Burn reduction tools (ABL LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color Temperature select (high/mid/mid low/low, user has 4 memories), Key lock (Except power SW), Auto Picture, Input Skip, Color Detail Adjustment, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, PC3: DDC2b only)

English

The features and specifications may be subject to change without notice.

*1COMPONENT input signals supported on this system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)

The 5-BNC connectors are used as PC2 and COMPONENT2 input. Select one of them under “BNC INPUT”.

Compatible with HDCP.

Supported Signals

• 640480P @ 59.94/60Hz • 19201080I @ 50Hz

• 1280720P @ 59.94/60Hz • 720576P @ 50Hz

• 19201080I @ 59.94/60Hz • 1440 (720)576P @ 50Hz

• 720480P @ 59.94/60Hz

• 1440 (720)480I @ 59.94/60Hz Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Specifications

Pioneer PDP-614MX User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
