Pioneer PDP-6071PU, PDP-6070PU Service Manual

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2006

ON REC TIMERSTANDBYPOWER

PDP-6071PU

PLASMA DISPLAY SYSTEM

PDP-6071PU

PDP-6070PU

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model Type Power Requirement Remarks

PDP-6071PU KUC AC 120 V PDP-6071PU KUCXC AC 120 V PDP-6070PU KUC AC 120 V PDP-6070PU KUCXC AC 120 V

ORDER NO.

ARP3394

This service manual should be used together with the following manual(s).

Model No. Order No. Remarks

PDP-6071PU, PDP-6070PU ARP3395 SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM

For details, refer to "Important Check Points for good servicing".

T-IZV SEPT. 2006 printed in Japan

1234

1. NOTES ON SERVICE VISIT

1.1 SAFETY INFORMATION

A

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to

B

cause cancer, birth defects or other reproductive harm.

NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation.

Health & Safety Code Section 25249.6 - Proposition 65

REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation.

C

SAFETY PRECAUTIONS

NOTICE : Comply with all cautions and safety related notes

located on or inside the cabinet and on the chassis.

The following precautions should be observed :

1. When service is required, even though the PDP UNIT an isolation transformer should be inserted between the power line

D

and the set in safety before any service is performed.

2. When replacing a chassis in the set, all the protective devices must be put back in place, such as barriers, nonmetallic knobs, adjustment and compartment covershields, isolation resistorcapacitor, etc.

3. When service is required, observe the original lead dress. Extra precaution should be taken to assure correct lead dress in the high voltage circuitry area.

4. Always use the manufacture's replacement components. Especially critical components as indicated on the circuit diagram should not be replaced by other manufacture's.

Furthermore where a short circuit has occurred, replace those

E

components that indicate evidence of overheating.

5. Before returning a serviced set to the customer, the service technician must thoroughly test the unit to be certain that it is completely safe to operate without danger of electrical shock, and be sure that no protective device built into the set by the manufacture has become defective, or inadvertently defeated during servicing. Therefore, the following checks should be performed for the continued protection of the customer and servicetechnician.

6. Perform the following precautions against unwanted radiation and rise in internal temperature.

• Always return the internal wiring to the original styling.

• Attach parts (Gascket, Ferrite Core, Ground, Rear Cover, Shield Case etc.) surely after disassembly.

7. Perform the following precautions for the PDP panel.

• When the front case is removed, make sure nothing hits the panel face, panel corner, and panel edge (so that the glass does not break).

• Make sure that the panel vent does not break. (Check that the cover is attached.)

• Handle the FPC connected to the panel carefully. Twisting or pulling the FPC when connecting it to the connector will cause it to peel off from the panel.

8. Pay attention to the following.

• Pay extreme caution when the front case and rear panel are removed because this may cause a high risk of disturbance to TVs and radios in the surrounding.

F

2

1234

PDP-6071PU

5678

Leakage Current Cold Check

With the AC plug removed from an AC power source, place a jumper across the two plug prongs. Turn the AC power switch on. Using an insulation tester (DC 500V), connect one lead to the jumpered AC plug and touch the other lead to each exposed metal part (input/output terminals, screwheads, metal overlays, control shafts, etc.), particularly any exposed metal part having a return path to the chassis. Exposed metal parts having a return path to the chassis should have a minimum resistor reading of 4MΩ. The below 4MΩ resistor value indicate an abnormality which require corrective action. Exposed metal parts not having a return path to the chassis will indicate an open circuit.

Leakage Current Hot Check

Plug the AC line cord directly into an AC power source (do not use an isolation transformer for this check). Turn the AC power switch on. Using a "Leakage Current Tester (Simpson Model 229 equivalent)", measure for current from all exposed metal parts of the cabinet (input/output terminals, screwheads, metal overlays, control shaft, etc.), particularly any exposed metal part having a return path to the chassis, to a known earth ground (water pipe, conduit, etc.). Any current measured must not exceed 1mA.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in PIONEER set have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which dose not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER.

A

B

C

Reading should not be above 1mA

Earth ground

Device under test

Also test with plug reversed (Using AC adapter plug as required)

Leakage current tester

Test all exposed metal surfaces

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE SET TO THE CUSTOMER.

D

E

56

PDP-6071PU

F

3

7

8

1234

Charged Section

A

The places where the commercial AC power is used without passing through the power supply transformer. If the places are touched, there is a risk of electric shock. In addition, the measuring equipment can be damaged if it is connected to the GND of the charged section and the GND of the non-charged section while connecting the set directly to the commercial AC power supply. Therefore, be sure to connect the set via an insulated transformer and supply the current.

1. Power cord

2. AC inlet

B

3. Power switch (S1)

4. Fuse (In the POWER SUPPLY Unit)

5. STB transformer and Converter transformer (In the POWER SUPPLY Unit)

6. Other primary side of the POWER SUPPLY Unit

: Part is Charged Section. : Part is the High Voltage Generating Points

C

other than the Charged Section.

High Voltage Generating Point

The places where voltage is 100 V or more except for the charged places described above. If the places are touched, there is a risk of electric shock. The VSUS voltage remains for several minutes after the power to the unit is turned off. These places must not be touched until about 10 minutes after the power is turned off, or it is confirmed with a tester that there is no residual VSUS voltage.

If the procedures described in “10.3 POWER ON/OFF FUNC-

-TION FOR THE LARGE-SIGNAL SYSTEM” are performed

before the power is turned off, the voltage will be discharged in about 30 seconds.

POWER SUPPLY Unit........................................................(205 V)

60 X DRIVE Assy...............................................(–180 V to 205 V)

60 Y DRIVE Assy...............................................................(500 V)

607 SCAN A Assy...............................................................(500 V)

607 SCAN B Assy...............................................................(500 V)

D

E

607 SCAN B Assy

60 Y DRIVE Assy 60 X DRIVE Assy Conductive plate XPOWER SUPPLY Unit

607 SCAN A Assy AC inlet Power switch (S1)

F

Fig. High Voltage Generating Point (Rear view)

4

1234

PDP-6071PU

5678

[Important Check Points for Good Servicing]

In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures.

1. Product safety

Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual.

1 Use specified parts for repair.

Use genuine parts. Be sure to use important parts for safety.

2 Do not perform modifications without proper instructions.

Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise.

3 Make sure the soldering of repaired locations is properly performed.

When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example)

4 Make sure the screws are tightly fastened.

Please be sure that all screws are fastened, and that there are no loose screws.

5 Make sure each connectors are correctly inserted.

Please be sure that all connectors are inserted, and that there are no imperfect insertion.

6 Make sure the wiring cables are set to their original state.

Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc.

7 Make sure screws and soldering scraps do not remain inside the product.

Please check that neither solder debris nor screws remain inside the product.

8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.

Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one.

9 There should be no spark traces or similar marks on the power plug.

When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary.

0 Safe environment should be secured during servicing.

When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely.

A

B

C

D

2. Adjustments

To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual.

3. Lubricants, Glues, and Replacement parts

Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied.

4. Cleaning

For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances.

5. Shipping mode and Shipping screws

To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual.

56

PDP-6071PU

E

F

5

7

8

1234

1.2 QUICK REFERENCE UPON SERVICE VISIT

A

Notes, PD/SD diagnosis, and methods for various settings

Notes when visiting for service

1. Notes when disassembling/reassembling

1 Rear case

When reassembling the rear case, the screws must be tightened in a specific order. Be careful not to tighten them in the wrong order forcibly. For details, see "Rear Case" in "6. DISASSEMBLY"

2 Attaching screws for the HDMI connector

When attaching the HDMI connector after replacing the Main Assy, secure the HDMI connector manually with a screwdriver, but not with an electric screwdriver. If you tighten the screws too tightly with an electric screwdriver, the screw heads may be damaged, in

B

C

which case the screws cannot be untightened/tightened any more.

2. On parts replacement

1 How to discharge before replacing the Assys

A charge of significant voltage remains in the Plasma Panel even after the power is turned off. Safely discharge the panel before replacement of parts, in either manner indicated below:

Let the panel sit at least for 3 minutes after the power is turned off.

A: B: Turn the Large Signal System off before the power is turned off then, after 1 minute, turn the power off. For details, see "10.2 Power ON/OFF Function for the Large-Signal System."

2 On the settings after replacement of the Assys

Some boards need settings made after replacement of the Assys. For details, see "7. ADJUSTMENT"

3. On various settings

1 SR+

After a repair using a PC, be sure to restore the setting for the RS-232C connector to SR+.

2 Setting in Factory mode

After a Mask indication into the panel is performed, be sure to set the Mask setting to "OFF" then exit Factory mode.

Quick Reference upon Service Visit 1

PD/SD

Item

Communication with the panel drive IC Communication with the module IIC DIGTAL-RST2 Panel high temperature

Panel section

Audio Communication with the Module microcomputer Main 3-wire serial communication Main IIC communication Communication with the Main microcomputer FAN

Main section

Unit high temperature Communication with the D-TUNER MTB-RST2/RST4

POWER SCAN SCN-5V Y-DRIVE Y-DCDC Y-SUS ADRS X-DRIVE X-DCDC X-SUS UNKNOWN

No. of LEDs flashing

Red Blue

Blue 1

Blue 2

Blue 3

Blue 4

Blue 5

Blue 6

Blue 7

Blue 8

Blue 9

Blue 10

Blue 11

Blue 12

Blue 13

Red 2

Red 3

Red 4

Red 5

Red 6

Red 7

Red 8

Red 9

Red 10

Red 11

Red 15

Change of settings

How to enter Factory mode using the supplied remote control unit

In the same way as with the remote control unit supplied with the 6thgeneration model

How to enter Integrator mode using the supplied remote control unit

1 Enter the Standby mode. 2 Press [MENU]. 3 Press [TV  ].

Release TRAP SW-ERR

1 Enter the Factory mode. 2 Select the INITIALIZE mode.

3 Hold [DISPLAY] pressed for at least

5 seconds.

How to switch UART 1 (Integrator)

1 Enter the Integrator mode. 2 Display "OFF" using [\]. 3 Change the communication speed

using [«], then [\].

How to switch UART 2 (During Standby)

1 Enter the Standby mode. 2

Hold [VOL +] or [VOL -] pressed for 3 seconds.

3

Hold [SPLIT] pressed for 3 seconds.

4-1 To set to 232C, press [ENTER]. 5-2

To set to SR+, press [HOME MENU].

Note:

If switching is completed successfully, the red LED will flash twice.

Note 1:

Use a remote control unit supplied with the 6th-generation models or later.

Note 2:

Do not hold a key pressed for more than 5 seconds.

How to locate several items on the Factory menu

{ } : Item on the Factory menu

D

E

F

[ ] : Key on the remote control unit " " : Screen indication

1. Confirmation of accumulated power-on time and power-on count

Select {INFORMATION} then {HOUR METER}. (After entering Factory mode, press [«] four times.)

2. Confirmation of the Power-down and Shutdown histories

1 Panel system

PD: Select {PANEL FACTORY} then {POWER DOWN}.

(After entering Factory mode, press [MUTING] once, press [ENTER], then press [«] three times.)

SD: Select {PANEL FACTORY} then {SHUT DOWN}.

(After entering Factory mode, press [MUTING] once, press [ENTER], then press [«] four times.)

2 Main Assy

Select {INFORMATION} then {MAIN NG}. (After entering Factory mode, press [«] three times.)

3. How to display the Mask indication

1 Mask indication in the panel side

1. Select {PANEL FACTORY} then {RASTER MASK SETUP}. (After entering Factory mode, press [MUTING] once, press [ENTER], then press [«] 8 times.)

2. Press [ENTER], then select a Mask indication, using [»] or [«].

2 Mask (SG screen) indication in the Main Assy (MAIN VDEC)

1. Select either Input 1 or 2 or 4, to which no signal is input (

2. Select {INITIALIZE} then {SG MODE}. Press [|]. (After entering Factory mode, press [MUTING] three times, then press [«] once.) Then, the indication at the lower right of the screen changes from "OFF" to "ANA AD YCBCR".

3. You can change Mask patterns by pressing [«] to select {SG PATTERN} then using [|] or [\]. Note: When you switch "SG MODE" routes, some displays become

monochrome, as they are in Y-signal only mode.

black screen

Adjustments and Settings after replacement of the Assys (Procedures in Factory mode)

1. Digital Video Assy: Transfer of backup data

1 Select {PANEL FACTORY}, {ETC}, then {BACKUP DATA}. (After entering Factory

mode, press [MUTING] once, press [ENTER], press [«] seven times, then press [ENTER].)

2 Select {TRANSFER}, using [\], then hold [SET] pressed for at least 5 seconds. 3 After transfer of backup data is completed, {ETC} is automatically selected, and the

LED on the front panel returns to normal lighting.

2. MAIN Assy (U): Execution of FINAL SETUP.

1 Select {INITIALIZE} then {FINAL SETUP}, then press [ENTER]. (After entering

Factory mode, press [MUTING] three times, then press [«] four times.)

2 Select "YES", using [\]. Then hold [ENTER] pressed for at least 5 seconds. 3 After "FINAL SETUP IS COMPLETE" is displayed on the screen, turn the POWER

switch of the main unit off.

3. POWER SUPPLY Unit: Clearance of the accumulated power-on count and maximum temperature value

1 Select {PANEL FACTORY}, {ETC}, then {P COUNT INFO}. (After entering Factory

mode, press [MUTING] once, press [ENTER], press [«] seven times, press [ENTER], then press [«] six times.)

2 Press [\] to select "CLEAR". Hold [SET] pressed for at least 5 seconds.

After clearance is completed, "ETC" is automatically selected. Clear the maximum temperature value (MAX TEMP) in the same manner.

4. Other Assys: Clearance of the maximum temperature value

1 Select {PANEL FACTORY}, {ETC}, then {MAX TEMP}. (After entering Factory mode,

press [MUTING] once, press [ENTER], press [«] seven times, press [ENTER], then press [«] seven times.)

2 Press [\] to select "CLEAR". Hold [SET] pressed for at least 5 seconds.

After clearance is completed, "ETC" is automatically selected.

).

6

1234

PDP-6071PU

5678

Quick Reference upon Service Visit 2

Mode transition and structure of layers in Service Factory mode

Mode transition in Service Factory mode

INFORMATION mode

1. VERSION (1)

2. VERSION (2), (3)

3. MAIN NG

4. TEMPERATURE

5. HOUR METER

6. HDMI SIGNAL INFO1, 2

7. VDEC SIGNAL INFO 2

8. DTV TUNING STATUS 1, 2, 3

9. DTV TV-GUIDE BER

10. DEBUG INFO

PANEL FACTORY mode

1. PANEL INFORMATION

2. PANEL WORKS

3. POWER DOWN

4. SHUT DOWN

5. PANEL-1 ADJ

6. PANEL-2 ADJ

7. PANEL REVICE

8. ETC.

9. RASTER MASK SETUP

10. PATTEN MASK SETUP

11. COMBI MASK SETUP

Up

Down

• To shift to another mode, press [MUTING].

• To shift to another item in a specific mode, press [»] or [«].

• To shift to the next nested layer below for an item with a "(+)" indication, press [ENTER]. To return to the next nested layer above, also press [ENTER].

INITIALIZE mode

1. SYNC DET

2. SG MODE

3. SG PATTERN

4. SIDE MASK LEVEL

5. FINAL SETUP

6. HMG/HG SERVICE MODE

7. CVT AUTO

8. HDMI INTR POSITION

OPTION mode

1. EDID WRITE MODE

2. ANTENNA MODE

3. AFT

Structure of Layers in Service Factory Mode

INFORMATION mode

1. VERSION (1) Flash Versions for PANEL system and MAIN system

2. VERSION (2) Flash Versions for DTV system

3. VERSION (3) Flash Versions for CCD ucom and HM

4. MAIN NG SD histories for MAIN (Going Clear model by SET key) 4-1. CLEAR Select Yes by [\] key \ pushing and hold [SET] key

5. TEMPERATURE TEMP 1, TEMP2 and FAN mode are displayed

6. HOUR METER Hour meter and number of Power ON are displayed 6-1. CLEAR Select Yes by [\] key \ pushing and hold [SET] key

7. HDMI SIGNAL INFO 1 For factory use

8. HDMI SIGNAL INFO 2 Signal info of HDMI are displayed ( Detail are on SM )

9. VDEC SIGNAL INFO For factory use

10. DTV TUNING STATUS 1 Detail information for DTV is displayed

11. DTV TUNING STATUS 2 Detail information for DTV is displayed

12. DTV TUNING STATUS 3 Detail information for DTV is displayed

13. DTV TV-GUIDE BER For production line use

14. DEBUG INFO For factory use

PANEL FACTORY mode Refer to [PANEL FACTORY MODE] OPTION

1. EDID WRITE MODE For factory use

2. ANTENNA MODE For production line use

3. AFT For production line use

INITIALIZE

1. SYNC DET (+) For factory use

2. SG MODE SG signal from MAIN VDEC (

3. SG PATTERN For factory use

4. SIDE MASK LEVEL(+) For factory use 4-1. R MASK LEVEL 4-2. G MASK LEVEL 4-3. B MASK LEVEL

5. FINAL SETUP Set to Factory default settings (it should perform after 5-1. DATA RESET replacing a MAIN board )

6. HMG/HG SERVICE MODE Information for a USB device is displayed 6-1. MODE SIFT

7. CVT AUTO For factory use

8. HDMI INTR POSITION(+) For factory use

Composite signal is required

A

B

)

C

Structure of Layers in Panel Factory Mode 1

1. PANEL INFORMATION Version indication of the panel

2. PANEL WORKS Indications of the accumulated power-on time, pulse-meter

3. POWER DOWN Indication of the Power-down history

4. SHUT DOWN Indication of the Shutdown history

5. PANEL-1 ADJ (+)

1. X-SUS B

2. Y-SUS B

3. Y-SUSTAIL T1

4. Y-SUSTAIL T2 Modification not required because these items are basically

5. Y-SUSTAIL W for factory presetting

6. XY-RST W1

7. XY-RST W2

8. VOL SUS

9. VOL OFFSET Settings required after replacement of the panel

10. VOL RST P

11. SUS FREQ. For AM noise prevention (Depending on the mode,

6. PANEL-2 ADJ (+)

1. R-HIGH

2. G-HIGH 3 .B-HIGH Parameters for the WB adjustment of the panel, which are

4. R-LOW required during adjustment after panel replacement

5. G-LOW

6. B-LOW

7. ABL Setting of the power consumption. A setting table is

To "Structure of Layers in Panel Factory Mode 2"

count, and power-on count of the panel

brightness of the screen changes.)

available for each vertical signal.

Structure of Layers in Panel Factory Mode 2

7. PANEL REVISE (+) R-LEVEL G-LEVEL Items for use by engineers B-LEVEL

8. ETC (+)

1. BACKUP DATA For transferring backup data (after replacement of

2. DIGITAL EEPROM To clear data of the digital video

3. PD INFO.

4. SD INFO. For clearance of data for the corresponding items.

5. HR-MTR INFO. The clearing method is the same: Select "CLEAR",

6. PM/B1-B5 using [\], then hold [SET] pressed for at least 5

7. P COUNT INFO. seconds. After clearance is completed, {ETC} is

8. MAX TEMP. automatically selected.

9. RASTER MASK SETUP (+)

1. MASK OFF

2. RST MASK 01 For use while Raster Mask (full mask) is displayed.

• • • • • Use [»] or [«] to select the type of mask.

25. RST MASK 24

10. PATTEN MASK SETUP (+)

1. MASK OFF

2. PTN MASK 01 For use while Pattern Mask is displayed. Use [»] or

• • • • • [«] to select the type of mask.

40. PTN MASK 39

11. COMBI MASK SETUP (+)

1. MASK OFF

2. CMB MASK 01 For use while Combination Mask is displayed.

• • • • • Use [»] or [«] to select the type of mask.

11. CMB MASK 10

the DIGITAL Assy)

D

E

56

PDP-6071PU

F

7

8

1234

1.3 JIGS LIST

A

Cleaning

Name Part No. Remarks

Cleaning liquid GEM1004 Cleaning paper GED-008

B

CONTENTS

1. NOTES ON SERVICE VISIT............................................................................................................................. 2

1.1 SAFETY INFORMATION ...........................................................................................................................2

1.2 QUICK REFERENCE UPON SERVICE VISIT........................................................................................... 6

1.3 JIGS LIST .................................................................................................................................................. 8

2. EXPLODED VIEWS AND PARTS LIST ..........................................................................................................10

2.1 PACKING SECTION ................................................................................................................................10

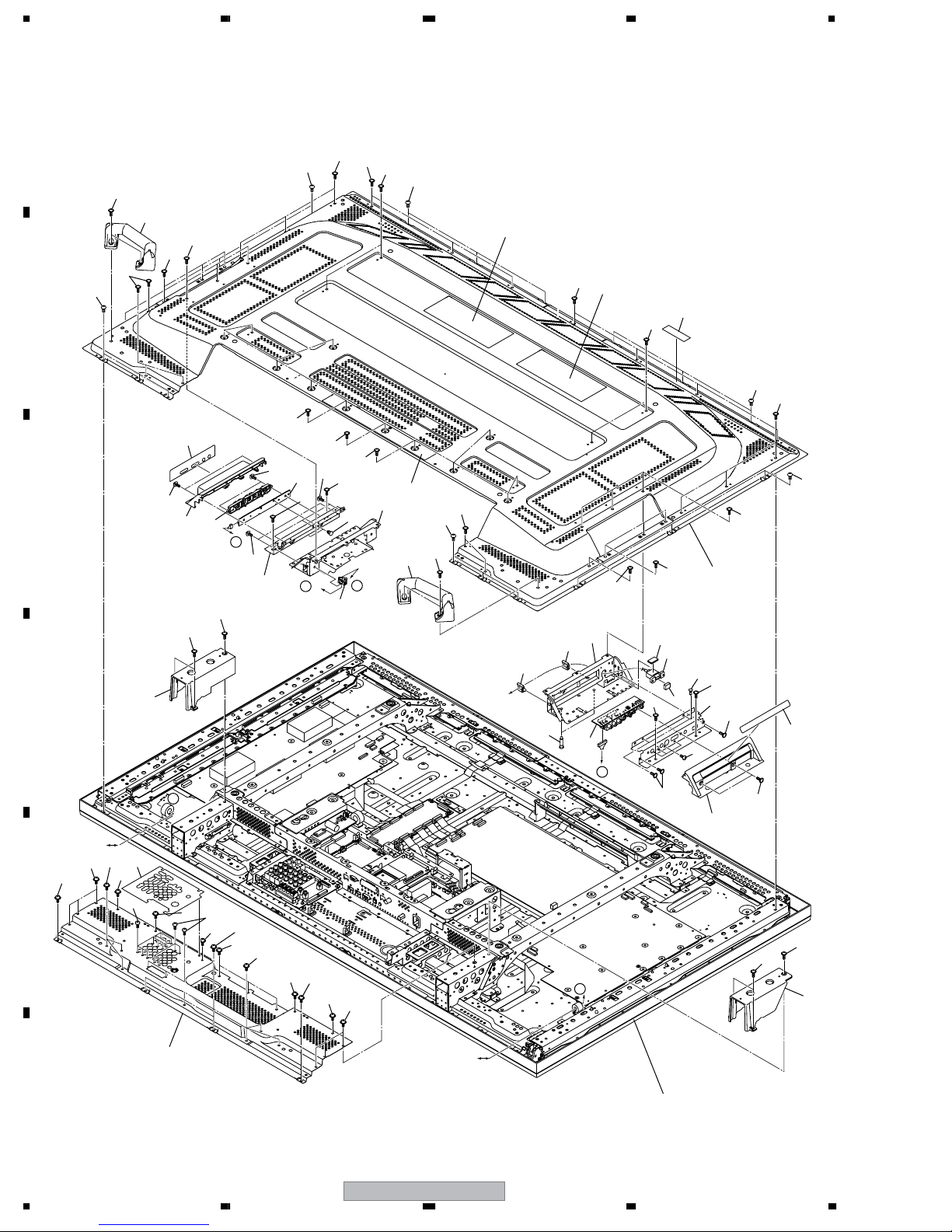

2.2 REAR SECTION ...................................................................................................................................... 12

C

D

E

F

2.3 FRONT SECTION.................................................................................................................................... 14

2.4 CHASSIS SECTION (1/2)........................................................................................................................ 16

2.5 CHASSIS SECTION (2/2)........................................................................................................................ 18

2.6 PANEL CHASSIS SECTION.................................................................................................................... 20

2.7 MULTIBASE SECTION ............................................................................................................................ 22

2.8 PDP SERVICE ASSY 607 (AWU1228).................................................................................................... 24

3. PCB PARTS LIST ........................................................................................................................................... 27

4. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..........................................................................................44

4.1 OVERALL CONNECTION DIAGRAM (1/2) ............................................................................................. 44

4.2 OVERALL CONNECTION DIAGRAM (2/2) ............................................................................................. 46

4.3 OVERALL BLOCK DIAGRAM.................................................................................................................. 48

4.4 60 ADDRESS S and L ASSYS ................................................................................................................50

4.5 60 SCAN A and B ASSYS .......................................................................................................................51

4.6 60 X DRIVE ASSY ................................................................................................................................... 52

4.7 60 Y DRIVE ASSY ................................................................................................................................... 54

4.8 60 DIGITAL ASSY.................................................................................................................................... 56

4.9 AUDIO ASSY ........................................................................................................................................... 57

4.10 SIGNAL BLOCK DIAGRAM................................................................................................................... 58

4.11 DTV BLOCK DIAGRAM......................................................................................................................... 60

4.12 FUKUGO BLOCK POWER LINE BLOCK DIAGRAM............................................................................ 62

4.13 POWER SUPPLY UNIT.......................................................................................................................... 63

4.14 VOLTAGES............................................................................................................................................. 64

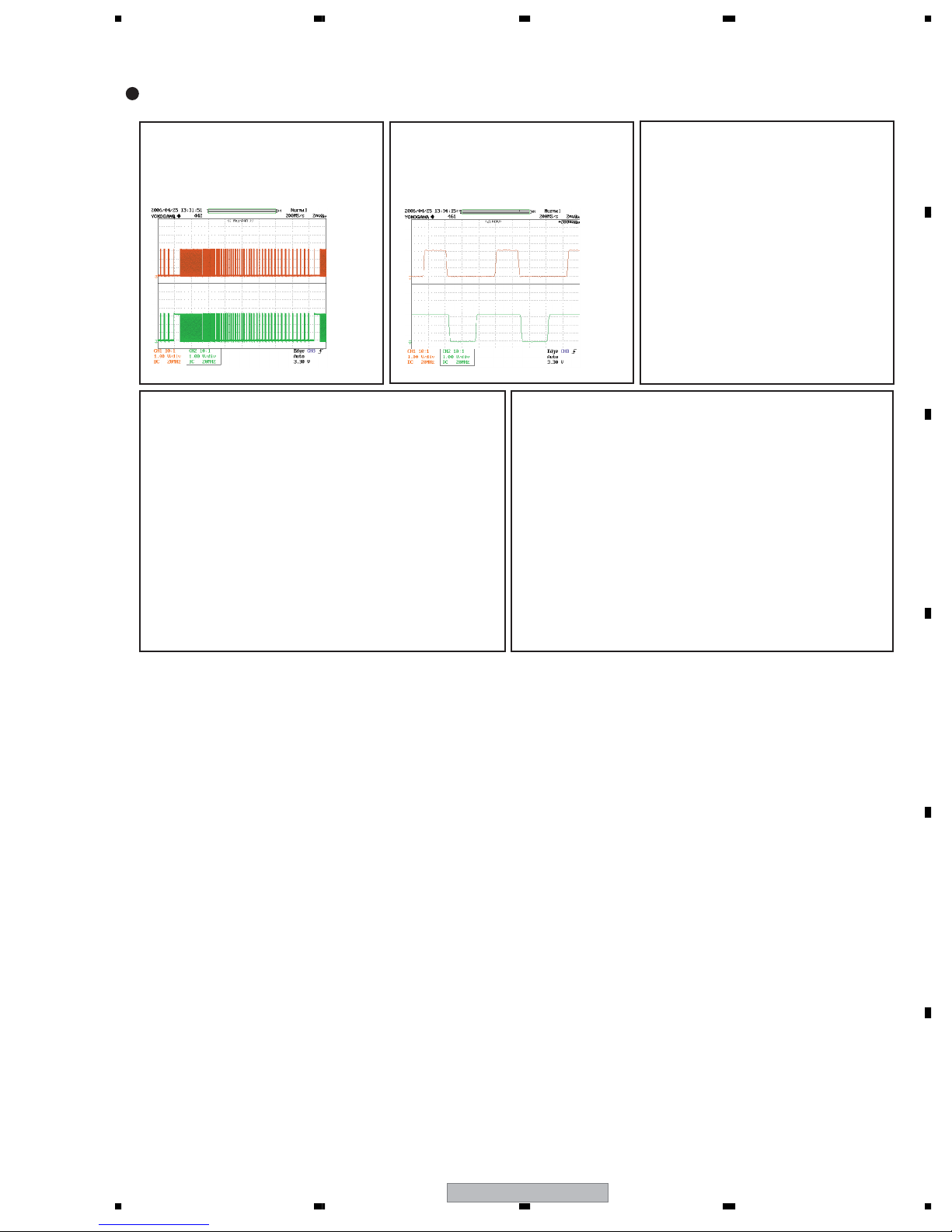

4.15 WAVEFORMS........................................................................................................................................ 83

5. DIAGNOSIS INFORMATION .......................................................................................................................... 86

5.1 THE FLOW OF DIAGNOSIS.................................................................................................................... 86

5.1.1 FLOWCHART OF FAILURE ANALYSIS FOR THE WHOLE UNIT .................................................... 86

5.1.2 FLOWCHART OF FAILURE ANALYSIS FOR THE POWER SUPPLY UNIT ..................................... 88

5.1.3 FLOWCHART OF FAILURE ANALYSIS FOR THE DIGITAL ASSY .................................................. 89

5.1.4 FLOWCHART OF FAILURE ANALYSIS FOR THE DRIVE ASSY..................................................... 90

5.1.5 FLOWCHART OF FAILURE ANALYSIS FOR THE MAIN ASSY....................................................... 92

5.1.6 FLOWCHART OF FAILURE ANALYSIS FOR THE VIDEO SYSTEM................................................ 93

5.1.7 FLOWCHART OF FAILURE ANALYSIS FOR THE AUDIO SYSTEM ............................................... 99

5.2 POWER DOWN ..................................................................................................................................... 103

5.2.1 BLOCK DIAGRAM OF THE POWER-DOWN SIGNAL.................................................................... 103

5.2.2 POWER DOWN OF FAILURE ANALYSIS....................................................................................... 104

5.3 SHUT DOWN......................................................................................................................................... 106

5.3.1 BLOCK DIAGRAM OF THE SHUT-DOWN SIGNAL........................................................................ 106

5.3.2 SHUT DOWN OF FAILURE ANALYSIS........................................................................................... 107

5.4 NON-FAILURE SYMPTOMS.................................................................................................................. 108

8

1234

Used to fan cleaning. Refer to "2.4 CHASSIS SECTION (1/2).

PDP-6071PU

5678

6. DISASSEMBLY .............................................................................................................................................109

6.1 PCB LOCATION .....................................................................................................................................109

6.2 FLOWCHART OF THE MAIN PARTS AND PC BOARDS EXCHANGE.................................................110

7. ADJUSTMENT ..............................................................................................................................................116

7.1 PARTS CHANGE OF NOTES.................................................................................................................116

7.2 ADJUSTMENT REQUIRED WHEN THE SET IS REPAIRED OR REPLACED......................................116

7.3 ADJUSTMENT REQUIRED WHEN PART IS REPLACED.....................................................................117

7.4 BACKUP WHEN THE PANEL UNIT IS ADJUSTED ...............................................................................118

7.5 ADJUSTMENTS WHEN THE SERVICE PANEL ASSY IS REPLACED.................................................121

7.6 ADJUSTMENTS WHEN THE DRIVE ASSYS ARE REPLACED............................................................130

7.7 HOW TO CLEAR HISTORY DATA ..........................................................................................................133

7.8 PROCEDURE WHEN REPLACING THE POWER SUPPLY UNIT.........................................................134

8. SERVICE FACTORY MODE .........................................................................................................................135

8.1 SERVICE FACTORY MODE OUTLINE ..................................................................................................135

8.1.1 TRANSITION DIAGRAM OF SERVICE FACTORY MODE..............................................................135

8.1.2 HOW TO ENTER/EXIT SERVICE FACTORY MODE.......................................................................135

8.1.3 OPERATION OF SERVICE FACTORY MODE.................................................................................136

8.1.4 REMOTE CONTROL CODE............................................................................................................137

8.1.5 CONFIGURATION OF FACTORY MODE ........................................................................................138

8.1.6 INDICATION (OSD) OF SERVICE FACTORY MODE......................................................................139

8.2 FACTORY MENU....................................................................................................................................141

8.2.1 INFORMATION.................................................................................................................................141

8.2.2 PANEL FACTORY MODE.................................................................................................................150

8.2.3 OPTION MODE................................................................................................................................160

8.2.4 INITIALIZE MODE............................................................................................................................161

9. LIST OF RS-232C COMMANDS ..................................................................................................................166

9.1 RS-232C COMMANDS OUTLINE..........................................................................................................166

9.1.1 PREPARED TOOLS.........................................................................................................................166

9.1.2 USING RS-232C COMMANDS........................................................................................................166

9.1.3 COMMAND PROTOCOL..................................................................................................................167

9.1.4 DEFINITION OF COMMAND...........................................................................................................168

9.2 LIST OF RS-232C COMMANDS............................................................................................................169

9.3 OUTLINE OF COMMANDS....................................................................................................................175

9.3.1 QS1 ..................................................................................................................................................175

9.3.2 QS2 ..................................................................................................................................................176

9.3.3 QIP ...................................................................................................................................................177

9.3.4 QAJ ..................................................................................................................................................177

9.3.5 QPW.................................................................................................................................................178

9.3.6 QPM .................................................................................................................................................178

9.3.7 QPD..................................................................................................................................................179

9.3.8 QSD..................................................................................................................................................180

9.3.9 QS6 ..................................................................................................................................................181

9.3.10 QSI .................................................................................................................................................182

9.3.11 QMT ...............................................................................................................................................183

9.3.12 QNG ...............................................................................................................................................183

9.3.13 DRV................................................................................................................................................184

9.3.14 COMMANDS FOR PROHIBITION/PERMISSION OF DTV/HOMENET COMMUNICATION ........185

9.3.15 OTHER COMMANDS ....................................................................................................................186

10. GENERAL INFORMATION .........................................................................................................................187

10.1 POWER ON SEQUENCE.....................................................................................................................187

10.2 POWER SUPPLY TRANSITION STATUS.............................................................................................188

10.3 POWER ON/OFF FUNCTION FOR THE LARGE-SIGNAL SYSTEM ..................................................191

10.4 LED INFORMATION.............................................................................................................................192

10.5 SPECIFICATION ABOUT THE THERMAL PROTECTION...................................................................193

10.6 PROCESSING IN ABNORMALITY ......................................................................................................194

10.7 TRAP SW..............................................................................................................................................195

11. SPECIFICATIONS.......................................................................................................................................196

11.1 MAIN SPECIFICATIONS ......................................................................................................................196

11.2 ACCESSORIES....................................................................................................................................197

11.3 PANEL FACILITIES...............................................................................................................................198

12. IC INFORMATION .......................................................................................................................................201

A

B

C

D

E

56

PDP-6071PU

F

9

7

8

1234

2. EXPLODED VIEWS AND PARTS LIST

NOTES:

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part.

A

Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.)

2.1 PACKING SECTION

B

C

28

D

E

10

Speed clamp ×3

Bead band ×3

2 7

17

1

9

Noise filter for G-Link cable

Binder for noise filter

PDP-6071PU only

18

27

12, 14, 16, 30

11

26

15

8

20

19

21

22

29

13

26

24

4

F

6

3

5

PDP-6071PU only

10

1234

25

PDP-6071PU

23

27

>

5678

(1) PACKING PARTS LIST

No. Description Part No.

Mark

1Power Cord (2 m) ADG1215 2 G-LINK Cable (3 m) VDX1010 3 Remote Control Unit AXD1536 4 Battery Cover AZN2680 5 Simpliﬁed Remote Control Unit See Contrast table (2)

No. Description Part No.

Mark

NSP 15 Warranty Card See Contrast table (2) NSP 16 Card (Register) See Contrast table (2) 17 Polyethylene Bag See Contrast table (2) 18 Vinyl Bag See Contrast table (2) 19 Vinyl Bag S See Contrast table (2)

A

6 Battery Cover See Contrast table (2) NSP 7 NSP 8 Dry Cell Battery (R03, AAA) See Contrast table (2) 9Ferrite Core CTX1054 10 Binder Assy AEC1908

11 Cleaning Cloth AED1285 12 Operating Instructions ARE1426 (English, French, Spanish) 13 Caution Card See Contrast table (2) 14 Cleaning Caution See Contrast table (2)

Alkaline Dry Cell Battery (LR6, AA)

VEM1023

20 Vinyl Bag See Contrast table (2) 21 Pad (607 T-L) See Contrast table (2) 22 Pad (607 T-R) See Contrast table (2) 23 Pad (607 B-L) See Contrast table (2) 24 Pad (607 B-R) See Contrast table (2)

25 Accessory Box See Contrast table (2) 26 Reinforce Carton (607) See Contrast table (2) 27 Under Carton (607) See Contrast table (2) 28 Upper Carton See Contrast table (2) 29 Mirror Mat See Contrast table (2)

30 Terminal Position Sheet AAX3330

(2) CONTRAST TABLE

PDP-6071PU/KUC, KUCXC, PDP-6070PU/KUC and KUCXC types are constructed the same except for the following:

Mark No. Symbol and Description

5 Simpliﬁed Remote Control Unit AXD1539 AXD1539 Not used Not used 6 Battery Cover AZN2682 AZN2682 Not used Not used

NSP 8 Dry Cell Battery (R03, AAA) VEM1036 VEM1036 Not used Not used

13 Caution Card ARM1232 ARM1239 ARM1232 ARM1239 14 Cleaning Caution ARM1283 ARM1303 ARM1283 ARM1303

PDP-6071PU

/KUC

PDP-6071PU

/KUCXC

PDP-6070PU

/KUC

PDP-6070PU

/KUCXC

B

C

NSP 15 Warranty Card ARY1138 ARY1196 ARY1138 ARY1196 NSP 16 Card (Register) VRY1132 ARY1156 VRY1132 ARY1156 NSP 17 Polyethylene Bag AHG1303 Not used AHG1303 Not used

17 Polyethylene Bag Not used AHG1394 Not used AHG1394 18 Vinyl Bagl AHG1337 AHG1395 AHG1337 AHG1395

19 Vinyl Bag S AHG1338 AHG1347 AHG1338 AHG1347

NSP 20 Vinyl Bag AHG1340 Not used AHG1340 Not used

20 Vinyl Bag Not used AHG1347 Not used AHG1347 21 Pad (607 T-L) AHA2562 AHA2617 AHA2562 AHA2617 22 Pad (607 T-R) AHA2563 AHA2618 AHA2563 AHA2618

23 Pad (607 B-L) AHA2564 AHA2619 AHA2564 AHA2619 24 Pad (607 B-R) AHA2565 AHA2620 AHA2565 AHA2620 25 Accessory Box AHC1083 AHC1091 AHC1083 AHC1091 26 Reinforce Carton (607) AHC1084 AHC1092 AHC1084 AHC1092 27 Under Carton (607) AHD3486 AHD3548 AHD3486 AHD3548

28 Upper Carton AHD3487 AHD3536 AHD3537 AHD3538 29 Mirror Mat AHG1385 AHG1397 AHG1385 AHG1397

D

E

F

56

PDP-6071PU

11

7

8

1234

2.2 REAR SECTION

A

38

14

32

35

32

34

B

25

32

36

32

22

37

27

C b

20

32

C

D

MAIN

CN4010

32

34

E

24

36

32

37

C a

32

34

32

34

32

34

16

32

18

17

32

34

32

31

33

1 34

5

C a

32

34

12

32

C b

19

7

14

38

34

32

35

32

29

34

32

11

MAIN

CN7101

10

6

34

13

3

9

34

4

15

32

8

2

A

36

32

26

32

23

37

32

34

32

A

28

21

F

12

1234

TANSHI

CN8801

PDP-6071PU

Refer to "2.3 FRONT SECTION".

5678

(1) REAR SECTION PARTS LIST

No. Description Part No.

Mark

1 SIDE KEY Assy AWW1133 2 SIDE Assy AWW1157 3 USB Cable (J301)(120 cm) ADF1034 4 Side Input Panel (U) ANC2392 5 Function Button Base ANG2923

No. Description Part No.

Mark

21 Under Cover (60) ANC2433 22 Function Button Panel AMB2906 23 Side Input Cover AMB2911 24 Function Button AAC1562 25 Function Button Sheet (U) AAK2895

A

6 Side Input Shield ANK1834 7 Function Button Shield ANK1835 NSP 8 PCB Support AEC1288 9 PCB Spacer AEC1570 10 Re-use Wire Saddle AEC1945

11 Locking Wire Saddle AEC1948 12 Locking Card Spacer AEC2019 13 USB Spacer AED1310 14 Handle AMR3564 15 Gasket (USB) ANK1846

NSP 16 Name Label See Contrast table (2) 17 Serial Seal See Contrast table (2) 18 Caution Label See Contrast table (2) 19 Terminal Display Label A (U/B) AAX3325 20

Te r minal Display Label B50 (U/B)

AAX3414

26 Input Cover Label U AAX3363 27 Sub Frame Cover L AMR3586 28 Sub Frame Cover R AMR3587 29 Rear Case (607) ANE1657 30 • • • • •

31 Screw ABA1341 32 Screw AMZ30P060FTB 33 Screw AMZ30P080FTC 34 Screw APZ30P100FTB 35 Screw APZ40P100FTB

36 Screw BPZ30P080FTB 37 Screw PMB30P100FTB 38 Screw PMB40P120FTB

(2) CONTRAST TABLE

PDP-6071PU/KUC, KUCXC, PDP-6070PU/KUC and KUCXC types are constructed the same except for the following:

Mark No. Symbol and Description

NSP 16 Name Label AAL2786 AAL2839 AAL2840 AAL2841

17 Serial Seal AAX3143 Not used AAX3143 Not used

NSP 17 Serial Seal Not used AAX3182 Not used AAX3182

18 Caution Label AAX3393 AAX3430 AAX3393 AAX3430

PDP-6071PU

/KUC

PDP-6071PU

/KUCXC

PDP-6070PU

/KUC

PDP-6070PU

/KUCXC

B

C

D

56

PDP-6071PU

E

F

13

7

8

1234

2.3 FRONT SECTION

A

B

Refer to "2.4 CHASSIS SECTION (1/2)".

C

MAIN

CN4006

9

1

D

5

(*1)

8

MAIN

CN4010

2

7

E

6

4

11

(*1)

Coil Spring

Note : Take care that the size is different between the coil spring ABH1120 at Front Case and ABH1124 at Mechanical Switch Assy. Refer to P16.

F

18.2

ABH1120 for Front Case/ Power Button

ABH1124 for Mechanical Switch Assy

17.5

14

1234

10

3

PDP-6071PU

5678

FRONT SECTION PARTS LIST

No. Description Part No.

Mark

1 42 & 60 LED Assy AWW1134 2 60 IR Assy AWW1137 3Front Case Assy 607 AMB2930 4 Pioneer Name Plate AAM1109 5 Coil Spring ABH1120

6 Blind Cushion AEB1449 7 Nyron Rivet AEC1671 8Power Button AAD4147 9 Screw BPZ30P080FTB

A

10 IR Reducer AAX3455 11 IR Block Cushion AEB1465

B

C

D

56

PDP-6071PU

E

F

15

7

8

1234

2.4 CHASSIS SECTION (1/2)

A

6

26

54

50

31

54

50

26

50

B

50

14

18

54

50

54

50

C

49

10

53

16

53

52

32

29

53

D

49

33

2

27

50

54

26

50

49

55

50

54

21

50

54

11

50

54

12

30

Refer to "2.7 MULTI BASE SECTION".

50

55

50

26

54

50

26

15

50

31

26

1

54

27

50

49

35

50

52

30

40

36

19

20

54

50

7

50

13

50

Coil Spring : No.23

(*1)

Note : Take care that the size is different between the coil spring ABH1124 at Mecha-

-nical Switch Assy and

47

ABH1120 at Front Case . Refer to P14.

28

25

30

50

25

5

25

52

ABH1120 for Front Case/ Power Button

MAIN CN4009

50

40

52

18.2

50

17.5

ABH1124 for Mechanical Switch Assy

8

35

50

29

49

52

40

49

35

E

35

40

42

50

9

50

Refer to "2.5 CHASSIS SECTION (2/2)".

48

46

43

39

50

41

43

52

F

(*1)

23

46

24

37

22

52

38

16

1234

53

34

52

53

49

52

40

50

4

35

49 31

53

29

49

POWER

P10

53

27

46

17

1

3

PDP-6071PU

5678

(1) CHASSIS SECTION (1/2) PARTS LIST

No. Description Part No.

Mark

1Ferrite Core ATX1044 2Ferrite Core ATX1060

3Power Switch (S1) ASG1084

4 Housing Wire (J103) ADX3412

5Fan Motor 80 x 25L AXM1058

6 Sub Frame L Assy 607 ANA1966 7 Sub Frame R Assy 607 ANA1965 8Front Chassis H Assy U ANA1967 9Front Chassis H Assy D ANA1986 10 Multi Base Frame L ANA1970

11 Multi Base Frame R ANA1969 12 Upper Support L ANA1975 13 Upper Support R ANA1976 14 Under Support L ANA1977 15 Under Support R ANA1978

16 Front Chassis VL Assy 60 ANA2043 17 Front Chassis VR Assy 60 ANA2044 18 Terminal Panel L 60 ANC2420 19 Terminal Panel R 60 ANC2421 20 Fan Holder ANG2833

21 Multi Base Holder ANG2937 22 Switch Holder ANG3007 23 Coil Spring ABH1124 24 Collar ABN1076 25 Floating Rubber 80 AEB1427

26 Wire Saddle AEC1745 27 Ferrite Core Holder AEC1818 28 Re-use Wire Saddle AEC1945

>

No. Description Part No.

Mark

29 Locking Wire Saddle AEC1948 30 Harness Lifter 28 AEC1982

31 Re-use Wire Saddle AEC2099 32 Re-use Wire Saddle AEC2100 33 Function Button Holder AMR3561 34 Side Input Holder AMR3562 35 Front Case Support AMR3563

36 Protector AMR3585 37 Switch Arm AMR3588 38 Switch Pin AMR3589 39 Switch Pin Holder AMR3590 40 Front Chassis H Guide AMR3600

41 Switch Protection Sheet AMR3644 42 Gasket MTB ANK1879 43 Rivet A BEC1158 44 • • • • • 45 • • • • •

46 Screw ABA1341 47 Screw See Contrast table (2) 48 Screw (M3 x 22) ABA1356 49 Screw ABZ30P080FTC 50 Screw AMZ30P060FTB

51 • • • • • 52 Screw BPZ30P080FTB 53 Screw PMB30P080FTB 54 Screw TBZ40P080FTB 55 Screw ABA1364

A

B

C

D

(2) CONTRAST TABLE

PDP-6071PU/KUC, KUCXC, PDP-6070PU/KUC and KUCXC types are constructed the same except for the following:

Mark No. Symbol and Description

47 Screw ABA1351 ABA1313 ABA1351 ABA1313

56

PDP-6071PU

/KUC

PDP-6071PU

/KUCXC

7

PDP-6070PU

/KUC

PDP-6070PU

/KUCXC

E

F

17

8

1234

2.5 CHASSIS SECTION (2/2)

A

10

J

29

31

41

11

B

37

36

42

31

A

B

6, 35

2

41

C

M

V a,b

21

31

D

42

M

26

29

6, 35

N

37

6, 35

9

I

6, 35

20

29

L

K

41

7

29

31

29

12

41

O

C

29

6, 35

31

H

29

8

15

3

29

6, 35

G

29

16

E

29

6, 35

F

14

29

S a,b

21

D

6, 35

O

18

AUDIO

31

MAIN

CN4008

41

CN3752

L

37

J

31

37

P

41

26

31

36

31

N

5

K

4

17

25

S a

I

32

26

S b

H

13

R

MAIN CN4002

Power switch

23

26

U a,b

E

30

22

AC inlet

41

32

41

R

19

T a,b

31

22

1

P

41

42

28

31

33

24

V a

A

E

27

V b

33

B

U a

27

26

F

18

1234

26

34

C

U b

34

26

PDP-6071PU

T a

G

26

T b

F

43

D

43

Refer to "2.6 PANEL CHASSIS SECTION".

5678

(1) CHASSIS SECTION (2/2) PARTS LIST

No. Description Part No.

Mark

1 60 X DRIVE Assy AWV2366 2 60 Y DRIVE Assy AWV2367 3 60 DIGITAL Assy AWW1190 4PANEL SENSOR Assy AWW1191

5POWER SUPPLY Unit AXY1139

6Ferrite Core ATX1048 7 Flexible Cable (J201) ADD1453 8 Flexible Cable (J202) ADD1454 9 Flexible Cable (J203) ADD1455 10 Flexible Cable (J204) ADD1456

11 Flexible Cable (J205) ADD1457 12 Flexible Cable (J220) ADD1458 13 Flexible Cable (J221) ADD1459 14 Flexible Cable (J222) ADD1460 15 Flexible Cable (J223) ADD1461

16 Flexible Cable (J206) ADD1462 17 5P Housing Wire (J110) ADX3359 18 9P&7/6P Housing Wire (J102) ADX3406 19 8P&6P Housing Wire (J107) ADX3407 20 14P Housing Wire (J109) ADX3408

21 22

10P/5P Housing Wire (J104)(J127) 10P/5P Housing Wire (J114)(J128)

ADX3409 ADX3410

>

No. Description Part No.

Mark

23 Housing Wire (J123) ADX3411 24 Conductive Plate X ANG2962 25 Nyron Rivet AEC1671

26 Wire Saddle AEC1745 27 Wire Saddle AEC1751 28 PCB Spacer AEC1819 29 Flat Clamp AEC1879 30 PCB Support AEC1938

31 Re-use PCB Spacer AEC1941 32 PCB Spacer AEC1947 33 Mini Clamp AEC1967 34 Harness Lifter 28 AEC1982 35 Ferrite Clamp AEC1986

36 Y Drive Protection Sheet A AMR3640 37 Rivet A BEC1158 38 • • • • • 39 • • • • • 40 • • • • •

41 Screw See Contrast table (2) 42 Screw ABA1364 43 Screw (M3 x 6) ABA1366

A

B

C

(2) CONTRAST TABLE

PDP-6071PU/KUC, KUCXC, PDP-6070PU/KUC and KUCXC types are constructed the same except for the following:

Mark No. Symbol and Description

41 Screw ABA1351 ABA1313 ABA1351 ABA1313

PDP-6071PU

/KUC

PDP-6071PU

/KUCXC

PDP-6070PU

/KUC

PDP-6070PU

/KUCXC

D

E

56

PDP-6071PU

F

19

7

8

1234

2.6 PANEL CHASSIS SECTION

A

B

5

8

7

C

13

12

9

3

D

8

13

11

9

13

4

9

6

13

8

7

8

11

4

9

13

9

12

13

3

9

12

3

11

13

9

4

9

11

13

9

4

9

2

12

9

3

10

9

8

E

F

20

1234

9

1

PDP-6071PU

5678

PANEL CHASSIS SECTION PARTS LIST

No. Description Part No.

Mark

NSP 1 Panel Chassis (607) Assy AWU1178 NSP 2 Plasma Panel (60DC) Assy AWU1179 NSP 3 60 ADDRESS L Assy AWW1188 NSP 4 60 ADDRESS S Assy AWW1189 5 607 SCAN A Assy AWW1186

6 607 SCAN B Assy AWW1187 7 PCB Spacer AEC1372 8 PCB Spacer AEC1944 9 PCB Spacer AEC1947 10 Conductive Plate Holder AMR3446

A

11 Address Plate A Assy ANG3036 12 Address Plate B Assy ANG3037 13 Screw ABA1367

B

C

D

56

PDP-6071PU

E

F

21

7

8

1234

2.7 MULTIBASE SECTION

A

B

C

SIDE KEY CN9501

60 LED CN9801

51

31

8

B

C

21

20

13

A

51

D

60 DIGITAL CN3001

POWER

P8

17

POWER

P9

USB (side)

E

G

F

51

(Fan)

21

Fan

G

43

51

24

42 & 60 LED

7

51

1

41

42

48

CN9601

D

32

34

7

51

14

41

31

46

38

51

15

39

3

15

F

E

7

POWER

P3

51

4

D

23

33

5

37

19

33

47

46

49

35

A

47

50

18

25

30

24

46

48

POWER

P5

6

46

10

40

27

26

28

25

26

9

16

G

30

E

51

44

11

B

C

30

12

F

2

SIDE CN9101

22

1234

30

29

36

PDP-6071PU

5678

(1) MULTIBASE SECTION PARTS LIST

No. Description Part No.

Mark

1 MAIN Assy AWV2312 2TANSHI Assy AWW1156 3 POD Assy AWW1154 4AUDIO Assy AWW1131 5 SP TERMINAL Assy AWW1132

6Ferrite Core ATX1044 7Ferrite Core ATX1048 8Ferrite Core ATX1064

9Power Switch (S2)(TRAP) ASG1089

10 AC Inlet (CN1) AKP1300

11 Flexible Cable (J210) ADD1441 12 Flexible Cable (J211) ADD1442 13 Flexible Cable (J207) ADD1445 14 Flexible Cable (J213) See Contrast table (2) 15 Flexible Cable (J214)(J215) ADD1447

16 3P Housing Wire (J121) ADX3348 17 13P&11P Housing Wire (J119) ADX3402 18 3P Housing Wire (J112) ADX3469 19 11P Housing Wire (J105) ADX3360 20 7&6/4P Housing Wire (J111) ADX3405

21 Ferrite Core CTX1054 22 14P Housing Wire (J118) ADX3413 23 8/4P Housing Wire (J116) ADX3345 24 Binder AEC-093 25 Locking Card Spacer AEC1429

26 Wire Saddle AEC1745

>

No. Description Part No.

Mark

27 Ferrite Core Holder AEC1818 28 Clamp AEC1884 29 Card Spacer AEC1889 30 Re-use Wire Saddle AEC1945

31 Ferrite Stopper AEC1981 32 Ferrite Clamp AEC1986 33 Locking Card Spacer AEC2019 34 6P Housing Wire (J113) ADX3404 35 POD Cover AMR3542

36 Multi Base (U) Assy ANA1951 37 Terminal Panel A (U/B) ANC2394 38 POD Stay A ANG2933 39 Tuner Stay U ANG3028 40 Gasket UI ANK1886

41 Gasket UD ANK1883 42 Gasket UA ANK1866

43 Gasket UB ANK1867 44 Locking Card Spacer AEC2093 45 • • • • •

46 Screw AMZ30P060FTB 47 Hex. Head Screw BBA1051 48 Nut BBN1005 49 Screw BMZ30P060FTB 50 Screw BPZ30P080FTB

51 Screw PMB30P080FNI

A

B

C

(2) CONTRAST TABLE

PDP-6071PU/KUC, KUCXC, PDP-6070PU/KUC and KUCXC types are constructed the same except for the following:

Mark No. Symbol and Description

14 Flexible Cable (J213) ADD1470 ADD1446 ADD1470 ADD1446

PDP-6071PU

/KUC

PDP-6071PU

/KUCXC

PDP-6070PU

/KUC

PDP-6070PU

/KUCXC

D

E

F

56

PDP-6071PU

23

7

8

1234

2.8 PDP SERVICE ASSY 607 (AWU1228)

Exterior Section

A

43×3

B

C

D

46×4

E

42

F

42×4

43×3

42×7

43×6

42×2

Note:

The parts labeled here with circled numbers are supplied with the Assy for service. Attach them, referring to this diagram.

42

42×2

42

42×2

42

×4

42

48

43×3

42×2

46×2

42×2

43×3

42×2

46×2

2

42

46×2

42

42×2

8

46×2

42

18

46×2

42×2

3

×2

42

9

×2

42

46×2

10

42×2

33

46×2

18

42

23

35

33

12

45

44×2

25

45

41

29

5

40×5

41

42

16

40×4

25

46

6

32

18

20

×2

28

18

46

31×2

46×4

42

44

46

42

7

18

×2

42

46

20

41

15

40×4

34

19

23

44

×2

45

×5

×2

28

15

40×5

28

26

40×5

×2

35

28

16

23

27

×3

42

41

31

42

44

11

42

40×4

27

18

32

27

18

15

40×4

15

28

×2

24

×4

×2

22

23

18

×7

18

×5

27

28

18

19

×4

28

32

16

41

42

18

39×4

45

42

31×2

42

Protector

This is not included in the Assy for service. Detach it from the product to be repaired and attach it to the Assy for service.

44

42

44

32

42

4

40×5

26

16

32

1

28

18

×2

39×4

21

14

30

45

13

45

20

41

25

47

(for transport)

44×2

42

45

31

42

41

24

1234

PDP-6071PU

5678

Packing Section

17, 20 ×4, 22, 24 ×4, 25 ×3, 26 ×3, 27 ×8, 28 ×8, 35 ×4

18 ×21

19 ×3

23 ×20

59

36

58

A

B

C

33 ×2

51 51

51

52

50

3749

57

54

60

53

D

57

56

E

61

55

56

PDP-6071PU

58

F

25

7

8

1234

PDP SERVICE ASSY 607 (AWU1228) PARTS LIST

Mark

No. Description Part No.

NSP 1 Panel Chassis (607) Assy AWU1178 2 Sub Frame L Assy 607 ANA1966

A

3 Sub Frame R Assy 607 ANA1965 4Front Chassis H Assy U ANA1967 5Front Chassis H Assy D ANA1986

Mark

No. Description Part No.

46 Screw TBZ40P080FTB 47 Front Case Assy (607service) AMB2984 48 Rear Case (607) ANE1657 49 Caution Card (service) ARM1322 50 Polyethylene Bag AHG1337

6 Multi Base Frame L ANA1970 7 Multi Base Frame R ANA1969 8 Upper Support L ANA1975 9 Upper Support R ANA1976 10 Under Support L ANA1977

11 Under Support R ANA1978

B

12 Front Chassis VL Assy 60 ANA2043 13 Front Chassis VR Assy 60 ANA2044 14 Conductive Plate X ANG2962 15 Address Plate A Assy ANG3036

16 Address Plate B Assy ANG3037 17 Binder AEC-093 18 Wire Saddle AEC1745 19 Wire Saddle AEC1751 20 Ferrite Core Holder AEC1818

C

21 PCB Spacer AEC1819 22 PCB Support AEC1938 23 Re-use PCB Spacer AEC1941 24 PCB Spacer AEC1947 25 Locking Wire Saddle AEC1948

26 Mini Clamp AEC1967 27 Harness Lifter 28 AEC1982 28 Ferrite Clamp AEC1986 29 Function Button Holder AMR3561

D

30 Side Input Holder AMR3562

51 Polyethylene Bag S AHG1338 52 Polyethylene Bag AHG1340 53 Pad (607 T-L) AHA2562 54 Pad (607 T-R) AHA2563 55 Pad (607 B-L) AHA2564

56 Pad (607 B-R) AHA2565 57 Reinforce Carton (607) AHC1084 58 Under Carton (607) AHD3486 59 Upper Carton (607service) AHD3564 60 Protect Sheet AHG1401

61 Mirror Mat AHG1402

31 Front Case Support AMR3563 32 Front Chassis H Guide AMR3600 33 Y Drive Protection Sheet A AMR3640 34 Gasket MTB ANK1879 35 Rivet A BEC1158

36 Caution Label AAX3031 NSP 37 Drive Voltage Label ARW1097 38 • • • • •

E

39 Screw (M3 x 6) ABA1366 40 Screw ABA1367

41 Screw ABZ30P080FTC 42 Screw AMZ30P060FTB 43 Screw APZ30P100FTB 44 Screw BPZ30P080FTB 45 Screw PMB30P080FTB

F

26

1234

PDP-6071PU

5678

3. PCB PARTS LIST

>

NOTES:

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%).

560 Ω 47k Ω

0.5 Ω 1 Ω

56 x 10 47 x 10 R50 1R0

1

3

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω

1

MarkNo. Description Part No.

LIST OF ASSEMBLIES

NSP 1..PANEL CHASSIS (607) ASSY AWU1178 NSP 2..60 ADDRESS ASSY AWV2363 NSP 3..60 ADDRESS L ASSY AWW1188 NSP 3..60 ADDRESS S ASSY AWW1189 NSP 2..60 SCAN ASSY AWV2364

3..607 SCAN A ASSY AWW1186

3..607 SCAN B ASSY AWW1187

1..60 X DRIVE ASSY AWV2366

1..60 Y DRIVE ASSY AWV2367

NSP 1..60 DIGITAL ASSY AWV2365

2..60 DIGITAL ASSY AWW1190

2..SENSOR ASSY AWW1191

1..MAIN ASSY (US BB) AWV2312

NSP 1..I/O ASSY AWV2313

2..POD ASSY AWW1154

2..TANSHI ASSY AWW1156

2..SIDE ASSY AWW1157

NSP 1..60 AUDIO FUKUGO ASSY AWV2347

2..AUDIO ASSY AWW1131

2..SP TERMINAL ASSY AWW1132

2..SIDE KEY ASSY AWW1133

2..42 & 60 LED ASSY AWW1134

2..60 IR ASSY AWW1137

1..POWER SUPPLY UNIT AXY1139

561 473

5621

RD1/4PU J RD1/4PU J RN2H K RS1P K

RN1/4PC F562 x 10

561 473

R50

1R0

5621

Mark No. Description Part No.

CAPACITORS

C 1601–1604,1607 CKSSYF104Z16 C 1605,1606 CKSSYB102K50 C 1608,1609 CKSRYB105K6R3 C 1651–1656 ACG1105 C 1657–1662 CKSSYF104Z16

[60 ADR L RESONANCE]

SEMICONDUCTORS

IC 1720 TND307TD Q 1710,1711 QSZ2 Q 1731,1741,1751,1761 HAT3041R Q 1771,1781 HAT3041R Q 1790 2SA1163

Q 1791 RN1901 D 1710,1737,1747,1757 1SS302 D 1731,1741,1751,1761 UDZS15(B) D 1734,1744,1754,1764 EP05FA20 D 1736,1738,1746,1748 1SS355

D 1756,1758,1766,1768 1SS355 D 1767,1777,1787 1SS302 D 1771,1781 UDZS15(B) D 1774,1784 EP05FA20 D 1776,1778,1786,1788 1SS355

MISCELLANEOUS

L 1730,1740,1750,1760 ATH1212 L 1770,1780 ATH1212

A

B

C

D

Mark No. Description Part No.

60 ADDRESS L ASSY

[60 ADR L LOGIC]

SEMICONDUCTORS

IC 1601 PEE003B

MISCELLANEOUS

L 1601 CHIP SOLID INDUCTOR QTL1013 CN 1601 PH CONNECTOR AKM1291 CN 1602 40P CONNECTOR AKM1348

RESISTORS

R 1601–1605 RS1/16SS1000F Other Resistors RS1/16SS###J

56

RESISTORS

R 1710,1711 RS1/16SS220J Other Resistors RS1/16S###J

CAPACITORS

C 1710 CKSYB105K25 C 1711 ACG1098 C 1730,1740,1750,1760 ACG1137 C 1731,1741,1751,1761 ACG1136 C 1770,1780 ACG1137

C 1771,1781 ACG1136

[60 ADR S LOGIC]

SEMICONDUCTORS

PDP-6071PU

60 ADDRESS S ASSY

7

E

F

27

8

1234

Mark No. Description Part No.

IC 1801 PEE003B

A

MISCELLANEOUS

L 1801 QTL1013 CN 1801 PH CONNECTOR 5P AKM1291 CN 1802 40P CONNECTOR AKM1348

RESISTORS

R 1801–1805 RS1/16SS1000F Other Resistors RS1/16SS###J

CAPACITORS

C 1801–1804,1807 CKSSYF104Z16

B

C 1805,1806 CKSSYB102K50 C 1808,1809 CKSRYB105K6R3 C 1851–1855 ACG1105 C 1857–1861 CKSSYF104Z16

Mark No. Description Part No.

MISCELLANEOUS

CN 2801 13P CONNECTOR AKP1261 CN 2802–2805 2801 SCREW ABA1349 2801 SCAN SIRICON AEH1113

100PIN CONNECTOR

AKM1360

RESISTORS

R 2801,2803 RS1/8SQ124J R 2805,2810,2813,2816 RAB4C221J R 2819,2822 RAB4C221J Other Resistors RS1/16S###J

CAPACITORS

C 2801,2802,2811,2812 ACG1088 C 2803,2813,2823,2833 CKSRYB105K6R3 C 2804,2806,2807,2814 CCSRCH220J50 C 2808–2810,2818–2820 CCSRCH151J50 C 2816,2817,2824,2826 CCSRCH220J50

[60 ADR S RESONANCE]

SEMICONDUCTORS

IC 1920 TND307TD Q 1910,1911 QSZ2 Q 1931,1941,1951,1961 HAT3041R Q 1971 HAT3041R Q 1990 2SA1163

C

Q 1991 RN1901 D 1910,1937,1947,1957 1SS302 D 1931,1941,1951,1961 UDZS15(B) D 1934,1944,1954,1964 EP05FA20 D 1936,1938,1946,1948 1SS355

D 1956,1958,1966,1968 1SS355 D 1967,1977 1SS302 D 1971 UDZS15(B) D 1974 EP05FA20 D 1976,1978 1SS355

D

MISCELLANEOUS

L 1930,1940,1950,1960 ATH1212 L 1970 ATH1212

RESISTORS

R 1910,1911 RS1/16SS220J Other Resistors RS1/16S###J

C 2821,2822,2831,2832 ACG1088 C 2827,2834,2836,2837 CCSRCH220J50 C 2828–2830,2838–2840 CCSRCH151J50 C 2841,2842,2851,2852 ACG1088 C 2843,2853 CKSRYB105K6R3

C 2844,2846,2847,2854 CCSRCH220J50 C 2848–2850,2858–2860 CCSRCH151J50 C 2856,2857 CCSRCH220J50

607 SCAN B ASSY

SEMICONDUCTORS

IC 2901–2906 SN755870KPZT-P D 2902,2904–2908 1SS302 D 2909 1SS355

MISCELLANEOUS

CN 2901 13P CONNECTOR AKP1261 CN 2902–2905

RESISTORS

R 2903,2908,2911,2914 RAB4C221J R 2917,2920 RAB4C221J R 2921,2923 RS1/8SQ124J Other Resistors RS1/16S###J

100PIN CONNECTOR

AKM1360

CAPACITORS

E

C 1910 CKSYB105K25 C 1911 ACG1098 C 1930,1940,1950,1960 ACG1137 C 1931,1941,1951,1961 ACG1136 C 1970 ACG1137

C 1971 ACG1136

607 SCAN A ASSY

SEMICONDUCTORS

F

IC 2801–2806 SN755870KPZT-P D 2803–2807,2809 1SS302 D 2810 1SS355

28

1234

CAPACITORS

C 2901,2902,2911,2912 ACG1088 C 2903,2913,2923,2933 CKSRYB105K6R3 C 2905–2907,2915–2917 CCSRCH220J50 C 2908–2910,2918–2920 CCSRCH151J50 C 2921,2922,2931,2932 ACG1088

C 2925–2927,2935–2937 CCSRCH220J50 C 2928–2930,2938–2940 CCSRCH151J50 C 2941,2942,2951,2952 ACG1088 C 2943,2953 CKSRYB105K6R3 C 2945–2947,2955–2957 CCSRCH220J50

C 2948–2950,2958–2960 CCSRCH151J50

PDP-6071PU

5678

Mark No. Description Part No.

MAIN ASSY

[BOARD IF BLOCK(U)]

SEMICONDUCTORS

IC 4001–4005 TC74VCX541FT Q 4001,4002 DTC124EUA Q 4003 RN2902 Q 4004 DTA124EUA

MISCELLANEOUS

L 4001–4005 BTX1042 F 4001–4003,4011–4016 CTF1557 F 4005,4006 VTF1084 CN 4001,4004 AKM1349 CN 4005 AKM1348

CN 4006 KM200NA6 CN 4009 AKM1274 CN 4013 AKM1233 CN 4018 AKM1213

RESISTORS

R 4001RAB4CQ470J R 4002,4018 RS1/16S102J R 4012,4017,4048 RS1/16S75R0F R 4016 RS1/16S0R0J R 4021–4024 BCN1067

R 4073,4074 RS1/10S0R0J Other Resistors RS1/16SS###J

Mark No. Description Part No.

MISCELLANEOUS

L 4101 BTX1042 L 4102,4106 BTX1039 L 4108,4109 ATH1194

RESISTORS

R 4107,4110,4134–4136 RS1/10S0R0J R 4119,4131,4146 RS1/16SS3003D R 4120 RS1/16SS2003D R 4123,4145 RS1/16SS1502F R 4124 RS1/16SS6202D

R 4129 RS1/16SS3903D R 4133 RS1/16SS1503D R 4139 RS1/10S0R0J R 4148 RS1/16S102J Other Resistors RS1/16SS###J

CAPACITORS

C 4101,4103,4106,4108 CKSRYB105K10 C 4102,4104,4105,4107 DCH1201 C 4109,4111,4116,4119 DCH1201 C 4110,4117 CCSSCH101J50 C 4112 CCG1232

C 4113,4128 CKSSYB103K16 C 4114 BCG1050 C 4120,4121,4135,4156 CKSSYB104K10 C 4122 CCSSCH220J50 C 4124,4126 DCH1165

A

B

C

CAPACITORS

C 4001–4003,4007,4027 CKSSYB104K10 C 4004 CCSSCH101J50 C 4006,4009,4010,4026 CCSSCH221J50 C 4011,4012,4017,4018 DCH1201 C 4013,4020,4021,4023 CKSSYB102K50

C 4014 CKSSYF104Z16 C 4016 ACG1128 C 4019,4022,4025,4030 CKSRYB102K50 C 4024 CKSSYB102K50 C 4033,4036,4039 CKSRYB102K50

C 4043 CKSSYB104K10 C 4051–4053 CCSSCH470J50

[POWER 0 BLOCK(U)]

SEMICONDUCTORS

IC 4101,4105 S-1132B18-U5 IC 4102,4103 LTC3412EFE IC 4104,4111 NJM2846DL3-05 IC 4106 NJM2886DL3-15 IC 4107 NJM2846DL3-33

IC 4108 NJM2846DL3-18 IC 4110 PQ090DNA1ZPH Q 4101,4110 RN1902 Q 4104 DTC124EUA Q 4105,4106 UPA1917TE

Q 4107,4108,4112,4113 2SC4116 Q 4109 2SD2114K D 4101–4110 1SS355 D 4111,4114,4115 1SS357

C 4125 CKSRYB104K16 C 4127 CKSRYB105K10 C 4129 CCSSCH390J50 C 4132,4133,4136,4137 BCG1059 C 4138,4140 CCSSCH221J50

C 4139 CCSRCH101J50 C 4142 BCG1059 C 4147 CCSRCH102J50 C 4165 DCH1201 C 4172 CKSSYB104K10

[ATUNER BLOCK(U)]

SEMICONDUCTORS

IC 4401 TC74HC4066AFT IC 4402 AN5832SA Q 4401,4416 DTC124EUA Q 4402,4405,4409,4417 2SA1586 Q 4403 DTA124EUA

Q 4404,4406–4408,4410 2SC4116 Q 4411 2SC4116 Q 4413–4415 HN1B04FU Q 4418 2SA1586 D 4401 1SS355

D 4402 UDZS30(B)

MISCELLANEOUS

L 4401–4405 BTH1121 F 4401–4404 VTF1080 K 4401,4402 AKX1061

>

U 4401 AXF116

>

U 4402 AXF117

D

E

F

56

PDP-6071PU

29

7

8

1234

Mark No. Description Part No.

RESISTORS

R 4407,4429 RS1/16SS1002F Other Resistors RS1/16SS###J

A

CAPACITORS

C 4401,4406 CKSRYF104Z50 C 4403,4410 CCSRCH821J50 C 4404,4409 CKSQYB105K16 C 4405 CKSRYB224K16 C 4408 CCSRCH331J50

C 4411,4412 CKSRYB334K10 C 4413 CKSSYB102K50 C 4414,4415 CCSSCH270J50 C 4416,4417 CCSSCH221J50

B

C 4421 CKSSYB223K16

C 4422,4423,4425,4426 CEHVKW101M6R3 C 4427 CEHVKW220M16 C 4428 CKSSYB333K16 C 4429–4431,4448–4450 CKSSYB104K10 C 4432,4443 DCH1201

C 4433,4454 CEHVKW101M6R3 C 4435,4437,4439 CKSSYF104Z16 C 4438,4444,4446,4451 CCG1205 C 4447 ACG1122 C 4452 ACH1417

C

C 4453 ACH1418 C 4455 CKSSYB104K10 C 4456 CKSRYB102K50 C 4457 CCSSCH120J50 C 4458 CCSSCH101J50

C 4459 CEHVKW221M10

[AV SW BLOCK(U)]

SEMICONDUCTORS

IC 4701 R2S11002AFT

D

IC 4702,4704 NJM12904V IC 4703 TC4052BFT Q 4701–4703,4706,4707 2SA1586 Q 4708 HN1A01FU

Q 4709,4711,4714 UMD2N Q 4712,4713,4722 2SC4116 Q 4716 HN1C01FU Q 4719–4721 2SA1586 Q 4723–4725 2SC5233

D 4701–4703,4706 1SS301

E

D 4705 1SS355

RESISTORS

R 4704 RS1/16S1001F R 4705 RS1/16S2700F R 4724,4725 RS1/16S5600F R 4728,4731 RS1/16S1800F R 4770,4771 RS1/16S681J

R 4772,4774,4778,4779 RS1/16S102J R 4783,4787,4795,4796 RS1/16S182J R 4793,4814,4815 RS1/16S821J

F

R 4794,4811,4813 RS1/16S221J R 4804,4806,4807,4817 RS1/16S182J

R 4818 RS1/16S182J

30

1234

Mark No. Description Part No.

Other Resistors RS1/16SS###J

CAPACITORS

C 4701,4702,4704–4716 CKSRYB105K10 C 4717,4720 CCSRCH181J50 C 4718,4721 CCSRCH681J50 C 4719,4724,4725,4728 CKSRYB105K10 C 4723,4726,4729-4731 CKSSYB104K10

C 4727,4732,4734 DCH1201 C 4735 ACG1122 C 4736,4740–4742,4746 CKSRYB104K16 C 4738,4739,4743,4744 CCG1205 C 4745 DCH1165

C 4747–4749,4751,4752 DCH1201 C 4750 CCSRCH331J50 C 4753 CKSSYB473K16 C 4754 CKSRYB224K10 C 4757,4760,4761 DCH1201

C 4758,4759 CKSSYF104Z16 C 4762,4763 CCG1205 C 4768 ACH1454 C 4770 CKSRYB105K10

[RGB SW BLOCK(U)]

SEMICONDUCTORS

IC 4901 R2S11001FT Q 4901–4904 2SA1586

RESISTORS

R 4914 RAB4CQ102J R 4932 RS1/16S5600F R 4934 RS1/16S1800F R 4935,4938 RS1/16S821J R 4942 RS1/16S102J

Other Resistors RS1/16SS###J

CAPACITORS

C 4901–4903,4911,4916 CKSRYB105K10 C 4904–4906,4909,4910 CKSSYB104K10 C 4907,4908 CCSSCH680J50 C 4912–4915,4917–4919 CKSSYB103K16 C 4920 CKSRYB105K10

C 4921–4927 CKSSYB103K16 C 4932,4933 DCH1201

[VDEC BLOCK(U)]

SEMICONDUCTORS

IC 5101 UPD64015AGM-UEU IC 5102 EDS1616AGTA-75-E

MISCELLANEOUS

L 5101–5103 BTX1042 X 5102 ASS1191

RESISTORS

R 5101–5103,5138 ACN1246 R 5104,5105 BCN1067 R 5106-5108 RS1/16S0R0J

PDP-6071PU

5678

Mark No. Description Part No.

R 5114 RS1/16SS6200D R 5120,5123,5124 RS1/16SS2000F

R 5127 RS1/16S334J R 5133 RAB4CQ220J R 5137 RS1/10S0R0J Other Resistors RS1/16SS###J

Mark No. Description Part No.

CAPACITORS

C 5401,5402 CCSSCH120J50 C 5403,5404,5407–5412 CKSSYB104K10 C 5405,5452,5473 DCH1201 C 5406,5453 CCSSCH101J50 C 5416,5419–5446 CKSSYB104K10

A

CAPACITORS

C 5101–5105 CKSSYB103K16 C 5106,5107 CCSSCH8R0D50 C 5108 CKSSYB102K50 C 5109,5110,5154,5155 DCH1201 C 5114–5124,5127–5129 CKSSYB104K10

C 5134,5135,5156–5165 CKSSYB104K10 C 5167–5170,5172–5174 CKSSYB104K10 C 5177–5180 CKSSYB104K10

[ADC BLOCK(U)]

SEMICONDUCTORS

IC 5301 AD9985KSTZ-110

RESISTORS

R 5301–5303 BCN1067 R 5304,5306–5308 RS1/16SS470J R 5305 RS1/16SS2701F R 5310,5311 RS1/10S0R0J Other Resistors RS1/16S###J

CAPACITORS

C 5301 CKSSYB823K10 C 5302 CKSSYB822K16 C 5303–5305 CKSSYB473K16 C 5307–5316,5318,5319 CKSSYB104K10

[CCD BLOCK(U)]

SEMICONDUCTORS

IC 4601 PEG150A IC 4602,4603 NJM2561F1 Q 4601,4602 2SA1586

MISCELLANEOUS

X 4601 ASS1159

RESISTORS

R 4603,4648–4661,4666 RAB4CQ473J R 4664 RAB4CQ102J R 4667 RAB4CQ473J Other Resistors RS1/16SS###J

CAPACITORS

C 4601–4605,4608,4609 CKSSYB104K10 C 4606,4607 CCG1205 C 4612,4613 CKSSYB102K50 C 4614,4615 CCSSCH221J50 C 4616 CCSSCK2R0C50

C 4617 CKSSYB153K16 C 4618,4619 DCH1201 C 4620,4621 CCSRCH331J50 C 4622,4623 CCSRCH5R0C50 C 4627,4630,4631 CKSSYB104K10

B

C

[HDMI BLOCK(U)]

SEMICONDUCTORS

IC 5401 SII9023CTU IC 5402 PCM1754DBQ IC 5403,5404 BR24L02FJ-W Q 5401,5402 HN1K02FU Q 5407,5408 UMD2N

Q 5413,5414 RN1902 D 5401,5402 1SS301 D 5407,5408 UDZS6R8(B)

MISCELLANEOUS

JA 5401,5402 AKP1278 X 5401 ASS1192

RESISTORS

R 5401–5403 BCN1071 R 5415 RS1/10S0R0J R 5450 RAB4CQ473J R 5451 RAB4CQ100J R 5452,5455 RAB4CQ103J

R 5454 RAB4CQ470J Other Resistors RS1/16SS###J

56

[DTUNER BLOCK(U)]

SEMICONDUCTORS

IC 6001 MCP3021A5-I/OTG IC 6002,6003 UPC3219GV IC 6004,6005 MM1565AF Q 6001 DTC124EUA Q 6002 2SC4116

Q 6003–6005 2SC5084 Q 6006 BB504CDS D 6001–6003 1SS355 D 6004 UDZS30(B)

MISCELLANEOUS

L 6001,6002 BTH1121 L 6003 LCTAW1R5J2520 L 6004 LCYA10NJ2520 L 6006 LCYAR82J2520 F 6001 BTF1130

F 6002–6006 VTF1084 F 6007 ATF1219 F 6008,6009 VTF1080

>

U 6001 AXF116

RESISTORS

R 6011 RS1/16SS6801F R 6023 RS1/16SS2201F

PDP-6071PU

D

E

F

31

7

8

1234

Mark No. Description Part No.

R 6024 RS1/16SS4703F R 6025 RS1/16SS1502F R 6026 RS1/16SS6802F

A

R 6027 RS1/16SS5602F R 6028 RS1/16SS4701F R 6041 RS1/16SS1001F Other Resistors RS1/16SS###J

CAPACITORS

C 6001 ACH1442 C 6004,6005,6008 CKSSYB104K10 C 6006 CKSQYB225K10 C 6007,6043 BCG1064 C 6009,6010 CKSSYB471K50

B

C 6011,6012,6014–6017 CKSSYB103K16 C 6013 CCSSCK2R0C50 C 6019,6022–6031,6034 CKSSYB103K16 C 6032,6033 CKSSYB102K50 C 6035 CKSSYB103K16

Mark No. Description Part No.

F 6201–6205 VTF1084 X 6201 BSS1134

RESISTORS

R 6211,6213 RS1/16S3010F R 6237 RAB4CQ101J R 6238,6240 RAB4CQ330J Other Resistors RS1/16SS###J

CAPACITORS

C 6201,6203,6206,6208 DCH1201 C 6202,6204,6205 BCG1059 C 6209–6219,6222–6232 CKSSYB103K16 C 6220,6221,6233 CCSSCH120J50 C 6234 CCSSCH150J50

C 6235–6237,6240–6252 CKSSYB103K16 C 6239 CKSSYB102K50 C 6253,6254,6256 CKSSYB104K10

C 6036 CEHVKW101M6R3 C 6038,6040 CKSQYB105K16 C 6039,6041,6042 DCH1201

[QPSK BLOCK(U)]

C

SEMICONDUCTORS

IC 6101 UPC3220GR

MISCELLANEOUS

L 6101 LCTAW1R5J2520 L 6102 LCYA56NJ2520 L 6103,6104 LCYA68NJ2520 L 6105,6106 LCYA82NJ2520 L 6107 LCYAR10J2520

F 6101 ATF1215 F 6102 VTF1084

D

RESISTORS

All Resistors RS1/16SS###J

CAPACITORS

C 6101,6103,6105 CCSSCH270J50 C 6102 CCSSCH100D50 C 6104 CCSSCH120J50 C 6106 CCSSCH560J50 C 6107 CKSSYB271K50

E

C 6108,6109,6115–6120 CKSSYB103K16 C 6110,6112,6114,6121 CKSSYB102K50 C 6111,6113 CCSSCH390J50 C 6123 CKSSYB102K50 C 6124–6126 CCSSCH101J50

[F/E IC BLOCK(U)]

SEMICONDUCTORS

IC 6201 BCM3517KQLGB0

F

MISCELLANEOUS

L 6201 BTX1042 L 6202 LCTAW1R8J2520

32

1234

[7038_0 BLOCK(U)]

SEMICONDUCTORS

IC 6301 BCM7038KPB1G-B2

MISCELLANEOUS

F 6301–6310 VTF1084 F 6312 ATX1058

RESISTORS

R 6302,6346 RAB4CQ472J R 6303–6305,6308–6310 BCN1072 R 6313 RAB4CQ102J R 6336 RAB4CQ101J Other Resistors RS1/16SS###J

CAPACITORS

C 6301 ACH1442 C 6302–6306 BCG1059 C 6307–6320 CKSSYB103K16 C 6321 ACH1421 C 6322–6357,6361,6364 CKSSYB104K10

C 6360,6362,6365,6366 CKSSYB102K50 C 6367,6368 CKSSYB104K10 C 6369 DCH1201

[7038_1 BLOCK(U)]

SEMICONDUCTORS

Q 6401 RN1901

MISCELLANEOUS

F 6401–6412 VTF1084

RESISTORS

R 6401 RS1/16SS1002F R 6402,6404 RS1/16SS1101F R 6405–6407,6410–6412 RS1/16SS75R0F R 6420 RAB4CQ102J R 6444 BCN1071

R 6445 BCN1067 Other Resistors RS1/16SS###J

PDP-6071PU

5678

Mark No. Description Part No.

CAPACITORS

C 6401 DCH1201 C 6402 CCSSCH150J50 C 6403–6414 CKSSYB103K16 C 6416–6428 CKSSYB104K10

[7038 DDR BLOCK(U)]

SEMICONDUCTORS

IC 6601 LP2995M IC 6602–6605 EDD2516AKTA-6B

Mark No. Description Part No.

Other Resistors RS1/16SS###J

CAPACITORS

C 6901 DCH1201 C 6902-6908 CCSSCH101J50 C 6909 CKSRYB105K10 C 6911,6916 CCSSCH8R0D50 C 6912,6913 CCSSCH120J50

C 6915,6919 CKSSYB103K16 C 6917,6923,6924 CKSSYB104K10

A

MISCELLANEOUS

L 6601 BTX1039

CAPACITORS

C 6602,6607–6611 CKSSYB103K16 C 6603–6606 CKSSYB104K10 C 6612,6620,6633,6642 CKSSYB471K50 C 6613–6619,6621,6622 CKSSYB103K16 C 6624,6625,6627–6632 CKSSYB103K16

C 6634–6641,6643,6645 CKSSYB103K16 C 6648 CEHVKW331M6R3 C 6649–6651 BCG1059

[DDR REG BLOCK(U)]

RESISTORS

R 6783,6788-6790,6795 RAB4CQ101J R 6784–6787,6791–6794 RAB4CQ220J R 6796,6801,6802,6816 RAB4CQ101J R 6797–6800,6803–6806 RAB4CQ220J R 6807–6809,6811,6839 RAB4CQ510J

R 6810,6812–6815 RAB4CQ220J R 6817–6820,6824–6827 RAB4CQ220J R 6821–6823,6828,6829 RAB4CQ101J R 6830–6833,6836–6838 RAB4CQ220J R 6834,6835 RAB4CQ101J

R 6840 RAB4CQ220J Other Resistors RS1/16SS###J

CAPACITORS

C 6704-6711 CKSSYB103K16 C 6801-6803 DCH1201

[7038 FLASH BLOCK(U)]

SEMICONDUCTORS

IC 6901 TC7WH02FU IC 6902 AGC1008 IC 6903 BR24L64F-W Q 6901 2SA1586 Q 6902 UMD2N

Q 6903 2SC4116 D 6902,6903 UDZS4R7(B)

MISCELLANEOUS

L 6901 LCTAW2R2J2520 F 6901-6904 CTF1557 JA 6901 AKN1073 X 6901 BSS1134 CN 6901 BKP1159

RESISTORS

R 6912,6913 RS1/16S3010F R 6952 RAB4CQ472J

56

[DT VDEC BLOCK(U)]

SEMICONDUCTORS

IC 7001 TVP5160PNP IC 7002 EDS1616AGTA-75-E Q 7004 2SC4116

MISCELLANEOUS

F 7001–7006 VTF1084 F 7007 ATX1058 X 7001 BSS1119

RESISTORS

R 7001–7003,7009 RAB4CQ101J R 7004,7005 BCN1072 R 7010–7013 RAB4CQ510J R 7014 BCN1071 Other Resistors RS1/16SS###J

CAPACITORS

C 7001–7003,7005 DCH1201 C 7006 CKSSYB102K50 C 7014,7015 CCSSCH100D50 C 7016–7054 CKSSYB104K10

[DT AV BLOCK(U)]

SEMICONDUCTORS

IC 7101 PCM1803DB IC 7102,7104,7107 NJM2068V IC 7103,7106 NJM2746V IC 7105 R5520H001B

MISCELLANEOUS

L 7101,7102 BTH1107 L 7103,7104 BTX1042 L 7106 ATH1160 F 7101–7103 VTF1084 JA 7101 VKS1001

CN 7101 AKM1276

RESISTORS

R 7103,7119 RS1/16SS2402F R 7104,7118 RS1/16SS1002F R 7107,7109 RAB4CQ103J R 7110 RAB4CQ101J R 7144,7145,7151,7152 RS1/16SS3302F

R 7155,7156,7195,7196 RS1/16SS3302F Other Resistors RS1/16SS###J

CAPACITORS

C 7102,7165,7174,7177 DCH1165 C 7103,7109,7110 DCH1201 C 7107,7108 CKSRYB105K10 C 7111-7114 CCSRCH331J50 C 7115,7117,7119,7120 CKSSYB103K16

PDP-6071PU

B

C

D

E

F

33

7

8

1234

Mark No. Description Part No.

C 7116,7118 CKSSYB271K50 C 7122-7124,7130 CCSSCH220J50 C 7125,7131,7148,7154 CKSSYB391K50

A

C 7127,7128,7150,7151 CCSSCH560J50 C 7132,7133,7155,7156 CKSSYB103K16

C 7135 ACH1421 C 7136,7138,7166,7167 CKSSYB104K10 C 7139,7140,7162,7163 CKSSYB821K50 C 7145-7147,7153 CCSSCH220J50 C 7171-7173 CKSSYB104K10

[DT D_VIDEO BLOCK(U)]

SEMICONDUCTORS

IC 7201 PE5436A

B

MISCELLANEOUS

L 7201 BTX1042

Mark No. Description Part No.

IC 7405,7406,7408 NJM2846DL3-33 IC 7407 NJM2846DL3-18

D 7402-7408 1SS355

MISCELLANEOUS

L 7401,7403 BTX1042 F 7401 VTF1084

RESISTORS

R 7401,7407 RS1/10S0R0J Other Resistors RS1/16SS###J

CAPACITORS

C 7401,7403,7406-7408 CKSSYB104K10 C 7405 CKSRYB104K16 C 7409 CKSQYB225K10 C 7412 CKSSYB103K16 C 7413 CKSSYB471K50

RESISTORS

R 7202,7207,7208,7211 RAB4CQ0R0J R 7212,7215 RAB4CQ472J R 7214,7249 BCN1067 R 7248 RAB4CQ470J R 7251 RAB4CQ101J

Other Resistors RS1/16SS###J

C

CAPACITORS

C 7201-7206 CKSSYB104K10 C 7208,7209,7211-7214 CKSSYB102K50 C 7210 CKSSYB471K50 C 7220 DCH1201

[POD BLOCK(U)]

SEMICONDUCTORS

IC 7301 TC74LCX245FTS1 IC 7302 CIMAXSP2L IC 7303 TC74LCX257FT

D

IC 7304 TC74LCX244FTS1 IC 7305,7306 TC74LCX373FT

MISCELLANEOUS

F 7301,7302 ATX1058 F 7303 VTF1084 CN 7301,7302 AKM1354

RESISTORS

R 7305,7317,7333-7335 RAB4CQ470J R 7323,7339,7342 BCN1067 R 7336,7338,7343 RAB4CQ103J R 7337,7341 RAB4CQ470J

E

R 7340 RAB4CQ0R0J

R 7344-7346 BCN1067 Other Resistors RS1/16SS###J

CAPACITORS

C 7301-7303,7305 CKSSYB102K50 C 7304 CCSSCH680J50 C 7306-7315,7319,7320 CKSSYB104K10 C 7321-7323 CKSSYB102K50

[POWER_1 BLOCK(U)]

F

SEMICONDUCTORS

IC 7401 NJM2370U09 IC 7402 NJM2871BF05 IC 7403 MM1563DF

34

1234

C 7415 CEHVKW470M16 C 7416 CEHVKW220M16 C 7417-7420,7423,7424 DCH1201 C 7421 BCG1060 C 7422,7426,7428 CKSRYB105K10

C 7427 BCG1059 C 7429 DCH1201

[POWER_2 BLOCK(U)]

SEMICONDUCTORS

IC 7501 PQ200WNA1ZPH IC 7502–7505 R1224N102H IC 7506 PST3628UR Q 7501,7502 2SA1586 Q 7503–7506 CPH6311

Q 7507 DTC124EUA Q 7508–7510 RN1901 D 7501–7504 D1FM3 D 7505 1SS355

MISCELLANEOUS

L 7501,7504 ATH1161 L 7502,7503 ATH1192 L 7505,7506 BTX1042

RESISTORS

R 7502-7504 RS1/4S1R5J R 7505,7506 RS1/4S3R3J R 7507,7508 RS1/10S271J R 7511,7538 RS1/16SS2202F R 7530 RS1/16SS5102F

R 7531 RS1/16SS8201F R 7532 RS1/16SS9101F R 7533 RS1/16SS2402F R 7539 RS1/16SS3302F R 7550,7565 RS1/16SS5602F

R 7551,7566 RS1/16SS1202F Other Resistors RS1/16SS###J

CAPACITORS

C 7501,7502 ACH1442 C 7503 CKSSYB104K10 C 7504,7508,7513 CKSSYB103K16 C 7506,7507 CKSSYB102K50 C 7509 CKSSYB332K50

PDP-6071PU

5678

Mark No. Description Part No.

C 7511,7512,7517,7519 CKSRYB105K10 C 7514,7516 CEHVKW101M6R3 C 7518,7520,7521,7524 DCH1201 C 7522,7523,7525,7528 CKSRYB105K10 C 7526,7527,7529,7530 DCH1201

[DSEL BLOCK(U)]

SEMICONDUCTORS

IC 8001 PD6523A IC 8002 TC74LCX125FT IC 8003 TC74VCX574FT

MISCELLANEOUS

L 8001,8002 BTX1042 F 8001,8002 VTF1080

>

F 8004 ATX105 X 8001 ASS1194 8001 HEAT SINK B ANH1645

8002 THERMAL SHEET B AEB1417

>

8003 ANTENNA CABLE 50MM ADE1196

RESISTORS

R 8001–8003 ACN1251 R 8004–8006 BCN1071 R 8026,8027 RAB4CQ101J Other Resistors RS1/16SS###J

CAPACITORS

C 8001 CCSRCH221J50 C 8002 CKSSYB102K50 C 8003,8006–8013 CCSSCH221J50 C 8004 CKSSYF104Z16 C 8005,8014–8025,8027 CKSSYB104K10

C 8026,8028–8030 DCH1201

[IP BLOCK(U)]

SEMICONDUCTORS

IC 8101 PE5504B IC 8102,8103 EDS6432AFTA-75-E

MISCELLANEOUS

L 8101-8104 BTX1042 F 8101 ATX1058

Mark No. Description Part No.

SEMICONDUCTORS

IC 8201 PEG121B IC 8202 AGC1007 IC 8203 TC74VHC08FTS1

MISCELLANEOUS

L 8201-8204 BTX1042

RESISTORS

R 8201-8205 ACN1246 R 8206-8208,8255 ACN1251 R 8214,8215,8248 RAB4CQ103J R 8225,8245 BCN1071 R 8246 BCN1073

R 8249 RAB4CQ680J R 8250 RS1/10S0R0J Other Resistors RS1/16SS###J

CAPACITORS

C 8202 CKSSYB102K50 C 8203-8206,8221-8234 CKSSYB104K10 C 8207,8240-8242 DCH1201 C 8208-8220 CCSSCH221J50 C 8235 BCG1059

C 8239 CKSSYB104K10

[IF UCOM BLOCK(U)]

SEMICONDUCTORS

IC 8301 AGC1016 IC 8302 PST9230N IC 8303 TC74VHC08FTS1 IC 8304 TC7W126FU IC 8305 TC74VHC00FTS1

IC 8306 MAX3232CPW IC 8307 TC74VHC125FTS1 Q 8303-8305 DTC124EUA Q 8306,8307 2SA1586 D 8301-8304 1SS355

MISCELLANEOUS

X 8301 ASS1168 X 8302 ASS1172 CN 8301 AKP1213

A

B

C

D

RESISTORS

R 8101-8104,8106-8110 BCN1067 R 8105 BCN1071 R 8111,8116 ACN1246 R 8112-8115,8117 ACN1251 R 8123 RAB4CQ103J

R 8135 RAB4CQ470J R 8136 RAB4CQ101J Other Resistors RS1/16SS###J

CAPACITORS

C 8101 CKSSYB102K50 C 8102,8126 DCH1201 C 8103-8106,8108-8111 CCSSCH221J50 C 8107,8112-8120 CKSSYB104K10 C 8121-8125,8127-8129 CCSSCH221J50

C 8134-8147 CKSSYB104K10

[MULTI BLOCK(U)]

56

RESISTORS

R 8322 RAB4CQ473J R 8348-8352 RAB4CQ103J Other Resistors RS1/16SS###J

CAPACITORS

C 8301 CKSSYB472K25 C 8302,8303 CCSSCH220J50 C 8305,8321 CKSSYB471K50 C 8306-8311,8314-8320 CKSSYB104K10 C 8312,8313 DCH1201

[MAIN UCOM BLOCK(U)]

SEMICONDUCTORS

IC 8401 MB91305PMC-G-BND IC 8402 AGC1006 IC 8403 PST3628UR IC 8407 PQ200WNA1ZPH IC 8409 BR24L64F-W

IC 8410,8411 TC74VHC125FTS1

PDP-6071PU

E

F

35

7

8

1234

Mark No. Description Part No.

Q 8401 2SJ461A Q 8402 DTC124EUA Q 8403,8404 HN1K02FU D 8401 1SS355

A

D 8402 SML-311UT

MISCELLANEOUS

K 8401,8402 AKX9002 X 8401 CSS1616 CN 8401 AKM1353

Mark No. Description Part No.

C 8801–8806,8810–8812 CKSRYB105K10 C 8809,8902 CKSSYF104Z16 C 8815 DCH1201 C 8818,8819 CKSSYB473K16 C 8820–8826,8901 CKSSYB103K16

C 8832,8833,8843–8857 CKSRYB105K10 C 8858 ACH1454 C 8861–8864 CKSSYB471K50

RESISTORS

R 8401,8402 ACN1248 R 8411,8466,8467 RAB4CQ101J R 8447 RS1/16SS5602F

B

R 8457,8458 RS1/16S0R0J R 8463 RS1/16SS1502F

R 8464 RS1/16SS4701F R 8465 RS1/16SS3301F R 8481 RS1/16SS2002F Other Resistors RS1/16SS###J

CAPACITORS

C 8402–8413 CCSSCH470J50 C 8414,8415,8418,8419 CKSSYB102K50 C 8417 CCSSCH221J50 C 8420 CKSSYB472K25

C

C 8421,8425 CKSSYB103K16

C 8427,8462 DCH1165 C 8430–8437,8439–8445 CKSSYB104K10 C 8452–8461,8463 CKSSYB104K10

TANSHI ASSY(U BB)

SEMICONDUCTORS

Q 8901 HN1B04FU D 8808–8810 1SS302

D

D 8821 UDZS5R1(B) TH 8901 TH05-3H103F

POD ASSY(U)

SEMICONDUCTORS

IC 9001 BR24C21FJ IC 9002 TC74VHC08FTS1 IC 9003 TC7WH123FU Q 9005 UMD2N D 9001,9002,9007,9008 UDZS5R6(B)

D 9003,9009 1SS301

MISCELLANEOUS

JA 9001 PC CARD CONNECTOR AKP1305 CN 9001,9002 40P CONNECTOR AKM1348 CN 9003 CONNECTOR CKS3826 CN 9004 15P DSUB SOCKET AKP1214

RESISTORS

R 9008,9016–9020 RAB4CQ0R0J R 9022–9026 RAB4CQ0R0J Other Resistors RS1/16SS###J

CAPACITORS

C 9001,9017-9020,9200 DCH1201 C 9002,9014,9015 CKSSYF104Z16 C 9012,9013 CCSRCH220J50 C 9016 CKSRYB105K10 C 9201 DCH1201

MISCELLANEOUS

F 8801–8807,8821–8823 CTF1557 JA 8801 AKB1338 JA 8803,8805 AKB1331 JA 8806 VKN1449 JA 8807 AKB1334

JA 8808,8809 AKB1332 JA 8811 AKN1081

E

CN 8802 AKM1349 CN 8803 AKM1348

RESISTORS

R 8801,8802 RS1/10S151J R 8811-8816,8850,8860 RS1/16S75R0F R 8861,8874-8876 RS1/16S75R0F R 8880-8882,8898 RS1/16S75R0F R 8901 RS1/16S4701F

R 8911 RS1/16S102J

F

Other Resistors RS1/16SS###J

CAPACITORS

36

1234

SIDE ASSY(U BB)

SEMICONDUCTORS

D 9105,9106 UDZS9R1(B)

MISCELLANEOUS

JA 9101 PIN JACK 3P AKB1303 JA 9102 PIN JACK 3P AKB1305 9102,9103 SCREW TERMINAL VNE1949

RESISTORS

All Resistors RS1/16SS###J

CAPACITORS

C 9105,9106 CKSRYB105K10 C 9114 CKSSYF104Z16

AUDIO ASSY

SEMICONDUCTORS

IC 3751 LA4625

PDP-6071PU

5678

Mark No. Description Part No.

IC 3752 PQ120DNA1ZPH IC 3753 NJW1183GK1 Q 3751,3754,3755,3757 2SA1586 Q 3756,3759 2SC4116

Q 3758,3760 DTC124EUA D 3751 1SS355

MISCELLANEOUS

KN 3751,3752 CN 3751 CONNECTOR B3P-VH 3772,3773 PMB30P100FNI 3774,3775 VBB30P100FNI

WRAPPING TERMINAL

VNF1084

Mark No. Description Part No.

C 3904,3912,3918,3920 CKSRYF104Z50

>

C 3905,3907,3913,3915 CCSRCH221J50

>

C 3921–3924 CCSRCH221J50

SIDE KEY ASSY

MISCELLANEOUS

>

L 9501–9504 QTL1013 S 9501–9507 CSG1155

RESISTORS

All Resistors RS1/16S###J

A

RESISTORS

R 3803 RD1/2MMF2R2J Other Resistors RS1/16S###J

CAPACITORS

C 3752,3753 CEHAT2R2M50 C 3754,3805 CFTLA103J50 C 3755 CEHAT472M25 C 3757 CEHAT471M25 C 3758,3760,3796 CKSRYB103K50

C 3759 CEHAT331M16 C 3761,3764,3786,3798 CEHAT101M16 C 3762 CEHAT220M50 C 3763 CEHATR47M50 C 3766,3780,3783–3785 CEHAT1R0M50

C 3767,3770,3781,3782 CFTLA104J50 C 3769,3815 CKSRYB222K50 C 3771–3774,3787,3789 CKSRYB224K16 C 3775,3777,3788,3790 CEHAT100M50 C 3778 CFTLA334J50

C 3779 CKSRYB822K50 C 3791,3799 CEHAT100M50 C 3792–3795,3806,3807 CFTLA104J50 C 3797,3808,3812,3814 CEHAT1R0M50 C 3800,3801 CKSRYB224K16

C 3811 CFTLA223J50 C 3813 CFTLA104J50 C 3816,3817 ACH1456 C 3818–3821 CCSRCH221J50 C 3822–3825 CKSRYB682K50

CAPACITORS

C 9501 CKSRYF104Z16 C 9502,9503 CCSRCH101J50

42 & 60 LED ASSY

SEMICONDUCTORS

D 9601 SML-521MDW D 9602 TLRV1022 D 9603 SML512BC4T

MISCELLANEOUS

CN 9601 CONNECTOR AKP1303

RESISTORS

All Resistors RS1/16S###J

CAPACITORS

C 9606,9610,9614 CKSSYF103Z50 C 9611 CKSRYF103Z50

60 IR ASSY

SEMICONDUCTORS

IC 9801 SBX3050-01 Q 9801 2SA1586 D 9801 1SS302

B

C

D

C 3826–3829 CKSRYF104Z50

>

C 3831,3833,3835,3837 CCSRCH101J50 C 3838,3839 CEHAT4R7M50

SP TERMINAL ASSY

MISCELLANEOUS

>

F 3901,3902 ATF1224 JA 3901 SPEAKER TERMINAL AKE1061

RESISTORS

>All Resistors RS1/16S###J

CAPACITORS

C 3903,3911,3917,3919 CKSRYB682K50

56

MISCELLANEOUS

CN 9801 CONNECTOR AKP1303

RESISTORS

R 9801–9803 RS1/16S0R0J Other Resistors RS1/16SS###J

CAPACITORS

C 9801 CKSSYB102K50 C 9802 CKSSYF104Z16 C 9803 ACG7046 All Resistors RS1/16S###J

PDP-6071PU

E

F

37

7

8

1234

Mark No. Description Part No.

60 DIGITAL ASSY

[FRONT RX BLOCK]

MISCELLANEOUS

A

F 3001 EMI FILTER CCG1162 KN 3001 GROUND PLATE ANK1664 CN 3001 50P CONNECTOR PBF AKM1353 CN 3002 20P FFC CONNECTOR AKM1235

RESISTORS

R 3007,3010–3016 RAB4C470J R 3020–3022 RAB4C103J Other Resistors RS1/16SS###J

B

[MODULE UCOM BLOCK]

SEMICONDUCTORS

IC 3152,3153 SN74AHC541PW IC 3155 SN74AHC08PW IC 3156 BR24L04FJ-W IC 3157 M62334FP IC 3158 MM1522XU

IC 3159 TC7W126FU IC 3160,3161 TC74VHC123AFTS1 Q 3151 2SJ461A D 3151,3152,3154,3155 DAN202U D 3158,3159,3161-3163 1SS355

C

MISCELLANEOUS

X 3151 CSS1616 CN 3151 PH CONNECTOR 5P AKM1276 CN 3152 CONNECTOR CKS4828

RESISTORS

R 3155,3160,3170,3176 RAB4C101J R 3174,3216 RAB4C103J Other Resistors RS1/16SS###J

D

CAPACITORS

C 3151 CEHVKW470M6R3 C 3152,3153,3155–3158 CKSSYB104K10 C 3159,3171,3172,3182 CKSRYB105K6R3 C 3160 CKSSYB102K50 C 3161–3163,3165,3166 CKSSYB104K10

Mark No. Description Part No.

RESISTORS

R 3307,3308 RAB4C101J Other Resistors RS1/16SS###J

CAPACITORS

C 3301–3303,3306,3308 CKSSYB104K10 C 3304,3307,3309 CKSSYB472K16 C 3305,3310 CKSSYB102K50 C 3311 CCSRCH470J50 C 3315,3316 CKSSYB104K10

C 3317 CCSRCH471J50

[ASTRA BLOCK]

SEMICONDUCTORS

IC 3401 PEG122C

MISCELLANEOUS

L 3401–3403 QTL1013 F 3401,3402 CCG1162

RESISTORS

R 3402,3412 RAB4C101J R 3405–3407,3409,3410 RAB4C220J R 3416,3417 RAB4C220J R 3425 RS1/16SS5601F Other Resistors RS1/16SS###J

CAPACITORS

C 3402,3419,3425,3441 ACH1396 C 3403–3410,3412,3413 CKSSYB104K10 C 3414–3416,3426–3438 CKSRYB105K6R3 C 3417,3418,3420–3424 CKSSYB104K10 C 3439,3440,3442–3449 CKSSYB104K10

[ADDRESS BLOCK]

SEMICONDUCTORS

Q 3501,3502 DTC143EUA Q 3503,3506 RN1901 D 3501–3504 DAN202U

C 3164 CCSSCH101J50 C 3167 CKSSYB103K16 C 3168,3170,3181 CKSSYB104K10

E

[PANEL FLASH BLOCK]

SEMICONDUCTORS

IC 3301 AGC1026 IC 3302,3305 PST3628UR IC 3303 SN74AHC08PW IC 3304 PST3610UR Q 3301 RN1901

Q 3302 HN1C01FU

MISCELLANEOUS

F

X 3302 (102.5 MHz) ASS1188 CN 3301 CONNECTOR CKS4835

38

1234

MISCELLANEOUS

CN 3501–3510 40P CONNECTOR AKM1348

RESISTORS

R 3518,3524,3538,3551 RAB4C101J R 3519,3525 RAB4C472J R 3539,3550 RAB4C222J Other Resistors RS1/16SS###J

CAPACITORS

C 3501–3512,3520–3523 CKSSYB102K50

[DIGITAL DD CON BLOCK]

MISCELLANEOUS

U 3601 DD CON UNIT AXY1137

PDP-6071PU

5678

Mark No. Description Part No.

RESISTORS

R 3611 RAB4C101J Other Resistors RS1/16SS###J

CAPACITORS

C 3604-3606,3619 CKSSYB473K16 C 3609 CKSSYB104K10

[THERMAL SENSOR BLOCK]

CAPACITORS

C 3702 ACH1394

PANEL SENSOR ASS'Y

SEMICONDUCTORS

IC 3651 MM1522XU IC 3652 BR24L02FJ-W Q 3651 HN1B04FU

MISCELLANEOUS

CN 3651 PH CONNECTOR 6P AKM1276

RESISTORS

All Resistors RS1/16SS###J

Mark No. Description Part No.

SEMICONDUCTORS

IC 1101,1104 TND307TD IC 1102 PS9117 IC 1103,1131 AXF1159 IC 1151 BA10393F Q 1101 2SC2412K

Q 1102,1103,1131,1132 QSZ2 Q 1151 2SC4081 D 1101 UDZS5R6(B) D 1106,1135 D1FL40 D 1112,1141 1SS302

MISCELLANEOUS

L 1101,1131 ATH1213 L 1102,1132 ATH1215

RESISTORS

R 1109,1118,1132,1141 RS1/10S2R2J R 1112,1135 ACN1174 R 1114,1117,1137,1140 RS3LMF100J R 1115,1116,1138,1139 RS1/10S104J R 1121 RS1/16S3300F

R 1151,1154 RS1/10S1003F R 1152,1155 RS1/16S5601F R 1156,1157 RS1/16S6801F Other Resistors RS1/16S###J

A

B

C

CAPACITORS

C 3651,3653 CKSRYB105K6R3 C 3652,3654 CKSSYB103K16 C 3656,3657 CKSSYB104K10

60 X DRIVE ASSY

[X LOGIC BLOCK]

SEMICONDUCTORS

IC 1001 TC74ACT541FT IC 1002 TC74ACT540FT IC 1003 TC74VHC00FTS1 D 1001,1002 1SS355

MISCELLANEOUS

CN1001 40P CONNECTOR AKM1348

1001 BMZ30P080FTC 1001 ANH1639 1002 AEH1092

RESISTORS

R 1001,1003,1009 RAB4C470J R 1005,1006,1011 RAB4C472J VR1001,1002 CCP1390 Other Resistors RS1/16S###J

CAPACITORS

C 1001,1003 CEHAT470M16 C 1002,1004,1005 CKSRYB104K16 C 1006,1007 CCSRCH331J50

[X RESONANCE BLOCK]

CAPACITORS

C 1101,1151,1153 CKSRYB104K16 C 1102,1113,1131,1143 CEHAT470M25 C 1103,1114 CKSRYF104Z50 C 1104,1117,1132,1144 CKSYB105K25 C 1106,1108,1135,1136 CCG1186

C 1115,1116,1141,1142 ACG1112 C 1118–1121,1156–1159 ACE1168 C 1154 CKSSYB104K10 C 1155 CKSRYB105K10

[X SUS BLOCK]

SEMICONDUCTORS

IC 1201,1206 PS9117 IC 1202,1207,1208,1210 TND307TD IC 1203,1205 AXF1160 IC 1204 PQ05DZ11 IC 1209 TC7SH04FUS1

IC 1211 PQ09DZ11 Q 1201 2SC2412K Q 1202,1205,1208,1209 QSZ2 Q 1203 HN1B04FU Q 1204 DTC124EUA

Q 1206 2SC4081 Q 1207 R5009ANJ Q 1251 DTC143EK Q 1252 DTC123TKA D 1201,1205 UDZS5R6(B)

D 1202,1203,1206,1210 CRH01 D 1204,1211 1SS355 D 1207 1SS302 D 1208 UDZS5R1(B) D 1209 UDZS16(B)

D

E

F

56

PDP-6071PU

39

7

8

1234

Mark No. Description Part No.

D 1251 UDZS8R2(B)

Mark No. Description Part No.

A

MISCELLANEOUS

L 1201–1203 BTH1134 L 1204–1206 ATH1186 F 1201 CTF1449 K 1201 AKX1061 KN1201–1207,1210–1217 ANK1841

CN1201,1203 PH CONNECTOR 10P AKM1281 CN1204 PH CONNECTOR 6P AKM1277 CN1206 8P TOP POST B8B-EH

RESISTORS

B

R 1210,1226,1253,1254 RS1/10S100J R 1212 ACN1166 R 1217,1232 RS1/10S0R0J R 1220,1237 ACN1168 R 1222 RS3LMF180J

Other Resistors RS1/16S###J

CAPACITORS

C 1201,1211–1213,1238 CKSRYF104Z50 C 1202,1231,1237 CKSYB105K25 C 1203,1204 ACH1449

C

C 1207,1216,1218,1219 CKSRYB104K16 C 1208,1214,1246 CEHAT470M16

C 1209,1215,1217,1233 CEHAT470M25 C 1210,1240,1244 CEHAT101M25 C 1221,1222 ACG1126 C 1223,1224 ACH1453 C 1225–1230 ACE1180

C 1232,1245,1250,1251 CKSRYB104K16 C 1235 CEHAT2R2M2E C 1236 CKSRYB105K10 C 1239 CCSRCH331J50

D

C 1241–1243 CEHAT470M25

C 1252 CKSRYB104K25

RESISTORS

R 1321,1322 RS1/10S2203F R 1328 RS1/16S5601F R 1331 RAB4C472J VR1321 CCP1392 Other Resistors RS1/16S###J

CAPACITORS

C 1301,1306,1326 CEHAT101M25 C 1302,1325 CKSYB105K25 C 1303 CKSRYB103K50 C 1304,1307,1323 CKSRYB104K16 C 1305 ACG1105

C 1321 ACH1361 C 1322 ACH1452 C 1324 CEHAT101M16 C 1327 CKSRYB104K25 C 1328 CEHAT221M25

60 Y DRIVE ASSY

[Y LOGIC BLOCK]

SEMICONDUCTORS

IC 2001,2007 TC74ACT541FT IC 2003,2004 TC74ACT540FT IC 2005,2006 TC74VHC08FTS1 D 2090,2091 1SS355

MISCELLANEOUS

K 2010,2014 AKX1061 CN 2001 40P CONNECTOR AKM1348 2001 ANH1639 2002 BMZ30P080FTC 2003 AEH1092

2004 ANG2907 2005 ABA1364

[X DD CON BLOCK]

SEMICONDUCTORS

IC 1321 MIP2E3DMU IC 1322 PS2701A-1(L) IC 1327 TA76431FR Q 1301 2SD1898 Q 1302 2SC4081

E

Q 1331,1332 HN1C01FU D 1301,1324 D1FL40 D 1302,1303,1325,1326 CRH01 D 1304 1SS301 D 1305 UDZS5R6(B)

D 1306,1307,1331 1SS355 D 1321,1322 CRF03 D 1323 U1ZB330 D 1332 UDZS6R2(B) D 1333 UDZS12(B)

F

MISCELLANEOUS

T 1301 ATK1162 T 1321 ATK1153

40

1234

RESISTORS

R 2001,2003,2016,2022 RAB4C470J R 2002,2004 RAB4C101J R 2005,2006,2017,2026 RAB4C472J R 2023 RAB4C470J R 2027 RAB4C472J

VR 2010,2011 CCP1390 Other Resistors RS1/16S###J

CAPACITORS

C 2001,2009 CEHAT470M16 C 2002,2004–2008 CKSRYB104K16 C 2010,2011 CCSRCH331J50

[Y RESONANCE BLOCK]

SEMICONDUCTORS

IC 2101,2104 TND307TD IC 2102 PS9117 IC 2103,2151 AXF1159 IC 2181 BA10393F Q 2101 2SC2412K

PDP-6071PU

5678

Mark No. Description Part No.

Q 2102,2103,2151,2152 QSZ2 Q 2181 2SC4081 D 2101 UDZS5R6(B) D 2105,2154 D1FL40 D 2110,2159 1SS302

MISCELLANEOUS

L 2101,2151 ATH1213 L 2102,2152 ATH1215

RESISTORS

R 2109,2118,2152,2161 RS1/10S2R2J R 2113,2156 ACN1174 R 2114,2115,2157,2158 RS3LMF100J R 2116,2117,2159,2160 RS1/10S104J R 2121 RS1/16S3300F

R 2181,2184 RS1/10S1003F R 2182,2185 RS1/16S5601F R 2186,2187 RS1/16S6801F Other Resistors RS1/16S###J

CAPACITORS

C 2101,2181–2184 CKSRYB104K16 C 2102,2113,2162,2164 CEHAT470M25 C 2103,2114 CKSRYF104Z50 C 2104,2117,2151,2163 CKSYB105K25 C 2107,2108,2154,2155 CCG1186

C 2115,2116,2160,2161 ACG1112 C 2118–2121,2186–2189 ACE1168 C 2185 CKSRYB105K10

[Y SUS BLOCK]

SEMICONDUCTORS

IC 2202,2221,2232,2242 PS9117 IC 2203,2211,2222,2231 TND307TD IC 2241,2252 TND307TD IC 2251 TC7SH04FUS1 IC 2271 TND301S

IC 2301,2302 AXF1161 IC 2351 PQ05DZ11 IC 2380 PQ09DZ11 Q 2211 2SK3325 Q 2221,2232,2242,2243 QSZ2

Q 2222,2231,2241,2352 2SC4081 Q 2239,2271 2SK3050 Q 2240 2SC2412K Q 2251 QSZ2 Q 2281-2283 2SK3399

Q 2290 DTC123TKA Q 2291 DTC143EK Q 2351 HN1B04FU D 2208,2221,2231,2241 UDZS5R6(B) D 2222,2223,2232,2233 CRH01

Mark No. Description Part No.

MISCELLANEOUS

L 2351,2353,2354 BTH1134 L 2352,2355,2356 ATH1186 F 2301–2330 ATX1062 F 2351 CTF1449 K 2301,2351 AKX1061

KN 2202–2208,2301–2307 ANK1841 CN 2351 9P TOP POST B9B-EH CN 2353 PH CONNECTOR 6P AKM1277 CN 2354,2356 PH CONNECTOR 10P AKM1281

RESISTORS

R 2202,2206 RS3LMF102J R 2211,2214,2215 RS3LMF5R6J R 2274,2275 RS3LMF561J R 2287–2293 ACN1239 R 2301,2303,2307,2308 RS1/10S100J

R 2302,2304 RS1/10S0R0J R 2305,2311 ACN1168 R 2351 ACN1162 Other Resistors RS1/16S###J

CAPACITORS

C 2211,2223,2233,2243 CEHAT470M25 C 2212,2272 CKSRYF104Z50 C 2221,2231,2241,2253 CKSYB105K25 C 2222,2232,2242,2290 CKSRYB104K16 C 2251 CCSRCH331J50

C 2252,2362 CKSRYB105K10 C 2256,2271,2291,2352 CEHAT470M25 C 2273,2281 CEHAT2R2M2E C 2284,2286 ACE1163 C 2292 CKSYB105K25

C 2299 CKSRYB104K25 C 2301,2305 ACH1453 C 2302–2304,2306–2308 ACE1180 C 2309,2310 CCG1186 C 2351,2353,2361,2363 CEHAT470M16

C 2354,2359,2364,2380 CKSRYB104K16 C 2356,2357 ACH1449 C 2358 CEHAT101M10 C 2360 CKSRYB473K16 C 2367,2368 CEHAT101M25

C 2369 CEHAT470M16 C 2381 CKSRYB104K16

[Y SCAN BLOCK]

SEMICONDUCTORS

IC 2401,2403,2409 TLP116 IC 2402,2407,2421,2490 TC74AC540FT IC 2405,2406,2408,2410 PS9117 IC 2481,2482 PST3638UR

A

B

C

D

E

D 2242,2243,2281,2282 CRH01 D 2251 UDZS5R1(B) D 2271 1SS301 D 2272 UDZS16(B) D 2283,2289 UDZS9R1(B)

D 2290 UDZS8R2(B) D 2351,2380 1SS355

56

MISCELLANEOUS

L 2401 BTH1136 L 2402,2403 BTH1134 F 2401,2402 ATX1062 CN 2401,2402 15P CONNECTOR AKM1200

PDP-6071PU

F

41

7

8

1234

Mark No. Description Part No.

RESISTORS

R 2405,2417 RAB4C220J

A

Other Resistors RS1/16S###J

Mark No. Description Part No.

C 2556 CKSRYF104Z50 C 2557,2559,2560 CKSRYB104K25 C 2558 CEHAT221M25 C 2562 CCG1186

CAPACITORS

C 2401,2407,2414 CEHAT101M10 C 2402,2403,2405 CKSRYB104K16 C 2404,2411 ACH1413 C 2408–2410,2412,2413 CKSRYB104K16 C 2415,2420,2421 CKSRYB104K16

C 2481,2482 CKSRYB102K50

B

[Y VH DD CON BLOCK]

SEMICONDUCTORS

IC 2501,2551 MIP2E3DMU IC 2502,2552 PS2701A-1(L) IC 2508,2557 TA76431FR IC 2553 BA10358F Q 2501 HN1C01FU

Q 2551 2SC2412K D 2501 U1ZB330 D 2502 D1FL40 D 2503,2505,2555,2556 CRH01 D 2504,2551,2552,2554 CRF03

C

D 2506,2559 UDZS4R7(B) D 2507 UDZS12(B) D 2558 1SS355

[Y DD CON BLOCK]

SEMICONDUCTORS

IC 2601 PS2701A-1(L) IC 2605,2657 TA76431FR IC 2651 MIP2E3DMU IC 2652,2654,2658 TLP181(P-GR) IC 2653 BA10358F

Q 2601,2681 2SD1898 Q 2602 2SA1576A Q 2603,2684 HN1C01FU Q 2604,2605,2685 DTC143EUA Q 2651 2SA2005

Q 2652 2SA1163 Q 2682,2683 2SC4081 D 2602,2651,2654,2656 CRH01 D 2603,2684 1SS301 D 2604,2606,2658,2659 1SS355

D 2607,2608 UDZS4R7(B) D 2653 CRF03 D 2682,2683 CRH01 D 2685,2689 UDZS5R6(B) D 2686–2688 1SS355

D 2690 UDZS15(B)

MISCELLANEOUS

T 2501 ATK1158 T 2551 ATK1153

RESISTORS

D

R 2509 RAB4C472J R 2551,2554 RS1/10S2203F R 2552 RS1/10S1803F R 2557,2560 RS1/16S5601F R 2564 RS1/16S1002F

R 2565 RS1/16S2202F R 2566 RS1/16S2702F R 2567 RS1/16S6801F R 2568–2570 RS1/10S224J VR 2501 CCP1390

VR 2551 CCP1392

E

Other Resistors RS1/16S###J

CAPACITORS

C 2502,2507,2553,2561 CKSRYB104K16 C 2503 CEHAT470M16 C 2505,2555 CEHAT101M25 C 2506 ACH1450 C 2508 CEHAT331M16

C 2509 CEHAT470M25 C 2510 ACH1413 C 2551 ACH1448

F

C 2552 ACH1451 C 2554 CEHAT101M16

MISCELLANEOUS

T 2601 ATK1156 T 2651 ATK1163 T 2681 ATK1162

RESISTORS

R 2610,2613,2662,2666 RS1/16S4701F R 2615 RAB4C472J R 2651 RS1/10S4702F R 2653,2660 RS1/10S1501F R 2654,2691 RS3LMF301J

R 2661 RS1/16S1002F R 2667 RS1/16S4701F R 2668-2670,2690 RS1/10S224J R 2694 RS1/16S5601F R 2698 RS1/16S6801F

VR 2651 CCP1390 Other Resistors RS1/16S###J

CAPACITORS

C 2602,2681,2686 CEHAT101M25 C 2603,2685 ACG1105 C 2604 CKSRYB102K50 C 2605 CEHAT221M10 C 2606,2607,2653,2684 CKSRYB104K16

C 2652 ACH1449 C 2654 CEHAT101M16 C 2655,2660 CKSRYF104Z50 C 2656,2657 CEHAT221M35 C 2658 CKSRYB104K25

42

1234

PDP-6071PU

5678

Mark No. Description Part No.

C 2659 CKSRYB105K10 C 2661 CCG1186 C 2682 CKSYB105K25 C 2683 CKSRYB103K50 C 2687,2688 CKSRYB104K16

POWER SUPPLY UNIT

POWER SUPPLY UNIT has no service part.

A

B

C

D

E

56

PDP-6071PU

F

43

7

8

1234

4. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

4.1 OVERALL CONNECTION DIAGRAM (1/2)

A

B

C

D

E

F

44

1234

PDP-6071PU

5678

A

B

C

D

E

56

÷

When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".

÷

The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

÷

The encircled numbers denote measuring point in the schematic diagram. Waveforms, refer to service manual (ARP3395).

PDP-6071PU

7

8

F

45

1234

4.2 OVERALL CONNECTION DIAGRAM (2/2)

A

B

C

D

E

F

46

1234

PDP-6071PU

5678

A

Note 1 : ADD1446- (KUCXC only) ADD1470- (KUC and Regular only)

(Note 1) (Note 1)

B

C

D

E

56

PDP-6071PU

F

47

7

8

1234

60 ADDRESS L

ASSY

60X DRIVE ASSY

60 ADDRESS S

ASSY

POWER SUPPLY UNIT

60 ADDRESS L

ASSY

60 ADDRESS S

ASSY

X

MASK

MODULE

IC1203

X

MASK

MODULE

IC1205

BLOCK

X RESET

X

DK

MODULE

IC1103

X

DK

MODULE

IC1131

LOGIC

BLOCK


COUPLER

VOLTAGE

CONVERTER

BLOCK

OVER

UNDER

VOL

DET

XSUS

BLOCK

VOLTAGE

CONVERTER

Y

MASK

MODULE

IC2301

Y

MASK

MODULE

IC2302

Y

DK

MODULE

IC2103

Y

DK

MODULE

IC2151

Y

Reset

BLOCK

Y

OFFSET

BLOCK


COUPLER

LOGIC

BLOCK


COUPLER

VH

DCDC-CON

Y

MASK

MODULE

IC2301

Y

MASK

MODULE

IC2302

Y

DK

MODULE

IC2103

Y

DK

MODULE

IC2151

Y RESET

BLOCK

Y OFFSET

OVER

UNDER

VOL

DET

YSUS

MODULE

CONVERTER

DC-DC

AXY1137-

D21

D9

D10

FLASH MEMORY

IC3301

D8

D5

D24

PANEL

POWER SW

SUB-FILD CONV.

XY DRV SEQUENCE

PATTERN GEN.

PEG122C-K

IC3401

MODULE UCOM

60 ADDRESS S

ASSY

60Y DRIVE ASSY

60 ADDRESS L

ASSY

607 SCAN B

ASSY

607 SCAN A

ASSY

60 ADDRESS L

ASSY

60 ADDRESS S

ASSY

4.3 OVERALL BLOCK DIAGRAM

A

60 ADDRESS L

ASSY

AD1

LVDS

RECEIVERRECEIVER

IC 1601

DK BLOCKDK BLOCK

AD2

HOT

PLATE

60X DRIVE ASSY

X

MASK

MODULE

IC1203

X

MASK

MODULE

IC1205

X

DK

MODULE

IC1103

X

DK

MODULE

X RESET

IC1131

BLOCK

AD2AD1

60 ADDRESS L

ASSY

BLOCK

DK

LVDS

RECEIVERRECEIVER

IC 1601

B

LVDS

IC 1801

AD1

AD2

X3

VOLTAGE

CONVERTER

BLOCK

+6.5V

+16.5V

RESONANT

CONV.3

VA CONV.

VADR

X2X5

P6

+12V

VADR

BLOCK

+12V

P7

P5

D21

PANEL

SENSOR ASSY

TETE1

+12V

60 ADDRESS S

ASSY

+6.5V

+16.5V

DC/DC

RESONANT

CONV.1

P8

+12V

+5.1V

CVT

DC/DC

CVT

BLOCK

VOC CONV.

P9

+35V

STB 3.3V

C

AC

INLET

STB 5.1V

REG

SERIES

BLOCK

SUB

CONVERTER

STB 3.3V

VOLTAGE

DOUBLER

P4P2

+12V

EXT_PD

PS_PD

RELAY

VSUS

PD_TRIG_B

BLOCK

RESONANT

CONV.2

VS CONV.

P11

BLOCK

PFC

RELAY

P10 P3

+16.5V

+6.5V

VSUS

P1

D

FILTER

POWER SUPPLY UNIT

&

VOL

DET

OVER

UNDER

PDPDXSUS

DRF

AND

RELAY KDD

Vsus_ADJ

DC-DC

RELAY, PD_TRG_B, AC_DET

CONVERTER

V+3V_D

SCL,

SDA

TEMP1

V+3V_EEP

D24

DRF_B

+12V

PS_PWDN

XSUSTN_PD, XDD_CNV_PD

XDRIVE_PD

MODULE

AXY1137-

V+1V_D

VH_UV_PD, YDRIVE_PD

YRESNC_PD,

YDD_CNV_PD

IC5V_UV_PD

Vofs_ADJ, VYPRST_ADJ

XSUS MASK

XSUS_U

LOGIC

D9

Ext_PD

SDA

SCL,

DAC

D10

XSUS_D

BLOCK

AND

SCAN

XSUS_B

SQ_SD

Pulse

STOP_SQ

YSUS

XSUS_G

XNR-D


COUPLER

X1

AND

OR

MASK

Width

YPR-U

PD_MUTE

DRF_B

MODULE UCOM

ADR_PD5

ADR_PD1

OR

X6

V+3V_D

XSUS

IC3151

M30620FCPGP

OR

V+3V_D

AD2AD1

D1D18

V+3V_D

D1D17

BLOCK

DK

LVDS

IC 1801

60 ADDRESS S

ASSY

D1D19

LVDS

&

PEG122C-K

SUB-FILD CONV.

PATTERN GEN.

XY DRV SEQUENCE

UART

SW

LVDS

D1D16

V+3V_D

IC3401

V+3V_D

D8

H DET

HD

VD

FLASH MEMORY

IC3301

D5

POWER SW

E

F

48

AD1

RECEIVER

LVDS

IC 1801

AD2

DK BLOCK

60 ADDRESS S

ASSY

RECEIVER

LVDS

IC 1601

AD2 AD1

DK BLOCK

60 ADDRESS L

ASSY

1234

SCAN

607 SCAN B

ASSY

Y6

BLOCK

VOLTAGE

CONVERTER

VH

DCDC-CON

Y

MASK

Y

MASK

60Y DRIVE ASSY

VH

SCAN

IC2902

SCAN

IC2901

CN2902

Y4Y5

MODULE

IC2301

MODULE

IC2301

Y

MASK

MODULE

Y

MASK

MODULE

Y2

SCAN

IC2904

SCAN

IC2903

CN2903

PDP-6071PU

IC2302

Y

SCAN

CN2904

OVER

DK

IC2905

PDPDYSUS

&

HOT

DET

UNDER

VOL

MODULE

IC2103

MODULE

IC2103

(PSUS)

PLATE

SCAN

IC2906

CN2905

Y

DK

Y

DK

PSUS

MODULE

IC2151

MODULE

IC2151

VH

SCAN

IC2801

Y SUS MASK

Y RESET

Y

Reset

SCAN

IC2802

CN2802

LOGIC

BLOCK

Y SUS -G

Y SUS -B

BLOCK


COUPLER

Y SUS -U

Y SUS -D

Y PR-U

Y OFFSET

BLOCK

Y

OFFSET

BLOCK

SCAN

IC2803

CN2803

Y OFS

Y3

CN2801 CN2901

Y1

SCAN CONTROL


COUPLER

SCAN

IC2804

CN2804

Y8

SCAN

IC2805

PSUS

SCAN

IC2806

CN2805

607 SCAN A

AD2AD1

ASSY

DK BLOCK

RECEIVER

LVDS

IC 1801

60 ADDRESS S

ASSY

60 ADDRESS L

ASSY

DK BLOCK

RECEIVER

LVDS

IC 1601

5678

MAIN ASSY (US BB)

D11

D12

D7

D6

SIDE KEY

ASSY

42 & 60 LED

ASSY

TANSHI ASSY

HN MODULE ASSY

ELITE MODEL ONLY

EXCEPT

ELITE MODEL

POD ASSY

AUDIO ASSY

SP TERMINAL ASSY

SIDE ASSY

60 IR ASSY

TRAP SW

A

SIDE ASSY

GND

INPUT4_Pr

INPUT4_PLUG

GND

INPUT4_Pb

S1

GND

T3

GND

INPUT4_Y

INPUT4_V

GND

INPUT4_L

GND

INPUT4_R

HN3

USB CABLE

ELITE MODEL ONLY

HN MODULE ASSY

TANSHI ASSY

T1

T2

HN1

LED_MDM LED_REC LED_OFF

LED_ON

V+5_1V_STB

V+3_3V_STB

KEY_AD1 KEY_AD2

V+5_1V_STB

V+3_3V_STB

AC_DET

M_SW_DET

GND GND GND

V+5_1V V+5_1V V+5_1V V+5_1V

M2 M3 M8 M5

GND

V+16_5V

GND

V+12V

GND

V+6_5V

M6M7

M4 M1

GND

FAN_NG1

FAN_VCC

M14

MAIN ASSY (US BB)

FAN

AXM1058-

AUDIO ASSY

+12.0V

LED -

L1

42 & 60 LED

ASSY

D7

60 IR ASSY

SIDE KEY

ASSY

RE1SW1

V+3V_D

D6

HD, VD, DCLK, DE

RA, GA, BA

THEATER

V+3VACT

LED_R

LED_B

MSEL

V+3V_D

60 DIGITAL ASSY

D11

UART

INP_MUTE

YOBI

D12

LED -

REM GND

GN D

US_SW

GND

V+35V

GND

N.C

IC3752

+16.5V +12.0V

REGULATOR

GND_D GND_D

A1

V+16R5V

HN7

HN2

GND

V+5V_DLNA

M15

GND

A_NG_B

AUDIO_L

+12.0V

IC3753

WOW + VOLUME IC

BUFFER

IC3751

POWER AMP IC

+16.5V

GND

A_Mute

M17

AUDIO_R

M9

GND

A_MUTE

A_STBY_B

A2

L_Audio

R_Audio

A_STBY_B

L_OUTL_OUT+

R_OUTR_OUT+

PSW_A

SCL_AU

SDA_AU

SDA

A_NG_B

DC DETECT

BLOCK

SCL

M16

EXCEPT

ELITE MODEL

USB CABLE

M13

M10 M11 M12

B

TRAP SW

C

POD ASSY

C3 C1 C2

D

L_OUT-

L_OUT+

R_OUT+

R_OUT-

SP2

LHLLLH+

L+

LL+

L-

RL-

A3

RH-

R-

RL+

SP1

R+

RH+

SP TERMINAL ASSY

E

56

PDP-6071PU

F

49

7

8

1234

4.4 60 ADDRESS S and L ASSYS

A

60 ADDRESS S ASS'Y

DRIVER IC

IC1851

DRIVER IC

IC1852

B

VADR1

VDDLS1

RESONANCE

BLOCK

VADR1

VDDLS1

RESONANCE

BLOCK

V+60V

C

V+5V

AD2

CN1801

DRIVER IC

IC1853

VADR1

VDDLS1

RESONANCE

BLOCK

V+8V

V+3V

RESONANCE

IC1801

LVDS

Reciever

AN/P BN/P CN/P DN/P CLKN/P

DRIVER IC

IC1854

BLOCK

AD1

CN1802

CLK / LE / HBLK / LBLK R/G/B

VADR1

VDDLS1

DRIVER IC

IC1855

VADR1

VDDLS1

RESONANCE

BLOCK

60 ADDRESS L ASS'Y

DRIVER IC

IC1651

DRIVER IC

IC1652

DRIVER IC

IC1653

DRIVER IC

IC1654

DRIVER IC

IC1655

DRIVER IC

IC1656

D

VADR1 VDDLS1

RESONANCE

BLOCK

VADR1

VDDLS1

RESONANCE

BLOCK

V+60V

RESONANCE

BLOCK

V+5V

V+8V

VADR1 VDDLS1

RESONANCE

IC1601

LVDS

Reciever

E

V+3V

AD2

CN1601

CLK / LE / HBLK / LBLK R/G/B

BLOCK

AN/P BN/P CN/P DN/P CLKN/P

AD1

CN1602

VADR1

VDDLS1

RESONANCE

BLOCK

VADR1 VDDLS1

RESONANCE

BLOCK

F

50

1234

PDP-6071PU

5678

4.5 60 SCAN A and B ASSYS

50 SCAN B ASSY

(HIGH SIDE)

VH IC5V

Scan IC

IC2901

VH IC5V

Scan IC

IC2902

VH IC5V

Scan IC

IC2903

VH IC5V

Scan IC

IC2904

VH IC5V

Scan IC

IC2905

VH IC5V

PSUS

A

Scan Signal

VH

IC5V

SA3

B

C

Scan IC

IC2906

VH IC5V

Scan IC

IC2801

VH IC5V

Scan IC

IC2802

VH IC5V

Scan IC

IC2803

VH IC5V

Scan IC

IC2804

VH IC5V

Scan Signal

PSUS

D

E

56

Scan IC

IC2805

VH IC5V

Scan IC

IC2806

50 SCAN A ASSY

(LOW SIDE)

PDP-6071PU

Scan Signal

VH IC5V

SA3

7

F

51

8

1234

4.6 60 X DRIVE ASSY

A

B

C

60 X DRIVE ASSY

D

E

F

52

1234

PDP-6071PU

5678

A

X Drive power supply map

from Power supply

B

C

D

E

56

PDP-6071PU

F

53

7

8

1234

4.7 60 Y DRIVE ASSY

A

B

C

60 Y DRIVE ASSY

D

E

F

54

1234

PDP-6071PU

5678

A

Y Drive power supply map

B

C

D

• VOFS and VPRST DC/DC converter are electric Vol control.

E

56

PDP-6071PU

F

55

7

8

1234

DC-DC CONVERTER MODULE AXY1137-

SUB-FILD CONV.

XY DRV SEQUENCE PATTERN GEN.

IC3401

_

K

,

_

4.8 60 DIGITAL ASSY

A

D21

+12V

V+3V_EE

SCL,

D24

B

D10

SDA

TEMP

VH_UV_PD, YDRIVE_PD YRESNC_PD, YDD_CNV_PD IC5V_UV_PD

Vofs_ADJ

SCAN YSUS

SQ

STOP

YPR-U

DAC

Pulse Width

OR

ADR_PD1

V+3V_D

V+1V_D

SCL, SDA

SQSD

MASK

DC-DC CONVERTER MODULE AXY1137-

C

ADR_PD5

OR

V+3V_D

Vsus_ADJ

RELAY, PD_TRG_B,

RELAY KDD

+12V

PS_PWDN

XSUSTN_PD, XDD_CNV_PD, XDRIVE_PD

O R

AND

PD

MUTE

MODULE UCOM

M30620FCPGP IC3151

AND

Ext_PD

DRF

DRF_B

D9

AND

DRF_B

XSUS

V+3V_D

D17

V+3V_D

UART

D

SW

SUB-FILD CONV.

V+3V_D

D18

& XY DRV SEQUENCE

D16

V+3V_D

D5D6

E

V+3V_D

LED_R LED_B MSEL YOBI

LVDS

FlashMemory IC3301

V+3VACT

PATTERN GEN.

PEG122C-

IC3401

Theater

UART

INP_MUTE

RA, GA, BA

HD, VD, DCLK, DE

VD

HD

H DET

LVDS

D19

V+3V_D

D8D7

V+3V_D

60 DIGITAL ASS'Y

F

D12

D11

AWV2365-

56

1234

PDP-6071PU

5678

4.9 AUDIO ASSY

To POWER SUPPLY UNIT

A

P5

A1

+16.5V

POWER AMP IC

IC3751

LA4625

BUFFER

+16.5V +12V

+12V

REGULATOR

IC3752

PQ120DNA1ZPH

WOW + VOLUME IC

IC3753

NJW1183GK1

+12V

BUFFER

PSW_A

B

+12V

SCL

SDA

C

A2

R_OUT-

R_OUT+

A3

SP1

R OUT

L_OUT-

L OUT

SP TERMINAL ASSY

L_OUT+

DC DETECT

BLOCK

A_Mute

A_STBY_B

R_Audio L_Audio

A_NG_B

AUDIO ASS'Y

To MAIN Assy

D

M9

E

F

56

PDP-6071PU

57

7

8

1234

4.10 SIGNAL BLOCK DIAGRAM

Antenna B

A

Input

MAIN Assy

Antenna A

Input

MONITOR Output

B

Input1

Input2

Input3

C

Input5

V

L/R

V

Y/C

L/R

V

Y/C

Y/Pb/Pr

L/R

Y/Pb/Pr

Analog L/R

U4402

AXF1171(Frontend)

U4401

AXF1169(Frontend)

U6001

AXF1167(Frontend)

AIR_V

SDA_AV SCL_AV

IC4401

74HC4066

IC4402

AN5832SA

AIR_L

IC4701

R2S11002AFT

(AVSW)

AIR_R

GY_SG

AIR_SW

SDA_AV SCL_AV

MAIN_Y/C

BCB_VDEC RCR_VDEC

GY_VDEC

Analog Audio signal Analog Video signal Component signal

Digital Video signal

Digital Audio signal Synchronized signal Data signal Control signal RF signal

SDA_TXT / SCL_TXT

CC_IN2

CC_IN1

VD_TXT

G_CCTXT B_CCTXT R_CCTXT

BLK

SDA_MA SCL_MA

L/R

IC4703

Input2_ Y/Pb/Pr

Input3_

Y/Pb/Pr

Input4_Y/Pb/Pr

PC_RGB

PC_H/V

TC4052

L/R

AU_SW

SW_L/R

L/R

V

L/R

V

L/R

COMP_Y

IC4901

R2S11001FT

(RGBSW)

HDMI_L/RCH

A_MUTE

OPT_L/R

DT_Y

RCR_SG BCB_SG

GY_SG

SDA_AV SCL_AV

SDA_MA

SCL_MA

RCR_AD

BCB_AD

GY_AD

Regular

Analog L/R

REM_B

SR_IN

TXD_SR4

RXD_SR4

IC4704

NJM12904V

Input6

SUB WOOFER

SR_IN

Elite only

SR_OUT

D

PC Input

IO Assy

L/R

V

L/R

Y/Pb/Pr

DT_MON_LR

DT_SW_ L/R

DT_MON_V

Input4

LED IR Assy

SIDE KEY Assy

SIDE Assy

RS232C

CN4006(2/2)

CN4010

REM_B

LED_REC/MDM

KEY_AD1/AD2

LPF

DT_SP_L/R

IC7201

PE5436

(GA)

IC7001

TVP5160

(VDEC)

TXD_SR4 / RXD_SR4

SR_IN TXD/RXD

232C_DET

KEY1/2

IC7101

PCM1803D

B

(ADC)

IC8301 AGC1016(IF UCOM)

E

PC Input

IC6201

BCM3517

F

POD Card

POD Assy

58

1234

OPT Out

PDP-6071PU

IC6301

BCM7038

G-LINK

USB

HNM Assy

(Elite Only)

ETHER USB

5678

A

POWER SUPPLY UNIT

REQ_MVDEC

RST_ASIC

IC4601

PEG150A

(CCD UCOM)

UPD64015AGM

(MAIN VDEC)

EDS1616AGTA

(SDRAM)

AD9985KSTZ

IC5101

EXDIO_VDEC

EXA_VDEC

IC5102

IC5301

(ADC)

CLP_PLS1

CN4008

VD5 HD5

INT_HD1/VD1 EXT_HD1/VD1

M_SW_DET

AC_DET US_SW

DIN3_G DIN3_R DIN3_B

HD_PLL

HOLD_PLL

CLP_AD

DIN5

IC8001

PD6523A

(DIGITAL SELECTOR)

DIN1_RCR

HD3

DIN1_GY

IC8102 EDS6432AFTA (64M SDRAM)

MD_A

VD_M HD_M

CBCR_M

Y_M

RST_IC6

RXD_IC6 TXD_IC6

HD2

VD2

DIN2_RCR

DIN2_BGB

DIN2_GY

VD_S HD_S

RCR/GY/BCB_S

RXD_IC3 TXD_IC3

MA

IC8101

PE5504B

(IP)

RS1_IC2

IC8201

PEG121B

(MULTI)

IC8103

EDS6432AFTA

(64M SDRAM)

MD_B

MGA/MBA/MRA

MVD/MHD

RST_ASIC

EXA

EXDIO

IC8202

AGC1007-

(FLASH)

VIDEO_R0 to9 VIDEO_G0 to9 VIDEO_B0 to9

CLK/HD/VD/DE/THEATER

CN4001

60 DIGITAL

Assy

B

C

D

HD5

SDA_AV

SDA_TXT

SCL_AV

SCL_TXT

LED_ON/OFF

TXD_IF/RXD_IF

RST_DT

CN4006 (1/2)

TXD_DT RXD_DT

IC8402

AGC1006

(FLASH)

MB91305PMC (MAIN UCOM)

A0 to19

DQ0 to15

IC8401

42 & 60

LED Assy

56

IC8407 PQ200WNA1ZPH (FAN CONTROL)

FAN

DEMP

TXD_MD / RXD_MD

TXD_AU / RXD_AU

CN4009

IC5402

PCM1754DBQ

(AUDIO DAC)

IC5401

SII9023CTU

(HDMI)

R1 R0

Input5 HDMI

PDP-6071PU

SDA_MA

SCL_MA

Input6

HDMI

TXD_MD RXD_MD

REQ_MD

E

CN4007

AUDIO_L/R

TXD_AU RXD_AU

AUDIO Assy

F

59

7

8

1234

4.11 DTV BLOCK DIAGRAM

MTB American Digital Tuner Block R07SX (Block Diagram)

A

To POD Ass'y

[CN7301/CN7302]

CIMaX

sp2

[IC7302]

B

C

Logic

Circuit

FLASH

32MBytes

[IC6902]

HSX_0 I2C0

TS3

OOB_Data

EBI BUS

SPDIF Connector

[JA7101]

SPDIF out

G-Link Connector

[JA6901]

I2C1

SDRAM [IC6602] 256Mbit

D

E

F

SDRAM [IC6603] 256Mbit

MEMORY BUS

SDRAM [IC6604] 256Mbit

SDRAM [IC6605] 256Mbit

UARTA

BCM7038KPB1G-B2-K

[IC6301]

DVO [12bit]

Digital Video

Gata ARRY

[IC7201]

From/To Main uCom

60

1234

PDP-6071PU

5678

A/D

[IC6001]

SAW filter

[F6101]

EEPROM

64Kbit

[IC6903]

TS0

RF

AGC

RF in

QPSK IF

Tuner

[U6001]

I2C_TUNER_SCL

QPSK IF

Down Conv.

[IC6101]

BCM3517

KQLGB0-K

[IC6201]

RF Out

IF

I2C_TUNER_SDA

SAW filter

A

To F.E_A

B

[F6001]

IF Amp

[IC6002]

[F6007]

C

IF Amp

[IC6003]

I2S

256Fs

ITU-R656

I2C2

Audio A/D

[IC7101]

VDEC

[IC7001]

SDRAM

[IC7002]

16Mbit

Audio L/R in

CVBS in

Video out for monitor (Y, C)

Audio L/R for monitor

Audio L/R for PANEL (16bit)

From AV_SW

To AV_SW

D

E

56

Digital Video out

PDP-6071PU

To Digital Selecter

F

61

7

8

1234

4.12 FUKUGO BLOCK POWER LINE BLOCK DIAGRAM

A

AUDIO Assy

+16_5V

POWER AMP

IC3751

CN3751

B

POWER SUPPLY UNIT

LA4625

16.5V → 12V

IC3752

PQ120DNA1ZPH

+12V

WOW+VOL IC IC3753 NJW1183GK1

60 IR Assy

V+5.1V_STB

CN9801

IR IC9801 SBX3050-01

MAIN Assy

C

SIDE KEY Assy

V+3.3V_STB

KEY Block S9501 to S9507

CN9501

MAIN Assy

D

E

F

62

1234

PDP-6071PU

5678

4.13 POWER SUPPLY UNIT

A

P9

STB3.3V

STB5.1V

Reg.

Series

Block

+35V

P8

+16.5V

+6.5V

DC/DC

+5.1V

Cvt.

DC/DC

Cvt.

+12V

P5

+16.5V

Voltage

Doubler

P4

RELAY

STB3.3V

+12V

PS_PD

EXT_PD

PD_TRIG_B

P1

Vsus

+16.5V

+6.5V

P2

Vsus

+16.5V

+6.5V

P6

Vadr

+12V

Conv.

P7

Vadr

+12V

B

C

Sub Converter

P11

SHORT

Resonant Conv.

Block1

Vcc Conv.

PFC Block

P10

Relay

POWER SUPPLY UNIT

Filter

Block

sus Conv.

Resonant Conv.

Block2

V

Resonant Conv.

Block3

Vadr

D

E

AC120V

56

PDP-6071PU

F

63

7

8

1234

4.14 VOLTAGES

CN8802(AKM1349- -TBB)(T2)

A

No. Name Name No. No. Name Name No.

1 INPUT2_PR 2.5 INPUT2_PR 50 1 MON_OUT_V 1.5 MON_OUT_V 40 2 GND 0 GND 49 2 GND 0 GND 39 3 INPUT2_PB 2.5 INPUT2_PB 48 3 INPUT1_L 4.5 INPUT1_L 38 4 GND 0 GND 47 4 GND 0 GND 37 5 INPUT2_Y 2.5 INPUT2_Y 46 5 INPUT1_R 4.1 INPUT1_R 36 6 GND 0 GND 45 6 GND 0 GND 35 7 INPUT2_PLUG 2.5 INPUT2_PLUG 44 7 INPUT2_L 4.5 INPUT2_L 34 8 GND 0 GND 43 8 GND 0 GND 33

9 INPUT3_PR 2.5 INPUT3_PR 42 9 INPUT2_R 4.5 INPUT2_R 32 10 GND 0 GND 41 10 GND 0 GND 31 11 INPUT3_PB 2.5 INPUT3_PB 40 11 SW_OUT 0.5 SW_OUT 30

B

12 GND 0 GND 39 12 GND 0 GND 29 13 INPUT3_Y 2.5 INPUT3_Y 38 13 MON_OUT_L 0.7 MON_OUT_L 28 14 GND 0 GND 37 14 GND 0 GND 27 15 INPUT6_L 4.6 INPUT6_L 36 15 MON_OUT_R 1 MON_OUT_R 26 16 GND 0 GND 35 16 GND 0 GND 25 17 INPUT6_R 4.6 INPUT6_R 34 17 REM_B 4.8 REM_B 24 18 GND 0 GND 33 18 SR_IN 4.8 SR_IN 23 19 INPUT5_L 4.6 INPUT5_L 32 19 TXD_SR4 3.2 TXD_SR4 22 20 GND 0 GND 31 20 RXD_SR4 3.2 RXD_SR4 21 21 INPUT5_R 4.6 INPUT5_R 30 21 GND 0 GND 20 22 GND 0 GND 29 22 PC_LCH 4.6 PC_LCH 19 23 INPUT3_L 4.6 INPUT3_L 28 23 GND 0 GND 18

C

24 GND 0 GND 27 24 PC_RCH 4.6 PC_RCH 17 25 INPUT3_R 4.6 INPUT3_R 26 25 GND 0 GND 16 26 GND 0 GND 25 26 GND 0 GND 15 27 INPUT1_V 2.6 INPUT1_V 24 27 V+5V_A 4.9 V+5V_A 14 28 GND 0 GND 23 28 INPUT4_PLUG 4.9 INPUT4_PLUG 13 29 INPUT1_SC 2.1 INPUT1_SC 22 29 GND 0 GND 12 30 INPUT1_S2 0.2 INPUT1_S2 21 30 INPUT4_Y 2.5 INPUT4_Y 11 31 INPUT1_SPLUG 4.9 INPUT1_SPLUG 20 31 GND 0 GND 10 32 INPUT1_SY 2.6 INPUT1_SY 19 32 INPUT4_PB 2.5 INPUT4_PB 9 33 GND 0 GND 18 33 GND 0 GND 8 34 INPUT2_V 2.6 INPUT2_V 17 34 INPUT4_PR 2.5 INPUT4_PR 7

D

35 GND 0 GND 16 35 GND 0 GND 6 36 INPUT2_SC 2.1 INPUT2_SC 15 36 INPUT4_V 2.5 INPUT4_V 5 37 INPUT2_S2 0.2 INPUT2_S2 14 37 GND 0 GND 4 38 INPUT2_SPLUG 4.7 INPUT2_SPLUG 13 38 INPUT4_L 4.5 INPUT4_L 3 39 INPUT2_SY 2.3 INPUT2_SY 12 39 GND 0 GND 2 40 GND 0 GND 11 40 INPUT4_R 4.5 INPUT4_R 1 41 GND 0 GND 10 42 GND 0 GND 9 43 GND 0 GND 8 44 GND 0 GND 7 45 GND 0 GND 6 46 GND 0 GND 5

E

47 TEMP_2 2.2 TEMP_2 4 48 V+9V_A 9.2 V+9V_A 3 49 V+9V_A 9.2 V+9V_A 2 50 V+3.3V_UCOM 3.3 V+3.3V_UCOM 1

Voltage

MTB MAIN AssyTANSHI Assy TANSHI Assy MTB MAIN Assy CN4004(AKM1349- -TBB)(M7)

(V)

CN8803(AKM1348- -TBB)(T1)

Voltage

CN4005(AKM1348- -TBB)(M6)

(V)

F

64

1234

PDP-6071PU

5678

CN9002(AKM1348- -TBB)(C1)(

No. Name Name No. No. Name Name No.

1 GND 0 GND 1 1 GND 0 GND 1 2 GND 0 GND 2 2 GND 0 GND 2 3 MD3 0 MD3 3 3 VPP 3.3 VPP 3 4 CD1A 3.3 CD1A 4 4 VPP 3.3 VPP 4 5 MD4 3.3 MD4 5 5 MIVALA 0 MIVALA 5 6 MDOA3 0 MDOA3 6 6 MDIA4 0 MDIA4 6 7 MD5 0 MD5 7 7 GND 0 GND 7 8 MDOA4 0 MDOA4 8 8 MICLKA 0 MICLKA 8

9 MD6 3.3 MD6 9 9 GND 0 GND 9 10 MDOA5 0 MDOA5 10 10 MDIA5 0 MDIA5 10 11 MD7 3.3 MD7 11 11 MA12 0 MA12 11 12 MDOA6 0 MDOA6 12 12 MDIA6 0 MDIA6 12 13 CE1A 3.3 CE1A 13 13 TX_Q 0 TX_Q 13 14 MDOA7 0 MDOA7 14 14 MDIA7 0 MDIA7 14 15 MA10 0 MA10 15 15 TX_EN 0 TX_EN 15 16 CE2A 3.3 CE2A 16 16 POD_VS2 3.3 POD_VS2 16 17 OE 3.3 OE 17 17 YX_I 3.3 YX_I 17 18 POD_VS1 3.3 POD_VS1 18 18 RSTA 0 RSTA 18 19 MA11 0 MA11 19 19 OOB_EN 0 OOB_EN 19 20 IORD 3.3 IORD 20 20 WAITA 3.3 WAITA 20 21 POB_DATA 0 POB_DATA 21 21 MA3 0 MA3 21 22 IOWR 3.3 IOWR 22 22 DSUB_DET 0 DSUB_DET 22 23 GND 0 GND 23 23 MA2 0 MA2 23 24 POB_CLK 3.3 POB_CLK 24 24 REG 3.3 REG 24 25 GND 0 GND 25 25 MA1 3.3 MA1 25 26 MISTRTA 0 MISTRTA 26 26 MOVALA 0 MOVALA 26 27 MA13 3.3 MA13 27 27 MA0 0 MA0 27 28 MDIA0 0 MDIA0 28 28 MOSTRTA 0 MOSTRTA 28 29 GND 0 GND 29 29 MDO 0 MDO 29 30 MOCLKA 0 MOCLKA 30 30 MDOA0 0 MDOA0 30 31 GND 0 GND 31 31 MD1 0 MD1 31 32 MDIA1 0 MDIA1 32 32 MDOA1 3.3 MDOA1 32 33 WE 3.3 WE 33 33 MD2 3.3 MD2 33 34 MDIA2 0 MDIA2 34 34 MDOA2 0 MDOA2 34 35 RDY/IRQA 3.3 RDY/IRQA 35 35 WE_ROM 0 WE_ROM 35 36 MDIA3 0 MDIA3 36 36 CD2A 3.3 CD2A 36 37 VCC 3.3 VCC 37 37 GND 0 GND 37 38 VCC 3.3 VCC 38 38 V+3.3V_UCOM 3.4 V+3.3V_UCOM 38 39 VCC 3.3 VCC 39 39 TEMP2_P 2.2 TEMP2_P 39 40 GND 0 GND 40 40 GND 0 GND 40

Voltage

MTB MAIN Ass'yPOD Assy CN7301(AKM1354- -TFB)

(V)

(M11)

POD Assy MTB MAIN Assy CN9001(AKM1348- -TBB)(C2)

Voltage

CN7302(AKM1354- -TFB)

(V)

(M12)

A

B

C

D

56

POD Assy

CN9003(CKS3826-) (C3)

No. Name Name No.

12 PC_H 0 PC_H 12 11 PC_V 0 PC_V 11 10 GND 0 GND 10

9 PC_B 2.4* PC_B 9 8 GND 0 GND 8 7 PC_G 2.4* PC_G 7 6 GND 0 GND 6 5 PC_R 2.4* PC_R 5 4 GND 0 GND 4 3 V+5V_A 5 V+5V_A 3 2 GND 0 GND 2 1 V+9V_A 9.2 V+9V_A 1

* When PC signal is not inputted.

PDP-6071PU

MTB MAIN Assy

Voltage

(V)

CN4013(AKM1233- -TBB)

(M10)

E

F

65

7

8

1234

AUDIO Assy CN3752(KM200NA11)

A

No. Name Name No. No. Name Name No.

11 PSW_A 2.8 PSW_A 11 1 V+6.5V 6.9 V+6.5V 1 10 SDA_AU 3.4 SDA_AU 10 2 GND 0 GND 2

9 SCL_AU 3.4 SCL_AU 9 3 V+12V 12.2 V+12V 3 8 A_MUTE 0 A_MUTE 8 4 GND 0 GND 4 7 A_STBY_B 3.3 A_STBY_B 7 5 V+16.5V 17.3 V+16.5V 5 6 GND 0 GND 6 6 GND 0 GND 6 5 AUDIO_R 0 AUDIO_R 5 7 V+5_1V 5.1 V+5_1V 7 4 GND 0 GND 4 8 V+5_1V 5.1 V+5_1V 8 3 AUDIO_L 0 AUDIO_L 3 9 V+5_1V 5.1 V+5_1V 9 2 GND 0 GND 2 10 V+5_1V 5.1 V+5_1V 10 1 A_NG_B 2.8 A_NG_B 1 11 GND 0 GND 11

B

60 IR Assy/SIDE KEY Assy

(A2) (M9)

Voltage

CN9801(RE1) / CN9501(SW1)

No.

Connector

Name Name No.

CN4007(KM200NA11)

(V)

Voltage

(V)

MTB MAIN Assy

(M8)

CN4010(KM200NA7)

2CN9801 REM 0 REM 7 6CN9801 GND 0 GND 6 1CN9801 4CN9501

V+5.1V_STB V+3.3V_STB

5

3.4

V+5.1V_STB V+3.3V_STB

5

4 3CN9501 KEY_AD1 3.4 KEY_AD1 3 2CN9501 KEY_AD2 3.4 KEY_AD2 2 1CN9501 GND 0 GND 1

C

42 & 60 LED Assy

CN9601(L1)

No. Name Name No.

Voltage

(V)

MTB MAIN Assy

CN4006(KM200NA6)

(M5)

1 LED- 0.2 LED- 1 2 LED_ON 3.4 LED_ON 2 3 LED_OFF 0 LED_OFF 3 4 LED_REC 0 LED_REC 4 5 LED_MDM 0 LED_MDM 5 6 LED- 0.2 LED- 6

POWER SUPPLY UNIT

P8(B13B-PH-K-S)

12 GND 0 GND 12 13 GND 0 GND 13

POWER SUPPLY UNIT P9(B11B-PH-K-S)

No. Name Name No.

1 M_SW_DET 3.2 M_SW_DET 1 2 AC_DET 2.9 AC_DET 2 3 N.C. 3.35 N.C.(RELAY) 3

4 GND-D 0 GND 4 5 STB3.3V 3.3 V+3.3V_STB 5 6 GND-D 0 GND 6

7 STBY5.1V 5.1 V+5.1V_STB 7 8 GND-D 0 GND 8 9 +35V 37.3 V+35V 9

10 GND-D 0 GND 10 11 US-SW 2.3 US-SW 11

FAN

No. Name Name No.

Voltage

MTB MAIN AssyMTB MAIN Assy

CN4002(KM200NA13) (M2)

(V)

MTB MAIN Assy CN4008(KM200NA11) (M3)

(V)

MTB MAIN Assy CN4009(AKM1274- -TBB)(M4)

(V)

7.7/11 FAN_VCC 1 0 FAN_NG1 2 0 GND 3

D

TRAP-SW

Voltage

No. Name Name No.

MTB MAIN Assy CN4018(AKM1213- -TFB)

(V)

3.3 TRAP_SW 1 NC 2

3.3 V+3_3V_UCOM 3

(M13)

E

F

66

1234

PDP-6071PU

USB

No. Name Name No.

Voltage

MTB MAIN Assy CN7101(AKM1276- -TBB)

(V)

5.0 VBUS 1

0D-2 0D+3 0 GND 4 0 SHILD 5

(M16)

5678

60 DIGITAL ASSY

CN3001 (D11) ↔ MAIN ASSY CN4001 (M1)

Pin No. Pin Name I/O Function Voltage (V) TP

1 GND – GND 2 V+3.3V_UCOM2 I Power supply for module microcomputer 3.3 3 INP_MUTE O Output bufffer control signal of MAIN assy 4 THEATER I Control signal for pure cinema 0 5VDIVertical synchronized signal 0 to 3.3 6HDIHorizontal synchronized signal 0 to 3.3 7DEIData enable signal 8 GND – GND

9 CLK I Data clock signal 10 GND – GND 11 GND – GND 12 VIDEO_R9 I 10 bit video signal input (RED) 0 to 3.3 13 VIDEO_R8 I 10 bit video signal input (RED) 0 to 3.3 14 VIDEO_R7 I 10 bit video signal input (RED) 0 to 3.3 15 VIDEO_R6 I 10 bit video signal input (RED) 0 to 3.3 16 VIDEO_R5 I 10 bit video signal input (RED) 0 to 3.3 17 VIDEO_R4 I 10 bit video signal input (RED) 0 to 3.3 18 VIDEO_R3 I 10 bit video signal input (RED) 0 to 3.3 19 VIDEO_R2 I 10 bit video signal input (RED) 0 to 3.3 20 VIDEO_R1 I 10 bit video signal input (RED) 0 to 3.3 21 VIDEO_R0 I 10 bit video signal input (RED) 0 to 3.3 22 GND – GND 23 VIDEO_G9 I 10 bit video signal input (GREEN) 0 to 3.3 24 VIDEO_G8 I 10 bit video signal input (GREEN) 0 to 3.3 25 VIDEO_G7 I 10 bit video signal input (GREEN) 0 to 3.3 26 VIDEO_G6 I 10 bit video signal input (GREEN) 0 to 3.3 27 VIDEO_G5 I 10 bit video signal input (GREEN) 0 to 3.3 28 VIDEO_G4 I 10 bit video signal input (GREEN) 0 to 3.3 29 VIDEO_G3 I 10 bit video signal input (GREEN) 0 to 3.3 30 VIDEO_G2 I 10 bit video signal input (GREEN) 0 to 3.3 31 VIDEO_G1 I 10 bit video signal input (GREEN) 0 to 3.3 32 VIDEO_G0 I 10 bit video signal input (GREEN) 0 to 3.3 33 GND – GND 34 VIDEO_B9 I 10 bit video signal input (BLUE) 0 to 3.3 35 VIDEO_B8 I 10 bit video signal input (BLUE) 0 to 3.3 36 VIDEO_B7 I 10 bit video signal input (BLUE) 0 to 3.3 37 VIDEO_B6 I 10 bit video signal input (BLUE) 0 to 3.3 38 VIDEO_B5 I 10 bit video signal input (BLUE) 0 to 3.3 39 VIDEO_B4 I 10 bit video signal input (BLUE) 0 to 3.3 40 VIDEO_B3 I 10 bit video signal input (BLUE) 0 to 3.3 41 VIDEO_B2 I 10 bit video signal input (BLUE) 0 to 3.3 42 VIDEO_B1 I 10 bit video signal input (BLUE) 0 to 3.3 43 VIDEO_B0 I 10 bit video signal input (BLUE) 0 to 3.3 44 GND – GND 45 RESERVE (N.C.) – Reserve 46 AC_OFF (N.C.) O AC state input 47 TXD_MD O UART communication with MAIN u-com 48 RXD_MD I UART communication with MAIN u-com 49 REQ_MD O Communication demand to main system 50 MODE O Detection of MAIN Assy connection

–

0

0 to 3.3

–

0 to 3.3

– –

–

– –

0 0 to 3.3 0 to 3.3 0 to 3.3

0

TP3002 TP3017 TP3021 TP3037 TP3036 TP3035

TP3034

TP3059 TP3058 TP3057 TP3056 TP3055 TP3054 TP3053 TP3052 TP3051 TP3050

TP3069 TP3068 TP3067 TP3066 TP3065 TP3064 TP3063 TP3062 TP3061 TP3060

TP3079 TP3078 TP3077 TP3076 TP3075 TP3074 TP3073 TP3072 TP3071 TP3070

TP3039 TP3020 TP3166 TP3163 TP3016

A

–

– –

–

B

C

D

E

56

PDP-6071PU

F

67

7

8

1234

CN3151 (D24) ↔ SENSOR ASSY CN3651 (TE1)

Pin No. Pin Name I/O Function Voltage (V) TP

A

1 2 3 4 5

V+3.3V_EEP E_SCL E_SDA TEMP1 GND

O Power supply output for memory 3.3 O IIC communication clock signal 0 to 3.3 O IIC communication data signal 0 to 3.3

I Panel temperature sensor signal 0.8

– GND

–

CN3601 (D21) ↔ POWER SUPPLY UNIT (P4)

Pin No. Pin Name I/O Function Voltage (V) TP

1

B

C

2 3 4 5 6 7 8

9 10 11 12 13 14

V+12V V+12V GND GND V+3.3V_STB GND M_SW_DET EXT_PD VSUS_ADJ PS_PD RELAY DRF_B AC_DET PD_TRG_B

I +12 V power supply input 12 TP3505

I +12 V power supply input 12 TP3506 – GND – TP3608 – GND – –

I STB3.3 V power supply input 3.3 TP3638 – GND – –

I Mechanism switch detection signal input 3.3 TP3639

O Power down signal 0 TP3632 O VSUS power supply adjustment signal 1.7 TP3633

I Power supply PD signal 0 TP3634

O Relay control 3.3 TP3626 O Large power supply ON/OFF control signal 3.3 TP3616

I AC power supply state input 3.3 TP3635

I Power down trigger signal 3.3 TP3636

TP3159 TP3168 TP3169 TP3161

–

D

E

F

68

1234

PDP-6071PU

5678

CN3501 (D5) ↔ 60 ADDRESS L ASSY CN1602 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 3.3 39 DIV_0 O Data output timing control 0 40 GND – GND

––

0 to 3.3

– –

– – –

–

TP3501

A

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

B

C

D

56

PDP-6071PU

E

F

69

7

8

1234

A

CN3502 (D6) ↔ 60 ADDRESS S ASSY CN1802 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

B

C

D

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 0 39 DIV_0 O Data output timing control 3.3 40 GND – GND

–

0 to 3.3

– –

– – –

–

TP3502

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

E

F

70

1234

PDP-6071PU

5678

CN3503 (D7) ↔ 60 ADDRESS S ASSY CN1802 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 0 39 DIV_0 O Data output timing control 0 40 GND – GND

–

0 to 3.3

– –

– – –

–

TP3503

A

–

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

B

C

D

56

PDP-6071PU

E

F

71

7

8

1234

A

CN3504 (D8) ↔ 60 ADDRESS L ASSY CN1602 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

B

C

D

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 3.3 39 DIV_0 O Data output timing control 0 40 GND – GND

–

0 to 3.3

– –

– – –

– –

–

– –

–

TP3504

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

E

F

72

1234

PDP-6071PU

5678

CN3507 (D16) ↔ 60 ADDRESS L ASSY CN1602 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 3.3 39 DIV_0 O Data output timing control 0 40 GND – GND

––

0 to 3.3

– –

– – –

–

TP3520

A

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

B

C

D

56

PDP-6071PU

E

F

73

7

8

1234

A

CN3508 (D17) ↔ 60 ADDRESS S ASSY CN1802 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

B

C

D

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 0 39 DIV_0 O Data output timing control 3.3 40 GND – GND

–

0 to 3.3

– –

– – –

–

TP3521

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

E

F

74

1234

PDP-6071PU

5678

CN3509 (D18) ↔ 60 ADDRESS S ASSY CN1802 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 0 39 DIV_0 O Data output timing control 0 40 GND – GND

–

0 to 3.3

– –

– – –

–

TP3522

A

–

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

B

C

D

56

PDP-6071PU

E

F

75

7

8

1234

A

CN3510 (D19) ↔ 60 ADDRESS L ASSY CN1602 (AD1)

Pin No. Pin Name I/O Function Voltage (V) TP

1NC–Non connection 2 ADR_PD I Address PD signal 3NC–Non connection – 4 GND – GND 5NC–Non connection 6NC–Non connection – 7 GND – GND – 8 GND_LVDS – GND

B

C

D

9NC–Non connection 10 TA– O LVDS data 1 to 1.4 11 TA+ O LVDS data 1 to 1.4 12 NC – Non connection 13 GND_LVDS – GND 14 NC – Non connection 15 TB– O LVDS data 1 to 1.4 16 TB+ O LVDS data 1 to 1.4 17 NC – Non connection 18 GND_LVDS – GND 19 NC – Non connection 20 TC– O LVDS data 1 to 1.4 21 TC+ O LVDS data 1 to 1.4 22 NC – Non connection 23 GND_LVDS – GND 24 NC – Non connection 25 TCLK– O LVDS data 1 to 1.4 26 TCLK+ O LVDS data 1 to 1.4 27 NC – Non connection 28 GND_LVDS – GND 29 NC – Non connection 30 TD– O LVDS data 1 to 1.4 31 TD+ O LVDS data 1 to 1.4 32 NC – Non connection 33 GND_LVDS – GND 34 GND – GND 35 V+3V_D O +3.3 V power supply output 3.3 36 V+3V_D O +3.3 V power supply output 3.3 37 GND – GND 38 DIV_1 O Data output timing control 3.3 39 DIV_0 O Data output timing control 0 40 GND – GND

–

0 to 3.3

– –

– – –

– –

–

– –

–

TP3522

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

E

F

76

1234

PDP-6071PU

5678

60 DIGITAL ASSY

60 X DRIVE ASSY

D9 : CN505 (AKM1348) X1: CN1001 (AKM1348)

Pin No. Name Voltage [V] Name Pin No. Function TP

1 XDD_PD 0 XDD_PD 40 X DRIVE PD signal input TP3513 2NC-NC 39 Non-connection termial 3 DGND 0 DGND 38 GND 4 XSUS-B 0 to 3.3 XSUS-B 37 X DRIVE control signal output 5 DGND 0 DGND 36 GND 6 XSUS-U 0 to 3.3 XSUS-U 35 X DRIVE control signal output 7 DGND 0 DGND 34 GND 8 XSUS-D 0 to 3.3 XSUS-D 33 X DRIVE control signal output

9 DGND 0 DGND 32 GND 10 XSUS-G 0 to 3.3 XSUS-G 31 X DRIVE control signal output 11 DGND 0 DGND 30 GND 12 XNR-D 0 to 3.3 XNR-D 29 X DRIVE control signal output 13 DGND 0 DGND 28 GND 14 XSUS-MSK 0 to 3.3 XSUS-MSK 27 X DRIVE control signal output 15 DGND 0 DGND 26 GND 16 SUS_MUTE 0 SUS_MUTE 25 X DRIVE mute signal input 17 DGND 0 DGND 24 GND 18 XDRV_PD 0 XDRV_PD 23 X DRIVE PD signal input TP3514 19 DGND 0 DGND 22 GND 20 XResv2 - XResv2 21 X DRIVE control signal output (Reserve) 21 XResv3 - XResv3 20 X DRIVE control signal output (Reserve) 22 XResv4 - XResv4 19 X DRIVE control signal output (Reserve) 23 DGND 0 DGND 18 GND 24 PSW2 0 PSW2 17 Function standby control signal TP3516 25 NC - NC 16 Non-connection termial 26 NC - NC 15 Non-connection termial 27 NC - NC 14 Non-connection termial 28 NC - NC 13 Non-connection termial 29 NC - NC 12 Non-connection termial 30 NC - NC 11 Non-connection termial 31 NC - NC 10 Non-connection termial 32 NC - NC 9 Non-connection termial 33 NC - NC 8 Non-connection termial 34 NC - NC 7 Non-connection termial 35 NC - NC 6 Non-connection termial 36 NC - NC 5 Non-connection termial 37 NC - NC 4 Non-connection termial 38 DRF_SW 3.3 DRF_SW 3 DRIVE OFF signal input TP3623 39 NC - NC 2 Non-connection termial 40 XSUS_PD 0 XSUS_PD 1 X DRIVE PD signal input TP3515

A

B

C

D

56

PDP-6071PU

E

F

77

7

8

1234

60 DIGITAL ASSY

A

D10 : CN3506 (AKM1348) Y1: CN2001 (AKM1348)

Pin No. Name Voltage [V] Name Pin No. Function

1 SCN5V_PD 0 SCN5V_PD 40 Y DRIVE PD signal input TP3507 2NC-NC 39 Non-connection termial 3 CLK_H 0 to 3.3 CLK1 38 SCAN control signal output 4 SI_H 0 to 3.3 SI_H 37 SCAN control signal output 5 SI_L 0 to 3.3 SI_L 36 SCAN control signal output 6 DGND 0 DGND 35 GND 7 CLR 0 to 3.3 CLR 34 SCAN control signal output 8 CLK_L 0 to 3.3 CLK2 33 SCAN control signal output 9 DGND 0 DGND 32 GND

10 LE 0 to 3.3 LE 31 SCAN control signal output

B

11 OC2_U 0 to 3.3 OC2_U 30 SCAN control signal output 12 OC1(-1) 0 to 3.3 OC1 29 SCAN control signal output 13 DGND 0 DGND 28 GND 14 YSUS-B 0 to 3.3 YSUS-B 27 Y DRIVE control signal output 15 YSUS-U 0 to 3.3 YSUS-U 26 Y DRIVE control signal output 16 DGND 0 DGND 25 GND 17 YSUS-D 0 to 3.3 YSUS-D 24 Y DRIVE control signal output 18 YSUS-G 0 to 3.3 YSUS-G 23 Y DRIVE control signal output 19 DGND 0 DGND 22 GND 20 YPR-U 0 to 3.3 YPR-U 21 Y DRIVE control signal output TP3508 21 SUS_MUTE 0 SUS_MUTE 20 Y DRIVE mute signal output 22 DGND 0 DGND 19 GND

C

23 YSUS-MSK 0 to 3.3 YSUS-MSK 18 Y DRIVE control signal output 24 YNRST 0 to 3.3 YNRST 17 Y DRIVE control signal output 25 YRSV2 - YRSV2 16 Y DRIVE control signal output (Reserve) 26 DGND 0 DGND 15 GND 27 YENOFS 0 to 3.3 YNOFS 14 Y DRIVE control signal output 28 YRSV3 - YRSV3 13 Y DRIVE control signal output (Reserve) 29 YSOFT-D 0 to 3.3 YSOFT-D 12 Y DRIVE control signal output 30 OC2_D 0 to 3.3 OC2_D 11 SCAN control signal output 31 DGND 0 DGND 10 GND 32 VOFS_ADJ 1.85 VOFS_ADJ 9 Vofs offset adjustment signal output TP3181 33 VYPRST_ADJ 1.21 VYPRST_ADJ 8 Reset voltage adjustment signal output TP3182 34 DGND 0 DGND 7 GND

D

35 PSW2 0 PSW2 6 Function standby control signal TP3516 36 SCAN_PD 0 SCAN_PD 5 Y DRIVE PD signal input TP3509 37 YDD_PD 0 YDD_PD 4 Y DRIVE PD signlal input TP3510 38 YSUS_PD 0 YSUS_PD 3 Y DRIVE PD signlal input TP3511 39 NC - NC 2 Non-connection termial 40 YDRV_PD 0 YDRV_PD 1 Y DRIVE PD signal input TP3512

60 Y DRIVE ASSY

E

F

78

1234

PDP-6071PU

5678

60 Y DRIVE ASSY

60 ADDRESS L/S ASSY

Y6: CN2354 (AKM1281) AD2: CN1801 (AKM1291)

Y8: CN2356 (AKM1281) AD2: CN1601 (AKM1291)

Pin No. Name Voltage [V] Name Pin No. Function

1 GND_D 0 GND_D 1 GND

2 5V 5 5V 2 5V power supply

3 8V 8 8V 3 8V power supply

4 GND_ADR 0 GND_ADR 4 GND

5 +60V 60 +60V 5 60V power supply

6 +60V 60 +60V 1 60V power supply

7 GND_ADR 0 GND_ADR 2 GND

8 8V 8 8V 3 8V power supply

9 5V 5 5V 4 5V power supply 10 GND_D 0 GND_D 5 GND

60 Y DRIVE ASSY

607 SCAN B ASSY

Y2: CN2402 (AKM1200) SB1: CN2901 (AKP1261)

Pin No. Name Voltage [V] Name Pin No. Function

1 VH 130 VH 1 Power supply for VH

2 VH 130 VH 2 Power supply for VH

3NC -NC 3 Non-connection termial

4 NC - NC 4 Non-connection termial

5 NC - NC 5 Non-connection termial

6 GNDH -60 300 GNDH 6 GND(PSUS)

7 SI_H -60 300 SI_H 7 SI_H signal

8 CLR -60 300 CLR 8 CLR signal

9 OC2 -60 300 OC2 9 OC2 signal 10 OC1 -60 300 OC1 10 OC1 signal 11 CLK1 -60 300 CLK1 11 CLK1 signal 12 LE -60 300 LE 12 LE signal 13 GNDH -60 300 GNDH 13 GND(PSUS) 14 GNDH_R -60 300 GNDH_R 14 GND(PSUS). Connector detection 15 IC5V -60 300 IC5V 15 IC5V power supply

A

B

C

D

E

F

56

PDP-6071PU

79

7

8

1234

60 Y DRIVE ASSY

A

Y3: CN2401 (AKM1200) SA1: CN2801 (AKP1261)

Pin No. Name Voltage [V] Name Pin No. Function

1 VH 130 VH 1 Power supply for VH 2 VH 130 VH 2 Power supply for VH 3 NC - NC 3 Non-connection termial 4 NC - NC 4 Non-connection termial 5 NC - NC 5 Non-connection termial 6 GNDH -60 300 GNDH 6 GND(PSUS) 7 SI_L -60 300 SI_L 7 SI_L signal 8 CLR -60 300 CLR 8 CLR signal 9 OC2 -60 300 OC2 9 OC2 signal

B

10 OC1 -60 300 OC1 10 OC1 signal 11 CLK2 -60 300 CLK2 11 CLK2 signal 12 LE -60 300 LE 12 LE signal 13 GNDH -60 300 GNDH 13 GND(PSUS) 14 GNDH_R -60 300 GNDH_R 14 GND(PSUS).Connector detection 15 IC5V -60 300 IC5V 15 IC5V power supply

60 Y DRIVE ASSY

607 SCAN A ASSY

POWER SUPPLY UNIT

Y4: CN2351 (B9B-EH) P1: (B9B-EH)

Pin No. Name Voltage [V] Name Pin No. Function

1NC - NC 1 Non-connection termial

C

2 +16_5V 16.5 +16_5V 2 16.5V power supply 3 +6_5V 6.5 +6_5V 3 6.5V power supply 4 GND_D 0 GND_D 4 GND 5 GND_SUS 0 GND_SUS 5 GND 6 GND_SUS 0 GND_SUS 6 GND 7 NC - NC 7 Non-connection termial 8 VSUS 207 VSUS 8 VSUS power supply 9 VSUS 207 VSUS 9 VSUS power supply

60 Y DRIVE ASSY

POWER SUPPLY UNIT

Y5 : CN2353 (AKM1277) P7: (B7B-PH-K-S)

D

Pin No. Name Voltage [V] Name Pin No. Function

1 +60V 60 +60V 1 60V power supply 2 +60V 60 +60V 2 60V power supply 3 NC - NC 3 Non-connection termial 4 GND_ADR 0 GND_ADR 4 GND 5 +12V 12 +12V 5 12V power supply 6 GND_D 0 GND_D 6 GND

NC 7 Non-connection termial

60 X DRIVE ASSY

POWER SUPPLY UNIT

X2: (CN1206 B8B-EH) P2: (B8B-EH)

E

Pin No. Name Voltage [V] Name Pin No. Function

1 +16_5V 16.5 +16_5V 1 16.5V power supply 2 +6_5V 6.5 +6_5V 2 6.5V power supply 3 GND_D 0 GND_D 3 GND 4 GND_SUS 0 GND_SUS 4 GND 5 GND_SUS 0 GND_SUS 5 GND 6 NC - NC 6 Non-connection termial 7 VSUS 207 VSUS 7 VSUS power supply 8 VSUS 207 VSUS 8 VSUS power supply

F

80

1234

PDP-6071PU

5678

60 X DRIVE ASSY

X5: CN1204 (AKM1277) P6: (B6B-PH-K-S)

Pin No. Name Voltage [V] Name Pin No. Function

1 +60V 60 +60V 1 60V power supply

2 +60V 60 +60V 2 60V power supply

3NC - NC 3 Non-connection termial

4 GND_ADR 0 GND_ADR 4 GND

5 +12V 12 +12V 5 12V power supply

6 GND_D 0 GND_D 6 GND

60 X DRIVE ASSY

X3: CN1201 (AKM1281) AD2: CN1601 (AKM1291)

X6: CN1203 (AKM1281) AD2: CN1801 (AKM1291)

Pin No. Name Voltage [V] Name Pin No. Function

1 GND_D 0 GND_D 1 GND

2 5V 5 5V 2 5V power supply

3 8V 8 8V 3 8V power supply

4 GND_ADR 0 GND_ADR 4 GND

5 +60V 60 +60V 5 60V power supply

6 +60V 60 +60V 1 60V power supply

7 GND_ADR 0 GND_ADR 2 GND

8 8V 8 8V 3 8V power supply

95V55V 4 5V power supply 10 GND_D 0 GND_D 5 GND

POWER SUPPLY UNIT

60 ADDRESS L/S ASSY

A

B

C

AUDIO ASSY CN3752 (A2) ↔ MAIN ASSY CN4007 (M9)

Pin No. Pin Name I/O Function Remarks

1 A_NG_B O DC detection, disconnection of cable detection L : Abnormal, H : Normal 2 GND – GND for small signal – 3 AUDIO_L I Small signal L ch – 4 GND – GND for small signal – 5 AUDIO_R I Small signal R ch – 6 GND – GND for small signal – 7 A_STBY_B I MUTE ON/OFF signal for LA4625 IC internal circuit L : Standby, H : ON 8 A_MUTE I MUTE ON/OFF signal for LA4625 IC external circuit L : MUTE OFF, H : MUTE

9 SCL_AU I CLK of I2C for NJW1183GK1 IC – 10 SDA_AU I/O DATA of I2C for NJW1183GK1 IC – 11 PSW_A I ON/OFF switch for 12 V regulator IC L : OFF, H : ON

AUDIO ASSY CN3751 (A1) ↔ POWER SUPPLY UNIT (P5)

Pin No. Pin Name I/O Function Remarks

1 +16.5V – Power supply (16.5 V) for LA4625 IC –

2 GND_D – Return GND for LA4625 IC –

3 GND_D – Return GND for LA4625 IC –

AUDIO ASSY CN3753 (A3) ↔ SP TERMINAL ASSY CN3901 (SP1)

Pin No. Pin Name I/O Function Remarks

1 RH+ O Tweeter output R+ –

2 RL+ O Woofer output R+ (Speaker output R+) –

3 RH– O Tweeter output R– –

4 RL– O Woofer output R– (Speaker output R–) –

5 LL+ O Woofer output L+ (Speaker output L+) –

6 LH+ O Tweeter output L+ –

7 LL– O Woofer output L– (Speaker output L–) –

8 LH– O Tweeter output L– –

D

E

F

56

PDP-6071PU

81

7

8

1234

A

SIDE KEY ASSY CN9501 (SW1) ↔ MAIN ASSY CN4010 (M8)

Pin No. Pin Name I/O Function Remarks

1 GND – GND – 2 KEY_AD2 O KEY voltage 2 – 3 KEY_AD1 O KEY voltage 1 – 4 V+3.3V_STB – Standby 3.3 V power supply –

42 & 60 LED ASSY CN9601(L1) ↔ MAIN ASSY CN4006 (M5)

Pin No. Pin Name I/O Function Remarks

1 LED– – LED signal return –

B

2 LED_ON I LED control for power ON H : LED_ON, L : LED_OFF 3 LED_OFF I LED control for standby H : LED_ON, L : LED_OFF 4 LED_REC I LED control for REC – 5 LED_MDM I – – 6 LED– – LED control for standby –

60 IR ASSY CN9801 (RE1) ↔ MAIN ASSY CN4010 (M8)

Pin No. Pin Name I/O Function Remarks

1 V+5.1V_STB – Standby 5.1 V power supply – 2 REM O Remote control signal –

C

3NC – – – 4NC – – – 5NC – – – 6 GND – GND –

D

E

F

82

1234

PDP-6071PU

5678

4.15 WAVEFORMS

60 ADDRESS ASSY

• ADR RESONANCE BLOCK

1 input:VIDEO 60Hz

signal : COLOR BAR(MKSS17) ch1 : ADR_B side-A test plane " B " ch2 : ADR_D side-A test plane " D " V : 1V/div H : 2ms/div

ch1

2 input :VIDEO 60Hz

signal : COLOR BAR (MKSS17) ch1 : ADR_B side-A test plane " B " ch2 : ADR_D side-A test plane " D " V : 1V/div H : 200ns/div

3 input :VIDEO 60Hz

signal :COLOR BAR(MKSS17) ch1 :L1730(V+ADR1)(side-A through hole) V : 10V/div H : 2ms/div

ch1

A

ch2

• Control signals of resonance circuit (1 Field)

4 input :VIDEO 60Hz

signal : Checkered pattern of Black- White (MKSS13) ch1 : L1730(V+ADR1)(side-A through hole) V: 10V/div H: 2ms/div

ch2

• VADR ( 1 Field)

ch2

• Control signals of resonance circuit (2SF)

5 input : VIDEO 60Hz

signal : Checkered pattern of Black- White(MKSS13) ch1 : L1730(V+ADR1)(side-A through hole)

V: 10V/div H: 500ns/div

• VADR ( 2 SF)

B

• VADR (1 Field)

C

ch1

D

56

PDP-6071PU

E

F

83

7

8

5678

4.15 WAVEFORMS

60 ADDRESS ASSY

• ADR RESONANCE BLOCK

1 input:VIDEO 60Hz

signal : COLOR BAR(MKSS17) ch1 : ADR_B side-A test plane " B " ch2 : ADR_D side-A test plane " D " V : 1V/div H : 2ms/div

ch1

2 input :VIDEO 60Hz

signal : COLOR BAR (MKSS17) ch1 : ADR_B side-A test plane " B " ch2 : ADR_D side-A test plane " D " V : 1V/div H : 200ns/div

3 input :VIDEO 60Hz

signal :COLOR BAR(MKSS17) ch1 :L1730(V+ADR1)(side-A through hole) V : 10V/div H : 2ms/div

ch1

A

ch2

• Control signals of resonance circuit (1 Field)

4 input :VIDEO 60Hz

signal : Checkered pattern of Black- White (MKSS13) ch1 : L1730(V+ADR1)(side-A through hole) V: 10V/div H: 2ms/div

ch2

• VADR ( 1 Field)

ch2

• Control signals of resonance circuit (2SF)

5 input : VIDEO 60Hz

signal : Checkered pattern of Black- White(MKSS13) ch1 : L1730(V+ADR1)(side-A through hole)

V: 10V/div H: 500ns/div

• VADR ( 2 SF)

B

• VADR (1 Field)

C

ch1

D

56

PDP-6071PU

E

F

83

7

8

5678

60 X DRIVE ASSY, 60 Y DRIVE ASSY, 607 SCAN A ASSY, 607 SCAN B ASSY

1 2 3

ch3 R1222(XPSUS) - K1201(SUSGND) V : 100V/div H : 2ms/div (60 X DRIVE Ass'y)

ch4 K2912(ScanOUT) - K2301(SUSGND) V : 100V/div H : 2ms/div (607 SCAN B Ass'y HIGHSIDE)

ch5 R2288(YPSUS) - KN2203(SUSGND) V : 100V/div H : 2ms/div (60 Y DRIVE Ass'y)

ch3 K1012(XSUS-MSK) - K1002(DGND) V : 1V/div H : 2ms/div

ch4 K1008(XNR-D) - K1002(DGND) V : 1V/div H : 2ms/div

(60 X DRIVE Ass'y)

ch3

ch1 K2007(YNOFS) - K2014(DGND) V : 1V/div H : 2ms/div

ch2 K2005(YSUS-MSK) - K2014(DGND) V : 1V/div H : 2ms/div

ch3 K2004(YNRST) - K2014(DGND) V : 1V/div H : 2ms/div

ch4 K2003(SOFT-D) - K2014(DGND) V : 1V/div H : 2ms/div

ch5 K2010(YPR-U) - K2014(DGND) V : 1V/div H : 2ms/div

(60 Y DRIVE Ass'y)

A

B

ch1 R2401(LE) - K2014(DGND)

4

V : 1V/div H : 2ms/div

ch2 R2404(CLK2) - K2014(DGND) V : 1V/div H : 2ms/div

ch3 R2406(SI_L) - K2014(DGND) V : 1V/div H : 2ms/div

ch4 R2409(CLR) - K2014(DGND) V : 1V/div H : 2ms/div

ch5 R2411(OC2_U) - K2014(DGND) V : 1V/div H : 2ms/div

ch6 R2415(OC1) - K2014(DGND) V : 1V/div H : 2ms/div

ch7 R2418(CLK1) - K2014(DGND) H : 2ms/div

ch8 R2420(SI_H) - K2014(DGND) H : 2ms/div

(60 Y DRIVE Ass'y)

ch3

ch4

ch5

ch1 R1222(XPSUS) - K1201(SUSGND)

5

V : 100V/div H : 100us/div (60 X DRIVE Ass'y)

ch2 K2912(ScanOUT) - K2301(SUSGND) V : 100V/div H : 100us/div (607 SCAN B Ass'y HIGHSIDE)

ch3 F2301(YPSUS) - KN2206(SUSGND) V : 100V/div H : 100us/div (60 Y DRIVE Ass'y)

ch1 R1222(XPSUS) - K1202(SUSGND)

6

V : 50V/div H : 5us/div (60 X DRIVE Ass'y)

ch2 K2912(ScanOUT) - K2301(SUSGND) V : 50V/div H : 5us/div (607 SCAN A Ass'y LOWSIDE)

ch3 F2301(YPSUS) - K2301(SUSGND) V : 50V/div H : 5us/div (60 Y DRIVE Ass'y)

ch4

ch1

ch2

ch4

ch3

7

ch1 F2301(YPSUS) - K2301(SUSGND) V : 50V/div H : 500ns/div

ch2 K2002(YSUS-G) - K2014(DGND) V : 5V/div H : 500ns/div

ch3 K2013(YSUS-U) - K2014(DGND) V : 5V/div H : 500ns/div

ch4 K2011(YSUS-B) - K2014(DGND) V : 5V/div H : 500ns/div

ch5 K2012(YSUS-D) - K2014(DGND) V : 5V/div H : 500ns/div

(60 Y DRIVE Ass'y)

ch1 ch2 ch3 ch4 ch5

ch1

ch2 ch3

ch4 ch5

C

D

E

56

ch1 ch2 ch3 ch4 ch5 ch6 ch7 ch8

PDP-6071PU

ch1

ch2

ch3

F

85

7

8

1234

5. DIAGNOSIS INFORMATION

5.1 THE FLOW OF DIAGNOSIS

5.1.1 FLOWCHART OF FAILURE ANALYSIS FOR THE WHOLE UNIT

A

Flowchart of Failure Analysis for The Whole Unit

START

Problems concerning STB status

Is the STB LED lit?

B

C

Can the unit be turned on (Relay ON)?

A shutdown occurs.

A power-down occurs.

D

No

Is STB 3.3 V power supplied? (Check the power at the IF micro-

Yes

Problems concerning the power

Yes

No

Problems concerning lighting of the panel

computer on the MAIN Assy.)

Yes

Is the voltage at AC_DET on the POWER SUPPLY Unit high?

Yes

Failure analysis for the MAIN Assy. ⇒ MA1

No

Is the power shutdown?

Yes

See "Shutdown diagnosis." ⇒ SD

Yes

See "Power-down diagnosis." ⇒ PD

No

Check if the cable that connects the POWER SUPPLY and MAIN Assys is firmly connected.

The LED on the front panel indicates ON/STB of the panel and causes for a power-down or shutdown. If neither the blue nor red LED lights, it is likely that the power to the STB system is not supplied. (failure, PASV-STB status)

No

Replace the POWER SUPPLY Unit.

Is the voltage at the RELAY port

No

of the connectors between the DIGITAL and POWER SUPPLY Assys H (3.3 V)?

Yes

Failure analysis for the POWER SUPPLY Unit. ⇒ PS2

A power-down will not be generated if the drive is off.

NG

Failure analysis for the POWER SUPPLY Unit. ⇒ PS1

No

Failure analysis for the MAIN Assy. ⇒ MA2

If the module microcomputer does not receive the PON command, it is likely that the main microcomputer did not issue the command.

Does the screen display reset lighting?

Yes

E

Is the panel arbitrary turned on or off repeatedly? Or do luminescent spots appear on the screen?

No

Is there any local abnormality on the screen?

No

F

No

Is the drive off?

Failure analysis for the drive system ⇒ DR1

Yes

Failure analysis for the POWER SUPPLY Unit. ⇒ PS3

Failure analysis for the drive system ⇒ DR2

Yes

Is the abnormality associated with one address or one TCP?

Failure analysis for the drive system ⇒ DR3

A

86

1234

No

Yes

Turn the drive on.

In a case where luminescent spots appear or the panel is repeatedly turned on or off

In a case where luminescent spots appear

No

Is the abnormality associated with a single scan line?

Failure analysis for the drive system ⇒ DR4

PDP-6071PU

Yes

• Check the DRF SW.

• Before turning the drive off with the RS-232C commands or using the remote control unit, turn the unit off.

No

Replace the panel chassis.

5678

A

In the subsequent diagnostic steps, it is most likely that the multi base section is in failure.

Problems concerning video display

Is the panel mask properly displayed?

Yes

Check with the animated slanting ramp mask.

Is the on-screen display (OSD) properly displayed?

Yes

Check on the Factory menu.

Is an external video signal displayed properly?

Yes

Problems concerning the audio output

No

Failure analysis for the drive system ⇒ DR2

No

Failure analysis for the DIGITAL Assy ⇒ DG1

No

Failure analysis for the MAIN Assy ⇒ MA3

A

B

Is the audio signal output?

Yes

Specific failure whose cause is difficult to identify in the initial stage

No

Failure analysis for the audio system ⇒ AU1

C

D

E

56

PDP-6071PU

F

87

7

8

1234

5.1.2 FLOWCHART OF FAILURE ANALYSIS FOR THE POWER SUPPLY UNIT

Flowchart of Failure Analysis for The POWER SUPPLY Unit

A

Failure analysis for the POWER SUPPLY Unit. ⇒ PS1

B

C

STB 3.3 V power is not output.

Is the cable connected firmly to the P4 connector?

Yes

Is the cable to the P4 connector broken?

No

Is the cable connected firmly to the P9 connector?

Yes

Is the cable to the P9 connector broken?

No

Is the fuse (F101, F102) blown?

No

Is one of the limiting resistors (R101/R102) blown?

No

The POWER SUPPLY Unit is normal.

No

Properly connect the cable between the P4 and D21 connectors.

Yes

Replace the defective cable (J109 : ADX3408).

No

Properly connect the cable between the P9 and M3 connectors.

Yes

Replace the defective cable (J119 : ADX3402).

Yes

Replace the POWER SUPPLY Unit.

Yes

Replace the POWER SUPPLY Unit.

Check the voltage at the DIGITAL Assy and POWER SUPPLY Unit.

Check the voltage at the MAIN Assy and POWER SUPPLY Unit.

Check the resistance between LF101 (Pin 2) and the JW199, using a tester.

Failure analysis for the POWER SUPPLY Unit. ⇒ PS2

D

Failure analysis for the POWER SUPPLY Unit. ⇒ PS3

E

F

The power is not on, even though the RELAY port is active.

Is the relay (RY102) on?

Yes

Is the PFC voltage normal?

Yes

The POWER SUPPLY Unit is normal.

The cells of the panel do not light normally.

Is the VADR voltage within the specified values?

Yes

Is there a fluctuation in the VADR voltage?

No

Is the VSUS voltage within the specified range?

Yes

Is there a fluctuation in the VSUS voltage?

No

The POWER SUPPLY Unit is normal.

No

Replace the POWER SUPPLY Unit.

No

Replace the POWER SUPPLY Unit.

No

Replace the POWER SUPPLY Unit.

Yes

Replace the POWER SUPPLY Unit.

No

Replace the POWER SUPPLY Unit.

Yes

Replace the POWER SUPPLY Unit.

• Check the relay operation at the terminal (Pin 11 of P4). (Voltage: 3.3 V)

• Check the relay sound (click).

• Check the voltage between the JW140 (PFC OUT) and JW180 (Hot_GND) terminal.

• The voltage must be around 390 V (failure if it is 340 V or less). Caution: High voltage!

The specified voltage values are between 57 and 63 V.

The ripple must be within 6 V.

The specified voltage values are between 200 and 210 V (VSU: 125/35°C).

The ripple must be within 10 V.

88

1234

PDP-6071PU

5678

5.1.3 FLOWCHART OF FAILURE ANALYSIS FOR THE DIGITAL ASSY

Flowchart of Failure Analysis for The DIGITAL Assy

Failure analysis for the DIGITAL Assy ⇒ DG1

The on-screen display (OSD) is not properly indicated.

Is V sync/H existence judgment detected by issuing the QSI command?

Yes

• If the OSD is not properly displayed although the panel mask is properly displayed, a failure exists in the path from the output of IC8201 on the MAIN Assy to IC3401 on the DIGITAL Assy. → If only the OSD is abnormal, the MAIN Assy is in failure.

No

Is the sync signal properly output from the MAIN Assy?

Yes

No

Is the 50-pin FFC cable (ADD1445) firmly connected?

Yes

Is the 50-pin FFC cable (ADD1445) broken?

Yes

Is the FFC connector poorly contacted?

Yes

DIGITAL : D11 MAIN : M1

No

Replace the MAIN Assy.

If neither the V frequency nor H existence judgment is inappropriate, it is most likely that the output from the DIGITAL Assy is in free run and that the screen only displays reset lighting. (It is judged that the drive, POWER SUPPLY Unit and the panel are normal.)

No

Firmly connect the 50-pin FFC cable (ADD1445).

When disconnecting the FFC cable, take care not to damage the CN3001 connector on the DIGITAL Assy, which can easily be damaged.

No

Replace the 50-pin FFC cable (ADD1445).

In a case of D11

No

Replace the DIGITAL Assy.

In a case of M1

Replace the MAIN Assy.

A

B

C

Is the indication position correct?

Yes

Is the tone correct?

Yes

Replace the MAIN Assy.

No

It is most likely that the sync signal is abnormal.

No

It is most likely that the video signal data are missing.

D

E

56

PDP-6071PU

F

89

7

8

1234

5.1.4 FLOWCHART OF FAILURE ANALYSIS FOR THE DRIVE ASSY

Flowchart of Failure Analysis for The Drive Assy (1)

A

Failure analysis for the drive system ⇒ DR1

Reset lighting is not displayed.

X/Y DRIVE Assys

Is the waveform normal when the voltage is applied to the panel?

B

Are the panel FFC cables properly connected to the X/Y DRIVE Assys?

Yes

Replace the panel chassis.

Failure analysis for the drive system ⇒ DR2

Abnormality across the whole

C

screen, such as luminescent spots

Yes

D

No

Properly connect the panel FFC cables.

NG

Because it is difficult to identify which drive is in failure, follow the flowchart below to check each Assy.

Are the FFC cables properly connected?

Yes

Is the input signal normal?

Yes

Replace the X/Y DRIVE Assys.

X DRIVE AssyY DRIVE Assy / SCAN Assy

No

Properly connect the FFC cables.

No

Replace the FFC cables.

Replace the DIGITAL Assy.

ADDRESS Assy

C

Are all the connectors properly connected?

Yes

Is the VH set voltage (130 V) correctly set?

Yes

No

Reconnect the connectors.

Set the VH voltage correctly.

NGYes

NG

D

NG

Is the VYNRST set voltage correctly set (set value: designated for each panel)?

Is the VYRST set voltage correctly set (set value: designated for each panel)?

Yes

E

Another Assy may be in failure.

E

Is the input signal normal? (See the oscilloscope photos.)

Is the waveform of the control signal from the SCAN Assy normal? (See the oscilloscope photos.)

F

Replace the SCAN Assy.

90

1234

Yes

No

Yes

No

PDP-6071PU

Is the waveform normal when the voltage is applied to the panel? (See the oscilloscope photos.)

No

Replace the FFC cables.

Replace the Y DRIVE Assy.

Set the VYNRST voltage correctly.

NG

Set the VYRST voltage correctly.

NG

Replace the DIGITAL Assy.

5678

Flowchart of Failure Analysis for The Drive Assy (2)

X DRIVE Assy

C

ADDRESS Assy

D

A

Are all the connectors properly connected?

Yes

Is the VXNRST set voltage (-180 V) correctly set?

Yes

E

Another Assy may be in failure.

Is the input signal normal? (See the oscilloscope photos.)

Yes

Replace the X DRIVE Assy.

Failure analysis for the drive system ⇒ DR3

The abnormality is associated with one address or one TCP?

Is the TCP control signal normal?

Yes Yes

Replace the panel chassis.

In most cases of damage on one line, the panel chassis must be replaced.

No

Reconnect the connectors.

NG

No

Set the VXNRST voltage correctly.

Yes

Is the waveform normal when the voltage is applied to the panel? (See the oscilloscope photos.)

No

Replace the FFC cables.

NG

Replace the DIGITAL Assy.

Diagnose the ADDRESS Assy.

No

Are the FFC cables properly connected?

NG

Replace the DIGITAL Assy.

NG

Are all the connectors properly connected?

Yes

Is the TCP control signal normal? (See the oscilloscope photos.)

Yes

Replace the panel chassis.

No

Properly connect the FFC cables.

NG

If the FFC cable that connects the DIGITAL and ADDRESS Assys is in failure, the abnormality is associated with one address in most cases.

No

Reconnect the connectors.

No

Is the input signal normal? (See the oscilloscope photos.)

Yes No

Replace the FFC cables.

Replace the DIGITAL Assy.

NG

B

NG

C

D

Failure analysis for the drive system ⇒ DR4

The abnormality is associated with a single scan line.

Is the waveform normal when the voltage is applied to the panel? (See the oscilloscope photos.)

Yes

Is the cable connected properly to the 90-pin connector?

Yes

Replace the SCAN Assy.

56

Diagnose the SCAN Assy.

No

Yes

No

Is the cable connected properly to the 15-pin connector?

Yes

Is the waveform of the SCAN IC control signal from the Y DRIVE Assy normal?

Connect the cable properly.

NG

No

Connect the cable properly.

NG

No

Replace the Y DRIVE Assy.

Care must be taken that no dirt or dust is attached or gets in. (The SCAN IC may be damaged.)

PDP-6071PU

7

E

F

91

8

1234

5.1.5 FLOWCHART OF FAILURE ANALYSIS FOR THE MAIN ASSY

Flowchart of Failure Analysis for The MAIN Assy

A

Failure analysis for the MAIN Assy. ⇒ MA1

The STB LED does not light although STB 3.3 V power is supplied.

Is resetting of the IF microcomputer canceled?

Is the voltage at Pin 1 of the M5

B

connector low?

Is the M5 connector securely connected?

Is the cable that is connected to the M5 connector broken?

No problem with the MAIN Assy. Check the LED Assy.

C

Failure analysis for the MAIN Assy. ⇒ MA2

The RELAY port does not work. The power is not turned on.

Yes

No

Replace the MAIN Assy.

No

Replace the MAIN Assy.

No

Securely connect the M5 connector.

Yes

Replace the cable (J113).

Failure in the RST IC (IC4801) output or its peripheral circuits

Failure in the line between the IF microcomputer and M5 connector

Is voltage at REQ_IF (3.3 V) on

D

the MAIN Assy high?

Yes

E

Is the power (1.8 V, 3.3 V) supplied to the main microcomputer?

Yes

Replace the MAIN Assy.

F

No

Can the unit be turned on, using the remote control unit?

Yes

Can the unit be turned on, using the Power switch on the side key?

Yes

Can the unit be turned on, using RS-232C commands?

No

Replace the MAIN Assy.

If the voltage at Pin 129 (RST3 port) on the main microcomputer is high, it is judged that the AC power cord is not plugged in, and operation of the unit will stop there.

Replace the cable that connects

No

the LED IR and MAIN Assys.

No

Replace the cable that connects the SIDE KEY and MAIN Assys.

NG

Replace the MAIN Assy.

Failure in the RS-232C driver and its peripheral circuits

NG

Replace the LED IR Assy.

NG

Replace the SIDE KEY Assy.

92

1234

PDP-6071PU

5678

5.1.6 FLOWCHART OF FAILURE ANALYSIS FOR THE VIDEO SYSTEM

Flowchart of Failure Analysis for The Video System

Failure analysis for the MAIN Assy. ⇒ MA3

The input signal is not displayed.

Is the selected input signal a composite signal?

No

Is the selected input signal a s-video signal?

No

Is the selected input signal a analog component signal?

No

Is the selected input signal a PC signal?

No

Is the selected input signal an HDMI signal?

No

Check if Function corresponding to the input signal is selected.

Yes

⇒ COMP / S1

Yes

⇒ COMP / S1

Yes

⇒ COMP / PC1

Yes

⇒ COMP / PC2

Are the data displayed on the

Yes

"HDMI SIGNAL INFO" page of the Factory menu correct?

Yes

After changing the source

No

equipment, check the "HDMI SIGNAL INFO" data again.

OK

NG

Replace the MAIN Assy.

Info Frame data have not been acquired.

A

B

C

Is the selected input signal an analog TV signal?

No

Is the selected input signal a digital TV signal?

No

Is the selected input signal a USB signal?

No

No problem with the MAIN Assy

Does the result of SIG mode detection on the Factory menu coincide with the input signal data?

Yes

Is a video signal output from IC5401? (110 to 113, 116 to 119) (123 to 126, 129 to 132) (133, 136, 137, 140 to 144)

Yes

Replace the MAIN Assy.

IC8001 and its peripheral circuits are in failure.

Yes

⇒ COMP / S2

Yes

⇒ DTV

Yes

⇒ USB

The source equipment previously used is in failure. No problem with the MAIN Assy.

No

Is the sync signal output from IC5401?

Yes

Is the sync signal input to IC8001?

Yes

Replace the MAIN Assy.

IC8001 and its peripheral circuits are in failure.

No

Replace the MAIN Assy.

IC5401 and its peripheral circuits are in failure.

No

Replace the MAIN Assy.

The signal identification path is in failure.

D

E

F

56

PDP-6071PU

93

7

8

1234

Flowchart of Failure Analysis for The Video System

A

No video from Composite or S-VIDEO

⇒ COMP/S1

Image for the composite or s-video signal is not displayed.

Yes

Is the function correspondeing to selected signal input selected?

Yes

Is the compornent cable is

B

connect to jack? (Input2, Input4)

Yes

Has the signal arrived at IC4701? (pin 85, 91, 60)

Yes

Which signal is not output, main or sub signal?

MAIN

Is a signal output from IC4701? (pin 47, 49)

Yes

C

Has the signal arrived at IC5101? (pin 148, 158)

Yes

Is the communication between each IC on the MAIN Assy and the microcomputer normal?

Yes

Has the symptom been settled when the MAIN Assy is replaced?

Yes

D

Replace the MAIN Assy.

No

Select the corresponding signal with the Input selector.

No

Disconnect component and confirm again.

No

Check the flexible cable between

1

4

3

8

7

CN8802 and CN4004. Check the flexible cable between CN8803 and CN4005.

SUB

No

Check around IC4701 and check the communications between IC4701 and microcomuputer. If there was no ploblem replace the MAIN ASSY.

No

Check the circuit between IC4701 and IC5101 and replace broken parts.

No

Check around the IC that is found to have failure in communication and the microcomputer. If there was no ploblem replace MAIN Assy

No

The panel is defective.

NG

Replace the TANSHI Assy.

NG

Replace or reconnect flexible cable.

No

Is a signal output from IC4701?

Yes

Has the signal arrived at IC7001? (pin 3)

5

No

Check the circuit between IC4701 and IC7001 and replace broken parts.

6

Waveforms

Input signal: Color-bar

IC4701 - pin 85, 91, 60

1

V: 500 mV/div H: 20 µsec/div

IC4701 - pin 57

2

V: 500 mV/div H: 20 µsec/div

E

IC4701 - pin 45 (composite)

5

V: 500 mV/div H: 20 µsec/div

IC7001 - pin 3 (composite)

6

V: 500 mV/div H: 20 µsec/div

F

94

1234

IC4701 - pin 47 (s-video)

3

V: 500 mV/div H: 20 µsec/div

IC5101 - pin 148 (composite)

7 7

V: 500 mV/div H: 20 µsec/div

PDP-6071PU

IC4701 - pin 49 (composite)

4 4

V: 500 mV/div H: 20 µsec/div

IC5101 - pin 148 (s-video)

V: 500 mV/div H: 20 µsec/div

IC4701 - pin 49 (s-video)

V: 500 mV/div H: 20 µsec/div

IC5101 - pin 158 (s-video)

8

V: 500 mV/div H: 20 µsec/div

5678

No video from TV signal

⇒ COMP/S2

TV signal is not displayed on the screen.

Yes

Is the input selecter set to TV? (ANT-A or B)

Yes

Is a signal output normally from the FE to IC4701? (pin 55, 57)

Yes

Which signal is not output, main or sub signal?

MAIN

Is a signal output from IC4701? (pin 47, 49)

Yes

Has the signal arrived at IC5101? (pin 148, 158)

Yes

Is the communication between each IC on the MAIN Assy and the microcomputer normal?

Yes

Has the symptom been settled when the MAIN Assy is replaced?

Yes

3

7

A

No

Set the Input selector to TV. (ANT-A or B)

No

Check around the FE and check

2

4

8

the communications between FE and microcomuputer. If there was no ploblem replace MAIN Assy.

SUB

No

Check around IC4701 and check the communications between IC4701 and microcomuputer.If there was no ploblem replace the MAIN ASSY.

No

Check the circuit between IC4701 and IC5101 and replace broken parts.

No

Check around the IC that is found to have failure in communication and the microcomputer. If there was no ploblem replace MAIN Assy.

No

The panel is defective.

No

Is a signal output from IC4701?

Yes

Has the signal arrived at IC7001? (pin 3)

5

No

Check the circuit between IC4701 and IC7001 and replace broken parts.

6

B

C

Replace the MAIN Assy.

Waveforms

Input signal: Color-bar

IC4701 - pin 45 (composite)

5

V: 500 mV/div H: 20 µsec/div

IC4701 - pin 55, 57

2

V: 500 mV/div H: 20 µsec/div

IC7001 - pin 3 (composite)

6

V: 500 mV/div H: 20 µsec/div

IC4701 - pin 47 (s-video)

3

V: 500 mV/div H: 20 µsec/div

IC5101 - pin 148 (composite)

7 7

V: 500 mV/div H: 20 µsec/div

IC4701 - pin 49 (composite)

4 4

V: 500 mV/div H: 20 µsec/div

IC5101 - pin 148 (s-video)

V: 500 mV/div H: 20 µsec/div

IC4701 - pin 49 (s-video)

V: 500 mV/div H: 20 µsec/div

IC5101 - pin 158 (s-video)

8

V: 500 mV/div H: 20 µsec/div

D

E

56

PDP-6071PU

F

95

7

8

1234

A

No video from component

⇒ COMP/PC1

Image for the component signals is not displayed.

Yes

Is the function corresponding to selected signal input selected?

Yes

Has the signal arrived at IC4901 ?

B

Yes

What is a input signal ?

Input sigal: except 480i

Is a signal output from IC4901? (pin 41, 43, 45)

Yes

15

1413

No

Select the corresponding signal with the input selector.

No

Check the communication between the CN8802 and CN4004 or between CN8803 and CN4005 or around of jack.

Input sigal: 480i

No

Check around IC4901 and check the communications between IC4901 and the microcomputer. If there was no ploblem replace the MAIN ASSY.

No

Replace flexible cable.

No

Is a signal output from IC4901? (pin 30, 32, 34)

Yes

Has the signal arrived at IC5301? (pin 43, 48, 54)

C

Is the communication between each IC on the MAIN Assy and the microcomputer nomal?

Has the symptom been settled when the MAIN Assy is replaced?

Replace the MAIN Assy.

Yes

D

E

No

Check the circuit between IC4901 and

18

1716

13

15

IC5301 and replace broken parts.

No

Check around the IC that is found to have a failure in communication and the microcomputer. If there was no ploblem replace MAIN Assy.

No

The panel is defective.

IC4901 - pin 41 (component_PR)

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 45 (component_Y)

V: 500 mV/div H: 10 µsec/div

Has the signal arrived at IC5101 ? (pin 154, 162, 170)

IC4901 - pin 41 (PC_R)

13

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 45 (PC_G)

15

V: 500 mV/div H: 10 µsec/div

Yes

IC4901 - pin 43 (component_PB)

14

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 43 (component)

16

V: 500 mV/div H: 10 µsec/div

No

Check the circuit between IC4901 and IC5101 and replace broken parts.

Waveforms

Input signal: Color-bar

IC4901 - pin 43 (PC_B)

14

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 43 (PC)

16

V: 500 mV/div H: 10 µsec/div

IC5301 - pin 48 (component)

17

V: 500 mV/div H: 10 µsec/div

F

96

1234

IC5301 - pin 48 (PC)

17

V: 500 mV/div H: 20 µsec/div

PDP-6071PU

IC5301 - pin 54 (component)

18

V: 500 mV/div H: 20 µsec/div

IC5301 - pin 54 (PC)

18

V: 500 mV/div H: 20 µsec/div

5678

No video from PC

⇒ COMP/PC2

Image for the PC signal is not displayed.

Yes

Is the function corresponding to selected signal input selected?

Yes

Has the signal arrived at IC4901? (pin 8, 10, 12)

Yes

Is a signal output from IC4901? (pin 41, 43, 45)

Has the signal arrived at IC5301? (pin 43, 48, 54)

Is the communication between each IC on the MAIN Assy and the microcomputer nomal?

Has the symptom been settled when the MAIN Assy is replaced?

Yes

1413

1716

121110

15

18

No

Select the corresponding signal with the input selector.

No

Check the communication between the CN9003 and CN4013 and around IC4901.

No

Check around IC4901 and check the communications between IC4901 and the microcomputer. If there was no ploblem replace the MAIN ASSY.

No

Check the circuit between IC4901 and IC5301 and replace broken parts.

No

Check around the IC that is found to have a failure in communication and the microcomputer. If there was no ploblem replace MAIN Assy.

No

The panel is defective.

No

Replace flexible cable.

A

B

C

Replace the MAIN Assy.

Waveforms

Input signal: Color-bar

IC4901 - pin 8 (PC_G)

10

V: 500 mV/div H: 20 µsec/div

IC4901 - pin 10 (PC_B)

11

V: 500 mV/div H: 20 µsec/div

IC4901 - pin 12 (PC_R)

12

V: 500 mV/div H: 20 µsec/div

IC4901 - pin 41 (component_PR)

13

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 45 (component_Y)

15

V: 500 mV/div H: 10 µsec/div

IC5301 - pin 48 (component)

17

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 41 (PC_R)

13

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 45 (PC_G)

15

V: 500 mV/div H: 10 µsec/div

IC5301 - pin 48 (PC)

17

V: 500 mV/div H: 20 µsec/div

IC4901 - pin 43 (component_PB)

14

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 43 (component)

16

V: 500 mV/div H: 10 µsec/div

IC5301 - pin 54 (component)

18

V: 500 mV/div H: 20 µsec/div

IC4901 - pin 43 (PC_B)

14

V: 500 mV/div H: 10 µsec/div

IC4901 - pin 43 (PC)

16

V: 500 mV/div H: 10 µsec/div

IC5301 - pin 54 (PC)

18

V: 500 mV/div H: 20 µsec/div

D

E

56

PDP-6071PU

F

97

7

8

1234

A

No video from USB input

⇒ USB

The image of the USB card doesn't come out.

Yes

Has the function is selected Home Media Gallery by Home menu?

Yes

Is the contents list are appear?

B

Yes

Has the signal come to IC6301?

Yes

No

Select the input of specification by the input switch.

No

Has USB memory or digital camerra is connected to USB connecter?

No

Check around USB connecter or USB cable and check between pin 2, 3 of CN7101 and pin 305, 406 of IC6301.

NG

Insert USB device such as USB flash memory.

NG

Replace USB cable.

Is the signal from IC6301 to IC7201?

Yes

Is the signal input from IC7201 to IC8001?

C

Has the symptom been settled when the MAIN Assy is replaced?

Replace the MAIN Assy.

Yes

No monitor output

⇒ MONI_V

D

MONITOR OUT image is not displayed.

Yes

Is a signal being input other than the component or RGB signal?

Yes

Has the signal arrived to IC4701?

Yes

Is a signal output from IC4701? (pin 79)

E

Yes

28

No

Check between IC6301 and IC7201. If there is no problem then replace IC6301.

No

Check between IC7201 and IC8001. If there is no problem replace IC7201.

No

The panel is defective.

No

Only the component and RGB signals cannot be output from MONITOR OUT. Check the unit using either the component or RGB signal.

No

Check the communication between the jack and IC4701. If there was no ploblem replace IO Assy.

No

Check around IC4701 and check the communications between IC4701 and the microcomputer. If there was no ploblem then replace the MAIN ASSY.

Waveforms

Input signal: Color-bar

IC4701 - pin 79

28

V: 1 V/div H: 20 µsec/div

R8801

29

V: 1 V/div H: 20 µsec/div

No

Is a signal arrived to CN8803?

Is a signal output from jack?

Finishing troubleshooting.

F

Yes

29

Check the communication from IC4701 to CN4005. If there is no ploblem, check the Flexible cable between CN4005 and CN8803.

No

Check the communication between the CN8803 and Jack. If there was no ploblem replace IO Assy.

98

1234

NG

PDP-6071PU

Replace flexible cable.

5678

5.1.7 FLOWCHART OF FAILURE ANALYSIS FOR THE AUDIO SYSTEM

Flowchart of Failure Analysis for The Audio System

No audio from monitor out

⇒ MONI_A

The sound is not emitted audio out.

Yes

30

No

Check the surrounding of IC4701 and each input signal. If there was no ploblem, replace the MAIN ASSY.

No

Check the communication between IC4701 and CN4005.

No

Check the Flexible cable between CN4005 and CN8803.

No

Check the contact between the CN8803 and R8886. Check the contact between the CN8803 and R8887.

NG

Replace the MAIN Assy.

NG

Replace or reconnect flexible cable.

NG

Replace the TANSHI Assy.

Is a signal output from IC4701? (pin 33, 34)

Yes

Has the signal arrived at CN4005?

Yes

Is a signal output from CN8803?

Yes

Has the signal come to TP8825 or TP8826?

Yes

Waveforms

Input signal: 1kHz Sound volume is fixed to 25.

IC4701 - pin 33, 34 (AC)

30

V: 500 mV/div H: 400 µsec/div

A

B

Is a signal output from jack?

Yes

Finishing troubleshooting.

No audio output from subwoofer

⇒ SUB-W

Has the sound been emitted from the Subwoofer?

Yes

Is a signal output from IC4701? (pin 31, 32)

Yes

Is a signal output from IC4704? (pin 1, 7)

Yes

Has the signal arrived at CN4005?

Yes

Is a signal output from CN8803?

Yes

Has the signal come to TP8843?

Yes

31

32

No

Check the communication between the CN8803 and Jack. If there was no ploblem, replace IO Assy.

No

Cansel muting then check again.

Yes

Is the volume set to 0?

No

Check the around of IC4701 and each input signal. If there was no ploblem, replace the MAIN ASSY.

No

Check around IC4704.

No

Check the communication between IC4704 to CN4005.

No

Check the Flexible cable between CN4005 and CN8803.

No

Check the contact between the CN8803 and R8892.

NG

Replace the TANSHI Assy.

No

Cansel muting then check again.

No

Raise the volume then check again.

NG

Replace the MAIN Assy.

NG

Replace the MAIN Assy.

NG

Replace or reconnect flexible cable.

NG

Replace the TANSHI Assy.

C

D

E

Check the around of pin Jack.

Waveforms

Input signal: 100 Hz Sound volume is fixed to 25.

56

IC4701 - pin 31, 32 (AC-SUBWOO)

31

V: 200 mV/div H: 4 msec/div

IC4701 - pin 31, 32 (DC-SUBWOO)

31

V: 1 V/div H: 10 msec/div

PDP-6071PU

IC4704 - pin 1, 7 (AC-SUBWOO)

32

V: 200 mV/div H: 4 msec/div

7

IC4704 - pin 1, 7 (DC-SUBWOO)

32

V: 500 mV/div H: 4 msec/div

8

F

99

No sound from panel

A

⇒ AU1

1234

Has the sound been emitted from the speakers?

Yes

Has the sound of the digital channel broadcasting (ANT-A) output?

B

Yes

C

Has the sound of the Analog channel broadcasting (ANT-A,B) output?

Yes

D

No

Is sound muting set?

No

Is the volume set to 0?

No

Is a picture is displayed?

Yes

Is a signal output from IC6301and come to CN4007?

Yes

Is a signal come to AUDIO Assy?

Yes

Is a sound output from AUDIO Assy?

Yes

Check the speakers and speaker cables.

No

Is a signal input to IC4401? (pin 1, 8)

Yes

Is a signal input to IC4402? (pin 21)

Yes

Is a signal output from IC4402? (pin 29, 30)

Yes

33

34

Yes

Cansel muting then check again.

Yes

Raise the volume then check again.

No

Check digital channel broadcasting.

No

Check the communication between CN4007 and IC6301.

No

Check the cables and connector between MAIN and AUDIO Assys. If it's no problem, replace audio signal cable.

No

Check the communication between AUDIO Assy and the microcomputer. If it's no problem, replace AUDIO Assy.

No

Check the communications around the FE (U4401 or U4402) and between the FE (U4401 or U4402) and the microcomputer.

No

Check around IC4402 and check the communications between IC4402 and the FE.

No

Check the communications around the IC4402 and between the IC4402 and the microcomputer. If there was no ploblem replace IC4402.

NG

Replace the MAIN Assy.

NG

Replace the MAIN Assy.

NG

Replace the MAIN Assy.

NG

Replace the MAIN Assy.

Is a signal input to IC4701? (pin 19, 20)

Is a signal output from IC4701? (pin 35, 36)

Is a signal output from IC7102?

E

(pin 1, 7)

Is a signal come to IC7101? (pin 1, 2)

Is a signal come to IC6301?

Is a signal output from IC6301 and come to CN4007? (pin 3, 5)

F

100

1234

Yes

35

36

37

38

No

Check the communication between IC4402 and IC4701.

No

Check around IC4701 and check the communications between IC4701 and the microcomputer.

No

Check the communication between IC4701 and IC7102. Check arround IC7102.

No

Check the communication between IC7102 and IC7101. If there was no ploblem replace IC7102.

No

Check the communication between IC6301and IC7101. If there is no problem, replace IC7101.

No

Check the communication between CN4007 and IC6301. If there is no problem, replace IC6301.

NG

Replace the MAIN Assy.

NG

Replace the MAIN Assy.

NG

Replace the MAIN Assy.

b ca

PDP-6071PU

Pioneer PDP-6071PU, PDP-6070PU Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
