Owner’s Manual

Manual de instrucciones

Manual do proprietário

CD RECEIVER RADIO CD CD PLAYER

DEH-1150MPG DEH-1150MP

English

Español

Português (B)

ES_Owner_5L-1.indd 1 2008/07/04 16:25:35

Black plate (2,1)

Contents

Thank you for purchasing this PIONEER product.

Please read through this manual before using the product for the first time, to ensure proper use. After reading, please keep the manual in a safe and accessible place

for future reference.

Before You Start

About this unit 3 Visit our website 3 Protecting your unit from theft 3

– Removing the front panel 3 – Attaching the front panel 4

Use and care of the remote control 4

– Installing the battery 4 – Using the remote control 4

Operating this unit

What’s what 5

– Head unit 5 – Remote control 5 – Display indication 6

Basic Operations 6

– Power ON/OFF 6 – Selecting a source 6 – Adjusting the volume 6

Tuner 7

– Listening to the radio 7 – Storing and recalling broadcast

frequencies 7

– Tuning in strong signals 7 – Storing the strongest broadcast

frequencies 7

Built-in Player 7

– Playing a disc 7 – Repeating play 8 – Playing tracks in random order 8 – Scanning tracks or folders 8 – Pausing disc playback 9 – Using compression and BMX 9 – Searching every 10 tracks in the current

disc or folder 9

– Displaying text information on disc 9

Audio Adjustments 10

– Using balance adjustment 10 – Using the equalizer 10

– Adjusting equalizer curves 10 – Adjusting loudness 10 – Adjusting source levels 10

Other Functions 11

– Adjusting initial settings 11 – Setting the clock 11 – Setting the FM tuning step 11 – Setting the AM tuning step 11 – Switching the auxiliary setting 12

Connections Connection diagram 14

Installation DIN front/rear mount 15

– DIN Front-mount 15 – DIN Rear-mount 16

Additional Information

Error messages 17 Handling guideline of discs and player 17 Dual Discs 18 Compressed audio files 18

– Example of a hierarchy 18 – Compressed audio compatibility 18

Specifications 20

<QRD3017-A

N>2

Before You Start

Black plate (3,1)

Section

About this unit

CAUTION

! Do not allow this unit to come into contact

with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.

! “CLASS 1 LASER PRODUCT”

This product contains a laser diode of higher class than 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

! Keep this manual handy as a reference for op-

erating procedures and precautions.

! Always keep the volume low enough so that

you can hear sounds from outside the vehicle.

! Protect this unit from moisture. ! If the battery is disconnected or discharged,

the preset memory will be erased and must be reprogrammed.

! Should this unit fail to operate properly, please

contact your dealer or nearest authorized PIONEER Service Station.

About WMA

casting/streaming via internet, intranets and/

English

or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

Visit our website

Visit us at the following site:

http://pioneer.jp/group/index-e.html

! We offer the latest information about

Pioneer Corporation on our website.

Protecting your unit from theft

The front panel can be detached to deter theft.

Important

! Handle gently when removing or attaching

the front panel.

! Avoid subjecting the front panel to excessive

shock.

! Keep the front panel out of direct sunlight and

high temperatures.

! Before detaching, be sure to remove the AUX

cable from the front panel. Otherwise, this unit, connected device or vehicle interior may be damaged.

The Windows Media™ logo printed on the box indicates that this unit can play back WMA data. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. ! This unit may not operate correctly depend-

ing on the application used to encode WMA files.

About MP3

Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegenerating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broad-

Removing the front panel

1 Press DETACH to release the front panel.

2 Grab the front panel and remove.

3 Put the front panel into the provided protective case for safe keeping.

QRD3017-A/N>3

Section

Black plate (4,1)

Before You Start

Attaching the front panel

1 Slide the front panel to the left until it clicks.

Front panel and the head unit are jointed on the left side. Make sure that the front panel has been jointed to the head unit.

2 Press the right side of the front panel until it is firmly seated.

# If you can’t attach the front panel to the head unit successfully, try again. Front panel may be damaged if you attach the front panel forcedly.

Use and care of the remote control

Installing the battery

Slide the tray on the back of the remote control out and insert the battery with the plus (+) and minus (–) poles aligned properly.

CAUTION

! Use one CR2025 (3 V) lithium battery. ! Remove the battery if the remote control is not

used for a month or longer.

! There is a danger of explosion if the battery is

incorrectly replaced. Replace only with the same or equivalent type.

! Do not handle the battery with metallic tools. ! Do not store the battery with metallic objects. ! If the battery leaks, wipe the remote control

completely clean and install a new batter y.

! When disposing of used batteries, comply

with governmental regulations or environmental public institutions’ rules that apply in your country/area.

Using the remote control

Point the remote control in the direction of the front panel to operate.

Important

! Do not store the remote control in high tem-

peratures or direct sunlight.

! The remote control may not function properly

in direct sunlight.

! Do not let the remote control fall onto the

floor, where it may become jammed under the brake or accelerator pedal.

WARNING

Keep the battery out of the reach of children. Should the battery be swallowed, consult a doctor immediately.

<QRD3017-A

N>4

Operating this unit

Black plate (5,1)

Section

What’s what

Head unit

12 4 5 6

d c a

1 FUNCTION button

Press to recall the function menu when operating a source.

2 AUDIO button

Press to select various sound quality controls.

3 a/b/c/d buttons

Press to perform manual seek tuning, fast forward, reverse and track search controls. Also used for controlling functions.

4 Disc loading slot

Insert a disc to play.

89 7

b SOURCE button, VOLUME

English

This unit is turned on by selecting a source. Press to cycle through all the available sources. Press and hold to recall the initial setting menu when the sources are off. Rotate it to increase or decrease the volume.

c EQ button

Press to select various equalizer curves. Press and hold to turn loudness on or off.

d BAND button

Press to select among three FM bands and one AM band and to cancel control modes of functions.

Remote control

Operation is the same as when using the buttons on the head unit. See the explanation of the head unit about the operation of each button with the exception of ATT, which is explained below.

5 EJECT button

Press to eject a CD from your built-in CD player.

6 DISPLAY button

Press to select different displays. Press and hold to scroll through the text information.

7 CLOCK button

Press to change to the clock display.

8 DETACH button

Press to remove the front panel from the head unit.

9 AUX input jack (3.5 mm stereo jack)

Use to connect an auxiliary device.

a 1 to 6 buttons

Press for preset tuning.

1 g

2 6

e VOLUME button

Press to increase or decrease the volume.

f ATT button

Press to quickly lower the volume level by about 90%. Press once more to return to the original volume level.

QRD3017-A/N>5

Section

Black plate (6,1)

Operating this unit

g SOURCE button

Press to cycle through all the available sources. Press and hold to turn the source off.

h PAUSE button

Press to turn pause on or off.

Display indication

4 5 6 7

1 Main display section

Shows the various information such as band, play time, and other setting. ! Tuner

Band and frequency are displayed.

! Built-in CD Player

Elapsed playback time and literal information are displayed.

2 Preset number/track number indicator

Shows the track number or preset number. ! If a track number 100 or more is selected,

d on the left of the track number indicator will light.

3 MP3/WMA indicator

Shows the type of the currently playing disc.

4 RPT indicator

Shows when repeat play is turned on.

5 LOUD indicator

Appears when loudness is on.

Basic Operations

Power ON/OFF

Turning the unit on

% Press SOURCE to turn the unit on.

Turning the unit off

% Press SOURCE and hold until the unit turns off.

Selecting a source

You can select a source you want to listen to.

% Press SOURCE to select a source.

Press SOURCE repeatedly to switch between the following sources.

Tuner—Built-in CD player—AUX

Notes

! In the following cases, the sound source will

not change.

— When there is no disc in the unit. — When AUX (auxiliary input) is set to off

(refer to page 12).

! AUX is set to on by default. Turn off the AUX

when not in use (refer to Switching the auxili- ary setting on page 12).

! When this unit’s blue/white lead is connected

to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off.

Adjusting the volume

% Turn VOLUME to adjust the sound level.

6 5 (stereo) indicator

Appears when the selected frequency is being broadcast in stereo.

7 LOC indicator

Appears when local seek tuning is on.

<QRD3017-A

N>6

Operating this unit

Tuner

Listening to the radio

Important

If you are using this unit in North, Central or South America, reset the AM tuning step (see Setting the AM tuning step on page 11).

1 Press SOURCE to select the tuner.

2 Press BAND to select a band.

Press BAND until the desired band (F1, F2, F3 for FM or AM) is displayed.

3 To perform manual tuning, briefly press c or d.

4 To perform seek tuning, press and hold c or d for about one second and release.

The tuner will scan the frequencies until a broadcast strong enough for good reception is found.

# You can cancel seek tuning by briefly pressing c or d. # While pressing and holding c or d, you can skip stations. Seek tuning starts as soon as you release c or d.

Storing and recalling broadcast frequencies

% When you find a frequency that you want to store in memory, press one of preset tuning buttons 1 to 6 and hold until the preset number stops flashing.

Memorized radio station frequency can be recalled by pressing the preset tuning button.

# Up to 18 FM stations, six for each of the three FM bands, and six AM stations can be stored in memory. # Press a or b to recall radio station frequen- cies.

Black plate (7,1)

Section

English

Tuning in strong signals

Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception.

1 Press FUNCTION to select LOCAL.

2 Press a or b to turn local seek tuning on or off.

3 Press c or d to set the sensitivity. FM: LOCAL 1—LOCAL 2—LOCAL 3— LOCAL 4

AM: LOCAL 1—LOCAL 2 The LOCAL 4 setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies under preset tuning buttons 1 to 6. Once stored you can tune in to those frequencies with the touch of button. ! Storing broadcast frequencies with BSM

may replace broadcast frequencies you have saved using buttons 1 to 6.

1 Press FUNCTION to select BSM.

2 Press a to turn BSM on.

The six strongest broadcast frequencies are stored in the order of their signal strength.

# To cancel the storage process, press b.

Built-in Player

Playing a disc

1 Insert a CD (CD-ROM) into the disc loading slot.

Playback will automatically start.

# Be sure to turn up the label side of a disc. # After a CD (CD-ROM) has been inserted, press

SOURCE to select the built-in CD player.

<QRD3017-A

N>7

Section

Black plate (8,1)

Operating this unit

# You can eject a CD (CD-ROM) by pressing

EJECT.

2 Press a or b to select a folder when playing a compressed audio.

# You cannot select a folder that does not have a compressed audio file recorded in it. # To return to folder 01 (ROOT), press and hold BAND. However, if folder 01 (ROOT) contains no files, playback commences with folder 02.

3 To perform fast forward or reverse, press and hold c or d.

# If you select ROUGH, pressing and holding c or d enables you to search every 10 tracks in the current disc (folder). (Refer to Searching every 10 tracks in the current disc or folder on the next page.)

4 To skip back or forward to another track, press c or d.

Notes

! Read the precautions for discs and player on

page 17.

! If an error message such as ERROR-11 is dis-

played, refer to Error messages on page 17.

! There is sometimes a delay between starting

up disc playback and the sound being issued. When being read, FRMTREAD is displayed.

! When playing CD-EXTRA or MIXED-MODE

CDs, compressed audio and CD-DA can be switched by pressing BAND.

! If you have switched between compressed

audio and CD-DA, playback starts at the first track on the disc.

! The built-in CD player can play back com-

pressed audio recorded on CD-ROM. (Please see the following section for files that can be played back. Refer to page 18.)

! When playing back VBR (variable bit rate) re-

corded files, elapsed play time may not be displayed correctly.

! When playing compressed audio, there is no

sound on fast forward or reverse.

Repeating play

Repeat play plays the same track/folder within the selected repeat play range.

1 Press FUNCTION to select RPT.

2 Press c or d to select the repeat range. DSC – Repeat all tracks TRK – Repeat the current track FLD – Repeat the current folder

# If you select another folder during repeat play, the repeat play range changes to disc repeat. # When playing CD, performing track search or fast forward/reverse cancels the repeat play automatically. # When playing compressed audio, performing track search or fast forward/reverse during TRK (track repeat) changes the repeat play range to folder repeat. # When FLD (folder repeat) is selected, it is not possible to play back a subfolder of that folder. # To return to the normal display, press BAND.

Playing tracks in random order

Tracks in a selected repeat range are played in random order.

1 Select the repeat range.

Refer to Repeating play on this page.

2 Press FUNCTION to select RDM.

3 Press a or b to turn random play on or off.

When random play is on, RDM appears in the display. If you turn random play on during folder repeat, FRDM appears in the display.

# To return to the normal display, press BAND.

Scanning tracks or folders

Scan play searches the song within the selected repeat range.

1 Select the repeat range.

Refer to Repeating play on this page.

QRD3017-A/N>8

Operating this unit

Black plate (9,1)

Section

2 Press FUNCTION to select SCAN.

3 Press a to turn scan play on. SCAN appears in the display. The first 10 sec-

onds of each track is played.

# If you turn scan play on during FLD, FSCN ap- pears in the display.

4 When you find the desired track press b to turn scan play off.

# If the display has automatically returned to the playback display, select SCAN again by pressing FUNCTION. # After scanning of a disc (folder) is finished, normal playback of the tracks begins.

Pausing disc playback

Pause lets you temporarily stop playback of the disc.

1 Press FUNCTION to select PAUSE.

2 Press a or b to turn pause on or off.

# To return to the normal display, press BAND.

Using compression and BMX

Using the COMP (compression) and BMX functions let you adjust the sound playback quality of this unit.

1 Press FUNCTION to select COMP OFF.

2 Press a or b to select your favorite setting. COMP OFF—COMP 1—COMP 2— COMP OFF—BMX 1—BMX 2

# To return to the normal display, press BAND.

Searching every 10 tracks in the current disc or folder

You can switch the search method between fast forward/reverse and searching every 10 tracks. Selecting ROUGH enables you to search every 10 tracks.

1 Press FUNCTION to select FF/REV.

English

# If the search method ROUGH has been pre- viously selected, ROUGH will be displayed.

2 Press d to select ROUGH.

! FF/REV – Fast forward and reverse ! ROUGH – Searching every 10 tracks

# To select FF/REV, press c.

3 Press BAND to return to the playback display.

4 Press and hold c or d to search every 10 tracks on a disc (folder).

# If the rest of track number is less than 10, press and hold c or d recalls the first (last) one.

Displaying text information on disc

% Press DISPLAY.

Press DISPLAY repeatedly to switch between the following settings:

For CD TEXT discs

Play time—DISC TTL (disc title)—ART NAME (disc artist name)—TRK TTL (track title)— ART NAME (track artist name)

For WMA/MP3

Play time—FOLDER (folder name)—FILE (file name)—TRK TTL (track title)—ART NAME (artist name)—ALBM TTL (album title)— COMMENT (comment)—Bit rate

For WAV

Play time—FOLDER (folder name)—FILE (file name)—Sampling frequency

Notes

! You can scroll to the left of the title by pressing

and holding DISPLAY.

! Audio CD that contains certain information

such as text and/or number is CD TEXT.

! If specific information has not been recorded

on a disc, NO XXXX will be displayed (e.g., NO T-TTL).

! When playing back VBR (variable bit rate)-re-

corded WMA files, the average bit rate value is displayed.

<QRD3017-A

N>9

Section

Black plate (10,1)

Operating this unit

! When playing back VBR (variable bit rate)-re-

corded MP3 files, VBR is displayed instead of bit rate value.

! Depending on the version of iTunes used to

write MP3 files onto a disc, comment information may not be correctly displayed. — iTunes is a trademark of Apple Inc., regis-

tered in the U.S. and other countries.

! The sampling frequency shown in the display

may be abbreviated.

Audio Adjustments

Using balance adjustment

Fader/balance setting creates an ideal listening environment in all occupied seats.

1 Press AUDIO to select FAD.

2 Press a or b to adjust front/rear speaker balance. FAD F15 to FAD R15 is displayed.

# FAD 0 is the proper setting when only two speakers are used.

3 Press c or d to adjust left/right speaker balance. BAL L15 to BAL R15 is displayed.

# To return to the normal display, press BAND.

Adjusting equalizer curves

You can adjust the currently selected equalizer curve setting as desired. Adjusted equalizer curve settings are memorized in CUSTOM.

Adjusting bass/mid/treble

You can adjust the bass/mid/treble level.

1 Press AUDIO to select BASS/MID/ TREBLE.

2 Press a or b to adjust the level. +6 to –6 is displayed as the level is increased

or decreased.

# To return to the normal display, press BAND.

Adjusting loudness

Loudness compensates for deficiencies in the low- and high-sound ranges at low volume.

1 Press AUDIO to select LOUD.

2 Press a or b to turn loudness on or off.

# You can also turn loudness on or off by pressing and holding EQ.

3 Press c or d to select a desired level. LOW (low)—HI (high)

# To return to the normal display, press BAND.

Using the equalizer

There are six stored equalizer settings such as

DYNAMIC, VOCAL, NATURAL, CUSTOM, FLAT and POWERFUL that can easily be re-

called at any time. ! CUSTOM is an adjusted equalizer curve

that you create.

! When FLAT is selected no supplement or

correction is made to the sound.

% Press EQ to select the equalizer.

Press EQ repeatedly to switch between the following equalizers:

DYNAMIC—VOCAL—NATURAL—CUSTOM —FLAT—POWERFUL

Adjusting source levels

SLA (source level adjustment) lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. ! Settings are based on the FM volume level,

which remains unchanged.

! The AM volume level can also be adjusted

with source level adjustments.

1 Compare the FM volume level with the level of the source you wish to adjust.

2 Press AUDIO to select SLA.

QRD3017-A/N>10

Operating this unit

Black plate (11,1)

Section

3 Press a or b to adjust the source volume. SLA +4 to SLA –4 is displayed as the source

volume is increased or decreased.

# To return to the normal display, press BAND.

Other Functions

Adjusting initial settings

Using the initial settings, you can customize various system settings to achieve optimal performance from this unit.

1 Press SOURCE and hold until the unit turns off.

2 Press SOURCE and hold until function name appears in the display.

3 Press FUNCTION to select one of the initial settings.

Press FUNCTION repeatedly to switch between the following settings: Clock—FM (FM tuning step)—AM (AM tuning step)—AUX (auxiliary input) Use the following instructions to operate each particular setting.

# To cancel initial settings, press BAND. # You can also cancel initial settings by holding

down SOURCE until the unit turns off.

Setting the clock

Use these instructions to set the clock.

1 Press FUNCTION to select clock.

Refer to Adjusting initial settings on this page.

2 Press c or d to select the segment of the clock display you wish to set.

Pressing c or d will select one segment of the clock display: Hour—Minute

3 Press a or b to put a clock right.

Turning the clock display on or off

English

You can turn the clock display on or off. ! Even when the sources are off, the clock

display appears on the display.

% Press CLOCK to turn the clock display on or off.

Each press of CLOCK turns the clock display on or off.

# The clock display disappears temporarily when you perform other operations, but the clock display appears again after 25 seconds.

Setting the FM tuning step

The FM tuning step employed by seek tuning can be switched between 100 kHz, the preset step, and 50 kHz. ! If seek tuning is performed in 50 kHz steps,

stations may be tuned in imprecisely. Tune in the stations with manual tuning or use seek tuning again.

1 Press FUNCTION to select FM.

Refer to Adjusting initial settings on this page.

2 Press c or d to select the FM tuning step.

Press c to select 50 (50 kHz). Press d to select 100 (100 kHz).

Setting the AM tuning step

The AM tuning step can be switched between 9 kHz, the preset step, and 10 kHz. When using the tuner in North, Central or South America, reset the tuning step from 9 kHz (531 kHz to 1 602 kHz allowable) to 10 kHz (530 kHz to 1 640 kHz allowable).

1 Press FUNCTION to select AM.

Refer to Adjusting initial settings on this page.

2 Press c or d to select the AM tuning step. Press c to select 9 (9 kHz). Press d to select 10 (10 kHz).

QRD3017-A/N>11

Section

Operating this unit

Switching the auxiliary setting

It is possible to use auxiliary device with this unit. Activate the auxiliary setting when using auxiliary device connected to this unit.

1 Press FUNCTION to select AUX.

Refer to Adjusting initial settings on the previous page.

2 Press a or b to turn the auxiliary setting on or off.

Using the AUX source

% Insert the stereo mini plug into the input jack on this unit.

Selecting AUX as the source

% Press SOURCE to select AUX as the source.

Black plate (12,1)

<QRD3017-A

N>12

Connections

Black plate (13,1)

Section

Important

! When this unit is installed in a vehicle without

ACC (accessory) position on the ignition switch, red cable must be wired to the terminal that can detect the operation of the ignition key. Otherwise, battery drain may result.

ACC position No ACC position

! Use of this unit in conditions other than the

following could result in fire or malfunction. — Vehicles with a 12-volt battery and negative

grounding.

— Speakers with 50 W (output value) and 4

ohm to 8 ohm (impedance value).

! To prevent a short-circuit, overheating or mal-

function, be sure to follow the directions below. — Disconnect the negative terminal of the

battery before installation.

— Secure the wiring with cable clamps or ad-

hesive tape. To protect the wiring, wrap adhesive tape around them where they lie against metal parts.

— Place all cables away from moving parts,

such as gear shift and seat rails.

— Place all cables away from hot places,

such as near the heater outlet.

— Do not pass the yellow cable through a

hole into the engine compartment to connect to a battery.

— Cover any disconnected cable connectors

with insulating tape.

— Do not shorten any cables. — Never cut the insulation of the power cable

of this unit in order to share the power with other devices. Current capacity of the cable is limited.

— Use a fuse of the rating prescribed. — Never wire the speaker negative cable di-

rectly to ground.

— Never band together multiple speaker’s ne-

gative cables.

! Control signal is output through blue/white

English

cable when this unit is powered on. Connect it to an external power amp’s system remote control or the vehicle’s auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.

! Never connect blue/white cable to external

power amp’s power terminal. Also, never connect it to the power terminal of the auto antenna. Otherwise, battery drain or malfunction may result.

! Black cable is ground. This cable and other

product’s ground cable (especially, high-current products such as power amp) must be wired separately. Otherwise, fire or malfunction may result if they are accidentally detached.

<QRD3017-A

N>13

Section

Connections

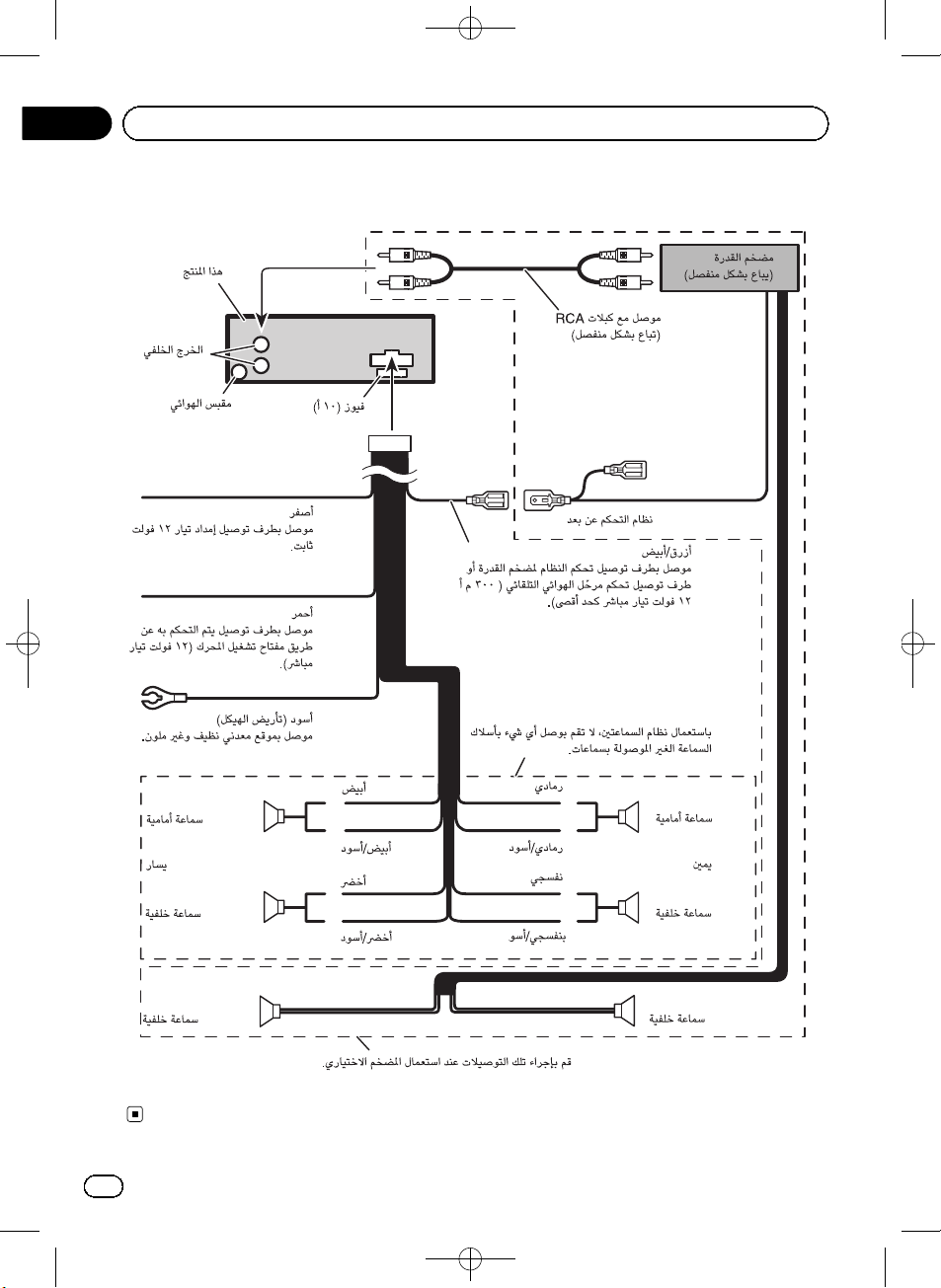

Connection diagram

Black plate (14,1)

This product

Connect with RCA cables

Rear output

Antenna jack

Yellow Connect to the constant 12 V supply terminal.

Red Connect to terminal controlled by ignition switch (12 V DC).

Black (chassis ground) Connect to a clean, paint-free metal location.

Front speaker Front speaker

Left Right

Rear speaker Rear speaker

Fuse (10 A)









Blue/white Connect to system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC).

With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers.

White

White/black

Green

Green/black

(sold separately)

Gray

Gray/black

Violet

Violet/black

System remote control









Power amp (sold separately)

Rear speaker Rear speaker





Perform these connections when using the optional amplifier.





<QRD3017-A

N>14

Installation

Black plate (15,1)

Section

Important

! Check all connections and systems before

final installation.

! Do not use unauthorized parts. Use of un-

authorized parts may cause malfunctions.

! Consult your dealer if installation requires dril-

ling of holes or other modifications to the vehicle.

! Do not install this unit where :

— it may interfere with operation of the vehi-

cle.

— it may cause injury to a passenger as a re-

sult of a sudden stop.

! The semiconductor laser will be damaged if it

overheats. Install this unit away from hot places such as near the heater outlet.

! Optimum performance is obtained when the

unit is installed at an angle of less than 60°.

! When installing, to ensure proper heat disper-

sal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

space behind the unit, use factory supplied

English

mounting sleeve.

2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

3 Install the unit.

Dashboard Rubber bush

Mounting sleeve Screw

Removing the unit

1 Extend top and bottom of the trim ring outwards to remove the trim ring. (When reattaching the trim ring, point the side with a groove downwards and attach it.)

DIN front/rear mount

This unit can be properly installed either from

“Front” (conventional DIN front-mount) or “Rear” (DIN rear-mount installation, utilizing

threaded screw holes at the sides of unit chassis). For details, refer to the following installation methods.

DIN Front-mount

Installation with the rubber bush

1 Insert the mounting sleeve into the dashboard.

When installing in a shallow space, use a supplied mounting sleeve. If there is enough

Trim ring

! It becomes easy to remove the trim ring if

the front panel is released.

2 Insert the supplied extraction keys into both sides of the unit until they click into place.

3 Pull the unit out of the dashboard.

<QRD3017-A

N>15

Section

Installation

DIN Rear-mount

1 Extend top and bottom of the trim ring outwards to remove the trim ring. (When reattaching the trim ring, point the side with a groove downwards and attach it.)

Trim ring

! It becomes easy to remove the trim ring if

the front panel is released.

2 Determine the appropriate position where the holes on the bracket and the side of the unit match.

Black plate (16,1)

3 Tighten two screws on each side.

Screw

Mounting bracket Dashboard or console

! Use either truss screws (5 mm × 8 mm) or

flush surface screws (5 mm × 9 mm), depending on the shape of screw holes in the bracket.

<QRD3017-A

N>16

Additional Information

Error messages

When you contact your dealer or your nearest Pioneer Service Center, be sure to have the error message recorded.

Message Cause Action

ERROR-11, 12, 17, 30

ERROR-10, 11, 12, 15, 17, 30, A0

ERROR-15 The inserted disc

ERROR-22, 23 The CD format

NO AUDIO The inserted disc

PROTECT All the files on

SKIPPED The inserted disc

Dirty disc Clean disc.

Scratched disc Replace disc.

Electrical or mechanical

does not contain any data

cannot be played back

does not contain any files that can be played back

the inserted disc are secured by DRM

contains WMA files that are protected by DRM

Turn the ignition switch OFF and back ON, or switch to a different source, then back to the CD player.

Replace disc.

Black plate (17,1)

Appendix

English

Handling guideline of discs and player

! Use only discs featuring either of following

two logos.

! Use only conventional, fully circular discs.

Do not use shaped discs.

! Use 12-cm or 8-cm CD. Do not use an

adapter when playing 8-cm CDs.

! Do not insert anything other than a CD into

the CD loading slot.

! Do not use cracked, chipped, warped, or

otherwise damaged discs as they may damage the player.

! Unfinalized CD-R/CD-RW disc playback is

not possible.

! Do not touch the recorded surface of the

discs.

! Store discs in their cases when not in use. ! Avoid leaving discs in excessively hot envir-

onments including under direct sunlight.

! Do not attach labels, write on or apply che-

micals to the surface of the discs.

! To clean a CD, wipe the disc with a soft

cloth outward from the center.

! Condensation may temporarily impair the

player’s performance. Leave it to adjust to the warmer temperature for about one hour. Also, wipe any dump discs with a soft cloth.

! Playback of discs may not be possible be-

cause of disc characteristics, disc format, recorded application, playback environment, storage conditions, and so on.

QRD3017-A/N>17

Appendix

Black plate (18,1)

Additional Information

! Text information may not be correctly dis-

played depending on the recorded environment.

! Road shocks may interrupt disc playback. ! Read the precautions for discs before

using them.

Dual Discs

! Dual Discs are two-sided discs that have a

recordable CD for audio on one side and a recordable DVD for video on the other.

! Since the CD side of Dual Discs is not phy-

sically compatible with the general CD standard, it may not be possible to play the CD side with this unit.

! Frequent loading and ejecting of a Dual

Disc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a Dual Disc may become stuck in the disc loading slot and will not eject. To prevent this, we recommend you refrain from using Dual Disc with this unit.

! Please refer to the information from the

disc manufacturer for more detailed information about Dual Discs.

Compressed audio files

! Depending on the version of Windows

Media™ Player used to encode WMA files, album names and other text information may not be correctly displayed.

! There may be a slight delay when starting

playback of WMA files encoded with image data.

! ISO 9660 Level 1 and 2 compliant. Romeo

and Joliet file systems are both compatible with this player.

! Multi-session playback is possible. ! Compressed audio files are not compatible

with packet write data transfer.

! Only 32 characters from beginning can be

displayed as a file name (including the file extension) or a folder name.

! Regardless of the length of blank section

between the songs of original recording, compressed audio discs play with a short pause between songs.

Example of a hierarchy

: Folder

: Compressed audio file

 

 

 

Level 1 Level 2 Level 3 Level 4

! This unit assigns folder numbers. The user

cannot assign folder numbers.

! Folder selection sequence or other opera-

tion may be altered depending on the encoding or writing software.

! Folder hierarchy is allowed up to eight tiers.

However, a practical hierarchy of folder is less than two tiers.

! Up to 99 folders on a disc can be played

back.

Compressed audio compatibility

WMA

! Compatible format: WMA encoded by

Windows Media Player

! File extension: .wma ! Bit rate: 48 kbps to 320 kbps (CBR), 48 kbps

to 384 kbps (VBR)

! Sampling frequency: 32 kHz to 48 kHz ! Windows Media Audio 9 Professional, Loss-

less, Voice: No

QRD3017-A/N>18

Additional Information

Black plate (19,1)

Appendix

MP3

! File extension: .mp3 ! Bit rate: 8 kbps to 320 kbps ! Sampling frequency: 16 kHz to 48 kHz (32,

44.1, 48 kHz for emphasis)

! Compatible ID3 tag version: 1.0, 1.1, 2.2,

2.3, 2.4 (ID3 tag Version 2.x is given priority than Version 1.x.)

! M3u playlist: No ! MP3i (MP3 interactive), mp3 PRO: No

WAV

! Compatible format: Linear PCM (LPCM),

MS ADPCM

! File extension: .wav ! Quantization bits: 8 and 16 (LPCM), 4 (MS

ADPCM)

! Sampling frequency: 16 kHz to 48 kHz

(LPCM), 22.05 kHz to 44.1 kHz (MS ADPCM)

English

<QRD3017-A

N>19

Appendix

Black plate (20,1)

Additional Information

Specifications

General

Rated power source ............... 14.4 V DC

(allowable voltage range:

12.0 V to 14.4 V DC)

Grounding system ................... Negative type

Max. current consumption

..................................................... 10.0 A

Dimensions (W × H × D):

DIN

Chassis ..................... 178 mm × 50 mm × 162

Nose ........................... 188 mm × 58 mm × 15 mm

Chassis ..................... 178 mm × 50 mm × 162

Nose ........................... 170 mm × 48 mm × 15 mm

Weight .......................................... 1.3 kg

Audio

Maximum power output ....... 50 W × 4

Continuous power output ... 22 W × 4 (50 Hz to 15000

Hz, 5% THD, 4 W load, both

channels driven)

Load impedance ...................... 4 W (4 W to 8 W allowable)

Preout max output level ....... 2.0 V

Tone controls:

Bass

Frequency ................100 Hz

Gain ............................ ±13dB

Mid

Frequency ................1 kHz

Gain ............................ ±12 dB

Treble

Frequency ................10 kHz

Gain ............................ ±12 dB

Signal-to-noise ratio ............... 72 dB (IEC-A network)

AM tuner

Frequency range ...................... 531 kHz to 1 602 kHz (9 kHz)

530 kHz to 1640 kHz (10

kHz)

Usable sensitivity ..................... 25 µV (S/N: 20 dB)

Signal-to-noise ratio ............... 62 dB (IEC-A network)

Infrared remote control

Wavelength ................................. 940 nm ±50 nm

Output ........................................... typ; 12 mw/sr per Infrared

LED

Note

Specifications and the design are subject to modifications without notice due to improvements.

CD player

System .......................................... Compact disc audio system

Usable discs .............................. Compact disc

Signal-to-noise ratio ............... 94 dB (1 kHz) (IEC-A net-

Number of channels .............. 2 (stereo)

WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10, 11 (2ch

MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3

WAV signal format ..................Linear PCM & MS ADPCM

work)

audio) (Windows Media Player)

FM tuner

Frequency range ...................... 87.5 MHz to 108.0 MHz

Usable sensitivity ..................... 11 dBf (0.7 µV/75 W, mono,

S/N: 30 dB)

<QRD3017-A

N>20

Black plate (21,1)

Contenido

Gracias por haber comprado este producto PIONEER.

Lea con detenimiento este manual antes de utilizar el producto por primera vez, para que pueda darle el mejor uso posible. Una vez leído, guarde este manual en un

lugar seguro y a mano para consultarlo en el futuro.

Español

Antes de comenzar

Acerca de esta unidad 22 Visite nuestro sitio Web 22 Protección del producto contra robo 22

– Extracción de la carátula 23 – Colocación de la carátula 23

Uso y cuidado del mando a distancia 23

– Instalación de la batería 23 – Uso del mando a distancia 23

Utilización de esta unidad Qué es cada cosa 25

– Unidad principal 25 – Mando a distancia 26 – Indicaciones de pantalla 26

Funciones básicas 26

– Encendido y apagado 26 – Selección de una fuente 27 – Ajuste del volumen 27

Sintonizador 27

– Para escuchar la radio 27 – Almacenamiento y recuperación de

frecuencias 28

– Sintonización de señales fuertes 28 – Almacenamiento de las frecuencias de

radio más fuertes 28

Reproductor incorporado 28

– Reproducción de un disco 28 – Repetición de reproducción 29 – Reproducción de las pistas en orden

aleatorio 29

– Exploración de pistas o carpetas 30 – Pausa de la reproducción de un

disco 30

– Uso de la compresión y BMX 30 – Búsqueda cada 10 pistas en el disco o

carpeta actual 30

– Visualización de información de texto

en el disco 30

Ajustes de audio 31

– Uso del ajuste del balance 31 – Uso del ecualizador 31

– Ajuste de las curvas de

ecualización 31

– Ajuste de la sonoridad 32 – Ajuste de los niveles de la fuente 32

Otras funciones 32

– Configuración de los ajustes

iniciales 32

– Ajuste del reloj 32 – Ajuste del paso de sintonía de FM 33 – Ajuste del paso de sintonía de AM 33 – Cambio del ajuste de un equipo

auxiliar 33

Conexiones Diagrama de conexión 35

Instalación Montaje delantero/posterior DIN 36

– Montaje delantero DIN 36 – Montaje trasero DIN 37

Información adicional

Mensajes de error 38 Pautas para el manejo de discos y del

reproductor 38 Discos dobles 39 Archivos de audio comprimidos 39

– Ejemplo de una jerarquía 39 – Compatibilidad con audio

comprimido 40

Especificaciones 41

<QRD3017-A

N>21

Sección

Black plate (22,1)

Antes de comenzar

Acerca de esta unidad

PRECAUCIÓN

! No permita que esta unidad entre en contacto

con líquidos. ya que ello puede producir una descarga eléctrica. Además, el contacto con líquidos puede causar daños en la unidad, humo y recalentamiento.

! Conserve este manual a mano para que

pueda consultar los procedimientos de operación y las precauciones cuando sea necesario.

! Mantenga siempre el volumen lo suficiente-

mente bajo como para que pueda escuchar los sonidos que provienen del exterior del vehículo.

! Proteja esta unidad de la humedad. ! Si se desconecta o se descarga la batería, la

memoria preajustada se borrará y deberá ser reprogramada.

! En caso de que esta unidad no funcione co-

rrectamente, póngase en contacto con su concesionario o con el centro de servicio PIONEER autorizado más cercano.

Acerca de WMA

Acerca de MP3

La venta de este producto sólo otorga una licencia para su uso privado, no comercial. No otorga ninguna licencia ni concede ningún derecho a utilizar este producto en transmisiones comerciales (es decir, lucrativas) en tiempo real (terrestres, vía satélite, por cable y/o por cualquier otro medio), transmisiones/ streaming por Internet, intranets y/u otras redes o en otros sistemas de distribución de contenido electrónico, como por ejemplo, aplicaciones de pago por escucha (pay-audio) o audio bajo demanda (audio-on-demand). Se necesita una licencia independiente para su uso comercial. Para obtener más información, visite http://www.mp3licensing.com.

Visite nuestro sitio Web

Visítenos en el siguiente sitio:

http://pioneer.jp/group/index-e.html

! En nuestro sitio Web ofrecemos la informa-

ción más reciente acerca de Pioneer Corporation.

El logo de Windows Media™ impreso en la caja indica que esta unidad puede reproducir datos WMA. Windows Media y el logo de Windows son marcas comerciales o registradas de Microsoft Corporation en los EE.UU. y/o en otros países. ! Esta unidad puede no funcionar correcta-

mente, dependiendo de la aplicación utilizada para codificar ficheros WMA.

Protección del producto contra robo

Se puede extraer la carátula como medida antirrobo.

Importante

! Proceda con cuidado al retirar o colocar la ca-

rátula.

! Evite someter la carátula a impactos excesi-

vos.

! Mantenga la carátula fuera del alcance de la

luz solar directa y no la exponga a altas temperaturas.

! Antes de extraer la carátura, asegúrese de re-

tirar de la misma el cable AUX. De lo contrario, puede dañarse la unidad, el dispositivo conectado o el interior del vehículo.

<QRD3017-A

N>22

Antes de comenzar

Black plate (23,1)

Sección

Extracción de la carátula

1 Presione DETACH para soltar la carátula.

2 Sujete la carátula y extráigala.

3 Coloque la carátula en la funda protectora provista para guardarla de manera segura.

Colocación de la carátula

1 Deslice la carátula hacia la izquierda hasta que oiga un chasquido.

La carátula y la unidad principal quedan unidas por el lado izquierdo. Asegúrese de que la carátula haya quedado unida a la unidad principal.

2 Presione el lado derecho de la carátula hasta que asiente firmemente.

# Si no puede fijar con éxito la carátula a la unidad principal, inténtelo de nuevo. Si aplica fuerza excesiva para fijar la carátula, ésta puede dañarse.

Uso y cuidado del mando a distancia

Instalación de la batería

Deslice y extraiga la bandeja de la parte posterior del mando a distancia e inserte la pila con los polos positivo (+) y negativo (–) en la dirección correcta.

ADVERTENCIA

Mantenga la batería fuera del alcance de los niños. En caso de ingestión accidental de ésta, consulte a un médico de inmediato.

PRECAUCIÓN

! Utilice una sola batería de litio CR2025 (3 V). ! Extraiga la batería si no piensa utilizar el

mando a distancia durante un mes o más tiempo.

! Si la pila se sustituye de forma incorrecta exis-

te riesgo de explosión. Reemplácela sólo con una del mismo tipo, o equivalente.

! No manipule la batería con herramientas me-

tálicas.

! No guarde la pila junto a objetos metálicos. ! En el caso de que se produzcan fugas de la

pila, limpie completamente el mando a distancia e instale una pila nueva.

! Para desechar las pilas usadas, cumpla con

los reglamentos gubernamentales o las normas ambientales pertinentes de las instituciones públicas aplicables en su país/zona.

Español

Uso del mando a distancia

Apunte el mando a distancia hacia la carátula para hacer funcionar la unidad.

QRD3017-A/N>23

Sección

Antes de comenzar

Importante

! No guarde el mando a distancia en lugares ex-

puestos a altas temperaturas o a la luz solar directa.

! Es posible que el mando a distancia no fun-

cione correctamente si lo expone a la luz solar directa.

! No deje caer el mando a distancia al suelo, ya

que puede quedar atascado debajo del freno o del acelerador.

Black plate (24,1)

<QRD3017-A

N>24

Utilización de esta unidad

Black plate (25,1)

Sección

Qué es cada cosa

Unidad principal

12 4 5 6

d c a

1 Botón FUNCTION

Presione este botón para acceder al menú de funciones al utilizar una fuente.

2 Botón AUDIO

Presione este botón para seleccionar los diversos controles de calidad del sonido.

3 Botones a/b/c/d

Presione estos botones para utilizar los controles de sintonización por búsqueda manual, avance rápido, retroceso y búsqueda de pista. También se usan para controlar las funciones.

4 Ranura de carga de discos

Introduzca el disco para reproducirlo.

89 7

9 Conector de entrada AUX (conector estéreo de 3,5 mm)

Utilícelo para conectar un dispositivo auxiliar.

a Botones 1 a 6

Presione para la sintonización preajustada.

b SOURCE botón, VOLUME

Esta unidad se enciende al seleccionar una fuente. Presione este botón para visualizar todas las fuentes disponibles. Mantenga presionado este botón para acceder al menú de ajustes iniciales si las fuentes están desactivadas. Gírelo para aumentar o disminuir el volumen.

c Botón EQ

Presione este botón para seleccionar las diversas curvas de ecualización. Presione y mantenga presionado para activar o desactivar la sonoridad.

d Botón BAND

Presione este botón para seleccionar entre tres bandas FM y una banda AM, y para cancelar modos de control de funciones.

Español

5 Botón EJECT

Presione este botón para expulsar un CD del reproductor de CD incorporado.

6 Botón DISPLAY

Presione este botón para seleccionar las diferentes visualizaciones. Manténgalo presionado para desplazarse por la información de texto.

7 Botón CLOCK

Pulse este botón para cambiar a la visualización del reloj.

8 Botón DETACH

Presione este botón para extraer la carátula de la unidad principal.

QRD3017-A/N>25

Sección

Black plate (26,1)

Utilización de esta unidad

Mando a distancia

Las funciones se utilizan de la misma manera que al usar los botones de la unidad principal. Consulte la explicación de la unidad principal acerca del uso de cada botón, con excepción de ATT, que se explica a continuación.

e Botón VOLUME

Presione este botón para aumentar o disminuir el volumen.

f Botón ATT

Presione este botón para bajar rápidamente el nivel de volumen, aproximadamente al 90%. Presione este botón una vez más para volver al nivel de volumen original.

g Botón SOURCE

Presione este botón para visualizar todas las fuentes disponibles. Manténgalo presionado para apagar la fuente.

h Botón PAUSE

Presione este botón para activar o desactivar la pausa.

Indicaciones de pantalla

1 Sección principal de la pantalla

Muestra información variada, como la banda, el tiempo de reproducción y otros ajustes. ! Sintonizador

Se muestran la banda y la frecuencia.

! Reproductor de CD incorporado

Se muestra el tiempo de reproducción transcurrido e información de texto.

2 Indicador del número de presintonía/ número de pista

Muestra el número de pista o el número de presintonía. ! Si se selecciona un número de pista 100

o superior, d se iluminará a la izquierda del indicador de número de pista.

3 Indicador MP3/WMA

Muestra el tipo de disco que se está reproduciendo actualmente.

4 Indicador RPT

Aparece cuando la repetición de reproducción está activada.

5 Indicador LOUD

Aparece cuando la sonoridad está activada.

6 Indicador (estéreo) 5

Aparece cuando la frecuencia seleccionada se está transmitiendo en estéreo.

7 Indicador LOC

Aparece cuando la sintonización por búsqueda local está activada.

Funciones básicas

Encendido y apagado

Encendido de la unidad

% Presione SOURCE para encender la unidad.

4 5 6 7

QRD3017-A/N>26

Utilización de esta unidad

Black plate (27,1)

Sección

Apagado de la unidad

% Mantenga presionado SOURCE hasta que se apague la unidad.

Selección de una fuente

Puede seleccionar una fuente que desee escuchar.

% Presione SOURCE para seleccionar una fuente.

Presione SOURCE varias veces para cambiar entre las siguientes fuentes.

Sintonizador—Reproductor de CD incorporado—AUX

Notas

! En los siguientes casos, la fuente sonora no

cambiará. — Cuando no hay un disco cargado en la uni-

dad.

— Cuando AUX (entrada auxiliar) está apaga-

da (consulte la página 33).

! AUX está activada de forma predeterminada.

Desactive AUX cuando no la utilice (consulte Cambio del ajuste de un equipo auxiliar en la página 33).

! Si el cable azul/blanco de esta unidad está co-

nectado al terminal de control del relé de la antena automática del vehículo, la antena se extiende cuando se enciende el equipo. Para retraer la antena, apague la fuente.

tablecer el paso de sintonía de AM (consulte Ajuste del paso de sintonía de AM en la página

33).

1 Presione SOURCE para seleccionar el sintonizador.

2 Presione BAND para seleccionar una banda.

Presione BAND hasta que se visualice la banda deseada (F1, F2, F3 para FM o AM).

3 Para utilizar la sintonización manual, presione brevemente c o d.

4 Para utilizar la sintonización por búsqueda, mantenga presionado c o d durante aproximadamente un segundo, y suelte el botón.

El sintonizador explorará las frecuencias hasta que encuentre una emisora con señales de suficiente intensidad como para asegurar una buena recepción.

# Se puede cancelar la sintonización por búsqueda presionando brevemente c o d. # Al mantener presionado c o d se pueden saltar las emisoras. La sintonización por búsqueda comienza inmediatamente después de que suelte c o d.

Español

Ajuste del volumen

% Gire VOLUME para ajustar el nivel de sonido.

Sintonizador

Para escuchar la radio

Importante

Si se utiliza esta unidad en América del Norte, América Central o América del Sur, se deberá res-

<QRD3017-A

N>27

Sección

Black plate (28,1)

Utilización de esta unidad

Almacenamiento y recuperación de frecuencias

% Cuando encuentre la frecuencia que desea almacenar en la memoria, presione uno de los botones de ajuste de presintonías 1 a 6 y manténgalo presionado hasta que el número de presintonía deje de destellar.

Una frecuencia de emisora de radio memorizada se puede recuperar presionando el botón de ajuste de presintonías.

# Se pueden almacenar en la memoria hasta 18 emisoras FM, seis por cada una de las tres bandas FM, y seis emisoras AM. # Presione a o b para recuperar las frecuen- cias de las emisoras de radio.

Sintonización de señales fuertes

La sintonización por búsqueda local le permite sintonizar sólo las emisoras de radio con señales lo suficientemente fuertes como para asegurar una buena recepción.

1 Presione FUNCTION para seleccionar LOCAL.

2 Presione a o b para activar o desactivar la sintonización por búsqueda local.

3 Presione c o d para ajustar la sensibilidad. FM: LOCAL 1—LOCAL 2—LOCAL 3— LOCAL 4

AM: LOCAL 1—LOCAL 2 El ajuste LOCAL 4 sólo permite recibir las emisoras con las señales más fuertes, mientras que los ajustes más bajos permiten recibir de manera progresiva las emisoras con las señales más débiles.

Almacenamiento de las frecuencias de radio más fuertes

La función BSM (memoria de las mejores emisoras) permite guardar automáticamente las seis frecuencias de las emisoras más fuertes

en los botones de ajuste de presintonías 1 a 6. Una vez almacenadas, podrá sintonizar esas frecuencias pulsando un solo botón. ! Al almacenar frecuencias con la función

BSM, se pueden reemplazar las frecuencias que ha almacenado con los botones 1 a 6.

1 Presione FUNCTION para seleccionar BSM.

2 Presione a para activar la función BSM.

Las seis frecuencias de las emisoras de mayor intensidad se almacenarán en orden según la intensidad de las señales.

# Para cancelar el proceso de almacenamiento, presione b.

Reproductor incorporado

Reproducción de un disco

1 Introduzca un CD (CD-ROM) por la ranura de carga de discos.

La reproducción comenzará automáticamente.

# Asegúrese de que el lado de la etiqueta del disco esté hacia arriba.

# Después de colocar un CD (CD-ROM), presione SOURCE para seleccionar el reproductor de CD incorporado. # Se puede expulsar un CD (CD-ROM) presionando EJECT.

2 Presione a o b para seleccionar una carpeta cuando se está reproduciendo un audio comprimido.

# No se puede seleccionar una carpeta que no tenga un fichero de audio comprimido grabado en ella. # Para volver a la carpeta 01 (RAÍZ), mantenga presionado BAND. Sin embargo, si la carpeta 01 (RAÍZ) no contiene ficheros, la reproducción comenzará en la carpeta 02.

<QRD3017-A

N>28

Utilización de esta unidad

Black plate (29,1)

Sección

3 Para realizar el avance rápido o retroceso, mantenga presionado c o d.

# Si selecciona el método de búsqueda

ROUGH, al mantener presionado c o d podrá buscar una pista cada 10 pistas en el disco (carpeta) actual. (Consulte Búsqueda cada 10 pistas en el disco o carpeta actual en la página siguiente.)

4 Para saltar y retroceder o avanzar hasta otra pista, presione c o d.

Notas

! Lea las precauciones sobre los discos y el re-

productor en la página 38.

! Si aparece un mensaje de error como

ERROR-11, consulte Mensajes de error en la página 38.

! A veces se produce una demora entre el co-

mienzo de la reproducción de un disco y la emisión del sonido. Durante la lectura inicial, se visualiza FRMTREAD.

! Al reproducir CD-EXTRA o CD DE MODO

MIXTO, se puede cambiar entre audio comprimido y CD-DA presionando BAND.

! Si se cambia entre audio comprimido y CD-

DA, la reproducción comienza en la primera pista del disco.

! El reproductor de CD incorporado puede re-

producir audio comprimido grabado en CDROM. (Consulte la sección siguiente para los archivos que se pueden reproducir. Consulte la página 39).

! Al reproducir ficheros grabados con VBR (ve-

locidad de grabación variable), puede que no se muestre correctamente el tiempo de reproducción transcurrido.

! Al reproducir audio comprimido, no hay soni-

do en el avance rápido o en el retroceso.

Repetición de reproducción

Con la repetición de reproducción se reproduce la misma pista/carpeta dentro de la gama de repetición de reproducción seleccionada.

1 Presione FUNCTION para seleccionar RPT.

2 Presione c o d para seleccionar la gama de repetición. DSC – Repite todas las pistas TRK – Repite la pista actual FLD – Repite la carpeta actual

# Si selecciona otra carpeta durante la repetición de reproducción, la gama de repetición cambia a repetición de disco. # Al reproducir un CD, realizar una búsqueda de pista o el avance rápido/retroceso, se cancela automáticamente la repetición de reproducción. # Al reproducir audio comprimido, si se realiza una búsqueda de pista o el avance rápido/retroceso durante TRK (repetición de pista), se cambia la gama de repetición de reproducción a repetición de carpeta. # Cuando se selecciona FLD (repetición de car- peta), no se puede reproducir una subcarpeta de esa carpeta. # Para volver a la visualización normal, presione BAND.

Reproducción de las pistas en orden aleatorio

Las pistas de una gama de repetición seleccionada se reproducen en orden aleatorio.

1 Seleccione la gama de repetición.

Consulte Repetición de reproducción en esta página.

2 Presione FUNCTION para seleccionar RDM.

3 Presione a o b para activar o desactivar la reproducción aleatoria.

Cuando la repetición aleatoria está activada, en el display aparece RDM. Si activa la reproducción aleatoria durante la repetición de carpeta, FRDM aparece en el display.

# Para volver a la visualización normal, presione BAND.

Español

<QRD3017-A

N>29

+ 67 hidden pages

Pioneer DEH-1150MPG, DEH-1150MP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
