Index
English ------------------------------------------------ 6
IMPORTANT:
PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR
OF THIS SYSTEM IS PRESET AT 220V
FROM THE FACTORY.
FOR COUNTRIES THAT OPERATE AT
110-127V, PLEASE ADJUST TO 110-127V
BEFORE YOU SWITCH ON THE
SYSTEM.
¶ The type plate (which contains the serial
number) is located at the rear of the player.
¶ Recording is permissible if copyright or
other rights of third parties are not
infringed.
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied Accessories
– Remote control
– Batteries (two AA size) for remote control
– AM loop antenna
– FM wire antenna
– AC power cord
– One Video cinch cable
Safety Information
¶ Before operating the player, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your player is identical with the
voltage of your local power supply. If not, please
consult your dealer. The typeplate is located at
the rear of your player.
¶ When the player is switched on, do not move it
around.
¶ Place the player on a solid base (e.g. a cabinet).
¶ Place the player in a location with adequate
ventilation to prevent internal heat build-up in
your player. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from the each side.
¶ Do not expose the player to excessive moisture,
rain, sand or heat sources.
¶ Under no circumstances should you repair the
player yourself, as this will invalidate the
warranty!
¶ If the player is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the player. Should this occur, the CD
player will not operate normally. Leave the
power on for about one hour with no disc in the
player until normal playback is possible.
¶ Electrostatic discharge may cause unexpected
problems. See whether these problems
disappear if you unplug the AC power cord and
plug it in again after a few seconds.
¶ To disconnect the player from the power
supply completely, remove the AC power
plug from the wall socket.
English
pg 01-032/V220/21-Eng28/05/2001, 09:03 AM7
7
3139 115 20823
Preparations
unlocklock
12 mm
English
C
L
Rear Connections
A AM Loop Antenna Connection
Connect the supplied loop antenna to the AM
ANTENNA terminal. Place the AM loop antenna
far away from the system and adjust its position
for the best reception.
R
FM AERIAL
AUX IN
AUDIO OUT
75‰
AM ANTENNA
VOLTAGE
VOLTAGE
SELECTOR
SELECTOR
220V-
110V-127V
240V
220V-
110V-
240V
127V
AC
MAINS
~
VIDEO
OUT
E
D
FRONT
+
R
—
—
L
+
B
A
F
G
W
¶ Connect the left speaker to Front terminal L,
with the coloured wire to + and the black wire
to -.
¶ Clip the stripped portion of the speaker wire as
shown.
B FM Wire Antenna Connection
Connect the supplied FM wire antenna to the
FM AERIAL (FM ANTENNA) 75 Ω terminal.
Adjust the position of the FM antenna for the
best reception.
Outdoor Antenna
For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) 75 Ω terminal using a 75 Ω coaxial
wire.
FM AERIAL 75Ω
FM ANTENNA 75Ω
OR
C Speakers Connection
¶ Connect the right speaker to Front terminal R,
with the coloured wire to + and the black wire
to -.
8
pg 01-032/V220/21-Eng28/05/2001, 09:03 AM8
CAUTION:
– For optimal sound performance, it is
recommended to use the supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminal.
– Do not connect speakers with impedance lower
than the speakers supplied. Please refer to
SPECIFICATION section of this manual.
D Connecting other equipment to your
player
You can connect the audio left and right OUT
terminals of a TV, VCR, Laser Disc player, DVD
player or CD Recorder to the AUX IN terminals
at the rear of the system.
3139 115 20823
Preparation
E Video Out Connection
Connect the VIDEO OUT terminal at the rear of
the system to the TV or VCR VIDEO IN for
viewing or recording.
F Adjusting the Operating Voltage
Before connecting the AC power cord to the
wall outlet, make sure that the voltage selector at
the rear of the system is set to the local power
line voltage. If not, reset the selector before
connecting to the wall outlet.
G AC Power Supply
After all other connections have been made,
connect the AC power cord to the system and
to the wall outlet.

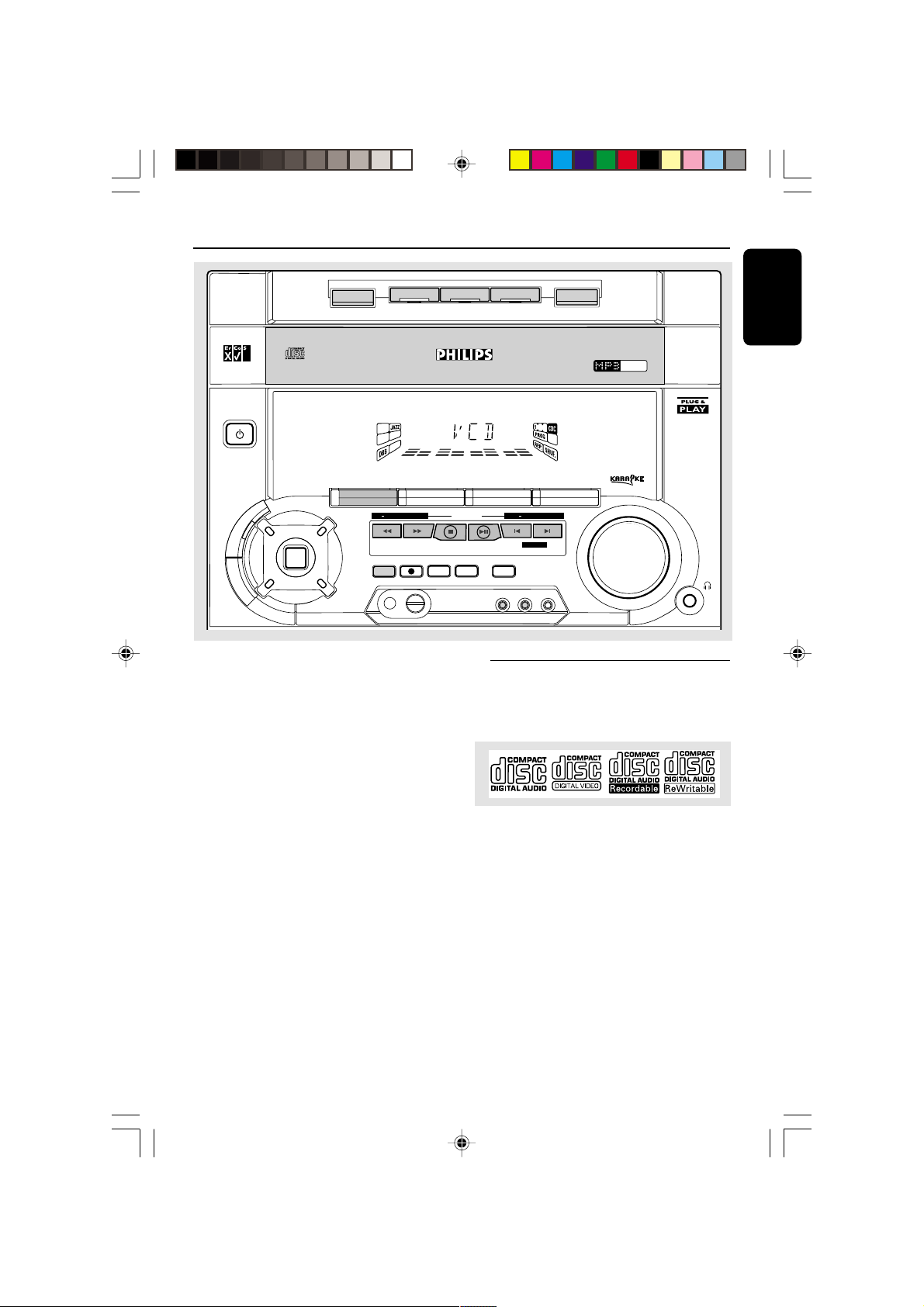

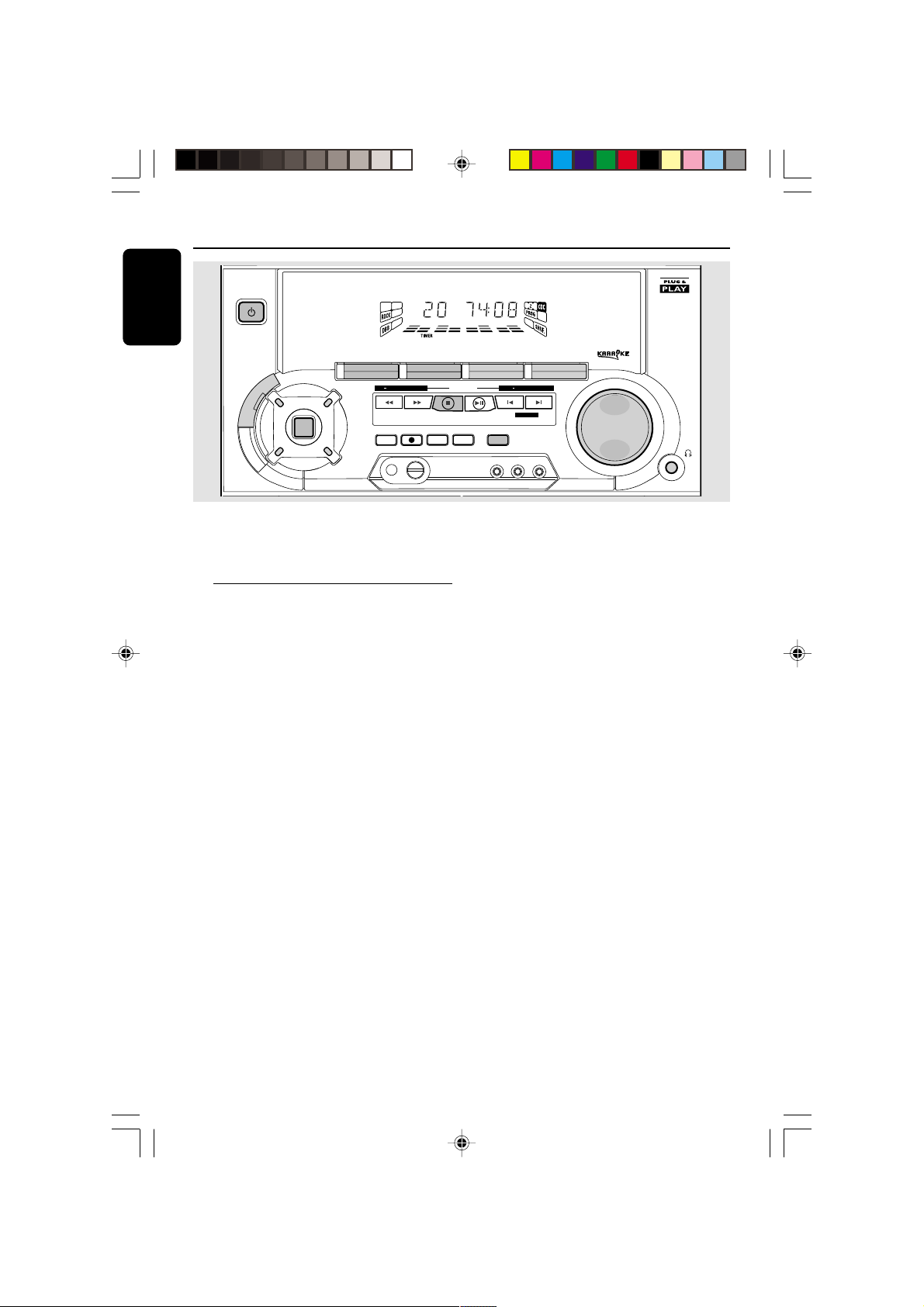

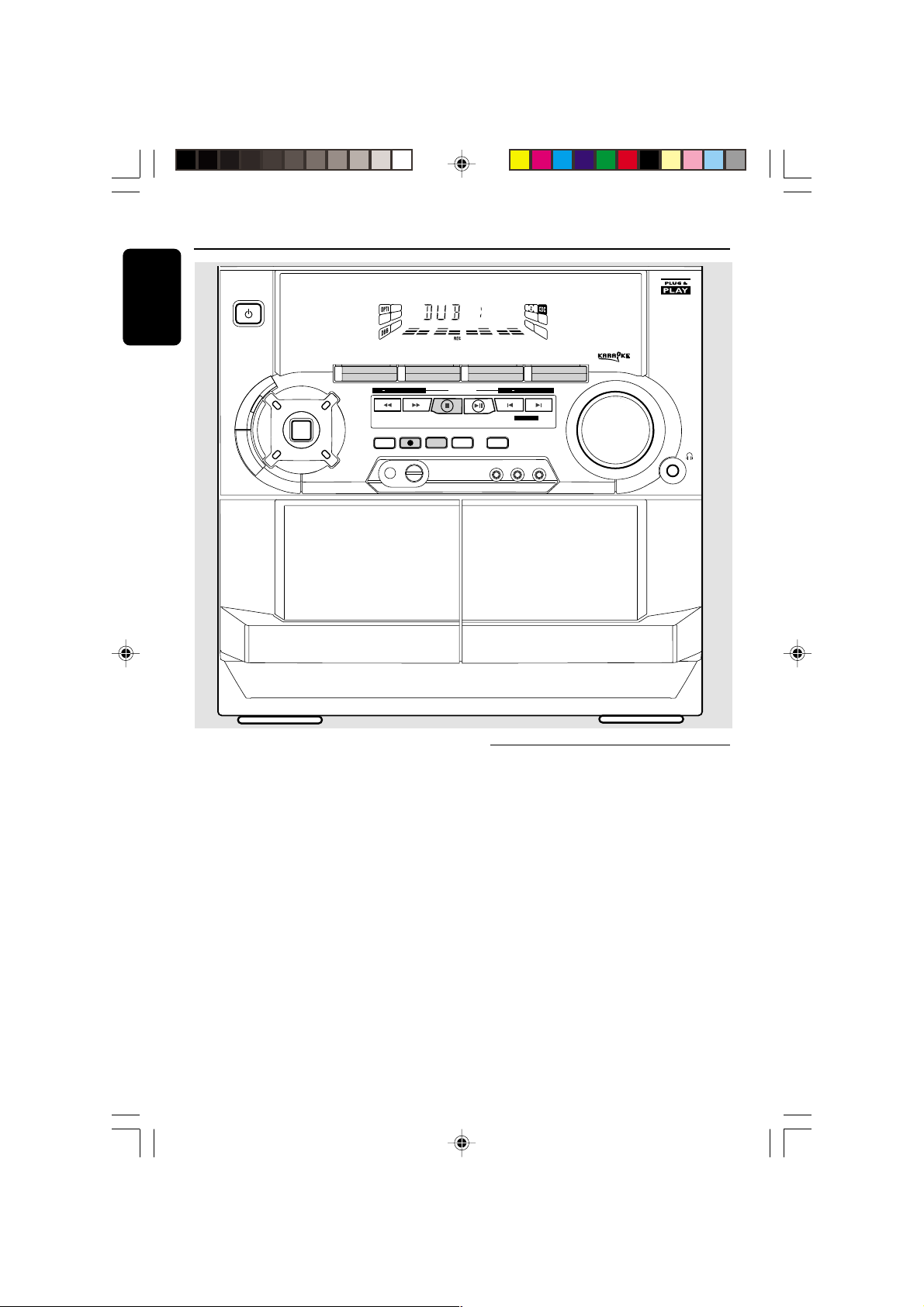

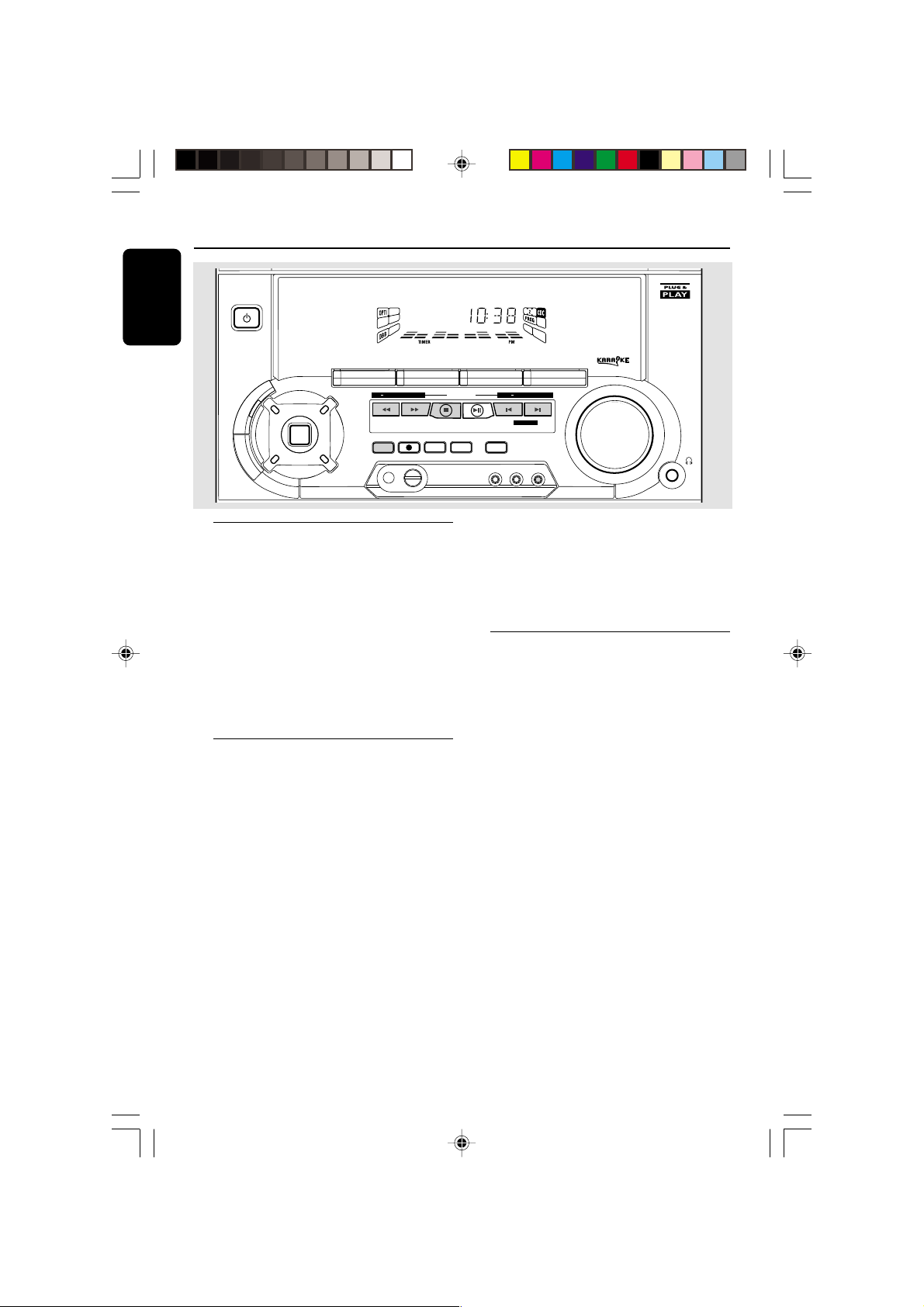

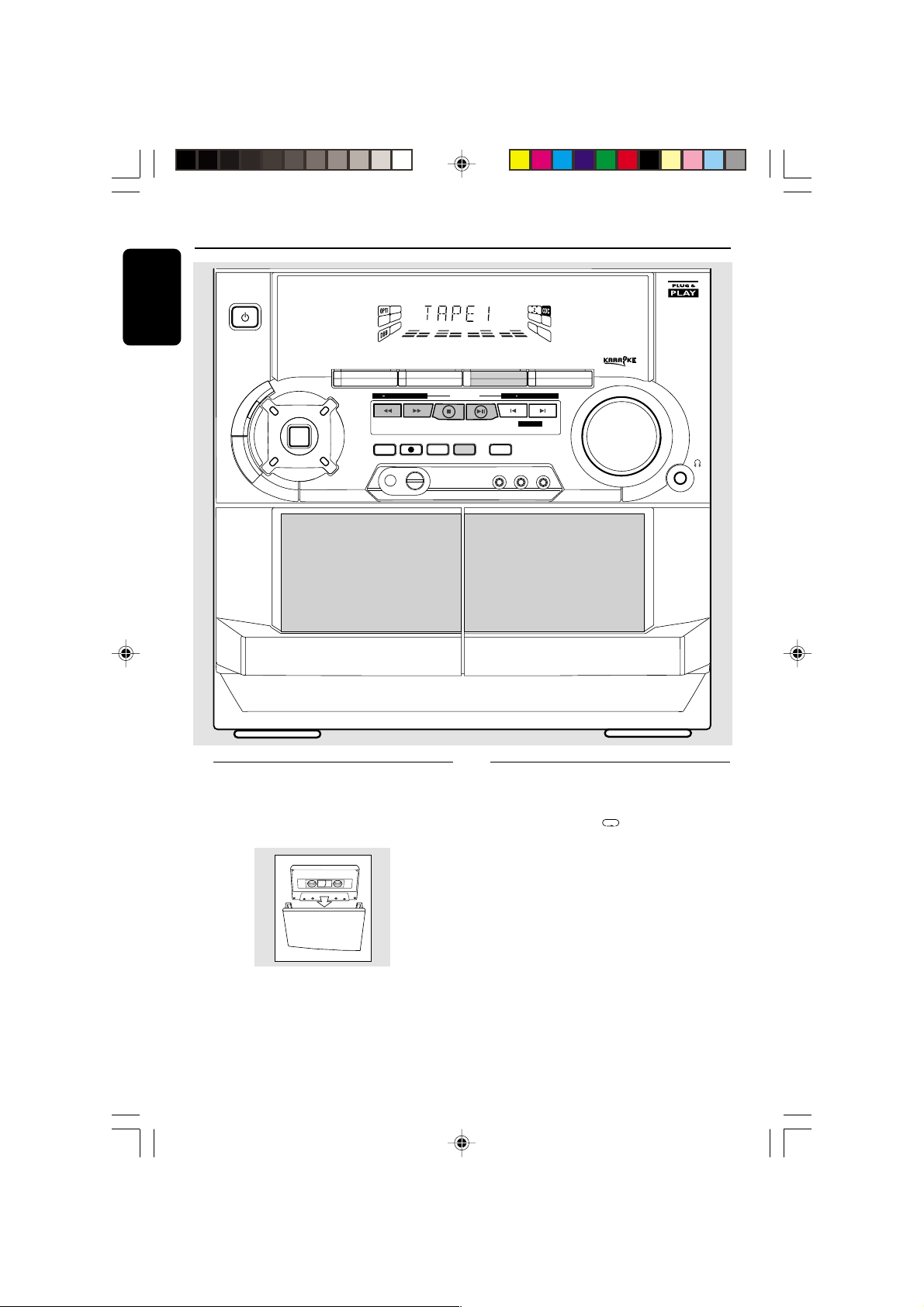

Controls (main system’s illustration on page 3)

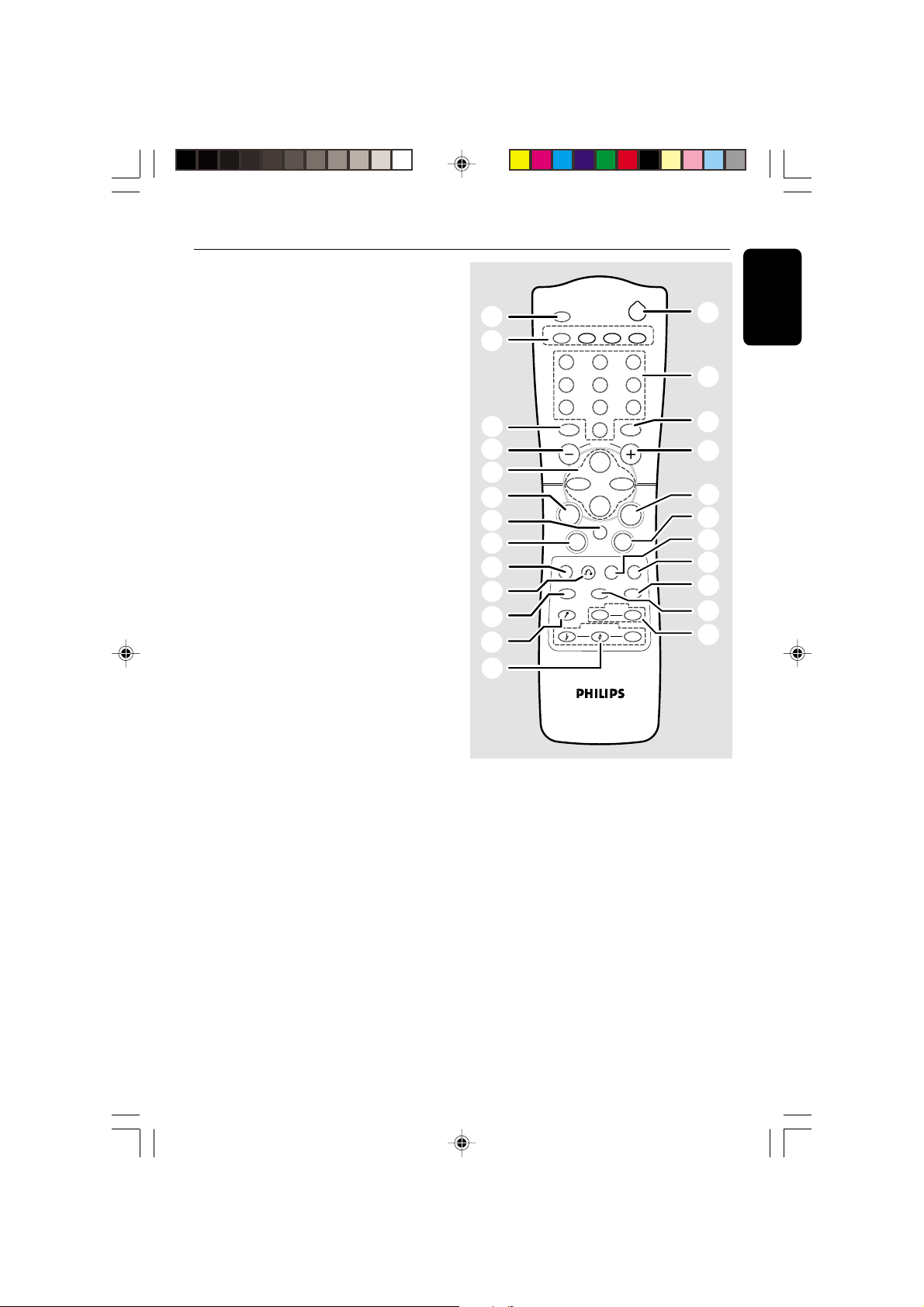

Controls on the player and
remote control
1 STANDBY-ON y
– switches the system to standby/on.
2 DBB (DYNAMIC BASS BOOST)
– to switch on bass boost to enhance bass
response or to switch off bass boost.
3 DIGITAL SOUND CONTROL PANEL
– to view the desired DSC display.
4 DSC (DIGITAL SOUND CONTROL)
– to select the desired sound effect :
OPTIMAL, JAZZ, ROCK or TECHNO.
5 PROGRAM
for VCD/CD/MP3-CD…to programme disc
for TUNER ........ to programme preset radio
for CLOCK .......to select 12 or 24 hour in clock
6 MICROPHONE
– to connect microphone jack.
7 MIC LEVEL
– to adjust the mixing level for karaoke or
microphone recording.
tracks.
stations.
setting mode
.
Inserting batteries into the
Remote Control
¶ Insert the batteries (Type R06 or AA) into the
remote control as shown in the battery
compartment.
CAUTION
– Remove batteries if they are exhausted
or not to be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, so
they should be disposed off properly.
8 RECORD
– to star t recording on tape deck 2.
9 DUBBING
– to dub a tape in normal speed.
0 DISPLAY SCREEN
– to view the cur rent setting of the system.
! CD CHANGER TRAY
@ DISC CHANGE
– to change disc(s).
# OPEN•CLOSE
– to open or close the CD changer tray.
$ DISC 1 / DISC 2 / DISC 3 (DISC DIRECT
PLAY)
– to select a disc tray for playback.
% SOURCE – to select the following:
VCD / (CD 1•2•3)
– to select VCD/CD mode (this system can
playback MP3-CD format disc also). When VCD/
CD playback is stopped, press to select the disc
tray 1, 2 or 3.
PAL / NTSC
– to select corresponding PAL or NTSC system of
your TV set (exception Multi-system TV).
English
pg 01-032/V220/21-Eng28/05/2001, 09:03 AM9
9
3139 115 20823
Controls
English
TUNER / (BAND)
– to select Tuner mode. When in tuner mode,
press to select the waveband: FM or MW.
TAPE / (TAPE 1• 2)
– to select Tape mode. When tape playback is
stopped, press to select either tape deck 1 or 2.
AUX (VIDEO)
– to select sound from an external source (e.g. TV,
VCR, Laser Disc player, DVD player or CD
Recorder).
^ MODE SELECTION
SEARCH àá (TUNING à á )
(ALBUM
for MP3-CD only…to select previous/next
for VCD only…to move the zoomed picture to
for VCD/CD…to search backward/forward
for TUNER ......... to tune to a lower or higher radio
for TAPE .............. to rewind or fast forward a tape.
for CLOCK .......to set the hour (on the system
STOP•CLEAR Ç
for VCD/CD/MP3-CD…to stop disc playback or
for TUNER ........ to stop programming (on the
for TAPE.............. to stop playback or recording.
for DEMO .........to start or stop demonstration
for CLOCK .......to exit clock setting or cancel
for PLUG & PLAY…to exit plug & play mode
PLAY•PAUSE ÉÅ
for VCD/CD/MP3-CD…to star t or interrupt
for VCD only…to watch a still picture.
for TAPE.............. to start playback.
for PLUG & PLAY…to initiate and star t plug &
--
++
-/
+)
--
++
Album
the left or right.
during playback.
frequency.
only)
.
to clear a programme.
system only)
mode (on the system only).
timer (on the system only).
and return to standby mode (on
the system only).
playback.
play from standby/demo mode
(on the system only).
.
PREV í / NEXT ë(PRESET 4 3 )
(TITLE
for MP3-CD only…to select previous/next Title.
for VCD only…to move the zoomed picture
for VCD with PBC on ...........................
................................. to select next or previous MENU
for VCD/CD ..... to skip to the previous, or next
for TUNER ........ to select a preset station in
for CLOCK ....... to set the minute (on the system
--
++
-/
+)
--
++
down or up.
or VCD track during playback.
track.
memory.
only)
.
& VOLUME
– to increase or decrease the volume.
* n
– to connect headphones.

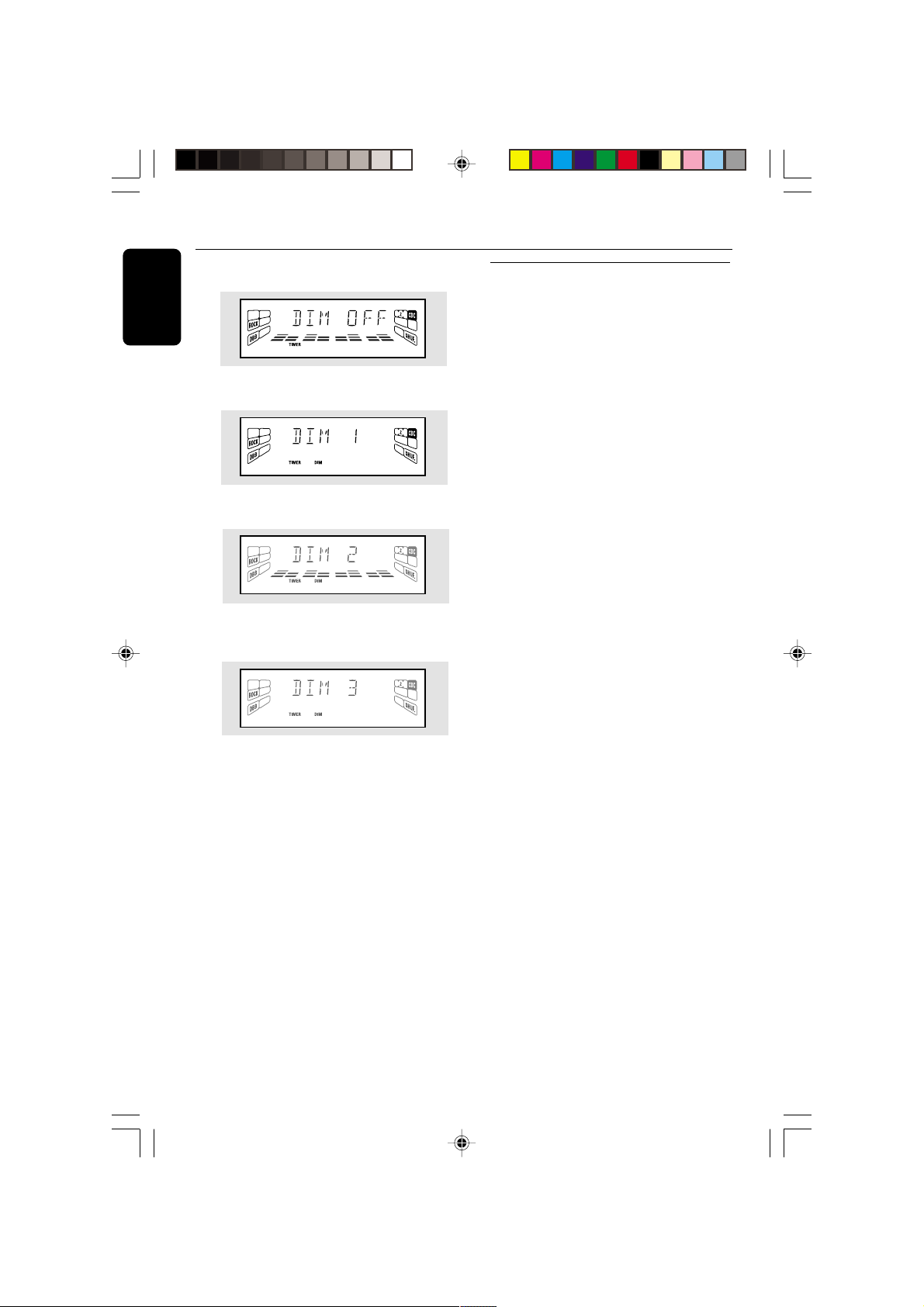

( DIM
– to select different brightness for the display
screen : DIM 1, DIM 2, DIM 3 or DIM OFF.
) CLOCK•TIMER
– to view the clock, set the clock or set the timer.
¡ RETURN
– for VCD with PBC on to return to the previous
MENU level during playback (for VCD version 2.0only).
™ PBC (PLAYBACK CONTROL)
– to switch on or off PBC mode (for VCD version
2.0 only).
£ A. REPLAY (AUTO REPLAY)
– to select playback mode either in continuous
AUTO REPLAY or ONCE only.
≤ TAPE DECK 2
∞ TAPE DECK 1
§ OSD (ON SCREEN DISPLAY)
– to switch on or off the on screen display on the
TV screen.
≥ INCREDIBLE SURROUND (not applicable
for this model)
– to switch on or off the surround sound effect.
• ZOOM
– to enlarge a still picture on the TV screen (for
VCD operation only).
ª VOCAL
– to fade out the vocal of the original song during
VCD playback or to switch between mono or
stereo mode during audio disc playback (for VCD/CD/MP3 operation only).
10
pg 01-032/V220/21-Eng28/05/2001, 09:03 AM10
3139 115 20823
Loading...
+ 22 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
