Philips FW-V520 User Manual

Download

Mini Hi-Fi System

V520

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM1

3139 115 21093

Optimum disc playability : ensuring excellent picture quality

Philips components and modules for the various CD applications have always enjoyed an excellent reputation in the market place for super disc playability - the ability to play discs which may be scratched, soiled or not fully according to the standard specification. This position has been underlined by tests showing the superior performance of the various Philips players, as well as by the positive experiences of millions of individual consumers around the world.

Constantly improving performance

As the penetration of the CD system has increased, and new applications like CD-ROM and Video CD have become commonplace, Philips Components - as the CD technology inventor and as one of the major suppliers of CD player modules in the industry - has constantly improved the performance of its products.

One of the ways in which this benefits users is by optimum disc playability. This is an important parameter for CD players other than CD Audio, and especially for the Video CD applications, because any loss of data from the disc will at best cause disturbances in the reproduced picture, and at worst can cause the player to lose track so that disc playing fails.

Presenting Super Error Correction

To ensure consistently good results when playing Video CD discs of all quality grades and conditions, Philips has introduced further improvements in the system's playability. These developments together are called Super Error Correction, a proprietary Philips technology optimizing the system's ability to handle lessthan-perfect discs with the minimum disturbance to normal playing.

By effectively eliminating virtually all errors arising under normal playing conditions, Super Error Correction ensures that the picture quality as seen by the user is independent of disc play. The video encoding and processing during mastering of the disc, and the MPEG-1 decoding and video encoding in the signal processing stages, are now the only limiting factors for picture quality.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM2

3139 115 21093

2 1

∞ ≤ £ ™ ¡ ) ( *

CHANGE

DISC

DCV

CHANGER

DISC

DISC DIRECT PLAY

DISC

OPEN• CLOSE

CD/CD-R/CD-RW COMPATIBLE

CD SYNCHRO RECORDING

VCD MINI HIFI SYSTEM

STANDBY-ON

FW-

VOLUME

BAND

SOURCE

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

CDR/DVD

INTERACTIVE VU METER

MAX

SOUND

MIC/

LEVEL

CLOCK•

TITLE/

MP3-CD

LBU

DEMO STOP/ CLEAR

DISPLAY

PLAY•

PAUSE

•

PROG

TIMER

VCD PAL/

NTSC

TAPE AUX

REPLAY

CD 1•2•3

TAPE 1•2

AUTO

DUBBING REC

TUNER

0 !

@ # $ %

TAPE 1

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM3

TAPE 2

3139 115 21093

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM4

3139 115 21093

Index

English ------------------------------------------------ 6

-------------------------------------------------------- 33

Bahasa Melayu ----------------------------------- 61

Bahasa Indonesia -------------------------------- 89

English

Bahasa Melayu

Bahasa Indonesia

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM5

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

3139 115 21093

Contents

English

General Information

Environmental Information ................................ 7

Supplied Accessories ........................................... 7

Safety Information ................................................ 7

Preparations

Rear Connections ............................................ 8–9

Inserting batteries into the remote

control .................................................................... 9

Controls

Controls on the system and remote

control ........................................................... 10–12

Basic Functions

Plug and Play ........................................................ 13

Demonstration mode ........................................ 13

Switching the system on ................................... 14

Switching the system to Standby mode ........ 14

Power Saving Automatic Standby .................... 14

Display mode....................................................... 14

Volume Control .................................................. 14

Sound Navigation ............................................... 15

CD/VCD/MP3-CD Operation

Discs for Playback .............................................. 16

Loading Discs ...................................................... 17

Disc Playback ....................................................... 17

Replace discs during playback.......................... 17

Select a desired track/passage ......................... 18

Programming the disc tracks .................... 18–19

Repeat ................................................................... 19

Title/Album Name ............................................. 19

VIDEO CD

Adjusting the TV System ................................... 20

OSD – On Screen Display ............................... 20

Playing a Video CD with PBC .......................... 20

Return ................................................................... 21

Digest .................................................................... 21

A-B Repeat .......................................................... 21

Zoom .................................................................... 21

Resume ................................................................. 22

Slow ....................................................................... 22

Vocal ...................................................................... 22

Key Control ......................................................... 22

Echo ....................................................................... 22

Radio Reception

Storing Preset Radio Stations ................... 23–24

Tuning to Preset Radio Stations ...................... 24

Erasing a Preset Radio Station ........................ 24

Changing Tuning Grid ........................................ 24

Tape Operation/Recording

Tape Playback ...................................................... 25

General Information on Recording ................ 26

Preparation for Recording ............................... 26

One Touch Recording/Recording the

mixed sound ........................................................ 26

CD/VCD/MP3-CD Synchro Recording..............

......................................................................... 26–27

Dubbing Tapes ..................................................... 27

Karaoke

Microphone Mixing ............................................ 27

Clock/Timer

View Clock .......................................................... 28

Clock Setting ....................................................... 28

Timer Setting ................................................ 28–29

External Sources

Listening to External Sources .......................... 29

Specifications ........................................... 30

Maintenance.............................................. 31

Troubleshooting ............................. 31–32

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM6

3139 115 21093

General Information

IMPORTANT! PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Supplied accessories

– Remote control – Batteries (two AA size) for remote control – AM loop antenna – FM wire antenna – AC power cord – One Video cinch cable

Safety Information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

● If the system is brought directly from a cold to a

warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

● The mechanical par ts of the set contain self-

lubricating bearings and must not be oiled or lubricated.

● When the system is switched to Standby

mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM7

3139 115 21093

Preparations

English

speaker

(right)

AM loop

antenna

AUX/ CDR

SUBWOOFER

OUT

– –

SPEAKERS 6Ω

Television

VIDEO OUT

(CVBS)

AM ANTENNA

FM ANTENNA

VIDEO

FM wire

AUDIO

antenna

OUT

speaker

(left)

MAINS

VOLTAGE SELECTOR

110V127V

220V240V

AC power cord

Rear Connections

The type plate is located at the rear of the system.

A Pow er

Before connecting the AC power cord to the wall outlet, ensure that the following are done; – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage. – All other connections have been made.

WARNING! – For optimal performance, use only the original power cable. – Never make or change any connections with the power switched on.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).

VOLTAGE SELECTOR

110V127V

220V240V

B Antennas Connection

Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.

AM Antenna

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

FM Antenna

● For better FM stereo reception, connect an

outdoor FM antenna to the FM ANTENNA terminal.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM8

3139 115 21093

Preparations

C Speakers Connection

Front Speakers

Connect the speaker wires to the SPEAKERS (FRONT) terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-".

● Fully inser t the stripped por tion of the speaker

wire into the terminal as shown.

Notes: – For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

D Video Out Connection

Connect the VIDEO OUT (CVBS) terminal at the rear of the system to the TV or VCR VIDEO IN for viewing or recording.

Note: – To avoid magnetic interference with the picture on your TV, do not position the front speakers too close to the TV.

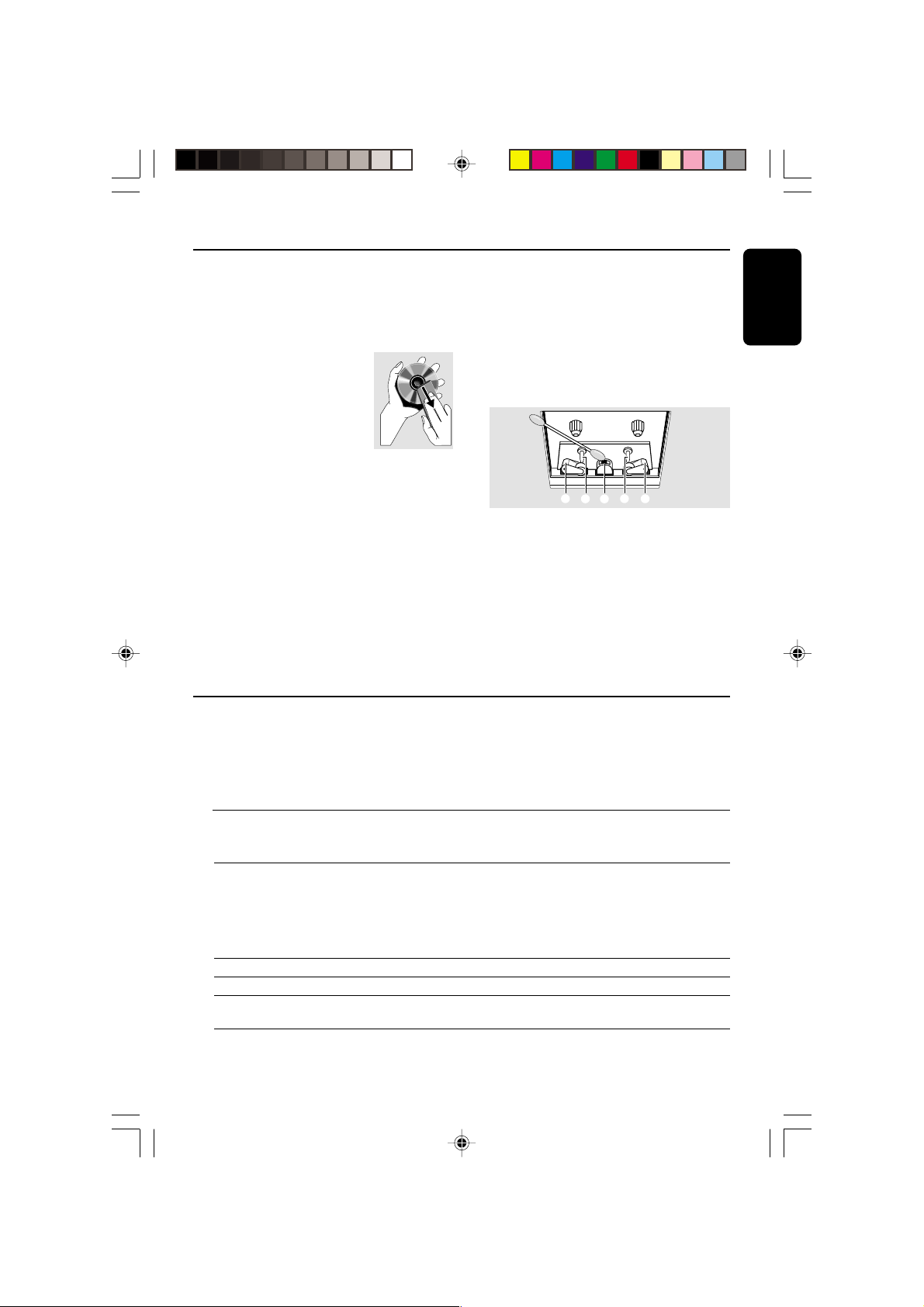

Inserting batteries into the Remote Control

Insert two batteries (Type R06 or AA) into the remote control with the correct polarity as indicated by the + and - symbols inside the battery compar tment.

CAUTION! – Remove batteries if they are exhausted or not to be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed off properly.

English

E Connecting other equipment to your

system

Connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals.

Note: – If you are connecting equipment with a mono output (a single audio out terminal), connect it to the AUX/CDR IN left terminal. Alternatively, you can use a “single to double” cinch cable (still be mono sound).

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM9

3139 115 21093

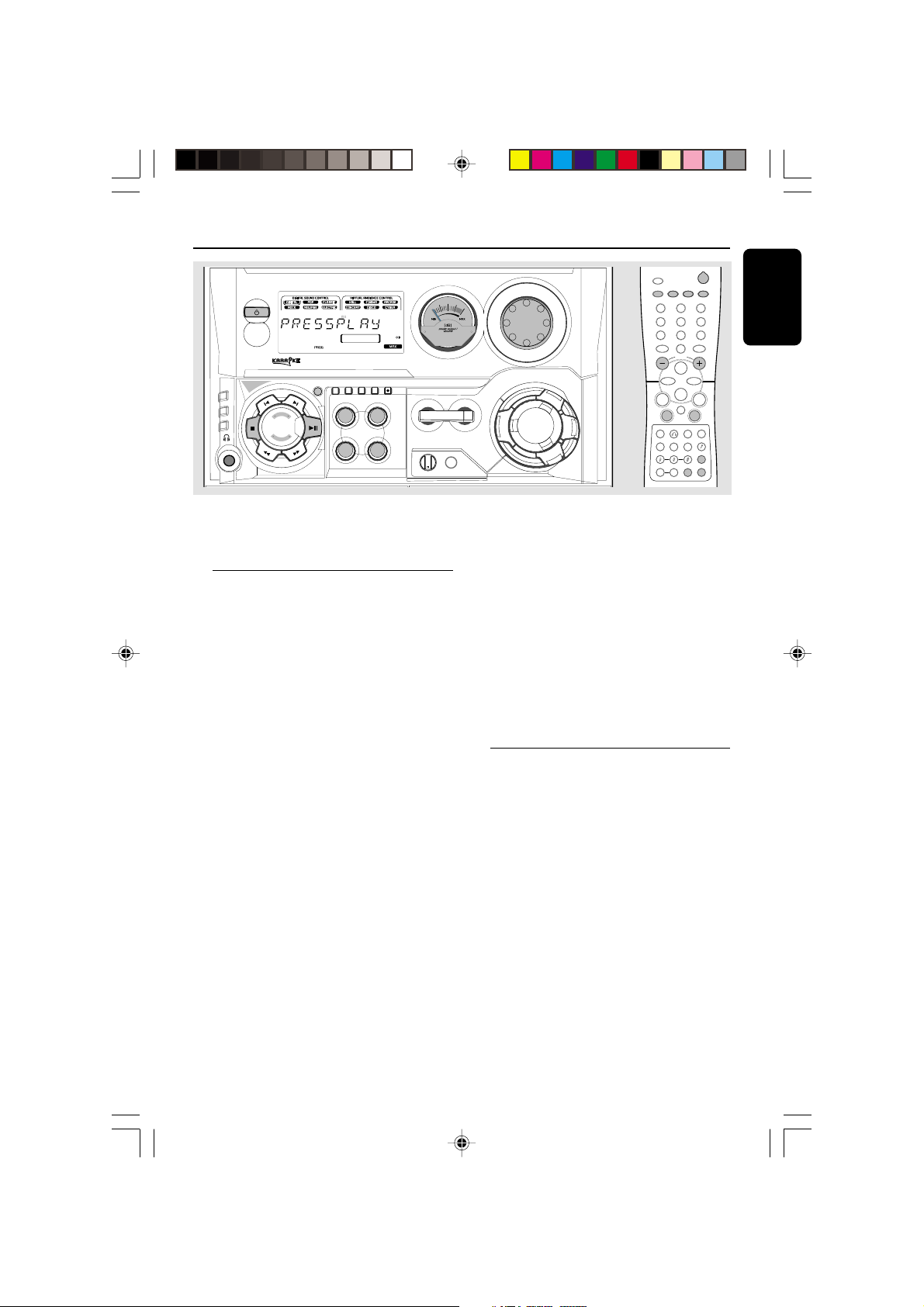

Controls (main system’s illustration on page 3)

English

§ *

≤ 8

(

! ™ ¡

≥

• ª

VCD 123

MP3 123

TITLE

ALBUM

OSD

PBC

ZOOM

AUX

VOLUME

DSC

TITLE/

ALBUM

NAME

RETURN

RESUME

KEY CONTROL

TUNER

DIGEST

SLOW

MAXECHO

VAC

TAPE 1/2

REPEATPROG

VOCAL

A-B

DBB

TITLE

ALBUM

‡

ﬂ

ﬁ 8

! › ‹ ¤ ⁄ @ 0

Notes for remote control: – First, select the source you wish to control by pressing one of the source select keys on the remote control (VCD 123 or TUNER, for example). – Then select the desired function (É,

, for example).

Controls on the system and remote control

1 STANDBY ON y

– to switch the system on or to Standby mode.

2 DISPLAY SCREEN

– to view the current status of the system.

3 DISC TRAYS 4 DISC CHANGE

– to change disc(s).

5 DISC 1 / DISC 2 / DISC 3

– to select a disc tray for playback.

6 OPEN•CLOSE

– to open or close the disc tray.

7 INTERACTIVE VU METER

– to show the VU (volume unit) meter in music or

volume mode depending on the display mode selected.

8 VOLUME

– to increase or decrease the volume.

9 Tape Deck Operation

AUTO REPLAY

– to select continuous playback in either AUTO

PLAY or ONCE mode only.

DUBBING

– to dub a tape.

REC

– to start recording on tape deck 2.

0 SOUND NAVIGATION

– to select the desired sound feature : DSC, VAC,

or DBB.

! JOG CONTROL

– to select the desired sound effect for the

selected sound feature.

DSC ..................DIGITAL, ROCK, POP, NEWAGE,

CLASSIC or ELECTRIC.

VAC .................. HALL, CONCERT, CINEMA,

DISCO, ARCADE or CYBER.

DBB .................. BEAT, PUNCH or BLAST.

@ INCREDIBLE SURROUND (IS)

– to activate or deactivate the surround sound

effect.

# MAX SOUND (MAX)

– to activate or deactivate the optimal mix of

various sound features.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM10

3139 115 21093

Controls

$ MIC/LEVEL

– to connect microphone jack. – to adjust the mixing level for karaoke or

microphone recording.

% ç

– to open the tape deck door.

^ TAPE DECK 2 & TAPE DECK 1 * SOURCE – to select the following:

VCD PAL/NTSC / (CD 1•2•3)

– to select disc tray 1, 2 or 3 (this system can

playback normal CD/VCD/MP3-CD format disc).

– (on the system only) to select corresponding

video output for NTSC or PAL system of your TV set (except Multi-system TV).

TUNER / (BAND)

– to select waveband : FM or MW.

TAPE / (TAPE 1• 2)

– to select tape deck 1 or 2.

AUX / (CDR/DVD)

– to select a connected external source :

CDR/DVD or AUX (auxiliary) mode.

( Mode Selection

PLAY PAUSE ÉÅ

for CD/VCD/MP3-CD…to start or interrupt

playback.

for TAPE .............. to start playback.

for PLUG & PLAY…(on the system only) to

initiate and start plug & play

mode.

SEARCH• TUNING à á

(ALBUM

for MP3-CD only…to select previous/next

for VCD only…to move the zoomed picture to

for CD/VCD ....to search backward/forward.

for TUNER ........ to tune to a lower or higher

for TAPE .............. to rewind or fast forward.

for CLOCK .......(on the system only) to set the

Album

the left or right.

radio frequency.

hour.

DEMO STOP/CLEAR Ç

for CD/VCD/MP3-CD…to stop playback or to

clear a programme.

for TUNER ........ (on the system only) to stop

programming.

................................. (on the system only) to delete

the preset radio station.

for TAPE .............. to stop playback or recording.

................................. to reset tape counter number.

for DEMO .........(on the system only) to activate/

deactivate the demonstration.

for CLOCK ....... (on the system only) to exit clock

setting or cancel timer.

for PLUG & PLAY…(on the system only) to exit

plug & play mode.

PREV / PRESET / NEXT í ë

(TITLE

for MP3-CD only…to select previous/next Title. for VCD only…to move the zoomed picture

................................. to select next or previous

for CD/VCD .... to skip to the previous or next

for TUNER ........ to select a preset radio station.

for CLOCK ....... (on the system only) to set the

down or up.

MENU or VCD track during playback (for VCD with PBC switched on).

track.

minute.

) n

– to connect headphones.

¡ VCD Operation (for VCD version 2.0 only)

PBC (PLAYBACK CONTROL)

– to switch on or off PBC mode.

RETURN

– to return to the previous MENU level during

playback (for VCD with PBC switched on).

™ TITLE/ALBUM NAME

– to display the title or album name for

MP3-CD.

£ DISPLAY

– to select different screen display mode :

NORMAL, MODE 1, MODE 2, or MODE 3.

≤ PROG

for CD/VCD/MP3-CD… to programme disc

for TUNER ........ to programme preset radio

for CLOCK ....... (on the system only) to select 12-

tracks.

stations.

or 24-hour clock mode.

English

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM11

3139 115 21093

Controls

English

∞ CLOCK•TIMER

– to view the clock, set the clock or set the timer.

§ OSD (ON SCREEN DISPLAY)

– to switch on or off the on screen display on the

TV.

≥ ZOOM

– to enlarge a still picture of the VCD on the TV

screen.

• RESUME

– to continue playback again from where you have

stopped (for VCD with PBC switched off).

ª KEY CONTROL ( I È i )

– to change the VCD key tone level to suit your

vocal range.

I ........................... to decrease the key tone level.

È .............................. to restore the key tone level to

original setting.

i ............................. to increase the key tone level.

º ECHO -/+

– to adjust the VCD echo level for karaoke after

inserted the microphone.

⁄ SLOWÖ

– to watch the VCD at a slower speed.

¤ VOCAL

– to fade out the original vocal from a Karaoke

VCD or to switch between mono or stereo mode during audio disc playback.

‹ A - B

– to playback a certain scene or passage of a CD/

VCD repeatedly.

› DIGEST

– to scan through a VCD or a specific track.

ﬁ REPEAT

– to playback track/disc/programme repeatedly.

ﬂ DIGIT 0 – 9

(numbers consisting more than two figures must be keyed in within 2 seconds.)

– to select a track number for CD/VCD/MP3-CD.

‡ B

– to switch the system to Standby mode.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM12

3139 115 21093

Basic Functions

OSD

ZOOM

PBC

AUX

DSC

RETURN

RESUME

KEY CONTROL

VOLUME

TUNER

TAPE 1/2

REPEATPROG

TITLE

ALBUM

VAC

TITLE/

ALBUM

NAME

A-B

DIGEST

VOCAL

SLOW

DBB

MAXECHO

English

VCD MINI HIFI SYSTEM

FW-

STANDBY-ON

ECO POWER

BAND

SOURCE

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

CDR/DVD

INTERACTIVE VU METER

MAX

SOUND

MIC/

LEVEL

CLOCK•

MP3-CD

RETURN

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

DISPLAY

PROG

TIMER

VCD PAL/

NTSC

TAPE AUX

CD 1•2•3

TAPE 1•2

AUTO

DUBBING REC

REPLAY

TUNER

VOLUME

VCD 123

MP3 123

TITLE

ALBUM

IMPORTANT! Before you operate the system, complete the preparation procedures.

Plug and Play

Plug and Play allows you to store all available radio stations automatically.

If Plug and Play has not been installed

1 When you turn on the system, "AUTO

INSTALL - PRESS PLAY" will be displayed.

2 Press PLAYÉÅ on the system to start

installation. ➜ "INSTALL" will be displayed and followed by "TUNER" and then "AUTO".

➜ PROG will start flashing. ➜ The system will search for all radio stations

on the FM band, then the MW band. ➜ All available radio stations with strong signal strength will be stored automatically. ➜ The system will stop searching when all the available radio stations are stored or when the memory for 40 preset radio stations is used. ➜ The last preset radio station will play when Plug and Play is completed.

To reinstall Plug and Play

1 In Standby or Demonstration mode, press and

hold PLAYÉÅ on the system until "AUTO INSTALL - PRESS PLAY" is displayed.

2 Press PLAYÉÅ again to start installation.

➜ All previously stored radio stations will be replaced.

To exit without storing the Plug and Play

● Press Çon the system.

Notes: – When the power is turned on, the disc tray may open and close to initialise the system. – If you do not complete Plug and Play installation, Plug and Play will be reinitiated the next time you turn on the power. – If no stereo frequency is detected during Plug and Play, "CHECK ANTENNA" will be displayed. – During Plug and Play, if no button is pressed within 15 seconds, the system will exit Plug and Play mode automatically.

Demonstration mode

The system has a demonstration mode that shows the various features offered by the system.

To activate the demonstration

● In Standby mode, press and hold DEMO

STOPÇon the system until "DEMO ON" is

displayed. ➜ The demonstration will begin.

To deactivate the demonstration

● Press and hold DEMO STOP Çon the system

until "DEMO OFF" is displayed. ➜ The system will switch to Standby mode.

Note: – Even if you remove the AC power cord and reconnect it to the wall socket, the demonstration will remain off until you activate it again.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM13

3139 115 21093

Basic Functions

English

Switching the system on

In Standby/Demonstration mode

● Press STANDBY ON. ➜ The system will switch to the last selected

source.

● Press VCD, TUNER, TAPE, AUX (or VCD 123/MP3 123, TUNER, TAPE 1/2 or AUX on the remote control).

➜ The system will switch to the selected source.

● Press any one of the DISC DIRECT PLAY

buttons. ➜ The system will switch to CD mode.

Switching the system to Standby mode

In Demonstration mode

● Press and hold DEMO STOP Ç on the system.

In any other source mode

● Press STANDBY ON (or B on the remote control). ➜ The clock will appear on the display when the system is in Standby mode.

Note: – If you have not deactivated the demonstration, it will resume five seconds after the system switches to Standby mode.

Power Saving Automatic Standby

As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 30 minutes after a disc or tape has stopped playing.

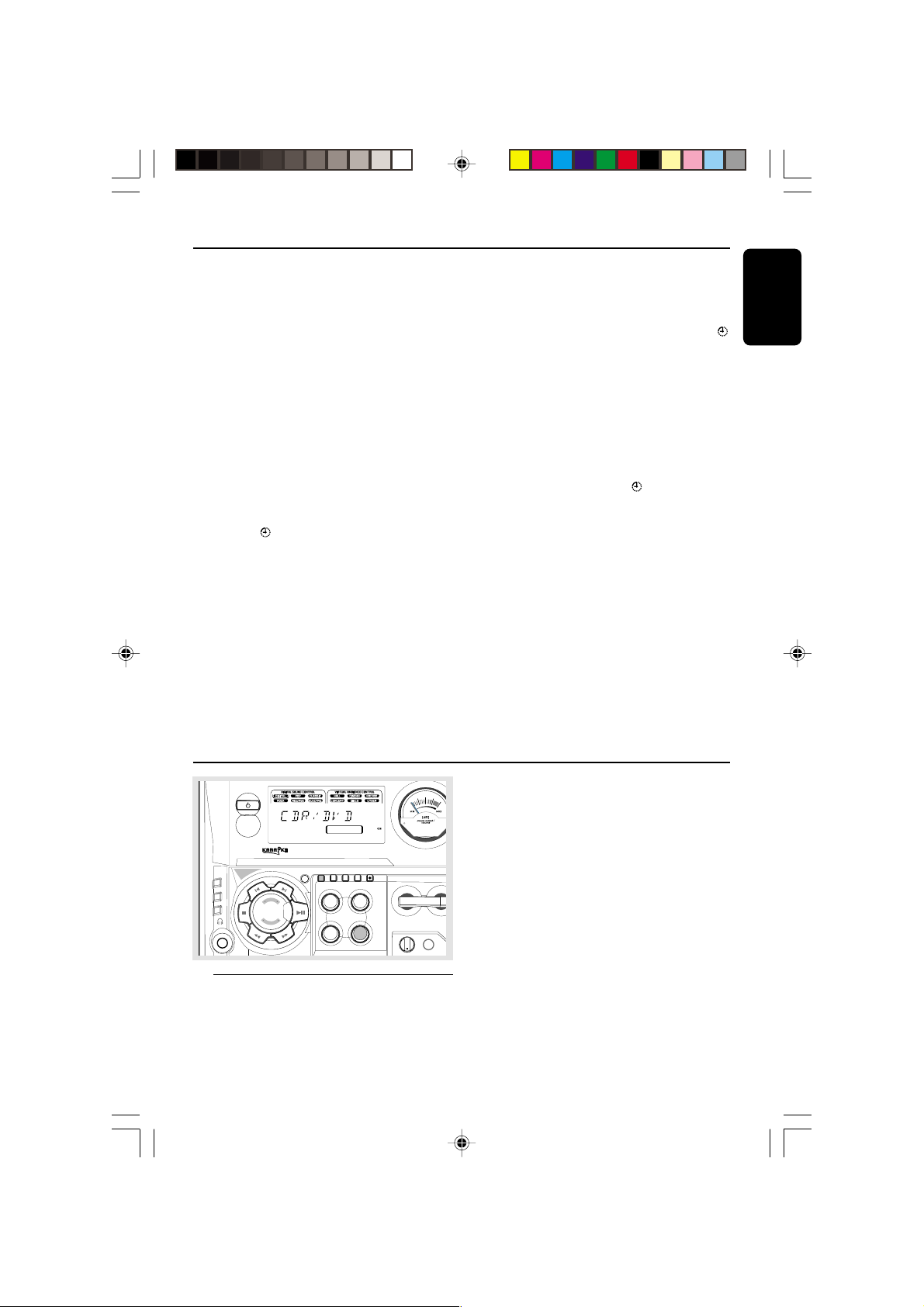

Display mode

There are four different display modes for selection.

● Press DISPLAY repeatedly to select NORMAL, MODE 1, MODE 2, or MODE 3.

NORMAL ........ All available LEDs will light up

and the display screen will have full brightness. The VU meter will be in music mode.

MODE 1 ..........All available LEDs will light up

MODE 2 ..........All available LEDs will light up

MODE 3 ..........The display screen will be at half

and the display screen will have full brightness. The VU meter will be in volume mode.

and the display screen will be at half brightness. The VU meter will be in music mode.

brightness. The VU meter and all LEDs will be off.

Volume Control

Adjust VOLUME to increase (turn knob clockwise or press VOLUME +) or decrease (turn knob anti-clockwise or press VOLUME -) the sound level.

To listen through the headphones

● Connect the headphones plug to the n socket

at the front of the system. ➜ The speakers will be muted.

Sound Navigation

For optimal sound listening, select only one of the following navigation sound controls at a time : MAX sound, DSC or VAC.

MAX Sound

MAX sound provides the best mixture of various sound features (DSC, VAC, DBB for example).

● Press MAX SOUND (or

MAX ON/OFF on the

remote control) repeatedly to activate/deactivate the optimal sound. ➜ If activated, will appear on the display and the MAX SOUND button lights up. ➜ If deactivated, “MAX OFF” will be displayed.

Note: – When MAX sound is selected, all other sound navigation will switch off automatically.

MAX

SOUND

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM14

3139 115 21093

Basic Functions

DSC (Digital Sound Control)

The DSC feature enables you to adjust the system to suit your type of music.

1 Press DSC.

➜ DSC button lights up

2 Adjust the JOG

CONTROL (or press DSC on the remote

control repeatedly) to select the desired Digital Sound Control effect : DIGITAL, ROCK, POP, NEWAGE, CLASSIC or ELECTRIC. ➜ The selected DSC will be highlighted.

Note: – For a neutral sound effect, select CLASSIC .

VAC (Virtual Ambience Control)

The VAC feature enables you to adjust the system to select a type of environment.

1 Press VAC .

➜ VAC button lights up.

2 Adjust the JOG

CONTROL (or press VAC on the remote

control repeatedly) to select the desired Virtual Ambience Control effect : HALL, CONCERT, CINEMA, DISCO, ARCADE or CYBER. ➜ The selected VAC will be highlighted.

Note: – When you select VAC, Incredible Surround will switch on automatically.

DBB (Dynamic Bass Boost)

There are three DBB settings to enhance the bass response.

1 Press DBB.

2 Adjust the JOG

➜ DBB button lights up.

CONTROL (or press DBB on the remote

control repeatedly) to

English

select the desired Dynamic Bass Boost level : BEAT, PUNCH, BLAST or DBB OFF. ➜ If “BEAT“ is selected, will appear on the display. ➜ If “PUNCH“ is selected, will appear on the display. ➜ If “BLAST“ is selected, will appear on the display. ➜ If “DBB OFF” is selected, DBB will be deactivated.

Note: – Some discs or tapes might be recorded in high modulation, which causes a distortion at high

volume. If this occurs, deactivate DBB or reduce the volume.

Automatic DSC-DBB / VAC-DBB

selection

The best DBB setting is generated automatically for each DSC or VAC selection. You can manually select the DBB setting that best suits your listening environment.

Incredible Surround

The Incredible Surround magnifies the virtual distance between the front speakers for an incredibly wide, enveloping, stereo effect.

● Press INCREDIBLE

SURROUND (or IS on

the remote control) repeatedly to activate/ deactivate the surround sound effect. ➜ If activated, will appear on the display and the INCREDIBLE SURROUND button lights up. ➜ If deactivated, “IS OFF” will be displayed.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM15

3139 115 21093

CD/VCD/MP3-CD Operation

English

DISC

CLOCK•

AUTO

DUBBING REC

TIMER

REPLAY

CD 1•2•3

VCD PAL/

NTSC

TAPE AUX

TAPE 1•2

DISC DIRECT PLAY

BAND

TUNER

SOURCE

CDR/DVD

DISC

INTERACTIVE VU METER

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

DISC

CHANGE

DCV

CHANGER

VCD MINI HIFI SYSTEM

FW-

STANDBY-ON

ECO POWER

MP3-CD

T I

RETURN

DEMO

STOP/

PAUSE

CLEAR

•

PROG

DISPLAY

PLAY•

MAX

SOUND

DISC

CD/CD-R/CD-RW COMPATIBLE

MIC/

LEVEL

OPEN• CLOSE

CD SYNCHRO RECORDING

OSD

VCD 123

MP3 123

VOLUME

TITLE

ALBUM

PBC

ZOOM

DSC

KEY CONTROL

ECHO

AUX

RETURN

RESUME

VOLUME

TITLE/

ALBUM

NAME

TUNER

TAPE 1/2

REPEATPROG

TITLE

ALBUM

VAC

A-B

DIGEST

VOCAL

SLOW

MAX

DBB

IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets, etc., as offered on the market, because they may jam the disc mechanism. – Do not load more than one disc into the tray.

Before viewing the Video CD, ensure that the set is switched to corresponding PAL or NTSC system of your TV set (exception Multi-system TV).

Discs for Playback

This system can playback all digital audio CD, video CD, MP3-CD format discs, finalised digital audio CD-Recordable (CDR) discs and finalised digital audio CD-Rewritable (CDRW)discs.

Support following MP3-CD formats (IS09660 format):

● Max. Title/Album name - 30 characters

● Max. Title number plus Album is 255

● Max. nested directory is 8 levels

● The max. Album number is 32

● The max. MP3 programme track number is 99

● Suppor ted VBR bit-rate

● Suppor ted sampling frequencies for MP3 disc :

32 kHz, 44.1 kHz, 48 kHz

● Suppor ted Bit-rates of MP3 disc are: 32, 64, 96,

128, 192, 256 (kbps)

Following formats can’t be supported

● The files like *.WMA, *AAC, *.DLF, *.M3U, *.PLS

● Non English Album/Title name

● The discs recorded under UDF format

Note: – For mixed mode discs, only one mode will be selected for playback depending on the recording format.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM16

3139 115 21093

CD/VCD/MP3-CD Operation

Loading Discs

1 Press VCD to select CD/VCD/MP3-CD mode. 2 Press OPEN•CLOSE to open the disc tray. 3 Load up to two discs on the individual disc trays.

To load the third disc, press DISC CHANGE.

➜ The disc tray will rotate until the empty tray is ready for loading.

CD CHANGER

PROGRAM

RECORD

DBB

FRONT BACK

HSD

OPEN•CLOSE

PLAY MODE

PROGRAM

SET CLOCK

TIMER

AMPM

SIDE RDS MODE CLEAR

VOLUME

DEMO

DISC CHANGE

DISC 1 DISC 2 DISC 3

CLOCK.TIMER

SHUFFLE

CD TAPE

FMMW

LWSW

STEREO

RECORD

TIMER SET

DUBBING BAND SHUFFLE TIMER

PRESET TUNING

4 Press OPEN•CLOSE to close the disc tray.

➜ "READING DISC" will be displayed. The selected disc, total number of tracks and the playing time will appear on the display. ➜ A lighted button indicates that a disc is loaded on the disc tray.

For MP3-CD only

● Load a MP-3 CD format music disc on the disc

tray. ➜ The first album number and first title number "A01 T001" will be displayed.

Notes:

– Load the discs with the label side facing up. – To ensure good system performance, wait until

the disc tray completely reads the disc(s) before proceeding. – For MP3-CD, the disc reading time may exceed 10 seconds due to the large number of songs compiled into one disc.

Disc Playback

a disc is loaded in the disc tray

the current selected disc tray is empty

the current selected disc tray is loaded or playing

To play all discs on the disc tray

● Press PLAYÉÅ.

➜ All the available discs will play once, then stop. ➜ During playback, the selected disc tray, track

number and elapsed playing time of the current track will appear on the display.

To start playback from a selected disc tray

● Press DISC 1, DISC 2 or DISC 3.

To interrupt playback

● Press PAUSEÉÅ.

● To resume playback, press PLAYÉÅ again.

To stop playback

● Press Ç.

Replace discs during playback

1 Press DISC CHANGE.

➜ "OPEN" will be displayed.

2 To change the inner disc, press DISC

CHANGE again.

➜ The active disc will stop playing and the disc tray will close to retrieve the inner disc, then reopen with the inner disc accessible.

English

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM17

3139 115 21093

CD/VCD/MP3-CD Operation

English

Select a desired track/passage

To search for a particular passage during playback

● Press à or á to select 4 different search

speed. ➜ "FRX1"; "FRX2"; "FRX3" or "FRX4" will be displayed on the TV screen when you select a fast rewind search. ➜ "FFX1"; "FFX2"; "FFX3" or "FFX4" will be displayed on the TV screen when you select a fast forward search. ➜ Normal playback will begin at the end of the fast rewinding or forwarding of the selected track.

● Play returns to normal when PLAYÉÅ is

pressed or when a new track is selected.

To select a desired track

● Press í or ë repeatedly (or Digits 0–9 on

the remote control) until the desired track appears on the display.

● If playback is stopped, press PLAYÉÅ to start

playback.

Note: – Maximum track selection from digital keys on the remote control is 199 for MP3-CD and 99 for VCD/CD.

For MP3-CD only

To select a desired Album

● Press ALBUM

until the desired Album appears on the display.

➜ ALB will start flashing. ➜ “AXX T001” will be displayed after the

album name scrolled through the display briefly.

To select a desired Title

● Press TITLE

the desired Title appear s on the display.

● Use the digital keys on the remote control to

select the track under current Album directly.

➜ TITLE will start flashing. ➜ “A01 TXXX” will be displayed after the title

name scrolled through the display briefly.

+ (à or á) repeatedly

+ (í or ë) repeatedly until

Programming the disc tracks

Programming tracks is possible when playback is stopped. Up to 99 tracks can be stored in the memory in any order.

1 Load the desired discs on the disc tray (refer to

“Loading Discs”).

2 Press the VCD (CD 1•2•3) button to select the

disc tray. ➜ Programming can only be done on the selected disc.

3 Press PROG to start programming.

➜ PROG will start flashing. ➜ It will cancel any previously programmed

tracks and selected repeat mode.

4 Press í or ë repeatedly (or Digits 0–9 on

the remote control) to select the desired track.

¶ For MP3-CD, press ALBUM

+ to select the desired Album and Title for

programming.

+ and TITLE

5 Press PROG to store the track.

¶ Repeat steps 3–5 to store other tracks.

6 Press PLAYÉÅ to start programme playback.

➜ "PLAY PROGRAM" will be displayed.

● To end programming without starting playback,

press Ç once . ➜ The total number of tracks programmed and the total playing time will appear on the display.

Notes: – Programme cannot be used for VCDs when PBC is switched on. Switch off PBC before storing tracks. – For MP3-CD, total playing time will not be shown. – If the total playing time is more than "99:59", then "--:--" will appear on the display instead of the total playing time. – If you attempt to programme more than 99 tracks, "PROGRAM FULL" will be displayed. – During programming, if no button is pressed within 20 seconds, the system will exit the Programme mode automatically.

To review the programme

● Stop playback and press í or ë repeatedly.

● To exit review mode, press Ç.

Note: – "A" represents ALBUM and "T" represents TRACK, "XX" or "XXX" is the current selected Album or Track number.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM18

3139 115 21093

CD/VCD/MP3-CD Operation

To erase the entire programme

● Press Ç once when playback is stopped or

twice during playback.

➜ "PROGRAM CLEARED" will be displayed. ➜ PROG will disappear from the display.

Note: – The programme will be erased if you change source, select another disc tray or disconnected the system from the power supply.

Repeat

You can play the current track/disc/programme repeatedly during playback.

1 Press REPEAT on the remote control

repeatedly to select various repeat modes.

● In normal playback

➜ "REPEAT TRACK" – to repeat the current

track.

"REPEAT DISC" – to repeat the entire disc.

➜ RPT appears on the display.

● In programme playback

➜ "REPEAT TRACK" – to repeat the current

programmed track. "REPEAT PROGRAM" – to repeat all programmed tracks.

➜ RPT and PROG will appear on the display.

● The current track/disc/programme will now be

played repeatedly until you press Ç.

2 To resume normal playback, press REPEAT

until the "REPEAT OFF" mode is displayed. ➜ RPT will disappear from the display.

Title/Album Name

This feature use to display the title and album name for MP3-CD.

● Press TITLE/ALBUM NAME repeatedly to

display the title or album name. ➜ TITLE will start flashing if title name is displayed. ➜ ALB will start flashing if album name is displayed.

For Recording, please refer to “Tape Operation/Recording”.

English

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM19

3139 115 21093

CD/VCD/MP3-CD Operation

English

VIDEO CD

VCD 123

MP3 123

TITLE

ALBUM

OSD

PBC

ZOOM

AUX

VOLUME

DSC

TITLE/

ALBUM

NAME

RETURN

RESUME

KEY CONTROL

TUNER

DIGEST

SLOW

MAXECHO

VAC

TAPE 1/2

REPEATPROG

A-B

VOCAL

DBB

ALBUM

TITLE

OSD – On Screen Display

If you insert VCD, your TV screen will ser ve as an additional display for messages (e.g. PLAY, STOP), and information stored on the VCD.

● Press OSD on the remote control repeatedly to

switch on or off the On Screen Display.

When OSD is switched ON; you can see the following display on the TV screen.

Below is an example of the OSD message.

SINGLE ELAPSED

PLAY XX/TT MM:SS

–"XX" is the current track. –"TT" is the total tracks. –"MM" is in minutes.

–"SS" is in seconds.

Note: – You can also view the information from a MP3-CD or normal CD.

Playing a Video CD with PBC

VCD with PBC (Playback Control) will be indicated on the display of the set as soon as they are inserted. PBC is a predefined play sequence stored on the VCD.

1 Switch on the TV, insert a VCD with PBC and

press PLAYÉÅ to star t playback.

2 MENU appears on the TV screen.

Adjusting the TV System

Before viewing the Video CD, ensure that the set is switched to corresponding PAL or NTSC system of your TV set (except Multi–system TV).

● Press and hold PAL/NTSC for

more than 2 seconds to switch between PAL or NTSC TV system. ➜ After TV system is selected, the set will automatically switch to the last TV system setting every time the VCD source is selected.

Note: – Before adjusting the TV system, make sure that there is no MP3-CD in disc tray 1 during power up.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM20

VCD PAL/

NTSC

CD 1•2•3

If the menu consists of a list of titles, you can select a sequence directly

● Press Digits 0–9 on the remote control to

select your choice. ➜ The VCD starts playing of the selected sequence automatically.

Note: – If a menu consists of more than one page, press

/ ™ to go through the pages.

Switching off PBC

● In stop mode, press PBC. ➜ “PBC OFF” will be displayed.

Notes: – Programme mode is not available whenever PBC mode is switched on. – The menu structure depends on the information stored on the VCD. Please refer to the information supplied with the disc.

3139 115 21093

CD/VCD/MP3-CD Operation

Return

● Press RETURN to return to the previous VCD

disc MENU level. PBC mode must be switched on.

Digest

This feature allows you to scan through a VCD for a quick review. PBC mode must be switched off. There are four digest mode for selection.

1 Press DIGEST on the remote control.

➜ "DIGEST" appears on the display. ➜ "1.INTRO SCAN" , "2.DIGEST DISC" ,

"3.DIGEST TRACK" and "4.EXIT DIGEST MENU" appear on the TV screen.

1. INTRO SCAN

2. DIGEST DISC

3. DIGEST TRACK

4. EXIT DIGEST MENU

● Press digit 1 on the remote control to select

"INTRO SCAN".

➜ The first 10 seconds of each track are played.

● Press digit 2 on the remote control to select

"DIGEST DISC". ➜ The first frame of each track appear s on the TV screen. ➜ Press digit 0 – 9 on the remote control to playback the desired tracks. ➜ Press í or ë to view the previous or next page for additional information.

● Press digit 3 on the remote control to select

"DIGEST TRACK". ➜ The first track of the selected disc will be divided into 9 parts and displayed on the TV screen. ➜ Press digit 0 – 9 on the remote control to playback the desired parts. ➜ Press í or ë to digest the next track.

2 To exit DIGEST mode, press digit 4 on the

remote control to select "EXIT DIGEST MENU".

A-B Repeat

This feature is also applicable to audio CD (except for MP3-CD). To play a cer tain scene or passage of the disc repeatedly.

1 Press A-B on the remote control during

playback to mark the start of the chosen scene or passage. ➜ "SET A" appears on the display.

2 Press A-B again to mark the end of the chosen

scene or passage.

➜ "SET B" appears on the display.

● The selected scene or passage is played

repeatedly. ➜ "PLAY AB" appears on the display.

3 Press A-B once more to return to normal

playback. ➜ "CLEAR AB" appears on the display.

Notes: – You can also cancel A-B Repeat by pressingí orë. – You can only able to set the A-B marking within the same track. Once it crosses from one track to the next, the A-B marking is reset.

Zoom

This feature enables you to view a still picture frame in an enlarge mode.

1 During playback, press PAUSE ÉÅ to have a

still picture on the TV screen.

➜ The sound will be muted. ➜ On TV screen, “PAUSE” will be displayed.

2 Press ZOOM on the remote control once to

enlarge the still picture by 2 times.

➜ "ZOOM" appears on the TV screen.

● You can move the zoomed picture left or right

by pressing à or á respectively.

● You can move the zoom picture down or up by pressing í or ë respectively.

3 Press ZOOM once more to return to normal

still frame.

4 Press PLAY ÉÅ to continue playback.

English

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM21

3139 115 21093

CD/VCD/MP3-CD Operation

English

Resume

This feature is also applicable to audio CD (except for MP3-CD).

● In stop mode, press RESUME on the remote

control to start playback again from where you have stopped.

Note: – Resume information is lost if you have changed the disc, opened the disc tray, change source or disconnected the system from the power supply. – Resume is not available when PBC mode is switched on.

Slow

1 Press SLOW on the remote control to watch a

VCD at a slower speed. There are 3 types of slow modes to select.

➜ The sound will be muted. ➜ On TV screen, “SLOW 1”, “SLOW 2” or

“SLOW 3” will be displayed.

2 To resume playback at normal speed, press

PLAYÉÅ.

Vocal

This feature allows you to fade out the original vocal from a karaoke VCD. This feature is used together with Echo mode. You can also use it to select the different audio modes.

● Pressing VOCAL on the remote control

repeatedly allows you to select the following modes.

➜ STEREO ™ STEREO VOCAL LEFT ™ STEREO VOCAL RIGHT ™ MONO LEFT ™ MONO RIGHT ™ STEREO …

STEREO – same effect as the original recorded disc. STEREO VOCAL LEFT/RIGHT – fade out the original vocal for special recorded Karaoke disc only (with the ECHO mode switched on). MONO LEFT/RIGHT – select the language on a bilingual VCD.

Ensure that Echo mode is switched on

when press VOCAL to fade out the original vocal during STEREO VOCAL LEFT/RIGHT mode.

Key Control ( I È i )

This feature allows you to change the key tone of your vocal range.

● Press

I on the remote control to decrease

vocal key level. ➜ "KEY -X" and appears on the display.

i on the remote control to increase vocal

key level. ➜ "KEY +X" appears on the display.

ÈÈ

È on the remote control to restore vocal

ÈÈ

key to original setting. ➜ "KEY FLAT" appears on the display.

Note: –“X” denotes the key level.

Echo

This feature allows you to add echo while singing or talking through a microphone.

● Press ECHO decrease, increase or switch off the echo effect. ➜ "ECHO -X", "ECHO +X" or "ECHO OFF" appears on the display.

Notes:

–“X” denotes the echo level. – You are advised to switch off the echo effect

when not using the feature. – If microphone is not inserted, “INSERT MIC” will be displayed. – Echo will switch off automatically when unplug the microphone from the system.

+ on the remote control to

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM22

3139 115 21093

Radio Reception

VCD MINI HIFI SYSTEM

FW-

STANDBY-ON

ECO POWER

BAND

SOURCE

CDR/DVD

•

CONTROL (DAC)

INTERACTIVE VU METER

MAX

SOUND

MAX BASS DYNAMIC AMPLIFICATION

MIC/

LEVEL

E ITL T

MP3-CD

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

DISPLAY

CLOCK•

PROG

TIMER

VCD PAL/ NTSC

TAPE AUX

TAPE 1•2

CD 1•2•3

AUTO

DUBBING REC

REPLAY

TUNER

VOLUME

ALBUM

OSD

VCD 123

MP3 123

TITLE

TUNER

AUX

TAPE 1/2

VOLUME

REPEATPROG

TITLE

ALBUM

English

Storing Preset Radio Stations

You can store up to 40 preset radio stations in the memory.

Automatic Preset Programming

● Plug and Play setting (refer to “Basic Functions -

Plug and Play”).

1 Press TUNER (BAND) to select TUNER mode.

➜ "TUNER" will be displayed. A few seconds later, the current radio frequency will appear on the display. ➜ If an FM station is received in stereo, will appear on the display.

To begin automatic preset from a desired preset number

● Press í or ë to select the desired preset

number. ➜ If a radio station has been stored in one of the presets, it will not be stored again under another preset number.

2 Press and hold PROG until "AUTO" appears on

the display.

➜ PROG will start flashing. ➜ The system will start searching for all radio

stations on the FM band, then the MW band. ➜ All available radio stations with strong signal strength will be stored automatically. ➜ The system will stop searching when all the available radio stations are stored or when the memory for 40 preset radio stations is used. ➜ The last preset radio station will then be played when completed.

To stop storing the automatic preset

● Press PROG or Ç on the system.

Note: – If no preset number is selected, automatic preset will begin from preset (1) and all your former presets will be overridden.

Manual Preset Programming

1 Press TUNER (BAND) repeatedly to select the

desired waveband : FM or MW.

2 Press PROG.

➜ PROG will start flashing. ➜ The next available preset number will be

displayed for selection.

3 Press and hold à or á until the frequency

indication starts to change, then release. ➜ The display will show "SEARCH" until a radio station with sufficient signal strength is found.

To store the radio station to another preset number

● Press í or ë to select the desired preset

number.

4 Press PROG again to store the radio station.

➜ PROG will disappear from the display.

● Repeat steps 2–4 to store other preset radio

stations.

Tuning to a weak radio station

● Press à or á briefly and repeatedly until the

optimal reception is found.

To stop storing the manual preset

● Press Ç on the system.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM23

3139 115 21093

Radio Reception

English

Notes: – If you attempt to store more than 40 preset radio stations, "PROGRAM FULL" will be displayed. – During programming, if no button is pressed within 20 seconds, the system will exit the Programme mode automatically.

Tuning to Preset Radio Stations

● Once you’ve preset the radio stations, press í or ë to select the desired preset number. ➜ The preset number, radio frequency, and waveband will appear on the display.

Erasing a Preset Radio Station

1 Press í or ë to select the preset radio station

to be erased.

2 Press and hold Çon the system until “PRESET

DELETED” appears on the display.

➜ The radio frequency remain on the display. ➜ The preset numbers of all other preset radio

stations in the band with higher numbers are also decreased by one.

● Repeat steps 1–2 to erase other preset radio stations.

For Recording, please refer to “Tape Operation/Recording”.

Changing Tuning Grid

In some countries, the frequency step between adjacent channels in the MW band is 10 kHz (9 kHz in some areas). The preset frequency step in the factory is 9 kHz.

Changing the tuning grid will erase all previously stored preset radio stations.

1 Disconnect the system from the AC power

supply (pull out the AC power cord).

2 While holding down TUNER and á on the

system, reconnect the system to the AC power supply.

➜ The display will show "GRID 9" or "GRID 10".

Notes: – GRID 9 and GRID 10 indicate that the tuning grid is in step of 9 kHz and 10 kHz respectively. – The FM tuning grid also will be changed from 50 kHz to 100 kHz or vice versa.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM24

3139 115 21093

LE/

TIT

Y B L

ALBU

NAM

PBC

R U

STANDBY-ON

M E

TAP E 1

ECO POWER

MP3-CD

Tape Operation/Recording

VCD MINI HIFI SYSTEM

FW-

BAND

SOURCE

CDR/DVD

•

CONTROL (DAC)

INTERACTIVE VU METER

MAX

SOUND

MAX BASS DYNAMIC AMPLIFICATION

MIC/

LEVEL

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

REPLAY

TIMER

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

CD 1•2•3

VCD PAL/

TUNER

NTSC

TAPE AUX

TAPE 1•2

VOLUME

OSD

VCD 123

MP3 123

ALBUM

TITLE

PBC

ZOOM

DSC

KEY CONTROL

TAP E 2

AUX

RETURN

RESUME

VOLUME

TUNER

TAPE 1/2

REPEATPROG

TITLE

ALBUM

VAC

TITLE/ ALBUM NAME

A-B

DIGEST

VOCAL

SLOW

MAXECHO

DBB

English

IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – C-120 tape is extremely thin and is easily deformed or damaged. It is not recommended for use in this system. – Store the tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV or speaker).

Tape Playback

1 Press çto open the tape

deck door.

2 Inser t a recorded tape and

close the tape door.

● Load the tape with the open

side down and the full spool to the left.

3 Press TAPE (TAPE 1•2) repeatedly to select

tape deck 1 or tape deck 2. ➜ The selected tape deck number is displayed.

4 Press PLAYÉÅ to start playback.

To stop playback

● Press Ç.

To change the playback mode

● Press AUTO REPLAY repeatedly to select the

different playback modes. ➜ "AUTO REPLAY" ( å ) or "ONCE" will appear on the display.

AUTO REPLAY …the tape will rewind

automatically at the end of playback and replay again. It will replay up to a maximum of 20 times or until you press Ç.

ONCE ..............the tape will playback the

selected side once and then stop.

To rewind or fast forward when playback is stopped

1 Press à or á. 2 Press Ç when you reached the desired passage.

To reset tape counter number

● When in stop mode, pressÇ.

➜ “T1 000” or “T2 000” will be displayed.

Notes: – The tape counter will automatically set to zero after detecting end of tape.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM25

3139 115 21093

Tape Operation/Recording

English

General Information on Recording

● If you do not intend to record via the

microphone, unplug the microphone to avoid accidental mixing with other recording source.

● For recording, use only tape of IEC type I

(normal tape).

● The recording level is set automatically, regardless

of the position of the Volume, VAC, DSC and so forth.

● The tape is secured at both ends with leader

tape. At the beginning and end of the tape, nothing will be recorded for six to seven seconds.

● To prevent accidental recording, break out the

tab on the left shoulder of the tape side you want to protect.

● If “CHECK TAPE” is displayed, the protection

tab has been broken. Put a piece of clear adhesive tape over the opening.

Preparation for Recording

1 Press TAPE (TAPE 1•2) to select TAPE 2. 2 Load a recordable tape into tape deck 2 with full

spool to the left.

3 Prepare the source to be recorded.

VCD – load the disc(s). TUNER – tune to the desired radio station. TAPE – load the prerecorded tape into tape

deck 1 with the full spool to the left.

AUX – connect external equipment.

When recording is in progress

➜ starts flashing.

● It is not possible to listen to another sources

except when dubbing tapes.

● It is not possible to activate the timer function.

One Touch Recording/Recording the mixed sound

1 Press VCD, TUNER or AUX to select the

source.

● You can connect a microphone to record the

mixed sound in tape deck 2 (refer to “Karaoke Microphone Mixing”).

2 Star t playback of the selected source. 3 Press REC to star t recording.

To stop recording

● Press Ç on the system.

Note: – One Touch Recording is not possible in TAPE mode, "SELECT SOURCE" will be displayed.

IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only on tape deck 2.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM26

CD/VCD/MP3-CD Synchro Recording

1 Press VCD to select the disc.

● Press í or ë to select the desired track to

start recording.

● You can programme the tracks in the order you

want them to be recorded (refer to “CD/VCD/ MP3-CD Operation - Programming the disc tracks”).

2 Press REC to star t recording.

➜ The disc will start playback automatically.

3139 115 21093

Tape Operation/Recording

To select another track during recording

1 Press PAUSEÉÅ to inter rupt recording. 2 Pressí or ë to select the desired track. 3 Press PLAYÉÅ to resume recording.

To stop recording

● Press Ç.

➜ Recording and disc playback will stop

simultaneously.

Dubbing Tapes

1 Load the prerecorded tape in tape deck 1.

● You can set the tape to the desired passage

where recording will start.

2 Press DUBBING.

➜ Playing and recording will start simultaneously. ➜ "DUB OOO" will be displayed.

● Dubbing of tapes is possible on one side of the

tape only. To continue recording on the reverse side, at the end of side A, flip the tapes to side B and repeat the procedure.

To stop dubbing

● Press Ç.

Notes: – Dubbing of tapes is possible only from tape deck 1 to tape deck 2. – To ensure good dubbing, use tapes of the same length. – You can listen to another source while dubbing.

Karaoke

English

MIC/

LEVEL

Microphone Mixing

Connect a microphone (not supplied) to the system allowing you to sing along with the music source.

1 Connect a microphone to the MIC jack.

● Before connecting the microphone, set the

microphone LEVEL to the minimum level to prevent howling sound.

2 Press VCD, TUNER, TAPE or AUX to

select the source to be mixed and start playback.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM27

3 Adjust the volume level of the source with

VOLUME control.

4 Adjust the microphone volume with microphone

LEVEL control.

Note: – Keep the microphone away from the speakers to prevent howling.

For Recording, please refer to “Tape Operation/Recording”.

3139 115 21093

Clock/Timer

English

STANDBY-ON

ECO POWER

MP3-CD

TITLE/

B L

ALBUM

R N

NAME

PBC

U T

DEMO

STOP/ CLEAR

VCD MINI HIFI SYSTEM

FW-

CLOCK•

AUTO

DUBBING REC

PROG

DISPLAY

REPLAY

TIMER

CD 1•2•3

PLAY•

PAUSE

•

VCD PAL/

NTSC

TAPE AUX

TAPE 1•2

TUNER

BAND

SOURCE

CDR/DVD

View Clock

The clock (if it is set) will be shown in Standby mode.

To view the clock in any source mode (VCD or TUNER for example)

● Press CLOCK•TIMER. ➜ The clock will be displayed for a few seconds. ➜ If the clock has not been set, "--:--" will be

displayed.

Clock Setting

The clock can be set in either 12-hour or 24-hour mode ("AM 12:00" or "00:00" for example)

1 Press CLOCK•TIMER twice. 2 Press PROG on the system repeatedly to select

clock mode. ➜ If 12-hour mode is selected, "AM12:00" will start flashing. ➜ If 24-hour mode is selected, "00:00" will start flashing.

3 Press à or á on the system repeatedly to set

the hour.

4 Press í or ë on the system repeatedly to set

the minute.

5 Press CLOCK•TIMER again to store the

setting. ➜ The clock will start working.

To exit without storing the setting

● Press Çon the system.

INTERACTIVE VU METER

MAX

SOUND

•

MAX BASS DYNAMIC AMPLIFICATION

CONTROL (DAC)

MIC/

LEVEL

VOLUME

OSD

VCD 123

MP3 123

ALBUM

TITLE

AUX

VOLUME

TUNER

TAPE 1/2

REPEATPROG

TITLE

ALBUM

Notes: – The clock setting will be cancelled when the power cord is disconnected or if a power failure occurs. – During clock setting, if no button is pressed within 90 seconds, the system will exit clock setting mode automatically.

Timer Setting

The system can switch on to VCD, TUNER, or TAPE 2 mode automatically at a preset time, serving as an alarm to wake you up.

IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. – The timer will always be switched on after it has been set. – The timer will not start if a recording is in progress. – The volume of the timer will increase gradually from the minimum level to the last tuned volume level.

1 Press and hold CLOCK•TIMER for more than

two seconds to select timer mode.

➜ "AM12:00" or "00:00" or the last timer setting will start flashing.

➜ TIMER will star t flashing. ➜ The selected source will be lighted while

other available sources are flashing.

2 Press VCD, TUNER or TAPE to select the

desired source.

pg 001-032/V520/21-Eng 12/11/01, 5:05 PM28

3139 115 21093

Clock/Timer

/ L

● Before setting the timer, make sure the music source has been prepared. VCD – Load the disc(s). To star t from a specific track, make a programme (refer to “CD/VCD/ MP3-CD Operation - Programming the disc tracks”).

TUNER – tune to the desired radio station. TAPE – load the prerecorded tape into tape

deck 2.

3 Press à or á on the system repeatedly to set

the hour for the timer to start.

4 Press í or ë on the system repeatedly to set

the minute for the timer to start.

5 Press CLOCK•TIMER to store the star t time.

➜ "TIMER ON" will be displayed and followed by the set timer "XX:XX" and then the selected source.

➜ TIMER will remain on the display.

● At the preset time, the selected source will play.

To exit without storing the setting

● Press Çon the system.

To deactivate the TIMER

1 Press and hold CLOCK•TIMER for more than

two seconds.

2 Press Çon the system to cancel the timer.

➜ The display will show "CANCEL" and TIMER will disappear from the display.

To activate the TIMER (for the same preset time and source)

1 Press and hold CLOCK•TIMER for more than

two seconds.

2 Press CLOCK•TIMER again to store the star t

time. ➜ The last set timer information will be shown for a few seconds and TIMER will appear on the display.

Notes: – If the source selected is VCD, playback will begin with the first track of the last selected disc or other trays if disc is empty. If all the disc trays are empty, TUNER will be selected instead. – During timer setting, if no button is pressed within 90 seconds, the system will exit timer setting mode automatically.

English

STANDBY-ON

ECO POWER

CLOCK•

MP3-CD

R U T

DEMO

PLAY•

STOP/

PAUSE

CLEAR

•

DISPLAY

PROG

TIMER

VCD PAL/

NTSC

TAPE AUX

CD 1•2•3

TAPE 1•2

AUTO

DUBBING REC

REPLAY

BAND

TUNER

SOURCE

•

MAX BASS DYNAMIC AMPLIFI

CONTROL (DAC)

CDR/DVD

Listening to External Sources

1 Connect the audio out terminals of the external

equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX/CDR IN terminals of your system.

pg 001-032/V520/21-Eng 12/11/01, 5:06 PM29

INTERACTIVE VU ME

MAX

SOUND

External Sources

2 Press AUX (CDR/DVD) repeatedly to select

CDR/DVD mode or normal AUX mode.

➜ "CDR/DVD" or "AUX" will be displayed.

● If the sound from the external source is

distorted, select CDR/DVD mode for listening.

Notes: – You are advised not to listen to and record from the same source simultaneously.

MIC

LEVE

– All the navigation sound control features (DSC or VAC for example) are available for selection. – Refer to the operating instructions for the connected equipment for details.

For Recording, please refer to “Tape Operation/Recording”.

3139 115 21093

Specifications

English

AMPLIFIER

Output power ...................................... 2200 W PMPO

................................................................ 2 x 60 W RMS

Signal-to-noise ratio .......................... ≥ 75 dBA (IEC)

Frequency response ......... 50 – 20000 Hz, ± 3 dB

Input sensitivity

AUX In / CDR/DVD In .................... 500 mV / 1V

Microphone .......................................................... 3.5 mV

Output

Speakers ....................................................................≥ 6 Ω

Headphones ...................................... 32 Ω – 1000 Ω

(1) (6 Ω, 1 kHz, 10% THD)

DISC PLAYER

Number of programmable tracks ......................... 99

Frequency response .......................... 20 – 20000 Hz

Signal-to-noise ratio ....................................... ≥ 76 dBA

Channel separation ..........................≥ 79 dB (1 kHz)

Total harmonic distortion ............< 0.02% (1 kHz)

MPEG 1 ................................................. VCD version 2.0

MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO

MP3-CD bit rate ................................... 32 – 256 kbps

sampling frequencies ... 48 kHz, 44.1 kHz, 32 kHz

TUNER

FM wave range ...................................87.5 – 108 MHz

MW wave range (9 kHz) ............. 531 – 1602 kHz

MW wave range (10 kHz) ........... 530 – 1700 kHz

Tuning grid ............................................................ 9/10 kHz

Number of presets ........................................................ 40

Antenna

FM ....................................................................... 75 Ω wire

AM .............................................................. Loop antenna

SPEAKERS

(1)

Front left/right

System ................................................. 3-way; Bass reflex

Impedance ........................................................................ 6 Ω

Woofer ................................................................... 1 x 5.25"

Tweeter.......................................................................... 1 x 2"

Polydome Tweeter ................................................... 1 x 1"

Dimensions (w x h x d) . 240 x 310 x 290 (mm)

Weight............................................................. 3.85 kg each

GENERAL

Material/finish ................................... Polystyrene/Metal

AC Power ............................ 110 – 127 / 220 – 240 V;

....................................................... 50/60 Hz Switchable

Power Consumption

Active ...................................................................... 120 W

Standby ..................................................................... 15 W

Dimensions (w x h x d) .. 265 x 310 x 390 (mm)

Weight (without speakers) ................................. 7.5 kg

Specifications and external appearance are subject to change without notice.

TAPE PLAYER

Frequency response

Normal tape (type I) ...... 80 – 10000 Hz (8 dB)

Signal-to-noise ratio

Normal tape (type I) ................................. ≥ 48 dBA

Wow and flutter ......................................... ≤ 0.4% DIN

pg 001-032/V520/21-Eng 12/11/01, 5:06 PM30

3139 115 21093

Maintenance

C CB

Cleaning the Cabinet

● Use a soft cloth slightly moistened with a mild

detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

● When a disc becomes dir ty,

clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in circular motion.

● Do not use solvents such as

benzine, thinner, commercially available cleaners, or antistatic spray intended for analogue records.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

● To ensure good recording and playback quality,

clean the heads A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You also can clean the heads by playing a

cleaning tape once.

Demagnetising the heads

● Use a demagnetising tape available at your

dealer.

Troubleshooting

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

English

Problem Solution

DISC PLAYER OPERATION

“UNREADABLE DISC” is displayed. – Check if the disc is inser ted upside down.

– Wait until the moisture condensation at the lens

has cleared. – Replace or clean the disc, see “Maintenance”. – Use a readable disc or correct recorded format

MP3-CD.

“NO DISC” is displayed. – Inser t a disc.

No picture on TV screen. – Connect the cable betwen the system and TV.

No colour on TV. – Change the system to the respective PAL or

NTSC setting.

Cannot adjust the TV system to – Remove the MP-3 CD from disc tray 1 or press PAL or NTSC. DISC CHANGE twice to select a non MP3 disc

tray

pg 001-032/V520/21-Eng 12/11/01, 5:06 PM31

3139 115 21093

Troubleshooting

English

RADIO RECEPTION

Radio reception is poor. – If the signal is too weak, adjust the antenna or

connect an external antenna for better reception.

– Increase the distance between the Mini HiFi

System and your TV or VCR.

TAPE OPERATION/RECORDING

Recording or playback cannot be made. – Clean deck par ts, see “Maintenance”.

– Use only NORMAL (IEC I) tape. – Apply a piece of adhesive tape over the missing

tab space.

The tape deck door cannot open. – Remove and reconnect the AC power plug and

switch on the system again.

GENERAL

The system does not react when buttons – Remove and reconnect the AC power plug and are pressed. switch on the system again.

Sound cannot be heard or is of poor – Adjust the volume. quality. – Disconnect the headphones.

– Check that the speakers are connected correctly. – Check if the stripped speaker wire is clamped. – Make sure the MP3-CD was recorded within

32-256 kbps bit rate with sampling frequencies at 48 kHz, 44.1 kHz or 32 kHz.

The left and right sound outputs are – Check the speaker connections and location. reversed.

The remote control does not function – Select the source (VCD or TUNER, for example) properly. before pressing the function button (É,í,ë).

– Reduce the distance between the remote control

and the system.

– Inser t the batteries with their polarities

(+/– signs) aligned as indicated. – Replace the batteries. – Point the remote control directly toward

IR sensor on the front of the system.

The timer is not working. – Set the clock correctly.

– If a recording is in progress, stop the recording.

Not all lighted buttons are showing light. – Press DISPLAY to select NORMAL or MODE 1

display mode.

The Clock/Timer setting is erased. – Power has been interrupted or the power cord

has been disconnected. Reset the clock/timer.

The system displays features – Press and hold DEMO STOP Çon the system automatically and buttons start flashing. to switch off the demonstration.

pg 001-032/V520/21-Eng 12/11/01, 5:06 PM32

3139 115 21093

English

Bahasa Melayu

Bahasa Indonesia

Français

Meet Philips at the Internet

http://www.philips.com

pg Back/V520/21 12/11/01, 5:14 PM118

FW-V520

CLASS 1

LASER PRODUCT

3139 115 21901

SL-0134/21-4

Philips FW-V520 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
