English
4
CONTENTS |
|
General Information ................................................................................... |
5 |
Safety Information ...................................................................................... |
5 |
Preparation ............................................................................................. |
6 - 7 |
Dolby Pro Logic ...................................................................................... |
8 - 9 |
Controls ................................................................................................ |
10 - 12 |
Operating The System ....................................................................... |
13 - 16 |
CD .......................................................................................................... |
17 - 19 |
Tuner ..................................................................................................... |
20 - 22 |
AUX/CDR ..................................................................................................... |
22 |
Tape ...................................................................................................... |
23 - 24 |
Recording ............................................................................................ |
25 - 26 |
Clock ........................................................................................................... |
27 |
Timer .................................................................................................... |
27 - 28 |
Sleep Timer ................................................................................................ |
28 |
Specifications ........................................................................................... |
29 |
Maintenance .............................................................................................. |
30 |
Troubleshooting ................................................................................. |
30 - 31 |
pg 01-31/P88/22-Eng |
4 |
3/6/00, 1:26 PM |
3139 116 19721 |
GENERAL INFORMATION
General Information
•The type plate (which contains the serial number) is located at the rear of the system.
•Recording is permissible if copyright or other rights of third parties are not infringed.
•This product complies with the radio interference requirements of the European Community.
Environmental Information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Energy Star
As an ENERGY STARR Partner; Philips has determined that this product meets the ENERGY STARR guidelines for energy efficiency.
Acknowledgement
Dolby Pro Logic, Dolby B NR and the double-D symbol d are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories Licensing Corporation.
Accessories (Supplied)
–Remote control
–Batteries (two AA size) for remote control
–AM loop antenna
–FM wire antenna
–AC power cord
–CS-540 speaker package (includes one pair of surround speakers and one center speaker)
Safety Information
•Before operating the system, check that the operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer. The typeplate is located at the rear of your system.
•When the system is switched on, do not move it around.
•Place the system on a solid base (e.g. a cabinet).
•Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm clearance from the rear and the top of the unit and 5 cm from the each side.
•The system incorporates a built-in safety feature that prevents overheating.
•Do not expose the system to excessive moisture, rain, sand or heat sources.
•Under no circumstances should you repair the system yourself, as this will invalidate the warranty!
SAFETY INFORMATION
•If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the CD unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.
•Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.
•To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
English
5
pg 01-31/P88/22-Eng |
5 |
3/6/00, 1:26 PM |
3139 116 19721 |
PREPARATION
English |
Rear Connections |
|
surr. |
surr. |
|
|
|
L |
R |
H |
AUDIO OUT |
|
G |
||||
|
|
|
||
I |
|
|
|
J
A |
|
DIGITAL |
SURROUND |
SUB- |
L R |
L R |
|
OUT |
OUT |
WOOFER |
|
|
|
|
|
|
OUT |
AUX/CDR IN |
LINE OUT |
|
|
|
|
AM ANTENNA |
|
FM ANTENNA 75Ω |
|
|
|
|
|
|
|
|
|
|
CENTER |
|
|
|
|
|
|
+ |
|
|
|
|
|
|
– |
|
|
|
|
|
|
REAR |
|
|
|
FRONT |
|
|
SURROUND |
|
|
|
|
|
|
+ |
|
|
|
+ |
|
|
L |
|
|
|
L |
K |
|
– |
|
|
|
– |
AC |
– |
|
|
|
– |
|
R |
|
|
|
R |
||
MAINS |
|
|
|
|||
|
~ |
+ |
|
|
|
+ |
L |
R |
|
|
|
|
|
surr. |
surr. |
|
|
|
CENTER |
|
D E
6
AAM Loop Antenna Connection
F
AUDIO IN
B
Connect the supplied loop antenna to the AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.
B FM Wire Antenna
Connection
Connect the supplied FM wire antenna to the FM ANTENNA 75 Ω terminal. Adjust the position of the FM antenna for the best reception.
Outdoor Antenna
For better FM stereo reception connect an outdoor FM antenna to the FM ANTENNA 75 Ω terminal using a 75 Ω coaxial wire.
C Speakers Connection
|
• |
Connect the right speaker to Front |
|
L |
R |
terminal R, with the colored wire to + |
|
and the black wire to -. |
|
||
|
• |
Connect the left speaker to Front |
|
|
|
terminal L, with the colored wire to + |
|
|
|
and the black wire to -. |
|
|
• |
Clip the stripped portion of the speaker |
|
|
|
wire as shown. |
|
|
C |
12 mm |
|
|
|
|
|
|
|
unlock |
lock |
pg 01-31/P88/22-Eng |
6 |
3/6/00, 1:26 PM |
3139 116 19721 |
CAUTION:
–For optimal sound performance, it is recommended to use the supplied speakers.
–Do not connect more than one speaker to any one pair of +/-speaker terminal.
–Do not connect speakers with impedance lower than the speakers supplied. Please refer to SPECIFICATION section of this manual.
D Rear Surround Speakers’
Connection
Connect the black (non-marked) wires to the black REAR SURROUND terminals and the colored (marked) wires to the grey REAR SURROUND terminals.
E Center Speaker
Connection
Connect the black (non-marked) wires to the black CENTER terminal and the blue (marked wires) to the blue CENTER terminal.
pg 01-31/P88/22-Eng |
7 |
F Line Out Connection (wireless
ready)
You can connect the audio left and right LINE OUT terminals to a optional CD Recorder ANALOG IN terminals. This allows you to record in an analogue format.
You can also install additional optional front active speakers away from the system (e.g. in another room) to reduce the inconvenience of running long speaker wires across rooms. You can place as many remote speakers as you like provided they operate at the same radio frequency. Connect the wireless radio frequency transmitter to the LINE OUT terminals. Place the active speakers at your preferred location. Be sure to follow the instructions supplied with the active speakers.
G Connecting other equipment to your system
You can connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals at the rear of the system.
H Subwoofer Out Connection
Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.
IWireless Surround Out Connection
You may connect transmitter unit of the wireless rear speakers (not supplied) to the SURROUND OUT terminal.
Note:
–Availability of wireless transmitter and its peripherals are subjected to the approval of local authorities. Please check with respective local safety or approving authority.
J Digital Out Connection
You can record the digital sound from the CD, through this output, on any audio equipment with digital input (e.g. CD Recorder, Digital Audio Tape (DAT) deck, Digital to Analog Converter and Digital Signal Processor).
Connect one end of the cinch cable (not supplied) to the DIGITAL OUT socket and the other end to the audio equipment with digital input.When connecting the cinch cable, make sure it is fully inserted.
3/6/00, 1:26 PM
PREPARATION
K AC Power Supply |
English |
After all other connections have been |
|
made, connect the AC power cord to the |
|
system and to the wall outlet. |
|
Inserting batteries into the Remote Control
•Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.
•To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.
7
3139 116 19721
English
8
DOLBY PRO LOGIC
Dolby Pro Logic
This state of the art Dolby Pro Logic mini system enables you to experience and enjoy a Home Cinema sound ambience. The Pro Logic system allows more accurate definition of the individual sound sources. It produces greater sound separation between channels and provides pinpoint sound localization. Pro Logic provides four sound outputs: Left, Center, Right and Surround (Rear). Front sounds are produced from the pair of Left and Right speakers and a Center speaker. The surround sound is reproduced by two speakers placed at the rear of the listening area. Although the surround sound is monaural (single-source), a pair of speakers is necessary to produce the correct diffused sound.
This Pro Logic decoder enables you to decode the following modes: Dolby
Surround, Center Phantom, Dolby 3 Stereo or normal Stereo.
Setting up the Dolby Pro Logic system
You must set up the system properly in order to enjoy the Home Cinema sound to the fullest. First, connect the speakers.
5-Speaker Connection
•Front speakers: Connect the front speakers.
•Center speaker: Connect the center speaker.
•Rear (surround) speakers: Connect either the wired rear surround speakers or a pair of wireless rear speakers (not supplied) to the SURROUND OUT terminals.
CENTER
REAR |
FRONT |
SURROUND |
|
REAR |
FRONT |
LEFT |
LEFT |
REAR |
FRONT |
RIGHT |
RIGHT |
Positioning the Speakers
To get the best surround sound effect, place the speakers as follows.
|
CENTER |
|
|
SUB- |
SPEAKER |
MINI HIFI |
|
|
|
||
FRONT WOOFER |
|
SYSTEM |
FRONT |
LEFT |
|
|
RIGHT |
|
TV |
|
|
SURROUND |
|
|
SURROUND |
LEFT |
|
|
RIGHT |
Front Left and Right Speakers
For the best sound, place the Left and Right speakers at an angle of approximately 45 degrees to the listener. If the speakers' magnetic field affects the television picture, increase the distance between the TV and the speakers.
Center Speaker
For the best sound, place the center speaker at the same height as the left and right speakers. Place the center speaker directly above or beneath the television.
Rear (surround) Speakers
The surround speakers should be placed at normal listening ear level or mounted on the wall at the back of the room. Most important, experiment when placing the surround speakers in order to obtain the best sound.
Test Tone
This feature enables you to adjust the Front Left, Front Right, Center and Surround Sound levels of the respective speakers in Dolby Pro Logic mode.
You must sit at the ideal sitting position and use the remote control to perform this operation.
1Press CD, TUNER, TAPE or AUX to switch on the system.
2Press TEST TONE.
™A test signal is generated; it will move through the Left, Center, Right, and Surround speakers, in that order.
™"TEST TONE" followed by "ADAPT BALANCE, CENTER AND REAR LEVEL" will be displayed.
™The test signal will last for about 90 seconds.
3 Press |
DPL TEST TONE |
BALANCE |
|
BALANCE L |
|
L |
R |
to adjust the |
CENTER |
|
REAR |
sound of the |
- + |
- |
+ |
front left |
|
|
|
speaker. |
|
|
|
™ The display will show "BAL L +XX".
4Press BALANCE R to adjust the sound of the front right speaker.
™The display will show "BAL R +XX".
5Press CENTER +or -to adjust the sound of the center speaker.
™The display will show either "CENT +XX or -XX".
6Press REAR +or -to adjust the sound of the surround speakers.
™The display will show either "REAR +XX or -XX".
7 Adjust the sound of all |
REPEAT |
S |
the speakers until they |
|
|
are equal. When you |
PL TEST TONE |
BA |
are satisfied with the |
|
L |
|
|
|
setting, press TEST |
CENTER |
|
|
|
|
TONE again to switch |
|
|
off the test signal. |
|
|
Note:
–It is advisable to set the speakers’ level at normal listening level. "XX" denotes the sound level.
pg 01-31/P88/22-Eng |
8 |
3/6/00, 1:26 PM |
3139 116 19721 |
When you have completed the Dolby Pro Logic setup, you are ready to enjoy Home Cinema sound.
• Press DPL (PRO
DPL TEST
LOGIC) repeatedly to select and cycle
through the various
PRO LOGIC
sound modes.
Dolby Surround ™ Dolby Center Phantom ™ Dolby 3 Stereo ™ Stereo ™ Dolby Surround …
™The Dolby Pro Logic display panel will light up with the selection.
Dolby Surround
This setting is for a full Dolby Surround Pro Logic mode.
•Press DPL to select the Dolby Surround mode.
™ The message |
|
|
"DOLBY |
LEFT |
CENTER RIGHT |
SURROUND" |
|
|
will be |
SURR |
SURR |
displayed. |
|
|
™ The DPL display panel will light up.
Dolby Center Phantom
This setting is for use without the center speaker. It redistributes the center speaker sound to the left and right speakers, providing conventional stereo across the front.
•Press DPL to select the Dolby Pro Logic Center Phantom mode.
™The message "DOLBY
CENTER |
LEFT |
|
CENTER RIGHT |
|
|||
|
|
|
|
|
|
||
PHANTOM" |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
will be |
SURR |
|
|
|
SURR |
|
|
|
|
|
|
|
|
||
displayed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
™ The DPL display panel will light up.
Dolby 3 Stereo
Use this setting when full surround is not required, but a wide stereo sound is desired. It only requires the left, right and center speakers.
•Press DPL to select the Dolby 3 Stereo mode.
™ The message
"DOLBY 3 |
LEFT |
|
CENTER |
|
RIGHT |
STEREO" will |
|
|
|
|
|
be displayed. |
SURR |
|
|
|
SURR |
™The DPL display panel will light up.
DOLBY PRO LOGIC
Important!
1For the best Dolby Pro Logic sound, switch on DPL with DSC set to “Classic” and with VEC off.
2Dolby Pro Logic mode will automatically switch to normal Stereo mode when headphones are connected.
3Switch to normal stereo mode when you record on a tape.
English
Normal Stereo
This setting is for normal stereo sound without Dolby Pro Logic. It only requires the left and right speakers.
•Press DPL to select the Stereo mode. ™ The message
" |
STEREO |
" will |
LEFT |
|
CENTER |
|
RIGHT |
|
|
|
|
|
|
|
|
|
|||
be displayed. |
|
|
|
|
|
|
|||
™ The DPL display |
SURR |
|
|
|
SURR |
|
|||
panel will light |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|||
up. |
|
|
|
|
|
|
|
|
|
9
pg 01-31/P88/22-Eng |
9 |
3/6/00, 1:26 PM |
3139 116 19721 |

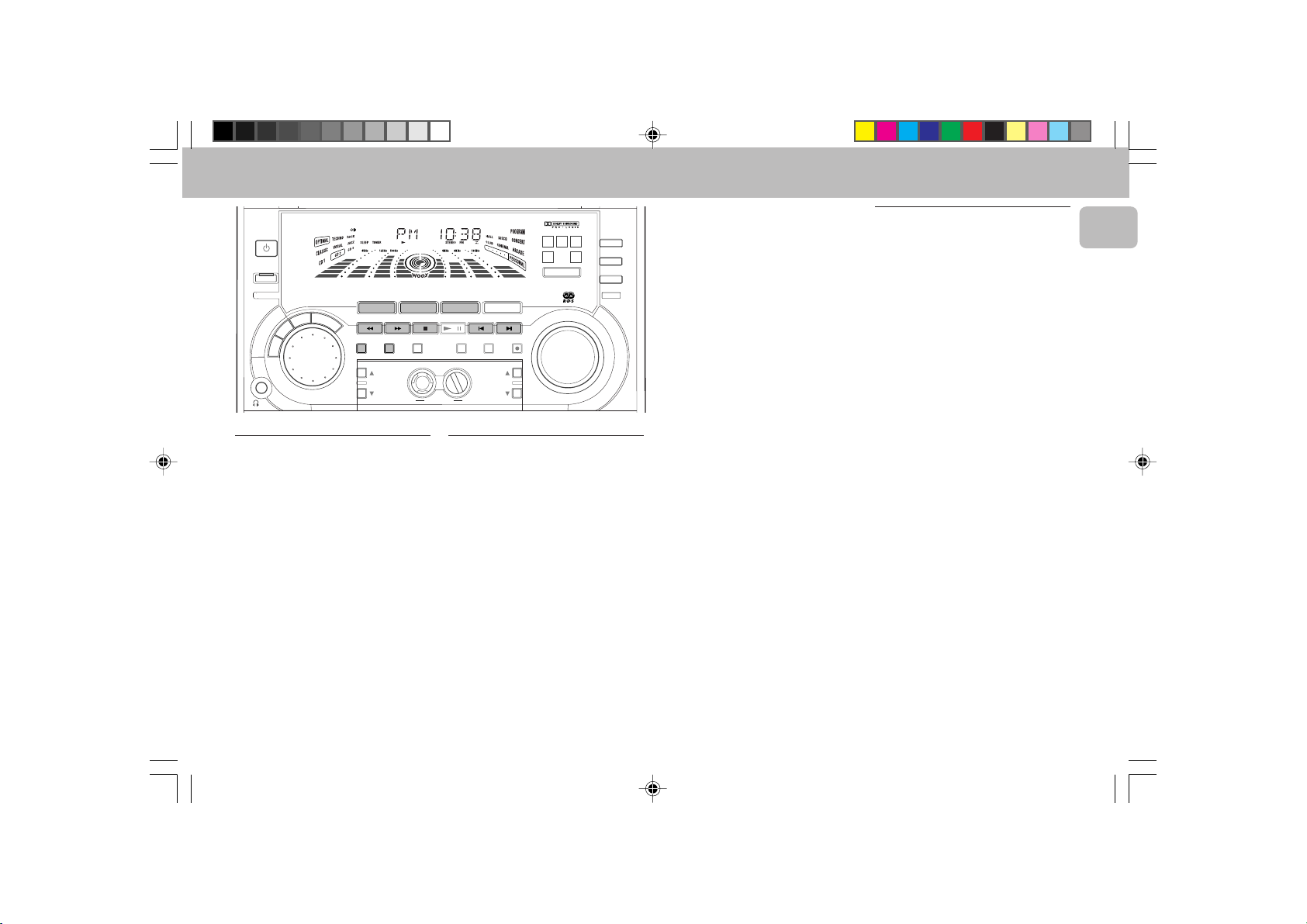

CONTROLS
English
|
DISC CHANGE |
|
|
# |
DISC 1 |
DISC 2 |
DISC 3 |
@ |
|
|
|
! |
|
|
|
0 |
MINI HIFI SYSTEM |
|
|
|
STANDBY |
|
|
|
ON |
|
|
1 |
|
|
|
2
3
4
5
6
7
8
9
ª
POWER SAVE
IR SENSOR
|
EC |
BA |
SS/ |
TR |
|
V |
|
|
|
|
|
|
|
EB |
|
C |
|
|
LE |
|
|
|
|
|
D |
S |
|
|
|
|
|
L |
O |
N |
A |
S |
|
|
R |
|
|
E |
|
|
P |
|
|
CD 1•2•3 |
|
BAND |
TAPE 1•2 |
|
CDR/DVD |
||
CD |
|
TUNER |
TAPE |
|
AUX |
||
SEARCH•TUNING |
STOP•CLEAR |
PLAY PAUSE |
▲ |
PRESET ▲ |
|||
PREV |
SIDE NEXT |
||||||
PROG |
CLOCK/ |
DIM |
A. REV |
DUB |
RECORD |
||
TIMER |
(HSD) |
||||||
|
|
|
|
||||
BASS |
|
|
|
|
|
TREBLE |
|
|
|
PLUS |
wOOx |
|
|
||
|
|
TECHNOLOGY LEVEL |
|
||||
OPEN•CLOSE
|
CD |
|
3C H A N G E R |
|
|
|
|
DOLBY B NR |
LEFT |
CENTER RIGHT |
|
SURR |
SURR |
NEWS/TA |
|
||
PRO LOGIC |
RDS |
|
|
|
CD TEXT |
|
VOLUME |
|
$
%
^
&
*
(
)
¡ ™
£
§
•
|
|
TV/AV |
|
|
|
2 |
0 |
|
CD 123 |
TUNER TAPE 1/2 AUX/CDR |
|||
|
|
1 |
|
2 |
3 |
|
|
|
4 |
|
5 |
6 |
|
|
|
7 |
|
8 |
9 |
|
|
|
CLOCK |
|
AUTO REV. |
||
º |
|
|
|
0 |
|
|
|
|
|
VOLUME |
|
||
£ |
|
|
É Å |
|
||
|
|
|
|
|||
|
|
|
í |
|
ë |
|
¡ |
|
TV VOL |
|
Ç |
TV VOL |
|
9 |
à |
|
|
á |
||
|
|
|
DIM |
|
||
⁄ |
|
|
|
|
||
|
REPEAT |
|
SHUFFLE |
|||
& |
|
DPL |
TEST TONE |
BALANCE |
||
|
|
|
|
L |
R |
|
¤ |
|
CENTER |
|
REAR |
||
|
- |
+ |
|
- |
+ |
|
‹ |
|
|
|
|
|
|
|
|
PER. |
DSC |
|
VEC |
BTC |
› |
|
TIMER ON/OFFSLEEP |
WOOX WOOX LEVEL |
|||
|
|
|
|
|
|
|
fi
‚
·
§ £ ¡
¡ °
‡ fl 5
10
pg 01-31/P88/22-Eng |
10 |
3/6/00, 1:26 PM |
3139 116 19721 |
Loading...
