FW-

P75

Mini Hi-Fi System

with 3 CD changer

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM1

3139 116 19311

Important notes for users in the U.K. Mains plug

FrançaisEnglish

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.

Español

2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an

Deutsch ∂ППЛУИО¿PortuguêsSuomiDanskSvenskaItalianoNederlands

appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio FW-P75 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven , il 10/2/2000

Philips Consumer Electronics

5616 JB Eindhoven, The Netherlands

Philips, Glaslaan 2

Norge

Typeskilt finnes på apparatens underside.

Observer:

Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Nettbryteren er sekundert innkoplet.

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM2

3139 116 19761

INDEX

CLASS 1

LASER PRODUCT

English .....................................5

Français .................................27

Español ..................................51

Deutsch ..................................75

Nederlands............................99

Italiano .................................123

Svenska ...............................147

Dansk ...................................169

Suomi ...................................193

Português ............................213

∂ППЛУИО¿

............................ 237

EnglishFrançais

Español

NederlandsItalianoSvenskaDanskSuomiPortuguês∂ППЛУИО¿ Deutsch

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM3

3139 116 19761

English

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM4

3139 116 19761

CONTENTS GENERAL INFORMATION SAFETY INFORMATION

General Information .................5

Safety Information ....................5

Preparation .......................... 6 - 7

Dolby Pro Logic ................... 8 - 9

Controls............................. 10 - 12

Operating The System .... 13 - 14

CD....................................... 15 - 17

Tuner ..........................................18

Tape ................................... 19 - 20

AUX/CDR ...................................20

Recording ......................... 21 - 22

Clock .........................................22

Timer......................................... 23

Sleep Timer ..............................23

Specifications .........................24

Maintenance............................ 25

Troubleshooting .............. 25 - 26

General Information

• The type plate (which contains the serial number) is located at the rear of the system.

• Recording is permissible if copyright or other rights of third parties are not infringed.

• This product complies with the radio interference requirements of the European Community.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Acknowledgement

Dolby Pro-Logic and the double-D symbol d are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories Licensing Corporation.

Accessories

– Remote control – Batteries (two AA size) for remote

control – AM loop antenna – FM wire antenna – AC power cord – CS-120 speaker package (includes one

pair of surround speakers and one

center speaker)

(Supplied)

Safety Information

• Before operating the system, check that

the operating voltage indicated on the

typeplate (or the voltage indication

beside the voltage selector) of your

system is identical with the voltage of

your local power supply. If not, please

consult your dealer. The typeplate is

located at the rear of your system.

• When the system is switched on, do not

move it around.

• Place the system on a solid base (e.g. a cabinet).

• Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm clearance from the rear and the top of the unit and 5 cm from the each side.

• Do not expose the system to excessive moisture, rain, sand or heat sources.

• Under no circumstances should you repair the system yourself, as this will invalidate the warranty!

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the CD unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

• Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.

• To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM5

3139 116 19761

PREPARATION

English

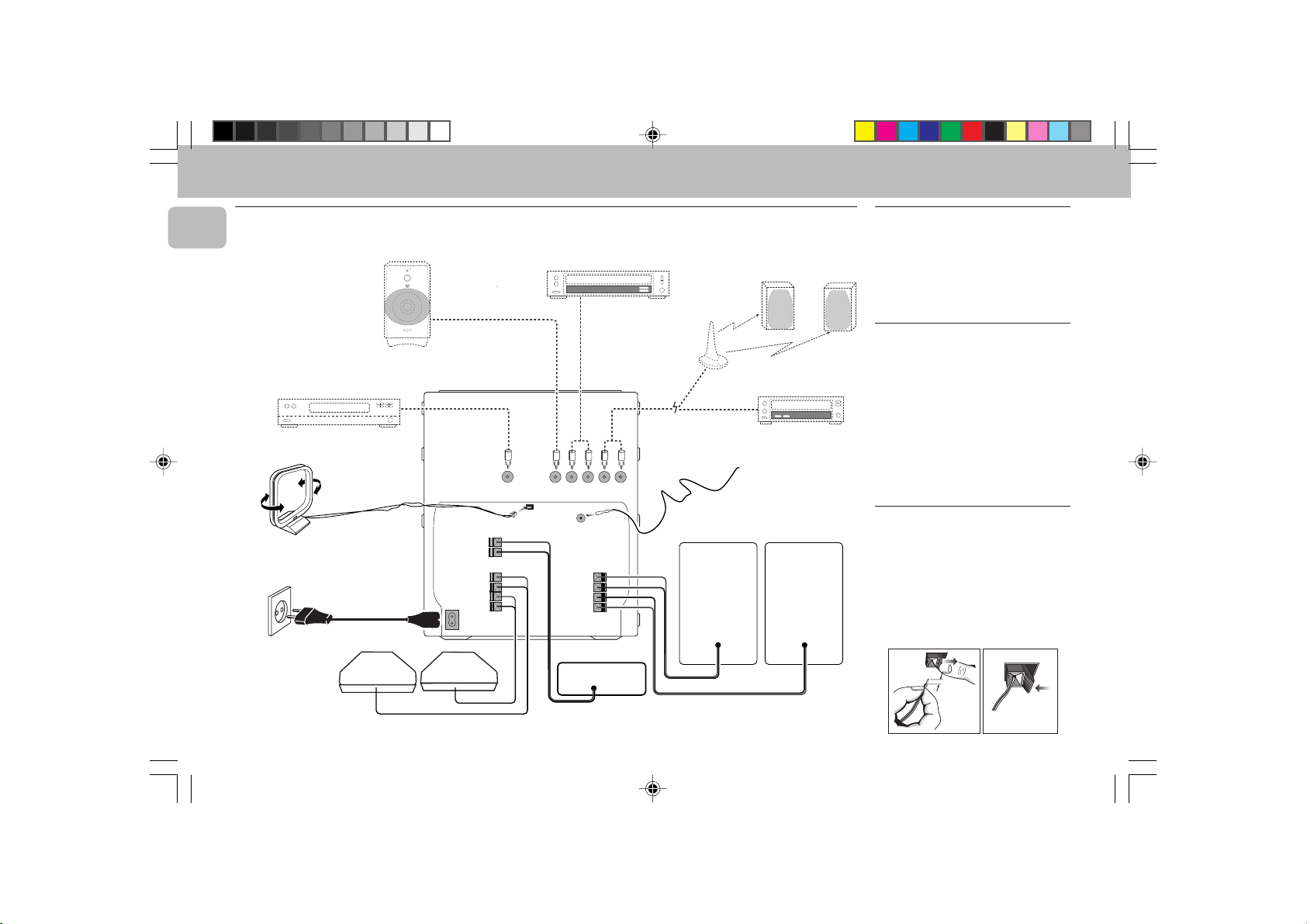

Rear Connections

surr.

A AM Loop Antenna

Connection

STANDBY ON

MIN MAX

CUT OFF FREQUENCY

HIGH POWER SUBWOOFER

60Hz 150Hz

AUDIO OUT

Connect the supplied loop antenna to the AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.

B FM Wire Antenna

Connection

Connect the supplied FM wire antenna to the FM ANTENNA 75 Ω terminal. Adjust the position of the FM antenna for the best reception.

Outdoor Antenna

For better FM stereo reception connect an outdoor FM antenna to the FM ANTENNA 75 Ω terminal using a 75 Ω coaxial wire.

C Speakers Connection

• Connect the right speaker to Front terminal R, with the colored wire to + and the black wire to -.

• Connect the left speaker to Front terminal L, with the colored wire to + and the black wire to -.

• Clip the stripped portion of the speaker wire as shown.

12 mm

unlock lock

MAINS

surr.

AUDIO IN

CENTER

–

REAR SURROUND

– –

DIGITAL

OUT

AM ANTENNA

OUT

AUX/CDR IN

FM ANTENNA 75Ω

LINE OUT

FRONT

– –

LRLR

SUB-

WOOFER

CENTER

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM6

3139 116 19761

PREPARATION

CAUTION:

– For optimal sound performance, it is

recommended to use the supplied speakers.

– Do not connect more than one speaker

to any one pair of +/- speaker terminal.

– Do not connect speakers with

impedance lower than the speakers supplied. Please refer to SPECIFICATION section of this manual.

D Rear Surround Speakers’

Connection

Connect the black (non-marked) wires to the black REAR SURROUND terminals and the colored (marked) wires to the grey REAR SURROUND terminals.

E Center Speaker

Connection

Connect the black (non-marked) wires to the black CENTER terminal and the blue (marked wires) to the blue CENTER terminal.

F Line Out Connection

(wireless

ready)

You can connect the audio left and right LINE OUT terminals to a optional CD Recorder ANALOG IN terminals. This allows you to record in an analogue format.

You can also install additional optional front active speakers away from the system (e.g. in another room) to reduce the inconvenience of running long speaker wires across rooms. You can place as many remote speakers as you like provided they operate at the same radio frequency. Connect the wireless radio frequency transmitter to the LINE OUT terminals. Place the active speakers at your preferred location. Be sure to follow the instructions supplied with the active speakers.

Note: – Availability of wireless transmitter and

its peripherals are subjected to the approval of local authorities. Please check with respective local safety or approving authority.

G Connecting other

equipment to your system

You can connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals at the rear of the system.

H Subwoofer Out Connection

Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.

I Digital Out Connection

You can record the digital sound from the CD, through this output, on any audio equipment with digital input (e.g. CD Recorder, Digital Audio Tape (DAT) deck, Digital to Analog Converter and Digital Signal Processor).

Connect one end of the cinch cable (not supplied) to the DIGITAL OUT socket and the other end to the audio equipment with digital input.When connecting the cinch cable, make sure it is fully inserted.

J AC Power Supply

After all other connections have been made, connect the AC power cord to the system and to the wall outlet.

Inserting batteries into the Remote Control

• Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.

• To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.

English

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM7

3139 116 19761

DOLBY PRO LOGIC

English

Dolby Pro Logic

This state of the art Dolby Pro Logic mini system enables you to experience and enjoy a Home Cinema sound ambience. The Pro Logic system allows more accurate definition of the individual sound sources. It produces greater sound separation between channels and provides pinpoint sound localization. Pro Logic provides four sound outputs: Left, Center, Right and Surround (Rear). Front sounds are produced from the pair of Left and Right speakers and a Center speaker. The surround sound is reproduced by two speakers placed at the rear of the listening area. Although the surround sound is monaural (single-source), a pair of speakers is necessary to produce the correct diffused sound.

This Pro Logic decoder enables you to decode the following modes:

Surround, Center Phantom, Dolby 3 Stereo

normal Stereo

Setting up the Dolby Pro Logic system

You must set up the system properly in order to enjoy the Home Cinema sound to the fullest. First, connect the speakers.

5-Speaker Connection

• Front speakers: Connect the front

speakers.

• Center speaker: Connect the center

speaker.

Dolby

• Rear (surround) speakers: Connect

either the wired rear surround speakers or a pair of wireless rear speakers (not supplied) to the SURROUND OUT terminals.

CENTER

REAR SURROUND FRONT

REAR

LEFT

REAR

RIGHT

FRONT LEFT

FRONT RIGHT

Positioning the Speakers

To get the best surround sound effect, place the speakers as follows.

CENTER

SPEAKER

SUB-

FRONT

WOOFER

LEFT

SURROUND

LEFT

Front Left and Right Speakers

For the best sound, place the Left and Right speakers at an angle of approximately 45 degrees to the listener. If the speakers' magnetic field affects the television picture, increase the distance between the TV and the speakers.

MINI HIFI SYSTEM

FRONT RIGHT

SURROUND

RIGHT

Center Speaker

For the best sound, place the center speaker at the same height as the left and right speakers. Place the center speaker directly above or beneath the television.

Rear (surround) Speakers

The surround speakers should be placed at normal listening ear level or mounted on the wall at the back of the room. Most important, experiment when placing the surround speakers in order to obtain the best sound.

Test Tone

This feature enables you to adjust the Front Left, Front Right, Center and Surround Sound levels of the respective speakers in Dolby Pro Logic mode.

You must sit at the ideal sitting position and use the remote control to perform this operation.

1 Press CD, TUNER, TAPE or AUX to

switch on the system.

2 Press TEST TONE.

™ A test signal is generated; it will

move through the Left, Center, Right, and Surround speakers, in that order.

™ "TEST TONE" followed by

"ADAPT BALANCE, CENTER AND REAR LEVEL" will be displayed.

™ The test signal will last for about 90

seconds.

3 Press

BALANCE L

to adjust the sound of the

DPL

BALANCE

CENTER REAR



front left speaker. ™ The display will show

"BAL L+XX".

4 Press BALANCE R to adjust the sound

of the front right speaker. ™ The display will show

" BAL R +XX".

5 Press CENTER + or - to adjust the

sound of the center speaker. ™ The display will show either

"CENT +XX or -XX".

6 Press REAR + or - to adjust the

sound of the surround speakers. ™ The display will show either

"REAR +XX or -XX".

7 Adjust the sound of

all the speakers until they are equal. When you are satisfied with the setting, press

USE

UME



TEST TONE

TEST TONE again to switch off the test signal.

Note: – It is advisable to set the speakers’ level

at normal listening level. "XX" denotes the sound level.

pg 01-26/P75/22-Eng 3/6/00, 12:39 PM8

3139 116 19761

DOLBY PRO LOGIC

When you have completed the Dolby Pro Logic setup, you are ready to enjoy Home Cinema sound.

• Press DPL (PRO LOGIC) repeatedly to select and cycle through the various sound modes.



Ç

DPL

BALANCE

Dolby Surround ™ Center Phantom ™ Dolby 3 Stereo

™

Stereo ™ Dolby Surround …

™ The Dolby Pro Logic display panel

will light up with the selection.

Dolby Surround

This setting is for a full Dolby Surround Pro Logic mode.

• Press DPL to select the Dolby Surround

á

mode. ™ The message

"DOLBY SURROUND" will be displayed.

™ The DPL display

panel will light up.

Dolby Center Phantom

This setting is for use without the center speaker. It redistributes the center speaker sound to the left and right speakers, providing conventional stereo across the front.

• Press DPL to select the Dolby Pro Logic

Center Phantom mode. ™ The message

"CENTER PHANTOM" will be displayed.

™ The DPL display

panel will light up.

Dolby 3 Stereo

Use this setting when full surround is not required, but a wide stereo sound is desired. It only requires the left, right and center speakers.

• Press DPL to select the Dolby 3 Stereo

PRO LOGIC

Normal Stereo

This setting is for normal stereo sound without Dolby Pro Logic. It only requires the left and right speakers.

• Press DPL to select the Stereo mode.

PRO LOGIC

mode. ™ The message

"DOLBY 3 STEREO" will be displayed.

™ The DPL display

panel will light up.

™ The message

"STEREO" will be displayed.

™ The DPL display

panel will light up.

Important! 1 For the best Dolby Pro Logic sound,

2 Dolby Pro Logic mode will

3 Switch to normal stereo mode when

PRO LOGIC

switch on DPL with DSC set to “Classic”.

automatically switch to normal Stereo mode when headphones are connected.

you record on a tape.

English

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM9

3139 116 19761

CONTROLS

English

@ !

DISC CHANGE

DISC 1 DISC 2 DISC 3

OPEN•CLOSE

MINI HIFI SYSTEM

STANDBY

8 7

CLOCK/ TIMER

DUB

(HSD)

REC

≤

£

CHANGER

PROGRAM

REC

REPEAT

TIMER

NEWS

T.A.

60Hz

250Hz

500Hz

1KHz

BAND

CD1 • 2 • 3

PROG

TUNER AUX

STOP• CLEARSEARCH • TUNING PLAY PAUSE PREV NEXT

SOUND NAVIGATION

DIGITAL SOUND

CONTROL

4KHz

2KHz

TAPE 1 • 2

TAPECD

SIDE A•B

DYNAMIC BASS BOOST

8KHz

CDR / VIDEO

STEREO

BACK FRONT

HSD

▲

A.REV

PRESET

▲

SIDE

PRO LOGIC

DOLBY B

RDS

NEWS!

VOLUME

^ &

2 ) ∞

§

(

)

≥

¡

™

•

CD DIRECT

PAUSE

MUTE

Å

VOLUME

É

í

TV VOL

Ç

à

DPL

BALANCE

CENTER REAR

REAR

TAPE 1/2 AUXTUNERCD

SLEEP TIMERDSC DBB

PROGRAMREPEAT SHUFFLE

TEST TONE

ë

á



‹

¤

7 ⁄ º

* (

TV VOL

ª

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM10

3139 116 19761

CONTROLS

Controls on the system and remote control

1 STANDBY ON

– to switch the system on or to standby

mode.

– to use for EASY SET.

2 DIGITAL SOUND CONTROL (DSC)

– to select the desired sound effect :

OPTIMAL, CLASSIC, TECHNO, JAZZ, ROCK or VOCAL.

3 n

– to connect headphones.

4 REC (RECORD)

– to start recording on tape deck 2.

5 DUB (HIGH SPEED DUBBING

[HSD])

– to dub a tape in normal or fast speed.

6 JOG

– to select the desired equalizer display. – to select the desired DSC setting. You

must select the DSC feature first.

7 PROG (PROGRAM)

for CD ............ to program CD tracks.

for TUNER ..... to program preset radio

for CLOCK ..... to select 12 or 24 hour

8 CLOCK/TIMER

– to view the clock, set the clock or set

the timer.

stations.

in clock setting mode

(on the system only)

9 DISPLAY SCREEN

– to view the current setting of the

system.

0 CD CAROUSEL TRAY ! DISC 1 / DISC 2 / DISC 3 (CD

DIRECT PLAY)

– to select a CD tray for playback.

@ DISC CHANGE

– to change CD(s).

# OPEN•CLOSE

– to open or close the CD carousel tray.

$ SOURCE – to select the following:

CD / (CD 1•2•3)

– to select CD mode. When CD playback

is stopped, press to select disc tray 1, 2 or 3.

TUNER / (BAND)

– to select Tuner mode. When in tuner

mode; press to select the waveband: FM, MW or LW.

TAPE / (TAPE 1• 2)

– to select Tape mode. When tape

playback is stopped, press to select either tape deck 1 or 2.

AUX / (CDR/VIDEO)

– to select sound from an external

source (e.g. TV, VCR, Laser Disc player, DVD player or CD Recorder). When in Aux mode, press to select either AUX or CDR.

(only on the remote control)

– to select TV mode.

% DPL DISPLAY PANEL

– to view the selected Dolby Pro Logic

setting.

^ DOLBY PRO LOGIC (DPL)

– to select Dolby Surround, Dolby Center

Phantom, Dolby 3 Stereo or Stereo mode.

& A. REV (AUTO REVERSE)

– available in tape deck 2 only. – to select the desired play modes

( å / ∂ / ∫ ).

* MODE SELECTION

SEARCH à á (TUNING à á)

for CD ............ to search backward/

for TUNER ..... to tune to a lower or

for TAPE ........ to rewind or fast

for CLOCK ..... to set the hour

for TV VOL. .... to adjust the TV volume

STOP•CLEAR Ç

for CD ............ to stop CD playback or

for TUNER ..... to stop programming.

for TAPE ........ to stop playback or

for DEMO ......

forward.

higher radio frequency.

forward a tape.

(on the

system only)

if the remote operates your TV.

to clear a program.

recording.

(on the system only)

start or stop demonstration mode.

PLAY É / PAUSE Å

for CD ............ to start or interrupt

for TAPE ........ to start playback.

í PREV / SIDE / NEXT ë (PRESET 4 3 )

for CD ............ to skip to the beginning

for TUNER ..... to select a preset

for TAPE ........ to select tape side

for CLOCK ..... to set the minute

( VOLUME

– to increase or decrease the volume.

) DYNAMIC BASS BOOST (DBB)

– to select a bass boost level or to

switch off bass boost.

¡ OPEN

– to open tape deck 2.

™ TAPE DECK 2 £ TAPE DECK 1 ≤ OPEN

– to open tape deck 1.

∞ REPEAT

– to repeat a CD track, a disc, or all

available discs.

§ MUTE

– to switch off the sound temporarily.

playback.

of the current, previous, or next track.

station in memory.

(back or front) in tape deck 2 only.

(on

the system only)

English

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM11

3139 116 19761

CONTROLS

English

≥ BALANCE L/R

– to balance the sound level of the Front

Left and Right speakers.

• CENTER +/-

– to adjust the sound level of the center

speaker.

ª REAR +/-

– to adjust the sound level of the

surround speakers.

º TEST TONE

– to check the sound level of the Front

Left, Front Right, Center and Surround speakers.

⁄ SHUFFLE

– to play all the available discs and their

tracks in random order.

¤ SLEEP TIMER

– to switch the system to standby mode

at a selected time.

‹ B

– to switch the system to standby mode.

Notes for remote control: – First select the source you wish to

control by pressing one of the source select keys on the remote control (e.g. CD, TUNER, etc.).

– Then select the desired function

(É, í, ë, etc.).

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM12

3139 116 19761

OPERATING THE SYSTEM

REC

DUB

(HSD)

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

PROGRAM

REC

REPEAT

TIMER

NEWS

T.A.

60Hz

250Hz

500Hz

BAND

CD1 • 2 • 3

PROG

TUNER AUX

SEARCH • TUNING PLAY PAUSE PREV NEXT

STOP•CLEAR

SOUND NAVIGATION

DIGITAL SOUND

CONTROL

Important: Before you operate the system, complete the preparation procedures.

Demonstration mode

The system has a demonstration mode that shows the various features offered by the system.

When the system is switched on for the first time, the demonstration mode will start automatically.

Notes: – During the demonstration, if you press

any source (or standby-on) button, the system will switch to the respective mode (or standby).

– When the system is switched to standby

mode, the demonstration will resume 5 seconds later.

2KHz

1KHz

TAPE 1 • 2

TAPECD

SIDE A•B

DYNAMIC BASS BOOST

4KHz

8KHz

CDR / VIDEO

STEREO

▲

PRESET

BACK FRONT

HSD

▲

SIDE

PRO LOGIC

A.REV

To stop the demonstration mode

• Press and hold Ç for

5 seconds

(on the system only)

when the system is in

demonstration mode.

™ The demonstration will stop. ™ "DEMO OFF" is displayed. ™ The system will switch to standby

mode.

Notes: – When the system is switched on from

the main power outlet, the CD carousel tray may open and close again to initialize the set.

– Even though the AC power cord is

removed from and reconnected to the wall socket, the demonstration will remain off until it is switched on again.

DOLBY B

RDS

NEWS!

VOLUME

To start the demonstration mode

• Press and hold Ç for

5 seconds

(on the system only)

when the system is in standby mode. ™ The demonstration will begin.

Easy Set

EASY SET allows you to store all available radio stations automatically.

• Press and hold STANDBY ON

system only)

for

5 seconds

system is in standby or demonstration mode. ™ "EASY SET" will be displayed,

and followed by "TUNER" and then "AUTO".

™ EASY SET will start searching for all

radio on FM band and then followed by radio stations on MW and LW bands.

™ All available radio stations with

sufficient signal strength will be stored. Up to 40 presets may be stored.

Notes: – EASY SET will start with the FM band, if

there are still presets available, the system will continue to store the MW and LW bands respectively.

– When EASY SET is used, all previously

stored radio stations will be replaced.

– The last preset radio station will appear

on the display when EASY SET is completed.

(on the

; when the

Switching the system ON

• Press CD, TUNER, TAPE or AUX. You can also switch on the system by

pressing any one of the CD DIRECT PLAY buttons.

Switching the system to standby mode

• Press STANDBY ON or B on the

remote control. ™ The system will switch to standby

mode.

Selecting the Source

• Press the respective source selection

button: CD, TUNER, TAPE or AUX. ™ The display indicates the selected

source.

Note: – For an external source, make sure you

have connected the audio left and right OUT terminals of the external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX/ CDR IN terminals.

English

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM13

3139 116 19761

OPERATING THE SYSTEM

English

Selecting the Equalizer Display

You can select the desired equalizer display for the system. You must not press the DSC button on the system before using the JOG control.

• Adjust the JOG control to select the

desired Equalizer Display, NORMAL, TOP DOWN, or NITE MODE. ™ The selected display will be shown.

NORMAL Display

PROGRAM

REC

REPEAT

TIMER

T.A.NEWS

60Hz

250Hz

TOP DOWN Display

PROGRAM

REC

REPEAT

TIMER

T.A.NEWS

60Hz

250Hz

NITE MODE Display

PROGRAM

REC

REPEAT

TIMER

T.A.NEWS

60Hz

250Hz

Note: – In NITE MODE, all lights will be

switched off and the display brightness will be dimmed.

4KHz

500Hz

2KHz

1KHz

4KHz

500Hz

2KHz

1KHz

4KHz

500Hz

2KHz

1KHz

Sound Control

VOLUME ADJUSTMENT

Adjust VOLUME to increase or decrease the sound level.

For Personal Listening

Connect the headphones plug to the n socket at the front of the system. The speakers will be muted.

With the JOG control, you can change the level of any DSC setting except CLASSIC.

• First select the DSC feature, then adjust the JOG control until the desired digital sound setting level is reached. ™ The digital sound setting level will

increase or decrease between level 1 and 5.

Note:

DIGITAL SOUND CONTROL (DSC)

The DSC feature enables you to adjust the

– For neutral setting, select CLASSIC and

switch off DBB.

system to suit your type of music.

STEREO

BACK FRONT

HSD

8KHz

• Press DIGITAL SOUND CONTROL (DSC) to select OPTIMAL, CLASSIC,

TECHNO, JAZZ, ROCK or VOCAL. ™ The selected digital sound is

encircled.

™ "OPTIMAL X, CLASSIC,

STEREO

BACK FRONT

HSD

8KHz

TECHNO X, JAZZ X, ROCK X or VOCAL X" will be displayed. "X" is the pre-selected

DYNAMIC BASS BOOST (DBB)

There are three DBB settings to enhance the bass response.

• Press DBB briefly to select a bass boost

level. ™ The respective DBB level will be

encircled and lit.

™ "BEAT", "PUNCH" or "BLAST"

will be displayed.

Automatic DSC-DBB selection

The best DBB setting is generated automatically for each DSC selection. You can manually select the DBB setting that best suits your listening environment.

MUTE (on remote control only)

This feature allows you to temporarily switch off the sound without switching off the system when you require a moment of silence.

1 Press MUTE on the remote control to

switch off the sound. ™ "MUTE" will be displayed.

2 Press MUTE again on the remote

control or increase the VOLUME level to switch on the sound.

level.

To switch off DBB

• Press DBB briefly until "DBB OFF" is

displayed.

STEREO

BACK

FRONT

HSD

8KHz

Note: – Some CDs or tapes might be recorded in

high modulation, which causes a distortion at high volume. If this occurs, switch off DBB or reduce the volume.

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM14

3139 116 19761

REC

DUB

(HSD)

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

DISC CHANGE

DISC 1 DISC 2 DISC 3

PROGRAM

SHUFFLE

REC

REPEAT

TIMER

NEWS

T.A.

60Hz

250Hz

500Hz

1KHz

BAND

CD1 • 2 • 3

PROG

TUNER AUX

SEARCH • TUNING

STOP•CLEAR

SOUND NAVIGATION

DIGITAL SOUND

CONTROL

OPEN•CLOSE

STEREO

BACK FRONT

8KHz

4KHz

2KHz

CDR / VIDEO

TAPE 1 • 2

TAPECD

▲

PRESET

SIDE A•B

SIDE

PLAY PAUSE PREV NEXT

DYNAMIC BASS BOOST

HSD

▲

PRO LOGIC

A.REV

DOLBY B

RDS

NEWS!

VOLUME

Warning!

1) This system is designed for conventional CDs. Do not use any accessories such as disc stabilizer rings or CD treatment sheets, etc., which may damage the CD mechanism.

2) Do not load more than one disc into each tray.

3) When the CD changer is loaded with CDs, do not turn over or shake the system. This may jam the changer.

You may load three discs in the CD changer for continuous playback without interruption.

Discs for playback

This system can play all digital audio CD, finalized digital audio CD-Recordable and finalized digital audio CD-Rewritable format discs.

Loading the CD Changer

1 Press CD to select CD mode. 2 Press OPEN•CLOSE.

™ The CD carousel tray slides out.

3 Load a CD with the printed side up in

the right tray.

• You can load another disc in the left tray.

• To load the third disc, press the DISC CHANGE button. ™ The CD carousel will rotate until the

empty tray is ready for loading.

4 Press OPEN•CLOSE to close the CD

carousel tray. ™ The total number of tracks and the

playing time of the selected disc appear on the display.

Note: – To ensure good system performance,

wait until the CD changer completely reads the disc(s) before proceeding.

CD Direct Play

• You can play a CD directly by pressing

the DISC 1, DISC 2 or DISC 3 button. The CD player will stop at the end of playback of the selected disc. ™ A lit button indicates that a disc is

loaded in the disc tray.

Playing a CD

1 PressÉ to start playback.

™ The disc tray, track number and

elapsed playing time of the current track appear on the display.

• To interrupt playback, pressÅ. ™ The playing time flashes.

• To resume playback, pressÉ again.

2 To stop playback, press Ç.

Note: – All the available discs will play once,

then stop.

English

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM15

3139 116 19761

English

Disc Change

You can change the outer two discs while the third inner disc is stopped or is playing.

1 Press DISC CHANGE.

™ The CD carousel tray slides out.

2 Replace the discs in the left and right

disc trays.

• If you wish to change the inner disc

during playback, press DISC CHANGE again. ™ "DISC CHANGE" will be

displayed.

™ The CD will stop playing. ™ The CD carousel tray will close to

retrieve the inner CD and then open again with the inner CD accessible.

3 Press OPEN•CLOSE to close the CD

carousel tray.

Selecting a desired track

Selecting a desired track when playback is stopped 1 Press í or ë until the desired track

appears on the display.

2 PressÉ to start playback.

™ The selected track number and

elapsed playing time appear on the display.

Selecting a desired track during playback

• Press í or ë until the desired track appears on the display. ™ The selected track number and

elapsed playing time appear on the display.

• If you press í once it will skip to the beginning of the current track and play the track again.

Note: – Pressingí during shuffling can only skip

to the beginning of the current track.

Searching for a particular passage during playback

• Press and hold à or á until the desired passage is located. ™ The volume will be reduced.

• Play returns to normal when à or á is released.

Programming Tracks

Programming tracks of a loaded CD is possible when playback is stopped. The display will indicate the total tracks stored in the program. Up to 40 tracks can be stored in the memory in any order. When 40 tracks are stored and you attempt to store another track, the display will show "FULL".

1 Load the desired discs in the disc trays. 2 Press PROG to start programming.

™ The PROGRAM starts flashing. ™ It will cancel any previously selected

repeat mode.

3 Press the CD (CD 1•2•3) or DISC 1/2/3

button to select the disc.

4 Press í or ë to select the desired

track.

5 Press PROG to store the track.

• Repeat steps 3 to 5 to store other discs and tracks.

6 Press Ç once to end programming.

™ The total number of tracks

programmed and total playing time appear on the display.

Notes: – If the total playing time is more than

“

99:59“

tracks has a number greater than 30, then “ instead of the total playing time.

or if one of the programmed

--:--

” appears on the display

– If the system is reading the disc,

programming is not possible, “

READING

followed by "

” will be displayed and

DISC X

" . "X" is the

current read disc number.

– During programming, if no button is

pressed within 20 seconds, the system will exit program mode automatically.

Reviewing the program

Reviewing of the program is possible only when playback is stopped. 1 Press í or ë repeatedly to review

the programmed tracks.

2 Press Ç once to exit review mode.

Playing the program

1 Press É to start program playback.

™ "PLAY PROGRAM" will be

displayed.

™ The track number and elapsed

playing time of the current track will appear on the display.

• If you press REPEAT during program

playback, the current track or all programmed tracks will be played repeatedly. ™ "TRACK" or "PROGRAM" will be

displayed.

™ The REPEAT and PROGRAM appear on

the display.

2 Press Ç to stop program playback.

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM16

3139 116 19761

Notes: – If you press any of the CD DIRECT PLAY

buttons, the system will play the selected disc or track and the stored program will be ignored temporarily. The PROGRAM display also will disappear temporarily from the display. It will reappear when playback of the selected disc ends.

– REPEAT DISC mode is not available

when program playback begins.

Erasing the program

(when

playback is stopped)

• Press Ç. ™ "PROGRAM CLEARED" will be

displayed.

Note: – The program will be erased when the

system is disconnected from the power supply or when the CD carousel tray is opened.

Shuffle

In shuffle mode, the system plays all the available discs and their tracks in random order. Shuffle may be used also when tracks are programmed.

To shuffle all the discs and tracks 1 Press SHUFFLE.

• The discs and the tracks will be played

• If you press REPEAT during shuffling,

2 Press SHUFFLE again to resume normal

(only on remote control)

™ "SHUFFLE" will be displayed. ™ The SHUFFLE, the disc and the track

selected at random appear on the display.

in random order until you press Ç.

the current track or all available discs will be played repeatedly. ™ "TRACK" or "ALL" will be

displayed.

™ The REPEAT and SHUFFLE appear on the

display.

playback. ™ The SHUFFLE disappears from the

display.

Note: – REPEAT DISC mode is not available

when shuffle is selected.

Repeat

You can play the current track, a disc or all available discs repeatedly.

1 Press REPEAT on the remote control to

• The selected track, selected disc or all

2 Press REPEAT until the "OFF" mode is

(only on remote control)

select the various repeat modes. ™ "TRACK", "DISC", "ALL" or

"OFF" will be displayed.

™ The REPEAT appears on the display.

available discs will now be played repeatedly until you press Ç.

displayed to resume normal playback. ™ The REPEAT disappears from the

display.

Notes: – REPEAT DISC mode is not available

during program play or shuffle mode.

– You can also repeat shuffling a program.

™ “TRACK“

“PROGRAM"

will be

displayed.

™

The REPEAT, PROGRAM and SHUFFLE appear on the display.

English

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM17

3139 116 19761

TUNER

English

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

DUB

(HSD)

REC

PROG

Note: – For 'EASY SET' feature, please refer to

page 13.

Tuning to radio stations

1 Press TUNER (BAND) to select TUNER

mode. ™ “TUNER” will be displayed.

A few seconds later, the current radio frequency will be displayed.

2 Press TUNER (BAND) again to select

the desired waveband : FM, MW or LW.

3 Press à or á for more than one

second, then release. ™ The display will show "SEARCH"

until a radio station with sufficient signal strength is found.

NEWS

CD1 • 2 • 3

PROGRAM REPEAT T.A.

SHUFFLE

REC

TIMER

DIGITAL SOUND

STEREO

BACK FRONT

60Hz

250Hz

500Hz

1KHz

TAPE 1 • 2

BAND

TUNER AUX

SIDE A•B

STOP •CLEARSEARCH • TUNING PLAY PAUSE PREV

SOUND NAVIGATION

CONTROL

8KHz

4KHz

2KHz

CDR / VIDEO

TAPECD

▲

DYNAMIC BASS BOOST

PRESET

HSD

A.REV

▲

SIDE

• Repeat this procedure until the desired station is reached.

• To tune to a weak station, briefly press à or á repeatedly until the display shows the desired frequency and/or when the best reception has been obtained.

Storing Preset Stations

You can store up to 40 radio stations in the memory. When a preset radio station is selected, the preset number appears next to the frequency on the display.

Automatic programming 1 Press TUNER (BAND). 2 Press PROG for more than one second.

™ The PROGRAM starts flashing and

"AUTO" will be displayed.

PRO LOGIC

DOLBY B

NEWS!

VOLUME

™ The system will search for every

available station in the FM waveband first, then search the MW and LW

RDS

wavebands respectively..

™ All available stations will be stored

automatically. The frequency and preset number will be displayed briefly.

™ The system will stop searching when

all the available radio stations are stored or when the memory for 40 preset radio stations is used.

™ The system will remain tuned to the

last stored preset radio station.

Notes: – You can cancel the automatic

programming by pressing PROG or

(on the system only).

– If you want to reserve a section of

preset numbers, for example preset numbers 1 to 9, select preset 10 before starting automatic programming, only the preset numbers 10 to 40 will be programmed.

Manual programming 1 Press TUNER (BAND). 2 Press TUNER (BAND) again to select

• If you wish to store the radio station to another preset number, press 4 or 3 to select the desired preset number.

5 Press PROG again.

™ The PROGRAM disappears and the

radio station will be stored.

• Repeat

steps 3 – 5

to store other preset

radio stations.

Notes: – When 40 radio stations are stored and

you attempt to store another radio station, the display will show "

FULL

If you want to change an existing preset number, repeat steps 3 – 5.

– You can cancel manual programming by

pressing Ç (on the system only).

– During programming, if no button is

pressed within 20 seconds, the system will exit program mode automatically.

Tuning to Preset Radio Stations

• Press 4 or 3 to select the desired preset number. ™ The preset number, radio frequency,

and waveband appear on the display.

”.

the desired waveband : FM, MW or LW.

3 Press PROG for less than one second.

™ The PROGRAM starts flashing. ™ The next available preset number will

be displayed for selection.

4 Press à or á to tune to the desired

frequency.

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM18

3139 116 19761

TAPE

REC

DUB

(HSD)

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

Loading a tape

PROGRAM

SHUFFLE

REC

REPEAT

TIMER

NEWS

T.A.

60Hz

250Hz

500Hz

BAND

CD1 • 2 • 3

PROG

TUNER AUX

STOP•CLEARSEARCH • TUNING

SOUND NAVIGATION

DIGITAL SOUND

CONTROL

4KHz

2KHz

1KHz

TAPE 1 • 2

TAPECD

SIDE A•B

PAUSE PREV NEXT

PLAY

DYNAMIC BASS BOOST

8KHz

CDR / VIDEO

STEREO

▲

PRESET

BACK FRONT

HSD

▲

SIDE

PRO LOGIC

A.REV

DOLBY B

RDS

NEWS!

VOLUME

1 Press OPEN. 2 The tape deck door opens. 3 Load the tape with the open side

downward and the full spool to the left.

Auto Reverse Playback

(only on

tape deck 2)

• Press A. REV to select the different playback modes.

åå

å ...... to record or playback on one side

åå

of the tape. The tape stops at the end of one side.

∂∂

∂ ..... to record or playback on both

∂∂

sides of the tape. The tape then stops.

∫∫

∫ ... to playback continuously on both

∫∫

English

sides of the tape up to a

4 Close the tape deck door.

Tape Side

(only on tape deck 2)

• Press í or ë to select the tape side for playback or recording. ™ The BACK or FRONT appear on the

display, depending on the tape side selected.

™ "T2 <<<" or "T2 >>>" will be

displayed.

™ When recording, the BACK or FRONT

display will be flashing.

maximum of 10 times per side unless you press Ç.

Tape Playback

1 Press TAPE ( TAPE 1•2 ) to select TAPE

mode. ™ "TAPE 1" or "TAPE 2" will be

displayed, and followed by "T1 or T2" with "<<< or >>>".

• Press TAPE ( TAPE 1•2 ) again to select

either tape deck 1 or tape deck 2.

2 Load the tape into the desired tape

deck.

3 Press É to start playback.

• If tape 1 is selected for playback; ™ "T1 " with ">" scrolling right will be

displayed.

• If tape 2 is selected for playback; ™ "T2 " with "< or >" scrolling left or

right will be displayed depending on the tape side selected.

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM19

3139 116 19761

TAPE AUX/CDR

English

3a(for playback on tape deck 2 only)

• Press í or ë to select tape side

Tape Side)

• Press A. REV to select the different type

of playback mode

Playback)

(see Auto Reverse

4 Press Ç to end playback.

™ "T1 or T2" with "<<< or >>>"

will be displayed.

Rewind/Fast Forward

When playback is stopped 1 You can rewind or fast forward the tape

by pressing à or á respectively. ™ If rewinding, "T1 < or T2 <"

with "<" scrolling left will be displayed.

™ If fast forwarding, "T1 > or

T2 >" with ">" scrolling right will

be displayed

™ The tape will stop automatically at

the end of the rewinding or fast forwarding.

2 Press Ç to stop rewinding or fast

forwarding.

During playback

(see

• Press and hold à or á until the desired passage is located. ™ "T1 or T2" with "<< or >>"

scrolling left or right will be displayed depending on which button is pressed.

™ During searching, the sound is

reduced to a low volume.

™ When you release à or á, the

tape continues playing.

Notes: – During rewinding or fast forwarding of a

tape, it is also possible to select another source (e.g. CD, TUNER, or AUX).

– Before playing a tape, check and tighten

slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism.

– C-120 tape is extremely thin and is

easily deformed or damaged. It is not recommended for use in this system.

– Store the tapes at room temperature

and do not put them too close to a magnetic field (for example, a transformer, TV, or speaker).

Selecting External Equipment

If you have connected the audio out terminals of the external equipment (TV, VCR, Laser Disc player, DVD player, or CD Recorder) to the AUX/CDR IN terminals, you can hear the enhanced sound from the system.

1 Press AUX to select CDR mode.

2 Press AUX again to select the external

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

HSD

REC

PROG

™ "CDR" will be displayed.

(normal AUX) mode. ™ "AUX" will be displayed.

PROGRAM REPEAT

NEWS

T.A.

CD1 • 2 • 3

SHUFFLE

REC

TIMER

60Hz

DIGITAL SOUND

CONTROL

STEREO

BACK FRONT

2KHz

1KHz

TAPE 1 • 2

TAPECD

SIDE A•B

DYNAMIC BASS BOOST

4KHz

8KHz

CDR / VIDEO

▲

PRESET

SIDE

250Hz

500Hz

BAND

TUNER AUX

STOP•CLEARSEARCH • TUNING PLAY PAUSE PREV NEXT

SOUND NAVIGATION

HSD

▲

A.REV

Notes: – There are two Auxiliary modes:

i. the normal AUX mode. ii. the CDR mode, where the LINE OUT

of this mini system is muted. You will not be able to record or listen to the sound from the LINE OUT.

– You are advised not to listen to and

record from the same source simultaneously.

– All the sound control features (e.g. DSC,

DBB, etc.) are available for selection.

PRO LOGIC

DOLBY B

RDS

NEWS!

VOLUME

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM20

3139 116 19761

RECORDING

REC

DUB

(HSD)

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

PROGRAM

REC

REPEAT

TIMER

NEWS

T.A.

60Hz

CD1 • 2 • 3 CDR / VIDEOBAND TAPE 1 • 2

PROG

SOUND NAVIGATION

DIGITAL SOUND

CONTROL

STEREO

BACK FRONT

2KHz

1KHz

TAPECD

SIDE A•B

DYNAMIC BASS BOOST

8KHz

4KHz

▲

PRESET

SIDE

250Hz

500Hz

TUNER AUX

STOP•CLEARSEARCH • TUNING PLAY PAUSE PREV NEXT

SWITCH OFF DOLBY PRO LOGIC

WHEN RECORDING

Notes: – It is not possible to change tape side

during recording.

– For recording, use only tape of IEC type I

(normal tape) or IEC type II (Cr02).

– The tape is secured at both ends with

leader tape. At the beginning and end of tape, nothing will be recorded for six to seven seconds.

– The recording level is set automatically,

regardless of the position of Volume, DBB or DSC.

– To prevent accidental recording, break

out the tab on the left shoulder of the tape side you want to protect.

– If “

CHECK TAPE

protection tab has been broken. Put a

” is displayed, the

HSD

▲

PRO LOGIC

A.REV

DOLBY B

RDS

NEWS!

VOLUME

Recording from other sources

(only on tape deck 2)

1 Press TAPE ( TAPE 1•2 ) to select tape

deck 2.

2 Load a blank tape into tape deck 2 with

the open side downward.

3 Press í or ë to select the recording

tape side

(see Tape Side under TAPE

section)

4 Press CD, TUNER or AUX.

• Start playback of the selected source.

5 Press REC to start recording.

6 Press Ç to stop recording.

Notes: – Only

– During recording, it is not possible to

™ The REC starts flashing.

åå

∂∂

∂

åå

mode is available

∂∂

during recording .

listen to another source.

English

piece of clear adhesive tape over the opening. Do not cover the Cr02 tape detection hole when covering the tab opening.

Dubbing tapes

tape deck 2)

1 Press TAPE ( TAPE 1•2 ) to select tape

(from tape deck 1 to

deck 2.

Digital Recording via Digital Out

For CD digital recording, please refer to the Instructions Manual of the CD Recorder, digital audio equipment, etc.

2 Load the prerecorded tape into tape

deck 1 with full spool to the left and a blank tape into tape deck 2 with full spool aside.

3 Press í or ë to select the recording

tape side

(see Tape Side under TAPE

section)

pg 01-26/P75/22-Eng 3/6/00, 12:40 PM21

3139 116 19761

RECORDING CLOCK

English

4 Press DUB (HSD)

speed dubbing or

seconds)

™ "NORMAL" (normal speed) or

"FAST" (high speed) will be displayed, followed by "DUB" with "< or >" scrolling left or right depending on the tape side selected.

™ The HSD appears on the display

during high speed dubbing.

• Dubbing will start immediately. ™ The REC starts flashing.

5 Press Ç to stop dubbing.

Notes:

å å

– Only

mode is available during

å å

dubbing.

– At the end of side A, flip the tapes to

side B and repeat the procedure.

– Dubbing of tapes is only possible from

tape deck 1 to tape deck 2.

– To ensure good dubbing, use tapes of

the same length.

– During high speed dubbing in Tape

mode, the sound is reduced to a low volume.

– You can listen to another source while

dubbing.

once

for normal

twice (within 2

for high speed dubbing.

CD Synchro Start Recording

1 Load a blank tape into tape deck 2 and a

disc into a disc tray.

2 Press CD to select CD mode.

• You can program the tracks in the order you want them to be recorded (see Programming Tracks). If not, select the disc by pressing CD (CD 1•2•3) and the tracks are recorded according to the order on the selected disc.

3 Press REC to start recording.

™ The REC starts flashing.

• CD will start playback automatically.

4 Press Ç to stop recording.

One Touch Recording

• For One Touch Recording, as soon as you press REC, the current source (CD, TUNER or AUX) will be recorded on tape deck 2.

1 Load a blank tape in tape deck 2. 2 Press REC to start recording.

™ The REC starts flashing.

3 Press Ç to stop recording.

Note: – When you press RECORD while in TAPE

mode, "

SELECT SOURCE

displayed. One Touch Recording is not possible in TAPE mode.

" will be

REC

(HSD)

DUB

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

PROGRAM

SHUFFLE

REC

REPEAT

TIMER

NEWS

T.A.

60Hz

250Hz

BAND

CD1 • 2 • 3

PROG

TUNER AUX

STOP•CLEARSEARCH • TUNING PLAY PAUSE PREV NEXT

SOUND NAVIGATION

DIGITAL SOUND

CONTROL

View Clock

You can view the clock (if it is set) if the system is in Standby mode or when any sound source is selected (CD, TUNER, etc.). The clock will be displayed for about 7 seconds.

• Press CLOCK/TIMER briefly.

™ "PM 10:38 or 22:38" (the

current time) will be displayed depending on whether you have selected 12- or 24-hour mode.

™ "--

:--" will be displayed if the

clock is not set.

500Hz

2KHz

1KHz

TAPE 1 • 2

TAPECD

SIDE A•B

DYNAMIC BASS BOOST

4KHz

8KHz

STEREO

BACK FRONT

HSD

CDR / VIDEO

▲

PRESET

SIDE

▲

PRO LOGIC

A.REV

Clock Setting

The clock can be set in either 12- or 24hour mode, e.g. "AM 12:00" or "00:00". Before setting the clock, you must be in the View Clock mode.

1 Press CLOCK/TIMER to select clock

mode.

2 Press PROG

select 12- and 24- hour mode.

™ If 12-hour mode is selected, "AM

™ If 24-hour mode is selected,

3 Set the hour with␣ à or á on the

system.

4 Set the minute with␣ í or ë on the

system.

(on the system only)

12:00" starts flashing.

"00:00" starts flashing.

DOLBY B

RDS

NEWS!

VOLUME

pg 01-26/P75/22-Eng 3/6/00, 12:41 PM22

3139 116 19761

TIMER SLEEP TIMER

5 Press CLOCK/TIMER again to store the

setting. ™ The clock starts.

• To exit without storing the setting, press Ç on the system

Notes: – During clock setting, if no button is

pressed within 90 seconds, the system will exit clock setting mode automatically.

– When a power interruption occurs, the

clock setting is erased.

Timer Setting

• The system can switch on to CD, TUNER, or TAPE 2 mode automatically at a preset time. It can serve as an alarm to wake you up.

• Before setting the timer, make sure the clock is set correctly.

• The timer will always be switched on once it is set.

• The volume of the timer will increase from the minimum level until the volume level before the set is switched to standby mode.

1 Press and hold CLOCK/TIMER for more

than

2 seconds

™ “ AM 12:00” or “00:00" or the

last timer setting starts flashing depending on whether you have selected 12- or 24-hour mode.

to select timer mode.

™ The TIMER starts flashing. ™ The selected source is lit while other

available sources are flashing.

2 Press CD, TUNER or TAPE to select the

desired source.

• Before selecting CD or TAPE, make sure a CD or tape is loaded in the CD tray or tape deck 2.

3 Press␣ à or á on the system to set

the hour for the timer to start.

4 Press␣ í or ë on the system to set the

minute for the timer to start.

5 Press CLOCK/TIMER to store the start

time.

™ The timer is now set. ™ The TIMER remains on the display.

• At the preset time, the timer will be activated. ™ The selected source will be played.

Notes: – During timer setting, if no button is

pressed within 90 seconds, the system will exit timer setting mode automatically.

– If the source selected is TUNER, the last

tuned frequency will be switched on.

– If the source selected is CD, playback

will begin with the first track of the selected disc or program. If the CD trays are empty, TUNER will be selected instead.

– If the source selected is TAPE, and if the

preset time is reached during high speed dubbing, the TUNER will be selected instead.

– The timer will not activate if a recording

is in progress.

To switch off the TIMER 1 Press and hold CLOCK/TIMER for more

than

2 seconds

2 Press Ç on the system to cancel the

timer.

™ The timer is now switched off. ™ The display will show "OFF" and the

TIMER disappears.

To start the TIMER again

(for the same

preset time and source)

1 Press and hold CLOCK/TIMER for more

than

2 seconds

2 Press CLOCK/TIMER again to store the

start time.

™ The timer is now on. ™ The TIMER appears on the display.

Sleep Timer

This feature allows you to select a length of time after which the system will switch to the standby mode automatically.

1 Press SLEEP TIMER on the remote

control repeatedly to select a period of time. ™ The selections are as follows (time in

minutes):

60 ™ 45 ™ 30 ™ 15 ™ OFF ™ 60 …

™ "SLEEP XX" or "OFF" will be

displayed. "XX" is the time in minutes.

2 When you reach the desired length of

time, stop pressing the SLEEP TIMER button. ™ After this amount of time passes, the

system will switch to the standby mode.

To switch off the Sleep Timer

• Press SLEEP TIMER repeatedly until

"OFF" is displayed, or press the STANDBY ON button.

(only on remote control)

English

pg 01-26/P75/22-Eng 3/6/00, 12:41 PM23

3139 116 19761

SPECIFICATIONS

English

Specifications

AMPLIFIER

Output power

DPL Mode

Left/Right Channel ............................. 2 x 60 W MPO /

.......................................................... 2 x 30 W RMS

Center Channel ............ 40 W MPO / 20 W RMS, 6 Ω

Surround Channel ............................. 2 x 20 W MPO /

.................................................... 2 x 10 W RMS, 3 Ω

Stereo mode ............... 2 x 60 W MPO / 2 x 30 W RMS

Signal-to-noise ratio ....................................≥ 75 dBA (IEC)

Frequency response .........................40 – 20000 Hz, ± 3 dB

Input sensitivity

AUX/CDR In ......................................................... 500 mV

Output

Speakers ................................................................ ≥ 6 Ω

Center Speaker ...................................................... ≥ 6 Ω

SurroundSpeakers ................................................. ≥ 3 Ω

Headphones............................................ 32 Ω – 1000 Ω

Subwoofer Out ........................... 1.5 V ±2dB, > 22000 Ω

Line Out .................................. 500 mV ±2dB, > 22000 Ω

Digital Out ........................................... IEC 958, 44.1 kHz

(1) (6 Ω, 1 kHz, 10% THD)

CD PLAYER

Number of programmable tracks ................................... 40

Frequency response .....................................40 – 20000 Hz

Signal-to-noise ratio ............................................ ≥ 76 dBA

Channel separation ....................................≥ 79 dB (1 kHz)

Total harmonic distortion .......................... < 0.02% (1 kHz)

TUNER

FM wave range ......................................... 87.5 – 108 MHz

MW wave range ........................................ 531 – 1602 kHz

LW wave range............................................ 153 – 279 kHz

Number of presets .......................................................... 40

Antenna

(1)

FM.................................................................. 75 Ω wire

AM ............................................................ Loop antenna

TAPE DECK

(1)

Frequency response

CrO2 tape (type II) .......................... 60 – 15000 Hz (5 dB)

Normal tape (type I) ....................... 60 – 15000 Hz (5 dB)

Signal-to-noise ratio

CrO2 tape (type II) ............................................ ≥ 50 dBA

Normal tape (type I) ......................................... ≥ 47 dBA

Wow and flutter .............................................. ≤ 0.4% DIN

SPEAKERS

System .................................... 2-way; shielded bass reflex

Impedance ................................................................... 6 Ω

Woofer .................................................................. 1 x 5.25"

Tweeter.................................................1 x 2.5" (Ferrofluid)

Dimensions (w x h x d) .....................210 x 310 x 233 (mm)

Weight .............................................................. 2.9 kg each

CENTER SPEAKER

System ............................................... shielded bass reflex

Impedance ................................................................... 6 Ω

Speaker Driver .......................................... 1 x 3" full range

Dimensions (w x h x d) .....................260 x 115 x 240 (mm)

Weight ...................................................................... 1.1 kg

SURROUND SPEAKERS

System ...................................................... closed satellite

Impedance ................................................................... 3 Ω

Speaker Driver .......................................... 1 x 3" full range

Dimensions (w x h x d) .......................178 x 90 x 178 (mm)

Weight .............................................................. 0.6 kg each

GENERAL INFORMATION

Material/finish ..................................... Polystyrene/Metal

AC Power ............................................ 220 – 230 V / 50 Hz

Power Consumption

Active..................................................................... 73 W

Standby ............................................................... < 15 W

Dimensions (w x h x d) .....................265 x 310 x 390 (mm)

Weight (without speakers) ..................................... 6.84 kg

Subject to modification

pg 01-26/P75/22-Eng 3/6/00, 12:41 PM24

3139 116 19761

MAINTENANCE TROUBLESHOOTING

Maintenance

Cleaning the Cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog records.

Cleaning the CD lens

• After prolonged use, dirt or dust may accumulate at the CD lens. To ensure good playback quality, clean the CD lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

• To ensure good recording and playback quality, clean the heads, the capstan(s), and pressure roller(s) after every 50 hours of tape operation.

• Use a cotton swab slightly moistened with cleaning fluid or alcohol.

• You can also clean the heads by playing a cleaning tape once.

Demagnetizing the heads

• Use a demagnetizing tape available at your dealer.

Warning! Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee. Do not open the set as there is a risk of electric shock.

• If a fault occurs, check the points listed below before taking the system for repair.

• Should any problems persist after you have made these checks, consult your nearest dealer or service center.

CD Player Operation

“NO DISC” is displayed.

• The disc is inserted upside down.

™

Place CD with printed side up.

• Moisture condensation at the lens.

™

Wait until lens has adjusted to normal room temperature.

• There is no disc in the CD tray.

™

Insert a CD.

• The CD is dirty, badly scratched or

warped.

™

Clean or replace the CD.

• The CD lens is dirty or dusty.

™

See section under Maintenance (page

25).

“DISC NOT FINALIZED” is displayed.

• The CD-RW or CD-R disc is not properly recorded for use with a standard CD player.

™

Read the instruction booklet of your CDRewritable or CD-Recorder on how to finalize a recording.

• The CD is badly scratched or dirty.

™

Replace or clean CD.

Radio Reception

Poor radio reception.

• The signal is too weak.

™

Adjust the antenna.

™

Connect an external antenna for better reception.

• The TV or VCR is too close to the stereo system.

™

Separate the stereo system from the TV or VCR.

English

pg 01-26/P75/22-Eng 3/6/00, 12:41 PM25

3139 116 19761

TROUBLESHOOTING

English

Tape Deck Operation

Recording or playback cannot be made or there is a decrease in audio level.

• Dirty tape heads, capstans or pressure rollers.

™

See section on tape deck maintenance (page 25).

• Magnetic build-up in the record/ playback head.

™

Use demagnetizing tape.

Tape deck door cannot open.

• Power failure or AC power plug disconnect from the wall outlet during tape playback.

™

Reconnect the AC power plug and switch on the system again.

Recorded material sounds strange.

• Tape was recorded in one of the Dolby Pro Logic modes.

™

Switch off Dolby Pro Logic mode when recording.

General

System does not react when any button is pressed.

• Electrostatic discharge.

™

Press STANDBY ON to switch the system off. Remove the AC power plug from the wall outlet, then reconnect the power plug and switch on the system again.

No or poor sound.

• Volume is not turned up.

™

Adjust VOLUME.

• The headphones are connected.

™

Disconnect the headphones.

• Speakers are not connected or are connected wrongly.

™

Check that the speakers are connected correctly.

™

Make sure the stripped speaker wire is clamped.

Reversed left and right sound.

• Speakers are connected wrongly.

™

Check the speaker connections and location.

Lack of bass sound or apparently imprecise physical location of musical instruments.

• Speakers are connected wrongly.

™

Check the speaker connection for proper phasing, colored/black wires to colored/black terminals.

Remote control has no effect on the system.

• Wrong source is selected.

™

Select the source (CD, TUNER, etc.) before pressing the function button (É, í, ë, etc.).

• The distance to the system is too large.

™

Reduce the distance.

• Batteries are inserted incorrectly.

™

Insert the batteries with their polarities (+/– signs) as indicated.

• Batteries are exhausted.

™

Replace the batteries.

Timer is not working.

• Clock is not set.

™

Set the clock.

• Timer is not switched on.

™

Press CLOCK/TIMER to switch on the timer.

• Recording is in progress.

™

Stop recording.

Clock setting is erased.

• There was a power failure.

™

Reset the clock.

System displays features automatically; buttons flash continuously.

• Demonstration mode is switched on.

™

Press and hold Ç (on the system) for 5 seconds to switch off the demonstration.

There is a howling sound at the external source.

• You hear feedback when you are listening from the AUX mode.

™

Press AUX to select CDR mode.

All lighted buttons are not lit.

• Equalizer Display is switched on in NITE mode.

™

Adjust JOG to select other Equalizer Display.

pg 01-26/P75/22-Eng 3/6/00, 12:41 PM26

3139 116 19761

Philips FW-P75/22 user manual [no]

Specifications and Main Features

Frequently Asked Questions

User Manual
