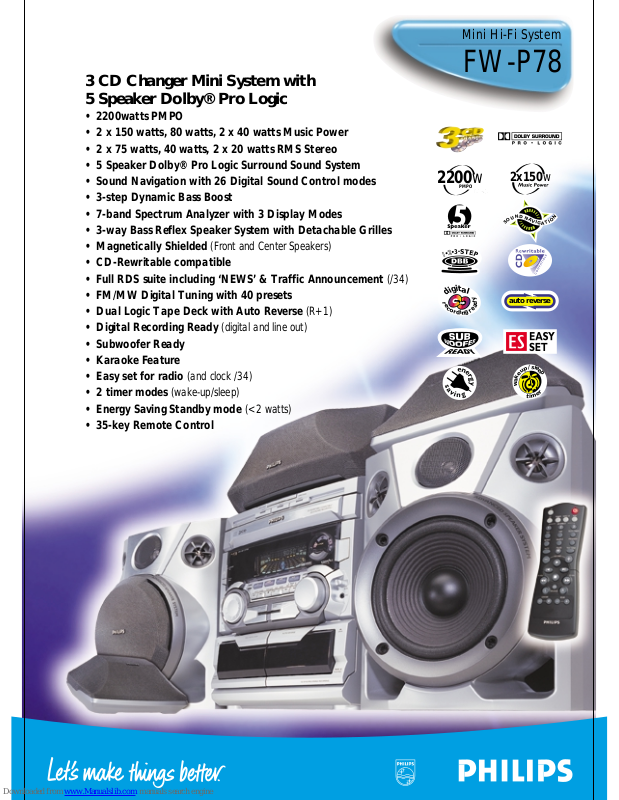

3 CD Changer Mini System with
5 Speaker Dolby® Pro Logic
• 2200watts PMPO
• 2 x 150 watts, 80 watts, 2 x 40 watts Music Power
• 2 x 75 watts, 40 watts, 2 x 20 watts RMS Stereo
• 5 Speaker Dolby® Pro Logic Surround Sound System
• Sound Navigation with 26 Digital Sound Control modes
• 3-step Dynamic Bass Boost
• 7-band Spectrum Analyzer with 3 Display Modes
• 3-way Bass Reflex Speaker System with Detachable Grilles
• Magnetically Shielded (Front and Center Speakers)
• CD-Rewritable compatible
• Full RDS suite including ‘NEWS’ & Traffic Announcement (/34)
• FM/MW Digital Tuning with 40 presets
• Dual Logic Tape Deck with Auto Reverse (R+1)
• Digital Recording Ready (digital and line out)
• Subwoofer Ready
• Karaoke Feature
• Easy set for radio (and clock /34)
• 2 timer modes (wake-up/sleep)
• Energy Saving Standby mode (<2 watts)
• 35-key Remote Control
Mini Hi-Fi System
FW-P78
2200w
PMPO
MPO
t
i
a
g
l
i
d
r
e
c
y
d
a
o
e
r
r
d
g
i
n
2x150w
D
N
N
U
A
O
V
S
auto reverse
s
l
/
p
u
e
k
a
w
t
m
i
N
O
I
I
G
T
A
e
e
p
r
e
3 CD Changer Mini System with
5 Speaker Dolby® Pro Logic
Mini Hi-Fi System
FW-P78
standard product information
amplifier
• 2200 watts PMPO
• 2 x 150 watts, 80 watts, 2 x 40 watts Music Power
• 2 x 75 watts, 40 watts, 2 x 20 watts RMS,
± 10% THD, 6 Ohm, 1 kHz
• 5 Speaker Dolby® Pro Logic Surround Sound
System
• Sound Navigation:
- Jog Shuttle
- 26 mode Digital Sound Control
• 3-step Dynamic Bass Boost
(Beat, Punch, Blast)
• Signal Dep Bass Control
compact disc player
• 3 CD changer
• CD-Rewritable compatible
• Digital servo technology
• Bit-check D/A converter
• 40-track CD Random Program
• Play modes (repeat/shuffle/program)
• Change 2 discs while playing 1
tuner
• RDS: station name, program type, RDS text,
clock set (/34)
• RDS: ‘NEWS’ & Traffic Announcement (/34)
• FM/MW/LW Digital Tuning with 40 presets
• Easy set/auto store for radio (and clock /34)
tape deck
• Dual Logic Tape Deck
• Auto Reverse (R+1)
• High and normal speed dubbing
• CD synchro recording
• Automatic recording level control
• Automatic tape type selection
• Electronic speed control and full auto stop
loudspeaker boxes
• 3-way Bass Reflex
• 6.25" woofer
• 2.5" Ferro Fluid Tweeter
• 2 x 1" polydome tweeter
• Magnetically shielded
• Detachable grilles
surround speakers
• 1-way surround speakers (3" full range)
• 6 Ohm
center speaker
• 1-way speaker (3" full range)
• 12 Ohm
• Magnetically shielded
connections
• Stereo headphones: 3.5mm stereo jack
• Aux: cinch type sockets
• Subwoofer out: cinch type socket
• Digital Recording Ready:
- digital out: cinch type socket
- line out: cinch type socket
• Color coded cables:
- front: red/black
- center: blue/black
- surround: grey/white
• Karaoke mic: 3.5mm jack
general
• 3 display modes incl. NITE mode
• Multicolor FTD display
• 7-band Spectrum Analyzer
• Demo mode
• Clock/timer
• 2 timer modes (wake-up/sleep)
• Wake-up with CD, tuner or tape
• 35-key AV Remote Control
• Automatic clock set via RDS (/34)
• Karaoke Feature
• Energy Saving Standby mode (<2 watts)
TV
DSC
MUTE
TV VOL TV VOL
à
CENTER REAR
2
TAPE 1/2 AUXTUNERCD
CD DIRECT
21
3
SLEEP TIMERDBB
PROGRAMREPEAT SHUFFLE
PAUSE
TEST TONE
Å
VOLUME
É
ë
í
Ç
á
DPL
R
L
BALANCE
-+-+
Asia Pacific
Australia/NZ
Middle East/S Africa
Latam
Europe
E Europe
Mexico
Korea
tuner
FM87.5-108MHz ••
MW522-1602kHz
LW153-279kHz
FM75 Ohm clickfit
mains supply
120/230V 50~60Hz
230V/50Hz
general
made in sticker
5 Speaker Surround Sound System
You can enjoy the full surround set up thanks to 3
additional Philips surround speakers. They can be
used complimenting other Philips stereo enhancing
features, like Incredible Surround™, for a much
more dynamic encounter
EAN: 87 10101 63401 2 (/21m)
EAN: 87 10101 63174 5 (/21)
EAN: 87 10101 63171 4 (/30)
EAN: 87 10101 63172 1 (/33)
EAN: 87 10101 63173 8 (/34)
Product Dimensions:
265mm W x 310mm H x 390mm D (center unit)
240mm W x 310mm H x 315mm D (speakers)
234mm W x 103mm H x 224mm D (surround)
260mm W x 140mm H x 240mm D (center)
Package Dimensions:
758mm W x 716mm H x 364mm D
Product weight: 24 kg
Carton contains: CD Mini System, Surround Sound Speakers and
Center Speaker, Multi-Function Remote Control, Batteries (2 x AA),
Operating instructions, Warranty information, FM antenna, AM
antenna
Printed in Singapore
Date printed : Nov 1999
Specifications subject to change without notice.
© 1999 Royal Philips Electronics N.V.
All rights reserved.
Incredible Surround™ is a Trademark of Philips Consumer Electronics
Company
Dolby® Pro Logic is a trademark of Dolby Laboratories
http://www.philips.com
/21M /21 /22 /30 /33 /34
••
•
•
•
•
•
•
•
•
•
••
•
••
•
•
••
•
•
•
•
•
•
•
•
•
•
