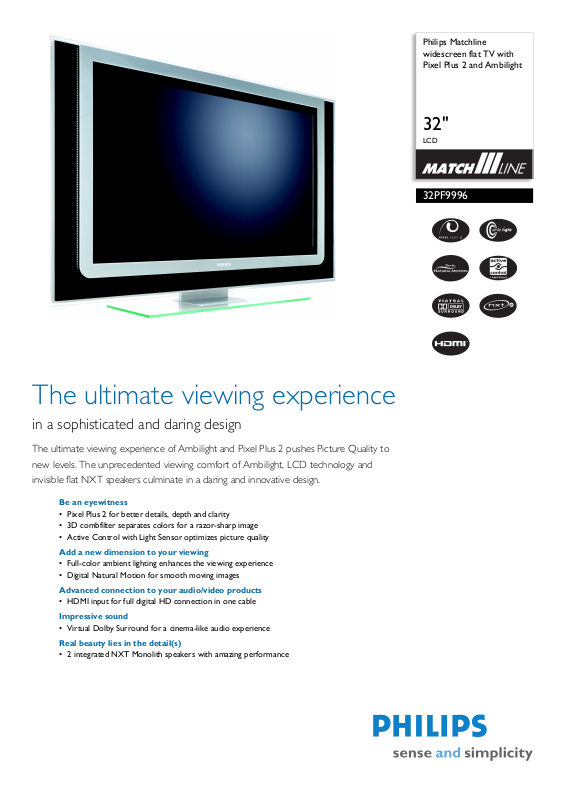

Philips 32PF9996 User Manual

Philips Matchline widescreen flat TV with Pixel Plus 2 and Ambilight

32"

LCD

32PF9996

The ultimate viewing experience

in a sophisticated and daring design

The ultimate viewing experience of Ambilight and Pixel Plus 2 pushes Picture Quality to new levels. The unprecedented viewing comfort of Ambilight, LCD technology and invisible flat NXT speakers culminate in a daring and innovative design.

Be an eyewitness

• Pixel Plus 2 for better details, depth and clarity

• 3D combfilter separates colors for a razor-sharp image

• Active Control with Light Sensor optimizes picture quality

Add a new dimension to your viewing

• Full-color ambient lighting enhances the viewing experience

• Digital Natural Motion for smooth moving images

Advanced connection to your audio/video products

• HDMI input for full digital HD connection in one cable

Impressive sound

• Virtual Dolby Surround for a cinema-like audio experience

Real beauty lies in the detail(s)

• 2 integrated NXT Monolith speakers with amazing performance

Widescreen flat TV with Pixel Plus 2 and Ambilight

32" LCD

32PF9996/37

Specifications Product highlights

Picture/Display

• Aspect ratio: 16:9

• Brightness: 450 cd/m²

• Contrast ratio (typical): 800:1

• Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix TFT

• Picture enhancement: Pixel Plus 2, Digital Crystal Clear, Progressive Scan, Active Control + Light sensor, Digital Natural Motion, Jagged Line Suppression, Movie Plus, Widescreen Plus, 3D Combfilter

• Screen enhancement: Anti-Reflection coated screen

• Viewing angle (h / v): 170 / 170 degree

• Panel resolution: 1366 x 768p

• Response time (typical): 12 ms

Ambilight

• Ambilight Features: Auto adaptive to video content, Full operation in stand-by

• Color Settings: Full Multi Color

• Dimming Function: Manual and via Light Sensor

• Preset modes: 2 Active Adaptive preset modes, 6 Preset modes and user preset

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz

• Video Formats Resolution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Auto Volume Leveller, Digital Signal Processing, Dynamic Bass Enhancement, Graphic Equaliser, Smart Sound

• Sound System: Virtual Dolby Surround

• Output power (RMS): 3x15W

Issue date 2007-11-09

Version: 2.0

12 NC: 8670 000 20666 UPC: 0 37849 94715 9

Loudspeakers

• Built-in speakers: 5

Convenience

• Ease of Installation: Automatic Tuning System (ATS), PLL Digital Tuning, Plug & Play

• Ease of Use: 9-channel smart surf list, Backlighted Top Controls, Channel list, Controls with Proximity sensor, On Screen Display

• Remote control type: RC4307

• Teletext: Closed Captioning Full Text

• Picture in Picture: Full dual screen (2 tuners), Mozaic

• Remote Control: Universal

• Screen Format Adjustments: 6 Widescreen Modes, Auto Format, Subtitle and Heading Shift

• Clock: Smart Clock

• Child Protection: Child Lock+Parental Control

Tuner/Reception/Transmission

• TV system: NTSC

• Video Playback: NTSC

• Aerial Input: 75 ohm F-type

Connectivity

• Other connections: Analog audio Left/Right out, Centre Speaker connection in, Monitor out, CVBS, L/R (cinch), Subwoofer out

• AV 1: (1, 2, 3Fh autoranging), Audio L/R in, Component Video in, Y/C, YPbPr

• AV 2: (1, 2, 3Fh autoranging), Audio L/R in, Component Video in, CVBS, RGB+H/V, Y/C, YPbPr

• AV 3: Audio L/R in, HDCP, HDMI (Digital Stream & S/PDIF)

Power

• Power consumption: 160 W

• Standby power consumption: 1.3 W

• Mains power: AC 110-120V (+/-10%)

• Ambient temperature: +5 -/+ 40 C

Dimensions

• Product weight: 20 kg

• Weight incl. Packaging: 32 kg

• Color cabinet: Pearl - White Silver (11092)

Accessories

• Included Accessories: HDMI-DVI adapter cable, Wall mounting bracket, Table top stand

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Pixel Plus 2

Pixel Plus 2 is a digital picture processing technology that improves the resolution of still and moving pictures. It does more than adding pixels, it also makes the pixels better, resulting incredible sharpness and picture depth every time and from any source. And it does not just improve the resolution either, because you also benefit from improved color reproduction, resulting in the finest color details and superior brilliance.

3D Combfilter

The 3D comb filter separates brightness and color signals better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the blackand-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Active Control + Light Sensor

Active Control is a unique and intelligent way of optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Active Control with Light Sensor uses a sensor to ad jus t the pic tur e br ight nes s de pending on t he r oom light conditions.

Ambilight

The full-color ambient lights offers you relaxed viewing and a unique ambiance via a soft light glow on the walls surrounding the TV. Research has shown that watching television with adapted ambient lighting promotes more relaxed TV viewing. the Ambilight colors automatically ad ap t to the im ag es o n t he screen to add a ne w s ensatio n to the viewing experience. The light can also be switched to fixed colors or various shades of white. In standby mode, the lights can be operated to any color and create a unique ambiance in the room.

Digital Natural Motion

Philips invented Digital Natural Motion to eliminate juddering effects that are visible with moving picture content. Digital Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

HDMI input

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest ou tp ut resol ut ion with t he source de vi ce. The HD MI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Virtual Dolby Surround

Virtual Dolby Surround is a processing technology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Flat NXT Monolith Speakers

The ground-breaking NXT surface sound principle has been further developed into the monolith speaker technology It actually uses the outer surface of the TV cabinet as the speaker membrane. The speakers are now virtually invisible, bringing a stunning design, and a pure and direct sound radiation.
