Philips 32PFL2507/F7 Schematic

Service Manual

32” LCD TV

chassis PL12.2

Contents

TYPE A

32PFL4507/F7 PHILIPS (Serial No.: DS1)

32PFL4507/F8 PHILIPS (Serial No.: XA1)

32PFL4507/F8 PHILIPS (Serial No.: DS1)

TYPE B

32PFL4907/F7 PHILIPS (Serial No.: DS1)

This service manual contains information of different types of models.

Make sure to refer to the section describing your model.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

120523

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all P&F Equipment. The service procedures recommended by P&F and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. P&F could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, P&F has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by P&F must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

TABLE OF CONTENTS

Specifications [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

How to Initialize the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Wiring Diagrams [TYPE A] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

Exploded Views [TYPE A]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

[TYPE B]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2

Parts List [TYPE A]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

[TYPE B] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-4

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

SPECIFICATIONS

[TYPE A]

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range --- MHz ±2.3 ±2.1 TV.ch.4

2. Synchronizing Sens.

CA.ch.31 CA.ch.87

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

ch.4

2. ATSC Dynamic Range (min / max)

ch.10 ch.41

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) ---

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

dBµ dBµ dBµ

dBm dBm dBm

pixels pixels

cd/m

° °

18 18 18

---

1366

768

2

300 ---

-85 to 85

20 20 23

-76/0

-76/+4

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

5±5 5±5

--±3% ±3%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1.

Audio MAX Output (ATSC 0dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

Lch/Rch W 8.0/8.0 7.0/7.0

1-1 PL12.2SP

[TYPE B]

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-In Range TV.ch.4 MHz ±2.3 ±2.1 TV.ch.4

2. Synchronizing Sens.

CA.ch.31 CA.ch.87

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

ch.4

2. ATSC Dynamic Range (min / max)

ch.10 ch.41

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolution

2. Brightness (w / filter) ---

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

dBµ dBµ dBµ

dBm dBm dBm

pixels pixels

cd/m

° °

18 18 18

---

1366

768

2

300 ---

-88 to 88

20 20 23

-76/0

-76/+4

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--x y

Horizontal

Vert ical

% %

°K 12000

line line

5 5

0.272

0.278 400

350

5±5 5±5

---

±4%

±4.5%

---

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output 10% Distortion (ATSC 0dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response ( NTSC)

Lch/Rch W 8.0/8.0 7.0/7.0

-6dB : Lch

-6dB : Rch

Hz Hz

70 to 10k ---

1-2 PL12.2SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the Liquid Crystal Panel and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 120 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the Liquid Crystal Panel.

CURRENT

TESTER

+

EARTH GROUND

_

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

11~13 lb (5~6 kg) of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter (High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

To p Vi ew

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Ta pe

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to items to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[2] Stand

Assembly

[1] Rear Cover

[4] Stand Holder

[5] Power Supply CBA

[6] Digital Main CBA Unit

[8] LCD Panel Assembly

[9] Rear Frame

[10] LCD Module

[11] Front Cabinet

[3] Speaker

[7] Function CBA

2. Disassembly Method

Step/

Loc.

Part

No.

[1] Rear Cover D1 6(S-1), 6(S-2) ---

Fig.

No.

Removal Note

Step/

Loc.

No.

[10]

[11]

↓

(1)

Part

LCD Module

Front Cabinet

↓

(2)

Fig.

No.

Removal Note

D4 --------------- 1,3

D4 --------------- 3

↓

(3)

↓

(4)

↓

(5)

*1: TYPE A

*2: TYPE B

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed. (3) Fig. No. showing procedure of part location (4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector e.g. 2(S-2) = two Screws of (S-2), 2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Table."

Precautions concerning the LCD Panel Assembly:

Stand

[2]

Assembly

[3] Speaker

Stand

[4]

Holder Power

[5]

Supply CBA

Digital Main

[6]

CBA UnitD3D5

D1 3(S-3) ---

D2

CN3801 ---

D5

4(S-4), 2(S-5), 2(S-6),

D2

CN601, Stand Bracket

D3D54(S-7), CN631,

CN1001

3(S-8), CN3006 CN3904 CN3105

*2

, CN3101*1,

*2

,

*1

,

---

Jack Holder

[7]

[8]

Function CBA

LCD Panel Assembly

D3

Sensor Plate 2,3

D5

D3 --------------- 3

[9] Rear Frame D4 12(S-9), 2(S-10) 1,3

1. When you disassemble the LCD Panel Assembly

• Be careful not to scratch the Reflection Sheet with

the edge of Rear Frame when disassembling/ re-assembling it.

• Be careful not to drop any plastic chip on the

Reflection Sheet when/after you remove the Screws.

• Prohibit to put any external pressure on the

Reflection Sheet because the scratch on the back of the Reflection Sheet have direct repercussion on the display screen.

• Prohibit to put any external pressure on the Sheet

Holder or LED Heat Sink Assembly either because it also has repercussion on the display screen via the Reflection Sheet.

• You need to remove any visible dust from the

Reflection Sheet which creates the external pressure between the Reflection Sheet and the Sheet Holder/LED Heat Sink Assembly as a result.

4-1 PL12.2-A_DC

• To prevent the Screw from being stripped, the screw tightening torque should be 13.23 lbf·in(6 kgf·cm) for the Rear Frame Screw and 5.512 lbf·in(2.5 kgf·cm) for the LED Heat Sink Assembly Screw.

• Do not pull the FFC Cable and Board Cable forcefully when you re-assemble.

2. When you disassemble/re-assemble the

Function CBA on the Front Cabinet

• Detach the Function CBA, which is attached on the Front Cabinet with double-sided tape, without breaking it.

• When you put the Function CBA back on the New Front Cabinet, you need to use specified new double-sided tape and put the Function CBA onto the New Front Cabinet with equal pressure to the Board. (The gap more than 0.015 inch (0.4 mm)

between the Front Cabinet and Function CBA will impair the sensor sensitivity.)

• Prepare for substitutional Function CBA in case you break it when you detach it from the Front Cabinet.

3. Performance Test after reassembling the LCD

Panel Assembly

• After you swap any of the Front Cabinet, Rear Frame or Function CBA, you need to make sure that there is no Gomikami/Black Spot with foreign material or Mura/White Spot on the display screen.

• Make sure there is no malfunction on the display screen by checking the White Mode and White 20% Mode in the Purity Check Mode.

• Check the operational sensitivity on Touch Sensor Control Panel to make sure everything functions normally.

(S-3)

[1] Rear Cover

(S-1)

(S-2)

[2] Stand Assembly

Fig. D1

4-2 PL12.2-A_DC

Stand Bracket

(S-5)

(S-6)

[4] Stand Holder

(S-5)

(S-6)

(S-4)

[8] LCD Panel Assembly

[3] Speaker

Fig. D2

1

*

[6] Digital Main CBA Unit

Sensor Plate

Double-sided tape

1

[7] Function CBA

*

[5] Power Supply CBA

(S-7)

*1: Make sure to read all the precautions on page 4-1, 4-2 when you disassemble/re-assemble

the LCD Panel Assembly.

4-3 PL12.2-A_DC

(S-8)

Jack Holder

Fig. D3

[11] Front Cabinet

1

*

1

*

(S-9)

FFC Cable

(S-9)

FFC Cable

[9] Rear Frame

Sheet Holder

(S-9)

*

1

(S-9)

(S-10)

LED Heat Sink Assembly

Sheet Holder

[10] LCD Module

*1: Make sure to read all the precautions on page 4-1, 4-2 when you disassemble/re-assemble

the LCD Panel Assembly.

Fig. D4

4-4 PL12.2-A_DC

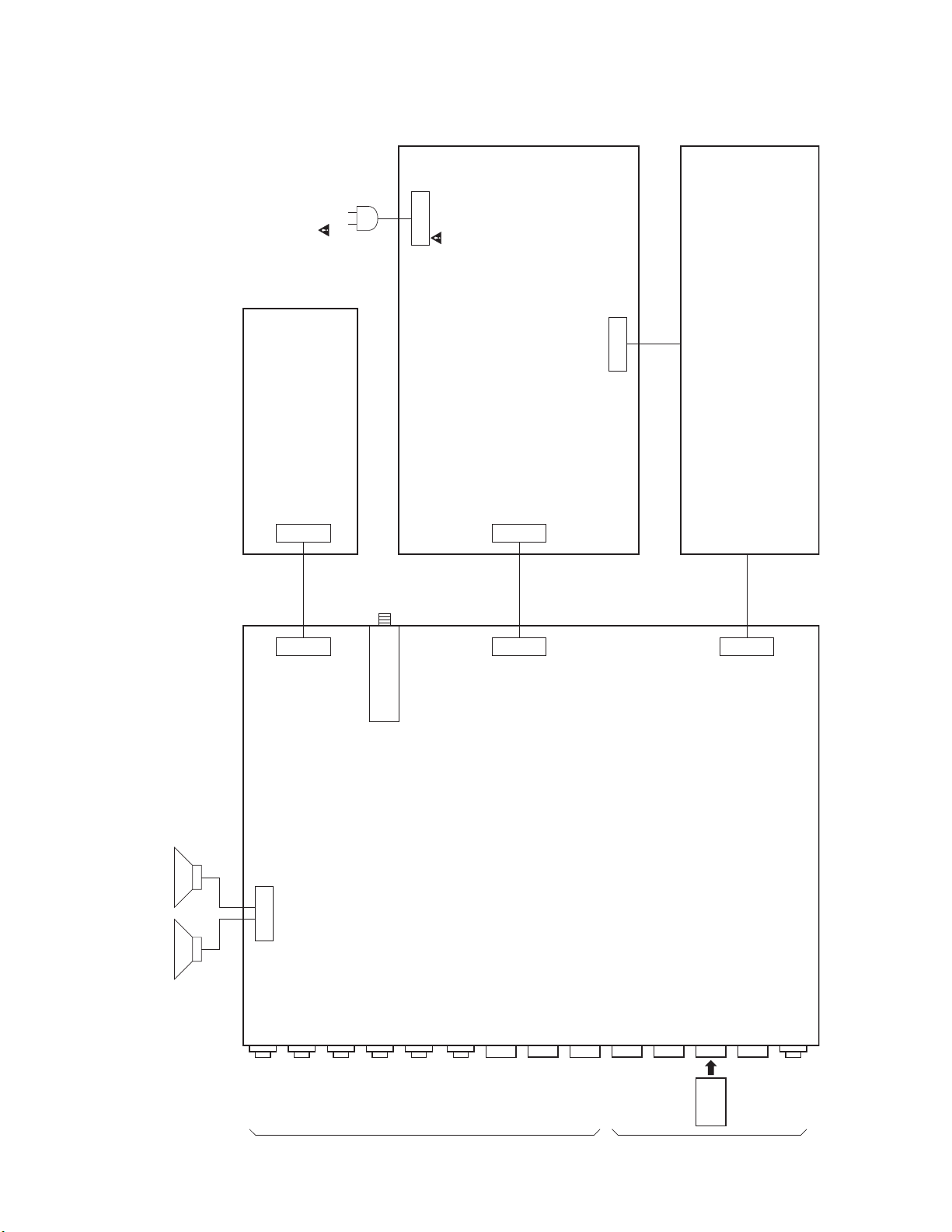

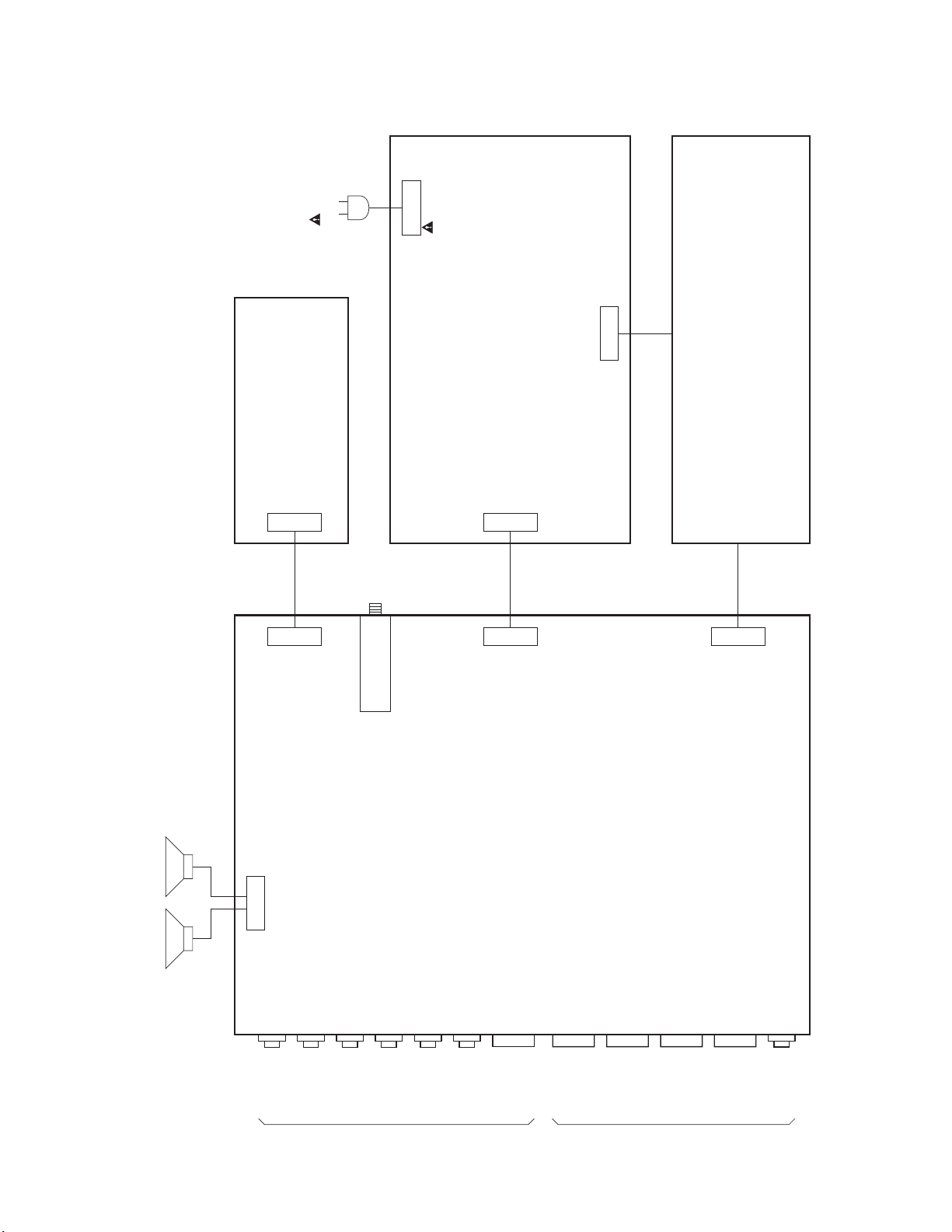

TV Cable Wiring Diagram

To LCD Panel Assembly

CN1001

CN601

To AC Cord

Power Supply CBA

CN631

*1

*2

CN3101

CN3105

To LCD Panel Assembly

Digital Main CBA Unit

CN3006

*1

*2

CN3904

CN3701

*1

*2

CN3601

CN3801

Function CBA

CN4001

To Speaker

*1: TYPE A

*2: TYPE B

Fig. D5

4-5 PL12.2-A_DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

[TYPE A]

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. Remote control unit

2. Color Analyzer, CA-310 (KONICA MINOLTA Luminance meter) or measuring instrument as good as CA-310.

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Features”.

4. Select “Software Upgrade”.

5. Select “Current Software Info”.

6. Press [0], [6], [2], [5], [9], [6] and [INFO] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

Code: Pic code: Panel-Option code: MIPS:

Safety: HDMI EDID: HDMI UART: Touch Sensor Ver:

*******-**-**-****-** ***-*****-***-***-*-** **-***-***-***-***

Push 0 key

Press "POWER" key to exit.

Safety_Non ** OFF

-.-- / ---

Total Watch Time: Lightsensor:

***** **

5-1 PL12.2_A (LC10)EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the service mode.

2. Each time the [7] button on the remote control unit is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

White 50% mode

[7] button

Red, Green, Blue mode

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

Color Analyzer

1. Set the color analyzer at the zero point calibration and bring the optical receptor pointing at the center of the LCD-Panel. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

2. Enter the service mode.

3. Press [2] button on the remote control unit.

4. Press [CHANNEL UP/DOWN] buttons on the remote control unit so that the color analyzer value becomes minimum.

5. To cancel or to exit from the VCOM Adjustment, press [CH RETURN] or [PREV CH] button.

[7] button

V-ramp mode

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [CH RETURN] or [PREV CH] button.

Note: Execute the VCOM adjustment within 2 minutes after you turn the power on.

5-2 PL12.2_A (LC10)EA

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

6. Press [MENU] button. The internal Raster signal appears in the screen. (“Internal (Single)” appears in the upper right of the screen as shown below.)

Internal (Single)

ITEM

Color temperature

Input Signal

SPECIFICATION

x= 0.272 ± 0.002 y= 0.278 ± 0.002

Internal pattern (40/80% raster)

Measurement point Screen center

CA-310 (KONICA MINOLTA

M. EQ.

Luminance meter) or measuring instrument as good as CA-310.

60min.

Aging time

(Retail MODE/100IRE Raster HDMI 1080i@60)

MODE setting of TV

Ambient temperature

Shipment setting/ Retail MODE

25°C ± 5°C

1. Operate the unit for more than 60 minutes.

2. Enter the service mode.

3. Press [VOLUME DOWN] button three times on the remote control unit to select “Drive setting” mode. “Drive” appears in the screen.

4. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel.

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

Color Analyzer

Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

5. Press [3] button to select the “HDB” for High Drive Blue adjustment. (“HDB” appears in the screen.)

HDB 0

7. Press [CHANNEL UP/DOWN] buttons to adjust the color temperature becomes 12000°K (x

=

0.272 / y= 0.278 ± 0.002).

8. Press [1] button to select the “HDR” for High Drive Red adjustment (“HDR” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

9. If necessary, adjust the “HDB” or “HDR” again.

10. Press [6] button to select the “LDB” for Low Drive Blue adjustment (“LDB” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

Internal (Single)

LDB 0

11. Press [4] button to select the “LDR” for Low Drive Red adjustment (“LDR” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

12. If necessary, adjust the “LDB” or “LDR” again.

13. Press [VOLUME DOWN] button to shift to the “Debugging Message” mode. If there is no message under “[WB]” section, this adjustment completes. If “Drive settings are NG. Retry.” is displayed, repeat above steps from 5. to 12. Then check “Debugging Message” again. If “Drive settings are NG. Retry.” is displayed, replace the LCD Panel or Digital Main CBA.

14. To cancel or to exit from the White Balance Adjustment, press [CH RETURN] or [PREV CH] button.

5-3 PL12.2_A (LC10)EA

[TYPE B]

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. Remote control unit

2. Color Analyzer, CA-310 (KONICA MINOLTA Luminance meter) or measuring instrument as good as CA-310.

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [0], [6], [2], [5], [9], [6], and [INFO] buttons on the remote control unit in this order. The following screen appears.

"*" differs depending on the models.

[current] File code: Total checksum: Panel-Option code:

Press "POWER" key to exit.

MAC address: ESN:

Tuner: HDMI UART: Touch Sensor Ver: EDID:

_

***_*

***-**** Push "0" key

**-***-***-***-***-*** ***-***-***-***-***

**** OFF

-.-- / --Push "0" key

**:**:**:**:**:** *****************************

TotalWatchTime: SystemTime: Lightsensor:

***** **:** **

5-4 PL12.2_B (A27F5UH)_EA

1. Purity Check Mode

2. VCOM Adjustment

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the service mode.

2. Each time the [7] button on the remote control unit is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

[7] button

White 50% mode

[7] button

Red, Green, Blue mode

Test Point Adj. Point

Screen

[CHANNEL UP/DOWN]

buttons

M. EQ. Spec.

Color analyzer See below

Figure

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

Color Analyzer

1. Set the color analyzer at the zero point calibration and bring the optical receptor pointing at the center of the LCD-Panel. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

2. Enter the service mode.

3. Press [2] button on the remote control unit.

4. Press [CHANNEL UP/DOWN] buttons on the remote control unit so that the color analyzer value becomes minimum.

5. To cancel or to exit from the VCOM Adjustment, press [CH RETURN] or [PREV CH] button.

[7] button

V-ramp mode

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode, press [CH RETURN] or [PREV CH] button.

Note: Execute the VCOM adjustment within 2 minutes after you turn the power on.

5-5 PL12.2_B (A27F5UH)_EA

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital Main CBA.

3. White Balance Adjustment

Purpose: To mix red and blue beams correctly for

pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

5. Press [3] button to select the “HDB” for High Drive Blue adjustment. (“HDB” appears in the screen.)

6. Press [MENU] button. The internal Raster signal appears in the screen. (“Internal (Single)” appears in the upper right of the screen as shown below.)

Internal (Single)

ITEM

Color temperature

Input Signal

SPECIFICATION

x= 0.272 ± 0.002 y= 0.278 ± 0.002

Internal pattern (30/50/80% raster)

Measurement point Screen center

CA-310 (KONICA MINOLTA

M. EQ.

Luminance meter) or measuring instrument as good as CA-310.

60min.

Aging time

(Retail MODE/100IRE Raster HDMI 1080i@60)

MODE setting of TV

Ambient temperature

Shipment setting/ Retail MODE

25°C ± 5°C

1. Operate the unit for more than 60 minutes.

2. Enter the service mode.

3. Press [VOLUME DOWN] button three times on the remote control unit to select “Drive setting” mode. “Drive” appears in the screen.

4. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel.

HDB 0

7. Press [CHANNEL UP/DOWN] buttons to adjust the color temperature becomes 12000°K (x

=

0.272 / y= 0.278 ± 0.002).

8. Press [1] button to select the “HDR” for High Drive Red adjustment (“HDR” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

9. If necessary, adjust the “HDB” or “HDR” again.

10. Press [6] button to select the “MDB” for Middle Drive Blue adjustment (“MDB” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

Internal (Single)

MDB 0

To avoid interference from ambient light, this adjustment should be performed in a dark room.

Perpendicularity

Color Analyzer

Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

11. Press [4] button to select the “MDR” for Middle Drive Red adjustment (“MDR” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

12. If necessary, adjust the “MDB” or “MDR” again.

5-6 PL12.2_B (A27F5UH)_EA

13. Press [9] button to select the “LDB” for Low Drive Blue adjustment (“LDB” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

Internal (Single)

LDB 0

14. Press [7] button to select the “LDR” for Low Drive Red adjustment (“LDR” appears in the screen.) and press [CHANNEL UP/DOWN] buttons to adjust the color temperature.

15. If necessary, adjust the “LDB” or “LDR” again.

16. Press [CH RETURN] or [PREV CH] to shift to the initial screen in the service mode. If [White Balance] message with a green color is displayed on the upper right of the screen, this adjustment completes. If [White Balance] message with a red color is displayed, repeat above steps from 5. to 15. Then check the initial screen in the service mode again. If [White Balance] message with a red color is displayed, replace the LCD Panel or Digital Main CBA.

17. To cancel or to exit from the White Balance Adjustment, press [CH RETURN] or [PREV CH] button.

5-7 PL12.2_B (A27F5UH)_EA

HOW TO INITIALIZE THE LCD TV

The purpose of initialization is to place the set in a new out of box condition. The customer will be prompted to select a language and program channels after the set has been initialized. To put the program back at the factory-default, initialize the LCD TV using the following procedure.

[TYPE A]

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [ ] button on

the remote control unit.

3. Press [FREEZE] button on the remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initialization is completed.

[TYPE B]

1. Turn the power on.

2. Enter the service mode.

- To cancel the service mode, press [ ] button on

the remote control unit.

3. Press [COLOR(red)] button on the remote control unit to initialize the LCD television.

4. "INITIALIZE" will appear in the upper right of the screen. The whole screen color will change to green and "INITIALIZE FINISH" will appear in the center of the screen when initialization is completed.

6-1 PL12.2_INT

FIRMWARE RENEWAL MODE

[TYPE A]

Equipment Required

a. USB storage device b. Remote Control Unit

Firmware Update Procedure

User Upgrade (Filename example: TVNB012_00_UF_XX91_AA.ecc)

Upgrade the firmware only. The setting values will not be initialized. The User Upgrade and the Firmware Upgrade (Factory Upgrade) will be done by the same file. If you want to upgrade the firmware and initialize the setting values also, add “FACT_” at the beginning of the filename. If you want to upgrade the firmware only and leave the setting values as they are, eliminate the “FACT_” from the filename.

Update procedure

1. Turn the power on.

2. Press [MENU] button to display Menu.

3. Select “Features”.

4. Select “Software Upgrade”.

5. Select “Upgrade” to display Upgrade screen.

6. Press [OK] button to display Software Upgrade screen.

7. Select “USB” and press [OK] button.

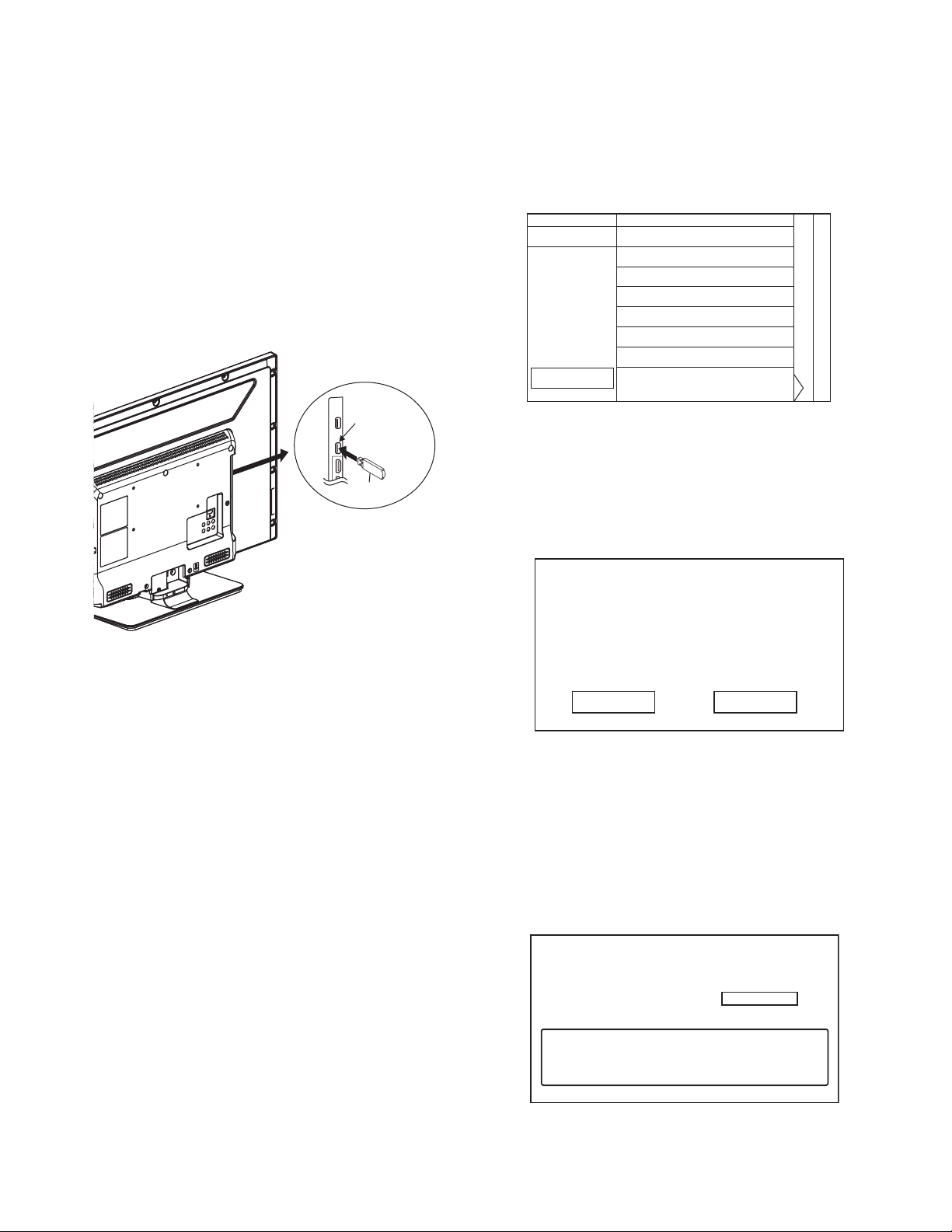

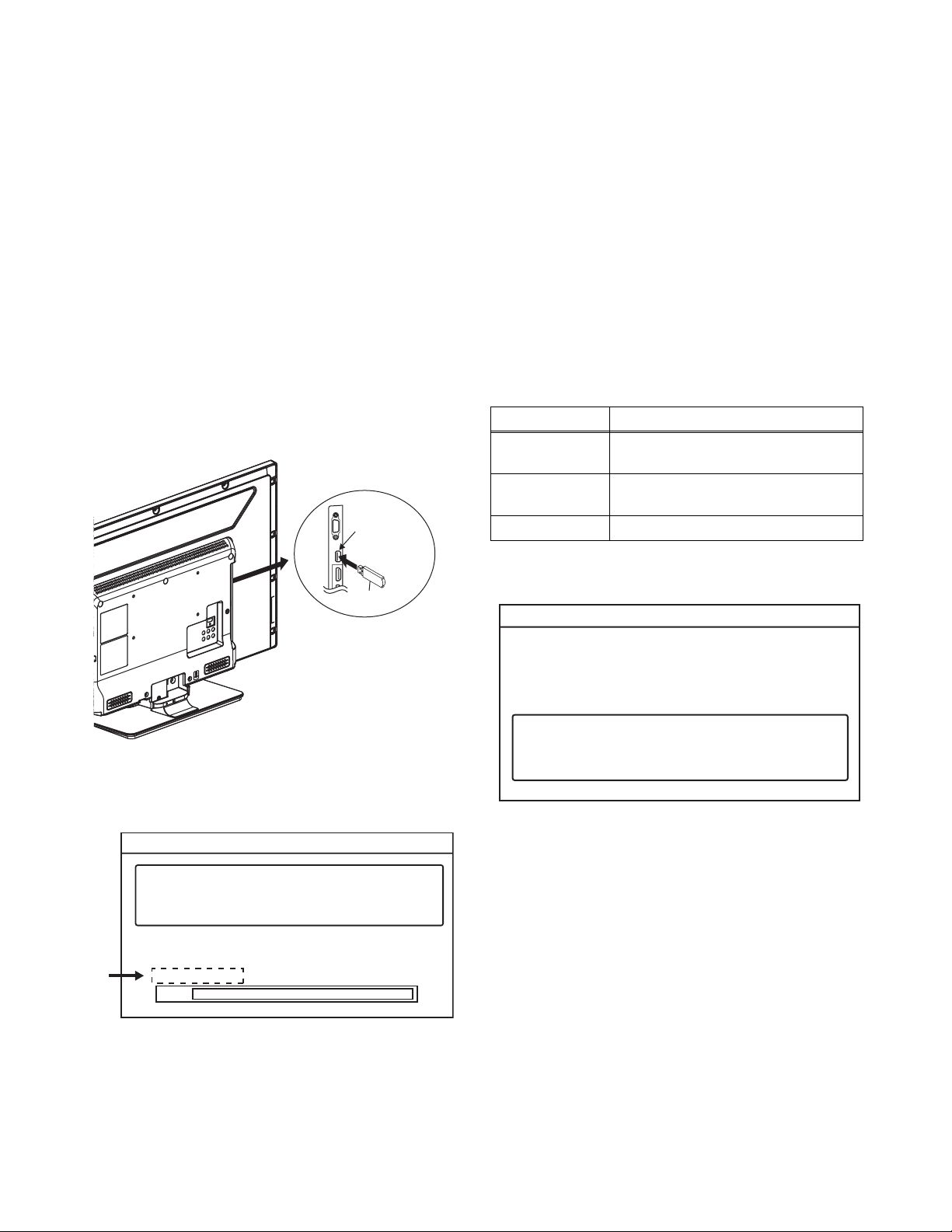

8. Insert the USB storage device to the USB port as shown below.

Rear Cabinet

USB port USB port

USB storage USB storage

device device

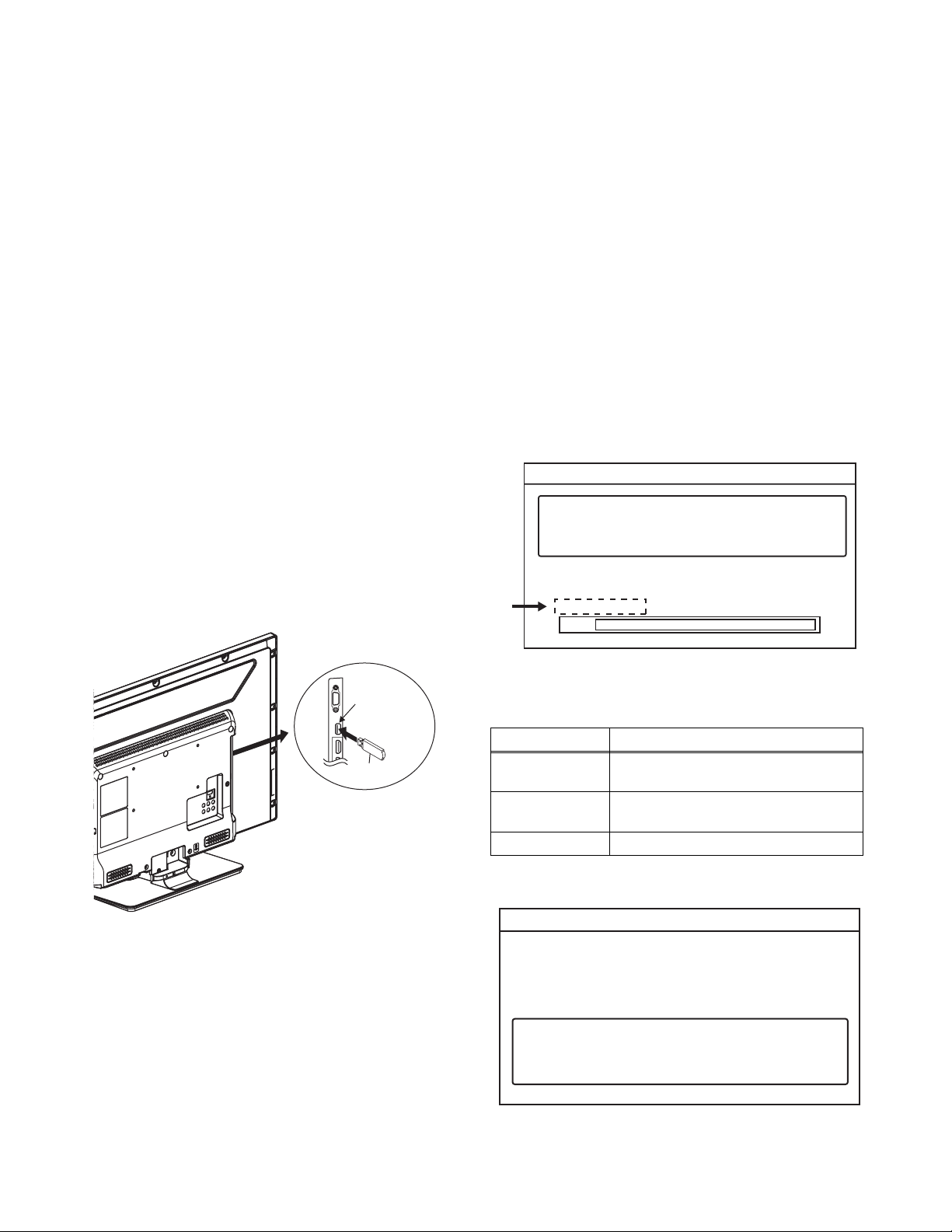

11. The update will start and the following will appear in the screen.

"*" differs depending on the models.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB storage device or turn the TV off while upgrade is in progress.

*1

Current Version:

New Version:

Downloading...

0%

*******-***-*-***-**** *******-***-*-***-****

Note: If the above screen isn’t displayed, repeat from

step 1.

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB storage device.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

9. Select “Check” and press [OK] button.

10. Select “Upgrade” and press [OK] button to start software upgrade.

12. When the firmware update is completed, the following will appear in the screen.

Software Upgrade

The software upgrade is completed. Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again.

7-1 PL12.2_A FW

Factory Upgrade (Firmware Upgrade/Flash Upgrade)

Firmware Upgrade (Filename example: FACT_TVNB012_00_UF_XX91_AA.ecc)

Upgrade the firmware and initialize the setting values. The User Upgrade and the Firmware Upgrade (Factory Upgrade) will be done by the same file. If you want to upgrade the firmware and initialize the setting values also, add “FACT_” at the beginning of the filename. If you want to upgrade the firmware only and leave the setting values as they are, eliminate the “FACT_” from the filename.

Flash Upgrade (Filename example: ALL_TVNB012_00_UF_XX91_AA.ecc) Upgrade the firmware and initialize the setting values along with the factory default such as White Balance, etc. Before the upgrade, you will need to make a note of all the factory default so you will be able to set it back on the TV after the initialization. The Flash Upgrade will be done by it's unique file. The User Upgrade/Firmware Upgrade (Factory Upgrade) file cannot be used for this upgrade.

Update procedure

1. Turn the power off.

2. Insert the USB storage device to the USB port as shown below.

Rear Cabinet

USB port USB port

The appearance shown in *1 is described as follows.

Appearance State

Downloading...

Writing...

Downloading the firmware from the USB storage device.

Writing the downloaded firmware in flash memory.

Checking... Checking the new firmware.

USB storage USB storage

device device

3. Turn the power on.

4. The update will start and the following will appear in the screen.

"*" differs depending on the models.

Software Upgrade

Software upgrade in progress. Please wait. Do not remove the USB storage device or turn the TV off while upgrade is in progress.

*1

Current Version:

New Version:

Downloading...

0%

*******-***-*-***-**** *******-***-*-***-****

5. When the firmware update is completed, the following will appear in the screen.

Software Upgrade

The software upgrade is completed. Remove USB storage device, turn TV off then on again.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again. Service mode initial screen with a word “INITIALIZED” will appear in the screen. The color of the word “INITIALIZED” will change from red to green when initialization is completed.

Note: If the above screen isn’t displayed, repeat from

step 1.

7-2 PL12.2_A FW

[TYPE B]

Equipment Required

1. USB storage device

2. Remote Control Unit

Firmware Update Procedure

1. Turn the power off and unplug the AC Cord.

2. Insert the USB storage device to the USB port as shown below.

Rear Cabinet

USB port USB port

USB storage device

(Files included in the USB storage device are displayed.)

"*" differs depending on the models.

Select an upgrade file

Cancel

*****_******.upg

123

Note:

To cancel the update mode, select “Cancel” and press the [OK] button.

10. Select the file and press [OK] button.

11. The update will start and the following will appear in the screen.

"*" differs depending on the models.

Current Version: ***-****-***-* New Version: ***-****-***-*

3. Plug the AC Cord and turn the power on.

4. After few seconds, the menu mode will appear in the screen.

Note:

After 30 seconds without an operation, the menu mode will disappear automatically. To display the menu mode again, press the [MENU] button on the remote control unit.

5. Select “Setup” and press the [OK] button to display the setup menu.

6. Select “Software”.

7. Select “Software update”.

8. Select “USB”.

9. Press the [OK] button on the remote control unit to enter the update mode. Update file selection screen appears as follows.

Are you sure you want to update?

No Yes

Note:

If the above screen isn’t displayed, repeat from step 1.

12. Select “Yes” and press the [OK] button to update.

Note:

Do not remove the USB storage device or turn the TV off while update is in progress.

13. When the firmware update is completed, the following will appear in the screen.

Update your TV with new software: Done

Software update is successful.

Please remove the USB storage device

and restart the TV set.

Remove the USB storage device from the USB port. Turn the power off and turn the power on again.

7-3 PL12.2_B (A27F5UH)_FW

[Power Supply Section]

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again after several seconds?

Ye s

Is the P-ON+21V line voltage normal?

Ye s

Check each rectifying circuit of the secondary circuit and service it if de

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

After servicing, replace the fuse.

FLOW CHART NO.3

When the output voltage fluctuates.

fective.

No

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (D601, D602, D603, D604, Q601, Q602, T601)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

Does the photocoupler circuit on operate normally?

Check IC601, D Q602 and their per defectiv

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit and service it if def

e.

605, D607, D608, D609,

iphery circuit, and service it if

ective. (D650, D651, D653, Q656)

the secondar

Ye s

y side

D610, Q601,

No

Check IC601, D660, D661B, Q652, Q653 and their periphery circuit, and service it if defective.

in each rec

tifying circuit of the secondary side,

8-1 PL12.2ATR

FLOW CHART NO.5

P-ON+21V is not output.

Is approximately +21V voltage supplied to the cathode of D650(D651)?

Ye s

Check for short-circuiting or leak on the load ci and service it if defective.

FLOW CHART NO.6

AMP+24V is not output.

Is approximately of D653?

Check for short-circuiting or leak on the load circuit, and service it if defective.

FLOW CHART NO.7

AL+3.3V is not output.

+24V voltage supp

lied to the cathode

Ye s

rcuit,

No

Check D650, D651, C651, C652, C653 and their periphery circuit, and service it if defective.

Check D653, D654, C654, C655 and their periphery circuit, and service it if defec

tive.

Is approximately +21V voltage supplied to the collector of Q656?

Ye s

Is approximately +4V voltage supplied to the base of Q656?

Ye s

Replace Q656.

No

Check D650, D651, C651, C652, C653 and their periphery circuit, and ser

Check D662 and their periphery circuit, and service it if defective.

vice it if defective.

8-2 PL12.2ATR

[Video Signal Section]

FLOW CHART NO.1

The key operation is not functioning.

When touching each buttons do the voltage of Pin(6) of CN4001 decrease?

Ye s Ye s

Replace Digital Main CBA Unit. Replace IC4001

FLOW CHART NO.2

No operation is possible from the remote control unit. (Operation is possible from the unit.)

Is approximately +3.3V voltage supplied to Pin(3) terminal of the remote co

Is the "L" pulse sent ou control receiver (RS4051) when the

control is activated?

Is the "L" pulse supplied to Pin(5) of CN4001?

Replace Digital Main CBA Unit.

ntrol receiver (RS4051)?

Ye s

t Pin(1) terminal of remote

infrared remote

Ye s

No

Is approximately +3.3V voltage supplied to Pin(1) of CN4001?

or Function CBA.

Check AL+3.3V line and service it if defective.

Replace the remote control receiver (RS4051) or the remote control unit.

Check the line between Pin(1) of remote control receiver (RS4051) and Pin(5) of CN4001, and

service it if defective.

No

Check AL+3.3V line and service it if defective.

FLOW CHART NO.3

Picture does not appear normally.

Is approximately +21V voltage supplied to Pin(16, 17, 22, 23) of CN631?

Ye s

Is approximately +24V voltage supplied to Pin(13, 14) of CN631?

Ye s

approximately +

Is CN631?

Digital Main CBA Unit or LCD Panel Asse be defective. Check and replace these parts.

3.3V voltage sup

plied to Pin(11) of

Ye s

mbly may

No

See FLOW CHART NO.5 <P-ON+21V is not output. [Power Supply Section]>

See FLOW CHART NO.6 <AMP+24V is not output. [Power Supply Section]>

See FLOW CHART NO.7 <AL+3.3V is not output. [Power Supply Section]>

8-3 PL12.2ATR

[Audio Signal Section]

FLOW CHART NO.1

Audio is not outputted normally.

Is approximately +21V voltage supplied to Pin(16, 17, 22, 23) of CN631?

Ye s

Is approximately +24V voltage supplied to Pin(13, 14) of CN631?

Ye s

approximately +

Is CN631?

Are the audio signals outputted to Pin(1, 4) of C

SP3801, SP3802 or CL3801 may be defective. Check and replace these parts.

3.3V voltage supplied to Pin(11) of

Ye s

N3801?

Ye s

No

See FLOW CHART NO.5 <P-ON+21V is not output. [Power Supply Section]>

See FLOW CHART NO.6 <AMP+24V is not output. [Power Supply Section]>

See FLOW CHART NO.7 <AL+3.3V is not output. [Power Supply Section]>

Replace Digital Main CBA Unit.

8-4 PL12.2ATR

BLOCK DIAGRAMS

[TYPE A]

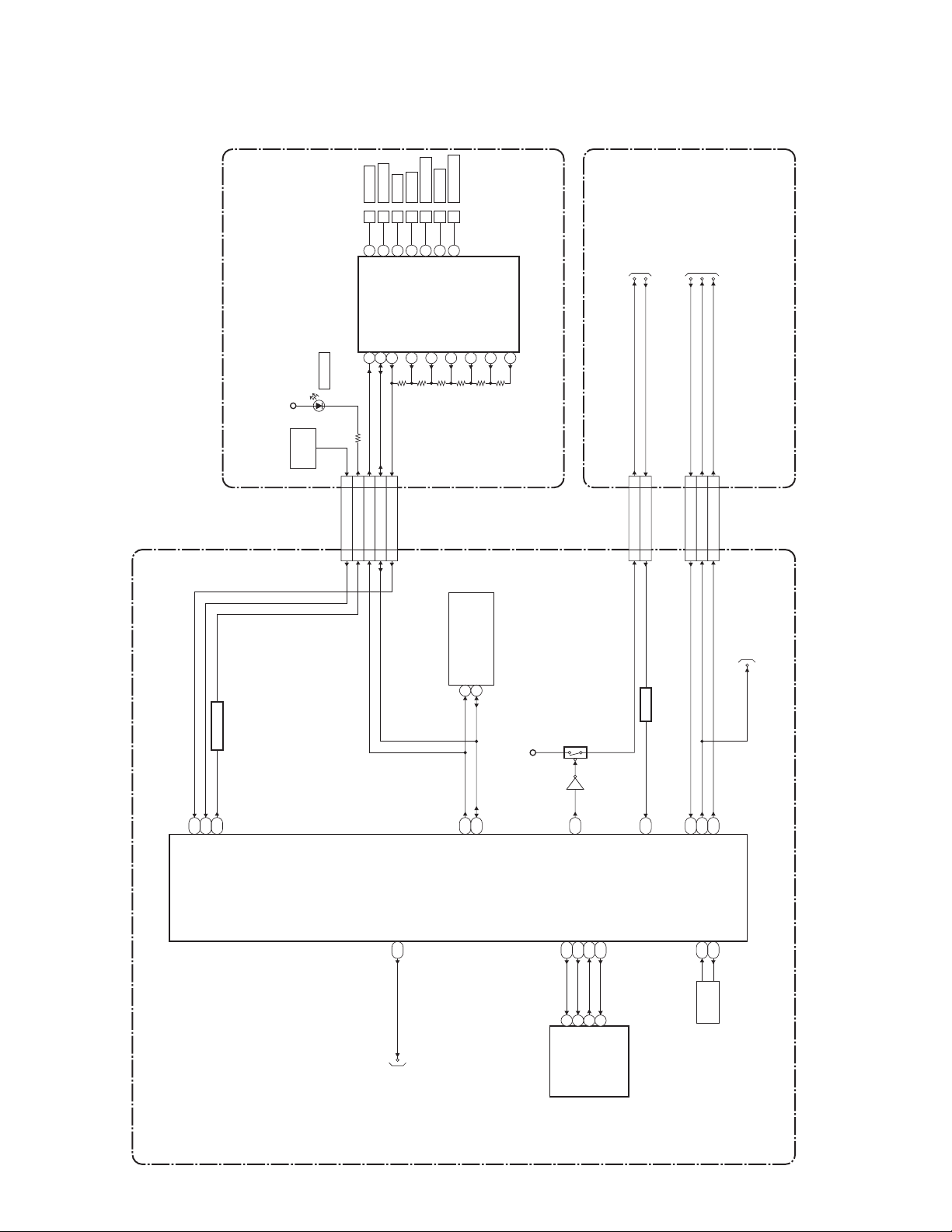

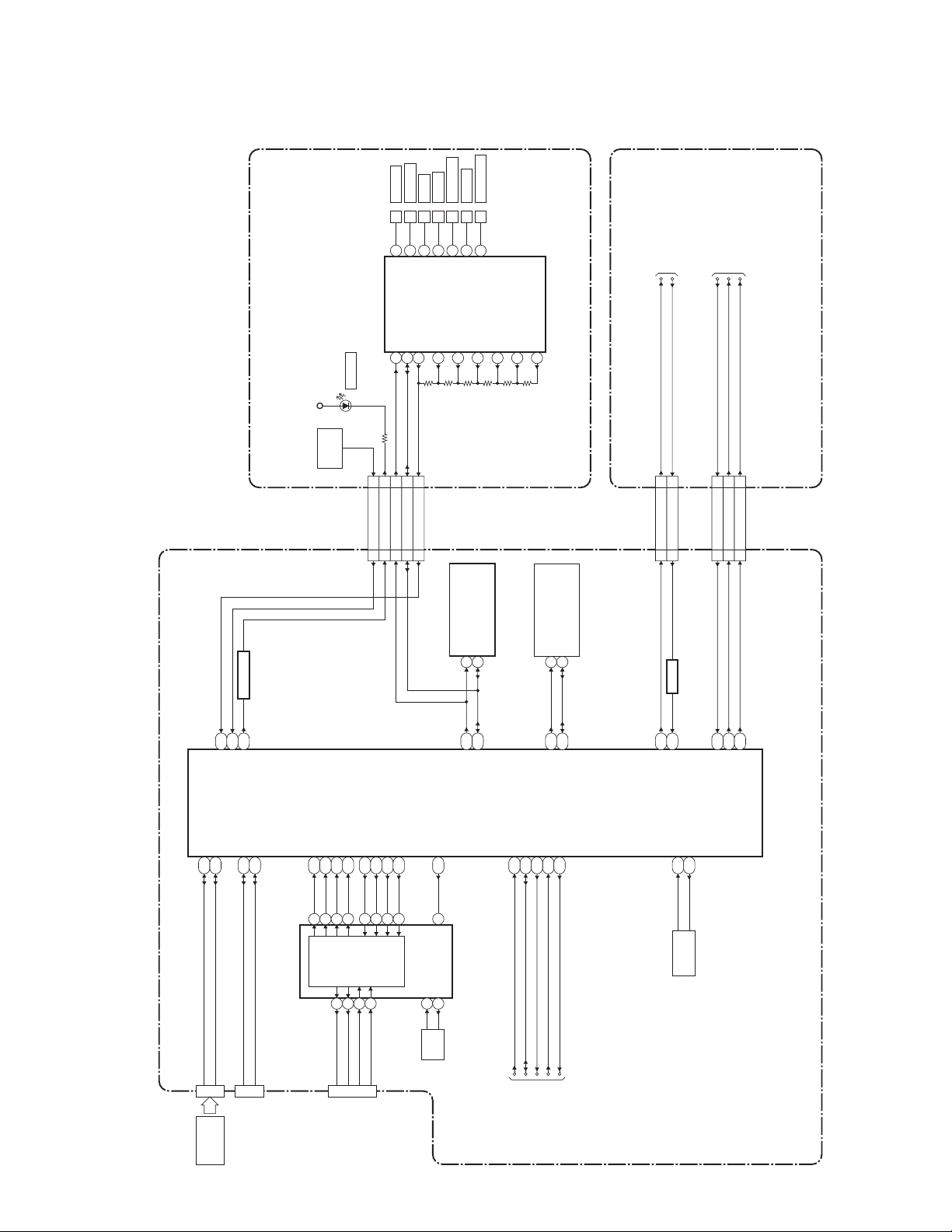

1. System Control Block Diagram

POWER

SOURCE

MENU

CH UP

161718

19

MENU

CH UP

POWER

SOURCE

SCL

SDA

SOURCE

POWER

(TOUCH SENSOR)

4

5

1

2

P-ON+5V

REMOTE

RS4051

D4051

POWER

SENSOR

IC4001

CH DOWN

VOL UP

212223

VOL UP

CH DOWN

MENU

3

VOL DOW N

VOL DOWN

CH UP

6

CH DOWN

11

TO

POWER SUPPLY

BLOCK DIAGRAM

RESET

P-ON-H2

FUNCTION CBA

VOL DOW N

VOL UP

13

12

CN631

TO

LED BACKLIGHT DRIVE

PROTECT3

BACKLIGHT-SW

CN631

BLOCK DIAGRAM

BACKLIGHT-ADJ

POWER SUPPLY CBA

IC3005

(MAIN MICRO CONTROLLER)

A15

KEY-IN1

LED DRIVE

D14

C14

LED1

REMOTE

Q3501, Q3502

KEY-IN146

SDA19

SCL28

REMOTE55

LED164

CN3101 CN4001

TU3901 (TUNER UNIT)

AUDIO-MUTE

C1

SCL

4

R12

SCL

SDA

3

T12

SDA

AL+3.3V

Q3006

B16

P-ON-H2

SCK

SIN

T11

P11

P-ON-H2

RESET

77

88

CN3701

IC3009

RESET

Q3005

RESET J15

SOUT

CS

P12

R11

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

44

22

33

CN3701

TO

VIDEO/AUDIO

BLOCK DIAGRAM

BACKLIGHT-SW

F3BACKLIGHT-ADJ

B13

PROTECT3

BACKLIGHT-SW E2

DIGITAL MAIN CBA UNIT

XOUT25

XIN25

H15

H16

AUDIO-MUTE

TO

VIDEO/AUDIO

BLOCK DIAGRAM

9-1

25MHz

OSC

652

1

SI

CS

SO

SCK

IC3006 (MEMORY)

X3001

PL12.2ABLS

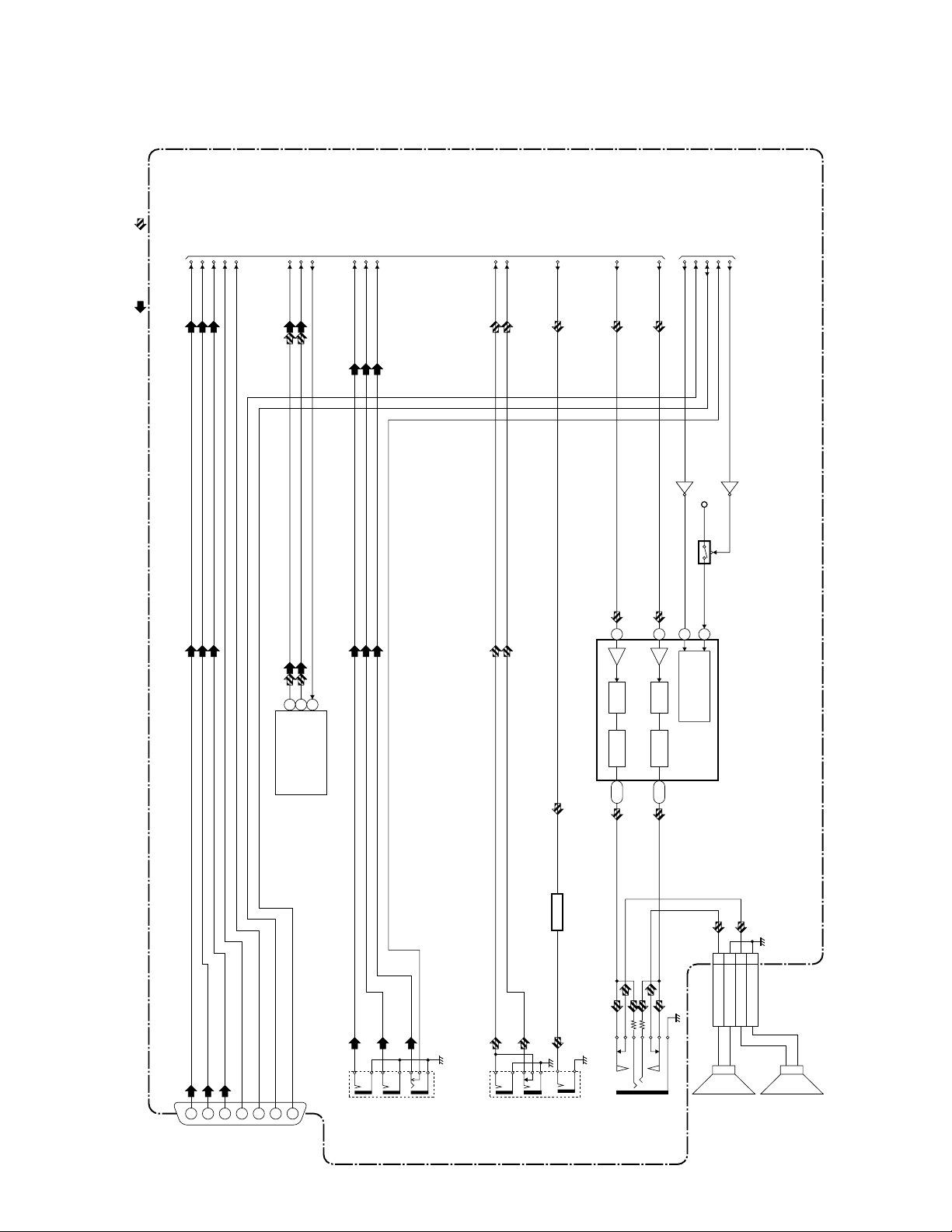

2. Video/Audio Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

VIDEO SIGNAL

VGA-R-IN

VGA-B-IN

VGA-G-IN

VGA-SCL

VGA-VSYNC

VGA-HSYNC

VGA-SDA

(TUNER UNIT)

TU3901

IF-AGC

DIF-OUT1

DIF-OUT2

6

7

DIF-OUT2

DIF-OUT1

COM-VIDEO-Y/VIDEO-IN

5

IF-AGC

COMP-DET

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

AUDIO(L)-IN

AUDIO(R)-IN

SPDIF

AMP(R)-OUT

32

DRIVE PWM19DRIVE PWM

IC3801 (AUDIO AMP)

39,40

AMP(L)-OUT

AUDIO-MUTE

Q3801

34

11,12

BACKLIGHT-SW

Q3802

P-ON+5V

Q3803

DIGITAL MAIN CBA UNIT

17

CONTROL LOGIC

123

IC3013

JK3001

PC-RGB

BUFFER GATE

Q3301

IC3014

131415

IN

BUFFER

Q3302

12

JK3702

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

9-2

JK3701

AUDIO(L)-IN

Q3701

AUDIO(R)-IN

BUFFER

DIGITAL

AUDIO-OUT

(COAXIAL)

JK3703

HEADPHONE

JACK

1

CN3801

SP(L)

SP3801

4

2

GND

SP(R)

SPEAKER

L-CH

3

GND

SP3802

SPEAKER

R-CH

PL12.2ABLVA

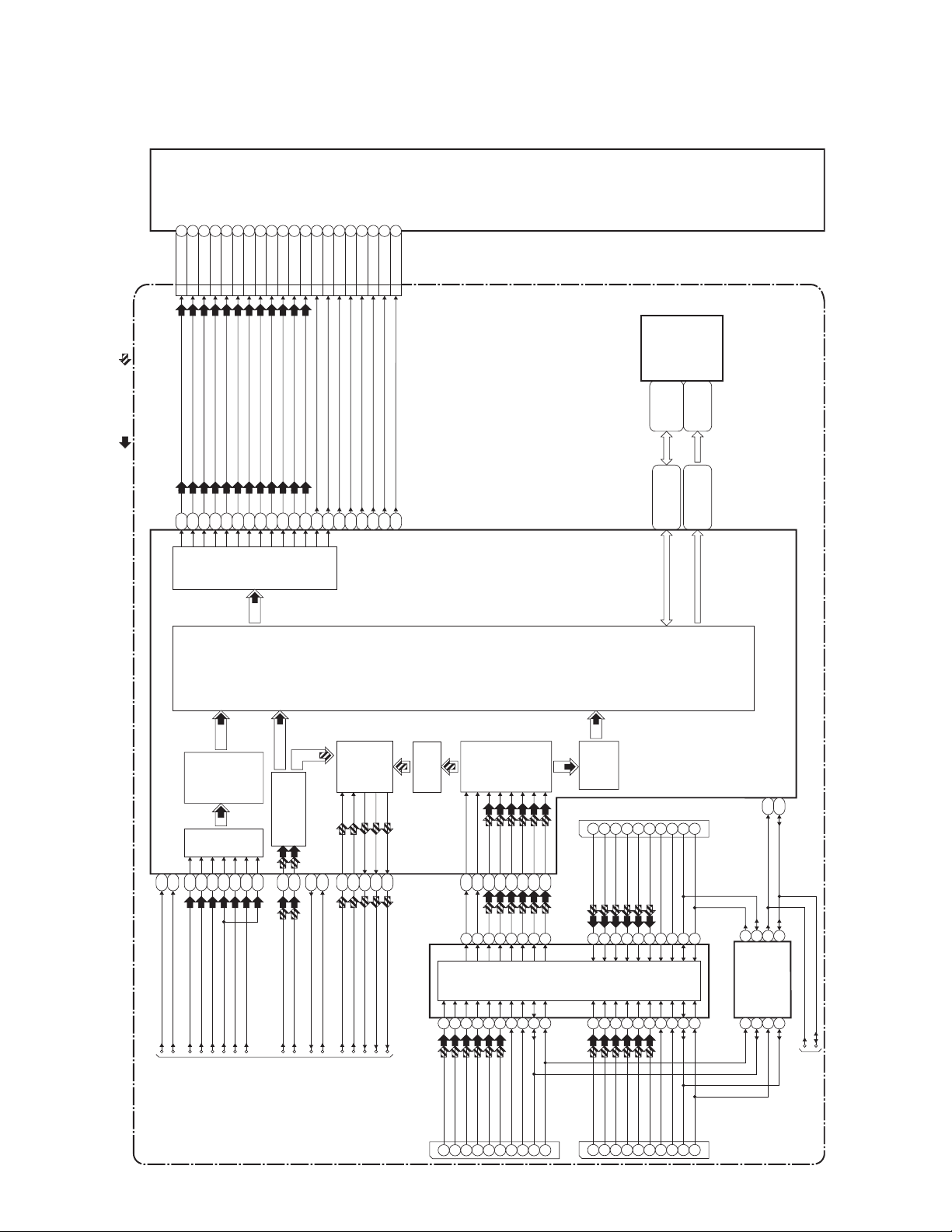

3. Digital Signal Process Block Diagram

LCD PANEL

ASSEMBLY

LLV0(+)23

LLV0(-)22

LLV1(+)21

LLV1(-)20

LLV2(+)19

LLV2(-)18

LLV3(+)13

LLV3(-)12

LLV4(+)11

LLV4(-)10

LLV5(+)9

LLV5(-)8

TP6

POL5

CPV4

OE3

STV1

M15

POL

L16

CPV

L15

OE

M14

STV

OE22

L14

OE2

AUDIO SIGNAL

VIDEO SIGNAL

CN3006

P14

P13

N16

N15

P16

P15

T16

LLVCLK(+)16

LLVCLK(-)15

R13

T13

R16

R15

L13

TP

T14

T15

R14

LVD S T X

IC3002

(DDR2 SDRAM)

B1,B9,C2,C8,

D1,D3,D7,D9,

N4,N7,N8,P3,P4,

DATA(0-15)

ADDRESS(0-12)

H1,H3,H7,H9

F1,F9,G2,G8,

M2,M3,M7,M8,

N2,N3,N7,N8,

P2,P3,P7,P8,R2

P6-P8,R3,R4,R6,

R8,T2-T5

H1,H2,J1,J2,J4,K1,

K3,L1,L2,M1-M3,N1

HSYNC

IC3005 (DIGITAL SIGNAL PROCESS)

A14

VGA-HSYNC

VSYNC

B14

C11

VGA-R-IN

VGA-VSYNC

A/D

CONVERTER

SW

A9

C7

D8

C9

B11

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Y/VIDEO-IN

VGA-G-IN

VGA-B-IN

C10

DEMODULATOR

/MPEG DECODER

IF-AGC

A12

A16

B12

DIF-OUT1

DIF-OUT2

IF-AGC

TO

VIDEO/AUDIO

BLOCK DIAGRAM

AUDIO I/F

COMP-DET

A8

N12

N10

(L)-OUT

AMP

SPDIF

COMP-DETB8AUDIO(R)-IN

AUDIO(L)-IN

A7

B7

(R)-OUT

AMP

DIGITAL

SIGNAL

AUDI O

DECODER

IC3018 (HDMI SW)

414544484739383637

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

7 42

94613

HDMI-IN1

JK3004

PROCESS

HDMI

I/F

B4A4B3A3B2A2B1

26272324202117

TMDS-CLOCK(+)

TMDS-CLOCK(-)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

HDMI-DATA

101216

HDMI-IN3

JK3003

A1

18

HDMI

SW

HDMI-CLOCK

15

JK3002

HDMI-IN2

VIDEO

DECODER

79461

TMDS-D0(-)

TMDS-D0(+)

575660596362545351

8

TMDS-D0(+)

TMDS-D0(-)

79461

TMDS-D1(-)

TMDS-D1(+)

7

111014

TMDS-D1(+)

TMDS-D1(-)

3

101216

TMDS-D2(-)

TMDS-D2(+)

TMDS-CLOCK(+)

541

13

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

3

101216

TMDS-CLOCK(-)

15

HDMI-DATA

HDMI-CLOCK

52

2

HDMI-DATA

HDMI-CLOCK

15

IC3011

(HDMI SERIAL EEPROM)

15

SCL2

SCL1

2

HDMI-SCL

G14

7

14

SCL0

SDA2

SDA1

SCL3

3

10

DIGITAL MAIN CBA UNIT

HDMI-SDA

F14

6

SDA0

SDA3

11

VGA-SDA

VGA-SCL

TO

VIDEO/AUDIO

BLOCK DIAGRAM

9-3

PL12.2ABLD

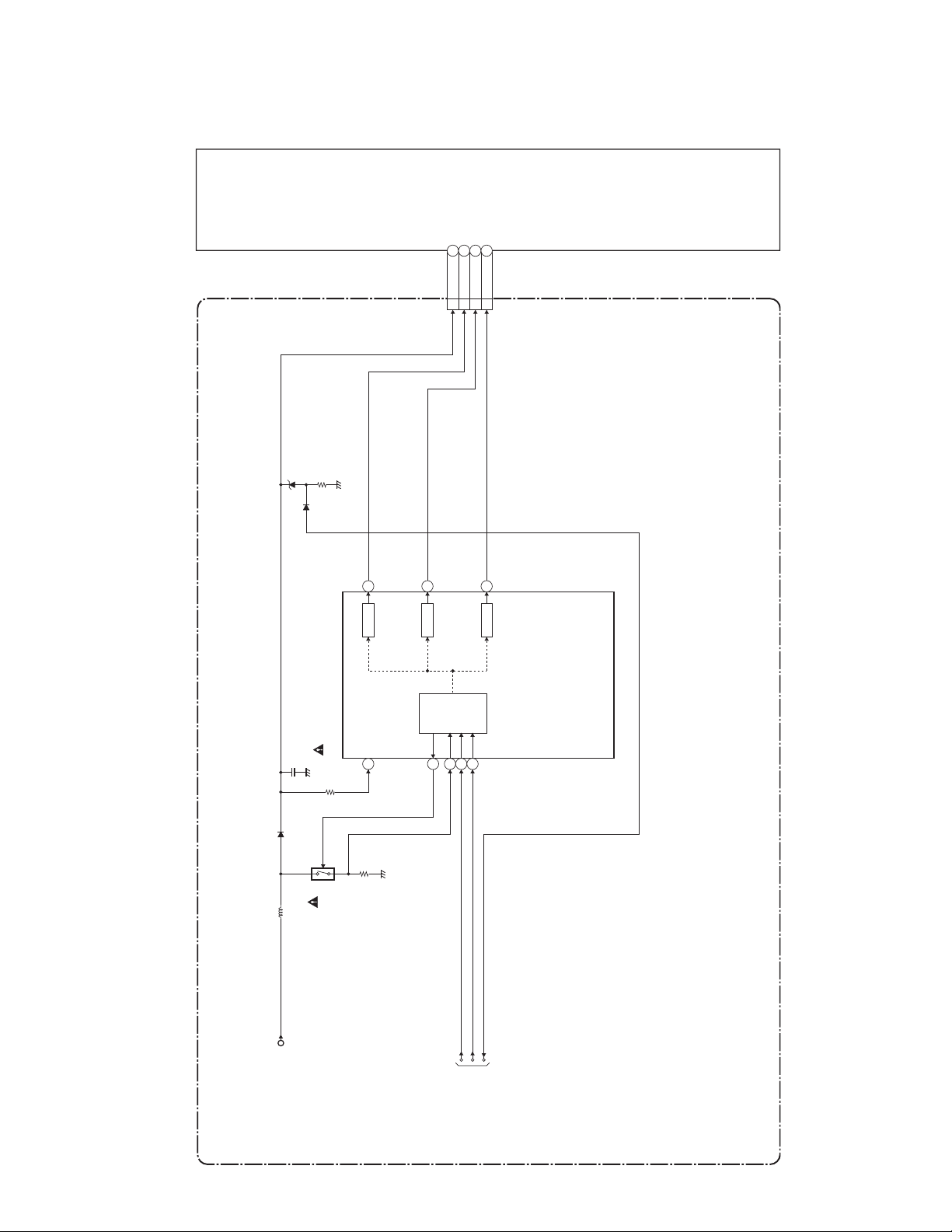

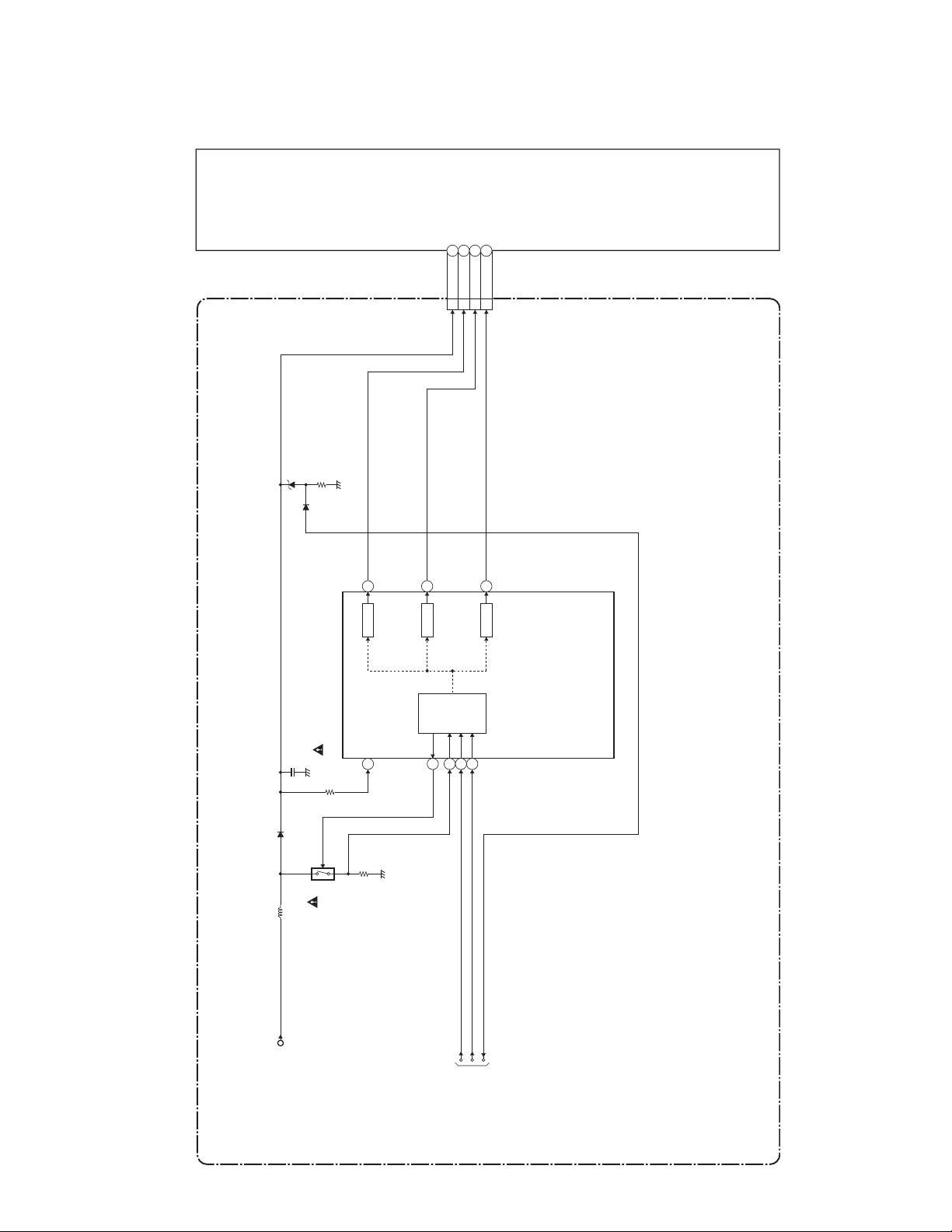

4. LED Backlight Drive Block Diagram

LCD PANEL ASSEMBLY

ILED16

VLED4

ILED27

ILED32

CN1001

2

DRIVE

OVP

IC1001

(LED BACKLIGHT DRIVER)

10

Q1001

3

DRIVE

161413

CONTROL

LOGIC

1

5

DRIVE

POWER SUPPLY CBA

P-ON+21V

BACKLIGHT-ADJ

BACKLIGHT-SW

PROTECT3

TO

SYSTEM CONTROL

BLOCK DIAGRAM

9-4

PL12.2BLBD

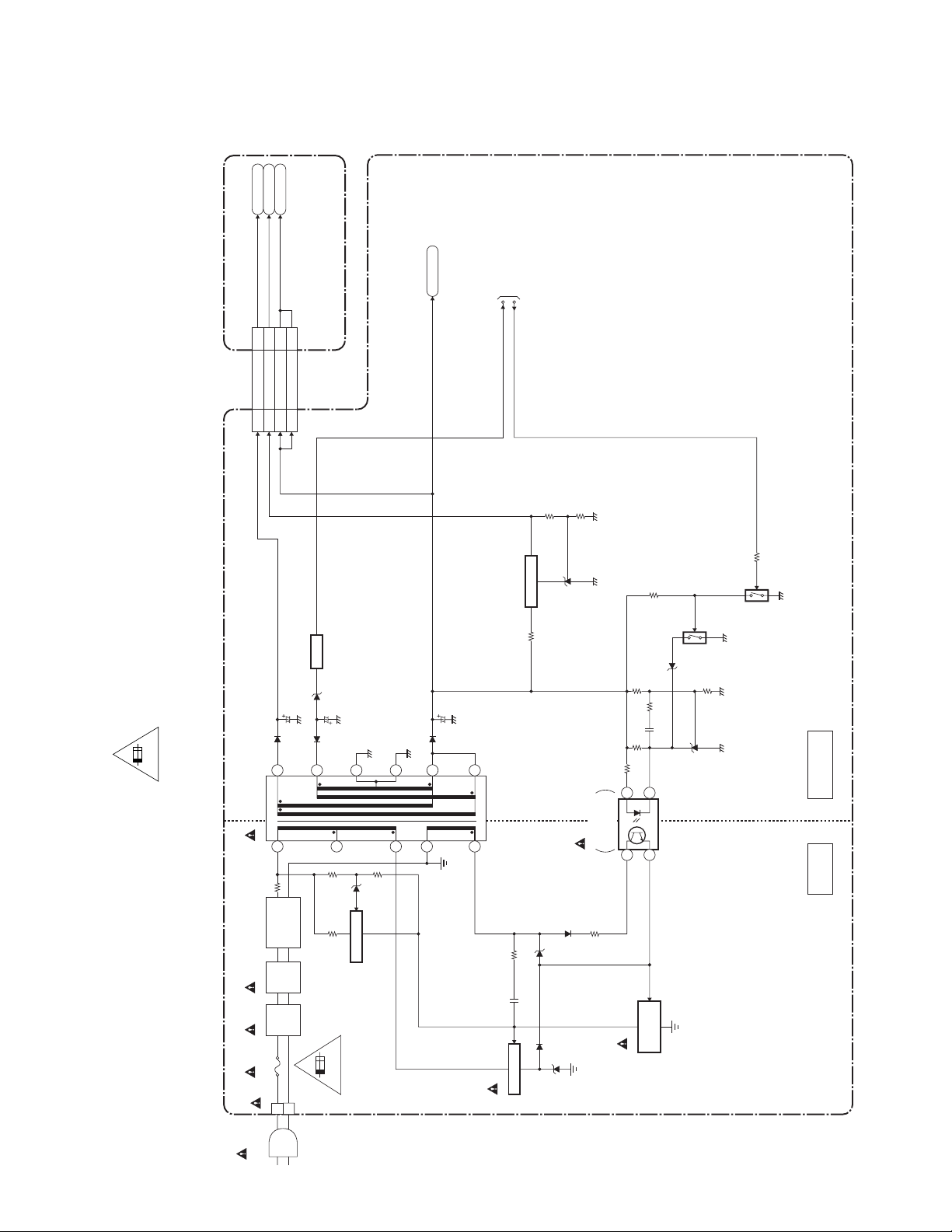

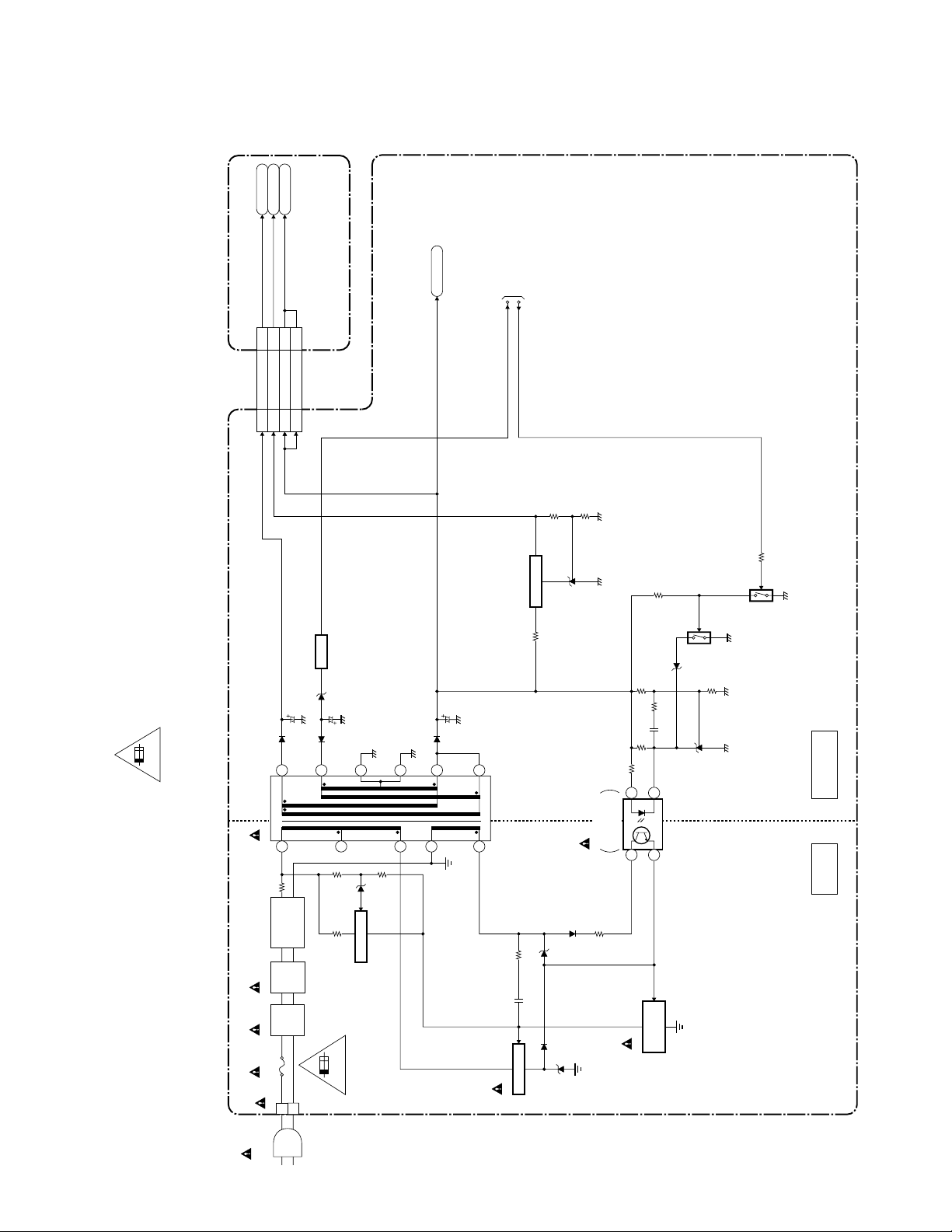

5. Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AL+3.3V

P-ON+21V

AMP+24V

DIGITAL MAIN CBA UNIT

11

CN3701

16,17

13,14

22,23

P-ON+21V16,17

AL+3.3V11

P-ON+21V22,23

AMP+24V13,14

CN631

P-ON+21V

TO

SYSTEM CONTROL

RESET

P-ON-H2

BLOCKDIAGRAM

+3.3V REG.

Q656

POWER SUPPLY CBA

Q653

For continued protection against risk of fire,

replace only with same type 4A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A 125V

T601

D601- D604

L602

L601

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

CN601

7

6

BRIDGE

RECTIFIER

LINE

FILTER

LINE

FILTER

1

2

Q650

RESET

8

5

4A 125V

9

SWITCHING

Q501

Q652

12

11

10

1

2

4

2

1

IC601

ERROR

VOLTAGE DET

4

3

HOT COLD

CONTROL

Q602

SWITCHING

Q601

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC601

AC CORD

9-5

PL12.2ABLP

[TYPE B]

1. System Control Block Diagram

POWER

SOURCE

161718

POWER

SOURCE

SCL

SDA

IC4001

(TOUCH SENSOR)

4

5

D4051

POWER

P-ON+5V

SENSOR

REMOTE

RS4051

MENU

POWER

1

CH UP

CH DOWN

19

212223

CH UP

CH DOWN

MENU

SOURCE

3

2

VOL UP

VOL DOW N

VOL DOWN

CH UP

6

CH DOWN

11

TO

POWER SUPPLY

BLOCK DIAGRAM

RESET

P-ON-H2

FUNCTION CBA

VOL DOW N

VOL UP

13

12

CN631

TO

LED BACKLIGHT DRIVE

PROTECT3

BACKLIGHT-SW

CN631

BLOCK DIAGRAM

BACKLIGHT-ADJ

POWER SUPPLY CBA

IC3101

(MAIN MICRO CONTROLLER)

AF2

KEY-IN1

USB0(-)

USB0(+)

U26

U25

LED DRIVE

Y23

W23

LED1

REMOTE

USB1(+)

V25

Q3101

USB1(-)

U24

RMII-RXD0

AA3

IC3902

(ETHERNET I/F)

RMII-RXD1

RMII-RXD2

RMII-RXD3

W4

W5

AB2

1823242526

161714

ETHERNET

124

KEY-IN146

SDA19

SCL28

REMOTE55

LED164

CN3105 CN4001

SCL

SDA

IC3103 (MEMORY)

6

5

AE4

AC5

STM-SCL

STM-SDA

RMII-TXD0

RMII-TXD1

RMII-TXD2

RMII-TXD3

Y3V6Y4

Y2

AD1

29

RESET HUB-RESET

I/F

5

XO

XI

43

42

TU3001 (TUNER UNIT)

VGA-SDA

AMP-MUTE

VGA-SCL

Y20

V23

AA20

SCL

SDA

6

5

AD9

AE10

TU-SCL

TU-SDA

COMP-DET

LCD-P-ON

P1

V20

P-ON-H2

RESET

PROTECT3

BACKLIGHT-SW

77

88

CN3601

RESET

IC3009

AE2

AB6

RESET

P-ON-H2

AXO

AXI

AF3

AE3

X3101

24.576MHz

OSC

BACKLIGHT-ADJ

44

22

33

CN3601

G6

K25

AE1

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

DIGITAL MAIN CBA UNIT

USB0(-)

USB0(+)

CN3705

WIRELESS

LAN

ADAPTOR

USB1(+)

CN3704

USB1(-)

USB JACK

TD(+)

CN3706

TD(-)

RD(-)

RD(+)

ETHERNET

JACK

X3701

25MHz

OSC

9-6

VGA-SCL

AMP-MUTE

VGA-SDA

TO VIDEO/AUDIO

COMP-DET

LCD-P-ON

BLOCK DIAGRAM

PL12.2BBLS

2. Video/Audio Block Diagram

AUDIO SIGNAL

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

VIDEO SIGNAL

VGA-R-IN

VGA-B-IN

VGA-G-IN

VGA-VSYNC

VGA-HSYNC

IF-AGC

DIF-OUT1

DIF-OUT2

6

7

DIF-OUT2

DIF-OUT1

(TUNER UNIT)

TU3001

COM-VIDEO-Y/VIDEO-IN

5

IF-AGC

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

AUDIO(L)-IN

AUDIO(R)-IN

SPDIF

AMP(R)-OUT

32

DRIVE PWM19DRIVE PWM

IC3801 (AUDIO AMP)

39,40

AMP(L)-OUT

AUDIO-MUTE

Q3801

34

11,12

VGA-SCL

VGA-SDA

LCD-P-ON

COMP-DET

Q3802

P-ON+5V

Q3803

17

CONTROL LOGIC

DIGITAL MAIN CBA UNIT

123

131415

JK3713

PC-RGB

BUFFER

Q3001

3

4

2

1

CN3801

GND

SP(L)

SP(R)

JK3701

12

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

IN

-Pr-IN

9-7

JK3706

AUDIO(L)-IN

AUDIO(R)-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

JK3801

HEADPHONE

JACK

SP3801

SPEAKER

L-CH

SP3802

SPEAKER

R-CH

PL12.2BBLVA

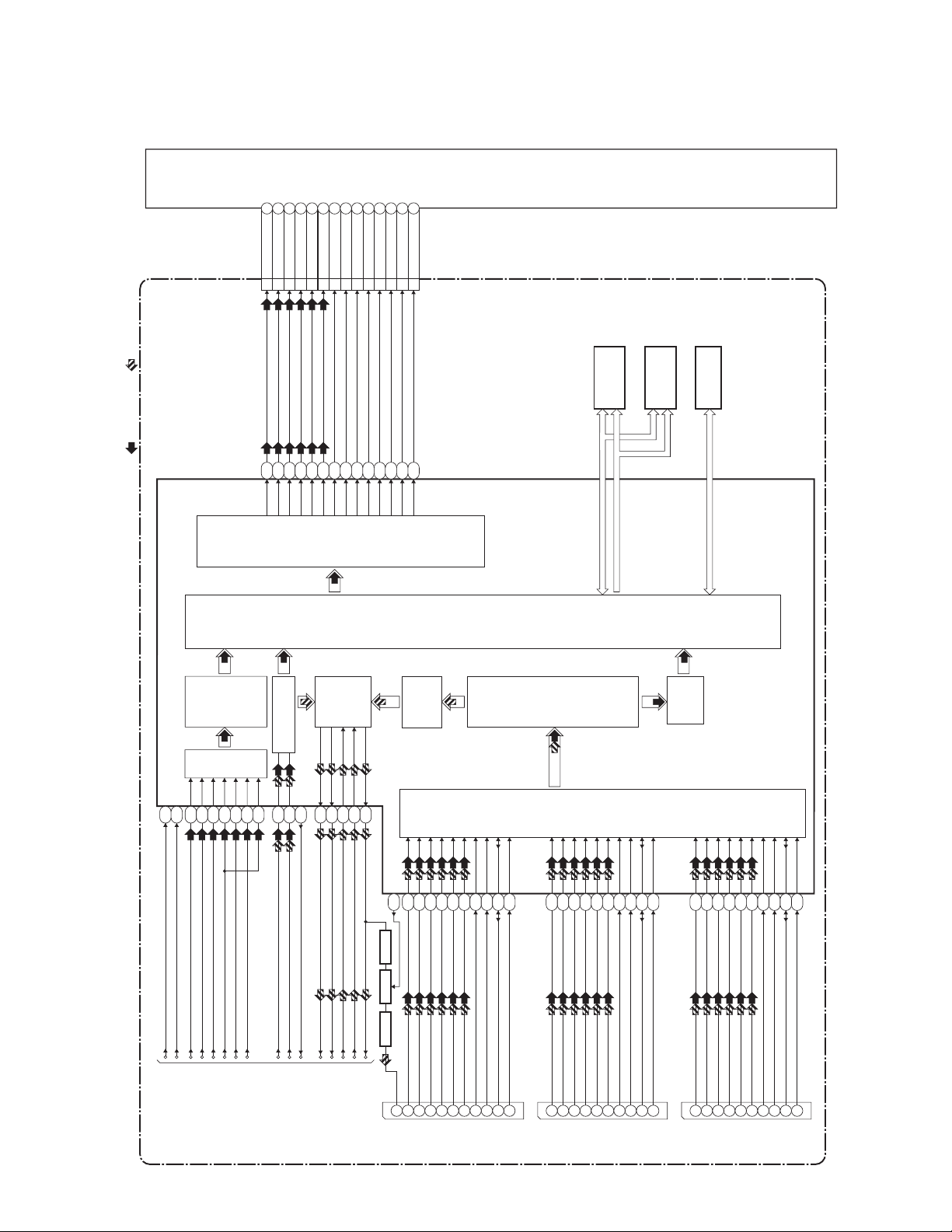

3. Digital Signal Process Block Diagram

LCD PANEL

ASSEMBLY

LVDS-OD1(-)21

LVDS-OD1(+)20

LVDS-OD0(-)23

LVDS-OD0(+)22

LVDS-OD2(-)19

LVDS-OD2(+)18

LVDS-OCLK(-)16

LVDS-OCLK(+)15

TP6

POL5

CPV4

OE3

OE22

STV1

CN3904

AUDIO SIGNAL

DATA(0-15)

ADDESS(0-13)

IC3401

(DDR3 SDRAM)

DATA(16-31)

ADDESS(0-13)

IC3402

(DDR3 SDRAM)

IC3102

(NAND FLASH MEMORY)

DATA(0-7)

VIDEO SIGNAL

VGA-HSYNC

IC3101 (DIGITAL SIGNAL PROCESS)

AB9

VGA-VSYNC

Y18

AA9

AA17

Y17

A/D

CONVERTER

SW

AA15

AA14

AB14

AB17

L4L5L3

DEMODULATOR

/MPEG DECODER

AE6

AD6

L2

K5K4K3L1A2D4B3

LVD S T X

AUDIO I/F

IF-AGC

AD7

AB11

AE13

AC10

AD13

AD10

DIGITAL MAIN CBA UNIT

B2

C3

D5

DIGITAL

SIGNAL

PROCESS

HDMI

AUDI O

DECODER

I/F

HDMI SW

VIDEO

DECODER

VGA-HSYNC

VGA-VSYNC

VGA-R-IN

VGA-G-IN

VGA-B-IN

COM-VIDEO-Y/CVBS-IN

DIF-OUT1

DIF-OUT2

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

TO VIDEO/AUDIO

BLOCK DIAGRAM

IF-AGC

AMP(L)-OUT

AMP(R)-OUT

AUDIO(L)-IN

SPDIF

AUDIO(R)-IN

BUFFER

Q3003

MUTE

Q3004

BUFFER

Q3002

JK3717

ARC-MUTE

AE15

AB25

AD15

DATA0(+)

ARC

DATA0(-)

71494613

AE16

DATA1(+)

AF16

DATA1(-)

AE17

DATA2(+)

DATA2(-)

HDMI-IN1

AF17

AE14

CLOCK(+)

CLOCK(-)

101216

9-8

AF14

AA24

HDMI-DATA

HDMI-CLOCK

AA22

15

DATA0(+)

JK3715

AF23

AF24

AE23

AE24

DATA0(-)

DATA1(+)

DATA1(-)

79461

AE25

DATA2(+)

AF25

AE22

DATA2(-)

CLOCK(+)

CLOCK(-)

3

101216

HDMI-IN2

AF22

AB23

HDMI-DATA

HDMI-CLOCK

AB22

15

DATA0(+)

JK3716

AF19

AF20

AE19

AE20

DATA0(-)

DATA1(+)

DATA1(-)

79461

AE21

AD21

AD18

DATA2(+)

DATA2(-)

CLOCK(+)

CLOCK(-)

3

101216

HDMI-IN3

PL12.2BBLD

Y21

AE18

HDMI-DATA

HDMI-CLOCK

W21

15

4. LED Backlight Drive Block Diagram

LCD PANEL ASSEMBLY

ILED16

VLED4

ILED27

ILED32

CN1001

2

DRIVE

OVP

IC1001

(LED BACKLIGHT DRIVER)

10

Q1001

3

DRIVE

161413

CONTROL

LOGIC

1

5

DRIVE

POWER SUPPLY CBA

P-ON+21V

BACKLIGHT-ADJ

BACKLIGHT-SW

PROTECT3

TO

SYSTEM CONTROL

BLOCK DIAGRAM

9-9

PL12.2BLBD

5. Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

AL+3.3V

P-ON+21V

AMP+24V

DIGITAL MAIN CBA UNIT

11

CN3601

16,17

13,14

22,23

P-ON+21V16,17

AL+3.3V11

P-ON+21V22,23

AMP+24V13,14

CN631

P-ON+21V

TO

SYSTEM CONTROL

RESET

P-ON-H2

BLOCKDIAGRAM

+3.3V REG.

Q656

POWER SUPPLY CBA

Q653

For continued protection against risk of fire,

replace only with same type 4A, 125V fuse.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A 125V

T601

D601- D604

L602

L601

F601

4A/125V

HOT CIRCUIT. BE CAREFUL.

CN601

7

6

BRIDGE

RECTIFIER

LINE

FILTER

LINE

FILTER

1

2

Q650

RESET

8

9

5

SWITCHING

Q501

4A 125V

Q652

12

11

10

1

2

4

2

1

IC601

ERROR

VOLTAGE DET

4

3

HOT COLD

CONTROL

Q602

SWITCHING

Q601

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC601

AC CORD

9-10

PL12.2BBLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “#” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

6.

This schematic diagrams are masterized version that should cover the entire PL12.2 chassis models. Thus some parts in detail illustrated on this schematic diagrams may vary depend on the model within the PL12.2 chassis. Please refer to the parts lists for each models.

7. The Circuit Board layout illustrated on this service manual is the latest version for this chassis at the moment of making this service manual. Depend on the mass production date of each model, the actual layout of each Board may differ slightly from this version.

3

, M = 106).

-6

µF).

10-1 PL12.2SC

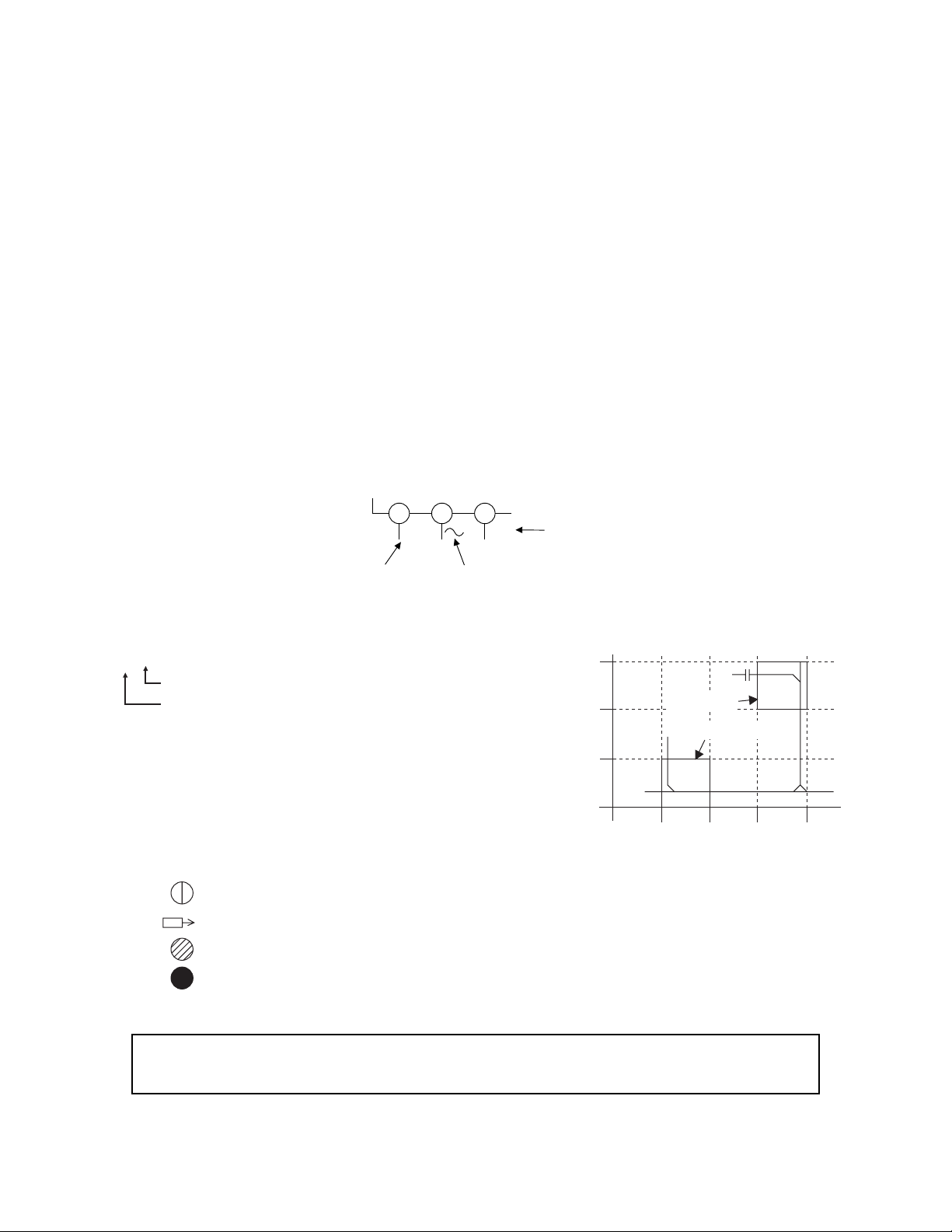

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

r

THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

The reference number of parts on Schematic Diagrams/CBA can be retrieved by application search function.

10-2 PL12.2SC

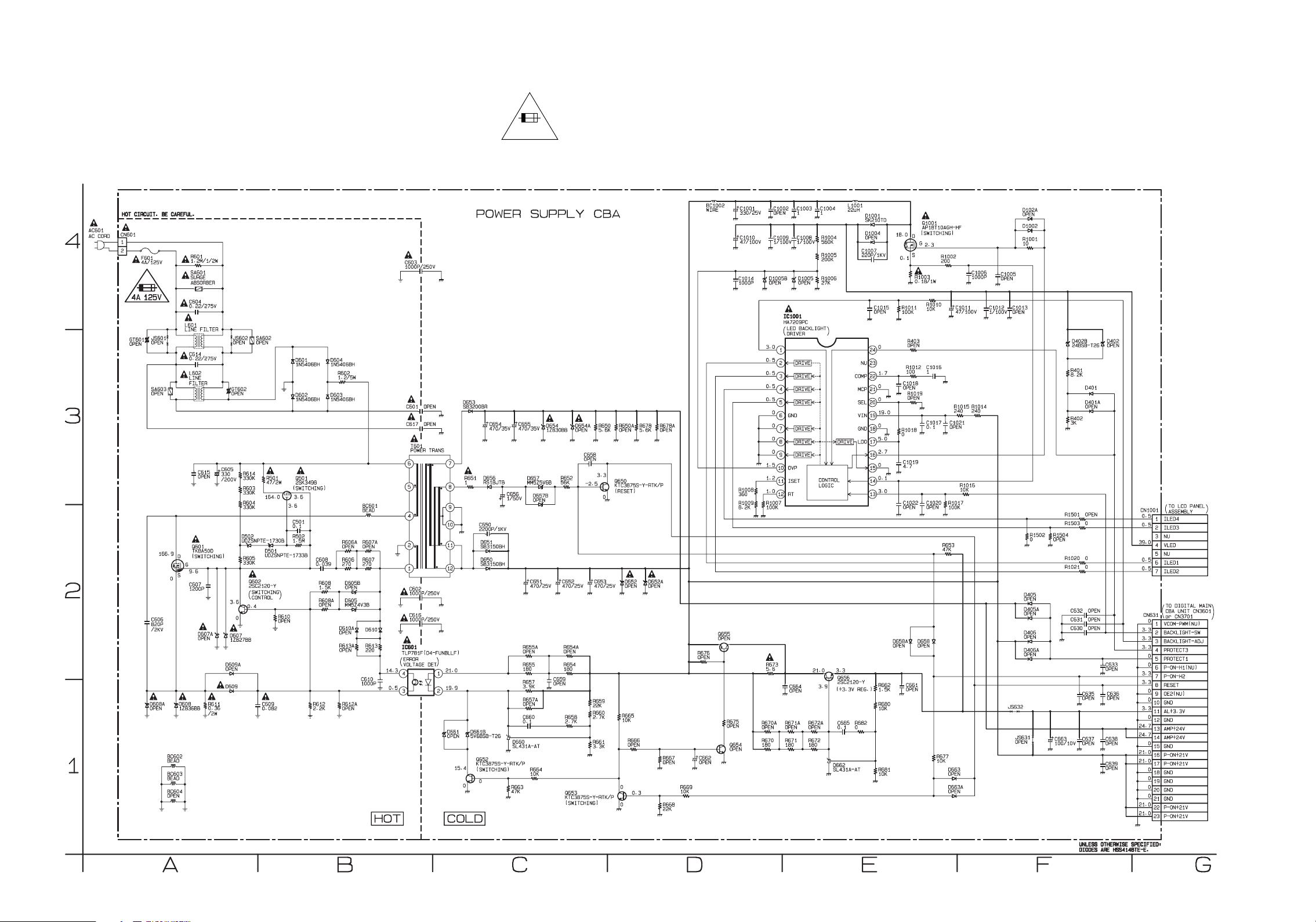

Power Supply Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

4A 125V

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4

3

2

1

HOT CIRCUIT. BE CAREFUL.

AC601

CN601

AC CORD

1 2

F601 4A/125V

4A 125V

GT601 OPEN

JS601 OPEN

SA603 OPEN

166.9

C606 820P /2KV

D608A OPEN

L601 LINE FILTER

D

G

S

0

D608 1ZB36BB

BC602 BEAD

BC603 BEAD

BC604 OPEN

R601

1.2M/1/2W

SA601 SURGE ABSORBER

C604

0.22/275V

C614

0.22/275V

L602 LINE FILTER

C605

C615

330

OPEN

/200V

Q601 TK8A50D

(SWITCHING)

9.6

C607 1200P

D607A OPEN

R611

0.36 /2W

JS602

SA602

OPEN OPEN

GT602 OPEN

R614 330K

R603 330K

R604 330K

D502 UDZSNPTE-1730B

R605 330K

Q602 2SC2120-Y

SWITCHING CONTROL

3.6

0.4

0

D607 1ZB27BB

D609A OPEN

D609

D601 1N5406BH

D602 1N5406BH

Q501

R501

2SK3498

47/2W

(SWITCHING)

3.6164.0

3.6

C501

0.1

R502

1.5M

D501 UDZSNPTE-1733B

R610 OPEN

C609

0.082

C608

0.039

R608

1.5K

R608A OPEN

R612

2.2K

D604 1N5406BH

R602

1.2/5W

D603 1N5406BH

R606A OPEN

R606 270

D605B OPEN

D605 MM5Z4V3B

D610A OPEN

R613A OPEN

R612A OPEN

C603 1000P/250V

OPENC601

OPENC617

T601 POWER TRANS

6

5

BC601 BEAD

R607A OPEN

R607 270

D610

R613 220

C610 1000P

4

2

1

C602 1000P/250V

C616 1000P/250V

IC601 TLP781F(D4-FUNBLLF)

ERROR VOLTAGE DET

14.3 4

0.5 32

1

21.0

19.9

HOT COLD

POWER SUPPLY CBA

D653 SB3200BR

C654

C655 470/35V

D657 MM5Z5V6B

D657B OPEN

C651 470/25V

R655A OPEN

R655 180

R657

3.9K

R657A OPEN

C660

0.1

D660 SL431A-AT

R664 10K

R663 47K

D654 1ZB30BB

7

8

9

10

11

12

D661 OPEN

15.4

R651 D656 1

D661B 5V6BSB-T26

0

470/35V

RS1BJTB

C656 1/50V

C650 2200P/1KV

D651 SB3150BH

D650 SB3150BH

Q652 KTC3875S-Y-RTK/P

(SWITCHING)

0

R650

D654A

5.6K

OPEN

C658 OPEN

R652 56K

C652 470/25V OPEN

C659 OPEN

3.3

-2.5

0

C653 470/25V

R654A OPEN

R654 180

R659 22K

R660

2.7K

R658

2.7K

R661

3.3K

Q653 KTC3875S-Y-RTK/P

(SWITCHING)

R650A

R678

D652

R666 OPEN

0.3

5.6K

D652A OPEN

R678A OPEN

R667 C662 OPEN

R668 22K

OPEN

Q650 KTC3875S-Y-RTK/P

(RESET)

R665 10K

0

R669 10K

R676 OPEN

OPEN

BC1002 WIRE

Q655 OPEN

R675 OPEN

Q654 OPEN

C1001 330/25V

C1010 47/100V

C1014 1000P

R1008 360

R1009

8.2K

D1005B OPEN

3.0

0.5

0

1.5

1.2

1.0

R1007 100K

R673

5.6

R670A OPEN

R670 180

C1002 OPEN

C1009 1/100V

1

2

3

4

5

6

7

8

9

10

11

12

C10031C1004 1

C1008

R1004

1/100V

560K

R1005 200K

R1006

D1005

27K

OPEN

IC1001 HA7209PC

LED BACKLIGHT DRIVER

DRIVE

GND

DRIVE

OVP

CONTROL

ISET

LOGIC

RT

21.0 3.3

3.9

C664 OPEN

R672A

R671A

OPEN

R672

R671

180

L1001 22uH

D1001 SK210TD

D1004 OPEN

C1007 220P/1KV

24

23

NU

22

COMP

21

MCP

20

SEL

19

VIN

18

GND

DRIVE

17

LDO

16

15

14

13

Q656 2SC2120-Y

(+3.3V REG.)

R682

C665

0

0.1

D662 SL431A-AT

C1015 OPEN

0

1.7

0

19.0

0

5.0

2.7

0

0.1

3.0

R662

1.5K

R680 10K

R681 10K

18.0

0.1

R1011 100K

C1018 OPEN

R1018 0

C1019

4.7

C1022 OPEN

D658A OPEN

R403 OPEN

R1012 100

R1019 OPEN

C661 OPEN

Q1001 AP18T10AGH-HF

(SWITCHING)

D

G

2.3

S

R1002 200

R1003

0.18/1W

R1010 10K

C1016 1

C1017

0.1

C1020 OPEN

R653 47K

D658 OPEN

R677 10K

C1011 47/100V

R1015 240

C1021 OPEN

R1016 10K

R1017 100K

D663 OPEN

D663A OPEN

C1006 1000P

R1014 240

C1005 OPEN

C1012 1/100V

C1013 OPEN

JS632

JS631 OPEN

D102A OPEN

D1002

R1001 10

R1502 0

D405 OPEN

D405A OPEN

D406 OPEN

D406A OPEN

R401

8.2K

R402 3K

R1504 OPEN

100/10V

D402B 24BSB-T26

D401

D401A OPEN

OPENR1501 0R1503

0R1020 0R1021

OPENC632 OPENC631 OPENC630

C635 OPEN

C637C663 OPEN

D402 OPEN

C633 OPEN

C636 OPEN

C638 OPEN

C639 OPEN

TO LCD PANEL

CN1001

ASSEMBLY

0.5 1 ILED4

0.5 2 ILED3

3NU

39.0 4 VLED

5NU

0.5 6 ILED1

0.5 7 ILED2

TO DIGITAL MAIN CBA UNIT CN3601

CN631

or CN3701

0

1 VCOM-PWM(NU)

3.3 2 BACKLIGHT-SW

3.3 3 BACKLIGHT-ADJ

3.3 4 PROTECT3

0

5 PROTECT1

0

6 P-ON-H1(NU)

3.3 7 P-ON-H2

3.3 8 RESET

0

9 OE2(NU)

0

10 GND

3.3

11 AL+3.3V

0

12 GND

24.7 13 AMP+24V

24.7 14 AMP+24V

0

15 GND

21.0 16 P-ON+21V

21.0 17 P-ON+21V

0

18 GND

0

19 GND

0

20 GND

0

21 GND

21.0 22 P-ON+21V

21.0 23 P-ON+21V

A FBCDE G

10-3

UNLESS OTHERWISE SPECIFIED: DIODES ARE HSS4148TE-E.

PL12.2SCP

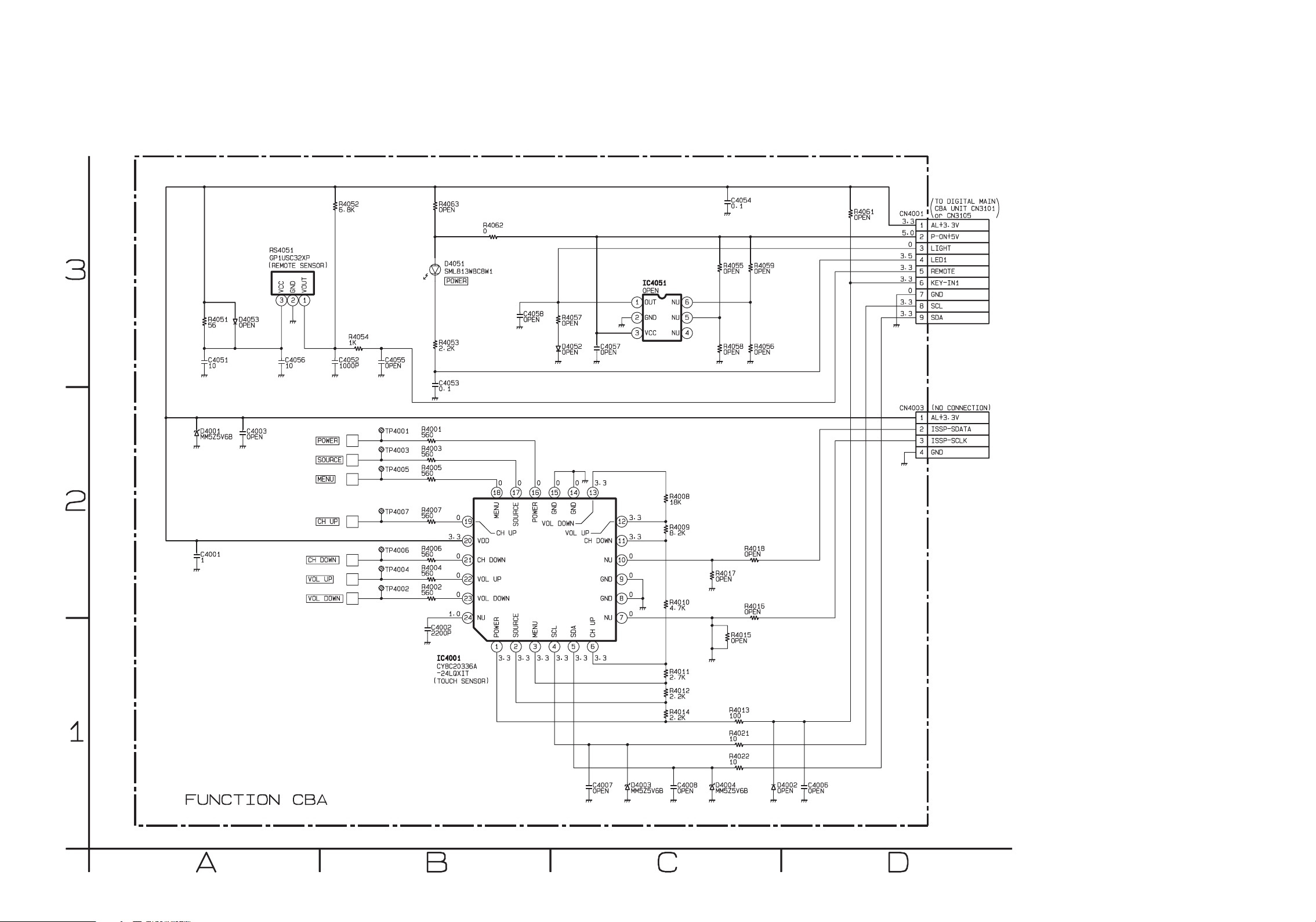

Function Schematic Diagram

3

2

1

R4051 56

C4051 10

MM5Z5V6B

C4001 1

RS4051 GP1USC32XP

(REMOTE SENSOR)

D4053 OPEN

C4003D4001 OPEN

VOUT

GND

VCC

231

C4056 10

CH DOWN

VOL UP

VOL DOWN

R4052

6.8K

C4052 1000P

POWER

SOURCE

MENU

CH UP

R4054 1K

C4055 OPEN

TP4001

TP4003

TP4005

TP4007

TP4006

TP4004

TP4002

R4063 OPEN

D4051 SML813WBC8W1

POWER

R4053

2.2K

C4053

0.1

R4001 560

R4003 560

R4005 560

R4007 560

R4006 560

R4004 560

R4002 560

0

19

3.3 20

0

21

0

22

0

23

1.0 24

C4002 2200P

IC4001 CY8C20336A

-24LQXIT

(TOUCH SENSOR)

R4062 0

C4058 OPEN

000003.3

MENU

SOURCE

CH UP

VDD

CH DOWN

VOL UP

VOL DOWN

NU

POWER

SOURCE

123456

3.3 3.3 3.3 3.3 3.3 3.3

R4057 OPEN

D4052 OPEN

GND

POWER

VOL DOWN

MENU

SCL

GND

VOL UP

CH DOWN

SDA

C4057 OPEN

1314151618 17

GND

CH UP

IC4051 OPEN

1

OUT

2

GND

34

VCC NU

3.3

12

3.3

11

0

NU

10

0

9

0

8

0

NU

7

6

NU

5

NU

R4008 18K

R4009

8.2K

R4010

4.7K

R4011

2.7K

R4012

2.2K

R4014

2.2K

C4054

0.1

R4055 OPEN

R4058 OPEN

R4017 OPEN

R4015 OPEN

R4013 100

R4021 10

R4022 10

R4059 OPEN

R4056 OPEN

R4018 OPEN

R4016 OPEN

R4061 OPEN

TO DIGITAL MAIN

CN4001

3.5

3.3

CN4003

CBA UNIT CN3101 or CN3105

3.3 1 AL+3.3V

5.0 2 P-ON+5V

0

3 LIGHT 4 LED1 5 REMOTE 6 KEY-IN1

0

7 GND 8 SCL 9 SDA

(NO CONNECTION)

1 AL+3.3V 2 ISSP-SDATA 3 ISSP-SCLK 4 GND

FUNCTION CBA

C4007 OPEN

MM5Z5V6B

CBDA

10-4

C4008D4003 OPEN

D4004 MM5Z5V6B

OPEN

C4006D4002 OPEN

PL12.2SCF

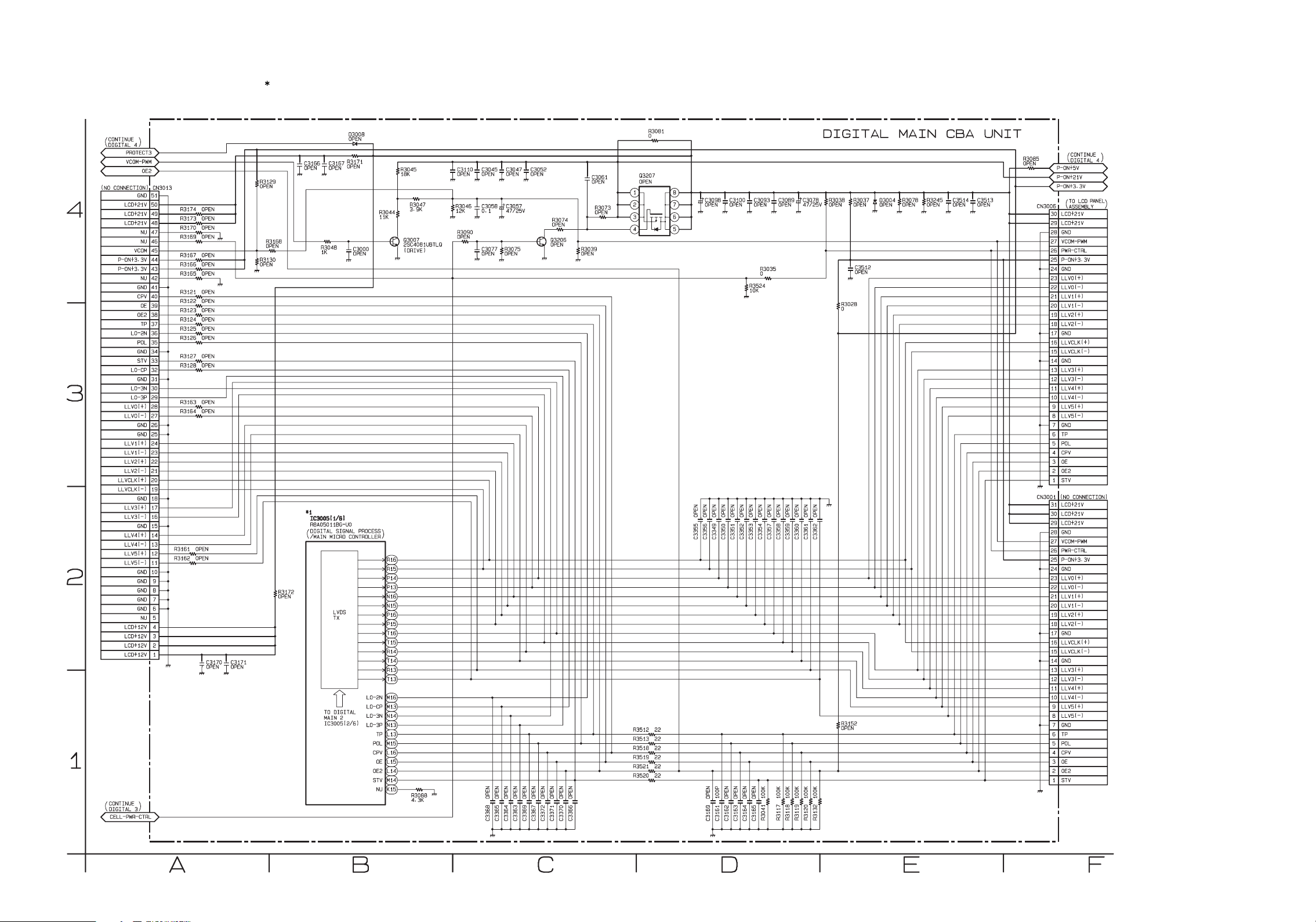

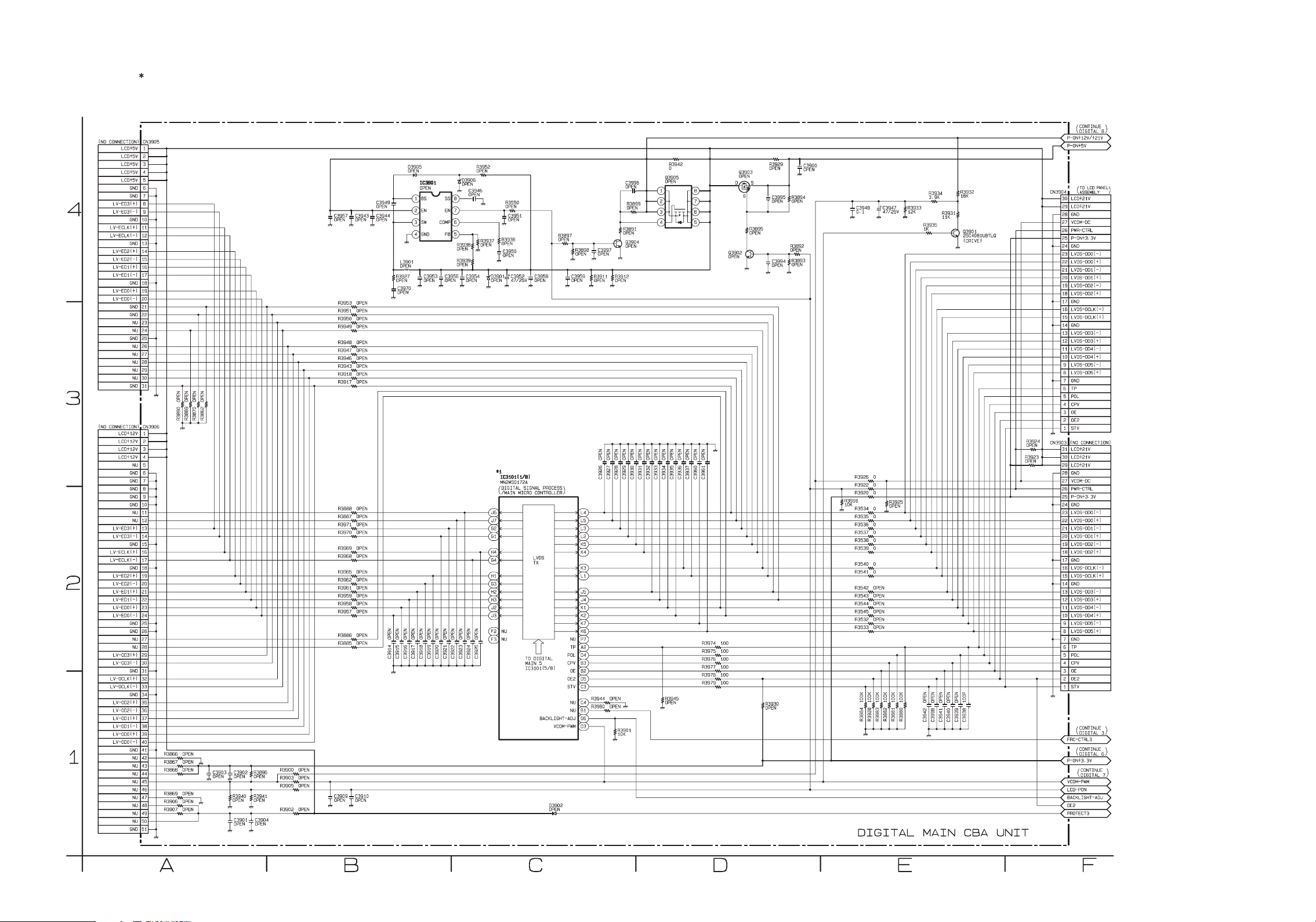

Digital Main 1 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE DIGITAL 4

PROTECT3 VCOM-PWM

OE2

(NO CONNECTION)

CONTINUE DIGITAL 3

CELL-PWR-CTRL

CN3013

51GND 50LCD+21V 49LCD+21V 48LCD+21V 47NU 46NU 45VCOM 44P-ON+3.3V 43P-ON+3.3V 42NU 41GND 40CPV 39OE 38OE2 37TP 36LO-2N 35POL 34GND 33STV 32LO-CP 31GND 30LO-3N 29LO-3P 28LLVO(+) 27LLVO(-) 26GND 25GND 24LLV1(+) 23LLV1(-) 22LLV2(+) 21LLV2(-) 20LLVCLK(+) 19LLVCLK(-) 18GND 17LLV3(+) 16LLV3(-) 15GND 14LLV4(+) 13LLV4(-) 12LLV5(+) 11LLV5(-) 10GND

9GND 8GND 7GND 6GND 5NU 4LCD+12V 3LCD+12V 2LCD+12V 1LCD+12V

OPENR3161 OPENR3162

OPENR3174 OPENR3173 OPENR3170 OPENR3169

OPENR3167 OPENR3166 OPENR3165

OPENR3121 OPENR3122 OPENR3123 OPENR3124 OPENR3125 OPENR3126

OPENR3127 OPENR3128

OPENR3163 OPENR3164

C3170 OPEN

C3171 OPEN

R3129 OPEN

R3168 OPEN

R3130 OPEN

C3166

C3167

OPEN

R3048 1K

*1

IC3005(1/6) R8A05011BG-U0 DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

R3172 OPEN

TO DIGITAL MAIN 2 IC3005(2/6)

LVDS TX

D3008 OPEN

R3171 OPEN

C3000 OPEN

R3044 11K

R16 R15 P14 P13 N16 N15 P16 P15 T16 T15 R14 T14 R13 T13

M16LO-2N M13LO-CP N14LO-3N N13LO-3P L13TP M15POL L16CPV L15OE L14OE2 M14STV K15NU

R3045 18K

R3047

3.9K

Q3007 2SC4081UBTLQ

(DRIVE)

R3088

4.3K

C3110 OPEN

R3046 12K

R3090 OPEN

C3045 OPEN

C3058

0.1

C3077 OPEN

OPENC3368

C3047 OPEN

C3057 47/25V

R3075 OPEN

OPENC3364

OPENC3365

OPENC3363

OPENC3369

C3052 OPEN

OPENC3367

R3074 OPEN

Q3206 OPEN

OPENC3372

OPENC3371

OPENC3370

OPENC3366

C3061 OPEN

R3039 OPEN

R3073 OPEN

R3081 0

Q3207 OPEN

1

2

36

45

8

7

22R3512 22R3513 22R3518 22R3519 22R3521 22R3520

C3098 OPEN

OPENC3356

OPENC3355

OPENC3169

OPENC3349

OPENC3350

100PC3161

C3100 OPEN

OPENC3162

OPENC3352

OPENC3351

OPENC3164

OPENC3163

C3093 OPEN

R3035 0

R3524 10K

OPENC3353

OPENC3165

OPENC3357

OPENC3354

100KR3041

C3089 OPEN

OPENC3359

OPENC3358

100KR3117

100KR3118

DIGITAL MAIN CBA UNIT

C3078 47/25V

OPENC3361

OPENC3360

100KR3119

100KR3120

R3038 OPEN

OPENC3362

100KR3132

R3028 0

R3152 OPEN

R3037 OPEN

C3512 OPEN

D3004 OPEN

R3078 OPEN

R3245 OPEN

C3514 OPEN

C3513 OPEN

R3085 OPEN

P-ON+5V P-ON+21V P-ON+3.3V

TO LCD PANEL ASSEMBLY

CN3006

30 LCD+21V 29 LCD+21V 28 GND 27 VCOM-PWM 26 PWR-CTRL 25 P-ON+3.3V 24 GND 23 LLV0(+) 22 LLV0(-) 21 LLV1(+) 20 LLV1(-) 19 LLV2(+) 18 LLV2(-) 17 GND 16 LLVCLK(+) 15 LLVCLK(-) 14 GND 13 LLV3(+) 12 LLV3(-) 11 LLV4(+) 10 LLV4(-)

9 LLV5(+) 8 LLV5(-) 7GND 6TP 5POL 4CPV 3OE 2OE2 1STV

CN3001

(NO CONNECTION)

31 LCD+21V 30 LCD+21V 29 LCD+21V 28 GND 27 VCOM-PWM 26 PWR-CTRL 25 P-ON+3.3V 24 GND 23 LLV0(+) 22 LLV0(-) 21 LLV1(+) 20 LLV1(-) 19 LLV2(+) 18 LLV2(-) 17 GND 16 LLVCLK(+) 15 LLVCLK(-) 14 GND 13 LLV3(+) 12 LLV3(-) 11 LLV4(+) 10 LLV4(-)

9 LLV5(+) 8 LLV5(-) 7GND 6TP 5POL 4CPV 3OE 2OE2 1STV

CONTINUE DIGITAL 4

A

10-5

DCB

E

F

PL12.2SCAD1

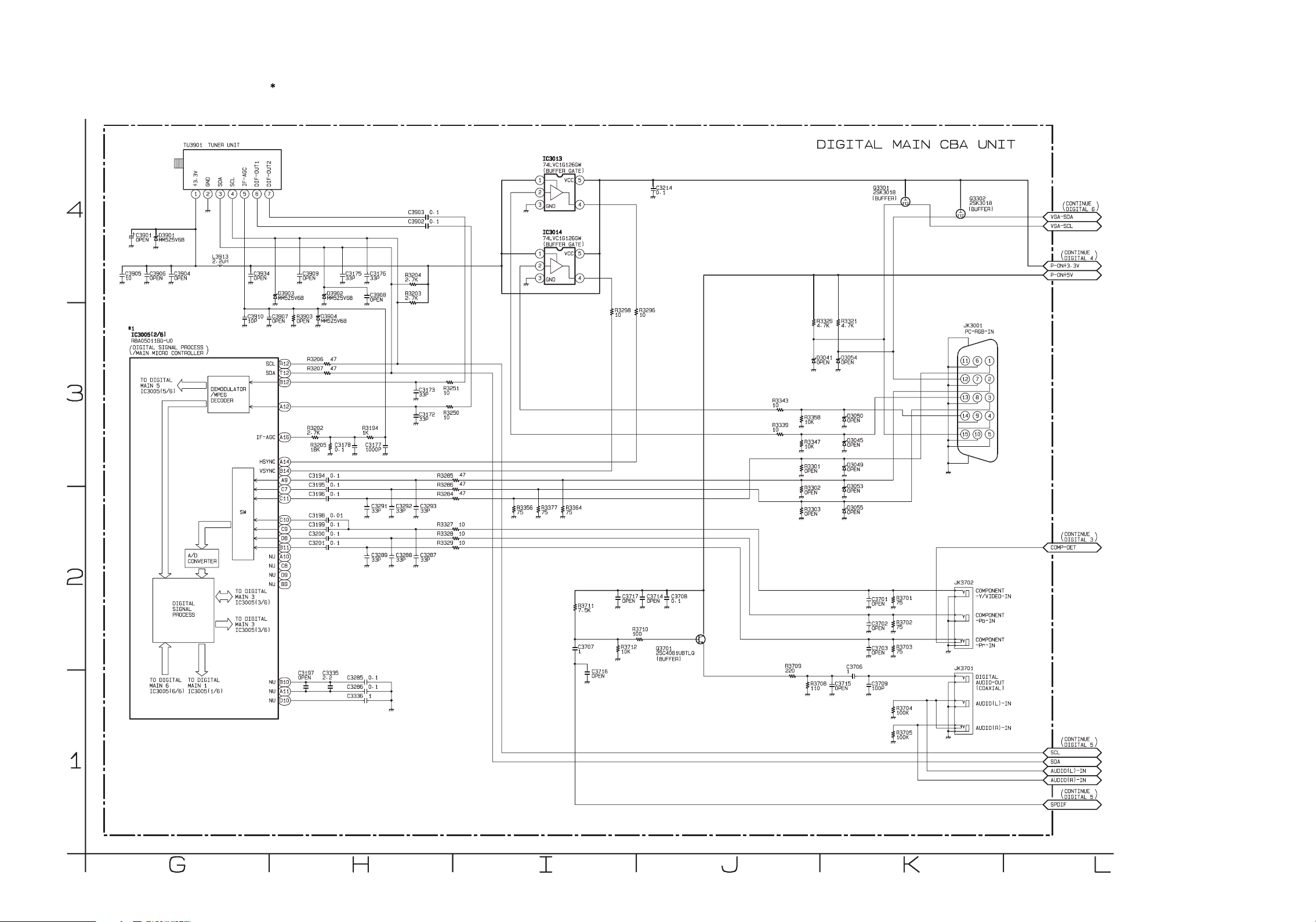

Digital Main 2 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

TU3901 TUNER UNIT

+3.3V2GND3SDA4SCL5IF-AGC6DIF-OUT17DIF-OUT2

1

C3901 D3901 OPEN

MM5Z5V6B

C3904

C3906

C3905 10

*1

IC3005(2/6) R8A05011BG-U0

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

OPEN

TO DIGITAL MAIN 5 IC3005(5/6)

DIGITAL SIGNAL PROCESS

TO DIGITAL MAIN 6 IC3005(6/6)

A/D CONVERTER

TO DIGITAL MAIN 1 IC3005(1/6)

L3913

2.2uH

C3910 10P

DEMODULATOR /MPEG DECODER

SW

TO DIGITAL MAIN 3 IC3005(3/6)

C3934 OPEN

MM5Z5V6B

C3907 OPEN

SCL R12 SDA T12

B12

A12

A16IF-AGC

A14HSYNC B14VSYNC

A9 C7

C11

C10

C9

D8 B11 A10NU

C8NU

D9NU

B9NU

B10NU A11NU D10NU

C3909 OPEN

D3902 MM5Z5V6B

R3903 D3904 OPEN

MM5Z5V6B

47R3206 47R3207

R3202

2.7K

R3205 18K

0.1C3194

0.1C3195

0.1C3196

0.01C3198

0.1C3199

0.1C3200

0.1C3201

C3197

C3335

OPEN

C3175 33P

C3178

0.1

C3176 33P

C3908 OPEN

R3194 1K

C3177 1000P

C3291 33P

C3289 33P

0.1C32852.2

0.1C3286 1C3336

R3204

2.7K

R3203D3903

2.7K

C3292 33P

C3288 33P

0.1C3903

0.1C3902

C3173 33P

C3172 33P

C3293 33P

C3287 33P

R3251 10

R3250 10

R3285 R3286 R3284

DIGITAL MAIN CBA UNIT

IC3013 74LVC1G126GW (BUFFER GATE)

1

VCC

5

2

34

GND

IC3014 74LVC1G126GW (BUFFER GATE)

1

VCC

5

2

34

GND

R3298 10

47 47 47

R3364

R3377

R3356 75

10R3327 10R3328 10R3329

75

R3711

7.5K

C3716 OPEN

R3712 10K

C3707 1

C3717 OPEN

R3710 100

C3214

0.1

R3296 10

C3714 OPEN

Q3701 2SC4081UBTLQ

(BUFFER)

C3708

0.1

R3343 10

R3339 10

R3709 220

R3358 10K

R3347 10K

R3301 OPEN

R3302 OPEN

R3303 OPEN

R3708 110

R3326

4.7K

D3041 OPEN

C3715 OPEN

R3321

4.7K

D3054 OPEN

D3050 OPEN

D3045 OPEN

D3049 OPEN

D3053 OPEN

D3055 OPEN

C3706 1

Q3301 2SK3018

(BUFFER)

R3701

C3701

75

OPEN

R3702

C3702

75

OPEN

R3703

C3703

75

OPEN

C3709 100P

R3704 100K

R3705 100K

Q3302 2SK3018

JK3001

PC-RGB-IN

11156

12

13

14

JK3702

JK3701

DIGITAL AUDIO-OUT (COAXIAL)

1

2

7

3

8

4

9

5

10

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

CONTINUE DIGITAL 6(BUFFER)

VGA-SDA VGA-SCL

CONTINUE DIGITAL 4

P-ON+3.3V P-ON+5V

CONTINUE DIGITAL 3

COMP-DET

CONTINUE DIGITAL 5

SCL SDA AUDIO(L)-IN AUDIO(R)-IN

CONTINUE DIGITAL 5

SPDIF

GH K

JI

L

10-6

PL12.2SCAD2

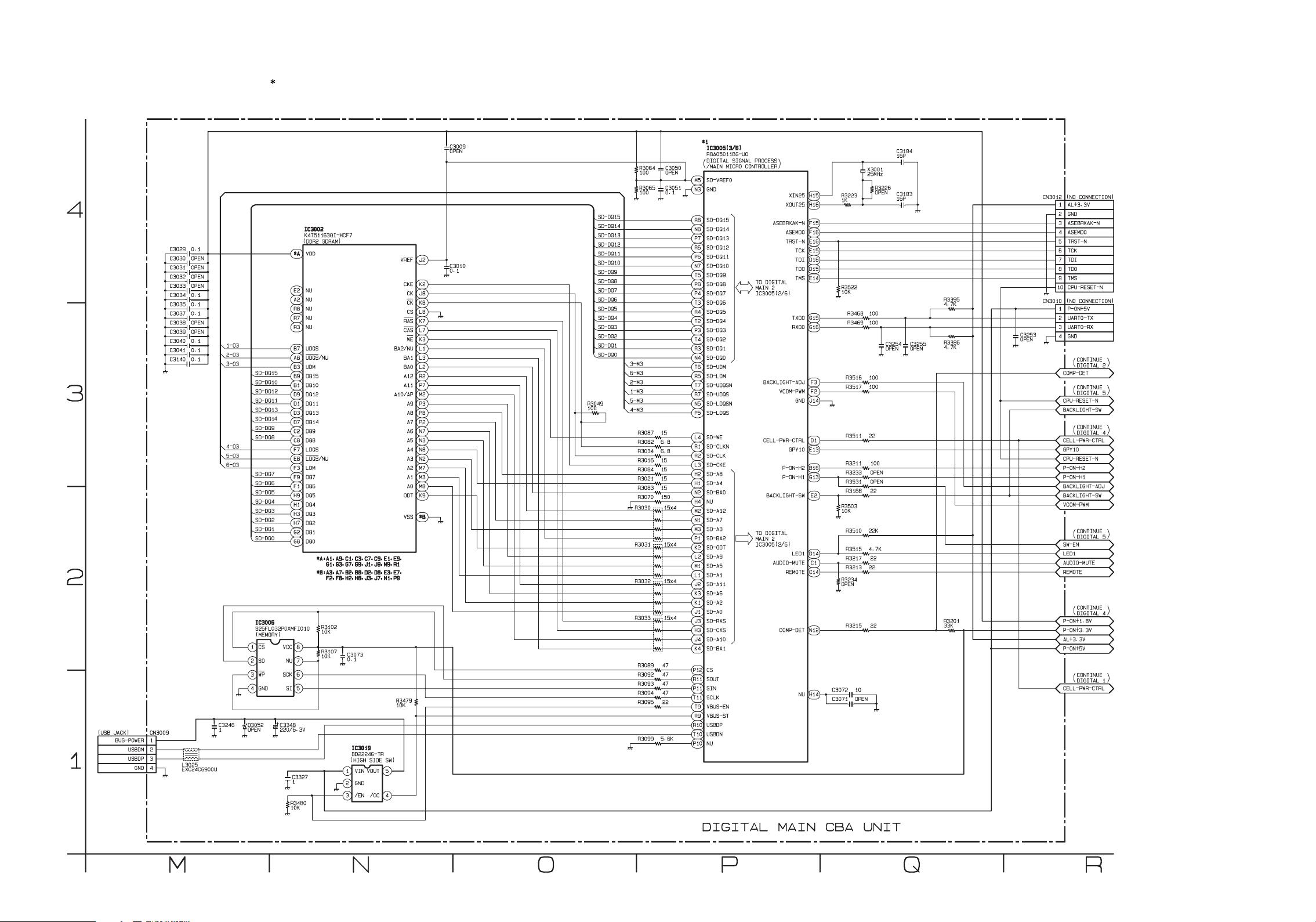

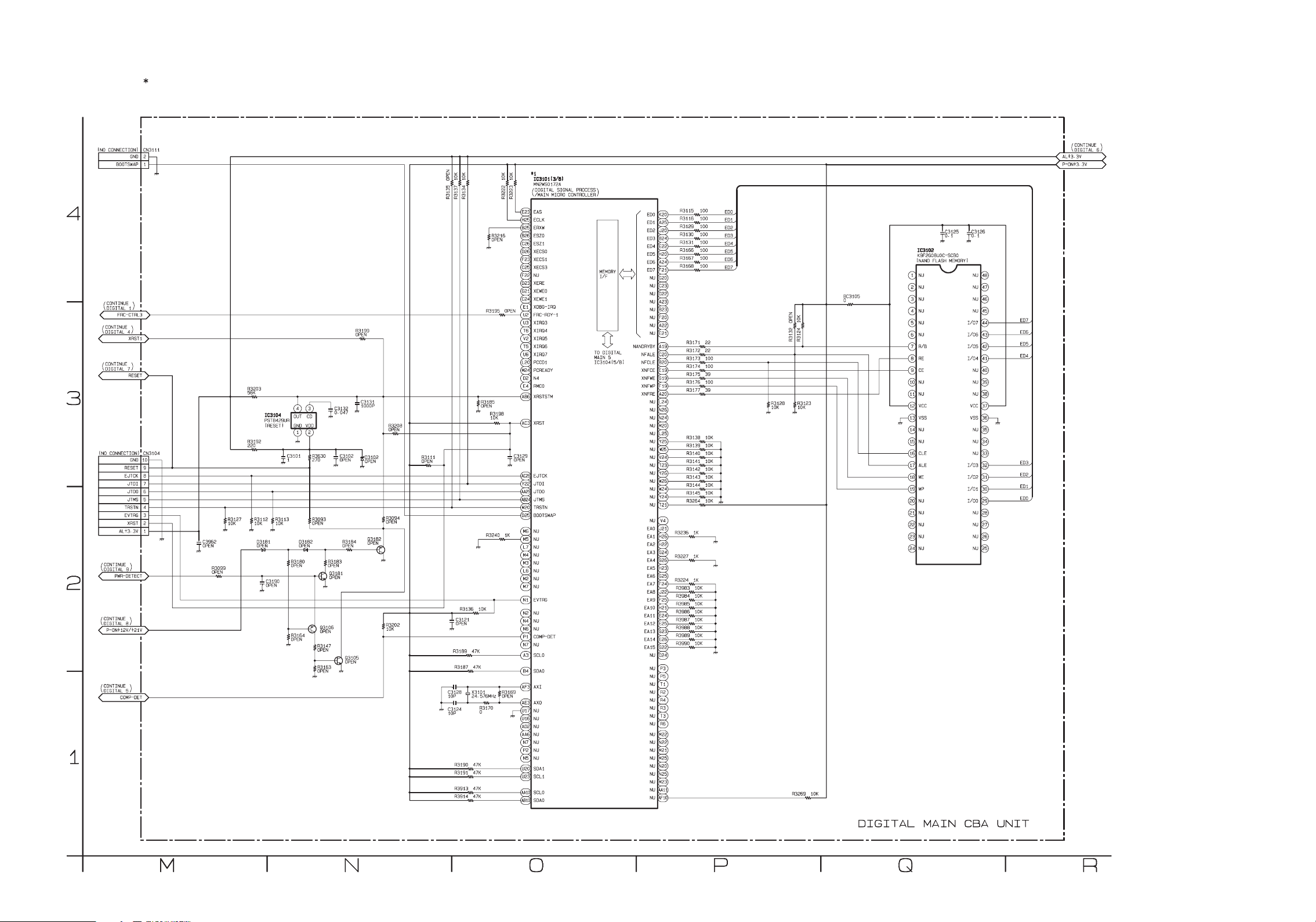

Digital Main 3 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

(USB JACK)

CN3009 1BUS-POWER

2USBDN 3USBDP 4GND

0.1C3029 OPENC3030 OPENC3031 OPENC3032 OPENC3033

0.1C3034

0.1C3035

0.1C3037 OPENC3038 OPENC3039

0.1C3040

0.1C3041

0.1C3140

C3246 1

L3025 EXC24CG900U

IC3002 K4T51163QI-HCF7

(DDR2 SDRAM)

*A VDD

E2 NU A2 NU R8 NU R7 NU R3 NU

1-O3 2-O3 3-O3

SD-DQ15 SD-DQ10 SD-DQ12 SD-DQ11 SD-DQ13 SD-DQ14 SD-DQ9

SD-DQ8 4-O3 5-O3 6-O3

SD-DQ7

SD-DQ6

SD-DQ5

SD-DQ4

SD-DQ3

SD-DQ2

SD-DQ1

SD-DQ0

IC3006

S25FL032P0XMFI010

(MEMORY)

1

CS

2

SO

3

WP

45

GND SI

D3052 OPEN

B7 UDQS A8 UDQS/NU B3 UDM B9 DQ15 B1 DQ10 D9 DQ12 D1 DQ11 D3 DQ13 D7 DQ14 C2 DQ9 C8 DQ8 F7 LDQS E8 LDQS/NU F3 LDM F9 DQ7 F1 DQ6 H9 DQ5 H1 DQ4 H3 DQ3 H7 DQ2 G2 DQ1 G8 DQ0

8

VCC

7

NU

6

SCK

C3348 220/6.3V

C3327 1

R3480 10K

J2VREF

K2CKE J8CK K8CK L8CS K7RAS L7CAS K3WE L1BA2/NU L3BA1 L2BA0 R2A12 P7A11 M2A10/AP P3A9 P8A8 P2A7 N7A6 N3A5 N8A4 N2A3 M7A2 M3A1 M8A0 K9ODT

*BVSS

*A:A1,A9,C1,C3,C7,C9,E1,E9, G1,G3,G7,G9,J1,J9,M9,R1

*B:A3,A7,B2,B8,D2,D8,E3,E7, F2,F8,H2,H8,J3,J7,N1,P9

R3102 10K

R3107

C3073

10K

0.1

R3479 10K

IC3019 BD2224G-TR

(HIGH SIDE SW)

1

2

34

VIN

VOUT

GND

/EN /OC

5

C3009 OPEN

C3010

0.1

SD-DQ15 SD-DQ14 SD-DQ13 SD-DQ12 SD-DQ11 SD-DQ10 SD-DQ9 SD-DQ8 SD-DQ7 SD-DQ6 SD-DQ5 SD-DQ4 SD-DQ3 SD-DQ2 SD-DQ1 SD-DQ0

R3049 100

R3064 100

R3065 100

3-M3 6-M3 2-M3 1-M3 5-M3 4-M3

15R3087

6.8R3082

6.8R3034 15R3016 15R3084 15R3021 15R3083 150R3070

R3030 15x4

R3031 15x4

R3032 15x4

R3033 15x4

5.6KR3099

C3050 OPEN

C3051

0.1

47R3089 47R3092 47R3093 47R3094 22R3095

*1

IC3005(3/6) R8A05011BG-U0 DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

M5 SD-VREF0 N3 GND

R8 SD-DQ15 N8 SD-DQ14 P7 SD-DQ13 R6 SD-DQ12 P6 SD-DQ11 N7 SD-DQ10 T5 SD-DQ9 P8 SD-DQ8 P4 SD-DQ7 T3 SD-DQ6 R4 SD-DQ5 T2 SD-DQ4 P3 SD-DQ3 T4 SD-DQ2 R3 SD-DQ1 N4 SD-DQ0 T6 SD-UDM R5 SD-LDM T7 SD-UDQSN R7 SD-UDQS N5 SD-LDQSN P5 SD-LDQS

L4 SD-WE R1 SD-CLKN R2 SD-CLK L3 SD-CKE H2 SD-A8 H1 SD-A4 N2 SD-BA0 H4 NU M2 SD-A12 N1 SD-A7 M3 SD-A3 P1 SD-BA2 K2 SD-ODT L2 SD-A9 M1 SD-A5 L1 SD-A1 J2 SD-A11 K3 SD-A6 K1 SD-A2 J1 SD-A0 J3 SD-RAS H3 SD-CAS J4 SD-A10 K4 SD-BA1

P12 CS R11 SOUT P11 SIN T11 SCLK

T9 VBUS-EN

R9 VBUS-ST R10 USBDP T10 USBDN P10 NU

TO DIGITAL MAIN 2 IC3005(2/6)

C3184 16P

X3001 25MHz

R3226 OPEN

H15XIN25

R3223 1K

H16XOUT25

F15ASEBRKAK-N F16ASEMD0 E16TRST-N E15TCK D16TDI D15TDO E14TMS

R3522 10K

G15TXD0 G16RXD0

F3BACKLIGHT-ADJ F2VCOM-PWM

J14GND

D1CELL-PWR-CTRL

E13GPY10

B16P-ON-H2 G13P-ON-H1

E2BACKLIGHT-SW

R3503 10K

D14LED1

C1AUDIO-MUTE

C14REMOTE

R3234 OPEN

N12COMP-DET

H14NU

10C3072 OPENC3071

C3183 16P

R3395

C3255 OPEN

4.7K

R3396

4.7K

R3201

100R3468 100R3469

C3254 OPEN

100R3516 100R3517

22R3511

100R3211 OPENR3233 OPENR3531 22R3188

22KR3510

4.7KR3515 22R3217

22R3213

22R3215 33K

C3253 OPEN

(NO CONNECTION)

CN3012

AL+3.3V1 2GND 3 ASEBRKAK-N 4 ASEMD0 5 TRST-N 6TCK 7TDI 8TDO 9TMS

10 CPU-RESET-N

(NO CONNECTION)

CN3010

1 P-ON+5V 2 UART0-TX 3 UART0-RX 4GND

CONTINUE DIGITAL 2

COMP-DET

CONTINUE DIGITAL 5

CPU-RESET-N BACKLIGHT-SW

CONTINUE DIGITAL 4

CELL-PWR-CTRL GPY10 CPU-RESET-N P-ON-H2 P-ON-H1 BACKLIGHT-ADJ BACKLIGHT-SW VCOM-PWM

CONTINUE DIGITAL 5

SW-EN LED1 AUDIO-MUTE REMOTE

CONTINUE DIGITAL 4

P-ON+1.8V P-ON+3.3V AL+3.3V P-ON+5V

CONTINUE DIGITAL 1

CELL-PWR-CTRL

DIGITAL MAIN CBA UNIT

MP

NO

10-7

QR

PL12.2SCAD3

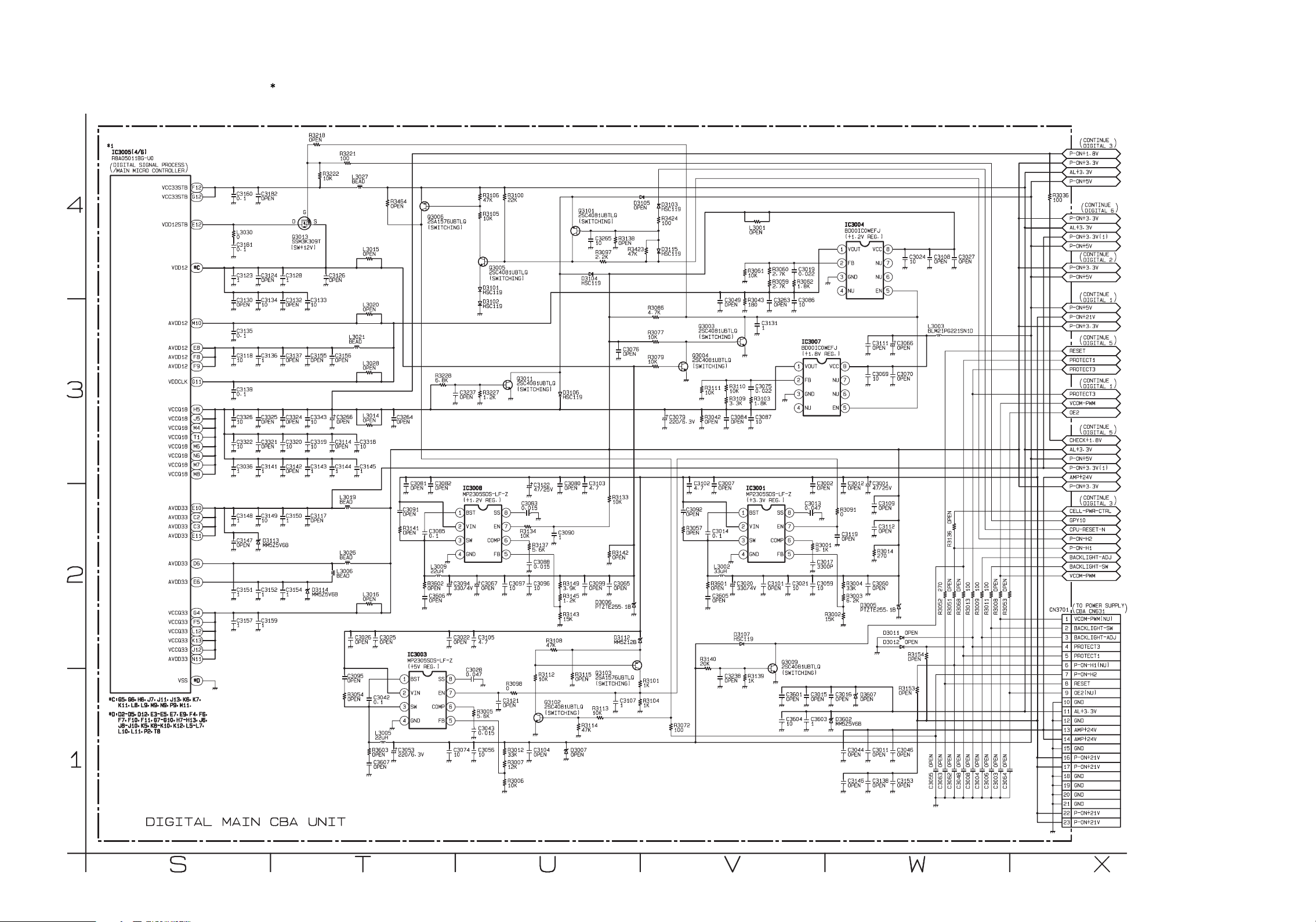

Digital Main 4 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

R3218 OPEN

R3222 10K

G

DS

Q3013 SSM3K309T

(SW+12V)

C3128 1

C313210C3133 OPEN

C3137

C3155

OPEN

C3324

C3343

OPEN

10

C3320

C3319

10

C3143

C3142

1

OPEN

C3150

C3117

1

OPEN

C3154

D3114

1

MM5Z5V6B

R3221 100

C3126 OPEN

C3156 OPEN

C3266 OPEN

C3114 OPEN

C3144 1

L3019 BEAD

L3026 BEAD

L3006 BEAD

L3027 BEAD

L3021 BEAD

C3318 10

C3145 1

C3026 OPEN

C3095 OPEN

R3054 OPEN

L3015 OPEN

L3020 OPEN

L3028 OPEN

L3014 OPEN

L3016 OPEN

C3042

0.1

R3603 OPEN

C3607 OPEN

C3025 OPEN

L3005 22uH

R3464 OPEN

C3264 OPEN

C3053 220/6.3V

4

3

2

1

*1

IC3005(4/6) R8A05011BG-U0

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

VCC33STB

F12 G12VCC33STB

E12VDD12STB

*CVDD12

M10AVDD12

E8AVDD12 F8AVDD12 F9AVDD12

G11VDDCLK

H5VCCQ18 J5VCCQ18 M4VCCQ18 T1VCCQ18 M6VCCQ18 N6VCCQ18 M7VCCQ18 M8VCCQ18

E10AVDD33

C2AVDD33 C3AVDD33

E11AVDD33

D6AVDD33

E6AVDD33

G4VCCQ33

F5VCCQ33 L12VCCQ33 K13VCCQ33 J12VCCQ33 N11AVDD33

*DVSS

*C:G5,G6,H6,J7,J11,J13,K6,K7, K11,L8,L9,M9,N9,P9,M11.

*D:D2~D5,D12,E3~E5,E7,E9,F4,F6, F7,F10,F11,G7~G10,H7~H13,J6, J8~J10,K5,K8~K10,K12,L5~L7, L10,L11,P2,T8

C3160

0.1

L3030 0

C3181

0.1

C3123 1

C3130 OPEN

C3135

0.1

C3118 10

C3139

0.1

C3326 10

C3322 10

C3036 1

C3148 1

C3147 OPEN

C3151 1

C3157 1

C3182 OPEN

C3124 OPEN

C3134 10

C3136 1

C3325 OPEN

C3321 OPEN

C3141 1

C3149 10

D3113 MM5Z5V6B

C3152 1

C3159 1

DIGITAL MAIN CBA UNIT

R3100

R3106

22K

47K

Q3006 2SA1576UBTLQ

(SWITCHING)

R3228

6.8K

C3082

C3081

OPEN

C3091 OPEN

R3141

C3085

OPEN

0.1

L3009 22uH

R3602 OPEN

C3606 OPEN

IC3003 MP2305SDS-LF-Z (+5V REG.)

1

BST

SS

2

VIN

EN

3

SW

COMP

45

GND FB

R3105 10K

Q3005 2SC4081UBTLQ

(SWITCHING)

D3101 HSC119

D3102 HSC119

Q3011 2SC4081UBTLQ

(SWITCHING)

R3227

C3237

1.2K

OPEN

IC3008 MP2305SDS-LF-Z (+1.2V REG.) (+3.3V REG.)

1

BST

2

VIN

3

SW

45

GND FB

C3094 330/4V 3.9K

C3022 OPEN

C3028

0.047

8

7

6

C3074 10

COMP

C3067 OPEN

C3105

4.7

R3005

5.6K

C3043

0.015

C3056 10

SS

EN

8

7

6

C3097 10

R3098 0

C3121 OPEN

R3012 33K

R3007 12K

R3006 10K

C3083

0.015

R3134 10K

C3122 47/25V

R3137

5.6K

C3088

0.015

C3096 10

C3104 OPEN

D3106 HSC119

C3080 OPEN

C3090 1

R3149

R3145

1.2K

R3143 15K

R3108 47K

R3112 10K

Q3102 2SC4081UBTLQ

(SWITCHING)

D3007 OPEN

Q3101 2SC4081UBTLQ

(SWITCHING)

C3265 10

R3097

2.2K

D3104 HSC119

C3103

4.7 R3133

10K

R3142 OPEN

C3099

C3065

OPEN

D3006 PTZTE255.1B

D3112 MM5Z12B

Q3103

R3115

2SA1576UBTLQ

OPEN

(SWITCHING)

R3113 10K

R3114 47K

R3138 OPEN

R3423 47K

C3076 OPEN

C3107 1

D3105 OPEN

R3101 1K

R3104 1K

R3086

4.7K

R3077 10K

R3079 10K

D3103 HSC119

R3424 100

D3115 HSC119

C3079 220/6.3V

R3072 100

Q3003 2SC4081UBTLQ

(SWITCHING)

Q3004 2SC4081UBTLQ

(SWITCHING)

R3111 10K

R3042 OPEN

C3007

C3102

OPEN

4.7

C3092 OPEN

R3057

C3014

OPEN

0.1

L3002 33uH

R3601 OPEN

C3605 OPEN

R3140 20K

L3001 OPEN

C3019

R3060

R3061 10K

R3043

C3049

180

OPEN

C3131 1

R3110

C3075

10K

0.022

R3103

R3109

1.8K

3.3K

C3084

C3087

OPEN

10

IC3001 MP2305SDS-LF-Z

1

BST

2

VIN

3

SW

45

GND FB

C3020 330/4V

D3107 HSC119

C3238

R3139

OPEN

1K

0.022

2.7K R3062

R3059

1.8K

2.7K

C3086

C3263

10

OPEN

IC3007 BD00IC0WEFJ (+1.8V REG.)

1

VOUT

2

FB

3

GND

45

NU EN

C3002 OPEN

C3013

0.047

8

SS

7

EN

6

COMP

C3101 OPEN

R3001

9.1K

C3017 3300P

C3021

C3059

10

Q3009 2SC4081UBTLQ

(SWITCHING)

C3601

C3015

OPEN

C3603

C3604

1

10

IC3004 BD00IC0WEFJ (+1.2V REG.)

1

VOUT

2

FB

3

GND

45

NU EN

8

VCC

7

NU

6

NU

C3012 OPEN

R3091 0

C3119 OPEN

R3004 33K

R3003

6.2K

R3002 15K

C3016 OPEN

D3602 MM5Z5V6B

C3044 OPEN

C3146 OPEN

8

VCC

7

NU

6

NU

C3111 C3066 OPEN

OPEN

C3070

C3069

OPEN

10

C3001 47/25V

C3109 OPEN

C3112 OPEN

R3014 270

C3060 OPEN

D3005 PTZTE255.1B

D3011 OPEN D3012 OPEN

R3153

C3011 OPEN

C3138 OPEN

OPEN

C3046 OPEN

C3153 OPEN

D3607 OPEN

C3024 10

R3154 OPEN

C3108

C3027

OPEN

L3003 BLM21PG221SN1D

OPENR3136

270R3052

OPENR3051

OPENR3068

100R3013

100R3009

OPENC3063

OPENC3062

OPENC3048

OPENC3008

OPENC3055

OPENC3004

100R3011

OPENR3008

OPENC3006

OPENC3003

OPENC3064 OPENR3053

CONTINUE DIGITAL 3

P-ON+1.8V P-ON+3.3V AL+3.3V P-ON+5V

R3036 100

CONTINUE DIGITAL 6

P-ON+3.3V AL+3.3V P-ON+3.3V(1) P-ON+5V

CONTINUE DIGITAL 2

P-ON+3.3V P-ON+5V

CONTINUE DIGITAL 1

P-ON+5V P-ON+21V P-ON+3.3V

CONTINUE DIGITAL 5

RESET PROTECT1 PROTECT3

CONTINUE DIGITAL 1

PROTECT3 VCOM-PWM OE2

CONTINUE DIGITAL 5

CHECK+1.8V AL+3.3V P-ON+5V P-ON+3.3V(1) AMP+24V P-ON+3.3V

CONTINUE DIGITAL 3

CELL-PWR-CTRL GPY10 CPU-RESET-N P-ON-H2 P-ON-H1 BACKLIGHT-ADJ BACKLIGHT-SW VCOM-PWM

TO POWER SUPPLY

CN3701

CBA CN631

1 VCOM-PWM(NU) 2 BACKLIGHT-SW 3 BACKLIGHT-ADJ 4 PROTECT3 5 PROTECT1 6 P-ON-H1(NU) 7 P-ON-H2 8 RESET

9 OE2(NU) 10 GND 11 AL+3.3V 12 GND 13 AMP+24V 14 AMP+24V 15 GND 16 P-ON+21V 17 P-ON+21V 18 GND 19 GND

20 GND 21 GND 22 P-ON+21V 23 P-ON+21V

10-8

WSVT

XU

PL12.2SCDA4

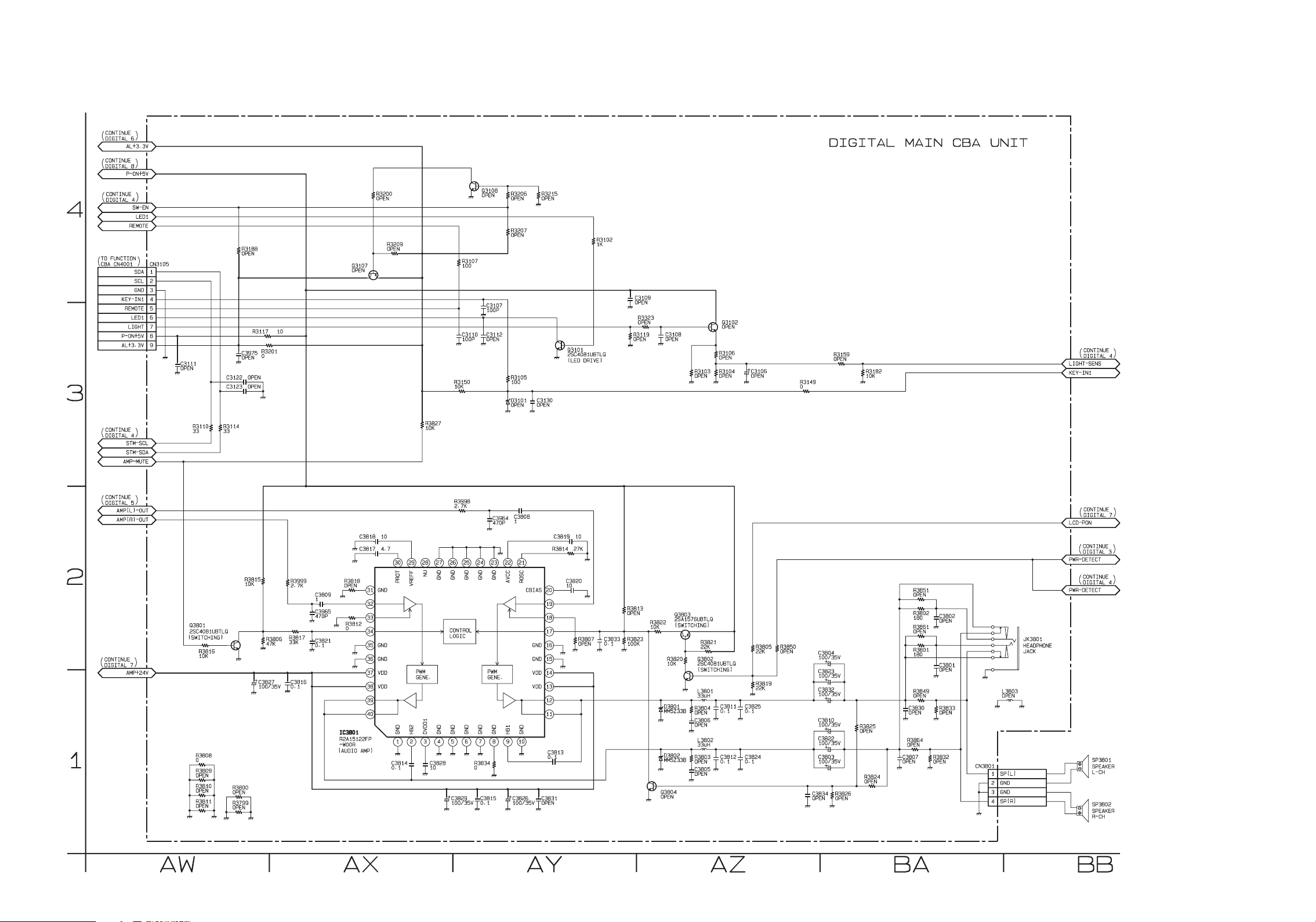

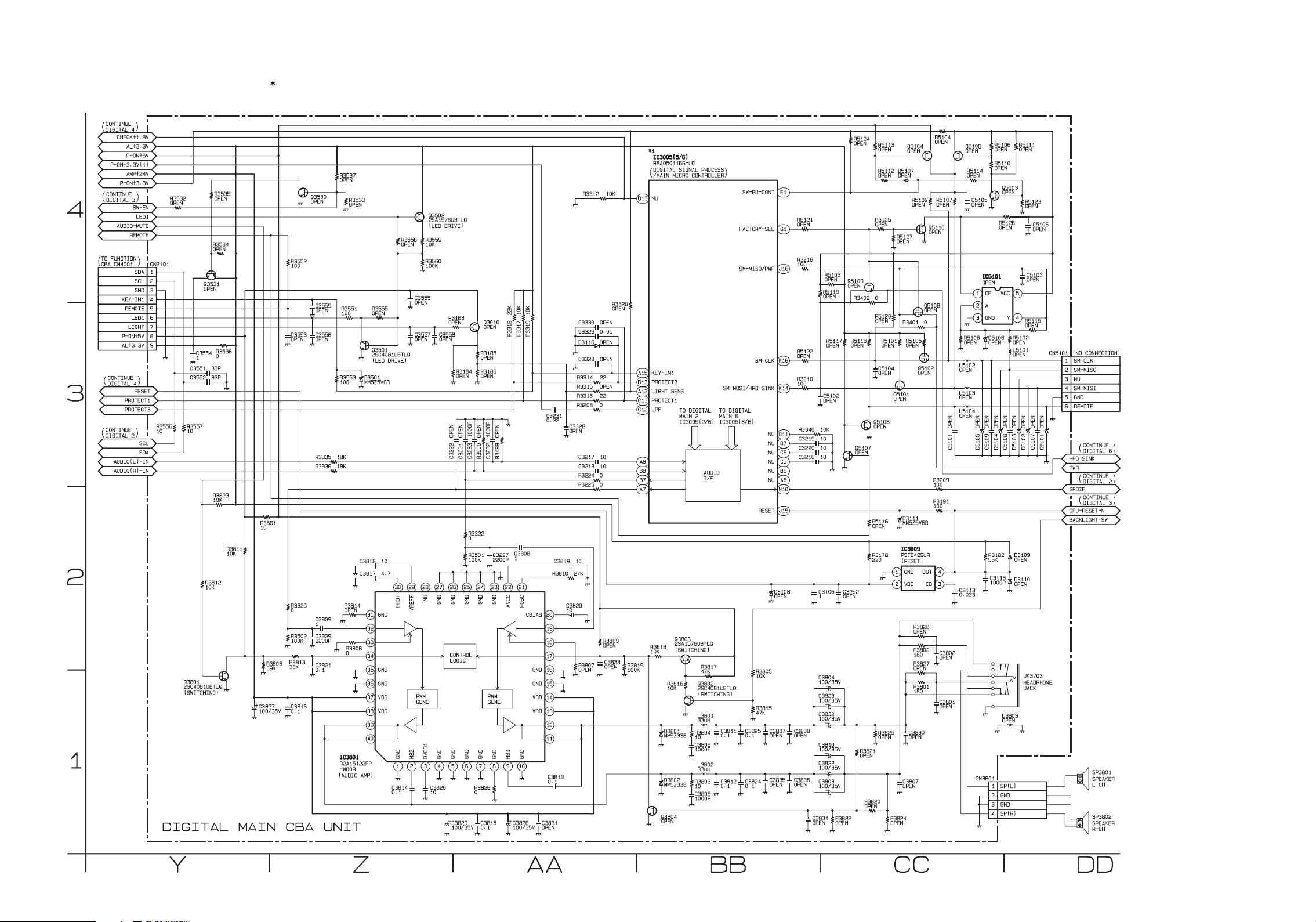

Digital Main 5 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

CONTINUE DIGITAL 4

CHECK+1.8V

AL+3.3V P-ON+5V

P-ON+3.3V(1)

4

3

2

1

AMP+24V

P-ON+3.3V

CONTINUE DIGITAL 3

SW-EN

LED1

AUDIO-MUTE

REMOTE

TO FUNCTION CBA CN4001

CONTINUE DIGITAL 4

RESET PROTECT1 PROTECT3

CONTINUE DIGITAL 2

SCL

SDA AUDIO(L)-IN AUDIO(R)-IN

R3535 OPEN

R3534 OPEN

Q3531 OPEN

R3536

C3554

0

1

33PC3551 33PC3552

R3557 10

R3823 10K

R3812 10K

Q3801 2SC4081UBTLQ

(SWITCHING)

R3811 10K

R3561 10

R3806 39K

C3827 100/35V

R3552 100

C3553 OPEN

R3325 0

R3502 100K

R3813 33K

C3816

0.1

CN3101 1SDA

2SCL 3GND 4KEY-IN1 5REMOTE 6LED1 7LIGHT 8P-ON+5V 9AL+3.3V

R3556 10

R3532 OPEN

DIGITAL MAIN CBA UNIT

Q3530 OPEN

C3559 OPEN

C3556 OPEN

C3809 1

C3229 2200P

C3821

0.1

R3537 OPEN

R3533 OPEN

R3551

R3555

100

OPEN

Q3501 2SC4081UBTLQ

(LED DRIVE)

D3501

R3553

MM5Z5V6B

100

18KR3335 18KR3336

R3814 OPEN

31

32

33

R3808 0

34

35

36

37

38

39

40

IC3801 R2A15122FP

-W00R

(AUDIO AMP)

10C3818

4.7C3817

GND

VDD

12345678910

C3814

0.1

R3558 OPEN

PROT

GND

Q3502 2SA1576UBTLQ

(LED DRIVE)

R3559 10K

R3560 100K

C3555 OPEN

C3557 OPEN

NU

VREFF

PWM GENE.

HB2

DVDD1

C3828 10

R3183 OPEN

C3558 OPEN

GND

CONTROL LOGIC

GND

C3829 100/35V

R3184 OPEN

OPENC3221

OPENC3222

GND

1000PC3233

R3322 0

R3501 100K

GND GND

R3826 0

Q3010 OPEN

R3185 OPEN

R3186 OPEN

1000PC3232

OPENR3500

C3227 2200P

GND

PWM GENE.

GND

C3815

0.1

OPENR3499

GND

22KR3318

10KR3317

C3808 1

21222324252627282930

ROSC

AVCC

CBIAS

GND

HB1

C3826 100/35V

10KR3319

GND

VDD

C3231

0.22

20

19

18

17

16

15

14

13

12

11

C3813

0.1

C3831 OPEN

C3328 OPEN

10C3819

27KR3810

C3820 10

R3807 OPEN

10KR3312

OPENC3330

0.01C3329

OPEND3116

OPENC3323

22R3314 OPENR3315 22R3316 0R3208

10C3217 10C3218 0R3224 0R3225

R3809 OPEN

C3833 OPEN

R3320 OPEN

R3819 100K

*1

IC3005(5/6) R8A05011BG-U0 DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

D13 NU

A15 KEY-IN1 B13 PROTECT3 A13 LIGHT-SENS C13 PROTECT1 C12 LPF

A8 B8 B7 A7

R3818 10K

Q3804 OPEN

R3816 10K

D3801 MM5Z33B

D3802 MM5Z33B

TO DIGITAL MAIN 2 IC3005(2/6)

AUDIO I/F

Q3803 2SA1576UBTLQ

(SWITCHING)

R3817 47K

Q3802 2SC4081UBTLQ

(SWITCHING)

L3801 33uH

R3804 10

C3806 1000P

L3802 33uH

R3803 10

C3805 1000P

TO DIGITAL MAIN 6 IC3005(6/6)

R3805 10K

R3815 47K

C3811

C3825

0.1

C3824

C3812

0.1

E1SW-PU-CONT

G1FACTORY-SEL

J16SM-MISO/PWR

K16SM-CLK

K14SM-MOSI/HPD-SINK

D11NU

D7NU C6NU C5NU B6NU A6NU

N10

J15RESET

D3108 OPEN

C3837 OPEN

C3835 OPEN

R5121 OPEN

R3216 100

R5122 OPEN

R3210 100

C3838 OPEN

C3836 OPEN

R5103 OPEN

R5119 OPEN

R5117 OPEN

C5102 OPEN

10KR3340 10C3219 10C3220 10C3216

C3106 1

C3804 100/35V

C3823 100/35V

C3832 100/35V

C3810 100/35V

C3822 100/35V

C3803 100/35V

C3834 OPEN

C3252 OPEN

R3822 OPEN

R5124 OPEN

Q5109 OPEN

R5118 OPEN

Q5107 OPEN

R5116 OPEN

R3178 220

R3821 OPEN

R3820 OPEN

R5104

Q5104 OPEN

R5109 OPEN

Q5110 OPEN

Q5108 OPEN

0R3401

R5105 OPEN

Q5102 OPEN

D3111 MM5Z5V6B

IC3009 PST8429UR (RESET)

GND OUT

CDVDD

R3828 OPEN

R3802 180

R3827 OPEN

R3801 180

C3830 OPEN

C3807 OPEN

OPEN

R5107 OPEN

R3209 100

R3191 100

32

C3802 OPEN

C3801 OPEN

OPENC5101

R5113 OPEN

R5112

D5107

OPEN

R5125 OPEN

R5127 OPEN

0R3402

R5120 OPEN

R5101 OPEN

C5104 OPEN

Q5101 OPEN

Q5106 OPEN

14

R3825 OPEN

R3824 OPEN

Q5105 OPEN

R5114 OPEN

C5105 OPEN

R5108 OPEN

L5102 OPEN

L5103 OPEN

L5104 OPEN

C3113

0.033

R5106 OPEN

R5110 OPEN

R5126 OPEN

IC5101 OPEN

1OE

2A

3 GND 4Y

D5106 OPEN

OPEND5104

OPEND5105

OPENC5109

R3182 56K

C3116 1000P

CN3801

1 SP(L) 2 GND 3 GND 4 SP(R)

Q5103 OPEN

R5102 OPEN

L5101 OPEN

OPENC5108

D3109 OPEN

D3110 OPEN

L3803 OPEN

R5111 OPEN

R5123 OPEN

C5106 OPEN

C5103 OPEN

5VCC

R5115 OPEN

OPEND5102

OPENC5107

OPEND5103

JK3703 HEADPHONE

JACK

CN5101

OPEND5101

1 SM-CLK 2 SM-MISO 3NU 4 SM-MISI 5 GND 6 REMOTE

HPD-SINK PWR

SPDIF

CPU-RESET-N BACKLIGHT-SW

(NO CONNECTION)

CONTINUE DIGITAL 6

CONTINUE DIGITAL 2

CONTINUE DIGITAL 3

SP3801 SPEAKER

L-CH

SP3802 SPEAKER

R-CH

YCCBBAAZDD

10-9

PL12.2SCAD5

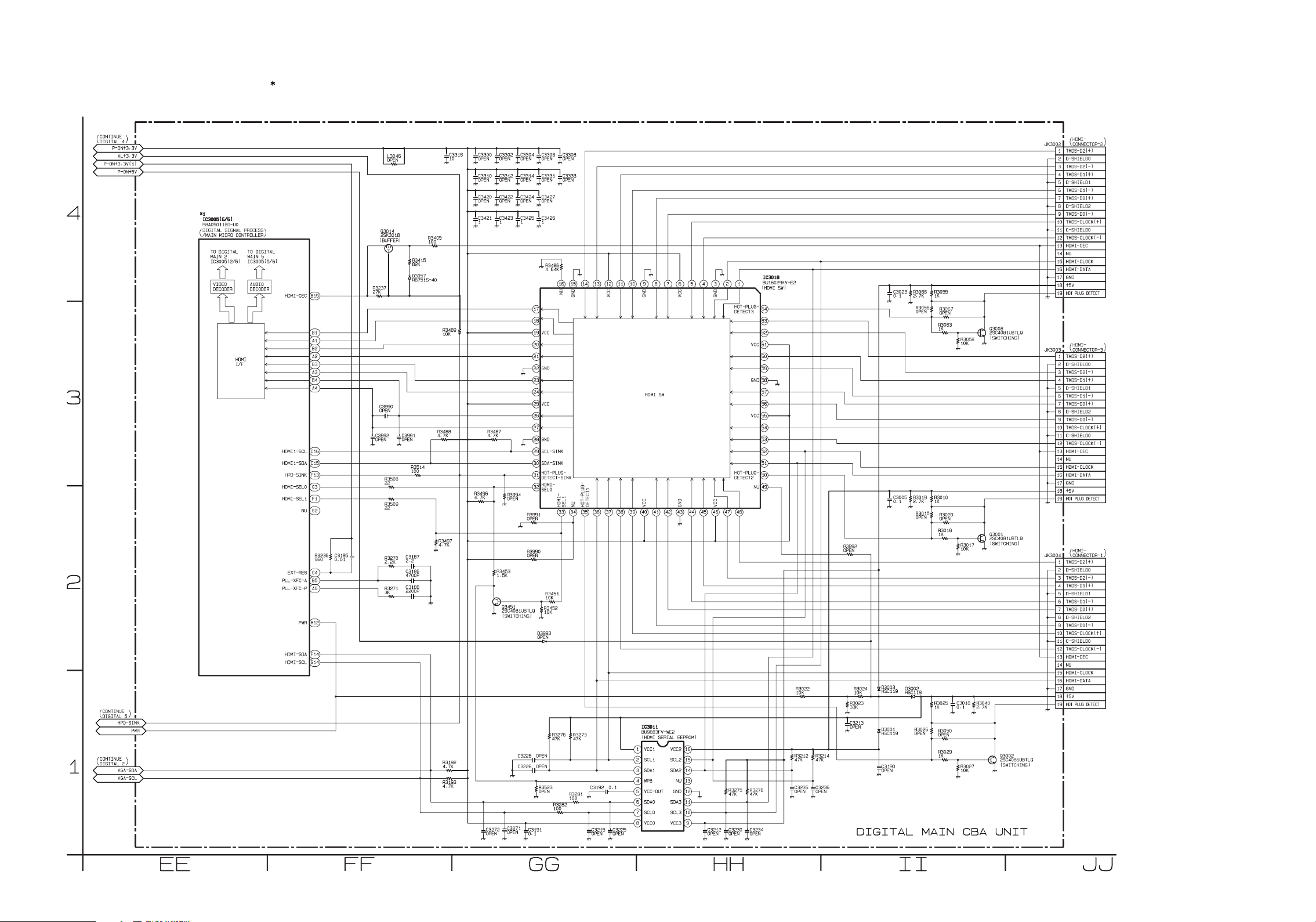

Digital Main 6 Schematic Diagram [TYPE A]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3005. IC3005 is divided into six and shown as IC3005 (1/6) ~ IC3005 (6/6) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE DIGITAL 4

P-ON+3.3V

AL+3.3V

P-ON+3.3V(1)

P-ON+5V

CONTINUE DIGITAL 5

HPD-SINK

CONTINUE DIGITAL 2

VGA-SDA VGA-SCL

PWR

*1

IC3005(6/6) R8A05011BG-U0 DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

VIDEO DECODER

TO DIGITAL MAIN 5 IC3005(5/6)

AUDIO DECODER

HDMI I/F

TO DIGITAL MAIN 2 IC3005(2/6)

HDMI-CEC B15

B1 A1 B2 A2 B3 A3 B4 A4

C16HDMI1-SCL

C15HDMI1-SDA

F13HPD-SINK

G3HDMI-SEL0

F1HDMI-SEL1

G2NU

C4EXT-RES B5PLL-XFC-A A5PLL-XFC-P

M12PWR

F14HDMI-SDA G14HDMI-SCL

R3236 560

C3185

0.01

Q3014 2SK3018

(BUFFER)

R3237 27K

C3990 OPEN

C3992 OPEN

R3508 22

R3509 22

R3270

2.2K

R3271 3K

L3046 OPEN

R3415 82K

D3057 RB751S-40

C3991 OPEN

R3514 100

C3187

2.2

C3186 4700P

C3188 2200P

R3405 100

R3488

4.7K

R3489 10K

R3497

4.7K

R3192

4.7K

R3193

4.7K

C3316

C3300

10

OPEN

C3310 OPEN

C3420 OPEN

C34211C34231C34251C3426 1

R3487

4.7K

R3496

4.7K

C3272 OPEN

C3302

C3304

OPEN

C3312

C3314

OPEN

C3422

C3424

OPEN

R3494 OPEN

R3453

1.5K

Q3451 2SC4081UBTLQ

(SWITCHING)

C3271 OPEN

C3306 OPEN

C3331 OPEN

C3427 OPEN

R3486

4.64K

17

18

19 VCC

20

21

22 GND

23

24

25 VCC

26

27

28 GND

29 SCL-SINK

30 SDA-SINK

HOT-PLUG-

31

DETECT-SINK HDMI-

32

SEL0

R3991 OPEN

R3990 OPEN

R3451 10K

R3452 10K

D3993 OPEN

OPENC3228

OPENC3226

R3523 OPEN

C3191

0.1

C3308 OPEN

C3333 OPEN

16

NU

GND

HDMI-

SEL134NU35HOT-PLUG-

33

R3273

R3276

47K

R3281 100

R3282 100

VCC

0.1C3192

C3225 OPEN

10

1112

131415

DETECT1

36 37 38 39 40

C3215 OPEN

C3212 OPEN

GND

VCC

47 48

123

HOT-PLUGDETECT3

HOT-PLUGDETECT2

R3275

R3278

47K

C3234

C3230

OPEN

4

56

789

41 42 43

VCC2

SCL2

SDA2

GND

SDA3

SCL3

VCC

GND

16

15

14

13

NU

12

11

10

44 45 46

GND

HDMI SW

VCC

IC3011 BU9883FV-WE2 (HDMI SERIAL EEPROM)

1

VCC1

2

SCL1

3

SDA1

4

WPB

5

VCC-OUT

6

SDA0

7

SCL0

89

VCC0 VCC3

IC3018 BU16029KV-E2

(HDMI SW)

64

63

62

61VCC

60

59

58GND

57

56

55VCC

54

53

52

51

50

49NU

R3022 10K

R3212 47K

C3235 OPEN

R3214 47K

C3236 OPEN

R3066

2.7K

R3056 OPEN

R3019

2.7K

R3015 OPEN

D3002 HSC119

R3026 OPEN

R3055 1K0.1

R3067 OPEN

R3063 1K

R3010 1K

R3020 OPEN

R3018 1K

R3025 1K

R3050 OPEN

R3029 1K

R3058 10K

R3017 10K

C3018

R3027 10K

R3040

2.7K0.1

R3992 OPEN

R3023 33K

C3213 OPEN

R3024 10K

C3023

C3005

0.1

D3003 HSC119

D3001 HSC119

C3190 OPEN

DIGITAL MAIN CBA UNIT

Q3008 2SC4081UBTLQ

(SWITCHING)

Q3001 2SC4081UBTLQ

(SWITCHING)

Q3002 2SC4081UBTLQ

(SWITCHING)

HDMICONNECTOR-2

JK3002

1 TMDS-D2(+) 2 D-SHIELD0 3 TMDS-D2(-) 4 TMDS-D1(+) 5 D-SHIELD1 6 TMDS-D1(-) 7 TMDS-D0(+) 8 D-SHIELD2

9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

HDMI-

JK3003

CONNECTOR-3

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

HDMICONNECTOR-1

JK3004

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-) 10 TMDS-CLOCK(+) 11 C-SHIELD0 12 TMDS-CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

EE FF GG HH II JJ

10-10

PL12.2SCAD6

Digital Main 1 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

(NO CONNECTION)

4

3

(NO CONNECTION)

2

1

CN3905 1LCD+5V

2LCD+5V 3LCD+5V 4LCD+5V 5LCD+5V 6GND 7GND 8LV-ED3(+)

9LV-ED3(-) 10GND 11LV-ECLK(+) 12LV-ECLK(-) 13GND 14LV-ED2(+) 15LV-ED2(-) 16LV-ED1(+) 17LV-ED1(-) 18GND 19LV-ED0(+) 20LV-ED0(-) 21GND 22GND 23NU 24NU 25GND 26NU 27NU 28NU 29NU 30NU 31GND

CN3906

1LCD+12V

2LCD+12V

3LCD+12V

4LCD+12V

5NU

6GND

7GND

8GND

9GND 10GND 11NU 12NU 13LV-ED3(+) 14LV-ED3(-) 15GND 16LV-ECLK(+) 17LV-ECLK(-) 18GND 19LV-ED2(+) 20LV-ED2(-) 21LV-ED1(+) 22LV-ED1(-) 23LV-ED0(+) 24LV-ED0(-) 25GND 26GND 27NU 28NU 29LV-OD3(+) 30LV-OD3(-) 31GND 32LV-OCLK(+) 33LV-OCLK(-) 34GND 35LV-OD2(+) 36LV-OD2(-) 37LV-OD1(+) 38LV-OD1(-) 39LV-OD0(+) 40LV-OD0(-) 41GND 42NU 43NU 44NU 45NU 46NU 47NU 48NU 49NU 50NU 51GND

OPENR3890

OPENR3889

OPENR3870

OPENR3862

OPENR3866 OPENR3867 OPENR3868

C3903

C3902 OPEN

R3940 OPEN

C3901 OPEN

R3896 OPEN

R3941 OPEN

C3904 OPEN

OPEN

OPENR3869 OPENR3906 OPENR3907 OPENR3902

C3949

C3943 OPEN

OPENR3953 OPENR3951 OPENR3950 OPENR3949

OPENR3948 OPENR3947 OPENR3946 OPENR3943 OPENR3918 OPENR3917

OPENR3888 OPENR3887 OPENR3971 OPENR3970

OPENR3969 OPENR3968

OPENR3965 OPENR3962 OPENR3961 OPENR3959 OPENR3958 OPENR3957

OPENR3886 OPENR3885

C3910 OPEN

OPEN

C3944 OPEN

R3927 OPEN

C3970 OPEN

OPENC3915

OPENC3914

C3957 OPEN

OPENR3900 OPENR3903 OPENR3905

C3909 OPEN

D3905 OPEN

IC3901 OPEN

1

BS

2

EN

3

SW

COMP

45

GND FB

L3901 OPEN

C3953 OPEN

OPENC3918

OPENC3916

OPENC3917

OPENC3919

OPENC3920

R3952 OPEN

D3906 OPEN

C3946 OPEN

8

SS

7

EN

6

R3937

R3938

OPEN

R3939 OPEN

C3954

C3956 D3901

OPEN

OPENC3921

OPENC3924

OPENC3922

OPENC3923

OPENC3925

R3550 OPEN

C3951 OPEN

R3936 OPEN

C3950 OPEN

C3952

OPEN

*1

IC3101(1/8) MN2WS0172A

J6 J7 G2 G1

H4 G4

H1 G3 H2 H3 J2 J3

F2 NU F3 NU

C3958

47/25V OPEN

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

LVDS TX

TO DIGITAL MAIN 5 IC3101(5/8)

D3902 OPEN

R3897 OPEN

R3898 OPEN

C3959 OPEN

L4 L5 L3 L2 K5 K4

K3 L1

J5 J4 K1 K2 K7 K6 P7NU A2TP D4POL B3CPV B2OE D5OE2 C3STV

C4NU B1NU G6BACKLIGHT-ADJ D3VCOM-PWM

C3997 OPEN

R3911 OPEN

OPENC3926

R3912 OPEN

OPENC3927

OPENC3928

OPENR3944 OPENR3980

R3901 10K

C3996 OPEN

R3899 OPEN

R3891 OPEN

Q3904 OPEN

OPENC3929

R3942 0

Q3905 OPEN

1

2

36

45

OPENC3934

OPENC3933

OPENC3931

OPENC3932

OPENC3935

R3945 OPEN

OPENC3936

OPENC3937

OPENC3930

8

7

OPENC3960

OPENC3961

100R3974 100R3975 100R3976 100R3977 100R3978 100R3979

Q3902 OPEN

Q3903 OPEN

G

SD

R3895 OPEN

R3929 OPEN

C3995 OPEN

C3994 OPEN

R3930 OPEN

R3894 OPEN

R3892 OPEN

R3893 OPEN

C3900 OPEN

R3932

R3934

18K

3.9K

R3933

C3947

R3916 10K

C3948

0.1

100KR3884

100KR3928

0R3926 0R3922 0R3920

0R3534 0R3535 0R3536 0R3537 0R3538 0R3539

0R3540 0R3541

OPENR3542 OPENR3543 OPENR3544 OPENR3545 OPENR3532 OPENR3533

47/25V

100KR3883

100KR3882

R3925 OPEN

100KR3881

12K

100KR3880

R3935 1K

OPENC3942

R3931 11K

OPENC3998

OPENC3941

Q3901 2SC4081UBTLQ

(DRIVE)

100PC3938

OPENC3940

OPENC3939

DIGITAL MAIN CBA UNIT

R3924 OPEN

R3923 OPEN

CONTINUE DIGITAL 8

P-ON+12V/+21V P-ON+5V

TO LCD PANEL

CN3904

ASSEMBLY

30 LCD+21V 29 LCD+21V 28 GND 27 VCOM-DC 26 PWR-CTRL 25 P-ON+3.3V 24 GND 23 LVDS-OD0(-) 22 LVDS-OD0(+) 21 LVDS-OD1(-) 20 LVDS-OD1(+) 19 LVDS-OD2(-) 18 LVDS-OD2(+) 17 GND 16 LVDS-OCLK(-) 15 LVDS-OCLK(+) 14 GND 13 LVDS-OD3(-) 12 LVDS-OD3(+) 11 LVDS-OD4(-) 10 LVDS-OD4(+)

9 LVDS-OD5(-) 8 LVDS-OD5(+) 7GND 6TP 5POL 4CPV 3OE 2OE2 1STV

(NO CONNECTION)

CN3903

31 LCD+21V 30 LCD+21V 29 LCD+21V 28 GND 27 VCOM-DC 26 PWR-CTRL 25 P-ON+3.3V 24 GND 23 LVDS-OD0(-) 22 LVDS-OD0(+) 21 LVDS-OD1(-) 20 LVDS-OD1(+) 19 LVDS-OD2(-) 18 LVDS-OD2(+) 17 GND 16 LVDS-OCLK(-) 15 LVDS-OCLK(+) 14 GND 13 LVDS-OD3(-) 12 LVDS-OD3(+) 11 LVDS-OD4(-) 10 LVDS-OD4(+)

9 LVDS-OD5(-) 8 LVDS-OD5(+) 7GND 6TP 5POL 4CPV 3OE 2OE2 1STV

CONTINUE DIGITAL 3

FRC-CTRL3

CONTINUE DIGITAL 6

P-ON+3.3V

CONTINUE DIGITAL 7

VCOM-PWM LCD-PON BACKLIGHT-ADJ OE2 PROTECT3

BA FE

CD

10-11

PL12.2SCBD1

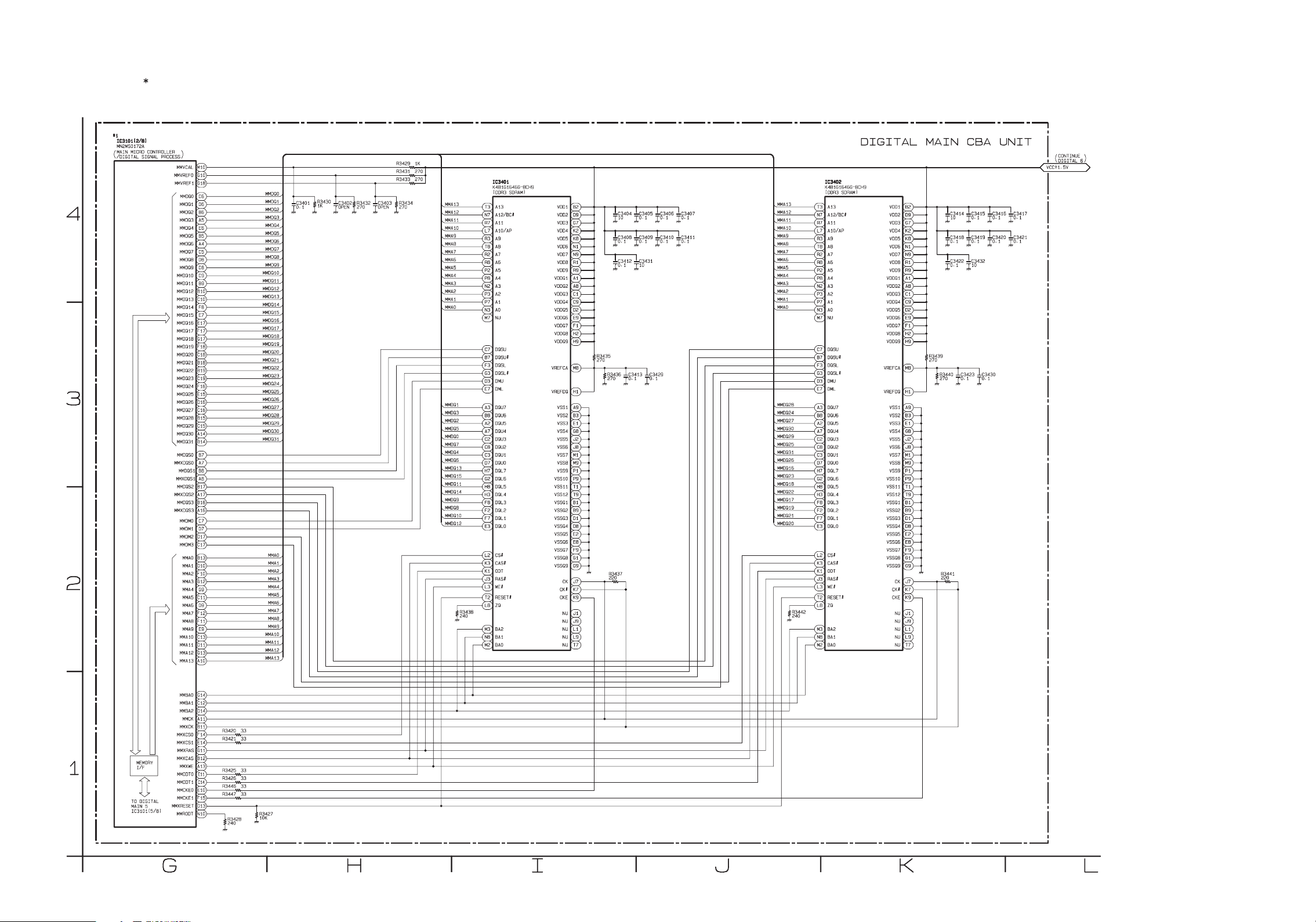

Digital Main 2 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

*1

IC3101(2/8) MN2WS0172A MAIN MICRO CONTROLLER /DIGITAL SIGNAL PROCESS

4

3

2

MMVCAL MMVREF0 MMVREF1

MMDQ0 MMDQ1 MMDQ2 MMDQ3 MMDQ4 MMDQ5 MMDQ6 MMDQ7 MMDQ8

MMDQ9 MMDQ10 MMDQ11 MMDQ12 MMDQ13 MMDQ14 MMDQ15 MMDQ16 MMDQ17 MMDQ18 MMDQ19 MMDQ20 MMDQ21 MMDQ22 MMDQ23 MMDQ24 MMDQ25 MMDQ26 MMDQ27 MMDQ28 MMDQ29 MMDQ30 MMDQ31

MMDQS0

MMXDQS0

MMDQS1 MMXDQS1

MMDQS2

MMXDQS2

MMDQS3

MMXDQS3

MMDM0

MMDM1

MMDM2

MMDM3

MMA0 MMA1 MMA2 MMA3 MMA4 MMA5 MMA6 MMA7 MMA8

MMA9 MMA10 MMA11 MMA12 MMA13

M10 G10 G18

C6 D6 B6 A5 E6 B5 A4 C5 D8 C8 C9

B9 B10 C10

F8

E7 E17 F17 G17 F18 C18 B18 B19 C19 F16 E15 D16 C16 B15 C15 A14 B14

B7

A7

B8

A8 B17 A17 B16 A16

C7

D7 D17 C17

B13 D10 F10 G12

G9 C11

D9 F12 F11

E9 C13 D11 G13 A10

MMDQ0 MMDQ1 MMDQ2 MMDQ3 MMDQ4 MMDQ5 MMDQ6 MMDQ7 MMDQ8

MMDQ9 MMDQ10 MMDQ11 MMDQ12 MMDQ13 MMDQ14 MMDQ15 MMDQ16 MMDQ17 MMDQ18 MMDQ19 MMDQ20 MMDQ21 MMDQ22 MMDQ23 MMDQ24 MMDQ25 MMDQ26 MMDQ27 MMDQ28 MMDQ29 MMDQ30 MMDQ31

MMA0 MMA1 MMA2 MMA3 MMA4 MMA5 MMA6 MMA7 MMA8

MMA9 MMA10 MMA11 MMA12 MMA13

C3401

0.1

R3430 1K

C3402 OPEN

R3432 270

C3403 OPEN

R3434 270

1KR3429 270R3431 270R3433

MMA13 MMA13 MMA12 MMA11 MMA10 MMA9 MMA8 MMA7 MMA6 MMA5 MMA4 MMA3 MMA2 MMA1 MMA0

MMDQ1 MMDQ3 MMDQ2 MMDQ5 MMDQ0 MMDQ7 MMDQ4 MMDQ6 MMDQ13 MMDQ15 MMDQ11 MMDQ14 MMDQ9 MMDQ8 MMDQ10 MMDQ12

IC3401 K4B1G1646G-BCH9 (DDR3 SDRAM)

CK J7

NU J1 NU J9

NU L9 NU T7

B2VDD1 D9VDD2 G7VDD3 K2VDD4 K8VDD5 N1VDD6 N9VDD7 R1VDD8 R9VDD9 A1VDDQ1 A8VDDQ2 C1VDDQ3 C9VDDQ4 D2VDDQ5 E9VDDQ6 F1VDDQ7 H2VDDQ8 H9VDDQ9

R3435 270

M8VREFCA

H1VREFDQ

A9VSS1 B3VSS2 E1VSS3 G8VSS4 J2VSS5 J8VSS6 M1VSS7 M9VSS8 P1VSS9 P9VSS10 T1VSS11 T9VSS12 B1VSSQ1 B9VSSQ2 D1VSSQ3 D8VSSQ4 E2VSSQ5 E8VSSQ6 F9VSSQ7 G1VSSQ8 G9VSSQ9

K7CK# K9CKE

L1NU

R3436 270

R3437 220

C3404 10

C3408

0.1

C3412

0.1

C3413

0.1

C3405

0.1

C3409

0.1

C3431 10

C3429

0.1

C3406

0.1

C3410

0.1

C3407

0.1

C3411

0.1

A13

T3

A12/BC#N7 A11R7 A10/APL7 A9R3 A8T8 A7R2 A6R8 A5P2 A4P8 A3N2 A2P3 A1P7 A0N3 NUM7

C7 DQSU B7 DQSU# F3 DQSL G3 DQSL# D3 DMU E7 DML

DQU7A3 DQU6B8 DQU5A2 DQU4A7 DQU3C2 DQU2C8 DQU1C3 DQU0D7 DQL7H7 DQL6G2 DQL5H8 DQL4H3 DQL3F8 DQL2F2 DQL1F7 DQL0E3

L2 CS# K3 CAS# K1 ODT J3 RAS# L3 WE#

T2 RESET# T2 RESET# L8 ZQ

R3438 240

BA2M3 BA1N8 BA0M2

MMA12 MMA11 MMA10 MMA9 MMA8 MMA7 MMA6 MMA5 MMA4 MMA3 MMA2 MMA1 MMA0

MMDQ28 MMDQ24 MMDQ27 MMDQ30 MMDQ29 MMDQ25 MMDQ31 MMDQ26 MMDQ16 MMDQ23 MMDQ18 MMDQ22 MMDQ17 MMDQ19 MMDQ21 MMDQ20

R3442 240

IC3402 K4B1G1646G-BCH9 (DDR3 SDRAM)

A13

T3

A12/BC#N7 A11R7 A10/APL7 A9R3 A8T8 A7R2 A6R8 A5P2 A4P8 A3N2 A2P3 A1P7 A0N3 NUM7

C7 DQSU B7 DQSU# F3 DQSL G3 DQSL# D3 DMU E7 DML

DQU7A3 DQU6B8 DQU5A2 DQU4A7 DQU3C2 DQU2C8 DQU1C3 DQU0D7 DQL7H7 DQL6G2 DQL5H8 DQL4H3 DQL3F8 DQL2F2 DQL1F7 DQL0E3

L2 CS# K3 CAS# K1 ODT J3 RAS# L3 WE#

L8 ZQ

BA2M3 BA1N8 BA0M2

DIGITAL MAIN CBA UNIT

CK J7

NU J1 NU J9

NU L9 NU T7

B2VDD1 D9VDD2 G7VDD3 K2VDD4 K8VDD5 N1VDD6 N9VDD7 R1VDD8 R9VDD9 A1VDDQ1 A8VDDQ2 C1VDDQ3 C9VDDQ4 D2VDDQ5 E9VDDQ6 F1VDDQ7 H2VDDQ8 H9VDDQ9

M8VREFCA

H1VREFDQ

A9VSS1 B3VSS2 E1VSS3 G8VSS4 J2VSS5 J8VSS6 M1VSS7 M9VSS8 P1VSS9 P9VSS10 T1VSS11 T9VSS12 B1VSSQ1 B9VSSQ2 D1VSSQ3 D8VSSQ4 E2VSSQ5 E8VSSQ6 F9VSSQ7 G1VSSQ8 G9VSSQ9

K7CK# K9CKE

L1NU

R3439 270

R3440 270

R3441 220

C3414 10

C3418

0.1

C3422

0.1

C3423

0.1

C3415

0.1

C3419

0.1

C3432 10

C3430

0.1

C3416

0.1

C3420

0.1

C3417

0.1

C3421

0.1

CONTINUE DIGITAL 6

VCC+1.5V

1

MEMORY I/F

TO DIGITAL MAIN 5 IC3101(5/8)

G

MMBA0 MMBA1 MMBA2

MMCK

MMXCK MMXCS0 MMXCS1

MMXRAS

MMXCAS

MMXWE

MMODT0 MMODT1 MMCKE0 MMCKE1

MMXRESET

MMRODT

G14 C12 D14 A11 B11 F14 E14 G11 B12 A13

E11

C14 E10 F15 D13 N10

R3428 240

33R3420 33R3421

33R3425 33R3426 33R3446 33R3447

R3427 10K

H

I

J

10-12

K

L

PL12.2SCBD2

Digital Main 3 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

(NO CONNECTION)

GND 2

BOOTSWAP 1

CN3111

4

CONTINUE DIGITAL 1

FRC-CTRL3

3

2

CONTINUE DIGITAL 4

XRST1

CONTINUE DIGITAL 7

RESET

(NO CONNECTION)

CONTINUE DIGITAL 9

CONTINUE DIGITAL 8

P-ON+12V/+21V

CONTINUE DIGITAL 5

10GND

PWR-DETECT

COMP-DET

CN3104

9RESET 8EJTCK 7JTDI 6JTDO 5JTMS 4TRSTN 3EVTRG 2XRST 1AL+3.3V

C3962 OPEN

R3099 OPEN

R3127 10K

R3203 56K

R3192 220

R3112 10K

IC3104 PST8429UR (RESET)

D3181 OPEN

C3190 OPEN

4

OUT3CD

GND

1

C3101 R3630 1

R3113 10K

R3180 OPEN

R3164 OPEN

VDD

2

270 OPEN

R3093 OPEN

D3182 OPEN

R3147 OPEN

R3163 OPEN

Q3106 OPEN

C3132

0.047

R3183 OPEN

Q3181 OPEN

C3102

R3184 OPEN

Q3105 OPEN

R3199 OPEN

C3131 1000P

D3102 OPEN

Q3182 OPEN

R3208 OPEN

R3094 OPEN

R3202 10K

1

R3111 OPEN

OPENR3135

C3121 OPEN

C3128

C3124 10P

10KR3134

10KR3137

10KR3136

47KR3189

47KR3187

X3101

24.576MHz10P

R3170 0

47KR3190 47KR3191

47KR3913 47KR3914

R3185 OPEN

R3198 10K

R3216 OPEN

*1

10KR3222

10KR3223

IC3101(3/8) MN2WS0172A

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

E23

EAS H25 ECLK B25 ERXW B26 ESZ0 C26 ESZ1 D26 XECS0 F23 XECS1 C25 XECS3 F22 NU D23 XERE G21 XEWE0 C24 XEWE1

E1 XDBG-IRQ

OPENR3195

U2 FRC-RDY-1 U3 XIRQ3 T6 XIRQ4 V2 XIRQ5 T5 XIRQ6

U6 XIRQ7 L20 PCCD1 M24 PCREADY

D2 N4

E4 RMC0

AB6 XRSTSTM

AC3 XRST

C3129 OPEN

AC26 EJTCK Y22 JTDI AA25 JTDO AB24 JTMS W20 TRSTN D25 BOOTSWAP

M6 NU

1KR3240

M5 NU

L7 NU

M4 NU

M3 NU

L6 NU

M2 NU

M7 NU

N1 EVTRG

N2 NU

N4 NU

N6 NU

P1 COMP-DET

N7 NU

A3 SCL0

B4 SDA0

AF3 AXI

R3169 OPEN

AE3 AXO U17 NU U16 NU AD2 NU AA6 NU

N7 NU

P2 NU

N5 NU

U20 SDA1 U23 SCL1

AA10 SCL0 AB10 SDA0

MEMORY I/F

TO DIGITAL MAIN 5 IC3104(5/8)

K20ED0 A25ED1 J20ED2 B24ED3 E22ED4 H20ED5 A24ED6 F21ED7 G20NU C23NU D22NU A23NU B23NU F20NU A22NU E21NU

A19NANDRYBY C20NFALE B20NFCLE E19XNFCE G19XNFWE F19XNFWP A20XNFRE L24NU N26NU N24NU M20NU L25NU Y25NU W25NU V24NU T23NU Y26NU W26NU W24NU Y24NU T21NU

V4NU J21EA0 H26EA1 H22EA2 G24EA3 G26EA4 H23EA5 G25EA6 F24EA7 J22EA8 F25EA9 H21EA10 E24EA11 E25EA12 G23EA13 E26EA14 G22EA15 D24NU

P3NU

P5NU

T1NU

R2NU

R4NU

R3NU

T3NU

R6NU

M22NU N22NU M21NU M25NU N20NU N25NU M23NU AA11NU AF10NU

R3115 100 R3116 100 R3129 100 R3130 100 R3131 100 R3166 100 R3167 100 R3168 100

R3171 22 R3172 22 R3173 100 R3174 100 R3175 39 R3176 100 R3177 39

R3138 10K R3139 10K R3140 10K R3141 10K R3142 10K R3143 10K R3144 10K R3145 10K R3264 10K

R3236 1K

R3227 1K

R3224 1K

R3983 10K R3984 10K R3985 10K R3986 10K R3987 10K R3988 10K R3989 10K R3990 10K

ED0 ED1 ED2 ED3 ED4 ED5 ED6 ED7

R3128 10K

10KR3124

OPENR3132

R3123 10K

R3269 10K

BC3105 0

C3125

0.1

IC3102 K9F2G08U0C-SCB0

(NAND FLASH MEMORY)

1

NU

2

NU

3

NU

4

NU

5

NU

6

NU

7

R/B

8

RE

9

CE

10

NU

11

NU

12

VCC

13

VSS VSS

14

NU

15

NU

16

CLE

17

ALE

18

WE

19

20

NU

21

NU

22

NU

23

NU

24

NU

C3126

0.1

NU

I/O7

I/O6

I/O5

I/O4

NU

VCC

NU

I/O3

I/O2

I/O1WP

I/O0

NU

CONTINUE DIGITAL 6

AL+3.3V P-ON+3.3V

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

ED7

ED6

ED5

ED4

ED3

ED2

ED1

ED0

DIGITAL MAIN CBA UNIT

M Q

N RO

10-13

P

PL12.2SCBD3

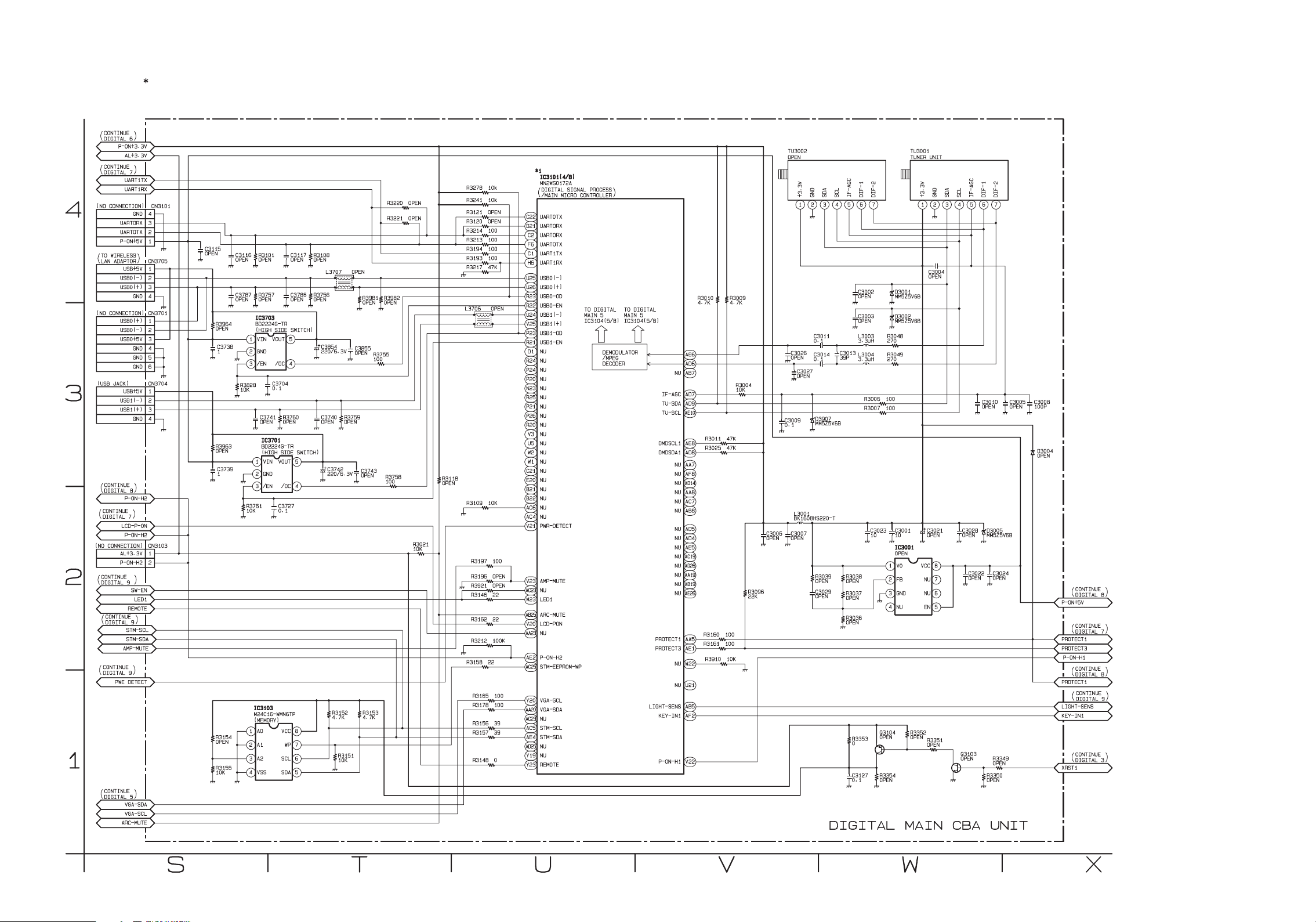

Digital Main 4 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

CONTINUE DIGITAL 6

P-ON+3.3V

AL+3.3V

CONTINUE DIGITAL 7

UART1TX UART1RX

4

3

2

1

(NO CONNECTION)

TO WIRELESS LAN ADAPTOR

(NO CONNECTION)

(USB JACK)

CONTINUE DIGITAL 8

CONTINUE DIGITAL 7

(NO CONNECTION)

CONTINUE DIGITAL 9

PWE DETECT

CONTINUE DIGITAL 5

GND 4 UARTORX 3 UARTOTX 2 P-ON+5V 1

P-ON-H2

LCD-P-ON

P-ON-H2

AL+3.3V 1 P-ON-H2 2

SW-EN

LED1

REMOTE

STM-SCL STM-SDA

AMP-MUTE

VGA-SDA VGA-SCL

ARC-MUTE

CN3101

CN3705 1USB+5V

2USB0(-) 3USB0(+) 4GND

CN3701 1USB0(+)

2USB0(-) 3USB0+5V 4GND 5GND 6GND

CN3704 1USB+5V

2USB1(-) 3USB1(+) 4GND

CN3103

C3115 OPEN

R3964 OPEN

C3738 1

R3963 OPEN

C3739 1

R3154 OPEN

R3155 10K

C3116 OPEN

C3787 OPEN

IC3703 BD2224G-TR (HIGH SIDE SWITCH)

1

2

34

R3828 10K

1

2

34

R3761 10K

IC3103 M24C16-WMN6TP (MEMORY)

1

2

3

45

C3117

R3101 OPEN

R3757 OPEN

VIN

VOUT

GND

/EN /OC

C3704

0.1

C3741 OPEN

IC3701 BD2224G-TR (HIGH SIDE SWITCH)

VIN

VOUT

GND

/EN /OC

C3727

0.1

A0

A1

A2

VSS SDA

OPEN

C3786

5

R3760 OPEN

VCC

WP

SCL

R3108 OPEN

R3756 OPENOPEN

5

8

7

6

L3707 OPEN

C3854 220/6.3V

C3740 R3759 OPEN

C3742 220/6.3V

R3152

4.7K

OPEN

R3151 10K

R3981 OPEN

C3855 OPEN

C3743 OPEN

R3153

4.7K

R3982 OPEN

R3755 100

R3758 100

OPENR3220

OPENR3221

R3021 10K

R3118 OPEN

10kR3278

10kR3241

OPENR3121 OPENR3120 100R3214 100R3213 100R3194 100R3193 47KR3217

L3706 OPEN

10KR3109

100R3197

OPENR3196 OPENR3921 22R3146

22R3162

100KR3212

22R3158

100R3165 100R3178

39R3156 39R3157

0R3148

*1

IC3101(4/8) MN2WS0172A

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

UART0TX

C22 D21 UARTORX

C2 UARTORX F6 UARTOTX C1 UART1TX H6 UART1RX

U25 USB0(-) U26 USB0(+) R23 USB0-OD R22 USB0-EN U24 USB1(-) V25 USB1(+) P23 USB1-OD R21 USB1-EN

D1 NU R24 NU P24 NU P20 NU N23 NU R25 NU P21 NU P26 NU R20 NU

V3 NU

U5 NU

W2 NU

W1 NU C21 NU E20 NU B21 NU B22 NU AC6 NU AC4 NU V21 PWR-DETECT

V23 AMP-MUTE

AC23 NU

W23 LED1

AB25 ARC-MUTE

V20 LCD-PON

AA23 NU

AE2 P-ON-H2

AC25 STM-EEPROM-WP

Y20 VGA-SCL

AA20 VGA-SDA AC23 NU

AC5 STM-SCL AE4 STM-SDA

AD25 NU

Y19 NU Y23 REMOTE

TO DIGITAL MAIN 5 IC3104(5/8)

DEMODULATOR /MPEG DECODER

AE6 AD6 AB7NU

AD7IF-AGC AD9TU-SDA AE10TU-SCL

AE8DMDSCL1 AD8DMDSDA1

AA7NU AF8NU AD14NU AA8NU AC7NU AB8NU

AD5NU AD4NU AE5NU AC19NU AD26NU AA19NU AB19NU AE26NU

AA5PROTECT1 AE1PROTECT3

W22NU

U21NU

AB5LIGHT-SENS AF2KEY-IN1

V22P-ON-H1

R3010

4.7K

R3009

4.7K

47KR3011 47KR3025

100R3160 100R3161

10KR3910

R3004 10K

R3096 22K

C3006 OPEN

C3009

0.1

TU3002 OPEN

+3.3V2GND3SDA4SCL5IF-AGC6DIF-17DIF-2

1

C3002 OPEN

C3003 OPEN

C3013 39P

R3038 OPEN

R3037 OPEN

R3036 OPEN

R3353 0

C3127

0.1

L3003

3.3uH0.1

3.3uH

C3011

C3026

C3014 L3004

OPEN

0.1

C3027 OPEN

D3907 MM5Z5V6B

L3001 BK1608HS220-T

C3007 OPEN

R3039 OPEN

C3029 OPEN

DIGITAL MAIN CBA UNIT

TU3001 TUNER UNIT

+3.3V2GND3SDA4SCL5IF-AGC6DIF-17DIF-2

1

C3004 OPEN

D3001 MM5Z5V6B

D3002 MM5Z5V6B

R3048 270

R3049 270

100R3006 100R3007

C3001 10

IC3001 OPEN

V0

VCC

FB

GND

NU EN

R3352 OPEN

C3021 OPEN

NU

R3351 OPEN

C3028 OPEN

8

7

6

Q3103 OPEN

C3023 10

1

2

3

45

Q3104 OPEN

R3354 OPEN

C3022 OPEN

C3010 OPEN

D3005 MM5Z5V6B

C3024 OPEN

R3349 OPEN

R3350 OPEN

C3005 OPEN

C3008 100P

D3004 OPEN

CONTINUE DIGITAL 8

P-ON+5V

CONTINUE DIGITAL 7

PROTECT1 PROTECT3

P-ON-H1

CONTINUE DIGITAL 8

PROTECT1

CONTINUE DIGITAL 9

LIGHT-SENS KEY-IN1

CONTINUE DIGITAL 3

XRST1

TW

10-14

VSU

X

PL12.2SCBD4

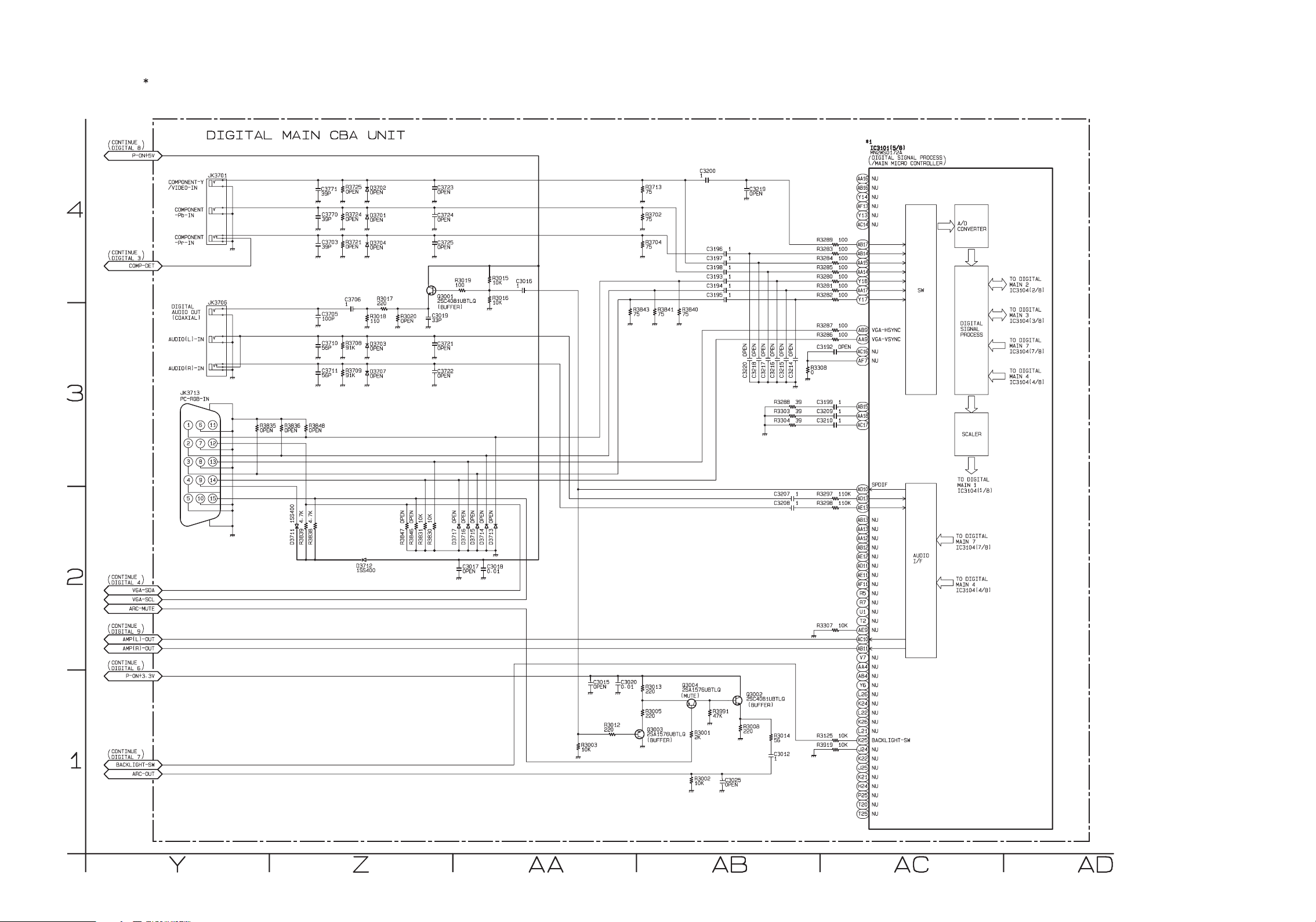

Digital Main 5 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

4

3

2

1

CONTINUE DIGITAL 8

P-ON+5V

CONTINUE DIGITAL 3

COMP-DET

CONTINUE DIGITAL 4

VGA-SDA VGA-SCL

ARC-MUTE

CONTINUE DIGITAL 9

AMP(L)-OUT

CONTINUE DIGITAL 6

P-ON+3.3V

CONTINUE DIGITAL 7

BACKLIGHT-SW

ARC-OUT

COMPONENT-Y /VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

DIGITAL AUDIO OUT (COAXIAL)

AUDIO(L)-IN

AUDIO(R)-IN

JK3713 PC-RGB-IN

1

2

7

3

8

4514

9

10

DIGITAL MAIN CBA UNIT

JK3701

JK3706 10K

11156

12

13

R3835 OPEN

R3836 OPEN

D3711 1SS400

R3848 OPEN

4.7KR3839

C3771 39P

C3770 39P

C3703 39P

C3705 100P

C3710 56P

C3711 56P

4.7KR3838

R3725 OPEN

R3724 OPEN

R3721 OPEN

C3706 1

R3708 91K

R3709 91K

D3712 1SS400

D3702 OPEN

D3701 OPEN

D3704 OPEN

R3017 220

R3018 110

D3703 OPEN

D3707 OPEN

R3020 OPEN

OPENR3847

OPENR3846

C3723 OPEN

C3724 OPEN

C3725 OPEN

Q3001 2SC4081UBTLQ

(BUFFER)

C3019 33P

C3721 OPEN

C3722 OPEN

10KR3830

10KR3831

R3019 100

D3716 OPEN

D3717 OPEN

C3017 OPEN

D3715 OPEN

D3714 OPEN

C3018

0.01

R3015 10K

R3016

D3713 OPEN

C3016 1

C3015 OPEN

R3003 10K

R3012 220

C3020

R3843 75

R3713 75

R3702 75

R3704 75

R3840

R3841

75

R30130.01 220

R3005 220

Q3003 2SA1576UBTLQ

(BUFFER)

Q3004 2SA1576UBTLQ

(MUTE)

C3200 1

C3219 OPEN

1C3197 R3284 100

1C3193 1C3194 1C3195 R3282 100

OPENC3216

OPENC3218

OPENC3220

OPENC3217

R3303 39 R3304 39

Q3002 2SC4081UBTLQ

C3025 OPEN

(BUFFER)

R3008 220

R3014 56

C3012 1

R3001 2K

R3002 10K

R3991 47K

R3283 1001C3196

R3285 1001C3198 R3280 100 R3281 100

R3287 100 R3286 100

OPENC3215

OPENC3214

R3308 0

R3297 110K

1C3207 1C3208 R3298 110K

R3307 10K

*1

IC3101(5/8) MN2WS0172A

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

AA16 NU AB16 NU Y14 NU AF13 NU Y13 NU AC14 NU

100R3289

AB17 AB14 AA15 AA14 Y18 AA17 Y17

AB9 VGA-HSYNC AA9 VGA-VSYNC

OPENC3192

AC16 NU AF7 NU

1C3199R3288 39

AB15

1C3209

AA18

1C3210

AC17

SPDIF

AD10 AD13 AE13

AB13 NU AA13 NU AA12 NU AB12 NU AE12 NU AD11 NU AE11 NU AF11 NU

R5 NU R7 NU U1 NU

T2 NU AE9 NU AC10 AB11AMP(R)-OUT

V7 NU AA4 NU AB4 NU

Y6 NU L26 NU K24 NU L22 NU K26 NU L21 NU

10KR3125

K25 BACKLIGHT-SW

10KR3919

J24 NU K22 NU J25 NU K21 NU H24 NU P25 NU T20 NU T25 NU

SW

AUDIO I/F

A/D CONVERTER

DIGITAL SIGNAL PROCESS

SCALER

TO DIGITAL MAIN 1 IC3104(1/8)

TO DIGITAL MAIN 7 IC3104(7/8)

TO DIGITAL MAIN 4 IC3104(4/8)

TO DIGITAL MAIN 2 IC3104(2/8)

TO DIGITAL MAIN 3 IC3104(3/8)

TO DIGITAL MAIN 7 IC3104(7/8)

TO DIGITAL MAIN 4 IC3104(4/8)

10-15

ABY ADAA ACZ

PL12.2SCBD5

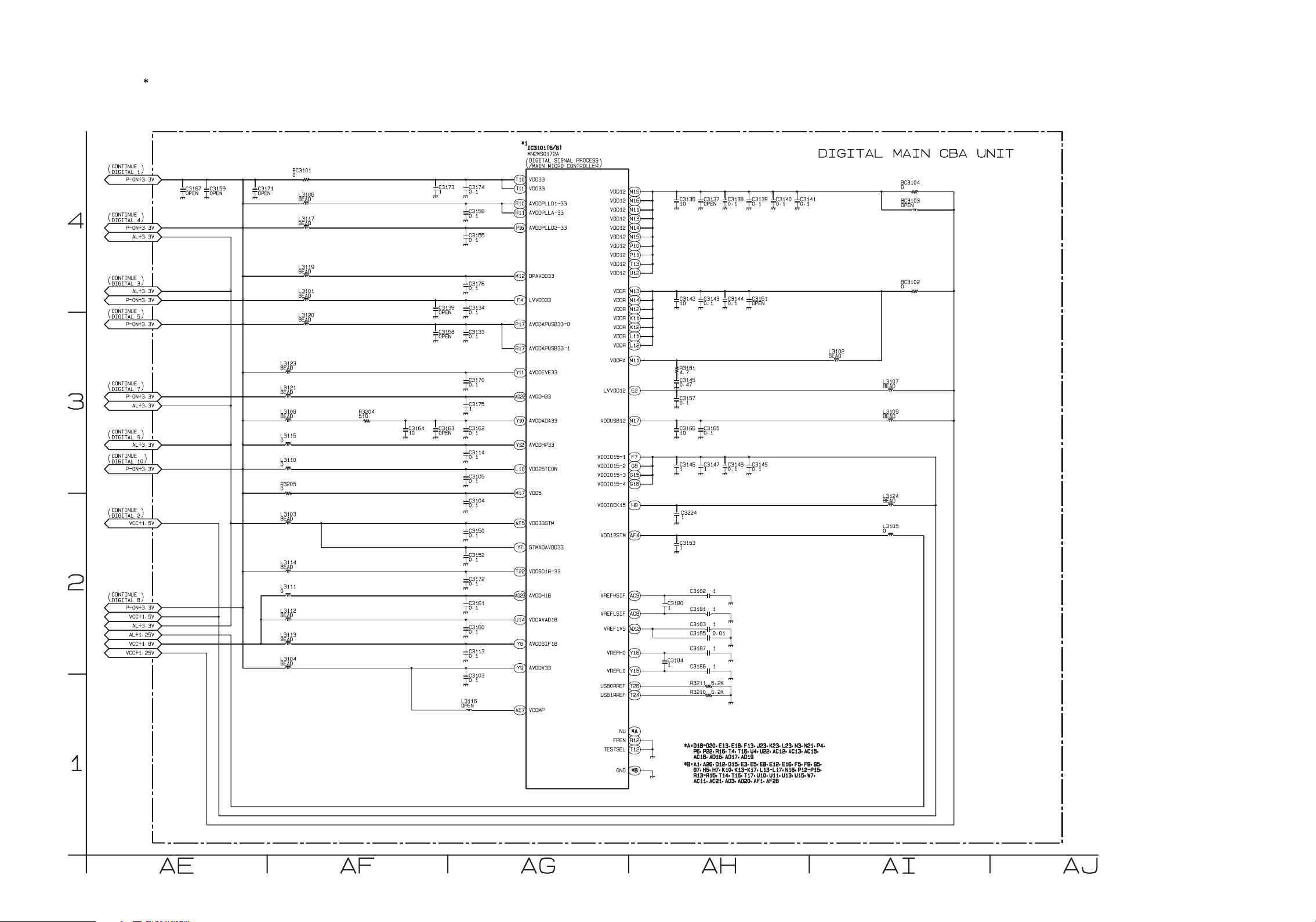

Digital Main 6 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

4

3

2

CONTINUE DIGITAL 1

P-ON+3.3V

CONTINUE DIGITAL 4

P-ON+3.3V

AL+3.3V

CONTINUE DIGITAL 3

AL+3.3V

P-ON+3.3V

CONTINUE DIGITAL 5

P-ON+3.3V

CONTINUE DIGITAL 7

P-ON+3.3V

AL+3.3V

CONTINUE DIGITAL 9

AL+3.3V

CONTINUE DIGITAL 10

P-ON+3.3V

CONTINUE DIGITAL 2

VCC+1.5V

CONTINUE DIGITAL 8

P-ON+3.3V

VCC+1.5V

AL+3.3V AL+1.25V VCC+1.8V

VCC+1.25V

C3167 OPEN

C3159 OPEN

C3171 OPEN

BC3101 0

L3123 BEAD

L3121 BEAD

L3108 BEAD

L3115 0

L3110 0

R3205 0

L3103 BEAD

L3114 BEAD

L3111 0

L3112 BEAD

L3113 BEAD

L3104 BEAD

L3106 BEAD

L3117 BEAD

L3119 BEAD

L3101 BEAD

L3120 BEAD

R3204 510

C3164 10

C3173 1

C3135 OPEN

C3158 OPEN

C3163 OPEN

C3174

0.1

C3156

0.1

C3155

0.1

C3176

0.1

C3134

0.1

C3133

0.1

C3170

0.1

C3175 1

C3162

0.1

C3114

0.1

C3105

0.1

C3104

0.1

C3150

0.1

C3152

0.1

C3172

0.1

C3161

0.1

C3160

0.1

C3113

0.1

C3103

0.1

L3116 OPEN

*1

IC3101(6/8) MN2WS0172A

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

T10

VDD33

T11 VDD33

R10 AVDDPLLD1-33 R11 AVDDPLLA-33

P16 AVDDPLLD2-33

M12 DPAVDD33

F4 LVVDD33

P17 AVDDAPUSB33-0

R17 AVDDAPUSB33-1

Y11 AVDDEVE33

AD22 AVDDH33

Y10 AVDDADA33

Y12 AVDDHP33

L10 VDD25TCON

M17 VDD5

AF5 VDD33STM

Y7 STMADAVDD33

T22 VDDSD18-33

AD23 AVDDH18

U14 VDDAVAD18

Y8 AVDDSIF18

Y9 AVDDV33

AE7 VCOMP

DIGITAL MAIN CBA UNIT

BC3104

L3107 BEAD

L3109 BEAD

L3124 BEAD

L3105 0

0

BC3103 OPEN

BC3102 0

M15VDD12 M16VDD12 N11VDD12 N13VDD12 N14VDD12 N15VDD12 P10VDD12 P11VDD12 T13VDD12 U12VDD12

M13VDDR M14VDDR N12VDDR K11VDDR K12VDDR L11VDDR L12VDDR

M11VDDRA

E2LVVDD12

N17VDDUSB12

F7VDDIO15-1

G8VDDIO15-2 G15VDDIO15-3 G16VDDIO15-4

H8VDDIOCK15

AF4VDD12STM

AC9VREFHSIF

AC8VREFLSIF

AD12VREF1V5

Y16VREFH0

Y15VREFL0

T26USB0RREF T24USB1RREF

C3136 10

C3142 10

R3181

4.7 C3145

0.47

C3157

0.1

C3166 10

C31461C3147 1

C3224 1

C3153 1

C3180 1

C3184 1

C3137 OPEN

C3143

0.1

C3165

0.1

1C3182

1C3181

1C3183

0.01C3185

1C3187

1C3186

6.2KR3211

6.2KR3210

C3138

0.1

C3144

0.1

C3148

0.1

C3139

0.1

C3151 OPEN

C3149

0.1

C3140

0.1

C3141

0.1

L3102 BEAD

1

*ANU R12FPEN T12TESTSEL

*BGND

10-16

*A:D18~D20,E13.E18,F13,J23,K23,L23,N3,N21,P4, P6,P22,R16,T4,T16,U4,U22,AC12,AC13,AC15, AC18,AD16,AD17,AD19

*B:A1,A26,D12,D15,E3,E5,E8,E12,E16,F5,F9,G5, G7,H5,H7,K10,K13~K17,L13~L17,N16,P12~P15, R13~R15,T14,T15,T17,U10,U11,U13,U15,W7, AC11,AC21,AD3,AD20,AF1,AF26

AJAG AIAE AHAF

PL12.2SCBD6

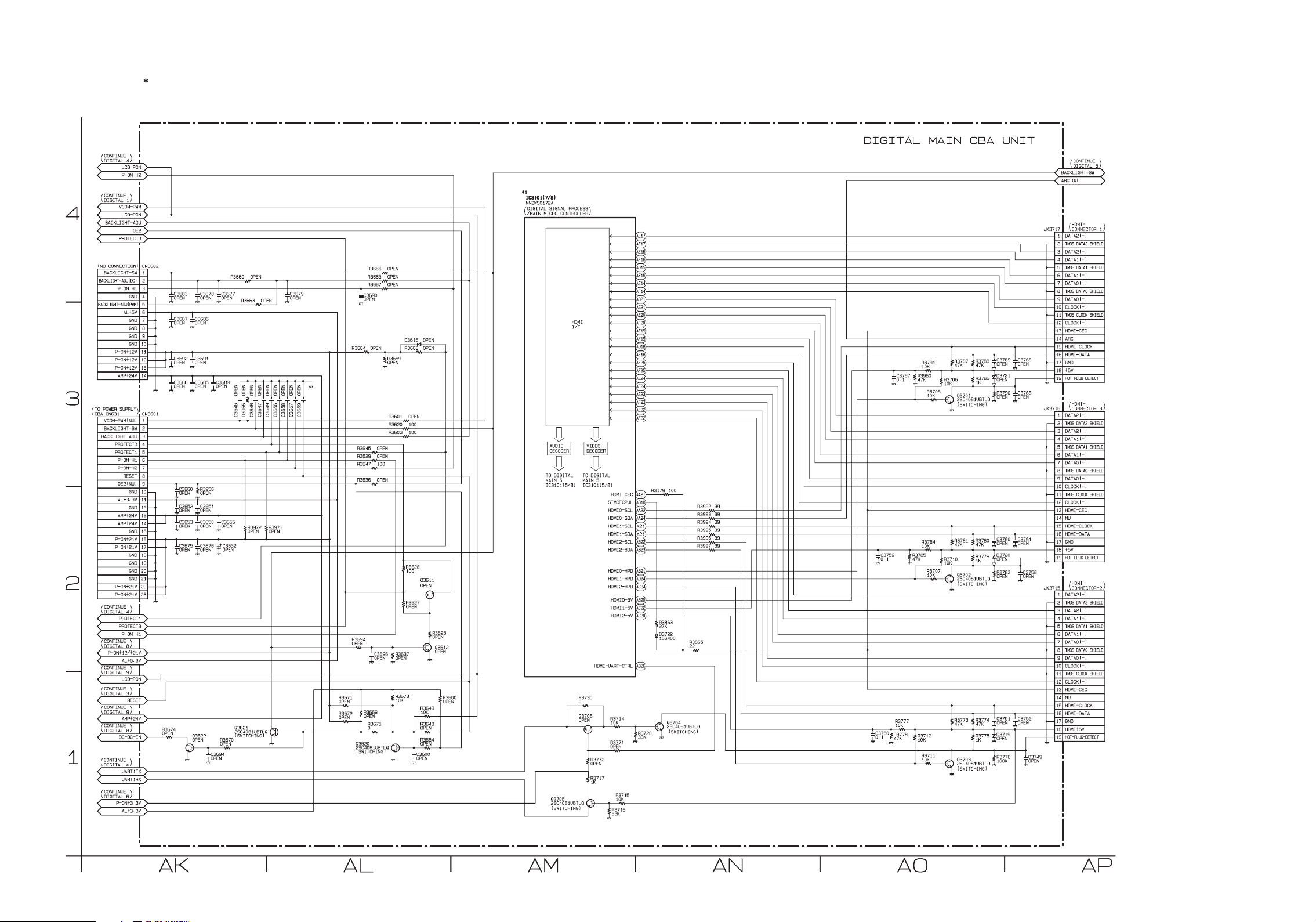

Digital Main 7 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

CONTINUE DIGITAL 4

LCD-PON P-ON-H2

CONTINUE DIGITAL 1

VCOM-PWM

4

3

2

1

LCD-PON

BACKLIGHT-ADJ

OE2

PROTECT3

(NO CONNECTION)

10GND 11P-ON+12V 12P-ON+12V 13P-ON+12V 14AMP+24V

TO POWER SUPPLY CBA CN631

PROTECT3 4

P-ON-H2 7

RESET 8

OE2(NU) 9

10GND 11AL+3.3V 12GND 13AMP+24V 14AMP+24V 15GND 16P-ON+21V 17P-ON+21V 18GND 19GND 20GND 21GND 22P-ON+21V 23P-ON+21V

CONTINUE DIGITAL 4

PROTECT1 PROTECT3

P-ON-H1

CONTINUE DIGITAL 8

P-ON+12/+21V

AL+5.3V

CONTINUE DIGITAL 9

LCD-PON

CONTINUE DIGITAL 3

RESET

CONTINUE DIGITAL 9

AMP+24V

CONTINUE DIGITAL 8

DC-DC-EN

CONTINUE DIGITAL 4

UART1TX UART1RX

CONTINUE DIGITAL 6

P-ON+3.3V

AL+3.3V

CN3602 1BACKLIGHT-SW

2BACKLIGHT-ADJ(DC) 3P-ON-H1 4GND 5BACKLIGHT-ADJ(PWM) 6AL+5V 7GND 8GND 9GND

CN3601 1VCOM-PWM(NU)

2BACKLIGHT-SW 3BACKLIGHT-ADJ

5PROTECT1 6P-ON-H1

R3674 OPEN

C3683 OPEN

C3687 OPEN

C3692 OPEN

C3688 OPEN

C3660 OPEN

C3652 OPEN

C3653 OPEN

C3675 OPEN

C3678 OPEN

C3686 OPEN

C3691 OPEN

C3689

C3685

OPEN

R3956 OPEN

C3651 OPEN

C3650 OPEN

C3676 C3632 OPEN

Q3622 OPEN

C3694 OPEN

OPENR3660

C3677 OPEN

OPENC3648

OPENC3646

OPENR3955

C3655 OPEN

R3972 OPEN

OPEN

Q3621 0 2SC4081UBTLQ

(SWITCHING) R3670 OPEN

OPENR3663

OPENC3649

OPENC3647

R3973 OPEN

OPENC3656

OPENC3658

C3679 OPEN

OPENC3657

OPENC3659

R3694 OPEN

R3671 OPEN

R3672 OPEN

Q3620 2SC4081UBTLQ (SWITCHING)

C3690 OPEN

OPENR3664

R3669 OPEN

R3675

OPENR3645 OPENR3629 100R3647

OPENR3636

C3696 OPEN

OPENR3666 OPENR3665 OPENR3667

R3659 OPEN

R3637 OPEN

R3673 10K

D3616 OPEN

OPENR3668

OPENR3601 100R3620 100R3603

R3628 100

Q3611 OPEN

R3627 OPEN

R3649 10K

R3648 OPEN

R3684 OPEN

C3600 OPEN

R3623 OPEN

Q3612 OPEN

R3600 OPEN

*1

IC3101(7/8) MN2WS0172A

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

HDMI I/F

AUDIO DECODER

TO DIGITAL MAIN 5 IC3101(5/8)

Q3705 2SC4081UBTLQ

(SWITCHING)

VIDEO DECODER

TO DIGITAL MAIN 5 IC3101(5/8)

R3730 0

Q3706 OPEN

R3772 OPEN

R3717 1K

R3714

R3771 OPEN

R3715 10K

R3716 33K

AE17 AF17 AE16 AF16 AD15 AE15 AE14 AF14 AD21 AE21 AE20 AF20 AE19 AF19 AD18 AE18 AE25 AF25 AE24 AF24 AE23 AF23 AE22 AF22

AA21HDMI-CEC AB18STMCECPUL AA22HDMI0-SCL AA24HDMI0-SDA W21HDMI1-SCL Y21HDMI1-SDA AB22HDMI2-SCL AB23HDMI2-SDA

AB21HDMI0-HPD AD24HDMI1-HPD AC24HDMI2-HPD

AB20HDMIO-5V AC22HDMI1-5V AC20HDMI2-5V

AB26HDMI-UART-CTRL

R3720 33K

100R3179

R3863 27K

D3722 1SS400

Q370410K 2SC4081UBTLQ

(SWITCHING)

R3865 22

DIGITAL MAIN CBA UNIT

CONTINUE DIGITAL 5

BACKLIGHT-SW ARC-OUT

HDMI-

JK3717

CONNECTOR-1

1 DATA2(+) 2 TMDS DATA2 SHIELD 3 DATA2(-) 4 DATA1(+) 5 TMDS DATA1 SHIELD 6 DATA1(-) 7 DATA0(+) 8 TMDS DATA0 SHIELD 9 DATA0(-) 10 CLOCK(+) 11 TMDS CLOCK SHIELD 12 CLOCK(-) 13 HDMI-CEC 14 ARC 15 HDMI-CLOCK

C3758 OPEN

C3749 OPEN

JK3716

JK3715

16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

HDMICONNECTOR-3

1 DATA2(+) 2 TMDS DATA2 SHIELD 3 DATA2(-) 4 DATA1(+) 5 TMDS DATA1 SHIELD 6 DATA1(-) 7 DATA0(+) 8 TMDS DATA0 SHIELD 9 DATA0(-) 10 CLOCK(+) 11 TMDS CLOCK SHIELD 12 CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 +5V 19 HOT PLUG DETECT

HDMICONNECTOR-2

1 DATA2(+) 2 TMDS DATA2 SHIELD 3 DATA2(-) 4 DATA1(+) 5 TMDS DATA1 SHIELD 6 DATA1(-) 7 DATA0(+) 8 TMDS DATA0 SHIELD 9 DATA0(-) 10 CLOCK(+) 11 TMDS CLOCK SHIELD 12 CLOCK(-) 13 HDMI-CEC 14 NU 15 HDMI-CLOCK 16 HDMI-DATA 17 GND 18 HDMI+5V 19 HOT-PLUG-DETECT

C3769 OPEN

D3721 OPEN

R3790 OPEN

C3760 OPEN

D3720 OPEN

R3783 OPEN

C3751 OPEN

D3719 OPEN

R3776 100K

C3768 OPEN

C3766 OPEN

C3761 OPEN

C3752 OPEN

R3791 10K

C3767

R3960

0.1

47K

R3705

39R3992 39R3993 39R3994 39R3995 39R3996 39R3997

C3759

0.1

C3750

0.1

R3777 10K

R3778 47K

R3785 47K

R3712 10K

R3784 10K

R3707

R3711

47K

R3706 10K

Q370110K 2SC4081UBTLQ

(SWITCHING)

R3781 47K

R3710 10K

Q370210K 2SC4081UBTLQ

(SWITCHING)

R3773 47K

Q370310K 2SC4081UBTLQ

(SWITCHING)

47K

R3786 1K

R3780 47K

R3779 1K

R3774 47K

R3775 1K

R3788

R3787

AK

AL AM AN AO AP

10-17

PL12.2SCBD7

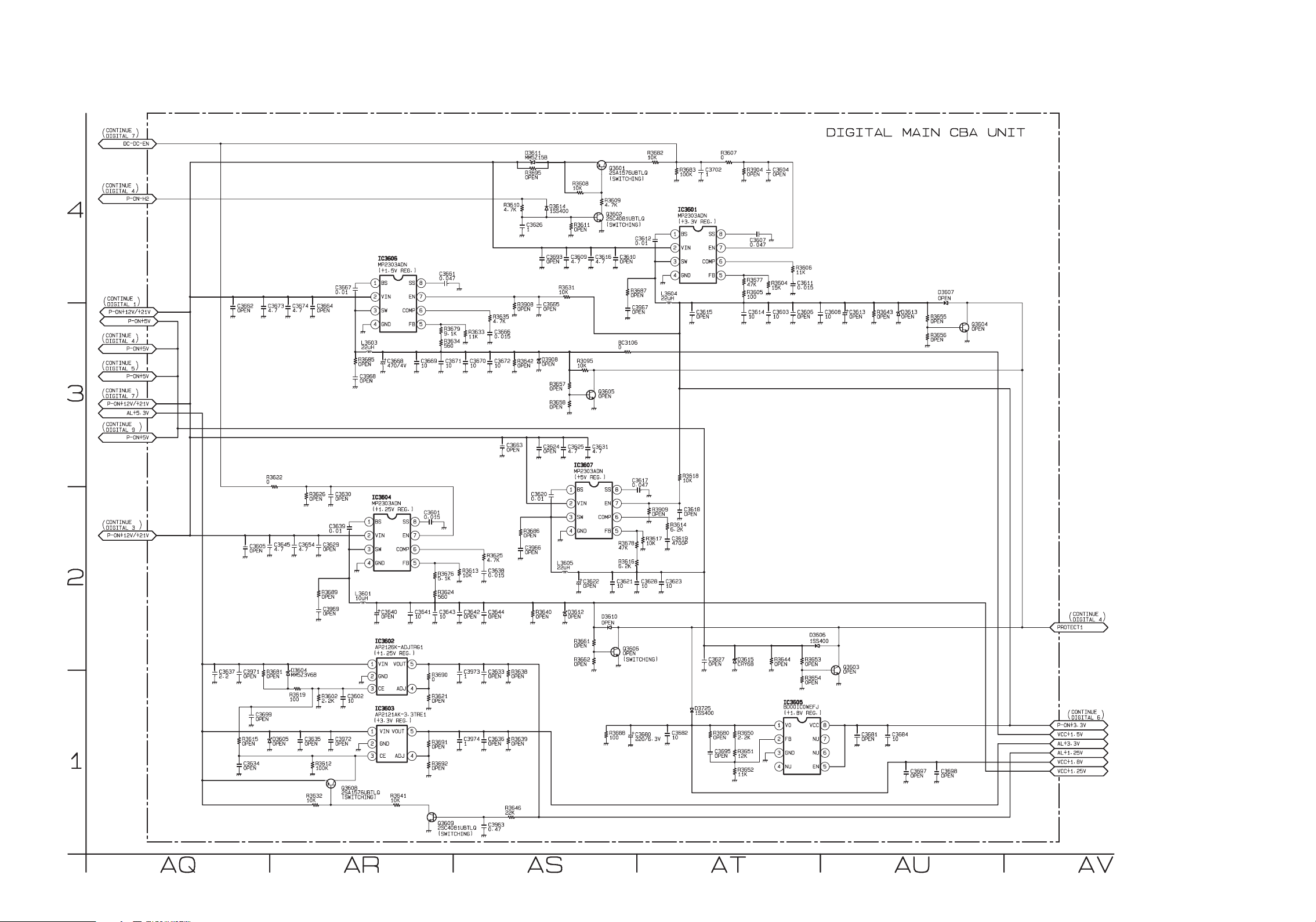

Digital Main 8 Schematic Diagram [TYPE B]

4

3

2

1

CONTINUE DIGITAL 7

DC-DC-EN

CONTINUE DIGITAL 4

P-ON-H2

CONTINUE DIGITAL 1

P-ON+12V/+21V

P-ON+5V

CONTINUE DIGITAL 4

P-ON+5V

CONTINUE DIGITAL 5

P-ON+5V

CONTINUE DIGITAL 7

P-ON+12V/+21V

AL+5.3V

CONTINUE DIGITAL 9

P-ON+5V

CONTINUE DIGITAL 3

P-ON+12V/+21V

C3637

2.2

C3662 OPEN

C3971 OPEN

R3615 OPEN

C3634 OPEN

C3605 OPEN

C3699 OPEN

C3673

4.7

R3622 0

C3645

4.7

R3681 OPEN

OPEN

C3674

4.7

R3626 OPEN

C3654

4.7

D3604 MM5Z3V6B

R3619 100

C3635D3605 OPEN

R3632 10K

C3664 OPEN

C3629 OPEN

R3689 OPEN

C3969 OPEN

R3602

2.2K

R3612 100K

C3639

0.01

IC3606 MP2303ADN (+1.5V REG.)

1

BS

C3667

0.01

C3630 OPEN

C3972 OPEN

2

3

45

L3603 22uH

R3685 OPEN

C3968 OPEN

IC3604 MP2303ADN (+1.25V REG.)

1

2

3

45

L3601 10uH

(+1.25V REG.)

1

2

34

C3602 10

(+3.3V REG.)

1

2

34

Q3608 2SA1576UBTLQ (SWITCHING)

SS

VIN

EN

SW

COMP

GND FB

C3668 470/4V

COMP

C3640 OPEN

VOUT

VIN

VOUT

GND

CE ADJ

R3641 10K

SS

EN

8

7

6

C3641 10

5

BS

VIN

SW

GND FB

IC3602 AP2126K-ADJTRG1

VIN

GND

CE ADJ

IC3603 AP2121AK-3.3TRE1

C3661

0.047

8

7

6

R3679

9.1K R3634

560

C3669 10

C3601

0.015

R3676

5.1K

R3624 560

C3643 10

R3690 0

R3621 OPEN

R3691 OPEN

R3692 OPEN

Q3609 2SC4081UBTLQ

(SWITCHING)

C3671 10

R3633 11K

C3670 10

R3613 10K

C3642 OPEN

C3973 1

C3974 1

R3635

4.7K

C3666

0.015

C3672 10

R3625

4.7K

C3638

0.015

C3644 OPEN

C3633 OPEN

C3636 OPEN

C3963

0.47

R3610

4.7K

C3663 OPEN

R3638 OPEN

R3639 OPEN

R3646 22K

MM5Z15B

R3695 OPEN

C3626 1

R3908 OPEN

R3642 OPEN

R3686 OPEN

C3966 OPEN

C3665 OPEN

D3908 OPEN

C3624 OPEN

C3620

0.01

R3640 OPEN

Q3601 2SA1576UBTLQ

C3616

4.7

R3095 10K

Q3605 OPEN

C3631

4.7

BS

VIN

SW

COMP

GND FB

C3622 OPEN

D3610 OPEN

(SWITCHING)

R3609

4.7K Q3602

2SC4081UBTLQ (SWITCHING)

C3612

0.01

C3610 OPEN

R3687 OPEN

C3967 OPEN

BC3106 0

C3617

0.047

8

SS

7

EN

6

R3678 47K

R3616

6.2K

C3621 10

Q3606 OPEN

(SWITCHING)

R3688

C3680

100

220/6.3V

R3608 10K

D3614 1SS400

R3611 OPEN

C3693

C3609

OPEN

4.7

R3631 10K

R3657 OPEN

R3658 OPEN

C3625

4.7

IC3607 MP2303ADN (+5V REG.)

1

2

3

45

L3605 22uH

D3612 OPEN

R3661 OPEN

R3662 OPEN

SS

EN

COMP

C3615

C3627 OPEN

D3725 1SS400

R3607 0

8

7

6

R3680 OPEN

C3695 OPEN

R3682D3611 10K

R36831C3702 100K

IC3601 MP2303ADN (+3.3V REG.)

1

BS

2

VIN

3

SW

45

GND FB

L3604 22uH

R3618 10K

C3618

R3909

OPEN

R3614

6.2K C3619

R3617

4700P

10K

C3623

C3628

10

C3682 10

R3904 OPEN

C3607

0.047

R3677 47K

R3605 100

C3614 10

D3615 CRY68

R3650

2.2K

R3651 12K

R3652 11K

DIGITAL MAIN CBA UNIT

C3604 OPEN

R3606 11K

R3604

C3611

15K

0.015

C3606

C3603 10

R3644 OPEN

IC3605 BD00IC0WEFJ

(+1.8V REG.)

V0

1

FB

2

GND

3

NU EN

45

OPEN

R3653 OPEN

R3654 OPEN

C3608 10

D3606 1SS400

VCC

8

NU

7

NU

6

C3613 OPENOPEN

Q3603 OPEN

C368110C3684 OPEN

R3643 OPEN

D3613 OPEN

C3697 OPEN

D3607 OPEN

R3655 OPEN

R3656 OPEN

C3698 OPEN

Q3604 OPEN

CONTINUE DIGITAL 4

PROTECT1

CONTINUE DIGITAL 6

P-ON+3.3V VCC+1.5V AL+3.3V AL+1.25V VCC+1.8V VCC+1.25V

10-18

AVAUATASARAQ

PL12.2SCBD8

Digital Main 9 Schematic Diagram [TYPE B]

CONTINUE DIGITAL 6

AL+3.3V

CONTINUE DIGITAL 8

P-ON+5V

Q3107 OPEN

R3200 OPEN

R3209 OPEN

4

CONTINUE DIGITAL 4

SW-EN

LED1

REMOTE

TO FUNCTION CBA CN4001

CN3105 1SDA

2SCL 3GND 4KEY-IN1 5REMOTE 6LED1 7LIGHT 8P-ON+5V 9AL+3.3V

C3111 OPEN

R3188 OPEN

C3975 OPEN

OPENC3122 OPENC3123

R3201 0

10R3117

3

R3114

CONTINUE DIGITAL 4

STM-SCL STM-SDA

AMP-MUTE

R3110 33

33

R3827 10K

R3107 100

C3110 100P

R3150 10K

Q3108 OPEN

C3107 100P

C3112 OPEN

R3206 OPEN

R3207 OPEN

R3105 100

D3101 OPEN

R3215 OPEN

C3130 OPEN

R3102 1K

Q3101 2SC4081UBTLQ

(LED DRIVE)

C3109 OPEN

R3323 OPEN

R3119 OPEN

C3108 OPEN

R3103 OPEN

Q3102 OPEN

R3106 OPEN

R3104 OPEN

C3106 OPEN

DIGITAL MAIN CBA UNIT

R3159 OPEN

R3182

R3149 0

10K

CONTINUE DIGITAL 4

LIGHT-SENS KEY-IN1

2

1

CONTINUE DIGITAL 5

AMP(L)-OUT AMP(R)-OUT

CONTINUE DIGITAL 7

AMP+24V

Q3801 2SC4081UBTLQ

(SWITCHING)

R3816 10K

R3808 0

R3809 OPEN

R3810 OPEN

R3811 OPEN

R3800 OPEN

R3799 OPEN

R3815 10K

R3806 47K

C3827 100/35V

R3999

2.7K

R3817 33K

C3816

0.1

C3809 1

C3965 470P

C3821

0.1

R3818 OPEN

31

32

33

R3812 0

34

35

36

37

38

39

40

IC3801 R2A15122FP

-W00R

(AUDIO AMP)

R3998

2.7K

C3964 470P

10C3818

4.7C3817

NU

VREFF

PWM GENE.

HB2

DVDD1

C3828 10

GND

PROT

GND

VDD

GND

12345678910

C3814

0.1

GND

CONTROL LOGIC

GND GND

GND

C3829 100/35V

GND

R3834 0

C3815

0.1

PWM GENE.

GND

C3808 1

21222324252627282930

ROSC

AVCC

CBIAS

GND

HB1

C3826 100/35V

GND

VDD

20

19

18

17

16

15

14

13

12

11

C3813

0.1

C3831 OPEN

10C3819

27KR3814

C3820 10

R3807 OPEN

C3833

0.1

R3813 OPEN

R3823 100K

R3822 10K

Q3804 OPEN

R3820 10K

D3801 MM5Z33B

D3802 MM5Z33B

Q3803 2SA1576UBTLQ

(SWITCHING)

R3821 22K

Q3802 2SC4081UBTLQ

(SWITCHING)

L3801 33uH

R3804 OPEN

C3806 OPEN

L3802 33uH

R3803 OPEN

C3805 OPEN

C3811

0.1

C3812

0.1

R3805 22K

R3819 22K

C3825

0.1

C3824

0.1

R3850 OPEN

C3804 100/35V

C3823 100/35V

C3832 100/35V

C3810 100/35V

C3822 100/35V

C3803 100/35V

C3834 OPEN

R3826 OPEN

R3825 OPEN

R3824 OPEN

R3851 OPEN

R3802 180

R3861 OPEN

R3801 180

R3849 OPEN

C3830 OPEN

R3864 OPEN

C3807 OPEN

C3802 OPEN

C3801 OPEN

R3833 OPEN

R3832 OPEN

CN3801

1 SP(L) 2GND 3GND 4 SP(R)

L3803 OPEN

JK3801 HEADPHONE

JACK

CONTINUE DIGITAL 7

LCD-PON

CONTINUE DIGITAL 3

PWR-DETECT

CONTINUE DIGITAL 4

PWR-DETECT

SP3801 SPEAKER

L-CH

SP3802 SPEAKER

R-CH

AW BAAZAYAX BB

10-19

PL12.2SCBD9

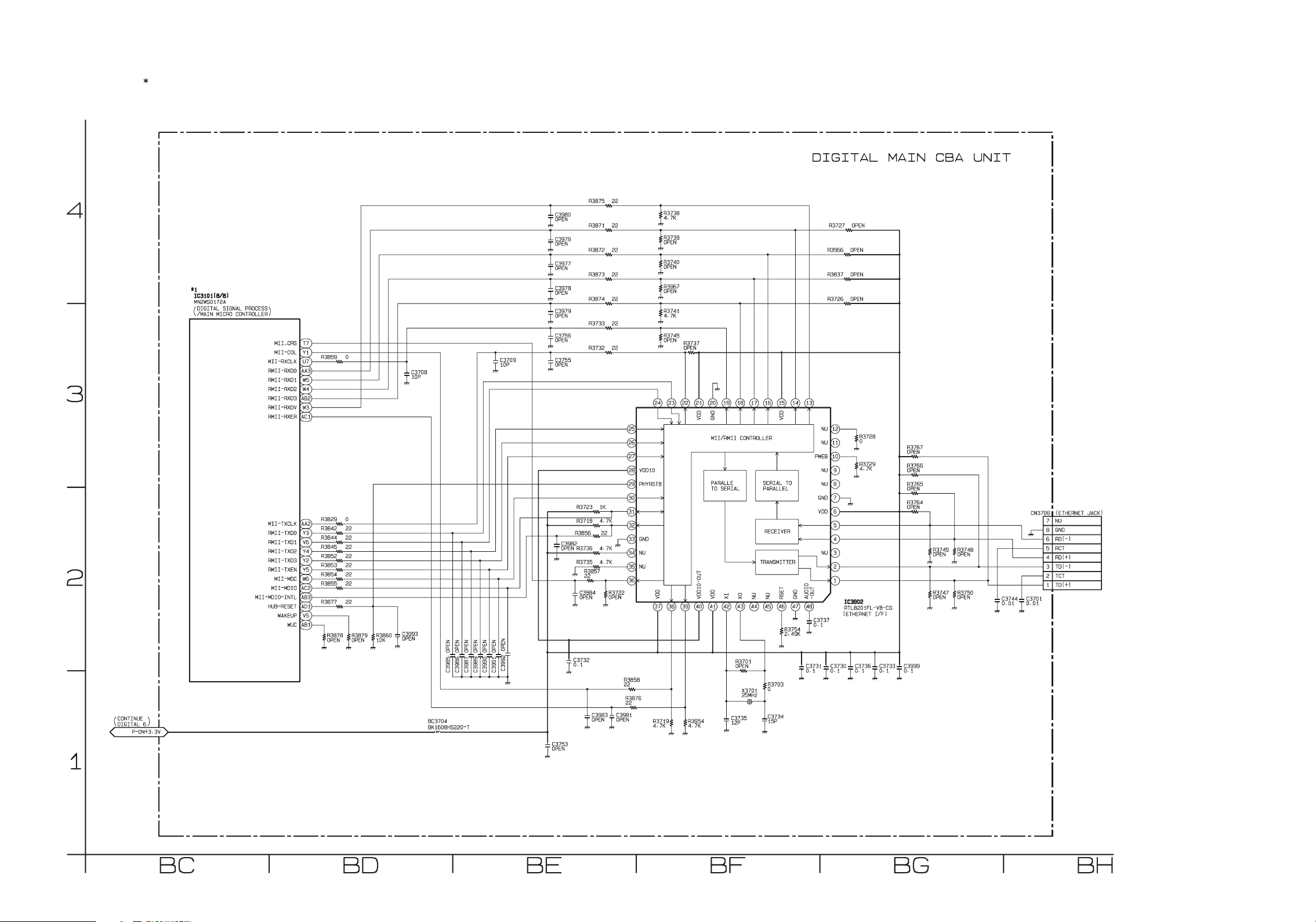

Digital Main 10 Schematic Diagram [TYPE B]

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3101. IC3101 is divided into eight and shown as IC3101 (1/8) ~ IC3101 (8/8) in this Digital Main Schematic Diagram Section.

4

*1

IC3101(8/8) MN2WS0172A

DIGITAL SIGNAL PROCESS /MAIN MICRO CONTROLLER

MII_CRS T7

3

2

Y1MII-COL U7MII-RXCLK

AA3RMII-RXD0

W5RMII-RXD1 W4RMII-RXD2

AB2RMII-RXD3

W3RMII-RXDV

AC1RMII-RXER

MII-TXCLK AA2

Y3RMII-TXD0 V6RMII-TXD1 Y4RMII-TXD2 Y2RMII-TXD3 Y5RMII-TXEN

W6MII-MDC AC2MII-MDIO AB3MII-MDIO-INTL AD1HUB-RESET

V5WAKEUP AB1WUC

R3878 OPEN

0R3859

0R3829 22R3842 22R3844 22R3845 22R3852 22R3853 22R3854 22R3855

22R3877

R3879 OPEN

R3860 10K

C3993 OPEN

C3708 10P

C3709 10P

C3980 OPEN

C3976 OPEN

C3977 OPEN

C3978 OPEN

C3979 OPEN

C3756 OPEN

C3755 OPEN

C3982 OPEN

22R3875

22R3871

22R3872

22R3873

22R3874

22R3733

22R3732 OPEN

1KR3723

4.7KR3718

22R3856

4.7KR3736

4.7KR3735

R3857 22

C3984

R3722

OPEN OPEN

25

26

27

28

VDD10

29

PHYRSTB

30

31

32

33

GND

34

NU

35

NU

36

R3738

4.7K

R3739 OPEN

R3740 OPEN

R3967 OPEN

R3741

4.7K

R3745 OPEN

R3737

GND

VDD

MII/RMII CONTROLLER

PARALLE TO SERIAL

VDD

38 39 40 41 42 43 44 45 46 47 48

37

VDD

VDD10-OUTXIXONUNU

SERIAL TO PARALLEL

RECEIVER

TRANSMITTER

DIGITAL MAIN CBA UNIT

OPENR3727

OPENR3966

OPENR3837

OPENR3726

131415161718192021222324

VDD

RSET

R3754

2.49K

GND

PMEB

GND

VDD

AUDIO

-OUT

C3737

0.1

NU

12

NU

11

10

NU

9

NU

8

7

6

5

4

NU

3

2

1

IC3902 RTL8201FL-VB-CG

(ETHERNET I/F)

R3728 0

R3729

4.7K

R3767 OPEN

R3766 OPEN

R3765 OPEN

R3764 OPEN

R3749 OPEN

R3747 OPEN

R3748 OPEN

R3750 OPEN

C3744

0.01

CN3706

C3701

0.01

7NU 8 GND 6 RD(-) 5 RCT 4 RD(+) 3 TD(-) 2 TCT 1 TD(+)

(ETHERNET JACK)

1

CONTINUE DIGITAL 6

P-ON+3.3V

BC

C3987 OPEN

C3986 OPEN

C3985 OPEN

BC3704 BK1608HS220-T

C3989 OPEN

C3990 OPEN

C3732

C3753 OPEN

0.1

C3983 OPEN

R3858 22

R3876 22

C3981 OPEN

R3719

4.7K

C3991 OPEN

C3992 OPEN

BEBD BF

10-20

R3954

4.7K

R3701 OPEN

X3701 25MHz

C3735 12P

R3703 0

C3734 15P

C3731

0.1

C3730

0.1

C3736

0.1

C3733

0.1

BG

C3999

0.1

BH

PL12.2SCBD10

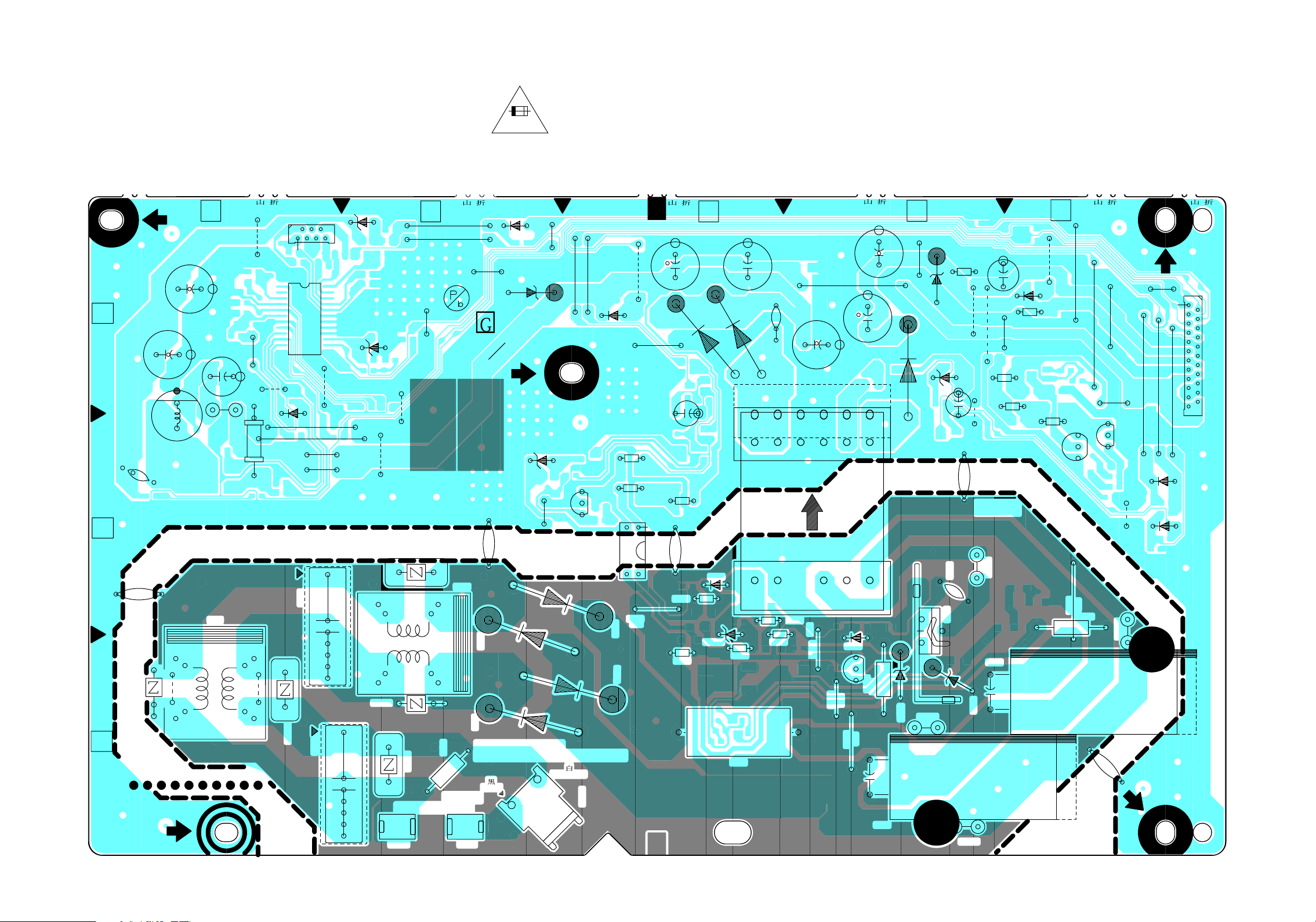

Power Supply CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

6

7

GND

J134

D1005B

D402B

J129

GND

J128

GND

J124

BC

PROTECT3

J125

GND

C1010

C1007

C1011

A

C1001

L1001

BC1002

1.ILED4

2.ILED3

3.NC

4.VLED

5.NC

6.ILED1

7.ILED2

J131

VCC

R1003

J130

GND

J133

GND

1

2

CN1001

D1002

P-ON+21V

J127

J126

P-ON+21V

BA21F0F0102 2

4A 125V

D401

J122

GND

J123

GND

J120

J121

BL-ADJ

C7A3 A3

No.1

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

J119

PROTECT3

J117

D652

D661B

J114

GND

J118

ALL+5-CONT.

P-ON-H2+

D406

R655

D660

23

C601

L602

D602

D601

RISK OF FIRE-

REPLACE FUSE AS MARKED

NEUTRAL

LIVE

CN601

FH601

C617

GT601

JS601

1

TOOL NO.

1 2 3 4 5 6 7 8 9 10

L601

JS602

SA602

C614

C604

SA603

GT602

R601

SA601

F601

4A/125V

FH602

J115

GND

IC601

D603

D604

J116

R657

J605

GND

PROTECT1

C662

D650

R613

R612

C651

C603

R654

D605B

D610

D651

R608

R602

C653

R606

C650

R607

J113

P-ON+21V

GND

J606

C652

J607

D609

GND

J608

C655

GND

C654

Q602

R611

C605

T601

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

D405

R678

J110

R672

E

PROTECT1

Q656

J609

J109

GND

R501

GND

J106

GND

J108

ALL+5V-CONT.

J107

P-ON+21V

BC604

C616

D662

J101

GND

D658

D608

D

J111

GND

D657B

D653

BC603

D654

C656

C606

Q601

R650

P-ON+21V

JS631

BC602

C663

for Z-SoC

ALL+3.3V forR-SoC

ALL+5.3V forP-SoC

JS632

R670

R671

GND

J112

COLD

C602

HOT

BC601

C615

D607

GND

J132

J104

J105

GND

J103

RESET

D663

1

P-ON-H2+

23

1.GND

J102

2.BL-SW

3.BL-ADJ

P-ON-H2

4.P3

5.P1

6.GND

7.P-ON-H2

8.RESET

9.GND

10.GND

11.ALL+3.3V /ALL+5.3V

12.GND

13.AMP+24V

14.AMP+24V

15.GND

16.17.21V

18.19.20.21.GND

22.23.21V

CN631

2

10-21

BA21F0F01022

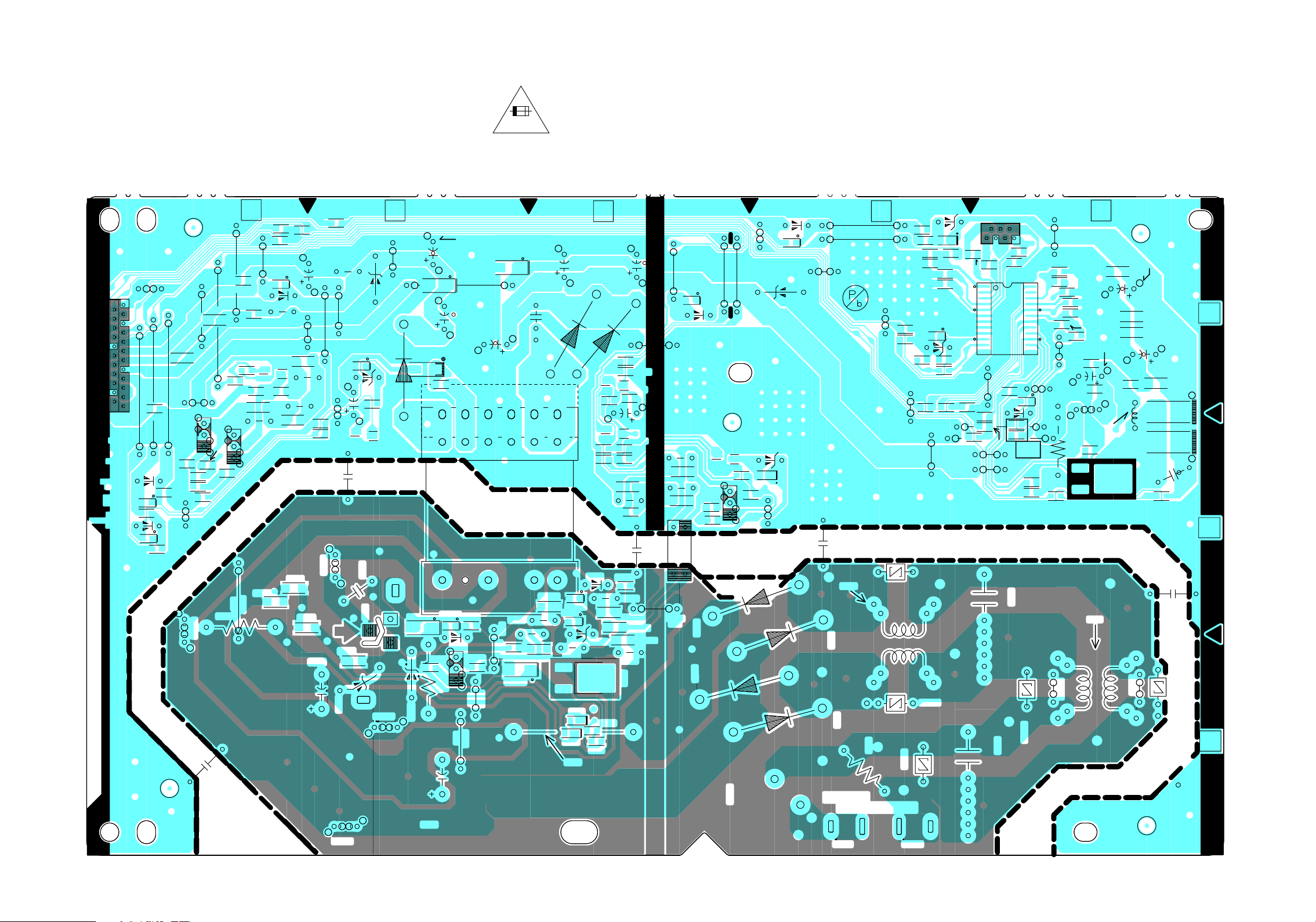

Power Supply CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

CN631

1

2

1.GND

2.BL-SW

3.BL-ADJ

4.P3

5.P1

6.GND

7.P-ON-H2

8.RESET

9.GND

10.GND

11.ALL+3.3V /ALL+5.3V

12.GND

13.AMP+24V

14.AMP+24V

15.GND

16.17.21V

18.19.20.21.GND

22.23.21V

J105

GND

P-ON-H2+

23

P-ON-H2

J102

C639

D663

C636

R677

C635

J103

D663A

D658

D658A

R678A

RESET

J104

R682

J107

P-ON+21V

D662

R681

J101

GND

BC604

J106

GND

R650A

ALL+5V-CONT.

R680

C661

J108

C665

R662

R501

GND

C664

R672A

GND

J109

C637

R676

J609

E

C638

R675

R672

Q656

C630

PROTECT1

C633

J110

D405A

D405

R678

Q655

R614

R673

R670A

R671A

R603

C631

J132

GND

R671

R604

R670

C632

C663

R650

ALL+3.3V forR-SoC

for Z-SoC

ALL+5.3V forP-SoC

P-ON+21V

JS631

JS632

D657

R653

J112

GND

C658

C602

BC601

R605

C615

D607

Q650

C606

C656

Q601

D654

D657B

R652

BC603

D

GND

J111

D654A

D656

D653

T601

D608A

D608

R651

C607

D609A

Q602

R611

C654

D609

C655

P-ON+21V

C652

C609

J608

GND

R610

GND

J113

J607

4A 125V

D652A

R607

GND

J606

C608

D607A

CAUTION ! :

For continued protection against risk of fire, replace only with same type 4A, 125V fuse.

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

D661B

GND

D401

D401A

D652

D661

J114

BA21F0F0102 2

C650

R606

R606A

R607A

D610A

D605

R608

D502

R602

C653

D501

D651

R666

Q653

R665

Q654

R659

D610

D605B

C501

R654

R502

C659

C651

R669

R663

R654A

C603

C610

R613

R613A

R612

Q501

D650

R668

R667

C662

R664

R608A

R612A

PROTECT1

J116

J115 GND

R657

R657A

R655A

J605

GND

D406A

D406

D604

R655

C660

R658

IC601

D603

PROTECT3

ALL+5-CONT.

J117

P-ON-H2+

J118

Q652

R660

D660

R661

J119

J122

GND

J120

J121

BL-ADJ

C601

D602

D601

L602

BC

PROTECT3

J123

GND

R601

R1006

R1007

R1009

SA603

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

R401

R1011

C1015

GND

SA601

R402

R1502

R1504

J125

R403

D1005

J124

GND

GT602

D402B

D402

R1008

R1018

J129

GND

J128

GND

R1010

R1020

D1005B

C1014

C1019

C1020

R1016

6

7

1

12

J134

GND

J127

P-ON+21V

J126

P-ON+21V

CN1001

R1017

R1021

IC1001

C1022

D1002

C614

C604

2

1

R1503

R1001 R1014

C1006

R1002

SA602

R1501

GND

J133

D102A

GND

24

13

J130

JS602

1.ILED4

2.ILED3

3.NC

4.VLED

5.NC

6.ILED1

7.ILED2

C1018

R1012

C1016

J131

VCC

BC1002

R1003

R1019

C1017

C1021

R1015

C1004

C1003

C1005

L601

A

C1001

C1012

C1002

L1001

Q1001

C1011

JS601

C1013

C1008

C1010

C1009

D1004

D1001

C1007

R1004R1005

23

C617

GT601

1

C616

BC602

C605

10-22

CN601

F601

4A/125V

FH601

FH602

BA21F0F01022

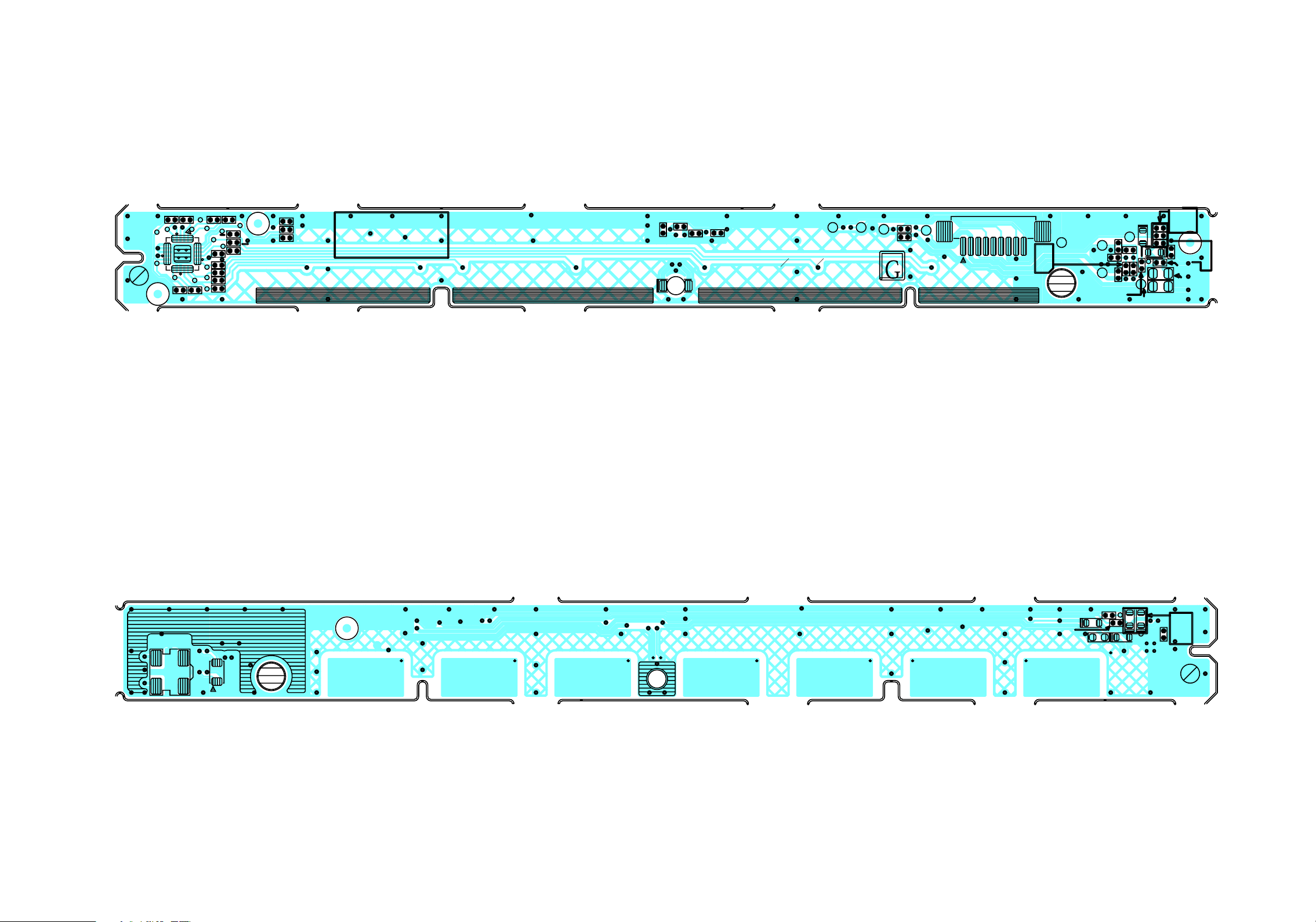

Function CBA Top View

R4012

R4010

P

b

R4011

IC4001

R4009

R4008

R4002

R4014

C4001 R4007 R4005 R4003 R4001

R4004

R4006

C4006

R4013

C4002

NO.12

R4053

D4051

R4063

R4062

C4053

A30C5 C7A3 A3

TP4062

TP4061

TP4060

R4061

C4054

TP4058

TP4055

D4052

C4058

TP4059

TP4057

C4057

R4057

R4056

TP4056

C4055 R4054 R4052

D4053 R4051

C4051

C4056

C4052

TP4054

R4055

R4059

CN4001

R4058

VOL -VOL +MENUSOURCECH -CH +POWER

Function CBA Bottom View

RS4051

IC4051

BA21F5G0203 2

D4002

R4022

C4003

R4021

D4001

D4003

R4017

D4004

P

b

10-23

BA21F5G02032

[TYPE A]

WIRING DIAGRAMS

9

CN4001

1

CN3101

FUNCTION CBA

CL3101

1

9

AC CORD

CN601

12

1

CN631

1

CN3701

CL3701

CN1001

17

LCD PANEL ASSEMBLY

23

1

23

CN3006

30

SP3802

SPEAKER

SP3801

SPEAKER

R-CH

L-CH

CL3801

CN3801

14

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

TUNER UNIT

COMPONENT

-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

DIGITAL MAIN CBA UNIT POWER SUPPLY CBA

HDMI-

CONNECTOR-1

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-3

PC-RGB-IN

USB JACK

HEADPHONE

JACK

REAR

11-1

SIDE

PL12.2AWI

[TYPE B]

9

CN4001

1

CN3105

FUNCTION CBA

CL3101

1

9

AC CORD

CN601

12

1

CN631

1

CN3601

CL3701

CN1001

17

LCD PANEL ASSEMBLY

23

1

23

CN3904

30

SP3802

SPEAKER

SP3801

SPEAKER

R-CH

L-CH

CL3801

CN3801

14

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

TUNER UNIT

AUDIO(L)-IN

AUDIO(R)-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

DIGITAL MAIN CBA UNIT POWER SUPPLY CBA

ETHERNET

CONNECTOR

PC-RGB-IN

HDMI-

CONNECTOR-1

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-3

WIRELESS

LAN

MODULE

USB JACK

HEADPHONE

JACK

REAR

11-2

SIDE

PL12.2BWI

[TYPE A]

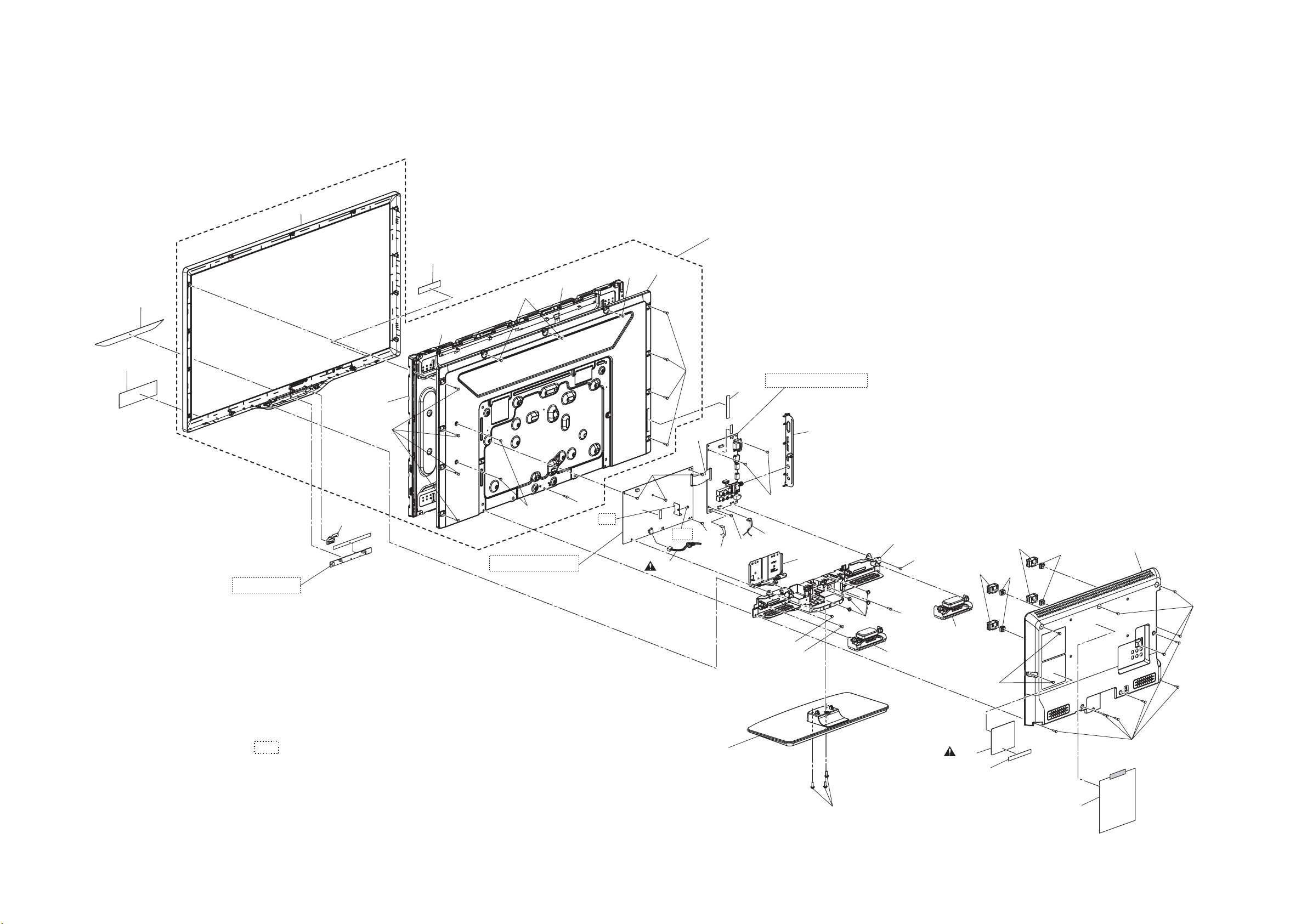

EXPLODED VIEWS

A1

LCD1

A23

A4

Function CBA

LCD Module

B11

L4

A20

CL1001

CL3006

L4

L51

Power Supply CBA

L4

B3

L4

A2

L13

L23

AC601

L4

CL3701

L13

CL3101

S7

L13

Digital Main CBA Unit

A14

L13

CL3801

B24

B9

L13

B18

B17

A3

See Electrical Parts List for parts with this mark.

L14

A10

L13

L4

SSK1

L32

L4

SP3801

SP3802

A18

L14

L4

S7

X6

12-1 PL12.2_A CEX

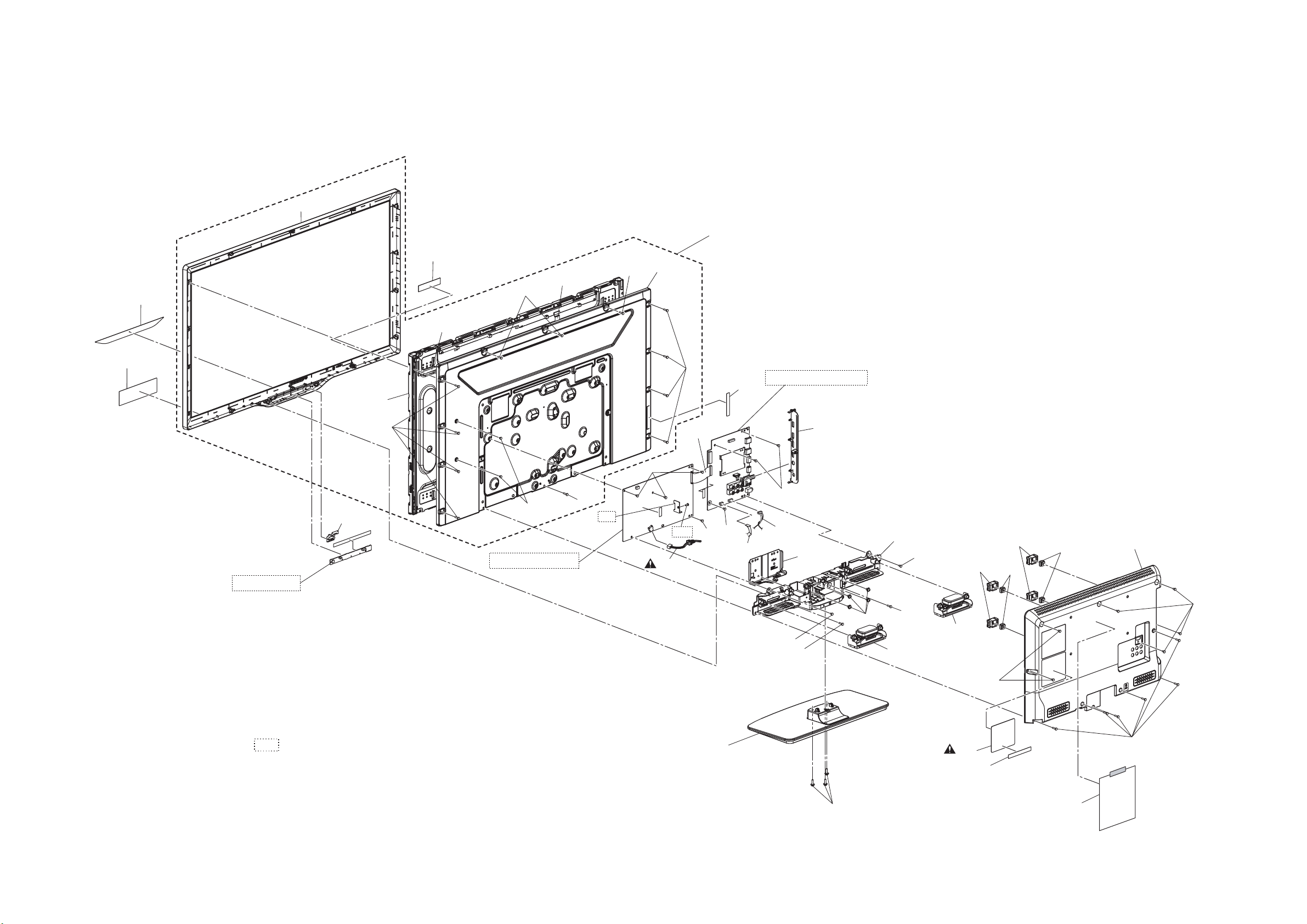

[TYPE B]

A1

LCD1

A23

A4

Function CBA

LCD Module

B11

L4

A20

CL1001

CL3006

L4

L51

Power Supply CBA

L4

B3

L4

A2

L13

L23

AC601

L4

CL3701

L13

CL3101

Digital Main CBA Unit

S7

L13

CL3801

B24

A14

B9

L13

B18

B17

A3

See Electrical Parts List for parts with this mark.

L14

A10

L13

L4

SSK1

L32

L4

SP3801

SP3802

A18

L14

L4

S7

X6

12-2 PL12.2_B CEX

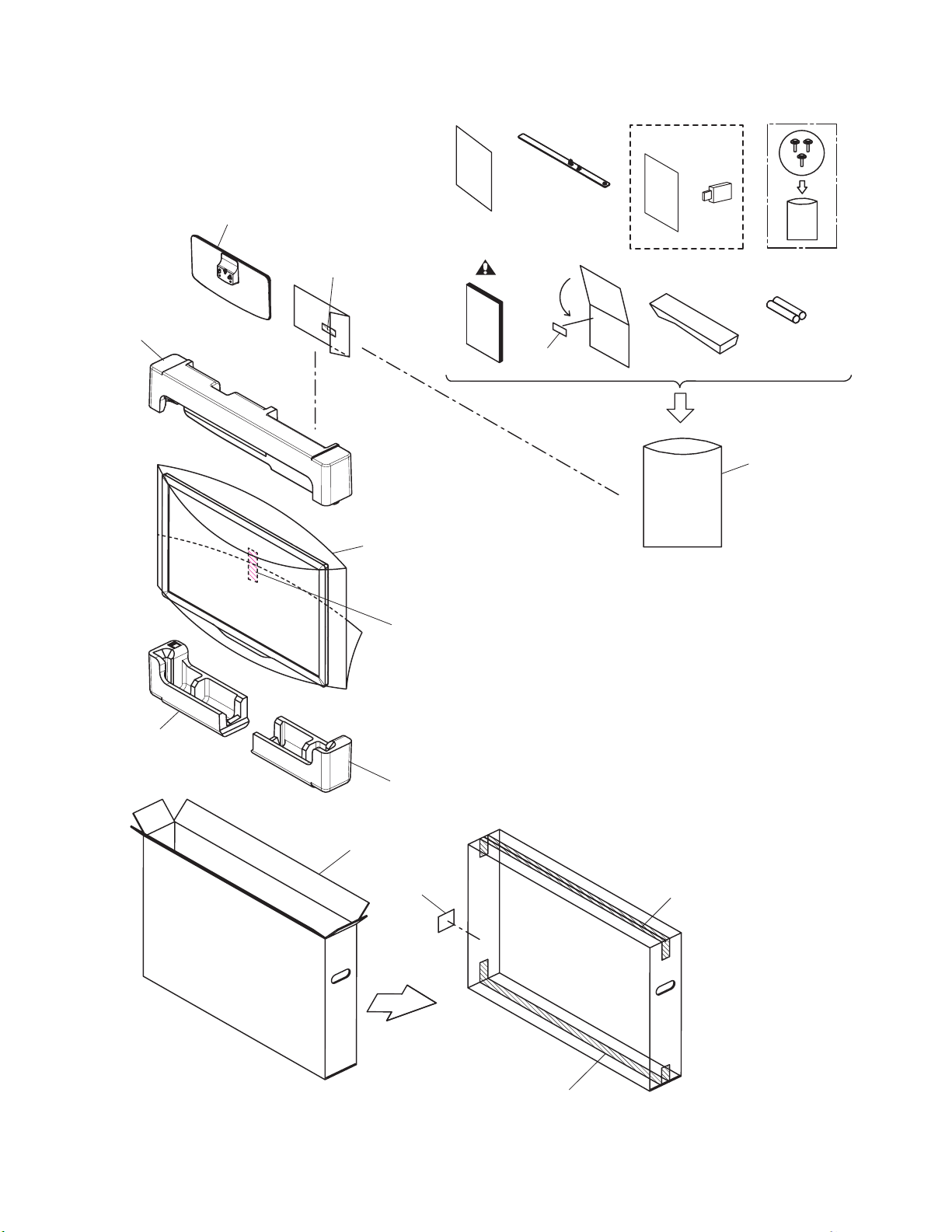

Packing

S3

A10

Ta pe

S6

X9

X2

S7

X12

X7

TYPE B

X17 X18

X3

SSK1

X4

X1

S4

S1

Packing Tape

S4

S7

Packing Tape

FRONT

Some Ref. Numbers are not in sequence.

Packing Tape

12-3 PL12.2PEX

TYPE A

PARTS LIST

[32PFL4507/F7 (Serial No.: DS1), 32PFL4507/F8 (Serial No.: XA1),

32PFL4507/F8 (Serial No.: DS1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

Depending on the model, the rear cover part number will differ.

A3

A4 DECORATION PLATE A21F5UH 1EM227003

A10 STAND ASSEMBLY 32W A21F5UH 1EM029073

A14 JACK HOLDER A21F0UH 1EM226823

A18# RATING LABEL A21F5UH ----------

A20 LOGO LABEL A21F5UH ----------

A23 ENERGY GUIDE LABEL A21F5UH ----------

AC601# AC CORD W/O A GND WIRE UL/CSA/1700/NO/

B9 STAND HOLDER A21F5UH 1EM028931

B11 SENSOR PLATE A21F5UH 1EM437078

B17 WALL MOUNT BRACKET A11N0UH 1EM434637

B18 WALL MOUNT COVER A2170UT 1EM332137

B24 STAND BRACKET A21F5UH 1EM226984

CL3101 FFC WIRE ASSEMBLY 9PIN 9PIN/WHITE/

CL3701 FFC WIRE ASSEMBLY 23PIN 23PIN/WHITE/

CL3801 WIRE ASSEMBLY 4PIN 4PIN/341MM&36MM WX1A21F5-302

L4 SCREW P-TIGHT 3X12 BIND HEAD+ BLK GBHP3120

L13 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

L14 S-TIGHT SCREW M3X6 BIND HEAD+BLACK GBHS3060

L32 DOUBLE SEMS SCREW M4X10 + BLK FPH34100

SP3801 SPEAKER MAGNETIC 8OHM/10W S0313F17 DS08100XQ001

SP3802 SPEAKER MAGNETIC 8OHM/10W S0313F17 DS08100XQ001

SSK1 STAND SCREW KIT A21F5UH 1ESA31176

S1 CARTON A21F5UH 1EM332739

S3 STYROFOAM TOP A21F5UH 1EM029165

S4 STYROFOAM BOTTOM A21F5UH 1EM029166

S6 SET BAG A17F6UH 1EM330877

S7 SERIAL NO. LABEL A01PBUH ----------

for 32PFL4507/F7 (Serial No.: DS1) models

REAR COVER A21F5UH

for 32PFL4507/F8 (Serial No.: XA1, DS1) models

REAR COVER A21FAMA

BLACK

143MM

80MM

PAC K IN G

1EM028929

1EM127007

WAC1720LW005

WX1A21F0-111

WX1A21F0-110

Ref. No. Description Part No.

ACCESSORIES

X1 POLYETHYLENE BAG HDPE 180X340XT0.03 1EM435579

X2# OWNERS MANUAL A21F5UH 1EMN29143

X3 REMOTE CONTROL TRANSMITTER YKF259-

X4 BATTERY R03-B500/01S XB0M451CZB01

X6 QUICK START GUIDE A21F5UH 1EMN29144

X7 REGISTRATION CARD(PHILIPS) A11P4UH 1EMN27321

X9 BROCHURE (PHILIPS) A01N2UH 1EMN26419

X12 CABLE MANAGEMENT TIE(BLACK) A01F2UH 1EM431197

001

URMT34JHG001

LCD PANEL ASSEMBLY

Ref. No. Description Part No.

LCD1 LCD PANEL ASSEMBLY

A1 FRONT CABINET A21F5UH 1EM028928

A2 REAR FRAME PAINT A21F0UH 1EM332238

CL1001 FFC 7PIN 7P/P1.0/470MM WX1U24F0-F02

CL3006 FFC 30PIN 30P/P0.5/210MM WX1U24F0-F01

L4 SCREW P-TIGHT 3X12 BIND HEAD+ BLK GBHP3120

L51 SCREW M3X4 M3X4 BIND+ (B-NI) SBH33040

Consists of the following

LCD MODULE ----------

U24F1P0

2012/2/7 13-1 A21F5(A21FA)CA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A21F5MMA-002

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA Consists of the following

CAPACITORS

C501 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C602# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C603# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C604# CAP METALIZED FILM 0.22µF/275V/K CTA224PKR001 C605 CAP ELE 330µF/200V/M/87 CEB3310S6016 C606 CERAMIC CAP. 820pF/2KV CA3D821PAN04 C607 CHIP CERAMIC CAP. B K 1200pF/50V CHD1JK30B122 C608 CHIP CERAMIC CAP. B K 0.039µF/50V CHD1JK30B393 C609# CHIP CER. BK 0.082µF/50V CHD1JK30B823 C610 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C614# CAP METALIZED FILM 0.22µF/275V/K CTA224PKR001 C616# SAFTY CAP. 1000pF/250V KX CA2E102MR101 C650 CAP CERAMIC HV 2200pF/1KV B K CA3A222TE006 C651 CAP ELE 470µF/25V/M/85 CED4710V8006 C652 CAP ELE 470µF/25V/M/85 CED4710V8006 C653 CAP ELE 470µF/25V/M/85 CED4710V8006 C654 CAP ELE 470µF/35V/M/85 CEE4710V8006 C655 CAP ELE 470µF/35V/M/85 CEE4710V8006 C656 CAP ELE 1µF/50V/M/85 CEF1R00V8006 C660 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C663 CAP ELE 100µF/10V/M/85 CEB1010V8006 C665 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C1001 CAP ELE 330µF/25V/M/85 CED3310V8006 C1003 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C1004 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C1006 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1008 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080 C1009 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080 C1010 CAP ELE 47µF/100V/M/85 CEH4700V8006

A21F0MPW-001

Ref. No. Description Part No.

C1011 CAP ELE 47µF/100V/M/85 CEH4700V8006 C1012 CHIP CERAMIC CAP.(3216) X7R K 1.0µF/100V CA2A105MR080 C1014 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C1016 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C1017 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C1019 CHIP CERAMIC CAP.(1608) B K 4.7µF/6.3V CHD0KK30B475

CONNECTORS

CN601# CONNECTOR S2P3-VH (LF)(SN) JCVHC02JG002 CN631 FFC CONNECTOR IMSA-9615S-23A-PP-A JC96J23ER007 CN1001 FPC/FFC CONNECTOR IMSA-9615S-07A-PP-AJC96J07ER007

DIODES

D401 DIODE SWITCHING HSS4148TE-E QDTZ0HSS4148 D402B DIODE ZENER 24BSB-T26 NDTB024BST26 D501 DIODE ZENER SMD UDZSNPTE-1733B QD1B0UDZNP33 D502 DIODE ZENER SMD UDZSNPTE-1730B QD1B0UDZNP30 D601 DIODE 1N5406BH NDL1001N5406 D602 DIODE 1N5406BH NDL1001N5406 D603 DIODE 1N5406BH NDL1001N5406 D604 DIODE 1N5406BH NDL1001N5406 D605 ZENER DIODE MM5Z4V3B ND1BMM5Z4V3B D607# DIODE ZENER 1ZB27BB NDWZ0001ZB27 D608# DIODE ZENER 1ZB36BB NDWZ0001ZB36 D609# DIODE SWITCHING HSS4148TE-E QDTZ0HSS4148 D610 DIODE SWITCHING HSS4148TE-E QDTZ0HSS4148 D650 DIODE SCHOTTKY SB3150BH NDWZ00SB3150 D651 DIODE SCHOTTKY SB3150BH NDWZ00SB3150 D653 DIODE SHOTTKY SB3200BR NDWZ3200D027 D654# DIODE ZENER 1ZB30BB NDWZ0001ZB30 D656 DIODE FAST RECOVERY RS1BJTB ND1Z0RS1BJTB D657 ZENER DIODE MM5Z5V6B ND1BMM5Z5V6B D660 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01 D661B DIODE ZENER 5V6BSB-T26 NDTB5R6BST26 D662 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01 D1001 DIODE SCHOTTKY SMD SK210TD ND1Z0SK210TD D1002 DIODE SWITCHING HSS4148TE-E QDTZ0HSS4148

ICS

IC601# IC PHOTOCOUPLER TLP781F(D4-FUNBLL F) QPEL781FBLLF IC1001# IC LED BACKLIGHT CONTROLLER HA7209PC

/SOP /24PIN

NSCA0T00H003

COILS

L601# COIL LINE FILTER JLB20154/18MH LLEG0Z0XB022 L602# COIL LINE FILTER JLB20154/18MH LLEG0Z0XB022 L1001 POWER INDUCTORS CWKBNP-220K LLF2200KV002

TRANSISTORS

Q501# FET 2SK3498(T6L1FUNANQ QF1Z02SK3498 Q601# FET MOS TK8A50D(LS1FND3 QM QEE1TK8A50DM Q602# TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q650 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q652 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q653 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S Q656 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F Q1001# FET MOS SMD AP18T10AGH-HF NF2Z18T10AGH

RESISTORS

R401 RES CHIP 1608 1/10W J 8.2k Ω RRXA822HH013 R402 RES CHIP 1608 1/10W J 3.0k Ω RRXA302HH013 R501# METAL OXIDE FILM RES. 2W J 47 Ω RN02470ZU001 R502 RES CHIP 1608 1/10W J 1.5M Ω RRXA155HH013 R601# RES. CARBON FILM J 1/2W J 1.2M Ω RCX2125T1003 R602 RES CEMENT 5W/J/1.2 Ω RWJ1R2PAK007

2012/01/06 13-2 A21F5EL.fm

Ref. No. Description Part No.

R603 RES CHIP 3216 1/4W J 330k Ω RRX4334HH034 R604 RES CHIP 3216 1/4W J 330k Ω RRX4334HH034 R605 RES CHIP 3216 1/4W J 330k Ω RRX4334HH034 R606 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R607 RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R608 RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001 R611# METAL OXIDE RES. 2W J 0.36 Ω RN02R36ZU001 R612 RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R613 RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R614 RES CHIP 3216 1/4W J 330k Ω RRX4334HH034 R650 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R651# RES CHIP 1608 1/10W J 1.0 Ω RRXA1R0HH013 R652 RES CHIP 1608 1/10W F 56.0k Ω RTW5602HH008 R653 RES CHIP 1608 1/10W F 22.0k Ω RTW2202HH008 R654 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R655 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R657 RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001 R658 RES CHIP 1608 1/10W J 2.7k Ω RRXA272HH013 R659 RES CHIP 1608 1/10W F 22.0k Ω RTW2202HH008 R660 RES CHIP 1608 1/10W F 2.70k Ω RTW2701HH008 R661 RES CHIP 1608 1/10W F 3.30k Ω RTW3301HH008 R662 RES CHIP 1608 1/10W F 3.30k Ω RTW3301HH008 R663 RES CHIP 1608 1/10W J 47k Ω RRXA473HH013 R664 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R665 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R668 RES CHIP 1608 1/10W J 22k Ω RRXA223HH013 R669 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R670 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R671 RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001 R672 WIRE CP STP-S-0.50 XZ40F0REN001 R673# RES CHIP 1608 1/10W J 5.6 Ω RRXA5R6HH013 R677 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R678 RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001 R680 RES CHIP 1608 1/10W J 100 Ω RRXA101HH013 R681 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008 R682 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1001 RES CHIP 1608 1/10W J 10 Ω RRXA100HH013 R1002 RES CHIP 1608 1/10W J 200 Ω RRXA201HH013 R1003# METAL OXIDE RES. 1W J 0.18 Ω RN01R18ZU001 R1004 RES CHIP 1608 1/10W F 560k Ω RTW5603HH008 R1005 RES CHIP 1608 1/10W F 200k Ω RTW2003HH008 R1006 RES CHIP 1608 1/10W F 27.0k Ω RTW2702HH008 R1007 RES CHIP 1608 1/10W F 100k Ω RTW1003HH008 R1008 RES CHIP 1608 1/10W F 360 Ω RTW3600HH008 R1009 RES CHIP 1608 1/10W F 8.20k Ω RTW8201HH008 R1010 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1011 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R1012 RES CHIP 1608 1/10W F 100 Ω RTW1000HH008 R1014 RES CHIP 1608 1/10W J 240 Ω RRXA241HH013 R1015 RES CHIP 1608 1/10W J 240 Ω RRXA241HH013 R1016 RES CHIP 1608 1/10W J 10k Ω RRXA103HH013 R1017 RES CHIP 1608 1/10W J 100k Ω RRXA104HH013 R1018 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1020 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1021 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1502 RES CHIP 1608 1/10W 0 Ω RRXA000HH014 R1503 RES CHIP 1608 1/10W 0 Ω RRXA000HH014

MISCELLANEOUS

B3 HEAT SINK PNI A11N5UH 1EM435557 BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC602 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030 BC603 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

Ref. No. Description Part No.

BC1002 WIRE CP STP-S-0.50 XZ40F0REN001 F601# FUSE STC4A125V U/CT PAGE20CW3402 FH601 FUSE HOLDER MSF-015-RS-SN (B110) XH001Z0LY001 FH602 FUSE HOLDER MSF-015-RS-SN (B110) XH001Z0LY001 JS632 WIRE CP STP-S-0.50 XZ40F0REN001 L23 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080 SA601# SURGE ABSORBER 470V+-10PER NVQZ10D471KB T601# TRANS POWER BCK-28DZ LTT2PCMEK036

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA Consists of the following

CAPACITORS

C4001 CHIP CERAMIC CAP.(1005) B K 1µF/6.3V CHB0KK30B105 C4002 CHIP CERAMIC CAP.(1005) B K 2200pF/50V CHB1JK30B222 C4051 CHIP CERAMIC CAP.(2125) B K 10µF/6.3V CHE0KK30B106 C4052 CHIP CERAMIC CAP.(1005) B K 1000pF/50V CHB1JK30B102 C4053 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V CHB1CZ30F104 C4054 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V CHB1CZ30F104 C4056 CHIP CERAMIC CAP.(2125) B K 10µF/6.3V CHE0KK30B106

CONNECTOR

CN4001 FFC CONNECTOR 9P 9611S-09Y916 JC96D09ER014

DIODES

D4001 ZENER DIODE MM5Z5V6B ND1BMM5Z5V6B D4003 ZENER DIODE MM5Z5V6B ND1BMM5Z5V6B D4004 ZENER DIODE MM5Z5V6B ND1BMM5Z5V6B D4051 LED WHITE SMD SML813WBC8W1 QP1Z13WBC8W1

IC

IC4001 IC TOUCH SENSOR MICON CY8C20336A-

24LQXIT

RESISTORS

R4001 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4002 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4003 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4004 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4005 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4006 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4007 CHIP RES. 1/16W J 560 Ω RRXG561HH004 R4008 RES CHIP 1005 1/16W J 18k Ω RRXG183HH004 R4009 CHIP RES.(1005) 1/16W J 8.2k Ω RRXG822HH004 R4010 CHIP RES. 1/16W J 4.7k Ω RRXG472HH004 R4011 CHIP RES.(1005) 1/16W J 2.7k Ω RRXG272HH004 R4012 CHIP RES.(1005) 1/16W J 2.2k Ω RRXG222HH004 R4013 CHIP RES.(1005) 1/16W J 100 Ω RRXG101HH004 R4014 CHIP RES.(1005) 1/16W J 2.2k Ω RRXG222HH004 R4021 CHIP RES. 1/16W J 10 Ω RRXG100HH004 R4022 CHIP RES. 1/16W J 10 Ω RRXG100HH004 R4051 CHIP RES. 1/16W J 56 Ω RRXG560HH004 R4052 RES CHIP 1005 1/16W J 6.8k Ω RRXG682HH004 R4053 CHIP RES.(1005) 1/16W J 2.2k Ω RRXG222HH004 R4054 CHIP RES.(1005) 1/16W J 1k Ω RRXG102HH004 R4062 CHIP RES.(1005) 1/16W 0 Ω RRXG000HH005

MISCELLANEOUS

RS4051 SENSOR REMOTE RECEIVER GP1USC32XP USEJRS0SH004

A21F5MSW-001

NSCB0T0TY063

2012/01/06 13-3 A21F5EL.fm

TYPE B

PARTS LIST [32PFL4907/F7 (Serial No.: DS1)]

Mechanical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Different parts from the original model 32PFL4507/F7 (Serial No. : DS1)

Ref. No. Description Part No.

A3 REAR COVER A27F5UH 1EM127000 A14 JACK HOLDER A27F0UH 1EM332537 A18# RATING LABEL A27F5UH ---------A20 LOGO LABEL A27F5UH ---------A23 ENERGY GUIDE LABEL A27F5UH ---------CL3701 FFC WIRE ASSEMBLY 23PIN 23PIN/WHITE/

S1 CARTON A27F5UH 1EM437000A X2# OWNERS MANUAL A27F5UH 1EMN29000A X3 REMOTE CONTROL UNIT YKF255-010 URMT42JHG004 X6 QUICK START GUIDE A27F5UH 1EMN29104A X17 VUDU SHEET E5S20UD 1VMN30133 X18 WIRELESS LAN ADAPTOR WU5502S UWLUSBACM004

55MM

WX1A27F0-101

20120203 13-4 A27F5CA

Electrical Parts

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Different parts from the original model 32PFL4507/F7 (Serial No. : DS1)

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT A27F5MMA-002

POWER SUPPLY CBA A27F0MPW-001 C1007 CERAMIC CAP. 220pF/1KV CCD3AKN0B221 R653 RES CHIP 1608 1/10W F 47.0k Ω RTW4702HH008 R662 RES CHIP 1608 1/10W J 1.5k Ω RRXA152HH013 R670 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R671 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R672 RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001 R680 RES CHIP 1608 1/10W F 10.0k Ω RTW1002HH008

20120203 13-5 A27F5EL

REVISION HISTORY

Chassis PL12.2

• 2012/01/13 32PFL4507/F7 (Serial No.: DS1) added

• 2012/02/07 32PFL4907/F7 (Serial No.: DS1) added

• 2012/02/10 32PFL4507/F8 (Serial No. : XA1) added Note: Identical product to the 32PFL4507/F7 (Serial No.: DS1).

• 2012/05/23 32PFL4507/F8 (Serial No. : DS1) added Note: Identical product to the 32PFL4507/F7 (Serial No.: DS1).

14-1 PL12.2REV

COMPARISON LIST OF MODEL NAMES

Chassis PL12.2

32PFL4507/F7 (DS1) A21F5UH

32PFL4907/F7 (DS1) A27F5UH

32PFL4507/F8 (XA1) A21FAMA

32PFL4507/F8 (DS1) A21FJMH

PL12.2COM
