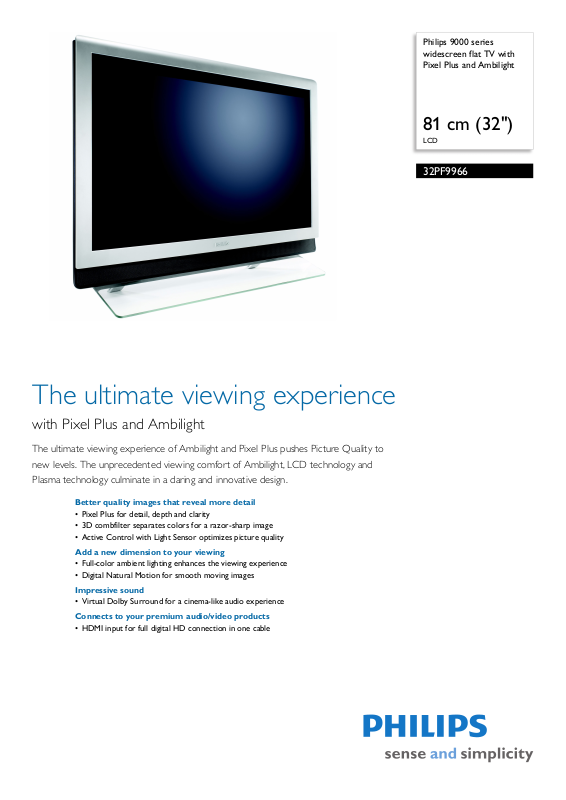

Page 1

Philips 9000 series widescreen flat TV with Pixel Plus and Ambilight

81 cm (32")

LCD

32PF9966

The ultimate viewing experience

with Pixel Plus and Ambilight

The ultimate viewing experience of Ambilight and Pixel Plus pushes Picture Quality to new levels. The unprecedented viewing comfort of Ambilight, LCD technology and Plasma technology culminate in a daring and innovative design.

Better quality images that reveal more detail

• Pixel Plus for detail, depth and clarity

• 3D combfilter separates colors for a razor-sharp image

• Active Control with Light Sensor optimizes picture quality

Add a new dimension to your viewing

• Full-color ambient lighting enhances the viewing experience

• Digital Natural Motion for smooth moving images

Impressive sound

• Virtual Dolby Surround for a cinema-like audio experience

Connects to your premium audio/video products

• HDMI input for full digital HD connection in one cable

Page 2

Widescreen flat TV with Pixel Plus and Ambilight

81 cm (32") LCD

Highlights

32PF9966/37

Pixel Plus

Pixel Plus is a digital picture processing te

chnology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

3D Combfilter

The 3D comb filter separates brightness and c

olor signals better in 3D domain to eliminate cross-color, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Active Control + Light Sensor

Active Control is a unique and intelligent way o

f optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Active Control

with Light Sensor uses a sensor to adjust the picture brightness depending on the room light conditions.

Ambilight

The full-color ambient lights offers you relaxed viewi

ng and a unique ambiance via a soft light glow on the walls surrounding the TV. Research has shown that watching television with adapted ambient lighting promotes more relaxed TV viewing. the Ambilight colors automatically adapt to the images on the screen to add a new sensation to the viewing experience. The light can also be switched to fixed colors or various shades of white. In standby mode, the lights can be operated to any color and create a unique ambiance in the room.

Digital Natural Motion

Philips invented Digital Natural Motion to e

liminate juddering effects that are visible with moving picture content. Digital Natural Motion estimates motion in the picture and corrects juddering movements in both broadcast and

recorded movie material (such as DVD). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

Virtual Dolby Surround

Virtual Dolby Surround is a processing t

echnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

HDMI input

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Page 3

Widescreen flat TV with Pixel Plus and Ambilight

81 cm (32") LCD

Specifications

32PF9966/37

Picture/Display

• Aspect ratio: 16:9

• Brightness: 450 cd/m²

• Contrast ratio (typical): 800:1

•Color cabinet: Pearl - Whit

•

Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix TFT Picture enhancement: Pixel Plus, Digita

• Clear, Progressive scan, 3D Combfilter, Active Control + Light sensor, Digital Natural Motion, Jagged Line Suppression, Movie Plus, Widescreen Plus

• Screen enhancement: Anti-Reflection coated

• Viewing angle (H / V): 160 / 160 degree

• Panel resolution: 1366 x 768p

• Response time (typical): 12 ms

e Silver (11092)

l Crystal

Ambilight

• Ambilight Features: Auto adaptive to video content, Full operation in stand-by

• Color Settings: Full Multi Color

• Dimming Function: Manual and via Light Sensor

• Preset modes: 2 Active Adaptive preset modes, 6 Preset mode

s an

d user preset

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz

deo Formats

• Vi Res

olution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

ers with wOOx

woof

Convenience

• Ease of Installation: Automatic Tuning System (ATS), PLL Digital Tuning, Plug & Play

• Ease of Use: 9-channel smart surf side controls, Channel list, Delta Volume per preset, Smart Picture, Smart Sound

• Remote control type: RC4307

• Teletext: Closed Captioning Full Text

• Remote Control: Universal

• Remote control: TV, VCR, DVD/R, SAT, CBL, AMP

• Screen Format Adjustments: 6 Auto Format, Subtitle and Heading Shift

• Clock: Smart Clock

• Child Protection: Child Lock+Parental Control

• Picture in Picture: 2 tuner PIP, Mozaic

list, Backlighted

screen Modes,

Wide

Tuner/Reception/Transmission

• TV system: NTSC

•Video Playback: NTSC

• Aerial Input: 75 ohm F-type

Connectivity

• Other connections: Analog audio Left/Right out, Centre Speaker connection in, Monitor out, CVBS, L/R (cinch), Subwoofer out

• AV 1: (1, 2, 3Fh autoranging), Audio L/R in,

mpo

nent Video in, Y/C, YPbPr

• AV 2: (1, 2, 3Fh autoranging), Audio L/R in,

• AV 3: Audio L/R in, HDCP, HDMI (Digital Stream

nent Video in, CVBS, RGB+H/V, Y/C,

Compo YPbPr

PDIF)

& S

Power

• Power consumption: 185 (tbc) W

• Standby power consumption: <2

• Mains power: AC 110-120V (+/-10%)

• Ambient temperature: 5 °C to 40 °C

Sound

• Sound Enhancement: Auto Volume Leveller, Digital Signal Processing, Dynamic Bass Enhancement, Graphic Equaliser, Smart Sound

• Sound System: Virtual Dolby Surround

• Output power (RMS): 2x15W

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: Dome tweeter, Integrated

Issue date 2012-01-20

Version: 4.0.5

12 NC: 8670 000 20641 UPC: 0 37849 94597 1

Dimensions

• Product weight: 20 kg

• Weight incl. Packaging: 32 kg

Accessories

• Included accessories: HDMI-DVI adapter cable, Table top stand, Wall mounting bracket

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
