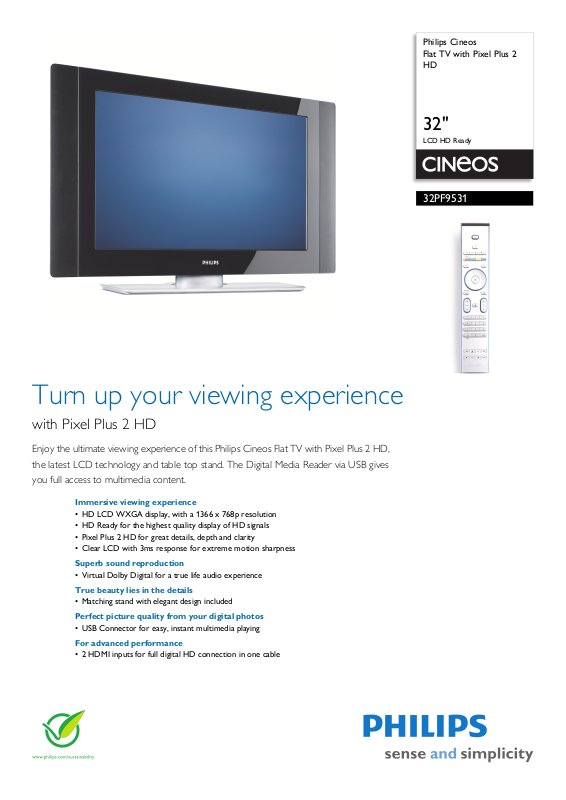

Philips Cineos Flat TV with Pixel Plus 2 HD

32"

LCD HD Ready

32PF9531

Turn up your viewing experience

with Pixel Plus 2 HD

Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Pixel Plus 2 HD, the latest LCD technology and table top stand. The Digital Media Reader via USB gives you full access to multimedia content.

Immersive viewing experience

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Pixel Plus 2 HD for great details, depth and clarity

• Clear LCD with 3ms response for extreme motion sharpness

Superb sound reproduction

• Virtual Dolby Digital for a true life audio experience

True beauty lies in the details

• Matching stand with elegant design included

Perfect picture quality from your digital photos

• USB Connector for easy, instant multimedia playing

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

Flat TV with Pixel Plus 2 HD

32" LCD HD Ready

Highlights

32PF9531/10

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD s

creen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definition pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Pixel Plus 2 HD

Pixel Plus 2 HD offers the unique combination of ultimate sharpness, natural detail, increased depth, vivid colors and smooth and natural motion from standard TV, High Definition signals and multimedia sources. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts in compressed multimedia content are detected and reduced, ensuring that the picture is clean and razor sharp. Digital noise reduction ensures that the picture is perfectly smooth yet razor sharp.

Clear LCD with 3 ms response

Clear LCD creates extreme motion sharpness for clear and vibrant images even w screen motion. The high refresh rates of the scanning backlight technology increases the sharpness of motion reproduction down to an effective response time of 3 milliseconds (measured in Perceived Blurr-Edge-Width; BEW). On top it creates a higher dynamic contrast and an increased viewing angle. The unique Philips technology brings motion sharpness of LCD displays to an unprecedented level, better than any other Flat display technology.

ith fast on-

Virtual Dolby Di

Virtual Dolby Digital is a processing technology for e

nhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Bypacked tabletop stand

A table-top stand with matching design is p

acked with the set.

USB Multimedia Connector

The USB connector allows access to m

ultimedia jpg, mp3 and alb files of most USBsticks and most digital cameras (USB 1.1 memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files. This makes you easily viewing and sharing your photos and music.

2 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

gital

Page 3

Flat TV with Pixel Plus 2 HD

32" LCD HD Ready

Specifications

32PF9531/10

Picture/Display

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Dynamic screen contrast: 7000:1

• Response time (typical): (BEW equiv.) 3 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix T

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus 2 HD, Digital

ral Motion, Dynamic contrast enhancement,

Natu 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Jagged Line Suppression, Progressive Scan, Widescreen Plus, Clear LCD

• Screen enhancement: Anti-Reflection coated

reen

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz

deo Formats

• Vi

Resolution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Output power (RMS): 2x15W

• Sound Enhancement: Digital Signal Processing,

amic Bass Enhancement, Graphic Equaliser

Dyn

• Sound System: Virtual Dolby Digital

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Front Speakers

& Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller ), Delta Volume per preset, Graphical User

(AVL Interface, On Screen Display, Program List, Side Control

• Remote Control: Amp, DVD, Sat, STB (Set-Top

ox), VCR, Multi-functional

• Remote control type: RC4404

• Screen Format Adjustments: 4:3, 6 Widescreen

Modes, Auto F expand 16:9, Subtitle and Heading Shift, Super Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program

rmation Line

info

• VESA Mount: Vesa compliant

ormat, Movie expand 14:9, Movie

Multimedia Applications

• Digital Content Management: Digital Media Reader

• Multimedia connections: USB (streaming video

pable)

• Playback Formats: MP3, Slideshow files (.alb), JPEG

ill pictures, MPEG1, MPEG2

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL, SECAM

• Video Playback: NTSC, SECAM, PAL

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, Y/C

• Ext 3: YPbPr

• Ext 4: HDMI

• Ext 5: HDMI

•Front / Side connections: Audio

Headphone out, S-video in, USB

• Other connections: Analog audio Left/Right out,

VGA + Audio L/R in, S/PDIF in (coaxial), S/

PC-in PDIF out (coaxial)

L/R in, CVBS in,

Accessories

• Included Accessories: Table top stand, RF antenna cable

Dimensions

• Color cabinet: High Gloss Black

• Set dimensions (W x H x D): 935 x 516 x 120 mm

• Set dimensions with stand (H x D): 558 x 233 mm

• Product weight: 18.7 kg

•Box dimensions (W x H x D):

x 698 x 240 mm

• Weight incl. Packaging: 22.5 kg

• VESA wall mount compatible: 200 x 100 mm

•

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Program Naming, matic Channel Install(ACI), Automatic Tuning

Auto System (ATS), Autostore, PLL Digital Tuning, Plug

Issue date 2009-07-29

Version: 16.0.24

12 NC: 8670 000 23413 EAN: 87 10895 92435 1

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 163 W

• Standby power consumption: 0.8W

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
