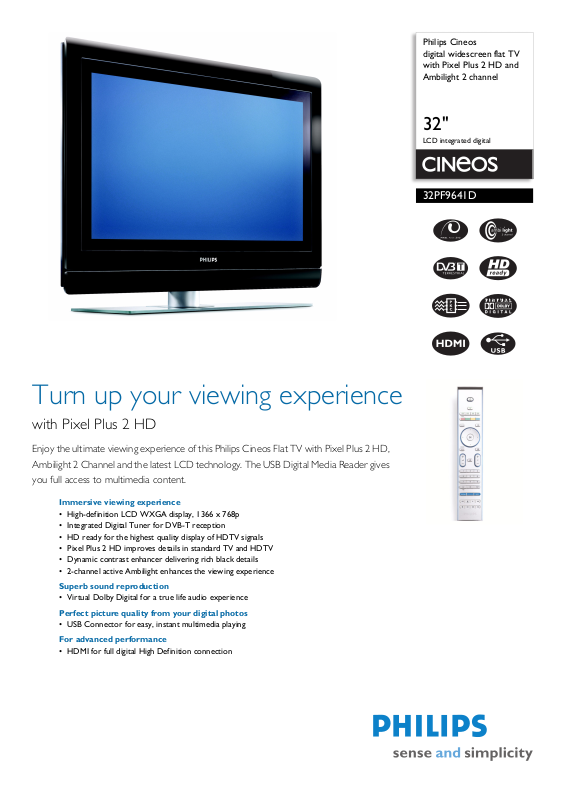

Page 1

Philips Cineos digital widescreen flat TV with Pixel Plus 2 HD and Ambilight 2 channel

32"

LCD integrated digital

32PF9641D

Turn up your viewing experience

with Pixel Plus 2 HD

Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Pixel Plus 2 HD, Ambilight 2 Channel and the latest LCD technology. The USB Digital Media Reader gives you full access to multimedia content.

Immersive viewing experience

• High-definition LCD WXGA display, 1366 x 768p

• Integrated Digital Tuner for DVB-T reception

• HD ready for the highest quality display of HDTV signals

• Pixel Plus 2 HD improves details in standard TV and HDTV

• Dynamic contrast enhancer delivering rich black details

• 2-channel active Ambilight enhances the viewing experience

Superb sound reproduction

• Virtual Dolby Digital for a true life audio experience

Perfect picture quality from your digital photos

• USB Connector for easy, instant multimedia playing

For advanced performance

• HDMI for full digital High Definition connection

Page 2

Digital widescreen flat TV with Pixel Plus 2 HD and Ambilight 2 channel

32" LCD integrated digital

Specifications

32PF9641D/10

Picture/Display

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Dynamic screen contrast: 6000:1

• Response time (typical): 6 ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 32 inch / 80 cm

• Display screen type: LCD WXGA Active Matrix TFT

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus 2 HD, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control, Active Control + Light sensor, Digital Natural Motion, Dynamic contrast enhancement, Jagged Line Suppression, Progressive Scan, Pulse Killer Chip, Widescreen Plus

• Screen enhancement: Anti-Reflection coated screen

Ambilight

• Ambilight Features: Ambilight 2 Channel, Auto adaptive to video content, Efficient low energy lamp

• Colour Settings: Full Multi Colour

• Dimming Function: Manual and via Light Sensor

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz

• Video Formats Resolution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Output power (RMS): 2x8W

• Sound Enhancement: Digital Signal Processing, Dynamic Bass Enhancement, Graphic Equaliser

• Sound System: Virtual Dolby Digital

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: Integrated woofers with wOOx, Dome tweeter

Multimedia Applications

• Digital Content Management: Digital Media Reader

• Multimedia connections: USB (streaming video capable)

• Playback Formats: MP3, Slideshow files (.alb), JPEG Still pictures, MPEG2

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Video Playback: NTSC, PAL, SECAM

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in, RGB

• Ext 4: HDMI

• Ext 5: HDMI

• Front / Side connections: Audio L/R in, CVBS in, Headphone out, S-video in, USB

• Other connections: Analogue audio Left/Right out, S/PDIF in (coaxial), S/PDIF out (coaxial)

• Ext 3: YPbPr

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Program Naming, Automatic Channel Install(ACI), Automatic Tuning System (ATS), Autostore, PLL Digital Tuning, Plug & Play

• Ease of Use: 4 favourite lists, Auto Volume Leveller (AVL), Delta Volume per preset, Graphical User Interface, On Screen Display, Program List, Side Control

• Electronic Program Guide: Now + Next EPG

• Picture in Picture: Text dual screen

• Remote Control: Amp, DVD, Sat, STB (Set-Top Box), VCR, Multi-functional

• Remote control type: RC4401

• Screen Format Adjustments: 4:3, 6 Widescreen Modes, Auto Format, Movie expand 14:9, Movie expand 16:9, Subtitle and Heading Shift, Super Zoom, Widescreen

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program information Line

Accessories

• Included Accessories: Table top stand, RF antenna cable

• Optional accessories: Floor stand

Dimensions

• Set dimensions (W x H x D): 875

x 610 x 107 mm

• Set dimensions with stand (H x D): 772 x 230 mm

• Weight incl. Packaging: 35 kg

• Product weight: 22 kg

• Box dimensions (W x H x D): 1000

x 1051 x 250 mm

• Colour cabinet: Black

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 128 W

• Standby power consumption: <1W

•

Page 3

Digital widescreen flat TV with Pixel Plus 2 HD and Ambilight 2 channel

32" LCD integrated digital

32PF9641D/10

Product highlights

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated DVB-T tuner lets you receive Digital Terrestrial TV to watch or record. This means you do not need an additional set top box and the additional cables.

HD Ready

Enjoy the exceptional picture quality of a true High De fin iti on TV sig nal an d be fu ll y pr epa re d fo r HD sour ces like HDTV broadcast, Blu-ray DVD or HDVD. HD ready is a prot ected lab el tha t offe rs p ic tur e qual ity b eyo nd tha t of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition TV signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DV I or H DMI , sup por ting HDC P. It can dis play 720 p and 1080i signals at 50 and 60Hz.

Pixel Plus 2 HD

Pi xe l Plu s 2 HD of fe rs th e u nique combination of ultimate sharpness, natural detail, increased depth, vivid colours and smooth and natural motion from standard TV, High Definition signals and multimedia sources. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artefacts in compressed multim edia cont en t are dete ct ed and reduced, ensuring that the picture is clean and razor sharp. Digital noise reduction ensures that the picture is perfectly smooth yet razor sharp.

Dynamic contrast enhancer

You want the LCD flat display with the highest contrast and mo st vibra nt image s even at wide vie wing ang le. The Philips dynamic contrast enhancer uses video processing and unique dimming backlight technology. This delivers deep rich black levels with increased detail. The dimming backlight increases the contrast up to 5 times*, and at the same time improves the viewing angle. It gives a bright, lifelike picture with high contrast and vibrant colours (* factor between 2 and 5, screen type and picture content dependant).

Issue date 2007-12-28

Version: 4.0.5

12 NC: 8670 000 24342 EAN: 87 10895 98893 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Ambilight 2 channel

Ambilight makes an impressive contribution to the overall viewing experience by producing ambient light to complement the colours and light intensity of the onscreen image. It adds a new dimension to the viewing experience, completely immersing you into the content you are watching. It creates ambiance, stimulates more relaxed viewing, and improves perceived picture detail, contrast and colour. Ambilight automatically and independently adapts its colours according to the changing content on the screen.

USB Multimedia Connector

The USB connector allows access to multimedia jpg, mp3 and alb files of most USB-sticks and most digital cameras (U SB 1.1 m emor y-c lass d evic e). Plug th e US B int o th e slo t at the side of the TV and access your photos or music files. This makes viewing and sharing your photos and music easy.

HDMI input

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.
