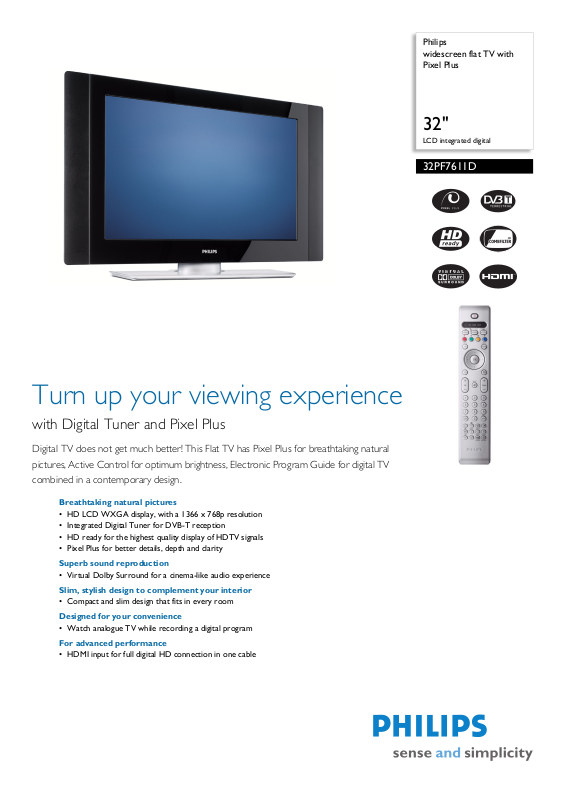

Page 1
Philips
widescreen flat TV with
Pixel Plus
32"
LCD integrated digital
32PF7611D
Turn up your viewing experience
with Digital Tuner and Pixel Plus
Digital TV does not get much better! This Flat TV has Pixel Plus for breathtaking natural
pictures, Active Control for optimum brightness, Electronic Program Guide for digital TV
combined in a contemporary design.
Breathtaking natural pictures
• HD LCD WXGA display, with a 1366 x 768p resolution
• Integrated Digital Tuner for DVB-T reception
• HD ready for the highest quality display of HDTV signals
• Pixel Plus for better details, depth and clarity
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• Watch analogue TV while recording a digital program
For advanced performance
• HDMI input for full digital HD connection in one cable
Page 2
Widescreen flat TV with Pixel Plus
32" LCD integrated digital
Specifications
32PF7611D/10
Picture/Display
• Aspect ratio: 16:9
• Brightness: 500 cd/m²
• Contrast ratio (typical): 800:1
• Dynamic screen contrast: 3200:1
• Response time (typical): 8 ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 32 inch / 80 cm
• Display screen type: LCD WXGA Active Matrix
TFT
• Panel resolution: 1366 x 768p
• Picture enhancement: Pixel Plus, 3/2 - 2/2 motion
pull down, 3D Combfilter, Active Control, Colour
Temperature Adjustment, Contrast Plus, Digital
Noise Reduction, Jagged Line Suppression,
Luminance Transient Improver, Progressive Scan,
Pulse Killer Chip, Sharpness Adjustment
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
• Video Formats
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Equalizer: 5-bands
• Output power (RMS): 2 x 15 W
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Stereo, Virtual Dolby Surround
Loudspeakers
• Built-in speakers: 4
• Loudspeaker types: Dome tweeter
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• Video Playback: NTSC, PAL, SECAM
• DVB: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Number of Preset Channels: 100
• Tuner Display: PLL
Connectivity
• Ext 2 Scart: RGB out, S-video in
• Number of Scarts: 2
• Ext 4: YPbPr
• Ext 5: HDMI
• Ext 6: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in
• Other connections: S/PDIF out (coaxial),
Common Interface
Convenience
• Clock: Sleep Timer, Wake up Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Easy
toggle Dig/Analogue modes, Program List, Side
Control, Smart Picture Control, Smart Sound
Control, Watch analogue/record digital
• Picture in Picture: Picture in graphics
• Remote Control: TV, DVD
• Remote control type: RC4343/01
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Teletext: 1000 page Smart Text
• Teletext enhancements: 4 favourite pages,
Program information Line
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Registration
card, Warranty certificate, Remote Control,
Batteries for remote control
• Optional accessories: Floor stand
Dimensions
• Set dimensions (W x H x D):
935
x 516.5 x 120 mm
• Dimensions (with base) (H x D): 558 x 233 mm
• Weight incl. Packaging: 22.5 kg
• Product weight: 19.2 kg
• Box dimensions (W x H x D):
1012
x 698 x 240 mm
• Colour cabinet: Black Gloss with Tempered Glass
Deco Front
• VESA wall mount compatible: 200,100 mm
Power
• Ambient temperature: +5 -/+ 40 C
• Mains power: AC 220 - 240 V +/- 10%
• Power consumption: TBC W
• Power supply: AC 90-240
• Standby power consumption: < 1 W
•
Page 3

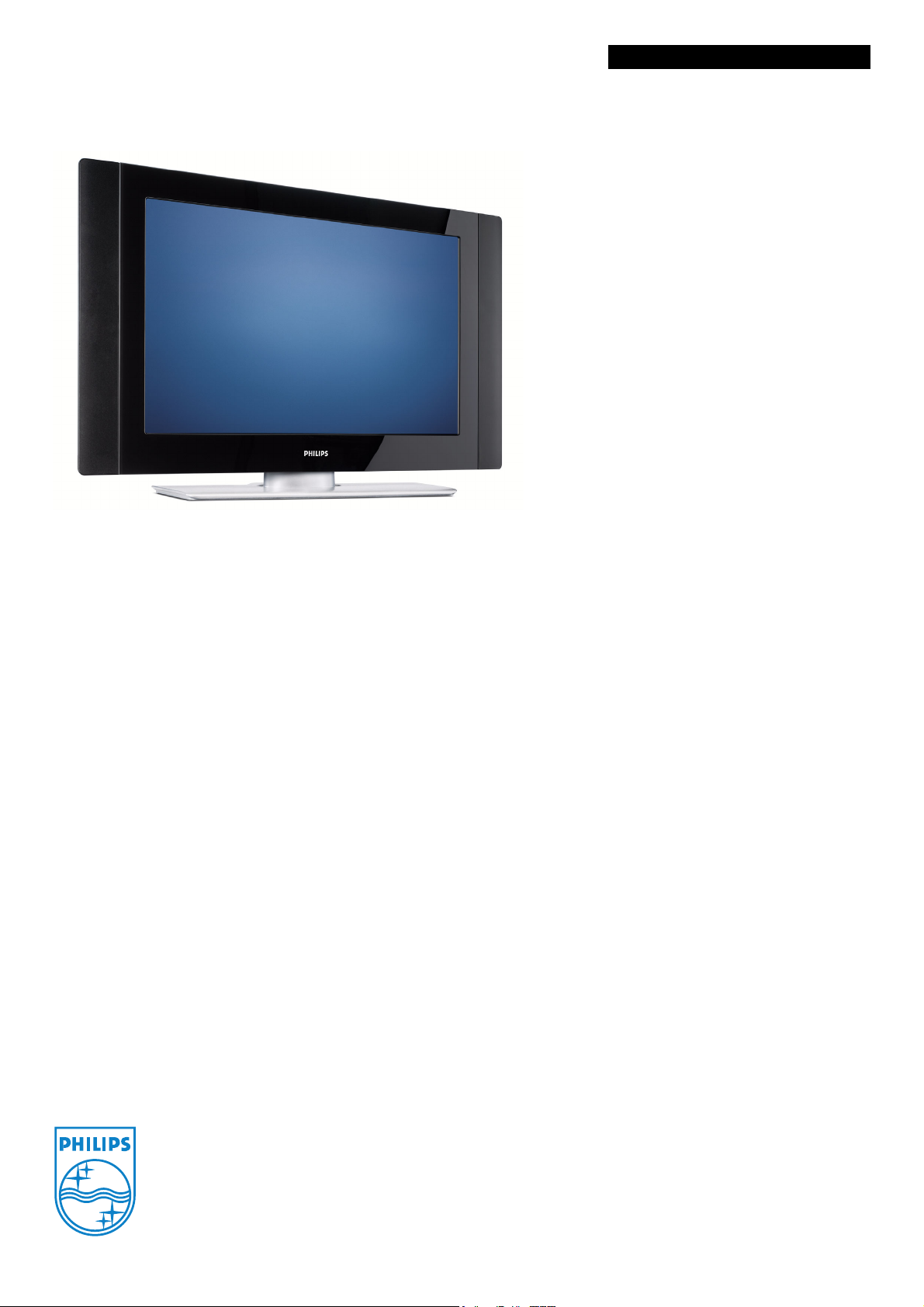

Widescreen flat TV with Pixel Plus
32" LCD integrated digital
32PF7611D/10
Product highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb
colours. This vibrant and sharp image will provide you
with an enhanced viewing experience.
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive Digital
Terrestrial TV to watch or record. This means you do not
need an additional set top box and also the additional
cables.
HD Ready
Enjoy the exceptional picture quality of a true High
De fin iti on T V si gnal an d be fully p rep are d fo r HD sou rce s
like HDTV broadcast, Blu-ray DVD or HD-DVD. HD
ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD screen that
displays the benef its of resolut ion and picture quality of a
High Definitio n TV s ignal. It has a unive rsal c onnecti on for
both analogue YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting HDCP. It can
display 720p and 1080i signals at 50 and 60Hz.
Pixel Plus
Pixel Plus is a digital picture processing technology that
increases the number of lines and the number of pixels.
The result is razor sharp pictures with incredible detail
and depth, every time from any source.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
Watch analogue, record digital
Issue date 2007-12-01
Version: 1.0
12 NC: 8670 000 24329
EAN: 87 10895 98696 0
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analogue signal, it delivers an unblemished image.
The non-degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently communicates the
highest output resolution with the source device. The
HDMI input is fully backward compatible with DVI
sources but includes digital audio. HDMI uses HDCP
copy protection.
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
