Philips 32HFL4441D-27, 37HFL4481F-27 User Guide

32HFL4441D/27

32HFL4461F/27

37HFL4481F/27

EN Quick User Guide

1 How to use this guide

The Quick Start Guide helps you install the Philips commercial television, as quickly as possible. It contains the necessary information to install theTV and configure the settings. Read and understand the instructions in the Quick Start Guide before you use yourTV.

For detailed information on additional features, download the user manual by selecting yourTV model at www.philips.com/hospitality. The Quick Start Guide contains the following information:

•contents of the box

•standalone installation instructions

•configuration of channel, advanced and SmartFeatures settings

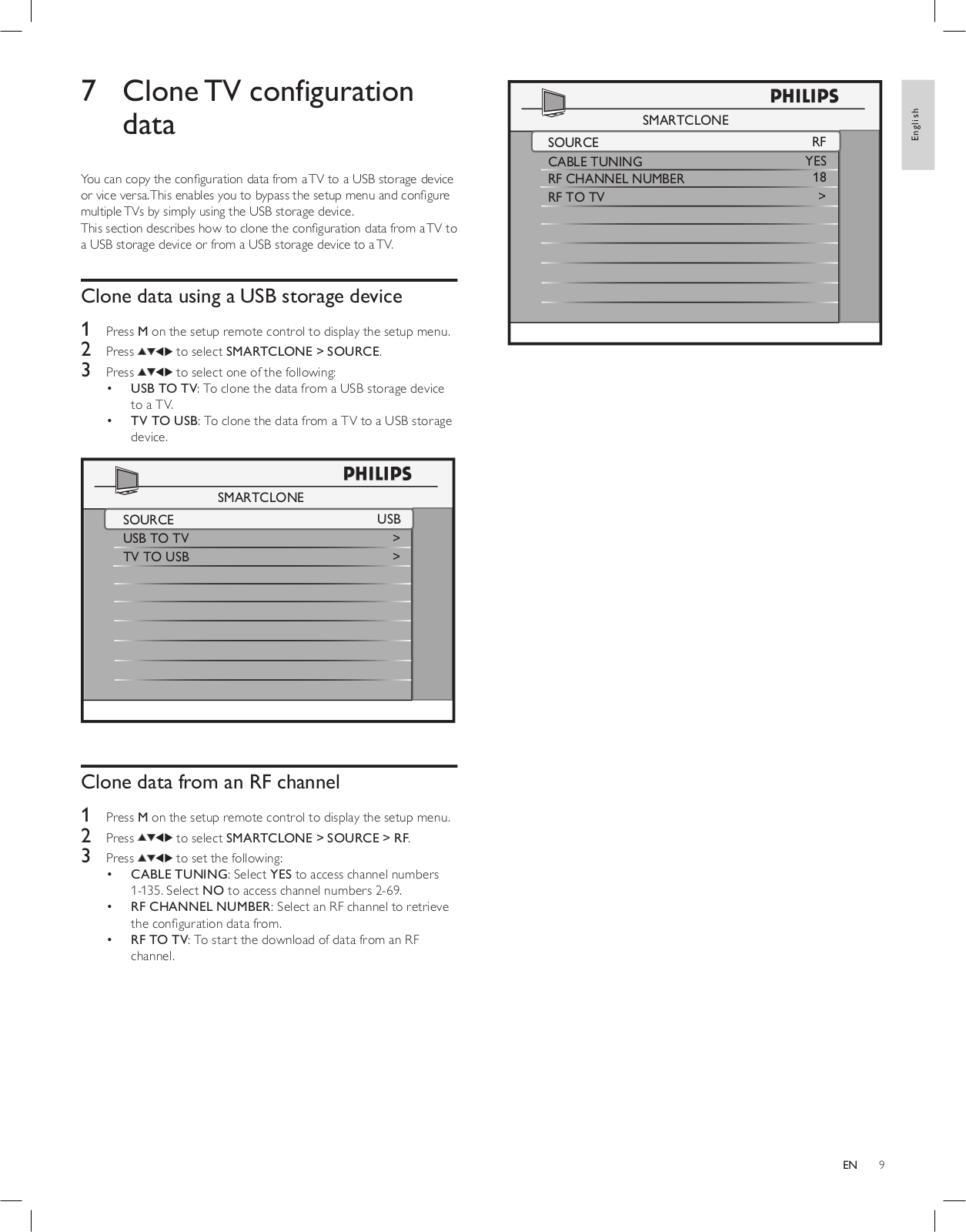

•cloning of data

•troubleshooting

OSS declaration

Open source software

This television contains open source software. Philips BU Hospitality hereby offers to deliver or make available, upon request, for a charge no more than the cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code on a medium customarily used for software interchange.

To obtain the source code, write to: Philips Singapore Pte Ltd.

Philips BU Hospitality

Software Development Manager 620A Lorong 1,Toa Payoh Singapore 319762

This offer is valid for three years after the date of purchase of this product.

Energy savings mode

ThisTV ships with default settings that comply with Energy Star® requirements.

To meet Energy Star requirements, the side control keys of theTV are disabled while in standby and the turn-on time is increased.

The user should be aware that changing certain settings can cause the TV to consume more energy, and put it in a condition that is no longer Energy Star® compliant.

Some examples include, but are not limited to, disabling Low Power Standby to enable the side control keys and/or speed up turn on time or raising the contrast level for a brighter picture.

This TV is configured in Energy Savings mode.

••This mode will disable the side control keys of the TV and result in a longer turn on time. To optimize the TV performance, adjust the LOW POWER STANDBY setting in TV SETUP menu.

••For more details, refer to the information on configuring the LOW POWER STANDBY feature (see ‘Configure SmartPower settings’ on page 7).

English

EN 1

2 The contents of the box

The box contains the following items:

•which secure the TV stand to the furniture of the hotel room to prevent unauthorized removal or theft

•desk-to-stand screws (2)*

•desk-to-stand washers (2)*

•desk-to-stand secure groove nuts (2)*

•which secure the TV stand to the TV to prevent unauthorized removal or theft

•stand-to-TV secure screws (4)*

•stand-to-TV cross-head screws (4)*

•the TV

•the TV stand

•Quick Start Guide

•2-pin power cord

•Guest remote control*

Note

•• * The items are available in selected models only.

Note

••The tools required to secure the screws are not included in the box. Contact your Philips authorized agent or dealer in NAFTA to obtain the tools.

x 2

x 2

x 2

(Available in selected models only)

x 4

x 4

(Available in selected models only)

(Available in selected models only)

2EN

3 Standalone installation

This section describes how to install theTV channels automatically. 1 Connect the RF signal from the wall socket to the TV.

2Plug the 2-pin power cord into the power outlet.

Cable

3Set the switch at the side of the setup remote control to SETUP.

Note

••The setup remote control is not included in the box. Contact your Philips authorized agent or dealer to obtain the remote control.

			POWER
RECALL
	TEXT	SMART	SLEEP
CC
GUEST
DCM	1	2	3
SETUP	4	5	6
SETUP	7	8	9
		0	GUIDE
	RESET		CH
M	M		A/CH

_ +

+ +

VOLCH

4Turn the TV on.

• Press POWER at the side of the TV.

4

3

MENU

2

1

•Press Power on the setup remote control.

		POWER
RECALL
TEXT	SMART	SLEEP
CC
GUEST
DCM 1	2	3
SETUP 4	5	6

7 8 9

5 Press M on the setup remote control to display the setup menu.

6Press to select AUTO INSTALL TV.

SETUP
LANGUAGE	ENGLISH
COMMUNICATION	>
CHANNEL INSTALL	>
AUTO INSTALL TV	>
CABLE TUNING	YES
USE CHANNEL TABLE	YES
CURRENT RING	RING2
DIGITAL SETUP	>
CONFIGURATION	>
SMARTCLONE	>

7Press to start the automatic installation of channels.

»» After the channels are installed, you can change the settings of the channels, picture, sound, and volume.

English

EN 3
