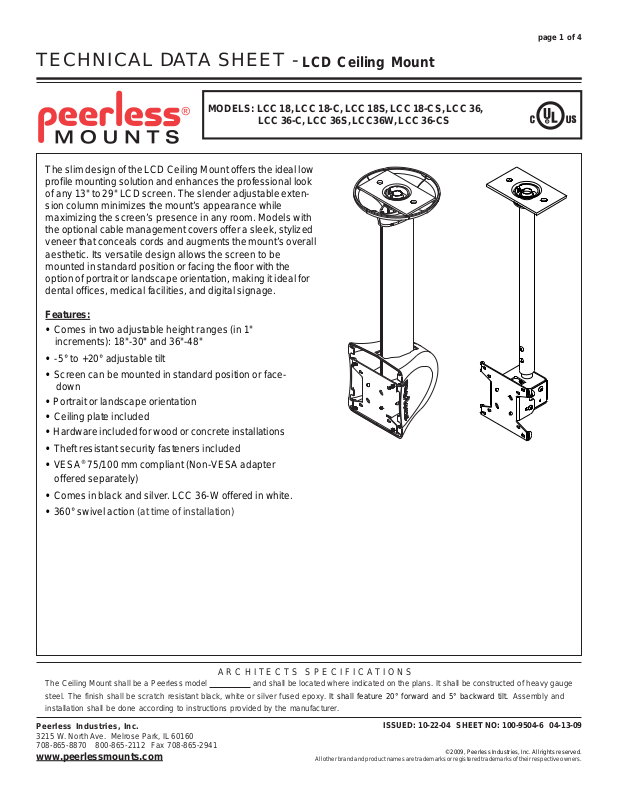

page 1 of 4
TECHNICAL D ATA SHEET -
MODELS: LCC 18, LCC 18-C, LCC 18S, LCC 18-CS, LCC 36,
LCC 36-C, LCC 36S, LCC36W, LCC 36-CS
The slim design of the LCD Ceiling Mount offers the ideal low
profile mounting solution and enhances the professional look
of any 13" to 29" LCD screen. The slender adjustable extension column minimizes the mount’s appearance while
maximizing the screen’s presence in any room. Models with
the optional cable management covers offer a sleek, stylized
veneer that conceals cords and augments the mount’s overall
aesthetic. Its versatile design allows the screen to be
mounted in standard position or facing the floor with the
option of portrait or landscape orientation, making it ideal for
dental offices, medical facilities, and digital signage.
Features:
• Comes in two adjustable height ranges (in 1"
increments): 18"-30" and 36"-48"
• -5° to +20° adjustable tilt
• Screen can be mounted in standard position or face-
down
• Portrait or landscape orientation
• Ceiling plate included
• Hardware included for wood or concrete installations
• Theft resistant security fasteners included
• VESA® 75/100 mm compliant (Non-VESA adapter
offered separately)
LCD Ceiling Mount
R
• Comes in black and silver. LCC 36-W of fered in white.
• 360° swivel action (at time of installation)
A R C H I T E C T S S P E C I F I C A T I O N S
The Ceiling Mount shall be a Peerless model and shall be located where indicated on the plans. It shall be constructed of heavy gauge
steel. The finish shall be scratch resistant black, white or silver fused epoxy. It shall feature 20° forward and 5° backward tilt. Assembly and
installation shall be done according to instructions provided by the manufacturer.
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 10-22-04 SHEET NO: 100-9504-6 04-13-09
© 2009, Peerless Industries, Inc. All rights reserved.
Accessories:
• Lightweight Adjust able Suspended Ceiling Kit (CMJ 500)
• Lightweight Suspended Ceiling Kit (CMJ 455)
• Accessory Pack for CMJ 455 (ACC 455)*
• Lightweight Cathedral Ceiling Plate (ACC 912)*
• Unistrut or Structural Ceiling Plates (CMJ 300, CMJ 310)*
• Anti-Vibration Ceiling Plates (ACC 845)*
• I-Beam Clamps (ACC 558, ACC 559)
• Truss Ceiling Adapter (ACC 557)*
• Unistrut Adapter (ACC 550)
• Escutcheon Ring (ACC 640)*
• Round Ceiling Plate (ACC 570)
not evaluated by UL
*
LCC 18, LCC 18S
Dimensions:
Weight:
3.9 lb (1.8 kg)
LCC 18-C, LCC 18-CS
Dimensions:
Weight:
5.4 lb (2.4 kg)
page 2 of 4
• Cord Wrap (ACC 852(W)(S))*
• 3/4" Pipe Reducer (ACC 913)*
• Fixed Length 1 1/2" Extension Columns
(EXT models)
• Adjustable Length 1 1/2" Extension Columns (ADJ
models)
• Extension Column S tabilizer Kit (ACC 050)*
• Extension Column Connector (ACC 109)
• 1/2" Threaded Rod (ACC 820)*
• Threaded Rod Adapter (ACC 810)*
• Non-VESA Adapter Plates (LC models)*
Shipping weight:
4.6 lb (2.1 kg)
Maximum Load Capacity:
40 lb (18.1 kg)
Shipping Carton dimensions:
L = 26.25 in (667 mm)
W = 7.5 in (191 mm)
H = 3.25 in (83 mm)
LCC 36, LCC 36S, LCC36W
Dimensions:
Weight:
5.4 lb (2.4 kg)
Shipping weight:
6.2 lb (2.8 kg)
Maximum Load Capacity:
40 lb (18.1 kg)
Shipping Carton dimensions:
L = 39 in (991 mm)
W = 4 in (102 mm)
H = 4.5 in (114 mm)
Shipping weight:
7.3 lb (3.3 kg)
Maximum Load Capacity:
40 lb (18.1 kg)
Shipping Carton dimensions:
L = 31.75 in (806 mm)
W = 12 in (305 mm)
H = 4 in (102 mm)
LCC 36-C, LCC 36-CS
Dimensions:
Weight:
7.4 lb (3.4 kg)
Shipping weight:
10.6 lb (4.8 kg)
Maximum Load Capacity:
40 lb (18.1 kg)
Shipping Carton dimensions:
L = 46 in (1168 mm)
W = 12 in (305 mm)
H = 4 in (102 mm)
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessmounts.com
ISSUED: 10-22-04 SHEET NO: 100-9504-6 04-13-09
All other brand and product names are trademarks or registered trademarks of their respective owners.
© 2009, Peerless Industries, Inc. All rights reserved.
page 3 of 4
TECHNICAL DATA SHEET
1.05 in
(27 mm)
O.D.
Model# in. (mm) in. (mm)
LCC 18, LCC 18-C 17.125 (435) min. 30.125 (765) max. 18.92 (481) min. 31.92 (811) max.
LCC 18S, LCC 18-CS
LCC 36, LCC 36-C, LCC 36S, 34.625 (879) min. 47.625 (1210) max. 36.42 (925) min. 49.42 (1255) max.
LCC 36W, LCC 36-CS
MODELS: LCC 18, LCC 18-C, LCC 18S, LCC 18-CS, LCC 36, LCC 36-C,
LCC 36S, LCC 36W, LCC 36-CS
L
L1
1 in
(25 mm)
2.8 in
(71 mm)
Length (L) - adjustable Length (L1) - adjustable
at 1" increments at 1" increments
(89 mm)
3 in
(76 mm)
A
TOP VIEW
(CEILING PLA TE DETAIL)
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessindustries.com
3.5 in
5 in
(127 mm)
.66 in
(17 mm)
A
1-1/2 X 11.5 NPS
SECTION A-A
ISSUED: 10-22-04 SHEET NO: 100-9504-6 04-13-09
All other brand and product names are trademarks or registered trademarks of their respective owners.
© 2009, Peerless Industries, Inc. All rights reserved.
page 4 of 4
TECHNICAL DATA SHEET
28 in
(71 1 mm)
SIDE VIEW
(VERTICAL COVER DET AIL)
45.5 in
or
(1 156 mm)
MODELS: LCC 18, LCC 18-C, LCC 18S, LCC 18-CS, LCC 36, LCC 36-C,
LCC 36S, LCC 36W, LCC 36-CS
.73 in
(19 mm)
3.12 in
(79 mm)
.87 in
(22 mm)
TOP VIEW
5.3 in
(135 mm)
6.28 in
(160 mm)
SIDE VIEW
(TIL TING COVER DET AIL)
Dia. 6.33 in
(161 mm)
SIDE VIEW
(TOP COVER DET AIL)
2.76 in
(70 mm)
TOP VIEW
3.16 in
(80 mm)
2.13 in
(54 mm)
TOP VIEW
Peerless Industries, Inc.
3215 W. North Ave. Melrose Park, IL 60160
708-865-8870 800-865-2112 Fax 708-865-2941
www.peerlessindustries.com
ISSUED: 10-22-04 SHEET NO: 100-9504-6 04-13-09
All other brand and product names are trademarks or registered trademarks of their respective owners.
© 2009, Peerless Industries, Inc. All rights reserved.
