Paradigm Millenia CT User Manual
L
R
Set-Up Guide
REV. 072412
For more information visit www.paradigm.com
205 Annagem Blvd., Mississauga, ON Canada L5T 2V1
Paradigm Electronics Inc.
as design improvements are incorporated.
their respective owner(s). Paradigm Electronics reserves the right to change specifications and/or features without notice
Paradigm Electronics Inc. Copyright © Paradigm Electronics Inc. All rights reserved. All other trademarks are the property of
Paradigm, Millenia CT and associated proprietary and patented designs and technologies are registered trademarks of
™
HIGH-DEFINITION SOUND

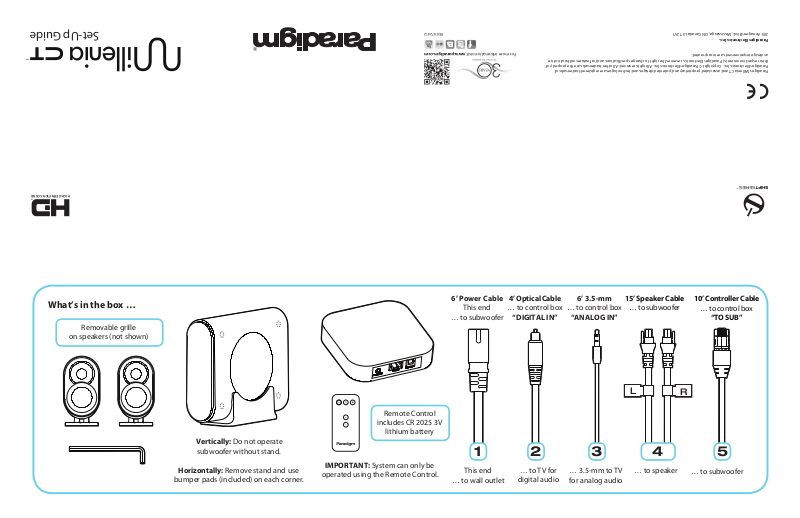

What’s in the box …
Removable grille
on speakers (not shown)
6’ Power Cable
This end
… to subwoofer
4’ Optical Cable
… to control box
“DIGITAL IN”
6’ 3.5-mm
… to control box
“ANALOG IN”
15’ Speaker Cable
… to subwoofer
TM
10’ Controller Cable
… to control box
“TO SUB”
SHIFTSERIES
Vertically: Do not operate
subwoofer without stand.
Horizontally: Remove stand and use
bumper pads (included) on each corner.
Remote Control
includes CR 2025 3V
lithium battery
IMPORTANT: System can only be
operated using the Remote Control.
1 2 3
This end
… to wall outlet
… to TV for
digital audio
… 3.5-mm to TV
for analog audio
4 5
… to speaker
… to subwoofer
BEFORE YOU BEGIN, READ THE SAFETY PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS INCLUDED IN THE OWNERS MANUAL.
Using Sub In Horizontal Position:
1
Connect Both Speakers
2
L
Connect contoller cable to
subwoofer and to control box
4
Connect Subwoofer
IMPORTANT: Use bumper pads (included) to
ensure necessary floor clearance .
55
Connect Control Box
3
4
55
OPTIONAL:
L
Left cable to left speaker
Right cable to right speaker
4
Repeat for
subwoofer
TIP: If after set-up and
“power on” you do not hear
audio, press the “input”
button on the remote.
4
1
Connect power cable to
subwoofer and to wall outlet
A
B
–
BASS
+
BASS
Loosen Bracket, Adjust for Desired
Speaker Angle & Tighten Again
OR
To Use Control Box with Apple TV
Analog connection to TV
(use for good audio)
3
5
Digital connection to TV
(use for best audio)
2
Your subwoofer’s LEVEL switch is set to 12
o’clock to suit average preferences. If desired,
adjust to match sound level of your speakers.
Connect digital
output cable
For further instructions, refer to your
Apple TV Set-Up Guide.
