Pandora LIGHT PRO User Manual

Pandora would like to thank you for choosing

our LIGHT PRO service and security system

G E N E R A L I N F O R M A T I O N

Pandora is the exclusive brand of security systems fully developed and

manufactured in Russia.The manufacturing has its owen R&D department and more
than 10 years of experience in the development of car-alarms making it able to offer
the latest technology with unique features. In 2016, Pandora and TSS Group, have
formed a new strategic partnership and thanks to long experience in the car security
market, the selected functions and features have been optimized according to needs
of EU and european customers.

Pandora LIGHT PRO – is a premium car service-security system, built for cars with

on-board voltage of 12V. It is a complex engineering solution which includes car
security system, telemetry, remote and automatic engine start and various service
options, all controlled from your OEM key remote, smartphone or online service.

When building Pandora LIGHT PRO we were using the most up-to-date
electronics from world’s best manufacturers. The device is built using high-precision
mounting and control machinery, thus we guarantee highest possible quality,
reliability and stable technical characteristics for the whole operation period.

Pandora LIGHT PRO has a cryptographically strong authorization code with

unique dialog algorithm and individual 128 bit encryption key on every device. We
guarantee 100% protection form electronic hacking for the whole operation period.

WARNING! It is strongly advised to have professional car mechanic



installing the system. Any car electronics installer should be able to
install Pandora LIGHT PRO using installation scheme in this manual and
AlarmStudio software. Most features are highly dependent on competent
installation. Our systems are thoroughly tested for quality, so if a feature fails
to produce expected result, most likely the problem is in improper installation.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

G E N E R A L I N F O R M A T I O N

IMPORTANT! Note that this manual describes remote and manual functions
for the most part. Functionality of the system is vast and would require a
book-sized manual to fully describe. Instead we use handy software named
AlarmStudio that functions as both programming tool and an extended
installation & functionality manual. It requires Windows.

This device has limited external factors resistance. It should not be subjected to
water beyond occasional splatter, or operated in temperatures outside -40° to +80° C
range.

Our web site: www.pandorainfo.eu

Product is in conformity with Electromagnetic Compatibility
Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC

USE R MANUAL

T A B L E O F C O N T E N T S

General information 2

System features 7
System set 9

Remote controls 10

Led indicator signals 11
Quick access functions of the main control remote 12
Icons of the remote control 14
Arming procedure 15
Disarming procedure 16
Emergency disarming 17
Enabling/Disabling an immobilizer radio tag 19
Unlocking the trunk lock 20
Locking/Unlocking doors when ignition
is being switched on 21
Car search function 22
Delayed arming 22
PANIC mode 23
Remote and automatic engine start 23
Programmed neutral procedure
(for cars with manual transmission) 24
Remote engine start 25
System settings menu 27
Engine preheater 29
Timer channels control 29
Car status control 31
Event history 31
Automatic engine start settings 32

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

T A B L E O F C O N T E N T S

Sensors settings 35

Shock sensor settings 35
Motion sensor settings 37
Tilt sensor settings 37

Wiring diagram 38
Wiring description 41

Siren signal settings 45
Sound notification settings 46
Radio channel control settings 46
Maintenance mode 47
Time settings 48
Alarm settings 49
Replacing a battery in the remote control 49

Immobilizer 50

Arming/Disarming using a radio tag button 50
Arming/Disarming in Hands Free mode 51
Arming/Disarming in «Slave» mode 51
Immobilizer mode 51
Anti-hi-jack mode 52
Code immobilizer using original car controls 52
Replacing immobilizer tag battery 53

USE R MANUAL

T A B L E O F C O N T E N T S

Pandora BT mobile application 54
System configuration and programming 55

Entering the programming menu 55
Preparing to program the system using a computer 57
Updating firmware 57
Programming using VALET button 58
Additional devices 69
Siren sounds and turn light signals 70
Meaning of LED indicator colors 71
Checking the number of recorded remote controls/
radio tags/mobile device 71

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

S Y S T E M F E T U R E S

SYSTEM FETURES

2-way LCD remote control

• Arminganddisarmingsecuritysystemusingseparatebuttons.

• Statusesof14independentsecurityzones

• Vibratingalert.

• 16notificationsringtones.

• OLED-display.

• Vibrationconfirmationofthebuttonpress.

• Batterylevelindicator.

• Currenttimeindication.

• Timesynchronizeswiththebaseunitforexacttimestampintheeventhistory.

• Engine*andinteriortemperature,voltageandfuellevelindication.

• Promptremoteaccesstothesettingsofshock/tilt/motionsensor.

• Vieweventhistorywithtimeandeventstamps.

• AutomaticcontrolofRFcoveragezone.

Immobilizer tag

• Dialogcodingofcontrolcommands.

• Individual128-bitencryptionkey.

• Built-inLEDindicator.

• Built-inbuttontocontroloversecuritymodes.

• Built-inintegralaccelerometer.

USE R MANUAL

* Engine temperature
indication is available
only if temperature
sensor is connected.
The sensor
availability depends
on the system set.

S Y S T E M F E T U R E S

Base unit

• Individual «Secret PIN-code» for disarming and disabling immobilizer.

• Dialog coding of control commands sent at a frequency of 868 MHz.

• Individual 128-bit encryption key. A user can change the key during tag re-learning

procedure.

• Event history with exact time stamps is stored in the base unit and is transferred to
the remote when it is in range

• Can be complemented with BM-105 single-wire digital block relay and BTR-101
radio relay.

• Monitoring of on-board voltage.

• Built-in integral accelerometer for determining motion and shocks with adaptive

processing algorithm and sensitivity controls via the remote control.

• Built-in 2.4 GHz module supports Bluetooth 4.2 Low Energy.

• Hands Free mode for arming/disarming.

• Immobilizer and Anti-hijack modes.

• Separate inputs for hood and trunk sensors.

• Advanced processing of sensor data, eliminating false alarm possibilities.

• Precisionmeasurementofinteriorandengine*temperature,displayedonthe

remote.

• Two-step unlocking of the doors.

• Arming when the engine is running.

• Automatic arming.

• Delay for interior lighting when arming.

• Software updates via built-in micro-USB socket.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

S Y S T E M F E T U R E S

Car security zones

Pandora LIGHT PRO service-security system guards following independent zones with
corresponding zone notifications on the remote and recording alarms into the event
history:

• cardoorsperimeter(separateforeverydoor*);

• fronthoodtriggers;

• trunktriggers;

• ignitiontrigger;

• brakepedalpressing;

• triggeringoftheshocksensor(warninglevel)**;

• triggeringoftheshocksensor(alarmlevel);

• triggeringofthemotionsensor;

• triggeringofthetiltsensor;

* Availability of this
function depends on
car make and model
** Triggering of the
warning level of
shock sensor is not
saved in the event
history

• criticallylowon-boardvoltage  

• triggeringoftheoriginalalarmsystem*.

All alarm events are recorded into system’s non-volatile memory with coordinates,
date and exact time the event happened. Event history can be read using a remote
control.

SYSTEM SET

1. Base unit 1

2. Main control remote with LCD 1

3. Leather case for main remote control 1

4. Immobilizer tag 1

5. Cable with three-colored light indicator 1

6. User manual 1

USE R MANUAL

R E M O T E C O N T R O L

7. Personal owner’s card 1

8. Engine temperature sensor 1

9. Main cable 1

10. LIN interface cable 1

11. IMMO interface cable 1

12. Relay 1

13. Fastening kit 1

14. Micro-USB cable 1

15. Packaging 1

Manufacturer reserves the right to change set and construction of the product to improve
its technological and operational parameters without notification.

REMOTE CONTROLS

Two-way remote is the main mean of control over the system.
For easily distinguishable notifications the remote uses 16 ringtones. Each ringtone
matches particular event. Remote has flashing LED indicators for additional
information.

The remote is fully operational when shipped. To switch the remote on, press and
hold button. «REMOTE ON» ringtone will play. Pressing and holding this button
again for 3 seconds will cause the remote to switch off.

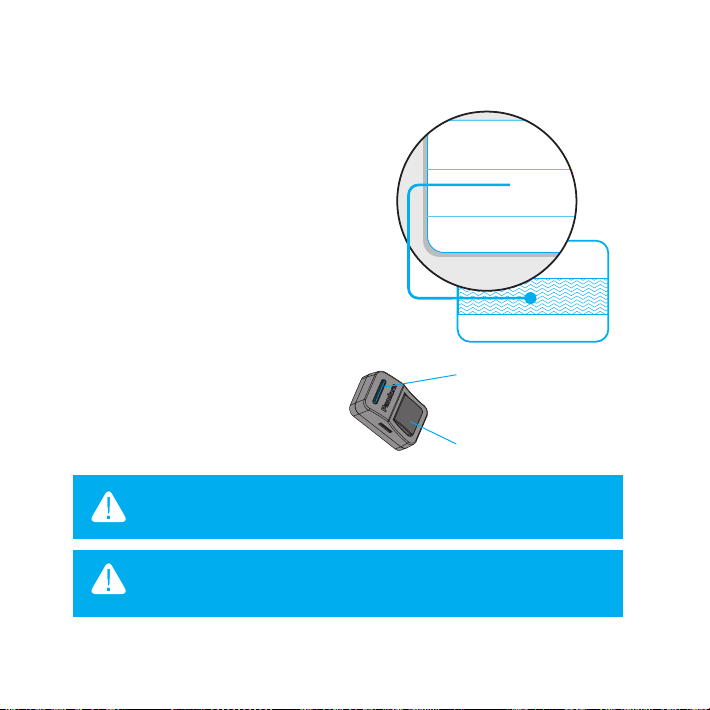

WARNING! All control commands are transmitted via radio channel,



for maximum eectiveness and range it is recommended not to shield

aerial area (see picture) with ngers when using a remote control

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

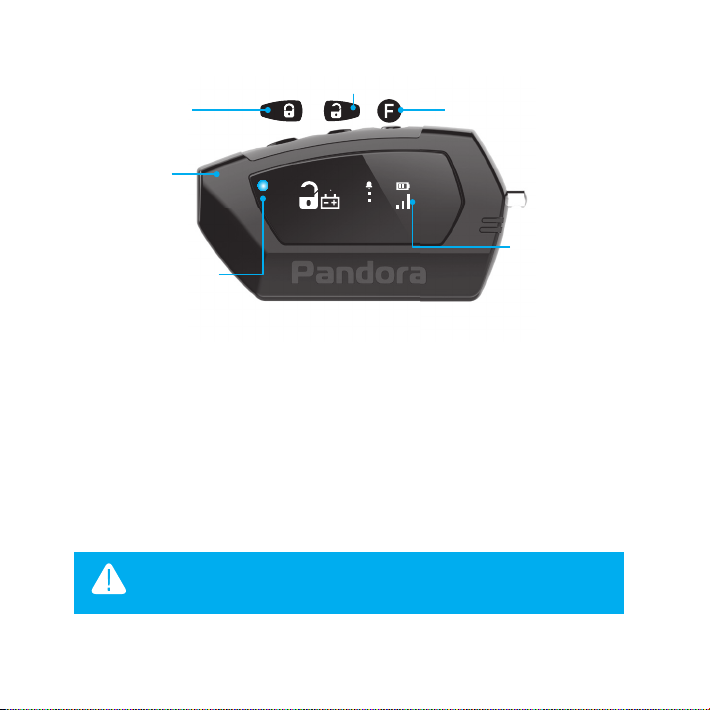

Aerial

SEND/ALARM
indicator

OLED­display

Button 1

Button 2

Button 3

12

12 0B

48

R E M O T E C O N T R O L

LED INDICATOR SIGNALS

Green indicator:

• Flashesifthereisaconnectionwiththebaseunit

• Goesdarkwhenthereisnoconnectionwiththebaseunit.

Red indicator:

• Flashesfrequentlyifthereisanynotification

• Flashesoccasionallywhenthereisnoconnection.

USE R MANUAL

WARNING! A remote control is a uni ed control device. Its functions
depend on security system model.

R E M O T E C O N T R O L

QUICK ACCESS FUNCTIONS OF THE REMOTE CONTROL

(short press)

(1 sec.)

(2 sec.)

(3 sec.)

(short press)

(1 sec.)

(> 2 sec)

System is disarmed

Ignition is switched on Ignition is switched o

Lock doors without
arming

Switch on «Ignition
maintenance» mode

Switch on «Programmed
neutral»

Unlock doors Unlock doors

Switch o «Ignition
maintenance» mode

Arming with sound
confrmation

Arming without sound
confrmation

Unlock doors

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

System is armed
(no alarm events)

Search mode – flashes
of turn signals with
sound signals for 5
seconds

Search mode – flashes
of turn signals without
sound signals for 5
seconds

Remote engine start

Disarming with sound
conrmation

Disarming without
sound conrmation

Switch o the ignition
during remote or
automatic engine start
procedure.

R E M O T E C O N T R O L

(short press)

(1 sec.)

(2 sec.)

(3 sec.)

+

(short press)

+

(short press)

+

(1 sec.)

USE R MANUAL

Switch on LCD lighting (available only on the remote with LCD)

Unlock trunk (CH1)

Switch on/o timer channel (CH2)

Switch on/o remote (available only on the remote with LCD)

PANIC mode

Arming when the
engine is running with
sound conrmation

Arming when the
engine is running with
sound conrmation

Arming in 30 seconds
With sound notication

Arming in 30 seconds
without sound
notifcation

R E M O T E C O N T R O L

ICONS OF THE REMOTE CONTROL

12 48

12.0V

12°

0°

0

Flashing when
command sending

Security mode
status

Remote control
battery level

Numeric indicator
displays current
time

Battery voltage

Interior
temperature

Engine

temperature*

Fuellevel*

Alarm clock

Shock sensor
security zone
Warning level of

thesensor;

Alarm level
of the sensor

Tilt sensor
Security zone

Motion sensor
security zone

Doors security
zone

Front hood
security zone

Trunk
Security zone

Ignition
Security zone

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

Handbrake/ neutral

P

indicator, Brake

Engine operation
icon

pedal security zone

Low voltage
security zone

* Separate display indication of doors, original alarm status, fuel level depend on information
in CAN-bus digital protocol of specific car

Engine is stopped

STOP

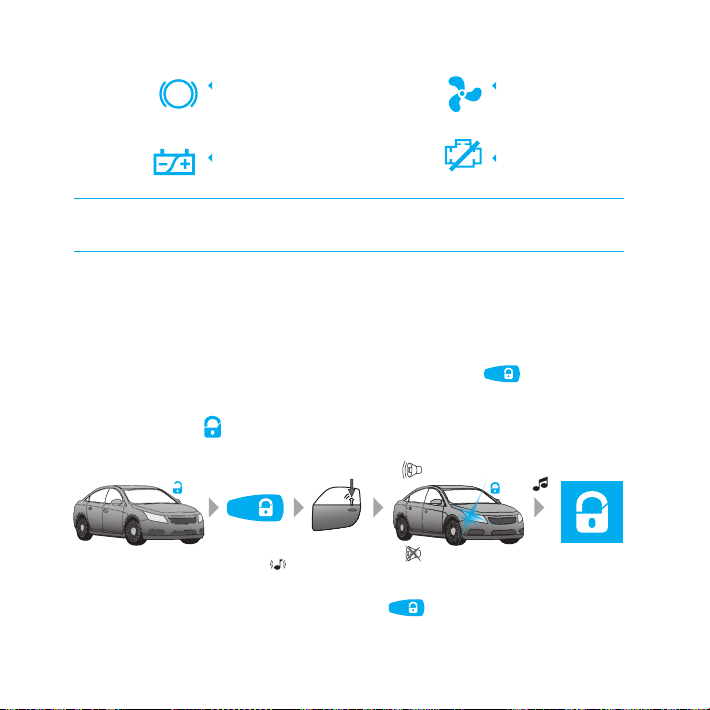

ARMING PROCEDURE

Arming the system allows monitoring of all security zones, locks the doors and blocks
the engine.

To arm the system when the engine is stopped, shortly press button on the

remote control. The siren will emit one sound signal and turn signals will flash once.
The remote control will play «ARMING» ringtone and security mode status icon (the
lock) will change to

short press doors locking

press
and hold
for 1 sec.

system arming

For arming without sound confirmation press for more than 1 second.

USE R MANUAL

1 ash

1x

1 ash

~~

R E M O T E C O N T R O L

If when arming doors, hood or trunk were open, the siren will sound 4 short signals
instead of 1, turn signals will flash 4 times, remote will play «WARNING!» ringtone
(after «ARMING» ringtone) and will show troubled zone. This zone sensor will be
disabled at that moment. Sensor will be armed again in 15 seconds after the zone was
set right.

For emergency arming when ignition is switched off, press and hold VALET button
for 3 seconds until the system confirms with red LED indicator flash. A car will be
armed in 30 seconds.

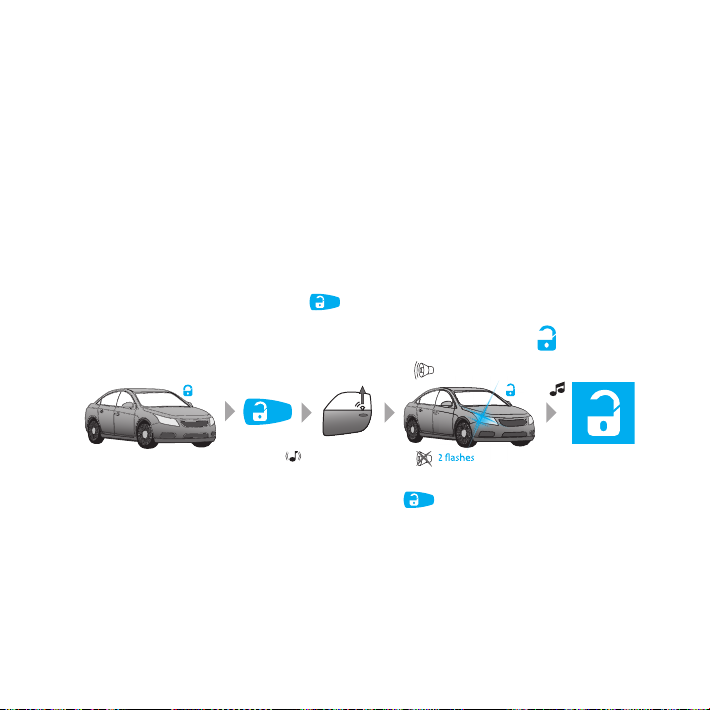

DISARMING PROCEDURE

To disarm the system, shortly press button on the remote control. You will
hear 2 short siren sounds and will see 2 flashes of turn signals. The remote will play
«DISARMING» ringtone and security mode status icon will change to:

short
press

press
and hold
for 1 sec.

doors unlocking

system disarming

2 ashes

2x

2 ashes

~~

For disarming without sound confirmation press
second.

button for more than 1

If there were new alarming events during the time system was armed, siren will
sound 4 times and turn signals will flash 4 times, the remote control will sound
«WARNING!» ringtone (after «DISARMING» ringtone) and will indicate zones
triggered. All recent alarm events can be viewed in the event history.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

2-2-2-2

PIN

CONTROL OVER THE SYSTEM IN A CASE OF EMERGENCY

In case you cannot disarm the system
using the remote control or radio tag, the
«Secret PIN-code» located on the owner’s
plastic card can be used. You can enter
the code only if the base unit is powered,
the ignition is switched off. The PIN-code
entering is performed using external or
located on the base unit VALET button
and indicated by flashes of the external
or located on the base unit LED indicator.

The «Secret PIN-code» input is
performed using VALET button.

1. Enter the first digit of the code using
VALET button. Press the button a
number of times, equals to the first
digit. Pauses between presses should
not exceed 1 second. Each pressing

WARNING! Make sure that a protective layer on the owner’s plastic card



is intact after the system installation.

WARNING! Carefully remove the protective layer, do not use sharp objects



to avoid damaging of hidden information under the protective layer.

USE R MANUAL

VALET BUTTON

Three-color status LED
indicator (green, red, orange)

Button

R E M O T E C O N T R O L

will be confirmed with orange LED indicator flash. Pause for more than 1 second
and red LED indicator flash confirm the input of the first digit. Then you can enter
the next digit.

2. Enter the second digit of the code using VALET button. Press the button a number
of times, equals to the second digit. Pauses between presses should not exceed 1
second. Each pressing will be confirmed with orange LED indicator flash. Pause for
more than 1 second and red LED indicator flash confirm the input of the second
digit. Then you can enter the next digit.

3. Enter the third digit of the code using VALET button. Press the button a number
of times, equals to the third digit. Pauses between presses should not exceed 1
second. Each pressing will be confirmed with orange LED indicator flash. Pause for
more than 1 second and red LED indicator flash confirm the input of the third digit.
Then you can enter the next digit

4. Enter the fourth digit of the code using VALET button. Press the button a number
of times, equals to the fourth digit. Pauses between presses should not exceed
1 second. Each pressing will be confirmed with orange LED indicator flash. After
correct enter of the fourth digit the system will enter programming mode. The
correct input will be confirmed with the series of green and red flashes of the
LED indicator. If the input was incorrect, it will be indicated with a long red flash
of the LED indicator and the system will stay in previous state. New input can be
attempted after 5 seconds.

After correct input of PIN-code the system will enter programming mode if it was
disarmed and the ignition was switched off.
For emergency arming when the engine is stopped, press and hold VALET button for
3 seconds. The system will be armed in 30 seconds.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

ENABLING/DISABLING AN IMMOBILIZER RADIO TAG

Write down or remember the «Service PIN-code»

To enable/disable a radio tag, enter level 15 (the system should be in programming

mode). Enter the «Secret PIN-code» to disable radio tag or press VALET button once
to enable radio tag.
Enter the «Service PIN-code» to enter the programming mode (factory preset of
the «Service PIN-code» is «1-1-1-1»). You can enter the code only if the base unit is
powered, the ignition is switched off, the system is disarmed and the maintenance
mode is switched off. If there is no «Service PIN-code», you can enter programming
mode using the «Secret PIN-code» written on the owner’s card. After entering
programming mode, press VALET button 15 times. Green color of LED indicator
means a radio tag is switched on, red color means a radio tag is switched off.

Disabling a radio tag:

LED indicator will light green after entering the programming level. The system will
wait for entering the «Secret PIN-code». Enter the «Secret PIN-code» that is written on
the owner’s plastic card. The system will confirm disabling of the radio tag with two
sound signals of the siren and a long red LED flash. After that the system will return to
the programming menu. If the PIN-code is not entered within 10 seconds or the input
is incorrect, a siren will sound one signal, LED will produce the series of red and green
flashes and the system will return to the programming menu.

WARNING! It is highly recommended to change factory preset of the



«Service PIN-code» for improving security of the system.

USE R MANUAL

R E M O T E C O N T R O L

Enabling a radio tag:

LED indicator will light red after entering the programming level. The system will
wait for action. Press VALET button once to enable radio tag. The system will confirm
enabling with one short sound signal of a siren and a green LED light. After that the
system will return to the programming menu.

UNLOCKING THE TRUNK

To independently unlock the trunk, no matter if the system is armed or not, press
button and hold it for 1 second.

Press
and hold
for 1 sec.

If the system is armed when this action is performed, the trunk will be disarmed,
shock and supplementary sensors will be disabled. All the other security zones will
remain armed

If the trunk was not opened in 15 seconds after using «unlock trunk» command,
the system will lock it again, enable sensors and arm trunk security zone. This will be
indicated with 1 flash of turn signals.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

LOCKING/UNLOCKING DOORS WHEN IGNITION IS BEING
SWITCHED ON

The system controls doors locking when the engine is running. To lock doors, shortly
press arming button, to unlock doors, press disarming.

doors locking

ON

ACC

OFF

There is an automatic movement lock mode that will lock the doors at the car
movement or on switching on the ignition. Doors will be unlocked after the ignition
is switched off. There is an option in the settings that allows to prohibit automatic
unlocking on switching off the ignition.

When using doors locking mode on the car movement start, the system will detect
car moving and perform doors locking (it depends on motion sensor sensitivity
settings).

When using doors locking mode when switching on the ignition, in no less than 5
seconds after the ignition was switched on, the doors will be locked automatically. If
any door was opened after the ignition had been switched on, automatic locking will
be disabled to prevent locking the keys inside the car.

short
press

doors unlocking

USE R MANUAL

R E M O T E C O N T R O L

CAR SEARCH FUNCTION

To easily find your car on a massive parking, shortly press button when the car
is armed. The system will sound the siren and flash turn signals 5 times in a row.

short
press

press
and hold
for 1 sec.

5 ashes

1x

5 ashes

To search for car without sound confirmation, press and hold button for more
than 1 second.

DELAYED ARMING

If when leaving the car you cannot arm it using a remote control (you have your

hands full), you can use delayed arming.

To activate this mode, shortly press and buttons simultaneously. LED
indicator will turn red, the system will lock doors and will arm in 30 seconds, the siren
will sound and turn signals will flash once, indicating that the mode is triggered.

To activate this mode without sound confirmation, press and hold both and

buttons for 1 second until the sound and vibration signal.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

short press

30 sec.

1 ash

1x

~~

+

press and
hold for 1 sec.

To cancel delayed arming when it is triggered, simply press button.

Doors locking,
system arming

1 ash

PANIC MODE

If your car or you are in danger and you want to draw attention to your car, you
can use PANIC mode. In this mode the siren will sound and turn signals will flash
repeatedly for 30 seconds. To trigger PANIC mode, press и buttons
simultaneously. To switch it off, press either или button.

short press

+ lights 30 sec

+

REMOTE AND AUTOMATIC ENGINE START

The system allows for remote engine start using remote engine start command
or automatic engine start using preconfigured automatic engine start function.
Remote start can be used to heat engine and interior, charge battery or to cool the
interior with air conditioning.

Remote and automatic start can only be used when the system is armed.
If the car has manual transmission, remote or automatic start will only occur if

USE R MANUAL

R E M O T E C O N T R O L

programmed neutral procedure was followed when the car was arming.

Remote and automatic engine start on automatic transmission cars will only
occur, if transmission selector lever was left in a «P» position.

When using remote and automatic engine start functions, make sure that the
car is secured with handbrake or some other means of fixating the car on a parking
position.

While system is in remote and automatic start mode, it keeps performing
all security functions of all of the security zones excluding shock sensor. To
compensate, motion sensor sensitivity and responsiveness will be increased.

If any security zone will be triggered, the engine will be immediately stopped
and alarm mode will be entered. Herewith all engine blocking functions will be
activated.

PROGRAMMED NEUTRAL PROCEDURE

(for cars with manual transmission)

If you are planning to use remote and automatic engine start on a car with manual
transmission, before arming you will need to perform following actions:

1. While ignition is being switched on and engine is running, fixate the car with the
handbrake and put gear lever to the neutral position. Programmed neutral procedure
will be switched on automatically (it depends on the system settings), press and hold

button for 3 seconds to forced switch on this program.

2. Turn the key in the ignition lock to the OFF position (the engine should still be
running) and take it out of the lock.

3. Leave the car, close the doors.

4. Press button to arm the car and lock the doors. The engine operation icon

will be spinning on LCD remote and security mode status icon will light.

5. The engine will be stopped. Now the system is ready to perform remote and
automatic engine start.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

press

xate the car using
a handbrake

ACC

OFF

ON

leave the car, close the doors

~~

«engine stop»
ringtone

short

in 3 sec.,
the engine will be stopped,
the system is ready
to perform remote start

REMOTE ENGINE START

If the system is prepared for remote start, to execute it, press and hold button
for 3 seconds. Sound signal will confirm the command, LCD will show flashing engine
operation icon signifying preparation to the engine start. In a few seconds the
engine will be started, the remote will play «ENGINE START» ringtone and show
spinning engine operation icon .

3 ashes

press and hold
for 3 sec.

preparing
to start

engine start

Engine operation duration depends on system settings – either heating time or

threshold temperature for engine stop.

To remotely stop the engine while it performs heating, press and hold

button for 2 or more seconds. The engine will be immediately stopped and it will be

USE R MANUAL

«Engine start»
ringtone

~~

R E M O T E C O N T R O L

confirmed by remote playing «ENGINE STOP» ringtone and engine operation icon

fading.

«Engine start»
ringtone

press
and hold
for 2 sec.

~~

«Engine stop»
ringtone

~~

engine stop

The remote will give notification 1 minute before designated engine stop: icon

will flash and «engine stop in 1 minute» ringtone will play every 10 seconds.

Sending «Remote engine start» command will extend its operation period by 10
minutes. This procedure can be repeated multiple times.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

12 48

0

remote start
settings

system
controls

CHECK

remote start
settings

sounds
disabled

sounds
enabled

sounds

siren
settings

siren
settings

siren
settings

SYSTEM SETTINGS MENU

Enter the main menu with button short press. To switch between menu sections
shortly press button.

entering settings menu

engine
preheater

• Control over engine preheater

1 2 3
4 5 6

7 8 9

• Control over timer channels

• Control over car status,

USE R MANUAL

channel
controls

system

CHECK

controls

view event history

remote start
settings

• remote and automatic engine
start adjusting

sensors
adjusting

• sensors adjusting

siren
sounds

• siren signals adjusting

R E M O T E C O N T R O L

14 45

будильник
включен

будильник
выключен

будильник

sounds
disabled

sounds
enabled

siren
settings

siren
settings

siren
settings

14 45
06 30

будильник
включен

будильник
выключен

будильник

sounds

• sound notifications
of the remote control

• notifications on loss of radio signal

• Anti-hi-jackmode*

• Maintenance mode of the car

connect. lost:
ringtone

anti-hi-jack

Valet mode

* The function is not available in this model

• Time setting

alarm clock

• Alarm clock setting

• Alarm clock time adjusting

Exit settings menu

To exit menu, press and hold button
for 1 second.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

engine
preheater

12 48

0

engine
preheater:
enabled

engine
preheater

12 48

0

R E M O T E C O N T R O L

ENGINE PREHEATER

To switch on engine preheater, select «ENGINE PREHEATER MENU» and shortly
press button. To switch off preheater, shortly press button. If preheater
monitoring is enabled, LCD will display icon during engine preheater operation.

engine
preheater:
enabled

Engine
preheater:
disabled

Preheater operation is enabled

Preheater operation is disabled

TIMER CHANNELS

Timer channels can be used to implement additional functions and to control

external devices. Timer channels can be adjusted via Pandora AlarmStudio.

To enter «TIMER CHANNELS MENU», shortly press button. The following

presses of button will cause switching between channels.

To activate/deactivate the channel, shortly press .
To exit menu, press and hold button for 1 second.

USE R MANUAL

channel
controls

1 2 3
4 5 6

7 8 9

channel
controls

1 2 3
4 5 6

7 8 9

1

channel 1
disabled

channel
controls

1 2 3
4 5 6

7 8 9

1

channel 1
disabled

2

channel 2
disabled

channel
controls

1 2 3
4 5 6

7 8 9

1

channel 1
disabled

2

channel 2
disabled

3

channel 3
disabled

channel
controls

1 2 3
4 5 6

7 8 9

1

channel 1
disabled

2

channel 2
disabled

3

channel 3
disabled

4

channel 4
disabled

channel
controls

1 2 3
4 5 6

7 8 9

1

channel 1
disabled

2

channel 2
disabled

3

channel 3
disabled

4

channel 4
disabled

1

channel 1
enabled

channel
controls

1 2 3
4 5 6

7 8 9

1

channel 1
disabled

2

channel 2
disabled

3

channel 3
disabled

4

channel 4
disabled

1

channel 1
enabled

2

channel 2
enabled

1

channel 1
disabled

2

channel 2
disabled

3

channel 3
disabled

4

channel 4
disabled

1

channel 1
enabled

2

channel 2
enabled

3

channel 3
enabled

R E M O T E C O N T R O L

1 2 3
4 5 6

7 8 9

1

2

3

4

channel
controls

channel 1
disabled

channel 2
disabled

channel 3
disabled

channel 4
disabled

channel 1

1

enabled

channel 2

2

enabled

channel 3

3

enabled

channel 4

4

enabled

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

system
controls

CHECK

System
controls

CHECK

arming

12:43

System
controls

CHECK

CAR STATUS CONTROL

To receive information about engine, interior temperature, battery voltage and fuel
level, select «SYSTEM CONTROLS» menu and shortly press button.

system

CHECK

controls

To exit menu, press and hold button for 1 second.

NOTE: Engine start via temperature is available only if temperature sensor is connected. The
sensor availability depends on the system set. Fuel level will only be shown if it can be read
from CAN-bus or if there is additional connection

0

EVENT HISTORY

To view event history in the system’s memory, select «SYSTEM CONTROLS» menu,
then shortly press .

Navigate several last events using (forward) and (back) buttons. Events
are displayed by showing time of the event and flashing corresponding trigger zone
indicators.

CHECK

USE R MANUAL

System
controls

arming

12:43

disarming

12:44

27°24°12 0V

R E M O T E C O N T R O L

AUTOMATIC ENGINE START

The system allows setting up modes of automatic engine start and stop.
Synchronized real-time clock on the remote and base unit and other autonomous
system settings allow many engine start options without needing to have the remote
in command radio range.

Automatic start and engine work conditions programming is done using LCD
remote. Shortly press button to enter «REMOTE START SETTINGS» menu.
Shortly press button to switch between menu sublevels. Sub-level values are
changed using and buttons.

When changing settings are done, the values should be saved. To do this, proceed
to Send settings sublevel by pressing of button and press button to save
new settings. Changes will be sent to the base unit, it will be confirmed with double
sound signal of the remote.

To exit menu, press and hold button for 1 second.

NOTE: If you have not saved new settings, remote and automatic engine start settings will

remain the same as before.

NOTE: Engine start via temperature is available only if temperature sensor is connected. The

sensor availability depends on the system set.

WARNING! Enable remote start if your local legislations allows driverless



cars to have working engine.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

remote start
settings

remote start
settings

start
by time
enabled

remote start
settings

start
by time
enabled

start
by time
disabled

remote start
settings

start
by time
enabled

start
by time
disabled

start time

07:30

remote start
settings

start
by time
enabled

start
by time
disabled

start
by temp
enabled

start time

07:30

remote start
settings

start
by time
enabled

start
by time
disabled

start
by temp
enabled

start
by temp
disabled

start time

07:30

remote start
settings

start
by time
enabled

start time

07:30

hours

start
by time
disabled

minutes

start

USE R MANUAL

by temp
enabled

start temp

– 20°

increase

start
by temp
disabled

decrease

settings

start
by time
enabled

start
by time
disabled

start
by temp
enabled

start
by temp
disabled

start temp

– 20°

start time

07:30

enabled

start
by time
disabled

start
by temp
enabled

start
by temp
disabled

work
duration

20 min

start temp

– 20°

start time

07:30

daily start
enabled

stop by temp
enabled

start
by temp
enabled

start
by temp
disabled

work
duration

20 min

start temp

– 20°

07:30

disabled

daily start
enabled

start
by temp
enabled

start
by temp
disabled

work
duration

20 min

start temp

– 20°

start time

07:30

daily start
enabled

stop by temp
enabled

daily start
disabled

enabled

start
by temp
disabled

work
duration

20 min

start temp

– 20°

daily start
enabled

stop by temp
enabled

daily start
disabled

stop
by temp
disabled

disabled

work
duration

20 min

start temp

– 20°

daily start
enabled

stop by temp
enabled

daily start
disabled

stop
by temp
disabled

work
duration

20 min

– 20°

stop temp

80°

R E M O T E C O N T R O L

work
duration

20 min

daily start
enabled

stop by temp
enabled

increase. decrease

daily start
disabled

stop
by temp
disabled

stop temp

80°

send settings

increase

set selected modes

return to the beginning of the settings

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

decrease

R E M O T E C O N T R O L

SENSORS SETTINGS

The system allows to adjust shock/motion/tilt sensors using the remote control.
Shortly press button to enter «SENSOR SETTINGS» menu. Shortly press

button to switch between menu sublevels of the shock/motion/tilt sensors. The
sensitivity of a sensor are increased using button and decreased using
button. Maximum sensitivity value is 50 and minimum is 0
Press and hold button for 1 second to save new sensitivity level.

sensors

Enter the menu

adjusting

SHOCK SENSOR SETTINGS

For prompt remote adjusting of shock sensor sensitivity, select «SHOCK SENSOR»
submenu by short presses of button. Short presses of button will cause
switching between functions. To save new settings of shock sensitivity control, shortly
press button.

To enter «Shock sensor warning/alarm level» submenu, shortly press button.
Sensor sensitivity can be set with short presses of and buttons.

To save new settings of the sensor, press and hold button for 1 second.

To exit menu, press and hold button for 1 second.

press to enter the
sublevels

USE R MANUAL

shock sensor
enabled

shock sensor
warn level
disabled

shock sensor
enabled

датчик удара
предвар. уров.

shock sensor
warn level
disabled

датчик удара
предвар. уров.
включен

датчик удара
тревож. уров.

датчик удара
тревож. уров.
включен

shock sensor
enabled

shock sensor
alarm level
disabled

датчик удара
предвар. уров.

warn level
disabled

датчик удара
предвар. уров.
включен

датчик удара
тревож. уров.

датчик удара
тревож. уров.
включен

adjusting
shock sensor
warn. lvl. =

30

shock sensor
alarm level
disabled

R E M O T E C O N T R O L

shock sensor
enabled

shock sensor
warn level
disabled

shock sensor
alarm level
disabled

shortly press to save

shortly press to save

shortly press to save

increase decrease

adjusting
shock sensor
warn. lvl. =

35

adjusting
shock sensor
warn. lvl. =

increase decrease

30

press and hold
for 1 sec. to save

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

движение

регулировка
датчика движ.

наклон

регулировка
датчика накл.

MOTION SENSOR SETTINGS

For prompt remote adjusting of motion sensor, select «MOTION SENSOR

ADJUSTMENT» submenu by short presses of button. The sensor sensitivity

can be set with short presses of and buttons. To save new settings of the
sensor, press and hold for 1 second.

adjusting
mot-n sensor.
level =

press and hold for 1 sec. to save

To exit menu, press and hold button for 1 second.

32

increase decrease

TILT SENSOR SETTINGS

For prompt remote adjusting of motion sensor, select «TILT SENSOR

ADJUSTMENT» submenu by short presses of button. The sensor sensitivity

can be set with short presses of and buttons. To save new settings of the
sensor, press and hold for 1 second.

adjusting
tilt sensor
level =

To exit menu, press and hold button for 1 second.

USE R MANUAL

press and hold for 1 sec. to save

25

increase decrease

Pandora

6

5

4

For remote engine start

3

2
1

Button

X7

VALET

DO NOT SHIELD

LIGHT PRO

Black

White

Green

IMMO-KEY2/INP7

IMMO-KEY1/INP1

Trunk trigger

X7

X1

X6

X3

LED
indicator,
VALET
button

X4

Engine
temperature
sensor

Engine
preheater control

X5

8

16

15

7

6

14

13

5

4

12

3

11

2

10

9

1

3

2

1

Sockets

LIN device

LIN driver
of the system

X4 X5 X6 X7X3 X1

X1

X2

LOCAL INTERCONNEC T NETW ORK

White

1

Black

2

micro­USB

LIN out
LIN

input

Webasto
Thermotop Evo,
Eberspaecher
Hydronic/
Hidronic 2

LIN connection

For LADA cars (Kalina 2, Granta, Priora NEW,
UAZ Patriot(05.2014)

X1

1

LIN out

Driver’s door

Door
control
module

LOCAL INTERCONNEC T NETW ORK

1

LIN out

2

X1

LIN input

6

5

4

Red

Brown

Yellow

Orange

Green

Blue

Red

Purple

Yellow

Blue/Black

Yellow/Black

Orange/Black

Brown/White

Blue

Black

Blue/White

Green

Gray

Yellow/White

Orange/White

Red/Black

White

+ 12V

(+)

Ignition

CH9

(–)

Starter

CH10

(–)

АСС / Brake Pedal*

CH6

(–)

Bypass

CH8

(–)

NO Blocking

CH7

(–)

(-) 150mA

(U

3..100V, min 8Hz)

amp

WARNING! Before starting the installation of the system, select a
car model in ALARMSTUDIO (CAN-bus protocol)

CH11

Siren

INP6 To ignition lock

CH1

INP3 Front

hood triggers

INP4 Neutral/handbrake input

INP5 Brake trigger input/Fuel level input

CH3

To turn signals

INP2 Doors trigger

(-) 150mA

CH5

Open trunk

Tachometer input

Relay
module

(wiring
diagram is on
the next page,
the module
is not shipped
with the system)

12 V

Battery

CAN 2 - H

CH4 - Open Central lock

CAN 2 - L

CH2 - Close Central lock

Ground

To original
wiring

CAN 1 - H

CAN 1 - L

Brown

Yellow

Orange

Green/Red

Blue/Red

Pandora

Relay module RMD-5M

(The module is not shipped

with the system)

3 6

1 4

40А

52

Red

Brown

Yellow

Orange

Green

Blue

Blue

Blue/Black

Green

Green/Black

Red

+ 12V

(+)

Ignition/

Stop button

(–)

Starter

CH10***

(–)

ACC/

CH6***

(–)

Bypass

CH8***

(–)

NO blocking/

NC blocking

(–)

CH7***

Start/

CH9*

Brake pedal

R5

R4

*

R1 R2 R3 R4 R5

R3

R2

R1

* For remote start implementation
via Start/Stop button

** Total current of relays R3+R4+R5
should not exceed 40А

Relay
module

20A**20A**20A**20A20A

*** For PANDORA LIGHT PRO systems

W I R I N G  D E S C R I P T I O N  •  W I R I N G  D I A G R A M

WIRING DESCRIPTION

Х4 Main Socket

• Wire «1» (White) (Tachometer input) — analog input of the tachometer signal,
it connects to the tachometer wire or to the signal wire of a nozzle which provides
stable pulses of any polarity corresponding to the RPM.

• Wire «2» (Red-black) (CH5) — Factory setting is «Opening trunk». A negative
output of additional channel with maximum load current 200mA. This output is
multipurpose, it can operate in accordance with selected logic.

• Wire «3» (Orange-white) («CAN-High») — It connects to appropriate CAN-High
wire of the car.

Wire «4» (Yellow-white) (СН4) — Factory setting is «Opening central lock». A

negative impulse of 0,8 seconds is formed on the wire to open central lock. A
negative output of additional channel with maximum load current 200mA. This
output is multipurpose, it can operate in accordance with selected logic. CH4
output stops to operate as an output when a car model supported CAN2-bus is
selected.

• Wire «5» (Gray) (INP2) — Factory setting is «Doors trigger». This wire connects to a
wire that becomes grounded when a door opens. This input is multipurpose, it can
operate in accordance with selected logic.

• Wire «6» (Green) (СН3) — Factory setting is «Turn indicators». This wire connects
to the hazard flashers button. A negative output of additional channel with

maximumloadcurrent200mA.Thisoutputismultipurpose;itcanoperatein

accordance with selected logic.

• Wire «7» (White-blue) (INP5) — Factory setting is «Brake pedal». This wire
connects to the brake pedal button where 12V voltage appears when the pedal is
pressed (stop lights wire). Brake pedal signal is one of the system’s security zones.
This input is multipurpose, it can operate in accordance with selected logic. This
input can be assign as «Fuel level control». Calibrating of fuel level can be perform
in Programming mode using «VALET» button.

USE R MANUAL

W I R I N G  D E S C R I P T I O N  •  W I R I N G  D I A G R A M

• Wire «8» (Black) («Ground») — It should be connected to the car body in a

grounding spot. This wire should be connected FIRST during installation.

• Wire «9» (Blue) (INP4) — Factory setting is «Neutral/Handbrake». This wire
connects to appropriate neutral/handbrake wire of the car. This input is
multipurpose, it can operate in accordance with selected logic.

• Wire «10» (Brown-white) (INP3) — Factory setting is «Front hood trigger». This
wire connects to appropriate wire that becomes grounded when the front hood
opens. This input is multipurpose, it can operate in accordance with selected logic.

• Wire «11» (Orange-black) («CAN-Low») — It connects to appropriate CAN-Low
wire of the car.

• Wire «12» (Yellow-black) (СН2) — Factory setting is «Close central lock». A

negative impulse of 0,8 seconds is formed on the wire to close central lock. A
negative output of additional channel with maximum load capacity 200mA. This
output is multipurpose, it can operate in accordance with selected logic. CH2
output stops to operate as an output when a car model supported CAN2-bus is
selected.

• Wire «13» (Blue-black) (CH1) — Factory setting is «Free output». A negative
output of additional channel with maximum load capacity 200mA. This output is
multipurpose, it can operate in accordance with selected logic.

• Wire «14» (Yellow) (INP6) — Factory setting is «Ignition». This wire connects to

ignition lock or to appropriate wire where 12V voltage appears when ignition is
enabled and doesn’t disappear until the moment ignition is disabled. This input is
multipurpose, it can operate in accordance with selected logic.

• Wire «15» (Purple) («Siren») — It connects to siren control wire (+) (maximum
load current is 2A). This output is multipurpose, it can operate in accordance with
selected logic.

• Wire «16» (Red) («Power supply» +12V) — It should be connected to reliable
conductor with constant voltage of 12V.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

W I R I N G  D E S C R I P T I O N  •  W I R I N G  D I A G R A M

Х5 socket (Relay module)

• Wire «1» (Blue) (CH7) — Factory setting is «Blocking N.O.» This output is used
to control blocking relay with a normally open logic (it becomes grounded
when switching on the ignition and security system is not armed). A negative
output of additional channel with maximum load current 200mA. This output is
multipurpose, it can operate in accordance with selected logic.

• Wire «2» (Orange) (CH6) — Factory setting is «ACC». The channel is used to
control accessories. If «Car with START/STOP button» setting is enabled, the channel
will control brake pedal during remote or automatic engine start. A negative
output of additional channel with maximum load current 200mA. This output is
multipurpose, it can operate in accordance with selected logic.

• Wire «3» (Brown) (CH9) — Factory setting is «Ignition». This output is used to
switch on ignition. It allows implementing automatic engine start, turbo timer,
ignition support. If «Car with START/STOP button» setting is enabled, the channel
will operate in impulse mode to control the button. A negative output of additional
channel with maximum load current 200mA. This output is multipurpose, it can
operate in accordance with selected logic.

• Wire «4» (Green) (CH8) — Factory setting is «Bypass». Output activates during
remote or automatic engine start. A negative output of additional channel with
maximum load current 200mA. This output is multipurpose, it can operate in
accordance with selected logic

• Wire «5» (Yellow) (CH10) — Factory setting is «Starter». This output is used to

switch on starter of the car. A negative output of additional channel with maximum
load capacity 200mA. This output is multipurpose, it can operate in accordance
with selected logic.

It is not recommended to assign «Starter» to any other channel.

• Wire «6» (Red) — relay module power supply 12V

USE R MANUAL

W I R I N G  D E S C R I P T I O N  •  W I R I N G  D I A G R A M

Х7 Socket (Multifunctional channels)

Use this socket when implementing bypass of original immobilizer using IMMO-KEY1
and IMMO-KEY2 multifunctional channels. Deselect any logic of INP1 and INP7 inputs
in settings. Make connections in accordance with installation scheme. The settings
of the socket are available in AlarmStudio. Disconnect the system from power supply
after changing the settings.

• Wire «1» (Green) (INP1-/IMMO-KEY1) — Factory setting is «Free input». This input
is multipurpose, it can operate in accordance with selected logic.

• Wire «2» (White) — This channel is used to brake the circuit of original immobilizer
(it connects in accordance with an installation scheme).

• Wire «3» (Black) (INP7-/IMMO-KEY2) — Factory setting is «Trunk trigger». This
wire connects to appropriate wire that becomes grounded when a trunk opens.
This input is multipurpose, it can operate in accordance with selected logic.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

siren
settings

siren
settings

siren
settings

SIREN SIGNAL SETTINGS

To configure siren sounds, select «SIREN SETTINGS» menu. Select one of the siren
sound options using button. To save new settings, shortly press

button.

siren
settings

siren
settings

To exit menu, press and hold button for 1 second.

USE R MANUAL

siren
settings

shortly press to save

all sound signals are
enabled

warning signals are
disabled

warning and alarm signals are
disabled

siren
settings

siren
settings

siren
settings

sounds
disabled

siren
settings

siren
settings

siren
settings

R E M O T E C O N T R O L

SOUND NOTIFICATION SET TINGS

This function disables all sound signals of the remote control, this mode does not
apply to alarm clock and main zones triggering. LED indication and vibration remain
enabled.

To set one of two notification options, select «SOUNDS» menu. Short presses of

will cause switching between menu settings. This mode doesn’t require to save.

sounds
enabled

sound signals are enabled

sounds

To exit menu, press and hold button for 1 second.

RADIO CHANNEL CONTROL SETTINGS

There are 3 options to notify when the owner is not in radio coverage zone. Select

«CONNECTION LOST» menu, short presses of button will cause switching

between menu settings. This mode does not require to save.

disabled

sound signals are disabled

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

connect. lost:
ringtone

connect. lost:
ringtone

connect. lost:
alarm

connect. lost:
ringtone

«Connection lost» ringtone
notification

connect. lost:
alarm

alarm signal

connect. lost:
no sound

To exit menu, press and hold button for 1 second.

MAINTENANCE/VALET MODE

It is recommended to put system into maintenance mode before handing it to
the car service or valet parking. When this mode is switched on, security system stops
interfering with built-in electronics and disables all functions to ease maintenance or
parking. Moreover, you will not have to leave the remote control or radio tag to the
valet or the mechanic. Disabling valet mode is not possible without using the main
remote. This feature is implemented to prevent recording additional remotes during
maintenance without the owner knowing.

To activate maintenance mode when ignition is switched on and a radio tag is in
the coverage zone (if Immobilizer or Anti-hijack mode is activated), select «VALET

MODE» and shortly press button. The system will confirm enabled maintenance

mode with green flash of LED indicator of the VALET button when ignition is
switched on. To exit this mode, select Valet mode and shortly press button.

USE R MANUAL

all notification are disabled

valet mode
disabled

Valet mode

Valet mode

Надежно зафиксируйте
автомобиль

Покиньте автомобиль,

OFF

ON

ACC

R E M O T E C O N T R O L

14 45

будильник
включен

будильник
выключен

будильник

valet mode
enabled

valet mode
disabled

maintenance
mode is enabled

maintenance
mode is disabled

To exit menu, press and hold

button for 1 second.

TIME SETTINGS

To set up time, select «TIME» menu. With short presses of button set hours,
with short presses of set minutes.

hours minutes

This mode does not require to save

To exit menu, press and hold button for 1 second.

WARNING! Enable Bluetooth function on your mobile device to use



Pandora BT application.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

R E M O T E C O N T R O L

14 45
06 30

будильник
включен

будильник
выключен

будильник

alarm clock

alarm clock
disabled

alarm clock

ALARM CLOCK SET TINGS

To set up the alarm clock, select «ALARM CLOCK» menu. Enable alarm with short
press of button or disable it with short press of button.

alarm clock
enabled

Setting of alarm clock is similar to clock setting.

alarm clock
disabled

hours minutes

REPLACING A BATTERY IN THE REMOTE CONTROL

If high quality batteries are used, service-security system remote can function up to 4
months without needing a replacement. Battery needs to be replaced if the remote
control is not turning on or the icon has only one bar left and starts flashing.

To replace the battery:

• movebatterycoverlockinthedirectionshownwitharrow;

• takethebatteryoutandplaceanewoneonitsplace;

• the remote is ready for use (switch it on by pressing and holding button for 3

seconds)

It is recommended to keep an extra AAA battery

USE R MANUAL

I M M O B I L I Z E R

ARMING/DISARMING USING A RADIO TAG

To arm/disarm the system, RF tag should be
in radio coverage area. The system produces
a protected (AES-128 encryption) interactive
high-speed exchange of authorization codes
in the frequency range 2,4 GHz on one of
125 channels. To arm the system when the
ignition is switched off, shortly press the tag
button. The system will confirm the command
receiving with 1 short sound signal and 1 flash
of turn indicators.
To disarm the system, shortly press the tag button. The system will confirm the
command receiving with 2 short sound signals and 2 flashes of turn indicators. Each
button press will be confirmed with LED indicator flash of the tag that indicates the
battery is functioning correctly. If LED indicator does not flash or light, the tag battery
should be replaced (see «Replacing immobilizer tag battery» section).

LED
indicator

Controlling
button

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

I M M O B I L I Z E R

ARMING/DISARMING IN HANDS FREE MODE

The system allows for programmable Hands Free arming and disarming. To arm the
system, when the ignition is switched off, move with the remote tag away from the
car at a distance greater than the regular radio coverage (10 meters for 2,4 GHz) –
the system will be armed automatically. To disarm the system, move toward the car
with remote tag. Enabling/disabling this function can be performed with Pandora
AlarmStudio software.

ARMING/DISARMING IN SLAVE MODE

In this mode it is possible to monitor the status of original security system of the car
via CAN-bus or by analog inputs. When arming and disarming original security system,
Pandora will be armed and disarmed respectively. The presence of a tag in the radio
zone is not required, but at the beginning of motion if the tag is not detected by the
system, the engine will be blocked.

There is an option in the system settings named «Prohibit disarming when the tag
is absent». When this option is enabled, disarming procedure will be performed only if
there is a tag in the radio zone.

IMMOBILIZER MODE

This mode is disabled by default. Use Pandora AlarmStudio to enable this mode.
When switching on the ignition, the base unit of Pandora security system performs
a search for immobilizer tags in radio zone. If no radio tags were detected when the
ignition is switched on, the system will block the engine with all radio relays that were
programmed into the system. Engine blocking will only occur when motion sensor
detects movement of the car. If additional analogue blocking relays were installed,
they will block the engine immediately, before or when the car starts moving, it
depends on system settings.

USE R MANUAL

I M M O B I L I Z E R

ANTIHIJACK MODE

This mode is disabled by default. Use Pandora AlarmStudio to enable this mode.
Anti-hijack mode helps to prevent aggressive seizure of the car using delayed engine
blocking on door opening.

Every time on opening/closing a door when the ignition is switched on,
immobilizer requests response from a radio tag using unique algorithm. After a door
was opened while the ignition is being switched on, if the system cannot detect a
radio tag, the engine will be stopped after 1 minute (general safety requirement). A
siren will play «ENGINE BLOCKING WARNING» ringtone before blocking.

If engine blocking is performed via radio relay after warning signals are over or on
new attempts to start the engine, immobilizer will only allow the engine to start when
the car is not moving, and will block it again if it starts movement.

If the car starts moving, the immobilizer will block the engine for 15 seconds. When
registered tag appears in the radio zone, blocking will be canceled and the system will
return to the normal operation.

CODE IMMOBILIZER
USING ORIGINAL CAR CONTROLS

Code immobilizer (validator) is a function that allows disarming, disabling blocking
and controlling timer channels using original car controls (button, lever or pedal). To
enter immobilizer code, programmed button (lever, pedal) should be pressed a number
of times equals the first digit of the code. Pauses between presses should not exceed 1
second. Pauses more than 1 second will be interpreted as the start of next digit input.
Immobilizer code can consist max of 4 digits from 1 to 9.

After entering a correct immobilizer code, depending on the settings, either the
engine blocking will be lifted or a programmed timer channel will be activated or the
system will be disarmed

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

I M M O B I L I Z E R

REPLACING IMMOBILIZER TAG BATTARY

Carefully open the cover of the
tag’s battery compartment. Extract
discharged battery and insert a new
one keeping in mind the correct
polarity. Replacing a battery will not
cause a loss of tag code information,
as authorization data is stored in the
non-volatile memory of the MCU.
Carefully close the cover of the tag’s
battery compartment. All elements
of construction should be rigidly
locked in places. If it is so, the tag can be operated as usually.

USE R MANUAL

Open here

PANDORA BT APPLICATION

PANDORA BT application is an additional tool for controlling and managing the

system state. The system can connect only to the mobile device that was previously
registered in the system memory. Registration is performed via encrypted 2.4 GHz
channel using Bluetooth Low Energy protocol. Pandora BT is available on Google Play
for devices with Android 4.4 or higher and with Bluetooth 4.0 Low Energy or higher
module.

WARNING! Enable Bluetooth function on your mobile device to use



Pandora BT application.

Installing the application

You can download Pandora BT application from an app store (Google Play for
Android or AppStore for iOs).

After installing the application, perform the mobile device registration procedure
(see p. 66) «REGISTRATION AND DELETING A MOBILE DEVICE»).

The application usage

The system should be in the Bluetooth radio coverage zone. Start Pandora BT, the

applicationwillautomaticallyfindthesystemandmakeaconnection;afterthatthe

main menu of the application will open.

The main menu «CONTROL» displays the current status of the system and allows
you to control the system using multifunction buttons. Control buttons is used for
controlling the car and quick access to the system functions. The functions can be
switched on or off or the car can be remotely controlled by pressing and holding
any button until the progress bar will fully loaded (3 seconds), this is done to protect
against accidental button press. You can change button location and select the
desired functional in the «CONTROL BUTTONS» settings.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

PROGRAMMING THE SYSTEM

ENTERING PROGRAMMING MENU

To change the system settings or program the system using a computer or VALET
button, the system should be in programming mode. Enter programming mode
by entering the «Service PIN-code» (factory preset is 1-1-1-1). PIN-code should be
entered using external or located on the base unit VALET button. The input is
indicated by flashes of external or located on the base unit LED indicator. You can
enter the code only if the base unit is powered form USB socket or from external
power supply, the ignition is switched off, the system is disarmed and maintenance
mode is switched off.

If there is no «Service PIN-code», you can enter programming mode using the

«Secret PIN-code» written on the owner’s card.

Entering PIN-code:

• Enter the first digit of the code using VALET button. Press the button a number of

times, equals to the first digit. Pauses between presses should not exceed 1 second.
Each pressing will be confirmed with an orange LED indicator flash. A Pause for
more than 1 second and a red LED indicator flash confirm the input of the first
digit. Then you can enter the next digit.

• Enter the second digit of the code using VALET button. Press the button a

number of times, equals to the second digit. Pauses between presses should not
exceed 1 second. Each pressing will be confirmed with an orange LED indicator
flash. A Pause for more than 1 second and a red LED indicator flash confirm the
input of the second digit. Then you can enter the next digit.

• Enter the third digit of the code using VALET button. Press the button a number

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

of times, equals to the third digit. Pauses between presses should not exceed 1

second. Each pressing will be confirmed with an orange LED indicator flash. A

Pause for more than 1 second and a red LED indicator flash confirm the input of

the third digit. Then you can enter the next digit.

• Enter the fourth digit of the code using VALET button. Press the button a number

of times, equals to the fourth digit. Pauses between presses should not exceed

1 second. Each pressing will be confirmed with an orange LED indicator flash.

The system will confirm correct PIN-code with the series of red and green flashes

and the system will enter programming mode. If the input was incorrect, it will be

indicated with a red LED indicator flash and the system will stay in a previous state.

New input can be attempted after 5 seconds.

Exit programming mode:

To exit programming mode turn on the ignition or turn off power of the base unit.
The system will reboot programmatically (all changes will be saved) after exiting
programming mode using ignition. All ways to exit the programming menu are
accompanied by sound signals of the siren and light signals of the LED indicator.
Light signals indicate the number of recorded devices: first green flashes indicate the
number of recorded radio tags, red flash indicates registered mobile device.

• the first orange flashes indicate the number of recorded remote controls,

• the next green flashes indicate the number of recorded radio tags,

• the last red flash indicates registered mobile device.

Status indicator lights during PIN-code entering:

Short orange ash Conrmation of VALET button pressing

Short red ash Conrmation of entering a PIN-code digit

Red and green ashes PIN-code is correct

Long red ash PIN-code is incorrect

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

PREPARING TO PROGRAM THE SYSTEM USING A COMPUTER

The system allows programming all settings and updating software of the base unit
via micro-USB cable. If the base unit has not been installed in the vehicle yet, it will be
powered via micro-USB cable while programming. To program using a computer, you
need a standard USB cable, a computer with Windows XP/Vista/7/8/10 and Pandora

AlarmStudio application.

It is required to create an account in AlarmStudio to use Pandora CLONE for remote
engine start (you can register without a connection to a system). Pandora CLONE
procedure requires Internet connection.

In preparation to the programming these stages should be followed:

• connectthesystemandPCviaUSBcable;

• startPandoraAlarmStudio;

• enter the programming settings mode by entering the «service PIN-code».

UPDATING FIRMWARE

It is recommended to update firmware of the base unit before installing and
programming the system (actual version of the firmware you can download from

tssgroup.sk). You can update firmware using AlarmStudio application after entering

programming mode or using quick boot algorithm (PIN-code is not required).

Quickbootmode:openAlarmStudio;de-energizeanddisconnectthesystem;

press and hold VALETbuttonlocatedonthebaseunit;releasethebutton
immediatelyafterconnectingthesystemandacomputerviaUSBcable;thesystem

will enter boot mode.

If the boot mode has been interrupted for some reason and the status indicator
lights red, you need to load firmware using quick boot mode (without entering the
PIN-code).

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

PROGRAMMING USING VALET BUTTON

The system allows programming some settings using VALET button. To configure all
settings use a computer to program the system.

Enter programming mode by entering the «Service PIN-code», Use VALET button

to enter the desired level number (press the button a number of times, equals to the

levelnumber;pausesbetweenpressesshouldnotexceed1second).Thesystemwill

confirm correct input with red LED flashes and short sound signals of a siren and
proceed to the desired level. If the input was incorrect, the system will not confirm
input and will await a new level input after a series of green and red flashes

Level 1 Recording remotes and radio tags into the system’s memory

Level 2 Changing the factory preset of the «Service PIN-code»

Level 3 Recording the idle speed to the system memory

Level 4 Resetting to factory settings

Level 5 Recording Bluetooth engine compartment module

Level 6, 7 Recording Bluetooth radio relays 1, 2

Level 8 Recording Bluetooth GPS/GLONASS receiver

Level 9 Reserved

Level 10 Conguring system settings via the wireless interface

Level 11 Programming and conguring «Immobilizer code»

Level 12 Calibrating of fuel level

Level 13, 14 Reserved

Level 15 Emergency disabling of immobilizer radio tag

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

Level 16 Updating Bluetooth modem rmware

Level 17 Programming bypass original immobilizer

Level 18 Registering and unregistering mobile device

Level 19, 20 Updating radio relays 1, 2 rmware

Level 21 Updating RHM-03 BT rmware

Level 22 Updating NAV-035 BT rmware

Level 23, 24 Recording door sensors 1, 2 (DMS-100 BT)

Level 25, 26 Updating DMS-100BT rmware

Level 1 – Recording remotes and radio tags into the system’s memory

Prepare to record all remote controls(you can record up to 4 remote controls) and
radio tags (you can record up to 3 tags), install batteries in the radio tags.

Enter programming menu and then press VALET button once. LED indicator will
light green and the system will enter the remote controls and tags recording mode.
Remote controls and radio tags are recorded (paired) one by one, in any order and
without time limit. All previously recorded remote controls will be removed when you
overwrite new remote controls or record old remote controls again, radio tags will not
be overwrite. All previously recorded radio tags will be removed when you overwrite
new radio tags or record old radio tags again, remote controls will not be overwrite.

Recording remote controls:

• Press three buttons simultaneously (on the remote control) and

hold them for 1 second (until a short beep from the main remote control or until

fading of additional remote LED), then release the buttons. If the recording was

successful, LCD remote will emit 2 short beeps and the base unit will emit 1 beep,

after that you can move to recording the next remote control or radio tag.

Recording radio tags:

• Press control button on a tag and hold it for 6 seconds (6 flashes of tag status

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

indicator), release the button after the sixth flash. If the recording was successful, a
siren will emit 1 beep, after that you can move to recording the next tag.

Saving changes:

To finish the recording, press VALET button once. The series of red and green flashes
of status LED indicator will confirm the saving.

Level 2 – Changing the factory preset of the «Service PIN-code»

Prepare a new value of the «Service PIN-code», it should consist of 4 digits (from 1 to

9). Write down or remember the new PIN-code.

Enter programming menu and then press VALET button twice. The system will

enter «Changing Service PIN-code» mode and the status LED indicator will turn off.

Changing the «Service PIN-code»:

• EnterthefirstdigitofthecodeusingVALET button. Press the button a number

of times, equals to the first digit. Pauses between presses should not exceed 1 second,
every pressing will confirm with orange LED indicator flash. Pause for more than 1
second and red LED indicator confirms the input of the first digit. Then you can enter
the next digit.

• Entertheothernumbersinthesamemanner.Theinputofthefourthnumber

will be confirmed by series of red and green LED indicator flashes. The system will
wait for PIN-code re-entering.

• Enterallfourdigitsagain;

• Ifyouwereabletocorrectlyenterthe«ServicePIN-code»twice,theindicator

will produce the series of red and green flashes, new PIN-code will be recorded, the
system will return to programming mode. In case of the incorrect code input the
indicator will be lit red, the system will return to programming mode.

Level 3 – Recording the idle speed to the system memory

To timely turn off the starter during automatic or remote engine start via digital or
analog tachometer input and the correct operation of the «Smart Turbo Timer», it is
necessary to record the engine idle speed.

To record idle speed to the non-volatile system memory, enter the programming

menu. Press VALET button three times. Switch on the ignition and start the engine

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

after entering this level of programming (the engine should be warmed-up, idle
speed should match the stable idle speed of the warmed-up engine). The system will
confirm the presence of the idle speed status with green flashes of LED indicator.
Wait until the stable idle speed will be reached and save the changes.

Saving changes:

Press VALET button once to save idle speed. Successful recording of the idle speed
will be confirmed with the series of red and green flashes of LED indicator. The
system will exit programming menu and reboot after saving the idle speed.

Level 4 – Resetting to factory settings.

The procedure recovers the factory settings of the system without deleting previously
registered devices (tags, mobile device, relays, etc.) that is stored in the non-volatile
memory.

To reset the settings enter the programming mode and press VALET button four
times. Press and hold VALET button for more than 4 seconds until siren sound, then
release the button. The system will confirm the resetting to the factory settings with a long
red flash of LED indicator. After that the system will return to a programming mode.

Level 5 – Recording Bluetooth engine compartment module

To record a Bluetooth engine compartment module, enter programming mode and
press VALET button 5 times. The LED indicator will light green and the system will
enter the recording of an engine compartment module mode. Connect the module
in accordance with installation manual. The system will confirm the registration with a
short sound signal.

Saving changes:

To finish the recording of the engine compartment module, VALET button should
be pressed once again, the series of red and green flashes of the status LED will confirm
the saving, switch on the ignition to save the settings and exit programming mode.

Level 6, 7 – Recording Bluetooth radio relays No 1, No 2

Radio relays recording is performed one by one starting from the 6 level: radio relay

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

№1isrecordedonthe6level;radiorelay№2isrecordedonthe7level.Theradiorelay

can be overwritten only on the level of its initial registration.

To record Bluetooth radio relays №1, №2, enter programming mode and press

VALET button 6 times for radio relay №1 or 7 times for radio relay №2. LED indicator

will light green and the system will enter the recording of a radio relay mode. Connect
a relay in accordance with installation manual. The system will confirm recording with
a short sound signal.

Saving changes:

To finish the recording of the Bluetooth radio relay, VALET button should be

pressed once again, the series of red and green flashes of the status LED indicator
will confirm the saving, switch on the ignition to save the settings and exit the
programming mode.

Level 8 – Recording Bluetooth GPS/GLONASS receiver

To record a Bluetooth GPS/GLONASS receiver, enter programming mode and press

VALET button 8 times. The LED indicator will light green and the system will enter the

recording of a receiver. Connect the receiver in accordance with its installation manual.
The system will confirm the registration with a short sound signal and red light of LED
indicator.

Saving changes:

To finish the recording of the engine compartment module, press VALET button

once, the series of red and green flashes of the status LED will confirm the saving,
switch on the ignition to save the settings and exit programming mode.

Level 10 – Configuring system settings via the wireless interface

This function is under construction.

Level 11 – Programming and configuring «Immobilizer code»

To program the «Immobilizer code», enter the programming mode and press

button11times.Thelevelisdividedinto3sublevels(Sublevel11.1–Selectingbuttons;
sublevel11.2enteringPIN-code;sublevel11.3–confirmationofthePIN-codeinput).

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

VALET

P R O G R A M M I N G T H E S Y S T E M

The system will automatically enter the sublevel 11.1 (Selecting buttons)
after entering the level 11. The system can determine buttons via analog «Code
immobilizer» input or via digital protocol of a car. It is necessary to configure an
analog input (INP) as «Code immobilizer» in the settings of the base unit inputs when
implementing the «Code immobilizer» via an analog input. It may be necessary to
switch on the ignition after entering the level 11 of programming (if the car bus
is active only when the ignition is switched on) when implementing the «Code
immobilizer» via digital car bus protocol.

After selecting active buttons enter the sublevel 11.2 (Entering PIN-code) by one
pressing of VALETbutton.ProgramPIN-codeusingselectedbuttonsatthissublevel;
press VALET button once and enter PIN-code again. To confirm PIN-code re-entering
and save all the settings, press VALET button once again.

Sublevel 11.1 – Selecting buttons:

This sublevel is used to select active buttons via digital protocol of a car or via «Code
Immobilizer» analog input. To determine the activity of the analog «Code Immobilizer»
input, apply potential to the corresponding input (INP) of the base unit, LED indicator
will be flashing orange.

If you determine buttons via digital protocol select one or more buttons (up to four)
for entering the secret code of the immobilizer. To do this press the selected button,

LED indicator will confirm input with orange flashes. If there are no orange flashes

when any button is pressed, then this button is not recognized by the system, select a
different button. Repeat the procedure to select the second, third, fourth button and
enter the next sublevel. To enter the next sublevel press VALET button once.

Sublevel 11.2 – Entering PIN-code:

Program immobilizer deactivation PIN-code using selected button or buttons. Enter
the first digit by pressing the previously selected button (pauses between presses
should not exceed 1 second). The base unit will confirm entering with red flash
of LED indicator. Enter the second (third, fourth) digit by pressing the previously
selected button. The base unit will confirm entering of each digit with red flash of

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

LED indicator.

Input the required number of digits (up to 4) and then press VALET button. The

system will confirm receiving of the secret validator code with long red flash of LED
indicator and will wait for confirmation of PIN-code.

Sublevel 11.3 - Confirmation of the PIN-code input:

Enter PIN-code again similarly to the procedure (LEVEL 11.2 – ENTERING PIN-CODE)
and press VALET button. The system will confirm correct PIN-code with red and
green flashes of LED indicator and will memorize PIN-code, and then the system
will proceed to programming mode awaiting level input. Incorrect confirmation is
indicated with long red flash of LED indicator, after that the system will return to
programming mode.

Level 12 – Calibrating of fuel level

To control fuel level, make connection and configure the settings:

• SettingisperformedviaPANDORA ALARMSTUDIO. «Use INP to control

fuel level» item should be enabled in the settings, the factory setting of this input
(input settings) must be unselected.

• Makeaconnectioninaccordancewiththe«Fuelcontrolinput»scheme.

To define the current fuel level, calibration should be performed at least by two
points. In some cases fuel level calibration should be performed by all specified points
(for more exact definition). To calibrate fuel level, enter the programming mode and
press VALET button 12 times.

Calibrating of fuel level:

Enter level 12 of programming, LED indicator will be lit red. Select the desired
sub-level. To adjust zero value, switch on the ignition and save the setting. The total
number of sublevels are 12 (listed in the table). Enter the number of the desired
sublevel by pressing VALET button (press the button a number of times equals to

theinputtingdigit;pausesbetweenpressesshouldnotexceed1second).

Run the engine no less than in 1 minute, then press VALET button – the data will
be sent to the base unit. To save, press button, pressing of button will be

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

canceled the calibration.

To exit the programming mode, enter sublevel 12 or press VALET button more

than 12 times.

To reset all calibration values, proceed to sublevel 11 (do not switch on the

ignition). Reset confirmation is performed by pressing of button, exit without
confirmation and exit the menu are performed by pressing VALET button.

Sublevel Assigning

I-12 0%

I-12.1 10%

I-12.2 20%

I-12.3 30%

I-12.4 40%

I-12.5 50%

I-12.6 60%

I-12.7 70%

I-12.8 80%

I-12.9 90%

I-12.10 100%

I-12.11 Reset all calibration values

I-12.12 Exit programming mode

Level 15 – Disabling/enabling immobilizer tag

To disabling/enabling of immobilizer tag, enter programming menu and press

VALET button 15 times. LED indicator will light green (green light indicates enabled

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

tag) and the system will wait for the «Secret PIN-code» entering. Red light of LED
indicates disabled immobilizer tag.

Disabling radio tag:

LED indicator will light green after entering the programming level. The system

will wait for entering the «Secret PIN-code». Enter the «Secret PIN-code» that is written
on the owner’s plastic card. The system will confirm disabling of the radio tag with two
sound signals of the siren and a long red LED flash. After that the system will return to
the programming menu. If the PIN-code is not entered within 10 seconds or the input
is incorrect, a siren will sound one signal, LED will produce the series of red and green
flashes and the system will return to the programming menu.

Enabling radio tag:

LED indicator will light red after entering the programming level. The system will

wait for action. Press VALET button once to enable radio tag. The system will confirm
enabling with one short sound signal of a siren and a green LED light. After that the
system will return to the programming menu.

Level 16 – Updating built-in Bluetooth modem firmware*

Download the firmware from www.tssgroup.sk and install Pandora BT or Pandect BT
application on your mobile device.

To update firmware of the built-in Bluetooth modem, enter programming mode
and press
detected devices and upload the previously downloaded firmware to the system.

Level 17 – Programming bypass of original immobilizer

Bypass learning procedure is performed on this level. A detailed manual can be found
in installation scheme for a car in AlarmStudio.
Enter programming mode and press VALET button 17 times. LED indicator will be lit
green. If system installation was performed correctly on successful engine start using a
key,

VALET button 16 times. Find your system in the mobile application, go to

LED indicator will flash green. After completing of the procedure, a siren will emit a

* For Android 4.4 devices or higher that supports Bluetooth 4.0 Low Energy or higher

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

short sound signal and LED indicator will light green. If the learning procedure finishes
with an error, LED indicator will light red and a siren will emit four sound signals.

Saving changes:

To finish the learning procedure, switch off the ignition and press VALET button. The
system will return to programming mode.

Level 18 – Registering and unregistering mobile device

The system supports only one mobile device. Registration of a new mobile device
(if the system has previously registered device) is not allowed without deleting
procedure. When you overwrite the same device in the system memory, you should
delete the Bluetooth connection on your mobile device, delete the mobile device
from the system memory and then register the mobile device in the system memory.

To register a mobile device, enter the programming mode and press VALET button

18 times. LED indicator will light green (green light indicates the system is ready to
register a mobile device) and the system will enter the mobile device registration
mode. Red light of LED indicates the system has already had registered mobile device,
overwriting of mobile device can be done only after deleting procedure.

Mobile device registration:

• LED indicator will light green after entering the level. Open the mobile application

and press «Search device» button. The application will search for the system via
Bluetooth connection. Select the found system, the system and the mobile device
will be automatically paired. The system will confirm the pairing with a sound signal
of a siren and red flash of LED indicator.

Deleting mobile device:

LED indicator will light red after entering the level. Press VALET button and hold

WARNING! If there is no automatic pairing, enable «PIN request for



phone pairing» in the «Radio tag and mobile device functions» settings.
Then perform the registering mobile device procedure again. The PIN will be
required to pair the devices (0-0-1-1-1-1)

USE R MANUAL

P R O G R A M M I N G T H E S Y S T E M

it for more than 4 seconds, release the button. The system will confirm deleting with
the series of sound signals of the siren and the system will return to mobile device
registration mode (LED indicator will light green).

Saving changes:

To finish the registration of a mobile device, VALET button should be pressed once,
the series of red and green flashes of the status LED indicator will confirm the saving,
switch on the ignition to save the settings and exit the programming mode.

Level 19, 20, 21, 22, 25, 26 – Updating firmware of additional devices

Download the firmware from www.tssgroup.sk and install Pandora BT application on

your mobile device.

To update firmware of additional devices, enter the programming mode and
press VALET button the number of times equals to the desired level number (see the
Programming levels table). Find your system in the mobile application, go to detected
devices and upload the previously downloaded firmware to the system.

Level 23, 24 Recording door sensors №1, №2 (DMS-100 BT)

Door sensors recording is performed one by one starting from the 23 level: A door

sensor№1isrecordedonthe23level;adoorsensor№2isrecordedonthe24level.A

door sensor can be overwritten only on the level of its initial registration.

To record door sensors №1, №2, enter programming mode and press VALET button
23 times for the door sensor №1 or 24 times for the door sensor №2. LED indicator will
light green and the system will enter the recording of a door sensor mode. Insert the
battery into the sensor. The system will confirm recording witha short sound signal.

Saving changes:

To finish the recording of the Bluetooth radio relay, press VALET button once, the
series of red and green flashes of the status LED indicatorwill confirm the saving, switch
on the ignition to save the settings and exit the programming mode.

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

P R O G R A M M I N G T H E S Y S T E M

ADDITIONAL DEVICES

Blocking BTR-101 radio relay is optionally available for Pandora LIGHT PRO. Blocking
radio relay with built-in accelerometer should be placed in the engine compartment.
Herewith zone of built-in aerial 2,4 GHz should not be shielded. Provide a rigid
fastening to the car body or to the fixed wirings. It is forbidden to hide the module in
wiring. To save energy, radio relay power is connected to the ignition. Radio relay is
normally closed and has a full set of contacts. Blocking is carried out on unauthorized
movement.

Programming of radio relay is performed on level 6 or 7.

• Selectdesiredleveloftheprogrammingmenu6,7toprogramradiorelay№1,

№2 respectively.

• Connectwire1ofradiorelaytothegroundingspot.

Apply power (12V) to the contacts 3 and 4 of radio relay. The siren/Beeper will

confirm recording of radio relay to the system’s memory with 1 beep. Shortly press

VALET button to save settings.

After successful

Aerial 2,4 GHz

recording of radio relay
switch off and insulate
contact 3, connect
contact 4 to any wire,
which has constant
voltage of 12V when
ignition is switched on.

NO

Programming

NC

COM

6

3

2

5

1

4

+12V

WARINGNG! DO NOT PLACE RADIO RELAYS DIRECTLY ON ENGINE



USE R MANUAL

A D D I T I O N A L I N F O R M A T I O N

Bluetooth tag

BT-760

Remote control

D-707

Remote control

D-077/078

Remote control

R-387

Remote control

D-010

Engine compartment

module RHM-03 BT

SIREN SOUNDS AND TURN LIGHT SIGNALS

Signal name Signal Description

Alarm mode, PANIC mode Incessant sound and light signals for 30 sec

Arming 1 sound /1 light signals

Disarming 2 sound / 2 light signals

«Sensors triggered»signal when
disarming

«Sensor malfunction» signal when
arming

Sensor warning level triggered 3 sound signals

Car search 5 sound / 5 light signals

4 sound / 4 light signals

4 sound / 4 light signals

PANDO RA LIGHT PRO SER VICE SECU RITY SY STEM

A D D I T I O N A L I N F O R M A T I O N

MEANING OF LED INDICATOR COLORS

Indicator status Meaning

Short red ashes The system is armed

Lit red The system is preparing for automatic arming

Orange ash Conrms VALET button press

Orange ashes Conrms a number of recorded remote controls (when

Green ashes Conrms a number of recorded remote controls (when

Red ash Conrms a recorded mobile device (when switching on ignition)

Red and green ashes PIN-code conrmed

Faded The system is disarmed

switching on ignition)

switching on ignition

CHECKING THE NUMBER OF RECORDED REMOTE CONTROLS/
RADIO TAGS/MOBILE DEVICE

The number of recorded remote controls/tags and registered mobile device can be checked
by the number of orange, green and red flashes of LED indicator. Number of registered
remote controls/tags/mobile device can be checked every time the ignition is switched on
when the system is disarmed. The number of orange LED flashes will indicate the number
of recorded remote controls, the number of green LED flashes will indicate the number of
recorded remote controls following red flash will indicate registered mobile device.

You can also check the number of recorded tags and registered mobile device by
taking off and putting back on battery terminal. The system will emit short sound
signals from a siren with less than 1 sec. interval. The number of the signals equals to
the number of recorded remote controls. After a pause of 2 seconds the system will
emit short sound signals from a siren with less than 1 sec. interval. The number of the
signals equals to the number of recorded radio tags. After a pause of 2 seconds the
system signal will indicate registered mobile device.

USE R MANUAL
