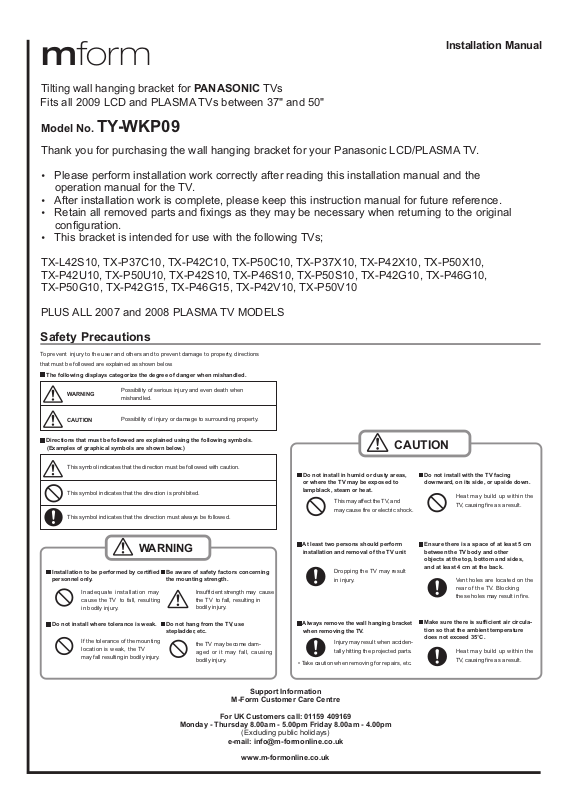

Panasonic TY-WKP09 Operating Instructions
Installation Manual
mform

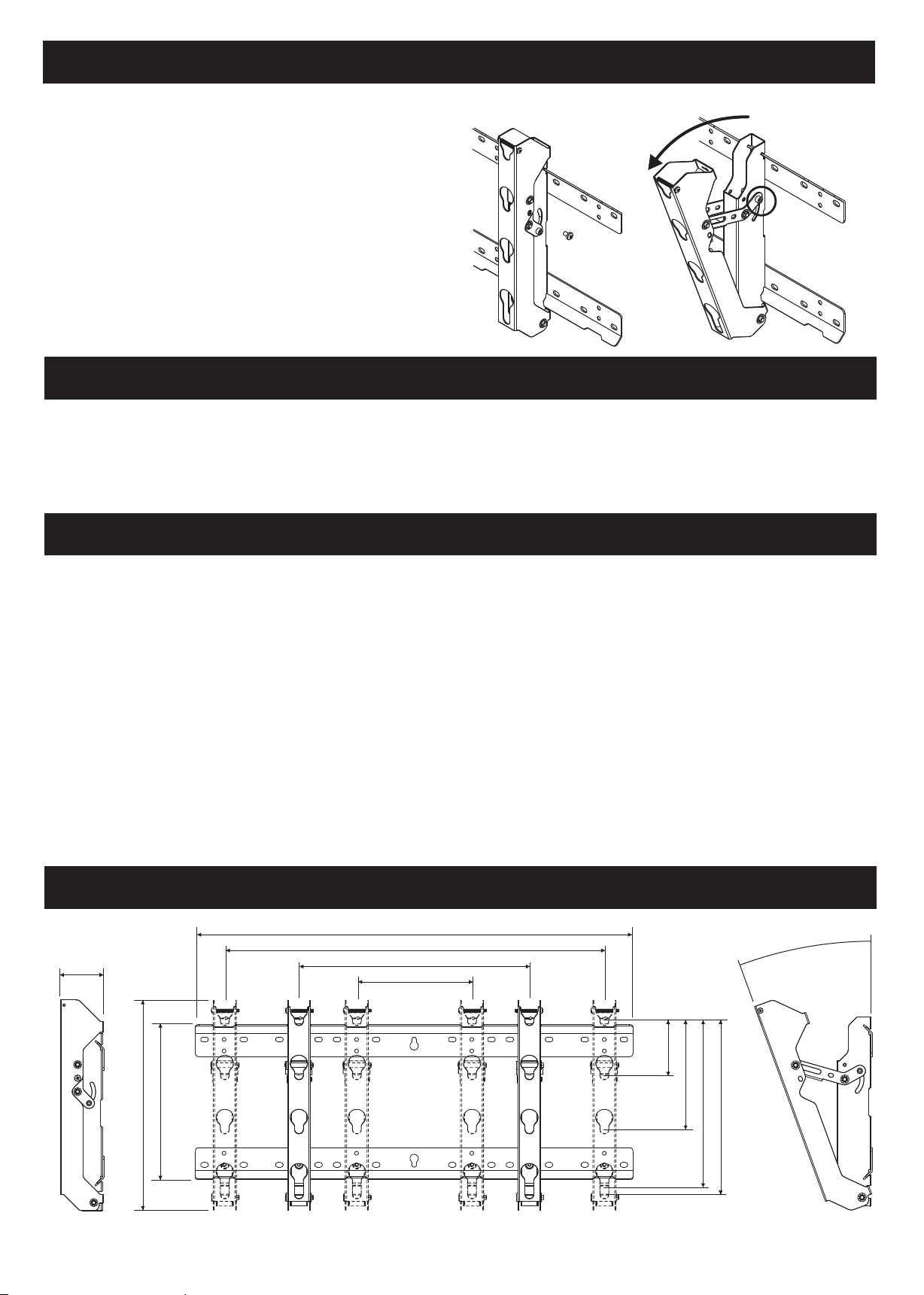

Tilting wall hanging bracket for PANASONIC TVs
Fits all 2009 LCD and PLASMA TVs between 37" and 50"
Model No. TY-WKP09
Thank you for purchasing the wall hanging bracket for your Panasonic LCD/PLASMA TV.
?Please perform installation work correctly after reading this installation manual and the
operation manual for the TV.
?After installation work is complete, please keep this instruction manual for future reference.
?Retain all removed parts and fixings as they may be necessary when returning to the original
configuration.
?This bracket is intended for use with the following TVs;
TX-L42S10, TX-P37C10, TX-P42C10, TX-P50C10, TX-P37X10, TX-P42X10, TX-P50X10,
TX-P42U10, TX-P50U10, TX-P42S10, TX-P46S10, TX-P50S10, TX-P42G10, TX-P46G10,
TX-P50G10, TX-P42G15, TX-P46G15, TX-P42V10, TX-P50V10
PLUS ALL 2007 and 2008 PLASMA TV MODELS
Safety Precautions
To prevent injury to the user and others a nd to prevent damage to p roperty, directions
that must be followed are explained as shown below.
The following displays categorize the degree of danger when mishandled.
WARNING
CAUTION
Directions that must be followed are explained using the following symbols.
(Examples of graphical symbols are shown below.)
This symbol indicates that the direction must be followed with caution.
This symbol indicates that the direction is prohibited.
This symbol indicates that the direction must always be followed.
Installation to be performed by certified
personnel only.
Ina de qu ate ins talla ti on may
cause the TV to f all, result ing
in bodily injury.
Do not install where tolerance is weak.
If the tolerance of the mounting
locat ion is w eak, the T V
may fall resulting in bodily injury.
Possibility of serious injury and even death when
mishandled.
Possibility of injury or damage to surrounding property.
WARNING
Be aware of safety factors concerning
the mounting strength.
Insufficient strength may cause
the TV to fall, resulting in
bodily injury.
Do not hang from the TV, use
stepladder, etc.
the TV may become damage d or i t ma y fa ll, causi ng
bodily injury.
CAUTION
Do not install in humid or dusty areas,
or where the TV may be exposed to
lampblack, steam or heat.
This may affect the TV, and
may cause fire or electric shock.
At least two persons should perform
installation and removal of the TV unit
Dropping the TV ma y result
in injury.
Always remove the wall hanging bracket
when removing the TV.
Injury may result when acciden-
tally hitting the projected parts.
• Take caution when removing for repairs, etc.
Do not install with the TV facing
downward, on its side, or upside down.
Heat may bu ild up wit hin the
TV, causing fire as a result.
Ensure there is a space of at least 5 cm
between the TV body and other
objects at the top, bottom and sides,
and at least 4 cm at the back.
Vent holes are locate d on the
rear of the TV. B lock ing
these holes may result in fire.
Make sure there is sufficient air circula-
tion so that the ambient temperature
does not exceed 35 °C.
Heat may bu ild up wit hin the
TV, causing fire as a result.
Support Information
M-Form Customer Care Centre
For UK Customers call: 01159 409169
Monday - Thursday 8.00am - 5.00pm Friday 8.00am - 4.00pm
(Excluding public holidays)
e-mail: info@m-formonline.co.uk
www.m-formonline.co.uk
Components
A - Bracket Arms (LH + RH)...x1
LH RH
B - Wall fixing plates...x2
C - Bracket assembly
Screw...x8
M5 x 10mm
E - TV protection spacer...x4
(For LCD TVs ONLY)

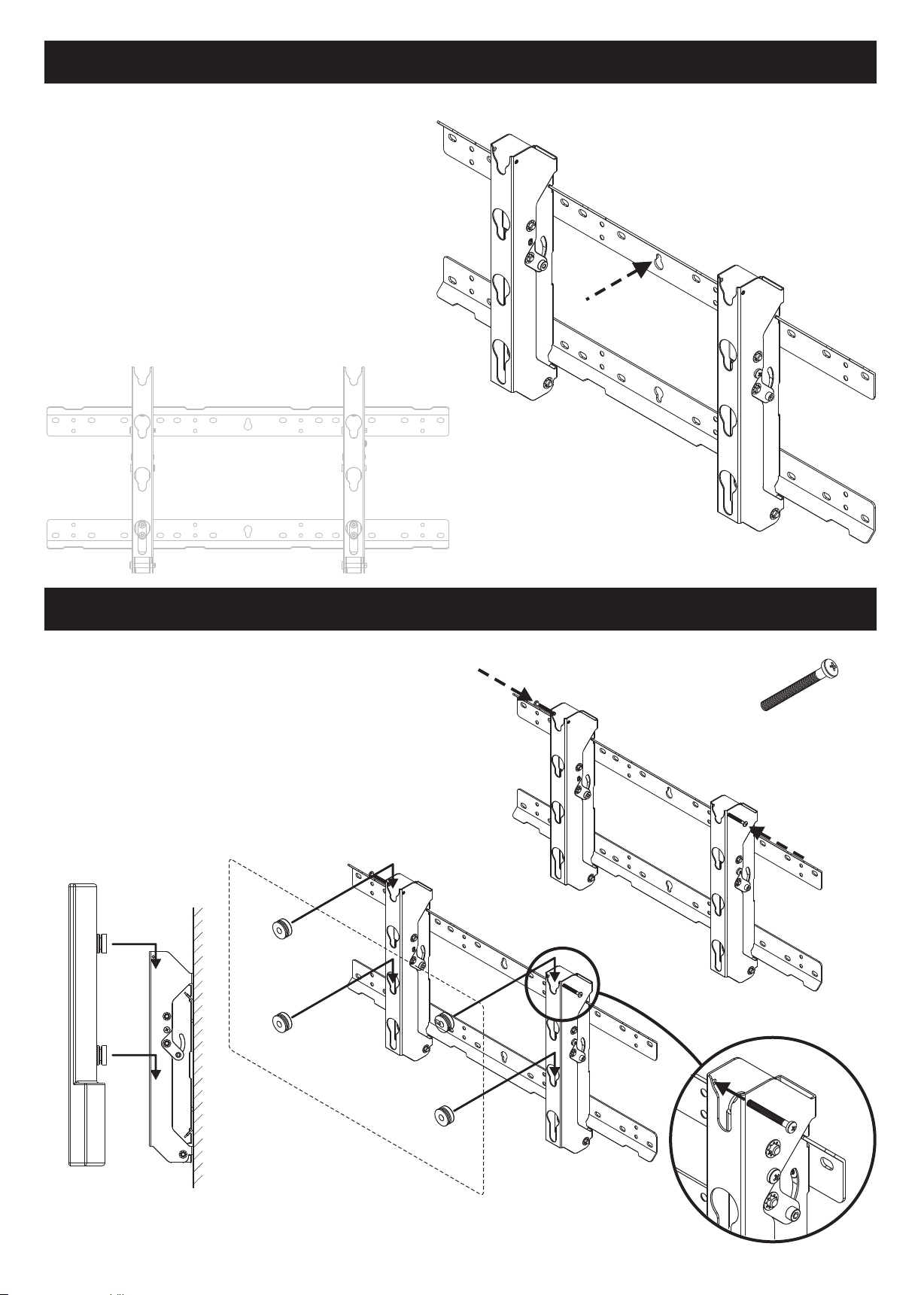

1. Assemble the bracket
?Attach wall fixing plates to the left and right arms as
shown (right)
D - TV fixing screws
M6 x 25mm...x4 (LCD)
M8 x 35mm...x4 (PLASMA)
M8 x 50mm...x4 (PLASMA)
F - LCD TV insulation
spacers...x4
NOTE: Marker arrows
should be facing outwards
G - Security screw
M5 x 45mm...x2
H - PLASMA TV
insulation spacers...x4
Allen Key...x2
Also required
LH
?Use positions 'a' for 2009 LCD and PLASMA TVs,
use positions 'b' for 2007 and 2008 PLASMA TVs
(shown below)
?Attach the top plate first using all four fixing screws
but do not tighten the screws. Attach the bottom
plate then tighten all the screws on the top and
bottom plate.
a
b
a
2. Prepare the LCD/PLASMA TV
?Remove the terminal covers if bracket arms will
obstruct access. Keep covers in a safe place if
removed in case you need to revert back to original
specification.
RH
b
C x8
D
F/H
E (LCD TVs ONLY)
?For LCD TVs place protection spacers 'E' on rear of
TV lining up the holes with the bracket fixing points.
For PLASMA TVs place insulation spacers 'H'
directly onto rear of TV.
?Fit the insulation spacers in all 4 positions using the
allen key and bolts included in the kit. Use the bolt
size which corresponds to the fixings in your TV.
?Do not use fixings other than those included in the
kit with this bracket.
– 2 –
