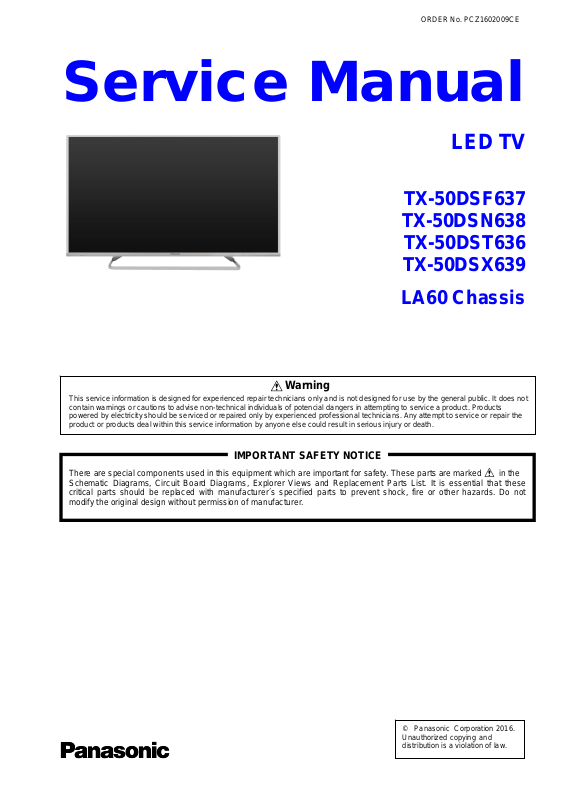

ORDER No. PCZ1602009CE

Service Manual

LED TV

TX-50DSF637

TX-50DSN638

TX-50DST636

TX-50DSX639

LA60 Chassis

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products deal within this service information by anyone else could result in serious injury or death.

There are special components used in this equipment which are important for safety. These parts are marked in the Schematic Diagrams, Circuit Board Diagrams, Explorer Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer´s specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

Warning

and

Safety Precautions







3

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

4. Always ensure cover label TBM4GU113 is correctly replaced before returning to customer (see Fig.1).

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential acr oss the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V,

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment shoul d be repaired and rechecked before it is returned to the customer.

COLD WATER PIPE (EARTH GROUND)

TO APPLIANCES EXPOSED

METAL PARTS Resistance values in ohms () V: Voltmeter or oscilloscope

(r.m.s. or peak reading)

Fig. 1

Measuring network for TOUCH CURRENTS

C

=1500

R

S

R0=500

Input resistance: 1M Input capacitance:200pF Frequency range: 15Hz to 1MHz and d.c.respectively

Fig. 2

=0.22F

S

10k

U

(V)

1

0.022

F

V

U2 (V)

Prevention of Electrostatic Discharge (ESD) to Electrostatically

4

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by cond uctive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as th e brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

There are special components used in this equipment which are important for safety. These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

About lead free solder (PbF)

5

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

 Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

 Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

 After applying PbF solder to double layered boards, please check the component side for excess solder which may

flow onto the opposite side. (see Fig.3)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.3

Fig.4

Service Navigation

6

Chassis Board Layout

P-BOARD

Board Name Function

A-Board AV Terminal, HDMI, USB, WIFI, BT, Ethernet, Digital Audio Out,

TUNER A/DVB-T/T2/C/S/S2, DVB-T2/T/C/S/S2 Dem, CI Slot,

eMMc Memory, STM EEPROM, DDR SDRAM, Service Connector P-Board Main Input, Power Supply, Key control, Power switch, LED Driver K-Board Remote Receiver, Power and Timer LED, C.A.T.S

A-BOARD

K-BOARD

Peaks IC_LD6, Speaker out, HP,

Service Hints

7

How to remove the backcover

Remove the 29 fixing screws and the backcover. (see Fig.5)

(1)

(2)

(1)

Caution: Before removing cover, receiver must be disconnect from mains.

(2)

(3)

(2)

(1)

Fig.5

(1)

(2)

(1)

(2)

(1)

(3)

(2)

How to remove the pedestal assembly

Lay the main unit face down. (see Fig.6) Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)

(1)

SCREWS (1) THEC1509 /17pcs/ (2) THTD037J /10pcs/ (3) THE5ZL002N /2pcs/

(1)

Fig.6

SCREWS (3) THE5ZL002N /4pcs/

(3)

Fig.7

Applicable Signals

8

Component (Y, Pb, Pr) (from AV2 terminal), HDMI

525 (480) / 60i,60p * * 625 (576) / 50i, 50p * *

750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p * 1,125 (1,080) / 24p *

Note:

Signal name COMPONENT HDMI

 Signals other than above may not be displayed properly.  The above signals are reformatted for optimal viewing on your display.

Specifications

9

Power Source: 220-240V AC, 50 / 60Hz

Rated Power Consumption: 107W

Stand-by Power Consumption: 0.20W Aerial Impedance: 75 unbalanced, Coaxial Type Receiving System: DVB-S/S2 Digital satellite services

Receiver frequency range – 950 MHz to 2,150MHz

DiSEqC – Version 1.0.

DVB-T/T2 Digital terrestrial services (

DVB-C Digital cable services ( PAL I/H, B/G,

SECAM B/G, L/L’

VHF E2-E12 VHF H1-H2 (ITALY) VHF A-H (ITALY) UHF E21-E69 CATV (S01-S05) CATV S1-S10(M1-M10) CATV S11-S20 (U1-U10) CATV S21-S41 (HYPERBAND) PAL D/K,

SECAM D/K VHF R1-R2 VHF R3-R5 VHF R6-R12 UHF E21-E69

PAL 525/60 (AV only)

M.NTSC (AV only) NTSC (AV only)

Satellite dish input: Female F-type 75

Aerial - Rear:

VHF/UHF

Operating Conditions: Temperature: 0°C  35°C

Humidity: 20%  80% RH (non condensing)

Terminals:

AV1 IN Video (21 pin) 1V p-p 75 Audio (21 pin) 500mV rms 10k

RGB (21 pin) 0.7V p-p 75 AV1 OUT Video (21 pin) 1V p-p 75

Audio (21 pin) 500mV rms 1k

AV2 IN Video (RCAx1) 1V p-p 75

(COMPONENT/VIDEO) Audio (RCAx2) 500mV rms 10k (used for HDMI_ AV2 audio IN) Video (RCAx3) Y:1V p-p 75 (including synchronisation)

Pb/Cb, Pr/Cr: ±0.35V p-p 75

HDMI1, HDMI2, HDMI3 Type A Connectors HDMI HDMI 2 : 3D, Content Type, Audio Return Channel

This TV supports “HDAVI Control 5” function.

DIGITAL AUDIO OUT PCM / Dolby digital, Fibre optic USB 1/2 DC 5V, Max 500mA [Hi-Speed USB (USB 2.0)] ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX CARD SLOT Common interface slot (Complies with CI+) x 1 Wireless LAN:

Standard Compliance IEEE802.11a/n , IEEE802.11b/g/n Frequency Range IEEE802.11a/n: 5.180 GHz – 5.320 GHz

5.500 GHz – 5.580 GHz

5.660 GHz – 5.700 GHz IEEE802.11b/g/n: 2.412 GHz – 2.472 GHz

Security WPA2-PSK (TKIP/AES) WPA-PSK (TKIP/AES) WEP(64 bit/128 bit)

Bluetooth wirelless

technology: Standard Compliance Bluetooth 3.0

Frequency Range 2.402 GHz – 2.480 GHz

1/3 : 3D, Content Type

(MPEG2 and MPEG4-AVC(H.264))

MPEG2 and MPEG4-AVC(H.264))

LCD screen: L5EDDYY00842

10

1920 x 1080, 16:9 Visible Diagonal 1260mm

Audio Output: 20W (2 x 10W)

Headphones: 3.5mm, 8 Impedance

Accessories supplied : Remote Control

2 x R6 (UM3) Batteries

Dimensions:

Width: Height: Depth:

Including TV stand 1126mm 693mm 202mm

TV set only 1126mm 652mm 47mm

Mass:

Including TV stand 16.5kg TV set only 15.5kg

Design and Specifications are subject to change without notice. Mass and dimensions shown are approximate.

Technical Description

11

Specification of KEY for DTCP-IP, C2MOD, CI Plus, DIMORA, HDCP2, Netflix, Widevine, Freetime General information:

1. eMMc Memory(IC8903) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by LD6 IC (IC8000) whe n SELF CHECK was done and are stored in both LD6 IC (IC8000) and eMMc (IC8903). All KEYs are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

Replacement of ICs:

When LD6 IC (IC8000) is replaced, eMMc (IC8903) should be also replaced with new one the same time. When eMMc Memory(IC8903) is replaced, LD6 IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press the MENU button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

Model and Keys:

Keys

Model No.

TX-50DSF637 Yes Yes Yes Yes Yes Yes None TX-50DSN638 Yes Yes Yes Yes Yes Yes None TX-50DST636 Yes Yes Yes Yes Yes Yes None TX-50DSX639 Yes Yes Yes Yes Yes Yes None

DTCP-IP C2MOD CI PLUS DIMORA HDCP2

Netflix

Widevine

FREETIME

USB HDD Recording: General information:

Digital TV programmes can be recorded in USB HDD. C2MOD key generated in A-board by SELF CHECK binds TV and USB-HDD for communication. That key is only one key for them. If the key is difference, TV can not access USB-HDD.

Caution:

New key will be generated by following SELF CHECK and previous TV programmes recorde d in USB HDD will not be viewed. SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press the MENU button on the remote control for more then 3 seconds.

Setting Inspection

V

12

Voltage Confirmation

A board

Description Test point

PNL12V TP4000,TP4001 12V ± 1.2V SUB5V TP8773 5.17V ± 0.25V SUB3.3V TP8705 3.39V ± 0.15V HDMI3.3V T P 8710 3.3V ± 0.17V SUB_AI_3.3V TP2206 3.3V ± 0.17V EU_TU_1.8V TP5704 1.84V ± 0.1V SUB1.5V TP8101 1.52V ± 0.08V SUB1.1V TP8100 1.21V ± 0.06V USB-WIFI TP8620 5.15V ± 0.20V LNB_PWR_M TP6703 18V ± 1.0V SUB9V TP5004 9.0V ± 0.4V WOL3.3V TP8712 3.3V ± 0.17V DMD_1.1V TP5703 1.12V ± 0.11V SUB_CI_5V TP8400 5.0V ± 0.5V USB1 TP8615 5.0V ± 0.25V USB2 TP8611 5.0V ± 0.25V

P board

Description Test point

24V 16V TP7410 and GND 5VS TP7501 and GND 5.2V ± 0.2V 5.2V ± 0.2V PFC TP7201 and GND TP7203*** <340V 390V ± 15V

* Connect AC 230V to JK7101 connector (Main switch is OFF).

** Connect DC 3.3V to TV_SUB_ON P3 connector – pin 9 /TP7416/ or set main switch is ON.

*** Beware, for testing of PFC use the GND (TP7203) in Hot area of P board – risk of electric shock.

TP7407 and GND

oltage

oltage*

<1V <1V

oltage**

24 ± 2.4V

16V ± 0.6V

CS Maintenance Menu

13

MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Menu

How to enter into CS Maintenance Menu Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button on the main unit, press the [RED] button on the remote control for 3 times within 2 seconds.

Note: CS Maintenance Menu can not be entered when 3D signal input.

Input 2D signal to enter CS Maintenance Menu.

How to exit

Press the [EXIT] button on the remote control.

CS Maintenance Menu OPT EDID CLK DRV CHECK

Key Command

 Press the ( / / / ) button to step up/down/right/left through the functions and adjustments  Press the OK button to change the adjustment values.  Press the RETURN button for return to the main menu.

OPT

1.Select [OPT] in CS Maintenance Menu.

2.Press [OK] button or Cursor key [Right] on the remote control.

CS Maintenance Menu OPT EDID CLK DRV CHECK

7 6 5 4 3 2 1 0 OPT1 0 0 0 0 0 1 0 0 OPT2 1 1 1 0 1 1 1 0 OPT3 0 0 0 0 0 0 0 1 OPT4 0 0 0 0 0 0 0 0

Exit:

Press the [EXIT] button or the [RETURN] button on the remote control.

EDID Clock

14

1.Select [EDID CLK] in CS Maintenance Menu.

2.Press [OK] button or Cursor key [Right] on the remote control.

CS Maintenance Menu OPT EDID CLK DRV CHECK

Exit:

Press the [EXIT] button or the [RETURN] button on the remote control.

EDID-CLK S-HIGH HDMI 1

DRV Check (USB HDD Drive Check)

1.Select [DRV CHECK] in CS Maintenance Menu.

2.Press [OK] button or Cursor key [Right] on the remote control. CS Maintenance Menu

OPT ******** ***-**-OK EDID CLK DRV CHECK OK

Exit:

Press the [EXIT] button or the [RETURN] button on the remote control.

Press [OK] button (3sec)

BUSY

Performing (Max 3minutes)

NG OK

OK NG

OK: HDD is normal NG: HDD is failure or mismatch

ERROR-NG

******** ***-**-OK

USBHDD check History ******** *** -** OK…………This time :OK

ERROR-NG………………. Last time : NG ******** *** -** OK…………Before last time:OK

Clock speed

HDMI Number

System Information

15

How to access

1. While pressing [MENU] button on the remote control.

2. To select [? Help] and then to select [System Information].(see Fig.8, Fig.9)

*Sample only

System Information SW version 3001-10000-abcde 3001

Status1 0d 8001-0003 0002-

Status2 0001-027-000de9 0001

Status3 00-000000-F000 00

Status4 A00000-0000001-00000 A

Status5 00000-10000 15e02off 0

Status6 01010037-1000009 01010013 Status7 00000-0750 00000 HDAVI Control 5 5 VIERA Link version is displayed

How to exit

Press the [RETURN] button on the remote control.

Fig.8 Fig.9

Peaks SW GenX Main GenX Sub (optional) Outer model ID Inner model ID Panel inch size LSI Package LSI Release Model data version Number of bad block in NAND Flash (dec) Peaks reboot counter System crash counter Emergency (SOS) counter Peaks NAND Maker ID Power-On period (A<=100hrs, B<=200hrs, C>200hrs) Total Power-On time (dec, max is 65535) Power-On timer (dec, max is 1048575) Fixed (always) SOS history (latest) SOS history (last time) SOS history (last but one) SOS history (2 SOS history (1 Self-check _0-never selfcheck 1-production selfcheck by “FF” or USCM 2-user selfcheck by pressing “OK” Fixed (always) Panel ID Peaks EEPROM version STM EEPROM version STM ROMCOR version AJAX_CE version

0000

10000 abcde 0d 8001-0003 0002-0000

027 000de9

00 00 00 F

00000 0000001 00000

0 0 0 0 1

0000 15e02off

1000009 0750

nd

time after shipping)

st

time after shipping)

Customised TV (Smart Lock)

16

1. Purpose Smart lock feature provides a method for Panasonic dealer to operate the TV in specific customised mode and allows to hide functions to reduce the complexity when customer is using the product furthermore, dealers should have the opportunity to copy such settings to another TV set.

2. Access command to the Customised TV setup menu. Smart Lock (Customised TV) Menu is only enabled on DVB input. Menu will not launch on Analogue or a ny External input.

In order to display the Customised TV setup menu,please enter the following command: [TV] : Vol.[Down] + [REMOTE] : Green button (3 times) Then, the Customised TV setup menu is displayed.

ITEM Function Note

17

Smart Lock Selection: ON/OFF Smart Lock (Customised TV) Menu is only enabled on DVB

Initial Category Selection: Off/All DVB Channels/Free

**Initial Channel Position Selection: Off/Enter

Initial Volume Selection: Off/ON

**Adjust Initial Volume Range: 0 to 100 Adjusting Smart Lock Initial Volume may also modify hotel

Setup / Settings Selection: Unlocked/Locked

My Home Screen Selection: Unlocked/Locked

APPS Menu Selection: Unlocked/Locked

Remote Control Button Lock

Export Settings to USB Press OK for Exporting Setting to USB

Import Settings from USB

**

"Adjust Initial Volume" and "Initial Channel Position" cannot be reset on Shipping Condition because settings are shared with Hotel Mode. (Hotel Mode settings are not beeing reset by Shipping Condition).

Note: Main POWER OFF/ON (at TV Sidepanel) is always required for changes to become effective!

Channels/Radio/HDTV/UHDTV *Activated: pressing OK.

*Activated: pressing OK. Range: 0 to 9999

*Activated: pressing OK.

Press OK to show button list. Selection: TV/ AV/ TEXT/ STTL/ ASPECT/ APPS/ HOME/ GUIDE/ OPTION/ COLOR KEYS/ 0..9/ eHELP/ LAST VIEW/ AV CONTROL

device

Press OK to Import Settings. Press EXIT to return.

input. Menu will not launch on Analogue or any External input.

If customer press OK, the selected category will be the default list for any last digital TV input at power up. If category is invalid on some input => Don't care. Invalid initial category is not set on TV start up, instead last category is used but invalid initial category entry remains in Smart Lock Menu because it may be valid for other input by intention.

Do not check channel number on input. Selected position will be default for all DVB input independent of Category. If position is invalid on some list => Don't care. Invalid initial position is not set/tuned on TV start up, instead last position is used but invalid initial position entry remains in Smart Lock Menu because it may be valid for other lists by intention.

Adjust Initial Volume item accessible/effective if Initial Volume is set to “On”.

mode Max Volume setting if Initial Volume is set higher than Max Volume. Value will be reset to "0" if setting Initial Volume to Off.

When locked: Setup and Network Setup will be hidden in Menu and therefore not accessible anymore.

If locked: Related items grey out Home Screen can be launched by HOME button when HS locked. Cannot change Home Screen (HOME button invalid if HS is displayed) Tutorial button is also locked if HS is locked.

If locked: Related items grey out Not accessible via: APPS button APPS Link in Home Screen

Button will be non functional if check box is checked.

Before exporting data: Main POWER OFF/ON (at Sidepanel) is required if Settings have been modified!

Channel List is not exported. Only eeprom settings exported. Additionally last Selected Home Screen is also copied. Additionally Smart Banner On/Off setting is also copied (Ref: Setup/Display Settings/Smart Banner)

Channel List is not imported. Only eeprom settings imported. Additionally last Selected Home Screen is also copied. Additionally Smart Banner On/Off setting is also copied. (Ref: Setup/Display Settings/Smart Banner)

After importing data: Main POWER OFF/ON (at Sidepanel) is required for imported settings to become effective!

Hotel copy vs. Smart Lock copy:

18

Menu Data Compatible

Hotel Copy TV setup is cloned:eeprom (incl. smart

lock), svldb

Smart Lock Copy Smart Lock settings only Shall be model independent (copy to all same years models at

Model ID is checked => Same model only

least)

Coexistence of Hotel Mode and Smart Lock:

Hotel Mode Smart Lock Behaviour Off Off Normal TV mode, no locks. Off On Apply Smart Lock settings only.

On Off Apply HotelMode settings only.

On On All settings are active, shared settings can still be changed

Hotel Mode exclusive settings are not active. Shared settings (e.g. Initial Position) may be also updated in Hotel Mode menu when changed in Smart Lock menu. Shared settings may be changed in Hotel Mode menu even hotel mode is not active. (This will not be restricted).

Smart lock exclusive settings are not active. Shared settings (e.g. Initial Position) may be also updated in Smart Lock menu when changed in Hotel Mode menu. Shared settings may be changed in Smart Lock menu even smart lock is not active. (This will not be restricted).

within both menus.

Other Information:

- Network Download NWDL cannot be announced if Apps button is locked.

3. To exit the “Customised TV”: The main power OFF/ON (at TV side panel).

Hotel Mode

19

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol.[Down] + [REMOTE] : AV (3 times)

Then, the Hotel mode setup menu is displayed.

Hotel mode

Initial INPUT Initial POS

Off

Initial VOL Level

Maximum VOL Level

Button Lock

Remote Lock

0

100

Off

Private Information

Quick Start

Welcome Screen

Import Welcome Screen

Keep

On Off

On

DVB-C Auto Channel List Update

Start Hotel Portal

Import Hotel Portal Url

On Off

Off

Change

3. To exit the “Hotel mode”: Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control or pressing [EXIT] button on the remote control.

4. Explain the Hotel mode setup menu.

*Quick Start setting can by copied to other TVs using

hotel model clone. Clone from a product whose default configuration has been changed may result in higher energy consumption of the product.

Select

RETURN

ITEM Function

Hotel Mode Select hotel mode ON/OFF Initial

INPUT

Initial POS Select programme number.

Initial VOL Level

Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock

Private Information

Quick Start

*

Welcome Screen

Import Welcome Screen

DVB-C Auto Channel List Update

Start Hotel Portal

Import Hotel Portal URL

Select input signal modes. Set the input, when each time power is switched on. Selection: Off/DVB-S/DVB-T/AV/HDMI1/HDMI2/HDMI3/HDMI4 *Off: give priority to the last memory. However, Euro Model is compulsorily set to TV.

Selection: Off/0 to 99 *Off: give priority to the last memory Adjust the volume when each time power is switched on. Selection/Range: Off/0 to 100 *Off: give priority to the last memory Adjust maximum volume. Range: 0 to 100

Selection: Off/SETUP/MENU *Off: altogether valid *Setup: only F-key is invalid

(Tuning guide (menu) can not be selected.)

*MENU: only F-key is invalid

(only Volume/Mute can be selected.) Select remote control key conditions. Selected: Off/SETUP/MENU/VOD *Off: altogether valid *Setup: only Setup menu is invalid MENU: Picture/Sound/Setup menu are invalid Select private information for VIERA Cast is Keep or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset

•Keep: private information for VIERA Cast is keep

•Reset: private information for VIERA Cast is reset TV will operate in active standby if Quick Start is “On” and

Hotel Mode is enabled. Orange LED indicates active standby. Selection: On/Off *Note: Changing the default configuration may result in higher energy consumption of the product.

Can be switched on only if “Welcome screen” was installed. Otherwise, item is inactive. Welcome Image will be displayed as soon as possible (approx. 6 seconds after power-up).

Welcome message must be loaded and activated in the hotel mode. The file name must be “welcome.jpg”( file size no bigger than 1MB). Upload “welcome.jpg” to TV set form USB stick. Welcome Screen will be displayed at power-up and will disappear automatically or may be terminated by any key press. Welcome image can be cloned to other TV sets using “hotel.pwd” clone feature. The possibility to enable the automatic service list update and to the “New service found” pop-up message (or disable “new service found” popup . Selection: On/Off Allow user to start a Portal-Application with dedicated key. Selection: Off/Home/App/Menu

Import Hotel Portal with USB: Filename must be “hotel_url.txt” Content of hotel_url.txt: e.g. http://192.168.1.1/hotel/index.html Located in root directory. Existing file will be overwritten. Activation: turn Off/On TV set. File will be deleted at shipment : [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

While pressing

Data Copy by USB Memory

20

Purpose a) Board replacement (Copy the data when exchanging A-board):

When e xchanging A-board, the data in original A-board can be copied to USB Memory and then copy to new A-board.

TV

A-board

(Before exchanging)

Copy to USB Memory

(After exchanging)

Copy back from USB Memory

USB

Following data can be copied. User setting data (inc. Hotel mode setting data) Channel scan data Adjustment and factory preset data

b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When insta lling a number of units in hotel or any facility, the data in master TV can be copied to USB Memory and the copy to other TVs.

Master TV

Copy to USB Memory

USB

Memory

Other TV

Copy from USB Memory

Other TV

Following data can be copied. User setting data (inc. Hotel mode setting data) Channel scan data

Preparation

Make pwd file as startup file for (a) or (b) in an empty USB Memory.

1. Insert an empty USB Memory to your PC.

2. Right-click a blank area in a USB Memory window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name (a) or (b) and press ENTER.

File name:

(a) For Board replacement: boardreplace.pwd (b) For Hotel: hotel.pwd

Note: Please make only one file to prevent the operation error. No any other file should be in USB Memory.

Data Copy from TV set to USB Memory

21

1. Turn on the TV set.

2. Insert USB Memory with a startup file (pwd file) to USB Terminal. On-screen Display will be appeared according to the startu p file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement: 2770

(b) For Hotel: 4850 Data will be copied from TV set to USB Memory. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to USB Memory, remove USB Memory from TV set.

5. Turn off the TV set.

Note: Following new folder will be created in USB Memory for data from TV set.

(a) For Board replacement: user_setup (b) For Hotel: hotel

Please do not remove the Media

Data copy has been successful

Data Copy(Board replacement )

Input password

Data Copy(Board replacement )

Input password

Data Copy(Board replacement )

Copy TV to Media

Please wait for a while

Data Copy(Board replacement )

Performing

Please remove Media

Data copy (Board replacement) or (Hotel)

-----

Input Password 2770 or 4850

-----

Performing

GETTING

Completion

FINISH

Data Copy from USB Memory to TV set

22

1. Turn on the TV set.

2. Insert USB Memory with Data to USB Terminal. On-screen Display will be appeared according to the Data folder automaticall y.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement: 2771 (b) For Hotel: 4851

Data will be copied from USB Memory to TV set.

4. After the completion of copying to USB Memory, remove USB Memory from TV set.

(a) For Board replacement: Data will be deleted after copying (Limited one copy). (b) For Hotel: Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data for board replacement does not work.

2. This function can be effective among the same model numbers.

Data Copy(Board replacement )

Input password

Performing

Data Copy(Board replacement )

Copy Media to TV

Please wait for a while

Please do not remove the Media

Data copy has been successful

Please turn off the TV for system

Data Copy(Board replacement )

Performing

initializing

Input Password 2771 or 4851

-----

Performing

WRITING

FINISH

Option Bytes Description

23

OPTION1 b1 TEXT Ch Refresh ON (1) / OFF (0)

b2 ID-1 ON (1) / OFF (0) b3 Macrovision Auto-judge ON (1) / OFF (0) b5 Reserved b6 Enable HDMI force reset ON (1) / OFF (0)

b7 Reserved OPTION2 b0 Adjust Igain enable ON (1) / OFF (0)

b1 A2 BG enable (5.5MHz) ON (1) / OFF (0)

b2 A2 DK1 enable (6.26MHz) ON (1) / OFF (0)

b3 A2 DK3 enable (5.742MHz) ON (1) / OFF (0)

b4 NICAM scan ON (1) / OFF (0)

b5 NICAM BG enable (5.5MHz) ON (1) / OFF (0)

b6 NICAM I enable (6.0MHz) ON (1) / OFF (0)

b7 NICAM DK enable (6.5MHz) ON (1) / OFF (0) OPTION3 b0 NICAM priority ON (1) / OFF (0)

b1 Reserved -

b2 Reserved -

b3 A2 DK2 enable ON (1) / OFF (0)

b4 Inhibition of countermeasure for SIF signal drop ON (1) / OFF (0)

b5 Get onid from physical CH (CHINA) ON (1) / OFF (0)

b6 SSU search enable for HOTEL model ON (1) / OFF (0)

b7 SASO mute (ASIA) ON (1) / OFF (0) OPTION4 b0 Countermeasure for Taiwan NTSC noise sound ON (1) / OFF (0)

b2 3DYC color motion detect ON (1) / OFF (0)

b3 RF Clamp Current minimum (TAIWAN) ON (1) / OFF (0)

b4 Reserved -

b5 Reserved -

b6 Reserved -

b7 Enable workaround for Polsat CAM problem (POLAND) ON (1) / OFF (0) OPTION16 b0 PIP/MW (derivate models) ON (1) / OFF (0)

b1 “Bas Boost” sound menu enable ON (1) / OFF (0)

b2 Digital Remaster sound menu enable (derivate models) ON (1) / OFF (0)

b3 "XR-Audio Pro Surround" sound menu enable ON (1) / OFF (0)

b5 Contorol4 function enable ON (1) / OFF (0)

b6 Reserved -

b7 Reserved -

Self Check

p

24

How to access

Self-check indication only: While pressing [VOLUME ( - )] button on the main unit, press [BLUE] button on the remote control.

Self-check indication and forced to factory shipment setting: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

How to exit

Switch off the power with the [POWER] button on the main unit.

TX-50DSF637 TX-50DSN638 TX-50DST636 TX-50DSX639

H14TUN TU6702 TUNER A/DVB-T/T2/C/S/S2 A-Board H90STBY IC8000 IC Peaks-LD6 A-Board H17LAN IC8650/IC8903 ETHERNET/MAC A-Board H00FE IC6800 DVB-T2/T/C Demodulator A-Board H00SAT-TU TU6702 TUNER A+T2+C+S A-Board H96ID IC8903 CI+,DTCP-IP, C2MOD A-Board H97ID2 IC8903 Dimora, HDCP2, Netflix, Widevine A-Board

H45BT

H42WIFI H92MEM1 IC8901 EEPROM STM A-Board

H91MEM2 IC8903 eMMc Memory A-Board

50FHD

Self Check Com

H14TUN O.K. H90STBY O.K. H17LAN O.K. H00FE O.K. H00SAT-TU O.K. H96ID O.K. H97ID2 O.K. H45BT O.K. H42WIFI O.K. H92MEM1 O.K. H91MEM2 O.K.

PEAKS-SOFT *.*** PEAKS-EEP **.**.**** LSI-PACKAGE *.*** LSI-RELEASE *.** STBY-SOFT *.**.** STBY-EEP *.**.****

lete

MODEL ID 0D 03000181 00008000

Display Ref. No. Description P.C.B.

IC8000 IC8601

N5HZZ0000130

IC8000 IC8601

N5HBZ0000114

IC Peaks-LD6

USB HUB BTDongle

IC Peaks-LD6

USB HUB

Wifi Dongle

A-Board

BT Dongle

A-Board

Wifi Dongle

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

Power LED blinking timing chart

25

1. Subject Information of LED Flashing timing chart.

2. Contents When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by number of blinking of the Power LED on the front panel of the unit.

Blinking

times

Once

1

3

5

Blinking timing Contents Check point

4 sec

Light No Light

*Power ON(No LED/Green

BL_SOS

SOS when SUB3.3V is

started

blinking)->SOS

IROM SOS

MEMORY READ SOS

(eMMC reading error)

A BOARD P BOARD

LCD PANEL

A BOARD P BOARD

A BOARD

7

9

12

13

SUB3.3V_SOS

SOUND_SOS

PEAKS_SOS

EMERGENCY A BOARD

A BOARD P BOARD

A BOARD

SPEAKERS

A BOARD P BOARD

LCD Panel Test Mode

Purpose:

To find the possible failure point where in LCD Panel or Printed Circuit Board when the abnormal picture is displaye d.

How to Enter:

While pressing [VOLUME ( - )] button of the main unit, press [YELLOW] button of the remote control three times.

How to Exit:

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

How to confirm:

If the abnormal picture is displayed, go into LCD Panel test mode to display the several test patterns. And then, judge by the following method. Still abnormal picture is displayed: The cause must be in LCD Panel. Normal picture is displayed: The cause must be in A board.

Remarks:

The test pattern is created by the circuit in LCD Panel. In LCD Panel test mode, this test pattern is displayed unaffected by signal processing for RF or input signal. If the normal picture is displayed, LCD Panel must be okay and the cause of failure must be in A board.

Wiring Diagram

26

TUNER

CNF2

LED PANEL

CNF1

JK8602

ETHERNET

CI SLOT

JK8400A

JK3001B

Y,Pb,Pr IN

AUDIO L/R IN

HP

JK3111A

OUT

DIGITAL AUDIO

D3101

TU6702

A15

A16

A-BOARD

A02A

A10A

P3

K10

BT

LD1 RLB

P-BOARD

K-BOARD

JK7101

MAIN INPUT

JK3011

AV scart

HDMI3

JK4701A

HDMI2

JK4703A

HDMI1

JK4702A

JK8605

USB

(WIFI)

JK8603A

USB2

A12

Speaker L Speaker R

JK8601

USB1

Block Diagram (1/2)

27

A-BOARD

SUB3.3V

1,32

TU6702

30,31

TUNER DVB-A/T2/C/S

8,9

AV_VOUT 19

AV_V 20

AV_RED/C 15

AV_GREEN 11

AV_BLUE 7

JK3011

JK3001B

JK3111A

Digital

JK4703A

JK4702A

JK4701A

AV_L 6

AV_LOUT 3

AV 21PIN SCART

AV_R 2

AV_ROUT 1

Y

PB

PR

L

Y/Vin,PB,PR

R

L

IN

L

R

AUDIO

HP-OUT

SUB3.3V

D3101

Audio Out

1_RX

1_HPD

1_5VDET

1_SDA

HDMI2

1_SCL

CEC

2_RX

2_HPD

2_5VDET

2_SDA

HDMI1

2_SCL

CEC

0_RX

0_HPD

0_5VDET

0_SDA

HDMI3

0_SCL

CEC

2

33

3,4 6,7

5

12

11 27

10

25

HP_L

HP_R

TU_1.8V

LNB PWR

DMD IIC_0

IF1_P,N

AGC1

FEF_FLAG

FE_XRST_T

SAT_AGC1

Q1, I1

IF2_N,P

AGC2

FE_SAT_XRST

VOUT

VIN

SCART_R

SCART_G

SCART_B

SCART_LIN

SCART_RIN

COMP_D_PR

COMP_D_PB

COMP_D_Y

LIN_TERMINAL

RIN_TERMINAL

IECOUT

ARC_OUT

R4753

R4703

R4713

LOUT

ROUT

16V

LOUT

ROUT

IECOUT

ARC_OUT

12,16

13

IC6860

LNB

7 1

[C1CB00003736]

LAN CONTROLER

3

TX+

1

ETHERNET

6,7

3

IC3052

Audio Amp

RMII_RXD0,RXD1 RMII_TXD0,TXD1 RMII_REFCLK,TXEN, CRS_DV,RXER MDIO,MDC,INTL, PHYRSTL CRS_DV

IC8650

4

5

TX-

RX+

TX-

RX+

2

JK8602

6

4

DMD IIC_1

RX-

5

DSQ_OUT

IF1_P,N

SCART_R

SCART_G

SCART_B

COMP_D_PR

COMP_D_PB

COMP_D_Y

SCART_LIN

SCART_RIN

LIN_TERMINAL

RIN_TERMINAL

6

2

SUB9V

8

STMCECAVL1A

7,14,30

AGC1

FEF_FLAG

FE_XRST_T

VOUT

VIN

LOUT ROUT

HP_L

HP_R

0_RX

1_RX

2_RX

WOL3.3V

X6800

34

23

38,37

IC6800

[C1AB00004164]

48

DVB-T/T2/C/S/S2 DEM

47

29

26

31,32

Video Out

AH16

AL15

AK12

AM13

Video input

AL13

AM14

AL14

AN14

AL11

AM11

Audio input

AL12

AN12

AL9

AK10

Audio output

AM9

AN9

AJ31

AN6

HDMI Input

LAN PHY I/F

USB1_OD

USB1_VBUS

3

4

SW

IC8606

1

6

SUB5V

1

JK8603A

USB2

DMD_ IIC1

35

20,21

3,4,5,8,9,12

13,14,15,16,17

USB I/F

T3

U2

T2

USB1_DP

USB0_DN

USB1_DN

3

2

SUB3.3V

DMD_1.2/1.1V

Parallel TS

R4

U1

USB0_DP

USB2_DN

USB0_OD

USB0_VBUS

3

4

SW

IC8602

1

6

SUB5V

1 2 3

JK8601

USB1

G5

CI I/F

R3

USB2_DP

HS1BCLKIN HS1SYNCIN HSVALIN HS1DIN[0-7]

AJ11

AE27

AM17,AN17

TUNER CTRL

TUNER I/F

BE COMMON PORT

STMTIME6

STMTIME5

STMGPIO8

3 4

SW

IC8603

1

6

STB5V

2

4

1

JK8605

WiFi

TS PARALLEL INPUT 2

1

2

IC8601

USB HUB

12

13

DP1

DM1

3

USB POWER

CTRL

AA2

AB2

USB1_OD

USB1_VBUS

5,9,14,21,28

16

15

DP1

DM1

SUB1.5V

IC8200

DDR3 2GBit

DDR3 CH I/F

AA3

AB1

USB0_OD

USB0_VBUS

SUB3.3V

BT_USBDP

BT_USBDN

10

A10A

TO Bluetooth/K10

SUB1.5V

IC8201

DDR3 2GBit

AL30

AK30

BL_PWM6

BL_PWM8

BL_PWM7

SUB3.3V

SUB_AI_3.3V

9

11

SUB1.5V

IC8202

DDR3 4 GBit

BE COMMON PORT

AE29

AE30

BL_PWM5

BL_PWM4

BL_PWM3

AI

STB3.3V

REMOTE

3

7

AE32

AF31

BL_PWM2

G_LED_ON

2

4

AK31

5

STB3.3V

IC8901

STM EEP

STM IIC

SUB3.3V

IC8903

eMMC Nand Flash

4 GBit

IC8000

[MN2WS0280PB]

Peaks LD6

BE RESET

PANEL PWM

BE POWER CTRL

AH17

AL23

AG30

AE33

BL_ECO

BL_PWM

PEAKSRST

TV_SUB_ON

R_LED_ON

16V

1

A02A

1-3

eMMC CARD I/F

AK22

AG21

AG17

STB_XRST

STB5.3V

7

REMOTE

PWM_ENB

ECO_ON

TV_SUB_ON

9

3

8

AI

KEY1

7

10

AJ23

AH26

G_LED

BL_ON

TO P3

SUB3.3V

AK24

R_LED

POWER_ON

11

12

9-10

SUB_CI_5V

AJ26

KEY1

BL_SOS

BL_PWM

13

12

17,18 51,52

DMD IIC_0

DMD IIC_1

AJ25

AK20

BL_ON

POWER_ON

BL_PWM2

BL_PWM3

15

17

14

CI SLOT

JK8400A

TS Paraller Input

AH24

BL_PWM4

TS Paraller Output

CI DATA

TS Paraller Input

TS Paraller Output

STM

AJ18

AK17

AJ17

AG19

1_HPD

2_HPD

0_HPD

0_5VDET

1_5VDET

BL_PWM5

BL_PWM6

BL_PWM7

BL_PWM8

1819202122

SERVICE

HDMI I/F

AJ19

AH19

0_SDA

2_5VDET

CN0100

AK18

AL18

AL19

0_SCL

1_SDA

1

SUB9V

16V

SUB3.3V

AJ20

AK19

1_SCL

2_SDA

TV_SUB_ON

8

[AN34043AAVF]

ANALOG ASIC

6 2

STB5V

16V

AH20

CEC

2 _SCL

STB_XRST

PEAKSRST

28 12

IC5000

15

14

SUB5V

SUB_AI_3.3V

STM

AG25

LVDS I/F

AM20

CECPUL

SP_R

2 3

1

A12

R+

R-

10,11

14,15 26,27

9,16,25,32

22

5

MCLK

AK29

AUDIO Output

Y33,Y32,AA31,AA32

AB32,AB33,AB31,AC32

AA30,AA29,AA28,AA27 AB27,AC27,AB30,AB29 AC29,AC28,AD28,AD29

AL21

AJ24

AM19

AK21

STMTIME5

STMTIME6

STMGPIO8

DCDCEN

11

32

STB3.3V

6

SDATA0

AH28 AG29

P33,P32,P31,R32 R31,T30,T31,U30 U33,U32,U31,V32

T28,U28,V28,U29

V30,V29,W27,W28

Y29,Y28,Y30,W29

V31,W30,W31,Y31

18

SOUND_SOS

BE COMMON PORT

AN20

STMCECAVL1A

PWM_ENB

5

31

STB5V

SP_L

4

L+

L-

30,31

IC4900

[C1AB00003984]

AUDIO AMP

7

8

BCLK

LRCLK

AH30

AE31

AF28

DCDCEN

IC5702

DC/DC

IC8101

DC/DC

7

IC8100

DC/DC

14

IC8705

DC/DC

7

IC8716

DC/DC

1

IC5300

DC/DC

STB3.3V SUB1.1V SUB1.5V SUB3.3V

WOL3.3V

HDMI3.3V

12,23,26

10,15

3

2

3

2

17

3

2

6

8

3

2

DMD_1.2/1.1V

SUB5V

SUB1.5V

DCDCIN

SUB1.1V

DCDCIN

SUB5V

SUB3.3V

16V

SUB5V

16V

PNL12V

16V

LVDS

16V

DCDCIN

TU_1.8V

SUB3.3V

SUB_CI_5V

SUB5V

WOL3.3V

STB5V

HDMI3.3V

SUB5V

STB5V

STB5.3V

LVDS

PA2002

1

IC5704

8

5

IC8400

1

3

IC8712

4

3

IC8715

4

R5201

PANEL_TEST_ON

PANEL_3D_ON

Reg

PNL12V

A15

3,4,5,6 8,9,11,12 13,14,15,16

19,20,21,22 24,25,27,28 29,30,31,32

A16

11,12,13,14 16,17,19,20 21,22,23,24

1-4

27,28,29,30 32,33,35,36 37,38,39,40

4

48

26

1-4

TO PANEL

Panasonic TX-50DSN638 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety Precautions

Service Navigation

Chassis Board Layout

Service Hints

How to remove the backcover

How to remove the pedestal assembly

Applicable Signals

Specifications

Technical Description

Setting Inspection

CS Maintenance Menu

System Information

Hotel Mode

Data Copy by USB Memory

Data Copy from TV set to USB Memory

Data Copy from USB Memory to TV set

Option Bytes Description

Self Check

LCD Panel Test Mode

Wiring Diagram

Block Diagram (1/2)
