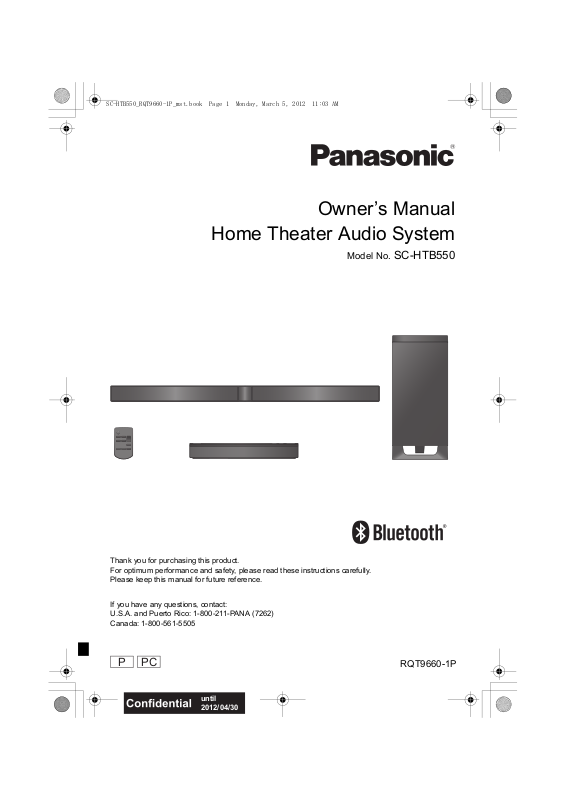

Panasonic SC-HTB550 User Manual

Owner’s Manual

P

Home Theater Audio System

Model No. SC-HTB550

Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.

If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada: 1-800-561-5505

PC

RQT9660-1P

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the
unit and the applicable safety instructions listed below. Keep these operating instructions handy for
future reference.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with
one wider than the other.
A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of
the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.

13 Unplug this apparatus during lightning

storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.

WARNING

Unit

≥ To reduce the risk of fire, electric shock or product damage,

j Do not expose this unit to rain, moisture, dripping or

splashing.

j Do not place objects filled with liquids, such as vases, on

this unit.

j Use only the recommended accessories.
j Do not remove covers.
j Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

Button-type battery (Lithium battery)

≥ Risk of fire, explosion and burns. Do not disassemble, heat

If any electrolyte should come into contact with your hands
or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes,
never rub the eyes. Rinse eyes thoroughly with water, and
then consult a doctor.

<For USA-California only>
This product contains a CR Coin Cell Lithium
Battery which contains Perchlorate Material s
special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.

above 60

o

C (140 oF) or incinerate.

CAUTION

Unit

≥ Do not place sources of naked flames, such as lighted

candles, on this unit.

Placement

≥ To reduce the risk of fire, electric shock or product damage,

j Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit is
well ventilated.

j Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

Button-type battery (Lithium battery)

≥ Danger of explosion if battery is incorrectly replaced.

Replace only with the type recommended by the
manufacturer.

≥ When disposing the batteries, please contact your local

authorities or dealer and ask for the correct method of
disposal.

≥ Insert with poles aligned.
≥ Do not touch the terminals (i and j) with metal objects.
≥ Do not recharge, disassemble, remodel, heat or throw into

fire.

≥ Keep out of reach of children.
≥ Mishandling of batteries can cause electrolyte leakage and

may cause a fire.
j Remove the battery if you do not intend to use the remote

control for a long period of time. Store in a cool, dark
place.

≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in a car exposed to direct

sunlight for a long period of time with doors and windows
closed.

RQT9660

2

Precautions

THE FOLLOWING APPLIES ONLY IN THE

The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

U.S.A. AND CANADA

This device complies with Part 15 of FCC Rules and RSS­Gen of IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of this
device.
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
This product is restricted to indoor use due to its operation
in the 5.150 GHz to 5.250 GHz and 5.725 GHz to

5.850 GHz frequency range.
FCC and IC require this product to be used indoors for the
frequency range 5.150 GHz to 5.250 GHz to reduce the
potential for harmful interference to co-channel Mobile
Satellite systems. High power radars are allocated as
primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz
to 5.85 GHz bands. These radar stations can cause
interference with and/or damage this product.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment has very
low levels of RF energy that is deemed to comply without
maximum permissive exposure evaluation (MPE). But it is
desirable that it should be installed and operated keeping
the radiator at least 20 cm (7
person’s body (excluding extremities: hands, wrists, feet
and ankles).

7

/

8q) or more away from

THE FOLLOWING APPLIES ONLY IN THE
U.S.A.
FCC Note:

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:

≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and

receiver.

≥ Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

≥ Consult the dealer or an experienced radio/TV

technician for help.

Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

Responsible Party:
Panasonic Corporation of North America
One Panasonic Way,
Secaucus, NJ 07094

Support Contact:
Panasonic Consumer Marketing Company of
North America
Telephone No.: 1-800-211-PANA (7262)

THE FOLLOWING APPLIES ONLY IN
CANADA.

This device complies with RSS-210 of the IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received,
including interference that may cause undesired operation
of the device.

RQT9660

3

Table of contents

IMPORTANT SAFETY INSTRUCTIONS ............................................................ 2

Before use

Supplied items ................................................................................................... 5

System (SC-HTB550) ......................................................................................................... 5

Accessories......................................................................................................................... 5

Control reference guide .................................................................................... 6

Main unit and active subwoofer (Front)............................................................................... 6

Main unit and active subwoofer (Rear) ............................................................................... 6

Remote control.................................................................................................................... 7

Getting started

Step 1 Selecting the placement method......................................................... 8

Speaker system .................................................................................................................. 9

Active subwoofer................................................................................................................. 9

Wireless interference .......................................................................................................... 9

Step 2 Assembling the speakers................................................................... 10

When attaching the speakers to a wall ............................................................................. 10

When placing the speakers on a table.............................................................................. 14

Additional speaker fall prevention measures .................................................................... 17

Step 3 Connections ........................................................................................ 19

Connection with the TV..................................................................................................... 19

Connection with other devices .......................................................................................... 20

Speaker cable connection................................................................................................. 21

AC power supply cord connection .................................................................................... 21

Active subwoofer wireless connection .............................................................................. 22

Bluetooth

®

connection ....................................................................................................... 22

Operations

Using this unit.................................................................................................. 23

3D sound........................................................................................................................... 24

Audio output modes .......................................................................................................... 24

Linked operations with the TV (VIERA LinkTM “HDAVI ControlTM”) ............. 25

Advanced operations ...................................................................................... 26

Reference

Troubleshooting .............................................................................................. 28

Indicator illumination ...................................................................................... 30

About Bluetooth

Unit care ........................................................................................................... 31

Specifications .................................................................................................. 32

Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) ......................... 34

Limited Warranty (ONLY FOR CANADA) ....................................................... 35

RQT9660

4

®

............................................................................................. 31

Precautions

Reference Getting started

Before useOperations

Before use

≥ The illustrations shown may differ from your unit.
≥ Operations in this Owner’s Manual are described mainly with the remote control, but you can

perform the operations on the main unit if the controls are the same.

Supplied items

System (SC-HTB550)

∏ 1Main unit

(SU-HTB550)

∏ 1 Active subwoofer

(SB-HWA550)

Accessories

Check the supplied accessories before using the system.

∏ 1 Remote control

(with a battery)

(N2QAYC000063)

∏ 6 Screws

(XYN5+J14FJK)

∏ 2Stands

(RYQ0853-KJ)

∏ 2 AC power supply

cords

(K2CB2YY00059)

∏ 2 Speaker feet

(RKAX0028-K)

∏ 2 Speaker bases

(RAQ0086)

∏ 2 Front speakers

(SB-HTB550)

∏ 2 Speaker cables

(REEX1266A: RED)

∏ 1 Speaker joint

(RAQ0085)

(REEX1267A: WHITE)

Length: 3 m (9.8 ft)

∏ 2 Front ornaments

(RAQ0089)

∏ 2 Support legs

(RYQ0970-K)

(ONLY FOR CANADA)
The enclosed French Canadian label sheet
corresponds to the English display on the remote
control and the top and rear of the main unit and
active subwoofer.



≥ Product numbers are correct as of December 2011. These may be subject to change.
≥ For U.S.A. and Puerto Rico:

To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on page 34.
For Canada: To order accessories, call the dealer from whom you have made your purchase.

≥ The supplied AC power supply cord is for use with this unit and the active subwoofer only.

Do not use it with other equipment. Also, do not use cords from other equipment with this unit or active subwoofer.

RQT9660

5

Control reference guide

7

1

2

5

6

3

4

Main unit

Active subwoofer

8

1

21 34567

SPEAKERS / HAUT-PARLEURS

6

R L

AV OUT

AV IN

DIGITAL

AUDIO

IN

TV

(OPT1)

AUX2

(OPT2)

TV (ARC)

BD/DVD
(HDMI1)

BD/DVD
(HDMI1)

AUX1

(HDMI2)

AC IN

Main unit and active subwoofer (Front)

1 Standby/on switch (Í/I)

Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.

2 Adjust the volume of the speakers
3 Select the input source

“TV”#“BD/DVD”#“AUX1”

^--- “”(-- “AUX2”(}

4 Remote control signal sensor (> 7)
5 Input selector indicators

§1

A TV indicator

Lights green when the TV is the audio
source

B BD/DVD indicator

Lights amber when the device connected
to the BD/DVD terminal is the audio
source

C AUX1 indicator

Lights amber when the device connected
to the AUX1 terminal is the audio source

Main unit and active subwoofer (Rear)

D AUX2 indicator

Lights amber when the device connected
to the AUX2 terminal is the audio source

E Bluetooth

®

indicator
Lights blue when the Bluetooth
the audio source

6 Audio format indicators

§1

F Dolby Digital indicator

Lights when Dolby Digital is the current
audio format

G DTS indicator

Lights when DTS is the current audio
format

H PCM indicator

Lights when PCM (2ch, Multi-channel) is
the current audio format

7 WIRELESS LINK indicator (> 22)

®

device is

1 AC IN terminal (> 21)
2 Speaker terminals (> 21)
3 TV terminal (> 19)
4 AUX2 terminal (> 20)

§1 The indicators will also blink in various conditions (> 30)

§2 The I/D SET button is only used when the main unit is not paired with the active subwoofer (> 29)

RQT9660

6

5 HDMI OUT terminal (ARC compatible) (> 19)
6 BD/DVD terminal (> 20)
7 AUX1 terminal (> 20)
8 Active subwoofer on/off button

Before use

Remote control

DIALOG LEVEL

LINK MODE

PAIRING

----

1

6

7

2

3

4

5

8

INPUT

SELECTOR



C Remote control signal sensor

≥ Operation range

Distance: Within approx. 7 m
(23 ft) directly in front
Angle: Approx. 30

o

left and right

Remove the insulation sheet A before using.

∫ To replace a button-type battery

1 While pressing the stopper B, pull out the

battery holder.

1 Turn the main unit on or off (> 23)
2 Adjust the dialog effect level (> 23)
3 Adjust the output level of the active subwoofer

(bass sound) (> 23)
4 Adjust the volume of this system (> 23)
5 Mute the sound (> 23)
6 Select the TV as the source (> 23)
7 Select the Bluetooth

(> 23)
8 Select the input source (> 23)

“TV”#“BD/DVD” #“AUX1”

^--- “”(-- “AUX2”(}

®

device as the source

∫ Remote control operation range

The remote control signal sensor is located on the main unit.

≥ Use the remote control within the correct operation range.

2 Set the button-type battery with its (i) mark

facing upward and then put the battery
holder back in place.

≥ When replacing the battery, use:

CR2025 (Lithium battery)

≥ Keep the button-type battery out of reach of

children to prevent swallowing.

RQT9660

7

Getting started

When attaching the speakers to a wall

When placing the speakers on a table

Place the speakers
horizontally

Page 10

Place the speakers
vertically

Place the speakers using
the stands

Place the speakers using
the speaker bases

Page 12

Page 14

Page 15

Page 16

Place the speakers
using the support legs
and speaker feet

Step 1 Selecting the placement method

≥Choose a placement method that suits you best.

RQT9660

8

Getting started

Caution

A

B

D

E

C

≥ This system is to be used only as indicated in these instructions. Failure to do so may lead to damage to the

amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage
has occurred or if you experience a sudden change in performance.

≥ Do not attempt to attach these speakers to a wall using methods other than those described in this manual.

Speaker system

≥Use a screwdriver (i) for assembling the speakers.
≥Do not hold the speakers in one hand to avoid injury, you may drop the speakers when carrying them.

∫ When attaching the speakers to a wall

The wall or pillar on which the speakers are to be attached should be capable of supporting 33 kg (72.8 lbs) per screw.
Consultation with a qualified installation specialist is recommended when attaching the speakers to a wall. Improper attachment
may result in damage to the wall and speakers, and personal injury.

∫ When placing the speakers in front of the TV

The speakers may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic Tracking System) sensor,
remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D compatible TV.

≥ If the stands are being used

Move the speakers further away from the TV. If the TV still does not function properly, try removing the stands.

≥ If the stands are not used

Move the speakers further away from the TV. If the TV still does not function properly, try placing them beside the TV (> 8).

Active subwoofer

When carrying the active subwoofer

A Do not hold the active subwoofer from this

opening.

The parts inside (speaker unit) may be damaged.

B Always hold the bottom of the active subwoofer when

moving it.

Wireless interference

To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz and 5 GHz band).

C Main unit/active subwoofer
D Wireless LAN: approx. 2 m (6
E Cordless phone and other electronic devices:

approx. 2 m (6

1

/2 ft)

1

/2 ft)



≥ Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel faced upward.
≥ Do not use the main unit or active subwoofer in a metal cabinet.
≥ Placing the active subwoofer and the speakers too close to the walls and corners can result in excessive bass. Cover walls

and windows with thick curtains.

≥ If irregular coloring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the speakers further away from

the TV.

≥ Keep magnetized items away. Magnetized cards, watches, etc., can be damaged if placed too close to the active subwoofer

and the speakers.

RQT9660

9

Step 2 Assembling the speakers

When attaching the speakers to a wall

Place the speakers horizontally

∏ 2 Speakers ∏ 2 Speaker cables

(L): WHITE
(R): RED

∏ 4 Screws

≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

∏ 1 Speaker joint

Assemble the speakers.

≥ The two speakers are interchangeable.



“”

A

shaped slit

≥ Insert the speaker joint fully into the slit.

B Screw (supplied)

≥ Be sure to insert the screws following the order as indicated in the illustration.
≥ Keep the screws out of reach of children to prevent swallowing.

RQT9660

10

2



1

3

4

Getting started

Connect the speaker cables.

White

Red





Push











Front view (semi-transparent image)

≥ Use the “Panasonic” logo to identify the left and right speakers, then connect the cables (as illustrated).

1 Insert the wire

fully.

r: White
s: Blue line

2 Press into the

groove.

A RED: Right speaker channel (R)
B WHITE: Left speaker channel (L)

≥ Insert the wire fully, taking care not to insert beyond the wire insulation.

Drive a screw into the wall.

≥ Use the measurements indicated below to identify the screwing positions on the wall.

≥ Leave at least 20 mm (

speaker.

≥ The position on the wall where the screw is to be attached, as well as the screw, should be capable of supporting over

33 kg (72.8 lbs).

≥ Keep the screws out of reach of children to prevent swallowing.

25

/32q) of space above and on each side of the speaker to allow enough space for fitting the

5

/32q)

3

/16q)

9

7

/32q to 1/4q)

/32q to 3/8q)

C At least 30 mm (1
D ‰4.0 mm (
E ‰7.0 mm to ‰9.4 mm (
F Wall or pillar
G 5.5 mm to 6.5 mm (

 



H 326 mm (12
L Wall mounting hole

27

/32q) I 316 mm (127/16q) J 316 mm (127/16q) K 26 mm (11/16q)





RQT9660

11

Fit the speaker securely onto the screw(s).

Front view

Rear view

DO DO NOT

≥ Move the speaker so

that the screw is in this
position.

Place the speakers vertically

≥ In this position, the

speaker will likely fall if
moved to the left or right.

∏ 2 Speakers ∏ 2 Speaker cables

∏ 2 Front ornaments

(L): WHITE
(R): RED

∏ 4 Screws

≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

Attach the front ornaments.

≥ The two speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

12

RQT9660

Getting started

Connect the speaker cables.

Push



Red

White

≥ Insert the wire fully, taking care not to insert beyond the wire insulation.

1 Insert the wire fully.

r: White
s: Blue line

2 Press into the groove.





Drive a screw into the wall.

≥ Use the measurements indicated below to identify the screwing positions on the wall.

≥ Leave at least 20 mm (

speaker.

≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over 33 kg

(72.8 lbs).

≥ Keep the screws out of reach of children to prevent swallowing.





25

/32q) of space above and on each side of the speaker to allow enough space for fitting the



A

At least 30 mm (13/16q

B ‰4.0 mm (5/32q)
C ‰7.0 mm to ‰9.4 mm

9

(



/32q to 3/8q)

D Wall or pillar
E 5.5 mm to 6.5 mm

7

(

/32q to 1/4q)

)



F Front speaker

G 102 mm (4
H 37 mm (1



I Wall mounting



(Rear view)

hole

1

/32q)

15

/32q)

 

Fit the speaker(s) securely onto the screw(s).

≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect with

the speaker cable with a white connector on the observers’ left.

J WHITE: Left speaker channel (L) K RED: Right speaker channel (R)

≥ Move the speaker so that the screw is in this

position.



DO DO NOT



≥ In this position, the speaker will likely fall if moved to

the left or right.

RQT9660

13

When placing the speakers on a table





Align the holes with the projecting parts on the speaker.
≥ Do not use the lower holes for the alignment. If these holes

are used, the screw does not fit.

Place the speakers using the stands

∏ 2 Speakers ∏ 2 Speaker cables

∏ 2 Stands ∏ 6 Screws

≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

(L): WHITE
(R): RED

∏ 1 Speaker joint

Assemble the speakers following steps 1 and 2 of “Place the speakers

horizontally” (> 10).

Attach the stands.

≥ Use the “Panasonic” logo to identify the top and bottom of the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.

A Screw (supplied)
B Screw hole

RQT9660

14

Getting started

Place the speakers using the support legs and



Align the
projecting parts
on the speaker
with support leg.

speaker feet

∏ 2 Speakers ∏ 2 Speaker cables

(L): WHITE
(R): RED

∏ 6 Screws ∏ 2 Support legs ∏ 2 Speaker feet

≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

∏ 1 Speaker joint

Assemble the speakers following steps 1 and 2 of “Place the speakers

horizontally” (> 10).

Attach the support legs and speaker feet.

≥ Use the “Panasonic” logo to identify the top and bottom of the speaker.

≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.

A Screw (supplied)
B Screw hole
C Speaker foot (supplied)

≥ Attach the speaker foot directly below the wall mounting hole (as illustrated).











RQT9660

15

Place the speakers using the speaker

Position the cable
between the ridges.
≥ Leave about

110 mm (4

21

/64q)

Screw (supplied)
≥ Tighten securely.

Align the projecting parts with the holes on the speaker.

bases

∏ 2 Speakers ∏ 2 Speaker cables

(L): WHITE
(R): RED

∏ 2 Front ornaments ∏ 6 Screws

≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

∏ 2 Bases

Assemble the speakers following step 1 of “Place the speakers

vertically” (> 12).

Insert the speaker cable through the base.

≥ Be sure to insert the speaker cable through the threading hole as indicated in the illustration. (If the speaker cable is

twisted, it might not fit through the opening. Straighten the speaker cable before inserting.)





A Threading hole B Screw hole

Attach the speaker to the base.

≥ The two speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

RQT9660

16

Getting started

Connect the speaker cables.

Insert the
wire fully.

r: White
s: Blue line

Press into the groove.

Push

Back of the base













Horizontal placement













Vertical placement

≥ Insert the wire fully, taking care not to insert beyond the wire insulation.





≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect with

the speaker cable with a white connector on the observers’ left.

Additional speaker fall prevention measures

To prevent the speakers from falling, it is recommended, as an additional
protection measure, to attach the speakers to the wall or table with a fall
prevention cord (hereafter “cord”).



≥ Consultation with a qualified installation specialist concerning the appropriate procedure when attaching to a concrete wall or a

surface that may not have strong enough support is recommended (> 11, 13). Improper attachment may result in damage to
the wall and speakers, and personal injury.

≥ Use a cord that is capable of supporting over 10 kg (22.05 lbs) (with a diameter of about 1.5 mm (
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Make sure that the slack of the cord is minimal.

When attaching the speakers to a wall

1

/16q)).

A Cord

§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about

10 mm (

§

13

/32q) apart from the tip, at an angle of 45o (as illustrated above).

B Screw eye C Wall D Wall-mounted speakers

RQT9660

17

When placing the speakers on a table















Horizontal placement

Vertical placement

A Cord
B Screw eye

§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about

18

§

≥ Depending on the placement of the speakers, the

screwing position of the screw eye may differ.

13

10 mm (

RQT9660

/32q) apart from the tip, at an angle of 45o (as illustrated above).

C Wall
D Approx. 150 mm (5

29

/32q)

Getting started

Step 3 Connections

SPEAKERS / HAUT-PARLEURS

AV OUT

DIGITAL
AUDIO

IN

TV (ARC)

AC IN

HDMI IN

(ARC)

AV IN

TV (ARC)

BD/DVD
(HDMI1)

BD/DVD
(HDMI1)

AUX1

(HDMI2)

AV OUT



TV

Main unit

Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the
operating instructions for the TV.)

SPEAKERS / HAUT-PARLEURS

6

R

L

AV OUT

DIGITAL
AUDIO

IN

TV

(OPT1)

TV (ARC)

AC IN

HDMI IN

OPTICAL

OUT

TV (ARC)

AV OUT

DIGITAL

AUDIO

IN

TV

(OPT1)





TV

Main unit

≥Turn off all equipment before connection and read the appropriate owner’s manual.

Do not connect the AC power supply cord until all other connections are complete.

∫ HDMI

The HDMI connection supports VIERA Link “HDAVI Control” (> 25) when used with a compatible Panasonic TV.
≥ Use the High Speed HDMI Cables. It is recommended that you use Panasonic’s HDMI cable.

Recommended part number (High Speed HDMI cable):
RP-CDHS15 (1.5 m/4.9 ft), RP-CDHS30 (3.0 m/9.8 ft), RP-CDHS50 (5.0 m/16.4 ft), etc.

≥ Non-HDMI-compliant cables cannot be utilized.

Connection with the TV

Verify if the TV’s HDMI terminal is labeled “HDMI (ARC)”.

Connection differs depending on the label printed next to the HDMI terminal.

Labeled “HDMI (ARC)”: Connection [A]
Not Labeled “HDMI (ARC)”: Connection [B]

∫ What is ARC?

ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labeled “HDMI (ARC)”, the optical digital audio cable that is usually required in order to
listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.

Make the connection.

[A] Labeled “HDMI (ARC)”

A HDMI cable

[B] Not labeled “HDMI (ARC)”

A HDMI cable
B Optical digital audio cable

≥ When you use the optical digital audio cable, insert the tip correctly into the terminal.

RQT9660

19

Connection with other devices

HDMI OUT

HDMI OUT

SPEAKERS / HAUT-PARLEURS

AV IN

DIGITAL
AUDIO

IN

BD/DVD
(HDMI1)

BD/DVD
(HDMI1)

AUX1

(HDMI2)

AC IN

AV IN

BD/DVD

(HDMI1)

BD/DVD
(HDMI1)

AUX1

(HDMI2)



e.g., Video game console

Main unit

e.g., Blu-ray Disc player

TM

OPTICAL OUT

SPEAKERS / HAUT-PARLEURS

DIGITAL
AUDIO

IN

AUX2

(OPT2)

AC IN

DIGITAL

AUDIO

IN

AUX2

(OPT2)





e.g., Set top box

Main unit

TV

You can direct the audio signal from the connected Blu-ray Disc playerTM, DVD player, Set Top Box, etc.
to this system.

When the device has an HDMI terminal

Preparation

≥Connect the main unit to the TV (> 19).

A HDMI cable

∫ HDMI standby pass-through

Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the BD/DVD or AUX1
terminal will be sent to the TV connected to the HDMI OUT terminal (the sound will not be output from this system). When
devices are connected to both BD/DVD and AUX1 terminals, audio and/or video signal of the device whose input is lastly
selected is output.

∫ 3D compatibility

Compatible with FULL HD 3D TV and Blu-ray Disc playerTM.
≥ The main unit can pass the 3D video signal from a 3D compatible Blu-ray Disc player

TM

to a FULL HD 3D TV.

20

When the device has an optical digital audio output terminal

B Refer to the operating

instructions of the
respective devices for

RQT9660

the optimal connection

C Optical digital audio

cable

Getting started

Speaker cable connection

SPEAKERS / HAUT-PARLEURS

6

R

L

DIGITAL
AUDIO

IN

AC IN

SPEAKERS / HAUT-PARLEURS

6

R L





Main unit

Main unit

Active subwoofer

Match the connector shape and connect to the terminals of the same color.

AC power supply cord connection

≥ Connect only after all other connections are complete.

AC IN





A RED

Right speaker channel (R)

B WHITE

Left speaker channel (L)

AC IN





SPEAKERS / HAUT-PARLEURS

AC IN

DIGITAL
AUDIO

IN

C AC power supply cord D To a household AC outlet

≥The main unit and active subwoofer consume a small amount of AC power, even when it is turned off

(this unit: approx. 0.1 W, active subwoofer: approx. 0.1 W). In the interest of power conservation, if you
will not be using this system for a long time, unplug it from the household AC outlet.

Install this unit so that the power cord can be unplugged from the socket outlet immediately if any
problem occurs.

Saving energy

The main unit is designed to conserve its power consumption and save energy.

≥

The main unit will automatically switch to standby mode when

no signal is input and no operation is performed for approx. 30 minutes.

RQT9660

21

Active subwoofer wireless
connection

Preparation

≥ Turn on the main unit.

Press [BÍ CI].

Check that the wireless link is
activated.

WIRELESS LINK indicator lights
≥ Red:

The wireless link is not activated.

≥ Green:

The wireless link is activated.

The unit will still consume a small amount of power
even when it is turned off (B, Í)

Bluetooth® connection

®

With the Bluetooth

connection you can output the

audio from the connected wireless device.

Preparation

≥ Turn on the Bluetooth® feature of the device and

place the device near this unit.

Pairing a device

Press [, j PAIRING].

≥ “” indicator will blink quickly.

Select “SC-HTB550” from the
Bluetooth

®

device’s Bluetooth®

menu.

≥ Once the Bluetooth® device is connected, the “ ”

indicator stops flashing and lights up.



Refer to the operating instructions of the Bluetooth® device for
further instruction on how to connect a Bluetooth
If prompted for the passkey on the Bluetooth
“0000”.

Pairing additional devices

Press [, j PAIRING].

Press and hold the [ , j PAIRING]
until the “ ” indicator flashes
quickly.

Repeat step 2 of “Pairing a device”.

®

device.

®

device, enter



≥ You can register up to 6 devices with this unit. If a 7th device

is paired, the device that has not been used for the longest
time will be replaced.

≥ This unit can only be connected to one device at a time.
≥ To change the sound quality, refer to “Bluetooth

communication mode” on page 26.

®

22

RQT9660

Getting started

Operations

Operations

Using this unit

Preparation

≥ Turn on the TV and/or connected device.

DIALOG LEVEL

INPUT

LINK MODE

SELECTOR

----

PAIRING

Adjust the volume and sound effect
level.

∫ To adjust the volume of the system

Press [i VOL j].

≥ Volume range: 1 to 100

§

∫ To adjust the dialog effect level

This setting will change the level of the Clear­mode dialog effect. (> 24)
1 Press [i DIALOG LEVEL j] to display the

current level.

2 While the level is displayed:

Press [i DIALOG LEVEL j] to adjust the

§

level.

Indication Effect level

Press [Í] to turn on the main unit.

Select the source.

Press To select
[TV] “TV”

[]

[INPUT
SELECTOR]

≥ This remote control cannot be used to control the operations

of the connected devices.

“ ” (Bluetooth
“TV”# “BD/DVD”#“AUX1”

^---- “”(--- “AUX2”(-}

®

)

∫ When “ ” is selected as the source

On the Bluetooth® device:

Select this unit as the output source of the Bluetooth®
device and start the playback.

≥ Make sure that the Bluetooth® device is already paired with

this unit. (> 22)

≥ Playback may pause when a different source is selected.

∫ When “BD/DVD” or “AUX1” is

selected as the source

On the connected device:

Select the TV’s input for this unit and start the playback on
the connected device.

∫ When “AUX2” is selected as the

source

On the connected device:

Select the TV’s input for the device connected to “AUX2”
terminal and start the playback on the connected device.

4 Highest

3

2

1 Lowest

∫ To adjust the subwoofer level

1 Press [i SUBWOOFER j] to display the

current level.

2 While the level is displayed:

Press [i SUBWOOFER j] to adjust the

§

level.

≥ The level indication pattern is the same as dialog effect

level.

∫ To mute the sound

Press [MUTE].

≥ While muting, the audio format indicators blink

simultaneously.

≥ To cancel, press the button again or adjust the volume.
≥ Muting is canceled if the main unit is turned off.



If the main unit does not operate as expected or sound is unusual, return the settings to the
factory preset and operate the system again. (> 28)

§ The audio format indicators blink from left to right (i) or from right to left (s) while adjusting.

The indicators will not blink when it has reached the maximum or minimum.

≥ If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.
≥ If the main unit is turned off with the volume setting in the greater half (above 50), the main unit will automatically lower the

volume to the middle (50) when the main unit is turned on (Volume limitation).
To turn this function off, refer to page 27.

RQT9660

23

3D sound

e.g., Image of 3D sound field

This system provides a feeling that the sound and the
image are as one. The 3D sound effect will be applied to
Multi-channel audio sources as a factory preset.

3D sound

Dolby Virtual
Speaker

3D surround
effect

Clear-mode
dialog

With this effect you can enjoy a
surround sound effect similar to

5.1ch.
Adding to the Dolby Virtual

Speaker effect, Panasonic has
applied its own sound field
controlling technology to expand
the sound field forwards,
backwards, upwards, and
downwards, providing a sound
with depth and force that better
matches 3D images.

Sports commentary and dialogs
from TV dramas are heard as if the
sound is coming from the TV,
giving the feeling that the sound
and the image are one.
Also, the dialog will stand out from
the other sounds during normal
volume playback and when the
volume is lowered for night time
viewing.



Dolby Virtual Speaker and the 3D surround effects can be
turned off and on by changing the audio output mode settings.

Audio output modes

As a factory preset, Dolby Virtual Speaker and the 3D
surround effects will be applied to Multi-channel audio
sources, such as those from a Blu-ray Disc player
DVD player, etc.
By changing the audio output setting, it is possible to
apply the Dolby Virtual Speaker and 3D surround effects
to 2ch audio sources, such as the audio from the TV.

TM

or

To change the audio output
mode

Press and hold [MUTE] for more than
2 sec.

≥ The indicator for the current setting blinks for 10 sec.

While the indicator is blinking, press
[MUTE] again to change the setting.

≥ The setting changes each time [MUTE] is pressed.

Dolby Virtual

Audio output mode

Multi-channel mode

Auto mode (Direct mode)

(Factory preset)



2

2ch mode

§1 Depending on the audio source, Dolby Virtual Speaker and

3D surround effect settings are automatically adjusted.

§2 This indicator will also light when the audio source is Multi-

channel audio.

Speaker and 3D
surround effect

The effects are
applied to all audio
sources.

The effects are

§

1

applied to Multi­channel audio
sources.
The effects are not
applied to 2
channel audio
sources.

The effects are not
applied to any
audio source.



When using the optical digital audio cable, Dolby Virtual
Speaker and the 3D surround effect will be temporarily
canceled if the audio signal’s sampling frequency is greater
than 48 kHz.

24

RQT9660

Operations

Linked operations with the TV

TM

(VIERA Link

“HDAVI ControlTM”)

What is VIERA Link “HDAVI
Control”?

VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
unit, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.

Preparation

1 Confirm that the HDMI connection has been made.

(> 19)
2 Set the “HDAVI Control” operations on the connected

equipment (e.g., TV).
3 For the optimal “HDAVI Control” operations change

the following settings on the connected TV

≥ Set the default speaker settings to this system.

≥ Set the speaker selection settings to this system.

4 Turn on all “HDAVI Control” compatible equipment

and select the TV’s input for this system so that the

“HDAVI Control” function works properly.
5 If a device is connected to the HDMI IN terminal, start

play to check that the picture is displayed on the TV

correctly.

§1

.

§2

When the connection or settings are changed,
repeat this procedure.

§1 The availability and function of the settings may vary

depending on the TV. Refer to the operating instructions
for the TV for details.

§2 If the TV has a default speaker setting within the VIERA

Link setting items, choosing this system as the default
speaker will automatically change the speaker selection to
this system.



≥ VIERA Link “HDAVI Control”, based on the control functions

provided by HDMI which is an industry standard known as
HDMI CEC (Consumer Electronics Control), is a unique
function that we have developed and added. As such, its
operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.

≥ This unit supports “HDAVI Control 5” function.

“HDAVI Control 5” is the newest standard (current as of
November, 2011) for Panasonic’s HDAVI Control compatible
equipment. This standard is compatible with Panasonic’s
conventional HDAVI equipment.

≥ Please refer to individual manuals for other manufacturers’

equipment supporting VIERA Link function.

What you can do with
VIERA Link “HDAVI
Control”

To make sure that the audio is output from this system,
turn the main unit on by using the TV’s remote control and
selecting home theater from the speaker menu of VIERA
Link menu. The availability and function of the settings
may vary depending on the TV. Refer to the operating
instructions for the TV for details.

∫ Speaker control

You can select whether audio output is from this system or
the TV speakers by using the TV menu settings.

Home theater

This system is active.

≥ When this system is in standby mode, changing the TV

speakers to this system in the VIERA Link menu will
automatically turn this system on and select TV as the
source.

≥ You can control the volume setting of this system using the

volume or mute button on the TV remote control.

≥ If you turn off this system, TV speakers will be automatically

activated.

≥ Audio will automatically be output from this system if the TV

is compatible to VIERA Link “HDAVI Control 4” or later.

TV

TV speakers are active.

≥ The volume of this system is set to its minimum.

∫ Automatic input switching

When the following operations are performed, this system
will automatically change the input to the corresponding
source.

jWhen play starts on an HDMI connected device.
jWhen the TV input or the TV channel is changed.

§3 If the speaker output setting on the TV is set to this

system, the TV and this system turn on automatically
(Power on link).

§3

∫ Power off link

When the TV is turned off, the main unit also turns off
automatically. (This function does not work when
Bluetooth

®

is the source.)

∫ Automatic lip-sync function

(for HDAVI Control 3 or later)

Delay between audio and video is automatically adjusted
by adding time-lag to the audio output, enabling you to
enjoy smooth audio for the picture.



The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.

RQT9660

25

Advanced operations

Changing the dual audio

Change the dual audio from main to secondary.

Confirm the digital audio output
setting on the connected TV or
player, etc. is set to “Bitstream”.

Press and hold [TV] for more than 2
sec.

While the indicator of the current
setting is blinking, press [TV] to
change the setting.

≥ The indicator for the current setting blinks for 10 sec.

A : Main

B : Secondary

(SAP: Secondary Audio Program)

A, B : Main and secondary

≥ The setting works only when the dual audio is available

in the audio source.

≥ The setting is maintained until it is changed again.
≥ The same setting is used for all digital audio sources.

Bluetooth® communication
mode

You can select different modes to suit the type of
connections which emphasis on connectivity or high
quality audio.
≥ Make sure that a Bluetooth

with this unit. (> 22)

®

device is already paired

Disable the Bluetooth® connection of
the device.

≥ “” indicator will blink slowly.

Press [LINK MODE, ] to display the
current mode.

≥ The indicator for the current setting blinks for 10 sec.

MODE1: (Factory preset)
Emphasis on connectivity

MODE2:

Emphasis on audio quality

While the mode is displayed, press
[LINK MODE, ] to select the mode.

≥ The setting changes each time [LINK MODE, ] is

pressed.

≥ The setting is maintained until it is changed again.

Auto gain control

With this function, you can prevent sudden loud sounds.
The output will be reduced automatically when the input
exceeds a certain level.

Press and hold [INPUT SELECTOR]
on remote controller for more than 2
sec.

≥ The indicator for the current setting blinks for 10 sec.

Dolby Digital indicator blinks:

Auto gain control is on.

PCM indicator blinks:

Auto gain control is off.

While the indicator is blinking, press
[INPUT SELECTOR] to change the
setting.

≥ The setting changes each time [INPUT SELECTOR] is

pressed.

≥ The setting is maintained until it is changed again.
≥ Default setting of this function is OFF.

RQT9660

26

To turn off the 3D surround
effect and clear-mode
dialog effect

Depending on your preference, It is possible to use only
the Dolby Virtual Speaker effect by turning off the 3D
surround effect and the clear-mode dialog effect.

Press and hold [TV] on the remote
control and followed by [VOL r] on
the main unit for more than 2 sec.

≥ The indicator for the current setting blinks for 10 sec.

Dolby Digital indicator blinks:

3D surround effect and clear­mode dialog effect is on.

PCM indicator blinks:

3D surround effect and clear­mode dialog effect is off.

While the indicator is blinking, press
[TV] to change the setting.

≥ The setting changes each time [TV] is pressed.
≥ This setting will be reset to on when this system is

turned off.

≥ When off is selected, the dialog effect level cannot be

adjusted.

Operations

Others

The following settings are unnecessary under
general usage conditions of the system.

∫ Remote control code

When other Panasonic devices respond to this system’s
remote control, change the remote control code on the
main unit and the remote control.

Preparation

≥ Turn off all other Panasonic products.
≥ Turn on the main unit.

Change the remote control code to code 2:

1 Aim the remote control at this system’s remote

control sensor.
2 Press and hold [MUTE] and [ ] on the remote

control for more than 4 sec.

≥ All the indicators will blink for 10 sec when the code of

this system is changed.

≥ The setting is maintained until it is changed again.



≥ If this system does not operate after changing the code,

repeat steps 1 and 2.

≥ To change the remote control code to code 1, repeat the

steps above, but replace

∫ To reduce the clear-mode dialog effect

When the dialog does not sound natural while the volume
is set low, for example, It is possible to reduce the dialog
enhancing effect as follows:

Press and hold [TV] on the remote control and followed by
[s VOL] on the main unit for more than 2 sec.

≥ All the indicators will blink once when the clear-mode dialog

effect is reduced.

[] with [TV].

∫ To turn off VIERA Link “HDAVI

Control”

When “HDAVI Control” compatible equipment does not
work well with this system, for example, it is possible to
turn off this function as follows:

≥ When VIERA Link is turned off the ARC function is not

available. Be sure to connect the optical digital audio
cable. (> 19)

1 Press and hold [MUTE] on the remote control

and followed by [s VOL] on the main unit for
more than 2 sec.

2 After the setting has changed, turn off all the

connected devices and then turn them on
again.

≥ All the indicators will blink once when VIERA Link “HDAVI

Control” is turned off.

∫ To turn off the volume limitation

If a state of the lowered volume disturbs you every time
this system turns on, for example, it is possible to turn off
this function as follows:

Press and hold [MUTE] on the remote control and
followed by [VOL r] on the main unit for more than 2 sec.

≥ All the indicators will blink once when the volume limitation

is turned off.



The settings of the clear-mode dialog effect, VIERA Link
“HDAVI Control”, and the volume limitation remain intact even
if you switch this system to standby mode. To turn these 3
functions back on, this system must be set back to the factory
preset. (> 28)

≥ Even if clear-mode dialog effect is reduced, dialog effect

level is still adjustable.

RQT9660

27

Reference

Troubleshooting

Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated in the following guide do not solve the
problem, refer to “Customer Services Directory (United
States and Puerto Rico)” on page 34 if you reside in the
U.S.A. or Puerto Rico, or refer to “WARRANTY SERVICE”
on page 35 if you reside in Canada.

To return to the factory preset.

While the main unit is on, press [Í/I] on the main
unit for more than 4 sec.
(All the indicators will blink twice when the main
unit is reset.)

If the system does not operate as expected,
returning the settings to the factory preset
may solve the problem.

≥ The remote control code will return to “1” when

the main unit is returned to the factory preset.
To change the remote control code, refer to
page 27.

General operation

No power.

≥ Insert the AC power supply cord securely. (> 21)
≥ After turning the main unit on, if the indicators blink and

the main unit immediately turns off, unplug the AC
power supply cord and consult your dealer.

The remote control does not work properly.

≥ The battery is depleted. Replace it with a new one.

(> 7)

≥ It is possible that the insulation sheet has not been

removed. Remove the insulation sheet. (> 7)

≥ It may be necessary to set the code of the remote

control again after changing the battery of the remote
control. (> 27)

≥ Use the remote control within the correct operation

range. (> 7)

The “TV” indicator blinks.

Remove the AC power supply cord and consult your
dealer. If there are any other indicators blinking, be sure to
inform your dealer about the blinking indicators.

The main unit is automatically switched to
standby mode.

The main unit will automatically switch to standby mode
when no signal is input and no operation is performed for
approx. 30 minutes. (> 21)

The main unit is turned off when the TV’s
speakers are selected in the speaker control.

This is a normal feature when using VIERA Link (HDAVI
Control 4 or later). Please read the operating instructions
for the TV for details about its power save feature. (> 25)

HDMI

This system does not operate correctly.

If the HDMI cable is connected to the wrong terminal
(HDMI IN or HDMI OUT), this system will not operate
correctly. Turn the main unit off, disconnect the AC power
supply cord and reconnect the HDMI cable(s). (> 19)

VIERA Link related operations no longer
function properly.

≥ Check the VIERA Link setting on the connected

devices.

≥ Have you turned the VIERA Link settings off? (> 27)
≥ When the HDMI connections are changed, after a

power failure or after the AC power supply cord has
been removed, VIERA Link operations may not function
properly.
j Turn on all the devices that are connected to the TV

with an HDMI cable and then turn the TV on.

j Turn off the VIERA Link settings of the TV and turn it

on again. For details refer to the operating
instructions for the TV.

j While this system and the TV are connected with the

HDMI cable, turn on the TV and then remove the
main unit’s AC power supply cord and reconnect it
again.

The first few seconds of audio cannot be heard
when using the HDMI connection.

This may occur during DVD-Video chapter playback.
Change the digital audio output setting on the connected
device from “Bitstream” to “PCM”.

When operating an HDMI compatible device of
a different brand, the main unit reacts in an
unwanted manner.

HDAVI Control commands may use a different signal
depending on the brand of the device. In this case, turn
VIERA Link off. (> 27)

Bluetooth

Pairing cannot be done.

Check the Bluetooth® device condition.

The device cannot be connected.

≥ The pairing of the device was unsuccessful. Try pairing

the device again.

≥ The pairing of the device has been replaced. Pair the

device again. (> 22)

≥ The system might be connected to a different device.

Disconnect the other device and try pairing the device
again.

The device is connected but audio cannot be
heard through the system.

For some built-in Bluetooth® devices, you have to set the
audio output to “SC-HTB550” manually. Read the
operating instructions for the device for details.

®

28

RQT9660

Reference

Sound from the device is uneven.

≥ The device is out of the 10 m (33 ft) communication

range. Bring the device closer to the main unit.

≥ Remove any obstacle between the main unit and the

device.

≥ Switch off any wireless LAN device.
≥ Select “MODE1” for stable communication. (> 26)

Sound

No sound (or image).

≥ Turn muting off. (> 23)
≥ Check the connections to the other devices. (> 19, 20)
≥ Make sure that the received audio signal is compatible

with this system. (> 32)

≥ Turn this system off and then on again.
≥ If this system is connected to the TV with only an HDMI

cable, make sure that the TV’s HDMI terminal is labeled
“HDMI (ARC)”. If not, connect using the optical digital
audio cable. (> 19)

≥ If this system is connected to a Panasonic TV and

turned on using the button on the main unit or the
remote control, sound might not be output from this
system. In this case, turn the main unit on using the
TV’s remote control. (> 25)

≥ If the connections are correct, there might be a problem

with the cables. Redo the connections with different
cables.

≥ Check the audio output settings on the connected

device.

≥ If the AUX1 indicator flashes and there is no audio

output, try the following.

1 Turn the connected device off and then on.
2 Turn off this system, remove the HDMI cable, then

reconnect the HDMI cable and turn this system
back on.

The dual audio cannot be changed from main
to secondary.

If the audio received from the connected device is not
“Dolby Dual Mono” or the output setting is not “Bitstream”,
the setting cannot be changed from this system. Change
the setting on the connected device.

The volume is lowered when this system is
turned on.

If the main unit is turned off with the volume setting in the
greater half (above 50), the main unit will automatically
lower the volume to the middle (50) when the main unit is
turned on. (> 27)

The dialog is too persistent or the dialog does
not sound natural.

This system has a function to make the dialog stand out
when the volume is low. (> 27)

There is no audio.
The power of the main unit turns off
automatically.

(When the main unit detects a problem, a safety measure
is activated and the main unit automatically switches to
standby mode.)

≥ There is a problem with the amplifier.
≥ Is the volume extremely high?

If so, lower the volume.

≥ Is this system placed in an extremely hot place?

If so, move this system to a cooler place and wait a few

moments and then try to turn it on again.
If the problem persists, confirm the TV indicator and AUX1
indicator blink, turn the system off, remove the AC power
supply cord and consult your dealer. Please be sure to
remember the indicators that were blinking and inform the
dealer.

Active Subwoofer

No power.

Ensure the AC power supply cord of the active subwoofer
is connected properly.

After turning the subwoofer on, it immediately
turns off.

Unplug the AC power supply cord and consult your dealer.

No sound from the subwoofer.

≥ Check that the active subwoofer is turned on.
≥ Check that the wireless link indicator lights green.

(> 22)

The wireless link indicator lights red.

≥ There is no link between this unit and the active

subwoofer.

j Check that this unit is turned on.

j Turn the active subwoofer off and then back on.

Alternatively, turn the active subwoofer off,
disconnect the AC power supply cord and then
reconnect it.

≥ The active subwoofer and the main unit may not be

paired correctly. Try the following operation. (Wireless

pairing)

1 Turn on the main unit and active subwoofer.

2 Press [ID SET] on the rear of the active subwoofer.

(The WIRELESS LINK indicator will light red and
green alternately.)

3 Press and hold [INPUT SELECTOR] on remote

control and followed by [VOL r] on the main unit for
more than 2 sec. (The BD/DVD indicator will blink
and audio format indicators light up in sequence.)

≥ When the wireless pairing is successful, BD/DVD

indicator will stop flashing and WIRELESS LINK
indicator lights green.

4 Turn the main unit off and on.
≥ Consult your dealer if the problem persists.

RQT9660

29

Indicator illumination

1

The indicators display the condition of this system by flashing. The indicator patterns illustrated below
are displayed during normal operational conditions. They do not refer to the indications of a problem.
Refer to “Troubleshooting” (> 28) if the indicators do not light up as illustrated below.

Indicator Description

The indicators blink simultaneously.

≥ When “MUTE” is on (> 23)

The BD/DVD indicator blinks§2 and audio format indicators light up in
sequence for 1 minute.

≥ When the main unit is in wireless pairing mode with the active subwoofer

(> 29)

The indicator blinks for 10 sec.

≥ When the audio output mode is Multi-channel mode (> 24)
≥ When 3D surround effect and clear-mode dialog effect are on (> 26)
≥ When the dual audio setting is Main (> 26)
≥ When the auto gain control is on (> 26)
≥ When the Bluetooth
≥ When the dialog effect level or the subwoofer level is 1 (> 23)

The indicators blink for 10 sec.

≥ When the audio output mode is Auto mode (> 24)
≥ When the dialog effect level or the subwoofer level is 2 (> 23)

The indicator blinks for 10 sec.

≥ When the audio output mode is Auto mode (> 24)

The indicators blink for 10 sec.

≥ When the dialog effect level or the subwoofer level is 3 (> 23)

®

communication is mode 1 (> 26)

The indicator blinks for 10 sec.

When the audio output mode is 2ch mode

≥
≥ When 3D surround effect and clear-mode dialog effect are off (> 26)
≥ When the dual audio setting is Secondary (SAP: Secondary Audio Program)

(> 26)

≥ When the auto gain control is off (> 26)
≥ When the Bluetooth
≥ When the dialog effect level or the subwoofer level is 4 (> 23)

®

communication is mode 2 (> 26)

(> 24)

The indicators blink for 10 sec.

≥ When the dual audio setting is Main and Secondary (> 26)

The indicators blink for 10 sec.

≥ When the remote control code is changed (> 27)

The indicators blink once.

≥ When changing the setting (“To reduce the clear-mode dialog effect”, “To turn

off VIERA Link “HDAVI Control””, and “To turn off the volume limitation”)
(> 27)

Bluetooth

≥ When the main unit is ready for pairing

Bluetooth

≥ When the main unit is waiting to connect

Bluetooth

®

indicator blinks quickly.

®

indicator blinks slowly.

®

indicator turns on.

≥ When the main unit is connected with a Bluetooth

§1 The selected source indicator will also light.

§2 The BD/DVD indicator stops blinking and lights once the wireless pairing is successful.

RQT9660

30

®

device

Reference

About Bluetooth

®

Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.

∫ Frequency band used

This unit uses the 2.4 GHz frequency band.

∫ Certification of this device

≥ This system conforms to frequency restrictions and has

received certification based on frequency laws. Thus, a
wireless permit is not necessary.

≥ The action below are punishable by law in some

countries:

j Taking apart or modifying the unit.
j Removing specification indications.

∫ Restrictions of use

≥ Wireless transmission and/or usage with all Bluetooth®

equipped devices is not guaranteed.

≥ All devices must conform to standards set by Bluetooth

SIG, Inc.

≥ Depending on the specifications and settings of a

device, it can fail to connect or some operations can be
different.

≥ This system supports Bluetooth

depending on the operating environment and/or
settings, this security is possibly not sufficient. Transmit
data wirelessly to this system with caution.

≥ This system cannot transmit data to a Bluetooth

device.

®

security features. But

®

∫ Range of use

Use this device at a maximum range of 10 m (33 ft).
The range can decrease depending on the environment,
obstacles or interference.

∫ Interference from other devices

≥ When other devices use the same frequency as this

system, this system may operate incorrectly or the
sound may be distorted.

≥ To prevent interference from other devices:

j Keep the system away from other devices that emit

radio frequency interference.

j Do not use this system and a wireless LAN device at

the same time. Switch off any wireless LAN device.

∫ Intended usage

≥ This unit is for normal, general use only.
≥ Do not use this system near an equipment or in an

environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).

Unit care

∫ Clean the system with a soft, dry cloth

≥ When dirt is heavy, wring a cloth moistened in water

tightly to wipe the dirt, and then wipe it with a dry cloth.
≥ When cleaning the system, use a fine cloth. Do not use

tissues or other materials (towels, etc.) that can fall

apart. Small grains may get stuck inside the speaker

cover.
≥ Never use alcohol, paint thinner or benzine to clean the

system.
≥ Before using chemically-treated cloth, carefully read the

instructions that came with the cloth.

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks
of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and
worldwide patents issued & pending.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc. Product includes
software.
© DTS, Inc. All Rights Reserved.

HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.

HDAVI Control™ is a trademark of Panasonic Corporation.

VIERA Link™ is a trademark of Panasonic Corporation.

EZ Sync™ is a trademark of Panasonic Corporation.

The Bluetooth
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.

®

word mark and logos are owned by the

RQT9660

31

Specifications

AMPLIFIER SECTION

RMS output power

10 % total harmonic distortion

Subwoofer ch

120 W per channel (100 Hz, 8 ≠)

Front ch (L, R ch)

60 W per channel (1 kHz, 6 ≠)

Total RMS Dolby Digital mode power

240 W

FTC output power

1.0 % total harmonic distortion
Subwoofer ch

60 Hz to 120 Hz 40 W (8 ≠)

Front ch (L, R ch)

120Hzto20kHz25W(6≠)

Total FTC Dolby Digital mode power

90 W

WIRELESS SECTION

Wireless module

Frequency Range 5.150 GHz to 5.250 GHz

5.725 GHz to 5.850 GHz

Number of channels 9

TERMINAL SECTION

HDAVI Control

This unit supports “HDAVI Control 5” function.

HDMI AV input (BD/DVD, AUX1) 2

Input connector Type A (19 pin)

HDMI AV output (TV (ARC)) 1

Output connector Type A (19 pin)

Digital audio input

Optical digital input (TV, AUX2) 2

Sampling frequency

32 kHz, 44.1 kHz, 48 kHz

88.2 kHz, 96 kHz (only LPCM)

Audio format

LPCM, Dolby Digital, DTS

SPEAKER SECTION

Front speakers

2 way, 2 speaker system (Bass reflex type)
Speaker unit(s) Impedance 6 ≠

Woofer

6.5 cm (2

1

/2q) cone typek1

Tweeter

2.5 cm (1q) semi-dome typek1

Frequency range

100 Hz to 30 kHz (`16 dB)
150 Hz to 25 kHz (

`

10 dB)

Active subwoofer

1 way, 1 speaker system (Bass reflex type)

Woofer

16 cm (6

Frequency range 30 Hz to 180 Hz (

35 Hz to 160 Hz (

1

/2q) cone typek1

`

16 dB)

`

10 dB)

GENERAL

Power consumption Main unit: 29 W

In standby condition

Active subwoofer: Approx. 0.1 W

Power supply AC 120 V, 60 Hz
Dimensions (WkHkD)

Main unit
Cabinet dimension

Maximum outer dimension

Active subwoofer

Mass (Weight)

Main unit 1.1 kg (2.4 lbs)
Active subwoofer 5.2 kg (11.47 lbs)

Operating temperature range

o

0

Operating humidity range

20 % to 80 % RH (no condensation)

Active subwoofer: 21 W

Main unit: Approx. 0.1 W

310 mmk44 mmk195 mm

7

(12

/32qk123/32qk711/16q)

310 mmk45 mmk202 mm

7

(12

/32qk125/32qk715/16q)

180 mmk408 mmk306 mm

3

(7

/32qk161/16qk121/16q)

C to r40oC (r32oF to r104oF)

32

RQT9660

Reference

SPEAKER GENERAL

Bluetooth® SECTION

Horizontal placement using the stands

Dimensions (WkHkD)

956 mmk102 mmk74 mm

5

(37

/8qk41/32qk229/32q)

Mass (Weight) 1.61 kg (3.7 lbs)
Horizontal placement using the speaker feet
and the support legs

Dimensions (WkHkD)

956 mmk78 mmk55 mm

5

(37

/8qk31/16qk25/32q)

Mass (Weight) 1.57 kg (3.5 lbs)
Horizontal placement (for wall mount)

Dimensions (WkHkD)

956 mmk75 mmk35 mm

5

(37

/8qk215/16qk13/8q)

Mass (Weight) 1.54 kg (3.5 lbs)
Vertical placement using the speaker bases

Dimensions (WkHkD)

148 mmk528 mmk145 mm

13

(5

/16qk2025/32qk523/32q)

Mass (Weight) 0.88 kg (1.98 lbs)
Vertical placement (for wall mount)

Dimensions (WkHkD)

75 mmk478 mmk35 mm

15

(2

/16qk1813/16qk13/8q)

Mass (Weight) 0.77 kg (1.76 lbs)

Bluetooth® system specification

V2.1 + EDR

Wireless equipment classification

Class 2 (2.5 mW)

Supported profiles A2DP, AVRCP
Frequency band

2402 MHz to 2480 MHz

(Adaptive Frequency Hopping)

Operating distance

10 m (33 ft) Line of Sight



1 Specifications are subject to change without notice.
2 Weight and dimensions are approximate.
3 Total harmonic distortion is measured by a digital spectrum

analyzer.

RQT9660

33

Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)

Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Home Audio Products Limited Warranty

Limited Warranty Coverage
(For USA and Puerto Rico Only)

If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Marketing Company of North America
(referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished
parts, (b) replace it with a new or a refurbished equivalent value product, or
(c) refund your purchase price. The decision to repair, replace or refund will
be made by the warrantor.

Product or Part Name Parts Labor

Audio Products
(except items below)

DVD Home Theater System 1 year 1 year

Home Theater Audio System 1 year 1 year

SD Memory Cards, Rechargeable Battery
Packs (defective exchange)

During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to
products purchased and serviced in the United States or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which
was not sold “as is”.

Carry-In or Mail-In Service

To find a service center please visit http://www.panasonic.com/help or call
1-800-211-PANA (7262).

When shipping the unit, carefully pack, include all supplied accessories listed
in the Owner’s Manual, and send it prepaid, adequately insured and packed
well in a carton box. When shipping Lithium Ion batteries please visit our
Web Site at www.panasonic.com/BatteryHandling
committed to providing the most up to date information. Include a letter
detailing the complaint, a return address and provide a daytime phone
number where you can be reached. A valid registered receipt is required
under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT
PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED
FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction
of sand, humidity or liquids, commercial use such as hotel, office, restaurant,

The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.

MODEL NUMBER

SC-HTB550

SERIAL NUMBER

1 year 1 year

90 days Not

Applicable

as Panasonic is

or other business or rental use of the product, or service by anyone other
than a Factory Service Center or other Authorized Servicer, or damage that
is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm,
Saturday-Sunday 10am-7pm EST

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
[e-mail]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

User memo:

DATE OF PURCHASE ______________________________
DEALER NAME ___________________________________
DEALER ADDRESS________________________________
_________________________________________________
TELEPHONE NUMBER _____________________________

As of January 2012

34

RQT9660

Reference

Limited Warranty (

ONLY FOR

CANADA)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use
and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product
with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Technics Audio Product - One (1) year, parts and labour
Panasonic BD/DVD Product - One (1) year, parts and labour
Panasonic Audio Receivers - One (1) year, parts and labour
Home Theater Systems Product - One (1) year, parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in
Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original
packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE
REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.

Dry cell batteries are also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from
the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of
items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages,
or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty
gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation and information assistance, please contact:

PRODUCT OPERATION ASSISTANCE

IS

Customer Care Centre: Telephone #: [phone]

Fax #: [phone]
Email link: “Support

PRODUCT REPAIRS

Please locate your nearest Authorized Servicentre.

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Link: “Support # Panasonic Servicentre® locator” on www.panasonic.ca

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

# contact us # email” on www.panasonic.ca

RQT9660

35

Panasonic Corporation 2011

Printed in Malaysia

One Panasonic Way, Secaucus,
New Jersey 07094

http://www.panasonic.com

www.panasonic.ca

5770 Ambler Drive
Mississauga, Ontario
L4W 2T3

Panasonic Consumer Marketing
Company of North America,
Division of Panasonic Corporation of
North America

Panasonic Canada Inc.

-If you see this symbol-

As an ENERGY STAR Partner,
Panasonic has determined that
this product meets the ENERGY STAR
guidelines for energy efficiency.

®

®

For Canada only: The word “Participant” is
used in place of the word “Partner”.

Information on Disposal in other Countries outside the
European Union

This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.

RQT9660-1P

F1211RK1032
