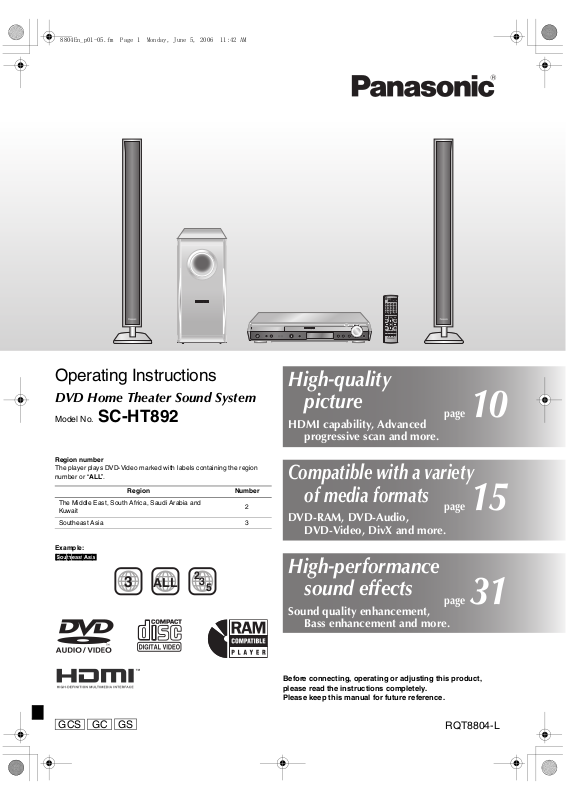

Panasonic SC-HT892 User Manual

Operating Instructions
High-quality
DVD Home Theater Sound System
Model No. SC-HT892
Region number
Region Number
The Middle East, South Africa, Saudi Arabia and Kuwait
Southeast Asia 3
Example:
[Southeast\Asia]
2
3 ALL
3
5
2
page
10
HDMI capability, Advanced
progressive scan and more.
Compatible with a variety
of media formats
page
15
DVD-RAM, DVD-Audio,
DVD-Video, DivX and more.
High-performance
sound effects
page
31
Sound quality enhancement,
Bass enhancement and more.
GCS
GC
GS
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.
RQT8804-L
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
Operations in these instructions are described mainly with the remote control, but you can perform the operations on the main unit if the controls are the same.
System SC-HT892
Main unit SA-HT892
Front speakers SB-FS995
Subwoofer SB-W540
CAUTION!
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
Accessories
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.
The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
CAUTION:
The AC voltage is different according to the area. Be sure to set the proper voltage in your area before use.
(For details, please refer to page 12.)
(Side of product)
(Inside of product)
-If you see this symbol-
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Accessories
Please check and identify the supplied accessories.
1 Remote control
(N2QAYB000067)
2 Remote control batteries
1 AM loop antenna
RQT8804
2
1 FM indoor antenna
1Video cable
2 Stands
2 Bases
6 Screws
2 Sliders
AC mains lead
[Southeast[Asia [
the[Middle[East,[South[Africa,[
[Saudi[Arabia[and[Kuwait[
[Saudi[Arabia[and[Kuwait[
,]
TABLE OF CONTENTS
Getting
Started
Playing
Discs
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Caution for AC Mains Lead. . . . . . . . . . . . . . . . . 4
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . 5
About DivX VOD content . . . . . . . . . . . . . . . . . . 5
Simple Setup
STEP 1
STEP 2 STEP 3 STEP 4
Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the remote control . . . . . . . . . . . . . . . . . . . . . . 17
Convenient functions . . . . . . . . . . . . . . . . . . . . 18
Displaying current playback condition. . . . . . . . . . . . . 18
All group, Program and Random play. . . . . . . . . . . . . 18
Playing data discs using navigation menus
Playing data discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting a track using CD text. . . . . . . . . . . . . . . . . . 20
Playing HighMAT
Playing RAM and DVD-R/ -RW (DVD-VR) discs. . . . . 20
Assembling the front speakers . . . .6
Speaker installation options . . . . . . . . . . . . . 7
Positioning the speakers . . . . . . . . .8
Speaker connections
Audio and video connections. . . . .10
Television with an HDMI terminal . . . . . . . . 10
Basic audio connection. . . . . . . . . . . . . . . . 10
Basic video connection. . . . . . . . . . . . . . . . 10
TM
discs . . . . . . . . . . . . . . . . . . . . . . 20
. . . . . . . . . . . . . 9
. . . 19
STEP 5
STEP 6 STEP 7
Control reference guide . . . . . . . . . . . . . . . . . 14
Discs that can be played. . . . . . . . . . . . . . . . . 15
Disc caution . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using on-screen menus . . . . . . . . . . . . . . . . . . 22
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Other Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing the player settings . . . . . . . . . . . . . .26
Radio and AC mains lead
connections . . . . . . . . . . . . . . . . 12
Preparing the remote control . . . . 13
Performing QUICK SETUP . . . . . . 13
Other
Operations
Reference
Using the radio . . . . . . . . . . . . . . . . . . . . . . . . . 29
Presetting stations automatically . . . . . . . . . . . . . . . . 29
Selecting the preset channels . . . . . . . . . . . . . . . . . . 29
Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using an outdoor antenna (optional) . . . . . . . . . . . . . 30
Using sound effects . . . . . . . . . . . . . . . . . . . . .31
Changing the sound quality: Sound Field Control . . . 31
Adjusting the amount of bass: Subwoofer level . . . . . 31
Enhancing the bass sound: H.BASS . . . . . . . . . . . . . 31
Enjoying the virtual surround sound:
Advanced Surround. . . . . . . . . . . . . . . . . . . . . . . . . 31
Troubleshooting guide . . . . . . . . . . . . . . . . . . . 35
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Using other useful functions . . . . . . . . . . . . . . 32
Setting the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . 32
Muting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using headphones. . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Music Port . . . . . . . . . . . . . . . . . . . . . . . . . 32
Enjoying Karaoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operating other equipment . . . . . . . . . . . . . . . 33
Operating the television . . . . . . . . . . . . . . . . . . . . . . . 33
Operating both the television and the home
theater system: Control with HDMI (HDAVI Control
One Touch Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Automatic input switching. . . . . . . . . . . . . . . . . . . . . . 34
Theater speaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Power off link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .39
TM
) . . . . . . . . . . . . . . . . . . . . . . 34
RQT8804
3
Caution for AC Mains Lead
(For Saudi Arabia and Kuwait)
(“GS” area code model only)
For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following
Caution for AC Mains Lead
code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL Ó OR COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A Figure B
Fuse (5 ampere)
Fuse (5 ampere)
RQT8804
4
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life. Do not place heavy items on the unit.
Volt ag e
Do not use high voltage power sources. This can overload the unit and cause a fire. Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other places where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead. Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock. Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock or malfunction. Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer. Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.
About DivX VOD content
DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit.
Follow the online instructions for purchasing DivX VOD content to enter the unit’s registration code and register the unit. For more information about DivX VOD, visit www.divx.com/vod.
Display the unit’s registration code
(page 28, “DivX Registration” in “Others” tab)
Setup
Disc Video Audio HDMI Display
Others
We recommend that you make a note of this code for future reference.After playing DivX VOD content for the first time, another registration
code is then displayed in “DivX Registration”. Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on this unit, you will no longer be able to play any content that you purchased using the previous code.
If you purchase DivX VOD content using a registration code different
from this unit’s code, you will not be able to play this content. (“Authorization Error” is displayed.)
DivX Registration
DivX Video-on-Demand
Your registration code is : XXXXXXXX
To learn more visit www.divx.com/vod
ENTER
to continuePress
8 alphanumeric characters
Regarding DivX content that can only be played a set number of times
Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. (“Rented Movie Expired” or “Rental Expired” is displayed.)
When playing this content The number of remaining plays is reduced by one if
– you press [Í] or press and hold [—SETUP]. – you press [STOP]. (Press [; PAUSE] to pause play.) – you press [:, 9 SKIP] or [6, 5 SLOW/SEARCH] etc. and
arrive at another content or the start of the content being played.
Resume (➜ page 17, Stop) and Marker (page 23, Play Menu)
functions do not work.
Safety precautions / About DivX VOD content
RQT8804
5
STEP1 Assembling the front speakers
Preparation
To prevent damage or scratches, lay down a soft cloth and perform assembly on it.For assembly, use a Phillips-head screwdriver.Make sure you have all the indicated components before starting assembly, setup, and connection.There is no difference between the right and left speakers and stands.For optional wall mount, refer to page 7.
Simple Setup
2 Front speakers
2 Stands 6 Screws
2 Bases
The supplied stands are specially designed for attachment to Panasonic SB-FS995 front speakers. Use only as indicated in this setup.
2 Sliders
The speaker height can be adjusted.
Min: 110 cm Max: 135 cm
1 Attach the speaker to the stand.
Place the polyfoam underneath the speaker for stability while attaching the speaker to the stand.
1 Feed the speaker cable (the shorter part) into the bottom
of the speaker and through the slot at the rear.
2 While pulling the speaker cable up through the slot, slide
the speaker stand into the bottom of the speaker.
Speaker
Assembling the front speakers
3 Thread the cable through the middle hole of the slider and
fasten the slider with the two screws.
Slider
2 Attach the stand to the base.
1 Thread the speaker cable through the base.
For quicker threading, loosely fold the cable in half (do not crease), pass the folded portion through the hole, and then pull the rest of the cable through the base.
Cable
Cable
Base
Cable
Poly foam
Screws
Tighten securely.
Rounded side
Large hole
Stand
2 Insert the stand into the base while gently pulling on the
end of the cable.
Cable
3 Secure the stand to the base.
Screw
Tighten securely.
4 Adjust the speaker height.
1 Loosen the screws until
the speaker can slide up and down the stand.
2 Raise the speaker to the
desired height, and then re-tighten the screws.
Phillips-head screwdriver
5 Connect the speaker cable.
_: White `: Blue
Press the speaker cable into the groove.
Push excess cable back through the slider holder.
Insert the wire fully.
6 Secure the speaker cable to the base.
Slide the cable
into the groove.
Cable
Push!
RQT8804
6
Preventing the speakers from falling
You will need to obtain the appropriate screw eyes to match the
walls or pillars to which they are going to be fastened.
Consult a qualified housing contractor concerning the
appropriate procedure when attaching to a concrete wall or a surface that may not have strong enough support. Improper attachment may result in damage to the wall or speakers.
String (not included) Thread from the wall to the speaker and tie tightly.
Screw eye
(not included)
Approx. 150 mm
Speaker installation options
Attaching to a wall
You can attach the front speakers to a wall. The wall or pillar on which the speakers are to be attached
should be capable of supporting over 15 kg per screw. Consult a qualified building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.
When mounting the speakers to a wall, we recommend using a
string (not included) to prevent it from falling.
Preparation for front speakers
1 Pull down the longer part of the cable to release the cable from
the groove inside the stand, and then pull the speaker cable out from the stand.
2
Feed the cable into the bottom of the speaker and through the slot at the rear.
Rear of the speaker
1 Drive a screw (not included) into the wall.
4.0 mm
Wall or pillar
2 Fit the speaker securely onto the screw(s) with the hole(s).
255 mm
Wall
7.5 to 9.5 mm
5. 0 t o 7.0 mm
320 mm
Simple Setup
Assembling the front speakers
3 Connect the cable (➜ page 6).
Reattaching the speaker cable to the stand
1 Remove the two screws from the stand, and remove the metal cover.
Screw
Metal cover
Plastic cover
2 Pull the cable out about 40 cm from the hole in the metal cover, and
insert the plastic cover.
Approx. 40 cm
Screw
e.g.
In this position, the speaker will likely fall if moved to the left or right.
3 Insert the metal cover so it does not disturb the cable and close tightly
with the two screws.
Move the speaker so that the screw is in this position.
RQT8804
7
STEP2 Positioning the speakers
How you set up your speakers can affect the bass and the sound field. Note the following points:
Place speakers on flat secure bases.Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.Left and right speakers are interchangeable.
Simple Setup
Setup example
FRONT
(L, R)
Positioning the speakers
Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be negatively affected.
Set the speakers up on an even surface to prevent them from falling.
Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.
Main unit
[Note]
Keep your speakers at least 10 mm away from the system for proper
ventilation.
To allow for proper ventilation and to maintain good airflow around the
main unit, position it with at least 5 cm of space on all sides.
Do not block the ventilation holes of the main unit.
Subwoofer
Place to the right or left of the television, on the floor or a sturdy shelf so that it will not cause vibration. Leave about 30 cm from the television.
Caution
Do not stand on the base.
Be cautious when children are near.
e.g. Front speaker
SUBWOOFER
Main unit
Notes on speaker use
You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
Reduce the volume in the following cases to avoid damage:
– When playing distorted sound. – When the speakers are reverberating due to a record player, a
microphone, noise from FM broadcasts, or continuous signals from an
oscillator, test disc, or electronic instrument. – When adjusting the sound quality. – When turning the unit on or off.
If irregular coloring occurs on your television
The front speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.
If this occurs, turn the television off for about 30 minutes.
The demagnetizing function of the television should correct the problem. If it persists, move the speakers further away from the television.
Caution
The main unit and supplied speakers are to be used only as
indicated in this setup. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.
Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
RQT8804
8
STEP3 Speaker connections
Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the speakers.
3 SUBWOOFER
Simple Setup
Speaker connections
2 FRONT (R)
Push!
1 FRONT (L)
Insert the wire fully.
i: White j: Blue
Main unit
RQT8804
9
STEP4 Audio and video connections
IN
AUDIO
TV
VID EO
OUT
Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
Video cable
Turn the television off before connecting, and refer to the television’s operating instructions.
Television with an HDMI terminal
Simple Setup
HDMI-compatible television
(not included)
AV IN AV OUT
HDMI cable (not included)
Use the HDMI connection to enjoy higher quality audio and video with a single cable (page 38, HDMI).
Set “Video Output” to “On” and “Audio Output” to “On” (page 27, “HDMI” tab).Set “Video Output Mode” (page 23, Picture Menu).
You can also enjoy multi-channel surround sound by connecting to an HDMI compatible amplifier with multi-channel output terminals.
Set “Audio Output” to “On” (page 27, “HDMI” tab).Make the settings for “Dolby Digital”, “DTS Digital Surround” and “MPEG”
§
MPEG: [Except]Southeast]Asia]
§
in the “Audio” tab (➜ page 27).
[Note]
It is recommended that you use Panasonic’s HDMI cable.
[Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.]
Non-HDMI-compliant cables cannot be utilized.
Audio and video connections
Back of the main unit
Control with HDMI (HDAVI Control)
If your Panasonic television is an HDMI control compatible television, you can operate your television synchronizing with home-theater operations or vice versa [page 34, Operating both the television and the home theater system: Control with HDMI (HDAVI Control
TM
)].
Make the extra audio connection (➜ below) when you use HDAVI Control function.
Basic audio connection
Television
(not included)
RF IN
AUDIO
OUT
L
R
VIDEO OUT
AUDIO
IN
VIDEO IN
Audio cable
(not included)
L
R
TV
AUDIO
IN
Back of the main unit
This audio connection will enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜ page 33).
Basic video connection
Back of the
Television
(not included)
VIDEO IN
Video cable
(included)
main unit
COMPONENT VIDEO OUT
P
B
AUX
COMPONENT VIDEO OUT
P
B
P
R
VIDEO
OUT
Y
Y
S-VIDEO
OUT
You can also connect to the AUX terminals on the main unit. The TV AUDIO IN and AUX terminals are for external audio input.
10
P
R
VIDEO
S-VIDEO
OUT
RQT8804
OUT
Other video connections for improved picture quality
IN
TV
AUDI O
VID EO
OUT
COMPONENT VIDEO OUT
Television
(not included)
COMPONENT
VIDEO IN
PB
PR
Y
Video cables
(not included)
Back of the main unit
COMPONENT VIDEO OUT
P
B
P
R
VIDEO
OUT
Y
S-VIDEO
OUT
Using the COMPONENT VIDEO OUT terminals
The COMPONENT VIDEO OUT terminals provides a purer picture than the S-VIDEO OUT terminal. These terminals can be used for either interlaced or progressive output. Connection using these terminals outputs the color difference signals (P order to achieve high fidelity in reproducing colors. The description of the component video input terminals depends on the television or monitor (e.g. Y/P
B/PR) and luminance signal (Y) separately in
B/PR, Y/B-Y/R-Y, Y/CB/CR).
Connect to terminals of the same color.
To enjoy progressive video
Connect to a progressive output compatible television.
1 Set “Video Output” to “Off” (page 27, “HDMI” tab). 2 Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (page 23, Picture Menu).
S-VIDEO OUT
Back of the
Television
(not included)
S-VIDEO
IN
S-video cable
(not included)
main unit
COMPONENT VIDEO OUT
P
B
Y
Simple Setup
Audio and video connections
P
R
VIDEO
S-VIDEO
OUT
OUT
Using the S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance (Y) signals. (Actual results depend on the television.)
Cable TV box or video cassette recorder connection
Cable TV box or video cassette recorder (not included)
Tel evis ion
(not included)
AUDIO
OUT
L
R
VIDEO OUT
RF IN
AUDI O
IN
VIDEO IN
Audio cable
(not included)
Video cable
(included)
Back of the main unit
COMPONENT VIDEO OUT
LL
RR
TV
AUDIO
AUX
IN
You can use the AUX terminal for the audio input when you connect another external device (e.g. video cassette recorder). Select “AUX” as the input source (SELECTOR ➜ page 14).
P
B
P
R
VIDEO
OUT
Y
S-VIDEO
OUT
To your cable TV service or television antenna
RF IN
RF OUT
RF cable
(not included)
RQT8804
11
STEP5 Radio and AC mains lead connections
AM loop antenna
FM indoor antenna
Simple Setup
Connect the AC mains lead after all other connections are complete.Using an outdoor antenna (optional) (page 30).
Click!
AM loop antenna
Stand the antenna up on its base. Place the antenna where reception is best. Keep loose antenna cable away from other wires and cables.
AC mains lead
[Southeast[Asia, [
the[Middle[East,[South[Africa,[
[Saudi[Arabia[and[Kuwait[
FM indoor antenna
Affix this end of the antenna where reception is best.
Adhesive tape
]
Before connecting the AC mains lead
Main unit
Set the voltage.
Change the voltage selector to the appropriate position for the area in which this system is used.
[Saudi[Arabia[and[Kuwait[
Radio and AC mains lead connections
AC mains lead
[Saudi[Arabia[and[Kuwait[
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 4 BEFORE CONNECTION.
To household mains socket
Conserving power
The main unit consumes a small amount of power, even when it is turned off (approx. 0.9 W). To save power when the unit is not to be used for a long time, unplug it from the household mains socket. You will need to reset some memory items after plugging in the main unit.
While pushing, insert the wire fully.
White
Red
Black
Loosen the terminal screw with a Phillips­head screwdriver.
Re-tighten the terminal screw.
[Note]
The included AC mains lead is for use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with this unit.
12
RQT8804
Loading...
+ 28 hidden pages
