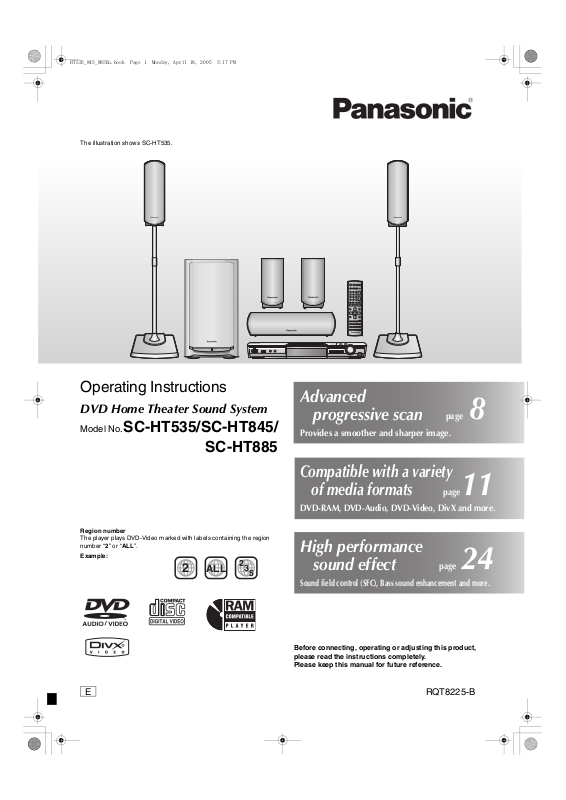

Panasonic SC-HT885, SC-HT845, SC-HT535 User Manual
The illustration shows SC-HT535.
Operating Instructions
DVD Home Theater Sound System
Model No.SC-HT535/SC-HT845/
SC-HT885
Region number
The player plays DVD-Video marked with labels containing the region
number “2” or “ALL”.
Example:
2 ALL
2
3
5
Advanced
progressive scan
Provides a smoother and sharper image.
page
8
Compatible with a variety
page
of media formats
DVD-RAM, DVD-Audio, DVD-Video, DivX and more.
11
High performance
page
sound effect
Sound field control (SFC), Bass sound enhancement and more.
24
E
Before connecting, operating or adjusting this product,
please read the instructions completely.
Please keep this manual for future reference.
RQT8225-B
Dear customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully.
[HT535]: indicates features applicable to SC-HT535 only.
[HT845]: SC-HT845 only.
[HT885]: SC-HT885 only.
System SC-HT535 SC-HT845 SC-HT885
Main unit SA-HT535 SA-HT845 SA-HT885
Front speakers SB-FS535 SB-FS840 SB-FS930
Center speaker SB-PC535 SB-PC840 SB-PC930
Surround speakers SB-FS536 SB-FS841 SB-FS880
Active subwoofer SB-WA535 SB-WA845 SB-WA885
≥These operating instructions are applicable to models
SC-HT535, SC-HT845 and SC-HT885.
≥Unless otherwise indicated, illustrations in these
operating instructions are of SC-HT535.
≥Operations in these instructions are described mainly
with the remote control, but you can perform the
operations on the main unit if the controls are the same.
Safety precautions
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler shall
remain readily operable.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
(Inside of product)
(Produktets innside)
(Tuotteen sisällä)
CLASS 1
LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
RQT8225
2
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit
and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other places where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
(Back of product)
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
center. Electric shock or damage to the unit can occur if the unit is
repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
Table of contents
Getting started
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Simple setup
STEP 1 Speaker assembly . . . . . . . . . . . . . . . . . . . . . 4
STEP 2 Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 3 Connecting speakers
with the subwoofer . . . . . . . . . . . . . . . . . . . 7
STEP 4 Video connections. . . . . . . . . . . . . . . . . . . . . 8
STEP 5 Radio and system connections . . . . . . . . . 9
STEP 6 The remote control . . . . . . . . . . . . . . . . . . . . 9
STEP 7 QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . 10
Control reference guide. . . . . . . . . . . . . . . . . . . . . . . . . .10
Discs that can be played . . . . . . . . . . . . . . . . . . . . . . . . .11
Disc operations
Basic play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

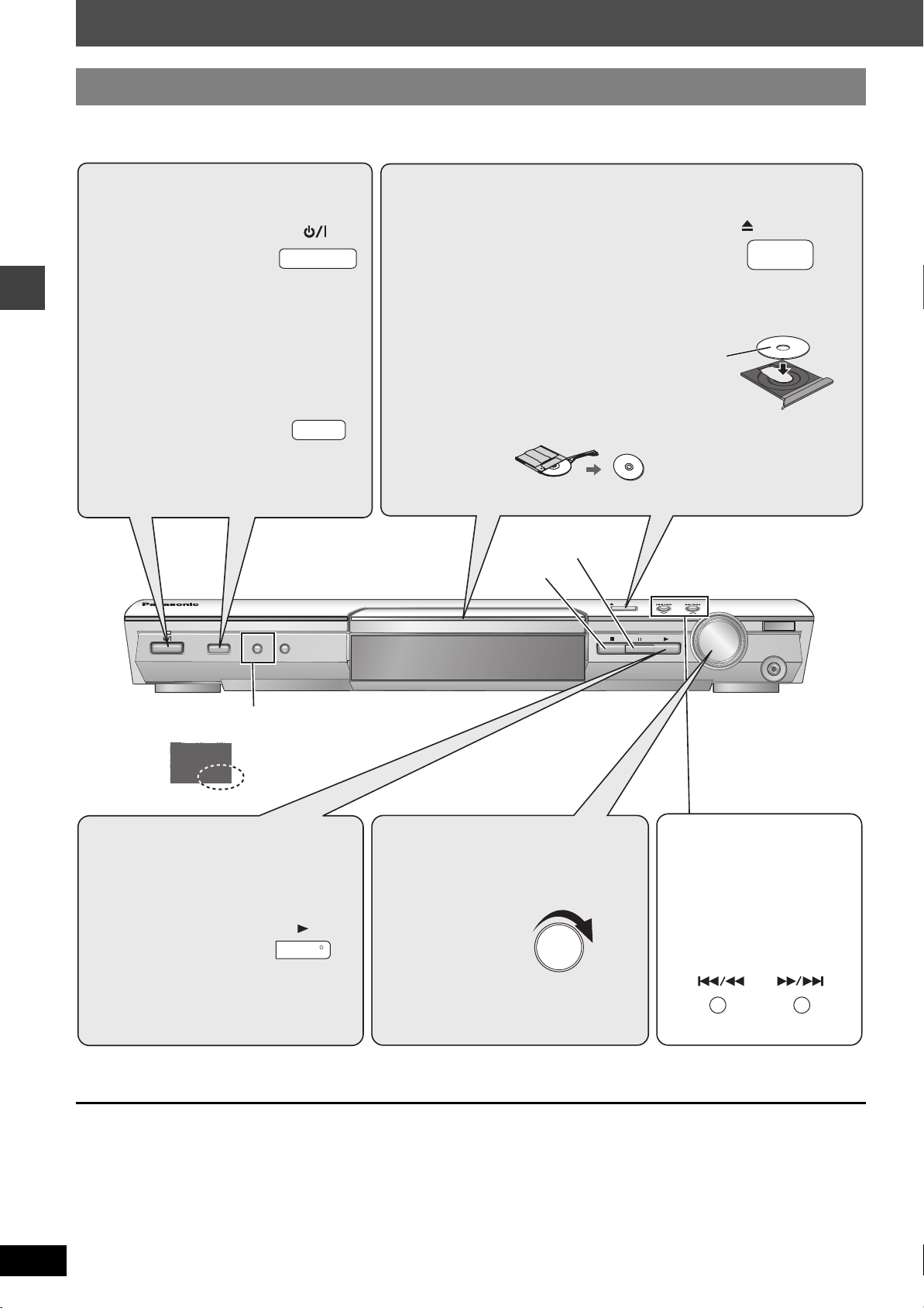

Using the main unit/Using the remote control
Convenient functions. . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Displaying current playback condition (QUICK OSD)/
Reviewing titles to play (ADVANCED DISC REVIEW)/
Quick replay/Skipping 30 seconds forward/
Changing the zoom ratio/Changing soundtracks/
Changing subtitles/Angle selection and Still picture rotation/
advance/Changing play speed/
Repeat play/All group, Program and Random play

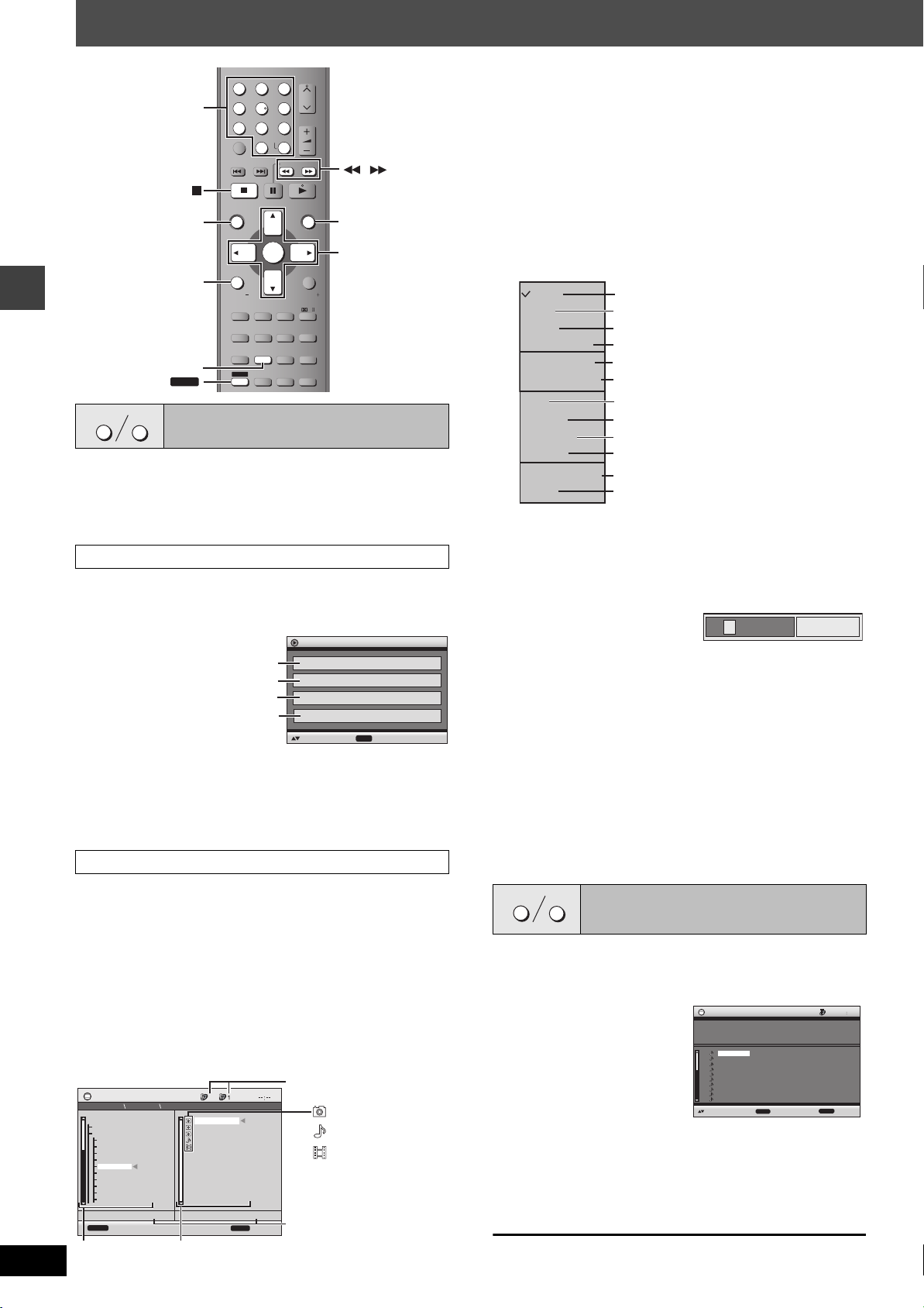

Using navigation menus . . . . . . . . . . . . . . . . . . . . . . . . 16
Playing data discs/Playing from the selected track in the CD/
Playing HighMAT
discs
TM
discs/Playing RAM/DVD-RW (DVD-VR)

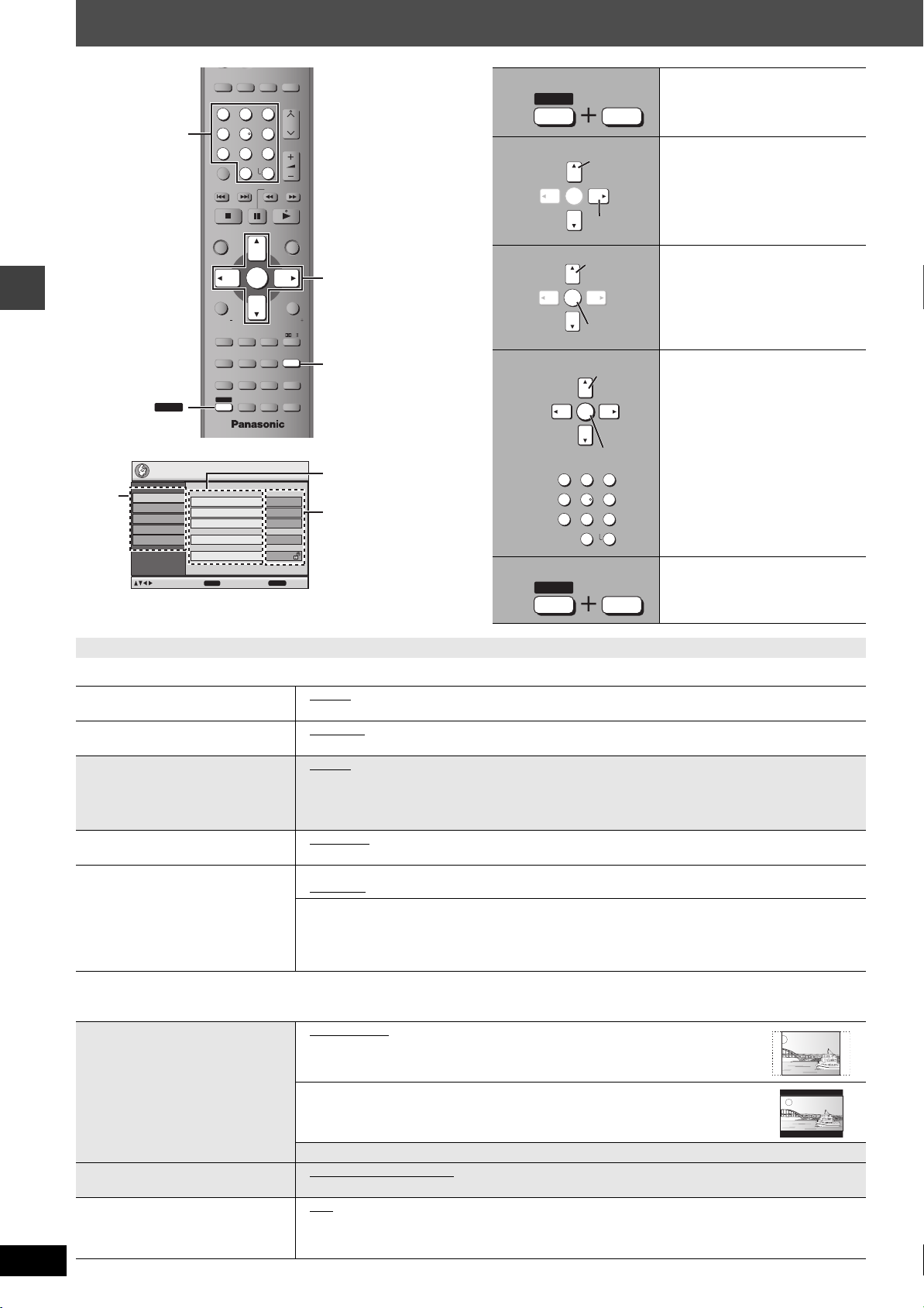

Using on-screen menus. . . . . . . . . . . . . . . . . . . . . . . . . 18
Main menu/Other Settings
Changing the player settings. . . . . . . . . . . . . . . . . . . . . 20
Changing the delay time (Speaker Settings)
Other operations

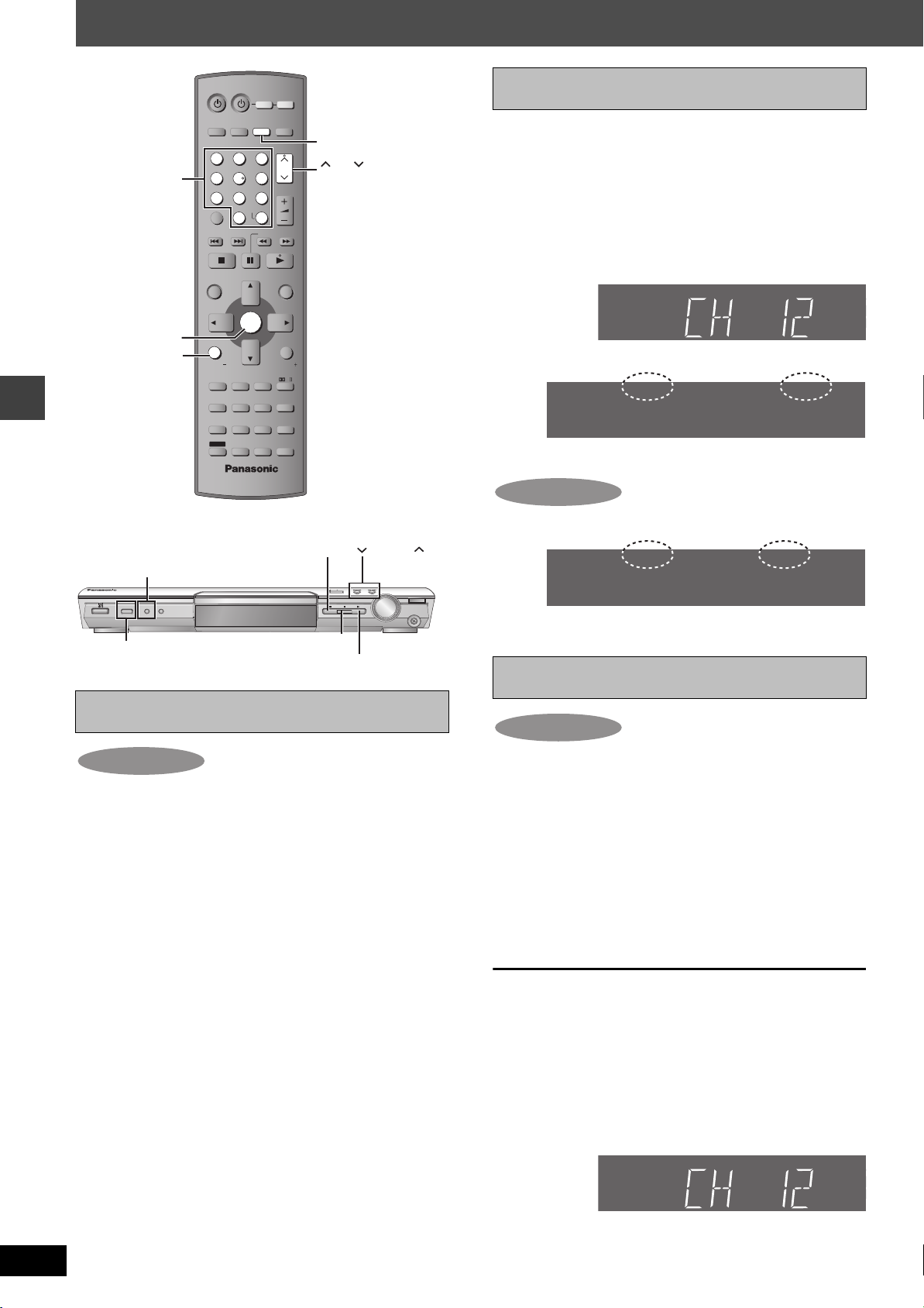

The radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Automatic presetting/Selecting the preset channels/
Manual tuning/RDS broadcasting/

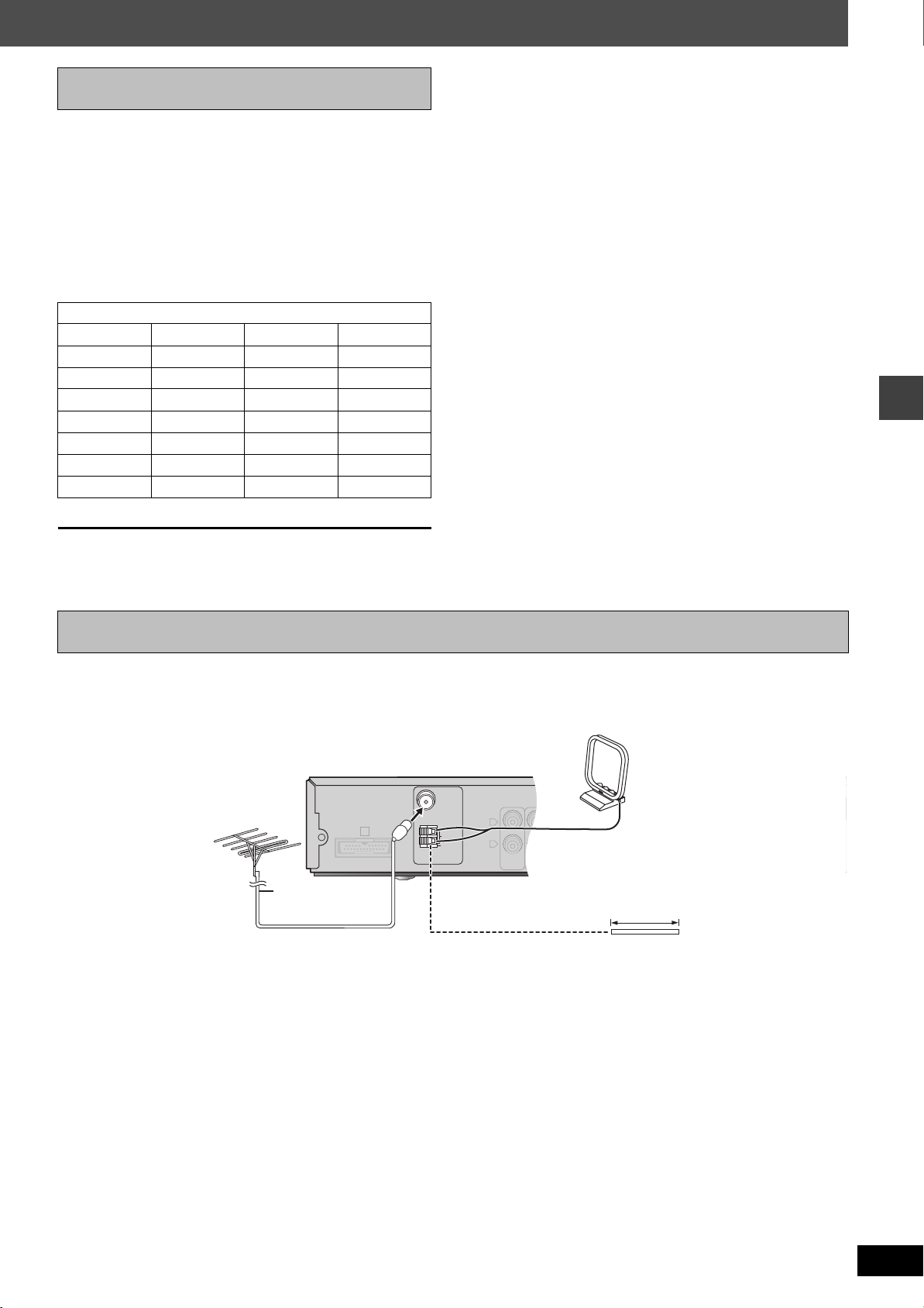

Optional antenna connections
Sound field and sound quality. . . . . . . . . . . . . . . . . . . . 24
Sound Field Control/Super Surround/Center Focus/
Dolby Pro Logic II/Down-mixing/Enhancing the bass sound/
Subwoofer level/Speaker level adjustments

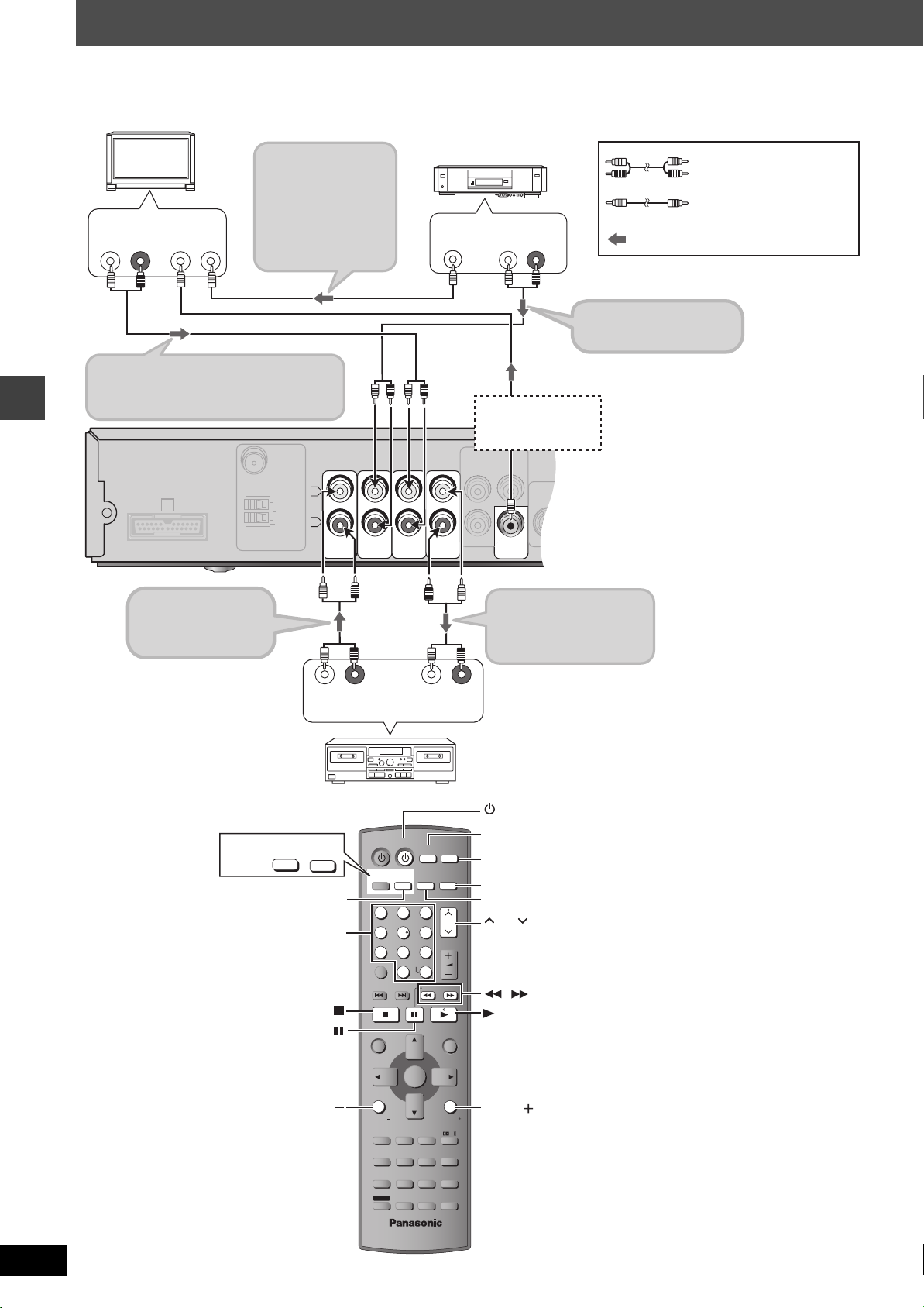

Operating other equipment . . . . . . . . . . . . . . . . . . . . . . 26
Operating the television and the video cassette recorder/
Operating the tape deck ([HT845] [HT885])

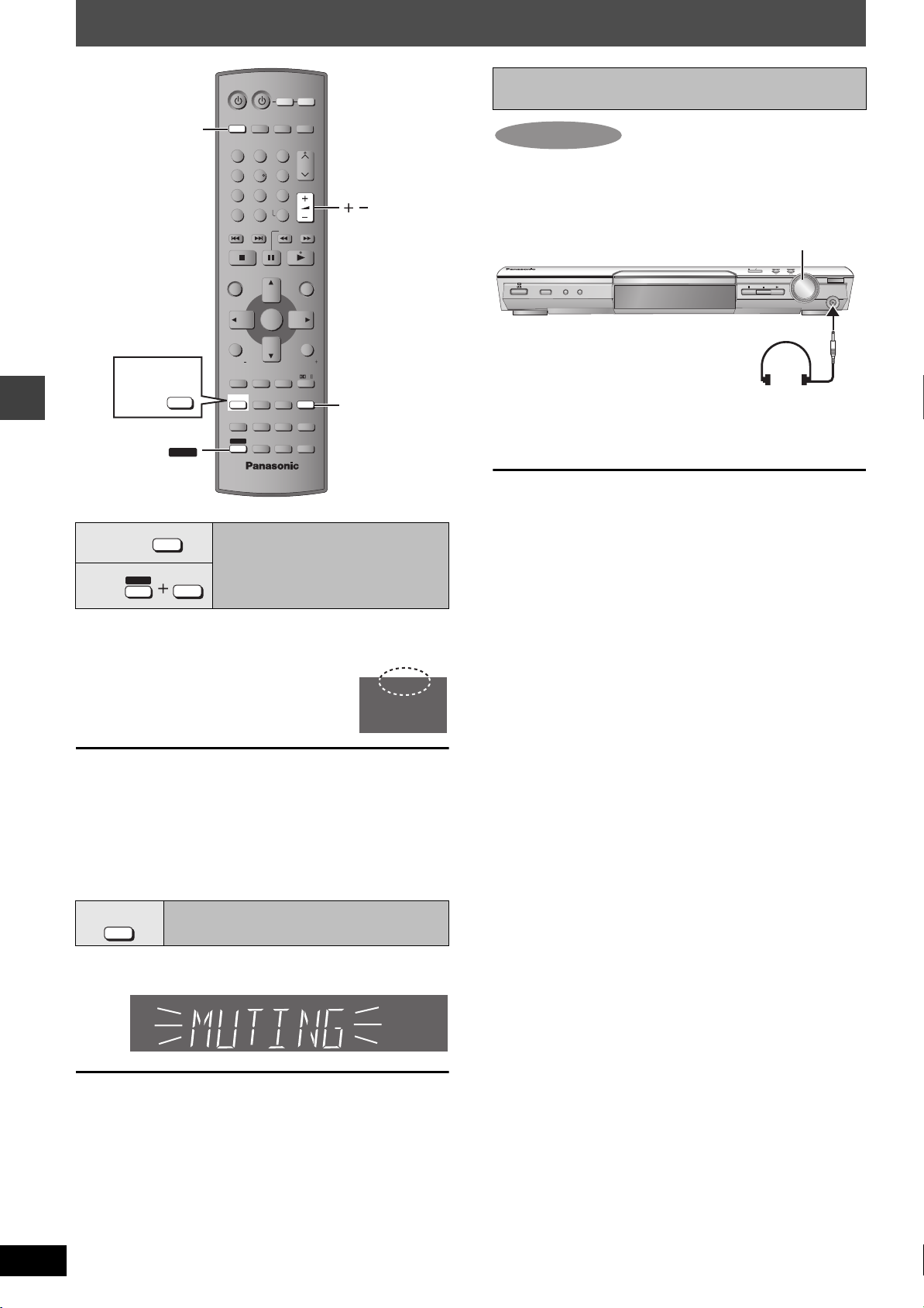

Other useful functions . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Sleep timer/Muting/Using headphones
Reference

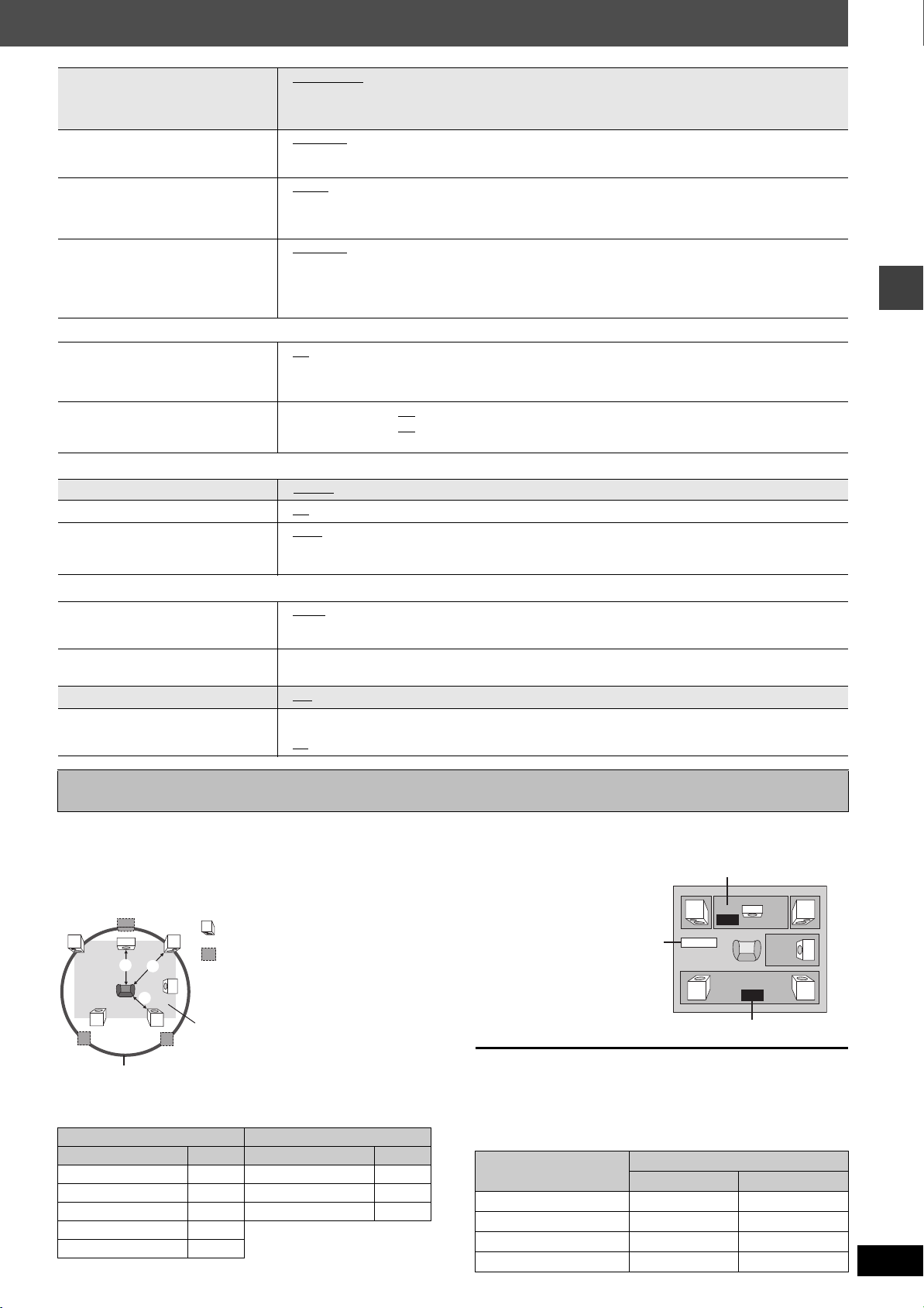

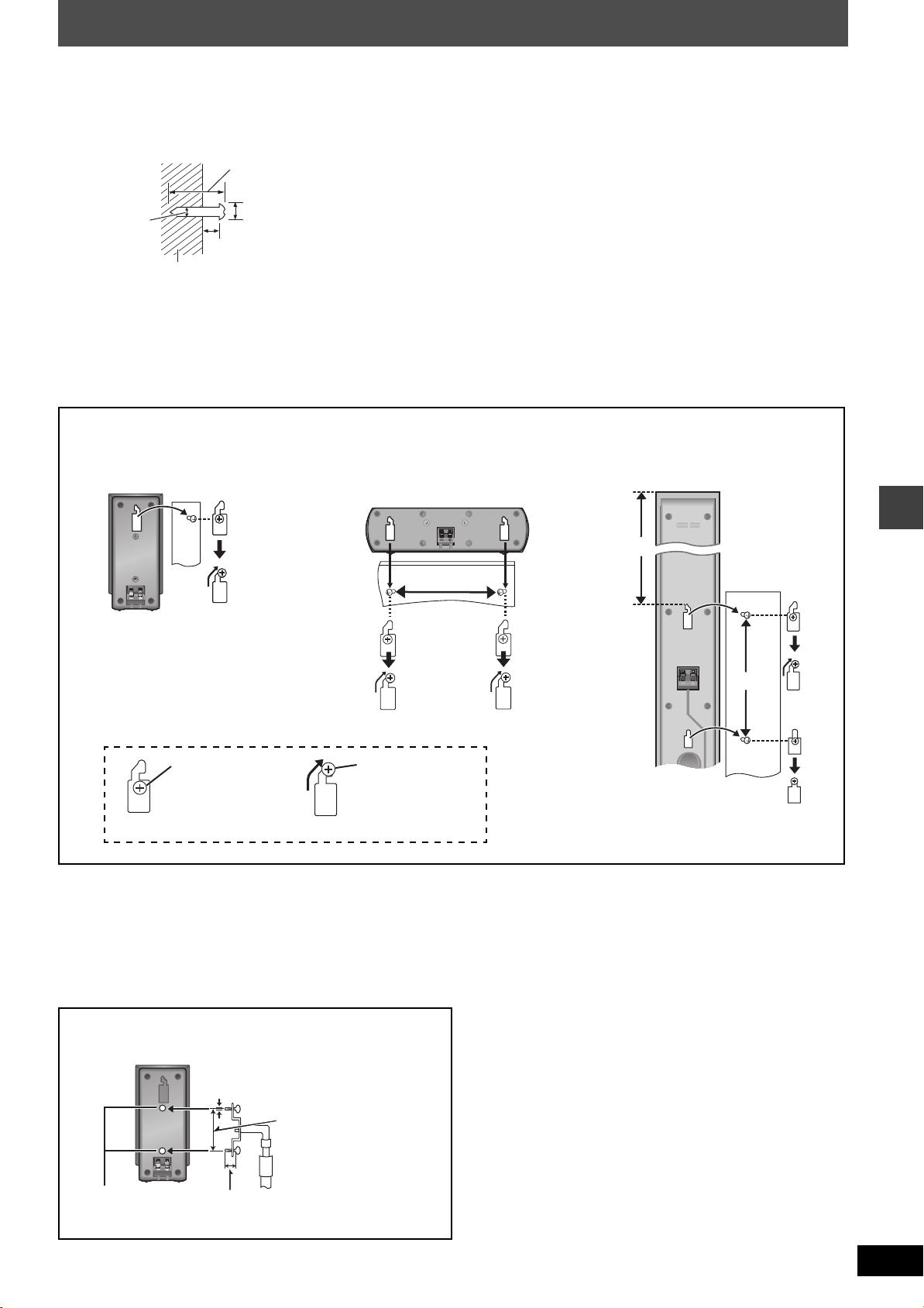

Other speaker setup options. . . . . . . . . . . . . . . . . . . . . 29
About DivX VOD content . . . . . . . . . . . . . . . . . . . . . . . . 30
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Disc handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Language code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Troubleshooting guide. . . . . . . . . . . . . . . . . . . . . . . . . . 34

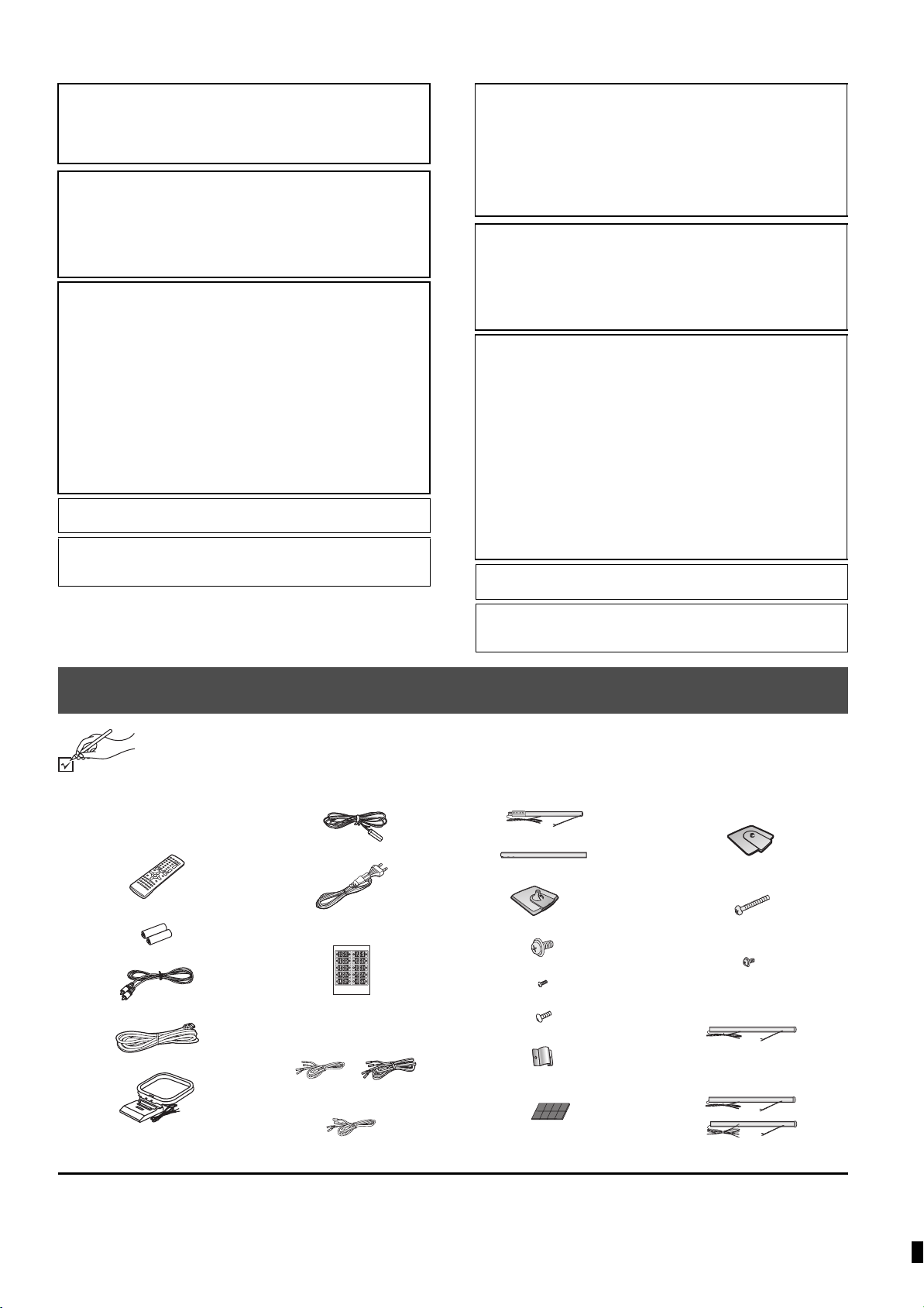

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Table of contents/Glossary
Glossary
Decoder
A decoder restores the coded audio signals on DVD’s to normal.
This is called decoding.
DivX
A video compression format developed by DivXNetworks, Inc. that
compresses video files without any considerable loss of video
quality.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these signals can
also be multi-channel audio. A large amount of audio information can
be recorded on one disc using this method.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters around the
world. There is good separation between the channels, so realistic
sound effects are possible.
Dynamic range
Dynamic range is the difference between the lowest level of sound
that can be heard above the noise of the equipment and the highest
level of sound before distortion occurs.
Frame still and field still
Frames are the still pictures that go together to make a moving
picture. There are about 30 frames shown each second.
One frame is made up of two fields. A regular television shows these
fields one after the other to create frames.
A still is shown when you pause a moving picture. A frame still is
made up of two alternating fields, so the picture may appear blurred,
but overall quality is high.
A field still is not blurred, but it has only half the information of a
frame still so picture quality is lower.
I/P/B
MPEG 2, the video compression standard adopted for use with
DVD-Video, codes frames using these 3 picture types.
I: Intra coded picture
This picture has the best quality and is the best to use when
adjusting the picture.
P: Predictive coded picture
This picture is calculated based on past I or P-pictures.
B: Bidirectionally-predictive coded picture
This picture is calculated by comparing past and future I and
P-pictures so it has the lowest volume of information.
Linear PCM (pulse code modulation)
These are uncompressed digital signals, similar to those found on
CDs.
MPEG4
A compression system for use on mobile devices or a network, that
allows highly efficient recording at a low bit rate.
Playback control (PBC)
If a Video CD has playback control, you can select scenes and
information with menus.
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analog signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction of the
original sound.
RQT8225
3
Simple setup
The supplied stands are specially designed for
STEP
1
Speaker assembly
[HT535] [HT845] Front speakers
[HT885] Front and surround speakers
Preparation
≥To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
≥For assembly, use a Phillips-head screwdriver.
≥Make sure you have all the indicated components before starting assembly, setup, and connection.
≥There is no difference between the right and left speakers and pipes.
[HT535]
Speaker assembly
2 Front
speakers
You can use the front speakers without assembling with the stands. In this case, attach the included
rubber pads to the base of the speakers. This prevents vibration from causing the speakers to move or
fall over. Use 3 or 4 pads per speaker.
4 Pipes 4 Washer
≥2kpipe A
(with cable)
≥2kpipe B
2 Bases
screws
attachment to Panasonic SB-FS535 front speakers,
SB-FS840 front speakers, SB-FS930 front speakers
or SB-FS880 surround speakers. Use only as
indicated in this setup.
4 Bracket
screws
4 Small
screws
2 Brackets Sheet of
rubber pads
RQT8225
4
1 Attach the pipes to the bases.
1 Insert pipe B.
Match these holes when
you insert the pipe.
Pipe B
Base
2 Secure pipe B to the base.
Ensure the screws are securely fastened.
Washer screws
Phillips-head screwdriver
(not included)
2 Assemble the pipes.
1 Thread the speaker cable from pipe A through pipe B and
the base.
For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the pipe, and then pull
the rest of the cable through the base.
Cable
Pipe B
2 Join pipe A to pipe B.
Pipe B
3 Secure the pipes.
Ensure the screws are securely fastened.
Pipe B
Cable
Pipe A
Small screws
Pipe A
3 Attach the pipes to the speakers.
Slot the screw head in between the 2 stoppers of the speaker
groove.
Ensure the pipe is fastened on straight by gradually tightening the
right and left screws alternately until fully tightened.
To prevent a short-circuit, do not cover the connection
terminals with the pipe.
Bracket screws
Pipe A
Front speaker
Stoppers
Bracket
Screw head
Connection terminals
4 Connect the speaker cables.
Rear of the speaker
Twist off the vinyl ends of the
speaker cables.
§
_: White
`: Blue
Push!
§
If the speaker cables do not have vinyl
tips, directly connect them to the
terminals.
5 Secure the speaker cables to the bases.
1 Press the speaker
cable into the base
cover groove as far
as possible.
Cable
Bottom of the base
2 Press the
speaker cable
against the base
while threading
it between the
pegs.
[HT845] [HT885]
[Note]
≥To prevent the speaker cables from being pulled out of the pipes, leave the plastic wrap on the pipes while assembling the speaker stands.
≥[HT885] The front and surround speaker pairs as well as the pipe pairs are different.
–Check the label on the rear of the speaker before attaching the pipe (➜ page 6).
–The pipe with the shorter cable is for the front speaker.
[HT845] 2 Front speakers
[HT885] 2 Front and
2 Surround speakers
[HT845] 2Pipes
[HT885] 4Pipes
≥2kpipes with short cable:
For front speakers
≥2kpipes with long cable:
For surround speakers
[HT845]
2 Bases
[HT885]
4 Bases
[HT845]
4 Long screws
[HT885]
8 Long screws
[HT845]
4 Short screws
[HT885]
8 Short screws
Speaker assembly
1 Assemble the speaker stands.
1 Thread the speaker cable through the base.
For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then pull
the rest of the cable through the base.
Cable
Plastic wrap
Leave the excess speaker
cable for connecting later.
Base
2 Insert the pipe.
Pipe
Groove
Pipe support
Base
3 Secure the pipe to the base.
Ensure the screws are securely fastened.
Short screws
Before proceeding to the next step, please remove the plastic
wrap from the pipe.
Match the groove and these
holes with the base when you
insert the pipe.
Insert the pipe while gently
pulling on the speaker cable.
Phillips-head
screwdriver (not included)
2 Attach the stands to the speakers.
Ensure the stand is fastened on straight by gradually tightening the
top and bottom screws alternately until fully tightened.
You can also attach to the lower rear of the speaker.
The height of the speaker can be changed when attaching the
stand to the upper rear or lower rear of the speaker.
Long screws
Pipe
Speaker
3 Connect the speaker cables.
Rear of the speaker
Twist off the vinyl ends of the
speaker cables.
§
_: Copper
`: Silver
§
If the speaker cables do not have vinyl
tips, directly connect them to the
terminals.
Press the speaker cable into the
groove.
If there is any excess speaker cable, thread the speaker cable
into the opening near the top of the pipe while pulling the speaker
cable from the bottom of the base.
Push!
4 Secure the speaker cables to the bases.
Press the speaker cable into
the base cover groove as far
as possible.
Cable
Rear side of
base
Groove
∫ Preventing the speakers from falling over
Preparation
Attach screw eyes (not included) to secure the speakers to the wall
(➜ diagram right).
≥You will need to obtain the appropriate screw eyes to match the
walls or pillars to which they are going to be fastened.
≥Consult a qualified housing contractor concerning the
appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support. Improper
attachment may result in damage to the wall or speakers.
To prevent the speaker from falling over, thread the string (not
included) from the wall to the speaker as shown and tie tightly.
[HT535]
[HT845] [HT885]
Screw eye (not included)
String (not included)
Rear of the speaker
String (not included)
Rear of the speaker
Wall
Approx. 150 mm
WallScrew eye (not included)
Approx. 150 mm
RQT8225
5
STEP
#%+0
2
Positioning
How you set up your speakers can affect the bass and the sound field. Note the following
points:
≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass.
Cover walls and windows with thick curtains.
≥Place the front, center, and surround speakers at approximately the same distance
from the seating position.
The angles in the diagram are approximate.
Other speaker setup options (➜ page 29)
Positioning
[HT535]
1
FRONT
(L, R)
The left and right speakers are the same with respect to the front and surround speaker pairs.
2
SURROUND
(L, R)
3
CENTER
4
ACTIVE
SUBWOOFER
[HT845]
#%+0
12
FRONT
(L, R)
The left and right speakers are the same with respect to the front and surround speaker pairs.
SURROUND
(L, R)
34
CENTER
ACTIVE
SUBWOOFER
Setup example
Setup example
Main unit
Main unit
[HT885]
Setup example
AC IN
1
FRONT
(L, R)
The left and right speakers are the same with respect to the front and surround speaker pairs.
Do not use a front speaker as
a surround speaker or vice
versa. Verify the type of
speaker with the label on the
rear of the front speaker.
2
SURROUND
(L, R)
3
CENTER
4
ACTIVE
SUBWOOFER
Speaker labels
Main unit
RQT8225
6
≥Use only supplied speakers
Using other speakers can damage the unit, and sound quality will
be negatively affected.
≥Set the speakers up on an even surface to prevent them from
falling. Take proper precautions to prevent the speakers from
falling if you cannot set them up on an even surface.
Main unit
[Note]
Keep your speakers at least 10 mm away from the system for
proper ventilation.
Center speaker
≥Vibration caused by the center speaker can disrupt the picture if it
is placed directly on the television. Put the center speaker on a
rack or shelf.
≥To prevent the speakers from falling, do not place directly on top
of the television.
Active subwoofer
Place to the right or left of the television, on the floor or a sturdy
shelf so that it won’t cause vibration. Leave 10 cm at the rear for
ventilation.
Caution
Do not stand on the base
and shake the speaker.
Be cautious when children
are near.
e.g. [HT535]
Notes on speaker use
≥You can damage your speakers and shorten their useful life if you
play sound at high levels over extended periods.
≥Reduce the volume in the following cases to avoid damage:
– When playing distorted sound.
– When the speakers are reverberating due to a record player,
noise from FM broadcasts, continuous signals from an
oscillator, test disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
If irregular coloring occurs on your television
The supplied speakers are designed to be used close to a
television, but the picture may be affected with some televisions
and setup combinations.
If this occurs, turn the television off for about 30 minutes.
The television’s demagnetizing function should correct the
problem. If it persists, move the speakers farther away from the
television.
Caution
≥The active subwoofer and supplied speakers are to be
used only as indicated in this setup. Failure to do so
may lead to damage to the amplifier and/or the speakers,
and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
≥Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
STEP
≥Attach the speaker-cable stickers to make connection easier.
≥The terminals of the subwoofer have high output power. Carefully connect the speaker wires.
Speaker cables
[HT535] [HT845]
≥1kshort cable: For center speaker
≥2klong cables: For surround speakers
[HT885]
≥1kshort cable: For center speaker
SUBWOOFER
3
ACTIVE
Connecting speakers with the subwoofer
Sheet of speaker-cable stickers
Speaker-cable sticker
2 FRONT (R)
1 FRONT (L)
4 SURROUND (R)
3 SURROUND (L)
Click!
Positioning/Connecting speakers with the subwoofer
The illustration shows SC-HT535.
5 CENTER
Insert the wire fully.
Click!
[HT535]
White
Blue
[HT845]
[HT885]
Copper
Silver
[Note]
≥[HT845] [HT885] Even though the subwoofer shown is different, you can connect the speakers to the subwoofer in the same way.
≥Never short-circuit positive (i) and negative (j) speaker wires.
≥Be sure to connect only positive ([HT535]: white, [HT845] [HT885]: copper) wires to positive (i) terminals and negative ([HT535]: blue,
[HT845] [HT885]: silver) wires to negative (j) terminals. Incorrect connection can damage the speakers.
RQT8225
7
STEP
COMPONENT VIDEO OUT
S-V IDEO
OUT
VID EO
OUT
(PROGRES SIVE/INTERL ACE)
S-V IDEO
OUT
(PROGRES SIVE/INTERL ACE)
4
Video connections
≥Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed
properly.
≥Turn the television off before connecting, and refer to the
television’s operating instructions.
∫ Television with a VIDEO IN terminal
Video cable
∫
Television with COMPONENT VIDEO IN terminals
Video connections
Back of the
main unit
COMPONENT VIDEO OUT
(PROGRESSIVE/INTERLACE)
P
B
P
R
VIDEO
OUT
Y
S-VIDEO
OUT
Video cable
(included)
Television
(not included)
VIDEO IN
∫ Television with an S-VIDEO IN terminal
Back of the
main unit
COMPONENT VIDEO OUT
(PROGRESSIVE/INTERLACE)
P
B
Y
S-VIDEO
P
R
VIDEO
OUT
OUT
S-video cable
(not included)
S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal by separating the chrominance (C) and
luminance (Y) signals. (Actual results depend on the television.)
Television
(not included)
S-VIDEO
IN
∫ Television with SCART terminal
Back of the
main unit
COMPONENT VIDEO OUT
(PROGRESSIVE/INTERLACE)
P
B
P
R
VIDEO
OUT
Y
S-VIDEO
Video cables
(not included)
OUT
Television
(not included)
COMPONENT
VIDEO IN
Y
PB
PR
COMPONENT VIDEO OUT terminals
These terminals can be used for either interlace or progressive
output and provide a purer picture than the S-VIDEO OUT
terminal. Connection using these terminals outputs the color
difference signals (P
B/PR) and luminance signal (Y) separately in
order to achieve high fidelity in reproducing colors.
≥The description of the component video input terminals depends
on the television or monitor (e.g. Y/P
B/PR, Y/B-Y/R-Y, Y/CB/CR).
Connect to terminals of the same color.
≥When making this connection, select “Video/YPbPr” or “S-Video/
YPbPr” from QUICK SETUP (➜ page 10). If “RGB/No Output” is
selected, the RGB signal is output from the SCART (AV) terminal,
but no signal is output from the component video output
terminals.
To enjoy progressive video
≥Connect to the component video input terminals on a 625p
or 525p compatible television. (Video will not be displayed
correctly if connected to an incompatible television.)
≥Panasonic televisions with 625 (576)/50i·50p, 525 (480)/
60i·60p input terminals are progressive compatible. Consult
the manufacturer if you have another brand of television.
RQT8225
Back of the
main unit
AV
Television
(not included)
AV
Scart cable
(not included)
SCART (AV) terminal
To improve picture quality, you can change the video signal output
from the SCART (AV) terminal from “Video” to either “S-Video” or
“RGB” to suit the type of television you are using. Select “S-Video/
YPbPr” or “RGB/No Output” from QUICK SETUP (➜ page 10).
8
STEP
TV
AUDIO
IN
VCR
AUDIO
IN
FM ANT
AM ANT
(75
LOO P
EXT
COMPONENT VIDEO OUT
(PROGRESSIV
E/IN
TERLACE)
S-VIDEO
OUT
VIDEO
OUT
5
Radio and system connections
System cable AM loop antenna
FM indoor antenna
≥Connect the AC mains lead after all other connections are complete.
≥Optional antenna connections (➜ page 23).
The illustration shows SC-HT535.
FM indoor antenna
Affix this end of the antenna where
reception is best.
Adhesive tape
AM loop antenna
Stand the antenna up on its base.
Place the antenna where reception
is best.
Keep loose antenna cable away
from other wires and cables.
Click!
Main unit
COMPONENT VIDEO OUT
(PROGRESSIV
E/IN
FM ANT
(75
≠
)
A
AM ANT
LOOP
EXT
L
R
TV
VCR
AUDIO
AUDIO
IN
IN
P
B
1
P
R
TERLACE)
VIDEO
OUT
Y
S-VIDEO
OUT
AC mains lead
Active subwoofer
Radio and system connections/The remote control
Catch up
To disconnect
Press the catch
and pull out.
2
AC mains lead
Catch up
To disconnect
System cable
Press the catch and pull out.
To household mains socket
Conserving power
The main unit consumes a small amount of power, even when it is turned off (approx. 0.7 W). To save power when the unit is not to be used
for a long time, unplug it from the household mains socket.
You will need to reset some memory items after plugging in the unit.
[Note]
The included AC mains lead is for use with this unit only. Do not use it with other equipment.
STEP
6
The remote control
Do not:
Remote control Batteries
Insert so the poles (i and j) match those in the
2
remote control.
3
≥mix old and new batteries.
≥use different types at the same time.
≥heat or expose to flame.
≥take apart or short circuit.
≥attempt to recharge alkaline or manganese batteries.
≥use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
∫ Use
Aim at the remote control signal sensor (➜ page 10), avoiding
obstacles, at a maximum range of 7 m directly in front of the unit.
R6/LR6, AA, UM-3
1
≥Do not use
rechargeable type
batteries.
RQT8225
9
STEP
ACIN
7
QUICK SETUP
The QUICK SETUP screen assists you to make necessary settings.
Turn on the television and select the appropriate video input on the television.
1 2 3 4 5 6
QUICK SETUP/Control reference guide
RQT8225
10
SETUP
MUTING
ENTER
Follow the messages and
make the settings.
Turn on
the unit.
DVD /CD
Select
“DVD/CD”.
SHIFT
Show the QUICK
SETUP screen.
To change these settings later
Select “QUICK SETUP” in the “Others” tab (➜ page 21).

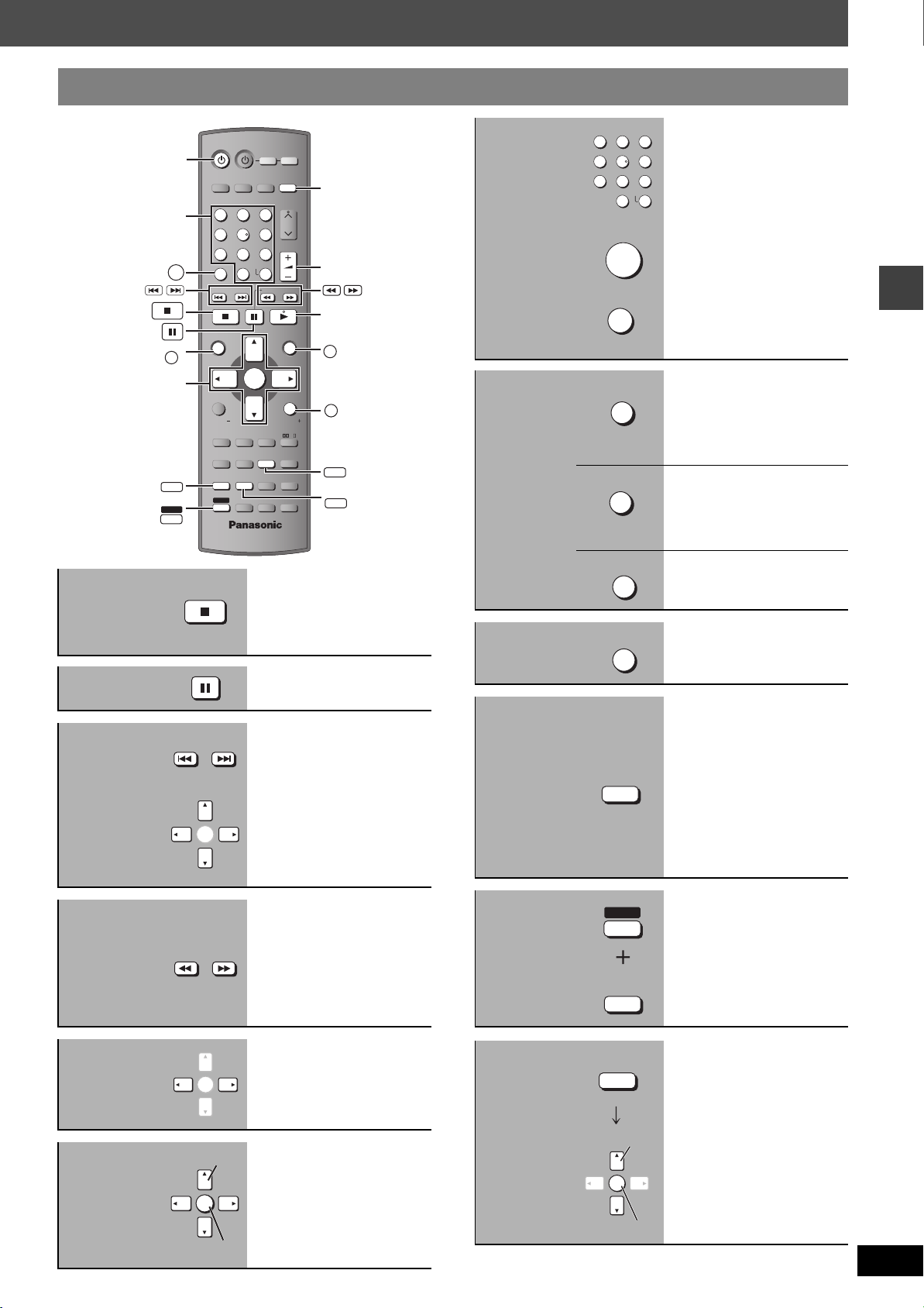

Control reference guide
See reference pages in brackets.
[HT845]
[HT885]
Select television channels and disc’s title
numbers etc./Enter numbers (13)
Select or register menu items on the
television screen, Frame-by-frame (13)
To use functions labeled in orange:
press the corresponding button.
Standby/on indicator
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when
the unit is turned on.
Standby/on switch [Í/I]
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power. (12)
Select the source
AUX (27)
Sleep timer (28)
TV/AV
AUX
AV SYSTEM
SLEEP
Switch the television’s video
input mode (27)
Cancel (13)
Show a disc top menu (16) or
program list (17)
Show on-screen menu (18),
12
45
7
CANCEL
SKIP
TOP MENU
DIRECT
NAVIGATOR
FUNCTIONS
Display RDS text data (23)
or television volume down (27)
[HT845] [HT885]
Sleep timer (28)
SLEEP
QUICK OSD
(14)
SUBWOOFER
SUPER SRND
LEVEL
MANUAL SKIP
QUICK OSD
ANGLE/PAGE
FL DISPLAY REPEAT
SHIFT
DISC REVIEW
While pressing [SHIFT],
INPUT SELECTOR (22)
DVD/CD#FM#AM#TV#VCR#
AUX ([HT845] [HT885])#Return to DVD/CD
INPUT SELECTOR PROGRESSIVE
H.BASS
RDS
PROGRESSIVE
Enjoy progressive video (12)
RDS
Display RDS text data (23)
H.BASS
Turn the bass sound enhancement on/off (25)
H.BASS indicator ([HT845] [HT885])
TV/AV
8
0
ENTER
H.BASS
ZOOM
GROUP
ADVANCED
TV
TUNER/BAND
3
6
9
-/--
S10
SLOW/SEARCH
C.FOCUS
SFC
SUBTITLE
AUDIO
PLAY SPEED
QUICK REPLAY
VCR
DVD/CD
CH
VOLUME
MENU
PLAY
LIST
RETURN
TV VOLTV VOL
MIX 2CH
PL
SETUP
MUTING
PLAY MODE
TEST
CH SELECT
∫/TUNE MODE
Stop playing (12)/
Select the tuning mode (22)
;/FM MODE
Pause (12)/Adjust the FM reception
condition (22)
1/MEMORY
Play discs (12)/Memorize the
receiving radio stations (22)
Select
RETURN
ENTER
Register
Press to finish
QUICK SETUP.
The illustrations show SC-HT535.
Turn the unit on/off (10)
Television and Video cassette recorder
operations (27)
Select the source
TUNER/BAND (22), DVD/CD (10)
Channel select (22, 27)
Adjust the volume (13)
Basic operations for play (12, 13)
Show a disc menu (16) or play list (17)
Return to previous screen (13) or
television volume up (27)
SUBWOOFER
SUPER SRND
LEVEL
(25)
QUICK OSD
H.BASS
(24, 25)
MANUAL SKIP
(14)(14)
ANGLE/PAGE
FL DISPLAY REPEAT
(13) (
GROUP
13, 15
ADVANCED
DISC REVIEW
(14) (25)
ZOOM
C.FOCUS
SFC
(24) (24)
SUBTITLE
AUDI O
(14, 15)
)
15
(
PLAY SPEED
QUICK REPLAY
(14, 15)
<OPEN/CLOSE
Open/Close the disc tray (12)
4, 5/X TUNING W
Skipping or slow-search play (12)/
Select the radio stations (22)
OPENCLOSE
TUNE MODE FM MODE MEMORY
TUNING
DOWN
)
MIX 2CH
PL
SETUP
MUTING
(20, 28)
PLAY MODE
(15)
TEST
CH SELECT
VOLUME
PHONES
UP
SHIFT
SETUP
MUTING
Press to exit.
ACIN
AC supply indicator [AC IN]
This indicator lights when the
unit is connected to the AC
mains supply.
Remote control
signal sensor
PHONES
Connect headphones
(28)
VOLUME
Turn up/down the
volume (12)
Discs that can be played
Indication in
Disc Logo
DVD-RAM
DVD-Audio
DVD-Video
these operating
instructions
[RAM]
[JPEG]
[MPEG4]
§1
[DivX]
[DVD-A] —
[DVD-V]
Remarks
Recorded with devices using Version 1.1 of the Video Recording Format (a
unified video recording standard), such as DVD video recorders, DVD video
cameras, personal computers, etc.
Recorded
video recorders
File system) Standard Version 1.0.
Recorded with Panasonic SD multi cameras or DVD
video recorders [conforming to SD VIDEO
specifications (ASF standard)/MPEG4 (Simple Profile)
video system/G.726 audio system].
—
Some DVD-Audio discs contain DVD-Video content.
To play DVD-Video content, select “Play as DVD-Video” in Other Menu
(➜ page 19).
—
with Panasonic SD multi cameras or DVD
using the DCF (Design rule for Camera
≥To play JPEG,
MPEG4 or DivX video
contents, select “Play
as Data Disc” in Other
Menu (➜ page 19).
Discs that can be played
DVD-R
(DVD-Video)/
[DVD-V]
Discs recorded and finalized
§2
on DVD video recorders or DVD video cameras.
DVD-RW
(DVD-Video)
iR (Video)/
iRW (Video)
DVD-R
(DivX Video)/
DVD-RW
—
§1
[DivX]
Discs recorded and finalized§2 on DVD video recorders or DVD video cameras.
§2
Finalize
the disc after recording.
(DivX Video)
DVD-RW
(DVD-VR)
[DVD-RW[‹VR›]
Discs recorded and finalized
using Version 1.1 of the Video Recording Format (a unified video recording
standard).
§2
on DVD video recorders or DVD video cameras
—
Video CD
[VCD]
Conforming to IEC62107
SVCD
This unit is compatible with HDCD, but does not support the Peak Extend
CD [CD]
function (a function which expands the dynamic range of high level signals).
HDCD-encoded CD’s sound better because they are encoded with 20 bits, as
compared with 16 bits for all other CD’s.
[WMA]
[MP3]
CD-R
CD-RW
—
[JPEG]
[CD]
[MPEG4]
[DivX]
§1
[VCD]
§1
Created using DivX ver.3.11, 4.x, 5.x [DivX video system/MP3, Dolby Digital or MPEG audio system].
§2
A process that allows play on compatible equipment.
≥This unit can play CD-R/RW (audio recording disc) recorded with the formats
on the left. Close the sessions or finalize
§2
the disc after recording.
≥HighMAT discs
WMA, MP3 or JPEG files only.
To play without using the HighMAT function, select “Play as Data Disc” in Other
Menu (➜ page 19).
≥[WMA] This unit does not support Multiple Bit Rate (MBR: a file that contains the
same content encoded at several different bit rates).
≥It may not be possible to play the above discs in all cases due to the type of discs, the condition of the recording, the recording method and how
the files were created (➜ page 17, Tips for making data discs).
∫ Discs that cannot be played
Version 1.0 of DVD-RW, DVD-ROM, CD-ROM, CDV, CD-G, SACD
and Photo CD, DVD-RAM that cannot be removed from their
cartridge, 2.6-GB and 5.2-GB DVD-RAM and “Chaoji VCD” available
on the market including CVD, DVCD and SVCD that do not conform
to IEC62107.
∫ Audio format of DVD’s
This unit automatically recognizes
and decodes discs with these
symbols.
∫ Video systems
– This unit can play PAL and NTSC, but your television must match
the system used on the disc.
– PAL discs cannot be correctly viewed on an NTSC television.
– This unit can convert NTSC signals to PAL 60 for viewing on a PAL
television (➜ page 21, “NTSC Disc Output” in “Video” tab).
RQT8225
11
Loading...
