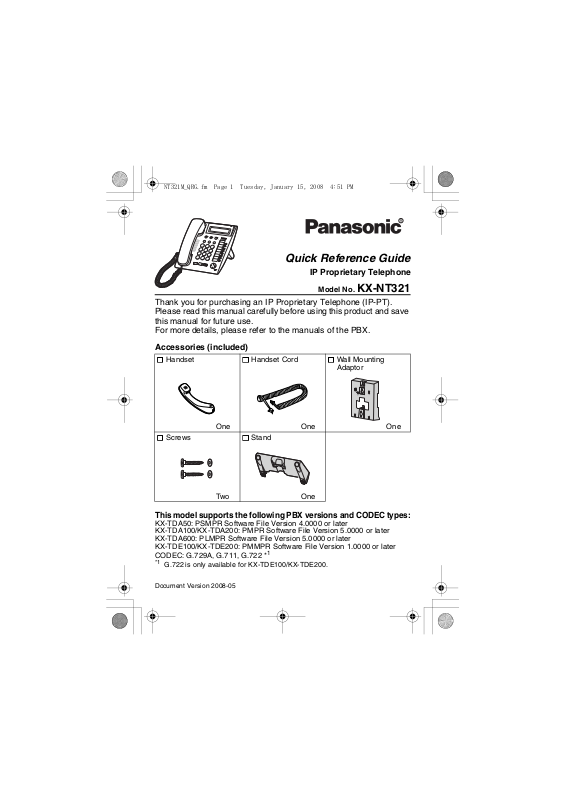

Quick Reference Guide
IP Proprietary Telephone
Model No. KX-NT321
Thank you for purchasing an IP Proprietary Telephone (IP-PT). Please read this manual carefully before using this product and save this manual for future use. For more details, please refer to the manuals of the PBX.
Accessories (included)
Handset Handset Cord Wall Mounting
One One One
Screws Stand
Tw o O ne
This model supports the following PBX versions and CODEC types:
CODEC: G.729A, G.711, G.722 *
*1
G.722 is only available for KX-TDE100/KX-TDE200.
1
Adaptor
Document Version 2008-05
Page 2
Location of Controls
Location of Controls
A
B
C
D
E F
G
H
P
O
N
IKLMJ
2 Document Version 2008-05
Page 3
A LCD (Liquid Crystal
Display)
B AUTO DIAL/STORE: Used
for System/Personal Speed Dialing or storing program changes.
C AUTO ANS (Auto Answer)/
MUTE: Used to receive an
incoming call in hands-free mode or mute the microphone/handset during a conversation.
D INTERCOM: Us ed t o make or
receive intercom calls.
E MESSAGE: Used to leave a
message waiting indication or call back the party who left the message waiting indication.
F REDIAL: Used to redial the
last dialed number.
G TRANSFER: Used to transfer
a call to another party.
H Headset Jack I FLASH/RECALL: Used to
disconnect the current call and make another call without hanging up.
Location of Controls
J HOLD: Used to place a call
on hold.
K SP-PHONE
(Speakerphone): Used for
performing hands-free operations.
L Navigator Key: Used to
adjust the volume and the display contrast or select desired items.
M Microphone: Used for
hands-free conversations.
N Flexible CO Buttons: Used
to seize a CO line or perform a feature that has been assigned to the key.
O PROGRAM: Used to enter
and exit the personal programming mode.
P Message/Ringer Lamp:
When you receive an intercom call, the lamp flashes green, and on an outside call, the lamp flashes red. When someone has left you a message, the lamp stays on red.
3Document Version 2008-05
Page 4
Settings
OROR
(CO)
INTERCOM
Press 2 times.
STORE
AUTO DIAL
PROGRAM
PROGRAM
*2
Settings
Speaker volume
Handset/Headset
*1
volume
Ringer volume While on-hook or receiving a call
LCD Contrast
While on-hook
PROGRAM
Ring Tone
LCD Backlight
While on-hook
While in a hands-free conversation
While using the handset or headset
AUTO DIAL
STORE
AUTO DIAL
Press Up to increase or Down to decrease the volume.
PROGRAM
STORE
PROGRAM
AUTO DIAL
STORE
*1
If you hear your own voice through the handset or headset, decrease the volume.
*2
The ring tone pattern of patterns 09 to 30 is the same as pattern 01.
4 Document Version 2008-05
AUTO DIAL
STORE
PROGRAM
Automatic
Always ON
Always OFF
Page 5
Features List
(CO)
C. Tone
Features List
Icon Meanings
= Flexible CO button = Off-hook = On-hook
= Feature number = Talk = Confirmation Tone
Making Calls
Calling
To an extension To an outside party
(CO)
outside phone no.
AUTO DIAL
STORE
PROGRAM
To sto r e
PROGRAM
To dia l
extension no.
REDIAL
quick dial no.
(CO)
(One-touch
Dialing)
Redial
Quick Dialing
One-touch Dialing
desired no.*
(max. 32 digits)
* Enter CO line access number
before outside phone number.
assigned as a One-touch Dialing button
5Document Version 2008-05
Page 6
Features List
personal speed dial no. (2 digits)
STORE
AUTO DIAL
To sto r e
To dia l
To dia l
AUTO DIAL
STORE
Personal Speed Dialing
personal speed
dial no. (2 digits)
desired no.*
(max. 32 digits)
* Enter CO line access number
before outside phone number.
System Speed Dialing
system speed dial no. (3 digits)
Doorphone Call
C. Tone
doorphone no. (2 digits)
C. Tone
During a Conversation
Call Hold
To hold To retrieve a call at the holding extension
HOLD
C. Tone
To retrieve an outside call from another extension
(CO)
Call Transfer
TRANSFER
C. Tone
6 Document Version 2008-05
extension no.
phone no.
(CO)
(CO)
To an extension
outside
INTERCOM
/
To an outside party
Page 7
Features List
desired
phone no.
Talk to the new party.
Talk with multiple parties.
C. Tone
C. Tone
assigned as a Conference
button
assigned as a Conference
button
(Conference)
(Conference)
assigned as a Conference
button
(Conference)
C. Tone
Useful Features
Multiple Party Conversation
To add other parties during a conversation (i.e., conference)
To leave a conference
Setting the Telephone According to Your Needs
Do Not Disturb
Both Calls
Outside Calls
Intercom Calls
Timed Reminder
To set
12 H
hour/minute
(4 digits)
24 H
hour/minute
(4 digits)
1 time
daily
C. Tone
To cancel To stop or answer the ring back
C. Tone
Set
Cancel
AM
PM
INTERCOM
/
C. Tone
7Document Version 2008-05
Page 8
Features List
Before Leaving Your Desk
Both Calls
Outside Calls
Intercom Calls
Call Forwarding
All calls
Busy
No answer Busy/
No answer
Cancel
extension no.
CO line access no.
OR
outside phone no.
Making Use of the Voice Mail Service
Listening to a message
From your own extension
VPS extension no.
Mailbox Password*
* If you have no password, you can skip
the last step.
From someone else’s extension
VPS extension no.
mailbox no.
Mailbox Password*
* If you have no password, you can skip
the last step.
KX-TVA series
KX-TVS series
C. Tone
Listen to Message
Deliver Message
Mailbox Management
Automated Attendant
Message Notification
Other Features
End Call
Listen to Message
Deliver Message
Check Mailbox Distribution
Automated Attendant
Mailbox Management
Other Features
End Call
8 Document Version 2008-05
Page 9
Features List
Leaving a message
VPS extension no.
From your own extension
Mailbox Password*
From someone else’s extension
mailbox no.
* If you have no password, you can skip the last step.
Enter the desired mailbox number
To send the message immediately
(KX-TVA series) (KX-TVS series)
To set the delivery time
Repeat Voice Guidance
Exit
Consult your dealer or the network administrator for more details regarding feature numbers.
It is possible to assign flexible CO buttons as feature buttons.
Control panel/button names and descriptions can be found in “Location of
Controls” on page 2.
Mailbox Password*
During playback
Leave a message
Follow the guidance
9Document Version 2008-05
Page 10
Connection
Connection
<Back view>
Headset
Recommended: KX-TCA86, KX-TCA92 Do not use a KX-T7090 headset.
For extra orders for the accessories, call toll-free: 1-800-332-5368
PC connection
Use a straight CAT 5 (or higher) Ethernet cable (not included) that is 6.5 mm (1/4 in) in diameter or less.
For further information on the connection to a PC, refer to the documentation provided for the PBX.
Switching Hub connection
Use a straight CAT 5 (or higher) Ethernet cable (not included) that is 6.5 mm (1/4 in) in diameter or less.
AC adaptor
Use a Panasonic AC adaptor KX-A239 (PQLV206).
The AC adaptor is used as the main disconnect device. Ensure that the
AC outlet is located near the unit and is easily accessible.
To a Switching Hub. To a PC.
Optional AC adaptor (not included).
Clamp
AC adaptor
CAUTION:
When connecting cables
Ensure that the Ethernet cables and the AC adaptor cord are clamped to prevent damage to the connectors.
Cables may be routed either upwards or downwards by using the appropriate cable clamp located on the back of the unit.
When connecting a headset and AC adaptor
Ensure that the headset cord and the AC adaptor cord are wound around the hook to prevent damage to the connectors.
10 Document Version 2008-05
Page 11
Stand Usage
Stand Usage
Attaching the Stand
Place the catches (A) of the stand into hooks located in the unit. Gently push the stand in the direction indicated until it locks into place. The stand will be mounted in the high position.
A
Removing the Stand
Hold the stand with both hands. Gently rotate the stand in the direction indicated until it is released.
Cabling
When using the stand, ensure that the cables are clamped as shown.
11Document Version 2008-05
Page 12
Stand Usage
Adjusting from High to Low Position
Hold the stand with both hands as shown and gently push the stand in the direction indicated until it locks into the low position (B).
Adjusting from Low to High Position
Hold the stand with both hands as shown and gently pull the stand in the direction indicated until it locks into the high position (A).
A
12 Document Version 2008-05
Page 13
Wall Mounting
Washer
Drive the screw to this point.
Wall Mounting
1.
Remove the stand if it is attached. For information on removing the stand, refer to page 11.
2.Attach the wall mounting adaptor as shown.
Make sure the cables are not
pinched by the wall mounting adaptor. When running the cables from the top of the unit, look through the opening in the wall mounting adaptor to confirm that the cables are not being pinched.
Slide the wall mounting adaptor in
the direction indicated until it locks into place.
3.Drive the 2 screws into the wall either 83 mm (3-1/4 in) or 100 mm (3-15/16 in) apart, and mount the unit on the wall.
You can find a wall mounting
template on page 19.
Make sure that the wall that the
unit will be attached to is strong enough to support the unit (approx. 1.5 kg [3.31 lb]).
Make sure the cables are securely
fastened to the wall.
When this unit is no longer in use,
make sure to detach it from the wall.
Locking the Handset Hook
Pull down the handset hook until it locks to prevent the handset from falling off the handset cradle when the unit is mounted to a wall or set at a high angle. To temporarily place the handset down during a conversation, hook it over the top edge of the unit as shown.
83 mm
(3-1/4 in)
100 mm
(3-15/16 in)
13Document Version 2008-05
Page 14
Important Information
Importan t Inform ation
When using a KX-NT321 IP-PT, keep the following conditions in mind.
If the unit does not operate properly, disconnect the unit from the
Ethernet cable and then connect again.
If you are having problems making calls, disconnect the Ethernet cable
and connect a known working IP-PT. If the known working IP-PT operates properly, have the defective IP-PT repaired by an authorized Panasonic factory service center. If the known working IP-PT does not operate properly, check the PBX and the Ethernet cable.
Wipe the unit with a soft cloth. Do not clean the unit with abrasive
powders or with chemical agents such as benzene or thinner.
Use only the correct Panasonic handset.
Do not disassemble this unit. Dangerous electrical shock could result.
The unit must only be disassembled and repaired by qualified service technicians.
If damage to the unit exposes any internal parts, immediately disconnect
the cable or cord. If the power is supplied from the network to the IP-PT [Power-over-Ethernet], disconnect the Ethernet cable. Otherwise, disconnect the AC adaptor cord. Then return this unit to a service center.
Never attempt to insert wires, pins, etc. into the vents or other holes of
this unit.
Take special care to follow the safety suggestions listed below. Safety
1) The unit should only be connected to a power supply of the type
described in the Quick Reference Guide or as shown on the label on the unit.
2) When left unused for a long period of time, the optional AC adaptor
should be unplugged from the AC outlet, if you are using Power-over­Ethernet, disconnect the Ethernet cable.
Installation
Environment
1) Do not use this unit near water, for example, near a bathtub, washbowl or sink. Damp basements should also be avoided.
2) Keep the unit away from heating appliances and devices that generate electrical noise, such as fluorescent lamps, motors and televisions. These noise sources can interfere with the performance of the unit. It also should not be placed in rooms where the temperature is less than 5 °C (41 °F) or greater than 40 °C (104 °F). Allow 10 cm (3-15/16 in) clearance around the unit for proper ventilation.
14 Document Version 2008-05
Page 15
Important Information
Placement
1) Do not place heavy objects on top of this unit.
2) Care should be taken so that objects do not fall onto, and liquids are not spilled into, the unit. Do not subject this unit to excessive smoke, dust, moisture, mechanical vibration, shock or direct sunlight.
3) Place the unit on a flat surface.
WARNING:
TO PREVENT POSSIBLE FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. THIS HANDSET EARPIECE IS MAGNETIZED AND MAY RETAIN SMALL FERROUS OBJECTS. DISCONNECT THIS UNIT FROM POWER OUTLET/THE ETHERNET CABLE IF IT EMITS SMOKE, AN ABNORMAL SMELL OR MAKES UNUSUAL NOISE. THESE CONDITIONS CAN CAUSE FIRE OR ELECTRIC SHOCK. CONFIRM THAT SMOKE HAS STOPPED AND CONTACT AN AUTHORIZED SERVICE CENTER.
IMPORTANT NOTICE:
Under power failure conditions, the IP-PT may not operate. Please ensure that a separate telephone, not dependent on local power, is available for use in remote sites in case of emergency.
For information regarding network setup of the IP-PT such as IP addresses, please refer to the Installation Manual for the Panasonic PBX.
If an error message is shown on your display, consult your dealer or the network administrator.
The firmware of the KX-NT321 is protected by copyright laws and international treaty provisions, and all other applicable laws. It cannot be reverse engineered, decompiled or disassembled.
When you ship the product:
Carefully pack and send it prepaid, adequately insured and preferably in the original carton. Attach a postage-paid letter, detailing the symptom to the outside of the carton. DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.
Product service:
Panasonic factory service centers for this product are listed in the service center directory. Consult your authorized Panasonic dealer for detailed instructions.
15Document Version 2008-05
Page 16
Important Information
Important Safety Instructions
When using this unit, basic safety precautions, including those below, should always be followed to reduce the risk of fire, electric shock and injury to persons.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the AC outlet before cleaning. Do not use liquid or
aerosol cleaners. Clean with a damp cloth.
4. Do not use the unit near water, for example, near a bathtub, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
5. Place this unit on a flat surface. Serious damage and/or injury may result if the unit falls.
6. The unit should never be placed near or over a radiator or other heat source.
7. This unit should be operated only from the type of power source indicated on the unit label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the cord may be stepped on or tripped on.
9. To reduce the risk of fire or electric shock, do not overload AC outlets and extension cords.
10.Do not insert objects of any kind into this unit through openings, as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the unit.
11.To reduce the risk of electric shock, do not disassemble this unit. Only qualified personnel should service this unit. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock.
12.Unplug this unit from the AC outlet and have the unit serviced by qualified service personnel in the following cases:
A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled on the unit. C. If the unit has been exposed to rain or water. D. If the unit does not work normally by following the manual. Adjust only
controls covered by the manual. Improper adjustment may require repair by an authorized service center.
E. If the unit has been dropped, or damaged. F. If the unit’s performance deteriorates.
13.Avoid using a telephone (other than a cordless type) during an electrical
storm. There is a remote risk of electric shock from lightning.
14.Do not use the telephone in the vicinity of a gas leak to report the leak.
SAVE THESE INSTRUCTIONS
16 Document Version 2008-05
Page 17
Important Information
FCC Information
F.C.C. REQUIREMENTS AND RELEVANT INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued compliance with FCC rules, do not make any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device. When programming emergency numbers and/or making test calls to emergency numbers:
1) Remain on the line and briefly explain to the dispatcher the reason for the call before hanging up.
2) Perform such activities in the off peak hours, such as early morning hours or late evenings.
FCC Declaration of Conformity
Trade Name: Panasonic Model Number: KX-NT321 Responsible Party: Panasonic Corporation of North America
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
One Panasonic Way Secaucus, NJ 07094 U.S.A. Telephone No.: 1-800-211-PANA (7262)
17Document Version 2008-05
Page 18
Important Information
Customer Information
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of the cabinet of this equipment is a label that contains, among other information, the following product identifier:
US: ACJKXNANKX-NT321
If requested, this number must be provided to the telephone company.
If trouble is experienced with this equipment KX-NT321, for repair or warranty information, please contact:
Panasonic Service and Technology Company-BTS Center 415 Horizon Drive Bldg. 300 Ste. 350-B Suwanee, GA 30024-3186
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Hearing Aid Compatibility:
This telephone provides magnetic coupling for hearing aids.
18 Document Version 2008-05
Page 19
Wall Mounting Template
Wall Mounting Template
WALL MOUNTING TEMPLATE
1. Drive the screws into the wall as indicated.
2. Hook the unit onto the screw heads.
Note:
Make sure to set the print size to correspond with the size of this page. If the dimensions of the paper output still deviate slightly from the measurements indicated here, use the measurements indicated here.
One screw here
83 mm (3-1/4 in)
for base unit
100 mm (3-15/16 in)
One screw at either point
19Document Version 2008-05
Page 20
Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park Ave. 65 de Infantería, Km. 9.5 Carolina, Puerto Rico 00985
http://www.panasonic.com/csd
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
© 2008 Panasonic Communications Co., Ltd. All Rights Reserved.
PSQX4664ZA-UU KK0508YH0 (M) (Ver 0.02)
Loading...
