Panasonic CS-MK180AKH, CS-MK120AKH, CU-4MK260AKH, CS-MK90AKH User Manual

Room Air Conditioner
OPERATING INSTRUCTIONS
Indoor
Model CS-MK90AKH
CS-MK120AKH CS-MK180AKH
Outdoor
Model CU-4MK260AKH
Before using your air-conditioner, please read this operating instructions carefully and keep it for future reference.
ENGLISH/  ····························P1 – P32
CONTENTS
READ BEFORE OPERATION
Safety Precautions ........................................................ 2
Names of Parts
Indoor unit ............................................................ 4
Outdoor unit, Remote controller ........................... 5

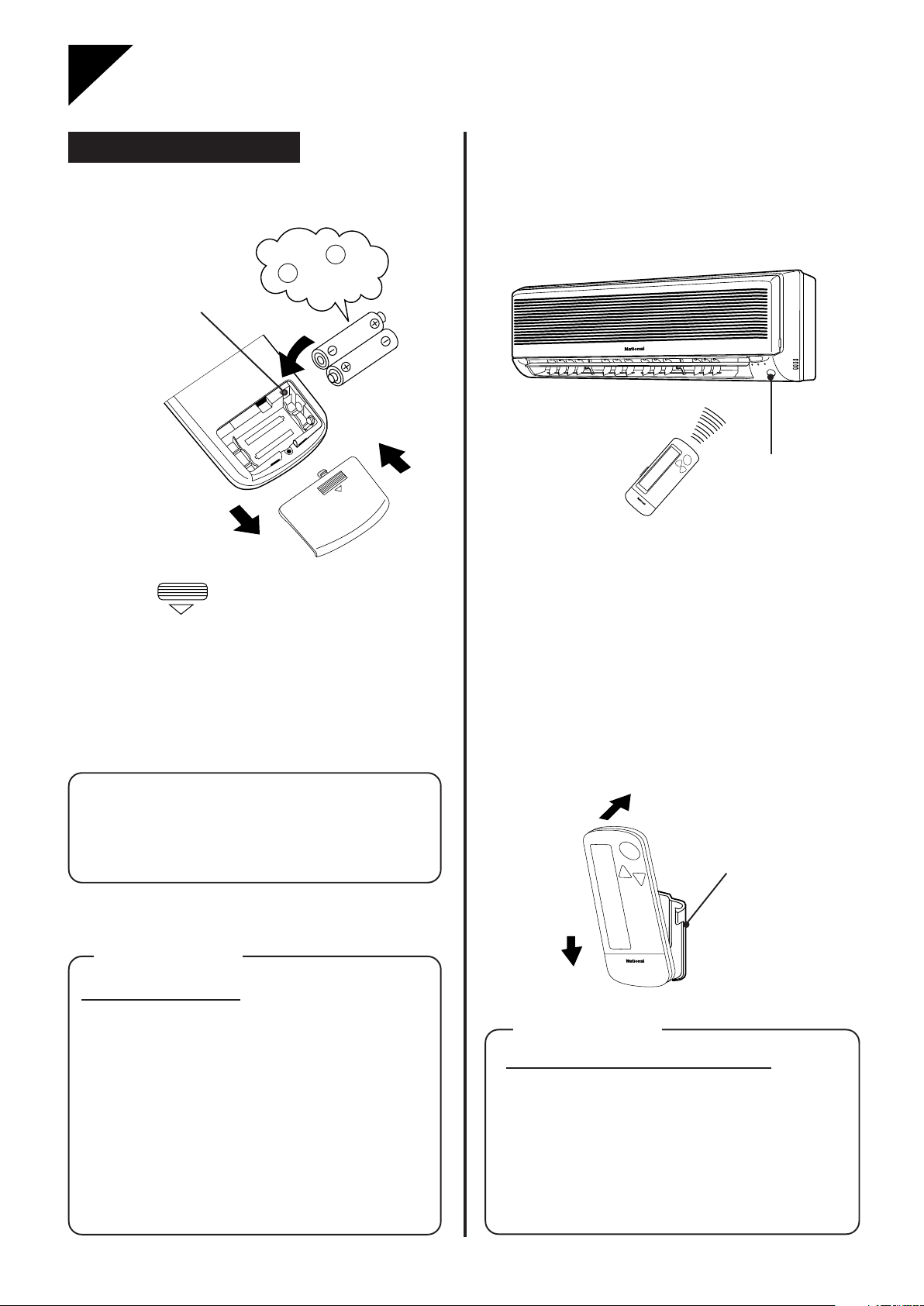

Preparation Before Operation
Remote controller ................................................. 6
Indoor unit ............................................................ 7
OPERATION
DRY • COOL • FAN Operation ...................................... 8
POWERFUL Operation ................................................. 8
Adjusting the Air Flow Direction
Adjusting the horizontal blade
(flap) ................................................................... 9
Adjusting the louvre.............................................. 9
Timer Operation
OFF TIMER operation ........................................ 10
ON TIMER operation .......................................... 10
CARE

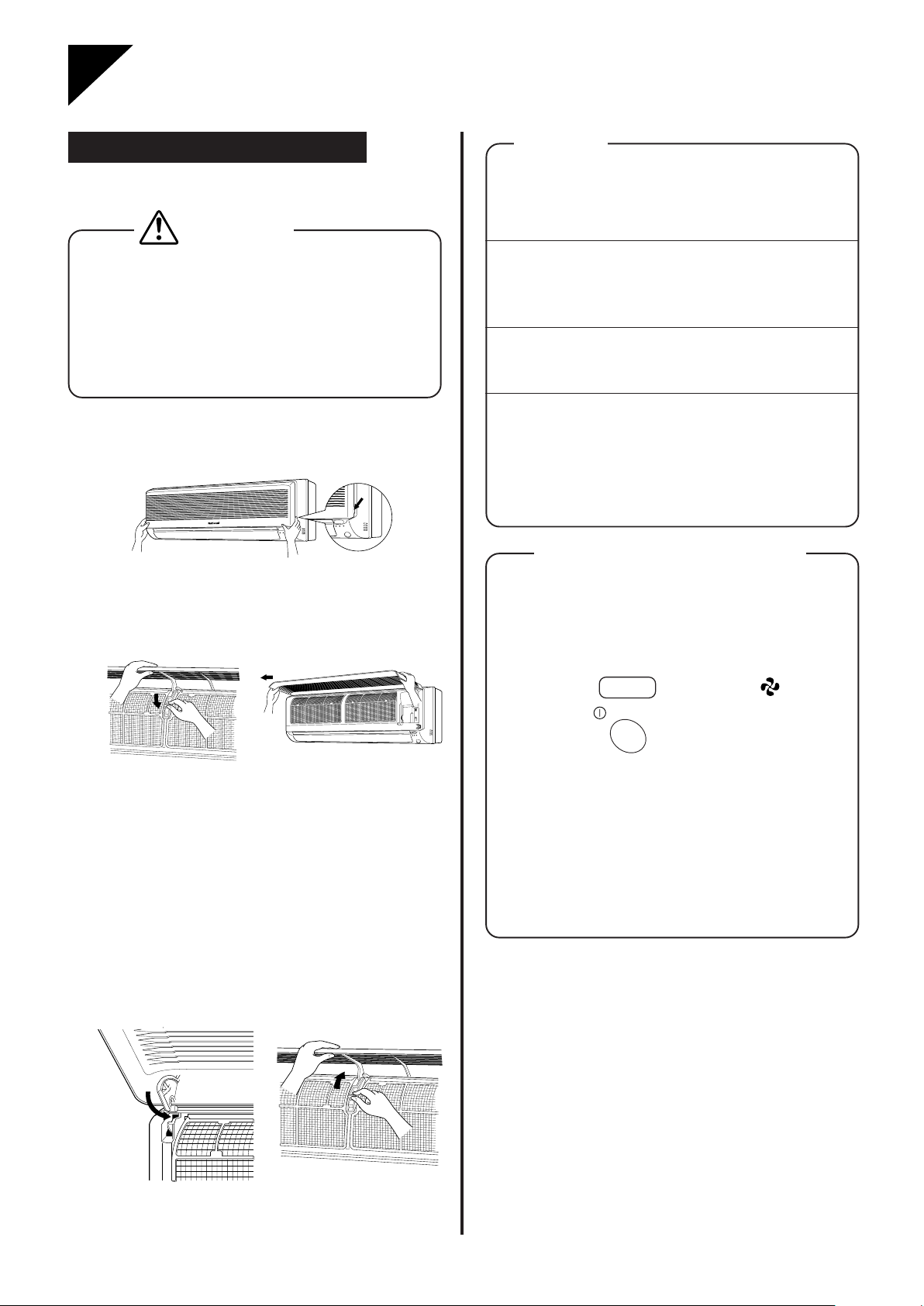

Care and Cleaning
Cleaning the air filters ........................................ 11
Replacing air purifying filters .............................. 11
Cleaning the front grille ...................................... 12
Check ................................................................. 12
Before a long idle period .................................... 12
TROUBLE SHOOTING
Trouble Shooting
These cases are not troubles ............................. 13
Check again ....................................................... 14
Call the service shop immediately ..................... 15
1
Safety Precautions
Read the following warnings and cautions carefully before operating the system and use it correctly.
This manual classifies the precautions to the user into two categories on the right. Be sure to follow all as they are all important to ensure safety.
After reading this manual, keep it in a place easily accessible to the user for future reference.
WARNING
Do not attempt to extend the power cord by joining it to another cord, or by using an extension cord. Do not put any other loads on the power supply socket.
Failure to follow this will cause electric shocks, abnormal heating or fire.
Do not put a finger, a rod or other objects into the air outlet or inlet.
As the fan is rotating at a high speed, it will cause injury.
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself.
Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult the shop where you bought the air conditioner.
Do not damage or attempt to modify the power cord. Do not use the cord in a damaged state or tied in a bundle.
Applying a heavy weight, heat or tension on the power cord will damage it, causing electric shocks or fire.
If anything abnormal such as a burning smell occurs, stop the opera­tion immediately and turn the breaker OFF.
Continued abnormal op­eration will cause troubles, electric shocks, fire etc. If anything is abnormal, consult the shop where you bought the air conditioner.
Failure to follow a warning is very likely
WARNING
CAUTION
If the air conditioner is not cooling or heating properly, the refrigerant may be leaking, so see the dealer where the unit was purchased. Check with a qualified repairman before attempting any repairs, which might accom­pany addition of refrigerant.
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame, such as fan heaters, kerosene heaters, or gas ranges, as this may result noxious substances being generated.
to result in such grave consequences as death or serious injury.
Failure to follow a caution may result in serious injury or property damage, and in certain conditions, may result in a grave consequence.
Do not expose your body to the cool air for a long time; do not cool the room too much.
It will affect your physical conditions and cause health problems.
Do not use the air conditioner for preservation purposes.
Do not use it for preserving precision instruments, foods, plants, animals, works of fine arts etc. Performance or quality may deteriorate and animal or plant life may be shorter.
Before cleaning, be sure to stop the operation and turn the breaker OFF.
As a fan is rotating at a high speed, cleaning during operation may cause injury.
Do not place under the indoor or outdoor unit anything which must be kept away from moisture.
Indoor unit: condense and drip in certain conditions.
Outdoor unit: during cooling opera­tion, condensation may drip from the piping connections.
Do not place a vessel containing water on the unit.
Water may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
moisture in the air may
CAUTION
Do not operate the air conditioner with a wet hand.
It may cause an electric shock.
After a long use, check the unit stand and fittings for damage.
The unit may drop and cause injury if damage is left unrepaired.
Do not wash the unit with water.
It may cause an electric shock.
Do not place a burning appliance in places exposed to the air flow from the unit or under the indoor unit.
It may cause incomplete combustion or deformation of the unit from heat.
Do not connect the air conditioner to a power supply different from the specification.
It may cause troublers or fire.
Ventilate the room from time to time.
Be careful especially when using a burning appliance in the same room. Insufficient ventilation may cause shortage of oxygen.
Do not stand or sit on the outdoor unit. Do not place any object on the unit.
The object or the person may fall down or drop, causing injury.
Do not expose plants or animals directly to the air flow.
It may cause adverse effects on the plant or the animal.
Do not allow children to mount on the outdoor unit or avoid placing any object on it.
Falling or tumbling may result in injury.
Do not block air inlets nor outlets.
Impaired air flow may result in insufficient performance or troubles.
2
Installation
WARNING
Do not attempt to install the air conditioner by yourself.
Consult the service shop or a qualified technician.
Incorrect work will result in water leakage, electric shocks or fire. For installation, consult the service shop where you bought the unit or a qualified technician.
CAUTION
The air conditioner must be earthed.
Incomplete earthing may result in electric shocks. Do not connect the earth line to a gas pipe,
Depending on the environment, an earth leakage breaker must be installed.
Lack of an earth leakage breaker may result in
electric shocks. water pipe, lightening rod, or a telephone earth line.
Do not install the air conditioner in places where flammable gas may leak.
If leaked gas should accumulate near the unit, fire may occur.
Arrange the drain hose to ensure smooth
drainage.
Incomplete drainage may cause wetting of the
building, furniture etc.
Installation site
To install the air conditioner in the following types of environments, consult the shop.
Places with an oily ambient or where steam or soot occurs.Salty environment such as coastal areas.Places where sulfide gas occurs such as hot springs.Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
A place with good ventilation
Wall
Air outlet
For efficient operation, take as large
spaces around the unit as site allows.
Air inlet
To prevent inter­ference, place it at least 1 m away.
Consider nuisance to your neighbours from noises.
For installation, choose a place as described below.
A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.A place from where the air discharged from the outdoor unit or the operation noise will not annoy your neighbours.
Electrical work
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
System relocation
Relocating the air conditioner requires specialized knowledge and skills. Please consult the shop where you bought the air
conditioner if relocation is necessary for moving or remodeling.
3
FILTERPOWER TIMER
OFF/ON
Names of Parts
Indoor unit
Air purifying filter
Air purifying filters are attached to the inside of the air filters.
Air filter
Louvre (vertical blades)
The louvre is inside of the air outlet. (See page 9 Adjusting the Air
Flow Direction”.)
Flap (horizontal blade)
(See page 9 Adjusting the Air Flow Direction”.)
Air inlet
Air outlet
Front grille
Grille tab
Diffuser
Indicator lamps
Operation lamp (green)
TIMER lamp (yellow)
(See page 10 “Timer Operation.)
Cleaning lamp (red)
Lights up when the air filters need cleaning. (See page 11 Care and Cleaning.)
Opening the front grille
How to open the front grille: (See page 11 “Care and Cleaning”.)
CAUTION
Before opening the front grille, be sure to stop the operation and turn the breaker OFF. If the power is on, the fan may rotate inside and may cause injury.
Room temperature sensor:
senses the air temperature around the unit.
ON/OFF switch
Push this switch once to start operation. Push once
again to stop it.
This switch is useful when the remote controller is
missing.
• The operation mode refers to the following table.
Mode Temperature setting Air flow rate
COOL 22°CAUTO
Receiver:
receives signals from the remote
controller.
When the unit receives a signal,
you will hear a short beep.
Control panel
Cleaning lamp reset button
Push this button to
turn the CLEANING lamp off.
In the case of multi system operation, there are
times when the unit does not activate with this button. (See page 8. )
4
Names of Parts
Outdoor unit
Air outlet
Appearance of the outdoor unit may differ with some models.
Remote controller
<CS-MK90/120>
Display
Open the cover.
displays the current settings. (In this illustration, each section is shown with all its displays ON for the purpose of explanation. Some models may not show all its indications.)
OFF TIMER button
Air inlet
(Back and side)
Transmitter
sends signals to the indoor unit.
OFF/ON
ON
C
AMPM
AMPM
TIME
OFF-TIMER
ON-TIMER
TEMP
CLOCK
CANCEL
Refrigerant piping and inter-unit cable
Drain hose
Earth terminal
It is inside of this part.
ON/OFF button
Press it once to start operation. To stop it, press it once again.
TEMPERATURE/TIME adjustment buttons
change the temperature or time setting.
CLOCK button
(See page 7 "Preparation Before Operation
- Setting the Clock)
ON TIMER button
(See page 10 "Timer Operation")
MODE selector button
selects the operation mode.
: DRY
: COOL
: FAN
<CS-MK180>
FAN SPEED
MODE
SWING
POWERFUL
ARC417A24
MODE
SWING
POWERFUL
TIMER CANCEL button
cancels the timer setting.
FAN setting button
selects the air flow rate setting.
SWING button
(See page 9 "Adjusting the Air Flow Direction")
POWERFULL button
(See page 8 "POWERFUL Operation")
SWING button
(See page 9 "Adjusting the Air Flow Direction")
ARC417A25
5
