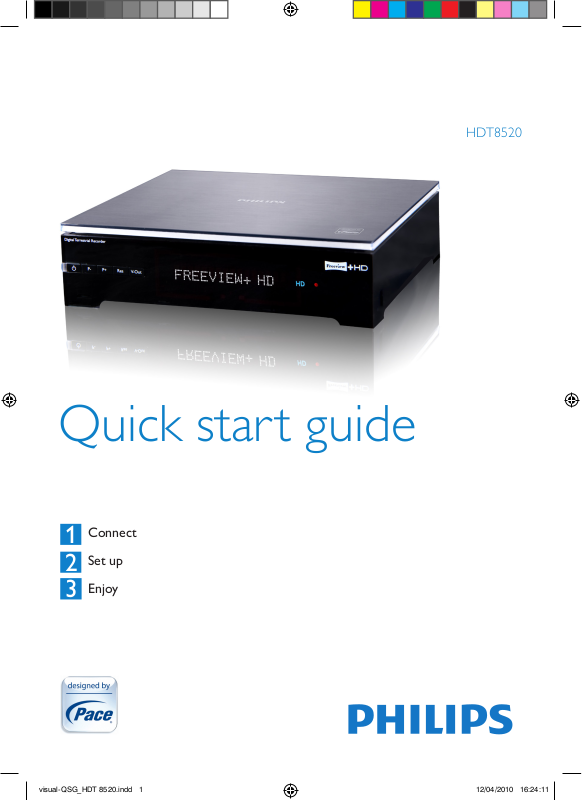

Quick start guide
HDT8520
Connect
1
Set up
2
Enjoy
3
visual-QSG_HDT 8520.indd 1 12/04/2010 16:24:11
What’s in the box
TEXT RADIO EXIT
MENU
GUIDE OPTIONS
AD
DIGITAL RECORDER
BACKINFO
LIB
HDD
High Denition Digital Terrestrial Recorder
Quick Start Guide
RF cable
User Manual
Power Adaptor
What you also need
Re-tune yer
Mains lead
Remote control
2 AAA batteries
Freeview yer
HDMI cable
Signal source
Television Power outlet
Antenna and wall socket
visual-QSG_HDT 8520.indd 2 12/04/2010 16:24:13
Connect
Connect antenna to Digital
Terrestrial Recorder
A B
• Disconnect the existing antenna cable
from your TV
• Connect it to ANTENNA IN of your
Digital Terrestrial Recorder
Connect TV and Digital Terrestrial
Recorder to the mains
C
Connect Digital Terrestrial
Recorder to TV
• Connect the supplied HDMI cable
to HDMI output of your Digital
Terrestrial Recorder to the HDMI
input of your TV
.
• Connect TV to the mains
• Connect Digital Terrestrial Recorder
to the mains
visual-QSG_HDT 8520.indd 3 12/04/2010 16:24:15
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
MENU
HDD
LIB
Install
Insert batteries in
A B C
remote control
Turn on TV
Press down the circle on the
cover. Slide it downwards. Fit the
batteries into the remote control
Start Installation
D
• Press the Green key
Use the remote control
to go through the menu
• Select an item by
pressing▲or▼
• Conrm with Green key
TEXT RADIO EXIT
MENU
GUIDE OPTIONS
• Antenna powering: Off is the recommended setting
• Press the Green key
BACKINFO
LIB
HDD
AD
DIGITAL RECORDER
Wait for Installation
menu on TV screen
Select the correct A/V
source on your TV if needed
(Consult your TV manual)
4:3
4:3
16:9
Widescreen
• Select your TV shape
• Press the Green key
visual-QSG_HDT 8520.indd 4 12/04/2010 16:24:19
> A bar displays the search progress.
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
MENU
HDD
LIB
AD
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
DIGITAL RECORDER
MENU
HDD
LIB
AD
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
MENU
HDD
LIB
Use the remote control to
go through the menu
• Select an item by
pressing▲or▼
• Conrm with OK or
Green key
TEXT RADIO EXIT
MENU
GUIDE OPTIONS
BACKINFO
LIB
HDD
AD
DIGITAL RECORDER
• Use Green key
• Use numerical keys
TEXT RADIO EXIT
MENU
GUIDE OPTIONS
BACKINFO
LIB
HDD
AD
DIGITAL RECORDER
• Select the Network if several
networks have been found
• Press the Green key
> A new bar displays the search
progress.
When the search is complete, a
screen displays the number of
TV and radio channels that your
Digital Terrestrial Recorder has
found.
• Press the Green key
• Enter Post code and press OK
• Enter new PIN code (default
value is 0000) with conrmation
• Press the Green key
visual-QSG_HDT 8520.indd 5 12/04/2010 16:24:25
TEXT RADIO EXIT
GUIDE OPTIONS
MENU
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
MENU
HDD
LIB
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
MENU
HDD
LIB
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
DIGITAL RECORDER
MENU
HDD
LIB
AD
Enjoy
Standby / Wake up
Adjusting Volume
• Press VOL+/ VOL- on the remote
control to increase / decrease the
volume
• Press to mute or restore the sound
Changing channels
• Press the P+/P-
• Press BACK for last channel
recall
• Press numerical keys
or
or
or
Use channel list
visual-QSG_HDT 8520.indd 6 12/04/2010 16:24:27
Press OK to display the current
channel list.
Press to display all the available
channel and favourite lists.
Use / to highlight the channel
or favourite list that you want to use.
Press or OK to conrm.
Using the channel banner
Press INFO.
Use / to see what programmes are
showing on other channels.
Press OK to watch the desired
programme.
To be continued
TEXT RADIO EXIT
TEXT RADIO EXIT
GUIDE OPTIONS
MENU
TEXT RADIO EXIT
GUIDE OPTIONS
BACKINFO
DIGITAL RECORDER
MENU
HDD
LIB
AD
GUIDE OPTIONS
AD
MENU
Scheduling recordings
Press GUIDE to open the TV
guide.
Use / / / to highlight the
programme you want to record.
Press OK.
BACKINFO
Press OK again to conrm.
> The programme is highlighted in red in
LIB
HDD
the TV guide.
DIGITAL RECORDER
Watching recorded programmes
Press LIB HDD.
Use / to highlight the desired
Note
Consult www.philips.com/support
for the sofware update of your Digital
Terrestrial recorder.
visual-QSG_HDT 8520.indd 7 12/04/2010 16:24:31
recording.
Press play or OK.
Pausing live TV
Press pauseK
Press play to start playback,
Press stopLto stop playback and
return to live TV.
