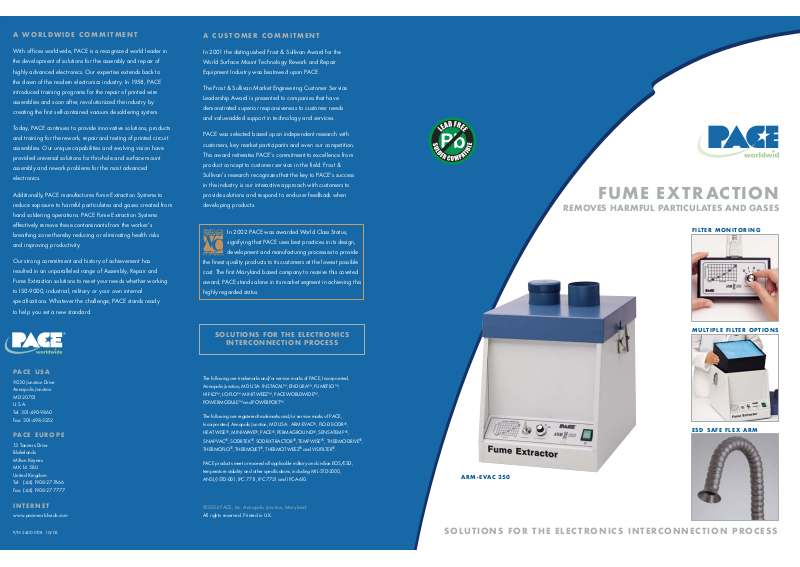

SOLUTIONS FOR THE ELECTRONICS INTERCONNECTION PROCESS
ARM-EVAC 250
FUME EXTRACTION
REMOVES HARMFUL PARTICULATES AND GASES
FILTER MONITORING
MULTIPLE FILTER OPTIONS
ESD SAFE FLEX ARM
PACE USA
9030 Junction Drive
Annapolis Junction
MD 20701
U.S.A.
Tel: 301-490-9860
Fax: 301-498-3252
PACE EUROPE
13 Tanners Drive
Blakelands
Milton Keynes
MK 14 5BU
United Kingdom
Tel: (44) 1908-277666
Fax: (44) 1908-277777
INTERNET
ww w.paceworldwide.com
The following are trademarks and/or service marks of PACE, Incorporated,
Annapolis Junction, MD USA: INSTACAL™, ENDURA™, FUMEFLO™,
HI-FLO™, LO-FLO™ MINITWEEZ™, PACEWORLDWIDE™,
POWERMODULE™ and POWERPORT™.
The following are registered trademarks and/or service marks of PACE,
Incorporated, Annapolis Junction, MD USA: ARM-EVAC
®
, FLO-D-SODR®,
HEATWISE®, MINI-WAVE®, PACE®, PERMAGROUND®, SENSATEMP®,
SNAP-VAC®, SODRTEK®, SODR-X-TRACTOR®, TEMPWISE®, THERMO-DRIVE®,
THERMOFLO®, THERMOJET®, THERMOTWEEZ®and VISIFILTER®.
PACE products meet or exceed all applicable military and civilian EOS/ESD,
temperature stabilit y and other specifications, including MIL -STD-2000,
ANSI/J-STD-001, IPC 7711, IPC 7721 and IPC-A-610.
©2004 PACE, Inc. Annapolis Junction, Maryland
All rights reserved. Printed in UK.
P/N 5400-0103 10/05
SOLUTIONS FOR THE ELECTRONICS
INTERCONNECTION PROCESS
A WORLDWIDE COMMITMENT
With offices worldwide, PACE is a recognized world leader in
the development of solutions for the assembly and repair of
highly advanced electronics. Our expertise extends back to
the dawn of the modern electronics industry. In 1958, PACE
introduced training programs for the repair of printed wire
assemblies and soon after, revolutionized the industry by
creating the first self-contained vacuum desoldering system.
Today, PACE continues to provide innovative solutions, products
and training for the rework, repair and testing of printed circuit
assemblies. Our unique capabilities and evolving vision have
provided universal solutions for thru-hole and surface mount
assembly and rework problems for the most advanced
electronics.
Additionally, PACE manufactures Fume Extraction Systems to
reduce exposure to harmful particulates and gases created from
hand soldering operations. PACE Fume Extraction Systems
effectively remove these contaminants from the worker’s
breathing zone thereby reducing or eliminating health risks
and improving productivity.
Our strong commitment and history of achievement has
resulted in an unparalleled range of Assembly, Repair and
Fume Extraction solutions to meet your needs whether working
to IS0-9000, industrial, military or your own internal
specifications. Whatever the challenge, PACE stands ready
to help you set a new standard.
A CUSTOMER COMMITMENT
In 2001 the distinguished Frost & Sullivan Award for the
World Surface Mount Technology Rework and Repair
Equipment Industry was bestowed upon PACE.
The Frost & Sullivan Market Engineering Customer Service
Leadership Award is presented to companies that have
demonstrated superior responsiveness to customer needs
and value-added support in technology and services.
PACE was selected based upon independent research with
customers, key market participants and even our competition.
This award reiterates PACE’s commitment to excellence from
product concept to customer service in the field. Frost &
Sullivan’s research recognizes that the key to PACE’s success
in the industry is our interactive approach with customers to
provide solutions and respond to end-user feedback when
developing products.
In 2002 PACE was awarded World Class Status,
signifying that PACE uses best practices in its design,
development and manufacturing processes to provide
the finest quality products to its customers at the lowest possible
cost. The first Maryland based company to receive this coveted
award, PACE stands alone in its market segment in achieving this
highly regarded status.
PACE FUME EXTRACTION SYSTEMS
WHY IS FUME EXTRACTION NEEDED?
It's a fact... hazardous fumes in the working environment result in increased absenteeism, employee turnover, worker's
compensation claims and lost productivity. Medical research has confirmed an increased incidence of occupational
asthma, chronic bronchitis, allergic reactions, contact dermatitis and other health related effects associated with exposure
to flux fumes. The substances in flux fumes are regulated by international health and safet y agencies and many have
been designated as Occupational Sensitizers which means that exposure should be eliminated or reduced to as low
levels as possible. Where manual soldering is being performed or where solder-pots/fountains are utilized, hazardous
fumes are produced and workers need to be protected from them.
FACT: EXPOSURE TO SOLDER FUMES LEADS TO RESPIRATORY ILLNESS
FACT: MATERIAL SAFETY DATA SHEETS FOR FLUXES RECOMMEND
THE USE OF LOCAL EXHAUST VENTILATION SYSTEMS
The Health effects caused by exposure to flux fumes tend to be forms of respiratory illness and contact dermatitis. However, since the
components of flux fume are of ten designated as occupational sensitizers, chronic or prolonged exposure increases the severity of
health effects. PACE Fume Extraction is a key element in protecting workers from being exposed to flux fume!
www.paceworldwide.com
PACE FUME EXTRACTION SYSTEMS
0.0001 0.001 0.01 0.1 1
PARTICLE SIZE IN MICRONS
10 100
GAS
MOLECULES
PARTICULATE INHALATION RANGE
SOLDER/FLUX FUME
TOBACCO SMOKE
CARBON BLACK
POLLENS
INSECTICIDE DUST
BACTERIA
COAL DUST
SOURCE:
STANFORD RESEARCH
INSTITUTE, CALIFORNIA
When rosin-based or rosin-containing fluxes are heated,
a substance called colophony is produced, which is one
of the major causes of occupational asthma. In order to
reduce exposure to colophony, rosin-based fluxes have
been exchanged for no-clean or synthetic fluxes that
contain no rosin or very low percentages. While this
reduces or eliminates exposure to colophony, new
chemical irritants may be introduced into the work place,
many of which pose a more substantial threat to workers.
Over 95% of the total fume products from rosin-based
fluxes are in the form of particulates. Chemical exposure
from flux fume varies widely and is dependent on the
chemical composition of the flux. Non-rosin or low-rosin
fluxes use chemically aggressive substances such as
acids, solvents, or alcohols in place of rosin to improve
the cleaning action of the flux. This is also true for
Lead Free solders.
Exposure to these substances is also recognized as
hazardous and when flux is heated, the resultant
chemical by-products can be even more hazardous.
Additionally, the use of cleaners, solvents or adhesives,
which are common in electronic soldering applications,
expose workers to chemical hazards. The human body
has been designed with defense mechanisms such as
nasal passageways lined with mucus that will collect
larger particles through a process known as impaction
and ciliated breathing passageways to remove foreign
substances from the main airways of the lungs. Flux
fumes contain high levels of respirable particles (less
than 3.5 microns in diameter similar in size to cigarette
smoke), that can bypass these natural defense
mechanisms and deposit themselves in the gas-exchange
region of the lungs, thereby posing the greatest exposure
hazard.
PACE FUME EXTRACTION SYSTEMS
As the full solution provider in the electronics industry, PACE has set the standards for over 15 years by leading
technology development for fume extraction equipment specifically designed to meet the requirements of the electronics
industry and by educating the industry on the effects of exposure and how to protect workers.
PACE offers Fume Extraction Systems that feature the latest advancements in filter condition monitoring and process
control as well as cost effective solutions that incorporate many of our best features. A variety of collection accessories
are available that offer highly effective source capture or wide area extraction to meet virtually any application.
Each system is composed of rugged steel construction and includes a heavy-duty, brushless motor for years of troublefree service. Convenient, disposable filter cartridges are easily changed, eliminating the need for messy cleaning and
costly service visits.
THE BENEFITS OF PACE FUME EXTRACTION
1. Fumes are pulled away from the primary solderer.
2. As flux fumes are removed at their source, secondary exposure of other operators is eliminated.
3. Assemblies and the work area are kept clean from flux fume contamination.
4. Filtered air is recirculated back into the work environment instead of being vented to the outside.
Therefore, energy savings in the form of air conditioning and heating costs are realized.
5. Unfiltered air is not exhausted to the outside which may require costly environmental permits
and pollution control devices.
6. PACE Fume Extraction Systems offer the greatest flexibility as they are modular and can be easily
disassembled and reassembled in another location as manufacturing processes and layouts change.
TABLE OF CONTENTS
PAGE
3 Why is Fume Extraction needed
4 Arm-Evac 50 & FX-50
5 Arm-Evac 105/200
6 Arm-Evac 250/500
7 Fume Extractor Filters
8 ESD Flex-Arm & Metal Flex-Arms
9 Metal FumeFlo Table and Plenum
10 Arm-Evac Configuration Examples
11 Product Page
PART NUMBER 8885-1225
DIMENSIONS 182mm H x 287mm W x 368mm D (7.2” H x 11.3” W x 14.4” D)
WEIGHT 4.5kg (10 lbs)
DESCRIPTION Constructed of 18-Gauge steel and acoustical foam baffle liner.
Includes front locking casters.
PORTABLE FUME EXTRACTION SYSTEMS FOR 1 TO 4 WORKSTATIONS
ARM-EVAC 105/200
FUME EXTRACTION FOR THE BENCHTOP
www.paceworldwide.com
ARM-EVAC 50 & FX-50
The Arm-Evac 50 is a unique, portable, cost-effective, bench-top fume extractor that provides
wide area fume extraction or highly efficient source capture at two points using the optional
arm attachment. The Arm-Evac 50 features operator adjustable airflow, quiet operation and
a wide variety of filters to meet the needs of virtually any application.
SPECIFICATIONS ARM-EVAC 50
PART NUMBER 8889-0050
OPTIONAL ARM ATTACHMENT 8886-0055
POWER REQUIREMENTS 115 or 230 VAC, 50/60Hz
DIMENSIONS 250mm H x 330mm W x 315mm D (8.5” H x 13.0” W x 12.5” D)
WEIGHT 6 Kg (13 lbs)
NOISE LEVEL* 54 dBA
NUMBER OF INLETS One laminar flow, plenum inlet
FLOW RATE* Adjustable: 152 m3/h (90cfm) max with Plenum,
One Arm Adjustable: 84.5 m3/h (45cfm) max
Two Arms Adjustable: 50 m3/h (30 cfm) max per arm
SYSTEM OPTIONS Dual Arm Accessory
STANDARD PRIMARY FILTER General Purpose Filter
FILTRATION OPTIONS General Purpose Filter
Cleanroom Filter
Adhesive Filter
Economy Filter
ARM-EVAC 50
The FX-50 Fume Exhauster is designed to remove
solder/flux fumes from the operators breathing zone by
drawing harmful fumes through a carbon impregnated,
foam filter. The FX-50 features high airflow, quick and
easy filter change-out, pre-drilled holes for variable
mounting, three height adjustments and swivel action.
FX-50
Arm-Evac 50
Arm-Evac 50 with optional Dual Arm Attachment
Providing fume extraction to two wor tkstations
* Airflow and noise level are nominal numbers and will var y based on voltage
SPECIFICATIONS FX-50 FX-50E
PART NUMBER 8884-0920 8884-0925
POWER REQUIREMENTS 115 VAC, 60Hz 230 VAC, 50 Hz
DIMENSIONS 168mm H x 220mm W x 270mm D
(6.6” H x 8.7” W x 10.5” D)
WEIGHT 1.6 Kg (3.5 lbs)
NOISE LEVEL* 52 dBA
NUMBER OF INLETS One
FLOW RATE* 60 m3/h (35 cfm)
STANDARD FILTER Activated Carbon Impregnated Foam Filter
FX-50 Fume Exhauster
* Airflow and noise level are nominal numbers and will var y based on voltage
Mounted
beneath an
over-hanging
structure using
two mounting
screws
(not supplied)
Attaches
easily to
board holders
ARM-EVAC 200
ARM-EVAC 105
PART NUMBER 8888-0110 88 88 - 0105
POWER REQUIREMENTS 115 VAC, 60 Hz 230 VAC, 50 Hz
DIMENSIONS 362mm H x 290mm W x 290mm D (14.25” H x 11.5” x 11.5” D)
WEIGHT 11.5 Kg (25.3
lbs
)
NOISE LEVEL* 55 dBA
NUMBER OF INLETS Two 75mm (3”)
FLOW RATE*
GENERAL PURPOSE FILTER
Single Inlet: 220 m3/h (130 cfm); Dual Inlet: 118 m3/h (70 cfm) per inlet
CLEANROOM FILTER
Single Inlet: 187 m3/h (110 cfm); Dual Inlet: 105 m3/h (62 cfm) per inlet
# OF COLLECTION ACCESSORIES Two 75mm (3”)
MAXIMUM DUCT RUN 2.5m (8’) per inlet
STANDARD PRIMARY FILTER General Purpose Filter
FILTRATION OPTIONS General Purpose Filter, Cleanroom Filter, Adhesive Filter,
Extended Life Filter, Economy Filter
SPECIFICATIONS ARM-EVAC 105 ARM-EVAC 105E
* Airflow and noise level are nominal numbers and will var y based on voltage
PART NUMBER 8889-0205 8889-0200
POWER REQUIREMENTS 115 VAC, 60 Hz 230 VAC, 50 Hz
DIMENSIONS 393mm H x 282mm W x 365mm D (15.4” H x 11.1” x 14.3” D)
WEIGHT 13.75 Kg (30.25
lbs)
NOISE LEVEL* 58 dBA
NUMBER OF INLETS Two 75mm (3”)
FLOW RATE*
GENERAL PURPOSE FILTER
Single Inlet: 288 m3/h (170 cfm); Dual Inlet: 17 0 m3/h (100 cfm) per inlet
CLEANROOM FILTER
Single Inlet: 255 m3/h (150 cfm); Dual Inlet: 13 5 m3/h (80 cfm) per inlet
# OF COLLECTION ACCESSORIES Four 45mm (1.75”) or 50mm (2”) Two 75mm (3”)
MAXIMUM DUCT RUN 5m (16’) per inlet
SYSTEM OPTIONS Silencer/Mobile Cart
STANDARD PRIMARY FILTER General Purpose Filter
FILTRATION OPTIONS
General Purpose Filter, Cleanroom Filter, Adhesive Filter, Extended Life Filter, Economy Filter
SPECIFICATIONS ARM-EVAC 200 ARM-EVAC 200E
* Airflow and noise level are nominal numbers and will var y based on voltage
The best protection from harmful fumes in its price range. The Arm-Evac 105 is portable, compact and can be easily placed on or
under a workbench. The unit includes a brushless motor and the housing is made of heavy duty, 20-gauge steel. An inlet cap is
provided to seal the unused inlet if only one flex arm is used.
The Arm-Evac 200 is designed to meet the needs of light duty production as well as rework and repair operations. Lightweight and
compact, the Arm-Evac 200 installs in minutes. A wide variety of collection accessory options and filters are available. An optional
silencer/mobile cart is also available.
Arm-Evac 105
Arm-Evac 200
SPECIFICATIONS SILENCER/MOBILE CART FOR ARM-EVAC 200
Silencer/Mobile Cart for Arm-Evac 200
PACE’s Filtration Systems have been specifically designed for application in the
electronics industry. A wide variety of filtration options are available for use with
PACE Fume Extractors ensuring that you always have the right filter for the job.
Filtration systems for soldering applications are comprised of three filters. As fumes
are collected, they first encounter the Pre-Filter, which is a lower efficiency
particle filter that is used to protect the primary filter from large particles,
extending the life of the primary filter. Next is the Primary Particle Filter
which is a particulate filter with large surface area having efficiency ratings of
85% and higher. A variety of filtration efficiencies are available to suit your
needs. Lastly, a Gas Filter is included to eliminate any hazardous gases that
may be present.
PACE’s gas filters use high-grade activated carbon or they combine adsorptive
and chemisorptive technologies to maximize effectiveness. To fully understand
your gas filtration needs, always consult your Material Safety Data Sheet.
The Arm-Evac 50, 105, 200 & 250 use “Combo Filters” which means that the Primary and Gas filters are contained in one
filter cartridge. The Arm-Evac 500 uses separate Primary and Gas filters which need to be changed individually. Pre-filters
should be inspected at least weekly. When they become clogged, they should be replaced immediately to maximize primary
filter life.
MEET THE NEEDS OF VIRTUALLY ANY APPLICATION
FUME EXTRACTOR FILTERS
PORTABLE FUME EXTRACTION SYSTEMS FOR 1 TO 6 WORKSTATIONS
www.paceworldwide.com
ARM-EVAC 250/500
FILTER TYPE FILTER EFFICIENCY RATING RECOMMENDED APPLICATION
PRE-FILTERS 90% ARRESTANCE Recommended for use with all filtration systems.
EU 4
ECONOMY FILTERS N/A
Recommended for soldering applications where cost-effective
N/A solutions are required. Ideal for applications where coarse
dust is generated.
GENERAL PURPOSE FILTERS 85% Recommended for soldering applications where normal volumes
EU 8 of fumes are being generated for 1 or 2 shifts.
CLEANROOM FILTERS 99.99% Recommended for applications in Cleanroom environments
EU 13 or where the highest filtration efficiency is required.
HIGH CAPACITY FILTERS 85% Recommended for soldering applications where heavy volumes
EU 8 of fumes are generated or where operations are running 3 shifts
Filter contains additional filtration media and will last longer.
ADHESIVE FILTERS N/A Recommended for any bench-top application utilizing adhesives,
solvents, or cleaners used in small quantities and not in open
containers or “baths”.
PRE-FILTER HIGH CAPACIT Y ECONOMY GENERAL CLEANROOM HIGH CAPACITY CARBON ADHESIVE
PRE-FILTER FILTER PURPOSE FILTER FILTER FILTER FILTER FILTER
FX-50 N/A N/A 8883-0200-P5 N/A N/A N/A N/A N/A
ARM-EVAC 50 8883-0125-P5 N/A 8883-0300-P5 8883-0280 8883-0290 N/A N/A 8883-0295
ARM-EVAC 105 8883-0111-P5 8883-0938-P10* 8883-0871 8883-0901 8883-0921 8883-0936* N/A 8883-0951
ARM-EVAC 200
8883-0111-P5 8883-0938-P10* 8883-0871 8883-0931 8883-0921 8883-0936* N/A 8883-0951
ARM-EVAC 250
8883-0111-P5 8883-0938-P10* 8883-0871 8883-0931 8883-0921 8883-0936* N/A 8883-0951
ARM-EVAC 500 8883-0145-P10 N/A N/A 8883-0955 8883-0965 N/A 8883-0956 N/A
* High Capacit y Pre-Filters must be used in combination with a High Capacity Filter. When Filters need to be replaced, simply remove them from the Fume Ext ractor and replace with a new one. Disposal of filters should be done in compliance wit h local environmental regulations.
FILTER SELECTION CHART
100%
50%
00.11.0 1050
PARTICLE SIZE - (MICRONS)
EFFICIENCY
EU13
CLEANROOM
FILTER
EU8
GENERAL
PURPOSE FILTER/
HIGH CAPACITY
FILTER
EU4
PRE-FILTER
ARM-EVAC 250
PART NUMBER 8889-0255 8889-0250
POWER REQUIREMENTS 115 VAC, 60 Hz 230 VAC, 50 Hz
DIMENSIONS 393mm H x 282mm W x 365mm D (15.4” H x 11.1” x 14.3” D)
WEIGHT 14 Kg (31
lbs)
NOISE LEVEL* 58 dBA
NUMBER OF INLETS Two 75mm (3”)
FLOW RATE*
GENERAL PURPOSE FILTER
Single Inlet: 288 m3/h (170 cfm); Dual Inlet: 17 0 m3/h (100 cfm) per inlet
CLEANROOM FILTER
Single Inlet: 255 m3/h (150 cfm); Dual Inlet: 13 5 m3/h (80 cfm) per inlet
# OF COLLECTION ACCESSORIES Four 45mm (1.75”) or 50mm (2”) or Two 75mm (3”)
MAXIMUM DUCT RUN 5m (16’) per inlet
SYSTEM OPTIONS Silencer/Mobile Cart, Remote Control Box
STANDARD PRIMARY FILTER General Purpose Filter
FILTRATION OPTIONS
General Purpose Filter, Cleanroom Filter, Adhesive Filter, Extended Life Filter, Economy Filter
SPECIFICATIONS ARM-EVAC 250 ARM-EVAC 250E
* Airflow and noise level are nominal numbers and will var y based on voltage
The Arm-Evac 250 is ideal for heavy-duty operations that need high capacity and continuous particle filter monitoring. Incorporating
microprocessor technology, an easy-to-read graphical LED filter condition monitor changes from green to yellow to red as the filter
becomes clogged. Additionally, flow sensors increase power to the motor as filters become blocked to assure peak performance. The
filter monitoring system self calibrates using a key-switch on the front panel and an audible alarm alerts the operator when a filter change
is required. A three-position motor speed switch is also on the front panel. A wide variety of collection accessory options and filters are
available. An optional silencer/mobile cart and remote benchtop controller are available. See below.
Arm-Evac 250
ARM-EVAC 500
PART NUMBER 8889-0505 8889- 0500
POWER REQUIREMENTS 115 VAC, 60 Hz 230 VAC, 50 Hz
DIMENSIONS 640mm H x 400mm W x 500mm D (25” H x 15.75” x 19.5” D)
WEIGHT 28 Kg (62
lbs)
NOISE LEVEL* 61 dBA
NUMBER OF INLETS Three 75mm (3”)
FLOW RATE*
GENERAL PURPOSE FILTER
One Inlet: 451 m
3
/h (266 cfm);Two Inlets: 283 m3/h (167 cfm) per inlet;Three Inlets: 200 m3/h (119 cfm) per inlet
CLEANROOM FILTER One Inlet: 414 m
3
/h (244 cfm);Two Inlets: 236 m3/h (140 cfm) per inlet; ThreeInlets: 16 0 m3/h (94 cfm)per inlet
# OF COLLECTION ACCESSORIES
Six 45mm (1.75”) or 50mm (2”) or Three 75mm (3”)
MAXIMUM DUCT RUN 5m (16’) per inlet
SYSTEM OPTIONS Silencer/Mobile Cart, Remote Control Box
STANDARD PRIMARY FILTER General Purpose Filter
FILTRATION OPTIONS
General Purpose Filter, Cleanroom Filter, Adhesive Filter, Extended Life Filter, Economy Filter
SPECIFICATIONS ARM-EVAC 500 ARM-EVAC 500E
* Airflow and noise level are nominal numbers and will var y based on voltage
The Arm-Evac 500 is perfectly suited for high performance cellular manufacturing activities and provides fume extraction for up to 6
workstations. This unit boasts a high airflow motor pump with an effective three-stage filtration system. Incorporating microprocessor
technology, an easy-to-read graphical LED filter condition monitor changes from green to yellow to red as the filter becomes clogged.
The filter monitoring system self calibrates using a key-switch on the front panel and an audible alarm alerts the operator when a filter
change-out is required. A wide variety of collection accessory options and filters are available.
The following chart is a quick reference guide for PACE Filtration Systems. Simply select your fume extraction central filtration unit and the type
of filter you need to identify the part number of the filter.
(Bold part numbers indicates standard primary filter in Central Filtration Unit)
Arm-Evac 500
FILTER TYPES
PART NUMBER 8885-1225 8885-1255
WEIGHT 4.5 Kg (10 lbs) 6.0 Kg (13.2 lbs)
DESCRIPTION Constructed of 18-Gauge steel and acoustical foam baff le liner.
Arm-Evac 250 Silencer/Mobile Cart Includes front locking casters.
SPECIFICATIONS
SILENCER/MOBILE CART ARM-EVAC 250 SILENCER/MOBILE CART ARM-EVAC 500
PART NUMBER 8884-2250 8884-2260
DIMENSIONS 35mm H x 87mm W x 145mm D (1.4” H x 3.4” W x 5.7” D)
DESCRIPTION Includes LED filter condition monitor, on/off, three speed controller and remote cable
SPECIFICATIONS
BENCHTOP CONTROLLER ARM-EVAC 250
BENCHTOP CONTROLLER ARM-EVAC 500
Silencer/Mobile Cart for Arm-Evac 250/500
Benchtop Controller for Arm-Evac 250/500
ACCESSORIES & METAL FUMEFLO TABLE AND PLENUM
FUME EXTRACTION ACCESSORIES FUME EXTRACTION ACCESSORIES &
METAL FUMEFLO TABLE AND PLENUM
www.paceworldwide.com
ESD FLEX-ARM & METAL FLEX ARMS
METAL PLENUM
The Plenum is ideal for providing fume extraction to work spaces where soldering is being performed over a large area, such as at
several locations on a large PCB. At 455mm (18”) wide laminar airflow is supplied over the entire work area, protecting the
operator from exposure to harmful fumes. The Plenum also preserves bench-top space as it provides a sturdy shelf. The Plenum is
constructed from rugged 18 gauge steel, is static-safe and includes 2.5m (8’) of 75mm (3”) ESD Safe Flexible Hose for easy
connection to the Arm-Evac 105, 200, 250 or 500.
SPECIFICATIONS STATIC-SAFE METAL PLENUM
PART NUMBER 8886-0366
DIMENSIONS 130mm H x 460mm W x 130mm D (5” H x 18” W x 5” D)
WEIGHT 2.7Kg (6 lbs)
MATERIAL 18 gauge steel
INLET One 75mm (3”) inlet
Metal Plenum
METAL FUMEFLO WORKTABLE
The Metal FumeFlo Worktable is the newest innovation in fume collection devices. By combining laminar flow and downdraght
containment, the Metal FumeFlo Worktable offers the maximum level of protection from hazardous fumes. The Metal FumeFlo
Worktable is fitted with a heat resistant ESD safe work surface. The fumes are “pulled down” through the work surface or through
the Plenum and drawn into the Central Filter Unit, filtered and returned to the work environment. The Metal FumeFlo Worktable is
easy to install and relocate and preserves precious Benchtop space and is supplied with 2.5m (8’) of 75mm (3”) ESD Safe Flex Hose
for easy connection to the Arm-Evac 105, 200, 250 or 500.
SPECIFICATIONS METAL FUMEFLO WORKTABLE
PART NUMBER 8886-0220
DIMENSIONS 105mm H x 455mm W x 620mm D (4.1” H x 17.9” W x 24.4” D)
DOWNDRAUGHT AREA 410 x 310mm (16.1” x 12.2”)
PLENUM 95mm H x 450mm W (3.7”H x 17.7” W)
EQUIPMENT SHELF 450mm W x 190mm D (17.7” W x 7.5” D)
WEIGHT 4.8kg (10.7 lbs)
Metal FumeFlo Worktable
A. B. C.
ESD SAFE FLEX-ARM
The most versatile and economical collection accessory (includes round endpiece)
SPECIFICATIONS ESD SAFE FLEX-ARM
PART NUMBER 8886-0750
ESD RATING Surface Resistivity: 1.00E3 Ohm
Volume Resistivity: <6.00E2 Ohm-cm
LENGTH/DIAMETER 915mm (36”)/75mm (3”)
MOUNTING Directly onto Fume Extractor or uses optional Bench Mounting Bracket
STANDARD ENDPIECE Round
Optional Endpieces
A Round Endpiece for omni-directional fume collection
Part Number 8886-0792
B Collection Tube Endpiece for focused and pin-point fume collection
Part Number 8886-0794
C Cowl Endpiece for high volume laminar flow fume extraction
Part Number 8886-0793
Extension Tube for ESD Flex-Arm 305mm (12”) long
Part Number 8886-0790 (not shown)
ESD Safe Flex-Arm Quick-Mount Bench Mounting Bracket Kit
(Part Number 8886-0745) allows the ESD Safe Flex-Arm to be mounted virtually anywhere. Quick Mount clamp
allows for arm and bracket to be repositioned in seconds. Kit includes 25m (8’) of 75mm (3”) ESD Safe Flexible
Hose.
PACE Fume Extractor fit ted with 2 ESD Safe Flex-Arms
ESD Safe Flex-Arm Kit
(Part Number 8886-0765) contains everything needed to mount an ESD Safe Flex-Arm to a workbench. The Kit includes:
(1) ESD Safe Flex-Arm (Part Number 8886-0750), (1) Quick-mount Bench Mounting Bracket Kit (Part Number 8886-0745).
45mm (1.75”) STATIC-SAFE METAL FLEX-ARM 50mm (2”) STATIC-SAFE METAL FLEX-ARM
Conserves Benchtop space
Rugged stainless steel
construction, 0.9m (3’) long
Complete with unique Fume
Scoop endpiece and Bench
Mount Flange
P/N 8886-0429
Easy to move in and
out of position
High quality stainless steel
construction, 0.9m (3’) long
Variety of endpieces available
Includes Locking Adjustable
Airflow Controller & Bench
Mounting Flange
P/N 8886-0550
Optional Locking Adjustable Air
Flow Controller For 45mm
(1.75”) Metal Flex-Arm
P/N 8886-0509
Bench Mounting Bracket
for 45mm (1.75”) and
50mm (2”) Flex Arm
P/N 8886-0552
Static-Safe Fume Scoop for
50mm (2”) Metal Flex-Arm
P/N 8886-0530
Stainless Steel Static-Safe 100mm (4”)
Nozzle for 50mm (2”) Metal Flex-Arm
P/N 8886-0318
Stainless Steel Static-Safe
200mm (8”) Nozzle for 50mm
2”) Metal Flex Arm
P/N 8886-0328
50mm METAL FLEX-ARM ENDPICES
INSTALLATION TIPS
1. Metal Flex-Arms can be mounted directly to the
workbench by cutting a hole in the benchtop
or they can be mounted to the workbench by
using the optional Quick-Mount Bench Mounting
Bracket, part number 8886-0552.
2. To connect the Metal Flex-Arm to one 75mm (3”)
inlet on the fume extractor, part number 8886-0299,
(2.5m (8’) of ESD Safe Flexible Hose 75mm (3”)
diameter with 50mm (2”) reducer) is required.
3. To connect two Metal Flex-Arms to one 75mm (3”)
inlet on the fume extractor, part numbers 8886-0299,
(2.5m (8’) of ESD Safe Flexible Hose 75mm (3”)
diameter with 50mm (2”) reducer) & 8882-0692
Metal Flex-Arm Expansion Kit are required.
FUME EXTRACTION CONFIGURATION EXAMPLES
www.paceworldwide.com
ARM-EVAC SYSTEMS
ONE ARM-EVAC 105 OR ARM-EVAC 200 OR ARM-EVAC 250 PLUS LISTED ITEMS .
2 x 75mm (3”) ESD Safe
Flex-Arms (includes Round
Endpiece) 8886-0750
1 x Cowl Endpiece 8886-0793
2 x ESD Safe Flex-Arm Kits
(refer to page 8 for kit contents)
8886-0765
1 x Cowl Endpiece 8886-0793
2 x 50mm (2”) Metal Flex-Arms
8886-0550
1 x 50mm (2”) Fume Scoop 8886-0530
1 x 50mm (2”) Static-Safe 100mm (4”)
Nozzle 8886-0318
2 x Bench Mounting
Brackets 8886-0552
2 x 2.5m (8’) of 75mm (3”) Flex Hose
with 75 (3”) to 50mm (2”) Reducer
8886-0299
1 x 50mm (2”) Metal Flex-Arm
8886-0550. 1 x 50mm (2”)
Fume Scoop 8886-0530
1 x Bench Mounting Bracket
8886-0552
1 x 2.5m (8’) of 75mm (3”)
Flex Hose with 75mm (3”) to
50mm (2”) Reducer 8886-0299
1 x Metal Plenum 8886-0366,
includes 2.5m (8’) of 75mm (3”)
Flex Hose
2 x 45mm (1.75”) Metal
Flex-Arms 8886-0429
2 x Bench Mounting Brackets
8886-0552
2 x 2.5m (8’) of 75mm (3”) Flex
Hose with 75mm (3”) to 50mm
(2”) Reducer 8886-0299
1 x Arm-Evac 50 8889-0050
1 x Dual Arm Attachment 8886-0055
1. 2. 3.
4. 5. 6.
PRODUCT PAGE
PACE provides innovative solutions, products and training for the
assembly, rework, repair and testing of printed circuit boards. PACE’s
unique capabilities and evolving vision have provided universal
solutions to thru-hole and surface-mount assembly and rework
problems for the most advanced electronics. Our strong commitment
and history of achievement has resulted in an unparalleled range
of Assembly, Repair and Fume Extraction systems to meet your
company’s needs whether working to ISO-9000, industrial, militar y
or your own internal specifications. Whatever the challenge, PACE
stands ready to provide the best, cost-effective solution for you.
ST SYSTEMS ST 25 ST 45 ST 65 ST 115
MBT/PRC SYSTEMS MBT 350 PRC 2000
THERMOFLO SYSTEMS TF 1700 TF 2700 LS 3000 XR 3000
SODR-TEK SYSTEMS HEATWISE SENSATEMP PRE-HEATERS & FIXTURES CONVECTIVE SMT
PACE offers a broad range of
rework and repair products to
meet all your repair needs.
Whether you are replacing a
surface mount component,
repairing a multi-layer printed
circuit board, or making a
plated thru-hole repair.
PACE's family of ThermoFlo
products offer complete
solutions from simple surface
mount removal and
installation to delicate BGA
and CSP rework. PACE's new
inspection systems feature
X-Ray and endoscopic
technology to really "SEE"
the results of your processes.
Sodr-Tek systems are modular
and integrate with each other,
allowing technicians to
purchase only the tools required
for today without sacrificing the
needs of tomorrow. Sodr-Tek
products have been designed
to meet the changing needs of
today's service and benchtop
technicians.
HEATWISE/TEMPWISE HW 50 HW 100 TW 100 HW 200
This product line offers three
basic configurations:
production soldering, shop air
desoldering and fully selfcontained desoldering. Each
of these basic configurations
are available in either analog
or digital versions.
HeatWise and TempWise
systems feature a handpiece
possessing the latest in
ergonomic design and operator
comfort and use replaceable
tip/heater cartridge(s). The
ability to change per formance
level without having to change
tips results in significant cost
savings and inventory reduction.
For a complete product listing contact PACE or visit www.paceworldwide.com
SIMPLY SELECT AND CONNECT!
Loading...
