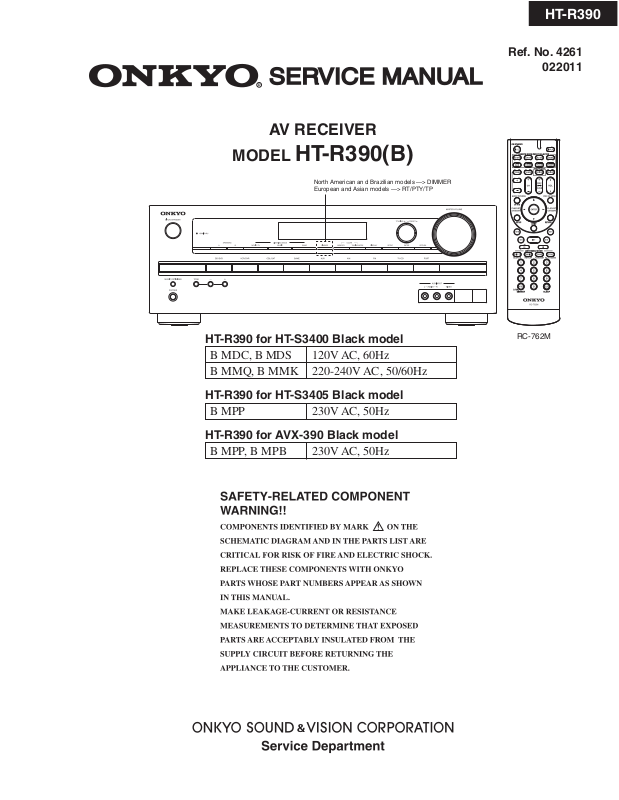

Onkyo HTR-390 Service Manual

AV RECEIVER

HT-R390

Ref. No. 4261

022011

MODEL

HT-R390 for HT-S3400 Black model

B MDC, B MDS
B MMQ, B MMK

HT-R390 for HT-S3405 Black model

HT-R390 for AVX-390 Black model

HT-R390(B)

North American an d Brazilian models ---> DIMMER
European and Asian models ---> RT/PTY/TP

120V AC, 60Hz
220-240V AC, 50/60Hz

230V AC, 50HzB MPP

230V AC, 50HzB MPP, B MPB

RC-762M

HT-R390

EXPLODED VIEWS-1

P901

A109

x 2 pcs.

A102

x 2 pcs.

MDS only

P907

A110

x 2 pcs.

P901B

MPP, MPB,
MMK, MMQ only

F901E

A103

x 5 pcs.

A056

A101

A111

A060

U0014

T901

F901

U0024

A105

x 23 pcs.

A112

L=40mm

P2001

A112

U010

A025

x 4 pcs.

A017

U0022

P8002

F6902

F6901

U0030

P2800

A055

A038

x 2 pcs.

U0011

A021

x 2 pcs.

A043

P101

A036

x 2 pcs.

A001

P8001

A040

A041

A112

L=20mm

A050

x 4 pcs.

U0010

A054

A112

MDC, MDS only

U0012

U0013

A032

A342

x 9 pcs.

A362

A036

x 2 pcs.

A030

MMQ only

A354

x 6 pcs.

A350

U0015

A112

A034

Refer to
EXPLODED VIEWS-2

A360

A340

A270

x 4 pcs.

A112

L=350mm

A042

x 2 pcs.

A019

A003

x 4 pcs.

A005

x 4 pcs.

A007

x 4 pcs.

A015

A011

A009

x 3 pcs.

A256

A364

x 2 pcs.

A040

A013

x 2 pcs.

A010

U0023

A040

HT-R390

EXPLODED VIEWS-2

HT-R390

U0016

A112

L=25mm

A273

x 2 pcs.

A060

U0021

A225

x 22 pcs.

A221

U0020

A216

A213

P701

A217

P703

A207

A112

L=70mm

A268

A112

L=40mm

A219

A201

A260

x 2 pcs.

A321

A214

A211

A260

x 2 pcs.

A255

x 3 pcs.

A214

A202

HT-R390

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEFGH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-1

BLOCK DIAGRAM
AUDIO SECTION PART-1

BADIS-0654 1/4

1

2

BAAF-0614 1/2

3

4

BAHDM-0678 1/1

OUT

IN3

IN2

IN1

5

(HT-R548 ONLY)

TV/CD

GAME

CBL/SAT

VCR/DVR OUT

VCR/DVR

DVD/BD

BAAF-0614 2/2

RI

COAX 1

OPT1

OPT2

AVD7623Q8101

HDMI Tx

HDMI Rx

DA808

DSP

(HT-R390 ONLY)
MINI JACK IN

TUNER PACK

HDMI (REPEATER)

TRANSCEIVER

HDMI_SPDIF

Q201

SPDIF

MIC AMPMIC

MIC DET

RI

INTERFACE

HDMI MCK
HDMI BCK
HDMI LRCK
HDMI FLR

SP to MiCOM

SPI

DIR BCK
DIR LRCK
DIR FLR
DIR MCK
DSP SBLR
DSP CSW

DSP SLR
DSP FLR
CX LRCK
CX SCLK

DATA+
DATA-

VBUS
USB EN VBUS

OVERCURRENT DET

(BL/BR)
(CT/SW)
(SL/SR)
(FL/FR)

TX-SR309/HT-R390/HT-R548/HT-RC330 BLOCK DIAGRAM-1 AUDIO Section ( PART-1 )

BADIS-0654 2/4

HEADPHONES

+6dB

+-

PCM1661

6ch DAC

23

24

21

20

17

18

11

12

9

8

15

14

5

6

3

2

(SBR)

FL

(FR)

FR

(FL)

CEN

SBL

(SR)

SBR

(SL)

SW

SL

SR

(SBL)

LPF

Q302

+6dB

+-

Subwoofer

AV=+15dB

LPF

POWER AMPLIFIER

+29dB

+29dB

+29dB

+29dB

+29dB

+29dB

Z2MUTE
RI

AMUT

SPRLCS

SPRLF

SPRLB_SPB

SPEAKER TERMINALS

FRONT LEFT

FRONT RIGHT

CENTER

SURR. LEFT

SURR. RIGHT

SUBWOOFER

(HT-R390 ONLY)

SPKR B

SPKR B

(TX-SR309/HT-R548/HT-RC-330ONLY)

SURR R
SURR L
ZONE2 R

ZONE2 L
U PORT R
U PORT L

UPORT

UNIVERSAL PORT

SW-PREOUT

UPORT OPTION UNIT

LEFT

RIGHT

BADIS-0654 4/4

+5V

DATA+
DATA-

USB

VBUS

YKF45-0029N

BADIS-0654 3/4

FLDCLK

FLDSDO

FRONT

SDI

Q705

SDO

EEPROM

CLK

Q7002
M66005

LPF

-++-

+6dB

DIG CLK
DIG SDO

USB VBUS

USB EN VBUS

OVERCURRENT DET

VMCLK(HMDI SLC)
VMSDO

(HMDI SDA)

VMSDI

DIGSDI

DIGSDO

DIGCLK

SPI

uPD70F3746 Q701

MICOM

XIN

XOUT

XTAL-X501

5MHz

HI SIDE SW

SDI
SDO
CLK

SPI

+6dB

+-

Q4003

Downmix

FL/FR -12dB
SW -1.5dB

2ch ADC

DIR

Q301

R2A15218FPQ4001

INVERTING

INVERTING

SW

TONE

(FR)

94

FL

43

93

(FL)

42

FR

95

CEN

38

98

41

97

40

96

39

100

SL
(SBR)

37

99

SR

(SBL)

36

44

45

*NOTICE

1.Actually the right and left in/output signal of Q4001(R2A1518FP) is connected reversely to real signal.
ex)(FR)<--->FL ,(FL)<--->FR

2.SL & SR in/out siganl of Q4001 is actually connected to SBL & SBR in/out(preout) signal.

(SL<--->SBL, SR<--->SBR)

3.SBL & SBR in/out siganl of Q4001 is actually connected to SL & SR in/out(spk out) signal.

(SBL<--->SL, SBR<--->SR)

SL

SR
SW
C

FL
FR

DIR MCK
CX LRCK
CX SCLK
DSP SBLR
DSP SLR

MCLK

DSP CSW
DSP FLR (FL/FR)

X171-XTAL

24.576MHz

DIG CLK
DIG SD0
DIG SD1

X-TO

X-Tl

DIR BCK
DIR LRCK
DIR FLR
DIR MCK

TONE

LPF

(BL/BR)
(SL/SR)
(CT/SW)

+6dB

LPF

+6dB

LPF

+-

SPI

85

MAIN L

86

81

82

73

72

78

79

70

71

68

69

66

67

64

65

62

63

60

61

58

59

90

91

75

76

84

83

MAIN R

SUB L

REC L

REC R

54

55

47

46

Z2 L

Z2 R

PCM9210

RTAD

LTAD

HDMI MCK
HDMI BCK
HDMI LRCK
HDMI FLR

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEFGH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-2

BLOCK DIAGRAM
VIDEO SECTION
PART-2

1

2

14

13
12
11
10

9
8

14

13
12
11
10

9
8

D4 VIDEO INPUT

7

6
5
4
3
2
1

7

6
5
4
3
2
1

Model No. TX-SR309/509/609/TX-SA509/609/HT-R290/390/548/590/690/990/HT-RC330/360/DTR-20.3/30.3

JAPAN Model

TC74HC4053

TX-SR609, HT-R690, HT-R990, TX-SA609, HT-RC360, DTR-20.3, DTR-30.3

CEC

TX-SR609, TX-SA609, DTR-30.3

TMDS

TMDS

CEC

CEC

HDMI

FRONT

TX-SR609, TX-SA609, HT-RC360,
DTR-20.3, DTR-30.3

HDMI IN5

HDMI IN4

HDMI IN3

HDMI IN2

HDMI IN1

TX-SR609, TX-SA609, HT-RC360,
DTR-20.3, DTR-30.3

PC VIDEO IN

HP DET

TMDS

HP DET

TMDS

HP DET

TMDS

HP DET

TMDS

HP DET

TMDS

HP DET

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

RGB
VS,HS
I2C

Q8661

TMDS141

Rx Tx

HDMI Buffer

Rx0

Rx1

Q8161
SiI9487

HDMI

Fast Switching

Rx2

Rx3

Rx4

TMDS

DDC

TMDS

DDC

Tx

RPWR
HPD

I2C

I2C
CEC

RxA

RxB

RxC

RxD

I2S

S/PDIF

Q8501
ADV7844

HDMI
4Rx and
Decoder

AIN1,AIN2,AIN3

VS_IN1,HS_IN1

SCHEMATIC DIAGRAM (PART-2)

BLOCK DIAGRAM(VIDEO)

TX-SR309, TX-SR509, HT-R290, HT-R390, HT-R548, HT-R590, HT-RC330

CEC

TMDS

TMDS

CEC

CEC

DDC

DDC

HDMI IN4 Rx Port A

12bit x3 TMDS

TTL in TMDSTTL

Q8200

DE2755

KYOTOG2H

Video

Processor

AIN4

AIN6

AIN5

AIN10

DDC

TMDS
CEC
DDC

HDMI OUT

+5V

HPD

HP DET

ARC S/PDIF

HDMI IN3

HDMI IN2

HDMI IN1

HP DET

TMDS

HP DET

TMDS

HP DET

TMDS

HP DET

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

TMDS
CEC

CEC

DDC

DDC

RPWR

+5V

HPD

Rx Port B Tx

Q8101

ADV7623

HDMI 4Rx Tx

Rx Port C

Rx Port D

I2S

S/PDIF

ARC S/PDIF

I2C

TMDS

DDC

HPD

I2S

S/PDIF

CEC

+5V Hot Plug+5V Hot Plug

TMDS
CEC
DDC

HDMI OUT
+5V
HP DET

3

Y1

CB1

CR1

Y2

Yin1

CB2

CR2

COMPONENT VIDEO INPUT

4

DVD

VCR/DVR

CBL/SAT

GAME/TV

AUX1

(FRONT)

5

COMPOSITE VIDEO INPUT

UPort

Yin2
Yin3

PBin1
PBin2
PBin3

PRin1
PRin2
PRin3

Vin2
Vin3
Vin4
Vin5
Vin1
Vin6
Vin7

ISOOUT

ISOIN

NJM1328

ISO

INH

A
B

DRV

DRV

DRV

DRV

ADINPY

ADINPB

ADINPR

ADINCV

GND

PY

6dB

PB

6dB

PR

6dB

CV

6dB

Buf

DRV

DRV

DRV

Buf

DRV

Buf

DRV

Buf

DRV

DRV

I2C

MUTE

DRV

1

8

2

9

3

10
11

4

5

12

6

13

14

7

Y

CB

CR

MONITOR

VCR/DVR

COMPOSITE VIDEO OUTPUT

D4 OUT

COMPONENT

OUT

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEF GH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-3

AUDIO INPUT SECTION PART-3

1

U0010

2

3

4

5

Multi ch in for AMP TEST

6

7

8

BAAF-0614

P4000

RI IN

P4002

Rch

CD/TV

Lch

Rch

(MULTI SR)

GAME

Lch

(MULTI SL)

Rch

(MULTI SW)

CBL/SAT

Lch

(MULTI C)

Rch

VCR/DVR

OUT

Lch

P4005

Rch

VCR/DVR

Lch

Rch

(MULTI FR)

DVD/BD

Lch

(MULTI FL)

P4006

U131

OPT1

U132

OPT2

COAX1

P131

UNIVERSAL PORT

TO BCVD-0656(PART 07) FROM PART09(DIS)

*

JL502A

B

3

4

1

5

2

NJM4580M

C4403
47/25

100K

R4411

100K

R4410

C4402

47/25

22

R4414

22

R4415

47/25

C4406

N.M

152J

152J

100K

C4001

1

P4100B

(MULTI SW IN)

(MULTI C IN)

(MULTI FR IN)

(MULTI FL IN)

L135

R135

open

R4409

330

C4404

C4405

R4408

330

R4068

82K

47/25

47/25

D4400

10K

7

C4417

1

Q4400B

R4407

27K

C4416

101J

101J
R4406

27K

Q4400A

NJM4580M

470

R4416

470

R4601

MTZJ5.6VD

(MULTI SR IN)
(MULTI SL IN)

C135080D

R137

R139

LBC2518T2R2M

6

4

5

3

1

2

7

6

4

5

3

1

2

7

6

4

5

3

1

2

7

U0011

1

IN

3

VCC

104Z

2

GND

1

IN

3

VCC

104Z

2

GND

3

2

1

U_PORT_L

U_PORT_R

-12V

+12V

GND

100K

R4080

100K

R4081

R4000

L4001

330

R4003

R4004

R4007

R4008

N.M

R4013

330

R4014

330

R4015

2.2K

R4016

2.2K

R4017

330

R4018

330

R4019

330

R4020

330

330

330

330

330

R4043

R4044

R4047

R4048

C4203 102J

R4053

R4054

R4055

R4056

R4057

R4058

R4059

R4060

C4205

102J

100K

100K

100K

100K

100K

100K

220K

220K

C4204

102J

100K

100K

100K

100K

BADG-0615

C143

330J

C145

C141

C142

L131

220/10

C144

330J

75

R131

LBC2518T2R2M

D131

KDS4148U

UTSP

+5V TU

Q4401

2SC2235-Y

33K

R4417

47/25

C4407

N.M

100K

C4002

R4067

221K

C4003

221K

C4004

221J

C4007

221J

C4008

221J

C4013

221J

C4014

NC

C4015

NC

C4016

221J

C4017

221J

C4018

221K

C4019

221K

C4020

R141

47

L133

LBC2518T470M

R142

47

R13310C133

C131

101J

D132

C130

KDS4148U

TU_R

TU_L

BK1608HS102-T

104K

104Z

MODEL NO. TX-SR309/HT-R390/HT-R548/HT-RC330/HT-R290

R4412

8

4

22

6

22K

R4401

5

681J

C4411

33K R4403 33K

22

OUT4

OUT5

OUT6

VCC

R4419

C4410

IN4

IN5

IN6

681J

8
9
10
11
12
13

0

C140

R4400 22K

LTAD

104Z

22K

R4405

105Z

105Z

C4414

C4412

105Z

105Z

C4415

C4413

22K

R4404

2

R4402

3

R4413

+12V

TU_R

TU_L

Q131

74HCU04F

7

GND

6
5
4
3
2
114

1mm FFC CABLE

FROM BADIS-0654
P703B NSCT-07P2412

123

TURI
TULI

GNDA_AUX

MICOUT

AUX_R

47K

AUX_L

RTAD

AUX_R

R4078

47K

R4079

47/50

C4060

C4061

47/50

NOT USE

NOT USE

Multi ch in for AMP TEST

*FL/FR use DVD IN
*SL/SR use GAME IN

*C use CBL Lch IN
*SW use CBL Rch IN

7

OPT1

6

+3.3V

5

GND_DG

4

OPT2

3

GND_CH

2

COAX1

1

P8003B

TO BAHDM-0678(PART15)

L134

LBC2518T470M

C139

220/10

UTSP

456

-12V

AUX_L

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

100K

R4082

7

MICMUT

+12V

N.M

220K

R4069

81

82

N.C.
IN-L9
IN-R9
N.C.
INLA/RECL1
INRA/RECR1
N.C.
IN-L8
IN-R8
IN-L7
IN-R7
IN-L6
IN-R6
IN-L5
IN-R5
IN-L4
IN-R4
IN-L3
IN-R3
IN-L2
IN-R2
IN-L1
IN-R1
N.C.

AGND
ADCR
ADCL
N.C.
AVEE
MUTE

50

2.2K

2.2K

R4088

R4087

TUNER FFC CABLE(1.25mm)

FROM TUNER PACK

987654321

+5VTU

TU_LI

TU_RI

N.M

R4418

104Z

C4409

104Z

C4408

83

87

86

85

84

N.C.

INL11/RECL5

INR11/RECR5

CD/TV

GAME

CBL/SAT

VCR/DVR

DVD/BD

CLOCK49DATA

DGND

SUBR

48

47

R4089 0

INLB/RECL2

INRB/RECR2

SBLC-IN

SUBL

45

46

44

47/25

C4086

SBRC-IN

TUNER

TU_GPIO2

GNDTU

NC

90

91

89

88

N.C.

N.C.

RECR3

INL10/RECL4

INR10/RECR4

R2A15218FP

Q4001

(Botom view)

FL-IN2

FR-IN2

SR-IN2

42

40

43

41

47/25

C4085

47/25
C4209

47K

R4189

47K

R4190

47/25

C4210

P101BNSCT-9P2102

TU_RST

TU_SDA

TU_SCL

MICMUT
LTAD
RTAD
RI

92

93

N.C.

FL-IN1

RECL3

SL-IN2

SW-IN238C-IN2

39

DMIXR

R4090

C4090 101J

R4094

R4095

C4091 101J

R4098

DMIXL

Downmix

95

94

FR-IN1

TRER

BASS-R232BASS-R131N.C.

SBR-IN2

37

36

NJM4580

1

NJM4580

J4504

96

C-IN1

SW-IN1

SBL-IN1

SBR-IN1

N.C.

SBL-IN2

35

Q4003A

12K

10K

10K

12K

7

Q4003B

N.M

97

SL-IN1

34

223J

C4064

4

8

R4464

22K

DAC_FR
DAC_FL
DAC_CT
DAC_SW
DAC_SR
DAC_SL

98

SR-IN1

SBL-OUT

SBR-OUT

SW-OUT

BASS_L1

BASS-L2

33

823J

C4063

R4484

22K

22K

R4474

R4494

6

5

15K

8

4

Q4243:A

7

47/50

47/50

47/50

47/50

47/50

47/50

100

99

1

N.C.

2

SBLC

3
4

AGND

5
6

SBRC

7

AGND

8

SLC

9

SL-OUT

10

AGND

11

SR-OUT

12

SRC

13

N.C.

14

SWC

15
16

AGND

17

C-OUT

18

CC

19

AGND

20

FLC

21

FL-OUT

22

AGND

23

FR-OUT

24

FRC

25

N.C.

26
27
28

TREL

29

N.C.

30

AVCC

474J

C4062

R4086

1.8K

-7V

3

R4091

2

22K

R4092

R4093

330

FL/FR: -12dB

SW: +3.5dB

R4096

R4097

330

5

R4099

6

22K

0

R4512

R4483

22K

NC

R4502

R4493

15K

NJM4580M-D

C4071

C4070

C4072

C4077

C4074

C4073

R4192

R4193

R4194

C4053

C4057

C4052

C4051

C4050

C4065 474J

C4066 823J

C4067 223J

3.3K

DAC-SW

3.3K

DAC-FL

R4463

22K

R4473

2

3

Q4243:B

1

NJM4580M-D

220K

220K

220K

C4054
47/25

47/25

47/25

47/25

47/25

47/25

R4085

1.8K

+7V

D4172

MTZJ6.8B

D4171

MTZJ6.8B

DAC-FR

SCHEMATIC DIAGRAM AUDIO INPUT

N.M N.M

0

22K

R4174

68

(1W)

C4186

C4187

R4175

68

(1W)

470/16

470/16

J4503

J4507

R4176

15

1(W)

R4177

15

(1W)

R4467

22K

874

R4167

C4167

220/25

C4166

220/25

R4166

6

22

22

R4487

22K

R4477

R4497

5

Q4242:A

22K

R4501

15K

NJM4580M-D

R4511

R4482

22K

NC

R4492

15K

NJM4580M-D

VOLDATA

VOLCLK

R4462

22K

22K

R4472

2

3

Q4242:B

CSWSLSR FR

1

J4502

J4501

J4388

R4461

22K

R4201

R4200

-12V

8

+12V

6

C4130

47/50

R4481

22K

22K

R4471

R4491

5

15K

4

Q4240:A

7

C4110

220/25

22

22

R4130

220

Subwoofer

R4510

0

22K

R4480

NC

R4500

R4490

15K

NJM4580M-D

47K

R4131

(PART-3)

R4460

22K

22K

R4470

2

3

Q4240:B

FL

1

NJM4580M-D

C4111

220/25

3

Q4130A

2

221J

C4131

R4132

15K

R4133

5

Q4130B

6

8

+20dB

4

NJM4580

R4134

10K

C4132

1.2K
103J

NJM4580

J4500

FL

7

IJK

FRONT

P8001A

23

1

23P

SEC1OFF
HP_GND
HPDET
SPRLCS
SPRLB

SPRLF
VOLH
SEC1H
IPROTECT
PROTECT

C4301

1000/35

470/35

C4302

AMP BOARD

REAR

D4301

RL1N4003

RL1N4003

D4302

RL1N4003

21

MICMUT

4.7K

330

560

R4452

C4432

6

Q4142A

7

N.M

R4432

15K

151J

8

R4422

R4442

GND_LPF

AGND

1mm FFC CABLE

FROM BAHDM-0678(PART15)

P8002A

SEC1OFF

AMUTE

R4421

R4441
C4421

332J

Q4140B

1

P4100A

6

SPRLF

VOLDATA

3

NJM4580

NOT USE

7

VOLCLK

NJM4580

12345

SPRLB

SEC1H

4.7K

330

R4431

15K

560

R4451

C4431

151J

2

1

8

9

NC

SPRLCS

GND_LPF

C4420

332J

5

4

7

NOT USE

NOT USE

4.7K

330

560

R4450

6

Q4140A

*

R4001

J6500

1(W)

R4002

J6501

R4005

R4006

AMUTE

R4420

R4440

R4430

15K

C4430

151J

8

4.7(1W) - T3/H3 MMO

(1W)

10

NC

(1W)

15

(1W)

15

1mm FFC CABLE

P8001A NSCT-21P2412

1

234

RTAD

TU_RST

SL+

4.7K
R4424

330

R4444

R4434

C4424

15K

332J

560

R4454

SW

SR

C

FR

SL

C4434

151J

2

3

Q4143B

SR SL SW C FR FL

1

SW_OUT

1

*

C4107

VAL

R4107

*

C4104

R4104

47/50

SR_OUT

SL_OUT

47/50
C4103

R4103

C4101

R4101

47/50

FR_OUT

FL_OUT

47/50
C4100

R4100

R4102

47/50

C_OUT

C4102

FROM BAHDM-0678(PART18)

6

7

5

LTAD

GND_LPF

TU_SDA

GND_LPF

TU_SCL

SR+C+SW+

C4423

332J

5

4

NJM4580

NJM4580

R4181

220K

R4117

270

Q4107
RN1441

VAL

220K

2.2K

R4114

R4113

2.2K

220K

220K

2.2K

R4111

R4110

2.2K

220K

220K

2.2K

R4112

8

9

TU_GPIO2

FR+

4.7K

330

R4433

15K

560

R4453

C4433

151J

6

8

Q4143A

7

SW

SR

SL

FR

FL

C

+12V

D4305

D4304

-12V

10

RI

FL+

R4423

R4443

Q4104
RN1441

Q4103
RN1441

Q4101
RN1441

Q4100

RN1441

Q4102
RN1441

1SS133

1SS133

111213

FL+

PROTECT

FR+

R4437

15K

C4437

102J

R4127

100

3

C4172

C4173

3

SW+

4.7K

330

560

R4457

220/25

220/25

2

Q4170
78M12

O

O2I

Q4171
79M12

14

1617181920

15

HP_GND

IPROTECT

C+

GND_LPF

R4427

R4447
C4427

333J

3

Q4142B

1

0

R4023

I

G

2

1

G

HPDET

SR+

NJM4580

Q4117

RN1441

1

1/50

C4170

1/50

C4171

SL+

C4422

332J

5

4

NJM4580

J4600

VOLH

C4024

P8002A

1

9P

9

T3

TX-SR309 DC,DF,PP,PA,MK,MR,MQ

HT39

HT-R390 DC,DS,PP,PB,MK,MQ

HT54

HT-R548 PP,MQ

HT-RC330 DC,MR

HTC33

HT29

HT-R290 DC

Option table

HTC33(1A)

1A 1B

MDC
MDF

A

(PART5)

B

C4107 47uF/50V

R4107

R4001

TO MAIN AMP

D4300

RL1N4003

C4300

D4303

0.22

334J

0.22

10(1W)

R4160

R4161

MPP
MPB

(1W)

(1W)

220K

NC

NC

HT54

1G

MPP

C4037

T3T3

HTC33

1C

MMK
MMQ
MMR

4.7(1W)

D4218

D4208

C4208103K

221J

S1_GND

GND_AMP

GND_AMP

1D 1E

MDC MMK

R4029

22K

R4027

SW

SR

SL

R

L

C

*

B

+22V

S1L+

S1L-

HT39
HT29(1D)

1F

MPP
MPB

2.2uF/50V

2.2K

4.7(1W)

10(1W)

3

100

AGND

SW PRE OUT

AGND

(PART5)

TO MAIN AMP

FL
AGND
FR
Z2_GND
Surr_L
Surr_GND
Surr_R

(PART5)

FROM AMP

MMQ

2

1

1
2
3

JL504A

1
2
3

JL503A

4
5
6
7

TO BCVD-0656(PART 07)

*

A

SW preout

P4009

*OPTION

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEF GH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-4

AMP. SECTION PART-4

1

U0010

BAAF-0614

Notes

THE COMPONENTS IDENTIFIED BY MARK

REPLACE ONLY WITH PART NUMBER SPECIFIED.

2

VOLTAGE(MEASUREDWITHVOLTMETER) IS DCVOLTAGE

(NO INPUT SIGNAL in HT-R340MPP)
ELECTROLYTIC CAPACITORS(

EX)030:3pF 330:33pF 331:330pF 333:0.033uF

CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.
ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED.

CAUTION

FOR CONTINUED PROTECTION
AGAINST FIRE HAZARD, REPLACE
ONLY WITH FUSE OF SAME TYPE

AV

AND RATING INDICATED.

ATTENTIION

AFIN D'ASSURER UNE PROTECTION
PERMANENTE CONTRE LES RISQUES
D'INCENDIE, REMPLACER UNIQUEMENT

AV

PAR UN FUSIBLE DE MEME TYPE
ET CALIBRATION COMME INDIQUE.

THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
FOR CONTINUED PROTECTION AGAINST FIRE FUSE
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
RATING REFER TO THE MAKING ADJACENT TO THE SYMBOL.

CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
A LENT, E POUR UNE PROTECTION PERMANENTE,N'UTILISER
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.

+

)ARE IN uF/WV.

3

T3

TX-SR309 DC,DF,PP,PA,MK,MR,MQ

HT39

HT-R390 DC,DS,PP,PB,MK,MQ

HT54

HT-R548 PP,MQ

HT-RC330 DC,MR

HTC33

HT29

HT-R290 DC

MODEL

T3/HTC33 1A, HT29/HT39 1D
T3 1B/HT39 1F/HT54 1G
T3/HTC33 1C,HT39 1E/HT54 1H

4

5

Destination table

T3/HT54/HTC33 HT39/HT29

-1A -1D-1B/-1G

MDC

MPP MPP

MDF

MPA

A

B

C

D

E

F

G

Q6002

J6477

P6001

C6901
C6902

STK-442-730-E STK-443-530-E

NTM-10PDML NTM-12PDML

8200u

56V

-1C/-1H

MMK
MMQ
MMR

8200u

63V

ARE CRITICAL FOR SAFETY.

Power Trans

NPT-1603D
NPT-1603P
NPT-1603M

-1F

-1E

MDD
MDF

MPB MMK

8200u

56V

MMQ

8200u

63V

*Q6001/Q6002 Terminal Voltage

PIN NO.

1
2

4,5,6,7

17,18

8
9

12

10,11,13,14

15,16

(1)N.A for T3(Q6002)

MAIN_GND

J6259

NC

(1)

(1)

312

E6001

Q6001/Q6002

-0.16V

-0.16V

333J

TP6009

C6009

NF_GND

B_GND

+49V

-46V

+46V

-45V

-49V

0V

0V

D6008

NC

N.M

R6501

220K

220K

R6502

N.M

NC

D6007

+49V

-49V
1

P6901B1P6902B

STK-443-530-E
(with Heatsink)

Q6001

-Vcc3GND4Ch1+RE

+Vcc

1

2

33K

R6203

56K

R6070

2SC2240-BL

12K

C6050

R6080

NOTICE

Q6001, Q6002, Q6003 and the surrounding parts have been changed as follows in the middle of production.
Change C6120, C6121 and C6122 at the same time when Q6001 is changed.
Change C6123, C6124 and C6127 at the same time when Q6002 is changed.
Change C6125 and C6126 at the same time when Q6003 is changed.

MODEL

TX-SR309, HT-R548, HT-RC330 HT-R290, HT-R390

UNIT BAAF-0614-1A, 1B, 1C, 1G, 1H BAAF-0614-1D, 1E, 1F

BEFORE AFTER BEFORE AFTER

Q6001

C6120 None 101J None 101J
C6121 None 101J None 101J
C6122 None 101J None 101J

Q6002

C6123 None 561J None 101J
C6124 None 561J None 101J
C6127 None None None 101J

STK-443-530-E

STK-442-730-E

STK-443-530N-E

STK-442-730N-E

STK-443-530-E

STK-443-530-E

STK-443-530N-E

STK-443-530N-E

FRFL C

Ch2 NF

Ch3 IN

15

C6121

C6041

030D

R6041

120K

R6051

120K

56K

C6011

471J

1K

472K

C6031

2.2K

R6031

47/50

Ch3 NF

16

220/25

Ch3+RE

Ch3-RE

18

17

0.22

(2W)

R6161

0.22

(2W)

R6171

SR SW

33K

56K

Q6014

R6103

R6074

2SC2240-BL

12K

472K

R6084

C6054

FR

33K

56K

R6077

R6087

D

12K

Q6017

2SC2240-BL

*

R6104

SP_GND
D_GND

Q6010

472K

R6160

R6170

R6090

D6010

FL

0.22

0.22

NC

(2W)

(2W)

-PRE9+PRE

Ch1 IN

BIAS

Ch2-RE7Ch2+RE

Ch1-RE

5

6

8

47/50

C6103

C

0.22

(2W)

R6162

0.22

(2W)

R6172

R6204

100

(1/2W)

C6101

100/63

C6102

100/63

R6205

100

(1/2W)

33K

R6072

R6100

R6082

NC

CRSLL

56K

Q6012

2SC2240-BL

12K

472K

C6052

R6092

D6012

R6010

L

R6102

NC

NC

R6020

56K

C6010

C6020

1K

33K

47/50

471J

R6071

R6081

10

C6120

C6040

030D

R6040

120K

C6042

030D

56K

2SC2240-BL

12K

C6051

11

C6030

R6030

Q6011

472K

D6011

Ch1 NF

R6050

120K

R6042

120K

R6052

120K

220/25

2.2K

C6022

471J

NC

R6091

NC

Ch2 IN

12

13

14

C6122

C6032

220/25

2.2K

R6032

R6022

56K

R6101

C6012

47/50

R6012

C

33K

1K

R6073

R6083

56K

12K

R6021

C6021

R6011

R

Q6013

2SC2240-BL

C6053

472K

C6057

STK-443-530-E: HT-R390
STK-442-730-E: TX-SR309/HT-R548

(with Heatsink)

Q6002

+Vcc2-Vcc

1

F

33K

R6208

56K(1/2W)

R6206

C6107

C6108

100/63

100/63

33K

R6107

How to identify the IC

STK-443-530N-E

SL SR

SL

GND4Ch1+RE5Ch1-RE

3

G

0.22

(2W)

SL

R6163

0.22

(2W)

R6173

SR

R6209

100

(1/2W)

R6210

100

(1/2W)

R6110 47K

VPRO

IPRO

“N” mark

N

STK443-530

SR SW

BIAS

47/50

R6112 47K

R6013

SL

9

C6013

1K

D6022

+PRE

R6023

56K

47/50

C6023

471J

R6122 47K

KDS4148U

R6113 47K

Ch1 IN

10

C6123

C6043

030D

R6043

120K

C6044

030D

C6033

D6023

Ch1 NF

11

R6033

R6123 47K

KDS4148U

R6053

120K

R6044
120K

R6054

120K

220/25

2.2K

C6024

471J

R6114 47K

12

D6024

C6034

R6034

R6024

56K

C6014

R6124 47K

KDS4148U

Ch2 NF

13

C6124

47/50

1K

47K

R6117

220/25

2.2K

SR

D6027

Ch2 IN

14

R6014

SW

R6127

KDS4148U

VOLH

D6020

Ch2-RE

6

0.22

R6164

0.22

R6174

C6104

100/63

100/63

C6105

47K

R6120 47K

R6111

KDS4148U

Ch2+RE8-PRE

7

C6106

(2W)

(2W)

R6121 47K

D6021

KDS4148U

Ch3 IN

15

C6127

C6047

030D

R6047

120K

R6057

120K

C6037

2.2K

R6037

R6027

56K

C6017

47/50

C6027

471J

1K

R6017

L_OUT
R_OUT
C_OUT
SL_OUT
SR_OUT

47K

Ch3 NF17Ch3+RE

16

220/25

B

*

*

C

IJK

(1/2W)

390

R6251

(1/2W)

SPRLF

R6230

15

R6130

L

15

L6000

C6060

15

15

3uH

15

15

3uH

R6140

C6061

R6141

C6062

R6142

C6063

R6143

SW

C6064

R6144

C6067

R6147

473J

8.2
(1W)

473J

8.2
(1W)

1
SL
L

473J

8.2
(1W)

473J

8.2
(1W)

473J

8.2
(1W)

473J

8.2
(1W)

C
R
SR
SW

1

2

2

3

3

JL600A

JL600B

4

4

5

5

6

6

7

7

3uH

R6231

15

R6131

R

15

L6001

3uH

R6232

15

R6132

C

15

L6002

Ch3-RE

18

0.22

(2W)

R6167

0.22

(2W)

R6177

SW

3uH

R6233

15

R6133

SL

15

L6003

3uH

R6234

R6134

SR

L6004

R6237

R6137

L6007

*

A

J6455

Q6053

KRC105S

SPRLB

SPB L/R

SP-B

R4602

+22V

0

SPRLCS

SPRLCS

SPRLB_SPB

SPRLF

Q6052

KRC105S

SL/SR/C

SPRLCS

D6051

C6111 102J

D6052

C6112 102J

D6053

C6113 102J

D6055

C6115 102J

5

2

6 1

D6057

C6117 102J

5

2

6 1

RL660
KDS4148U

5

2

6 1

RL662

KDS4148U

5

2

6 1

RL663

KDS4148U

5

2

6 1

RL669

KDS4148U

RL667

KDS4148U

C/SL/SR

4

3

4

3

4

3

4

3

4

3

L

R

C

Q6051

KRC105S

SPRLF

FL/FR/SW

SL

SR

L(SPB)

R(SPB)

FL/R/SW

SW

1

JL603B

+22V

JL603A

123

J4315

J4314

NOT USE

SW_OUT

R6252

2

SWG

SRG

FRG

SRG

FRG

SWG

4

3

45678

390

CG

CG

HPL

HPR

HPDET

FLG

FLG

765

*

SLG

SLG

8

D_GND

C6080

C6081

C6082

C6083

C6084

J6477

C6087

*

E

9

9

HP_GND
HPDET

SPRLF

SPRLB_SPB
SPRLCS

102J

102J

102J

102J

102J

102J

C6070

C6071

C6072

C6073

C6074

C6077

P6002

C6088

C6089

103J

103J

103J

103J

103J

103J

102J

102J

13

12

6

11

5

10

4
9

3
8

2
7

1

14

5

4

2
3

1

6

*
P6001

JL605B

1

2

3

4

5

TO ASP section

L

R

C

SL

Speaker output

SR

SW

L

FL(SPB)FR(SPB)

R

output

Speaker B

TO BAETC-0654(PART-09)

Q960

2SC2235

8.2K

R963

D963

UDZS22B

D962

UDZS22B

U0016

47/50

C961

J950

33K

R964

5.6K

5.6K
R6710

6

SEC1H

47K

R6903

J6003

2CH-TYPE

U0014

P950

P951

P952

P953

1

1

1

1

1

N.C

P954

P955

P956

P957

P958

P959

P960

P961

P6900B(BLK)

7

8

BAETC-0618

FLAC1

1

FLAC2

2

SEC3_1

3
4
5

NSCT-5P898

1

NC

2
3

1
2
3
4
5
6
7
8
9

JL951A

JL952A

JL954A

SEC3_2

SEC2_1

SEC2_2

NSCT-3P894

TO BAAF-0614(PART4)

S1H-

TO BAVD-0656(PART7)

1
2
3

TO BAAF-0614(PART 4)

4
5
6
7
8
9

FROM BAETC-0618(PART-4)

JL954B

8A

125V

F6901

1

F6901B

F6902B1F6902A

F6902

8A

125V

102J

F6901A

Q6707

2SC2712-GR

C6911

D6902

S1L+

S1L-

1SS352

R6902

1K

4

3

S1H+

5

5

3

4

From Audio I/O

(PART 3)

RL691

RL692

J6004

KRC105S

Q6708

1

2

102J

C6917

D6903

2

1

1SS352

GND_AMP

0.1

R6912

C6912

334J/50V

C6913

334J/50V

SEC1OFF

5

2

6 1

RL693

GND_AMP

+B1H_B

D5SBA20

D6901

4

3

3

4

1

2

D6901A

RAD-083

6 5

-B1H_B

P6901A

+

LIST

C6901

P6911B

P6900B

+

LIST

C6902

P6902A

P6906 P6903 P6909 P6913 P6914 P6915 P6916

SEC1H

SEC1OFF

S1_GND

Q6022

Q6023

2SC2240-BL

2SC2240-BL

D6031

1SS133

SWSLSR

R

L

C

VOLH

PROTECT

IPROTECT

+22V

D6032

C6090

1SS133

R6215

100/25

10K

R6213

C6093

Q6021

2SA1163-BL

NC

C6091

1/50

104Z

D6033

N.M

47K

R6214

0V

R6216

UDZS3.3B

R6218

R6211

33K

22K

TO BAAF-0341(PART-3) ASP section

R6709

UDZS3.3B

10K

C6094

Q6024

2SA1163-BL

1/50

C6092

N.M

D6704

C6706

104Z

D6034

10/50

R6217

0V

UDZS3.3B

47K

R6219

22K

-VP PART4

NSCT-5P99

FLAC1

1

FLAC2

2

SEC3_1

3

SEC3_2

4
5

FROM PART 4(AMP)

FROM BAAF-0614

JL951B

U0012

Q6380A

1

TP631

R960

8.2(1/2W)

D960

RL1N4003

R950

10(1W)

D961

RL1N4003

BAETC-0616

C6631

NM

Q6380
LM61CIZ

1

G

O

2

C6630

104Z

(PART 4)

2

GNDDG2

+3.3VMPU

JL501A

TO BAHDM-0678(PART15)

C960

220/63

3

V

THERMAL
321

104J

3.3

R961

C950

D964

UDZS36B

R962

N.M

8.2K

BAETC-0620

104J

C962

N.M

47/50

C963

+3.3VMPU
FLAC1

-VP
FLAC2
+3.3VMPU

1
2
3
4
5

NPLG-5P590

JL953B

FROM PART 09(DISPLAY)

FROM BADIS-0654

Model No. TX-SR309/HT-R390/HT-R548/HT-RC330/HT-R290
SCHEMATIC DIAGRAM (Part-4) AMP SECTION

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEF G

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-7

VIDEO SECTION PART-7

1

MODEL No. TX-SR309/ HT-R390/ HT-R548/ HT-RC330 SCHEMATIC DIAGRAM (Part-7) VIDEO SECTION

U0022

2

PR_IN2

1

PB_IN2

2

Y_IN2

3

P2900A

4
5

PR_IN1

6

PB_IN1

7

Y_IN1

8
9
10
11

PROUT_2

To D4 PWB

12

PBOUT_2
YOUT_2

3

PR

(VCR/DVR)

COMPONENT

4

IN2

(DVD)

COMPONENT

IN1

PB

Y

PR

PB

Y

5

PR

COMPONENT

6

7

GAME/TV

(VIDEO3 IN)

CBL/SAT

(VIDEO2 IN)

VCR/DVR OUT

(VIDEO1 OUT)

VCR/DVR

(VIDEO1 IN)

DVD IN

MONITOR

OUT

OUT

PB

13

TO BAVD-0649(PART-12)

14

DCTRL

15

GND_VD

16

+5V

17

3

P2203

2

1

4
9

7

P2203

6

5

8

12

P2203

11

P2202

P2201

10

13

6

5

4

3

2

1

7

6

5

4

3

2

1

7

Y

R2116

75

R2115

75

R2157

R2114

75

C2203

103K

R2113

75

R2156

R2112

75

R2155

R2111

75

R2110

R2109

R2108

R2107

75

R2106

75

R2105

75

C2202

102K

R2104

75

R2103

75

R2102

75

C2201

102K

0

0

0

75

75

75

8

BAVD-0656

PR_IN2

C2116

2.2/50

PB_IN2

C2115

2.2/50

Y_IN2

C2114

2.2/50

PR_IN1

C2113

2.2/50

PB_IN1

C2112

2.2/50

Y_IN1

C2111

2.2/50

C2110

470/6.3
100K

R2124

C2109

470/6.3
100K

R2123

C2108

470/6.3
100K

R2122

C2107

2.2/50

C2106

2.2/50

C2105

470/6.3
100K

R2121

C2104

2.2/50

C2103

2.2/50

C2102

470/6.3
100K

R2120

A5, A6, D2MJJ ONLY

(D Treminal)

PROUT_2
PBOUT_2
YOUT_2

DCTRL

PRIN_2

PBIN_2

YIN_2

PRIN_1

PBIN_1

YIN_1

PROUT_2

PBOUT_2

YOUT_2

VIN_5

VIN_4

VOUT_2

VIN_3

VIN_2

VOUT_MON

TO BAETC-0618(PART-4)
TO BAETC-0625(PART-4)
TO BAETC-0631(PART-4)

JL952B

SEC2-1

SEC2-2

NC

R2201

NC

R2202

NC

R2203

NC

NC

NC

NC

R2204

CODE CODE

C2205

R2206

R2205

MODEL MODEL

T3 TX-SR309

T5 TX-NR509

T6 TX-NR609

A6 TX-NA609

H2 HT-R290

H3 HT-R390

H54 HT-R548

H5 HT-R590

D2 DTR-20.3

D3 DTR-30.3

F9001

5A125V

321

H

FrontUSB

need parts
Q2600

R2001

22

VIN_4

VIN_3

(VCR/DVR)

(CBL/SAT)

48

PBIN318PBIN2

PRIN1

19

1M

R2003

VIN_2

(AUX)

(DVD)

50

VIN347VIN446VIN545VIN6

VIN149VIN2

PBIN116YIN315YIN214YIN1

17

56K

R2004

51

52

VLOS

VIN_LOS

VLOS_OUT

VOUT_LOS

MUTE

GND

SCL
SDA

GND
GND

V+

V+

V+
NC
NC

C2004

104Z

1
2
3
4
5
6
7
8
9
10
11
12
13

C2006

C2000

104Z

470J

C2005

470/6.3

C2013

10/50

C2014

105Z

R2002

22

C9029

104Z

C9028

104Z

C9027

104Z

C9026

470/6.3

VD_SW_SCL
VD_SW_SDA
VMUT

10K

R2005

AUX_V

R2006

10K

R2008

2.2K

R2009

2.2K

EXCEPT

YOUT_1

VOUT_1

PROUT_1

PBOUT_1

T3,H33,H54,H5
For U.Port

VOUT_2

YOUT_2

PBOUT_2

PROUT_2

Q2200

NC

IN1

1

IN2

2

IN3

3

+Vcc

4

NC

C2204 NC

8
7
6
5

OUT1
OUT2
OUT3

GND

C2204 - C2205
R2201 - R2206

VOUT_MON

C9031

104Z

C9030

104Z

39
38
37
36
35
34
33
32
31
30
29
28
27

C2002

2.2/50

V+
VOUT1
VOUT2
VOUT3
GND
GND
YOUT1
YOUT2
PBOUT1
PBOUT2
PROUT1
PROUT2
V+

40

ISOOUT

YLOS_OUT25YIN_LOS24YOUT_LOS

26

C2003

470/6.3

470J

C2011

VIN_5

105Z

C2012

(GAME/TV)

43

44

42

41

NC

VIN7

ISOG

ISOIN

NJW1328

Q2001

YLOS

PRIN2

PRIN3

21

23

20

22

O

C2601 - C2605
R2601 - R2603

X

R2602 - R2604

EXCEPT

(AUX_V)

ONLY

(AUX_V)

D2,D2JJ

C2601

D2,D2JJ

1

Vout

2

GND

3

V+

NJM2505AF

104Z

R2602 R2603

22

00

Q2600

+5V

104Z

C2001

PRIN_1

PBIN_2

VSS

NC

105Z

PBIN_1

C2008

3
2

YIN_2

105Z

YIN_1

PRIN_2

105Z

C2009

C2010

56K

104Z

C2007

R2007

106K/16

C9021

Q9020

XC6220B501PR

4

VIN

5

VOUT1CE

C9020

106K/16

106K/16

+5.2V IN +5V OUT

L9020

BLM18PG181SN1

C9023

C9022

106K/16

GND_5.2V

+5V

R2010

18K

C2020

105Z

R2011

18K

C2021

105Z

4.7

VGND

R2604

NC

0

VOUT_1

YOUT_1

PBOUT_1

PROUT_1

C2605

C2603

470J

R2604

list

C2602

470/6.3

C2604

470J

470/6.3

R2603

list

22

R2601

R2602

list

R2101

75

5

4

Vin

IJK

T3, H3, H54, H33, H5, T5

(For HDMI Upcon)

IN1

1

IN2

2

IN3

3

+Vcc

4

NC

C2118

C2117 NC

(For HDMI Upcon)

D2110

Q2110

NC

T3, H3, H54, H33, H5, T5EXCEPT

KDS4148U

ONLY

OUT1

8

OUT2

7

OUT3

6

GND

5

J2110

GND_A
ADINCV2

ADINPY

ADINPB

ADINPR

C2117 - C2118
R2117 - R2119
R2133 - R2135

R2211 - R2213
C2211

AUX_GNDV

VD_SW_SCL
VD_SW_SDA

J2111

(ANA)

T3, H3, H54, H33, H5, T5

UPTDETINT

UPTRST
UPTSDA
UPTSCL
UPTRXD
UPTTXD
UPTDET

FANCTRL

AUX_V

YDET

VDET
DCTRL
POFF2

VMUT

GNDHD

+12VD(DIGI)

+5.2VHD

+12VD

9
8
7
6
5
4
3
2
1

P2801A

9
8
7
6
5
4
3
2
1

P2800A

5
4
3

JL801A
2
1

9
8
7
6
5
4

7P

3
2
1

P2001A

C2211

NC

R2213

R2212

NC

NC

R2211

NC

NC

Q2111

R2119

NC

R2118

NC

R2117

NC

R2135

NC

R2134

NC

R2133

EXCEPT

NC

TO BAHDM-0684(PART-16)

For HDMI

TO BAHDM-0678(PART-14)

TO BAHDM-0682(PART-14)

TO BAHDM-0684(PART-14)

TO BAHDM-0678(PART-14)

TO BADG-0643(PART-6)

TO BAHDM-0682(PART-14)

9P

EXCEPT
T3,H33,H54,H5

D9016

R2348

R2349

POFF2

6 5

EXCEPT

(HDMI No Upcon)

0

C2388

104Z

C2378

C2377

C2389

104Z

0

+12VD(DIGI)

+12VD(ANA)

+12TRG

GND_12V

D9011

3

D5SBA60

4

1

2

D9011B

RAD-083

C9011

10000/16

T3, H3, H54, H33, N5, H5, T5

Q2304:A

R2311

22K

C2380

101J

C2381

101J

R2310

22K

Q2304:B

C2370

101J

101J

R2306

R2307

22K

22K

R2309

R2304

C2382

C2383

R2305

R2308

4

5

6

8

2

3

C2371

10/50

10/50

UTSP

UTSP

NJM4580M-D

7

1

NJM4580M-D

12K

12K

12K

12K

101J

101J

C2394

C2393

471J

471J

C2396

R2330

C2395

R2361

R2364

471J

471J

R2363

R2360

10K

10K

10K

10K

AUDIO_R

1M

R2321

R2320

470

C2398

C2397

470

105Z

105Z

C2384

C2385

105Z

105Z

C2392

105Z

C2391

105Z

NJM4580M-D

7

Q2330:A

1

Q2330:B

NJM4580M-D

R2400

R2401

4

8

2.2K

2.2K

NJM4580M-D

7

Q2400:A

1

Q2400:B

NJM4580M-D

4

8

R2402

R2403

5

6

2

3

2.2K

2.2K

1.1k imp mach

AUDIO_R

AUDIO_L

2.2K

2.2K
R2333

R2334

UTSP UTSP

10/50

5

C2333

220K

6

R2332

220K

2

R2331

10/50

3

C2334

UTSP

C2335

C2336

471J

471J

UTSP

10/50

SB_GND

SB_L

SB_R

Z2_GND

JL503B

TO BAAF-0614(PART-3)
TO BAAF-0621(PART-3)
TO BAAF-0628(PART-3)

TO AMP PWB

C2405

C2404

C2332

331J

R2302

220K

C2302

Z2R_CH

Z2_GND

UTSP

UTSP

Z2L_CH

1234567

10/50

10/50

C2331

331J

R2301

220K

C2403

471J

10/50

C2402

471J

C2301

C2338

10/50

UTSP

C2337

10/50

UTSP

220K

C2355

104Z

27

220K

R2338

26

SCL

SDA

RESET

UPTRST

UPTSCL

UPTSDA

R2337

BK1608LM182-T

BK1608LM182-T

L2307

L2308

L2306 BK1608LM182-T

L2319 BK1608LM182-T

RESET

SCL

SDA

SURR_GND

2122232425

RX

TX

DCKDET2

DCKDET1

UPTTXD

UPTDETINT

UPTDET

UPTRXD

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

L2309

L2310

L2311

L2312

TX

RX

DCKDET2

DCKDET1

20

TO UP-A1L

TO iPod Dock

R2352

75

C2352

470J

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

L2313

L2320

L2321

L2314

Composite

Surr_R OUT

Surr_L OUT

GND_V

14

1516171819

C2351

471J

C2350

471J

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

L2315

L2305

L2301

L2300

BK1608LM182-T

BK1608LM182-T

BK1608LM182-T

L2317

L2302

L2318

Z2_R

Z2_L

Z2_GND

R9030

FRU090

BLM18PG181SN1D

BLM18PG181SN1D

BLM18PG181SN1D

L2304

L2303

L2316

GND_P

+12V

GND_D

12345678910111213

P2081

ONLY
A5V, T6, A6, H36, D3,D2
(FAN)

22K

R2501

R2505

ONLY

1.2K

R2502

1.8K

R2504

330

FCTRL

4.7K

R2503

D2, D3

Q2502

2SC1815

(RS232)

+12VTRG

GND_VD

2341

E9004

Q2501

2SA950

2341

E9002

C2501

220/25

From FAN

1
2

P2510

3
2
1

JL607A

To RS232 PWB

TO BAETC-0645 (PART-12)

H6 HT-R690

H99 HT-R990

H33 HT-RC330

H36 HT-RC360

D2MJJ DTR-20.3MJJ

D9014

KDS4148U

D9015

KDS4148U

EXCEPT

T3,H33,H54,H5

TO BAAF-0614(PART-3)
TO BAAF-0621(PART-3)
TO BAAF-0628(PART-3)

TO AMP PWBTO AMP PWB

-15V

C9013

+15V

U_PORT_R

JL502B

C9012

4.7/50

GND

U_PORT_L

54321

R9014

334/50

UDZS6.2B

100K

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEFGH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-9

DISPLAY SECTION PART-9

1

U0023

P7201

2

MSJ-064-05A_SR

3

4

5

BAETC-0658

5
4

L7201

LBC2518T2R2M

2
3
7

L7202

LBC2518T2R2M

8

102J

102J

L7203

1

LBC2518T2R2M

223K

C7203

C7204

C7202

U0021

STBY

+

C7201

2341

S7102

S7144

102J

E7201

R7101

R7121

2.2K

R7114

270

MUSIC

12K

S7104

OPTIMIZER

-

S7146

S7129

BD/DVD

NSCT-5P896

5

GND_DG

4

HPDET

3

HPR

2

SPLE

1

HPL

JL605A

FROM BATRM-0647(PART-8)

FROM SP_OUT PWB

BADIS-0655

2.2K

R7152

D7152

YELLOW

SLI-343Y8C-TE7

R7103

R7102

330

470

SP-A

S7106

*

Subwoofer-

R7122

3.9K

S7148

TONE

S7106

CODE

HT59

SP-A

Subwoofer-

EXCEPT HT59

HDMI THROUGH

HT29

HT33

HT39

HT54

HT59

FROM AMP PWB

FROM BAAF-0614/0621(PART-4)

7

KEY1_1

6

KEY0

5

LEDTHRU

4

KEYINT0

3

KEYINT1

2

KEY2_1

1

GNDDG

JL702B

MODELCODE

TX-SR309T3

HT-R290

HT-RC330

HT-R390

HT-R548

HT-R590

Model No. TX-NR309/HT-R290/390/548/590/HT-RC330 Schematic Diagram (Part-9) Display Section

U0020

NSCT-5P876

1

+3.3VMPU

2

FLAC1

3

-VP

4

FLAC2

5

+3.3VMPU

JL953A

7

KEY1_1

6

KEY0

5

LEDTHRU

4

KEYINT0

3

KEYINT1

2

KEY2_1

1

GNDDG

JL702A

BADIS-0654

2G551G

F11

5

1

C7011223K
R7007

220

223K

C7017

Q7002

16-BT-162GNK

P4

P635P5

18

KEYINT0

KEY1

KEY2

KEY3

P338P239P1

16G4115G4214G4313G4412G4511G4610G

24

19

22

23

20

49
50

SEG1

51

SEG0

52

VCC2

53

DIG15/SEG39

54

DIG14/SEG38

55

DIG13/SEG37

56

DIG12/SEG36

57

DIG11

58

DIG10

59

DIG9

60

DIG8

61

DIG7

62

DIG6

63

DIG5

DIG4

64

1

C7002 104Z

C7003 101J

C7004 101J

C7005 101J

P10

26

27

31P932P833P734

30

42

43

44

46

47

SEG5

SEG9

SEG745SEG6

SEG448SEG3

SEG8

SEG2

Q7003

M66005-0001AHP

DIG03

DIG01

_CS

DIG02

DIG005_RESET

SCK

2

3

4

7

8

6

S7108

CODE

EXCEPT HT59

Subwoofer+

HT59

SP-B

Subwoofer+

USB

PORT

R7106

270

T3/HT33/HT54/HT59

HT29/HT39

R7115

270

S7132

TUNING

MEMORY

R7123

270

S7150

TUN UP

PRESET UP

P17

P1625P15

P1328P1229P11

P18

P14

36

37

38

33

35

36

40

34

SEG16

SEG1537SEG14

SEG1141SEG10

SEG17

SEG1339SEG12

SEG20

SEG19

SEG21
SEG22
SEG23
SEG24
SEG25
SEG26

SEG27
SEG28
SEG29
SEG30
SEG31
SEG32

SEG34

SEG33

VCC1

10P011

N.C.

*

S7113CODE

PORT

USB

XOUT

12

R7006

R7002

R7003

R7004

R7005

R7107

330

R7116

330

RT/PTY/TP

CODE

US

EU/EX

R7124

330

XIN14VSS

13

10K

101J

C7007

3.3K

3.3K

220

220

S7115

TV/CD

S7136

DIMMER

S7154

ENTER

SEG35

15

16

N.C.

C7008

100/6.3

R7108

R7117

*

S7136

DIMMER

RT/PTY/TP

R7125

SDATA9P1

N.C.

SP-B

S7108

S7113

*

S7134

S7152

40

SEG18

VP

FLDRST
FLDCS
FLDCLK
FLDSDO

470

470

470

PRESET

P2021P19

P21

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

104Z

C7009

FM

GAME

DOWN

S7117

S7138

S7156

P25

P2714P26

P24

P22

P23

R7109

R7118

R7126

560

560

560

47

AM

S7119

S7140

MUSIC

S7158

TUN DOWN

P2912P28

R7110

R7119

R7127

50

820

820

820

515G524G533G54

AUX

S7121

S7142

MOVIE/TV

S7160

RETURN

R7111

R7120

R7128

F22

P356P347P338P329P3110P30

59

C7010

C7012 223K

223K

S7123

GAME

R7112

1.2K

1.2K

R7129

1.2K

S7162

SETUP

2.2K

2.2K

R7008

C7016223K

C7013

33/50

L7032

LBC2518T2R2M

S7125

CBL/SAT

S7164

DISPLAY

D7002

UDZS8.2B

N.M.

R7113

*

C7015

3.9K

220

C7014

223K

47/16

S7127

VCR/DVR

R7021

1

4

S7002

R7041

100

C7042

C7043

10K

R7023

10K

10K

R7022

10K

R7024

3

5

C7022

2

103K

EC12E2425WITH_WASHER

L7031

LBC2518T2R2M

C7031

312

Q7033

KTC3875-GR

1

10/16

C7033

2

3

102J

10/16

C7041

2
1

102J

R7042

KSM-603TE5B

1K

U7041

C7021

223K

4

103K

D7033

5

R7033

UDZS3.9B

223K

C7032

82

9G488G497G

6G

11

13

16

17

15

R7001

10K

Q7004

3

KTC3875-GR

1

2

223K

C7001

R7412

DTC114TKA

470

220K

100K

R7420

47K

Q7404

Q7403

DTC114TKA

R7413

R7414

C7405

C7404

R7410

R7409

330J

P7301

BLM18PG121SN1D

L7502

5

BLM18PG121SN1D

6

BLM18PG121SN1D

23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8

N.C.

7

N.C.

E7301A

6
5
4
3
2
1

7
6
5
4
3
2
1

FROM MDMI PWB

FROM HDMI-0678/0680(PART-15)

P701B

P703A

FROM BADG-0639(PART-6)

FROM BAAF-0614(PART-3)

FROM ASP PWB

AUX AUDIO L IN

AUX AUDIO R IN

AUX VIDEO IN

L7501

5
4
3
2

P3101B

L7503

1

NPLG-5P352

PART-15

(PH)

TO BAHDM-0678

FROM DAC/MPU PWB

USB
XM7A-0441

GND

D+
D­+V

P7501

R7301

C7301

FLDCLK
FLDSDO
FLDCS
KEYINT0
FLDRST
KEYINT1
REMIN
+3.3S
KEY3
VOLA
KEY2
VOLB
GNDDG
GNDDG
MICDET

AUX_V
LEDTHRU
GNDV_AUX

KEY1
KEY0
+5.0VDIS

AUX_R
GNDA_AUX
MICOUT
AUX_L

-15V
MICMUT
+15V

104Z

C7305

C7304

104Z

D7301
KDS4148U

D7302
KDS4148U

L7301

BK1608LM182-T
BK1608LM182-T

L7302

C7302

471J

471J

330

N.M

*

330

R7313

R7302

75

C7319

470J

N.M

N.M

104Z

104Z

1SS352

C7502 102J

C7501

C7503

C7504 102J

D7502

*

*

6

4
3
2
1

5

1
2
3

4
5
6

7
8
9

NPJ-3PDB720

C7306

104Z

T3/HT33/HT54/HT59 ONLY

1SS352

1SS352

1SS352

D7501

D7503

D7504

CHASSIS

GND

4

DATA+

3

DATA-

2187

+VBUS

L7504

DLP2ADN900HL4L

HT54/HT59 ONLY

KRC102S

4

Q7401:A

8

NJM4580M-D

Q7401:B

Q7007

R7406

Q7005

KRA102S

330

5

6

R7407

3

2

C7401

R7404

220

10/16

47K

1K

C7402 101J

R7405

C7403 47/16

D7401

UDZS5.1B

LBC2518T2R2M

4.7K
R7403

L7401

LBC2518T2R2M

L7402

R7401

R7402

C7421

100

220K

102J

SETUP MIC

2

5
4

1

P7401

MSJ-035-05CBAGSRtype

220

470

R7411

220

10/16

D7411

7

UDZS6.8B

33K

47/16

C7411

R7408

NJM4580M-D

47/16

1

C7412

D7412

UDZS6.8B

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDE

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-10

PS SECTION PART-10

1

NOTE

THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY.
REPLACE ONLY WITH PART NUMBER SPECIFIED.
VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE. (NO INPUT SIGNAL)
ELECTROLYTIC CAPACITORS ARE IN uF/WV.
ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED.
EX) 030 3pF 330 33pF 331 330pF 333 0.033uF
ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED.
THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS.
EX) PRINTING SIDE
CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.

AV

2

CAUTIONF AFIN D'ASSURER UNE PROTECTION

VA

THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
FOR CONTINUED PROTECTION AGAINST FIRE FUSE
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
RATING REFER TO THE MAKING ADJACENT TO THE SYMBOL.

CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
A LENT, E POUR UNE PROTECTION PERMANENTE,N'UTILISER
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.

( )

CAUTION

FOR CONTINUED PROTECTION
AGAINST FIRE HAZARD, REPLACE
ONLY WITH FUSE OF SAME TYPE
AND RATING INDICATED.

ATTENTION

PERMANENTE CONTRE LES RISQUES
D'INCENDIE, REMPLACER UNIQUEMENT
PAR UN FUSIBLE DE MEME TYPE
ET CALIBRATION COMME INDIQUE.

Model No. TX-NR309/HT-R290/390/548/590/HT-RC330
Schematic Diagram (Part-10) PS Section

AC_CORD

U0024

BAPS-0659

T902

NPT-1520JQ

1

*

N.C.

2

N.C.

3
4

1
2

NPLG-2P631

P901A

9
8

223K

7

N.C.

6

C921

5

D933

KDS4148U

D935

KDS4148U

C933

4.7/50

D930 KDS4148U

D931 KDS4148U

D923

KDS4148U

D921

KDS4148U

D924

KDS4148U

D922

KDS4148U

D925

KDS4148U

C902

104Z

3

2

*

RL901

41

C901

0.01uF/275V/X2

HT59 MDD/MDC: UDZS3.9B
HT59 MPP/MMO: UDZS5.6B
T3/HT29/HT33/HT39/HT54 MDD/MDC: UDZS4.3B
T3/HT29/HT33/HT39/HT54 MPP/MMO: UDZS5.1B

D934

*

UDZS5.6B

100K

R934

+

C930

100/35

+

C922

2200/16

R921

47(1/2W)

*

F901DF901C

1

C911 102J

2341

D911

12

21

KDS4148U

E901

POFF
+12VD_ST
GNDDG
+10VS
POWERD

D912

KDS4148U

N.C.

N.C.

2341

E902

JL901ANSCT-5P876

5
4
3
2
1

TO HDMI PWB

TO BAHDM-0678/0680(PART-15)

1

P911

1
2

NPLG-2P631

3

T901

S4

S3

S2

S1

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

TO AMP PWB

TO BAETC-0618/0625(PART-4)

3

CODE MODEL

T3 TX-SR309

HT29

HT33

HT39

HT54

HT59

TYPE

D,F

P,M

HT-R290

HT-RC330

HT-R390

HT-R548

HT-R590

AC

120V / 60HZ

230-240V / 50HZ

TYPE

D,F

P,M

F901

TYPE

D,F

P,M

RL901

TYPE T3

D,F

P,M

T3

1520JQ

1520GQ

T3

8A 125V

T4AL250V

NRL-1P5A

NRL-1P5A

1520JQ 1520JQ

---

8A 125V 8A 125V

---

NRL-1P5A

NRL-1P5A

NRL-1P5A

---

HT39HT29 HT33

1520JQ

1520GQ1520GQ

HT54 HT59

---

1520GQ 1520GQ

HT39HT29 HT33

8A 125V

T4AL250VT4AL250V

T4AL250V T4AL250V

HT39HT29 HT33

NRL-1P5A

NRL-1P5A

NRL-1P5A NRL-1P5A

1520JQ

HT54 HT59

8A 125V

---

HT54 HT59

NRL-1P5A

---

4

T902

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

SCHEMATIC DIAGRAM/
BLOCK DIAGRAM-14

MPU SECTION PART-14

1

2

3

4

5

BCDEFGH

Model No. TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330 Schematic Diagram (Part-14) MPU Section

MCLK44/48
DACMUT

DACRST

DIRRST
DIRCS
DACCS
DSPRST

DSPCS
DSPINT0
DSPINT1
DSPINT2

DIRINT0

TU_SCL
TU_SDA
TU_RST

TU_GP102
PROTECT
IPROTECT
HPGND
HPDET
VOLH
PROTECT2
MICMUT
DIGCLK
DIGSDO
DIGSDI

HDMIPDN
HDMIRST

HDMIINT_TX
HDMIINT2
HDMIINT

HDMISCL
HDMISDA

SPICS

SPIHOLD

HDMISDI

HDMISDO

HDMISCK

CEC

GND_VD

BLM18PG181SN1D

BLM18PG181SN1D

L8954

BLM18PG181SN1D

L8951

7E08Q-100M-RA

4
3
2

C8958

1

223K

L8952

to RB Section

No USE

294+55+80mA918+700mA

L8953

+3.4V

R8956

5.6K

9

GND

THRM

SW

COMP
IN
BS8SS

U0030

***MPU INITIAL SETTING VALUE***

MODEL

DISTINATION

UP

R669

BAND

DOWN

R668

UP

R667

INIT1

DOWN

R666

UP

R665

INIT2

DOWN

R664

UP

R663

INIT3

DOWN

R662

BAHDM-0678

TX-SR309

PP

DC

MQ

DF

MR

MK

AB

10K

33K

10K

NCNCNC

0

0

NC

NC

0

0

NC

NC

00

INITIAL

HT-R390

DC

C

33K

10K

NC

0

33K

10K

NC

0

HT-

HT-

RC330

R548

MQ

PP DC DC

MKPA PB

DE F G H J

10K

10K

NC

NC

NC

NC

0

0

33K

33K

10K

10K

33K

NC

10K

0

MR

MQ

PP

10K

10K

33K

NC

NC

10K

NC

NC

NC

0

0

0

NC

33K

NC

0

0

10K

33K

33K

10K

10K

10K

33K

C8977

104K

C8976

100/16

C8975

106K/16V

C8974

106K/16V

C8973

106K/16V

D8971

RB050M-30

C8972

106K/25V

C8971

106K/25V

C8950

100/16

HT­R290

33K

10K

NC

0

33K

10K

10K

10K

to DSP Section (Part-18)

to HDMI Section (Part-15)

+3.3V_MPU
+5.0V_MPU

C8957

104K

C8956

NC

5
6
7

C8979

104K

MP2363DN

Q8971

100/16

C8955

106K/16V

C8954

106K/16V

C8953

106K/16V

D8951

RB050M-30

1K

R8971

105K

C8982

C8952

NC

106K/25V

C8951

106K/25V

+1.8V +3.3V

R8974

L8974

L8973

220K

BLM18PG181SN1D

L8971

7E08Q-100M-RA

4
3
2

C8978

1

223K

L8972

+1.84V

R8976

3.3K

9

GND

THRM

SW

COMP
IN
BS8SS

R8973

R8975

10KF

10KF

C8980

682K

FB

EN

BLM18PG181SN1D

BLM18PG181SN1D

+3.3VHD+1.8VHD

R8954

R8953

R8955

C8963

P753A

1

NC

220K

27KF

10KF

151J

C8960

1K

103K

R8951

5

FB

6
7

EN

C8959

104K

Q8951

MP2363DN

2

3

+5.2VHD

105K

C8962

456

PCIE_SRQ

GNDDG

HDMIINT_TX
HDMISDI
HDMISDO
HDMISCK

HDMIRST
HDMIPDN
HDMIINT2
HDMIINT

SPICS

SPIHOLD
HDMISDA
HDMISCL

CEC

+3.3V_MPU
+5.0V_MPU

GND_VD

C8937

104K
C8936

100/16

C8935

106K/16V

C8934

106K/16V

C8933

106K/16V

D8931

RB050M-30

C8932

106K/25V

C8931

106K/25V

8

7

PCIE_SCL

PCIE_SDA

PCIE_DET

L8934

BLM18PG181SN1D

7E08Q-100M-RA

C8938

223K

L8932

BLM18PG181SN1D

9

11

10

PCIE_GLED

PCIE_SMO

PCIE_BLED

FLMD0

RESET

SYSOUT

POFF
SYSIN
DRST

RS232TXD
RS232RXD

CECIN

CECOUT

+5.2V

L8933

BLM18PG181SN1D

+5.2V

L8931

4

GND

3

SW

2

IN

1

BS8SS

9

R692

4.7Kx4

R8936

THRM

COMP

8.2K

+5.2VHD

R8934

270K

R8933

56KF

R8935

10KF

NC

C8943

151J

FB

EN

RESET

KRC104S

R501

Q601

C502104K

10K

R503

R504

C509 106K

X501

5MHz

D111 KDS4148U

R508

10K

R572

10K

R511

10K

R681

R682

10K

R687

10K

R520

R688

10Kx4

R693

47x4

Q704

SN74CB3Q3305PWR

1

1OE

2

1A

3

1B

4

GND

CEC

C8940

103K

5
6
7

C8939

104K

Q8931

MP2363DN

106K/16

D601KDS4148U

47K

C504

0

1M

10K

VCC
2OE

2B
2A

C501

C508 104K

8

7
6
5

INITIAL

104K

C503

*
*

104K

C505 104K

10K

R505

C507 104K

+1.8VTXPLVDD

+1.8VTXPVDD

+1.8VPVDD

+3.3VHD

R662

R663

R664

R665

R666

R667

R668

R669

C518 102J

R671

C519 102J
R673

C520
R675

C527

R677

+3.3V_STB

R530

R531

R509

R510

R512

R514

R515
47x4

R521
47x4

104K

C710

C8986

Val

Val

Val

Val
Val

Val

Val

Val

2.7K

2.7K

102J

2.7K

102J

2.7K

47

47

220

47

220

220

+1.8VHD

105K

8

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

25mA

37mA

INIT3

KEY3

KEY0

KEY1

KEY2

INIT2

INIT1

BAND

4.7K

4.7K

4.7K

4.7K

R676

R670

R672

R674

141

139

140

142

143

144

1

P72/ANI2

P74/ANI4

P71/ANI1

P70/ANI0

P75/ANI5

2
3
4
5
6
7

9

5mA

BU18TD3WG-TR

P73/ANI3

AVSS

1

AVREF0

P10/ANO0
P11/ANO1
AVREF1
P00/TIP61/TOP61
P01/TIP60/TOP60
FLMD0
VDD
REGC
VSS
X1
X2
RESET
XT1
XT2
P02/NMI
P03/INTP0/ADTRG
P04/INTP1
P05/INTP2/DRST
P06/INTP3
P40/SIB0/SDA01
P41/SOB0/SCL01
P42/SCKB0
P30/TXDA0/SOB4
P31/RXDA0/INTP7/SIB4
P32/ASCKA0/SCKB4/TIP00/TOP00
P33/TIP01/TOP01
P34/TIP10/TOP10
P35/TIP11/TOP11
P36
P37
EVSS
EVDD
P38/TXDA2/SDA00
P39/RXDA2/SCL00

38

39

40

37

41

42

4.7K

4.7K

R533

R532

102J

R534

22Kx4

C512102J

C511

OC_DDI

OC_DDO

OC_DCK

OC_DMS

KEYINT0

KEYINT1

UM6K1N

L744

BLM18PG181SN1D

L8939

BLM18PG181SN1D

L8938

BLM18PG181SN1D

L8937

BLM18PG181SN1D

Q8972

1

5

VIN

VOUT

2

VSS

3

4

CE

NC

105K

C8987

MAIN MICOM

VOLH

R661 220

136

137

138

P78/ANI8

P77/ANI7

P76/ANI6

P60/RTP10

P62/RTP12

P61/RTP11

43

45

44

47x4

R539

10K

R538

VMUT

VDSWDCTL

VSWSDA1

4

5 2

3

Q8156

VSWSDA

+3.3V_MPU +3.3V_VD
+5.0V_MPU

+1.8V

105K

C8988

SEC1H

UPTDET

THERMAL

220

R660

135

P79/ANI9

P50/TIQ01/KR0/TOQ01/RTP00
37

P63/RTP13

46

10K

R633

VSWSCL1

POFF2_1

PROTECT

IPROTECT

MPOWER_W

P-DN

22K

22K

27K

102J

102J

R655

R656

R659

C524

C526

104K

D602

D603

KDS4148U

C525

KDS4148U

0

220

220K

220K

R657

R678

R658 220

R562

R701

131

128

129

130

132

134

133

PDH7/A23

P714/ANI14

P712/ANI12

P711/ANI11

P715/ANI15

P710/ANI10

P713/ANI13

MPD70F3746

Q701

P51/TIQ02/KR1/TOQ02/RTP01

P55/SCKB2/KR5/RTP05/DMS

P52/TIQ03/KR2/TOQ03/RTP02/DDI

P53/SIB2/KR3/TIQ00/TOQ00/RTP03/DDO

P54/SOB2/KR4/RTP04/DCK

42

40

41

38

39

P67/SOB5

P64/RTP1448P65/RTP15

P69/TIP70/TOP70

P610/TIP7154P611/TOP7155P612/TIP80/TOP80

P66/SIB5

P68/SCKB5

50

47

52

53

49

51

220

220

R522

R523

R544

220x4

**

10K

10K

R543

R635

FLDSDO

FLDCLK

FLDCS

FLDRST

PCIE_SRQ

PCIE_DET

16

VSWSCL

HPDET

1M

R653

1K

R652

127

PDH6/A22

220

R725

R727 10K

CECOUT

MPOWER

P-DN

10K

R651

220

R650

126

PDH5/A21

102J

C3117

SEC1OFF

P-DN

C523102J

220

R624

125

PDH4/A20

P613/TIP81/TOP81

56

10K

R551

UPT/AUTH_SDA

SPRLSPB

P-DN

220

R646

123

124

PDH3/A19

P61458P61559P80/RXDA3/INTP8

57

47x4

R550

10K

10K

R552

R554

UPT/AUTH_RST

UPT/AUTH_SCL

SPRLF

SPRLCS

VOLCLK

AMUT_C

VOLDATA

P-UP

P-DN

P-DN

10K

R639

47

220

220

R640

R642

R644

R638 47

116

121

117

118

122

PDH1/A17

PDH2/A18

10K

R557

UPTRXD

115

119

120

PDH0/A16

PDL12/AD12

PDL14/AD14

PDL15/AD15

PDL13/AD13

PDL11/AD11

P915/A15/INTP6/TIP50/TOP50

76

P914/A14/INTP5/TIP51/TOP51

75

P913/A13/INTP4

74

P912/A12/SCKB3

73

P81/TXDA3

P92/A2/TIP41/TOP41

P93/A3/TIP40/TOP40

P94/A4/TIP31/TOP31

P90/A0/KR6/TXDA1/SDA02

P91/A1/KR7/RXDA1/SCL02

60

63

64

65

61

62

66

47

R3134

47x4

R565

10K

2.2K

10K

10K

101J

R568 2.2K

R529

C513

R527

R566

R528

R559 2.7K

***

TU_SDA

TU_RST

TU_SCL

UPTTXD

PCIE_SMO

PCIE_SCL

PCIE_SDA

47

R52547R52447R526

***

NC

11

VSS

12

SCL/SIMO

13

SDA/SOMI

14

MD0/SCLK

15

NC

NC

16

AUTHENTICATION

POWER SUPPLY For HDMI

1

P27

RS232RXD

RS232TXD

RESET

10K

R627

110

111

114

112

113

PDL6/AD6

PDL9/AD9

PDL7/AD7

PDL8/AD8

PDL10/AD10

PDL5/AD5/FLMD1

PDL4/AD4

PCT6/ASTB

109

110

PCT1/WR1
PCT0/WR0

PCM3/HLDRQ
PCM2/HLDAK

PCM1/CLKOUT

PCM0/WAIT

P97/A7/SIB1/TIP20/TOP20

P99/A9/SCKB1

P95/A5/TIP30/TOP30

P96/A6/TIP21/TOP21

P98/A8/SOB1

P910/A10/SIB3

68

70

67

69

71

220

R573

47x4

R574

10K

R570 2.2K

R560

FSI

DIGCLK

DIGSDI

DIGSDO

TU_GPIO2

6NC7NC8

9NC10

NC

VCC

RESET

NC

MD1/CS

NC

NC

NC

NC

NC

17

19

18

20

+3.3V_MPU

4

5

BU33TD3WG-TR

C745

106K/16V

P751A IMSA-9618S-09A

2345678

P28

P30

P29

FCLK

FLMD0

FSI

10K

R154

R625 47

109

PDL3/AD3
PDL2/AD2
PDL1/AD1
PDL0/AD0

BVDD
BVSS

PCT7

PCT5

PCT4/RD

PCT3
PCT2

PCS7
PCS6
PCS5

PCS4
PCM5
PCM4

PCS3/CS3
PCS2/CS2
PCS1/CS1
PCS0/CS0

PCD3
PCD2
PCD1
PCD0

P911A11/SOB3

72

10K

R577

FSO

5
4
3
2
1

C3118 105K

NC

STBY

GND

VIN

VOUT

Q746

POWER SUPPLY (MPU)POWER SUPPLY (DDC)

P34

P31

P32

P33

FHS

FSO

+3.3V_STB

R1EX25064ASA00A

Q153

ROMCS

+3.3V_STB

R622

47

108

R621

220

107

R619

47

106
105
104
103

R617

220

102

R613

1K

101

R611

1K

100

R609

1K

99

R631

98

47

97
96

47

95

R606

220

94

R607

220

93

R610

92

47

91

R716

220

90

R605

89
88

47x4

87

R601

86
85
84
83

220x4

82

R595

81
80
79

47x4

78

R690

77
76
75
74
73

220x4
R582

R579

Q3105

MFI341S2164

3
2
1

UPGRADE

9

P35

MPOWER_W

EEPROM

1

CS

2

SO

3

WP

4

GND

C522

104K

Except MIC Model

47

KRA107S

Q755

KRC102S
Q756

+3.3V_STB

SYSOUT

+5.0V_MPU

4

VIN

XC6220B501PR

C703

106K/16V

1

+3.3V_STB

Vcc

HOLD

SCK

R623

R620
R618

R614
C521
R615

N.C.

R715

10Kx4

R599

R596

C528104K

R590

R726

10Kx4

R580

100

VSS

Q273

SI

NC

234

OC_DMS

OC_DCK

8
7
6
5

10K

10K
10K

10K

102J
100

10K

10K

10K

27K

R724

KRC102S

Q754

RI

CE5VOUT

5

OC_DDI

OC_DDO

R152

10K

R151

10K

ROMSDO

ROMSDI

P-UP
P-UP

KRA107S

1

BLM18PG181SN1D

2
3

P752ANSCT-9P2472

7

8

6

9

J-TAG

DRST

FLMD0

RESET

C151

104K

L153

BLM18PG181SN1D

ROMCLK

AMUT_C

MICMUT
MICDET

VOLB
VOLA

LEDTHRU

LEDSTBY

YDET

VDET

DACRST

DACMUT

DACCS

DIRCS

POFF2_1

DIRRST

FHS

DIRINT0
DSPINT2
DSPINT1
DSPINT0

DSPCS

DSPRST

MCLK44/48

CECIN
REMIN

UPTDETINT

FCLK

+3.3V_STB

R723

100

Q753

MPOWER

THERMAL

SYSIN

L500 BLM18PG181SN1D

L746 BLM18PG181SN1D

+5.2VHD

L740

L742
BLM18PG181SN1D

C701

C702

106K/16V

106K/16V

TP25

TP26

SPRLCS
VOLCLK

SPRLF
VOLDATA
SEC1OFF

AMUT

SEC1H

SPRLSPB

MUTE

Q752

3

KRA102S

1

Q751

2

KRC104S

R714

2

R713

1K

1

R712

2.2K

3

C751

C613

474K

105K

AMUT

UPT/AUTH_RST
UPT/AUTH_SDA
UPT/AUTH_SCL

10K

R110

D110 KDS4148U

Q181

KRC105S

BLM18PG181SN1D

GNDDG

POWER SUPPLY (STB)

10K

C753

470/6.3

YDET

VDET

VDSWDCTL

POFF2
VSWSCL
VSWSDA

VMUT

C514 104K

C515 104K

LEDTHRU

LEDSTBY

+5.0VDIS_

+3.3V_STB

L743

C705

106K/16V

KEY1
KEY0

C707

106K/16V

UPTDETINT

UPTRST
UPTSDA
UPTSCL

UPTRXD
UPTTXD

UPTDET

FLDCLK
FLDSDO
FLDCS

KEYINT0

FLDRST
KEYINT1
REMIN
+3.3V_STB
KEY3
VOLA
KEY2
VOLB

GNDDG
MICDET

Q702

S812C33AUA

IGO

+5.6V_STB

KDS4148U

KDS4148U

Q703

D702

S812C56AUA

D701

106K/16V

C708

9
8
7
6
5

AMP

4
3
2
1

TO BAAF-0614(PART-3)

P8002B

7
6
5
4
3
2
1

P2001B

POFF

9
8
7
6
5
4
3
2
1

23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

5
4
3
2
1

TO BAVD-0656(PART-7)

P2800B

VIDEO VIDEO

DIS

TO BADIS-0654(PART-10)

P701A

JL901B

AUX_GNDV

AUX_V

AUX_V

+12VD_STB

GNDDG

+10VSTB

MPOWERD

STANBY

TO BAPS-0659(PART-11) TO BAVD-0656(PART-7)

1
2

THERMAL

3

JL501B

THERMAL

TO BAETC-0616(PART-4)

106K/25V

106K/25V

IGO

D182

D183

C706

C709

KDS4148U

KDS4148U

GND_VD

+12V

+5.2V_VD

+12V

GND_DDC

1
2
3
4
5

JL801B

TO BAVD-0656(PART-7)

VIDEO

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEF GH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-15

HDMI SECTION PART-15

1

Nodel No. TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330/ HT-R590 Schematic Diagram (Part-15) HDMI Section

U0030

2

3

4

5

6

BAHDM-0678 BAHDM-0680

390,290,548,590 only

P8101

Shield

P8102

HDMI IN 3 HDMI IN 4

P8103

HDMI IN 2

P8104

HDMI IN 1

23

D2+

D2 Shield
Shield

D1+

D1 Shield

D0+

D0 Shield

CK+

CK Shield

CERemote

DDC CLK

DDC DATA

GND

HP DET

Shield

22

23

D2+

D2 Shield
Shield

D1+

D1 Shield

D0+

D0 Shield

CK+

CK Shield

CERemote

DDC CLK

DDC DATA

GND

HP DET

Shield

22

23

D2+

D2 Shield
Shield

D1+

D1 Shield

D0+

D0 Shield

CK+

CK Shield

CERemote

DDC CLK

DDC DATA

GND

HP DET

Shield

22

23

D2+

D2 Shield
Shield

D1+

D1 Shield

D0+

D0 Shield

CK+

CK Shield

CERemote

DDC CLK

DDC DATA

GND

HP DET

Shield

22

CK-

+5V

CK-

+5V

CK-

+5V

CK-

+5V

C8117

102J

21

1
2
3

D2-

4
5
6

D1-

7
8
9

D0-

10
11
12
13
14

NC

15
16
17
18

R8102

19

R8100

C8100

20

102J

C8139

21

D2-

D1-

D0-

NC

20

C8118

C8166

21

D2-

D1-

D0-

NC

20

C8143

C8175

21

D2-

D1-

D0-

NC

R8110

20

102J

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

102J

102J

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

102J

102J

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

Q8117

RN1401

R8122

R8118

Q8115

RN1401

R8140

R8136

Q8113

RN1401

R8169

R8166

0

Q8111

RN1401

RXA_2+

RXA_2­RXA_1+

RXA_1­RXA_0+

RXA_0­RXA_C+

RXA_C-

CEC

DDCA_SCL
DDCA_SDA

NCNC

R8101

47K

47K

R8103

5V_DETA

0

10K

1K

HP_CTRLA

R8194

Q8118

RN1401

RXB_2+

RXB_2­RXB_1+

RXB_1­RXB_0+

RXB_0­RXB_C+

RXB_C-

CEC

DDCB_SCL
DDCB_SDA

R8120

47K

47K

5V_DETB

R8123

0

10K

1K

HP_CTRLB

R8193

Q8116

RN1401

RXC_2+

RXC_2­RXC_1+

RXC_1­RXC_0+

RXC_0­RXC_C+

RXC_C-

CEC

DDCC_SCL
DDCC_SDA

NC

R8138

47K

47K

5V_DETC

R8141

0

10K

1K

HP_CTRLC

R8192

Q8114

RN1401

RXD_2+

RXD_2­RXD_1+

RXD_1­RXD_0+

RXD_0­RXD_C+

RXD_C-

CEC

DDCD_SCL

TP05

DDCD_SDA

NC

R8167

47K

47K

5V_DETD

R8170

0

10K

1K

HP_CTRLD

R8191

Q8112

RN1401

TP02

TP14

TP13

TP12

TP11

TP10

TP09

TP08

TP07

TP06

TP04

TP03

HDMI TxRx

DDCC_SCL

RXC_C­RXC_C+

RXC_0­RXC_0+

RXC_1­RXC_1+

RXC_2­RXC_2+

HP_CTRLD

5V_DETD

DDCD_SDA
DDCD_SCL

RXD_C­RXD_C+

RXD_0­RXD_0+

RXD_1­RXD_1+

RXD_2­RXD_2+

332mA

L8922

BLM18PG181SN1D

L8921

504mA

BLM18PG181SN1D

C8119 104K

C8120 102J

C8124 102J

C8129 104K

C8131 102J

C8135 104K

C8136 102J

C8137 104K

C8138 102J

C8142 104K

C8144 102J

C8148 104K

C8149 102J

C8151 104K

C8152 102J

104K

C8155

+1.8VTXPVDD

C8922

106K/16V

C8921

106K/16V

102J

C8156

+1.8VTXAVDD

+1.8VTXPLVDD

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

+1.8VCVDD

+1.8VDVDD

+3.3VTVDD

+1.8VHD

No Mounted

25mA

L8925

BLM18PG181SN1D

15mA 292mA 2mA

L8923

BLM18PG181SN1D

No Mounted No Mounted

5mA 37mA

L8924

BLM18PG181SN1D

5V_DETC

DDCC_SDA

143

144

DDCC_SDA

RXC_C+
TVDD
RXC_0­RXC_0+
CGND
RXC_1­RXC_1+
TVDD
RXC_2­RXC_2+
HP_CTRLD
5V_DETD
DGND
DVDD
DDCD_SDA
DDCD_SCL
CVDD
CGND
RXD_C­RCD_C+
TVDD
RXD_0­RXD_0+
CGND
RXD_1­RXD_1+
TVDD
RXD_2-

TXPLVDD38TXPGND

37

102J

104K

C8165

C8164

R8162

R8161

820F

BLM18PG181SN1D

RXB_2-

RXB_2+

HP_CTRLC

C8103 104K

140

142

141

RXB_2-

RXB_2+

5V_DETC

HP_CTRLC

DDCC_SCL
CVDD
CGND
RXC_C-

RXD_2+
CVDD
CGND
TXPVDD

TXPLGND

EXT_SWING

HP_TX

40

41

39

68

TX_HPD_HEAC-

BLM18PG181SN1D

C8911

106K/16V

L8926

C8926

105K

RXB_1+

RXB_1-

C8104 102J

137

138

139

TVDD

RXB_1+

HPD_SPDIF

TXDDC_SDA

43

44

42

C8158 104K

HEAC+

TXDDC_SDA

TXDDC_SCL

+3.3VHD

L8911

RXB_0+

RXB_0-

C8105 104K

134

133

135

136

CGND

RXB_1-

RXB_0-

RXB_0+

TXDDC_SCL

TXAVDD46TXGND

TXC-

45

47

48

C8159 102J

TX_C+

TX_C-

L8912

BLM18PG181SN1D

RXB_C+

RXB_C-

DDCB_SCL

102J

C8107 104K

C8108

C8106 102J

132

128

129

130

131

TVDD

CVDD

CGND

RXB_C-

RXB_C+

DDCB_SCL

HDMI 4Rx Tx

Q8101

ADV7623

TX0+

TXGND

49

TX0-

50

TX_0-

51

TX_0+

TXGND

52

TX1-

53

TX_1-

TXC+

DDCB_SDA

102J

C8110

C8109 104K

127

125

126

DVDD

DGND

DDCB_SDA

TX2-

TX1+55TXAVDD

54

56

C8160 104K

C8161 102J

TX_1+

TX_2-

5V_DETB

HP_CTRLB

123

124

5V_DETB

HP_CTRLB

TXGND

TX2+

57

58

TX_2+

RXA_2-

RXA_2+

C8111 104K

122

121

RXA_2+

CEC

60

59

C8162 104K

to CODEC Section (Part-18)

HDMI_FLR

DIR_MCK

+3.3V_MPU

RXA_0-

C8112 102J

120

TVDD

RXA_2-

DVDD

DGND

61

C8163 102J

C8170

104K

RXA_1-

RXA_1+

118

119

RXA_1+

ALSB

62

63

R8158 47K

R8172

RXA_1-

CSB

RXA_0+

117

116

CGND

EP_SCK

65

64

R8150 47x4

10K

RXA_C+

104K

C8113

C8114 102J

113

114

115

TVDD

RXA_0-

RXA_0+

DDCA_SDA

RTERM

5V_DETA

HP_CTRLA

AP2_IN
AP3_IN

DVDDIO

EP_MOSI

EP_CS

EP_MISO

68

66

67

R8154 22x4

1

CS

2

SO

3

WP

4

GND5SI

EW25Q16VSSIG

RXA_C+

MCLK_IN

Q8105

SPI MEMORY

HDMI_LRCK

ARC_SPDIF

RXA_C-

C8115 104K

112

110

111

CGND

RXA_C-

PWRDNB

RESETB
MCLK_OUT
SCLK_OUT

AP5_OUT

AP4_OUT
AP3_OUT
AP2_OUT
AP1_OUT
AP0_OUT

DGNDIO

SCLK_IN

AP5_IN71AP4_IN

69

70

VCC

HOLD

SCK

HDMI_SPDIF

HDMI_MCK

HDMI_BCK

DDCA_SCL

C8116 102J

109

108

CVDD

107
106

DDCA_SCL

105
104

PGND

103

PVDD

102

XTAL1

101

XTAL

100

PVDD
PGND

DVDD
DGND

DVDDIO

INT_TX

INT2

INT
DVDD
DGND

SCL

SDATA
AP0_IN
AP1_IN

DGNDIO

72

CS

GND

8

7

6

CX_LRCK

CX_SCLK

99
98
97

L8101

96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73

TP15

R8148

5V_DETA

DDCA_SDA

C8122 104KC8121 104K

C8125 102J

C8126 104K

C8128 102J

C8130 102J

C8132 102J

LM182

C8133 104K

C8134 102J

C8140 104K

C8141 102J

C8146 104K

C8147 102J

R8142 22

C8153 104K

C8154 102J

47K

+1.8VPVDD

+3.3VDVDDIO

to DSP Section (Part-18)

HDMI_SLR

HDMI_SBLR

HP_CTRLA

R8121

1K

R8119

1K

C8123

070D

C8127

X8100

070D

R8125 100

R8126 100

R8127 33

R8128 330

R8129 33

R8131 33x4

100x4

R8132

HDMI_CSW

+3.3V_MPU

+5.0V_MPU

28.6363MHz

HDMIPDN
HDMIRST
HDMI_MCK
HDMI_BCK
HDMI_LRCK

HDMI_SBLR
HDMI_CSW
HDMI_SLR
HDMI_FLR

HDMI_SPDIF

HDMIINT_TX
HDMIINT2
HDMIINT

HDMISCL
HDMISDA

DSP_FLR

CX_LRCK
CX_SCLK
DIR_MCK

GND_VD

GND_VD

GND_DDC

SPICS
SPIHOLD

HDMISDO
HDMISDI
HDMISCK

GNDDG

GND_VD
+3.3V_MPU
+5.0V_MPU

GND_DDC

HDMIPDN

HDMIRST

HDMIINT_TX

HDMIINT2

HDMIINT

HDMISCL

HDMISDA

SPIHOLD

HDMISDI
HDMISDO
HDMISCK

CEC

IJK

from MAIN MICON Section (Part-14)

C8145

10

10

R8182

R8181

R8180

R8177

R8178

R8179100

100

100

100

C8176

C8177105K

105K

HEAC+

TX_HPD_HEAC-

TX_2+

TX_2-

TX_1+

TX_1-

TX_0+

TX_0-

TX_C+

TX_C-

CEC

HEAC+
TXDDC_SCL
TXDDC_SDA

TX_HPD_HEAC-

TP01

R8159

5V_TX

1.8K

R8160

1.8K

102J

10
11
12
13
14
15
16
17
18
19

C8168

102J

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0­CK+
CK Shield
CK­CERemote
HEAC+
DDC CLK
DDC DATA
GND
+5V
HPD/HEAC-

23

21

Shield

P8105

HDMI OUT

Shield

20

22

Shield

TP16

TP17

TP18

TP19

7

GND

SPI_SO

SPI_SCK

SPI_SI

5

8

6

7

P8901

SPI_SCL

SPI_CS

SPI_HOLD
4

TP23

TP22

TP21

TP20

SPI_SDA
123

SPI MEMORY Writer

HOT PLUG

+5.2VHD

105K

C8983

D8100 KDS4148U

Q8104

MM3404502NRE

1

VOUT

VIN

2

VSS

3

NC

CE

5

105K

4

C8984 105K

C8985

GNDP

8

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCDEF GH

SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-18

DSP/ CODEC/ DAC SECTION
PART-18

1

U0030

2

NPLG-5P918

3

4

5

6

7

TO BADG-0615 (PART-3)

8

BAHDM-0678

SR309,HT-R548,
HT-RC330 Only

0

P3101A

P8003A

5
4
3
2
1

OPTI1

7

+3.3V

6

GND_DG

5

OPTI2

4

GND_CH

3

COAX1

2

GND_CH

1

TP79

GND_USB

USBDP1
USBDM1

TP80

BLM18PG181SN1D

R271

L271

L273

4
3
2
1 8

L272

C516 104K

DIR_MCK

TPD2E001DRLR

5

IO2

4

GND3IO1

5
6
7

Q276 BD82065FVJ
8

7
6

220/10

102J

5

C275

C274 105Z

C276

+1.8VHD

TO DCDC_GND

HDMI_LRCK

HDMI_FLR

ARC_SPDIF

VCC

NC

Q275

OUT

GND
OUT
OUT
OC4EN

47K

R276

C271

106K/6.3

GNDDG

HDMI_SPDIF

HDMI_MCK

HDMI_BCK

1
2

1
2

IN

3

IN

C272

106K/6.3

Model No. TX-SR309 / HT-R290 / HT-R390 / HT-R548 / HT-RC330
Schematic Diagram (Part-18) DSP/CODEC/DAC Section

HDMI_SBLR

HDMI_CSW

HDMI_SLR

CX_LRCK

CX_SCLK

+5.2VHD

+5.0V

C280

105Z

C277

100/16

C278 105Z

C517

104K

GNDDG

2.2K

R277

Q271

XC6220B121PR

3

NC

2

VSS

1

CE5VOUT

VIN

4

to MICON Section (Part-14)to HDMI Section (Part-15)

DSPINT1

DIRCS

MCLK44/48

DIRINT0

DSPINT2

BU18TD3WG-TR

1

VIN

2

VSS

3

CE4NC

BU33TD3WG-TR

1

VIN

2

VSS

3

CE4NC

+5.2VHD

C273

DSPINT0

Q278

Q277

105Z

C268

105Z

C269

106K/6.3

VOUT

VOUT

DIRRST

5

5

2
4
6

8
10
12
14 13

JTAG

R2584.7K

BU33TD3WG-TR

DIGSDO

DIGCLK

DIGSDI

C281

106K/6.3

106K/6.3

C279

P201

Q272

1

VIN

2

VSS

3

CE4NC

+1.2V

DSPRST

1
3
5
7
9
11

VOUT

+3.3V_MPU

+1.8V

+3.3V

R2594.7K

R803

GND_VD

R272

0

R273

0

5

+3.3V

0

+5.0V_MPU

C270

106K/6.3

NC

C802

12mA

+3.3V

19mA

Differrential
Impedance = 90ohm

290, 390 Only

DSPRST

DIR_MCK

TP209

DSPINT1
DSPINT0

TP208

DIR_FLR
DIR_LRCK
DIR_BCK
DIR_MCK

DIGSDI
DIGSDO

L303 LBC2518T4R7M

DIGCLK

R321

DIRCS

R322

COAX1

R324

OPTI2

R325

OPTI1

R326

R327

DIRRST

220

L251

BLM18PG121SN1D

L252

BLM18PG121SN1D

BLM18PG121SN1D

0

R2740R275

220

R253

DEC
NIC

BLM18PG181SN1D

+1.2VDSP

BLM18PG121SN1D

C254

106K/6.3

47

R312

47

R313

150

R314

47

R315

47

R316

330

R317

330

330

330

330

330

221J

330J

330J

C310

C311

C312

C309 330J

del

del

del

106K/6.3

C251

C256

105Z

L253

C252

106K/6.3

C265 120J

C266 120J

24.000MHz

R254

10K

TP231

L254

C253

106K/6.3

L255

C255

106K/6.3

L301 LM182

L302 LL241

38mA

5mA

25

MC/SCL

26

MS/ADR1

27

MODE

28

RXIN7/ADR1

29

RXIN6/ALRCKI0

30

RXIN5/ABCKI0

31

RXIN4/ASCKI0

32

RXIN3

33

RXIN2

34

RST

35

RXIN1

36

VDDRX

220/4

C307 104Z

C306

X301

HC-49US24.576MHz

180J

C301

C267102K

C264 105Z

700/950mA

24

23

RXIN0

38

37

180J

C302

C262 104Z

X201

C214 105Z

R260

C215 105Z

C239 105Z

C216 105Z

R261

C240 105Z

C217 105Z

R255

C218 105Z

R262

R263

C241 105Z

R264

R265

C219 105Z

47

47

C242 105Z

55mA

DSP_VSS

104Z

C305

21

22

DVDD

DGND

MDI/SDA

XTI

XTO

GNDRX

40

39

R331

220

220/4

C313 104Z

C314

224K

C261

C263 103K

R252

R251

0

NC

NC

220

10K

10K

10K

220

R256

R257

TP206

TP207

19

17

18

20

BCK

LRCK

SCKO

MDO/ADR0

Q301

PCM9211

AGND

VCC

FILT

41

42

43

44

C315

472K

L304

C320 223K

LBC2518T4R7M

13mA

NC

16

MPO1

DOUT

MPIO_B3

VCOM

AGNDAD

45

R332

473K

C316

133
134
135
136
137
138
139
140
141

PLL0_VDDA

142

PLL0_VSSA

143

OSCIN

144

OSCVSS

145

OSCOUT

146

RESET

147

CVDD

148

RTC_XI

149

RTC_CVDD

150

TRST

151

DVDD

152

TMS

153

TDI

154

CVDD

155

TCK

156

TDO

157

GP7[14]

158

DVDD

159

CVDD

160

AHCLKX1/EPWM0B/GP3[14]

161

CVDD

162
163
164

165

166
167
168
169
170
171
172
173
174
175
176

L306 LM182

15

13

14

MPO0

MPIO_B1
MPIO_B0
MPIO_C3
MPIO_C2

MPIO_B2

MPIO_C1
MPIO_C0
MPIO_A3
MPIO_A2
MPIO_A1
MPIO_A0

NPCM/INT1

ERROR/INT0

VCCAD

VINR

VINL

46

48

47

680

47/16

220/10

C318

C319

DIR_BCK

DIR_LRCK

TP230

330

330

10K

R248

R249

R247

131

132

130

AFSR0/GP3[12]

AMUTE1/EHRPWMTZ/GP4[14]

ACLKR0/ECAP1/APWM1/GP2[15]

RSV2
USB0_VDDA12
USB0_VDDA18
NC
USB0_DP
USB0_DM
NC
USB0_VDDA33

UART0_RXD/I2C0_SDA/TM64P0_IN12/GP5[8]/BOOT[8]

AXR1[0]/GP4[0]

UART0_TXD/I2C0_SCL/TM64P0_OUT12/GP5[9]/BOOT[9]

1

3

2

10K

10K

10K

R202

R203

R201

150

R302

12
11

R309

10

R308

9

R307

8

R306

7

R305

6
5
4
3
2
1

104Z

C317

R304

R333

C304 NC

del

L305

LBC2518T4R7M

+5.0VA

*

*

330J

C303

del

DIR_MCK

CX_SCLK

CX_LRCK

47

R245

220

105Z

R24647R244

C238

L201 0

127

129

126

128

DVDD

AFSX0/GP2[13]/BOOT[10]

AHCLKR0/GP2[14]/BOOT[11]

ACLKX0/ECAP0/APWM0/GP2[12]

ACLKX1/EPWM0A/GP3[15]
AFSX1/EPWMSYNCI/EPWMSYNC0/GP4[10]
DVDD
ACLKR1/ECAP2/APWM2/GP4[12]
AFSR1/GP4[13]
CVDD
AXR1[8]/EPWM1A/GP4[8]
AXR1[7]/EPWM1B/GP4[7]
AXR1[6]/EPWM1A/GP4[6]
AXR1[5]/EPWM1B/GP4[5]
DVDD
AXR1[4]/EQEP1B/GP4[4]
AXR1[3]/EQEP1A/GP4[3]
AXR1[2]/GP4[2]
AXR1[1]/GP4[1]

AXR1[10]/GP5[10]

SPI1_ENA/UART2_RXD/GP5[12]

AXR1[11]/GP5[11]

DVDD

7

4

5

6

47

C221 105Z

R216

TP203

220

MCK_USB_256Fs

330

HDMI_FLR

330

HDMI_LRCK

33

HDMI_BCK

220

HDMI_MCK

220

HDMI_SPDIF

220

ARC_SPDIF

47

R301

18mA

HDMI_LRCK

HDMI_SBLR

47

330

330

R243

R241

R242

122

121

123

124

125

AXR0[8]/GP3[8]

AXR0[11]/AXR2[0]/GP3[11]

UART1_RXD/AXR0[9]/GP3[9]

UART1_TXD/AXR0[10]/GP3[10]

AHCLKX0/AHCLKX2/USB_REFCLKIN/GP2[11]

SPI0_SCS[0]/UART0_RTS/EQEP0B/GP5[4]/BOOT[4]

SPI0_CLK/EQEP1I/GP5[2]/BOOT[2]

SPI1_SCS[0]/UART2_TXD/GP5[13]

8

SPI1_SCS

SPI0_ENA/UART0_CTS/EQEP0A/GP5[3]/BOOT[3]

CVDD

9

11

10

12

47

47

220

4.7K

C201 105Z

R204

R205

R206

TP210

DIGCLK

DSPCS

DSPINT2

DIRINT0

RAS

33X4

DSP_CSW

HDMI_CSW

HDMI_SLR

DIR_FLR

TP229

47

330

330

330

R239

R240

R238

C237 105Z

116

119

117

118

120

DVDD

AXR0[7]/GP3[7]

AXR0[5]/AFSX2/GP3[5]

AXR0[4]/AXR2[1]/GP3[4]

AXR0[6]/ACLKR2/GP3[6]

SPI1_SOMI[0]/I2C1_SCL/GP5[5]/BOTT[5]

SPI0_SOMI[0]/EQEP0I/GP5[0]/BOOT[0]

DVDD

SPI1_CLK/EQEP1S/GP5[7]/BOOT[7]

SPI1_SIMO[0]/I2C1_SDA/GP5[6]/BOTT[6]

13

R207

SPI1_SOMI

15

14

16

47

47

C222 105Z

R208

R209

10K

R215

SPI1_SIMO

SPI1_CLK

256x48K

17

47

330

R210

DIGSDI

MCLK44/48

DSP_FLR

DSP_SLR

DSP_SBLR

R234

C213 105Z

114

115

AXR0[3]/AXR2[2]/GP3[3]

SPI0_SIMO[0]/EQEP0S/GP5[1]/BOOT[1]

18

19

R214

TP204

DIGSDO

R229

47

47

47

R236

R237

R235

C236 105Z

109

112

110

111

113

CVDD

EMA_WAIT[0]/UHPI_HRDY/GP2[10]

20

C202 105Z

BLM18PG181SN1D

C323

R319

R303

390

DVDD

EMB_RAS

AXR0[0]/AFSR2/GP3[0]

AXR0[2]/AXR2[3]/GP3[2]

AXR0[1]/ACLKX22/GP3[1]

Q201

DA808

THERMALPAD

177

DSP_VSS

GNDDG

EMA_OE/UHPI_HDS1/AXR0[13]/GP2[7]

DVDD

EMA_CS[2]/UHPI_HCS/GP2[5]/BOOT[15]

CVDD

EMA_CS[3]/AMUTE2/GP2[6]

22

24

21

23

47

10K

C223 105Z

R211

R212

TP205

HDMI_SPDIF

L307

C324

105Z

106K/6.3

470

L308

MMZ1608Y601BT

BA1

BA0

SDCS

107

106

108

EMB_CS[0]

EMB_BA[1]/GP7[0]

EMB_BA[0]/GP7[1]

EMA_A[10]/GP1[10]

EMA_BA[1]/UHPI_HHWIL/GP1[13]

EMA_BA[0]/GP1[14]

26

25

27

C325 105Z

TC7SZU04FU

Q302

1
2

3

R310

120J

C321

1
2
3
4

A2A1A0

A10

33X4

R228

C212 105Z

101

102

103

104

105

CVDD

EMB_A[1]/GP7[3]

EMB_A[0]/GP7[2]

EMB_A[2]/GP7[4]

EMB_A[10]/GP7[12]

EMB_WE_DQM[1]/GP5[14]

EMA_A[7]/GP1[7]

EMA_A[4]/GP1[4]

EMA_A[5]/GP1[5]

EMA_A[6]/GP1[6]

EMA_D[7]/MMCSD_DAT[7]/UHPI_HD[7]/GP0[7]/BOOT[13]

EMA_A[2]/MMCSD_CMD/UHPI_HCNTL1/GP1[2]

EMA_A[3]/GP1[3]

CVDD

EMA_A[0]/GP1[0]

EMA_A[1]/MMCSD_CLK/UHPI_HCNTL0/GP1[1]

28

29

30

32

31

C203 105Z

VCC

5

NC

4

GND

1M

X302

11.2896MHz

C322

C326 105Z

Q303

G

VCC
A1
Y2
GND5A2

G

Y1

TC7WH241FU

TP228

A4A5A6

A3

33X4

R227

105Z

C235

99

100

DVDD

EMB_A[3]/GP7[5]

EMB_D[8]/GP6[8]

EMA_A[8]/GP1[8]

CVDD

EMA_A[9]/GP1[9]

EMA_WE/UHPI_HRW/AXR0[12]/GP2[3]/BOOT[14]

EMA_D[6]/MMCSD_DAT[6]/UHPI_HD[6]/GP0[6]
EMA_D[5]/MMCSD_DAT[5]/UHPI_HD[5]/GP0[5]

EMA_D[4]/MMCSD_DAT[4]/UHPI_HD[4]/GP0[4]
EMA_D[3]/MMCSD_DAT[3]/UHPI_HD[3]/GP0[3]

EMA_D[2]/MMCSD_DAT[2]/UHPI_HD[2]/GP0[2]
EMA_D[1]/MMCSD_DAT[1]/UHPI_HD[1]/GP0[1]

DVDD

33

34

C224 105Z

No USE

560F

R311

120J

8
7
6

A8

A9

A7

A11

A12

33X4

33

R226

R230

C234 105Z

C211 105Z

97

95

96

98

EMB_A[7]/GP7[9]

EMB_A[4]/GP7[6]

EMB_A[6]/GP7[8]

EMB_A[5]/GP7[7]

EMB_SDCKE

DVDD

EMB_CLK

EMA_A[11]/GP1[11]

DVDD

EMA_A[12]/GP1[12]

35

37

38

36

C204 105Z

R318

56

256x44.1K

+3.3V

90

89

91

93

94

92

DVDD

CVDD

EMB_A[9]/GP7[11]

EMB_A[8]/GP7[10]

EMB_A[11]/GP7[13]

EMB_A[12]/GP3[13]

EMB_D[9]/GP6[9]

EMB_D[10]/GP6[10]

EMB_D[11]/GP6[11]
EMB_D[12]/GP6[12]
EMB_D[13]/GP6[13]

EMB_D[14]/GP6[14]

EMB_D[15]/GP6[15]

EMB_WE_DQM[0]/GP[15]

EMA_D[0]/MMCSD_DAT[0]/UHPI_HD[0]/GP0[0]/BOOT[12]

40

39

41

42

DVDD

CVDD

DVDD

EMB_D[0]/GP6[0]
EMB_D[1]/GP6[1]

DVDD

EMB_D[2]/GP6[2]

CVDD

EMB_D[3]/GP6[3]

CVDD

EMB_D[4]/GP6[4]

DVDD
EMB_D[5]/GP6[5]
EMB_D[6]/GP6[6]
EMB_D[7]/GP6[7]

CVDD

EMB_WE

DVDD

EMB_CAS

CVDD

DVDD

CVDD

DVDD

43

44

R213 10K

C225 105Z

SW HW

PIN

1

OPEN

2

DACCS

DIGCLK

3

DIGSDO

4

VDD

DACMUT

DACCS

DIGCLK
DIGSDO
DIR_MCK
DSP_FLR
CX_SCLK
CX_LRCK

DSP_CSW
DSP_SLR
DSP_SBLR

LBC2518T4R7M

LBC2518T4R7M

L351

L352

R350

R351

R352

R361

R354

R355
R359

R360

R356

R357

R364

88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45

PU
PD
PD

DACMUT

PU14

330

NC

NC

NC

47

22

22

22

C351
220/4

22

22

NC

+3.3V

10K

10K

R363
R358
R353

104Z

C352

20mA?

C228105Z

C206105Z

C227105Z

C205105Z

C226105Z

C233105Z

C232105Z

C210105Z

C231105Z

C230105Z

C209105Z

C208105Z

C229105Z

C207105Z

R232

R231

R362

220K

0
0
0

R225

R224

R223

R222

R221

R220

1

ZR1/ZR1/FMT0

2

MS/ADR/FMT1

3

MC/SCL/DEMP

4

MD/SDA/MUTE

5

SCK

6

DATA1

7

BCK

8

LRCK

9

VDD

10

DGND

11

DATA2

12

DATA3

13

DATA4

14

MSEL

33X4

CKE

CLK

UDQM

D8

D9
D10
D11

33X4

D12
D13
D14
D15

33X4

D0

D1

D2

D3

33X4

33X4

D4

D5

D6

D7

LDQM

WE

CAS

33X4

Q351

PCM1681

ePAD

29

ZR2
VOUT1
VOUT2

VCOM

AGND2

VCC2
VOUT3
VOUT4
VOUT5
VOUT6
AGND1

VCC1
VOUT7
VOUT8

28
27
26
25
24
23
22
21
20
19
18
17
16
15

+5.0VA

SPI1_SCS

SPI1_SOMI
SPI1_CLK
SPI1_SIMO

D0

D1
D2

D3
D4

D5
D6

D7

LDQM
WE
CAS
RAS
SDCS
BA0
BA1
A10
A0
A1
A2
A3

C356

47/16

C355

104Z

104Z
C354

C353

220/10

80mA?

IJK

Boot Mode SPI1

C293

102J

C283

105Z

C284

105Z

C285

105Z

C286

105Z

C287

105Z

C294

102J

Boot [7]
Boot [2]
Boot [1]
Boot [0]

10K

R281

L
H
H
L

10K

R282

1
2
3
4

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

VDD

15

LDQM

16

WE

17

CAS

18

RAS

19

CS

20

BA0

21

BA1

22

A10

23

A0

24

A1

25

A2

26

A3

27

VDD

CS
SO
WP
GND5SI

W25Q16VSSIG

8

VCC

7

HOLD

6

SCK

Q282

VSS

DQ15

VSSQ

DQ14
DQ13

VDDQ

DQ12
DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8
VSS

Q281

NC

UDQM

CLK

M12L64164A-7TG

CKE

NC

A11

A9
A8
A7
A6
A5
A4

VSS

64Mbit SDRAM

10/50

C369

C370

C367

C368

C365

C366

10/50

10/50

10/50

10/50

10/50

R369

100K

R370

100K

R367

100K

R368

100K

R365

100K

R366

100K

C290

54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28

10K

105Z

NC

R284

R283

C296

102J

C289

105Z

C288

105Z

C295

102J

80mA

BLM18PG181SN1D

C282

106K/6.3

TP282

TP286

L281

MICMUT
VOLH
SL+
HPDET
SR+
HPGND
C+
IPROTECT
SW+
PROTECT
FL+
RI
FR+
TU_GPIO2

TU_SCL

TU_SDA
LTAD
TU_RST
RTAD

TP281

TP285

D15

D14
D13

D12
D11

D10
D9

D8

UDQM

CLK
CKE

A11
A9
A8
A7
A6
A5
A4

SPI Memory Writer

SPI_CS

GND
SPI_SO
SPI_SCK
SPI_SI

+3.3VHD

TP283

TP284

GND_LPF

GND_LPF

1
2
3
4
5
6
7
8

MICMUT
VOLH
IPROTECT
PROTECT
HPDET
HPGND
TU_GPIO2
TU_SDA
TU_SCL
TU_RST
RI

21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

P281

to Micon Section (Part-14)

TO BAAF-0614 (PART-3)

P8001B

TX-SR309/ HT-R390/ HT-R290/ HT-RC330/ HT-R548

A

PRINTED CIRCUIT BOARD VIEWS-1

U001 BAAF-0614

A-side view

1

2

BCDEFGH

U0014
SECONDARY WIRING
CIRCUIT PC BOARD
BAETC-0618

U0012
THERMAL SENSOR CIRCUIT
PC BOARD
BAETC-0616

U0013
SPACER PC BOARD
BAETC-0617

U0016
POWER SUPPLY
CIRCUIT PC BOARD
BAETC-0620

U0010
POWER AMP/ AUDIO INPUT TERMINALS CIRCUIT PC BOARD
BAAF-0614

3

U0015

FFC FIXTURE PC BOARD

BAETC-0619

4

U0011

DIGITAL INPUT TERMINALS

CIRCUIT PC BOARD

BADG-0615

5

TX-SR309/ HT-R390/ HT-R290/ HT-RC330/ HT-R548

A

BCDEFGH

PRINTED CIRCUIT BOARD VIEWS-1A

S&O AXI/RAD

U001

1

BAAF-0614
(U0010 to U0016)

A-side view

2

3

4

5

P961

P6001

25140618 1

BCETC-0618

C6070

7

J4328

RL660

JL954B

UP

BCDG-0615

QPWBCAF0614B1

25140615

1

J130

C139

10

J131

open

P960

C6080

15

22

22

QPWBCAF0614B1

BCETC-0619

P959

C6081

C6071

J4325

20

20

25140619

1

C145

J132

7

1

GND_CH

COAX1

J133

GND_CH

P958

J4338

15

15

P131

QPWBCAF0614B1

RL662

7

J4337

10

8A 125V

U132

U131

7

GND_DG

OPT1

OPT2

+3.3V

P957

C6083 C6084

C6082

C6072

J4326

J432920J4330

J4336

12

8A 125V

J4014

J4016

J4017

J4019

J4021

J4022

J4023

J4024

P8003B

P956

12

F6902

F6902B

22

15

NC

WHITE

J4042

R6251

R6252

HPR

D_GND

HPL

HPDET

E6001

P955

J4320

10

J4323

22

10

J4018

NO

7

J4030

J6003

wire direction

J4037

7

J4315

J4314

R6144

7

J4038

C6064

HP GND

P954

5CH

RL663

P6902A

C6061

D6007

25

12

12

F6902A

F6901AF6901B

F6901

P6913

20

22

22

R6141

R6142

C6062

J4313

JL605B

C6009

C6087

12

COM

D6008

J4032

J4327

P953

J4410

J4333

J4304

R6161

R6140

J6259

RL691

7

J4321

J6477

12

J4028

10

J4029

R6143

C6041

R6051

R6041

JL951AJL952AJL954A

NC

30

7

R6171

P952

P951

P950

J4322

J4324

J4409

COM

RL667

NC

17

17

SWG

NC

NO

17

6CH

C6077

J4411

30

FLG

C6913

30

RL692

P6916

J4412

J4513

30

J4512

30

J4302

J4511

J4118

J4510

SLG

SLG

AC

solder

dipping

after

7

7

J4035

J4034

P6900B

20

30

CG

SRG

FRG

J4339

J4340

-+

BLK

C6902

JL603A

SWG

CG

NC

NC

SRG

FRG

C6060

J4043

C6063

J4049

7
J4045

17

J4046

10

P6909

J4047

FLG

J4301

R6147

FR

L6001

C6088

J4341

J4332

22

30

Remove

J4033

wire direction

J4040

SLG

SLG

12

12

J4053

IC

C4186

J4123

R6177

J4362

VOL

J4103

C6014

15

12

J4201

J4204

15

J4206

J4211

J4215

J4217

20

J4394

15

J4200

J4209

J4210

14

Q4001

J4391

12

J4195

J4196

J4197

J4198

J4199

J4130

QPWBCAF0614B1

25140617
BCETC-0617

15

J4145

J4146

J4371

J4147

C4187

D4171

D4172

C6023

C6013

R6023

R6033

C6033

C6043

10

R6044

22

L6004

12

22

P4005

J4188

7

C6106

J4191

R6054

17

1

12

R4174

J4166

R6053

C6044

SR

12

J4155

J4163

7

R4175

J4185

R6043

12

10

R4176

R6206

30

J4149

10

J4167

J4162

15

20

10

R4177

J4193

R6164

R6174

R6208

7

10

J4216

J4218

2CH IC

J4365

C4004

22

J4160

J4164

J4168

C4209

J4212

12

22

C4130

J4186

J4171

7

J4202

J4375

15

J4378

17

J6500

L6003

J4156

10

20

15

C4171

25140620
BCETC-0620

R950

C950

27

J4384

J4381

J4388

7

J4393

R4001

7

J4203

25

10

1

FLAC2

+3.3VMPU

P4100B

C4003

C4402

J4377

27

10

C4210

R4002

J4194

SL

J4219

J950

C4403

10

QPWBCAF0614B1

1

-VP

FLAC1

+3.3VMPU

5

P4002

C4061

C4070

C4077

C4074

J4390

15

J4503

VID HOLDER

C4132

C4173

J4399

J4189

-12V

C4170

J4205

10

R6163

R6173

J4213

Q6002

J4363

C4073

15

20

J4504

J4180

15

C6107

C6108

C4060

C4071

Q4171

D4304

1

J4501

J4500

C4072

C4172

J4396

Q4170

17

5

JL951B

C962

C963

JL953B

7

J4360

25

GND

+12V

U_PORT_R

U_PORT_L

-12V

J4379

J4382

10

20

J4392

1.RTAD
TU_RST TU_SCL

LTAD

TU_SDA

J4176

7

J4395

J4397

+12V

10

D4305

C4404

7

7

J4385

J4389

C4423

J4364

J4373

J4374

J4376

J4507

J4502

Q5671A

Remove

after
solder
dipping

Q5670A

Q6023

1

R960

R961

C961

C4424

5.GNDLPF

GNDLPF
GPIO2
FR+

Remove

after
solder

dipping

J4221

J4380

C4166

D960

JL502A

J4383

C4167

D6032

C6091

C4405

J4368

C4431

12

22

C4406

J4372

17

10

J4386

10

17

15.C+

21.MICMUT

Q6022

D961

Q960

C4407

C4430

C4437

J4417

J4387

10

10.RI
FL+
PROCTECT

SW+

IPROTECT

HP_GND
SR+
HPDET

SL+

VOLH

-12V

+12V

J4214

15

12

C4110

D6031

Q4401

Q6013

C4421

C4422

C4432

C6092

C4420

C4427

Q6017

4 SEC3_2

5 SEC3_2

C960

12

C4111

1

AUX_R

GNDA_AUX

10

2 FLAC2

3 SEC3_1

J4413

7

J4402

J4403

12

J4418

J4600

P4100A

P703B

MICMUT

AUX_L

P6915

J4207

C6090

1 FLAC1

J4414

wire direction

J4415

10

27

J4054

J4407

7

MICOUT

+12V

-12V

25140614A

J4220

7

P4000

27

J4406

BCAF-0614

1

Q6014

UP

+5V

9

P101B

1

TU_LI

+5VTU

TU_RI
GNDTU
NC

GPIO2

TU_SCL
TU_SDA
TU_RST

1

J4416

P8001A

21

QPWBCAF0614B1

QPWBCAF0614B1

1

25140617
BCETC-0617

BCETC-0616

25140616

JL501A

JL504A

J4067

R6160

25

R6052

27

15

17

R6042

C6102

FL

J4607

JL503A

20

J4331

J4345

C4024

C4101

12

J4102

C6042

R6031

R6021

17

7

J4109

J411215J4115

27

J4359

10

AGND

AGND

SW PREOUT

L6002

SPRLB

9

1

20

JL600B

C6901

J4348

R4161

C4300

R4160

25

J4051

J4089

7

D4303

25

12

J4132

J4400

J4350

D4300

P6901A

L6000

FL

1P

P4009

RL669

12

15

J4347

J4061

R4006

J4119

J4044

22

7

J6455

D4302

D4301

J4357

22

WHITE

P6902B

C6040
R6040
R6050

R4005

P6914

R6170

J4303

C4301

C4302

7

R6203

C6021

J4108

22

J6501

RED

P6901B

12

J6004

RED

R6162

R6172

12

12

J412812J4127

J4133

RL693

10

J4041

22

C6912

D6901

P6002

C6073

NC

D6901A

17

12

JL603B

SL

30

R6912

J4088

C6089

17

17

NC

SPRLCS

VOLCLK

SPRLF

VOLDATA

SEC1OFF

AMUTE

SEC1H

C6074

P8002A

J4349

17

SW

R

C

SR

L

P6906

J4353

12

17

J4351

J4087

12

P6903

J4039

C

JL600A

7

J4048

LCR

NC

SL

15

J4052

C6067

J4050

30

30

J4124

C6103

SR

SW

Q6001

1

Q6380

AGND

17

J4344

C6022

J411315J4114

R6204

R6205

FR

C4064

C6011

J4120

J4121

SURR L

10

J4343

C4050

C4100

J4106

J4125

Q6380A

SURR GND

SURR R

C4020

12

J4342

7

J4334

22

12

C6031

15

15

J4356

QPWBCAF0614B1

P4006

C4019

17

J4346

C4063

C4067

C4051

C4102

C4107

J4352

J4354

30

J4081

VID HOLDER

FR

17

FR

J4098

C6020

C6012

R6032

R6022

15

15

C6030

10

J4117

J4116

J4111

C6101

R6210

12

12

J4057

C4086

C4062

C4066

C4052

C4054

20

C4104

20

J4093

J409215J4094

C

C

C6010

R6030

R6020

C6032

J4122

J4126

12

C6105

10

J4139

20

J4096

FL

J4358

J4056

C4065

20

J4095

C4103

J4355

FL

L6007

R6209

17

J4055

C4057

20

J4100

Q6012

Q6010

10

J4129

17

C4053

FL IN C IN FR IN

10

20

12

J4084

D6012

D6011

Q6011

C4085

J4069

C6027

J4104

10

J4361

22

+7V

17

J4059

J4161

SW

15

C6037

SW

SW

7

15

J4158

22

SW IN

25

R6057

J4066

J4082

D6010

20

J4311

20

22

25

R6047

J4310

J4097

SR

J4107

20

SR IN

25

C6047

7

15

J4157

J4159

J4083

C6104

J4367

7

SR

J4398

25

C6017
R6027

R6037

12

J4153

J4179

SL

R6167

25

18

J4370

J4150

-7V

SL IN

25

C6706

22

22

30

J4169

J4175

SL

J4134

22

J4366

J4369

25

J4178

C6024

R6024

R6034

C6034

27

20

17

22

22

3CH IC

DIP

QPWBCAF0614B1

A

A-SIDE

TX-SR309/ HT-R390/ HT-R290/ HT-RC330/ HT-R548

A

BCDEFGH

PRINTED CIRCUIT BOARD VIEWS-1B

U001

QPWBCAF0614B1

BAAF-0614

1

(U0010 to U0016)

B-side view

2

3

4

25140620

1

D962

D964

L4001
TU_LI
+5VTU
TU_RI
GNDTU

C4408

R4417

D4400

R4418

R4421

C4409

R4441

R4450

NC

GPIO2
TU_SCL
TU_SDA

R4440

1.TU_RST

R4000

R4447

R4420

R4422

R4442

R4201
R4200
R4423

R4078

R4069

R4093

R4092
R4096

R4079

+12V

LTAD

25140614A

1

R6103

C6053

R6073

C6054

R6084

R6083

R6104
R6074

RTAD
TU_RST

TU_SDA
GNDLPF
TU_SCL
GNDLPF
GPIO2
FR+
RI
FL+
PROCTECT
SW+

IPROTECT

C+
HP_GND
SR+
HPDET
SL+
VOLH
MICMUT

QPWBCAF0614B1

D963

R4416

R4451

R4437

R4457

R4427

R4452

R4090

MICMUT

-12V

R6102
R6100
R6077

R963

R4094

AUX_L

R6215

R962

R4431

R4432

R4424

C4090

R4095

R4098

GNC_AUX

MICOUT

C6057

R6087

R6107

R4601

R4080

R4091

AUX_R

R4430

R4501

R4433

C4091

R4097

R6211

8

R4434

1

R4415

1

8

Q4142

R4511

R4482

R4443

R4413

R4414

Q4140

R4462

R4444

R964

R4412

R4081

R4487

Q4143

R4099

5 +3.3V

1 +3.3V

3 -VP

4 FLAC2

C4414

R4480

R4477

R4484

Q4130

R4400

C4413

R4481

R4131

5

C4412

8

1

R4491

8

R4502
R4512

C4131

1

C4416

R4490

1

C4417

R4471

R4470

R4463
R4483
R4133

2 FLAC1

QPWBCAF0614B1

1

25140617

3 SEC3_1

4 SEC3_2

5 SEC3_2

2 FLAC2

1 FLAC1

5

C4013

R4053
R4013

80

81

C4014

Q4001

R4054

R6234

R4014

C4015

C4016

C4204

R4056

R4016

R4055
R4015

R4088

R4082

51

1

100

R6013

R4193

R4130

R4003

R4192

R4190

R4047

C4203

R4043

R4068

R6133

R4410

R4411

C4007

R4044

R4007

C4001

R4067

C4002

R4004

R4189

R4048

R4008

R6101

C4008

R6134

R4408

R4406

R4404

1

Q4400

8

R4407

C4411

R4403

R4405
R4409

R4494
R4474

R4194

Q4243

R4473
R4493

R4134

R4132

1

8

R6233

50

R6014

D6704

C4017

R4087

R6710

QPWBCAF0614B1

R4057
R4017

R4089

31

30

R6709

25140617

C4018

R6080

R4058

R6017

R6090

C6050

Q4103

R6091

R6070

R4018

R6092

R6137

R6237

D6027

R6117

C4205

R4103

D6022

R6127

1

R4113

C6051 C6052

R6113

R6122

R6123

Q4104

R6071

R4114

D6021

D6023

R6112

R6081

R6082

D6024

R6121
R6111

R4104

R6072

R6114

R4059

Q4107

R6124

R4019

Q4117

R6010

D6020

Q4102

R6120

R6110

R4020

R4117
R4107

R4127

QPWBCAF0614B1

C6630

R4060

R4085

R4110

R4100

Q4100

R4112

R4102

R6012

TP631

SURR GND

SURR R

R4086

R4111

Q4101

C6631

25140616

1

AGND

SW PREOUT

AGND

FL

AGNDFRSURR L

R4029

R4027

C4037

R4023

R4181

R4101

R6011

R6130

R6230

C6115

D4208

Q6053

D6055

C4208

D4218

R4602

Q6051

R6132

NC
SPRLCS
VOLCLK
SPRLF
VOLDATA
SEC1OFF
AMUTE
SEC1H
SPRLB

Q6052

SWSRRCLSLNC

Q6708

R6232

SW

SLG

SLG

SLG

FLGCGFRG

RCLSLNC

SR

SLG

FLGCGFRG

D6903

C6917

SRG

SRG

D6057

SWGNCNC

R6231

SWGNCNC

C6117

Q6707

R6902

R6903

D6053

D6902

C6113

C6911

1

R4402
C4410

R4419

C4415

R4401

GND

U_PORT_R

-12V

U_PORT_L

+12V

R4461

R4510

Q4240

R4500

R4460

R4497

R4467

8

Q4242

1

R4472

R4492

R4464

C4434

R4454

1

8

C4433

R4453

1

Q4003

8

R4167

R4166

R6501

111

D6052

C6112

D131

QPWBCAF0614B1

25140618 1

BLK

D6051

C131

D132

C130

L131

C144

C142

Q131

C141

C143

R141

R131

25140619

1

R133

R142

C6111

QPWBCAF0614B1

R135

C133

C135

L135

R137

1

R139

C140

QPWBCAF0614B1

25140615

Q6024

R6219

5

D6034

R6217

C6094

R6218

D6033

R6216

Q6021

R6214

R6213
C6093

R6502

C6123

C6124

C6127

C6120 C6121C6122

QPWBCAF0614B1B-SIDE

R6131

DIP

L134

L133

OPT1

+3.3V

GND_DG

OPT2

1

COAX1

GND_CH

GND_CH

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-R590/ HT-RC330

A

PRINTED CIRCUIT BOARD VIEWS-2

U002

BADIS-0654

1

(U0020 to U0024)

A-side view

2

BCDEFGH

U0020
DISPLAY CIRCUIT PC BOARD
BADIS-0654

3

U0021
STANDBY SWITCH CIRCUIT PC BOARD
BADIS-0655

4

5

U0023
HEADPHONES
CIRCUIT PC BOARD
BAETC-0658

U0022
VIDEO CIRCUIT PC BOARD
BAVD-0656

U0024
PRIMARY WIRING CIRCUIT PC BOARD
BAPS-0659

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-R590/ HT-RC330

A

BCDEFGH

PRINTED CIRCUIT BOARD VIEWS-2A

3.+3.3S

S7108

SP-B

S&O AXI/RAD

5.+3.3VMPU

4.FLAC2

3.-VP

2.FLAC1

1.+3.3VMPU

7

5

JL702A

JL953A

C7041

1

10

15

VCR/DVR

S7127

U002

BADIS-0654

1

(U0020 to U0024)

A-side view

2

1.REMIN

2.GNDDG

U7041

Subwoofer+

J7009

J7010

J7011

J7007

10

1

7.KEY1_1

6.KEY0

5.LEDTHRU

4.KEYINT0

3.KEYINT1

2.KEY2_1

1.GNDDG

10

MOVIE/TV

C7013

J7001

12

J7008

10

S7142

C7015

J7002

J7004

7

7

J7005

20

CBL/SAT

BCDIS-0654

25140654A

1

QPWBCDIS0654B1

7

MUSIC

S7140

J7006

J7003

GAME

S7123S7125

GAME

S7138

Q7003

FL IC

09.MICDET

J7023

J7021

12

C7405

02.KEY0

03.KEY1

04.N.C

05.GNDA_AUX

06.LEDTHRU

07.AUX_V

08.N.C

J7025

7

J7026

12

J7029

01.+5.0VDIS

S7002

6.GNDA_AUX

5.MICOUT

7.AUX_R

10

J7028

7

C7403

C7412

4.AUX_L

3.-15V

2.MICMUT

C7411

10.GNDDG

11.GNDDG

12.VOLB

13.KEY2

14.VOLA

15.KEY3

16.+3.3S

7

1.+15V

J7031

Q7002

J7017

C7033

15

PRESET DOWN

S7156

SETUP

S7162

J7019

12

C7008

J7012

J7013

22

J7014

S7136

RT/PTY/TP

DIMMER

AUX

17

MEMORY

S7134

22

TUNING

S7132

AM

S7119S7121

J7016

7

J7015

J7018

DISPLAY

S7164

15

FM TV/CD

S7117

TUN UP

S7150

TUN DOWN

S7158

ENTER

S7154

7

J7020

PRESET UP

S7152

RETURN

S7160

U.PORT

USB

S7113S7115

J7022

17

17

17.REMIN

18.KEYINT1

19.FLDRST

20.KEYINT0

21.FLDCS

22.FLDSDO

23.FLDCLK

20

10

P701B

J7024

10

17

J7027

P703A

2.DATA-

5.CHASSIS

3.DATA+

1.+VBUS

4.GND

P3101B

15

17

23

1

C7401

P7501

3

7.KEY1_1

6.KEY0

5.LEDTHRU

4.KEYINT0

3.KEYINT1

STANDBY

S7102

QPWBCDIS0654B1

BCDIS-0655

4

MUSIC

OPTIMIZER

S7104

25140655

5

2.KEY2_1

1.GNDDG

D7152

HDMI THROUGH

1

TONE

5.GNDDG

JL605A

4.HPDET

3.HPR

2.SPLE

1.HPL

QPWBCDIS0654B1

BCETC-0658

1

25140658

E7201

C7203

C7204

P7201

JL702B

TONE­S7146S7148

7

1

Subwoofer-

J7101

7

SP-A

S7106

BD/DVD

S7129

TONE+

S7144

Z2L

Z2GND

Z2R

Z2GND

SL
GND
SR

UP_L
GND

UP_R

+15V

-15V

P2510

JL503B

J2003

J2029

10

JL502B

R9030

J2031

Q2501

P2081

15

C2404

GND

C2334

E9002

12VTRG

JL607A

J2034

J2033

J2032

C2337 C2338

C2333

GND

12

C2405

J2030

C2301

C2302

C2377

C2378

7

C2501

Q2502

J2004

P2201

C2102 C2103

10

10

10

J2035

7

J2015

7

SEC2-1

NC

SEC2-2

JL952B

C9011

J2005

15

J2036

J2016

7P

9P

UPTDETINT
UPTRST
UPTSDA

UPTSCL
UPTRXD
UPTTXD
UPTDET

FCTRL

NC

P2001A

9

1

J2006

D9011

J2017

AC

5A/125V

F9001

D9011B

C2104

C2013

15

22

15

15

P2202

C2105

C2106

C2107 C2108

C9013

C2604

C2602

J2041

12

12

17

J2018

J2043

J2019

J2020

22

25

27

J2038

J2037

J2040

J2042

J2039

C9012

+-

7

7

J2111

J2000

12

J2044

C2205

J2045

10

QPWBCDIS0654B1
BCVD-0656

25140656

12

J2021

C2005

E9004

5.2VHD
12V

12V

GND

JL801A

GND

C2109

J2046

1

C2002

J2007
10

C2003

J2008

12

J2047

C2110

7

J2001

C2115

J2025

J2027

7

J2026

9

J2002

C2116

7

J2051

J2050

P2801A

CV

J2014

J2110

J2013

7

10

10

12

12

1

PB

PY

PR

7

P2203

17

P2900A

C2111

C2112

J2049

J2048

15

22

7

J2022

J2023

10

12

7

J2011

C2211

J2009

12

7

J2010

20

C9026

1

C2114

C2113

J2028

22

J2024

10

J2012

C2118

P2800A

9

1

VDET

YDET

VMUT

POFF2

AUX_V

DCTRL

VSWSCL

VSWSDA

GND_AUX

A-Side

QPWBCDIS0654B1

A

DIP

P7301

E901

QPWBCDIS0654B1

BCPS-0659

25140659 1

1234

T902

AC CORD

P901A

E902

AC-G

5.POFF

4.+12VD_ST

3.GNDDG

2.+10VS

1.POWERD

56789

AC-H

R921

RL901

C901

E7301A

J903

8A 125V

F901

C922

C930

F901CF901D

P7401

7

J902

C933

P911

TRANS IN

RISK OF FIRE

-REPLACE FUSE

5

JL901A

1

J901

AS MARKED

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-R590/ HT-RC330

A

BCDEFGH

PRINTED CIRCUIT BOARD VIEWS-2B

U002

BADIS-0654

1

(U0020 to U0024)

B-side view

2

3

4

5

5

1

D934

QPWBCDIS0654B1

25140659 1

R7401

L7401

R7403

R7402

R934

01.+5.0VDIS

02.KEY0

03.KEY1

04.N.C

05.GNDA_AUX

06.LEDTHRU

07.AUX_V

08.N.C

23

1

R7404

C7421

R922

1.POWERD

2.+10VS

3.GNDDG

10

20

R7405

L7402

C7502

C7402

R7407

1

C7501

4.+12VD_ST

5.POFF

09.MICDET

10.GNDDG

11.GNDDG

12.VOLB

13.KEY2

14.VOLA

15.KEY3

16.+3.3S

C7021

C7022

R7408

1

L7504

L7502

D7502

C902

D7501

C7404

D7504

D925

1

L7503

D7503

R7411

R7023

Q7401

R7412

L7501

C7503

1.+15V

C7504

D935

17.REMIN

18.KEYINT1

19.FLDRST

20.KEYINT0

21.FLDCS

22.FLDSDO

23.FLDCLK

R7022

R7024

2.MICMUT

4.AUX_L

5.MICOUT

3.-15V

7

R7406

D7411

D7412

C7304

D7302

D933

D922

D7301

6.GNDA_AUX

D921

R7021

7.AUX_R

R7409

C921

D7401

C7319

R7313

D931

Q7007

D930

Q7005

R7410

L7302

D924

C7306

D923

C911

Q7403

L7301

D911

C7301

D912

R7420

R7414

Q7404

R7301

R7413

R7106

C7302

R2116

R2010

R7302

C2020

DIP

C7305

R2114

R2211

R2115

R2157

R2212R2213

C2117

L9020

R2117
R2133

Q2111

Q2110

C2203

5.+3.3VMPU

4.FLAC2

3.-VP

2.FLAC1

1.+3.3VMPU
15

L7032

7.KEY1_1

6.KEY0

5.LEDTHRU

4.KEYINT0

3.KEYINT1

2.KEY2_1

1.GNDDG

R7120

R7041

7

1

C7042

C7043

R7042

R7127

R7123

R7126

R7125

R7124

R7107

C7031

D7033

R7033

L7031

R7128

Q7033

D7002

R7008

C7014

C7011

R7007

C7017

R7001

Q7004

C7001

R7115

R7129

R7108 R7109 R7110 R7111 R7112 R7113

R7116

48

Q7003

32

R7006

16

C7007

C7002

C7003

1

64

R7002

R7118

R7117

C7009

C7005

R7005

R7003

C7010

C7016

C7004

R7004

R7119

C7032

C7012

25140654A 1

QPWBCDIS0654B1

7.KEY1_1

6.KEY0

5.LEDTHRU

7

R7114

1

C2204

C9028

C2006

R2106

R2204

C9029

C2012

D2110

Q2200

C2004

R2203

R2004

R2202

R2006

C2202

1

R2601
R2602

R2205

R2008

C2000

R2121

R2201

R2206

R2009

R2105

R2011

C2021

R2603

D9016

C2605

R9014

C2601

Q2600

R2104

D9014

C2603

D9015

QPWBCDIS0654B1

25140656

C2014

R2604

C2201

R2103

R2120

R2102

L2307

L2308

L2309

L2310

L2306

L2300

L2301

L2302

L2315

L2318

L2305

L2319

C2393

C2394

C2398

C2392

R2308

R2309

R2320 R2321

C2351

R2363

C2395

C2396

R2364

C2350

R2334

R2305

C2383

C2382

R2304

C2391

C2371

R2307

R2306

C2370

R2337
R2338

R2333

11

C2336

C2335

1

R2331

R2332

C2385

C2397

R2360

R2330

R2361

C2384

Q2330

R2400

R2311
C2380

R2401

1

Q2304

C2403

C2381

C2402

Q2400

R2310

C2388C2389

R2301

R2403

R2348

R2349

L2317

L2316

C2331

R2402

C2355

R2302

L2304

C2332

L2311

L2303

L2312

L2314

R2505

L2320

R2352

R2502

R2503

L2321

C2352

R2504

R2501

L2313

R2107

R2122

C2008

27

Q2001

R2110

C2009

C9031

R2124

14

R2001

R2123

R2109

C9027

1

40

C2011

R2002

R2111

R2112

R2113

R2155

R2156

R2108

C2010

Q9020

R2007

R2118

C9030

R2119

1

R2101

R2134

R2135

C9021

C2001

R2003

C9020

C2007

R2005

1

C9022

C9023

B-Side

QPWBCDIS0654B1

4.KEYINT0

3.KEYINT1

2.KEY2_1

1.GNDDG

R7152

R7103

R7122

R7121

C7202

L7201

L7203

L7202

QPWBCDIS0654B1

5

1

125140658

HOLDER

R7102

QPWBCDIS0654B1

25140655 1

HOLDER

C7201

R7101

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

PRINTED CIRCUIT BOARD VIEWS-3

U003

HDMI CIRCUIT PC BOARD
BAHDM-0678

A-side view

U0030
HDMI PC BOARD
BAHDM-0678

U0030
HDMI PC BOARD
BAHDM-0678

A

1

2

3

4

5

BCD

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCD

PRINTED CIRCUIT BOARD VIEWS-3A

U003

1

HDMI CIRCUIT PC BOARD
BAHDM-0678 (U0030 x 2)

A-side view

A

C8168

P751A

INITIAL

R669

R667

R663

2

P8002B

R639

P2001B

P753A

3

JL901B

9

1

R668
R666
R664R665
R662

C8982

C525

9

1

R579

7

1

13

C8975
C8974
C8973

1

C8979

L500

C522

R599

R580

L8973
L8974

R8973
R8974

R727

C8980
R8976
R8975

R726

C613

R577

Q8971

1

Q704

C710

R568

C8978

R574

C751

R614

R712

R605

R566

R8110

D8145 D8146

Q752

R714

Q751

R713

R562

R573

Q3105

R527

R528

1

C753

D8971

L8971

R687

C3118
C3117

R543

R520

R534

R510

R8971
R8951

C8972

R650

Q754

C8971

L8972

JL501B

C508

C8959

P8105

D110

R701

P752A

Q753

C8951

C8952

R653

Q755Q756

D601
Q601
R501
C502

R688

C8958

C526
R110

L8951

1

C501

R504

Q8951

L8952

R8161

R8162

C519

C520

C518

C527

37

L8912
R8148
R8158

R8150 R8154

R503

9

R511

R682

R681

1

R723

R724

R8954
R8953

C8963
C8960
R8956
R8955

R692

C8962

L8954

L8953
C8955
C8953
C8954
D8951

P8901

1

L746

C8939

C8931
C8932

Q8101

73

R8131

R8132

X8100

8

L8934

L8933
C8935
C8934

C8943

C8933

C8940
R8936

D8931

R8935

R8934

R8933

Q8931

L8931

1

C8938

L8932

Q282

P281

R283

R284

R282

TP210

R204

8

A-side pattern

B-side pattern

R260

R253

R252

R222

C8118

R251

C266

R223

C265

A-Side

P8102P8103P8104

R273

L252

L251

P201

X201

133

89

R224

R225

R272

C279

C281

TP230

R226R227R228R229

TP228

1

P3101A

TP80

15

L272

TP79

Q277

Q275

C278

C280

X302

Q278
R249
R248

R246
R245

R244
R241

R240

TP229

R238

R237
R235

R350

L201

R361

R354

R355

R359

R360

R356
R357
R364
R362

P2800B

1

C352

14

1

R230

R243
R242
R239
R234
R236

9

C8100

R301

P8101

R333
R304
R305

R306

R307

R308

R309

R303
R319

L308

C319

R271

R318

R310

C322

R311

C326

C325

C321

Q302

R358

R351

R363

R352

R353

28

Q351

15

P701A

23 1

Q303

C355

C354

X301

C317

1

13

Q301

C365

C370

C313

C368

C367

C301

R331

37

C8117

C516

C302

25

L306

C366

R302

1

P8001B

C369

21

R312

R313

C307
C312

L301

R314

R326
R325
R324
R322
R321

P8003A

R327

L302

C305

R315

R316

1

R317

QPWBCHDM0678A1

C8143

1

144

TP206

R262

R264

TP209

TP208

R216
R205

R202

R207

R203

R208
R209
R210
R214
R211
R212

C8123

C8127

TP207

1

TP203

R206

R215

1

R213

C290

R281

JL801B

+5.2VD

+12V

C226

GND

1

GND

+12V

TP231

R256

R257

R255

R263

R265

R201

R261

176

45

C205

C227

R231

R232

R220

BCHDM-0678

25140678A

QPWBCHDM0678A1

Q201

R221

4

Same as above

5

TX-SR309/ HT-R290/ HT-R390/ HT-R548/ HT-RC330

A

BCD

PRINTED CIRCUIT BOARD VIEWS-3B

U003

1

R519

R524
R525

R526

R559

R565

R551

R552

R557

2

R582
R690

R607

R595

R631
R611

R601

R617

R715
R716

R610
R606

R609
R613

R622

R619

R621

R618

R623

C151

3

HDMI CIRCUIT PC BOARD
BAHDM-0678 (U0030 x 2)

B-side view

R725

R620

R529

TP27

Q181

R151

R635

R152

TP28

Q153

Q8156

C513

R625

R627

TP30

R638

R154

R642

R640

TP32

1

73

R644R646

R633

D183
D182

R554

R657

R624

C706

R678

TP34

C709

R538

R658

R659

Q703
C708
Q702
C707
C705

C8977

109

1

R660

TP35

C8976

R3134

R523

R550

R522

C524

R544

R8178

R539

R671

R8182

R8177

R673

R8181

R8180

R675

R8179

R677

R8159
R8160

C8176

D701

D702

Q273

C703

C8956

L743

C8957

37

R693

R521

Q701

R515

X501

C509

1

R672

R674

R670

C8177

C8984

C8985

Q8104

R676

C512

R533

R514
R512

Q8972

R661

C745

D603
D602

D8100L153
C8983

C8145

C511

R532

C8170

L744

R572

C8987

C8988

C702

Q746

R505
C507
R509

L8937

R655

R656

R508

R8172

C503

L8926

C505
C504

C701

D111

C523

L8939
L8938

L740

C8937

Q8105

R530

R651
R652

L8911

C8921

C8149

L8921
L8925

R531

1

C8986

C8148

C8144

L8924

C8138

C8164
C8165
C8155
C8156

C8950

C8136

C269

C8926

C8135

C8936

C8131

Q272
C270

R8142

C8124

R277

C8142

C8119

C268

C8911

C8120

C8151 C8152

C8137

L8922

L8923

C8158

C8159

L742

C8922

C8161C8162C8163

C8160

R8129
R8128

C8129

C8130
C8132

C8121

L8101

C8175

R8126

C8125

Q8111

L254

R8125

Q271

R8127

R8119

C271
C272

R8121

Q8112

C254
C273

C253

R560

C8154

C8146

C8147

C8153

C8113
C8112

C8107
C8108
C8105
C8103 C8104

R8170

R8167

R8169

R8166

A side pattern

B side pattern

C255

L255

L281

C225

C204

C224

C203

C223

TP204TP205

C202

C241

C219

C222

C201

C221

C242

C8122

C8128

C8140

C8141

C8133

C8126

C8134

C8116
C8115

C8114
C8111

C8109

C8110

C8106

R8138

R8192

R8141

R8140

R8191

C287

C294

Q281

27

C282

28

C235

C267

C214

C215

C216

C217

C218

C239

C240

C264

C263

C237

C262

R590

R275
R274

R258

R259

QPWBCHDM0678A1

25140678A

Q8113

Q8114

R8136

C8166

C212

C236

C213

C286

C261

C206

C238

C256

C252

C228

C234
C211
C207

L253

R8120

R8123

C285

R247

C251

R8193

C229

R8122

C283

C293

C284

1

C514

C515

54

C295

C296

C288

C289

C208

C209

C230

C210

C231

C232

C233

C277

R276
C274

R254

C276

1

L271

C275

L273

R8118

Q8115

Q8116 Q8117

C8139

R615

C521

R332

C320

C316

C318

C353

Q8118

C311

C310

L304

R570

R369

R370

R367

R368
R365

R366

L303

C306

C309

C314

R803

C802

C351

L351

C356

L352

C323

L307

C324

L305

C517

Q276

C304
C303

C315

R596

1

C528

R8101

R8194

R8103

R8102

R8100

4

Same as above

5

C8155
C8156

QPWBCHDM0678A1B-side

HT-R390

<Note>

Parts marked by "NSP" are generally unavailable because
they are not in our Master Spare Parts List.

NOTE : THE COMPONENTS IDENTIFIED BY THE MARK
! ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH PART
NUMBER SPECIFIED.

EV

EXPLODED VIEW PARTS LIST

EV
EV

REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS

EV

[CHASSIS SCREW]

EV

A001 CHASSIS TX-SR307 1 27100532E

EV

A003 LEG (B) 4 27175464

EV

A005 CUSHION (ZUL) 4 28141877

EV

A007 SCREW 3TTB+8B(3BC) 4 838430088GR

EV

A009 HOLDER KGLS-8RT 3 27190503A

EV

A010 HOLDER KGPS-8RF 1 27191044

EV

A011 HOLDER KGLS-10RT 1 27190428A

EV

A013 HOLDER KGPS-14RF 2 27190802

EV

A015 HOLDER KGPS-14RF 1 27190802

EV

A017 HOLDER KGLS-16S 1 27190607

EV

A019 HOLDER KGPS-16RF 1 27190991

EV

A021 HOLDER KGLS-22S 2 27190369

EV

A025 SCREW 4TTC+8C(3BC) 4 830440089GR

EV

A030 HEAT SINK 390P-2 1 27160658

EV

A032 RETAINER (HL) 1 27142159

EV

A034 RETAINER (HR) 1 27142223A

EV

A036 SCREW 3TTB+8B(3BC) 4 838430088GR

EV

A038 SCREW 3TTB+8B(3BC) 2 838430088GR

EV

A040 SCREW 3TTB+8B(3BC) 3 838430088GR

EV

A041 CLIP CS-1U 1 27255004

EV

A042 SCREW 3TTB+8B(3BC) 2 838430088GR

EV

A043 SCREW 3TTB+8B(3CM)SR 1 801637

EV

A050 SCREW 3SMS8WSW+18B3CM 4 801636

<Notes>

<MDC> : 120V,Canadian model for HT-S3400
<MMQ> : 220-240V,Hong kong model for HT-S3400
<MMK> : 220-240V,Korean model for HT-S3400
<MDS> : 120V, Brazilian model for HT-S3400
<MPP_H> : 230V,CE(European) country model for HT-S3405
<MPP_A> : 230V,CE(European) country model for AVX-390
<MPB> : 230V,UK model for AVX-390

1/57 PAGE

EV

A054 SCREW 3TTB+8B(3BC) 1 838430088GR

EV

A055 TAPE TAPE(CLOTH-8U) 1 29110082

EV

A056 BUSHING S-RELIEF #2271 1 27300750

EV

A060 WIRE TIE BSK-1 7 260208

EV

A101 REAR PANEL 390DC 1 27124225A

EV

A101 REAR PANEL 390PP 1 27124226B

EV

A101 REAR PANEL 390MK 1 27124227A

EV

A101 REAR PANEL HTR390 DS 1 27124293A

EV

A102 CUSHION --- 2 28141799

EV

A103 SCREW 3P+6FN(3BC) 5 82143006GR <MPB, MPP_A, MDC, MDS, MMK, MMQ, MPP_H>

EV

A105 SCREW 3TTB+8B(3BC) 23 838430088GR <MPB, MPP_A, MDC, MDS, MMK, MMQ, MPP_H>

EV

A109 SCREW 3P+6FN(3BC) 2 82143006GR <MPB, MPP_A, MDC, MDS, MMK, MMQ, MPP_H>

EV

A110 SCREW 3TTF+10B(3BC) 2 835430108GR <MDS>

EV

A111 TAPE TAPE(CLOTH-16U) 1 29110083 <MDS>

EV

A112 TAPE TAPE(CLOTH-16U) 1 29110083

EV

[CABINET]

EV

A201 F PANEL HT-R390_C(B)DC 1 27213424A

EV

A201 F PANEL HT-R390_C(B)PP 1 27213425A

EV

A202 CLEAR PLT TX-SR309 MDC 1 28192334B <MDC, MDS>

EV

A202 CLEAR PLT TX-SR309 MPP 1 28192335B

EV

A207 BADGE --- 1 28135317

EV

A211 KNOB (TONE)(B) 1 28326912

EV

A213 KNOB (INP)(B) 1 28326908B

EV

A214 KNOB (INP-LR)(B) 2 28326910B

EV

A216 KNOB (SEL) 1 28326906A

EV

A217 KNOB (STBY)(B) 1 28326904

EV

A219 KNOB (CUR) 1 28326907B

EV

A221 IB CUSHION W15 x 3t TAPE 1 28141585

EV

A225 SCREW 2.6TTB+8B(3BC) 22 838426088GR

EV

A255 SCREW 3TTB+8B(3BC) 3 838430088GR

EV

A256 SCREW 3TTB+8B(3BC) 1 838430088GR

EV

A260 SCREW 3TTB+8B(3BC) 4 838430088GR

EV

A268 CUSHION 5 x 20 t=4 1 28141681

EV

A270 CUSHION (FELT) t1 x 20 x 10 4 28141859

EV

A273 HOLDER KGLS-4S 2 27190009

EV

A321 KNOB (VOL)AS(B) 1 28326914

EV

A340 COVER (B) (Bent) 1 28210089A

EV

A340 COVER (B) (Not Bent) 1 28210089AZ

EV

A342 SCREW 3TTB+8B(3BC) 9 838430088GR

<MPB, MPP_H, MDC, MMK, MMQ, MPP_A>

!

<MDC>

N

<MPB, MPP_A, MPP_H>

N

<MMK, MMQ>

N

<MDS>

N

<MDC, MDS>

N

<MPB, MPP_A, MMK, MMQ, MPP_H>

N

<MPB, MPP_A, MMK, MMQ, MPP_H>

N

2/57 PAGE

EV

A350 PLATE (COVER)B 1 27262881

EV

A354 HOLDER (PLATE) 6 27191337 <MMQ>

EV

A360 LABEL (COVER) 1 29390767

EV

A362 LABEL HOOKUP-ONKYO 1 29363194 <MDC, MDS>

EV

A364 CUSHION T5 x Φ12 x 6 2 28141867

EV

[TRANS COIL]

EV

T901 P TRANS NPT-1603D 1 2302008

EV

T901 P TRANS NPT-1603P 1 2302009

EV

T901 P TRANS NPT-1603M 1 2302010

EV

[SW TRM]

EV

F6901 FUSE 8A-T/UL-ST2 1 252261GR

EV

F6902 FUSE 8A-T/UL-ST2 1 252261GR

EV

F901 FUSE 4A-SE-EAK FUSE 1 252077GR

EV

F901 FUSE 8A-UL/T-233 1 252329GR

EV

F901 or FUSE 8A-T/UL-ST2 ( 1) 252261GR

EV

F901 or FUSE 4A-SE-TL250V ( 1) 252277GR

EV

F901E LABEL T4AL250V 1 29361732A <MPB, MPP_A, MMK, MMQ, MPP_H>

EV

P101 FFC NCFC7-091512 1 2047091512

EV

P2001 FFC NCFC5-071012 1 2045071012

EV

P2800 FFC NCFC5-091012 1 2045091012

EV

P701 FFC NCFC5-232212 1 2045232212

EV

P703 FFC NCFC5-072512 1 2045072512

EV

P8001 FFC NCFC5-211012 1 2045211012

EV

P8002 FFC NCFC5-091512 1 2045091512

EV

P901 AC CORD AS-BS 1 253198LTK

EV

P901 AC CORD AS-CEE-2 1 253306VOL

EV

P901 AC CORD AS-UC-2 1 253368AYUN

EV

P901 or AC CORD AS-BS ( 1) 253198VOL

EV

P901 or AC CORD AS-UC-2 ( 1) 253368BLTK

EV

P901 or AC CORD AS-CEE-2 ( 1) 253374YUN

EV

P901B FASTON AS FASTON SOCKET 1 1F999026A

EV

P907 AC INLET R301X2PSn 1 25053358

EV

[TUNER UNIT]

EV

U001

EV

U001 BAAF-0614-1E * 1 1B258514-1E N

EV

U001 BAAF-0614-1E * 1 1B258514-1E N

EV

U001 BAAF-0614-1D * 1 1B258514-1D N

EV

U001 BAAF-0614-1F * 1 1B258514-1F N

U0010+U0011+U0012+U0013+U0014+U0015+
U0016

BAAF-0614-1D * 1 1B258514-1D N

<MMQ>

N

<MDC, MDS>

!

<MPB, MPP_A, MPP_H>

!

<MMK, MMQ>

!

!
!

<MPB, MPP_A, MMK, MMQ, MPP_H>

!

<MDC, MDS>

!

<MDC, MDS>

!

<MPB, MPP_A, MMK, MMQ, MPP_H>

!

<MPB, MMQ>

!

<MPP_A, MMK, MPP_H>

!

<MDC>

!

<MPB>

!

<MDC>

!

<MPP_A, MMK, MPP_H>

!

<MDS>

!

<MDS>

!

<MDC>

<MMQ>
<MMK>
<MDS>
<MPP_H, MPP_A>

3/57 PAGE

4/57 PAGE

EV

U001 BAAF-0614-1F * 1 1B258514-1F N

EV

U0010

EV

U0010 BAAF-0614-1E 1 1B2585614-1E

EV

U0010 BAAF-0614-1E 1 1B2585614-1E

EV

U0010 BAAF-0614-1D 1 1B2585614-1D

EV

U0010 BAAF-0614-1F 1 1B2585614-1F

EV

U0010 BAAF-0614-1F 1 1B2585614-1F

EV

U0011 Digital Input Terminals PC board ass'y BADG-0615-1D 1 1B2585615-1D

EV

U0011 BADG-0615-1E 1 1B2585615-1E

EV

U0011 BADG-0615-1E 1 1B2585615-1E

EV

U0011 BADG-0615-1D 1 1B2585615-1D

EV

U0011 BADG-0615-1F 1 1B2585615-1F

EV

U0011 BADG-0615-1F 1 1B2585615-1F

EV

U0012 Thermal Senser PC board ass'y BAETC-0616-1D 1 1B2585616-1D

EV

U0012 BAETC-0616-1E 1 1B2585616-1E

EV

U0012 BAETC-0616-1E 1 1B2585616-1E

EV

U0012 BAETC-0616-1D 1 1B2585616-1D

EV

U0012 BAETC-0616-1F 1 1B2585616-1F

EV

U0012 BAETC-0616-1F 1 1B2585616-1F

EV

U0013 Spacer PC board ass'y BAETC-0617-1D 1 1B2585617-1D

EV

U0013 BAETC-0617-1E 1 1B2585617-1E

EV

U0013 BAETC-0617-1E 1 1B2585617-1E

EV

U0013 BAETC-0617-1D 1 1B2585617-1D

EV

U0013 BAETC-0617-1F 1 1B2585617-1F

EV

U0013 BAETC-0617-1F 1 1B2585617-1F

EV

U0014 Terminal PC board ass'y BAETC-0618-1D 1 1B2585618-1D

EV

U0014 BAETC-0618-1E 1 1B2585618-1E

EV

U0014 BAETC-0618-1E 1 1B2585618-1E

EV

U0014 BAETC-0618-1D 1 1B2585618-1D

EV

U0014 BAETC-0618-1F 1 1B2585618-1F

EV

U0014 BAETC-0618-1F 1 1B2585618-1F

EV

U0015 FFC Fixture PC board ass'y BAETC-0619-1D 1 1B2585619-1D

EV

U0015 BAETC-0619-1E 1 1B2585619-1E

EV

U0015 BAETC-0619-1E 1 1B2585619-1E

EV

U0015 BAETC-0619-1D 1 1B2585619-1D

EV

U0015 BAETC-0619-1F 1 1B2585619-1F

EV

U0015 BAETC-0619-1F 1 1B2585619-1F

EV

U0016 Power supply PC board ass'y BAETC-0620-1D 1 1B2585620-1D

Power Amp / Audio Input Terminals PC board
ass'y

BAAF-0614-1D 1 1B2585614-1D

<MPB>

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

EV

U0016 BAETC-0620-1E 1 1B2585620-1E

EV

U0016 BAETC-0620-1E 1 1B2585620-1E

EV

U0016 BAETC-0620-1D 1 1B2585620-1D

EV

U0016 BAETC-0620-1F 1 1B2585620-1F

EV

U0016 BAETC-0620-1F 1 1B2585620-1F

EV

U002 U0020+U0021+U0022+U0023+U0024 BADIS-0654-1C * 1 1B258554-1C N

EV

U002 BADIS-0654-1G * 1 1B258554-1G N

EV

U002 BADIS-0654-1G * 1 1B258554-1G N

EV

U002 BADIS-0654-1C * 1 1B258554-1C N

EV

U002 BADIS-0654-1G * 1 1B258554-1G N

EV

U002 BADIS-0654-1G * 1 1B258554-1G N

EV

U0020 Display PC board ass'y BADIS-0654-1C 1 1B2585654-1C

EV

U0020 BADIS-0654-1G 1 1B2585654-1G

EV

U0020 BADIS-0654-1G 1 1B2585654-1G

EV

U0020 BADIS-0654-1C 1 1B2585654-1C

EV

U0020 BADIS-0654-1G 1 1B2585654-1G

EV

U0020 BADIS-0654-1G 1 1B2585654-1G

EV

U0021 Standby switch PC board ass'y BADIS-0655-1C 1 1B2585655-1C

EV

U0021 BADIS-0655-1G 1 1B2585655-1G

EV

U0021 BADIS-0655-1G 1 1B2585655-1G

EV

U0021 BADIS-0655-1C 1 1B2585655-1C

EV

U0021 BADIS-0655-1G 1 1B2585655-1G

EV

U0021 BADIS-0655-1G 1 1B2585655-1G

EV

U0022 Video PC board ass'y BAVD-0656-1C 1 1B2585656-1C

EV

U0022 BAVD-0656-1G 1 1B2585656-1G

EV

U0022 BAVD-0656-1G 1 1B2585656-1G

EV

U0022 BAVD-0656-1C 1 1B2585656-1C

EV

U0022 BAVD-0656-1G 1 1B2585656-1G

EV

U0022 BAVD-0656-1G 1 1B2585656-1G

EV

U0023 HP Jack PC board ass'y BAETC-0658-1C 1 1B2585658-1C

EV

U0023 BAETC-0658-1G 1 1B2585658-1G

EV

U0023 BAETC-0658-1G 1 1B2585658-1G

EV

U0023 BAETC-0658-1C 1 1B2585658-1C

EV

U0023 BAETC-0658-1G 1 1B2585658-1G

EV

U0023 BAETC-0658-1G 1 1B2585658-1G

EV

U0024 Primary Wiring PC board ass'y BAPS-0659-1C 1 1B2585659-1C

EV

U0024 BAPS-0659-1G 1 1B2585659-1G

EV

U0024 BAPS-0659-1G 1 1B2585659-1G

EV

U0024 BAPS-0659-1C 1 1B2585659-1C

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>
<MMQ>
<MMK>
<MDS>
<MPP_H, MPP_A>
<MPB>

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

5/57 PAGE

EV

T

U0024 BAPS-0659-1G 1 1B2585659-1G

EV

U0024 BAPS-0659-1G 1 1B2585659-1G

EV

U003 U0030 x 2 BAHDM-0678-1C * 1 1B258578-1C N

EV

U003 BAHDM-0678-1D * 1 1B258578-1D N

EV

U003 BAHDM-0678-1D * 1 1B258578-1D N

EV

U003 BAHDM-0678-1C * 1 1B258578-1C N

EV

U003 BAHDM-0678-1E * 1 1B258578-1E N

EV

U003 BAHDM-0678-1E * 1 1B258578-1E N

EV

U0030 HDMI PC board ass'y BAHDM-0678-1C 1 1B2585678-1C

EV

U0030 BAHDM-0678-1D 1 1B2585678-1D

EV

U0030 BAHDM-0678-1D 1 1B2585678-1D

EV

U0030 BAHDM-0678-1C 1 1B2585678-1C

EV

U0030 BAHDM-0678-1E 1 1B2585678-1E

EV

U0030 BAHDM-0678-1E 1 1B2585678-1E

EV

U010 TUNER UNIT KST-MW004MS1-S89S 1 240171 <MDC, MDS>

EV

U010 TUNER UNIT KST-MW104MS1-S89 1 240172 <MPB, MPP_A, MMK, MMQ, MPP_H>

<MPP_H, MPP_A>

N

<MPB>

N

<MDC>
<MMQ>
<MMK>
<MDS>
<MPP_H, MPP_A>
<MPB>

<MDC>

N

<MMQ>

N

<MMK>

N

<MDS>

N

<MPP_H, MPP_A>

N

<MPB>

N

6/57 PAGE

PV
PV

PACKING PROCEDURES PARTS LIS

PV
PV

REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS

PV

[PACKING]

PV

A601 PAD AS (AS) L & R (29092579A) 1 NSP <MDC, MDS, MMK, MMQ>

PV

A601A PAD (L) 1 29092580A <MDC, MDS, MMK, MMQ>

PV

A601B PAD (R) 1 29092581A <MDC, MDS, MMK, MMQ>

PV

A601 PAD AS (AS) L & R (29092582A) 1 NSP

PV

A601A PAD (L) 1 29092583A <MPB, MPP_A, MPP_H>

PV

A601B PAD (R) 1 29092584A <MPB, MPP_A, MPP_H>

PV

A605 POLY BAG w850 x d650 1 29100245

PV

A606 TAPE (SEROHAN)NITTO NO.29 1 29110149

PV

A608 SHEET --- 1 29095906 <MPB, MPP_A, MDC, MDS, MMK, MPP_H>

PV

A608 SHEET T0.5 x 600 x 500 1 29096097 <MMQ>

PV

A611 TAPE (SEROHAN)NITTO NO.29 1 29110149

PV

A704A LABEL (DES)390BMDC 1 29391476

PV

A704A LABEL (DES)390BMMK 1 29391477

PV

A704A LABEL (DES)390BMMQ 1 29391478

PV

A704A LABEL (DES)390BMPP 1 29391479

PV

A704A LABEL (DES)390C2BMPP 1 29391480

PV

A704A LABEL (DES)390C2BMPB 1 29391481

HT-R390

<MPB, MPP_A, MPP_H>

N

<MDC>

N

<MMK>

N

<MMQ>

N

<MPP_H>

N

<MPP_A>

N

<MPB>

N

PV

A704A LABEL (DES)390MDS 1 29391558

PV

[ACCESSARY]

PV

A672 POLY BAG w250 x d350 1 29100250A <MPB>

PV

A672 POLY BAG w250 x d350 2 29100250A <MPP_A>

PV

A672 POLY BAG w250 x d350 1 29100250A <MDC, MMK, MMQ>

PV

A672 POLY BAG w250 x d350 2 29100250A <MPP_H>

PV

A674 POLY BAG D250 x d300 x W300(t0.04) 1 29100256A

PV

A676 TAPE (SEROHAN)NITTO NO.29 1 29110149

PV

A677 TAPE (SEROHAN)NITTO NO.29 1 29110149 <MPP_A, MPP_H>

PV

A678 SHEET (PAD) 1 29096131

PV

A801 INS MANUAL En(HTR390) 1 29400598

PV

A802 INS MANUAL U2EnFr(HTP-390) 1 29400629 <MDC, MDS, MMK, MMQ>

PV

A802 INS MANUAL U2EnDe(HTP-344) 1 29400631 <MPB>

PV

A804 INS MANUAL FrEs(HTR390) 1 29400601

PV

A805 INS MANUAL ItDe(HTR390) 1 29400602

PV

A806 INS MANUAL NISv(HTR390) 1 29400603

PV

A807 INS MANUAL Ct(HTS3400) 1 29400597

PV

A807 INS MANUAL U2EnDe(HTP-348) 1 29400630 <MPP_H>

PV

A807 INS MANUAL U2EnDe(HTP-344) 1 29400631 <MPP_A>

PV

A809 INS MANUAL Ar(HTS3400) 1 29400596

PV

A810 INS MANUAL Ar(QC ImportantSheet) 1 29344373B <MMQ>

PV

A811 INS MANUAL En-QSS(HTS3400) 1 29400594

PV

A811 INS MANUAL En-QSS(HTS3405) 1 29400599

PV

A811 INS MANUAL En-QSS(AVX390) 1 29400600

PV

A814 INS MANUAL DaFiNo(HTR390) 1 29400604

PV

A826 INST SHEET U11(2010_RIHD) 1 29355782 <MPB, MPP_A, MDC, MDS, MMK, MMQ, MPP_H>

PV

A830 INST SHEET WEEE 1 29355793A <MPB, MPP_A, MPP_H>

PV

A835 HANDBILL (UP-A1)US 1 29380155A <MDC, MDS>

PV

A835 HANDBILL (UP-A1)EU 1 29380156A <MPB, MPP_A, MPP_H>

PV

A855 REMO CON RC-762M 1 24140762

PV

A858 ANT COIL NMA-3057 1 232140

PV

A859 FM ANT AS Type W 1 292191

PV

A861 BATTERY R6/AA(UM-3) 2 3010194 <MPB, MPP_A, MMK, MMQ, MPP_H>

PV

A861 BATTERY R6/AA(UM-3) 2 3010506 <MDC, MDS>

PV

A861 or BATTERY R6/AA(UM-3) ( 2) 3010054 <MPB, MPP_A, MDC, MDS, MMK, MMQ, MPP_H>

PV

A861 or BATTERY R6/AA(UM-3) ( 2) 3010194 <MDC, MDS>

PV

A884 WRNTY CARD MGQ 1 29365099A <MMQ>

PV

A885 WRNTY CARD (ONKYO) 1 29365135 <MDC, MDS>

<MDS>

N

<MPB, MPP_A, MDC, MDS, MMK, MMQ, MPP_H>

N

<MPP_A, MDC, MDS, MPP_H>

N

<MPP_A, MPP_H>

N

<MPP_A, MPP_H>

N

<MMQ>

N

<MMQ>

N

<MDC, MDS, MMK, MMQ>

N

<MPP_H>

N

<MPB, MPP_A>

N

<MPP_A>

N

7/57 PAGE

HT-R390

T

U001

PC BOARD PARTS LIS

U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001
U001

U001 U0010 + U0011 + U0012 + U0013 + U0014 + U0015 + U0016
U0010
U0011
U0012
U0013
U0014
U0015
U0016

CIRCUIT NO.

[SEMI CONDUCTOR]

D131 C-DIODE DA2J10100 1 223303R2 N

D131 or C-DIODE KDS4148U ( 1) 223283R2

D132 C-DIODE DA2J10100 1 223303R2 N

D132 or C-DIODE KDS4148U ( 1) 223283R2

D4171 ZENER D MTZJ6.8B 1 224470682T

D4172 ZENER D MTZJ6.8B 1 224470682T

D4300 DIODE RL1N4003 1 22380260T

D4300 or DIODE GP104003E ( 1) 22380035T

D4301 DIODE RL1N4003 1 22380260T

D4301 or DIODE GP104003E ( 1) 22380035T

D4302 DIODE RL1N4003 1 22380260T

D4302 or DIODE GP104003E ( 1) 22380035T

D4303 DIODE RL1N4003 1 22380260T

D4303 or DIODE GP104003E ( 1) 22380035T

D4304 DIODE 1SS133 1 223163T

D4305 DIODE 1SS133 1 223163T

D4400 ZENER D DZ2J056M0L 1 224760560R2

D4400 or ZENER D UDZS5.6B ( 1) 224550560R2

D6020 C-DIODE DA2J10100 1 223303R2 N

D6020 or C-DIODE 1SS352 ( 1) 223234R2

D6020 or C-DIODE 1SS355 ( 1) 223269R2

D6020 or C-DIODE MA2J111 ( 1) 223279R2

D6020 or C-DIODE KDS4148U ( 1) 223283R2

D6021 C-DIODE DA2J10100 1 223303R2 N

D6021 or C-DIODE 1SS352 ( 1) 223234R2

Power Amp / Audio Input Terminals PC board BAAF-0614-1D/ 1E/ 1F

Digital Input Terminals PC board BADG-0615-1D/ 1E/ 1F
Thermal Senser PC board BAETC-0616-1D/ 1E/ 1F
Spacer PC board BAETC-0617-1D/ 1E/ 1F
Terminal PC board BAETC-0618-1D/ 1E/ 1F
FFC Fixture PC board BAETC-0619-1D/ 1E/ 1F
Power supply PC board BAETC-0620-1D/ 1E/ 1F

PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS

8/57 PAGE

U001

D6021 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6021 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6021 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6022 C-DIODE DA2J10100 1 223303R2 N

U001

D6022 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6022 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6022 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6022 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6023 C-DIODE DA2J10100 1 223303R2 N

U001

D6023 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6023 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6023 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6023 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6024 C-DIODE DA2J10100 1 223303R2 N

U001

D6024 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6024 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6024 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6024 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6027 C-DIODE DA2J10100 1 223303R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6027 or C-DIODE 1SS352 ( 1) 223234R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6027 or C-DIODE 1SS355 ( 1) 223269R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6027 or C-DIODE MA2J111 ( 1) 223279R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6027 or C-DIODE KDS4148U ( 1) 223283R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6031 DIODE 1SS133 1 223163T

U001

D6032 DIODE 1SS133 1 223163T

U001

D6051 C-DIODE DA2J10100 1 223303R2 N

U001

D6051 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6051 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6051 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6051 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6052 C-DIODE DA2J10100 1 223303R2 N

U001

D6052 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6052 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6052 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6052 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6053 C-DIODE DA2J10100 1 223303R2 N

U001

D6053 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6053 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6053 or C-DIODE MA2J111 ( 1) 223279R2

9/57 PAGE

U001

D6053 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6055 C-DIODE DA2J10100 1 223303R2 N

U001

D6055 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6055 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6055 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6055 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6057 C-DIODE DA2J10100 1 223303R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6057 or C-DIODE 1SS352 ( 1) 223234R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6057 or C-DIODE 1SS355 ( 1) 223269R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6057 or C-DIODE MA2J111 ( 1) 223279R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6057 or C-DIODE KDS4148U ( 1) 223283R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

D6704 ZENER D DZ2J033M0L 1 224760330R2

U001

D6704 or ZENER D UDZS3.3B ( 1) 224550330R2

U001

D6901 DIODE D5SBA60 1 22380070

U001

D6901A HEAT SINK RAD-083 1 27160271

U001

D6901C SCREW 3P+10FN(3BC) 1 82143010GR

U001

D6902 C-DIODE DA2J10100 1 223303R2 N

U001

D6902 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6902 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6902 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6902 or C-DIODE KDS4148U ( 1) 223283R2

U001

D6903 C-DIODE DA2J10100 1 223303R2 N

U001

D6903 or C-DIODE 1SS352 ( 1) 223234R2

U001

D6903 or C-DIODE 1SS355 ( 1) 223269R2

U001

D6903 or C-DIODE MA2J111 ( 1) 223279R2

U001

D6903 or C-DIODE KDS4148U ( 1) 223283R2

U001

D960 DIODE RL1N4003 1 22380260T

U001

D961 DIODE RL1N4003 1 22380260T

U001

D964 ZENER D DZ2J360M0L 1 224763600R2

U001

D964 or ZENER D UDZS36B ( 1) 224553600R2

U001

Q131 IC TC74HCU04AF 1 222740046R2TO

U001

Q4001 IC R2A15218FP 1 22242605R3

U001

Q4003 IC NJM4580M-D 1 22241448R2

U001

Q4100 TR RN1441 1 2215410R2

U001

Q4101 TR RN1441 1 2215410R2

U001

Q4102 TR RN1441 1 2215410R2

U001

Q4103 TR RN1441 1 2215410R2

U001

Q4104 TR RN1441 1 2215410R2

U001

Q4107 TR RN1441 1 2215410R2

10/57 PAGE

U001

Q4117 TR RN1441 1 2215410R2

U001

Q4130 IC NJM4580M-D 1 22241448R2

U001

Q4140 IC NJM4580M-D 1 22241448R2

U001

Q4142 IC NJM4580M-D 1 22241448R2

U001

Q4143 IC NJM4580M-D 1 22241448R2

U001

Q4170 IC 78M12HF(NJM78M12FA) 1 222780125JRC

U001

Q4170 or IC 78M12(AN78M12F) ( 1) 222780125MAT

U001

Q4170 or IC MPC78M12AHF-AZ ( 1) 222780125NEC

U001

Q4170A HEAT-SINK HEAT-SINK(RAD-68) 1 27160211

U001

Q4170B SCREW 3P+10FN(3BC) 1 82143010GR

U001

Q4171 IC 79M12HF(NJM79M12FA) 1 222790125JRC

U001

Q4171 or IC 79M12F(AN79M12F) ( 1) 222790125MAT

U001

Q4171 or IC 79M12HF(MPC79M12HF) ( 1) 222790125NEC

U001

Q4171A HEAT-SINK HEAT-SINK(RAD-68) 1 27160211

U001

Q4171B SCREW 3P+10FN(3BC) 1 82143010GR

U001

Q4400 IC NJM4580M-D 1 22241448R2

U001

Q4401 TR 2SC2235-Y(TPE6_F) 1 2211654T

U001

[NOTICE]

U001

Q6001, Q6002 and the surrounding parts have been changed as follows in the middle of production. Refer to SCHEMATIC-DIAGRAM-4(AMP. SECTION)

U001

Change C6120, C6121 and C6122 at the same time when Q6001 is changed.

U001

Q6001

U001
U001
U001

C6120 C-CERA C CC725CH1H-101J1 0 342101014R1 BEFORE

U001
U001
U001

C6121 C-CERA C CC725CH1H-101J1 0 342101014R1 BEFORE

U001
U001
U001

C6122 C-CERA C CC725CH1H-101J1 0 342101014R1 BEFORE

U001
U001
U001

Change C6123, C6124 and C6127 at the same time when Q6002 is changed.

U001

Q6002

U001
U001
U001

C6123 C-CERA C CC725CH1H-101J1 0 342101014R1 BEFORE

U001
U001

IC STK-443-530-E 1 222148 BEFORE

↓↓

IC

STK-443-530N-E

1

222152

↓

C-CERA C CC725CH1H-101J1

342101014R1 AFTER

1

↓

C-CERA C CC725CH1H-101J1

342101014R1 AFTER

1

↓

C-CERA C CC725CH1H-101J1

342101014R1 AFTER

1

IC STK-443-530-E 1 222148 N BEFORE

↓↓

IC

STK-443-530N-E

1

222152

↓

C-CERA C CC725CH1H-101J1

342101014R1 AFTER

1

11/57 PAGE

AFTER

AFTER

U001

C6124 C-CERA C CC725CH1H-101J1 0 342101014R1 BEFORE

U001
U001
U001

C6127 C-CERA C CC725CH1H-101J1 0 342101014R1 BEFORE

U001
U001
U001

Q6010 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6011 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6012 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6013 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6014 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6017 TR 2SC2240-BL(TPE2_F) 1 2211406T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

Q6021 TR 2SA1163-BL(TE85L_F) 1 2216756R2

U001

Q6022 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6023 TR 2SC2240-BL(TPE2_F) 1 2211406T

U001

Q6024 TR 2SA1163-BL(TE85L_F) 1 2216756R2

U001

Q6051 TR KRC105S 1 2217290R2

U001

Q6051 or TR RN1405 ( 1) 2214500R2

U001

Q6051 or TR DTC123JKA ( 1) 2216690R2

U001

Q6052 TR KRC105S 1 2217290R2

U001

Q6052 or TR RN1405 ( 1) 2214500R2

U001

Q6052 or TR DTC123JKA ( 1) 2216690R2

U001

Q6053 TR KRC105S 1 2217290R2

U001

Q6053 or TR RN1405 ( 1) 2214500R2

U001

Q6053 or TR DTC123JKA ( 1) 2216690R2

U001

Q6380 IC LM61CIZ 1 22242212

U001

Q6380A RETAINER (PTH) 1 27141884-1

U001

Q6707 TR KTC3875-GR 1 2216175R2

U001

Q6707 or TR 2SC2712-GR ( 1) 2213145R2

U001

Q6708 TR KRC105S 1 2217290R2

U001

Q6708 or TR RN1405 ( 1) 2214500R2

U001

Q6708 or TR DTC123JKA ( 1) 2216690R2

U001

Q960 TR 2SC2235-Y(TPE6_F) 1 2211654T

U001

Q960 or TR 2SC2235-O(TPE6_F) ( 1) 2211653T

U001

[TRANS COIL]

U001

L131 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U001

L133 CHOKE COIL LBC2518T470M 1 231364M470R2

U001

L134 CHOKE COIL LBC2518T470M 1 231364M470R2

U001

L135 EMIFIL BK1608HS102-T 1 230955R2

C-CERA C CC725CH1H-101J1

C-CERA C CC725CH1H-101J1

↓

342101014R1 AFTER

1

↓

342101014R1 AFTER

1

12/57 PAGE

U001

L4001 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U001

L6000 S COIL SC-0.8X6.0X29.5T-4RV-C 1 231394AS

U001

L6001 S COIL SC-0.8X6.0X29.5T-4RV-C 1 231394AS

U001

L6002 S COIL SC-0.8X6.0X29.5T-4RV-C 1 231394AS

U001

L6003 S COIL SC-0.8X6.0X29.5T-4RV-C 1 231394AS

U001

L6004 S COIL SC-0.8X6.0X29.5T-4RV-C 1 231394AS

U001

L6007 S COIL SC-0.8X6.0X29.5T-4RV-C 1 231394AS <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

[CAPACITOR]

U001

C130 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C131 C-CERA C CC725CH1H-101J1 1 342101014R1

U001

C133 C-CERA C CK725B1C-104K1 1 332121045R1

U001

C135 C-CERA C CC725CH1H-080D1 1 342100802R1

U001

C139 UTSP C CE04W10V-220M(UTSP) 1 397532217T

U001

C140 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C141 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C142 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C143 C-CERA C CC725CH1H-330J1 1 342103304R1

U001

C144 C-CERA C CC725CH1H-330J1 1 342103304R1

U001

C145 UTSP C CE04W10V-220M(UTSP) 1 397532217T

U001

C4003 UPZ C 2AUPZTF221JE 1 376332214T

U001

C4004 UPZ C 2AUPZTF221JE 1 376332214T

U001

C4007 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4008 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4013 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4014 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4017 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4018 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4019 UPZ C 2AUPZTF221JE 1 376332214T

U001

C4020 UPZ C 2AUPZTF221JE 1 376332214T

U001

C4050 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4051 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4052 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4053 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4054 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4057 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4060 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4061 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4062 TF C ECQ-V50V-474J 1 374724744T

U001

C4063 TF C ECQ-V50V-823J 1 374728234T

13/57 PAGE

U001

C4064 TF C ECQ-V50V-223J 1 374722234T

U001

C4065 TF C ECQ-V50V-474J 1 374724744T

U001

C4066 TF C ECQ-V50V-823J 1 374728234T

U001

C4067 TF C ECQ-V50V-223J 1 374722234T

U001

C4070 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4071 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4072 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4073 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4074 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4077 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4085 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4086 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4090 C-CERA C CC725CH1H-101J1 1 342101014R1

U001

C4091 C-CERA C CC725CH1H-101J1 1 342101014R1

U001

C4100 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4101 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4102 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4103 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4104 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4107 UTSP C CE04W50V-2.2M(UTSP) 1 397580227T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C4110 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C4111 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C4130 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C4131 C-CERA C CC725CH1H-221J1 1 342102214R1

U001

C4132 TF C ECQ-V50V-103J 1 374721034T

U001

C4166 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C4167 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C4170 UTSP C CE04W50V-1M(UTSP) 1 397580107T

U001

C4171 UTSP C CE04W50V-1M(UTSP) 1 397580107T

U001

C4172 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C4173 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C4186 UTSP C CE04W16V-470M(UTSP) 1 397544717T

U001

C4187 UTSP C CE04W16V-470M(UTSP) 1 397544717T

U001

C4204 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C4205 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C4209 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4210 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4300 TF C ECQ-V50V-334J 1 374723344T

U001

C4301 VR C CE04W35V-1000M(VR) 1 394661027S

14/57 PAGE

U001

C4301 or JAMICON CE04W35V-1000M ( 1) 398561027S

U001

C4302 VR C CE04W35V-470M(VR) 1 394664717T

U001

C4302 or JAMICON CE04W35V-470M ( 1) 398564717T

U001

C4402 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4403 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4404 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4405 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4406 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4407 UTSP C CE04W25V-47M(UTSP) 1 397554707T

U001

C4408 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C4409 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C4410 C-CERA C CC725CH1H-681J1 1 342106814R1

U001

C4411 C-CERA C CC725CH1H-681J1 1 342106814R1

U001

C4412 C-CERA C CK725F1A-105Z1 1 332181050R1

U001

C4413 C-CERA C CK725F1A-105Z1 1 332181050R1

U001

C4414 C-CERA C CK725F1A-105Z1 1 332181050R1

U001

C4415 C-CERA C CK725F1A-105Z1 1 332181050R1

U001

C4416 C-CERA C CC725CH1H-101J1 1 342101014R1

U001

C4417 C-CERA C CC725CH1H-101J1 1 342101014R1

U001

C4420 MKT C B32529C0332J289 1 376493324T

U001

C4421 MKT C B32529C0332J289 1 376493324T

U001

C4422 MKT C B32529C0332J289 1 376493324T

U001

C4423 MKT C B32529C0332J289 1 376493324T

U001

C4424 MKT C B32529C0332J289 1 376493324T

U001

C4427 TF C ECQ-V50V-333J 1 374723334T

U001

C4430 UPZ C 2AUPZTF151JE 1 376331514T

U001

C4431 UPZ C 2AUPZTF151JE 1 376331514T

U001

C4432 UPZ C 2AUPZTF151JE 1 376331514T

U001

C4433 C-CERA C CC725CH1H-151J1 1 342101514R1

U001

C4434 C-CERA C CC725CH1H-151J1 1 342101514R1

U001

C4437 MKT C B32529C0102J289 1 376491024T

U001

C6009 TF C ECQ-V50V-333J 1 374723334T

U001

C6010 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6011 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6012 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6013 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6014 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6017 UTSP C CE04W50V 47M(UTSP) 1 397584707T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6020 UPZ C 2AUPZTF471JE 1 376334714T

15/57 PAGE

U001

C6021 UPZ C 2AUPZTF471JE 1 376334714T

U001

C6022 UPZ C 2AUPZTF471JE 1 376334714T

U001

C6023 UPZ C 2AUPZTF471JE 1 376334714T

U001

C6024 UPZ C 2AUPZTF471JE 1 376334714T

U001

C6027 UPZ C 2AUPZTF471JE 1 376334714T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6030 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C6031 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C6032 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C6033 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C6034 UTSP C CE04W25V-220M(UTSP) 1 397552217T

U001

C6037 UTSP C CE04W25V-220M(UTSP) 1 397552217T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6040 CERA C CC45CH50V-030D 1 345340302T

U001

C6041 CERA C CC45CH50V-030D 1 345340302T

U001

C6042 CERA C CC45CH50V-030D 1 345340302T

U001

C6043 CERA C CC45CH50V-030D 1 345340302T

U001

C6044 CERA C CC45CH50V-030D 1 345340302T

U001

C6047 CERA C CC45CH50V-030D 1 345340302T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6050 C-CERA C CK725B1H-472K1 1 332104725R1

U001

C6051 C-CERA C CK725B1H-472K1 1 332104725R1

U001

C6052 C-CERA C CK725B1H-472K1 1 332104725R1

U001

C6053 C-CERA C CK725B1H-472K1 1 332104725R1

U001

C6054 C-CERA C CK725B1H-472K1 1 332104725R1

U001

C6057 C-CERA C CK725B1H-472K1 1 332104725R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6060 TF C ECQ-V50V-473J 1 374724734T

U001

C6061 TF C ECQ-V50V-473J 1 374724734T

U001

C6062 TF C ECQ-V50V-473J 1 374724734T

U001

C6063 TF C ECQ-V50V-473J 1 374724734T

U001

C6064 TF C ECQ-V50V-473J 1 374724734T

U001

C6067 TF C ECQ-V50V-473J 1 374724734T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6070 TF C ECQ-V50V-103J 1 374721034T

U001

C6071 TF C ECQ-V50V-103J 1 374721034T

U001

C6072 TF C ECQ-V50V-103J 1 374721034T

U001

C6073 TF C ECQ-V50V-103J 1 374721034T

U001

C6074 TF C ECQ-V50V-103J 1 374721034T

U001

C6077 TF C ECQ-V50V-103J 1 374721034T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6080 MKT C B32529C0102J289 1 376491024T

U001

C6081 MKT C B32529C0102J289 1 376491024T

U001

C6082 MKT C B32529C0102J289 1 376491024T

U001

C6083 MKT C B32529C0102J289 1 376491024T

16/57 PAGE

U001

C6084 MKT C B32529C0102J289 1 376491024T

U001

C6087 MKT C B32529C0102J289 1 376491024T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6088 MKT C B32529C0102J289 1 376491024T

U001

C6089 MKT C B32529C0102J289 1 376491024T

U001

C6090 UTSP C CE04W25V-100M(UTSP) 1 397551017T

U001

C6091 UTSP C CE04W50V-1M(UTSP) 1 397580107T

U001

C6092 UTSP C CE04W50V-1M(UTSP) 1 397580107T

U001

C6093 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C6094 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C6101 UTSP C CE04W63V-100M(UTSP) 1 397571017T

U001

C6102 UTSP C CE04W63V-100M(UTSP) 1 397571017T

U001

C6103 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6104 UTSP C CE04W63V-100M(UTSP) 1 397571017T

U001

C6105 UTSP C CE04W63V-100M(UTSP) 1 397571017T

U001

C6106 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C6107 UTSP C CE04W63V-100M(UTSP) 1 397571017T

U001

C6108 UTSP C CE04W63V-100M(UTSP) 1 397571017T

U001

C6111 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C6112 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C6113 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C6115 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C6117 C-CERA C CC725CH1H-102J1 1 342101024R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

C6630 C-CERA C CK725F1E-104Z1 1 332161040R1

U001

C6706 UTSP C CE04W50V-10M(UTSP) 1 397581007T

U001

C6901 ELECT C CE69W56V-8200MB 1 3504416 <MDC, MDS, MPB, MPP_A, MPP_H>

U001

C6901 ELECT C CE69W63V-8200MB 1 3504420 <MMK, MMQ>

U001

C6902 ELECT C CE69W56V-8200MB 1 3504416 <MDC, MDS, MPB, MPP_A, MPP_H>

U001

C6902 ELECT C CE69W63V-8200MB 1 3504420 <MMK, MMQ>

U001

C6911 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C6912 TF C ECQ-V50V-334J 1 374723344T

U001

C6913 TF C ECQ-V50V-334J 1 374723344T

U001

C6917 C-CERA C CC725CH1H-102J1 1 342101024R1

U001

C950 TF C ECQ-V50V-104J 1 374721044T

U001

C960 VR C CE04W63V-220M(VR) 1 394672217T

U001

C960 or JAMICON CE04W63V-220M ( 1) 398572217T

U001

C961 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

C962 TF C ECQ-V50V-104J 1 374721044T

U001

C963 UTSP C CE04W50V 47M(UTSP) 1 397584707T

U001

[RESISTOR]

17/57 PAGE

U001

R131 C-CARBON R RN72K1J-750JE 1 435037504R1

U001

R133 C-CARBON R RN72K1J-100JE 1 435031004R1

U001

R137 C-CARBON R RN72K1J-103JE 1 435031034R1

U001

R139 C-CARBON R RN72K1J-823JE 1 435038234R1

U001

R141 C-CARBON R RN72K1J-470JE 1 435034704R1

U001

R142 C-CARBON R RN72K1J-470JE 1 435034704R1

U001

R4000 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4001 METAL O R RS1WBJ-10 1 443621004T <MDC, MDS, MPB, MPP_A, MPP_H>

U001

R4001 METAL R RNU1WCJ-4.7 1 453630474T <MMK, MMQ>

U001

R4003 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4004 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4005 METAL O R RS1WBJ-15 1 443621504T

U001

R4007 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4008 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4013 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4014 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4015 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4016 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4017 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4018 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4019 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4020 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4023 C-CARBON R RN72K1J-000JE 1 435030004R1

U001

R4043 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4044 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4047 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4048 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4053 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4054 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4055 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4056 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4057 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4058 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4059 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4060 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4067 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4068 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4078 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R4079 C-CARBON R RN72K1J-473JE 1 435034734R1

18/57 PAGE

U001

R4080 C-CARBON R RN72K1J-104JE 1 435031044R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R4081 C-CARBON R RN72K1J-104JE 1 435031044R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R4082 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4085 C-CARBON R RN72K1J-182JE 1 435031824R1

U001

R4086 C-CARBON R RN72K1J-182JE 1 435031824R1

U001

R4087 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4088 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4089 C-CARBON R RN72K1J-000JE 1 435030004R1

U001

R4090 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R4091 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R4092 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4093 C-CARBON R RN72K1J-332JE 1 435033324R1

U001

R4094 C-CARBON R RN72K1J-103JE 1 435031034R1

U001

R4095 C-CARBON R RN72K1J-103JE 1 435031034R1

U001

R4096 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4097 C-CARBON R RN72K1J-332JE 1 435033324R1

U001

R4098 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R4099 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R4100 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4101 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4102 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4103 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4104 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4107 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R4110 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4111 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4112 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4113 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4114 C-CARBON R RN72K1J-222JE 1 435032224R1

U001

R4117 C-CARBON R RN72K1J-271JE 1 435032714R1

U001

R4127 C-CARBON R RN72K1J-101JE 1 435031014R1

U001

R4130 C-CARBON R RN72K1J-221JE 1 435032214R1

U001

R4131 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R4132 C-CARBON R RN72K1J-153JE 1 435031534R1

U001

R4133 C-CARBON R RN72K1J-122JE 1 435031224R1

U001

R4134 C-CARBON R RN72K1J-103JE 1 435031034R1

U001

R4160 METAL R RNU1WCJ-0.22 1 453632294T

U001

R4161 METAL R RNU1WCJ-0.22 1 453632294T

U001

R4166 C-CARBON R RN72K1J-220JE 1 435032204R1

19/57 PAGE

U001

R4167 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4174 METAL O R RS1WBJ-68 1 443626804T

U001

R4175 METAL O R RS1WBJ-68 1 443626804T

U001

R4176 METAL O R RS1WBJ-15 1 443621504T

U001

R4177 METAL O R RS1WBJ-15 1 443621504T

U001

R4181 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4189 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R4190 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R4192 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4193 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4194 C-CARBON R RN72K1J-224JE 1 435032244R1

U001

R4200 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4201 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4400 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R4401 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R4402 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R4403 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R4404 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R4405 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R4406 C-CARBON R RN72K1J-273JE 1 435032734R1

U001

R4407 C-CARBON R RN72K1J-273JE 1 435032734R1

U001

R4408 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4409 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4410 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4411 C-CARBON R RN72K1J-104JE 1 435031044R1

U001

R4412 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4413 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4414 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4415 C-CARBON R RN72K1J-220JE 1 435032204R1

U001

R4416 C-CARBON R RN72K1J-471JE 1 435034714R1

U001

R4417 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R4419 C-CARBON R RN72K1J-000JE 1 435030004R1

U001

R4420 C-CARBON R RN72K1J-472JE 1 435034724R1

U001

R4421 C-CARBON R RN72K1J-472JE 1 435034724R1

U001

R4422 C-CARBON R RN72K1J-472JE 1 435034724R1

U001

R4423 C-CARBON R RN72K1J-472JE 1 435034724R1

U001

R4424 C-CARBON R RN72K1J-472JE 1 435034724R1

U001

R4427 C-CARBON R RN72K1J-472JE 1 435034724R1

U001

R4430 C-CARBON R RN72K1J-153JE 1 435031534R1

20/57 PAGE

U001

R4431 C-CARBON R RN72K1J-153JE 1 435031534R1

U001

R4432 C-CARBON R RN72K1J-153JE 1 435031534R1

U001

R4433 C-CARBON R RN72K1J-153JE 1 435031534R1

U001

R4434 C-CARBON R RN72K1J-153JE 1 435031534R1

U001

R4437 C-CARBON R RN72K1J-153JE 1 435031534R1

U001

R4440 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4441 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4442 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4443 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4444 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4447 C-CARBON R RN72K1J-331JE 1 435033314R1

U001

R4450 C-CARBON R RN72K1J-561JE 1 435035614R1

U001

R4451 C-CARBON R RN72K1J-561JE 1 435035614R1

U001

R4452 C-CARBON R RN72K1J-561JE 1 435035614R1

U001

R4453 C-CARBON R RN72K1J-561JE 1 435035614R1

U001

R4454 C-CARBON R RN72K1J-561JE 1 435035614R1

U001

R4457 C-CARBON R RN72K1J-561JE 1 435035614R1

U001

R4601 C-CARBON R RN72K1J-471JE 1 435034714R1

U001

R4602 C-CARBON R RN72K1J-000JE 1 435030004R1

U001

R6010 C-CARBON R RN72K1J-102JE 1 435031024R1

U001

R6011 C-CARBON R RN72K1J-102JE 1 435031024R1

U001

R6012 C-CARBON R RN72K1J-102JE 1 435031024R1

U001

R6013 C-CARBON R RN72K1J-102JE 1 435031024R1

U001

R6014 C-CARBON R RN72K1J-102JE 1 435031024R1

U001

R6017 C-CARBON R RN72K1J-102JE 1 435031024R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6020 CARBON R R16J-56K 1 417345634T

U001

R6021 CARBON R R16J-56K 1 417345634T

U001

R6022 CARBON R R16J-56K 1 417345634T

U001

R6023 CARBON R R16J-56K 1 417345634T

U001

R6024 CARBON R R16J-56K 1 417345634T

U001

R6027 CARBON R R16J-56K 1 417345634T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6030 CARBON R R16J-2.2K 1 417342224T

U001

R6031 CARBON R R16J-2.2K 1 417342224T

U001

R6032 CARBON R R16J-2.2K 1 417342224T

U001

R6033 CARBON R R16J-2.2K 1 417342224T

U001

R6034 CARBON R R16J-2.2K 1 417342224T

U001

R6037 CARBON R R16J-2.2K 1 417342224T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6040 CARBON R R16J-120K 1 417341244T

U001

R6041 CARBON R R16J-120K 1 417341244T

21/57 PAGE

U001

R6042 CARBON R R16J-120K 1 417341244T

U001

R6043 CARBON R R16J-120K 1 417341244T

U001

R6044 CARBON R R16J-120K 1 417341244T

U001

R6047 CARBON R R16J-120K 1 417341244T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6050 CARBON R R16J-120K 1 417341244T

U001

R6051 CARBON R R16J-120K 1 417341244T

U001

R6052 CARBON R R16J-120K 1 417341244T

U001

R6053 CARBON R R16J-120K 1 417341244T

U001

R6054 CARBON R R16J-120K 1 417341244T

U001

R6057 CARBON R R16J-120K 1 417341244T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6070 C-CARBON R RN72K1J-563JE 1 435035634R1

U001

R6071 C-CARBON R RN72K1J-563JE 1 435035634R1

U001

R6072 C-CARBON R RN72K1J-563JE 1 435035634R1

U001

R6073 C-CARBON R RN72K1J-563JE 1 435035634R1

U001

R6074 C-CARBON R RN72K1J-563JE 1 435035634R1

U001

R6077 C-CARBON R RN72K1J-563JE 1 435035634R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6080 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R6081 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R6082 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R6083 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R6084 C-CARBON R RN72K1J-123JE 1 435031234R1

U001

R6087 C-CARBON R RN72K1J-123JE 1 435031234R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6100 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R6101 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R6102 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R6103 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R6104 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R6107 C-CARBON R RN72K1J-333JE 1 435033334R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6110 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6111 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6112 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6113 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6114 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6117 C-CARBON R RN72K1J-473JE 1 435034734R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6120 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6121 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6122 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6123 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6124 C-CARBON R RN72K1J-473JE 1 435034734R1

22/57 PAGE

U001

R6127 C-CARBON R RN72K1J-473JE 1 435034734R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6130 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6131 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6132 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6133 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6134 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6137 C-CARBON R RN72K2E-150JE 1 435221504R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6140 METAL R RNU1WCJ-8.2 1 453630824T

U001

R6141 METAL R RNU1WCJ-8.2 1 453630824T

U001

R6142 METAL R RNU1WCJ-8.2 1 453630824T

U001

R6143 METAL R RNU1WCJ-8.2 1 453630824T

U001

R6144 METAL R RNU1WCJ-8.2 1 453630824T

U001

R6147 METAL R RNU1WCJ-8.2 1 453630824T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6160 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6161 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6162 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6163 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6164 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6167 METAL O R RS2WBJ-0.22 1 442722294T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6170 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6171 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6172 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6173 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6174 METAL O R RS2WBJ-0.22 1 442722294T N

U001

R6177 METAL O R RS2WBJ-0.22 1 442722294T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6203 CARBON R R16J-33K 1 417343334T

U001

R6204 METAL O R RS1/2WBJ-100 1 443521014T

U001

R6205 METAL O R RS1/2WBJ-100 1 443521014T

U001

R6206 CARBON R R16J-33K 1 417343334T <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6209 METAL O R RS1/2WBJ-100 1 443521014T

U001

R6210 METAL O R RS1/2WBJ-100 1 443521014T

U001

R6211 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

R6213 C-CARBON R RN72K1J-103JE 1 435031034R1

U001

R6214 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6216 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R6217 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6218 C-CARBON R RN72K1J-103JE 1 435031034R1

U001

R6219 C-CARBON R RN72K1J-223JE 1 435032234R1

U001

R6230 C-CARBON R RN72K2E-150JE 1 435221504R1

23/57 PAGE

U001

R6231 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6232 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6233 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6234 C-CARBON R RN72K2E-150JE 1 435221504R1

U001

R6237 C-CARBON R RN72K2E-150JE 1 435221504R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

R6251 METAL O R RS1/2WBJ-390 1 443523914T

U001

R6252 METAL O R RS1/2WBJ-390 1 443523914T

U001

R6709 C-CARBON R RN72K1J-562JE 1 435035624R1

U001

R6710 C-CARBON R RN72K1J-562JE 1 435035624R1

U001

R6902 C-CARBON R RN72K1J-102JE 1 435031024R1

U001

R6903 C-CARBON R RN72K1J-473JE 1 435034734R1

U001

R6912 METAL R RNU1/2WCJ-0.1 1 453531094T

U001

R950 METAL O R RS1WBJ-10 1 443621004T

U001

R960 METAL R RNU1/2WCJ-8.2 1 453530824T

U001

R961 CARBON R R16J-3.3 1 417340334T

U001

R962 C-CARBON R RN72K1J-822JE 1 435038224R1

U001

R963 C-CARBON R RN72K1J-822JE 1 435038224R1

U001

R964 C-CARBON R RN72K1J-333JE 1 435033334R1

U001

[SW TRM]

U001

E6001 RETAINER MET37-0002 1 27142009T

U001

F6901A FUSE HOL NSCT-1P2031 1 25052133T

U001

F6901B FUSE HOL NSCT-1P2031 1 25052133T

U001

F6902A FUSE HOL NSCT-1P2031 1 25052133T

U001

F6902B FUSE HOL NSCT-1P2031 1 25052133T

U001

JL501A WIRE HOL NSCT-3P874 1 25051087

U001

JL502A WIRE HOL NSCT-5P876 1 25051089 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

JL503A WIRE HOL NSCT-7P878 1 25051091 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

JL600A WIRE HOL NSCT-7P898 1 25051111

U001

JL600B WIRE HOL NSCT-7P898 1 25051111

U001

JL603A WIRE HOL NSCT-9P900 1 25051113

U001

JL603B WIRE HOL NSCT-9P900 1 25051113

U001

JL605B SOCKET NSCT-5P97 1 25050269

U001

JL951A WIRE HOL NSCT-5P896 1 25051109

U001

JL951B WIRE HOL NSCT-5P896 1 25051109

U001

JL952A WIRE HOL NSCT-3P894 1 25051107

U001

JL953B WIRE TRAP NPLG-5P588 1 25055626

U001

JL954A WIRE HOL NSCT-9P900 1 25051113

U001

JL954B WIRE HOL NSCT-9P900 1 25051113

U001

P101B SOCKET NSCT-9P2102 1 25052205

24/57 PAGE

U001

P131 PIN JACK NPJ-1PDO554 1 25045772

U001

P4000 ST JACK MSJ-035-22 1 25045887

U001

P4000 or JACK YKB21-5130 ( 1) 25045387

U001

P4002 PIN JACK NPJ-4PDWR690 1 25045922

U001

P4005 PIN JACK NPJ-4PDWWRR624 1 25045845

U001

P4006 PIN JACK NPJ-4PDWWRR624 1 25045845

U001

P6001 TRM NTM-12PDML362 1 25060433 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

P6001 or TRM NTM-12PDML356 ( 1) 25060427 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

P6002 TRM NTM-4PDML364 1 25060435

U001

P6900 CRIMP AS CRIMP AS 1 20799162UL

U001

P6901 CRIMP AS CRIMP AS 1 2069925162UL

U001

P6902 CRIMP AS CRIMP AS 1 2069925169UL

U001

P6903 WS CLAMP CB-71683(L=50) 1 260261

U001

P6906 WS CLAMP CB-71683(L=50) 1 260261

U001

P6909 WS CLAMP CB-71683(L=50) 1 260261

U001

P6913 WS CLAMP CB-71683(L=50) 1 260261

U001

P6915 WS CLAMP CB-71683(L=50) 1 260261

U001

P703B SOCKET NSCT-7P2398 1 25052501

U001

P8001A SOCKET NSCT-21P2412 1 25052515

U001

P8002A SOCKET NSCT-9P2400 1 25052503

U001

P8003B PLUG NPLG-7P0962 1 25056012

U001

RL660 RELAY NRL-2P5A-DC24-129 1 25065563A

U001

RL660 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590

U001

RL660 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703

U001

RL662 RELAY NRL-2P5A-DC24-129 1 25065563A

U001

RL662 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590

U001

RL662 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703

U001

RL663 RELAY NRL-2P5A-DC24-129 1 25065563A

U001

RL663 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590

U001

RL663 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703

U001

RL667 RELAY NRL-2P5A-DC24-129 1 25065563A <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

RL667 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

RL667 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U001

RL669 RELAY NRL-2P5A-DC24-129 1 25065563A

U001

RL669 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590

U001

RL669 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703

U001

RL691 RELAY NRL-1P10A-DC12-196 1 25065707

U001

RL691 or RELAY NRL-1P10A-DC12-197 ( 1) 25065708

U001

RL691 or RELAY NRL-1P10A-DC12-198 ( 1) 25065709

25/57 PAGE

U001

RL692 RELAY NRL-1P10A-DC12-196 1 25065707

U001

RL692 or RELAY NRL-1P10A-DC12-197 ( 1) 25065708

U001

RL692 or RELAY NRL-1P10A-DC12-198 ( 1) 25065709

U001

RL693 RELAY NRL-2P5A-DC24-129 1 25065563A

U001

[TUNER UNIT]

U001

U131 PHT CP JSR1165-001recieving 1 24120143

U001

U132 PHT CP JSR1165-001recieving 1 24120143

26/57 PAGE

U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002
U002

U002 U0020 + U0021 + U0022 + U0023 + U0024
U0020
U0021
U0022
U0023
U0024

CIRCUIT NO.

[SEMI CONDUCTOR]

D7002 ZENER D DZ2J082M0L 1 224760820R2

D7002 or ZENER D UDZS8.2B ( 1) 224550820R2

D7033 ZENER D DZ2J039M0L 1 224760390R2

D7033 or ZENER D UDZS3.9B ( 1) 224550390R2

D7152 LED SLI-343Y8C-TE7 1 225490T

D7301 C-DIODE DA2J10100 1 223303R2 N

D7301 or C-DIODE 1SS352 ( 1) 223234R2

D7301 or C-DIODE 1SS355 ( 1) 223269R2

D7301 or C-DIODE MA2J111 ( 1) 223279R2

D7301 or C-DIODE KDS4148U ( 1) 223283R2

D7302 C-DIODE DA2J10100 1 223303R2 N

D7302 or C-DIODE 1SS352 ( 1) 223234R2

D7302 or C-DIODE 1SS355 ( 1) 223269R2

D7302 or C-DIODE MA2J111 ( 1) 223279R2

D7302 or C-DIODE KDS4148U ( 1) 223283R2

D9011 DIODE D5SBA60 1 22380070F N

D9014 C-DIODE DA2J10100 1 223303R2 N

D9014 or C-DIODE 1SS352 ( 1) 223234R2

D9014 or C-DIODE 1SS355 ( 1) 223269R2

D9014 or C-DIODE MA2J111 ( 1) 223279R2

D9014 or C-DIODE KDS4148U ( 1) 223283R2

D9015 C-DIODE DA2J10100 1 223303R2 N

Display PC board ass'y BADIS-0654-1C/ 1G
Standby switch PC board ass'y BADIS-0655-1C/ 1G
Video PC board ass'y BAVD-0656-1C/ 1G
HP Jack PC board ass'y BAETC-0658-1C/ 1G
Primary Wiring PC board ass'y BAPS-0659-1C/ 1G

PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS

U002

D9015 or C-DIODE 1SS352 ( 1) 223234R2

U002

D9015 or C-DIODE 1SS355 ( 1) 223269R2

U002

D9015 or C-DIODE MA2J111 ( 1) 223279R2

U002

D9015 or C-DIODE KDS4148U ( 1) 223283R2

U002

D9016 ZENER D DZ2J062M0L 1 224760620R2

U002

D9016 or ZENER D UDZS6.2B ( 1) 224550620R2

U002

D911 C-DIODE DA2J10100 1 223303R2 N

U002

D911 or C-DIODE 1SS352 ( 1) 223234R2

U002

D911 or C-DIODE 1SS355 ( 1) 223269R2

U002

D911 or C-DIODE MA2J111 ( 1) 223279R2

U002

D911 or C-DIODE KDS4148U ( 1) 223283R2

U002

D912 C-DIODE DA2J10100 1 223303R2 N

U002

D912 or C-DIODE 1SS352 ( 1) 223234R2

U002

D912 or C-DIODE 1SS355 ( 1) 223269R2

U002

D912 or C-DIODE MA2J111 ( 1) 223279R2

U002

D912 or C-DIODE KDS4148U ( 1) 223283R2

U002

D921 C-DIODE DA2J10100 1 223303R2 N

U002

D921 or C-DIODE 1SS352 ( 1) 223234R2

U002

D921 or C-DIODE 1SS355 ( 1) 223269R2

U002

D921 or C-DIODE MA2J111 ( 1) 223279R2

U002

D921 or C-DIODE KDS4148U ( 1) 223283R2

U002

D922 C-DIODE DA2J10100 1 223303R2 N

U002

D922 or C-DIODE 1SS352 ( 1) 223234R2

U002

D922 or C-DIODE 1SS355 ( 1) 223269R2

U002

D922 or C-DIODE MA2J111 ( 1) 223279R2

U002

D922 or C-DIODE KDS4148U ( 1) 223283R2

U002

D923 C-DIODE DA2J10100 1 223303R2 N

U002

D923 or C-DIODE 1SS352 ( 1) 223234R2

U002

D923 or C-DIODE 1SS355 ( 1) 223269R2

U002

D923 or C-DIODE MA2J111 ( 1) 223279R2

U002

D923 or C-DIODE KDS4148U ( 1) 223283R2

U002

D924 C-DIODE DA2J10100 1 223303R2 N

U002

D924 or C-DIODE 1SS352 ( 1) 223234R2

U002

D924 or C-DIODE 1SS355 ( 1) 223269R2

U002

D924 or C-DIODE MA2J111 ( 1) 223279R2

U002

D924 or C-DIODE KDS4148U ( 1) 223283R2

U002

D925 C-DIODE DA2J10100 1 223303R2 N

U002

D925 or C-DIODE 1SS352 ( 1) 223234R2

U002

D925 or C-DIODE 1SS355 ( 1) 223269R2

27/57 PAGE

U002

D925 or C-DIODE MA2J111 ( 1) 223279R2

U002

D925 or C-DIODE KDS4148U ( 1) 223283R2

U002

D930 C-DIODE DA2J10100 1 223303R2 N

U002

D930 or C-DIODE 1SS352 ( 1) 223234R2

U002

D930 or C-DIODE 1SS355 ( 1) 223269R2

U002

D930 or C-DIODE MA2J111 ( 1) 223279R2

U002

D930 or C-DIODE KDS4148U ( 1) 223283R2

U002

D931 C-DIODE DA2J10100 1 223303R2 N

U002

D931 or C-DIODE 1SS352 ( 1) 223234R2

U002

D931 or C-DIODE 1SS355 ( 1) 223269R2

U002

D931 or C-DIODE MA2J111 ( 1) 223279R2

U002

D931 or C-DIODE KDS4148U ( 1) 223283R2

U002

D933 C-DIODE DA2J10100 1 223303R2 N

U002

D933 or C-DIODE 1SS352 ( 1) 223234R2

U002

D933 or C-DIODE 1SS355 ( 1) 223269R2

U002

D933 or C-DIODE MA2J111 ( 1) 223279R2

U002

D933 or C-DIODE KDS4148U ( 1) 223283R2

U002

D934 ZENER D DZ2J047M0L 1 224760470R2 <MDC, MDS>

U002

D934 ZENER D DZ2J051M0L 1 224760510R2 < MPB, MPP_A, MMK, MMQ, MPP_H>

U002

D934 or ZENER D UDZS4.7B ( 1) 224550470R2 <MDC, MDS>

U002

D934 or ZENER D UDZS5.1B ( 1) 224550510R2 < MPB, MPP_A, MMK, MMQ, MPP_H>

U002

D935 C-DIODE DA2J10100 1 223303R2 N

U002

D935 or C-DIODE 1SS352 ( 1) 223234R2

U002

D935 or C-DIODE 1SS355 ( 1) 223269R2

U002

D935 or C-DIODE MA2J111 ( 1) 223279R2

U002

D935 or C-DIODE KDS4148U ( 1) 223283R2

U002

Q2001 IC NJW1328 1 22242691R3 N

U002

Q2304 IC NJM4580M-D 1 22241448R2 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

Q2330 IC NJM4580M-D 1 22241448R2 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

Q2400 IC NJM4580M-D 1 22241448R2 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

Q7002 FL TUBE 16-BT-162GNK 1 212273

U002

Q7002A HOLDER (FL) 1 27191222C

U002

Q7003 IC M66005-0001AHP 1 22242208R3

U002

Q7004 TR KTC3875-GR 1 2216175R2

U002

Q7033 TR KTC3875-GR 1 2216175R2

U002

Q9020 IC XC6220B501PR 1 22242692R2 N

U002

[TRANS COIL]

U002

L2300 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2301 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

28/57 PAGE

U002

L2302 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2303 CORE BLM18PG181SN1D 1 2350005R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2304 CORE BLM18PG181SN1D 1 2350005R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2305 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2306 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2307 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2308 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2309 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2310 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2311 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2312 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2313 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2314 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2315 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2316 CORE BLM18PG181SN1D 1 2350005R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2317 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2318 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2319 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2320 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L2321 EMIFIL BK1608LM182-T 1 230958R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

L7031 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U002

L7032 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U002

L7201 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U002

L7202 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U002

L7203 CHOKE COIL LBC2518T2R2M 1 231364M022R2

U002

L7301 EMIFIL BK1608LM182-T 1 230958R1

U002

L7302 EMIFIL BK1608LM182-T 1 230958R1

U002

L9020 CORE BLM18PG181SN1D 1 2350005R1

U002

T902 P TRANS NPT-1520JQ 1 2301812A

U002

T902 P TRANS NPT-1520GQ 1 2301813A

U002

[CAPACITOR]

U002

C2000 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C2001 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C2002 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2002 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2003 VR C CE04W6.3V-470M(VR) 1 394624717T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2003 or JAMICON CE04W6.3V-470M ( 1) 398524717T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2004 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C2005 VR C CE04W6.3V-470M(VR) 1 394624717T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

<MDC, MDS>

!

< MPB, MPP_A, MMK, MMQ, MPP_H>

!

29/57 PAGE

U002

C2005 or JAMICON CE04W6.3V-470M ( 1) 398524717T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2006 C-CERA C CC725CH1H-470J1 1 342104704R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2007 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C2008 C-CERA C CK725F1A-105Z1 1 332181050R1

U002

C2009 C-CERA C CK725F1A-105Z1 1 332181050R1

U002

C2010 C-CERA C CK725F1A-105Z1 1 332181050R1

U002

C2011 C-CERA C CC725CH1H-470J1 1 342104704R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2012 C-CERA C CK725F1A-105Z1 1 332181050R1

U002

C2013 VR C CE04W50V-10M(VR) 1 394681007T

U002

C2013 or JAMICON CE04W50V-10M ( 1) 398581007T N

U002

C2020 C-CERA C CK725F1A-105Z1 1 332181050R1

U002

C2021 C-CERA C CK725F1A-105Z1 1 332181050R1

U002

C2102 VR C CE04W6.3V-470M(VR) 1 394624717T

U002

C2102 or JAMICON CE04W6.3V-470M ( 1) 398524717T N

U002

C2103 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2103 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2104 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2104 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2105 VR C CE04W6.3V-470M(VR) 1 394624717T

U002

C2105 or JAMICON CE04W6.3V-470M ( 1) 398524717T N

U002

C2106 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2106 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2107 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2107 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2108 VR C CE04W6.3V-470M(VR) 1 394624717T

U002

C2108 or JAMICON CE04W6.3V-470M ( 1) 398524717T N

U002

C2109 VR C CE04W6.3V-470M(VR) 1 394624717T

U002

C2109 or JAMICON CE04W6.3V-470M ( 1) 398524717T N

U002

C2110 VR C CE04W6.3V-470M(VR) 1 394624717T

U002

C2110 or JAMICON CE04W6.3V-470M ( 1) 398524717T N

U002

C2111 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2111 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2112 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2112 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2113 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2113 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2114 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2114 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2115 VR C CE04W50V-2.2M(VR) 1 394680227T

30/57 PAGE

U002

C2115 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2116 VR C CE04W50V-2.2M(VR) 1 394680227T

U002

C2116 or JAMICON CE04W50V-2.2M ( 1) 398580227T N

U002

C2201 C-CERA C CK725B1H-102K1 1 332101025R1

U002

C2202 C-CERA C CK725B1H-102K1 1 332101025R1

U002

C2203 C-CERA C CK725B1H-103K1 1 332101035R1

U002

C2301 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2302 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2331 C-CERA C CC725CH1H-331J1 1 342103314R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2332 C-CERA C CC725CH1H-331J1 1 342103314R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2333 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2334 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2335 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2336 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2337 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2338 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2350 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2351 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2352 C-CERA C CC725CH1H-470J1 1 342104704R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2355 C-CERA C CK725F1E-104Z1 1 332161040R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2370 C-CERA C CC725CH1H-101J1 1 342101014R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2371 C-CERA C CC725CH1H-101J1 1 342101014R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2377 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2378 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2380 C-CERA C CC725CH1H-101J1 1 342101014R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2381 C-CERA C CC725CH1H-101J1 1 342101014R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2382 C-CERA C CC725CH1H-101J1 1 342101014R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2383 C-CERA C CC725CH1H-101J1 1 342101014R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2384 C-CERA C CK725F1A-105Z1 1 332181050R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2385 C-CERA C CK725F1A-105Z1 1 332181050R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2388 C-CERA C CK725F1E-104Z1 1 332161040R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2389 C-CERA C CK725F1E-104Z1 1 332161040R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2391 C-CERA C CK725F1A-105Z1 1 332181050R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2392 C-CERA C CK725F1A-105Z1 1 332181050R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2393 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2394 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2395 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2396 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2397 C-CERA C CK725F1A-105Z1 1 332181050R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

31/57 PAGE

U002

C2398 C-CERA C CK725F1A-105Z1 1 332181050R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2402 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2403 C-CERA C CC725CH1H-471J1 1 342104714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2404 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C2405 UTSP C CE04W50V-10M(UTSP) 1 397581007T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

C7001 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7002 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C7003 C-CERA C CC725CH1H-101J1 1 342101014R1

U002

C7004 C-CERA C CC725CH1H-101J1 1 342101014R1

U002

C7005 C-CERA C CC725CH1H-101J1 1 342101014R1

U002

C7007 C-CERA C CC725CH1H-101J1 1 342101014R1

U002

C7008 ELECT C CE04W6.3V-100M(S) 1 353721019T

U002

C7009 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C7010 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7011 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7012 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7014 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7015 ELECT C CE04W16V-47M(S) 1 353744709T

U002

C7016 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7017 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7021 C-CERA C CK725B1H-103K1 1 332101035R1

U002

C7022 C-CERA C CK725B1H-103K1 1 332101035R1

U002

C7031 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7032 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7033 ELECT C CE04W16V-10M(S) 1 353741009T

U002

C7041 ELECT C CE04W16V-10M(S) 1 353741009T

U002

C7042 C-CERA C CC725CH1H-102J1 1 342101024R1

U002

C7043 C-CERA C CC725CH1H-102J1 1 342101024R1

U002

C7201 C-CERA C CC725CH1H-102J1 1 342101024R1

U002

C7202 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C7203 MKT C B32529C0102J289 1 376491024T

U002

C7204 MKT C B32529C0102J289 1 376491024T

U002

C7301 C-CERA C CC725CH1H-471J1 1 342104714R1

U002

C7302 C-CERA C CC725CH1H-471J1 1 342104714R1

U002

C7304 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C7305 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C7306 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C7319 C-CERA C CC725CH1H-470J1 1 342104704R1

U002

C901 IS C LE103-C3.5 1 3800042S

!

32/57 PAGE

U002

C901 or IS C ECQU2A103MLC ( 1) 3800039S

U002

C9011 VR C CE04W16V-10000M(VR) 1 394641037S

U002

C9012 TF C ECQ-V50V-334J 1 374723344T

U002

C9013 VR C CE04W50V-4.7M(VR) 1 394680477T

U002

C9013 or JAMICON CE04W50V-4.7M ( 1) 398580477T N

U002

C902 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C9020 C-CERA C CK732B16V-106K 1 332071065R2 N

U002

C9021 C-CERA C CK732B16V-106K 1 332071065R2 N

U002

C9022 C-CERA C CK732B16V-106K 1 332071065R2 N

U002

C9023 C-CERA C CK732B16V-106K 1 332071065R2 N

U002

C9026 VR C CE04W6.3V-470M(VR) 1 394624717T

U002

C9026 or JAMICON CE04W6.3V-470M ( 1) 398524717T N

U002

C9027 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C9028 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C9029 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C9030 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C9031 C-CERA C CK725F1E-104Z1 1 332161040R1

U002

C911 C-CERA C CC725CH1H-102J1 1 342101024R1

U002

C921 C-CERA C CK725B1H-223K1 1 332102235R1

U002

C922 VR C CE04W16V-2200M(VR) 1 394642227S

U002

C922 or JAMICON CE04W16V-2200M ( 1) 398542227S

U002

C930 VR C CE04W16V-470M(VR) 1 394644717T

U002

C930 or JAMICON CE04W16V-470M ( 1) 398544717T

U002

C933 UTSP C CE04W50V-4.7M(UTSP) 1 397580477T

U002

[RESISTOR]

U002

R2001 C-CARBON R RN72K1J-220JE 1 435032204R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2002 C-CARBON R RN72K1J-220JE 1 435032204R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2003 C-CARBON R RN72K1J-105JE 1 435031054R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2004 C-CARBON R RN72K1J-563JE 1 435035634R1

U002

R2005 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R2006 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R2007 C-CARBON R RN72K1J-563JE 1 435035634R1

U002

R2008 C-CARBON R RN72K1J-222JE 1 435032224R1

U002

R2009 C-CARBON R RN72K1J-222JE 1 435032224R1

U002

R2010 C-CARBON R RN72K1J-183JE 1 435031834R1

U002

R2011 C-CARBON R RN72K1J-183JE 1 435031834R1

U002

R2101 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2102 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2103 C-CARBON R RN72K1J-750JE 1 435037504R1

!

33/57 PAGE

U002

R2104 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2105 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2106 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2107 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2108 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2109 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2110 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2111 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2112 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2113 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2114 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2115 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2116 C-CARBON R RN72K1J-750JE 1 435037504R1

U002

R2120 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

R2121 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

R2122 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

R2123 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

R2124 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

R2155 C-CARBON R RN72K1J-000JE 1 435030004R1

U002

R2156 C-CARBON R RN72K1J-000JE 1 435030004R1

U002

R2157 C-CARBON R RN72K1J-000JE 1 435030004R1

U002

R2301 C-CARBON R RN72K1J-224JE 1 435032244R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2302 C-CARBON R RN72K1J-224JE 1 435032244R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2304 C-CARBON R RN72K1J-123JE 1 435031234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2305 C-CARBON R RN72K1J-123JE 1 435031234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2306 C-CARBON R RN72K1J-223JE 1 435032234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2307 C-CARBON R RN72K1J-223JE 1 435032234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2308 C-CARBON R RN72K1J-123JE 1 435031234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2309 C-CARBON R RN72K1J-123JE 1 435031234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2310 C-CARBON R RN72K1J-223JE 1 435032234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2311 C-CARBON R RN72K1J-223JE 1 435032234R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2320 C-CARBON R RN72K1J-471JE 1 435034714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2321 C-CARBON R RN72K1J-471JE 1 435034714R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2330 C-CARBON R RN72K1J-105JE 1 435031054R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2331 C-CARBON R RN72K1J-224JE 1 435032244R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2332 C-CARBON R RN72K1J-224JE 1 435032244R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2333 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2334 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2337 C-CARBON R RN72K1J-224JE 1 435032244R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

34/57 PAGE

U002

R2338 C-CARBON R RN72K1J-224JE 1 435032244R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2348 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2349 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2352 C-CARBON R RN72K1J-750JE 1 435037504R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2360 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2361 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2363 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2364 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2400 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2401 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2402 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2403 C-CARBON R RN72K1J-222JE 1 435032224R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2602 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2603 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R2604 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R7001 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R7002 C-CARBON R RN72K1J-332JE 1 435033324R1

U002

R7003 C-CARBON R RN72K1J-332JE 1 435033324R1

U002

R7004 C-CARBON R RN72K1J-221JE 1 435032214R1

U002

R7005 C-CARBON R RN72K1J-221JE 1 435032214R1

U002

R7006 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R7007 C-CARBON R RN72K1J-221JE 1 435032214R1

U002

R7008 C-CARBON R RN72K1J-221JE 1 435032214R1

U002

R7021 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R7022 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R7023 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R7024 C-CARBON R RN72K1J-103JE 1 435031034R1

U002

R7033 C-CARBON R RN72K1J-820JE 1 435038204R1

U002

R7041 C-CARBON R RN72K1J-101JE 1 435031014R1

U002

R7042 C-CARBON R RN72K1J-102JE 1 435031024R1

U002

R7101 C-CARBON R RN72K1J-271JE 1 435032714R1

U002

R7102 C-CARBON R RN72K1J-331JE 1 435033314R1

U002

R7103 C-CARBON R RN72K1J-471JE 1 435034714R1

U002

R7106 C-CARBON R RN72K1J-271JE 1 435032714R1

U002

R7107 C-CARBON R RN72K1J-331JE 1 435033314R1

U002

R7108 C-CARBON R RN72K1J-471JE 1 435034714R1

U002

R7109 C-CARBON R RN72K1J-561JE 1 435035614R1

U002

R7110 C-CARBON R RN72K1J-821JE 1 435038214R1

U002

R7111 C-CARBON R RN72K1J-122JE 1 435031224R1

35/57 PAGE

U002

R7112 C-CARBON R RN72K1J-222JE 1 435032224R1

U002

R7113 C-CARBON R RN72K1J-392JE 1 435033924R1

U002

R7114 C-CARBON R RN72K1J-123JE 1 435031234R1

U002

R7115 C-CARBON R RN72K1J-271JE 1 435032714R1

U002

R7116 C-CARBON R RN72K1J-331JE 1 435033314R1

U002

R7117 C-CARBON R RN72K1J-471JE 1 435034714R1

U002

R7118 C-CARBON R RN72K1J-561JE 1 435035614R1

U002

R7119 C-CARBON R RN72K1J-821JE 1 435038214R1

U002

R7120 C-CARBON R RN72K1J-122JE 1 435031224R1

U002

R7121 C-CARBON R RN72K1J-222JE 1 435032224R1

U002

R7122 C-CARBON R RN72K1J-392JE 1 435033924R1

U002

R7123 C-CARBON R RN72K1J-271JE 1 435032714R1

U002

R7124 C-CARBON R RN72K1J-331JE 1 435033314R1

U002

R7125 C-CARBON R RN72K1J-471JE 1 435034714R1

U002

R7126 C-CARBON R RN72K1J-561JE 1 435035614R1

U002

R7127 C-CARBON R RN72K1J-821JE 1 435038214R1

U002

R7128 C-CARBON R RN72K1J-122JE 1 435031224R1

U002

R7129 C-CARBON R RN72K1J-222JE 1 435032224R1

U002

R7152 C-CARBON R RN72K1J-222JE 1 435032224R1

U002

R7301 C-CARBON R RN72K1J-331JE 1 435033314R1

U002

R7302 C-CARBON R RN72K1J-331JE 1 435033314R1

U002

R9014 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

R9030 THERMISTOR FUSB090F 1 4000252T <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

R921 METAL O R RS1/2WBJ-47 1 443524704T

U002

R922 C-CARBON R RN72K1J-823JE 1 435038234R1 <MDC, MDS>

U002

R934 C-CARBON R RN72K1J-104JE 1 435031044R1

U002

[SW TRM]

U002

E7201 TRM-423(SCREW) NEJITANSI ST3 1 25060495

U002

E7301A RETAINER (GND) 1 27142222A N

U002

E9004 RETAINER (JOINT) 1 27142069

U002

E901 TRM-423(SCREW) NEJITANSI ST3 1 25060495

U002

E902 TRM-423(SCREW) NEJITANSI ST3 1 25060495

U002

F9001 FUSE 5A-UL-125V 1 252385T

U002

F901C FUSE HOL NSCT-1P2031 1 25052133T

U002

F901D FUSE HOL NSCT-1P2031 1 25052133T

U002

F901E LABEL T4AL250V 1 29361732A < MPB, MPP_A, MMK, MMQ, MPP_H>

U002

JL502B WIRE TRAP NPLG-5P588 1 25055626 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

JL503B WIRE TRAP NPLG-7P590 1 25055628 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

JL605A WIRE HOL NSCT-5P896 1 25051109

36/57 PAGE

U002

JL702A WIRE HOL NSCT-7P878 1 25051091

U002

JL702B WIRE HOL NSCT-7P878 1 25051091

U002

JL801A WIRE HOL NSCT-5P876 1 25051089

U002

JL901A WIRE HOL NSCT-5P876 1 25051089

U002

JL952B SOCKET NSCT-3P95 1 25050267

U002

JL953A WIRE HOL NSCT-5P876 1 25051089

U002

P2001A SOCKET NSCT-7P2398 1 25052501 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

P2081 SOCKET NNA1-01-006 1 25053357 <MDC, MDS, MPB, MPP_A, MMK, MMQ, MPP_H>

U002

P2201 PIN JACK NPJ-3PDYYY560 1 25045778

U002

P2202 PIN JACK NPJ-3PDYYY560 1 25045778

U002

P2203 PIN JACK NPJ-9PDGLRGLRGLR563 1 25045781

U002

P2800A SOCKET NSCT-9P2400 1 25052503

U002

P701B SOCKET NSCT-23P2441 1 25052544

U002

P703A SOCKET NSCT-7P2425 1 25052528

U002

P7201 ST JACK MSJ-064-05A SR 1 25045783

U002

P7201 or ST JACK YKB21-5005 ( 1) 25045724

U002

P7301 PIN JACK NPJ-3PDB720 1 25045957

U002

P901A PLUG NPLG-2P631 1 25055675

U002

P901Aor PLUG 1-1123724-2 ( 1) 25056402

U002

P911 PLUG NPLG-2P631 1 25055675

U002

P911 or PLUG 1-1123724-2 ( 1) 25056402

U002

RL901 RELAY NRL-1P5A-DC9-179 1 25065669

U002

RL901 or RELAY NRL-1P10A-DC9-188 ( 1) 25065693

U002

S7002 R ENCODE EC12E2425WITH WASHER 1 25065655W

U002

S7102 PUSH SW NPS-111-S681 1 25035718T

U002

S7104 PUSH SW NPS-111-S681 1 25035718T

U002

S7106 PUSH SW NPS-111-S681 1 25035718T

U002

S7108 PUSH SW NPS-111-S681 1 25035718T

U002

S7113 PUSH SW NPS-111-S681 1 25035718T

U002

S7115 PUSH SW NPS-111-S681 1 25035718T

U002

S7117 PUSH SW NPS-111-S681 1 25035718T

U002

S7119 PUSH SW NPS-111-S681 1 25035718T

U002

S7121 PUSH SW NPS-111-S681 1 25035718T

U002

S7123 PUSH SW NPS-111-S681 1 25035718T

U002

S7125 PUSH SW NPS-111-S681 1 25035718T

U002

S7127 PUSH SW NPS-111-S681 1 25035718T

U002

S7129 PUSH SW NPS-111-S681 1 25035718T

U002

S7132 PUSH SW NPS-111-S681 1 25035718T

U002

S7134 PUSH SW NPS-111-S681 1 25035718T

!
!
!
!
!
!

37/57 PAGE

U002

S7136 PUSH SW NPS-111-S681 1 25035718T

U002

S7138 PUSH SW NPS-111-S681 1 25035718T

U002

S7140 PUSH SW NPS-111-S681 1 25035718T

U002

S7142 PUSH SW NPS-111-S681 1 25035718T

U002

S7144 PUSH SW NPS-111-S681 1 25035718T

U002

S7146 PUSH SW NPS-111-S681 1 25035718T

U002

S7148 PUSH SW NPS-111-S681 1 25035718T

U002

S7150 PUSH SW NPS-111-S681 1 25035718T

U002

S7152 PUSH SW NPS-111-S681 1 25035718T

U002

S7154 PUSH SW NPS-111-S681 1 25035718T

U002

S7156 PUSH SW NPS-111-S681 1 25035718T

U002

S7158 PUSH SW NPS-111-S681 1 25035718T

U002

S7160 PUSH SW NPS-111-S681 1 25035718T

U002

S7162 PUSH SW NPS-111-S681 1 25035718T

U002

S7164 PUSH SW NPS-111-S681 1 25035718T

U002

[TUNER UNIT]

U002

U7041 REMO SENS KSM-603TE5B 1 24130019

38/57 PAGE

U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003
U003

U003 U0030 x 2 pcs.
U0030

CIRCUIT NO.

[SEMI CONDUCTOR]

D110 C-DIODE DA2J10100 1 223303R2 N

D110 or C-DIODE 1SS352 ( 1) 223234R2

D110 or C-DIODE 1SS355 ( 1) 223269R2

D110 or C-DIODE MA2J111 ( 1) 223279R2

D110 or C-DIODE KDS4148U ( 1) 223283R2

D111 C-DIODE DA2J10100 1 223303R2 N

D111 or C-DIODE 1SS352 ( 1) 223234R2

D111 or C-DIODE 1SS355 ( 1) 223269R2

D111 or C-DIODE MA2J111 ( 1) 223279R2

D111 or C-DIODE KDS4148U ( 1) 223283R2

D182 C-DIODE DA2J10100 1 223303R2 N

D182 or C-DIODE 1SS352 ( 1) 223234R2

D182 or C-DIODE 1SS355 ( 1) 223269R2

D182 or C-DIODE MA2J111 ( 1) 223279R2

D182 or C-DIODE KDS4148U ( 1) 223283R2

D183 C-DIODE DA2J10100 1 223303R2 N

HDMI PC board BAHDM-0678-1C/ 1D/ 1E

PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS

U003

D183 or C-DIODE 1SS352 ( 1) 223234R2

U003

D183 or C-DIODE 1SS355 ( 1) 223269R2

U003

D183 or C-DIODE MA2J111 ( 1) 223279R2

U003

D183 or C-DIODE KDS4148U ( 1) 223283R2

U003

D601 C-DIODE DA2J10100 1 223303R2 N

U003

D601 or C-DIODE 1SS352 ( 1) 223234R2

U003

D601 or C-DIODE 1SS355 ( 1) 223269R2

U003

D601 or C-DIODE MA2J111 ( 1) 223279R2

U003

D601 or C-DIODE KDS4148U ( 1) 223283R2

U003

D602 C-DIODE DA2J10100 1 223303R2 N

U003

D602 or C-DIODE 1SS352 ( 1) 223234R2

U003

D602 or C-DIODE 1SS355 ( 1) 223269R2

U003

D602 or C-DIODE MA2J111 ( 1) 223279R2

U003

D602 or C-DIODE KDS4148U ( 1) 223283R2

U003

D603 C-DIODE DA2J10100 1 223303R2 N

U003

D603 or C-DIODE 1SS352 ( 1) 223234R2

U003

D603 or C-DIODE 1SS355 ( 1) 223269R2

U003

D603 or C-DIODE MA2J111 ( 1) 223279R2

U003

D603 or C-DIODE KDS4148U ( 1) 223283R2

U003

D701 C-DIODE DA2J10100 1 223303R2 N

U003

D701 or C-DIODE 1SS352 ( 1) 223234R2

U003

D701 or C-DIODE 1SS355 ( 1) 223269R2

U003

D701 or C-DIODE MA2J111 ( 1) 223279R2

U003

D701 or C-DIODE KDS4148U ( 1) 223283R2

U003

D702 C-DIODE DA2J10100 1 223303R2 N

U003

D702 or C-DIODE 1SS352 ( 1) 223234R2

U003

D702 or C-DIODE 1SS355 ( 1) 223269R2

U003

D702 or C-DIODE MA2J111 ( 1) 223279R2

U003

D702 or C-DIODE KDS4148U ( 1) 223283R2

U003

D8100 C-DIODE DA2J10100 1 223303R2 N

U003

D8100 or C-DIODE 1SS352 ( 1) 223234R2

U003

D8100 or C-DIODE 1SS355 ( 1) 223269R2

U003

D8100 or C-DIODE MA2J111 ( 1) 223279R2

U003

D8100 or C-DIODE KDS4148U ( 1) 223283R2

U003

D8145 ESD D AOZ8804ADI 1 225502R2

U003

D8146 ESD D AOZ8804ADI 1 225502R2

U003

D8931 DIODE RB050M-30 1 22380367R2

U003

D8951 DIODE RB050M-30 1 22380367R2

U003

D8971 DIODE RB050M-30 1 22380367R2

39/57 PAGE

U003

Q153 IC R1EX25064ASA00A 1 22242581R2

U003

Q181 TR KRC105S 1 2217290R2

U003

Q181 or TR RN1405 ( 1) 2214500R2

U003

Q201 IC D808K013BPTP 1 22242693R3 N

U003

Q271 IC XC6220B121PR 1 22242626R2

U003

Q272 IC BU33TD3WG-TR 1 22242715R2

U003

Q273 IC XC6220B501PR 1 22242692R2 N

U003

Q281 IC K4S641632N-LC60 1 22242603R2

U003

Q281 or IC EM638165TS-7G ( 1) 22242607R2

Q282 IC (DSP) W25Q16CVSSIG(0406) 1 222W0118R204066

U003
U003

Q301 IC PCM9211PTR 1 22242703R2

U003

Q351 IC PCM1681PWPR 1 22242697R2 N

U003

Q601 TR KRC104S 1 2216210R2

U003

Q601 or TR RN1404 ( 1) 2214490R2

Q701 IC (MAIN MICROPROCESSOR ) MPD70F3746GJ-GAE-AX(0459) 1 222W0079R304590

U003
U003

Q702 IC S-812C33AUA-C2N 1 22242222R2

U003

Q703 IC S-812C56AUA-C3K 1 22242207R2

U003

Q704 IC SN74CB3Q3305PWR 1 22242258R2

U003

Q746 IC BU33TD3WG-TR 1 22242715R2

U003

Q751 TR KRC104S 1 2216210R2

U003

Q751 or TR RN1404 ( 1) 2214490R2

U003

Q752 TR KRA102S 1 2216220R2

U003

Q752 or TR RN2402 ( 1) 2214530R2

U003

Q753 TR KRA107S 1 2216350R2

U003

Q753 or TR RN2407(TE85L_F) ( 1) 2216360R2

U003

Q754 TR KRC102S 1 2216190R2

U003

Q754 or TR RN1402 ( 1) 2214470R2

U003

Q755 TR KRA107S 1 2216350R2

U003

Q755 or TR RN2407(TE85L_F) ( 1) 2216360R2

U003

Q756 TR KRC102S 1 2216190R2

U003

Q756 or TR RN1402 ( 1) 2214470R2

U003

Q8101 IC ADV7623 1 22242625R3

U003

Q8104 IC MM3404A50NRE 1 22242701R2 N

Q8105 IC (HDMI/VIDEO MICROPROCESSOR) W25Q16CVSSIG(0407) 1 222W0118R204075

U003
U003

Q8111 TR KRC101S 1 2216330R2

U003

Q8111 or TR RN1401(TE85L_F) ( 1) 2214460R2

U003

Q8112 TR KRC101S 1 2216330R2

U003

Q8112 or TR RN1401(TE85L_F) ( 1) 2214460R2

U003

Q8113 TR KRC101S 1 2216330R2

40/57 PAGE

U003

Q8113 or TR RN1401(TE85L_F) ( 1) 2214460R2

U003

Q8114 TR KRC101S 1 2216330R2

U003

Q8114 or TR RN1401(TE85L_F) ( 1) 2214460R2

U003

Q8115 TR KRC101S 1 2216330R2

U003

Q8115 or TR RN1401(TE85L_F) ( 1) 2214460R2

U003

Q8116 TR KRC101S 1 2216330R2

U003

Q8116 or TR RN1401(TE85L_F) ( 1) 2214460R2

U003

Q8117 TR KRC101S 1 2216330R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

Q8117 or TR RN1401(TE85L_F) ( 1) 2214460R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

Q8118 TR KRC101S 1 2216330R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

Q8118 or TR RN1401(TE85L_F) ( 1) 2214460R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

Q8156 TR ARRAY UM6K1N 1 226066R2

U003

Q8931 IC MP2363DN-LF-Z 1 22242627R2

U003

Q8951 IC MP2363DN-LF-Z 1 22242627R2

U003

Q8971 IC MP2363DN-LF-Z 1 22242627R2

U003

Q8972 IC BU18TD3WG-TR 1 22242716R2

U003

[TRANS COIL]

U003

L153 CORE BLM18PG181SN1D 1 2350005R1

U003

L201 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

L251 CORE BLM18PG121SN1D 1 2350006R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

L252 CORE BLM18PG121SN1D 1 2350006R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

L253 CORE BLM18PG121SN1D 1 2350006R1

U003

L254 CORE BLM18PG181SN1D 1 2350005R1

U003

L255 CORE BLM18PG121SN1D 1 2350006R1

U003

L281 CORE BLM18PG181SN1D 1 2350005R1

U003

L301 EMIFIL BK1608LM182-T 1 230958R1

U003

L302 EMIFIL BK1608LL241-T 1 230959R1

U003

L303 CHOKE COIL LBC2518T4R7M 1 231364M047R2

U003

L304 CHOKE COIL LBC2518T4R7M 1 231364M047R2

U003

L305 CHOKE COIL LBC2518T4R7M 1 231364M047R2

U003

L351 CHOKE COIL LBC2518T4R7M 1 231364M047R2

U003

L352 CHOKE COIL LBC2518T4R7M 1 231364M047R2

U003

L500 CORE BLM18PG181SN1D 1 2350005R1

U003

L740 CORE BLM18PG181SN1D 1 2350005R1

U003

L742 CORE BLM18PG181SN1D 1 2350005R1

U003

L743 CORE BLM18PG181SN1D 1 2350005R1

U003

L744 CORE BLM18PG181SN1D 1 2350005R1

U003

L746 CORE BLM18PG181SN1D 1 2350005R1

U003

L8101 EMIFIL BK1608LM182-T 1 230958R1

41/57 PAGE

U003

L8911 CORE BLM18PG181SN1D 1 2350005R1

U003

L8912 CORE BLM18PG181SN1D 1 2350005R1

U003

L8921 CORE BLM18PG181SN1D 1 2350005R1

U003

L8922 CORE BLM18PG181SN1D 1 2350005R1

U003

L8923 CORE BLM18PG181SN1D 1 2350005R1

U003

L8931 CHOKE COIL CDRH8D43_100 1 231371P100R2

U003

L8931 or CHOKE COIL 0182-7E08Q-100M-RA ( 1) 231396M100R2

U003

L8931 or CHOKE COIL SWRH8D43C-100MT ( 1) 231445M100R2 N

U003

L8932 CORE BLM18PG181SN1D 1 2350005R1

U003

L8933 CORE BLM18PG181SN1D 1 2350005R1

U003

L8934 CORE BLM18PG181SN1D 1 2350005R1

U003

L8937 CORE BLM18PG181SN1D 1 2350005R1

U003

L8938 CORE BLM18PG181SN1D 1 2350005R1

U003

L8939 CORE BLM18PG181SN1D 1 2350005R1

U003

L8951 CHOKE COIL CDRH8D43_100 1 231371P100R2

U003

L8951 or CHOKE COIL 0182-7E08Q-100M-RA ( 1) 231396M100R2

U003

L8951 or CHOKE COIL SWRH8D43C-100MT ( 1) 231445M100R2 N

U003

L8952 CORE BLM18PG181SN1D 1 2350005R1

U003

L8953 CORE BLM18PG181SN1D 1 2350005R1

U003

L8954 CORE BLM18PG181SN1D 1 2350005R1

U003

L8971 CHOKE COIL CDRH8D43_100 1 231371P100R2

U003

L8971 or CHOKE COIL 0182-7E08Q-100M-RA ( 1) 231396M100R2

U003

L8971 or CHOKE COIL SWRH8D43C-100MT ( 1) 231445M100R2 N

U003

L8972 CORE BLM18PG181SN1D 1 2350005R1

U003

L8973 CORE BLM18PG181SN1D 1 2350005R1

U003

L8974 CORE BLM18PG181SN1D 1 2350005R1

U003

X201 CRYSTAL HC-49SMD24.000MHz 1 3010479R2

U003

X301 CRYSTAL HC-49SMD24.576MHz+/-50ppm 1 3010494R2

U003

X501 CERA LOCK CSTCR5M00G53-B0 1 3010356R2

U003

X8100 CRYSTAL HC-49USSMD28.6363MHz 1 3010491R2

U003

[CAPACITOR]

U003

C151 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C201 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C202 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C203 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C204 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C205 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C206 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C207 C-CERA C CK725B1A-105K0 1 332001055R1

42/57 PAGE

U003

C208 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C209 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C210 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C211 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C212 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C213 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C214 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C215 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C216 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C217 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C218 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C219 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C221 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C222 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C223 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C224 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C225 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C226 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C227 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C228 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C229 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C230 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C231 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C232 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C233 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C234 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C235 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C236 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C237 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C238 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C239 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C240 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C241 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C242 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C251 C-CERA C CK732B16V-106K 1 332071065R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

C252 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C253 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C254 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C255 C-CERA C CK732B16V-106K 1 332071065R2 N

43/57 PAGE

U003

C256 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C261 C-CERA C CK725B1A-224K0 1 332002245R1

U003

C262 C-CERA C CK725B1C-104K0 1 332011045R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

C263 C-CERA C CK725B1C-103K0 1 332011035R1

U003

C264 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C265 C-CERA C CC725CH1H-120J0 1 342031204R1 N

U003

C266 C-CERA C CC725CH1H-120J0 1 342031204R1 N

U003

C267 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C268 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C269 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C270 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C271 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C272 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C273 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C282 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C283 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C284 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C285 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C286 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C287 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C288 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C289 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C290 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C293 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C294 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C295 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C296 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C301 C-CERA C CC725CH1H-180J0 1 342031804R1

U003

C302 C-CERA C CC725CH1H-180J0 1 342031804R1

U003

C305 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C306 CHIP ELECT C CEWX4V-220M 1 3981G2217R2

U003

C307 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C3117 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C312 C-CERA C CC725CH1H-221J0 1 342032214R1 N

U003

C313 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C314 CHIP ELECT C CEWX4V-220M 1 3981G2217R2

U003

C315 C-CERA C CK725B1H-472K0 1 332034725R1

U003

C316 C-CERA C CK725B1C-473K0 1 332014735R1 N

U003

C317 C-CERA C CK725B1C-104K0 1 332011045R1

44/57 PAGE

U003

C318 CHIP ELECT C CEWX10V-220M 1 398132217R2

U003

C319 CHIP ELECT C CEWX16V-47M 1 398144707R2

U003

C320 C-CERA C CK725B1E-223K0 1 332022235R1 N

U003

C351 CHIP ELECT C CEWX4V-220M 1 3981G2217R2

U003

C352 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C353 CHIP ELECT C CEWX10V-220M 1 398132217R2

U003

C354 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C355 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C356 CHIP ELECT C CEWX16V-47M 1 398144707R2

U003

C365 CHIP ELECT C CEWX50V-10M 1 398181007R2

U003

C366 CHIP ELECT C CEWX50V-10M 1 398181007R2

U003

C367 CHIP ELECT C CEWX50V-10M 1 398181007R2

U003

C368 CHIP ELECT C CEWX50V-10M 1 398181007R2

U003

C369 CHIP ELECT C CEWX50V-10M 1 398181007R2

U003

C370 CHIP ELECT C CEWX50V-10M 1 398181007R2

U003

C501 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C502 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C503 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C504 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C505 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C507 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C508 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C509 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C511 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C512 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C513 C-CERA C CC725CH1H-101J0 1 342031014R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

C514 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C515 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C516 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C517 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C518 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C519 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C520 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C521 C-CERA C CK725B1H-102K0 1 332031025R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

C522 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C523 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C524 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C525 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C526 C-CERA C CK725B1H-102K0 1 332031025R1

45/57 PAGE

U003

C527 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C528 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C613 C-CERA C CK732B1C-474K 1 337394745R1

U003

C701 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C702 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C703 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C705 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C706 C-CERA C CK725B1E-106K 1 332221065R2

U003

C707 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C708 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C709 C-CERA C CK725B1E-106K 1 332221065R2

U003

C710 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C745 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C751 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C753 CHIP ELECT C CEWT6.3V-470M 1 395724717R2

U003

C8100 C-CERA C CK725B1H-102K0 1 332031025R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

C8103 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8104 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8105 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8106 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8107 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8108 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8109 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8110 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8111 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8112 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8113 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8114 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8115 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8116 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8117 C-CERA C CK725B1H-102K0 1 332031025R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

C8118 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8119 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8120 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8121 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8122 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8123 CERA C CC725CH1H-070C0 1 342030701R1 N

U003

C8124 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8125 C-CERA C CK725B1H-102K0 1 332031025R1

46/57 PAGE

U003

C8126 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8127 CERA C CC725CH1H-070C0 1 342030701R1 N

U003

C8128 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8129 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8130 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8131 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8132 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8133 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8134 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8135 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8136 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8137 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8138 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8139 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8140 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8141 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8142 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8143 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8144 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8145 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8146 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8147 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8148 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8149 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8151 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8152 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8153 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8154 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8155 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8156 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8158 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8159 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8160 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8161 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8162 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8163 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8164 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8165 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8166 C-CERA C CK725B1H-102K0 1 332031025R1

47/57 PAGE

U003

C8168 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8170 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8175 C-CERA C CK725B1H-102K0 1 332031025R1

U003

C8176 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8177 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8911 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8921 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8922 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8926 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8931 C-CERA C CK725B1E-106K 1 332221065R2

U003

C8932 C-CERA C CK725B1E-106K 1 332221065R2

U003

C8933 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8934 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8935 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8936 CHIP ELECT C CEWX16V-100M 1 398141017R2

U003

C8937 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8938 C-CERA C CK725B1E-223K0 1 332022235R1 N

U003

C8939 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8940 C-CERA C CK725B1E-103K0 1 332021035R1

U003

C8943 C-CERA C CC725CH1H-151J0 1 342031514R1 N

U003

C8950 CHIP ELECT C CEWX16V-100M 1 398141017R2

U003

C8951 C-CERA C CK725B1E-106K 1 332221065R2

U003

C8952 C-CERA C CK725B1E-106K 1 332221065R2

U003

C8953 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8954 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8955 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8956 CHIP ELECT C CEWX16V-100M 1 398141017R2

U003

C8957 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8958 C-CERA C CK725B1E-223K0 1 332022235R1 N

U003

C8959 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8960 C-CERA C CK725B1E-103K0 1 332021035R1

U003

C8963 C-CERA C CC725CH1H-151J0 1 342031514R1 N

U003

C8971 C-CERA C CK725B1E-106K 1 332221065R2

U003

C8972 C-CERA C CK725B1E-106K 1 332221065R2

U003

C8973 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8974 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8975 C-CERA C CK732B16V-106K 1 332071065R2 N

U003

C8976 CHIP ELECT C CEWX16V-100M 1 398141017R2

U003

C8977 C-CERA C CK725B1C-104K0 1 332011045R1

48/57 PAGE

U003

C8978 C-CERA C CK725B1E-223K0 1 332022235R1 N

U003

C8979 C-CERA C CK725B1C-104K0 1 332011045R1

U003

C8980 C-CERA C CK725B1E-682K0 1 332026825R1 N

U003

C8983 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8984 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8985 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8986 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8987 C-CERA C CK725B1A-105K0 1 332001055R1

U003

C8988 C-CERA C CK725B1A-105K0 1 332001055R1

U003

[RESISTOR]

U003

R110 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R151 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R152 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R154 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R201 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R202 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R203 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R204 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R205 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R206 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R207 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R208 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R209 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R210 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R211 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R212 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R213 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R214 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R215 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R216 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R220 C-R NET RM7LJ330X04 1 43484733004R2

U003

R221 C-R NET RM7LJ330X04 1 43484733004R2

U003

R222 C-R NET RM7LJ330X04 1 43484733004R2

U003

R223 C-R NET RM7LJ330X04 1 43484733004R2

U003

R224 C-R NET RM7LJ330X04 1 43484733004R2

U003

R225 C-R NET RM7LJ330X04 1 43484733004R2

U003

R226 C-R NET RM7LJ330X04 1 43484733004R2

U003

R227 C-R NET RM7LJ330X04 1 43484733004R2

U003

R228 C-R NET RM7LJ330X04 1 43484733004R2

49/57 PAGE

U003

R229 C-R NET RM7LJ330X04 1 43484733004R2

U003

R230 C-CARBON R RN72K1J-330JE 1 435033304R1

U003

R231 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R232 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R235 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R236 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R237 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R238 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R239 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R240 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R241 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R242 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R243 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R244 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R245 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R246 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R247 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R248 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R249 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R252 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R253 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R254 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R255 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R256 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R257 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R262 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R263 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R264 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R265 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R274 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R275 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R277 C-CARBON R RN72K1J-222JE 1 435032224R1

U003

R281 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R282 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R284 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R301 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R304 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R305 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R306 C-CARBON R RN72K1J-330JE 1 435033304R1

50/57 PAGE

U003

R307 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R308 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R312 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R313 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R3134 C-CARBON R RN72K1J-470JE 1 435034704R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R314 C-CARBON R RN72K1J-151JE 1 435031514R1

U003

R315 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R316 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R317 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R321 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R322 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R324 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R325 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R326 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R327 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R331 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R332 C-CARBON R RN72K1J-681JE 1 435036814R1

U003

R333 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R351 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R352 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R354 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R355 C-CARBON R RN72K1J-220JE 1 435032204R1

U003

R356 C-CARBON R RN72K1J-220JE 1 435032204R1

U003

R357 C-CARBON R RN72K1J-220JE 1 435032204R1

U003

R359 C-CARBON R RN72K1J-220JE 1 435032204R1

U003

R360 C-CARBON R RN72K1J-220JE 1 435032204R1

U003

R361 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R362 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R365 C-CARBON R RN72K1J-104JE 1 435031044R1

U003

R366 C-CARBON R RN72K1J-104JE 1 435031044R1

U003

R367 C-CARBON R RN72K1J-104JE 1 435031044R1

U003

R368 C-CARBON R RN72K1J-104JE 1 435031044R1

U003

R369 C-CARBON R RN72K1J-104JE 1 435031044R1

U003

R370 C-CARBON R RN72K1J-104JE 1 435031044R1

U003

R501 C-CARBON R RN72K1J-473JE 1 435034734R1

U003

R503 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R504 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R505 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R508 C-CARBON R RN72K1J-105JE 1 435031054R1

51/57 PAGE

U003

R509 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R510 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R511 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R512 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R514 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R515 C-R NET RM7LJ470X04 1 43484747004R2

U003

R520 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R521 C-R NET RM7LJ470X04 1 43484747004R2

U003

R532 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R533 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R534 C-R NET RM7LJ103X04 1 43484710304R2

U003

R538 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R539 C-R NET RM7LJ470X04 1 43484747004R2

U003

R543 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R544 C-R NET RM7LJ221X04 1 43484722104R2

U003

R550 C-R NET RM7LJ470X04 1 43484747004R2

U003

R551 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R552 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R554 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R557 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R559 C-CARBON R RN72K1J-272JE 1 435032724R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R560 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R562 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R565 C-R NET RM7LJ470X04 1 43484747004R2

U003

R566 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R568 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R570 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R572 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R573 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R574 C-R NET RM7LJ470X04 1 43484747004R2

U003

R577 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R579 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R580 C-R NET RM7LJ103X04 1 43484710304R2

U003

R582 C-R NET RM7LJ221X04 1 43484722104R2

U003

R590 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R595 C-R NET RM7LJ221X04 1 43484722104R2

U003

R596 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R599 C-R NET RM7LJ103X04 1 43484710304R2

U003

R601 C-R NET RM7LJ470X04 1 43484747004R2

52/57 PAGE

U003

R605 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R606 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R607 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R609 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R610 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R611 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R613 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R614 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R615 C-CARBON R RN72K1J-101JE 1 435031014R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R617 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R618 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R619 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R620 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R621 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R622 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R623 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R624 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R625 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R627 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R631 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R633 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R635 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R638 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R639 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R640 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R642 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R644 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R646 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R650 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R651 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R652 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R653 C-CARBON R RN72K1J-105JE 1 435031054R1

U003

R655 C-CARBON R RN72K1J-223JE 1 435032234R1

U003

R656 C-CARBON R RN72K1J-223JE 1 435032234R1

U003

R657 C-CARBON R RN72K1J-224JE 1 435032244R1

U003

R658 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R659 C-CARBON R RN72K1J-273JE 1 435032734R1

U003

R660 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R661 C-CARBON R RN72K1J-221JE 1 435032214R1

53/57 PAGE

U003

R662 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MMK, MMQ>

U003

R662 C-CARBON R RN72K1J-103JE 1 435031034R1 < MPB, MPP_A, MPP_H>

U003

R663 C-CARBON R RN72K1J-333JE 1 435033334R1 < MPB, MPP_A, MPP_H>

U003

R664 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R665 C-CARBON R RN72K1J-333JE 1 435033334R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R666 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R668 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS>

U003

R669 C-CARBON R RN72K1J-103JE 1 435031034R1 <MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R669 C-CARBON R RN72K1J-333JE 1 435033334R1 <MDC, MDS>

U003

R670 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R671 C-CARBON R RN72K1J-272JE 1 435032724R1

U003

R672 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R673 C-CARBON R RN72K1J-272JE 1 435032724R1

U003

R674 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R675 C-CARBON R RN72K1J-272JE 1 435032724R1

U003

R676 C-CARBON R RN72K1J-472JE 1 435034724R1

U003

R677 C-CARBON R RN72K1J-272JE 1 435032724R1

U003

R678 C-CARBON R RN72K1J-224JE 1 435032244R1

U003

R681 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R682 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R687 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R688 C-R NET RM7LJ103X04 1 43484710304R2

U003

R690 C-R NET RM7LJ470X04 1 43484747004R2

U003

R692 C-R NET RM7LJ472X04 1 43484747204R2

U003

R693 C-R NET RM7LJ470X04 1 43484747004R2

U003

R701 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R712 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R713 C-CARBON R RN72K1J-222JE 1 435032224R1

U003

R714 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R715 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R716 C-CARBON R RN72K1J-470JE 1 435034704R1

U003

R723 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R724 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R725 C-CARBON R RN72K1J-221JE 1 435032214R1

U003

R726 C-CARBON R RN72K1J-273JE 1 435032734R1

U003

R727 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R803 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R8100 C-CARBON R RN72K1J-102JE 1 435031024R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R8101 C-CARBON R RN72K1J-000JE 1 435030004R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

54/57 PAGE

U003

R8102 C-CARBON R RN72K1J-473JE 1 435034734R1 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

R8118 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R8119 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R8120 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R8121 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R8122 C-CARBON R RN72K1J-473JE 1 435034734R1

U003

R8125 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R8126 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R8127 C-CARBON R RN72K1J-330JE 1 435033304R1

U003

R8128 C-CARBON R RN72K1J-331JE 1 435033314R1

U003

R8129 C-CARBON R RN72K1J-330JE 1 435033304R1

U003

R8131 C-R NET RM7LJ330X04 1 43484733004R2

U003

R8132 C-R NET RM7LJ101X04 1 43484710104R2

U003

R8136 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R8138 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R8140 C-CARBON R RN72K1J-473JE 1 435034734R1

U003

R8142 C-CARBON R RN72K1J-220JE 1 435032204R1

U003

R8148 C-CARBON R RN72K1J-473JE 1 435034734R1

U003

R8150 C-R NET RM7LJ470X04 1 43484747004R2

U003

R8154 C-R NET RM7LJ220X04 1 43484722004R2

U003

R8158 C-CARBON R RN72K1J-473JE 1 435034734R1

U003

R8159 C-CARBON R RN72K1J-182JE 1 435031824R1

U003

R8160 C-CARBON R RN72K1J-182JE 1 435031824R1

U003

R8161 C-CARBON R RN72K1J-821FE 1 435038212R1

U003

R8162 C-CARBON R RN72K1J-680JE 1 435036804R1

U003

R8166 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R8167 C-CARBON R RN72K1J-000JE 1 435030004R1

U003

R8169 C-CARBON R RN72K1J-473JE 1 435034734R1

U003

R8172 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R8177 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R8178 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R8179 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R8180 C-CARBON R RN72K1J-101JE 1 435031014R1

U003

R8181 C-CARBON R RN72K1J-100JE 1 435031004R1

U003

R8182 C-CARBON R RN72K1J-100JE 1 435031004R1

U003

R8191 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R8192 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R8193 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R8194 C-CARBON R RN72K1J-103JE 1 435031034R1 <MDC, MDS,MMK, MMQ, MPB, MPP_A, MPP_H>

55/57 PAGE

U003

R8933 C-CARBON R RN72K1J-563FE 1 435035632R1

U003

R8934 C-CARBON R RN72K1J-274JE 1 435032744R1

U003

R8935 C-CARBON R RN72K1J-103FE 1 435031032R1

U003

R8936 C-CARBON R RN72K1J-822JE 1 435038224R1

U003

R8951 C-CARBON R RN72K1J-103JE 1 435031034R1

U003

R8953 C-CARBON R RN72K1J-273FE 1 435032732R1

U003

R8955 C-CARBON R RN72K1J-103FE 1 435031032R1

U003

R8956 C-CARBON R RN72K1J-562JE 1 435035624R1

U003

R8971 C-CARBON R RN72K1J-102JE 1 435031024R1

U003

R8973 C-CARBON R RN72K1J-103FE 1 435031032R1

U003

R8975 C-CARBON R RN72K1J-103FE 1 435031032R1

U003

R8976 C-CARBON R RN72K1J-332JE 1 435033324R1

U003

[SW TRM]

U003

JL501B WIRE TRAP NPLG-3P586 1 25055624

U003

JL801B WIRE TRAP NPLG-5P588 1 25055626

U003

JL901B WIRE TRAP NPLG-5P588 1 25055626

U003

P2001B SOCKET IMSA-9618S-07A 1 25053332R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

P2001Bor SOCKET 07FMN-SMT-A-TF ( 1) 25052824R2 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

P2800B SOCKET IMSA-9618S-09A 1 25053334R2

U003

P2800Bor SOCKET 09FMN-SMT-A-TF ( 1) 25052826R2

U003

P281 SOCKET NSCT-8P2471 1 25052574R2

U003

P701A SOCKET IMSA-9618S-23A 1 25053348R2 N

U003

P701Aor SOCKET 23FMN-SMT-A-TF ( 1) 25052840R2

U003

P751A SOCKET IMSA-9618S-09A 1 25053334R2

U003

P751Aor SOCKET 09FMN-SMT-A-TF ( 1) 25052826R2

U003

P752A SOCKET NSCT-9P2472 1 25052575R2

U003

P8001B SOCKET IMSA-9618S-21A 1 25053346R2 N

U003

P8001Bor SOCKET 21FMN-SMT-A-TF ( 1) 25052838R2

U003

P8002B SOCKET IMSA-9618S-09A 1 25053334R2

U003

P8002Bor SOCKET 09FMN-SMT-A-TF ( 1) 25052826R2

U003

P8003A SOCKET NSCT-7P2187 1 25052290

U003

P8101 SOCKET TCX3400-111387 1 25053406R3 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

P8101 or SOCKET YKF45-7037V ( 1) 25053253R3 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

P8101 or SOCKET HDMI(47266-4101) ( 1) 25053389R3 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

P8101 or SOCKET 061-043-079 ( 1) 25053407R3 <MDC, MDS, MMK, MMQ, MPB, MPP_A, MPP_H>

U003

P8102 SOCKET TCX3400-111387 1 25053406R3 N

U003

P8102 or SOCKET YKF45-7037V ( 1) 25053253R3

U003

P8102 or SOCKET HDMI(47266-4101) ( 1) 25053389R3

U003

P8102 or SOCKET 061-043-079 ( 1) 25053407R3 N

56/57 PAGE

U003

P8103 SOCKET TCX3400-111387 1 25053406R3 N

U003

P8103 or SOCKET YKF45-7037V ( 1) 25053253R3

U003

P8103 or SOCKET HDMI(47266-4101) ( 1) 25053389R3

U003

P8103 or SOCKET 061-043-079 ( 1) 25053407R3 N

U003

P8104 SOCKET TCX3400-111387 1 25053406R3 N

U003

P8104 or SOCKET YKF45-7037V ( 1) 25053253R3

U003

P8104 or SOCKET HDMI(47266-4101) ( 1) 25053389R3

U003

P8104 or SOCKET 061-043-079 ( 1) 25053407R3 N

U003

P8105 SOCKET TCX3400-111387 1 25053406R3 N

U003

P8105 or SOCKET YKF45-7037V ( 1) 25053253R3

U003

P8105 or SOCKET HDMI(47266-4101) ( 1) 25053389R3

U003

P8105 or SOCKET 061-043-079 ( 1) 25053407R3 N

U003

P8901 SOCKET NSCT-8P2471 1 25052574R2

57/57 PAGE

HT-R390

ONKYO SOUND & VISION CORPORATION

Technical Support, Service Dept.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: [phone] Fax: [phone]

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: [phone] Fax: [phone]
http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone]
http://www.eu.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK
Tel: [phone] Fax: [phone]

ONKYO CHINA LIMITED

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
Tel: [phone] Fax: [phone]
http://www.ch.onkyo.com/
