Olympus LS-10 User Manual 2

LINEAR PCM RECORDER

LS-10

Linear PCM Recorder

INSTRUCTIONS

Thank you fo r purchasing an Olympus Digit al Voic e Recorder. Please read these inst ructions for inf ormation about using the product correctly and safely. Keep the instructions handy for future reference. To ensure successful recordings, we recommend that you test the record function and volume before use.

Introduction

• The contents of this document may be changed in the future without advanced notice. Contact our Customer Support Center for the latest information relating to product names and model numbers.

• The utmost care has been taken to ensure the integrity of the contents of this document. In the unlikely event that a questionable item, error, or omission is found, please contact our Customer Support Center.

• Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reason is excluded.

Trademarks and registered trademarks

• IBM and PC/AT are the trademarks or registered trademarks of International Business Machines Corporation.

• Microsoft, Windows and Windows Media are registered trademarks of Microsoft Corporation.

• Macintosh and iTunes are the trademarks of Apple Inc.

• The SD logo is a trademark.

• The SDHC logo is a trademark.

• MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

• EUPHONY MOBILE

• DVM

Other product and brand names mentioned herein may be the trademarks or registered trademarks of their respective owners.

is a trademark of DiMAGIC Corporation.

Table of Contents

Introduction

Table of Contents .....................................................3

Safe and Proper Usage ...........................................4

Getting Started

Main Features ..........................................................6

Identification of Parts .............................................7

Display (LCD Panel) ...........................................8

Inserting Batteries ...................................................9

Using the AC Adapter .......................................10

Power Supply .........................................................11

HOLD ....................................................................... 11

Setting Time and Date [Time & Date] ..................12

Changing the Time and Date ............................ 13

Inserting and Ejecting a Card ..............................14

Inserting a Card ................................................ 14

Ejecting a Card .................................................15

Notes on the Folders .............................................16

About the Folders for Voice Recordings ..........16

About the Folder for Music Playback ............... 17

Selecting the Folders and Files ...........................18

About Recording

Before Recording ...................................................19

Turn the Microphone Toward the Original Sound

Source .......................................................19

Recording ...............................................................20

Listening While Audio is Recorded .................24

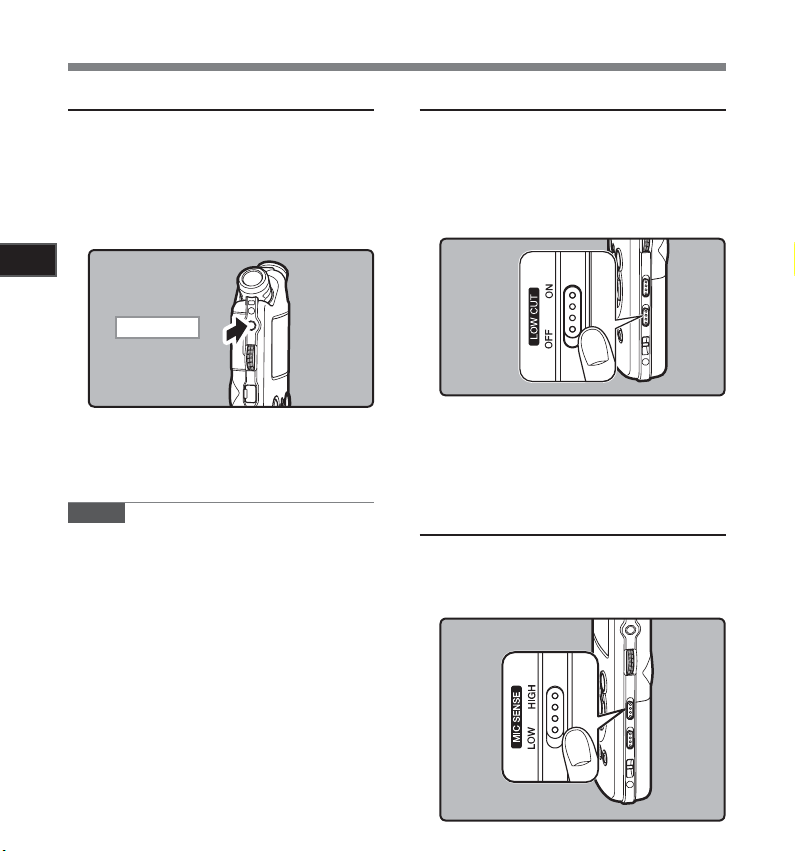

Set the Low Cut Filter .......................................24

Microphone Sensitivity .....................................24

Recording from External Microphone or Other

Device s .....................................................25

About Playback

Playingb ack ............................................................27

Playback Through Earphone ...........................30

How to Begin Segment Repeat Playback ........30

Erasin g ....................................................................32

Erasing One File at a Time ...............................32

Erase All Files from a Folder ...........................32

Menu Setting

Menu Setting Method ........................................... 34

Formatting the Recorder [Format] ..................... 43

Rearranging Files [Replace] ................................ 45

Using the Recorder on Your PC

Operating Environment ....................................... 46

Connecting to Your PC ..........................................47

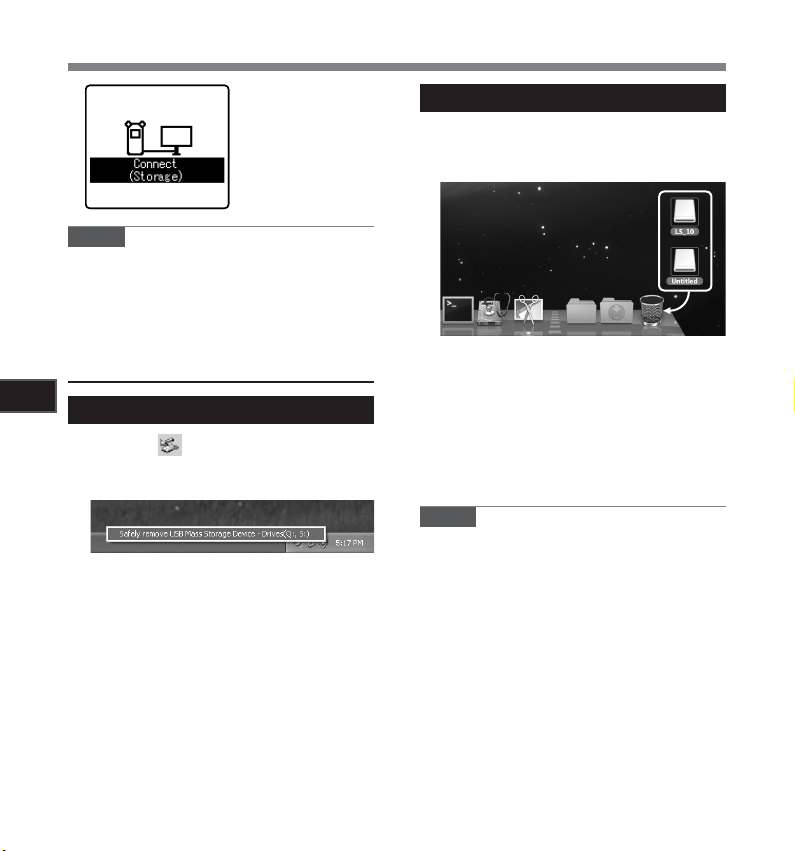

Disconnecting from Your PC ............................48

Transfer the Voice Files to Your PC .................... 49

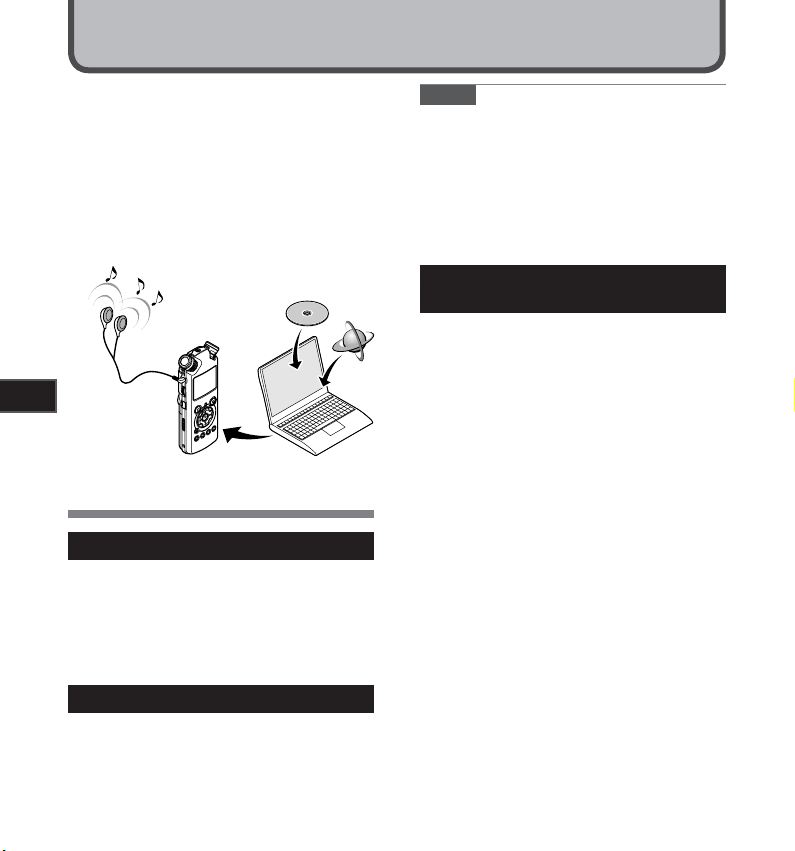

Using Windows Media Player .............................. 50

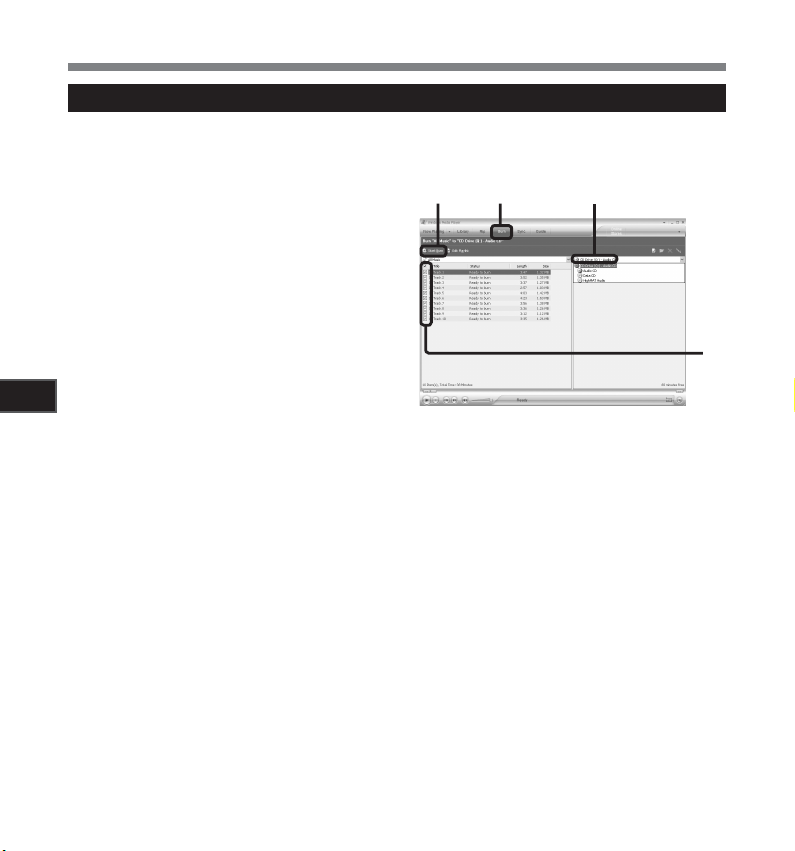

Window Names ................................................. 50

Copying Music from CD .................................... 51

Transferring Music File to the Recorder ........... 52

Copying Voice File to the CD ...........................55

Using iTunes ...........................................................57

Window Names ................................................. 57

Copying Music from CD ....................................58

Transferring Music File to the Recorder ........... 59

Copying Voice File to the CD ...........................60

Using as External Memory of the PC ..................61

Other Information

Alarm Message List ...............................................62

Troublesho oting .....................................................63

Technical Assistance and Support ....................65

Accessories (optional) .........................................65

Specifications ....................................................... 66

Additional functions in updated firmware .............69

Safe and Proper Usage

Before using your new recorder, read this manual carefully to ensure that you know how to operate it safely and correctly. Keep this manual in an easily accessible location for future reference.

• The warning symbols indicate important safety related information. To protect yourself and others from personal injury or damage to property, it is essential that you always read the warnings and information provided.

General Precautions

• Do not leave the recorder in hot, humid locations such as inside a closed automobile under direct sunlight or on the beach in the summer.

• Do not store the recorder in places exposed to excessive moisture or dust.

• Do not use organic solvents such as alcohol and lacquer thinner to clean the unit.

• Do not place the recorder on top of or near electric appliances such as TVs or refrigerators.

• Avoid recording or playing back near cellular phones or other wireless equipment, as they m a y cause interference and noise. If you experience noise, move to another place, or move the recorder further away from such equipment.

• Avoid sand or dirt. These can cause irreparable damage.

• Av o id s t r on g v i b r at i o n s o r shocks.

• Do not disassemble, repair or modify the unit yourself.

• Do not operate the unit while operating a vehicle (such as a bicycle, motorcycle, or go-cart).

• Keep the unit out of the reach of children.

• When mounting the recorder to a tripod, turn the screws on the tripod side without turning the recorder itself.

Recorded content in memory may be destroyed or erased by operating mistakes, unit malfunction, or during repair work.

It is recommended to back up and save impor tant content to other media such as a computer hard disk.

Any liability for passive damages or damage of any kind occur red due to data loss incurred by a defect of the product, repair performed by the third par ty other than Olympus or an Olympus authorized service station, or any other r easons is excluded from the Oly mpus’s liability.

Safe and Proper Usage

Batteries

Warning

• Batteries should never be exposed to flame, heated, shortcircuited or disassembled.

• Do not attempt to recharge alkaline, lithium or any other non-rechargeable batteries.

• Never use any battery with a torn or cracked outer cover.

• Keep batteries out of the reach of children.

• If you notice anything unusual when using this product such as abnormal noise, heat, smoke, or a burning odor:

1 remove the batteries immediately while

being careful not to burn yourself, and;

2 c al l yo ur dea le r or local Ol ymp us re pr ese n-

tative for service.

AC Adapter

Warning

• Do not attempt to disassemble, repair or modify the AC adapter in any way.

• Keep foreign objects including water, metal, or flammable substances from getting inside the product.

• Do not moisten the AC adapter or touch it with a wet hand.

• Do not use the AC adapter in the vicinity of flammable gas (including gasoline, benzine and lacquer thinner).

In case

• ... the internal parts of the AC adapter are exposed because it has been dropped or otherwise damaged:

• ... the AC adapter is dropped in water, or if water, metal flammable substances or other foreign objects get inside it:

• ... you notice anything unusual when using the AC adapter such as abnormal noise, heat, smoke, or a burning odour:

1 do not touch any of the exposed parts;

2 immediately disconnect the power supply

plug from the power outlet, and;

3 call your dealer or local Olympus represen-

tative for servicing. Co ntinued use of the AC adapter under these circumstances could result in electric shock, fire or injury.

Main Features

●

Utilizes a high sensitivity, low noise stereo microphone capable of faithfully capturing the original sound.

Machined metal components are utilized in

the housing for the built-in stereo microphone,

resulting in a design built with special features in mind while also achieving a construction

Gett ing Start ed

which is resistant to vibration. Furthermore, by turning the microphone itself 90° outwards you can produce rec ordings with a natural and expansive stereo feel to them.

●

Equipped with a high sound quality amplifier circuit.

Utilizes a low noise amplifier circuit, allowing

you to produce high sound quality recordings with low noise.

● Supports the linear PCM format, which is capable of recording sound quality equivalent to or surpassing CD-level.

Capable of realistically recording various

different sound sources. High resolution recording at a high sampling frequency and bit count equivalent or superior to that of a music CD (Sampling frequency 44.1 kHz, Bit count 16bit) is possible (☞ P. 34 , P. 3 6) .

● Suppor ts a wide range of recording formats. Can handle the MP3 format (MPEG-1/ MPEG-2 Audio Layer 3), and the Windows Media Audio (WMA) format.

In supporting the MP3 and WMA formats, this

device can save files in a highly compressed manner, thereby allowing for extended recording times (☞ P. 3 4 , P. 3 6 ). In addition, when connected to an external device, the recorder can encode incoming analog audio signals without a PC (☞ P. 2 6 ) .

● S upports high capacit y recording media. Starting with its 2 GB built-in flash me m or y, can a lso r ecor d ont o an S D Ca r d (commercially available)

Check the Olympus website regarding SD cards which are confirmed operation with this recorder (☞ P. 6 5 ) .

(☞ P.14)

Getting Started

● Equipped with a variety of features that support audio recording.

With this recorder you can customize a variety

of recording functions such as the recording level and microphone sensitivity to suit the recording conditions and personal preferences (☞ P.3 4, P.3 6 ) .

● Allows for system upgrades through enhanced options and equipment. Further enhances the pleasure of recording

(

☞ P.6 5)

●

Can playback WAV, WMA, and MP3 format files sent from a computer in addition to files recorded by the device itself. Can be enjoyed as a music player at any time.

Can hold approximately 500 music files (WM A 128 kbps/ 4 minutes per song conversion) (☞ P. 2 7, P. 28, P. 5 0 , P. 5 7 ).

●

Supports USB 2.0. Hi-Speed, which enables high-speed data transmission as an external memory device for your computer.

By connecting the computer with the USB,

pictures, text data, etc. can be saved, and utilized to carry data

(☞ P. 4 9 , P.61).

Identification of Parts

@ #

$ q =

) ( *

REMOTE

Connect the receiver for the exclusive remote control

set RS30W (optional). This enables operation of the main unit’s record and stop functions through the remote control.

2 Built-in stereo microphone (R) 3 Built-in stereo microphone (L) 4

LINE IN

jack

MIC

jack

REC LEVEL

6 7

REC

s button

Recording indicator light (LED)

MIC SENSE HIGH/LOW

8 9

LOW CUT ON/OFF

0 Strap hole

! Display (LCD panel)

PEAK

@ # $ 2 button % 9 button

indicator light (LED)

STOP

4 button

jack

dial

switch

switch (Auto Gain Control)

4 5

6 7 8

]

[

^ 3 button &

LIST

button

* ( ) Fn button

= 0 button q `/

w Card cover e r t y u Power j ack i Batt ery cover o Battery cover release button p Tripod socket [ Built-in stereo speaker (R) ] Built-in stereo speaker (L)

button

A-B REPEAT

ERASE

button

EAR

jack

VOLUME USB POWER/HOLD

dial

terminal

button

switch

Gett ing Start ed

Display (LCD Panel)

Identification of Parts

File DisplayFolder List Display

Gett ing Start ed

1 Root folder indicator

Folder indicator

Recording media indicator or folder indicator/

Root folder name/ Current file number/ Total number of recorded files in the folder

2 Folder name 3 Guide ind icator

File List Display

1 Folder/ File indicator

Folder name/ Current file number/ Total number

of recorded files in the folder

2 File name 3 Guide indicator

1 2

1 Folder/ File indicator

Folder name/ File name/ File format/ Current

file number/ Total number of recorded files in the folder

2 Battery indicator Recording media indicator

[ [

Erase lock indicator 3 Record/ Playback status indicator 4 Level meter 5 Playback Mode indicator 6 Recording mode indicator 7 During recording mode:

Remaining recording time During playback or stop mode:

File length 8 During recording mode: Elapsed recording time

During playback mode:

Elapsed playingback time

EUPHONY

9 [

Reverb

0 [ ! [

LowCutFilter

@ [

Limiter

[

Zoom Mic

] Built-in flash memory ] SD card

] indicator

7 8

9 0 !

Inserting Batteries

Press the bat tery cover release but ton,

and then slide the battery cover open while lightly pressing down on it.

Insert two AA batteries with the cor-

rect = and - polarities.

Close the battery cover completely

by pressing to the direction A, then sliding to the direction B.

Slide the

direction indicated by the arrow, and turn the power on.

• If the [hour] indicator flashes in the display,

Replacing batteries

The battery indicator on the display changes as the batteries lose power.

• When [ ] appears on the display, replace the batteries as soon as possible. When the battery is too weak, [ appears on the display and the recorder shuts down.

• Wh en c ha ngi ng bat te ri es, A A a lk ali ne ba tt er ies or Olympus Ni-MH Rechargeable Batteries are recommended.

Ni-MH Rechargeable Battery

Ni-MH rechargeable batteries B-01 4PE (optional) from Olympus can be used in the recorder. Use them with the Olympus Ni-MH Rechargeable Batter y Charger B-90SU (optional) (For U.S.A. and Canada) or BU-90SE (optional) ( For Europe) (☞ P. 6 5 ) .

POWER/HOLD

see “Setting Time and Date [Time & Date]” (☞ P.12 ) .

switch in the

] and [Battery Low]

Gett ing Start ed

Inserting Batteries

Notes

• Manganese battery may not be used in this recorder.

• This recorder cannot charge rechargeable batteries.

• Be su re to t ur n of f p owe r of t he rec or der b ef ore replacing the batteries (☞ P.11 ) . U n loa d i n g

the batteries while the recorder is in use may

Gett ing Start ed

corrupt the file. If you are recording into a file and the batteries run out, you will lose your currently recorded file because the file header will not be able to close. It is crucial to change the batteries once you see only one Hash mark in the battery icon.

• If it takes longer than 15 minutes to replace the dead battery or if you take the battery in and out repeatedly at shor t intervals, you may have to reset the time when you have loaded a fresh battery (☞ P.1 2 ) .

• Remove the batteries if you a re not going to use the recorder for an extended period of time.

• When playing a voice/music file, the recorder may be reset due to the reduc tion of the voltage output of the battery depending on the volume level even if [ indicator. In this case, lower the volume of the recorder.

] is displayed in the battery

Using the AC Adapter

Plug the AC adapter (optional) into a household power outlet and connect the power plug to the recorder’s power connecto r ( DC 5V ). A lw ay s tu rn th e r ec or de r’s power off before connecting. If the AC adapter is plugged in while recording using batteries, it may not be possible to play back the voice data being recorded.

• Check the Olympus website regarding AC adapters which can be used with this recorder.

To the po we r j ac k

Warning

• Always turn the recorder’s power

off before connection or disconnection.

• When the AC adapter is not in use,

disconnect the power supply plug from the power outlet.

• Use only the correct power sup-

ply voltage as indicated on the adapter.

• Do not use the AC adapter when

connecting the recorder to the USB port.

Power Supply

HOLD

When the recorder is not being used, turn the power off to reduce battery consumption to a minimum. Eve n i f t he po we r is tur ned off, existin g data, mode settings, and clock settings will be maintained.

Turning On the Power:

While the recorder’s power is off, slide the

POWER/HOLD

indicated by the arrow.

• The display will turn on, and the power will be turned on.

• The resume function will bring the recorder back to the stop position in memory before power was turned off.

• When the batteries are removed from the recorder the resume function’s stopped position will be erased.

switch in the direction

Turning Off the Power:

Slide the

POWER/HOLD

switch in the direction indicated by the arrow for 1 second or longer.

• The display shuts off and the power will be

turned off.

• The resume function remembers the stop

position before the power is turned off.

If you bring the POWER/ HOLD switch to the [HOLD] position, the current conditions will be preserved, and all buttons will be disabled. This feature is useful when the recorder has to be carried in a bag or pocket.

Set the recorder to HOLD mode

Slide the [

HOLD

• Af ter [Hold] appears on the display, the

recorder is set to HOLD mode.

POWER/HOLD

] position.

switch to the

Exit HOLD mode

Slide the

POWER/HOLD

switch to the A

position.

Gett ing Start ed

Power save mode [Auto Power Off]

If the recorder is stopped/not used for over 10 minutes (initial setting) while the power is turned on, the power will be turned off (☞ P.34, P.40).

• If any button is pressed prior to the battery

turning off, the elapsed time count will start over again until this function takes effect.

HOLD/Setting Time and Date [Time & Date]

Notes

• If you press any button in HOLD mode, the

clock display flashes for 2 seconds, but it will not operate the recorder.

• If HOLD is applied during playback (record-

ing), operation is disabled with the playback (recording) state unchanged (When playback has ended and the recording has ended due

to the remaining memory being used up, it will

Gett ing Start ed

stop).

• The recorder can be effectively operated via its switch and dial, as well as the connected exclusive remote cont rol set RS30W (opt ional), even when it is in HOLD mode.

Setting Time and Date [Time & Date]

If you set the time and date beforehand, the information when the file is recorded is automatically stored for each file. Setting the time and date beforehand enables easier file management.

When you use the recorder for the first time after purchasing it, or when the batteries have been inserted without the device having been used in a long time, the [

Set Time & Date

the [

hour

from Step 1.

] is flashing, conduct the setup

] will appear. When

Press the 9 or 0 button to select

the item to set.

2 3 button 9 0 button `/

button

LIST

button

Select t he item from [hour], [minute], [year] [month] and [day] with a flashing point

Press the 2 or 3 button to set.

• Follow the same steps by pressing the 9 or 0 button to select the next item, and press the 2 or 3 button to set.

Setting Time and Date [Time & Date]

• You can select between 12 and 24 hour

display by pressing the LIST button while setting the hour and minute.

Example: 10:38 P.M

10:38 PM

(Initial setting)

• You can select the order of the [year], [month], [day] by pressing the LIST button while setting them.

Example: January 7, 2008

1M 7D 2008Y (Initial setting)

D 1M 2008Y

2008Y 1M 7D

Press the `/OK button to complete

the setup screen.

• The clock will start from the set date and time. Press the `/ the time signal.

Note

• If you press the `/OK button during the setup

operation, the recorder will save the items that were set to that point.

button according to

22:38

Changing the Time and Date

While the recorder is during stop mode, press and hold the STOP 4 button to display the Time and Date, Remaining Memory and File Format.

If the Time and Date is not correct, set it using the procedure below.

2 3 button 9 0 button `/

button

LIST

button

While the recorder is during stop

mode, press the

• The menu will appear on the display. You

can also change to [Others] screen by using the settings tab (☞ P. 3 4) .

Press the 2 or 3 button to select

[

Time & Date

Press the `/OK or 9 button.

• [hour] will flash on the display, indicat-

ing the start of the Time and Date setup process.

The following steps are the same as Step 1 through Step 3 of “Setting Time and Date [Time & Date] ” (☞ P.12 ) .

button.

[Time & Date] will appear on the display

Gett ing Start ed

Press the

menu screen.

button to close the

Inserting and Ejecting a Card

This recorder can be used with commercially available SD Cards as well as the built-in flash memory.

Inserting a Card

Gett ing Start ed

While the recorder is during stop mode,

open the card cover.

Face the card the correct way and

insert it into the card slot as shown in the diagram.

2 3 button `/

button

• Insert the card keeping it straight.

• The card stops with a click when it is inserted all the way.

• Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam.

• If the card is not inserted all the way, data may not be written to the card.

Close the card cover securely.

When you are recording to a card,

press the 2 or 3 button and select [

Yes

When you insert the card, the recording media changeover display will appear

Press the `/OK button to complete

the setup screen.

Inserting and Ejecting a Card

Notes

• It is po ssi bl e to sw itc h t he r ec ordi ng med ia ov er to the built-in flash memory (☞ P. 3 4, P. 3 9 ).

• In some cases cards which have been formatted (initialized) by another device, such as a computer, cannot be recognized. Be sure to format them with this recorder before using (☞ P. 43 ) .

• When attempting to perform operations such as rewriting the contents of an SD Card in cases where the card has been write protected, [SD Card Locked] will appear. The playback operation can be performed, but the write protection must first be turned off when overwriting the contents on the card.

• Cards that are not to SD standards, such as multimedia cards, may not be used.

Ejecting a Card

2 3 button `/

button

While the recorder is during stop mode,

open the card cover.

Push the card inward to unlock it, and

let it eject partially.

• The card is visibly out of the slot and can be removed safely.

When [MemorySelect] is set to [SD Card], [Built-in Memory Selected] will appear

Close the card cover securely.

Note

• Releasing your finger quickly after pushing the card inward may cause it to eject forcefully out of the slot.

About the SD Card

When the SD Card is write protected, there will be a display reading [ SD Card Locked]. Before ins erting the car d, turn off the wr ite protection function. Check the Olympus website regarding SD cards which are confirmed operation with this recorder (☞ P. 6 5) .

If the write protection

switch is facing the

[LOCK] direction,

recording and other functions cannot be

carried out

LOCK

Gett ing Start ed

Notes

• Th e recorder may not rec ognize correc tly on s om e SD cards. In this c ase, r emove the card then put it again to see if the recorder recognizes the card.

• The processing performanc e reduces in a SD card when you repeat writing and delete. In this case, format the SD card (☞ P. 4 3 ) .

Notes on the Folders

123

The built- in flash memor y or the SD Card can be used for the recording media. Regardless of the recording media, voice files and music files are separated into folders for voice recordings and folders for music playback that are organized in a branching tree-style and saved.

About the Folders for Voice Recordings

[Folder A] - [Folder E] are the folders for voice recordings. When recording with the recorder, select any one of the five folders and then record.

Gett ing Start ed

Root

Folder

File

File names will be automatically created for files recorded by this recorder.

LS10 0001 .WAV

Folder A

Folder B

Folder C

Folder D

Folder E

Music

When music files have been transferred to the [Music] folder from a computer, the recorder can be used as a music player

Folder list display for when the [SD Card] has been selected as the recording media

(☞ P.27, P.50, P.57)

1 User ID:

The name that has been set on the Digital Voice Recorder.

2 File number:

A file number is consecutively assigned regardless of the

changes in the recording media.

3 Extension:

T hese are the file n ame extensions for t he recording for mat when

recording with this device.

• Linear PCM format .WAV

• MP3 format .MP3

• WMA format .WMA

001

002

001

003

200

Save up to 200 files

Notes on the Folders

About the Folder for Music Playback

When transferring music files to the device using Windows Media Player, a folder is automatically created within the music playback folder which has a layered structure as shown in the diagram below. Music files that are in the same folder can be rearranged in preferential order and replayed (☞ P. 4 5) .

Up to 128 folders can be created under the [

Root

Folder E

]

Music

folder, including

First layer Second layer

[

Music

]

Save up to 200 files

Gett ing Start ed

Music

Folder

File

Precautions for transferring music files:

When using Windows Media Player 10, click [Start Sync] instead of setting the synchronization options. All the files will be transferred to the part A above (☞ P.54)

Artist 01

Artist 02

Artist 03

Album 01

Album 02

Album 03

001

002

003

004

005

200

Selecting the Folders and Files

Change folders while the operation is stopped. For information on the layered structure of the folders, see the section entitled “Notes on the Folders” (☞ P.16, P.17 ) .

Moving through the

Operation of the folders for music playback

Folder list display

(First layer)

Folder list display

(Second layer)

Gett ing Start ed

2 or 3 button

Select the folder

2 or 3 button

Select the artist folder

File display

2 or 3 button

Select the album folder

File list display

levels

`/OK button

Proceed

Each time you press this it opens the folder or file selected in the list display and proceeds down one level. The list display screen can be operated by the 9 button

LIST

Return

Each time you press this it returns up one level. The list display can be operated by the 0 button

List display

The folders and files recorded in this recorder are displayed

button

Folder list display

2 or 3 button

Select the folder

`/OK button

Begin playback

Operation of the folders for voice recordings

File list display

2 or 3 button

Select the file

2 or 3 button

Select the file

File display

`/OK button

Begin playback

File display

Information of the selected file is displayed. Enters in playback standby mode

About Recording

Before Recording

Getting Ready

Afﬁ x the windscreen:

Start recording after attach the windscreen (included within) to the microphone. The noise may occur even if a windscreen is atta ch ed w he n fo rc ing wi nd b lows against a microphone.

Turn the Microphone Toward the Original Sound Source

Turn the built-in stereo microphone in the direction that you would like to record. Placing the built-in stereo microphone over the display is the proper position for performing stereo recording. If it is below the display when recording then proper stereo recording cannot be per formed because the position of the original sound will be recorded in reverse phase.

Original

sound

source

Select the media for recording:

The built-in flash memory as well as an SD Card can be used (☞ P.14 , P. 34 , P. 3 9 ) .

Select the recording format:

Recording can be performed through the li ne ar P CM form at , as we ll a s t he W AV, M P3 and WMA formats (☞ P. 3 4 , P. 3 6) .

About the built-in stereo microphone:

The direction of capturing sound by the microphone can be changed with the MIC SENSE HIGH/LOW switch (☞ P. 24) .

MIC SENSE HIGH

Abou t Recording

When recording with the built-in microphone:

Turn the microphone in the direction of the source to be recorded.

MIC SENSE

LOW

Key map

On mounting:

Accurate adjustments of the microphone’s angle and the like can be made when the device is affixed to a commercially available tripod used for cameras.

Recording

Before starting recording, select a folder between

to E. These five folders can be selectively used to distinguish the kind of recording; for example, Folder A might be used to store private information, while Folder B might be dedicated to holding business information.

REC s button

Abou t Recording

Select the recording folder (☞ P.16 t o

P.1 8) .

How to change folders:

1 Pressing the LIST button at the file display

while stopped will return you to the next higher level. Pressing the LIST button repeatedly will bring you to the folder list display.

2 Pressing button 2 or 3 at the folder list

display will select the folders for voice recordings.

• Newly recorded audio will be saved as the last file in the selected folder.

Press the

to record.

• Turn the microphone in the direction of the source to be recorded.

a Remaining recording time b Level meter (change according to the

recording level and recording function settings)

c Recording mode

STOP 4 button `/

button

REC

s button and prepare

• The recording indicator light will flash and [ ] will appear on the display.

• [Rec Mode] cannot be changed in the recording standby mode or while recording. Confi gure this while the recorder is stopped (☞ P. 3 4, P.3 6 ) .

• The various functions related to recording can be configured to suit the recording conditions (☞ P.3 4 , P. 3 6 , P. 3 7 ) .

• The level indicator position of the level meter will change in accordance with the switching of the various settings related to recording. Confirm the recording level through the level meter after switching the settings.

Adjust the recording level by using

the

REC LEVEL

• This recorder is designed to be able to record cleanly and evenly, even in recording conditions such as when the volume of the source sound changes significantly. However, even higher sound quality recordings can be achieved by adjusting the recording level manually.

• If too big sound is input, the noise may occur even if [Rec Level] is set to [Auto] or [Limiter On]. In this case, the [PEAK] indicator light is not light up whic h will inform of the excess input. To ensure successful recordings, we recommend that you test the record function and volume before use.

• When the [Rec Level] is set to [Auto] the re cording level will be adjusted automatically. Set the [Rec Level] to [Manual] when using the recording level adjustment function and the limiter function

dial.

This can be adjusted in a range from [0 ] to [10]. The larger the number on the dial is the higher the recording level will be, and the indicator position of the level meter will grow larger as well

(☞ P.3 4, P.3 6) .

Recording

Actually producing the sound you

would like to record:

• When a loud sound is produced the level meter will swing all the way over to the right while rec ording and the red [ PEAK] indica tor lamp will turn on. When this happens the sound will be recorded in a distorted manner since the recording level is too high.

When the level meter is maxed out (the recorded sounds will be distorted)

• When a loud noise is produced, adjust the recording level so that the level meter remains in the vicinity of [–6].

Example of conditions where the recording level has been lowered and the excess input has been adjusted

Press the

begin recording.

• [ ] will appear on the display.

d Elapsed recording time

REC

s button again will

Press the

recording.

• [ ] will go out on the display.

e File length

Notes

• When an SD Card is inserted in the recorder, be sure to co nfirm the reco rding media as eithe r the [Built-in Memory] or the [SD Card] so that there is no mistake (☞ P. 34 , P. 3 9) .

• When attempting to perform operations such as rewriting the contents of an SD Card in cases where the card has been write protected, [SD Card Locked] will app ear. The p layback operation can be performed, but the write protection must first be turned off when overwriting the contents on the card (☞ P.1 5) .

• If you select a folder other than A through

and press the REC s button, an [Illegal

Folder] message will flash. Selec t a folder from

through E and start recording again.

• When remaining recording time is less than 60 seconds, the [PEAK] indicator light starts flashing in amber. When the recording time is decreasing to 30 or 10 seconds, the light flashes faster.

• [Fold er Full] will appear when the folder capacity is full. Delete any unnecessary files before recording any further (☞ P. 32 ).

• [Memory Full] will appear when the memory is full. Change the recordable media or delete any unnecessary files before recording any further (☞ P. 32, P.3 4 , P. 3 9 ) .

• When the recording button of the exclusive remote control RS30W (optional) is pressed once, recording will start immediately.

STOP

4 button to stop

Abou t Recording

Recording

• Depending on the sound recording mode and the status of record media, the data transfer to the media cannot be done in time during recording and the skipped sound may be recorded. In this case, [Data Write Error] will appear during recording or when the recording is finished. After transferring the data to the PC, format the record media.

• We recommend the media to be formatted before recording.

Abou t Recording

Pause

While the recorder is during recording mode, press the

• [ ] will appear on the display.

• The recorder will time out after 60 minutes when left in "Rec Pause".

REC

s button.

Resume Recording:

REC

Press the

• Recording will resume at the point of interruption.

s button again.

To quickly check on the recorded contents

While the recorder is during recording mode, press the `/

button.

• [ ] will appear on the display.

• Stop recording and the file that was just recorded will be played back.

Recording

Recommended settings by recording condition

The reco rder is set up so that it can perf orm high quality recordin g equivalent to that of a music CD right away. The various functions relating to recording can be configured in detail to suit the recording conditions.

Recording condition

Outdoor

Recording

settings

Recording level*

(☞ P. 20)

Microphone sensitivity

(☞ P. 24)

Indoor musical

performance

When the [ Rec Level] is set to [Manual] you can adjust the recording level. Adjust while looking at the level meter

Band performance in a practice

studio

[LOW][HIGH]

Performance in a vast hall,

etc.

environment

sounds like

wild birds

singing, railroad

noises, etc.

Conferences

with large

crowds in

vast meeting

venues

Conferences

with a few

people

indoors

Abou t Recording

Low Cut Filter

(☞ P. 24)

[Rec Mode] (☞ P. 3 4, P. 36 )

[Rec Level] (☞ P. 3 4, P. 36 )

[Zoom Mic] (☞ P. 3 4, P. 36 )

[Rec Monitor] (☞ P. 3 4, P. 37)

[Plug-inPower] (☞ P. 3 4, P. 37)

When the [Rec Level] is set to [Auto] the recording level will be adjusted automatically. When this hap-

pens, the recording level adjustment function and limiter function will not work (☞ P. 2 0 , P. 3 4 , P. 3 6) .

The recording level can be adjusted to suit the volume of the or iginal sound

You can configure whether to adjust the recording level automatically or to adjust it manually. When the [ Rec Level] is set to [Manual] you can configure the limiter function

The directivit y of the built-in stereo microphone can be set according to the source to be recorded

Select w hether or not to output the rec ording monitor sound from the EAR jack

Select w hether or not to use the plug- in power function according to the external microphone connec ted to the MIC jack

[OFF][ON]

Recording

Listening While Audio is Recorded

If you star t recording after inserting the earphone into the EAR jack on the recorder, you can hear the sound being recorded. The recording monitor volume can be adjusted by using the VOLUME dial.

Connect the earphone to the

EAR

the recorder.

Abou t Recording

To EAR jack

• After recording has started, you can hear the sound being recorded through the earphone. If the earphone is connected, no sound will come from the speaker.

Notes

• Recording level cannot be controlled using the volume button.

• When using the earphones, do NOT set the volume too high. Listening at very high volume may lead to hearing loss.

• Do not place earphones near a microphone as this may cause feedback.

• When the external speaker is connected while recording, there is a risk that audio feedback will occur. It is recommended that you use earphones for the recording monitor, or turn [Rec Monitor] to [ Off] while recording (☞ P.3 4, P. 37 ).

• When [ Rec Monitor] is set to [Off] no sound will come out of the earphones while you are recording (☞ P. 3 4, P. 37) .

jack on

Set the Low Cut Filter

The recorder has a Low Cut Filter function to minimize low-frequency sounds and record voices more clearly. This function can reduce noise from air conditioners, projectors and other similar noises.

Slide the select [

LOW CUT ON/OFF

] or [

OFF

[ON]: Enables the Low Cut Filter function.

[OFF]: Disables this function.

switch and

Microphone Sensitivity

Microphone sensitivity is adjustable to meet recording needs.

Slide the and select [

MIC SENSE HIGH/ LOW

HIGH

] or [

LOW

switch

Recording

[HIGH]: This is a highly sensitive mode which can

record surrounding noises.

[LOW]: This is the standard level of microphone

sensitivity. Select this mode for cases where the volume of the source sound is high, such as a band performance.

Note

• When you would like to clearly record a speaker’s voice, set the recorder to [ LOW] and hold its built-in stereo microphone close to the speaker’s mouth (5-10 cm) before recording.

Recording from External Microphone or Other Devices

The external microphone and other devices can be connected and the sound can be recorded. Connect as follows by the device to be used.

• Do not plug and unplug devices into the recorder’s jack while it is recording.

Recording with External Microphone:

Connect an external microphone to the

MIC

jack of the recorder.

• When recording while an external monaural microphone is connected, sound will only be recorded by the L-channel.

To MIC jack

Applicable External Microphones

(optional) (☞ P. 65 )

Stereo microphone: ME51S

The ME51S Stereo microphone comes in a set with

an extension cord and a clip.

2 channel microphone (non-directional): ME30W

These are highly sensitive non -directional micro -

phones supported by plug-in power which are well-suited to recording musical performances.

Highly sensitive noise-cancellation monaural microphone

This microphone is used to record sound at a

Tie clip microphone (non-directional): ME15

Small concealing microphone with a tie-clip.

Telephone pickup: TP7

Earphone type microphone can be plugged into your

Notes

• The built-in microphone will become inoperable

• Microphones suppor ted by plug-in power can

• Turn the plug-in power function to [Off] when

• Do not connect the connecting cord to the

(unidirectional): ME52W

distance while minimizing surrounding noise.

ear while phoning. The voice or conversation over the phone can be clearly recorded.

when an external microphone is plugged into the recorder’s MIC jack.

also be used. When the plug-in power function is set to [On] power will be supplied by the device to the microphone (☞ P. 34 , P. 3 7 ) .

an external microphone not supported by plug-in power is connected, as there is the risk that noise may be generated while recording (☞ P. 3 4, P.37).

LINE IN jack when recording from external microphone with this recorder.

Abou t Recording

Recording

Recording the Sound of Other Devices with This Recorder:

The sound can be recorded when connecting to the audio output terminal (earphone jack) of the other device, and the LINE IN jack of the rec order with the connecting cord KA334 (included within) for dubbing.

Abou t Recording

Notes

• If you are unable to produce a clear recording with this recorder even after adjusting the recording level (☞ P.20), this could potentially be because the output level for the connected devices is too high or too low. When external devices are connected, per form a test recording and then adjust the output level for the external devices.

• Do not connect the connecting cord to the MIC jack when recording sound from other device with this recorder.

To LINE IN

jack

To audio output

terminal of other

devices

Recording the Sound of This Recorder with Other Devices:

The sound of this recorder can be recorded to other devices when connected to the audio input terminal (line jack) of other devices and the EAR jack of this recorder, with the connecting cord KA334 (included within) for dubbing.

To audio input

terminal of

other devices

To EAR

jack

Notes

• When you adjust the various sound quality settings related to playback on the recorder, the audio output signal sent out from the EAR jack will change as well (☞ P. 3 4, P.3 8 ) .

• In case of recording on other devices without a line input, the input may be too large to control when the audio is input to the microphone jack. In this case, use the connecting cord KA333 (optional) with attenuation resistance (☞ P. 6 5) .

About Playback

Playingback

The recorder can playback WAV, MP3 and WMA format files. To playback a file recorded with other machines, you need to transfer (copy) it from a computer.

2 3 button `/

button

Select the folder which contains the

files to be played back (☞ P.16 to P.1 8) .

How to change folders:

1 Pressing the LIST button at the file display

while stopped will return you to the next higher level. Pressing the LIST button repeatedly will bring you to the folder list display.

2 Pressing button 2 or 3 at the folder list

display will select the folders for voice recordings and press the 9 button.

In t he File l is t di sp lay, press t he 2 or 3

button to select the file that you want to playback.

• In the File display, press the 9 or 0 button to select a file.

Press the `/OK button to start play-

back.

• [ ] will appear on the display.

a Folder name/ File name/ File format/

Current file number/ Total number of recorded files in the folder

b File length c Elapsed playingback time d Level meter

a b c

Set it to a comfortable listening vol-

ume by using the

Press the

any point you want to stop the playback.

• [ ] will go out on the display.

• This will stop the file being played back midway. When the resume function is activated the stopped location will be registered, even if the power is turned off. The next time the power is turned on, playback may be resumed from the registered stopped location.

• When the batteries are removed from the recorder the resume function’s stopped position will be erased.

VOLUME

The volume can be adjusted within a range from [0] to [ larger the number on the dial is t he higher the volume will be

STOP

4 or `/OK button at

dial.

]. The

About Playback

Playingback

Settings relating to playback

Segment repeat

(☞ P.30)

[Play Mode] (☞ P.34, 37)

[Reverb] (☞ P.34, 38)

[EUPHONY] (☞ P.34, 38)

About Playback

[Replace] (☞ P. 4 5 )

This allows you to repeatedly playback part of a file during playback

[File] [File Repeat] [Folder] [Folder Repeat] [All] [All Repeat]

[Normal] [Studio] [Club] [Hall] [Dome]

[Normal] [Natural] [Wide] [Power]

This changes the order of the files in the selected folder. It is useful for playing back files in a preferred order while in normal playback mode etc.

About music file

In cases w here the recorder is unable to playback music files that have been transferred to it, check to make sure that the sampling rate and bit rate are in the range where playback is possible. Combinations of sampling rates and bit rates for music files which the recorder can playback are given below.

File

Sampling

format

frequency

WAV

44.1 kHz, 48 kHz,

format

96 kHz

MPEG1 Layer3:

32 kHz, 44.1 kHz, 48 kHz

MP3 format

MPEG2 Layer3:

16 kHz, 22.05 kHz, 24 kHz

22 kHz

16 kHz

WMA

32 kHz, 44.1 kHz

format

48 kHz

• Variable bitrate MP3 files (in which conversion bitrates can vary) may not play properly.

• For WAV files, this rec order can only play back those in the linear PC M format. WAV files other than these cannot be played back.

• This recorder is compatible with Microsoft Corporation DRM9, but not with DRM10.

• It is possible to playback the WMA files which are created by the Olympus Digital Voice Recorder.

Bit rate

16 bit or 24 bit

From 8 kbps up to 320 kbps

From 16 kbps up to 256 kbps

Playingback

Forwarding

While the recorder is during stop mode in the file display, press and hold the 9 button.

• [ ] will appear on the display.

• If you release the 9 b ut ton , i t wi ll st op. P re ss

the ` /OK button to start playingback from where it was stopped.

While the recorder is during playback mode, press and hold the 9 button.

• When you release the 9 button the recorder will resume normal playback.

• The recorder stops when it reaches the end of the file. Continue pressing the 9 button to proceed with the cue from the beginning of the next file.

Rewinding

While the recorder is during stop mode in the file display, press and hold the 0 button.

• [ ] will appear on the display.

• If you release the 0 b ut ton , i t wi ll st op. P re ss

the ` /OK button to start playingback from where it was stopped.

While the recorder is during playback mode, press and hold the 0 button.

• When you release the 0 button the recorder will resume normal playback

• The recorder stops when it reaches the beginnin g of the file. Continue pressi ng the 0 button to proceed with the review from the end of the previous file.

Locating the Beginning of the File

While the recorder is during stop mode or playback mode, press the 9 button.

• The recorder skips to the beginning of the next file.

While the recorder is during playback mode, press the 0 button.

• The recorder skips to the beginning of the current file.

While the recorder is during stop mode, press the 0 button.

• The recorder skips to the beginning of the previous file. If the recorder stop the midway of the file, return to the beginning of the file.

While the recorder is during playback mode, press the 0 button twice.

• The recorder skips to the beginning of the previous file.

About Playback

Playingback

Playback Through Earphone

An earphone can be connected to the EAR jack of the recorder for listening.

• When the earphone is used, the recorder speaker will be switched-off.

To EAR

jack

About Playback

Notes

• To avoid irr itation to the ear, inser t the earphone after turning down the volume level.

• When you listen with the earphone during playback, do not raise the volume too much. It may cause hearing impairment and decrease in hearing ability.

How to begin segment repeat playback

This function enables repeated playback of part of the file being played.

2 3 button 9 0 button `/

button

A-B REPEAT

button

In the File list display, press the 2 or

3 button to select the file.

• In the File display, press the 9 or 0 button to select a file.

Press the `/OK button to start play-

back.

Press the

point you want to start segment repeat playback.

• Fast forwarding and rewinding (☞ P. 2 9 ) c an be conducted when [ same manner as during normal playback, and you can q uickly procee d as far as the end position.

• When it reaches to the end of the file while [ position, and repeat playback will start.

Press the

at the position where you want to end segment repeat playback.

A-B REPEAT

] is flashing, the point will become the end

A-B REPEAT

button at the

[ ] will flash on the display

] is flashing in the

button again

Select a file that has a segment you

would like to play back repeatedly (☞

P.16 to P.1 8 ).

• The recorder repeatedly plays back the segment until the segment repeat playback is cancelled.

Cancel the seg ment repeat p layback fun ction

Pressing any of the following buttons will release the segment repeat playback.

Playingback

About Playback

a Press the

Pressing the ment repeat playback, and stop playback.

STOP

4 button

STOP

4 but ton wi ll re lease se g-

b Press the `/OK button

Pressing the `/OK button will release segment repeat playback, and stop playback

c Press the 9 button

Pressing the 9 bu tt on w il l re le ase segm en t repeat playback, and cue to the beginning of the next file.

d Press the 0 button

Pressing the 0 bu tt on w il l re le ase segm en t repeat play back, and reverse to the beginning of the current file.

e Press the

Pressing the A-B REPEAT bu tto n w ill rele as e segment repeat playback, and playback continues without repeating.

A-B REPEAT

button

Erasing

Erasing One File at a Time

A selected file can be erased from a folder.

2 3 button 9 0 button `/

button

ERASE

button

Select the folder which contains the

files you want to erase (☞ P.16 t o

About Playback

P.1 8) .

In the File list display, press the 2 or

3 button to select the file you want to erase.

• In the File display, press the 9 or 0 button to select a file.

While the recorder is during stop

mode, press the

Press the 2 button to select [

ERASE

[Cancel] will flash on the display

button.

Erase

Press the `/OK button.

• The display changes to [File Erase!] and

erasing will start.

• [Erase Done] is displayed when the file is

erased. File numbers will be reassigned automatically.

Erase All Files from a Folder

All files in a folder can be erased simultaneously. The locked files ( ☞ P.34, P.39) and the files set to

read-only on the PC will not be erased.

2 button `/

button

ERASE

Select the folder that you want to

erase (☞ P.16 t o P.18) .

While the recorder is during stop mode,

press the

ERASE

button twice.

[Cancel] will flash on the display

button

Erasing

Press the 2 button to select [

Erase

Press the `/OK button.

• The display changes to [All Erase!] and erasing will start. [ Erase Done] is displayed when the files are erased.

All

Notes

• An erased file cannot be restored. When an SD Card is inserted in the recorder, be sure to confirm the recording media as either the [Built-in Memory] or the [SD Card] so that there is no mistake (☞ P. 34 , P. 3 9 ) .

• When attempting to perform operations such as rewriting the contents of an SD Card in cases where the card has been write protected, [SD Card Locked] will app ear. The p layback operation can be performed, but the write protection must first be turned off when overwriting the contents on the card (☞ P.1 5) .

• The locked files and files set as read-only cannot be erased (☞ P.3 4, P. 3 9 ) .

• If an ac tio n i s no t se le cted wi thi n eig ht sec on ds on the [Cancel], [Erase] or [All Erase] screen s, the recorder will return to stop status.

• Never perform operat ions such as the following while processing, as they may damage the data. In addition, replace the batteries with t wo new ones in order to ensure that the batteries will not run out while processing.

1 Turning off the power while processing. 2 Removing the batteries while processing. 3 Remove the [SD Card] during processing

when it is being used as the recording media.

Performing any of these operations may dam-

age the data.

• You cannot delete folders through the recorder.

About Playback

Menu Setting

Menu Setting Method

Items in menus are categorized by tabs, so select a tab fir st and move to a desired item to quickly set it. You can set each menu item as follows.

2 3 button 9 0 button `/

button

While the recorder is during stop

Menu Setting

mode, press the

• Menu items can be set during a recording or playback (☞ P. 42 ) .

Press the 2 or 3 button to move to

the item to be set (☞ P. 3 6 to P.4 2 ) .

button.

The menu will appear on the display

Setup using a tab:

1 Press the 0 bu tt on fo r e ach it em t o mov e

to a tab.

2 Press the 2 or 3 button to move to the tab

that contains the item you want to set.

3 Press the `/OK or 9 button to move to

the item you want to set.

Press the `/OK or 9 button.

• Moves to the setting of the selected item.

Press the 2 or 3 button to change the

setting (☞ P. 36 to P. 4 2) .

Press the `/OK button to complete

the setup screen.

• You will be informed that the settings have been established via the screen.

• Pressing the 0 button without pressing the ` /OK button will cancel the settings and return you to the previous screen.

Menu Setting Method

Menu Setting

Press the

menu screen.

• When in the menu screen during recording or playback, pressing the 0 or MENU button will allow you to return to the playback screen without interrupting recording or playback.

Notes

• The recorder will stop if you leave it idle for 3 minutes during a menu setup operation, when a selected item is not applied.

• When entering menu settings during recording or pl ayb ac k, th e m enu se tt ing s w ill be canc el le d if 8 seconds elapse with no buttons being pressed.

button to close the

4 Rec Menu

Menu Setting Method

Rec Mode

Menu Setting

Rec Level

Zoom Mic

The recorder can record in the linear PCM format. High resolution recording at a high sam pling r ate and high bit rate equiva lent or sup erior to t hat of a music C D is pos sible. Moreover, it also supports the MP3 and WMA for mats.

1. Select the recording format.

Setting:

[PCM]:

This is an uncompressed audio format which is used for music CDs and the like.

[MP3]: M PEG is the internat ional standar d established by a w orking group of t he

ISO (International Organization for Standardization).

[WMA]: This is an audio compression encoding method that was developed by

the Microsoft Corporation in the US.

2. Select the recording rate.

Setting:

[PCM]: [96kHz/24bit] to [44.1kHz/16bit] [MP3]: [ 320kbps] to [128kbps] [WMA]: [16 0kbps] to [ 64kbps]

• When the recording for mat is set to the MP3 or WMA fo rmats, the sampling rate will be encoded and processed at 44.1 kHz.

• When a high reco rding rate setting is used t he file capaci ty will increas e. Make sure that the amount of memory remaining is sufficient before rec ording ( ☞ P. 3 9 ) .

• If the directi onal micropho ne function is us ed, you cannot cha nge the [PCM] set ting in the [Rec Mode] other than [44.1 kHz/16 bit]. You use the all modes in the [MP3] or [WMA] of the [Rec Mode].

You can configure whether to adjust the recording level automatically or to adjust it manually.

1. Select the Recording level setting.

Setting:

[Manual]:

Record ing is perf ormed by manua lly adjustin g the recordi ng level.

[Rec Level] is set to [Manual] you can configure the limiter function.

[Auto]: Recording is performed by automatically adjusting the recording level. This

is useful for when you will be recording right away.

2. Select the Limiter setting.

Setting:

This recorder is equipped with a limiter function that corrects the recording level down to an appropriate range in cases where a loud noise is suddenly picked up. This prevents distor tion c aused by an exc essive recording level. [Limiter On]: Enables the limiter function, thus preventing distortion when recording. [Limiter Off]: Disables this function.

• When the [ Rec Level] is set to [Auto] the recording level will be adjusted automati- cally. Set the [Rec Level] to [ Manual] when using the rec ording level adjustment function and the limiter function.

The direc tional micr ophone functi on utilizes Di MAGIC’s (DiM AGIC Co., Ltd.) DiM AGIC Virt ual Micropho ne (DVM) techn ology. DVM is an audio p ickup system whi ch allows you to record by focusing on sound from any direction. From expansive stereo recording to high directivity recording, DVM represents the latest in directional control methods that allow you to switch to a single exclusive microphone.

Setting:

[Off]: Disables this function. [Wide]: Recording by an expansive stereo sound. [Standard]: Recording by the natural stereo sound which has no medium getting away [Narrow]: Rec ording by a directivity stereo sound. [Zoom]: Recording with monaural, however you can record high directivity sound.

• The directional microphone function has been designed so that this capability will be elicited only with the built-in stereo microphone. Please note that the recorder will become unable to record normally when using other commercially available microphones.

• You c an use direction al microphone o nly when the [PCM] setti ng in the [Rec Mode] is set to [44.1 kHz/16 bit].

When the

4 Rec Menu (Continued)

Menu Setting Method

Rec Monitor

Plug-inPower

4 Play Menu

Play Mode

Select w hether or not to output audio while recording from the earphone jack.

Setting:

[On]: Enables the recording monitor function. Sound will be output from the

EAR jack.

[Off]: Disables this function. Sound will not be output from the EAR jack.

• When the exter nal speaker is connected while recording, there is a risk that audio feedback w ill occur. It is recommended that you use earphones for the recording monitor, or turn [Rec Monitor] to [Off] while recording (☞ P. 24) .

• When [Rec Monitor] is set to [Off] no sound will come out of the earphones while you are recording (☞ P.2 4) .

External microphones which are supported by plug in power can also be used. Whether or not to supply power to external microphones can be conf igured.

Setting:

[On]: When the plug-in power function is activated, power will be supplied to

the connected external microphone. Select this when external microphones suppor ted by plug-in power are connected (☞ P. 25 ) .

[Off] : D is ab les th is f un ct io n. S el ec t t his wh en ext er na l mi cr op ho ne s no t s upp or te d

by plug-in power are connec ted.

• Tur n the plug-in p ower function t o [Off] when an external microphone not supported by plug- in power is conn ected, as there is t he risk that noi se may be generate d while recording.

Phantom power cannot be supplied, even when the plug in power function is set to [On].

•

There are six play modes. You can select whether to play by file or folder, or all files stored in t he recorder.

Setting:

[File] : Stop af ter playing back the current file. [File Repeat]: Play the current file repeatedly. [Folder]: Play files continuously in the current folder until the last file and stop. [Folder Repeat]: Play all files in the current folder continuously. [All]: Play all files in the selected memory continuously and stop. [All Repeat]: Play all files in the selected memor y continuously and repeatedly.

• In [File] mode, when the recorder comes to the end of the last file in the folder, [End] flashes for two seconds on the display and the recorder stops at the start of the last file.

• In [Folder] m ode, when the recorder co mes to the end of the last file in t he folder, [End] flashes for two seconds on the display and the recorder stops at the star t of the first file in the folder.

• In [All] mode, a fter playing t he last file in th e folder, the reco rder will star t playing fro m the first f ile in the next folder. When it comes to the end of the last file in the recorder, [End] flashes for two seconds on the display and the recorder stops at the star t of the first file in the recorder.

Menu Setting

4 Play Menu (Continued)

Menu Setting Method

Reverb

EUPHONY

Menu Setting

4 LCD/Sound Menu

Backlight

Contrast

You can enjoy the reverberant sound of various space sizes such as from the recording studio to the dome.

Setting:

[Normal]: Disables the reverb function. Selec t this when playing back original sounds as they are. [Studio] [Club] [Hall] [Dome]: Select the preferred acoustical environment.

• When playing ba ck WAV format file s using these play back results, th e sampling rate and bit rate will be converted downward from 96 kHz to 48 kHz and 24 bit to 16 bit, respectively.

• This function is only available during playback. This recorder cannot perform recording by using the playback results.

• When you adjust the various sound quality settings related to playback on the recorder, the audio output signal sent out from the EAR jack will change as well.

This recorder is equipped with “EUPHONY MOBILE”, the latest in surround sound systems which combines bandwidth correction, expansion technology, and vir tual acoustical source processing technology. In addition to its natural, expansive feel, the recorder is equipped with the exceptional feature wherein listeners are less prone to developing an compressed or closed-in feel, or to growing tire d over extended lis tening. On top of this, listeners are less prone to developing an oppressed or c losed-in feel, or to growing tired over extended listening. Level adjustments of the [EUPHONY] setting can be set to four stages according to preference.

Setting:

[Normal]: D isables this function. Select this when playing back original sounds as they are. [Natural]: This mode achieves natural bandwidth correction and acoustical field expansion. [Wide]: This mode has an even more expansive feel. [Power] : This mode focuses more on lower sound registers.

• When playing ba ck WAV format file s using these play back results, th e sampling rate and bit rate will be converted downward from 96 kHz to 48 kHz and 24 bit to 16 bit, respectively.

• This function is only available during playback. This recorder cannot perform recording by using the playback results.

• When you adjust the various sound quality settings related to playback on the recorder, the audio output signal sent out from the EAR jack will change as well.

The display will remain lit for about 10 (Initial set ting) seconds when a button on the recorder is pressed.

Setting:

[5 seconds] [10 seconds] [30 seconds] [60 seconds] [Always on]: Set the length of time that the backlight will remain lit. [Off]: Disables this function. The backlight will not light up.

Display c ontrast can be adjusted in 12 levels.

Setting:

You can adjust the LCD display contrast level from [01] to [12].

4 LCD/Sound Menu (Continued)

Menu Setting Method

LED

4 Memory Menu

MemorySelect

Memory Info.

4 Others

Lock

You can set it so the LED indicator light does not turn on.

Setting:

[On]: LED light will be set. [Off]: Disables this function. LED light will be cancelled.

Wh en an S D C ar d is ins er te d yo u c an sel ec t to re co rd t o e ith er th e bu il t-i n f la sh m em or y or to the SD Card (☞ P. 14) .

Setting:

[Built-in Memory]: Built-in flash memor y. [SD Card]: SD Card.

• W hen at te mpt in g to pe rf or m op er at io ns s uc h as re wri ti ng the co nt ent s o f an SD C ar d in cases w here the c ard has been write protected, [SD Card Locked] will appear. The playback operation can be performed, but the write protection must first be turned off when overwr iting the contents on the card (☞ P. 15) .

The recordable c apacity remaining and overall capacity of the recording media can seen from the menu screen.

• When no SD Card is inserted only information for the built-in flash memory will seen.

• The domain area which uses the administrative f iles which the recorder uses is includ ed in the remaini ng capacity f or the recordi ng media. For SD c ards in parti cular, in addition to this administrative domain the administrative domain area for the SD card is added in as well. Owing to this, the remaining capacity will be displayed as less than the card’s specif ied capacity, yet this is not abnormal.

Locking a file keeps impor tant data from being accidentally erased. Locked f iles are not erased when you select to erase all files from a folder (☞ P. 3 2).

Setting:

[On]: Locks the file and prevents it from being erased. [Off]: Disables this function. Unlocks the file and allows it to be erased.

• Select the f iles to be locked in advance before operating the menu.

• W hen at te mpt in g to pe rf or m op er at io ns s uc h as re wri ti ng the co nt ent s o f an SD C ar d in cases w here the c ard has been write protected, [SD Card Locked] will appear. The playback operation can be performed, but the write protection must first be turned off when overwr iting the contents on the card (☞ P. 15) .

Menu Setting

4 Others (Continued)

Menu Setting Method

AutoPowerOff

Fn Setting

Menu Setting

Forgetting to turn the power off can be prevented. If the recorder remains in stop mode for over 10 minutes ( Initial setting) while the power is turned on, the power will be turned off.

Setting:

[5 minutes] [10 minutes] [30 minutes] [60 minutes]: Set the length of time before the power will be turned off. [Off]: Disables this function.

• If any button is pressed, the elapsed time count before the power turns off will start over again.

When fun ctions are regi stered in the Fn but ton, each time th e Fn button is pres sed, you can set or change the menu of registered f unction.

Setting:

[Off]: No functions will be alloc ated to the button. [Rec Mode] ( ☞ P.36) [Rec Level]: (☞ P. 3 6 ) [Zoom Mic] (☞ P. 36 ) [ Play Mode] ( ☞ P.37 )

[Reverb] (☞ P.3 8) [EUPHONY ] (☞ P. 38 ) [MemorySelect] (☞ P. 39 ) [Property] (☞ P. 41) [Light] ( ☞ P.38)

To call up a registered function:

When t he Fn button is p ressed, m enu settin g display of r egistere d function will appear:

[Rec Mode]: [PCM] [ MP3] [ WMA]: The recording rate c an be configured

[Rec Level]: [Manual] [Auto]: You can configure whether to adjust the

[Zoom Mic]: [Off] [Wide] [ Standard] [Narrow] [Zoom] [Play Mode]: [File] [ File Repeat] [Folder] [ Folder Repeat] [All]

[All Repeat] [Reverb]: [Normal] [Studio] [Club] [Hall] [Dome] [EUPHONY ]: [Normal] [Natural] [ Wide] [Power] [MemorySelect]: [Built-in Memory] [SD card] [Property]: File and folder information can be confir med from the menu

Each time the Fn button is pressed, the setting of registered function is changed:

[Light]: [On] [Off]: Select backlight on or off by pressing the Fn

• W hen th e re gi ste re d f unc ti on is [ Rec Mode], [MemorySelect], or [Property], these will not function if the Fn but ton is pressed dur ing recording or playback. While the recorder is during stop mode, press the Fn button.

for each file format.

recording level automatically or to adjust it manually. When the [Rec Level] is set to [Manual] you can configure the

limiter function.

screen.

button.

4 Others (Continued)

Menu Setting Method

Menu Reset

System Info.

Property

This returns the functions back to their initial settings (fac tory default).

Setting:

[Start]: Returns the settings to their initial values. [Cancel]: Takes you back to the [Others].

• After rese tting the set tings, the time s ettings and f ile numbers wi ll be preserve d from before the reset and will not return to their initial settings.

Menu settings after setting reset (initial settings) .

Rec Menu

[Rec Mode] Recording format [PCM] Recording rate [44.1kHz/16bit]

[Rec Level] Recording level [ Manual] Limiter function [Limiter On] [Zoom Mic] [Off] [Rec Monitor] [On] [Plug-inPower] [On]

Play Menu

[Play Mode] [File] [Reverb] [Normal] [EUPHONY ] [Normal]

You can check t he recorder ’s informatio n on the menu scre en. [Model Name], [Versio n] and [Serial Number] appears on the display.

File and folder information can be confirmed from the menu screen.

When the file is selected: [Name] [Date] [Size] [Length] and [File Format]

will appear on the display.

When the folder is selected: [Name] and [Date] will appear on the display.

• Select the files for which you would like to confirm information in advance before operating the menu.

LCD/ Sound Menu

[Backlight] [10 seconds] [Contrast] [06] [LED] [On]

Memory Menu

[MemorySelect] [Built-in Memory]

Others

[AutoPowerOff] [10 minutes] [Fn Se tting] [ Off]

Menu Setting

Menu Setting Method

hSetting menu during recording hSetting menu during playback

SettingTab Function SettingTab Function

Rec

Menu Setting

LCD/

Sound

Rec Menu

Rec Level

Zoom Mic

Rec Monitor

Plug-inPower

Backlight

LED

Rec Level

To menu item

options

Play

LCD/

Sound

Play Menu

Play Mode

Reverb

EUPHONY

Backlight

LED

Play Mode

To menu item

options

Formatting the Recorder [Format]

If you format the recorder, all files will be removed and all function settings will return to defaults except date and time settings. Transfer any important files to a computer before formatting the recorder.

2 3 button 9 0 button `/

button

While the recorder is during stop

mode, press the

• The menu will appear on the display. You

can al so c ha nge to [Memory Menu] screen by using the settings tab (☞ P. 34 ) .

Press the 2 or 3 button to select

[

Format

Press the `/OK or 9 button.

button.

[Format] will appear on the display

Press the 2 or 3 button to select the

recording media to format.

• When formatting an SD Card, cancel the write protection function before inserting the card into the recorder (☞ P.1 5) .

Press the `/OK button.

Press the 2 button to select [

Press the ` /OK button.

• After the [Data Will Be Cleared] message is on for two seconds, [Cancel] will turn on.

Press the 2 button again to select

[

Start

[Cancel] will appear on the display

Start

Menu Setting

Formatting the Recorder [Format]

Press the `/OK button.

• Formatting begins and [Format !] flashes

on the display.

• [Format Done] appears when formatting

ends.

Menu Setting

Notes

• When an SD Card is inserted in the recorder, be sure to co nfirm the reco rding media as eithe r the [Built-in Memory] or the [SD Card] so that there is no mistake (☞ P. 34 , P. 3 9) .

• Wh en a tt em ptin g t o pe rf or m o per at io ns s uc h as rewriting the contents of an SD Card in cases where the card has been write protected, [SD Card Locked] will app ear. The p layback operation can be performed, but the write protection must first be turned off when overwriting the contents on the card (☞ P.1 5) .

1 Turning off the power while processing. 2 Removing the batteries while processing. 3 Remove the [SD Card] during processing

when it is being used as the recording media.

Performing any of these operations may dam-

age the data.

• Never format the recorder from a PC.

• Once the recorder is formatted, the music files with DRM may not be transferred to the recorder again.

• When the recorder is formatted, all the saved data, including locked files and read-only files, are erased.

• Af ter formatti ng, recorded audio file nam es may start from [0001].

• When returning the settings for the functions to their initial settings, use the [Menu Reset] (☞ P. 3 4, P.41) .

• Formatting on the recorder will be Quick Format. If you format the SD card, information of file management is refreshed and the data inside the SD card is not deleted completely. When handing over and disp osing the SD card, be careful about the data leakage from the SD card. We recommend the SD card to be destroyed when you dispose the SD card.

Rearranging files [Replace]

You can move a file in a folder to change the order of playback. First select the folder (file) for which you want to change the playback order.

2 3 button 9 0 button `/

button

Select the folder for which you would

like to rearrange the song order (☞ P.16 to P.1 8 ).

While the recorder is during stop

mode, press the

• The menu will appear on the display. You

can also change to [Others] screen by using the settings tab (☞ P. 3 4) .

Press the 2 or 3 button to select

[

Replace

Press the `/OK or 9 button.

Press the 2 or 3 button to select the

file you want to move.

Press the `/OK or 9 button.

button.

• The cursor will flash to confirm that the file can be moved.

Press the 2 or 3 button to select the

location to move it to.

Press the `/OK button to complete

the setup screen.

• If there are more files to move, repeat S teps 5 through 8.

• Pressing the 0 button without pressing the ` /OK button will cancel the settings and return you to the previous screen.

Press the

menu screen.

Note

• When attempting to perform operations such as rewriting the contents of an SD Card in cases where the card has been write protected, [SD Card Locked] will app ear. The p layback operation can be performed, but the write protection must first be turned off when overwriting the contents on the card (☞ P.1 5) .

button to close the

Menu Setting

Using the Recorder on Your PC

By being connected to a PC, the recorder enables you to do the following:

• You can transfer files recorded with this recorder to a computer, play them back, and manage them by using Windows Media Player or iTunes (☞ P. 5 0, P.57) .

• In addition to its uses as an IC recorder and a music player, this recorder can also be used as external memor y for a computer by storing data from a computer and reading it back out (☞ P. 4 9 , P. 61) .

Using t he Recorder o n Your PC

Operating Environment

Windows

Operating System:

Microsoft Windows 2000/XP/Vista (Standard

Installation)

Compatible PC’s:

Windows PC’s equipped with more than one

free USB port

Macintosh

Operating System:

Mac OS 10.2.8 ~ 10.5 (Standard Installation)

Compatible PC’s:

Apple Macintosh series equipped with more

than one free USB port

Notes

• This is an operational environment for saving the files recorded by this recorder to your PC with USB connection.

• To check the operational environment of [Steinberg CUBASE LE4] software, see a supplied separate sheet.

• Even if operational environment is satisfied, we do not support such as 64-bits OS, the multiboot environment and self-modified PC’s.

Precautions on using the recorder connected to a PC

• When you are downloading a file from the recorder or uploading a file to the recorder, do not remove the USB cable even if the screen is indicating you can. Data is still being transferred while the [PEAK] indicator light is blinking. When removing the USB cable, be sure to follow the description in ☞ P.4 8. I f t h e U S B cable is removed before the drive is stopped, data may not be successfully transferred.

• On a PC, do not format the dri ve of the recorder. Initialization is not successfully achieved on a PC. For initialization, follow the instructions in the [Format] screen of the recorder (☞ P. 4 3 ) .

• Folder (directory) names appeared by file management tools such as Explorer attached to Microsoft Windows is different from the folder names that can be set with the recorder.

• If folders or files stored on the recorder are moved or renamed by using a f ile management tool such as Explorer, the order of files may be changed or files may become unrecognizable

•

Data can b e written or upl oaded to the rec order even though the attribute of the recorder drive is shown as Read-only by the operating system of the PC.

• As the noise may cause adverse effects on electronics devices nearby the recorder, unplug the earphone when you connect the recorder to a PC.

Operating Environment

Connecting to Your PC

By the Copyright Act, any voice/music files and music CDs downloaded from the Internet without the copyright holder’s permission may not be reproduced, distributed, publicized/re-publicized on the Internet, or converted into WMA or MP3 files for the purpose of commercial business or sale.

A WMA file may be provided with DRM (Digital Right Management) for copyright protection. DRM limits the file to copy or distribute music files that are converted (ripped) from a music CD or downloaded from music distribution services. To transfer a WMA file with DRM to the recorder, you need to use appropriate methods such as Windows Media Player. Copying the music files with DRM purchased from online music distribution service to a portable device such as this recorder may be restricted.

Note

• This recorder is compatible with Microsoft Corporation DRM9, but not with DRM10.

Boot the PC.

Connect the USB connecting cable to

the USB port of the PC.

Confirm that the recorder has stopped

and connect a USB connection cable to the connection port on the side of recorder.

Windows:

When you open [My Computer], it will be recognized by the dr ive name [LS_10] (Built-in flash memory) and [ Removable Disk] (SD card).

Macintosh:

When you connect the recorder to a Mac OS, it will be recognized by the drive name [LS_10] on the desktop. When an SD card is inserted it will be recognized by the drive name [Untitled].

Using t he Recorder o n Your PC

Connecting to Your PC

[Connect (Storage)] is appeared on recorder if the USB cable is connected

Note

• Be sure to use the attached dedicated cable for the USB connection cable. If any other company’s cable is used, it cause problems. Also, please do not connect this dedicated cable to any other company’s product.

Disconnecting from Your PC

Windows

Using t he Recorder o n Your PC

Click the on the task bar located at

the lower-right corner of the screen. Click [

Safely Remove Hardware

• The drive letter will differ depending on the PC being used.

When the safe to remove hardware

window appears, click [

Disconnect the USB connection

cable.

Macintosh

Move the drive icon for this recorder that

is appear on the desktop to the garbage bin by Drag & Drop it.

• When you connect the recorder to a Mac OS, it wi ll be recognized by the drive na me [LS_10] on the desk top. When an SD c ard is in ser ted it will b e reco gni zed by th e driv e name [Untitled].

Disconnect the USB cable.

Notes

• NEVER disconnect the USB while the [PEAK]

indicator light is flashing. If you do, the data will be destroyed.

• When the recorder is connected to a PC, the power will be supplied from the USB cable.

• Refer to the user’s manual for your PC regard-

ing the USB port on your PC.

• Be sure that you connect the USB cable either directly to the USB port on your PC.

• Be sure to push the cable connector all the way in. Otherwise, the recorder may not operate properly.

• When connecting the recorder through an USB hub the operation may become unstable. In such cases, refrain from using a USB hub.

Transfer the Voice Files to Your PC

The 5 voice folders of this recorder are appeared as [DSS_FLDA], [DSS_FLDB], [DSS_FLDC], [DSS_FLDD] and [DSS_FLDE] , and the recorded voice files are saved in these folders.

Windows

Connecting the recorder to your PC

(☞ P. 4 7 ) .

Open the Explorer window.

Open the [

• When you open [My Computer], it will be recognized by the drive name [ LS_10] (Built-in flash memory) and [Removable Disk] (SD card) (The drive letter will differ depending on the PC being used).

Copy the data.

Disconnecting the recorder to your PC

(☞ P.4 8 ).

LS_10

] folder.

Macintosh

Connecting the recorder to your PC

(☞ P. 4 7 ) .

• When you connect the recorder to a Mac OS, it will be recognized by the drive name [LS_10] on the desktop. When an SD card is in ser ted it will b e reco gni zed by th e driv e name [Untitled].

Double-click on [

desktop.

Copy the data.

Disconnecting the recorder to your PC

(☞ P.4 8 ).

LS_10

] icon on the

4 Drive name and folder name when a

personal computer is connected:

Built-in flash memory

Drive name Folder name

LS_10

SD card

Drive name

Removable

Disk

Windows

Untitled

Macintosh

Notes

• While transmitting data, [Busy] is appeared, and the [PEAK] indicator light flashes. NEVER disconnect the USB while the [PEAK] indicator light is flashing. If you do, the data will be destroyed.

• In the Windows operational environment 24 bit WAV format files cannot be played back.

• When a sound board of your PC does not support to 24 bit, the recorder cannot play the software supporting to 24 bit correctly.

• In the Mac OS operational environment, WMA format files cannot be played back.

DSS_FLDA

DSS_FLDB

DSS_FLDC

DSS_FLDD

DSS_FLDE

Folder name

DSS_FLDA

DSS_FLDB

DSS_FLDC

DSS_FLDD

DSS_FLDE

Folder A

Folder B

Folder C

Folder D

Folder E

Music

Folder A

Folder B

Folder C

Folder D

Folder E

Music

Using t he Recorder o n Your PC

Using Windows Media Player

Music fi les that have been impor ted to your computer from music CDs and ac quired over the Internet can be transferred to and played back with this recorder. It supports WAV, MP3, and WMA format music files.

By using Windows Media Player, music files from music CDs can be conver ted (ripped) (☞ P.51) and music files that you have bought from any music distribution sites can be easily transferred to the recorder. (☞ P.52, P.5 3 ) .

Window Names

Windows Media Player 11

Using t he Recorder o n Your PC

1 Feature s task bar 2 Seek slider 3 Shuffle but ton 4 Repeat but ton 5 Stop button 6 Previous button 7 Play button 8 Next button 9 Mute button 0 Volu me sli der

579

Windows Media Player 10

3 4

68 04

68 0

1 Feature s task bar 2 Quick Access Panel button 3 Seek slider 4 Rewind but ton 5 Play button 6 Stop button 7 Previous button 8 Next button 9 Mute button 0 Volu me sli de ! Shuffle/ Repeat button @ Fast Forward button

Copying Music from CD

Using Windows Media Player

Insert CD into the CD-ROM dr ive, and

start Windows Media Player.

Fr om t he Featu re s task ba r, click [

menu.

• Af te r c li cking [Rip] menu, click [ View Album Info] for Windows Media Player 10

as necessary.

• If Internet connectivity is available, CD information is searched.

Put a check mark on the music file that

you want to copy.

Click [

Start Rip

• For Windows Media Player 10 Click [Rip Music].

• Files copied to a PC are stored in WMA format. Music files copied are categorized by artist, album, genre, etc. and added to the play list.

Rip

Windows Media Player 11

]

Using t he Recorder o n Your PC

Windows Media Player 10

Using Windows Media Player

Transferring Music File to the Recorder

You can transfer the music files saved in your PC to this recorder. For how to copy the music files from the CD to your PC, see “Copying Music from CD” (☞ P. 51) .

Windows Media Player 11

Connect the recorder to a PC, and

start Windows Media Player.

From the Features taskbar, click

[

Sync

Click [

Sync

[

DVR

Up Sync

• Click on the [Create folder hierarchy on

Using t he Recorder o n Your PC

device] to check. *1 *2

• The folder with ar tist name or album name is automatically created. This will make you find the file you want to listen to more easily.

*1 If [Create folder hierarchy on device] is

checked by default, click to uncheck the box once, and click it again to check.

*2 After the synchronous transfer to the

recorder, a file named “WMPInfo.xml” is created. If you delete this file, the *1 may need to be set again.

] menu again to select

] { [

Advanced Options

], and set as follows.

] { [

Set

2, 3

Select the desired category from

[

Library

files or albums to transfer to the recorder, and Drag & Drop them in [

Click [

• The file is transferred to the recorder.

Windows Media Player 10

] on the left, and select music

Sync List

] on the right.

Start Sync

Using Windows Media Player

Connect the recorder to a PC, and

start Windows Media Player.

From the Features taskbar, click

[

Sync

From the pull down menu on the left

side window, select the play list to be transferred to the recorder, and put the check marks on the music file that you want to transfer.

• The order of music pieces can be changed by Drag & Drop of the music file in the play list displayed.

From the pull down menu on the right side window, select the drive correspond-

ing to the recorder.

• The recorder is recognized as a Removable Disk.

Using t he Recorder o n Your PC

3 4

Click [ ] on the upper right corner,

and set the synchronization options.

• Click on the [Create folder hierarchy on device] to check. * 1 *2

• The folder with ar tist name or album name is automatically created. This will make you find the file you want to listen to more easily.

*1 If [Create folder hierarchy on device] is

checked by default, click to uncheck the box once, and click it again to check.

*2 After the synchronous transfer to the

recorder, a file named “WMPInfo.xml” is created. If you delete this file, the *1 may need to be set again.

Click [

Using t he Recorder o n Your PC

Start Sync

ferred to the recorder.

• The file is transferred to the recorder. The music file transferred to the recorder is displayed in Item on Device.

]. The file is trans-

Using Windows Media Player

Notes

• Copying the music files with DRM purchased online music distribution service to a portable device such as this recorder may be restricted.

• To transfer the files by using Windows Media Player 9, check the Olympus website.

• If the music files are transferred to the recorder until it reaches to the maximum memory, the message [Cannot make the system file. Connect to PC and delete unnecessary file] may appear on this recorder’s display. In such a case, erase the files to make free space (hundreds of KB to dozens of MB depending on the music file sizes) for the management file. (The more capacity for the management file will be necessary as the number of the music files increases).

Using Windows Media Player

Copying Voice File to the CD

You can transfer the voice files in the recorder to your PC and copy them to CD. For how to copy the voice files from the recorder to your PC, see “Transfer the Voice Files to Your PC” (☞ P. 4 9 ) .

Windows Media Player 11

Insert the blank CD-R/RW into

the CD-R/RW drive, and start

Windows Media Player.

From the Features taskbar, click

the [

Burn

] menu.

Select the desired category from [

Library

voice files or albums to copy to the CD-R/RW, and Drag & Drop them in [

Click [

When [

• A file is converted and copied in CD-DA in order to play it by the audio equipment which can play

When [

• Copying files with the format to be recorded.

] on the left, and select

Burn List

Burn

] menu again, and select [

Audio CD

CD-R/RW.

Data CD

] is selected:

] on the right.

Audio CD

] or [

2, 4

Data CD

3 5

Using t he Recorder o n Your PC

Click [

Start Burn

Windows Media Player 10

Insert the blank CD-R/RW into

the CD-ROM drive, and start

Windows Media Player.

From the Features taskbar, click

[

Burn

] menu.

• Click [Burn] as needed after clicking [Edit Playlist] menu.

• You can change the order of tracks by Drag & Drop files.

Using Windows Media Player

Using t he Recorder o n Your PC

Put a check mark on the voice

files that you want to copy.

Select format of CD before clicking [

When [

Audio CD

• A file is converted and copied in CD-DA in order to play it by the audio equipment which can play CD-R/RW.

Data CD

When [

• Copying files with the format to be recorded.

Click [

Start Burn

] is selected:

Start Burn

Using iTunes

Window Names

2 3

Using t he Recorder o n Your PC

4 5 6 7

1 Feature s task bar 2 Rewind button/ Playback, Pause button/

Fast Forward button

3 Volu me sli de 4 Playlist addition button 5 Shuffle but ton

6 Repeat but ton 7 Display change button 8 Disc create button 9 Browse button 0 Disc eject button

890

Copying Music from CD

Insert the CD into the CD-ROM

drive, and start iTunes.

Click [

iTunes

Click [

Advanced

Click [

Importing

format and bit rate for copying

music files to your PC, and click [

Using t he Recorder o n Your PC

[

Import Using

• Set the file format for copying music file from a CD.

Setting

[

• Set the bit rate for copying music file from a CD.

Put a check mark on the music

files that you want to copy.

Click [

Import CD

] { [

Preferences

] tag.

] to set the file

Using iTunes

Transferring Music File to the Recorder

You can transfer the voice files in the recorder to your PC and copy them to CD. For how to copy the music files from the CD to your PC, see “Copying Music from CD” (☞ P.58) .

Connect the recorder to a PC, and

start iTunes.

Se l e c t t h e pl a y l i s t t o b e t r a ns f e r re d

to the recorder, and put the check

marks on the music files that you want to transfer.

• Th e order of music piec es can be changed by Dr ag & Dr op o f t he m usic fi le i n t he p la y list displayed.

Double-click the corresponding

drive with the recorder, and

open [

MUSIC

] folder.

• When you connect the recorder to a Mac OS, it will be recognized by the drive name [LS_10] on the desktop. When an SD card is inserted it will be recognized by the drive name [Untitled].

• Copy to [MUSIC] folder of the recorder when transferring the music file.

• You can create up to 2 hierarchies in the [MUSIC] folder. And up to 128 folder s can be made including [MUSIC] folder.

• Up to 200 files can be stored in each folder.

Select the desired files, and Drag & Drop them to [

MUSIC

Drag & Drop

files here

] folder.

Using t he Recorder o n Your PC

Using iTunes

Copying Voice File to the CD

You can copy the voice files saved in the recorder to CD. For how to copy the voice files from the recorder to your PC, see “Transfer the Voice Files to Your PC” (☞ P. 4 9 ) .

Insert the CD-R/RW into the CD-

R/RW drive, and start iTunes.

2 3

Click [

iTunes

] { [

Preferences

Click [

Advanced

] tag.

Click [

Burning

format for copying voice files to

Using t he Recorder o n Your PC

CD-R/RW, and click [

When [

Audio CD

• A file is converted and copied in CD-DA in order to play it by the audio equipment which can play CD-R/RW.

MP3 CD

When [

• Copying in MP3 format.

Data CD

When [

• Copying files with the format to be recorded.

Select the desired playlist, and put a check mark on the voice

files to copy to the CD-R/RW.

] to set the CD

] is selected:

Click [

Burn Disc

Using as External Memory of the PC

In addition to its uses as an IC recorder and a music player, this recorder can also be used as external memory for a computer by storing data from a computer and reading it back out.

With the recorder connected to your PC, you can download data from the memory to your PC and upload data stored on your PC to the memory.

Windows

Connecting the recorder to your PC

(☞ P. 4 7 ) .

Open the Explorer window.

Open the [

• When you open [My Computer], it will be recognized by the drive name [LS_10] (Built-in flash memory) and [Removable Disk] (SD card) (The drive letter will differ depending on the PC being used).

Copy the data.

Disconnect the USB connection cable

(☞ P. 4 8) .

Macintosh

Connecting the recorder to your PC

(☞ P. 4 7 ) .

• When you connect the recorder to a Mac OS, it will be recognized by the drive name [LS_10] on the desktop. When an SD card is in ser ted it will b e reco gni zed by th e driv e name [Untitled].

LS_10

] folder.

Note

• While transmitting data, [Busy] is displayed, and the [PEAK] indicator light flashes. NE VER disconnect the USB while the [PEAK] indicator light is flashing. If you do, the data will be destroyed.

Using t he Recorder o n Your PC

Double-click on [

desktop.

Copy the data.

Disconnect the USB connection cable

(☞ P. 4 8) .

LS_10

] icon on the

Alarm Message List

Message Meaning Explanation Action

Battery Low Low battery power.

File Protected Erase-locked. Tried to delete a locked file.

Illegal Folder

Folder Full Folder full.

Memory Error Error in the memory.

Other Information

Licence Mismatch Illegally copied file.

Memory Full

No File No file.

SD Card Locked Card Locked.

Format Error Formatting error.

Can’t Make The

System File. Connect

To PC And Delete Unnecessary File

Data Write Error

Not an audio-recording folder.

Zero remaining memory.

The management file cannot be created.

The data is not written correctly in the memory.

Other Information

Batter y power is getting low.

Recording has been attempted with a [ Music] folder.

The folder is full of f iles (maximum of 200 f iles).

Error in the memor y.

SD card is not recognized correctly.

The music f iles copied illegally.

No remaining memory.

No files were found in the folder.

The SD Card is set to write protection.

There was an error while format ting the recorder’s memory.

The file for management cannot be created due to a shortage of capacity for remaining memory.

Data writing to memory cannot be done in time and the recorded sound skips.

Replace with new batteries (☞ P. 9) .

Unlock the file ( ☞ P. 3 4, P. 39 ) .

Select a folder from [A] through to [E] and try recording again ( ☞ P.1 6 to P.18, P.20).

Erase unnecessary files (☞ P. 32) .

This is a malfunction, so go to t he store where you purc hased the recorder or an Olympus ser vice station for repair (☞ P. 6 5 ) .

Remove the S D card then put it again (☞ P.14 to P.15).

Erase the f ile (☞ P.3 2 ).

Erase unnecessary files (☞ P. 32) .

Select another folder (☞ P.16 t o P.18 ) .

Undo the SD Card’s write protection setting and then try again (☞ P.1 5) .

Reformat the memory (☞ P. 43 ) .

Connec t the recorder to a computer and delete any unnecessary files.

Format the memory (☞ P. 4 3 ) .

Troubleshooting

Symptom Probable cause Action

Verify that the bat teries’ polarities = and

- are correct (☞ P.9 ) .

Replace with new batteries (☞ P. 9) .

Turn the power on (☞ P.11 ).

Replace with new batteries (☞ P. 9) .

Turn the power on (☞ P.11 ).

Release the recorder from HOLD ( ☞ P.11).

Erase unnecessary files (☞ P. 32) .

Change to the another folder (☞ P.1 6 to P.18, P. 20 ) .

Undo the SD Card’s write protection setting and then try again (☞ P.1 5) .

Detach all external microphones and external devices connected to the LINE IN jack and the MIC jack (☞ P.25, P.26).

Detach the connecting c ord from the recorder.

Set [Plug-inPower] to [On] when an external microphone supported by plug- in power is connected

Unplug the earphones to use the internal speaker.

Adjust the volume level (☞ P. 27).

Adjust the recording level and then tr y recording once more (☞ P. 20 ).

Set the microphone sensitivity to [HIGH] mode and try again (☞ P. 24) .

If you cannot record clearly even after adjusting the recording level, then adjust the output level for the c onnected devic es (☞ P. 20).

Adjust the recording level and then tr y recording once more (☞ P. 20 ).

If you cannot record clearly even after adjusting the recording level, then adjust the output level for the c onnected devic es (☞ P. 20).

Nothing appears on the display

Won’t start

Unable to record

No sound picked up by the built-in microphone

Unable to record through an external microphone

No playback tone heard

Recording level too low

Recording level too high

The batteries are not loaded properly.

Battery power is getting low.

The power is off.

Battery power is getting low.

The power is off.

The recorder is in H OLD mode.

Low remaining memory.

The maximum number of files has been reached.

The SD Card is set to write protection.

An external microphone or external device is connected.

An exter nal devic e is connected to the LINE IN jack.

An exter nal microphone supported by plug-in power is connected but [ Plug-in Power] is set to [ Off].

The earphone is connected.

The volume level is set to [0].

The recording level has not been adjusted.

The microphone sensitivity is too low.

This could potentially be because the recording level and output level for the connec ted external devices are too low.

The recording level has not been adjusted.

This could potentially be because the recording level and output level for connected ex ternal devices are too high.

Other Information

(☞ P. 3 4, P. 37) .

Symptom Probable cause Action

Voice fi les are not re corded in stereo

Cannot find the recorded Voice File

Noise heard during playback

Unable to erase

Unable to hear any sound

from the earphone through the recording monitor

Other Information

Noise is audible through the recording monitor

The connected external microphone is monaural.

Wrong recording media or folder.

The recorder was shaken during recording.

The recorder was placed near a cell phone or fluorescent lamp while recording or during playback.

The settings of the connec ted external microphone do not c orrespond to those of the recorder.

The file is locked.

The file is read- only.

The [Rec Monitor] is set to [Off].

Acoustic feedback is occurring.

Troubleshooting

When rec ording while an external monaural microphone is connected, sound will only be recorded by the L-channel.

Switch to the correct recording media or folder (☞ P.16 to P.18, P.20, P.34, P.39).

--------

Move the recorder.

When a microphone not supported by the plug-in power function is connected, turn the [Plug-inPower] setting to [Off] (☞ P.34, P. 37 ).

Unlock the file ( ☞ P. 3 4, P. 39 ) .

Cancel t he read-only setting of the file on the PC.

Turn the [Rec Monitor] setting to [On] (☞ P.34, P.37) .

When the built-in speaker amps and the like are connected there is a risk that audio feedback will occur while recording. It is recomm ended that you us e earphones fo r the re co rd in g mo ni to r, o r tu rn th e [ Rec Monitor] to [Off] while recording (☞ P.3 4, P. 37) .

Conduct adjustments like separating the earphones from the microphone farther, do not point the microphone at the earphones, lower the volume on the recording monitor, and so on.

Technical Assistance and Support

The following are c ontact information for technical support for O lympus recorders and software only. s Technical Hotline Number in the U.S. and Canada

1-888-553-4448 s User Support E- mail address in the U.S. and Canada distec@olympus.com s Technical Hotline Number in Europe Toll free number: 0 0800 67 10 83 00 available for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, N orway, Por tugal,

Spain, Sweden, Switzerland, United Kingdom Charged numbers for the Rest of Europe + 49 180 567 1083 + 49 40 23773 4899 s User Supp ort E- mail address in Europe dss.support@olympus-europa.com

Accessories (optional)

Stereo microphone: ME51S

The ME51S stereo microphone comes in a set with an extension cord and a clip.

2 channel microphone (non-directional): ME30W

Two ME30 monaural microphones come in a set with a miniature tripod and a connection adapter. These are highly sensitive non-directional microphones supported by plug-in power which are well-suited to recording musical performances.

Highly sensitive noise-cancellation monaural microphone (unidirectional): ME52W

This microphone is used to record sound at a distance while minimizing surrounding noise

Tie clip microphone (non-directional): ME15

Small concealing microphone with a tie-clip.

Telephone pickup: TP7

Earphone type microphone can be plugged into your ear while phoning. The voice or conversation over the phone can be clearly recorded.

Ni-MH rechargeable battery and charger set: B-90SU (For U.S.A. and Canada) BU-90SE (For Europe)

B-90SU or BU-90SE comes with an Ni-MH rechargeable battery charger and 4 Ni-MH recharg eable batteri es B-01 4PE as a pa ck. This charger can quick charge Olympus AA or AAA Ni-MH rechargeable batteries.

Ni-MH rechargeable battery: B-01 4PE (Europe only)

4 Ni-MH rechargeable batteries B-01 4PE as a pack. High-ef ficiency rechargeable long life batteries.

Connecting cord: KA333

Connecting cord which has stereo mini-plugs (ø3.5) with resistance at both ends. Use to conne ct fr om th e e ar ph on e j ac k ou tp ut of th e r ec or de r to the microphone input jack when recording. Converting plug adapters (PA331/PA231) which convert to the monaural mini plug (ø3.5) or monaural mini plug (ø2.5) are also enclosed.

Exclusive remote control set: RS30W (Scheduled for release in Spring 2008)

When the receiver is plugged into the REMOTE jack the recorder ’s recording and stop functions can be operated through the remote control. The receiving position can be adjusted, thereby allowing yo u to operate the reco rder from various different angles.

Other Information

Specifications

General points

4 Recording format:

Linear PCM (Pulse Code Modulation) MP3 (MPEG-1/MPEG-2 Audio Layer3) WMA (Windows Media Audio)

4 Input level:

MIC SENSE HIGH/LOW switch is set to [HIGH]:

- 59 dBv MIC SENSE HIGH/LOW switch is set to [LOW]:

- 39 dBv LINE IN jack input:

- 6 dBv

4 Maximum headphone output:

3 mW + 3 mW (at load of 16 Ω) 70 mV (according to EN 50332-2)

4 Recording medium:

Built-in NAND FLASH memory (2 GB) SD card (512 MB to 8 GB)

4 Speaker:

Other Information

Built-in ø 16 mm round dynamic speaker

MIC

jack:

ø 3.5 mm mini-jack, impedance 2 kΩ

LINE IN

jack:

ø 3.5 mm mini-jack, impedance 78 kΩ (approx.)

EAR

jack:

ø 3.5 mm mini-jack, impedance 8 Ω or more

4 Maximum working output)

200 mW + 200 mW (8 Ω speaker)

4 Input power requirement:

Batteries: Two AA batteries (LR6 or ZR6)

External power supply: AC adapter 5 V

4 External dimensions:

131.5 mm × 48 mm × 22.4 mm (without protrusions)

4 Weight:

165 g (including alkaline batteries)

or Two Ni-MH rechargeable batteries

Overall frequency response:

LINE IN

Linear PCM format

MP3 format

WMA format

4 Built-in stereo speaker (During recording

Jack (During recording or playback

mode):

Recording mode

96 kHz 20 Hz to 4 4 kHz

48 kHz 20 Hz to 23 kHz

44.1 kHz 20 Hz to 21 kHz

Recording mode

320 kbps 50 Hz to 20 kHz

256 kbps 50 Hz to 20 kHz

128 kbps 50 Hz to 17 kHz

Recording mode

160 kbps 50 Hz to 19 kHz

128 kbps 50 Hz to 19 kHz

64 kbps 50 Hz to 15 kHz

mode):

70 Hz to 20 kHz

• However, when recording by the MP3 format or the WMA format, the upper limit value of the frequency response depends on each recording mode (see above diagram).

Overall frequency

response

Overall frequency

response

Overall frequency

response

Specifications

Guide to recording times

Linear PCM format:

Recording mode

96 kHz 24 bit 55 min. 10 min. 25 min. 55 min. 1 h. 50 min. 3 h. 45 min.

96 kHz 16 bit 1 h. 25 min. 20 min. 40 min. 1 h. 20 min. 2 h. 5 0 min. 5 h. 45 min.

48 kHz 24 bit 1 h. 55 min. 25 min. 55 min. 1 h. 50 min. 3 h. 5 0 min. 7 h. 40 min.

48 kHz 16 bit 2 h. 55 min. 40 min. 1 h. 25 min. 2 h. 50 min. 5 h. 45 min. 11 h. 30 min.

44.1 kHz 24 bit 2 h. 5 min. 30 min. 1 h. 2 h. 4 h. 10 min. 8 h. 20 min.

44.1 kHz 16 bit 3 h. 10 min. 45 min. 1 h. 30 min. 3 h. 5 min. 6 h. 15 min. 12 h. 35 min.

MP3 format:

Recording mode

320 kbps

256 kbps 17 h. 45 min. 4 h. 20 min. 8 h. 50 min. 17 h. 20 min. 35 h. 69 h. 40 min.

128 kb ps

WMA format :

Recording mode

160 kbps

128 kbps 34 h. 45 min. 8 h. 30 min. 17 h. 20 min. 34 h. 68 h. 40 min. 136 h. 20 min.

64 kbps

Built-in flash

memor y (2 GB)

Built-in flash

memor y (2 GB)

14 h. 10 min. 3 h. 30 min. 7 h. 13 h. 50 min. 28 h. 55 h. 40 min.

35 h. 35 min. 8 h. 50 min. 17 h. 40 min. 34 h. 50 min. 70 h. 10 min. 139 h. 30 min.

Built-in flash

memor y (2 GB)

27 h. 50 min. 6 h. 50 min. 13 h. 50 min. 27 h. 10 min. 54 h. 50 min. 109 h.

69 h. 35 min. 17 h. 20 min. 34 h. 50 min. 68 h. 10 min. 137 h. 20 min. 272 h. 50 min.

512 MB 1 GB 2 GB 4 GB 8 GB

SD card

Other Information

Notes

• The above values are strictly rough guides.

• Variations in the available recording time will arise as there may be differences in the available memory depending on the card.

• Caution is required, since t he differences in the available recording time will increase when the bit count and bit rate are low.

• Available recording time may be shorter if many short recordings are made. (The displayed available recording time and recorded time are approximate indications).

• The maximum capacity for a single file is limited to approx. 4 GB for WMA and MP3, and approx. 2 GB for Linear PCM format (WAV).

• For WMA format files, the file length for a single file is limited to a maximum length of approx. 26 hours and 40 minutes. For this reason, it will differ from the continuous recording time for a single file.

Guide to battery life

Alkaline batteries:

Specifications

Recording mode

Linear PCM format

Ni-MH Rechargeable batteries:

Recording mode

Linear PCM format

Notes

• The above values are strictly rough guides.

Other Information

• Battery life is measured by Olympus. It varies greatly according to the type of batteries used and the conditions of use.

96 kHz 24 bit 8 h. 13 h.

44.kHz 16 bit 12 h. 26 h.

96 kHz 24 bit 10 h. 26 h.

44.1 kHz 16 bit 16 h. 35 h.

Built-in stereo microphone

(During recording mode)

Built-in stereo microphone

(During recording mode)

Built-in stereo speakers (During playback mode)

Specifications and design are subject to change without notice.

About the additional functions of the LS-10

It is possible to record exceeding 2GB: The recording will continue even if the volume of a single file exceeds 2 GB in the linear PCM format recording.

sT he file is saved every 2 GB in separate

files. It will be treated as multiple files when playing back.

sWhen the recording exceeds 2 GB,

the number of files in the folder may exceed 200 files. The 201st file and later will not be recognized by the recorder, so check by connecting the recorder to a PC.

88.2 kHz/16 bit and 88.2 kHz/24 bit are added to the recording mode of the linear PCM: This recording mode can be

selected from the menu.

À propos des fonctions supplémentaires du LS-10

Il est possible d’enregistrer au-delà de 2 Go: L’enregistrement continu même

si le volume d’un fichier unique excède 2 Go pour un enregistrement au format PCM linéaire.

sLe fichier est enregistré tous les 2 Go

dans des fichiers distincts. Il sera traité comme des fichiers multiples lors de la lecture.

sSi l’enregistrement excède 2 Go et que

le nombre de fichiers dans le dossier excède 200 fichiers, le 201e fichier et les suivants ne seront pas reconnus par l’enregistreur. Vérifiez lorsque vous raccordez l’enregistreur à un PC.

88,2 kHz/16 bits et 88,2 kHz/24 bits sont ajoutés au mode d’enregistrement du PCM linéaire: ce mode d’enregistrement

peut être sélectionné à partir du menu.

4 Guide to recording times:

Recording

medium

Built-in flash memory (2 GB)

SD card 512 MB 15 min. 20 min.

1 GB 2 GB 4 GB 8 GB

16 GB

4 Guide sur les durées d’enregistrement:

Support

d’enregistrement

Mémoire flash intégrée (2 Go)

Carte SD 512 Mo 15 min. 20 min.

1 Go 2 Go 4 Go 8 Go

16 Go

Recording mode

88.2 kHz/ 24 bit

1 h. 1 h.

30 min.

1 h. 1 h. 2 h. 3 h.

4 h.

10 min.

8 h.

15 min.

Modes d’enregistrement

88,2 kHz/

24 bit

1 h. 1h.

30 min.

1 h. 1 h. 2 h. 3 h.

4 h.

10 min.

8 h.

15 min.

88.2 kHz/ 16 bit

35 min.

45 min.

30 min.

5 min.

6 h.

15 min.

12 h.

30 min.

88,2 kHz/

16 bit

35 min.

45 min.

30 min.

5 min.

6 h.

15 min.

12 h.

30 min.

Declaration of Conformity

Model Number : LS-10 Trade Name : DIGITAL VOICE RECORDER Responsible Par ty : OLYMPUS IMAGING AMERICA I NC. Address : 3500 Corporate Park way, P.O. Box 610, Center Valley, PA 18034-0610, U.S. A.

Telephone Number :1-888-553- 4448 This device Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any inter ference received, including interference that may cause undesired operation.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

Canadian RFI

This digital appar atus does n ot exceed th e Class B limits for radio noise em issions f rom digital apparatus as set out in the Radio Interf erence Re gulatio ns of the Canadian Department of Commun icatio ns. Cet appar eil numérique n e dépasse pas les l imites de la Caté gorie B pour les é missions de br uit radio émanan t d’appareils numé riques,

tel que prévu dans les Règlements sur l’Interférence Radio du D épartement Cana dien des Communications.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health,environment and customer protection. This symbol [crossed-out wheeled bin WEEE

Annex IV ] indicates separ ate collection of waste electr ical and electronic equipment in the EU countr ies. Please do not throw the equipment into the domestic refuse. Please use the retur n and collec tion systems avail able in your count ry for the disposa l of this pro duct.

Applicab le Produc t : LS-10

L’indication “C E” signif ie que ce produit est confor me aux exigences concernant la sécurité, la santé, l’environnement et la protectio n du consommateur. Le sym bole [po ubelle sur r oue barré e d’une croix W EEE

annexe IV ] indique une col lecte séparée d es déchets d’équipeme nts électriques et électr oniques dans les pays de L’UE. Veuillez ne pas jeter l’équipement dans les or dures domestiq ues. A utiliser pou r la mise en rebut de c es type s d’équipements conf ormément au x sy stè me s de tra it eme nt e t de co lle ct e di spo ni ble s dans votre pays.

Produit applicable : LS-10

La marca “ CE” indica que este p roducto cumple con los requisitos europeos en materia de seguridad, salud, medio ambiente y protección al consumi dor. Este símbolo [un contene dor de basura tachado

con una X en el Anexo IV de WEEE] indic a que la recogida de basura de equipos eléctricos y electrónicos deberá tratarse por separado en los países de la Unión Europea. No tire este equipo a la basura doméstica. Para el desecho de este tipo de equ ipos util ice los sistemas de devolución al vendedor y de recogida que se encuentren disponibles.

Producto ap licable: LS-10

Das „CE“ Ze ichen bestatigt die Ubereinstimmun g mit den Europaischen Bestimmungen fur Betriebssicherheit und Umweltschutz. Dieses Symbol [durchgestrichene Mülltonne

nach WEEE Anhang IV] weist auf die getrennte Rücknahme elektrischer und elektronischer Geräte in EU-L ändern hin. Bit te werfen Si e das Gerät nicht in den Hausmüll. Informieren S ie sich übe r das in Ihrem Lan d gültige Rückn ahmesystem und nut zen dieses zur Entsorgung.

Anwendbare P rodukte : LS-10

Знак "CE" обозначает, что этот п pодукт соответствует евpопейским тp ебованиям по безопасности, охpане здоpовья, экологической безопасности и безопасности пользователя.

Этот символ [пеpечеpкнутая мусоp ная уpна

WEEE на колеса х, пpиложение IV] обозначает pаздельный сбоp электpических и электpонных

отходов в Pоссии. Пожалуйста, не выбpасывайте изделия в бытовой мусоpопpовод. Используйте системы возвpата и сбоpа (если таковые имеются) для утилизации отходов вышеуказанных типов.

Пp именимое изделие: LS-10

Il marchi o “CE” indica c he questo prodot to è conforme alle nor me della comuni tà europea per q uanto riguard a la sicurezza, la salute, l’ambie nte e la protezione del consumatore. Questo simbolo [contenitore di spazzatura barrato

come illustrato nell’allegato IV della direttiva WEEE] indica una raccolta separat a dei rifiuti di apparecchiature elettriche ed elettroniche nei paesi dell’U nione Europea . Si prega di non get tare questo disposi tivo tra i rif iuti domesti ci. Si prega di ut ilizzare i sistemi di r accolta e di recup ero disponibili pe r lo smaltimento di questo tipo di dispositivi

Prodotto applicab ile : LS-10

P2-BS0022-03

AP0801

Olympus LS-10 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
