DIGITAL VOICE

RECORDER

DS-5000

DS-5000iD

DETAILED

INSTRUCTIONS

Thank you for purchasing an Olympus

Digital Voice Recorder.

Please read these instructions for information

about using the product correctly and safely.

Keep the instructions handy for future reference.

To ensure successful recordings, we recommend that

you test the record function and volume before use.

Introduction

● The contents of this document may be changed in the future without advanced notice. Contact our Customer Support Center for the latest information relating to product names and model numbers.

● The utmost care has been taken to ensure the integrity of the contents of this document. In the unlikely event that a questionable item, error, or omission is found, please contact our Customer Support Center.

● Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reasons is excluded from the Olympus’s liability.

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Macintosh is a trademark of Apple Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

SD and microSD are trademarks of SD card Association.

SDHC and microSDHC are trademarks of SD card Association.

Other product and brand names mentioned herein may be the trademarks or registered trademarks of their respective owners.

INDEX

Table of Contents

Safe and Proper Usage

Getting Started

Basic Operations

Advanced Operations

Managing Files on Your PC

Other Practical Use Methods

Other Information

P. 4

P. 6

P. 1 1

P.27

P. 4 1

P. 6 9

P. 7 7

P. 7 8

Table of Contents

Table of Contents ......................................4

Safe and Proper Usage ............................ 6

General Precautions ................................. 7

1 Getting Started

Main Features ........................................ 11

Memory Card ......................................... 12

Identification of Parts ............................. 14

Installing Batteries ................................. 16

Charging Battery Pack .......................... 18

Using the Battery Pack .......................... 20

Using the AC Adapter ............................ 21

Turning ON the Recorder ...................... 22

Power Save Mode (Power Save) .......... 22

Inserting and Ejecting a SD card .......... 23

Setting Time and Date (Time & Date) ... 24 Setting Recording Destination

(Card Select) ................................... 26

2 Basic Operations

Recording .............................................. 27

Microphone Sensitivity (Mic Sense) ...... 31

Recording Modes (Rec Mode) .............. 32

Using the Variable Control Voice Actuator

(VCVA) ............................................. 33

Hands-free Recording ........................... 34

Recording Monitor ................................. 34

Playing ................................................... 35

Erasing ................................................... 37

3 Advanced Operations

Menu List ............................................... 41

Learning to Use the Menu ..................... 43

Selecting Folders and Files ................... 44

Displaying File Information .................... 45

Device Lock Function ............................ 46

Locking Files (Lock) .............................. 50

Pending Files (Pending) ........................... 51

Setting Priority Levels (Priority) ............ 52

Setting the Author ID and Work Type.... 53

Verbal Comment.................................... 56

Index Marks ........................................... 57

Language (Language) ........................... 58

Backlight (Backlight) .............................. 59

LED (LED) ............................................. 60

LCD Contrast Adjustment (Contrast) .... 61

System Sounds (Beep) ......................... 62

Inserting and Ejecting a microSD card ....

Formatting the Card (Format) ............... 64

Check System Information (System info.) .. 66

Changing the USB Class (USB Class) .... 67

Customizing the Recorder ..................... 68

4 Managing Files on Your PC

DSS Player Software............................. 69

Installing DSS Player Software ............. 71

Uninstalling DSS Player Software......... 72

Using Online Help ................................. 73

Connecting Recorder to PC .................. 74

Running DSS Player Software .............. 76

5 Other Practical Use Methods

Using as External Memory of the Computer ...

6 Other Information

Alarm Message List ............................... 78

Troubleshooting ..................................... 79

Accessories ........................................... 80

Specifications ........................................ 81

Technical Assistance and Support ........ 82

Table of Contents

Safe and Proper Usage

Before using your new recorder, read this manual carefully to ensure that you know how to operate it safely and correctly. Keep this manual in an easily accessible location for future reference.

Important Safety Precautions

Certain symbols are used in the user’s manual and on this product to help protect users, their surroundings, and their property from possible injury or damage. Please familiarize yourself with the following definitions and meanings for each symbol before reading the precautions.

Signifies danger which may result in serious

Danger

Warning

Caution

injury or death.

Indicates items or actions which may cause serious injury or death.

Indicates items or actions which may result in damage or personal injury.

Symbols prohibiting a specific action

Prohibited

Symbols requiring a specific action

Mandatory

Do not disassemble

Unplug from power outlet

Convention Used In this Manual

• The word “card” is used to refer to the SD card and microSD card.

• The word “DSS Player” is used to refer to the DSS Player Pro R5 Dictation Module in Windows environment and DSS Player in Apple Macintosh environment.

• The Notes at the bottom of a page are used for additional information, exceptions, or related events.

•Words in uppercase form such as PLAY or REC are used to describe a function, button, or switch position on the recorder.

General Precautions

● Do not leave the recorder in hot, humid locations such as inside a closed automobile under direct sunlight or on the beach in the summer.

● Do not store the recorder in places exposed to excessive moisture or dust.

● Do not use organic solvents such as alcohol and lacquer thinner to clean the unit.

● Do not place the recorder on top of or near electric appliances such as TVs or refrigerators.

● Avoid recording or playing back near cellular phones or other wireless equipment, as they may cause interference and noise. If you experience noise, move to another place, or move the recorder further away from such equipment.

● Avoid sand or dirt. These can cause irreparable damage.

● Avoid strong vibrations or shocks.

● Do not disassemble, repair or modify the

unit yourself.

● Do not operate the unit while operating a vehicle (such as a bicycle, motorcycle, or go-cart).

● Keep the unit out of the reach of children.

<Warning regarding data loss> Recorded content in memory may be destroyed or erased by operating mistakes, unit malfunction, or during repair work.

It is recommended to back up and save important content to other media such as a computer hard disk.

Batteries/Rechargeable Battery Pack

Danger

• Do not solder lead wires or terminals directly onto a battery or modify it.

• Do not connect the = and - terminals together. This may cause fire, overheating or electric shock.

• When carrying or storing the battery, be sure to put it in the provided case to protect its terminals. Do not carry or store the battery with any metal objects (such as key rings). If this warning is not followed, fire, overheating or electric shock may occur.

• Do not connect the batteries directly to a power outlet or a cigarette lighter of an automobile.

• Do not insert the batteries with their = and

- terminals reversed.

• If any liquid from a battery gets into your eyes, promptly wash it off with clean water and consult your doctor at once.

• There is a hole from which gas escapes on the = terminal. Do not cover or block it.

Warning

• Batteries should never be exposed to flame, heated, short-circuited or disassembled.

• Do not attempt to recharge alkaline, lithium or any other non-rechargeable batteries.

• Never use any battery with a torn or cracked outer cover.

• Keep batteries out of the reach of children.

General Precautions

• If you notice anything unusual when using this product such as abnormal noise, heat, smoke, or a burning odour:

1 remove the batteries immediately while

being careful not to burn yourself, and;

2 call your dealer or local Olympus

representative for service.

• Do not expose the rechargeable batteries to water. Do not allow water to contact the terminals.

• Do not remove or damage the battery insulating sheet.

• Do not use the batteries if you find something wrong with them such as leakage, color change or deformity.

• Unplug the charger if the charging is still incomplete after the specified time it should take.

• Should any battery liquid get on skin or clothing, promptly wash it off with clean water.

• Keep batteries away from fire.

Caution

• Rechargeable batteries are exclusively for use with Olympus digital voice recorder DS5000/5000iD. Do not use them in combination with other equipment.

Do not subject batteries to strong shocks.

•

• Do not use batteries of different types, voltages, and/or brand names.

• When using rechargeable batteries or battery pack, make sure they are charged at the same time.

• When using rechargeable batteries or battery pack that have not been used for a while, be sure to recharge them before use.

Cradle

Danger

Warning

Do not disassemble

• Never disconnect the AC adapter or power cord with a wet hand. This may cause electric shock or injury.

• Only use the included AC adapter with the cradle. Using it in combination with other AC adapters may cause overheating, fire, or malfunction.

• Never disassemble, modify, or repair the recorder yourself. This may cause fire, electric shock, or injury.

• Never use it in locations where it might come into contact with water (such as a bathroom). Getting the recorder wet may cause fire or electric shock.

• Do not drop the recorder or allow it to suffer a shock. This may cause damage, fire, or electric shock.

• Do not insert metal wires or similar objects. This may cause fire, overheating or electric shock.

• Keep out of the reach of children. Do not let children use this product without adult supervision.

General Precautions

Caution

• Do not use or store the Cradle in/ on an unstable place, such as a television set, etc. If it falls, it may cause injury or break.

• Unplug the AC adapter or power cord from the cradle and AC outlet when not using for extended

Unplug from power outlet

periods of time. If this precaution is not followed and the cradle is damaged then fire may occur.

AC Adapter

Danger

• Be sure to use the AC Adapter with the proper voltage (AC 100 - 240 V). Using it with other voltage levels may cause fire, explosion, overheating, electric shock or injury.

• For safety, be sure to unplug the AC Adapter from the outlet before performing maintenance or

Unplug from power outlet

cleaning. Also, never plug in or disconnect the power plug with a wet hand. This may cause electric shock or injury.

Warning

•Do not attempt to disassemble, repair or modify the AC adapter in any way.

• Keep foreign objects including water, metal, or flammable substances from getting inside the product.

• Do not moisten the AC adapter or touch it with a wet hand.

• Do not use the AC adapter in the vicinity of flammable gas (including gasoline, benzine and lacquer thinner).

In case

• ... the internal parts of the AC adapter are exposed because it has been dropped or otherwise damaged:

• ... the AC adapter is dropped in water, or if water, metal flammable substances or other foreign objects get inside it:

• ... you notice anything unusual when using the AC adapter such as abnormal noise, heat, smoke, or a burning odour:

1 do not touch any of the exposed parts; 2 immediately disconnect the power supply

plug from the power outlet, and; call your dealer or local Olympus representative

for servicing. Continued use of the AC adapter under these circumstances could result in electric shock, fire or injury.

Caution

• Do not use the AC Adapter if the power plug is damaged or the plug is not completely connected to the outlet. This may cause fire, overheating, electric shock, short circuit or damage.

• Unplug the AC Adapter from AC outlet when not using. If this precaution is

Unplug from power outlet

not followed, fire, overheating or electric shock may occur.

• Make sure to hold the plug when removing the power plug from the outlet. Do not bend the cord excessively or put a heavy object on it. This may cause fire, overheating, electric shock or damage.

General Precautions

• If something appears to be wrong with the AC Adapter, unplug the AC Adapter from the outlet and consult your nearest service center. Using the AC Adapter may cause fire, overheating, electric shock or injury.

• Do not use or keep the AC Adapter in very hot places, such as in direct sunlight, in a closed car on a sunny day, near a heater, on an electric carpet, etc. Do not use the AC Adapter if something is covering it (such as a blanket). This may cause fire, explosion, leakage or overheating.

1 Getting Started

Main Features

● Slide switch operation for ease of use and

fast response.

● Supports two types of memory: SD card and

microSD card (☞ P.12).

● Three Programmable smart buttons F1,F2

and F3 (☞ P.68).

● Recording and storing voice in Digital

Speech Standard Pro (DS2 format).

● Two recording modes, QP (Quality

Playback) mode or SP (Standard Playback) mode (☞ P.32).

● Data encryption function for securing

recordings on the device.

● The recorder ’s Ni-MH Rechargeable Battery

Pack can be charged in the recorder using the USB cable or the AC adapter (☞ P.18,

19).

● Supports USB 2.0. High-Speed, which

enables high-speed data transmission from the recorder to your computer.

● Five folders and up to 200 files/folder, for a

maximum of 1000 recordings (☞ P.27).

When using DSS Player, it is possible to create up to a maximum of seven folders (1,400 files) (☞ P.68, 69).

● Large LCD screen with backlight.

● Device Lock function to prevent unauthorized

access to device (☞ P.68).

Authentication system via password or fingerprint scan* (☞ P.46-49).

● Indexmark function which is useful to search

particular points in the dictation (☞ P.57).

●

Verbal comment function which allows transcriptionists to instantly search and play back instructions on their computer (☞ P.56).

● Priority Setting (☞ P.52).

● DSS Player software included (☞ P.69).

It is possible to customize the recorder in a number of ways.

*DS-5000iD only

Main Features

Memory Card

This recorder uses dual memory in the form of SD card memory and built-in memory (microSD card), allowing you to record to the selected memory. A removable microSD card is used for the built-in memory thus allowing you to remove your recording from the recorder safely in case of recorder malfunction or failure.

Memory Card

Compatible Cards

The recorder supports cards with memory capacity between 512 MB to 8 GB.

Settings and operating environment relating to the card

Check the latest operating information on the Olympus homepage (http://www.olympus.com) when using cards other than the included card. In addition, refer to the following pages as well when handling the card.

• Inserting and Ejecting a SD card (☞ P.23)

•

Inserting and Ejecting a microSD card (☞ P. 63)

•

Setting Recording Destination (Card Select) (☞ P.26)

• Formatting the Card (Format) (☞ P.64)

SD card

microSD card

SD card

1 Card Lock

SD card is equipped with a lock function. When the lock function is used, important data is protected by preventing it from being accidentally overwritten or erased. When the lock function is set will appear on the display.

2 Index area

For writing down information identifying card or content.

3 Contact area

Comes into contact with the recorder’s signal read contacts.

microSD card

1 Contact area

Comes into contact with the recorder’s signal read contacts.

Memory Sizes of Cards and Approximate Recording Times*

Memory Size QP Mode SP Mode

512MB 38 hr. 45 min. 79 hr. 30 min.

1GB 77 hr. 40 min. 159 hr. 05 min.*

2GB 157 hr. 55 min.*2323 hr. 35 min.*

4GB 310 hr. 10 min.*2635 hr. 25 min.*

8GB 631 hr. 15 min.*21293 hr. 15 min.*

The above are the standard times, and the available recording time will vary depending on the card.

*1: Available recording time for one continuous file.

Available recording time may be shorter if many short recordings are made.

*2:Total recording time of several files. The maximum

recording time per file is 99 hours 59 minutes.

Warning

• Do not touch the card contacts. That may damage the card.

• Do not place the card in locations with static electricity.

• Store the card in a location that is out of the reach of children. In case of accidental ingestion, consult a physician immediately.

Check Card Information (Card Info.)

Information such as the memory capacity and remaining memory for installed cards can be displayed on the recorder (☞ P.42).

Card Info.

SD Remain Capacity

mSD

micro SD Remain Capacity

BACK

Notes

• When initializing (formatting) a card, confirm that no necessary data is stored on the memory card beforehand. Initialization completely erases the existing data on the card.

• In some cases cards which have been formatted (initialized) by another device, such as a computer, cannot be recognized. Be sure to format them with this recorder before using.

• The card has a service life. When reaching the end of its life, writing or erasing data on the card will be disabled. In this case, replace the card.

• If you use a PC card adapter compatible with the card to save or delete some data on the card, the maximum recording time on the card may be decreased. To recover the original recording time, initialize/format the card in the recorder.

• Olympus will not be held liable for any data corruption or loss due to misuse of the media card.

540MB

1024MB

250MB 512MB

EXIT

Memory Card

Identification of Parts

7 8

Identification of Parts

! @

1SD card slot 2Built-in microphone 3NEW button 4Slide (REC/STOP/PLAY/REV)

switch

5POWER (ON/OFF) switch 6ERASE button 7EAR (Earphone) jack 8MIC (Microphone) jack 9Record/Play indicator light 0Display (LCD panel) !

+ (Volume) button

@Fast Forward (9) button #OK/MENU button

2 3

$ Programmable smart button

(F1,F2,F3)

% Rewind (0) button ^

(Volume) button

& Built-in speaker * Battery removal tape ( Fingerprint sensor* ) Battery cover

- PC (USB) terminal = Cradle connector q Power jack w Battery cover release button e microSD card cover

*DS-5000iD only

(

)

Display Status Indicators

/ 030

00 M 00

Identification of Parts

QP DICT

2 3 4

5 6 7

MIKE

VERBAL

Display in the recording

Display in the recording mode

mode

025

/ 030

22 M 30

DISPLY INDEX

1 Record mode indicator 2 Current folder 3 Memory remaining indicator

(E/F bar)

4 Recording elapsed time 5 Remaining recording time 6 Level meter indicator 7 Button guide display 8 Microphone sensitivity indicator

Author ID indicator

Battery indicator

SD card indicator

mSD

microSD card indicator

VCVA

VCVA (Variable Control Voice

Actuator) indicator

QP DICT VCVA

MIKE

! @

INSERT

Display in the playback

Display in the playback mode

mode

SPEED INDEX

9 Current file number 0 Total number of files in the folder ! Playback position bar indicator @ Current Playback time # Total recording time of the

selected file

$ Slide Switch Guide

You can display the slide switch guide by using “Slide Switch Guide settings” (P.68) of the customize functions of DSS Player.

Pending indicator

Card Lock indicator

Encryption indicator

Priority indicator

Erase Lock indicator

025

12M 05

/ 030

Identification of Parts

Installing Batteries

This recorder can be used with either Ni-MH Rechargeable Battery Pack or AAA Alkaline Batteries.

Ni-MH Rechargeable Battery Pack (included)

Installing Batteries

Lightly press down on the battery cover

release button, then open the battery cover, as shown in the illustration below.

Insert the Ni-MH Rechargeable Battery

Pack, observing the correct polarity as shown in the illustration below, then close the battery cover.

When using the Ni-MH Rechargeable Battery Pack, insert it so that the flat surface with the polarities is facing down as shown in the illustration below. Exercise caution, as the

directions inscribed inside the battery compartment apply to AAA batteries only.

In addition, when inserting the battery pack, insert them so that the tape is under the battery pack, as shown in the illustration. The battery pack can then be removed easily by pulling up the tape. When pulling on the tape the battery pack may suddenly pop out, so be sure to press down lightly the battery pack with your finger while pulling.

Projection part

The flat surface is facing downward.

The battery pack needs to be fully charged in the recorder before initial use.

Battery removal tape

Recharging Battery Pack

The battery indicator on the display changes as the battery pack lose power.

→ →

When appears on the display, charge the battery pack as soon as possible. When the battery pack charge is low, the recorder shuts down and [ Battery Low ] appears on the display.

Notes

• Removing the battery pack while the recorder is in use may corrupt the file.

• If power runs out during recording, current file will be lost or corrupted!.

• It is crucial to charge the battery pack once you see one hash mark on the display battery indicator.

• Remove the battery pack if you are not going to use the recorder for an extended period of time.

Installing Batteries

AAA Alkaline Batteries

Lightly press down on the battery cover

release button, then open the battery cover.

Insert two AAA batteries, observing the

correct polarity as shown in the illustration below, then close the battery cover.

Insert the batteries in the direction inscribed on the inside of the recorder’s battery compartment. In addition, when inserting the batteries, insert them so that the tape is under the batteries, as shown in the illustration. The batteries can then be removed easily by pulling up the tape. When

pulling on the tape the batteries may suddenly pop out, so be sure to press down lightly the batteries with your finger while pulling.

The battery indicator on the display changes as the batteries lose power.

Replacing Batteries

When appears on the display, replace the batteries as soon as possible. When the batteries are too weak, the recorder shuts down and [ Battery Low] appears on the display.

Cautions Concerning the Battery

Warning

• Using batteries for which part or all of the external coating (insulating sheath) is peeling off or batteries which have ruptured may cause fluid leaks, overheating, and explosions. For this reason such batteries should absolutely not be used.

• Commercially available batteries for which part or all of the external coating (insulation sheath) has been peeled off should absolutely not be used.

Unusable batteries

Batteries for which the entire external coating (insulating sheath) is peeled off (naked batteries), or those where it has partially been peeled off.

Notes

• Be sure to turn OFF the recorder before replacing the batteries. Removing the batteries while the recorder

is in use may corrupt the card. If you are recording into a file and the batteries run out, you will lose your currently recorded file since the file header will not be written. It is crucial to replace the batteries when one hash mark in shown in the battery icon.

• Be sure to replace both batteries at the same time.

• Never mix old and new batteries, or batteries of

different types and/or brands.

• If it takes longer than 1 minute to replace dead batteries, you may have to reset the time when you load new batteries.

• Remove the batteries if you are not going to use the recorder for an extended period of time.

Installing Batteries

Charging Battery Pack

You can charge the Ni-MH Rechargeable Battery Pack in the recorder using the cradle in combination with the USB cable or AC Adapter. Or by directly connecting the AC Adapter or USB cable to the recorder. Battery pack need to be fully charged before first use.

Full charge time: Approximately 3 hours.

Charging Battery Pack

Charge the Ni-MH Rechargeable Battery Pack using the Cradle

The Ni-MH Rechargeable Battery Pack in the recorder can be charged by connecting the AC adapter or USB cable to the cradle with the recorder set in it.

Charging using Cradle and AC Adapter

Connect the AC adapter to the cradle.

For connection procedures, see P.75. When using the AC adapter for charging, connect the power plug to the cradle AC connector (☞ P.21).

Firmly press the recorder all the way into the cradle as shown in the illustration.

CHARGE indicator light glows red and the charging starts. The light goes out when the charging is complete.

Charging using Cradle and USB Cable

Connect the USB cable to the cradle.

For connection procedures, see P.75.

Turn the recorder’s POWER switch OFF (☞ P.22), then firmly press the recorder all the way into the cradle as shown in the illustration.

CHARGE indicator light glows red and the charging starts. The light goes out when the charging is complete. When the recorder is connected to a USB cable while its POWER switch is turned OFF, only charging will be performed, and the computer will not recognize it as a drive.

CHARGE indicator light

Charging Battery Pack

Directly Charging Through the Recorder

The Ni-MH Rechargeable Battery Pack in the recorder can be charged by connecting an AC adapter or USB cable to the recorder.

Charging using AC Adapter (no cradle)

Connect the AC adapter to the recorder.

For connection procedures, see P.21. When using the adapter for charging, connect the power plug to the recorder power jack.

Charging using the USB cable (no cradle)

While recorder’s POWER switch is turned OFF, connect the USB cable to the recorder.

When the recorder is connected to a USB cable while its POWER switch is turned OFF, only charging will be performed, and the computer will not recognize it as a drive.

Notes

• Charge the battery pack often for first few uses. Battery pack performs better after several full charge/discharge cycles.

• Battery packs other than the supplied battery pack cannot be charged.

• If you charge the battery pack right after charging is complete, it will take only few minutes to charge the battery pack.

• The PC must be ON when charging battery pack via the USB cable connection.

• Charging battery pack via the USB cable connection may not be successful depending on the power supply capacity of your PC. Use the AC adapter instead.

• Do not set or remove the recorder from the cradle while it is in operation.

• Do not charge the recorder with the USB hub connected.

• Do not attach or remove the rechargeable battery pack if the AC adapter or USB cable is connected.

Charging Battery Pack

Using the Battery Pack

The battery pack is exclusively for use with Olympus voice recorder DS-5000/DS-5000iD. Never use them in combination with other equipment.

Discharging

Using the Battery Pack

Battery pack self-discharge while this is not in use. Be sure to charge them regularly before use.

Battery life

Over time, rechargeable battery packs gradually wear down. If you charge you battery pack regularly and you notice a decrease in usage time, then it is probably time to purchase a new battery pack.

Operating temperature

Rechargeable batteries, such as the battery pack, are chemical products. Batteries efficiency may fluctuate even when operating within the recommended temperature range. This is an inherent nature of such products.

Recommended temperature range for use

Discharging (when using appliance):

0°C - 42°C/32°F - 107.6°F

Charging:

5°C - 40°C/41°F - 104°F

Storage:

–20°C - 30°C/–4°F - 86°F

Using the battery pack outside the above temperature range may result in declining efficiency and shorter battery life. In order to prevent battery leakage or rust, remove the battery pack from the products when you will not be using them for a long time, and store them separately.

Notes

• This recorder is designed to fully charge battery pack regardless of their energy level. However, for best results when charging newly purchased battery pack or battery pack that have not been used for a long time (more than one month), It is recommended to fully charge the battery pack then discharge repeatedly for 2 to 3 times.

• When disposing battery packs, always observe the local laws and regulations. Contact you local recycling center for proper disposal methods.

• If Ni-MH rechargeable battery pack is not fully discharged, protect against short-circuiting (e.g. by taping the contacts) before disposing.

For customers in Germany

Olympus has a contract with the GRS (Joint Battery Disposal Association) in Germany to ensure environmentally friendly disposal.

Using the AC Adapter

Use the AC adapter (included) in cases where battery consumption is a concern, such as when recording for extended periods of time. Plug the AC adapter (included) into a household power outlet and connect the power plug to the recorder’s power connector (DC 5V). Always turn off the recorder before you connect power. Refer to P.18-19 regarding supplying power to the recorder and cradle with the aim of charging the Ni-MH Rechargeable Battery Pack (☞ P.16).

AC adapter

AC connector

AC cable

The plug type varies depending on the country where sold.

Warning

• Always stop recording before connecting or disconnecting power.

• When the AC adapter is not in use, disconnect the power supply plug from the power outlet.

• Use only the correct power supply voltage as indicated on the adapter.

Detecting abnormal voltage

If the recorder detects a DC power voltage outside of the allowable voltage (allowable voltage: 4.6 to 5.5 V), then [Power Supply Error Remove Power Plug] will appear on the display and all operations will stop. The recorder will not be operable while abnormal voltage is detected. Use the included AC adapter.

Power Supply

Error

Remove

Power Plug

Using the AC Adapter

Turning ON the

Power Save Mode

Recorder

With the battery charged in the recorder and the card inserted properly, the recorder is ready to work. While the POWER switch on the side of the

recorder is in the OFF position, none of the

Turning ON the Recorder/Power Save Mode

buttons or switch on the recorder will be active. Move the POWER switch to the ON position to activate the recorder.

(Power Save)

When the recorder is ON but not in use for 10 minutes, by default, it will switch to power save mode automatically. To reactivate the recorder again, operate any button or the slide switch.

Power Save Setting

You can set the time to enter Power Save mode from among [5 min.], [10 min.], [30 min.], [1 hour], and [Off] . To exit power save, press any button. The [Power Save] setting can be changed from the Menu. For more details, refer to “Menu List” (☞ P.41) and “Learning to Use the Menu” (☞ P.43).

Power Save

5min.

10min.

30min. 1hour Off

BACK EXIT

Inserting and Ejecting a SD card

Inserting a SD card

Insert the SD card into the card slot in the direction shown in the illustration until it clicks.

This recorder uses a microSD card as its builtin memory. The microSD card has been preloaded. Refer to P.63 when removing or inserting the card during emergencies.

Ejecting a SD card

Push the SD card inward once to unlock it, and let it eject.

Recorder Card Selection

When inserting SD card into the SD card slot, the recorder message [Please Wait] will flashes on the LCD display for few seconds while validating the SD card. The recorder recording destination will be the default location selected from the menu [Card Select] option when available. In case the default location is not available, the recorder will automatically change over to the other card. When SD card selected from the menu [Card Select] option is ejected from the recorder, the recorder will automatically change over the recording destination to the other card.

SD Card Selected

Notes

• Insert the card keeping it straight.

• The card stops with a click when it is inserted all

the way.

• Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam.

• If the card is not inserted all the way, data may not be written to the card.

• Hold the card straight and pull it out.

• If a unformatted card is installed, the recorder will automatically display the menu format option (☞ P.64).

• Never use any card in the recorder unless it has been formatted on this unit (☞ P.64).

•Never remove the card while the recorder is in operation. This may damage the data.

• Releasing your finger quickly after pushing the card inward may cause it to eject forcefully out of the slot.

Inserting and Ejecting a SD card

Setting Time and Date (Time & Date)

Setting the correct time and date on the recorder is very important since every file recorded on the recorder will have the time and date information as part of the file header. This will simplify the file management aspects later on.

The hour indicator will flash automatically

Setting Time and Date

when you load batteries before using the recorder for the first time, or after the recorder hasn’t been used for a long time. However, when a Password or Fingerprint (DS-5000iD only) has been set as the device lock function (☞ P.46), the recorder will go to the time and date set screen after verification (unlocking).

F1, F2, F3 button

OK/MENU,+, –,

9, 0

button

Press the 9 or 0 button to select

the item to set.

Select the item from “hour”, “minute”, “year”, “month” and “day” with a flashing point.

Time & Date

1 M 14 D 2008 Y

5: 00 PM

24H

BACK EXIT

Press the + or – button to set.

Follow the same steps by pressing the 9 or

0 button to select the next item, and press the

+ or – button to set.

Time & Date

01 M 14 D 2008 Y

5 : 45 PM

24H

BACK EXIT

•You can choose between 12 and 24 hour display by pressing the F2(24H or 12H)* button while setting the hour and minute. Example: 5:45 P.M.

5:45 PM (Initial setting)←→ 17:45

Setting Time and Date (Time & Date)

• You can choose the order of the year, month, day by pressing the F2(D/M/Y or Y/M/D or M/ D/Y)* button while setting them. Example: January 14, 2008

(Initial setting)

*The display will vary depending on the status of the

settings.

Press the OK/MENU button to

complete the setup screen.

The clock will start from the set date and time. Press the OK/MENU button according to the time signal.

1M 14D 2008

14D 1M 2008

2008Y 1M 14D

Notes

• If the slide switch is moved to a position other than STOP while setting the time and date, the time and date currently being set (un-finalized time and date) will be cancelled and it will revert to the previously set time and date.

•You can set the time and date from your PC using DSS Player software (☞ P.69).

Changing the Time and Date

When the recorder’s POWER switch is turned ON the [Time & Date] will be displayed for two seconds. If the time and date is not correct, set it using the procedure below.

Press the + or

Menu] screen, then select [Time & Date].

See P.42 regarding the menu.

Device Menu

USB Class

Time & Date

Power Save Reset Settings

Card Info. System Info.

BACK EXIT

Press the OK/MENU or 9 button.

The time and date screen appears. The hour

indicator flashes, indicating the start of the time and date setup process.The following steps are the same as Step 1 through Step 3 of “Setting Time and Date (Time & Date)” (☞ P.24).

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

button in the [Device

–

Setting Time and Date

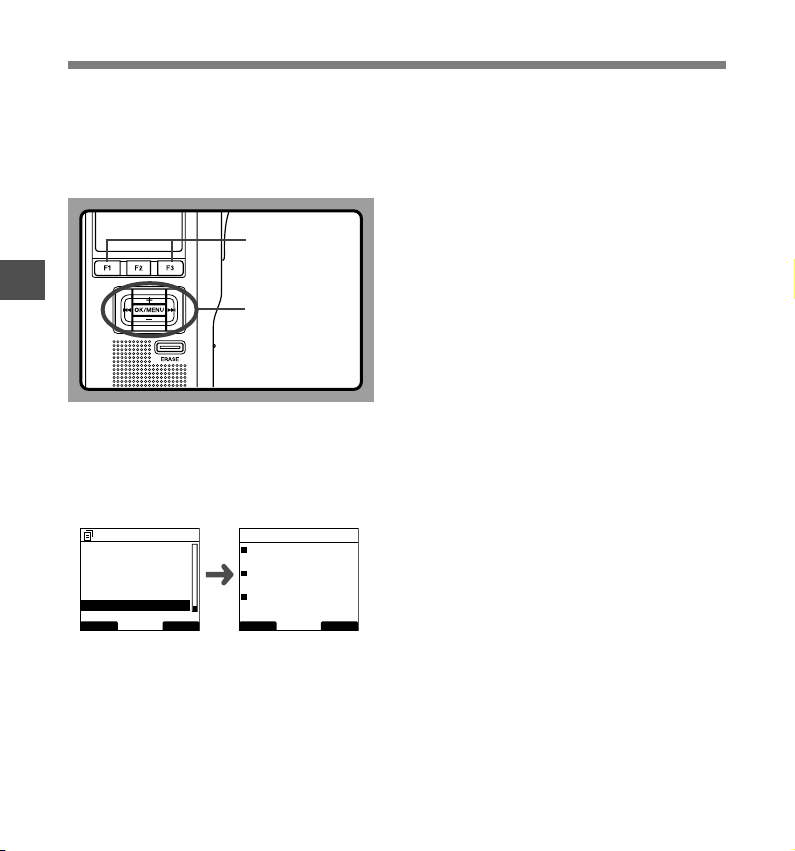

Setting Recording Destination (Card Select)

By default, the recording destination is set to the [SD] at the factory. To change the recording destination, follow the procedure outlined below.

Setting Recording Destination

Select [Card Select] at the [Device Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.42 regarding each menu item settings.

Device Menu

Fingerprint

Card Select

Beep Format

USB Class Time & Date

BACK EXIT

F1, F3 button

OK/MENU, 9, 0 button

+, –,

Press the + or

or [micro SD].

Card Select

mSD

micro SD

BACK

Press the OK/MENU button to

complete the setup screen.

[SD Card Selected] or [microSD Card Selected] will light up on the display, and it will return to the [Device Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Device Menu] screen. The recording destination ( set will appear on the display.

Card Select

mSD

microSD Card

Selected

BACK

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

button to select [SD]

–

EXIT

or ) that was

2 Basic Operations

Recording

By default, the recorder has five folders, A, B, C, D, E and you can select folder by pressing the F1(FOLDER) button. These five folders can be selectively used to distinguish the kind of recording; for example, Folder A might be used to store private information, while Folder B might be dedicated to holding business information. Up to 200 messages can be recorded per folder.

Also, by default, the Recording Mode is QP.

Record Function

By default, the RECORD function is configured to record at the current position (overwrite). However, that can be changed to any of the following settings:

• Append: Appends the recording to the end of the current file (☞ P.28).

• Overwrite: Overwrites the recording starting at the current position in the file (☞ P.29).

• Insert: Inserts the recording at the current position in the file (☞ P.30).

Recording Related Settings

Recording related settings can be configured to provide a suitable recording environment.

• Microphone Sensitivity (Mic Sense) (☞ P.31)

• Recording Modes (Rec Mode) (☞ P.32)

• Using the Variable Control Voice Actuator (VCVA) (☞ P.33)

• Hands-free Recording (☞ P.34)

• Recording Monitor (☞ P.34)

•Verbal Comment (☞ P.56)

• Pending Files (Pending) (☞ P.51)

Recording

031 / 030

FOLDER

PRIOR

INFO

MIKE

QP DICT

New File

Remain

15 H 22 M 40 s

a b

031 / 031

FOLDER

PRIOR

INFO

MIKE

QP DICT

02 M 20 s

15 H 0 2 M 2 0 s

Recording

New Recording

Create a new file to record in.

Press the NEW button to create a new

file.

When [The Worktype List is displayed when a new file is created.] is set in DSS Player (☞

P.69) you can select the Work Type from the Work Type list.

aSelected Author ID bNew file number cRemaining recording time

Move the slide switch to the REC

position to start recording.

The record/play indicator light glows red. Aim the microphone at the sound source. When you press the F2 (DISPLY) button during recording, you can change the LCD screen displays.

Move the slide switch to the STOP

position to stop recording.

If you want to append additional recordings to the same file, move the slide switch to the REC position again.

Notes

•A beep will sound when the remaining recording time reaches 60 seconds, 30 seconds, and 10 seconds while recording.

•When remaining recording time is less than 60 seconds, the record/play indicator light starts flashing in red. When the recording time is decreasing to 30 or 10 seconds, the light flashes faster.

•[Memory Full] or [Folder Full] will be displayed when the memory or folder capacity is full.

- Delete any unnecessary files before recording any further (☞ P.37) or transfer

dictation files to your computer using DSS Player Software (☞ P.69).

- Change the recording destination at [Card select] setting (☞ P.26) or change to a

card with free space.

QP DICT

MIKE

VERBAL

031 / 031

00 M 10 s

15 H 2 2 M 3 0 s

DISPLY

INDEX

Overwrite Recording

You can overwrite a previously recorded file from any point within

the file. Note that the overwritten recordings will be erased.

Select and play the file you want to

overwrite.

Stop playback at the starting point of overwrite.

Move the slide switch to the REC

position to start overwriting.

The record/play indicator light glows red.

aRecording elapsed time bTotal recording time of the selected file

Move the slide switch to the STOP

position to stop overwriting.

Note

•You cannot select a different recording mode (QP, SP) than that of the original file before overwrite recording.

a b

Recording

QP DICT

MIKE

101 / 133

VERBAL

DISPLY

10 M 25 s

00H 1 4 M 00 s

INDEX

Recording

Insert Recording

Additional recording can be inserted into previously recorded file.

Select and play the file you want to

insert an additional recording into.

While playing the file, press the

F1(INSERT) button to insert an

additional recording.

[Insert Rec?] appears on the display.

Move the slide switch to the REC

position to start inserting an additional recording.

The record/play indicator light glows red. [Insert Rec] and the remaining recording time will alternate on the display.

QP DICT VCVA

MIKE

134 / 134

00 H 00 M 10 s

Insert Rec?

QP DICT

MIKE

134 / 134

DISPLY

VERBAL

33 M 2 5 s

EXIT

00 M 11s

4 H 3 3 M 06 S

INDEX

Move the slide switch to the STOP

position to stop inserting the

additional recording.

Notes

• If you place the slide switch in the STOP position for more than two seconds while moving the slide switch from the PLAY position to the REC position, the Insert recording will be cancelled.

• The recording time and date of the file is updated to the time and date of the inserted recording.

•You cannot select a different recording mode (QP, SP) than that of the original file before inserting.

QP DICT

MIKE

VERBAL

134 / 134

00 M 12s

Insert Rec

DISPLY

INDEX

Microphone Sensitivity (Mic Sense)

You can switch between two microphone sensitivities to meet recording needs: [Dictation] for oral dictation and [Conference] which is suited for situations like meetings and conferences with a small number of people. The setting status will appear on the display as

DICT

F1, F3 button

OK/MENU, 9, 0 button

+, –,

CONF

Select [Mic Sense] at the [Record Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Record Menu

Rec Mode VCVA

Mic Sense

BACK EXIT

Press the + or

[Conference] or [Dictation].

Conference...High-sensitivity mode that records

sounds in all directions. Dictation...Low-sensitivity mode suited for dictation.

Mic Sense

Conference

Dictation

BACK EXIT

button to select

–

Press the OK/MENU button to complete

the setup screen.

[Conference Set] or [Dictation Set] will light up on the display, and it will return to the [Record Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Record Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Mic Sense

Conference

Dictation

Set

BACK EXIT

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

DICT

MIKE

025 / 030

New File

02 M 10 s

3 H 0 8 M 05 s

FOLDER

PRIOR

INFO

Microphone Sensitivity

Recording Modes (Rec Mode)

The recording mode can choose between QP (Quality Playback) and SP (Standard Playback).

F1, F3 button

Recording Modes

OK/MENU, 9, 0 button

Select [Rec Mode] at the [Record Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Record Menu

Rec Mode

VCVA Mic Sense

BACK EXIT

Press the + or

or [SP].

Rec Mode

button to select [QP]

–

+, –,

Press the OK/MENU button to complete

the setup screen.

[QP Set] or [SP Set] will light up on the display, and it will return to the [Record Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Record Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Rec Mode

SP Set

BACK

EXIT

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

Set Recording Mode is displayed when creating the NEW File and during recording. The recording mode of file recording is displayed when during playback and in stop mode.

SP DICT

MIKE

031 / 030

New File

Remain

15 H 22 M 40 s

FOLDER

PRIOR

INFO

Note

•You cannot select the QP mode when setting the recorder to the Classic DSS mode. For details, see “Dictations Settings” in the “Customizing the Recorder” (☞P.68).

BACK

EXIT

Using the Variable Control Voice Actuator (VCVA)

The Variable Control Voice Actuator (VCVA) is a function that starts recording automatically when the microphone senses that sounds have reached a preset threshold volume level, and automatically pauses when the volume drops below the threshold. The VCVA feature allows you to conserve memory by automatically stopping recording in instances like long silent periods during meetings. When this is enabled,

will appear on the

VCVA

display.

F1 button

OK/MENU, 9, 0button

Set the VCVA in the menu to [On].

Refer to P.41 regarding each menu item settings.

Move the slide switch to the REC position to

start recording.

When the sound volume is lower than the preset actuation sound level, recording automatically stops after 1 second approximately, and “Stand by” flashes on the display. The record/play indicator light glows when recording starts and flashes when recording pauses.

QP DICT VCVA

MIKE

134 /134

1 H 25 M 01 s

Stand by

VERBAL

DISPLY

INDEX

Adjust the Start/Stop Actuation Level

While the recorder is recording mode, press the 9 or 0 button to adjust the actuation level.

The VCVA level can be set to any of 15 different values. The higher the value is, the more sensitive the recorder can react to sounds. At the highest value, even the faintest sound will activate recording. The VCVA actuation level can be adjusted according to the ambient (background) noise.

QP DICT VCVA

MIKE

134 /134

1 H 25 M 02 s

VCVA Level 05

VERBAL

DISPLY

Notes

• The start/stop actuation level also varies depending on the selected microphone sensitivity mode (☞P.31).

•To ensure successful recordings, prior testing and adjustment of the start/stop actuation level is recommended.

a Start level (Varies according to the sound volume being recorded)

b Level meter indicator (moves to the

INDEX

left/right according to the set level)

Using the Variable Control Voice Actuator

Hands-free Recording

The recorder can be used as a hands-free recording device. To setup the recorder for hands-free operation, connect the optional Olympus foot switch (RS27/28) to the back of the cradle and place the recorder in the cradle as shown in the diagram below. You can set Hands-free operation of the recorder to [Dictation] (default) or [Transcription] by using the customize functions of DSS Player (☞P.68) and change

the allocation function to Foot Pedal.

Hands-free Recording/Recording Monitor

For more details, refer to the online help for DSS Player (☞P.73).

The default settings of the foot switch functions are as follow (Dictation) :

RS27

Press and hold

Left

Center

Right

Left

Center

Right

NEW

REC

REV

RS28

Press and hold

REW

NEW

REC

Release

–

STOP

PLAY

Release

PLAY

–

STOP

Notes

• The Olympus foot switch (RS27/28) is sold separately.

• Move the slide switch of the recorder to the STOP position before connecting it to the cradle for handsfree recording.

•To record with better quality using the hands-free recording function, set the microphone sensitivity to [Conference] mode, or use an external microphone.

Recording Monitor

It is possible to monitor your recording by listening to the recording while recording is in progress. Insert the earphone plug into the earphone jack and use the + or – button to control the volume level.

+ / –

(Volume) button

Note

• Insert the plugs to the end as shown in the illustration when inserting the earphone or external microphone.

Playing

You can start playing a file at any point.

Select the file, then move the slide

switch to the PLAY position to start playback.

The record/play indicator light glows green.

Press the + or – button to adjust the

volume.

The display shows the volume level. You can choose between 0 to 30.

aVolume level

Move the slide switch to the STOP

position at any point you want to stop the playback.

QP DICT

MIKE

INSERT

QP DICT

MIKE

Volume 15

INSERT

101 / 133

00 M 05 s

27 M 5 8 s

SPEED

101 / 133

00 M 07 s

SPEED

INDEX

Playing

Playback

Operation

How to Cancel

functions

Playing

Fast Forward (FF)

Rewind (REW)

Cue (CUE)

Review (REV)

Playback Speed

Press the 9 button once while stopped.

Press the 0 button once while stopped.

Press and Hold the 9 button while stopped or playing a file.

Press and Hold the 0 button while stopped or playing a file.

Move the slide switch to the REV position.

Press the F2 (SPEED) button during playback.

➥ Every time the F2(SPEED) button is pressed, the

playback speed will switch.

Play(playback): Playback at normal speed.

Slow Play (slow playback): Playback speed

slows down (-50%), and “Slow play” will turn on.

Fast Play (fast playback): Playback speed

becomes faster (+50%), and “Fast play” will turn on.

Move the slide switch to a position other than the STOP position. ➥ The recorder starts the operation

of the set position.

Release the button.

Release the slide switch.

Notes

• If you press the 9 button once while fast-forwarding or twice while stopped, the recorder will stop at the end of the file (F.Skip).

• If you press the 0 button once while rewinding or twice while stopped, the recorder will stop at the beginning of the file (B.Skip). If the 0 button is pressed within 2 seconds, the recorder skips to the beginning of the previous file.

• If you continue to press and hold the 9 button while Fast Forwarding (FF) the recorder will F.Skip continuously while the button is held.

• If you continue to press and hold the 0 button while Rewinding (REW) the recorder will B.Skip continuously while the button is held down.

Erasing

File Erase !

All Erase

File Erase

Cancel

Erasing a File

Erasing or deleting a file from any of the folder on the recorder is a

very simple process.

Select the file you want to erase.

Press the ERASE button.

Press the + button to select [File

Erase], then press the OK/MENU button.

Press the + button to select [Start],

then press the OK/MENU button.

The display changes to [File Erase !] and erasing will start.

[Erase Done] is displayed when the file is erased. File numbers will be reassigned automatically.

QP DICT

MIKE

All Erase File Erase

Cancel

QP DICT

MIKE

File Erase

Start

Cancel

BACK

DICT

MIKE

029 / 031

029 / 030

Erasing

Erase Done

Notes

• An erased file cannot be restored.

• Files cannot be erased in the following cases.

- File being set [Lock] (☞ P.50).

- The SD card lock is turned on while the SD card is selected as the recording destination (☞ P.12).

All Erase !

All Erase

File Erase Cancel

Erasing

Erasing All Files in a Folder

All files in a folder can be erased simultaneously.

Select the folder you want to erase.

Press the ERASE button.

Press the + button to select [All

Erase], then press the OK/MENU button.

Press the + button to select [Start],

then press the OK/MENU button.

The display changes to [All Erase !] and erasing will start.

[Erase Done] is displayed when the files are erased. Any locked files in the folder will be reassigned new file numbers in ascending order.

QP DICT

MIKE

All Erase File Erase

Cancel

QP DICT

MIKE

All Erase

Start

Cancel

BACK

QP DICT

MIKE

029 / 030

/ 030

000 / 000

Erase Done

Notes

• The erasing process may take up to 10 seconds. Do not interrupt this process! Data will be destroyed.

• Files cannot be erased in the following cases.

- File being set [Lock] (☞ P.50).

- The SD card lock is turned on while the SD card is selected as the recording destination (☞ P.12).

134 / 134

EXIT

MIKE

QP DICT

05 M 01 s

Partial Erase

Start

Partially Erasing a File

You can erase a selected file in part.

2 3

Start playback the file you want to

erase partially.

Erasing

Press the ERASE button at the point to

start erasing.

While playback continues, [Partial Erase] will appear on the display.

Press the ERASE button at the point

to end erasing.

The erase starting point (time) set in step 2 and the ending point (time) set in this step will alternate on the display for 8 seconds. If you playback to the end of file or to the start position of the Verbal comment (☞ P.56), that will mark the end position for the partial erase automatically.

QP DICT

MIKE

INSERT

QP DICT

MIKE

134 / 134

45 M 02 s

01 H 5 5 M 2 5 s

SPEED

01H 5 5 M 23 s

Partial Erase

INDEX

M 02 s

EXIT

Erasing

134 / 134

45 M 32 s

Partial Erase

End

EXIT

Erasing

Press the ERASE button to confirm

erase.

The display changes to [Partial Erase!] and erasing will start.

When [Erase Done] appears on the display, partial erase is complete.

Notes

• If the ERASE button is not pressed within 8 seconds after the “Partial Erase Start” and “Partial Erase End” are alternately displayed, the recorder will revert to stop status.

• An erased file cannot be restored.

• Files cannot be Partial erased in the following cases.

- File being set [Lock] (☞ P.50).

- Files that Verbal comment is being played back (☞ P.56).

- The SD card lock is turned on while the SD card is selected as the recording destination (☞ P.12).

QP DICT

MIKE

QP DICT

MIKE

134 / 134

1 H 20 M 35 s

Partial Erase !

134 / 134

1 H 20 M 35 s

Erase Done

3 Advanced Operations

Menu List

● Menu Setting (while the recorder is stopped, press the OK/MENU button)

Main Menu

Second layer Setting

Ref.Page

File Menu

Record

Display

Pending

Lock

Priority

Work Type

Rec Mode

VCVA

Mic Sense

Backlight

LED

Contrast

Language

Finished, Pending

Off, On

Cancel, Set

Edit the Work Type and Option Item.

QP, SP

Off, On

Dictation, Conference

On, Off

Program contrast level 1~12 (Default is 6).

English, Deutsch, Français, Español,

Italiano, Русском

P.51

P.50

P.52

P.53

P.32

P.33

P.31

P.59

P.60

P.61

P.58

Menu List

Device Menu

(To the next page)

Menu List

Device

File Menu

(To the page 41)

Second layer Setting

Fingerprint

Card Select

Enroll, Verify

SD, microSD

Beep

Format

USB Class

Time & Date

Power Save

Reset Settings

Card Info.

System Info.

Initializes the card (SD/microSD).

Composite, Storage

In order of hour, minute, year, month and day.

In order of 5min., 10min., 30min., 1hour and Off.

Returns the menu settings to their initial state.

SD(Remain, Capacity), microSD(Remain, Capacity)

Model Name, Version, Serial

On, Off

Ref.PageMain Menu

P.48

P.26

P.62

P.64

P.67

P.24

P.22

P.65

P.13

P.66

Notes

• The selectable language varies depending on the countries where the product was purchased.

• [Fingerprint] is a menu item for the DS-5000iD only (it will not appear on the DS-5000).

• Items appear in bold letters in the “Setting” column to indicate that they are the initial settings.

Learning to Use the Menu

To navigate through the different options in the Menu, use the Menu List flow chart (☞ P.41,42) and the following steps to modify or change any settings.

F1, F3 button

OK/MENU,

9, 0 button

Press the OK/MENU button.

The [Main Menu] screen will appear on the

display (☞ P.41).

Main Menu

File Menu

Record Menu Display Menu Device Menu

EXIT

Press the + or – button to move to

[Main Menu] item to be set.

Main Menu

File Menu

Record Menu

Display Menu Device Menu

EXIT

+, –,

Press the OK/MENU or 9 button.

Move to the setting of the selected menu items.

Press the + or – button to move to the

menu item to be set.

Record Menu

Rec Mode

VCVA Mic Sense

BACK EXIT

Press the OK/MENU or 9 button.

Move to the setting of the selected item.

Rec Mode

BACK EXIT

Press the + or – button to change the

setting.

Press the OK/MENU button to complete

the setup screen.

If press the 0 or F1(BACK) button, the setting will be cancelled and it will return to the menu. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

Learning to Use the Menu

Selecting Folders and Files

F1 button

+, –

Selecting Folders and Files

OK/MENU, button

Changing File

While the file is being displayed, press

the 9 or 0 button.

This will change and display the file number order for files within the folder.

QP DICT VCVA

MIKE

001 / 010

PRIOR

FOLDER

00M 00 s

05 M 0 0 s

INFO

aCurrent file number

bTotal number of

recorded files in the

folder

Changing Folders

While the recorder is stopped, press the

F1(FOLDER) button.

The folder list screen will be displayed.

QP DICT

Folder A

Folder B

Folder C

Folder D

Folder E

FOLDER

Press the + or – button to select the

folder, then press the OK/MENU button.

This will change the folder. You can switch folders by pressing the F1(FOLDER) button.

QP DICT

Folder A

Folder B

Folder C

Folder D

Folder E

FOLDER

EXIT

Scroll bar

The scroll bar will appear when all of the items cannot be displayed in the menu or list display screen.

QP DICT

Folder A

Folder B

Folder C

Folder D

Folder E

Folder F

FOLDER

EXIT

Displaying File Information

The recorder can display a variety of information related to the current file. It is also possible to go to the Work Type and Option Item edit screen.

F3 button

Select the file whose information you

want to display.

Refer to P.44 regarding file selection.

QP DICT

MIKE

029 / 030

00M 00 s

22 M 4 0 s

INFO

PRIOR

FOLDER

Press the F3(INFO) button.

The file information is displayed.

029/030

File Name

DS5000006.DS2

Rec Time

Author ID

MIKE

M23D2008Y 12:23

The Displayed Information

The following information will be displayed.

[File Name]...File name [Rec Time]...Time and date the file was

[Author ID]...Display the Author ID of file. [Work Type]...Displays the Work Type ID of file. [Option Item]...Displays the Option Item which

recorded.

has been set.

Displaying File Information

Device Lock Function

Recorder access can be restricted by enabling the device lock function. Authentication via password and/or fingerprint verification (DS-5000iD only) can act as a safe guard for your data even in case the recorder is lost or left unattended. Fingerprint registry (☞ P.47) is performed by the recorder, while password registry can be performed by using DSS Player (☞ P.69).

Device Lock Function

F2 button

OK/MENU, 9, 0 button

Unlocking the Recorder

When the password registry and/or fingerprint registry is done, the recorder will prompt for password and/or fingerprint verifications (DS5000iD only) on startup.

Unlock Device

Enter Password

Unlock the recorder’s device lock through the method below. The default password when using the recorder for the first time is “0000”.

Unlock Device

+, –,

Enter Password or Sweep Finger

DS-5000iDDS-5000

Unlocking the Recorder with a Password

Select the numbers you want to enter

by pressing the +, –, 9 or 0 button to move the cursor.

Unlock Device

Enter Password

or Sweep Finger

Press the OK/MENU button to select a

number.

A * will appear in the selected first digit and the blinking cursor will move to the next one over (to the right). Repeat steps 1 and 2 to enter all four digits. Pressing the ERASE button at any time will erase the last entry and move the cursor to the previous entry (to the left).

Unlock Device

Enter Password

or Sweep Finger

After all four digits have been entered,

press the F2(ENTER) button.

If the 4 digit number entered matches the registered password then the startup message will appear and the recorder will start up.

Unlock Device

Enter Password

or Sweep Finger

ENTER

Entry column

Cursor

Device Lock Function

Unlocking the Recorder Via Fingerprint Verification (Only DS-5000iD)

Slide the finger to be scanned for verification over the scanner window on the back side of the recorder in one sweeping motion from top down as shown in the illustration.

If [NG! Sweep Finger Again] is displayed, re-scan your finger or a different registered finger again. If there is no fingerprint match after 10 tries [Incorrect Fingerprint Enter Password] will be displayed and it is not possible to authenticate via fingerprint verification.

Press your finger firmly at the fingerprint sensor, and slide it at a constant speed.

In case the fingerprint may not be scanned correctly, press your finger firmly against the sensor and sweep it.

How to Scan the Fingerprint

• Place your finger as shown in the diagram and start scanning from a state where the first joint of your finger is touched to the fingerprint sensor.

• Pressing the finger securely, and slide from the first joint of your finger to fingertip properly on the sensor in direction of the arrow approximately 1 second at a constant speed.

• Slide straight the finger to the center of the fingerprint sensor without winding.

• While sliding, do not move the finger away from the sensor.

Notes

The register and verification of the fingerprint may have difficulties in below cases.

• The state of finger is as follows:

➥Using the other registered finger or after washing the hand, it may improve.

- When the finger is dry.

- When the finger got swollen such as just after taking a bath.

- When the finger is either sweaty and greasy or wet.

- When the finger has a rough skin or is injured..

- When the finger is dirty.

- When the fingerprint is light and wrinkly.

• When the direct sunlight or strong light gets to the

fingerprint sensor.

• When the fingerprint sensor is dirty.

➥Wipe off with a soft cloth etc.

Device Lock Function

Authentication Halt Mode

If there is no password match after five tries the recorder will enter password input halt mode for ten minutes. After ten minutes have passed the mismatch history will be erased and it will once again return to the password input screen.

Unlock Device

Device Lock Function

Enter Password

Device is

Locked

09 : 59

Fingerprint Registration (Fingerprint)

Fingerprint registration is performed on the recorder. By selecting an Author ID from the Author list (☞ P.53) and then registering your fingerprint, you can associate it to your Author ID. You can register up to 10 fingerprint data.

Select [Fingerprint] at the [Device Menu]

screen, then press the OK/MENU or 9 button.

Device Menu

Fingerprint

Card Select Beep Format

USB Class Time & Date

BACK EXIT

Press + or – button to select [Enroll],

then press the OK/MENU or 9 button.

Fingerprint

Enroll

Verify

BACK EXIT

Press the + or – button to select a

registration number, then press the OK/ MENU or 9 button.

When making a new registration, select a registration number that has not already been registered ( registering a fingerprint, select the previously registered number (

Fingerprint Data1

JONATHAN

Data2

DS5000ID

Data3

_ _ _ _

BACK EXIT

When re-registering, the re-registration confirmation screen will appear and you can select [Yes] to continue with registration.

Recognizing your fingerprint (☞ P.47).

[OK] will appear when the fingerprint is recognized

correctly. When the fingerprint data is recognized 3 times, [Completed] appears and the fingerprint data is registered.

Fingerprint

Data3 Enroll

Sweep Your Finger

BACK

does not appear). When re-

does appear).

a Connection with Author ID

b No connection with

Author ID

Fingerprint

Data3 Enroll

1 / 3

EXIT

BACK EXIT

3 / 3

Device Lock Function

When the below error message appeared, scan again while referring “How to Scan the Fingerprint” (☞P.47) carefully.

[Sweep Error Sweep your finger again]...Displays when the fingerprint is not recognized correctly.

[Sweep Error Sweep your finger with care]...Displays when the recognized fingerprint

data does not match.

Verifying the Registered Fingerprint Data

Select [Fingerprint] at the [Device Menu]

screen, then press the OK/MENU or 9 button.

Press the + or – to button select

[Verify], then press the OK/MENU button.

Recognizing your fingerprint (☞ P.47).

If your fingerprint data matches, [Fingerprint

Accepted] will be displayed and the matching registration number will appear. In cases where there is a connection with an author, the Author ID will appear. If the fingerprint does not match, then [Incorrect Fingerprint] will appear and then it will return to the fingerprint scanning screen.

Fingerprint

Your Finger

Data1

JONATHAN

BACK

Fingerprint

Accepted

EXIT

a Verified registration number

b Related Author ID

a b

Erasing Fingerprint Data

Select the registration number you want

to erase, then press the ERASE button.

The method for Step 1 on P.48 will appear on the registration number list screen.

Press the + or – to select [Yes], then

press the OK/MENU button.

Fingerprint Data1

Jonathan

Clear Data3 ?

Yes

Data5

The erasing of the selected registration data will be completed.

Note

• Fingerprint registration and verification in this recorder cannot guarantee the entire security. We are not responsible for any damage or loss for use of fingerprint registration and verification of this recorder or even if you cannot use this function.

Fingerprint Data1

Jonathan

Data3 Cleared

Data4 Data5

Device Lock Function

Locking Files (Lock)

When a file is set to [Lock], will appear on the display, allowing you to prevent important files from accidental erase. Moreover, the file will not be erased even when all files within a folder are erased.

F1, F3 button

Locking Files

Select the file you want to Lock.

OK/MENU, 9, 0button

Select [Lock] at the [File Menu] screen, then

press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

File Menu

Pending

Lock

Priority Work Type

BACK EXIT

+, –,

Press the + or

or [Off].

On...Locks the file and prevents it from

being erased.

appears on the display.

Off...Unlocks the file and allows it to be erased.

Lock

button to select [On]

–

029 / 030

OnC

Off

BACK EXIT

Press the OK/MENU button to complete

the setup screen.

[File Lock ON] or [File Lock OFF] will light up on the display, and it will return to the [File Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [File Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Lock

029 / 030

File Lock

OnC

Off

BACK EXIT

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

QP CONF

MIKE

029 / 030

New File

02 M 10 s

3 H 0 8 M 05 s

FOLDER

PRIOR

INFO

Pending Files (Pending)

When you set [Pending] to the file, the file becomes “Pending file” and the editing sign of will appear on the display. If “Download file” is set to “Finished file” by DSS Player, the [Pending] file is not transferred and only [Finished] file (edited file) will be transferred to your PC. For details, see “Dictation settings” in the “Customizing the Recorder” (☞ P.68).

F1, F3 button

OK/MENU,+, –, 9, 0button

Select [Pending] at the [File Menu] screen,

then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

File Menu

Pending

Lock Priority Work Type

BACK EXIT

Press the + or

[Pending] or [Finished].

Pending...Sets to a file of “Editing” and appears

on the display. Finished...Sets to a file of “already edited”.

Pending

029 / 030

Pending

Finished

BACK EXIT

Press the OK/MENU button to complete

the setup screen.

[Pending Set] or [Finished Set] will light up on the display, and it will return to the [File Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [File Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Pending

029 / 030

Pending

Set

Pending

Finished

BACK EXIT

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

QP CONF

MIKE

029 / 030

New File

02 M 10 s

3 H 0 8 M 05 s

FOLDER

PRIOR

INFO

button to select

–

Pending Files

Setting Priority Levels (Priority)

By default, F2 button is programmed with Priority function. The setting can also be performed from the menu. You can set a priority level on each file recorded. You can choose between “HIGH” and “NORMAL” The default is Normal level.

F2 button

Setting Priority Levels

OK/MENU, 9 button

To Set a Priority Level on a File

To Set the F2(PRIOR) Button

Select the file you want to perform the

setting on, then press the F2(PRIOR button.

Each time the F2(PRIOR) button is pressed the Priority level will change (HIGH/NORMAL). When the HIGH level setting is selected, on the display. Perform the setting in the same manner after creating a NEW file.

QP DICT

MIKE

FOLDER

029 / 030

0 H 00M 00 s

15 H 2 2 M 4 0 s

PRIOR

INFO

a Priority indicator

+, –,

will appear

Performing the Setting from the Menu

Select the file which you would like to

set the Priority level for.

Select [Priority] at the [File Menu]

screen, then press the OK/MENU or 9 button.

File Menu

Pending Lock

Priority

Work Type

BACK EXIT

Press the + or – button to select [Set]

or [Cancel], then press the OK/MENU button.

[Set]...High Level. [Cancel]...Normal Level.

Priority

029 / 030

Set

Cancel

)

BACK EXIT

Setting the Author ID and Work Type

Every file recorded on the recorder will include the Author ID and Work Type as part of its header information. To create multiple Author IDs and Work Types on the recorder, use the bundled DSS Player software to create and upload a Data list (list of Author IDs and Work Types) to the recorder. For more details, refer to the online help for DSS Player (☞ P.73). By default the Author ID is set to “DS5000”.

F1,F2,F3 button

OK/MENU,+, –, 9, 0 button

Setting an Author ID

Turn ON the recorder.

When [The Author List is displayed when the

power is on.] has been set through DSS Player (☞P.69), the registered Author ID List will appear.

Press the + or – button to select the

Author ID that you want to assign to the recorder from the ID list.

Author ID

AUTHOR A

AUTHOR B

AUTHOR C AUTHOR D AUTHOR E AUTHOR F

Press the OK/MENU button to set the

ID.

When more than one Author ID exist on the recorder, the ID list will be displayed.

EXIT

Note

• Up to 10 Author ID entries can be registered (up to a maximum of 16 characters).

Author List

ID 1

ID 2

ID 3

ID10

Setting the Author ID and Work Type

EDIT

EXIT

029/030

Work Type

Letter Reference No

Subject

BACK

Setting the Work Type

Up to 10 Work Types can be registered in the DSS Player software and uploaded to the recorder. Each Work Type can have up to 10 Option Items associated with it. The Work Types and Option Items can be used on the recorder to populate the recording file header information.Refer to the online help for DSS Player (☞ P.73) regarding registration/set up details and Option Item through DSS Player.

Setting the Author ID and Work Type

While the recorder is stopping mode,

press the NEW button.

When [The Worktype List is displayed when a new file is created.] has been set through DSS Player (☞ P.69), the Work Types uploaded to the recorder will appear in a list.

Press the + or – button to select a Work

Type from the Work Type list.

029/030

Work Type1

Work Type2

Work Type3

Work Type4 Work Type5 Work Type6

SCAN

EXIT

Press the OK/MENU button to select

the Work Type.

The selected Work Type and a maximum of 10 Option Items registered for that Work Type will be recorded in the New File header information. When the item of Option Item Label within the selected Work Type is possible to set for Value input, it will take you to the file information input screen (☞ P.55). For more details, refer to the

online help for DSS Player (☞ P.73).

Work Type List

Type 1

Type 2

Type 3

Type 10

Editing the Work Type

The Work Type information of the recorded or uploaded files can be edited with the menu settings of the recorder (☞ P.41)

Select the file you want to edit its Work

Type information (☞ P.45).

Select [Work Type] at the [File Menu]

screen, then press the OK/MENU or 9 button.

The Work Type setting screen will appear.

File Menu

Pending Lock Priority

Work Type

BACK EXIT

Press the F2(EDIT) button.

The modification method confirmation screen will

appear.

Press the + or – button to select [Edit

Work Type] or [Select From Work Type List], then press the OK/MENU button.

Edit Work Type...This will take you to the file

information input screen (☞ P.55) and allow you to modify the Work Type information that has been recorded for the file. Select from Work Type List... You can re-select Work Type from the W ork Type list.

029/030

Work Type

Edit Work Type

MRI Select From

12345678901234

Work Type List DEP

BACK

EXIT

Inputting Option Item Value

Press the + or – button on the file

information input screen to select the targeting Option Item, then press the OK/MENU button.

The input screen will be displayed. When inputting an Option Item value into a new file or the file with a re-selected Work Type, only eligible input characters as specified in the DSS Player can be entered.

029/030

Work Type

Letter

Reference No

012

Subject

FINISH

SCAN

File information

input screen

Entering characters.

Enter characters through the following method.

● Character selection

string (numbers, alphabets or symbols) displayed in the Keyboard window to move the cursor up, down, left and right by pressing.

● Character confirmation

OK/MENU button... Use this button to confirm your selection.

● Moving the entry column

When pressing the + button if the cursor is on top of the Keyboard window, the cursor will disappear. An Entry column within the input value display area will change from flashing to lighting. The Entry column can be moved when it is lit.

9 button... Each press of the button moves the Entry column one space to the next (right). The Entry column can be moved up to the space next (right) to the last character.

0 button... Each press of the button moves the Entry column one space to the previous (left). The Entry column can be moved up to the first character.

EXIT

, 0, 9 button... Select the character

–

Reference No

BACK

FINISH

Option Item value

input screen

Setting the Author ID and Work Type

...The Entry column changes from

– button

lighting to flashing. The cursor is lit on the “0” string within the keyboard Window, and makes character selection available.

Entry is performed by insert entry. When the character in the Entry column has already been finalized, the character after the cursor will move one column to the right.

● Maximum entered character count

The Option item value can be entered up to the number of characters specified below. Preset default values can also be set for the option items to simplify data entry process.

Option Item Value... 20 characters

● Cancelling the entered contents Press the F1(BACK) button to select [YES],

EXIT

then press the OK/MENU button during entry...This will erase the entered contents for

this item and return you to the File information input screen.

Press the F3(EXIT) button to select [YES], then press the OK/MENU button during entry... This

will erase all of the finalized contents for the items, and the recorder will return to stopped state in the New file or the state before entering Menu settings.

Reference No

0 123456789#,-&

ABCDEFGHIJKLMN

OPQRSTUVWXZ_@

BACK

FINISH

a b Keyboard window

c Entry column

d Cursor

EXIT

Input value display area

Press the F2(FINISH) button.

While creating a New File, selected Option Item Value input appears at the bottom of Option Item Value. When the F2 (FINISH) button is pressed, it will take you to the stopped state in the New File.

Setting the Author ID and Work Type

Verbal Comment

The data recorded with the F1(VERBAL) button being pressed during recording, is recorded as a Verbal comment position (a position within a file) in the header. It is possible to instantly search and play back Verbal comment sections through DSS Player, thereby making it useful for things like giving instructions to transcriptionists.

Verbal Comment

F1 button

OK/MENU, 9, 0 button

ERASE button

Setting a Verbal Comment

While the recorder is recording mode,

press and hold the F1(VERBAL) button, then release it when you want to stop.

Audio recorded while continuing to hold the F1(VERBAL) button will be recorded as Verbal Comment.

QP DICT

MIKE

029 / 030

Verbal Comment

VERBAL

DISPLY

10 M 56 s

2 2 M 4 0 s

INDEX

Locating a Verbal Comment

While playing back a file, press and hold

the 9 or 0 button.

The recorder stops for 1 second when it reaches the Verbal Comment.

QP DICT

MIKE

029 / 030

10 M 56 s

2 2 M 4 0 s

Verbal Comment

Clearing an Verbal Comment

While playing a Verbal Comment, press

the ERASE button.

Press the + button to select [Clear],

then press the OK/MENU button.

The Verbal Comment is erased.

QP DICT

MIKE

029 / 030

Verbal Comment

Clear

Cancel

Notes

• Up to 32 Verbal Comment can be set in a file.

•When a file is locked or set to read-only, or when the SD card lock is enabled Verbal Comment cannot be erased. Clear the settings before erasing.

•When the recorder has been set to Classic DSS mode Verbal comments cannot be recorded. For details, see “Dictation settings” in the “Customizing the Recorder” (☞ P.68).

Index Marks

Index marks can be placed in a file during recording or playback. Index marks are used to provide a quick and easy way to identify important or significant parts within the file.

F3 button

9, 0 button

ERASE button

Setting an Index Mark

While the recorder is recording or playing

back mode, press the F3(INDEX) button to set an index mark.

An index number appears on the display.

QP DICT

MIKE

029 / 030

3H 10 M 56 s

22M 4 0 s

Index 01 Set

SPEED

INSERT

INDEX

Locating an Index Mark

While playing back a file, press and hold

the 9 or 0 button.

The recorder stops for 1 second when it reaches the index mark.

QP DICT

MIKE

029 / 030

3H 10 M 56 s

22M 4 0 s

Index 01

INDEX

Clearing an Index Mark

Locate the index mark you want to clear.

While the index number appears for

approximately 2 seconds on the display, press the ERASE button

The index mark is erased.

QP DICT

MIKE

029 / 030

3H 10 M 56 s

2 2 M 4 0 s

Index 01 Clear

Notes

• Up to 32 indexmark can be set in a file.

•When a file is locked or set to read-only, or when the SD card lock is enabled Indexmark Comment cannot be erased. Clear the settings before erasing.

•When the recorder has been set to Classic DSS mode index marks are limited to a maximum of 16 for each file. For details, see “Dictation settings” in the “Customizing the Recorder” (☞ P.68).

Index Marks

Language (Language)

You can select the display language for this recorder. The selectable language varies depending on the countries where the product was purchased.

F1, F3 button

Language

Select [Language] at the [Display Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Display Menu

Backlight LED Contrast

Language

BACK EXIT

OK/MENU,+, –,

button

Press the + or

English...Displays in English. Deutsch...Displays in German. Français...Displays in French. Español...Displays in Spanish. Italiano...Displays in Italian.

Русском...Displays in Russian.

Language

English

BACK

Press the OK/MENU button to complete

the setup screen.

The displayed language is changed and will return to the [Display Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Display Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Language

English

Set

BACK

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

button to set the language.

–

EXIT

Note

• The selectable language varies depending on the countries where the product was purchased.

Backlight (Backlight)

When the display backlight is set to [On], the backlight will light up for about 10 seconds when a button is pressed. This is useful in that it allows you to check the display even in dark locations.

F1, F3 button

OK/MENU,+, –, 9, 0 button

Select [Backlight] at the [Display Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Display Menu

Backlight

LED Contrast Language

BACK EXIT

Press the + or

or [Off].

On...Backlight is enabled. Off...Backlight is disabled.

Backlight

Off

BACK

Press the OK/MENU button to

complete the setup screen.

[On Set] or [Off Set] will light up on the display, and it will return to the [Display Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Display Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Backlight

Off

On Set

BACK

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

button to select [On]

–

EXIT

Backlight

LED (LED)

You can set it so the Record/Play indicator light does not turn on.

LED (Record/Play indicator light)

LED

Select [LED] at the [Display Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Display Menu

Backlight

LED

Contrast Language

BACK EXIT

F1, F3 button

OK/MENU,+, –, 9, 0 button

Press the + or

or [Off].

On...LED light will be set. Off...LED light will be cancelled.

LED

Off

BACK

Press the OK/MENU button to complete

the setup screen.

[On Set] or [Off Set] will light up on the display, and it will return to the [Display Menu] screen.

If press the 0 or F1(BACK), the setting will be cancelled and it will return to the [Display Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

LED

Off

On Set

BACK

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

button to select [On]

–

EXIT

LCD Contrast Adjustment (Contrast)

Display contrast can be adjusted from level 01 to 12.

F1, F3 button

OK/MENU,+, –, 9, 0 button

Select [Contrast] at the [Display Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Display Menu

Backlight LED

Contrast

Language

BACK EXIT

Press the + or

contrast level.

You can adjust the LCD display contrast level from 1 to 12.

Contrast

Level

BACK

EXIT

button to set the

–

Press the OK/MENU button to complete

the setup screen.

The set contrast level lights up and will return to the [Display Menu] screen.

If press the 0 or F1(BACK), the setting will be cancelled and it will return to the [Display Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Contrast

Level 06

Set

Level

BACK EXIT

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

LCD Contrast Adjustment

System Sounds (Beep)

When this is set to [On], the recorder beeps to alert you to button operations or warn you of errors.

F1, F3 button

OK/MENU,+, –,

System Sounds

Select [Beep] at the [Device Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.42 regarding each menu item settings.

Device Menu

Fingerprint Card Select

Beep

Format

USB Class Time & Date

BACK EXIT

9, 0 button

Press the + or

or [Off].

On...System sounds are enabled. Off...System sounds are disabled.

Beep

Off

BACK

Press the OK/MENU button to

complete the setup screen.

[On Set] or [Off Set] will light up on the display, and it will return to the [Device Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Device Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

Beep

Off

On Set

BACK

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

button to select [On]

–

EXIT

Inserting and Ejecting a microSD card

When it is necessary to remove or insert the microSD card serving as the built-in memory in emergencies, use the method below to either remove or insert it.

Inserting a microSD card

1 Open the battery cover (☞ P.16). 2 Open the card cover inside the battery

compartment.

3 Insert the microSD card into the card

slot in the direction shown in the illustration until it clicks.

Ejecting a microSD card

1 Open the battery cover (☞ P.16). 2 Open the card cover inside the battery

compartment.

3 Push the microSD card inward once to

unlock it, and let it eject.

When it is Difficult to Eject the microSD card

The microSD card is sometimes difficult to take out. In this case, pick up a card with your fingers as shown in the illustration. Exercise caution when using things like tweezers, as there is the risk of accidentally damaging the card and rendering it unable to read data out.

Inserting and Ejecting a microSD card

Formatting the Card (Format)

Cards that have been used in non-Olympus devices, or cards that are not recognized by the recorder, must be formatted before they can be used with the recorder. To familiarize yourself with the formatting process, read the steps below. In terms of formatting, only selected cards can be formatted, the recorder’s menu settings cannot be initialized. The initialization of menu items should be set up through DSS Player or the recorder’s [Reset Settings].

Formatting the Card

OK/MENU,

+, –, 9,

button

Select [Device Menu] at the [Format]

screen, then press the OK/MENU or 9 button.

Refer to P.42 regarding the menu’s various setting items.

Device Menu

Format

USB Class Time & Date Power Save

Reset Settings Card info.

BACK

EXIT

Press the + or – button to select [SD]

or [microSD], then press the OK/MENU button.

Format

mSD

micro SD

BACK EXIT

Press the + or – button to select [Start]

option.

Format

Start

Cancel

BACK

EXIT

Formatting the Card (Format)

Press the OK/MENU button to confirm

[Start] selection.

Format

Data will be

cleared

Press the + or – button again to select

[Start] option.

Format

Are You Sure?

Start

Cancel

Press the OK/MENU button again to

initiate the formatting process.

Format

Format !

Format

Format Done

[Format Done] displays when formatting ends.

Initializing the Recorder’s Menu Settings (Reset Settings)

To return the recorder’s menu settings to their original status from the time of purchase (initial settings), perform the setting from [Reset Settings] in the [Device Menu], or perform the same operation by using DSS Player.

Device Menu

USB Class Time & Date Power Save

Reset Settings

Card Info. System Info.

BACK EXIT

Notes

• The time required to format cards differs depending on the capacity of cards. Do not interrupt the formatting process by the following operations. Doing so will damage the data or card.

- Remove the card.

- Remove the batteries.

• When the card is formatted, all the stored data, including locked files, are erased.

• If an unformatted card is inserted, the recorder automatically displays the format option in the menu.

• SD cards for which the SD card lock is enabled cannot be initialized.

• Formatting on the recorder will be Quick Format. If you format the card, information of file management is refreshed and the data inside the card is not deleted completely. When handing over and disposing the card, be careful about the data leakage from the card. We recommend the card to be destroyed when you dispose the card.

Formatting the Card

Check System Information (System info.)

System information about the recorder like its [Model Name], [Version] and [Serial] can be displayed. In this recorder, you can check the Card Information (☞ P.13) and File Information (☞ P.45).

F1, F3 button

Check System Information

Select [System info.] at the [Device Menu]

screen, then press the OK/MENU or 9 button.

[Model Name] [Version] [Serial] will appear. Refer to P.42 regarding each menu item settings.

Device Menu

USB Class Time & Date Power Save Reset Settings

Card info.

System info.

BACK EXIT

OK/MENU, 9, 0 button

System Info.

Model Name DS-5000 Version

1.00 Serial 123456789

BACK EXIT

Press the OK/MENU, 0 or F1 (BACK)

button.

When you press the F3 (EXIT) button, it will return to the previous display from MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

Changing the USB Class (USB Class)

You can set the USB class of this recorder with a USB connection to [Composite] or [Storage]. Set to [Composite] when using this recorder as a USB speaker or a USB microphone.

F1, F3 button

OK/MENU,+, –, 9, 0 button

Select [USB Class] at the [Device Menu]

screen, then press the OK/MENU or 9 button.

Refer to P.42 regarding each menu item settings.

Device Menu

Fingerprint Card Select Beep Format

USB Class

Time & Date

BACK EXIT

Press the + or

[Composite] or [Storage].

Composite...In the 3 classes of Storage, USB audio

and human interface, USB connection is possible. While USB connection in [composite], the recorder can be used as the USB speaker and the USB microphone. Storage...USB connection is possible in only Storage class.

USB Class

Composite

Storage

BACK

EXIT

button to select

–

Press the OK/MENU button to complete

the setup screen.

[Composite Set] or [Storage Set] will light up on the display, and it will return to the [Device Menu] screen.

If press the 0 or F1(BACK) button the setting will be cancelled and it will return to the [Device Menu]. Pressing the F3(EXIT) button will cancel the contents being set and take you out of the MENU.

USB Class

Composite

Storage

Composite

Set

BACK

EXIT

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then press the F3(EXIT) or 0 button to complete the setting.

When this recorder is connected to the computer for the first time after being changed to “Remote(Composite)”, the driver will be installed automatically to the computer.

Changing the USB Class

Customizing the Recorder

You can customize various specifications of the recorder when using DSS Player (☞ P.69). For more details, refer to the online help for DSS Player (☞ P.73).

The Recorder’s Customized Settings

❏ Button settings

You can change the allocated functions for the Programmable Smart Buttons (F1, F2, F3 buttons), the NEW button, and the slide switch.

❏ Hands-Free settings

Customizing the Recorder

You can perform settings related to the HandsFree operation with the Foot Switch (RS27/28 sold optional).

❏ Menu settings

You can set the default values for each of the recorder’s Menu items.

❏ Security settings

You can perform various settings related to the recorder’s device lock.

• Device lock function ON/OFF.

• Settings related to the timing for setting the device lock.

• Password settings.

• Changing the number of allowable input errors (mismatches) for the password.

❏ Author List settings

You can perform settings related to the Author, such as Author registration.

❏ Work Type List settings

You can perform settings related to the Work Type, such as Work Type registration.

❏ Folder settings

You can perform various settings related to the recorder’s folders.

• Changing the number of folders and folder name.

• Auto Lock setting which locks files recorded in designated folders.

• Encryption Password setting which encrypts files recorded in designated folders.

•Work Type settings for each folder.

❏ Dictation settings

You can perform various settings related to the recorder’s Dictation.

• Recording format (DSS Pro/Classic DSS) selection.

• Recording mode (Overwrite/Append/Insert) setting.

• Settings related to eligible files when downloading to a PC (All Files/Finished Files).

❏ Alarm settings

You can set occasions for the recorder’s alarm or beep noise to sound.

❏ Slide Switch Guide settings

You can set the Slide Switch Guide, which indicates the position of the Slide Switch on the recorder’s LCD screen, to either enabled or disabled.

❏ Permission settings

You can perform various settings related to user authorization, such as prohibiting both file erasure and MENU settings.

❏ Splash Message settings

You can set the contents that appear in the message which is displayed during startup.

❏ Display settings

•You can select a default pattern for display during recording from 5 patterns.

• On the 2nd line of LCD, you can display File Name or Work Type instead of Author ID which is currently displayed in the NEW, STOP, REC, PLAY, CUE/REV, FF/REW or ERASE mode.

4 Managing Files on Your PC

DSS Player Software

The DSS Player is a fully featured software tool that provides a simple to use but sophisticated method of managing your recordings. Some of the features of the DSS Player are:

• Automatic startup of the application by connecting the device.

• Automatic download of Dictation by connecting the device.

• Backs up downloaded Dictation (Windows only).

• Automatic transmission of downloaded Dictation to addresses specified through e-mail and FTP (Windows only).

• Automatic transmission of transcribed documents through e-mail and FTP, as well as Dictation and link management (Windows only).

• Voice recorder’s menu setting.

• Customize functions on the recorder (Windows only).

• Direct recording and editing of existing Dictation through Voice recorder’s button and slide operation.

• Recording Instruction Comments and Verbal comments (Windows only).

• Encrypt the Dictation within the folder by encrypting the folder itself (Windows only).

Make sure that your computer meets the minimum requirements listed below. Please check with your system administrator or your Olympus Professional Dealer.

DSS Player Software

Minimum Requirement

Windows

Operating System:

CPU:

DSS Player Software

RAM:

Hard drive space:

Drive:

Display:

USB port:

Audio I/O terminals:

Macintosh

Operating System:

CPU:

RAM:

Hard drive space:

Display:

USB port:

Windows 2000 Professional Service Pack4; Windows XP Professional/XP Home edition Service Pack2; Windows XP 64-bit; Windows Vista Ultimate/Enterprise/Business/Home Premium/Home Basic; Windows Vista Ultimate 64-bit edition/Enterprise 64-bit edition/Business 64-bit edition/Home Premium 64-bit edition/Home Basic 64-bit edition; Windows Server 2003; Windows Server 2003 x 64 edition

Windows 2000/XP: 500MHz processor or more Windows Vista: 800MHz processor or more Windows Server 2003: 550MHz processor or more

Windows 2000/XP: 128MB or more Windows Vista: 512MB or more Windows Server 2003: 256MB or more

Dictation Module: 70MB or more; Microsoft .NET Framework Version 2.0: 150MB

CD or DVD drive

800 x 600 pixels or more, 65536 colors more

One or more free ports

Windows-compatible sound device

Mac OS 10.3.9 - 10.5

Power PC G3 500MHz or more/Intel Core Sole/Duo 1.5GHz or more

256MB or more (512MB or more is recommended)

200MB or more

1024 x 768 pixels or more, 32000 colors more

One or more free ports

Note

• Macintosh version does not support voice recognition software.

Installing DSS Player Software

Be sure to confirm the following before installation:

• Exit all running applications.

• Eject the floppy disk if you are using one.

• If you are running Windows 2000/XP/Vista or Mac OS X on the network, you need to log on as an Administrator.

Windows

For the Windows version, there is an installation method for individuals and one for administrators to install on multiple client PCs. An explanation of the installation method for individuals installing the software on a single PC will be provided here.

Insert Olympus DSS Player CD into the

CD-ROM drive.

The installation program will start automatically. If the installation program does not start automatically, browse your CD-ROM drive and execute “launcher.exe”.

The launcher will startup.

Select the language you would like to install from

the upper-left pull-down menu and click [DSS Player Pro Installation].

The Install Wizard will begin.

Once you have consented to the licensing

agreement, enter your name, company name, and license ID number (serial number). The license ID number is printed on the license ID card included inside the recorder package.

Proceed with the installation according

to the instructions on the screen.

Macintosh

Insert Olympus DSS Player CD into the

CD-ROM drive.

Double-click the CD icon.

Double-click the setup icon.

The Install Wizard will begin.

Once you have consented to the licensing agreement, follow the instructions on the screen to complete the installation.

Proceed with the installation according

to the instructions on the screen.

You will be requested to restart, so

conduct a restart by following the instructions.

Installing DSS Player Software

Uninstalling DSS Player Software

Windows

Exit DSS Player program.

Click the [start] button on the taskbar.

Select [Add/Remove programs] from the

[Control Panel].

A list of installed applications is displayed.

Uninstalling DSS Player Software

Select [Olympus DSS Player Pro], then

click the [Change/Remove] button.

Proceed with the uninstallation

according to the instructions on the screen.

Macintosh

Exit DSS Player program.

Double-click “DSS Uninstaller” in

[Application] = [DSS Player] folder.

An uninstaller is displayed.

Proceed with the uninstallation

according to the instructions on the screen.

Note

• The dictation files you made are stored in the [MESSAGE] folder. If you don’t need them, delete them. You can confirm the location of the [MESSAGE] folder by clicking on [Options] in the [Tools] menu before uninstalling.

Using Online Help

For information on the DSS Player usage and features, refer to the online Help.

To start online Help:

Windows

Click the [start] button, then select [All

Programs], [Olympus DSS Player], [Dictation Help].

While DSS Player is running, select the

[Help] menu, [Contents].

While DSS Player is running, press F1 on

the keyboard.

Macintosh

While DSS Player is running, select [DSS Player Help] from the [Help] menu.

Note

• Online Help is available after the DSS Player is installed (☞ P.71).

Using Online Help

Connecting Recorder to PC

Connecting to Your PC Using the USB Cable

Turn ON the recorder (☞ P.22).

Connect the USB cable to the USB port of the PC.

Confirm that the recorder has stopped and connect a USB

cable to the connection port on the recorder.

If [Remote] is displayed on the recorder, it indicates proper connections.

Once you connect the recorder to your PC, the recorder will be powered through the USB cable. When the AC adapter is connected power will be supplied from the AC adapter.

Connecting Recorder to PC

While PC connection, the SD card and the microSD card are recognized as the respective separate removable disk drive. Furthermore, removable disk drive is added in order of the microSD card and the SD card.

Supported computers

Windows

Operating System: Supported computers:

Macintosh

Operating System: Supported computers:

Notes

• NEVER remove the card or disconnect the USB cable while the record/play indicator light is flashing. If you do, the data on the card will get destroyed.

• Some PC’s may not supply sufficient power and the recorder fails to connect. Refer to your PC User’s Manual regarding the USB port on your PC.

• Do not connect the recorder to a PC by using a USB hub. Make sure to connect to a USB port on your PC.

• Make sure to push the cable connector all the way in. Otherwise, the recorder may not operate properly.

• This is an operational environment for saving the files recorded by this recorder to your PC with USB connection.

• Even if operational environment is satisfied, we do not support upgraded OS, the multi-boot environment and self-modified computers.

Windows 2000/XP/Vista Windows computers equipped with more than one free USB port.

Mac OS 10.3.9 - 10.5 Apple Macintosh series equipped with more than one free USB port.

Connecting Recorder to PC

Connecting to Your PC Using the Cradle

Place the recorder in the cradle

Connect the USB cable to the USB port of the PC.

The USB cable is connected with cradle as shown in figure.

Turn ON the recorder, then set the recorder in the cradle.

If [Remote] is displayed on recorder, it indicates proper connection.

Disconnecting Recorder from PC

To avoid data corruption or loss, make sure that the recorder’s record/ play indicator light isn’t flashing, before removing the recorder from the cradle or disconnect the cable from the recorder terminal.

Remove the Recorder from the Cradle

To prevent damage or loss of the data, confirm that the recording/ playback indicator light of this recorder is not on, and remove this recorder and USB cable from the cradle.

Notes

• Never touch the contact points at the bottom of the cradle, as that may cause bad connection.

• With a PC connected, the recorder cannot be operated with the foot switch (RS27/

28). When connecting the recorder to a PC via the cradle, remove the foot switch.

Connecting Recorder to PC

Running DSS Player Software

By default, connecting the recorder to your PC, will start the application automatically. Connecting to your PC Using the Cradle.

Windows

Disabling Automatic Start

Right-click the Device Detector in the

System Tray in the lower right-hand corner of the screen, then select [Settings startup application].

Running DSS Player Software

Click [DSS Player Pro].

The check mark on [DSS Player Pro] disappears.

Manual Start

Start Windows.

Click the [start] button, then select [All

Programs].

All program menu will be displayed.

Select [Olympus DSS Player Pro],

then click [Dictation Module].

Macintosh

Disabling Automatic Start

Click the Dock’s System Preferences.

Click Device Detector.

Turn the automatic startup setting Off.

Manual Start

Start your Macintosh.

Double click the DSS Player icon for the

folder in [Application] = [DSS Player].

All program menu will be displayed.

The user’s registration screen will be displayed at the time of initial startup. Please input the serial number. Please see the seal attached to the CDROM package included with the DSS Player, for the serial number. After the input has ended, click [OK] to complete the registration.

5 Other Practical Use Methods

Using as External Memory of the Computer

When the recorder is connected to your PC, it will be recognized on your PC as a removable drive. You can view and access the recorder card from My Computer and download data from the card to your PC using standard windows copy/move and delete commands. You can also upload data from the PC to the card in the recorder in the same way.

Example: Copying Data from PC to Card Using Explorer or Finder

Start Windows.

Connecting the recorder to your PC.

For connection procedure, refer to “Connecting to Your PC Using the USB Cable” (☞ P.74).

Open Windows Explorer or Finder window.

The product’s name is displayed.

Copy the data.

While the data are being written or copied, the record/play indicator light on the recorder will flash.

Unplug the recorder from a computer.

Using as External Memory of the Computer

Note

• NEVER remove the card or disconnect the USB cable while the record/play indicator lamp is flashing. If you do, the data on the card will get destroyed.

6 Other Information

Alarm Message List

Message

Battery Low

Power Supply Error Remove Power Plug

File Protected

Index Full

Folder Full

Alarm Message List

Erase Error

Card Error

Memory Full

Format Error

System Error

Insert Card

Meaning

Low battery power

Abnormal voltage detected

Erase-locked

Index full

Folder full

Maximum number

Erase failure

Incompatible card

Zero remaining memory

Formatting error

System error

No card

Explanation

Battery power is getting low.

Voltage outside of the allowable limit has been detected.

Attempt to delete a locked file.

The file is full of index marks (maximum of 32 marks).

The folder is full of files (maximum of 200 files).

The destination folder already has the maximum number of files (200).

An error occurred while erasing.

An incompatible card was inserted.

The card has no remaining memory.

There was an error while formatting the card.

System error detected in the recorder.

There is no card inserted.

Action

Charge the battery Pack or replace with new batteries (☞ P.14-17).

Use the included AC Adapter (☞ P.21).

Unlock the file (☞ P.50).

Erase index marks that are no longer required (☞ P.57).

Erase unnecessary files (☞ P.37).

Erase once again. When an Erase Error occurs format the card

Insert a compatible card (☞ P.23, 63).

Erase files that are no longer required or insert another card.

Reformat the card (☞ P.64).

This is a malfunction. Contact the place of purchase or Olympus Service Center for repair.

Insert a card (☞ P.23, 63).

Troubleshooting

Symptom

Nothing appears on the display

Won’t start

Unable to record

No playback tone heard

Unable to erase

Noise heard during playback

Recording level too low

Unable to set index marks

Cannot find the recorded voice

Cannot connect to a PC using a cradle

Probable cause

The batteries are not loaded properly.

The batteries are dead.

The recorder is in power off mode.

The batteries are dead.

The card does not have enough memory.

The card is unformatted.

The maximum number of files has been reached.

The SD card is locked.

The earphone is connected.

The volume level is set to 0.

The file is locked.

The SD card is locked.

The recorder was shaken during recording.

The recorder was placed near a cell phone or fluorescent lamp while recording or during playback.

The microphone sensitivity is too low.

The maximum number of index marks (32) has been reached.

The file is locked.

The SD card is locked.

Wrong folder.

Switch the recording card.

Sometimes a connection cannot be made with some PCs running Windows XP or Vista.

Action

Verify polarity is correct (☞ P.16, 17).

Replace with new batteries (☞ P.17).

Turn the recorder ON (☞ P.22).

Replace with new batteries (☞ P.17).

Erase unnecessary files or insert another card (☞ P.23, 37, 63).

Format the card (☞ P.64).

Check another folder.

Unlock the SD card lock (☞ P.12).

Unplug the earphones to use the internal speaker.

Adjust the + (Volume) button.

Unlock the file (☞ P.50).

Unlock the SD card lock (☞ P.12).

Move the recorder.

Set the microphone sensitivity to Conference mode and try again (☞ P.31).

Erase unnecessary index marks (☞ P.57).

Unlock the file (☞ P.50).

Unlock the SD card lock (☞ P.12).

Switch to the right folder.

The recorder is recording to another card.

You need to change the PC’s USB settings. See DSS Player online help for details (☞ P.73).

Troubleshooting

Accessories

Headset: E62, E102

Stereo headset for your PC. A helpful tool for PC based transcription.

Monaural binaural earphone: E20 Noise-cancellation microphone: ME12 (Dictation microphone)

Used to get crisp recordings of your own voice by reducing the effects of ambient noise. Recommended to improve the accuracy when using voice-recognition software.

External microphone: ME15

A lavalier omnidirectional microphone that clips to clothing. Used to record your own voice or people near you.

PC transcription kit: AS-5000

The AS-5000 transcription kit provides you with a PC-footswitch, a headset and DSS Player Pro Transcription Module for easy transcription of DSS recordings.

Foot switch: RS27/28

Connect to the USB cradle with DS-5000/DS-5000iD for hands-free transcription.

Connecting cord: KA333

Accessories

Use to connect the microphone jack of this unit to a radio or other sound source.

Telephone pickup: TP7

Earphone type microphone can be plugged into your ear while phoning. The voice or conversation over the phone can be clearly recorded.

Ni-MH rechargeable battery: BR403

High-efficiency rechargeable long life batteries.

Highly sensitive noise-cancellation monaural microphone: ME52W

This microphone is used to record sound at a distance while minimizing surrounding noise.

Specifications

Recording format

DS2 (Digital Speech Standard Pro)

Recording media

micro SD, SD-card: 512 MB to 8 GB

Input level -70 dBv Sampling frequency

QP mode: 16 kHz SP mode: 12 kHz

Overall frequency response

QP mode: 200 to 7,000 Hz SP mode: 200 to 5,000 Hz

Recording time (512 MB Card)

QP mode: 38 hours 45 minutes SP mode: 79 hours 30 minutes

Alkaline battery life

Recording:

QP mode: Approx. 24 hours SP mode: Approx. 32 hours

Playback:

All mode: Approx. 13 hours

Ni-MH Rechargeable Battery life

Recording:

QP mode: Approx. 20 hours SP mode: Approx. 28 hours

Playback:

All mode: Approx. 10 hours

Speaker

Built-in ø23mm round dynamic speaker

MIC/EAR jack

ø3.5 mm mini-jack, impedance MIC 2 kΩ, EAR 8 Ω or more

Maximum working output (3 V DC)

250 mW or more (8 Ω speaker)

Input power requirement

Rated voltage: 5 V Batteries:

External dimensions

113.5 x 50.0 x 17 mm (without protrusions)

Weight

110 g (Including Ni-MH Rechargeable Battery Pack)

* Specifications and design are subject to

change without notice.

* Battery life is measured by Olympus. It

varies greatly according to the type of batteries used and the conditions of use.

Ni-MH Rechargeable Battery Pack or Two AAA batteries (LR03 or R03) or Two Ni-MH rechargeable batteries

Specifications

Technical Assistance and Support

DS-5000 is part of the Olympus Professional Dictation System. Your dealer is trained to troubleshoot and fix many common problems that you may be having with this system. If you encounter problems using your DS-5000/DS-5000iD, we recommend that you contact your Olympus Professional Dealer that sold you the system. If your dealer cannot fix your problem, please call our technical hotline number or send an E-mail.

◆ For customers in the U.S. and Canada

Phone: 1-888-553-4448 E-mail: distec@olympus.com

◆ For customers in Europe

E-mail : dss.support@olympus-europa.com

Technical Assistance and Support

For customers in North and South America

Declaration of Conformity

Model Number: DS-5000/DS-5000iD Trade Name: DIGITAL VOICE RECORDER Responsible Party: OLYMPUS IMAGING AMERICA INC. Address: 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610,

Telephone Number: 1-888-553-4448

This device Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S.A.

Tested To Comply With FCC Standards

Canadian RFI

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Cet appareil numérique ne dépasse pas les limites de Catégorie B pour les émissions de bruit radio émanant d’appareils numériques, tel que prévu dans les Règlements sur l’Interférence Radio du Département Canadien des Communications.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

Applicable Product : DS-5000/DS-5000iD, AC adapter, Cradle

FOR HOME OR OFFICE USE

P2-BS0038-02

AP0803

Olympus DS-5000, DS-5000iD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
