Olympus DP80 Specifications

DP80

Microscope Digital Camera

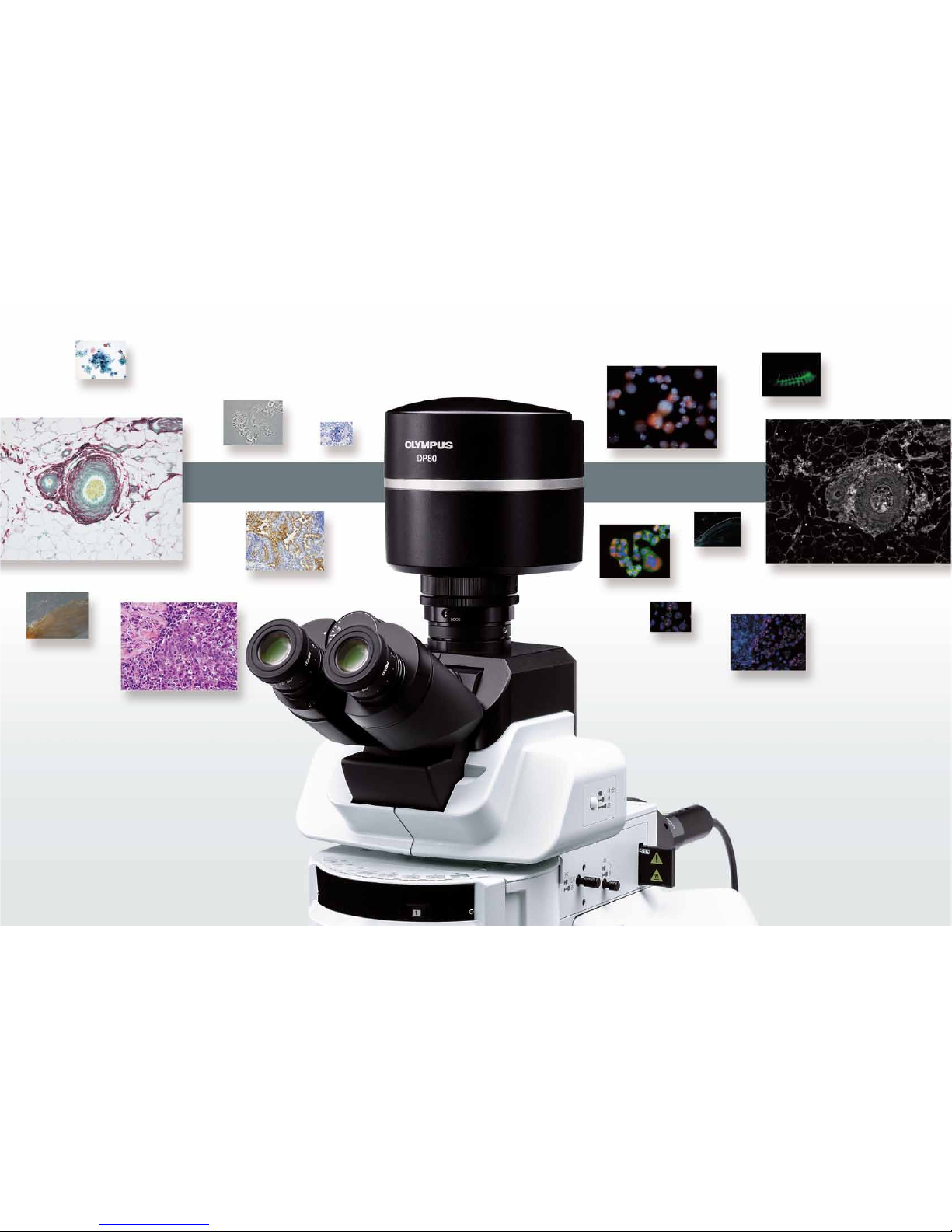

A cutting-edge digital microscopy camera equipped with dual CCD sensors,

providing both high sensitivity monochrome and high-quality single-shot color images.

DP80 System Diagram

ø

133

139

DP80

Camera head

To B4-mount

camera adapter

Camera interface cable

External trigger cable

Desktop

PC

PCIe I/F board

cellSens Entry or
cellSens Standard or
cellSens Dimension

* Image acquisition time and speed may be reduced if exposure time increases or several tasks are active in the background.
** "Centering" is a camera function which aligns the positions of the color and monochrome CCD sensors.

* Please use computers that conform to the regulations for your region.

DP80 Camera Head Dimension

(Unit: mm)

Weight: approx 2.5 kg
