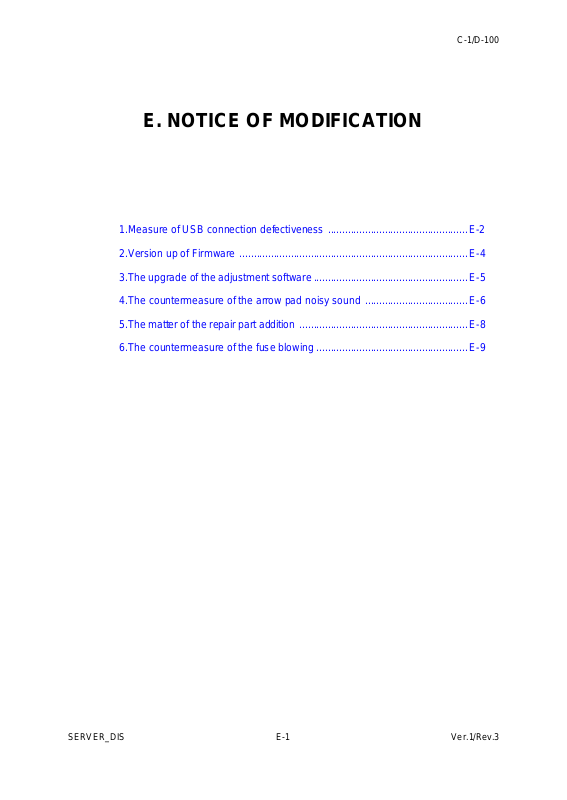

OLYMPUS C-1 Notice of Modification

Page 1
C-1/D-100
E. NOTICE OF MODIFICATION
1.Measure of USB connection defectiveness .................................................E-2
2.Version up of Firmware ................................................................................E-4
3.The upgrade of the adjustment software......................................................E-5
4.The countermeasure of the arrow pad noisy sound ....................................E-6
5.The matter of the repair part addition ...........................................................E-8
6.The countermeasure of the fuse blowing .....................................................E-9
SERVER_DIS E-1 Ver.1/Rev.3
Page 2
E. NOTICE OF MODIFICATION C-1/D-100
SUBJECT Measure of USB connection defectiveness 2002.Mar.04
Nature of Defect:
When a camera and PC are connected with USB the recognition (*) of a camera (drive) is not produced. Also PC sometimes hangs up. (1) The USB connector of the only keyboard side is an object with the early style of iMAC. As for the USB connector of the main body, there is no problem. (2) 4 USB connectors of Compaq PC (Presario35** series) are all the objects.
(*) (1) When a camera is connected to PC the icon repeatedly comes out and fade away. (2) It becomes an error when they double-click the icon, although the camera is recognized. When it connects again the icon repeatedly comes out and fade away.
Countermeasure:
(1) You take off MC-PCA#(VJ191300) according to the repair manual. (Resistance is attached in the board reverse side.) (2) R1205: DF118900 filter Taiyo-yu-den BK1608HS241-T Change to KR561800 Metal tunic tamadenki CRG16GT270J. (3) R1206: DF118900 filter Taiyo-yu-den BK1608HS241-T Change to KR561800 Metal tunic tamadenki CRG16GT270J. (4) To the big circle inside a battery cover mark with black dot.
Remarks CRG16GT270J: 27 ± 5% 1/16W 1608size
Repair place:
SERVER_DIS E-2 Ver.1/Rev.3
Page 3
C-1/D-100 E. NOTICE OF MODIFICATION
Marking:
Marking with black dot
Repair correspondence:
Please correspond to the camera that is raised the claim. Correspondence completion board Serial No.: After 0026**********B05 (“B05” is measure completion.)
REMARKS
Countermeasure Serial number (main board):
C-1(J) C-1(U) C-1(E)
NTSC 170202738- 168104901-
168543565­168225186-
PAL 172100601-
172200001-
Ver.1/Rev.3 E-3 SERVER_DIS
Page 4
E. NOTICE OF MODIFICATION C-1/D-100
SUBJECT Version up of Firmware 2002.Mar.04
The latest firmware:
OLD VERSION NEW VERSION
NTSC/PAL Commonness User : V1.064, Boot : V1.023 User : V1.065, Boot : V1.024
Please refer to repair article for a procedure of rewriting firmware.
Main countermeasure contents (reason) :
The following problem was disclosed by the operation.
¬An actual setup is replaced with the menu setup indication of the time age, the day moon age.
-It hangs up by the 256th sheet when a slide show is held by the card with 256 sheets and more of images. ®It is not indication of a protection icon though protection can be set up by the card with 256 sheets and more
of images by the frame beyond 256 frame. ¯It is initialization structure which can't apply SDRAM substitutive goods.
REMARKS
Change classification: Running change.
Version up procedure: Please refer to “2: how to rewrite firmware” of “D. REPAIR PROCEDURE”
Countermeasure Serial number:
C-1(J) C-1(U) C-1(E)
NTSC
User:V1.065
Boot:V1.024
PAL
User:V1.065
Boot:V1.024
170515001- 168104901-
168551301-
169505401­169200021-
SERVER_DIS E-4 Ver.1/Rev.3
Page 5
C-1/D-100 E. NOTICE OF MODIFICATION
SUBJECT The upgrade of the adjustment software 2002.Mar.04
Change reason:
When it takes pictures under the white color fluorescent light, because an image turns yellow after Repair adjustment software "color adjustment".
OLD NEW
C-1 Ver1.0 rev2 C-1 Ver1.1 rev1
Cause: The defect of the parameter file for DNP Viewer.
Countermeasure:
- change contents C1_Adj v1.1rev1-
Parameter file: The change of BPF_adjust_4856_DNP.csv.
Product Number of the camera is inputted at the time of MC BOARD exchange mecashutter adjustment. (Because a file name isn't kept normally at the time of the adjustment data preservation.) At the time of the MC Board exchange, in the address of product Number of Flash Rom of the camera "00000001" is being written. At the time of Mecashutter adjustment, the product Number calls of the camera. When it is "00000001", the screen of Number writing appears.
Importance:
The change of the parameter file for DNP Viewer.
When color adjustment is done, it drives in viewer with the warmth machine for more than 30 minutes.
- reason -
Because it turns yellow under the white color fluorescent light easily. It is necessary to adjust it under the condition that stabilizes an illuminant to make it hard to turn yellow.
Ver.1/Rev.3 E-5 SERVER_DIS
Page 6
E. NOTICE OF MODIFICATION C-1/D-100
SUBJECT The countermeasure of the arrow pad noisy sound 2002.Mar.04
Contents :
VE355300 (SPACER BACK) is stuck on Cabinet Back as a noisy sound countermeasure at the time of the arrow pad operation.
Part number :
PARTS NUMBER DISCRIPTION
VE355300 SPACER BACK
Countermeasure classification : Running change
Countermeasure :
Stick VE355300 (SPACER BACK) on the above indication problem goods, and do a repair.
Putting up position : Please refer to the following page.
SERVER_DIS E-6 Ver.1/Rev.3
Page 7
C-1/D-100 E. NOTICE OF MODIFICATION
Ver.1/Rev.3 E-7 SERVER_DIS
Page 8
E. NOTICE OF MODIFICATION C-1/D-100
SUBJECT The matter of the repair part addition 2002.Mar.04
Contents : A repair part is added.
Part number :
PARTS NUMBER DISCRIPTION
DY271600 CARD SW DK855200 VIDEO JACK DK795000 USB JACK DK799900 DC JACK
SERVER_DIS E-8 Ver.1/Rev.3
Page 9
C-1/D-100 E. NOTICE OF MODIFICATION
SUBJECT The countermeasure of the fuse blowing 2002.Mar.04
Contents:
The supply of the fuse and the supply of Cover Battery Unit are done as a fuse blowing countermeasure.
Problem :
When a battery is inserted conversely and battery Cover is closed, a circuit short-circuits, and a fuse may blow on the way battery cover is closed and it goes.
Part number :
PARTS NUMBER DISCRIPTION
DB125800 Fuse
VC177500 COVER BATTERY UNIT [C-1]
VC177600 COVER BATTERY UNIT [D-100]
Countermeasure classification: A countermeasure is enforced in the all repair goods.
Countermeasure:
Battery Cover is exchanged for countermeasure Cove Battery Unit toward all the accepted repair goods. And, as for the thing that a fuse can blow, it is also exchanged for the fuse too.
Repair parts:
An old part is discontinued. (VE299700, VE352500, VC158800) It will be made the supply of only the countermeasure unit from now on.
The position of the fuse: In the POWER-PCA (VJ190900)
DB125800 Fuse
Ver.1/Rev.3 E-9 SERVER_DIS
