B. DISASSEMBLY AND ASSEMBLY PROCEDURE
C-1/D-100
B. DISASSEMBLY AND ASSEMBLY
PROCEDURE
[1] REMOVAL OF CABINET ASSEMBLY (FRONT)
AND CABINET ASSEMBLY (BACK) ................................................................. B-2
[2] REMOVAL OF LCD ................................................................................................. B-3
[3] REMOVAL OF LENS ASSEMBLY AND VF ............................................................ B-4
B-1
Ver. 1
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-1/D-100
[1] REMOVAL OF CABINET ASSEMBLY (FRONT) AND CABINET ASSEMBLY (BACK)
Disassembly perform as follows (1, 2...12) and assembly perform by reversing the disassembly steps (12, 11...1).
Be sure to discharge the main capacitor in procedure 12, then continue to disassembling.
! Beware of electric shock
Danger of electric shock.
Use a discharging tool to remove
the electrical charge before working.
12. Discharge
3. Open the Card Cover
11. Battery Cover
9. Cabinet back
1. Screw
1.7 x 4
10. Stand
2. Screw
1.6 x 17
6. Cover Terminal
1. Two Screws 1.7 x 4.5
4. Two Screws
1.7 x 6
7. Two connectors
5. Cabinet front
B-2 Ver.1
8. Two FPC's

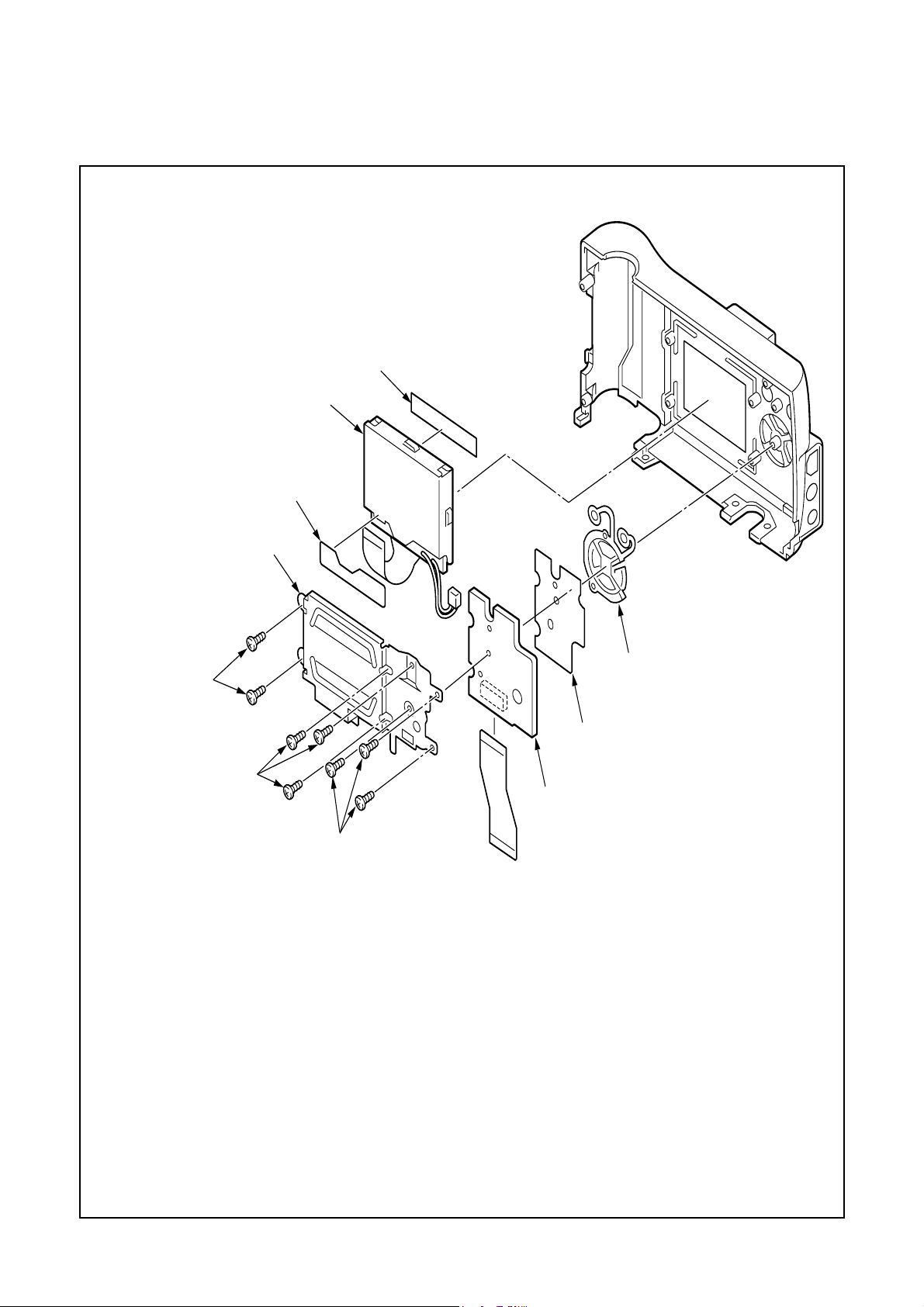

[2] REMOVAL OF LCD
2. Holder Monitor
B. DISASSEMBLY AND ASSEMBLY PROCEDUREC-1/D-100
3. Tape
5. LCD
4. Tape
1. Two Screws
1.7 x 3.5
1. Three Screws
1.7 x 3.5
8. Button Select
7. Spacer
6. SW-PCA
1. Three Screws
1.7 x 3.5
B-3Ver.1
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-1/D-100

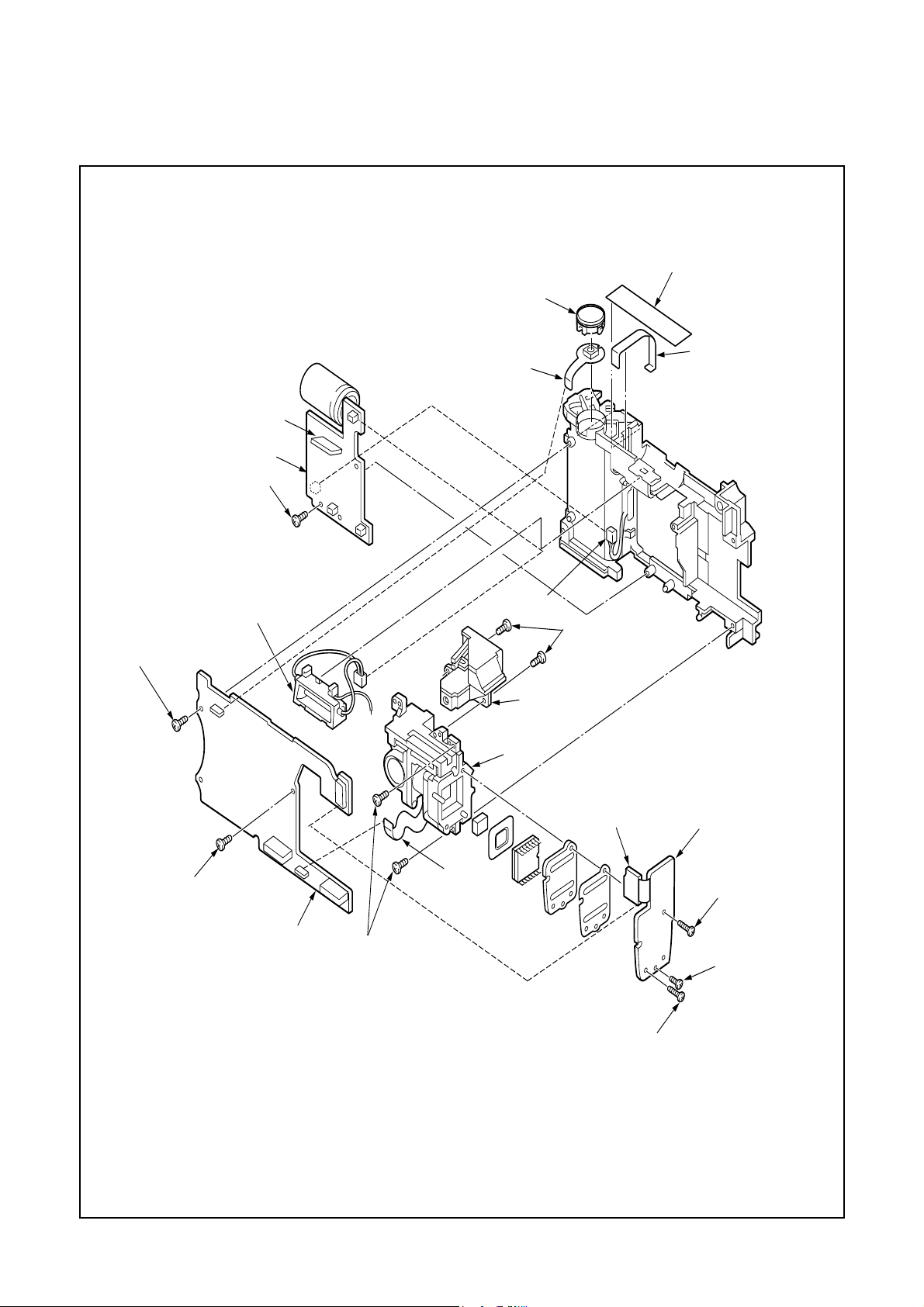

[3] REMOVAL OF LENS ASSEMBLY AND VF
9. Connector
15. Power-PCA
13. Screw 1.7 x 3.5
5. Tape
4. RELEASE BUTTON
6. Tape
3. FPC
7. FLASH UNIT
8. Screw 1.7 x 3.5
8. Screw 1.7 x 3.5
10. MC-PCA
2. FPC
11. Two Screws
1.7 x 4.5
14. Connector
16. Two Screws
1.7 x 4
17. VF
12. Lens
1. Connector
19. Screw 1.4 x 5
20. CCD-PCA
19. Screw 1.4 x 5
18. Screw 1.4 x 2
B-4 Ver.1
