Conﬁguration Guide

This guide supports the following models:

MC363dn/MC363dnw

AirPrint

AirPrint logo

iPad

iPhone

iPod

iPod touch

REFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from:

https://www.oki.com/printing/

OKI is a registered trademark of Oki Electric Industry Co., Ltd.

ENERGY STAR is a trademark of the United States Environmental Protection Agency.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

Apple, Macintosh, Mac and Mac OS are registered trademarks of Apple Inc.

Other product names and brand names are registered trademarks or trademarks of their proprietors.

iPad, iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.

Preface > 2

ONTENTS

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Notes, cautions and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Documentation suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Purpose of this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

On-line usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Printing pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Configuring the network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Checking the common setup information . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting up scan to E-mail and internet fax . . . . . . . . . . . . . . . . . . . . . . . . 9

Checking the E-mail settings of the computer . . . . . . . . . . . . . . . . . . . . 9

Setting the E-mail address for your machine . . . . . . . . . . . . . . . . . . . .11

Configuring your machine for scan to E-mail and internet fax . . . . . . . . .12

Setting up Scan to Shared Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Checking the name of the computer . . . . . . . . . . . . . . . . . . . . . . . . . .13

Determining the names of the items required for Scan to Shared

Folder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Configuring the computer for Scan to Shared Folder . . . . . . . . . . . . . . .14

Managing profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Creating a profile for Scan to Shared Folder . . . . . . . . . . . . . . . . . . . . .18

Deleting a network profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Managing the address book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Setting sender and reply to E-mail addresses (from/reply to) . . . . . . . . .20

Creating E-mail templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Adding an E-mail address entry to the address book . . . . . . . . . . . . . . .22

Deleting an E-mail address entry from the address book . . . . . . . . . . . .22

Modifying an E-mail address entry from the address book . . . . . . . . . . .23

Sorting E-mail addresses in the address book . . . . . . . . . . . . . . . . . . . .23

Searching an E-mail address entry in the address book . . . . . . . . . . . . .23

Adding a group entry to the address book . . . . . . . . . . . . . . . . . . . . . .24

Deleting a group address entry from the address book . . . . . . . . . . . . .24

Modifying a group address entry from the address book. . . . . . . . . . . . .25

Sorting group address entries in the address book . . . . . . . . . . . . . . . .25

Searching a group address entry in the address book . . . . . . . . . . . . . .25

Configuring the Scan to Computer and Remote Scan . . . . . . . . . . . . . . .26

Using Drivers and Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Using TWAIN Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Using WIA Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Using ICA Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Using ActKey Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Useful Functions for Scan to Computer and Remote Scan . . . . . . . . . . . . . .35

Setting PC Scan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Enabling the Network TWAIN Settings . . . . . . . . . . . . . . . . . . . . . . . . .35

Enabling the WSD Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Selecting the Dual-Side Scan of WSD Scan function . . . . . . . . . . . . . . .36

Deleting a Scanner Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Updating a Scanner Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Configuring the fax settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Basic setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Advanced set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Connecting to a PBX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Automatic redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Reception mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Contents > 3

Adding a telephone handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Managing the phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Adding a speed dial entry to the phone book . . . . . . . . . . . . . . . . . . . .42

Adding a group entry to the phone book . . . . . . . . . . . . . . . . . . . . . . .43

Deleting a speed dial entry from the phone book. . . . . . . . . . . . . . . . . .43

Deleting a group dial entry from the phone book. . . . . . . . . . . . . . . . . .43

Modifying a speed dial entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Modifying a group dial entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Sorting speed dial entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Sorting group dial entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Searching a speed dial entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Searching a group dial entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Registering an entry from reception or transmission history . . . . . . . . . .45

User authentication and access control . . . . . . . . . . . . . . . . . . . . . . . . .46

PIN authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Registering a PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Enabling PIN authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Operation when PIN authentication is enabled . . . . . . . . . . . . . . . . . . .48

User name and password authentication . . . . . . . . . . . . . . . . . . . . . . . . .49

Registering a user name and password . . . . . . . . . . . . . . . . . . . . . . . .49

Enabling user name and password authentication . . . . . . . . . . . . . . . . .49

Operation when user name and password authentication is enabled . . . .49

Operation from the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Advanced network settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Configuring the wireless LAN (WPA/WPA2-EAP) from the Web Page

(Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

IEEE802.1X settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Wireless(Infrastructure) settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Changing network settings from the web page . . . . . . . . . . . . . . . . . . . . .56

Encrypting Communication by SSL/TLS . . . . . . . . . . . . . . . . . . . . . . . .56

IPP printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Encrypting communication by IPSec . . . . . . . . . . . . . . . . . . . . . . . . . .60

Controlling access using IP address (IP filtering) . . . . . . . . . . . . . . . . . .63

Controlling access using MAC address (MAC address filtering) . . . . . . . .63

Error notification by E-mail (E-mail alert) . . . . . . . . . . . . . . . . . . . . . . .64

Using SNMPv3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Using IPv6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Checking IPv6 address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Using IEEE802.1X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Configuring your machine for IEEE802.1X . . . . . . . . . . . . . . . . . . . . . .67

Connecting your machine to authentication switch . . . . . . . . . . . . . . . .68

Configuring LDAP server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Configuring secure protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Printing without printer driver (direct printing) . . . . . . . . . . . . . . . . . . . . .70

Printing PDFs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Configuring server to print files attached to E-mails. . . . . . . . . . . . . . . .70

Other operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Initializing network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Using DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Configuring DHCP server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Configuring your machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Contents > 4

OTES, CAUTIONS AND WARNINGS

NOTE A note provides additional information to supplement the main text.

A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning provides additional information which, if ignored, may result in a risk of personal injury.

CAUTION!

Notes, cautions and warnings > 5

BOUT THIS GUIDE

NOTE Images used in this manual may include optional features that your product does not have installed.

OCUMENTATION SUITE

This guide is part of a suite of online and printed documentation provided to help you become familiar with your product and to make the best use of its many powerful features. The documentation is summarised below for reference and is found on the manuals DVD unless indicated otherwise:

> Installation Safety booklet: provides information for safe use of your product.

This is a paper document that is packaged with the product and should be read before setting up your machine.

> Set-up guide: describes how to unpack, connect and turn on your product.

This is a paper document that is packaged with the product.

> User’s Guide: helps you become familiar with your product and make the best use

of its many features. Also included are guidelines for troubleshooting and maintenance to ensure that it performs at its best. Additionally, information is provided for adding optional accessories as your printing needs evolve.

> Configuration Guide: provides machine, fax and network configuration

information.

> On-line Help: on-line information accessible from the printer driver and utility

software.

URPOSE OF THIS GUIDE

The purpose of this guide is to provide you with in-depth information on how configure the network, scan and fax for your machine.

Depending on your OS, model or version, the description on this document may be different.

About this guide > 6

ON-

1 2 3

LINE USAGE

This guide is intended to be read on screen using Adobe Reader. Use the navigation and viewing tools provided in Adobe Reader.

There are many cross-references within this book, each highlighted as blue text. When you click on a cross-reference the display will instantly jump to the part of the manual containing the referenced material.

By using the button in Adobe Reader, you can navigate directly back to where you were before.

You can access specific information in two ways:

> In the list of bookmarks down the left hand side of your screen, click on the topic of

interest to jump to the required topic. (If the bookmarks are not available, use the

“Contents“ on page 3.)

> In the list of bookmarks, click on Index to jump to the Index. (If the bookmarks are

not available, use the “Contents“ on page 3.) Find the term of interest in the alphabetically arranged index and click on the associated page number to jump to the page containing the term.

RINTING PAGES

The whole manual, individual pages, or sections may be printed. The procedure is:

1. From the toolbar, select File > Print (or press the Ctrl + P keys).

2. Choose which pages you wish to print:

(a) All pages, (1), for the entire manual.

(b) Current page, (2), for the page at which you are looking.

page numbers.

(d) Click OK.

About this guide > 7

ONFIGURING THE NETWORK SETTINGS

Functions such as Scan To E-mail, Scan To Shared Folder and Internet Fax enable you to send scanned data to a computer via the network connection. To use them, you need to set up your machine and the computer to which you want to send scanned data.

First check your computer settings and fill in the information in the Your Value column of the “Setup Information Form,” on page 8. Then, configure your machine and the computer using the information in Your Value.

NOTE Be sure to set up the network connection before continuing. Refer to the Setup Guide supplied with the machine.

Table 1: Setup Information Form

NO. ITEM EXAMPLE YOUR VALUE

Common Setup Information

A-1 Administrator password for your machine 999999

A-2 IP address of your machine 192.168.0.2

Setup Information Required for Scan To Email and Internet Fax

B-1 Email address for your machine mc363@test.com

(Up to 80 characters)

B-2 SMTP server address smtp.test.com

B-3 POP3 server address pop3.test.com

B-4 Receive Settings

B-5 Authentication method SMTP

B-6 SMTP user ID OKIMC363

B-7 SMTP password okimc363

B-8 POP user ID user

B-9 POP password okimc363

B-10 Name of the email destination User

B-11 Email address of the email destination user@test.com

Setup Information Required for Scan To Shared Folder

C-1 Name of the destination computer PC1

C-2 User name to log into the destination

computer

C-3 Password to log into the destination

computer

C-4 Profile name to register the settings Sales

mc363

(Up to 32 characters)

(Up to 16 characters)

C-5 Shared folder name on the destination

computer

C-6 File name of the scanned data ScanData

Configuring the network settings > 8

SalesDev

(Up to 64 characters)

HECKING THE COMMON SETUP INFORMATION

Check the common setup information for Scan To E-mail, Scan To Shared Folder and Internet Fax, and fill in the corresponding column in the “Setup Information Form,” on page 8.

Administrator password

Enter the administrator password of your machine in the

NOTE The default administrator password is “999999”.

Passwords are case sensitive.

“Setup Information Form,” on page 8.

IP address of your machine

1. Press the SETTING key on the control panel.

2. Using the Down arrow key, scroll to View Information and press OK.

3. Using the Down arrow key, scroll to Network and press OK.

4. Note the IPv4 address in the “Setup Information Form,” on page 8.

ETTING UP SCAN TO

The Scan To E-mail and Internet Fax functions enable you to send scanned images as a file attachment in an E-mail to the specified E-mail address on the network. To use these functions, set up the E-mail setting for your machine.

HECKING THE

If a network administrator specifies the values such as a mail server account, password and email address for your machine, note them in the “Setup Information Form,” on page 8, otherwise follow the procedure below.

1. Click Start > Windows Live Mail.

2. From the drop-down menu, select Tools > Accounts.

If the menu bar is not displayed, click the Menus icon and then select Show menu bar.

3. Select the default mail account and then click Properties.

E-

MAIL SETTINGS OF THE COMPUTER

NOTE The procedure below uses Windows Live Mail on Windows 7. If you are using different email software, refer to the manual for the email software.

E-

MAIL AND INTERNET FAX

Configuring the network settings > 9

4. On the General tab, note the Name and E-mail address in the “Setup Information

B-10

B-11

B-3

B-2

B-8

B-9

B-6

B-7

Form,” on page 8.

5. Click the Server tab, and then note each of the settings as shown:

If My server requires authentication is selected, enter “SMTP” in B-5.

If it is not selected, enter “None” in B-5.

6. Select My server requires authentication and then click Settings.

7. Refer to the Outgoing Mail Server dialog box, and note the settings in the “Setup

Information Form,” on page 8.

If Use the same settings as my incoming mail server is selected, enter the same values as B-8 and B-9 in B-6 and B-7.

If Log on using is selected, note the Account name and Password.

Configuring the network settings > 10

ETTING THE

E-

MAIL ADDRESS FOR YOUR MACHINE

Enter an E-mail address to be used by your machine in the “Setup Information Form,” on

page 8.

> If the E-mail address for your machine is specified by the network administrator,

enter the email address in B-1.

> If you are using an Internet Service Provider, obtain an E-mail address for your

machine from the provider and then enter the E-mail address in B-1.

NOTE If you want your machine to receive E-mail, you must obtain an E-mail address for your machine from a network administrator or your Internet Service Provider.

Configuring the network settings > 11

ONFIGURING YOUR MACHINE FOR SCAN TO

E-

MAIL AND INTERNET FAX

Set up your machine for Scan To E-mail and Internet Fax using the information in the

“Setup Information Form,” on page 8.

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Easy Setup and press OK.

3. Using the arrow keys and on-screen keypad, enter the Administrator password. Highlight Enter and press OK.

NOTE The default password is “999999”.

4. Using the Down arrow key, scroll to E-mail Setting and then press the Right arrow key.

5. Press the Right arrow key, then enter the SMTP server address (B-2) using the arrow keys and on-screen keypad.

6. Highlight Enter and then press OK.

7. Press the Right arrow key, then enter the E-mail address for your machine (B-

1) using the arrow keys and on-screen keypad.

8. Highlight Enter and then press OK.

9. Select a protocol for the Receive Settings (B-4) by using the Up or Down arrow keys and then press OK.

10. Select an authentication method (B-5) by using the Up or Down arrow keys and then press OK.

11. Press the Right arrow key, then enter the SMTP user ID (B-6) using the arrow

keys and on-screen keypad.

12. Highlight Enter and then press OK.

13. Press the Right arrow key, then enter the SMTP password (B-7) using the arrow

keys and on-screen keypad.

14.

Highlight Enter and then

press OK.

15. Press the Right arrow key, then enter the POP-3 server address (B-3) using the arrow keys and on-screen keypad.

16. Highlight Enter and then press OK.

17. Press the Right arrow key, then enter the POP-3 user ID (B-8) using the arrow

keys and on-screen keypad.

18. Highlight Enter and then press OK.

19. Press the Right arrow key, then enter the POP password (B-9) using the arrow

keys and on-screen keypad.

20. Highlight Enter and then press OK.

21. When the setup menu screen is displayed, press OK.

The setup for Scan To E-mail and Internet Fax is complete.

Configuring the network settings > 12

C-1

ETTING UP SCAN TO SHARED FOLDER

The Scan To Shared Folder function enables you to send and save scanned images to the “shared folder” of a computer on the network. To use this function, register your machine on the computer as a user and create a shared folder, and then create a profile on your machine to register the settings for the computer.

NOTE Before starting the setup, get permission from the network administrator to create a shared folder on the computer by following the procedure below.

The CIFS protocol is used in this procedure.

HECKING THE NAME OF THE COMPUTER

Check the name of the computer following the procedure below, and fill in C-1 of the “Setup

Information Form,” on page 8.

NOTE The procedure below uses Windows 7 as an example. The display may differ depending on the operating system.

1. Click Start > Control Panel.

2. Select System and Security.

For Windows Server 2008 and Windows Vista, select System and Maintenance.

3. Click System > See the name of this computer.

4. Note the Computer name in C-1.

5. Close the window.

Configuring the network settings > 13

ETERMINING THE NAMES OF THE ITEMS REQUIRED FOR SCAN TO SHARED FOLDER

Determine the names of the following items and fill in C-2 to C-6 on the “Setup Information

Form,” on page 8.

> User name to log into the destination computer (C-2)

> Password to log into the destination computer (C-3)

> Profile name to register the settings on your machine (C-4)

> Shared folder name on the destination computer (C-5)

> File name of the scanned data (C-6)

ONFIGURING THE COMPUTER FOR SCAN TO SHARED FOLDER

Register your machine on the computer as a user and then set up a shared folder to which scanned images are sent and saved.

NOTE If the computer is in a domain, the procedure of adding a user account may be different to the procedure below.

Refer to Windows help.

NOTE The procedure below uses Windows 7 as an example. The display may differ depending on the operating system.

1. Click Start > Control Panel.

2. Select Add or remove user accounts.

3. Select Create a new account.

4. Enter the user name (C-2) in the text box.

5. Ensure that Standard user is selected, and then click Create Account.

Configuring the network settings > 14

6. Click the icon of the user account created in step 5.

7. Select Create a password.

8. Enter the password (C-3) in New password and Confirm for new password, and then click Create password.

9. Close the control panel.

10. Create a new folder on the computer with the shared folder name entered in C-5.

NOTE It is recommended that you create a folder in the local drive, not on the desktop or “My Documents”.

11. Right-click the folder created in step 10 and select Properties.

12. Select the Sharing tab and then click Share.

Configuring the network settings > 15

13. Select the user account created in step 5 from the drop down box, then click Add.

14. Select the user added in step 13 and select the permission level, then click Share.

15. Click Done.

16. Click Advanced Sharing on the Sharing tab.

17. Click Permissions.

Configuring the network settings > 16

18. Select the user added in step 13 and select the Allow check box for Full Control, then click OK.

19. Close the folder’s property dialog box.

NOTE Create a profile to complete the setup for Scan To Shared Folder. Refer to

“Creating a profile for Scan to Shared Folder” on page 18.

NOTE It is recommended that you create a folder in the local drive, not on the desktop or “My Documents”.

Configuring the network settings > 17

ANAGING PROFILES

REATING A PROFILE FOR SCAN TO SHARED FOLDER

Register the information you configured on the computer as a profile. It is necessary when you perform Scan To Shared Folder with the computer.

1. Press the SETTING button on the control panel to prompt the Setting screen.

2. Using the Down arrow key, scroll to Profile and press OK.

3. Select the desired profile number.

4. Press the Right arrow key to prompt the Operation Menu screen.

From here you can register or sort profiles.

5. When registering a new profile, press the Right arrow key to prompt the Profile screen.

6. Ensure Profile Name: is highlighted then press the Right arrow key.

7. Using the arrow keys and on-screen keypad, enter the information in C-4.

8. Using the arrow keys, highlight Enter and press OK.

9. Using the Down arrow key, scroll to Target URL then press the Right arrow key.

10. Using the arrow keys and on-screen keypad, enter the name of the destination

computer (C-1) and the shared folder name (C-5) as “\\name of the destination computer\shared folder name”.

11. Using the arrow keys, highlight Enter and press OK.

12. Using the Down arrow key, scroll to User Name then press the Right arrow key.

13. Using the arrow keys and on-screen keypad, enter a suitable user name (C-2).

NOTE If domain management is done, enter “

user name@domain name”.

14. Using the arrow keys, highlight Enter and press OK.

15. Using the Down arrow key, scroll to Password then press the Right arrow key.

16. Using the arrow keys and on-screen keypad, enter a suitable

. Usin

g the arrow keys, highlight Enter and press OK.

password (C-3).

18. Using the Down arrow key, scroll to File Name then press the Right arrow key.

19. Using the arrow keys and on-screen keypad, enter a suitable file name (C-6).

NOTE You can enter up to 64 characters.

By adding “#n” to the end of the file name, a serial number is automatically assigned to the end of the name of sent files.

By adding “#d” to the end of the file name, a date is automatically assigned to the end of the name of sent files.

20. Using the arrow keys, highlight Enter and press OK.

21. Configure other items if necessary, for example:

\\PC1\SalesDev

22. Press OK to register the settings and save the profile entry.

The setup for Scan To Shared Folder is complete.

Configuring the network settings > 18

ELETING A NETWORK PROFILE

To delete a network profile:

1. Press the SETTING button on the control panel to prompt the Setting screen.

2. Using the Down arrow key, scroll to Profile List and press OK.

3. Select the desired profile number.

4. Ensure Delete is highlighted then press the Right arrow key.

5. At the prompt:

> press OK to continue deleting the profile entry,

or...

> use the Right arrow key to highlight No, then press OK to cancel.

Configuring the network settings > 19

ANAGING THE ADDRESS BOOK

ETTING SENDER AND REPLY TO

You can set the E-mail address from which E-mails are sent and the address to which responses are sent.

1. Press the SETTING button.

2. Using the Down arrow key, scroll to Admin Setup and then press OK.

3. Using the arrow keys and on-screen keyboard, enter the administrator password.

NOTE The default password is “999999”.

4. Select Enter and then press OK.

5. Using the Down arrow key, scroll to Scanner Setup and then press OK.

6. Using the Down arrow key, scroll to E-mail Setup and then press OK.

7. Using the Down arrow key, scroll to From/Reply to and then press OK.

8. Using the Down arrow key, scroll to E-mail Sender ID and then press OK.

9. Using the on-screen keyboard, enter the E-mail address up to 80 characters.

10. Select Enter and then press OK.

E-

MAIL ADDRESSES (FROM/REPLY TO

)

NOTE You can select E-mail addresses from the address book.

11. Using the Down arrow key, scroll to Close and then press OK.

12. Press the RESET/LOGOUT button.

Configuring the network settings > 20

REATING

You can create up to five E-mail templates with various subject lines and body text.

E-

MAIL TEMPLATES

Registering a subject

1. Press the SETTING button.

2. Using the Down arrow key, scroll to Admin Setup and then press OK.

3. Using the arrow keys and on-screen keyboard, enter the administrator password.

NOTE The default password is “999999”.

4. Select Enter and then press OK.

5. Using the Down arrow key, scroll to Scanner Setup and then press OK.

6. Using the Down arrow key, scroll to E-mail Setup and then press OK.

7. Using the Down arrow key, scroll to Template and then press OK.

8. Make sure that Edit Subject is selected and then press OK.

9. Using the Down arrow key, select a template entry number and then press OK.

10. Using the on-screen keyboard, enter the subject up to 80 characters.

11. Select Enter and then press OK.

Registering body text

1. Follow steps 1 to 7 in “Registering a subject” on page 21.

2. Using the Down arrow key, scroll to Edit Body and then press OK.

3. Using the on-screen keyboard, enter the body text up to 256 characters.

4. Select Enter and then press OK.

Configuring the network settings > 21

DDING AN

E-

MAIL ADDRESS ENTRY TO THE ADDRESS BOOK

The machine can hold up to 300 E-mail addresses in the address book. To assign a new E-mail address to the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK.

3. Press OK to select E-mail Address.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Register.

6. Press the Right arrow key to select Name.

7. Using the keypad or arrows keys and the on-screen keypad, type in the name.

NOTE The maximum length of name is 16 characters.

If you do not enter a name, this column remains blank.

8. Highlight Enter and press OK.

9. Using the Down arrow key, scroll to E-mail Address and press the Right arrow

key.

10.

Using the keypad or arrows keys and the on-screen keypad, type in the new E-mail address.

NOTE The maximum length of address is 80 characters.

11. Highlight Enter and press OK.

12. If required, use the arrow keys and scroll to Group No. then press the Right arrow

key.

13. Using the arrow keys, select the group number to assign the E-mail address to and press OK.

The check box is selected. You can select multiple entries.

14. Press the Right arrow key to complete.

15. Press OK to confirm.

16. Press OK once more to add your entry to the address book.

17. Press the Left arrow key to exit the menu.

ELETING AN

E-

MAIL ADDRESS ENTRY FROM THE ADDRESS BOOK

To delete an E-mail address entry from the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK.

3. Press OK to select E-mail Address.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Using the arrow keys, scroll to Delete and press OK.

6. At the prompt select Yes to continue or select No to cancel the operation.

7. Press OK.

Configuring the network settings > 22

8. Press the Left arrow key to exit the menu.

ODIFYING AN

To edit an E-mail address entry from the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK.

3. Press OK to select E-mail Address.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Edit.

6. Modify the Name, E-mail Address and/or Group No. details as required then press OK.

7. Press the Left arrow key to exit the menu.

ORTING

To sort E-mail addresses in the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK to enter the

address book.

E-

MAIL ADDRESS ENTRY FROM THE ADDRESS BOOK

E-

MAIL ADDRESSES IN THE ADDRESS BOOK

3. Select E-mail Address and press OK to enter E-mail adress list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Sort By Name or Sort By Number, and press OK.

Then the addresses will be sorted depending on the selection.

EARCHING AN

To search an E-mail address entry in the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK to enter the

address book.

3. Select E-mail Address and press OK to enter E-mail adress list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Search, and press OK to enter the input window.

6. Using the on-screen keyboard to enter the key word for searching.

7. After key word inputing, select Enter and press OK.

The entries will be sort by name, and the matched entry will have focus.

E-

MAIL ADDRESS ENTRY IN THE ADDRESS BOOK

Configuring the network settings > 23

DDING A GROUP ENTRY TO THE ADDRESS BOOK

The machine can hold up to 20 group addresses. To add a new group address to the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK.

3. Using the Down arrow key, scroll to E-mail Group and press OK.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Register.

6. Press the Right arrow key to select Name.

7. Using the keypad or arrows keys and the on-screen keypad, type in the name.

NOTE The maximum length of name is 16 characters.

8. Highlight Enter and press OK.

9. Using the Down arrow key, scroll to Address No. and press the Right arrow key.

10. Using the arrow keys, select the destination to assign the E-mail group to and press OK.

The check box is selected. You can select multiple entries.

11. Press the Right arrow key to complete.

12. Press OK to confirm.

13. Press OK once more to add your entry to the address book.

14. Press the Left arrow key to exit the menu.

ELETING A GROUP ADDRESS ENTRY FROM THE ADDRESS BOOK

To delete a group address entry from the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK.

3. Using the Down arrow key, scroll to E-mail Group and press OK.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Using the arrow keys, scroll to Delete and press OK.

6. At the prompt select Yes to continue or select No to cancel the operation.

7. Press OK.

8. Press the Left arrow key to exit the menu.

Configuring the network settings > 24

ODIFYING A GROUP ADDRESS ENTRY FROM THE ADDRESS BOOK

To edit a group address entry from the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK.

3. Using the Down arrow key, scroll to E-mail Group and press OK.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Edit.

6. Modify the Name and/or Address No. details as required then press OK.

7. Press the Left arrow key to exit the menu.

ORTING GROUP ADDRESS ENTRIES IN THE ADDRESS BOOK

To sort group address entries in the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK to enter the

address book.

3. Select E-mail Group and press OK to enter E-mail group list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Sort By Name or Sort By Number, and press OK.

Then the groups will be sorted depending on the selection.

EARCHING A GROUP ADDRESS ENTRY IN THE ADDRESS BOOK

To search a group address entry in the address book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Address Book and press OK to enter the

address book.

3. Select E-mail Group and press OK to enter E-mail group list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Search, and press OK to enter the input window.

6. Using the on-screen keyboard to enter the key word for searching.

7. After key word inputing, select Enter and press OK.

The groups will be sort by name, and the matched entry will have focus.

Configuring the network settings > 25

ONFIGURING THE SCAN TO COMPUTER AND REMOTE SCAN

SING DRIVERS AND SOFTWARE

This section explains how to use the scanner driver and utilities. They allow you to scan documents and change settings easily on your computer.

SING

TWAIN D

RIVER

MEMO The explanations in this section use PaperPort in Windows and Adobe Photoshop in Mac OS X as an example.

In this section, procedures using Remote Scan with USB connection are described. For how to connect to the network and start to scan by Scan To Computer, refer to the User's Guide.

NOTE To use this function, applications supporting TWAIN (PaperPort or Adobe Photoshop, etc.) should be installed in your computer.

REFERENCE For details on how to start a scan job, refer to the User's Guide.

Starting a Scan Job (for Windows)

1. Place your document with text face up in the ADF or face down on the document

glass.

NOTE When the "PC Scan Mode" is set to Manual Scan Mode or Secure Scan Mode, implement steps 2 and 3.

2. Press the SCAN key.

3. Press the to select Remote PC and then press OK.

4. Start PaperPort on your computer.

5. Click Select and then select the scanner driver of the machine.

A window appears.

6. Click the Scan.

Configuring the Scan to Computer and Remote Scan > 26

7. Click the scan buttons.

The scan job starts.

8. Click Quit.

9. When there is no continued page or the back side is not scanned, click Quit.

MEMO The following five buttons are registered as default settings.

Scan Photograph

Scan Magazine

Scan for OCR

Scan for Internet

Customize

Changing Settings

You can adjust how the document is scanned by changing the driver setting.

The following explains the setting items.

Simple Mode

You can change the settings of five registered buttons.

1. Follow the procedure for “Starting a Scan Job (for Windows)” on page 26 through step 6.

2. Select Simple from Mode.

3. Click Settings.

A window appears.

Configuring the Scan to Computer and Remote Scan > 27

4. Click the scan button to change the settings.

5. Click OK.

6. If you start a scan job, click the scan button.

If you want to finish the setting, click Quit.

Advanced Mode

You can adjust in detail how a document is scanned.

1. Follow the procedure for “Starting a Scan Job (for Windows)” on page 26 through step 6.

2. Select Advanced from Mode.

3. Change the settings if necessary.

4. Click Scan to start scanning.

If you want to finish the setting, click Quit.

REFERENCE For details on how to change each setting, refer to the online help.

SING

WIA D

RIVER

The WIA driver does not support the network scan function. Connect the machine with the computer via USB or WSD Scan.

The WIA driver does not support Mac OS X.

Starting a Scan Job

MEMO The explanations in this section use PaperPort as an example, and may differ from the description depending on your application.

1. Place your document with text face up in the ADF or face down on the document glass.

NOTE When the "PC Scan Mode" is set to Manual Scan Mode or Secure Scan Mode, implement steps 2 and 3.

2. Press the SCAN key.

3. Press the to select Remote Scan and then press OK.

4. Start PaperPort on your computer.

5. Click Select and then click WIA: OKI Universal WIA.

6. Click Scan.

7. Select a paper feeding method.

8. Select a document type.

9. Specify the area to be scanned.

10. Click Scan.

11. Click Cancel when scanning is finished.

12. When there is no continued page or the back side is not scanned, click Finish.

The scanned image is displayed in PaperPort.

Configuring the Scan to Computer and Remote Scan > 28

Using Windows FAX and Scan

“Windows FAX and Scan” is a function used in Windows Vista/ 7/ 8/ 10.

1. Place your document with text face up in the ADF or face down on the document glass.

NOTE When the "PC Scan Mode" is set to Manual Scan Mode or Secure Scan Mode, implement steps 2 and 3.

2. Press the SCAN key.

3. Press the to select Remote Scan and then press OK.

4. Click Start on your computer, and select All Programs > Windows FAX and Scan.

5. Click New Scan.

6. Select OKI Universal WIA and click OK.

7. Make additional setting if necessary.

8. Click Scan.

9. Exit Windows FAX and Scan.

SING

ICA D

RIVER

The ICA driver is not compatible with the Windows OS.

The ICA driver supports the Mac OS X 10.8.

Start to read

NOTE Some examples of image capture are used in the following procedure. The steps and menus may differ depending on the application you use.

1. Place your document with text face up inthe ADF or face down on the document glass.

NOTE When the "PC Scan Mode" is set to Manual Scan Mode or Secure Scan Mode, implement steps 2 and 3.

2. Press the Scan key on the control panel.

3. Press the to select Remote Scan and then press OK.

Configuring the Scan to Computer and Remote Scan > 29

4. Start image capture on your computer.

5. Select the machine from the list at the left to the image capture screen.

6. Click the Scan.

Scanning will start.

7. From the Image Capture, select Close Image Capture.

Change settings

You can adjust the document scan by changing the current driver settings.

The following explains each item to set.

Display the detailed information

You can adjust the document scanning in details.

1. Follow steps 1 to 5 of “Start to read” section.

2. Click on Show Details.

3. Change the settings as required.

4. Click Scan to scan the document.

SING ACTKEY SOFTWARE

Using the ActKey, you can start a scan job in specified settings with a click a button.

MEMO ActKey does not support Mac OS X.

When ActKey is installed, Network Configuration is also installed simultaneously. For Network Configuration, refer to “Using Network

Configuration” on page 32.

REFERENCE For details on how to start a scan job, refer to the User's Guide.

Installing the Software

1. Insert the included “Software DVD-ROM” into a computer.

2. When AutoPlay is displayed, click Run Setup.exe.

If the User Account Control dialog box is displayed, click Yes.

3. Follow the instructions and proceed to 1. Install Optional Software screen.

4. Click Custom Install.

5. Click Separate Install.

6. Select ActKey.

7. Install the software as instructed.

8. Click Finish.

Starting the Software

1. Click Start to select All Programs > Okidata > ActKey > ActKey.

Configuring the Scan to Computer and Remote Scan > 30

Starting ActKey when Scanning to a Computer

You can set ActKey to start when you select Computer on the machine.

1. Click Start to select Control Panel.

2. Enter View scanners and cameras in Search Control Panel.

3. Click the View scanners and cameras under Devices and Printers.

4. Select OKI Universal and click Properties.

If the User Account Control dialog box appears, click Yes.

5. Click the Events tab.

6. Select an event for Select an event.

7. Select the Start this program check box and then select ActKey.

8. Repeat steps 6 and 7 so that ActKey is set to all events.

9. Click OK.

Fax Transmission of Scanned Documents

Using the fax service of the Windows component, you can send a scanned document.

NOTE The direction to load the paper can not be changed after scanning the documents.

This function uses the fax service of the Windows component.

MEMO For PC-FAX function, the resolution is fixed to 200dpi and the color mode is fixed to black and white.

1. Start ActKey on your computer.

NOTE When the "PC Scan Mode" is set to Manual Scan Mode or Secure Scan Mode, implement steps 2 and 3.

2. Press the SCAN key on the operator panel of the machine.

3. Press the to select Remote Scan and then press OK.

4. Place your document with text face up in the ADF or face down on the document

glass.

5. Click PC-Fax scan button of ActKey on your computer.

The Fax Setup starts.

6. Follow the on-screen instructions to send a fax.

Setting the Scan Button

You can change the settings of four scan buttons.

1. Start ActKey.

2. Select Button settings from Options menu.

3. Click a button you want to set.

4. Change the settings if necessary.

5. Click OK.

Configuring the Scan to Computer and Remote Scan > 31

Using Network Configuration

Network Configuration is a tool to set in advance when executing Scan To Computer. In addition, if the information including the device and IP address of the computer, etc. is changed when performing network scan, the setting value can be changed by this tool.

When installing ActKey, Network Configuration is also installed simultaneously.

Network Configuration will be automatically run when you log on windows if you select it in task tray menu.

When starting Network Configuration, the scanner driver installed in the computer is displayed.

> Method to add a new network scanner

To add a new network scanner, select Add Scanner from the Scanner menu, and select scanner driver name of the added scanner.

> Method to change a scanner driver name

When a scanner driver name has been changed, select Edit Driver Name from the Scanner menu and then change the scanner driver name.

> Method to change the setting information of the machine

When the IP address of the machine and port number of the machine have been changed, start Network Configuration and then select Edit Scanner from the Scanner menu.

The setting value set in the current computer is displayed, and then change the IP address and port number of the machine.

Configuring the Scan to Computer and Remote Scan > 32

> Method to set Scan To Computer

To execute Scan To Computer, you need to register the computer name, IP address and port number in the machine.

After installing the scanner driver, start Network Configuration and select the driver to be used. Then, select Properties from the Scanner menu and select the Register tab. As the computer information, the computer name, IP address and port number are displayed. The computer name does not have to be set since the computer's host name is automatically acquired.

Although the setting value of the computer is automatically displayed for the IP address, if multiple network cards are installed in the computer, multiple IP addresses are displayed. Select the IP address of the network card currently used. Further more, for the port number, the current setting is displayed. If you need to change, change the setting.

After all settings are complete. Click Register button to register the setting in the machine.

If the machine is tuned off and cannot be connected, an error occurs when registering. After registering, if the computer's name, IP address or port number is changed, you need to register again with the above procedure.

Configuring the Scan to Computer and Remote Scan > 33

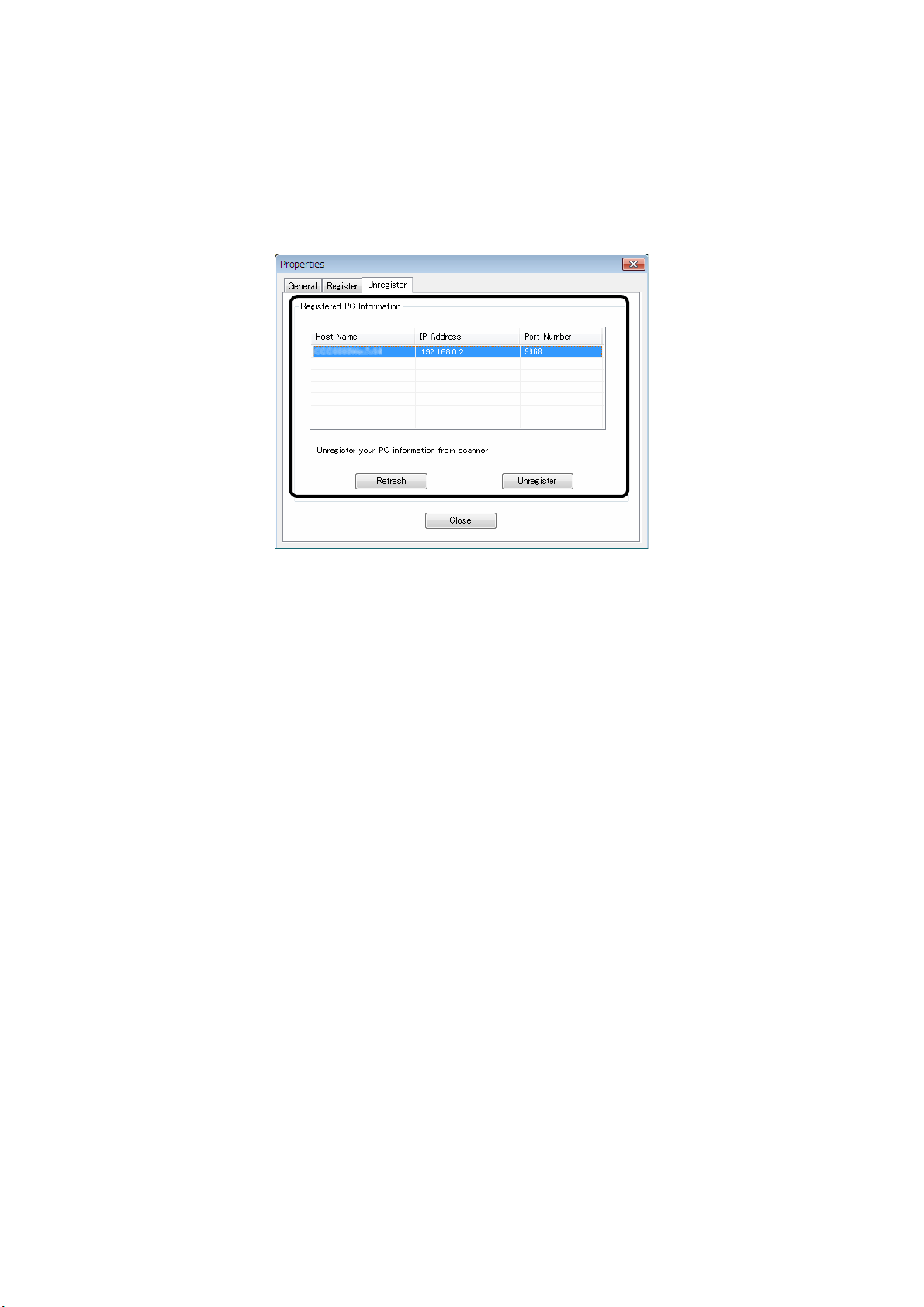

> Method to delete network-connected PCs of the machine

If you registered several network-connected PCs in the machine, you can delete them. Select Properties from the Scanner menu and select Unregister tab. The registered information is displayed. Select the registered information to be deleted from the machine, and click Unregister button.

Configuring the Scan to Computer and Remote Scan > 34

SEFUL FUNCTIONS FOR SCAN TO COMPUTER AND REMOTE SCAN

This section explains useful functions for Scan to Computer and Remote Scan.

MEMO To enter the Admin Setup menu, a password is necessary. The default password is “999999".

ETTING

You can select either simple scan mode, manual scan mode or secure scan mode for Scan to Computer function.

1. Press the SETTING key.

2. Press the to select Admin Setup and then press OK.

3. Enter the administrator password.

4. Select Enter and then press OK.

5. Press the to select Scanner Setup and then press OK.

6. Press the to select PC Scan Mode and then press OK.

7. Press the to select a mode and then press OK.

PC S

CAN MODE

8. Press the until the top screen appears.

NABLING THE NETWORK

Do the following procedure to use Scan to the Computer and Remote Scan functions connecting to network.

NOTE If you select Disable on this function, you cannot use scan to Computer and Remote Scan via network.

1. Press the SETTING key.

2. Press the to select Admin Setup and then press OK.

3. Enter the administrator password.

4. Select Enter and then press OK.

5. Press the to select Scanner Setup and then press OK.

6. Press the to select TWAIN Setup and then press OK.

7. Check that Network TWAIN is selected and then press OK.

8. Press the to select ON and then press OK.

TWAIN S

ETTINGS

9. Press the until the top screen appears.

NABLING THE

To use both the Scan To Computer (WSD Scan) function and the Remote Scan (WSD Scan) function via the WSD Scan connection, follow the steps below.

1. Press the SETTING key.

2. Press the to select Admin Setup and then press OK.

WSD S

CAN

Configuring the Scan to Computer and Remote Scan > 35

3. Enter the administrator password.

4. Select Enter and press OK.

5. Press the to select Scanner Setup and then press OK.

6. Press the to select WSD Scan Setup and then press OK.

7. Check that WSD Scan is selected, and then press OK.

8. Press the to select ON and then press OK.

9. Press the until the top screen appears.

ELECTING THE DUAL-SIDE SCAN OF

To enable the Dual-Side Scan of the Scan To Computer (WSD Scan) function and Remote Scan (WSD Scan) function, follow the steps below.

1. Press the SETTING key.

2. Press the to select Admin Setup and then press OK.

3. Enter the administrator password.

4. Select Enter and press OK.

5. Press the to select Scanner Setup and then press OK.

6. Press the to select WSD Scan Setup and then press OK.

WSD S

CAN FUNCTION

7. Press the to select Binding and then press OK.

8. Select Long Edge Bind or Short Edge Bind according to the scan document, and press OK.

9. Press the until the top screen appears.

ELETING A SCANNER DRIVER

You can delete scanner drivers.

NOTE You must be logged on as an administrator to complete this procedure.

For Windows

1. Click on Start, and then select Control Panel > Uninstall a program.

2. Select OKI Universal Scanner and click on Uninstall.

If the User Account Control dialog box appears, click Yes.

3. If a confirmation message appears, click Yes.

4. Click Finish on the Uninstallation Complete screen.

For Mac OS X

1. From the hard disk, select Library > Image Capture > Devices.

2. Delete the OKI Scanner.

3. Close the Devices dialog box.

4. From the hard disk, select Applications > Okidata > Scanner.

5. Delete network scanner setup tool.

6. Restart the computer.

Configuring the Scan to Computer and Remote Scan > 36

PDATING A SCANNER DRIVER

You can update scanner drivers.

NOTE You must be logged on as an administrator to complete this procedure.

For Windows

1. Click on Start, right click Computer Select Properties.

2. Click Device Manager.

If the User Account Control dialog box appears, click Yes.

3. Right click the OKI Universal icon on Imaging Device and click on Properties.

4. Check the version of the scanner driver on the Drivers.

5. Delete the scanner driver.

REFERENCE

“Deleting a Scanner Driver” on page 36.

6. Install a new scanner driver.

REFERENCE For details on how to install a driver, refer to the User's Guide.

For Mac OS X

1. Delete the scanner driver.

REFERENCE

“Deleting a Scanner Driver” on page 36.

2. Install a new scanner driver.

REFERENCE For details on how to install a driver, refer to the User's Guide.

Configuring the Scan to Computer and Remote Scan > 37

ONFIGURING THE FAX SETTINGS

ASIC SETUP

Minimum configuration requirements; a PSTN telephone line connection.

If you wish to connect an external telephone or answering machine, refer to “Adding a

telephone handset” on page 41.

Your MFP has to be set up properly to allow faxing from the machine. The following parameters must be set before using the fax function:

> Date and time

> Local fax number

> Sender ID

NOTE If you ran the Oki driver installer program from the DVD-ROM you may have already set the time zone, date and time via the Panel Language Setup utility.

There are other parameters that can be adjusted to suit your personal preferences later if required, refer to fax set up table for details (See “Advanced set up” on page 39).

To set fax parameters:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Easy Setup and press OK.

3. Using the arrow keys and on-screen keypad, enter the Administrator password. Highlight Enter and press OK.

NOTE The default password is “999999”.

4. Press the Right arrow key to select Date/Time Setting.

5. Using the arrow keys, select the correct time zone and press OK.

6. Using the arrow keys, select the correct daylight saving option and press OK.

7. Press OK to select Manual.

8. Using the arrow keys, enter today’s date.

NOTE Use the Right and Left arrow keys to move between digits.

9. Press OK.

10. Using the arrow keys, enter the correct time.

NOTE Use the Right and Left arrow keys to move between digits.

11. Press OK.

12. Using the Down arrow key and scroll to Fax Setting then press Right arrow key.

13. Press the Right arrow key to select Fax Number.

14. Using the keypad and on screen options enter the fax number for this MFP.

15. Highlight Enter and press OK.

Configuring the fax settings > 38

16. Press the Right arrow key to select Sender ID.

17. Using the keypad or arrow keys and on screen keyboard, enter the sender ID.

NOTE Maximum 22 characters.

18. Highlight Enter and press OK.

19. Press OK to complete.

20. Press the Left arrow key to exit the menu.

NOTE By default the country code is set to International.

If required, set the dialling method for your region (Pulse or Tone).

If connecting the machine through a private branch exchange (PBX) line, you must also specify a dial prefix to allow the machine to obtain an external line before dialling. Refer to “Connecting to a PBX” on page 39.

DVANCED SET UP

Your machine offers a multitude of features which reduce the time required for manual operation and make fax communications more efficient.

ONNECTING TO A

PBX

Private branch exchanges (PBXs) are private telephone systems used to route calls internally, for example, in a company. When dialling a telephone number, if a prefix is required to open an outside line, the line is connected to a PBX. If this MFP is going to be connected to a PBX, please make the following changes to enable it to recognise the prefix digits in the telephone numbers used to obtain access to the outside line. After dialling the prefix digits, the MFP will wait until the outside line is available (secondary dial tone detected) before dialling the rest of the number.

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Admin Setup and press OK.

3. Using the arrow keys and on-screen keypad, enter the Administrator password. Highlight Enter and press OK.

4. Using the Down arrow key, scroll to Fax Setup and press OK.

5. Using the Down arrow key, scroll to Other Settings and press OK.

6. Using the Down arrow key, scroll to Prefix and press OK.

7. Using the keypad, arrow keys and on screen options, enter the required prefix and press OK.

8. Press the Left arrow key to exit the menu.

Configuring the fax settings > 39

UTOMATIC REDIAL

You can set the fax to automatically redial if the initial fax transmission fails. The machine will redial on:

> Line busy

> No answer

> Communication error

To set auto-redial:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Admin Setup and press OK.

3. Using the arrow keys and on-screen keypad, enter the Administrator password. Highlight Enter and press OK.

4. Using the Down arrow key, scroll to Fax Setup and press OK.

5. Using the Down arrow key, scroll to Other Settings and press OK.

6. Press OK to select the Redial Tries.

7. Using the keypad, enter the required number of redial attempts (between 0 and 9), then press OK to confirm.

8. Using the Down arrow key, scroll to Redial Interval and press OK.

9. Using the keypad, enter the required redial interval (between 1 and 5 minutes), then press OK to confirm.

10. Press the Left arrow key to exit the menu.

ECEPTION MODE

You can change the way your MFP handles incoming fax transmissions and telephone calls (if you have a telephone handset connected) depending on your office requirements.

Choose from:

> Fax Ready Mode

> Tel /Fa x R ea d y Mo de

> Ans/Fax Ready Mode

> Tel Re a d y M o d e

> DRD

To change the reception mode:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Admin Setup and press OK.

3. Using the arrow keys and on-screen keypad, enter the Administrator password. Highlight Enter and press OK.

4. Using the Down arrow key, scroll to User Install and press OK.

5. Using the Down arrow key, scroll to Reception Mode and press OK.

6. Using the arrow keys, select the required reception mode and press OK.

7. Press the Left arrow key to exit the menu.

The machine behaviour differs depending on the specified reception mode, refer to the User’s Guide for details.

Configuring the fax settings > 40

DDING A TELEPHONE HANDSET

If you want to add a telephone handset to your MFP, connect the line to the Tel socket (in certain countries it may be necessary to use a telephone plug adaptor).

You will also need to update the telephone settings to set the ring response:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Admin Setup and press OK.

3. Using the arrow keys and on-screen keypad, enter the Administrator password. Highlight Enter and press OK.

4. Using the Down arrow key, scroll to Fax Setup and press OK.

5. Using the Down arrow key, scroll to Other Settings and press OK.

6. Using the Down arrow key, scroll to Ring Response and press OK.

7. Using the arrow keys, select the required response setting (between 1 ring and 20 seconds) and press OK.

8. Press the Left arrow key to exit the menu.

NOTE You must also set the reception mode to the appropriate setting. See

“Reception mode” on page 40.

NOTE Dialling for speech purposes is not available using the MFP keypad or speed dial keys.

Configuring the fax settings > 41

ANAGING THE PHONE BOOK

The following section describes how to add/remove/modify speed and group dial entries to/ from the Phone Book.

DDING A SPEED DIAL ENTRY TO THE PHONE BOOK

The machine can hold up to 300 speed dial numbers in the phone book. To add a new speed dial number to the phone book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK.

3. Press OK to select Speed Dial.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Register.

6. Press the Right arrow key to select Name.

7. Using the keypad or arrows keys and the on-screen keypad, type in the name.

NOTE The maximum length of name is 24 characters.

8. Highlight Enter and press OK.

9. Using the Down arrow key, scroll to Fax Number and press the Right arrow key.

10. Using the keypad, type in the destination fax number.

NOTE The maximum length of number is 40 digits.

If the destination fax number has an “extension number”, press the Pause button between numbers. The machine will enter a pause when dialling.

If your MFP i s connecte d to a PBX (p rivate br anch excha nge), you will n eed to add a Prefix in order to access to the outside line. Refer to “Connecting to a

PBX” on page 39.

If you need to change the dialling method for the region, press the Tone button to change the call parameters for this particular number.

If you make a mistake while entering the number, press the Clear button to delete the last digit.

11. Highlight Enter and press OK.

12. If required, use the arrow keys and scroll to Group No. then press the Right arrow

key.

13. Using the arrow keys, select the group number to assign the fax number to and press OK.

The check box is selected. You can select multiple entries.

NOTE Numbers registered to groups from the Speed Dial function are synchronized with the numbers that are registered to groups using the Group No. function.

14. Press the Right arrow key to complete.

15. Press OK to confirm.

16. Press OK once more to add your entry to the phone book.

Configuring the fax settings > 42

17. Press the Left arrow key to exit the menu.

DDING A GROUP ENTRY TO THE PHONE BOOK

The machine can hold up to 20 group dial settings. To add a new group dial number to the phone book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK.

3. Using the Down arrow key, scroll to Group No. and press OK.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Register.

6. Press the Right arrow key to select Name.

7. Using the keypad or arrows keys and the on-screen keypad, type in the name.

NOTE The maximum length of name is 16 characters.

8. Highlight Enter and press OK.

9. Using the Down arrow key, scroll to Speed Dial and press the Right arrow key.

10. Using the arrow keys, select the speed dial number you wish to assign to the group

and press OK.

The check box is selected. You can select multiple entries.

11. Press the Right arrow key to complete.

12. Press OK to confirm.

13. Press OK once more to add your entry to the phone book.

14. Press the Left arrow key to exit the menu.

ELETING A SPEED DIAL ENTRY FROM THE PHONE BOOK

To delete a speed dial entry from the phone book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK.

3. Press OK to select Speed Dial.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Using the arrow keys, scroll to Delete and press OK.

6. At the prompt select Yes to continue or select No to cancel the operation.

7. Press OK.

8. Press the Left arrow key to exit the menu.

ELETING A GROUP DIAL ENTRY FROM THE PHONE BOOK

To delete a group dial entry from the phone book:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK.

3. Using the Down arrow key, scroll to Group No. and press OK.

4. Using the arrow keys, scroll to the required entry position and press OK.

Configuring the fax settings > 43

5. Using the arrow keys, scroll to Delete and press OK.

6. At the prompt select Yes to continue or select No to cancel the operation.

7. Press OK.

8. Press the Left arrow key to exit the menu.

ODIFYING A SPEED DIAL ENTRY

To modify a speed dial entry:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK.

3. Press OK to select Speed Dial.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Edit.

6. Modify the Name, Fax Number and/or Group No. details as required then press OK.

7. Press the Left arrow key to exit the menu.

ODIFYING A GROUP DIAL ENTRY

To modify a group dial entry:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK.

3. Using the Down arrow key, scroll to Group No. and press OK.

4. Using the arrow keys, scroll to the required entry position and press OK.

5. Press OK to select Edit.

6. Modify the Name, and/or Speed Dial details as required then press OK.

7. Press the Left arrow key to exit the menu.

ORTING SPEED DIAL ENTRIES

To sort speed dial entry:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK to enter the phone

book.

3. Select Speed Dial and press OK to enter speed dial list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Sort By Name or Sort By Number, and press OK.

Then the entries will be sorted depending on the selection.

ORTING GROUP DIAL ENTRIES

To sort group dial entries:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK to enter the phone

book.

3. Select Group No. and press OK to enter dial group list.

Configuring the fax settings > 44

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Sort By Name or Sort By Number, and press OK.

Then the groups will be sorted depending on the selection.

EARCHING A SPEED DIAL ENTRY

To search a speed dial entry:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK to enter the phone

book.

3. Select Speed Dial and press OK to enter speed dial list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Search, and press OK to enter the input window.

6. Using the on-screen keyboard to enter the key word for searching.

7. After key word inputing, select Enter and press OK.

The entries will be sort by name, and the matched entry will have focus.

EARCHING A GROUP DIAL ENTRY

To search a group dial entry:

1. Press the SETTING button on the control panel.

2. Using the Down arrow key, scroll to Phone Book and press OK to enter the phone

book.

3. Select Group No. and press OK to enter dial group list.

4. Press OK to show the operation menu.

5. Using the arrow keys, scroll to Search, and press OK to enter the input window.

6. Using the on-screen keyboard to enter the key word for searching.

7. After key word inputing, select Enter and press OK.

The groups will be sort by name, and the matched entry will have focus.

EGISTERING AN ENTRY FROM RECEPTION OR TRANSMISSION HISTORY

1. Press the Fax button on the control panel to prompt the Fax Mode screen.

2. Ensure Fax is highlighted, then press OK.

3. Using the Down arrow key, scroll to Fax History and press OK.

4. Using the arrow keys, highlight Tx History or Rx History as appropriate and press OK.

5. Using the arrow keys, scroll to the required entry and press OK.

6. Check the entry contents and then press the Right arrow key.

7. Press OK to select Register To Speed Dial.

8. Using the arrow keys, scroll to the required entry position and press OK.

9. Continue the registration process as described in “Adding a speed dial entry to the

phone book” on page 42.

The fax number is automatically entered. You do not have to enter it manually.

Configuring the fax settings > 45

SER AUTHENTICATION AND ACCESS CONTROL

The user authentication and access control functions allow you to limit the functions available to each user. These functions can help you save toner and paper.

Your machine has the following two methods of user authentication:

> PIN (personal identification number)

> User name and password

To control access to the machine, register a PIN or a user name and password for each user in advance. The user must enter the PIN (or the user name and password) to log into the machine or to print from a computer.

NOTE You can register up to 5000 user name and password sets.

Access control can be applied to the following functions:

> Copying (Color/Mono)

> Printing (Color/Mono)

> Printing from USB Memory

> Scanning to E-mail

> Scanning to Shared Folder

> Scanning to USB memory

Fax ing

> Faxing via PC

> Internet Faxing

The following conditions are required to enable the user authentication and access control functions:

> Your machine is connected to a network

> A computer on which Configuration Tool is installed is on the network

User authentication and access control > 46

AUTHENTICATION

EGISTERING A

Before enabling user authentication and access control, be sure to register a PIN for each user. You must be the administrator to register PINs.

To register a PIN for each user, launch Role Manager from Configuration Tool.

NABLING

You must be the logged on as the administrator to control access to the machine.

1. Open the MFP’s web page.

2. Set Admin Setup > Management > Access Control Setup > Access Control to Enable, and click Submit.

3. Set Admin Setup > Management > Access Control Setup > Default authentication method to Authenticate Local PIN, and click Submit.

NOTE You can also register a PIN from the MFP web page.

AUTHENTICATION

User authentication and access control > 47

PERATION WHEN

AUTHENTICATION IS ENABLED

Logging into the machine

For general users

1. Enter your PIN using the keypad on the control panel.

2. Press OK.

If authentication succeeds, the top screen displays.

For the Administrator

1. Enter “000000” using the keypad on the control panel.

NOTE The Administrator PIN is “000000”. You cannot change this value.

2. Press OK.

3. When the password entry screen displays, enter the administrator password.

4. Using the arrow keys, highlight Enter and then press OK.

If authentication succeeds, the top screen displays.

Logging out of the machine

When you have finished operations, be sure to log out of the machine.

1. Press the BACK button or Left arrow key until the top screen displays.

2. Press the RESET/LOGOUT button on the control panel.

NOTE After a certain period of time, the machine automatically logs out users.

User authentication and access control > 48

SER NAME AND PASSWORD AUTHENTICATION

EGISTERING A USER NAME AND PASSWORD

Before enabling user authentication and access control, be sure to register a user name and a password for each user. You must be the administrator to register user names and passwords.

To register a user name and password, launch Role Manager from Configuration Tool.

NOTE You can also register a user name and password from the MFP web page.

NABLING USER NAME AND PASSWORD AUTHENTICATION

You must be the logged on as the administrator to control access to the machine.

1. Open the MFP’s web page.

2. Set Admin Setup > Management > Access Control Setup > Access Control to Enable, and click Submit.

3. Set Admin Setup > Management > Access Control Setup > Default authentication method to Authenticate Local Name, and click Submit.

NOTE When you select LDAP or Secure Protocol, the server settings are necessary.

PERATION WHEN USER NAME AND PASSWORD AUTHENTICATION IS ENABLED

Logging into the machine

1. Make sure that User Name is selected and then press the Right arrow key.

2. Enter your name.

3. Using the arrow keys, highlight Enter and then press OK.

4. Make sure that Password is selected and then press Right.

5. Enter your password.

6. Using the arrow keys, highlight Enter and then press OK.

7. At the Login screen, press OK.

If authentication succeeds, the top screen displays.

Logging out of the machine

When you have finished operations, be sure to log out of the machine.

1. Press the BACK button or Left arrow key until the top screen displays.

2. Press the RESET/LOGOUT button on the control panel.

NOTE After a certain period of time, the machine automatically logs out users.

User authentication and access control > 49

PERATION FROM THE COMPUTER

NOTE The authentication type specified on the computer overrides the one specified on the machine.

Printing from Windows

NOTE You cannot use the PCL XPS printer driver for this function.

This procedure uses Windows 7, NotePad and PCL printer driver as an example. The procedures and menus may differ depending on the OS you use.

1. Open the file you want to print.

2. From the File menu, select Print.

3. Choose the printer driver you want in Select Printer and click Preferences.

4. Select the Extend tab.

5. Click User Authentication.

6. Set User Name, Password of the user for user's authentication information and Authentication Type, Summary Account Name for specifying user's

authentication destination and authentication type.

NOTE Depending on the setting for User Authentication Options... in the Device Options tab, Password, Authentication Type, Summary Account Name, and Use User Authentication may not be displayed.

7. Select the Use User Authentication check box if it is displayed.

NOTE Depending on the setting for User Authentication Options... in the Device Options tab, user name may be fixed to the logon name.

Select the Use logon name as user name check box if you use the logon name to Windows as a user name.

8. Enter the user name and password.

Depending on the setting for User Authentication Options... in the Device Options tab, user name may be fixed to the logon name.

Select the Use logon name as user name check box if you use the logon name to Windows as a user name.

9. If Authentication Type is displayed, select user's authentication destination and authentication type from the list.

> Auto: Follows the logon method to Windows. When the user has logged on to the

domain, Server LDAP is used and when the user logged on to the local computer, Device Local is used as the authentication method.

> Device Local: Authenticates with the user information stored in the machine.

> Server LDAP: Authenticates with the user information stored in the server using

LDAP.

User authentication and access control > 50

> Server Kerberos: Authenticates with the user information stored in the server

using Kerberos.

NOTE Default authentication type can be set in User Authentication Options... in the Device Options tab.

If Summary Account Name is displayed, set a type of summary account (account) to be charged usage amount of printing (points) and name.

If you want to add up for each user and group to which the user belongs, select a group from Type and specify the group name in Name.

If you want to add up for shared account which multiple users can use, select a shared account from Type and specify the shard account name in Name.

10. Click OK.

11. Click OK and then click Print.

Setting User Authentication Options

Set the user authentication options of printer driver from the Device Options tab or Device Settings tab in Printer.

1. Click Start, and then select Devices and Printers.

2. Right-click OKI MC363 and then select OKI MC363* from Printer properties.

* Driver type (ex. PCL6/PS)

3. For PCL driver, select Device Options and click User Authentication Options....

For PS driver, select Device Options and extend Installable Options.

4. Specifies the user authentication options.

> Set User Authentication Options for each user: Displays Use User

Authentication on the User Authentication dialog box to set whether to enable

or disable user authentication.

NOTE If the Set User Authentication Options for each user check box is clear, use user authentication and follow the Windows logon method as an authentication type. When the user has logged on to the domain, Server

LDAP is used and when the user logged on to the local computer, Device Local is used as the authentication method.

> Input user authentication information when printing: Displays user

authentication setting every time you print. Use this setting when you need to specify the actual user for each print job under the environment where multiple users use the same logon account on the same computer.

This option is not available if the Set User Authentication Options for each

user check box is selected.

> Summary Account Name: Enables to set summery account for user

authentication setting.

> Authentication Type: Enables to set authentication type for user

authentication setting.

> Default Authentication Type: Specifies default authentication type which is

used when authentication type cannot be specified.

5. For the PCL driver, click OK.

6. Click OK.

User authentication and access control > 51

Printing from Mac

NOTE This procedure uses Mac OS X 10.9 as an example. The procedures and menus may differ depending on the OS you use.

1. Open the file you want to print.

2. From the File menu, select Print.

3. Select your machine’s printer driver.

4. Select User Authentication from the panel menu under the Printer and Presets

menus.

5. Select Enable User Authentication.

6. Enter the user name in User Name and the password in Password.

7. Click Print.

User authentication and access control > 52

Faxing (Windows only)

NOTE This procedure uses Windows 7 and NotePad as an example. The procedures and menus may differ depending on the OS you use.

1. Open the file you want to fax.

2. From the File menu, select Print.

3. Select your machine (fax driver) in Select Printer and click Preferences.

4. On the Setup tab, click User Auth.

5. Select Use User Authentication.

6. Enter the user name in Username and the password in Password.

Clicking Use Windows Login automatically enters your login name on Windows.

7. Click OK.

8. Click OK and then click Print.

User authentication and access control > 53

DVANCED NETWORK SETTINGS

This chapter explains advanced network settings for your machine.

ONFIGURING THE WIRELESS

LAN (WPA/WPA2-EAP)

FROM THE

WEB P

AGE

(MC363

Before setting up the Wireless LAN, it is necessary to enable the wireless LAN module. Please refer to "Wireless LAN module" in the User's Guide.

This chapter explains the setting from the web page to connect to a wireless LAN using WPA/WPA2-EAP for security.

In order to configure from the Web, it is necessary to have completed the settings for wired or wireless network connection.

If WPA2-EAP is set for the security method, the settings from the IEEE802.1x menu need to be set beforehand.

IEEE802.1X

1. Access the machine's web page and log in as the administrator.

2. Click the IEEE802.1X tab.

DNW

: S

TANDARD

NOTE IEEE802.1X settings cannot be used simultaneously for the wired and wireless network.

SETTINGS

The user name is "admin", and the default password is "999999".

Select Admin Setup > Network.

, MC363DN: O

PTIONAL

)

Using EAP-TLS:

a) Select Disable for IEEE802.1X.

(Required to use the wireless LAN.)

b) Select EAP-TLS for the EAP Type.

c) Enter a user name in EAP User.

d) Select Do not use SSL > TLS Certificate for EAP authentication and then

click Import.

e) Enter the file name of the certificate. Only a PKCS#12 file can be imported.

f) Enter the password of the certificate and then click OK.

g) Select Authenticate Server and then click Import.

h) Enter the file name of the CA certificate and then click OK.

i) Specify the certificate issued by the certificate authority, which is the certificate

authority from which the RADIUS server obtained the certificate. A PEM, DER, and PKCS#7 file can be imported.

j) Click Submit.

k) When the main unit comes online, proceed to "WIRELESS(INFRASTRUCTURE)

SETTINGS".

Advanced network settings > 54

Using PEAP:

a) Select Disable for IEEE802.1X.

b) Select PEAP for the EAP Type.

c) Enter a user name in EAP User.

d) Enter the password in EAP Password.

e) Select Authenticate Server and then click Import.

f) Enter the file name of the CA certificate and then click OK.

g) Specify the certificate issued by the certificate authority, which is the certificate

authority from which the RADIUS server obtained the certificate. A PEM, DER, and PKCS#7 file can be imported.

h) Click Submit.

i) When the main unit comes online, proceed to "WIRELESS(INFRASTRUCTURE)

SETTINGS".

IRELESS(INFRASTRUCTURE) SETTINGS

1. Log in as the administrator.

2. Select Admin Setup.

3. Click the Network tab.

4. Click the Wireless(Infrastructure) Setting menu.

5. Select Manual Setup.

6. In the Basic Settings field under Wireless(Infrastructure), select Enable.

7. Enter the SSID name of the wireless AP that you want to connect to in SSID.

8. Select WPA/WPA2-EAP for Security in Security Settings.

When the option is selected, WPA Encryption Type is displayed.

9. When all of the settings for basic settings and security settings are completed, press

the Submit button at the bottom left of the Web screen, and the settings are reflected. It may take up to a minute to connect to the wireless AP. If the connection fails, either reconfigure the wireless settings from the operation panel, or switch to wired LAN from the operation panel, and reconfigure the wireless settings from the Web.

Advanced network settings > 55

HANGING NETWORK SETTINGS FROM THE WEB PAGE

This section explains how to change the network settings from the machine’s web page. This function is available on Windows and Mac.

To access the machine’s web page, your computer must meet the following conditions:

> TCP/IP is enabled

> Be sure that the security setting for a web browser is set to the middle level or

cookies are allowed.

> To e nt e r t h e Admin Setup menu, the administrator password is necessary. The

default password is “999999”.

NOTE Some of the following settings can be performed on other utilities. For details,

“Network setting items” on page 67.

NCRYPTING COMMUNICATION BY

SSL/TLS

You can encrypt the communication between your computer and the machine.

The communication is encrypted by SSL/TLS when you change the machine settings from the web page, perform the IPP printing, direct print, or LDAP search, and print data received via SMTP or FTP.

Creating a certificate

You can create a certificate on the web page. The following two certificates are available:

> A self-signed certificate

> A certificate created by a certificate authority

NOTE If you change the machine IP address after you create a certificate, the certificate becomes invalid. Be sure not to change the machine’s IP address after creating a certificate.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > Security > SSL/TLS.

NOTE The device comes with a pre-installed certificate. If you do not need it, click Delete.

4. Follow the on-screen instructions to specify the detailed settings.

NOTE The machine’s IP address is set to Common Name.

5. Click OK.

6. Check the settings and click OK.

7. If you are creating a self-signed certificate, go to “Enabling encryption” on page 57

to enable encryption. If you are getting a certificate created by a certificate authority, go to step 8.

Advanced network settings > 56

8. Follow the on-screen instructions to send a CSR to a certificate authority.

9. Click Export Certificate.

10. Perform steps 1 to 3 in “Creating a certificate” on page 56 to enter the encryption

screen.

11. Follow the on-screen instructions to install a certificate from the certificate authority.

12. Click Submit.

13. Go to “Enabling encryption” on page 57 to enable encryption.

Enabling encryption

After you creating a certificate, perform the following procedure to enable encryption.

When you enable encryption, the communication is encrypted the next time you change the settings from the web page.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > Security > Protocol ON/OFF.

4. Select Enable for the desired protocol.

5. Click Submit.

Launching the web page

1. Launch a web browser.

2. Type the IP address of the MFP in the URL field of your browser and then press Enter. For example http://10.18.207.102

Advanced network settings > 57

IPP

PRINTING

IPP printing allows you to transmit your print job data from your computer to the machine via the Internet.

NOTE This procedure uses Windows 7 as an example. The procedures and menus may differ depending on the OS you use.

Setting up your machine as an IPP printer (for Windows Only)

Add your machine as an IPP printer to your computer.

1. Click Start and select Devices and Printers > Add a printer.

2. Select Add a network, wireless or Bluetooth printer on the Add Printer wizard.

3. In the list of available printers, select The printer that I want isn't listed.

4. Choose Select a shared printer by name.

5. Enter “https://your machine IP address/ipp” or “https://your machine IP address/ipp/lp” and then click Next.

NOTE You need to have a certificate installed on the computer to trust the device. Otherwise, IPP printing is not available.

6. Click Have Disk.

7. Insert the DVD that was supplied with your machine into the DVD-ROM drive.

8. Enter the following value in Copy from:

> For PCL driver, “D:\Drivers\_PCL”.

> For PS driver, “D:\Drivers\PS”.

> For PCL XPS driver, “D:\Drivers\XPS”.

NOTE The values above are the example of when the DVD-ROM drive is set to the D drive.

9. Click OK.

10. Select the desired printer and click OK.

11. Select Yes in Use this printer as default and click Next.

12. If the Share this printer wizard appears, select Do not share and then click Next.

13. Select No in Print test page? and click Next.

14. Click Finish.

15. On the Hardware Install screen, click Continue.

16. When the installation finishes, print a test page.

Setting up your machine as an IPP printer (for Mac OS X Only)

Add your machine to your computer as an IPP printer.

1. Insert the software DVD-ROM into the computer and install the driver.

2. Select System Preferences from the Apple menu.

Advanced network settings > 58

3. Click Print and Fax.

4. Click

5. Click the IP tab.

6. From Protocol, select IPP (Internet Printing Protocol).

7. Enter the machine's IP address in Address.

8. Enter "ipp/Ip" in Queue.

9. Click Add.

10. Click Continue.

11. Confirm that the machine is registered in Print and Fax.

Performing IPP printing

NOTE The following procedure is explained using NotePad as an example. The procedures and menus may differ depending on the application you use.

1. Open an application file.

2. From the File menu, select Print.

3. From Select Printer, select the created IPP printer and then click Print.

Advanced network settings > 59

NCRYPTING COMMUNICATION BY

IPS

You can encrypt the communication between your computer and the machine.

The communication is encrypted by IPSec. When IPSec is enabled, encryption is applied to all the applications using the IP protocols.

You can specify up to 50 hosts by their IP addresses. When a host that is not registered tries to access the machine, it is rejected. When you try to access a host that is not registered, it is invalid.

You must have a pre-shared key in advance.

Configuring your machine

Be sure to configure your machine first from the web page to enable IPSec.

NOTE

> When you enable IPSec, the communication to and from a host that is not

specified in this procedure is rejected.

> Be sure to memorize the values specified in this procedure. They are

necessary when you configure the IPSec setting on your computer.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > Security > IPSec.

4. Follow the on-screen instructions to specify the detailed settings.

NOTE Either ESP or AH must be enabled in the configuration for “Phase2 Proposal”.

5. Click Submit.

The network system reboots to enable the new settings.

NOTE If you fail to set up IPSec due to the mismatch of the specified parameter, you cannot access the web page. In this case, disable IPSec from the control panel of the machine or initialize the network settings.

Configuring your computer

Be sure to configure your machine in advance before configuring your computer.

NOTE This procedure uses Windows 7 as an example. The procedures and menus may differ depending on the OS you use.

1. Click Start and select Control Panel > Administrative Tools.

2. Double-click Local Security Policy.

3. On the Local Security Policy window, click IP Security Policies on Local Computer.

4. From the Action menu, select Create IP Security Policy.

5. On the IP Security Policy Wizard, click Next.

Advanced network settings > 60

6. Enter a Name and a Description and then click Next.

7. Clear the Activate the default response rule (earlier versions of Windows only). check box and then click Next.

8. Select Edit properties and then click Finish.

9. On the IP security policy properties window, select the General tab.

10. Click Settings.

11. On the Key Exchange Settings window, enter the value (minutes) in Authenticate and generate a new key after every.

NOTE Specify the same value as Life time specified in the configuration for “Phase1 Proposal” in “Configuring your machine” on page 60. Although Life time is specified by seconds, enter a value by minutes in this step.

12. Click Methods.

13. On the Key Exchange Security Methods window, click Add.

14. Specify Integrity algorithm, Encryption algorithm, and Diffie-Hellman group.

NOTE Select the same value specified in IKE Encryption Algorithm, IKE Hash Algorithm, and Diffie-Hellman group in the configuration for “Phase1 Proposal” in “Configuring your machine” on page 60.

15. Click OK.

16. On the Key Exchange Security Methods window, click OK.

17. On the Key Exchange Settings window, click OK.

18. On the IP security policy properties window, select the Rules tab.

19. Click Add.

20. On the Security Rule Wizard, click Next.

21. On the Tunnel Endpoint screen, make sure that This rule does not specify a

tunnel is selected and then click Next.

22. On the Network Type screen, make sure that All network connections is selected and then click Next.

23. On

the IP

Filter List screen, click Add.

24. On the IP Filter List window, click Add.

25. On the IP Filter Wizard, click Next.

26. On the IP Filter Description and Mirrored Property screen, click Next.

27. On the IP Traffic Source screen, click Next.

28. On the IP Traffic Destination screen, click Next.

29. On the IP Protocol Type screen, click Next.

30. Click Finish.

31. On the IP Filter List wizard, click OK.

32. On the Security Rule Wizard, select the new IP filter from the list and then click Next.

33. On the Filter Action screen, click Add.

Advanced network settings > 61

34. On the Filter Action Wizard, click Next.

35. On the Filter Action Name screen, enter a Name and a Description and then click Next.

36. On the Filter Action General Options screen, make sure that Negotiate security is selected and then click Next.

37. On the Communicating with computers that do not support IPsec screen,

make sure that Do not allow unsecured communication. is selected and then click Next.

38. On the IP Traffic Security screen, select Custom and then click Settings.

39. On the Custom Security Method Settings window, configure the settings and then click OK.

NOTE Select the same values specified in the configuration for “Phase2 Proposal” in

“Configuring your machine” on page 60.

40. On the IP Traffic Security screen, click Next.

41. Select Edit properties and then click Finish.

42. On the filter action properties window, select Use session key perfect forward secrecy (PFS) if you want to enable Key PFS.

43. Select Accept unsecured communication, but always respond using IPsec if

you perform IPSec communication by the IPv6 global address.

44. Click OK.

45. Select the new filter action and then click Next.

46. On the Authentication Method screen, select the value you want and then click Next.

47. Click Finish.

48. On the IP security policy properties window, click OK.

49. On the Local Security Policy window, select the new IP security policy.

50. From the

Action me

nu,

select Assign.

51. Make sure that Policy Assigned for the new IP security policy is displayed as Yes.

52. Click X on the Local Security Policy screen.

Advanced network settings > 62

ONTROLLING ACCESS USING

ADDRESS

(IP

FILTERING

)

You can control access to the machine using the IP address. You can set whether to allow configuration or printing from the specified IP addresses. By factory default, IP filtering is disabled.

NOTE Be sure to specify the correct IP address. If you specify a wrong IP address, you cannot access the machine using the IP protocol.

When you enable IP filtering, the access to and from a host that is not specified in this procedure is rejected.

You can use only IPv4 for IP filtering.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > Security > IP Filtering.

4. Follow the on-screen instructions to specify the detailed settings.

NOTE If nothing is registered in Administrator’s IP Address setting, you may not be able to access the machine depending on the specified IP address range.

Your Current Local Host/Proxy IP Address and the IP address of your host may not match if you use a proxy server.

5. Click Submit.

The network system reboots to enable the new settings.

ONTROLLING ACCESS USING

MAC

ADDRESS

(MAC

ADDRESS FILTERING

)

You can control access to the machine using the MAC address. You can allow or reject the access from the specified MAC addresses.

NOTE Be sure to specify the correct MAC address. If you specify the wrong MAC address, you cannot access the machine via a network.

You cannot individually specify acceptance or rejection for each address.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > Security > MAC Address Filtering.

4. Follow the on-screen instructions to specify the detailed settings.

NOTE If nothing is registered in Administrator’s MAC Address setting, you may not be able to access the machine depending on the specified MAC address.

Your Current Local Host/Proxy MAC Address and the MAC address of your host may not match if you use a proxy server.

5. Click Submit.

The network system reboots to enable the new settings.

Advanced network settings > 63

RROR NOTIFICATION BY

You can set the machine to send an error notification E-mail when an error happens. You can set when to be notified:

> On a regular basis

> Only when an error occurs

E-

MAIL

(E-

MAIL ALERT

)

Configuring your machine

You can configure the settings for E-mail alert using the web page.

NOTE When you specify a domain name in SMTP Server, configure the DNS server in the TCP/IP setting.

You need to set the mail server to allow the machine to send an E-mail. For details on the mail server setting, refer to your network administrator.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > E-mail > Alert Settings > E-mail Send Settings.

4. Follow the on-screen instructions to specify the detailed settings.

5. Select Set detail of the SMTP Protocol..

6. If necessary, you can configure Security settings, Configure attached information, and Others.

7. Click Submit.

The network system reboots to enable the new settings.

Regular alert

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > E-mail > Alert Settings > Alert Settings.

4. Enter an E-mail address to receive the alerts.

5. Click Setting for the specified address.

Copy is useful when you want to apply the alert conditions to another address.

6. Choose Periodically.

7. Click To STEP2.

8. Follow the on-screen instructions to specify the detailed settings.

9. Click OK.

10. Click View a summary of current configuration to check the current settings,

and then click X to close the window.

You can also check the current settings of up to two addresses on the main window. Select the desired addresses from the list box.

11. Click Submit.

Advanced network settings > 64

The network system reboots to enable the new settings.

NOTE If there is no error specified, the alert E-mail in not sent.

Alert when an error occurs

1. Perform steps 1 to 5 in “Regular alert”.

2. Choose Upon occurrence of an event.

3. Click To STEP2.

4. Follow the on-screen instructions to specify the detailed settings.

Specify the time lag between when an error occurs and when the alert is sent.

If you specify a longer time, only continuing errors are notified.

5. Click OK.

6. Click View a summary of current configuration to check the current settings,

and then click X to close the window.

You can also check the current settings of up to two addresses on the main window. Select the desired addresses from the list box.

7. Click Submit.

The network system reboots to enable the new settings.

SING

SNMPV3

The SNMPv3 manager supporting SNMPv3 encrypts the management of the machine by SNMP.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > SNMP > Setting.

4. Follow the on-screen instructions to specify the detailed settings.

5. Click Submit.

The network system reboots to enable the new settings.

NOTE You can check and change the machine settings by a commercially available SNMP manager. For the MIB of the machine, MIB definitions files are stored in DVD MISC > MIB files.

Advanced network settings > 65

SING

IPV6

Your machine supports IPv6. The machine gets an IPv6 address automatically. You cannot set the IPv6 address manually.

The machine supports the following protocols:

> For Printing:

> LPR

> IPP

> RAW (Port9100)

> FTP

> For Configuration:

> HTTP

> SNMPv1/v3

> Tel ne t

NOTE To enter the Admin Setup menu, the administrator password is necessary. The default password is “999999”.

Advanced network settings > 66

HECKING

The IPv6 address is automatically assigned.

1. Select View Information.

2. Select Network > Network Information.

SING

Your machine supports the IEEE802.1X authentication.

Be sure to set up your machine and computer in advance before performing the following procedure.

IPV6

ADDRESS

NOTE When the global address is displayed with only “0”, it may be an error due to the router you use.

You can also check the IPv6 address in the network report from the machine by pressing the SETTING key and then selecting Reports > System > Network Information.

IEEE802.1X

NOTE For details on the initial setup and the IP address, refer to “Configuring the

network settings” on page 8.

ONFIGURING YOUR MACHINE FOR

IEEE802.1X

Using PEAP

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > IEEE802.1X.

4. Select Enable for IEEE802.1X.

5. Select PEAP for EAP Type.

6. Enter a user name in EAP User.

7. Enter a password in EAP Password.

8. Select Authenticate Server and then click Import.

9. Enter the file name of the CA certificate and then click OK.

Specify the certificate issued by the certificate authority from which the RADIUS server got it. A PEM, DER, and PKCS#7 file can be imported.

10. Click Submit.

The network system reboots to enable the new settings.

11. When the standby screen appears on the machine, turn off the machine.

12. Go to “Connecting your machine to authentication switch” on page 68.

Advanced network settings > 67

Using EAP-TLS

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > IEEE802.1X.

4. Select Enable for IEEE802.1X.

5. Select EAP-TLS for EAP Type.

6. Enter a user name in EAP User.

7. Select Not use SSL/TLS Certificate for EAP authentication and then click Import.

8. Enter the file name of the certificate.

Only a PKCS#12 file can be imported.

9. Enter the password of the certificate and then click OK.

10. Select Authenticate Server and then click Import.

11. Enter the file name of the CA certificate and then click OK.

Specify the certificate issued by the certificate authority from which the RADIUS server got it. A PEM, DER, and PKCS#7 file can be imported.

12. Click Submit.

The network system reboots to enable the new settings.

13. When the standby screen appears on the machine, turn off the machine.

14. Go to “Connecting your machine to authentication switch” on page 68.

ONNECTING YOUR MACHINE TO AUTHENTICATION SWITCH

1. Make sure that the machine is turned off.

2. Connect an Ethernet cable to the network interface port.

3. Connect the Ethernet cable to the authentication port of an authentication switch.

4. Turn on the machine.

5. Set up the machine.

NOTE For details on the initial setup, refer to “Configuring the network settings” on

page 8.

Advanced network settings > 68

ONFIGURING

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > LDAP.

4. Enter the domain name or IP address of the LDAP server in LDAP Server.

5. Enter the port number of the LDAP server in Port Number.

6. Specify a value for time-out to wait for the search results in Timeout.

7. Specify a value for the maximum entry of the search results in Max. Entries.

8. Specify a BaseDN to access the LDAP server in Search Root.

9. Enter attribute names to be searched for as the user name in User Name.

Be sure to specify a value for Name 1.

10. Enter attribute name to be searched for as the E-mail address in Mail Address.

11. If necessary, specify a search condition in Additional Filter.

LDAP

NOTE For details on the LDAP server and encryption settings to be specified, refer to your network administrator.

SERVER

12. Select the authentication method you want in Method.

> When you select Anonymous, user authentication using LDAP fails. You need to

select Simple, Digest-MD5 or Secure Protocol if you configure the LDAP server for user authentication.

> When you select Digest-MD5, you need to configure the DNS server setting.

> When you select Secure Protocol, you need to configure the DNS server, the

secure protocol settings and complete Time Setup.

13. If you do not select Anonymous in step 12, specify the user ID and password to log

in to the LDAP server.

14. Select a value in Encryption.

15. Click Submit.

The network system reboots to enable the new settings.

ONFIGURING SECURE PROTOCOLS

Authentication using the Kerberos server is available when you access the LDAP server. Be sure to complete Time Setup and DNS server settings to use the secure protocol.

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > Secure Protocol Server.

4. Enter a realm name in Domain.

5. Click Submit.

The network system reboots to enable the new settings.

Advanced network settings > 69

RINTING WITHOUT PRINTER DRIVER (DIRECT PRINTING

RINTING

PDF

)

You can print PDFs without a printer driver. Specify the file you want to print on the web page and submit it to the machine.

NOTE If you have problems printing a PDF file, open the file in Adobe Reader and print it.

1. Access the machine’s web page and log in as the administrator.

2. Select Direct Print.

3. Select Web Printing.

4. Follow the on-screen instructions to specify the detailed settings.

5. Check the settings and then click OK.

6. Click Print.

7. Click OK.

ONFIGURING SERVER TO PRINT FILES ATTACHED TO

E-

MAILS

You can print attached files when the machine receives an E-mail.

NOTE

> When you have performed the initial setup described in “Configuring the

network settings” on page 8, the server settings are finished.

> Up to 10 files and a maximum of 8 MB for each file can be printed.

> PDF, JPEG, and TIFF files can be printed.

> If you have problems printing a PDF file, open the file in Adobe Reader

and print it.

Configuration for POP

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > E-mail > Receive Settings.

4. Select POP3 and then click To STEP2.

5. Follow the on-screen instructions to specify the detailed settings.

NOTE Be sure to specify the correct value for your mail server. If you enable APOP when your mail server does not support the APOP protocol, E-mails may not be correctly received.

When you specify a domain name for the mail server, configure the DNS server in the TCP/IP setting.

6. Click Submit.

NOTE When the POP server does not support the SSL encryption, E-mails may not be correctly received.

Advanced network settings > 70

Configuration for SMTP

1. Access the machine’s web page and log in as the administrator.

2. Select Admin Setup.

3. Select Network > E-mail > Receive Settings.

4. Select SMTP and then click To STEP2.

5. Follow the on-screen instructions to specify the detailed settings.

6. Click Submit.

Advanced network settings > 71

THER OPERATIONS

This section explains how to initialize the network settings and how to setup your machine and computer to use DHCP.

NITIALIZING NETWORK SETTINGS

NOTE This procedure initializes all the network settings.

1. Press the SETTING key.

2. Using the Down arrow key, scroll to Admin Setup and then press OK.

3. Enter the administrator password.

4. Select Enter and then press OK.

5. Using the arrow keys, scroll to Network Menu and then press OK.

6. Make sure that Network Setup is selected and then press OK.

7. Using the arrow keys, scroll to select Factory Defaults and then press OK.

8. Press OK.

9. Using the arrow keys, highlight Yes to continue or No to exit and then press OK.

The machine restarts to enable the new settings.

SING

DHCP

You can get an IP address from the DHCP server.

NOTE

> You must be authorized as the administrator.

> If you enter a wrong IP address, the network system may go down.

> You can also get an IP address from the BOOTP server.

ONFIGURING

DHCP assigns an IP address to each host on the TCP/IP network.

1. Click Start > Server Manager.

DHCP

NOTE The machine must have a static IP address if you want to print via a network. For details on how to assign a static IP address, refer to the manual of your DHCP server.

The following OSs are supported; Windows Server 2008 R2 and Windows Server 2008.

The following procedure uses Windows Server 2008 as an example. The procedures and menus may differ depending on the OS you use.

SERVER

If DHCP Server is already displayed, go to step 8.

2. Select Add Roles on the Roles Summary area.

3. On the Add Roles Wizard, click Next.

4. Select DHCP Server and click Next.

Other operations > 72

5. Follow the on-screen instructions and configure the settings as necessary.

6. On the Confirm Installation Selections screen, check the settings and click Install.

7. When the installation finishes, click Close.

8. Click Start and select All Programs > Administrative Tools > DHCP to launch the DHCP wizard.

9. On the DHCP list, select a server to use.

10. From the Action menu, select New Scope.

11. On the New Scope Wizard, follow the on-screen instructions and configure the

settings as necessary.

> Be sure to configure the default gateway settings.

> On the Activate Scope screen, select Yes, I want to activate this scope now.

12. Click Finish.

13. Select the new scope from the DHCP list and then select Reservations.

14. From the Action menu, select New Reservation.

15. Configure the settings.

16. Click Add.

17. Click X to close the DHCP wizard.

ONFIGURING YOUR MACHINE

The following explains how to configure your machine to use DHCP/BOOTP. By factory default, the DHCP/BOOTP protocol is enabled, so you do not have to perform this procedure.

NOTE The following procedure is explained using Network Card Setup and Windows 7 as an example. The procedures and menus may differ depending on the OS you use.

1. Turn on the machine.

2. Tur n on yo u r c omp ut er.

3. Insert the Software DVD-ROM into the DVD drive.

The Setup Utility starts automatically. if it does not start, double-click setup.exe (in the root directory) on the DVD-ROM.

4. Choose your language.

5. Read the license agreement, and then click Accept.

6. Read Environmental advice for Users and click Next.

7. Select Network (Wired/Wireless) and then click Next.

8. Select your machine from the list, and then click Network Setting.

9. Enter the IP address and then click OK.

Other operations > 73

10. Enter the password for Password and then click OK.

NOTE The initial password is “999999".

The password is case-sensitive.

11. Click OK on the confirmation window.

Other operations > 74

NDEX

Adding a telephone

handset

Address book

Advanced Mode..................... 28

............................... 41

adding a group entry

adding an email entry....... 22

deleting a group entry ...... 24

deleting an email entry..... 22

editing a group entry........ 25

editing an email entry ...... 23

........ 24

Configuring the Scan to

Computer and Remote

.................................... 26

Scan

Deleting Scanner Drivers ...... 36

Direct Print............................ 69

Encryption

error notification ................... 64

................................ 60

IPSec

SSL/TLS ............................ 56

Fax

automatic redial

initial setup ....................... 38

reception mode................. 40

................ 40

Web Browser......................... 56

Initializing network ............... 72

IP Filtering............................. 63

IPP Printing ........................... 58

IPSec..................................... 60

MAC Address

Filtering

............................... 63

Network Configuration .......... 32

Phone book

adding a group dial

............................... 43

entry

adding a speed dial

............................... 42

entry

deleting a group dial

............................... 43

entry

deleting a speed dial

............................... 43

entry

Scan To Computer ................ 33

Scanner Driver Name............ 32

SSL/TLS ................................ 56

Updating a Scanner Driver.... 37

Using Drivers and

Software

Using TWAIN Driver .............. 26

............................. 26

Index > 75

1-7-12 Toranomon, Minato-ku, Tokyo, 105-8460, Japan

www.oki.com/printing/

46553602EE Rev6

Oki MC363dn, MC363dnw Configuration Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
