Explorer 557/567

Chartplotter

Installation and Operation Manual

www.northstarnav.com

Page 2

DANGER

WARNING

CAUTION

IMPORTANT SAFETY INFORMATION

Please read carefully before installation and use.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury

CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

DISCLAIMER: It is the owner’s sole responsibility to install and use the instrument and transducers in a manner that will not cause accidents, personal injury or property damage. The user of this product is solely responsible for observing safe boating prac tices.

BRUNSWICK NEW TECHNOLOGIES INC. AND ITS SUBSIDIARIES AND AFFILIATES DISCLAIM ALL LIABILIT Y FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW.

Governing Language: This statement, any instruction manuals, user guides and other information relating to the product (Documentation) may be translated to, or

has been translated from, another language (Translation). In the event of any conf lict between any Translation of the Documentation, the English language version of the Documentation will be the official version of the Documentation.

This manual represents the Explorer 557/567 as at the time of printing. Brunswick New Technologies Inc. and its subsidiaries and affiliates reserve the right to make changes to specifications without notice.

FCC Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an output on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced technician for help.

A shielded cable must be used when connecting a peripheral to the serial ports.

Page 3

Important

The choice, location, angle and installation of the instrument & GPS antenna are critical to performance of the system as intended. Follow instructions in this manual carefully. If in doubt, consult your Northstar dealer.

Ensure that any holes cut are in a safe position and will not weaken the boat’s structure. If in doubt, consult a qualiﬁ ed boat builder.

Global Position System: The global Position System (GPS) is operated by the U.S. Government which is solely responsible for its operation, accuracy and maintenance. The GPS is subject to changes which could aﬀ ect the accuracy and performance of all GPS equipment anywhere in the world, including the 557/567 and 650, 657, 660. To reduce the risk of misusing or misinterpreting the 557/567 and 650, 657, 660, you must read and understand all aspects of this Installation & Operation Manual. We also recommend that practice all operations using the built-in simulator before using the 557/567 or 650, 657, 660.

Electronic Chart: The electronic chart used by 557/567 or 650, 657, 660 is an aid to navigation designed to supplement, not replace oﬃ cial government charts. Only oﬃ cial government charts supplemented by notices to mariners contain the information required for safe and prudent navigation, Always supplement the electronic information provided by 557/567 or 650, 657, 660 with other plotting sources such as observations, depth soundings, radar and hand compass bearings. Should the information not agree, the discrepancy must be resolved before proceeding any further.

AIS: The AIS features on this chart-plotter are designed as a safety aid only and do not guarantee safety at sea. AIS transmission is mandatory on some, but not all, vessels. You should check your local laws and regulations for requirements in your area. As a result of diﬀ erent legal requirements, diﬀ erent vessel sizes and uses, you should not assume that your AIS equipped chart-plotter will show the location of ALL vessels in your area. Careful prudence, judgement, and safe navigation practices should be always be exercised. AIS should be used to complement radar, but AIS is not a substitute for radar.

Fuel Computer: Do not rely on the fuel computer as the sole source of information regarding available fuel onboard. Fuel economy can change drastically depending on boat loading and sea conditions. Fuel Computer information should be supplemented by visual or other checks of the fuel load. This is necessary due to possible operator errors such as forgetting to reset the fuel used when ﬁ lling the tank, running the engine with the Fuel Computer not switched on, or on other operator actions that may render the device inaccurate. Always carry adequate fuel onboard for the intended trip, plus a reserve to allow for unforeseen circumstances.

Failure to adhere to these warnings may lead to death, serious injury or property damage. Northstar disclaims all liability for installation or use of this product that causes or contributes to death, injury or property damage or that violates any law.

The 557/567 is set up with default units. To change the units, see section 15-9

Northstar Explorer 557/567 Installation and Operation Manual

Page 4

Contents

1 Introdu ction .......................................................................................................................................... 8

1-1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1-2 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1-3 Plug-in cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1-4 Removing and replacing the display unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 Basic Op eration .................................................................................................................................... 10

2-1 Using the keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2-2 Using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2-3 Turning on and off / auto power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2-4 Backlight and night mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-5 Man overboard (MOB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-6 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-7 Simulate mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2-8 The main windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3 Navigati on: Chart ................................................................................................................................. 18

3-1 Overview of navigating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

3-2 Chart window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3-3 Distance and bearing calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3-4 Projected course . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

3-5 Tracks and tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

4 Navigation: Highway w indow .............................................................................................................. 24

5 Navigati on: Waypoints ......................................................................................................................... 24

5-1 Waypoints window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

5-2 Managing waypoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6 Navigati on: Routes .............................................................................................................................. 27

6-1 Routes window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

6-2 Managing routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

7 Satelli tes ............................................................................................................................................. 30

7-1 Satellite window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

8 Gauges wi ndow ................................................................................................................................... 31

Northstar Explorer 557/567 Installation and Operation Manual

Page 5

9 Data wind ow ....................................................................................................................................... 32

10 Fuel funct ions and display .................................................................................................................. 33

10-1 What the fuel computer does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10-2 Fuel window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

10-3 When you add or remove fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

10-4 Low fuel alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

10-5 Boat speed sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

10-6 Fuel consumption curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

10-7 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

11 Tides window ..................................................................................................................................... 40

12 User card win dow ........................................................................................................... .................... 41

13 AIS ..................................................................................................................................................... 42

13-1 Viewing AIS Vessels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

13-2 Dangerous Vessels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

13-3 AIS Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

14 DSC/Budd y track windows .................................................................................................................. 45

14-1 The windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

14-2 Using the windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

15 Setting up t he 557/567 ....................................................................................................................... 47

15-1 Setup > System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

15-2 Setup > Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

15-3 Setup > GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

15-4 Setup > Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

15-5 Setup > Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

15-6 Setup > AIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

15-7 Setup > Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

15-8 Setup > Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

15-9 Setup > Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

15-10 Setup > Comms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

15-11 Setup > Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

15-12 Setup > Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

15-13 Setup > Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

15-14 Setup > Simulate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Northstar Explorer 557/567 Installation and Operation Manual

Page 6

16 Installat ion ........................................................................................................................................ 62

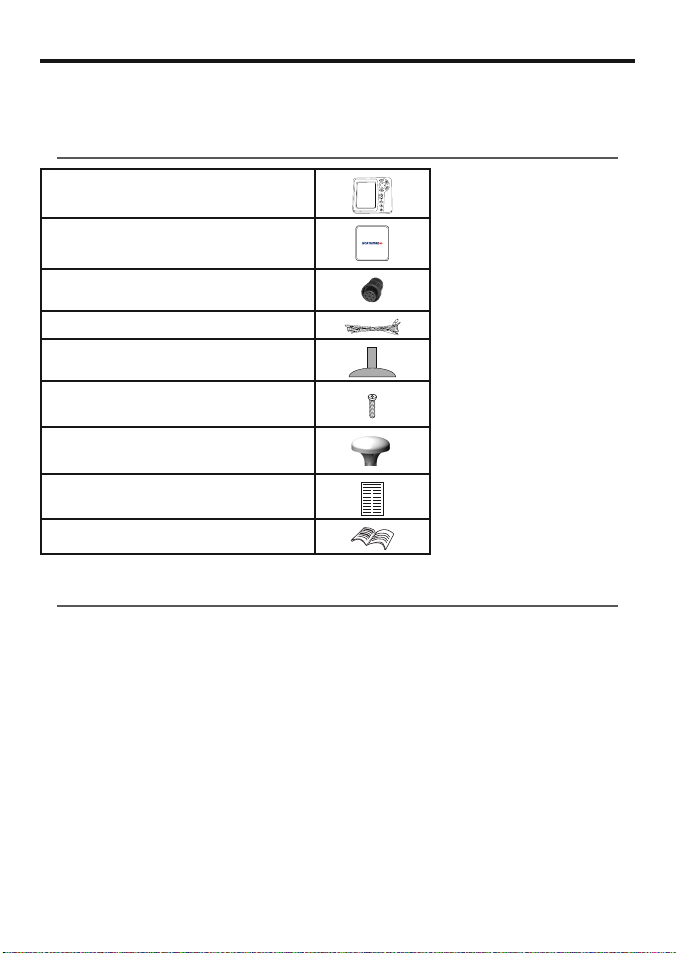

16-1 Installation: What comes with the 557/567 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

16-2 Installation: Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

16-3 Installation: The display unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

16-4 Installation: Power/Data cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

16-5 Installation: GPS antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

16-6 Installation: Northstar petrol/gasoline sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

16-7 Installation: SmartCraft™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

16-8 Installation: Other NavBus instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

16-9 Installation: Other NMEA instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

16-10 Installation: Setup and test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Append ix A - Specifica tions ..................................................................................................................... 70

Append ix B - Troubleshootin g ................................................................................................................. 71

B-1 General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

B-2 GPS navigation problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

B-3 Fuel consumption problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Append ix C - Glossary an d navigation data .............................................................................................. 74

Northstar Explorer 557/567 Installation and Operation Manual

Page 7

Quick reference

Feature Type See Requires

General How to use the keys and displays 2

Troubleshooting Appendix B

Simulate mode 2-7

Glossary of special names Appendix C

Speciﬁ cations Appendix A

MOB Man overboard key 2-5

Navigation Overview of how to navigate 3-1 GPS ﬁ x

Finding the boat’s position on the chart 3-2

Navigate to any point or to a waypoint 3-1

Navigate along a route 3-1

Projected course: An estimate of progress 3-4

Tracks: records of where the boat has been 3-5

GPS receiver status 7

Saving and loading data with a user card 12 User card

Chart data Chart features (built in world chart) 3-2

Chart details 3-2-4 & 5 C-MAP™ chart

Tides at a port 11 C-MAP™ chart

AIS 13

Alarms Built in alarms 2-6

SmartCraft™ engine alarms 1-1 SmartCraft™

Boat data Data at top of main displays 2-8-3

Compass at top of main displays 2-8-4

Dedicated data window 9

Fuel Fuel computer, petrol/gasoline engine 10 Fuel sensors

Fuel computer, SmartCraft™ engines 10 SmartCraft™

What to do when you add or remove fuel 10-3

Northstar Explorer 557/567 Installation and Operation Manual

Page 8

1 Introduction

1-1 Ov ervi ew

The Northstar 557/567 is a compact, rugged, highly integrated marine chartplotter. It is easy to use and has an easy to read color display. Complex functions can be performed with a few key presses, taking the hard work out of boating.

This manual covers:

557/567

Color display, external GPS antenna.

The available functions, displays and setup menus depend on the optional sensors and instruments that are installed:

1 The Fuel functions require optional

petrol/gasoline or SmartCraft™ fuel sensors to be installed and set up.

2 SmartCraft™ engine functions require a

SmartCraft™ system to be installed. For information on using SmartCraft™, see the

1-2 Cleaning and main tenance

The 557/567 screen is covered by a proprietary anti-reflection coating. To avoid damage, clean the screen only with a damp cloth and mild detergent when dirty or covered in sea salt. Avoid abrasive cleaners, petrol or other solvents. If a plug-in card gets dir ty or wet, clean it with a damp cloth or mild detergent.

1-3 Plug-in cards

The 557/567 can use two kinds of plug-in card:

1 C-MAP™ chart cards have chart details

required for navigating in a particular region. When a chart card is plugged in, the extra details automatically appear on the 557/567 chart window.

The 557/567 can use NT, NT+, NT-MAX and

NT-MAX2 cards.

SmartCraf t™ Gateway Installation and Operation Manual.

3 The 557/567 can send data to other

instrument s, such as an autopilot, and receive data from other instruments.

4 AIS functions require an optional AIS receiver

to be installed.

For information on installing options, see section 16-2 .

This manual describes how to install and operate the 557/567. Special terms are explained in Appendix C. For maximum benefit, please read this manual carefully before installing and using the unit. For more information on this instrument and other Nor thstar products, go to our website, www.northstarnav.com.

To optimize per forman ce, avoid w alking o n or jamming cables and connectors.

Push the dust cover over the display when the 557/567 is turned of f.

2 C-MAP™ user cards are used to store

navigation data. Each user card expands the 557/567 memory and allows the data to be transferred to another 557/567 easily (see section 12).

Note: The older 5 volt user cards are not supported.

Northstar Explorer 557/567 Installation and Operation Manual

Page 9

Changing the p lug-in card

CAUTION

Handle plug-in cards carefully. Keep them in their protective cases when not plugged into the 557/567.

Keep the holder in place in the 557/567 at all times to prevent moisture from entering the card compartment.

Gold contacts under here

31 2

Card

Holder

Turn the 557/567 off (see section 2-3).

Pull the card holder out of the 557/567 and pull any card out of holder.

Put the card in its case.

1-4 Removing and re placing the display u nit

If the display unit is bracket mounted then the display unit can easily be removed and replaced for security or protec tion.

Removing the display unit:

1 Turn the display unit off (see section 2-3) and

put the dust cover on.

2 Loosen the knob on the mounting bracket

and lift the unit off the bracket.

3 Unplug the connectors from from the

display unit, turning each locking collar anticlockwise. Push the attached dust covers over the connectors.

4 Store the display unit in a dry clean place,

such as the optional Northstar carr y bag.

Replacing the display unit

1 Remove the dust covers from the connectors.

Plug the connectors into the back of the display unit:

Match the connector’s color to the socket

color.

Insert each connector and turn the locking

collar clockwise until it is finger tight.

Northstar Explorer 557/567 Installation and Operation Manual

Push new card into holder. Ensure the gold contacts are on the outer edge and underneath (see above).

Keep the card’s case.

Push card holder fully into 557/567

Knob

Nothing will be damaged if a cable

is plugged into the wrong socket by mistake.

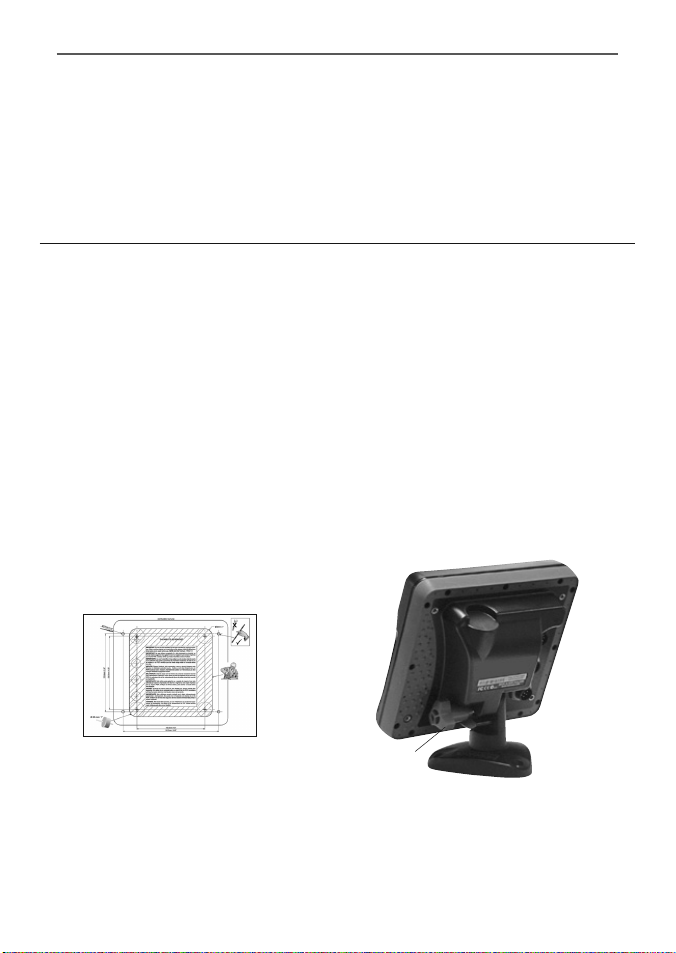

2 Hold the display unit in place on the

mounting bracket. Adjust the tilt of the display for best viewing, then hand tighten the knob on the mounting bracket. Remove the dust cover.

Mounting bracket

Page 10

2 Basic Operation

Overview of the keys

ESCAPE - Go back to an earlier menu or display. In chart mode,

centres chart at boat’s position.

DISPLAY - Show a menu of the main displays. To go to a display,

select it from the menu (see sec tion 2-8).

CURSOR KEYS - to move the cursor or the selection highlight.

MENU - Show a menu of the options for the current window.

Press

the chart.

(see section 5-2-1).

POWER - Turn 557/567 on and off (see sec tion 2-3); adjust the

backlighting (see section 2- 4).

2-1 Using the keys

In this manual:

Press means to push the key for less than a second.

Hold means to hold the key down.

The internal beeper beeps when a key is pressed (to disable or enable the beep, see section 15-1).

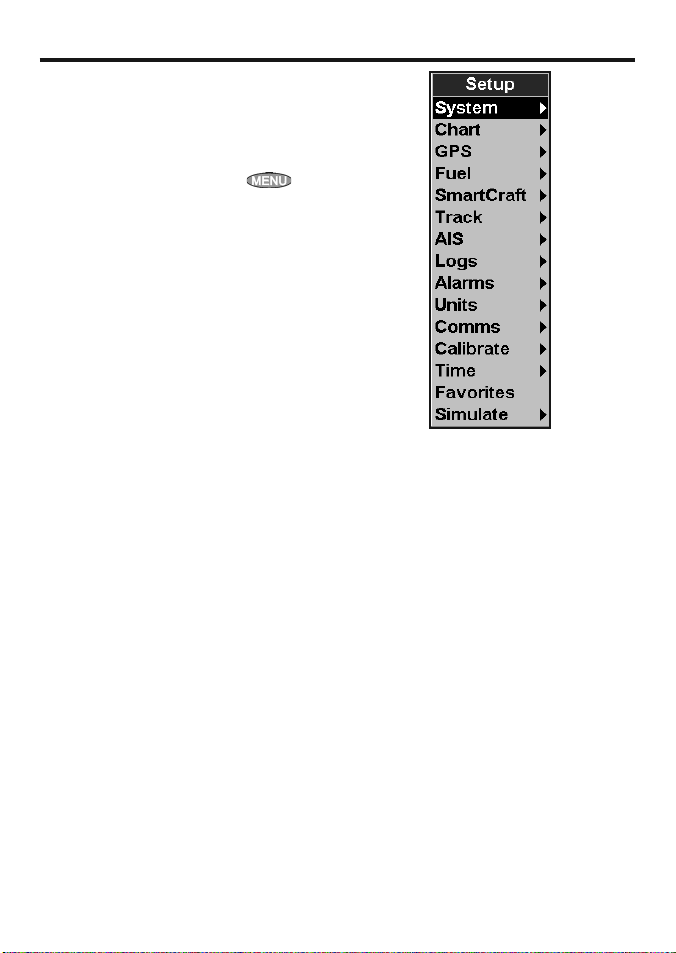

again to display the Setup menu (see section 15).

ENTER - Start an action or accept a change.

ZOOM - Zoom in or out to display different areas and detail on

WAYPOINT - Create an instant waypoint at the boat position

MOB - (Man Overboard, see section 2-5).

Northstar Explorer 557/567 Installation and Operation Manual

Page 11

2-2 Using the menus

Operate the 557/567 by selecting items from menus. Items can be submenus, commands or data.

Selecting a submenu

after a menu item indicates a submenu, for example Chart . Press or to move the highlight to the submenu, then press

Starting a command

Press

or to move the highlight to the

command, for example Goto cursor, then press

Changing data

First press data to change, then:

a) To change a tick box

means Off or No.

Press

b) To select an option

1 Press

2 Press

or to move the highlight to the

means On or Yes

or to change the tick box.

to display the menu of options.

or to move the highlight to the

option you want, then press

2-3 Turning on and off / auto p ower

Turning on manually

If the 557/567 is not wired for auto power, press

to turn the unit on. If necessary, adjust the display to be easy to read (see section 2-4).

Note: If the 557/567 is not wired for auto power then the 557/567 does not record engine hours and might not record fuel consumption (see section 16-4).

Turning off manually

If the 557/567 is not wired for auto power or if

the ignition switch is off, hold down display turns off.

until the

c) To change a name or number:

1 Press

2 Press or to select a let ter or digit to

change. Press or to change the letter or digit.

Repeat this to change other letters or

numbers.

3 Press

d) To change a slider value

Press the value.

Auto power

If the 557/567 is wired for auto power (see section 16- 4), t hen:

The 557/567 automatically turns on when you

turn the boat’s ignition switch on.

You can not turn the 557/567 off while the

ignition switch is on.

you turn the boat’s ignition switch off.

If Auto power off (see section 15-1)

is , the 557/567 stays on when you turn the boat’s ignition switch of f. You can now turn the 557/567 off manually.

to display the name or number:

to accept the new value. Or press

to ignore the changes.

to decrease the value or to increase

Auto power off (see section 15-1) is

, the 557/567 automatically turns off when

Northstar Explorer 557/567 Installation and Operation Manual

Page 12

2-4 Backlight a nd night mode

To go to the Backlight display, press briefly. When you have finished, press

Backlight

The display and keys are backlit. To change the backlight level, select

to dim or to brighten.

Tip: Press twice to give the brightest screen,

with maximum backlight and Night mode off.

Backlight, then press

2-5 Man overboard (MOB)

The MOB feature saves the boat’s position and then navigates back to this point.

WARNING

MOB will not work if the 557/567 does not have a GPS fix.

1 Press

The 557/567 stores the boat’s position as a

waypoint called MOB.

2 The 557/567 changes to the chart window,

with the MOB waypoint at the centre of the chart.

The chart zooms in for accurate navigation.

If the chart can not show the required small scale, the 557/567 changes to plotter mode (a white display with crosshatching and no chart details, see section 15-2).

3 The 557/567 sets the MOB waypoint to be the

destination to navigate to.

If the NMEA output (autopilot) is off (see

section 15-10) use the 557/567 to manually navigate to the destination MOB waypoint (see sections 3-1-1 and 3-1-2).

Night mode

Night mode sets the palette for all displays.

Normal palette, for daytime

A palette optimised for night time.

To change mode, select Night mode, then press

. To change only the char t palette, see section

15-2 .

If the NMEA output (autopilot) is on, the

557/567 asks if the autopilot is active. Selec t:

No: Use the 557/567 to manually navigate to the

destination MOB waypoint (see sec tions 3-1-1 and 3-1-2).

Yes: The 557/567 asks if the boat is to go to the

MOB waypoint.

Select:

Yes: to immediately start navigating to the

MOB waypoint.

WARNING

This might result in a sudden and dangerous turn.

No: disengage the autopilot; then use

the 557/567 to manually navigate to the destination MOB waypoint (see sec tions 3-1-1 and 3-1-2).

To cancel MOB or set another MOB

1 Press

2 Select an option from the menu.

Tip: The MOB waypoint remains on the chart after the MOB has been cancelled. To delete the MOB waypoint, see section 5-2-5.

again to display a menu.

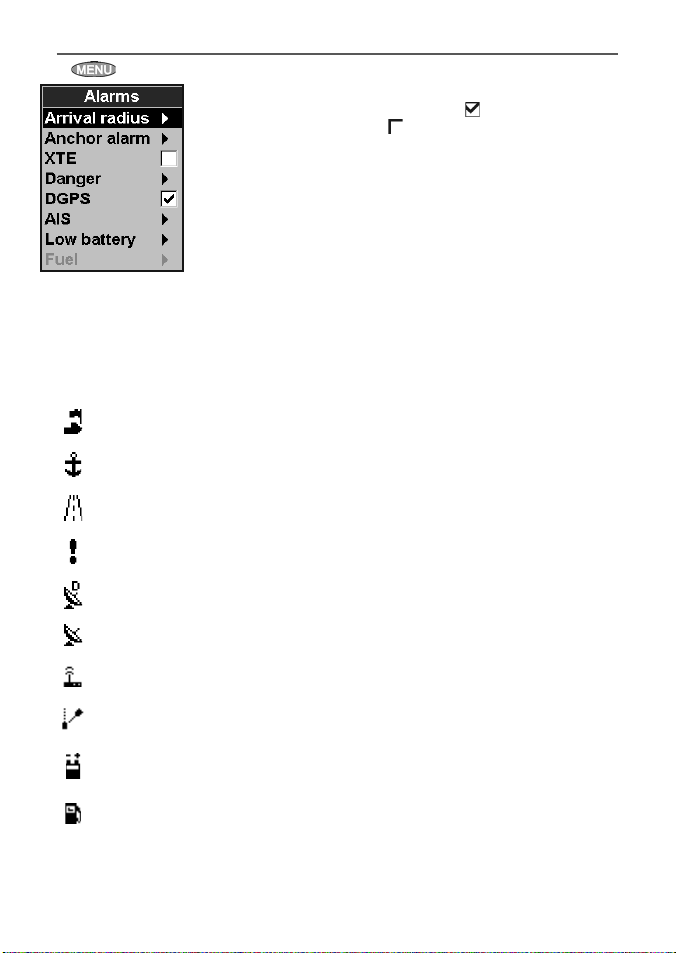

2-6 A larm s

When the 557/567 detects an alarm condition, it displays a warning message on the display, the internal beeper sounds and any external beepers or lights operate.

Northstar Explorer 557/567 Installation and Operation Manual

Press sound again if the alarm condition occurs again.

The 557/567 has user settable alarms plus an alarm for loss of GPS fix (see section 15-8).

to clear the alarm. The alarm will

Page 13

2-7 Simulate mode

In Simulate mode, the 557/567 ignores data from the GPS antenna and other transducers and sensors and the 557/567 generates this data itself. Otherwise, the 557/567 functions normally.

There are two simulate modes:

Normal: Allows a user to become familiar

with the 557/567 off the water.

Demo: Simulates a boat moving along a

route and automatically displays different 557/567 fun ction s.

2-8 The main window s

The display menu allows quick access to the main windows and favorites. Full-screen Chart is at the top of the menu followed by favorites. Other windows are available from the sub menu.

More…

To start and stop Simulate mode, and for more information, see section 15-13. In simulate mode,

Sim ulate or Demo flashes at the bottom of

the display.

WARNING

Never have Simulate mode on when the 557/567 is navigating on the water.

Note:

The windows available depend on the optional sensors and instruments that are installed (see section 1-1).

Northstar Explorer 557/567 Installation and Operation Manual

Page 14

Note: The windows below the menu divider can only be shown full screen without a data header. (see section 2-8-3).

Northstar Explorer 557/567 Installation and Operation Manual

Page 15

2-8-1 Multi window displays

The 557/567 can show two windows at once.

Adding a window to the display

Press

The active window

If there is more than one window displayed, the active window is indicated by a red border. Press

, select Add window and selec t a window to add. The 557/567 automatically rearranges the display to show the new window.

twice to change the active window.

Changing window size

1 Press

2 Press

windows. Note: Some windows are fixed in size.

3 Press

Exchanging two windows on the display

1 Press twice to change the active

window.

2 Press

second window.

The 557/567 exchanges the two windows.

Replacing a window on the display

1 Press

window.

2 Press

window that is not currently visible.

Note: When some windows are small then not all the data is shown.

Pressing the active window.

and selec t Split ratio.

to change the height of the

, select Replace and select the

twice to change the active

, select Replace and select a new

will display the options menu for

Chart is active

Red border

Gauges is active

Red border

Northstar Explorer 557/567 Installation and Operation Manual

Page 16

2-8-2 Favorite displays

The 557/567 has a list of commonly used displays, called favorite displays. There can be up to six favorite displays.

Chart, Gauges, Highway, Fuel, Data, and Tanks windows can be combined in a display. Each of these displays can have a data header (see section 2-8-3) and a compass (see section 2- 8-4).

Selecting a favorite display

Press

Adding a favorite display to the list

1 Set up the display with the window or

2 Press

3 Select where in the list to add the new

and selec t a favorite from the menu.

windows you want in the new favorite (see sections 2-8-2 and 2-8-3).

and select Save this display. The

557/567 displays the favorites list.

favorite. If you select an existing favorite display then the new favorite will replace the existing favorite in the list.

Deleting a favorite display from the list

1 Press

2 Highlight the display to delete, press

and select Delete.

Changing the order of the favorites list

1 Press

2 Highlight the display to move, press

and select Move up or Move down.

twice then select Favorites.

Northstar Explorer 557/567 Installation and Operation Manual

Page 17

2-8-3 Data header

The displays can show data at the top, called the data header.

When you select a window from the display

menu (see section 2-8) the 557/567 displays an appropriate data header for the window.

Each favorite display (see section 2-8-2) has its

own data header. When you selec t a favorite display, the 557/567 recalls the data header for this favorite.

Setting the data header for a display

1 Press

2 To turn the data header on or off :

i Select Data.

ii Select

3 To select the size of the data:

i Select Size.

ii Select the size to display.

4 To change the data displayed:

i Select Data setup.

ii Change a data field:

a Press the cursor keys to highlight the

b Press

c Selec t a data item that is available

iii Repeat the above step to set the other

data fields.

Tip: If all fields in a line are None then the line will not be displayed and the data header will take less space on the display.

5 Press

Tip: The data header will change when you select another display. To set a data header that you can recall later, set the header as part of a favorites display (see below).

and selec t Data header.

or .

field.

data items.

on your system or select None to leave the field empty.

to display a menu of

Favorites displays and data headers

To set a data header for a favorites display, follow the steps to add a favorite (see section 2-8-2

- Adding a favorite display to the list). In step 1, set the data header for the favorite as described above.

Note: Only the Char t, Gauges, Highway, Fuel, Data, and Tanks windows can have a data header.

2-8-4 Compass

The chart, sonar and highway displays can show a compass at the top of the window.

The compass always shows the boat’s course over ground (COG), a black symbol in the middle. When the boat is navigating to a point, the compass also shows bearing to the destination (BRG), a red symbol.

In this example, BRG is 332°M and COG is 341°M.

To turn the compass off or on:

1 Press

and selec t Data header.

2 Set Compass to or .

Northstar Explorer 557/567 Installation and Operation Manual

Page 18

3 Navigation: Chart

The chart window shows the chart, the boat’s position course and navigation data.

3-1 Overview of navigating

The 557/567 has two ways of navigating, going straight to a point or following a route.

3-1-1 Navigating to a point

When the 557/567 is navigating to a point, the chart and highway windows show navigation data:

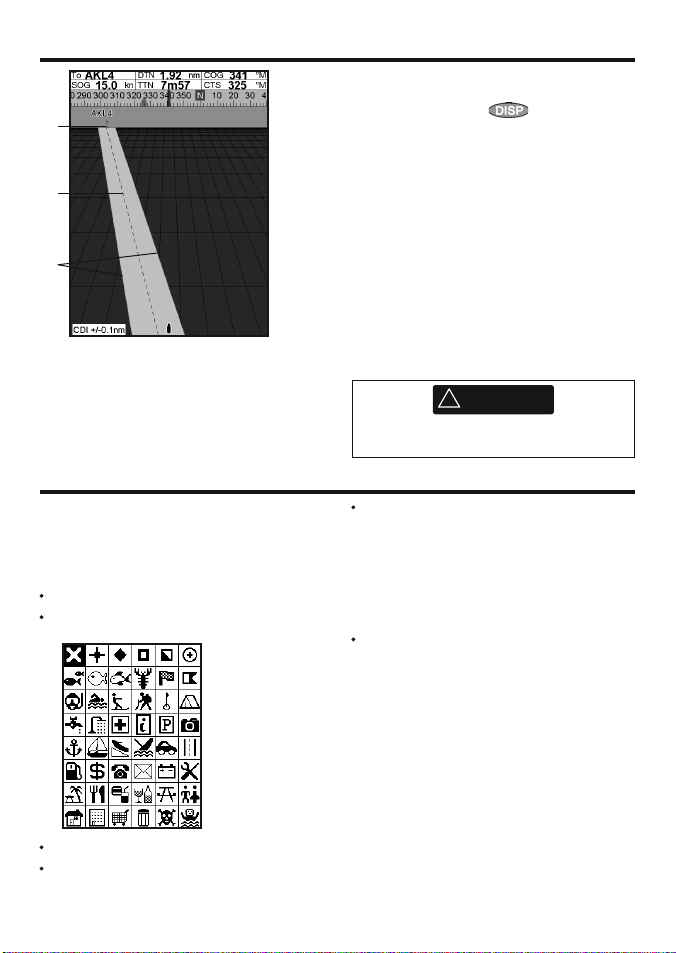

A The boat position .

B The destination point marked with a circle.

C The boat’s plotted course to the destination.

D Two CDI lines, parallel to the boat’s plotted

course, which indicate the maximum expected deviation from the plotted course.

For more information, see appendix C.

If the 557/567 is connected to an autopilot, the 557/567 will send data to the autopilot to steer the boat to the destination. Start the autopilot before starting to navigate to the point.

If the 557/567 has no autopilot, steer the boat manually:

a use the boat position and destination on the chart or highway windows

b or use navigation data window on the data header (see section 2-8-3)

c or use COG and BRG on the compass (see section 2-8-4).

Note:

1 If the XTE alarm is enabled, an alarm will

sound if the boat deviates too much from its intended course (see section 15-8).

2 If the arrival radius alarm is enabled, then an

alarm will sound to show that the boat has reached the destination (see section 15-8).

Northstar Explorer 557/567 Installation and Operation Manual

3-1-2 Going to a waypoint or to a p oint on the chart

A waypoint is a position that you can set on the 557/567 chart, for example a fishing spot. (see section 5).

Going to a waypoint from the chart window

1 Go to the chart window.

2 Move the cursor to the waypoint: either use

the cursor keys or use Find (see section 3-2-5).

3 Press

Going to a waypoint from the waypoints window

1 Go to the waypoints window.

2 Press

go to.

3 Press

Going to a point on the chart

1 Switch to a chart window.

2 Move the cursor to the destination point:

either use the cursor keys or use Find (see section 3-2-5).

3 Press

Make sure the course does not pass over land or dangerous waters.

Navigating

The 557/567 navigates to the point as described in section 3-1-1.

Cancelling navigating

Go to a Chart window, press

Cancel goto.

Tip: Before starting, create waypoints at points of interest. Create a waypoint at the start of the trip for you to navigate back to (see section 5-2-1).

and selec t Goto.

or to highlight the waypoint to

and selec t Goto.

and selec t Goto cursor.

WARNING

and selec t

Page 19

3-1-3 Following a route

Preparing

A route is a list of waypoints that the boat can follow (see section 6).

To create waypoints before creating the

route, see section 5-2-1.

To create a route, see section 6-2-1.

Starting a route from the chart window:

1 Go to the chart window.

2 Press

3 Press

follow. Press .

4 The 557/567 asks for the direction to traverse

the route.

Select

created) or

5 The 557/567 displays the chart with the

route marked and starts navigating from the start of the route.

Starting a route from the routes window:

1 Go to the routes window.

2 Press

follow. Press

3 The 557/567 asks for the direction to traverse

the route.

Select

created) or

4 The 557/567 displays a chart with the route

marked and starts navigating from the star t of the route.

and selec t Star t Route.

or to highlight the route to

Forward (the order the route was

Reverse.

or to highlight the route to

and selec t Star t.

Forward (the order the route was

Reverse.

Navigating

The 557/567 navigates to each waypoint on the route in turn as described in section 3-1-1.

The 557/567 stops navigating to the waypoint at the end of the current leg and starts the next leg of the route:

a when the boat comes within 0.025 nm of the

waypoint

b or when the boat passes the waypoint

c or if you skip the waypoint.

Skipping a waypoint

To skip a waypoint, go to a chart window, press

and selec t Skip. The 557/567 starts navigating straight towards the next waypoint on the route.

WARNING

Skipping a waypoint with the autopilot on might result in a sudden course change.

Cancelling a route

When the boat has reached the final waypoint, or to stop the boat following the route at any time, cancel the route. Go to a chart window, press

and selec t Cancel route.

Northstar Explorer 557/567 Installation and Operation Manual

Page 20

3-2 Chart window

To go to the Chart window, press then selec t Chart.

A typical chart window shows:

A Data header. To turn the data off or on or to change what data is displayed (see sec tion 2-8-2)

B Compass (see sec tion 2-8-3)

C Char t scale (see section 3-2-3)

D Boat position (see sec tion 3-2-1)

E Boat track (see section 3-5)

F Boat course and CDI lines (see Appendix C, CDI)

G Distance and bearing of cursor from boat

HLand

ISea

J The cursor (see sec tion 3-2-1)

K A typical waypoint (see section 5)

Note: To change the types of information displayed on the chart (see sec tion 15-2)

Northstar Explorer 557/567 Installation and Operation Manual

Page 21

3-2-1 Chart modes

The Chart has two modes:

Centre on boat mode

To switch to centre on boat mode in the char t window, press of the chart. As the boat moves through the water, the chart automatically scrolls to keep the boat in the centre of the chart. The cursor (see below) is turned off.

Cursor mode

The keys To switch to cursor mode in the chart window, hold down a cursor key. The cursor and moves away from the boat:

Press the key which points in the direction that the cursor will move, for example press

to move the cursor down.

Press midway bet ween two of the cursor keys to make the cursor move diagonally.

Hold a cursor key down to make the cursor move continuously across the display.

In Cursor mode:

The distance ( the cursor from the boat are displayed at the bottom, left corner of the display.

The chart does not scroll as the boat moves.

If the cursor reaches the edge of the display, the chart will scroll.

For example, hold down

cursor to the right side of the display and the chart will scroll to the lef t.

. The boat is at the centre

and are called cursor keys.

appears

DST) and bearing ( BRG) of

to move the

3-2-2 Latitude and longit ude

Latitude and longitude can be displayed in the data header. The display is degrees and minutes to three decimal places, about 2 m (6 ft) resolution. Normally the position is the boat ’s position, and the latitude and longitude has a boat symbol to show this:

36° 29.637’ N or S Latitude

175° 09.165’ E or W Longitude

If the cursor has been moved in the last ten seconds, then the position is the cursor’s position, and the latitude and longitude has a cursor symbol to show this:

36° 29.841’ N or S Latitude

175° 09.012’ E or W Longitude

Northstar Explorer 557/567 Installation and Operation Manual

WARNING

When reading the boat position, make sure the position is not the cursor position.

3-2-3 Chart scale

Press to zoom in and display a smaller area of the chart in more detail. Press and display a bigger area in less detail.

The chart scale is displayed at the top lef t of the chart:

to zoom out

3-2-4 Chart symbols and info rmation

The chart will show symbols, such as waypoints and chart symbols (for example buoys, beacons, wrecks and marinas). When the cursor is placed over a symbol for at least two seconds, a data window appears at the bottom left of the display with information about the symbol.

To see stored information about a point on the chart (for example, a chart symbol):

1 Move the cursor to that point on the chart.

2 Press

3 A menu of objects is displayed:

i Select an object to display.

ii Press

other objects.

iii Finally, press

and select Chart info.

to return to the menu. Select

to return to the char t.

3-2-5 Finding a char t symbol

To find and display a char t symbol:

1 Press

2 Select the type of symbol: Waypoints, Routes,

Ports by name, Ports & services, T ide stations or AIS Vessels.

3 For Ports & services: selec t the type of ser vice

to find.

For Ports by name: press

enter a name or let ters contained in the port name, then press .

4 A list of items is displayed. If there are more

items than will fit on the display, press

and selec t Find.

, , or to

to page up and down.

Page 22

For Ports by name: to search for a different

port name, press then press .

5 Select the item and press

window changes to show the item in the middle of the display.

To see stored information about the item,

press

(see section 3-2-4).

. change the name,

. The chart

3-3 Distance and bear ing calculator

The distance and bearing calculator can plot a course of one or several legs and show the bearing and length of each leg, as well as the total distance along the course. The completed course can be converted into a route.

To use the distance and bearing calculator:

1 Press

is displayed. Press and select

Distance.

2 Move the cursor to the star t of the first leg. It

does not matter if this point is a waypoint or not. Press

3 To add a leg to the course, move the cursor

to the end of the leg. It does not matter if this point is a waypoint or not. The display shows the bearing and length of the leg, as well as the total distance along the course. Press

until the chart window

3-2-6 Perspective view

Perspective view shows the chart from an angle instead of from straight above. To turn perspective view on or off, press and set Perspective to

4 To remove the last leg from the course, press

5 Repeat the above two steps to enter the

whole course.

6 To save the new course as a route, press

new points on the course as new waypoints, with default names. If necessar y, edit the route later (see section 6-2-2) and edit any new waypoints later (see section 5-2-3).

7 Finally, press

window.

or .

and selec t Remove.

and selec t Save. This also saves any

to return to the char t

3-4 Projecte d course

If Projected course is turned on, then the 557/567 will display the projected position based on the course over ground (COG), speed and a specified time. To turn Projected course on and off and to set the time, see section 15-2.

A Projected position

B Boat’s projected course

C Boat position

Northstar Explorer 557/567 Installation and Operation Manual

Page 23

3-5 Tracks and trackin g

Tracking records the boat’s position to memory at regular intervals, which can be:

Time intervals.

Or distance intervals.

The track of where the boat has been can be displayed on the chart. The 557/567 can display one track while recording another.

To work with track s, see section 15-5.

The 557/567 can store five tracks:

Track 1 can hold up to 200 0 points and is intended to record the normal progress of the boat.

Tracks 2, 3, 4 and 5 can hold up to 500 points each and are intended to record sec tions to be retraced accurately, for example entering a river mouth.

Tip: Record the tracks in good conditions.

When recording is on and the track becomes full then recording continues and the oldest points in the track are deleted. The maximum length of a track depends on the selected track interval: a small interval will give a shor ter, more detailed track and a long interval will give a longer, less detailed track, as shown in these examples:

The track lengths are in the current distance units, for example nm.

Time intervals

Interval Track 1 Track 2, 3, 4

or 5

1 sec 33 minutes 8 minutes

10 sec 5.5 hours 1.4 hours

1 min 33 hours 8 hours

Distance intervals

Interval Track 1 Track 2, 3, 4

or 5

0.01 20 5

1 2,000 500

10 20,000 5,000

Northstar Explorer 557/567 Installation and Operation Manual

Page 24

4 Navigation: Highway window

A B

5 Navigation: Waypoints

A waypoint is a position that you can set on the 557/567 chart for example a fishing spot or a point on a route. The 557/567 can have up to 3000 waypoints. A waypoint can be created, changed or deleted. A waypoint has:

A name (up to eight characters).

An icon showing what kind of waypoint it is.

The available icons are:

A position.

A color for the waypoint symbol and name

on the chart.

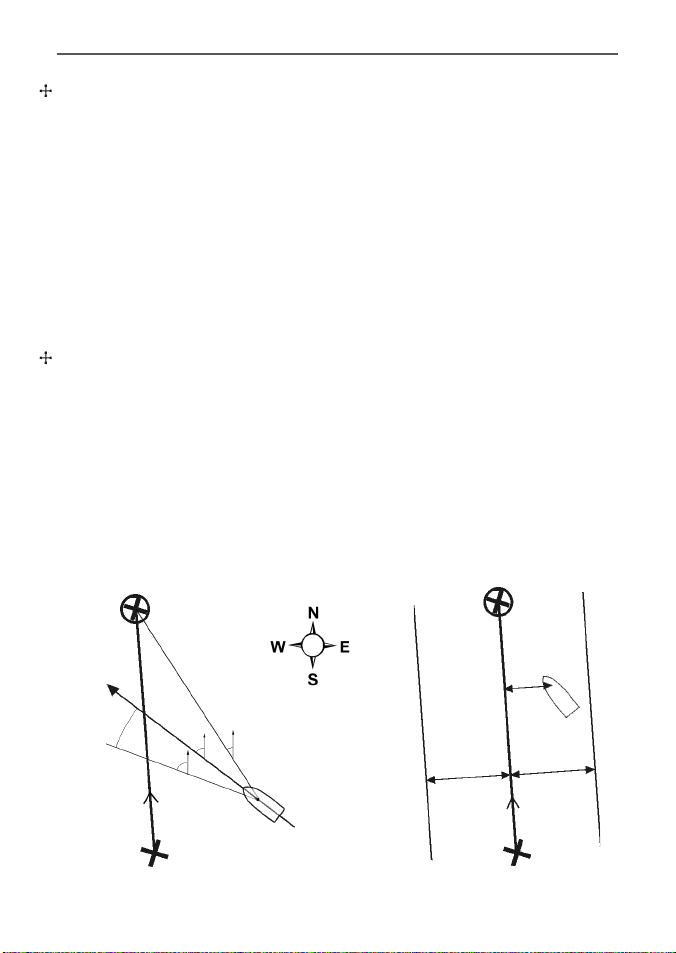

The highway window has a bird’s eye view of the boat’s course to a destination. To go to the Highway window, press then select

The highway window shows:

A Optional data header (see section 2-8-3)

B Optional compass (see section 2-8-4)

C Destination waypoint

D Boat’s plotted course to destination

E CDI lines, parallel to the boat’s plot ted course

F CDI scale

G The boat position is at the bot tom, centre of

A type:

Highway.

(see Appendix C, CDI). The CDI lines are like a highway over the water where the boat will move.

the display.

WARNING

The highway window does not show land, dangerous waters or chart symbols.

, select Other,

Normal: A normal waypoint can be

navigated to or included in a route.

Danger: A danger waypoint is a point to

avoid. If the boat comes within the danger radius of a danger waypoint the unit can sound an alarm (see sec tion 15-8).

A display option:

Controls how the waypoint is displayed

when the

Waypoints setup option is set to

Selected (see sec tion 15-2):

Off: The waypoint is not displayed.

Icon: The waypoint icon is displayed.

I+N (Icon and Name): The waypoint

icon and name are displayed.

If there are many waypoints, use this feature

to select which waypoints are displayed on the chart.

Note: The other choices for Waypoints are Hide all and Show all (see section 15-2).

Northstar Explorer 557/567 Installation and Operation Manual

Page 25

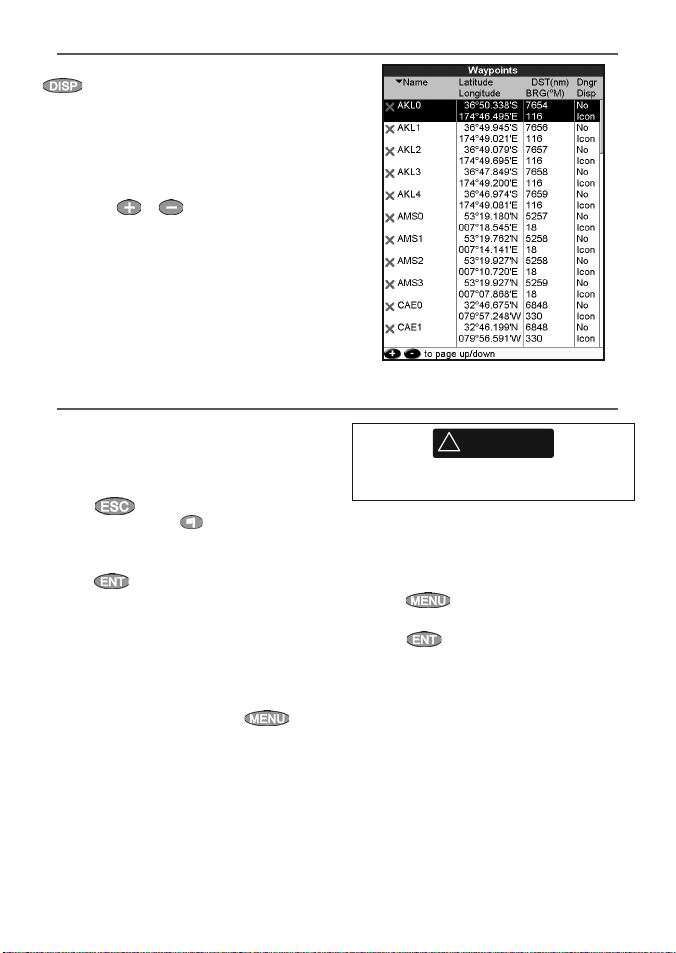

5-1 Waypoints windo w

To go to the waypoints window, press

, select Other, then select Waypoints. The waypoints window is a list of the waypoints that have been entered, each with waypoint symbol, name, latitude and longitude, distance and bearing from the boat, type and display option.

If there are more waypoints than will fit on the display, press page at a time.

or to scroll up or down a

5-2 Managing wayp oints

5-2-1 Creating a new way point

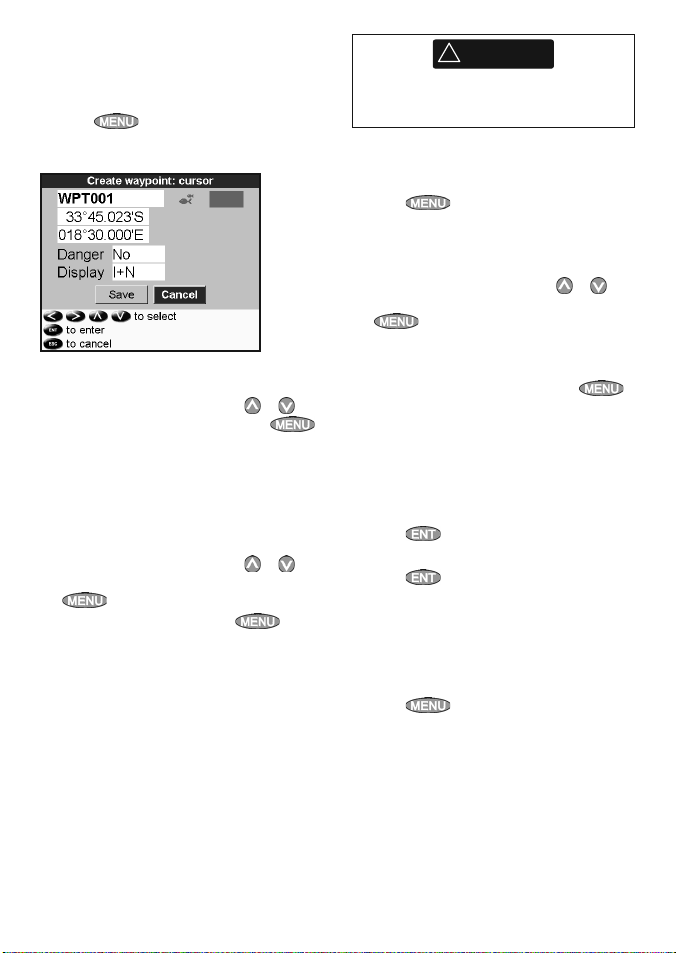

Creating and editing a new waypoint from the chart window

1 To create a waypoint at the boat position,

press boat mode (or press , see above).

Or, to create a waypoint at a dif ferent point,

move the cursor to that point on the chart.

2 Press

3 A new waypoint, with the default name and

data is created.

4 Change the waypoint data if necessar y (see

section 5-2-7). Select

Creating a new waypoint from the waypoints window

1 In the waypoints window, press

select

2 A new waypoint, with a default name and

data, is created at the boat position.

3 Change the waypoint data if necessar y (see

section 5-2-7). Select

Note: Waypoints can also be created when a route is created (see section 6-2-1).

to switch the char t to centre on

Save.

and

Create.

Save.

Northstar Explorer 557/567 Installation and Operation Manual

WARNING

Do not create a navigation waypoint on land or in dangerous water.

5-2-2 Moving a waypoint

Moving a waypoint from the chart window

1 In the chart window, move the cursor to the

waypoint to move.

2 Press

3 Move the cursor to the new position and

press

Moving a waypoint from the waypoints window

To move a waypoint from the waypoints window, edit the waypoint (see section 5-2-3) and change the latitude and longitude.

and selec t Move.

Page 26

5-2-3 Editing a wayp oint

Editing a waypoint from the chart window

1 In the chart window, move the cursor to the

waypoint to edit.

2 Press

3 Change the waypoint data (see section 5-2-7).

Select

Editing a waypoint from the waypoints window

1 In the waypoints window, press

highlight the waypoint to edit. Press and selec t

2 Change the waypoint data (see section 5-2-7).

Select

and selec t Edit.

Save.

or to

Edit.

Save.

5-2-4 Displaying a waypoi nt on the chart

This goes to the chart window, and shows the selected waypoint at the centre of the display.

1 In the waypoints window, press

to highlight the waypoint to display. Press

and selec t Display.

Or, in the Chart window, press , select

Find, then select Way points. Select a

waypoint from the list.

2 The 557/567 switches to the chart window,

with the selected waypoint at the centre of the chart.

5-2-5 Deleti ng a waypoint

A waypoint can not be deleted if the boat is navigating to it or if the waypoint is used in more than one route. A waypoint that is used in one route can be deleted.

Northstar Explorer 557/567 Installation and Operation Manual

WARNING

When a waypoint is deleted from a route, check that the changed route does not cross land or dangerous waters.

Deleting a waypoint from the chart window

1 In the chart window, move the cursor to the

waypoint to delete.

2 Press

3 Select Yes to confirm.

Deleting a waypoint from the waypoints window

1 In the waypoints window, press

to highlight the waypoint to delete. Press

2 Select Yes to confirm.

and selec t Delete.

5-2-6 Deleting al l waypoints

1 In the waypoints window and press

and select

2 Select Yes to confirm.

Delete all.

5-2-7 Changing a wayp oint’s data

To change the waypoint data when it is displayed in a window:

1 Select the data to change.

Press

Use the cursor keys to change the data.

Press

2 If necessary, repeat the above step to change other data.

3 Select

Save.

5-2-8 Sort Waypoi nts

To change how the waypoints list is displayed:

1 Press

2 Select how to display the list:

Name: In alphabetical order by name.

Ico n: Grouped by icon type.

Distance: In order of distance from the

boat.

An arrow at at the top of a column indicates how the waypoints are sorted.

and selec t Sort by.

5-2-9 Navigating to a waypoint

See section 3-1-2.

Page 27

6 Navigation: Routes

A route is a list of waypoints that the boat can navigate along. Routes can b e created, changed and deleted.

The 557/567 can have up to 25 routes. Each route can have up to 50 waypoints.

A route can:

Start and stop at the same waypoint .

Include waypoints more than once.

6-1 Routes window

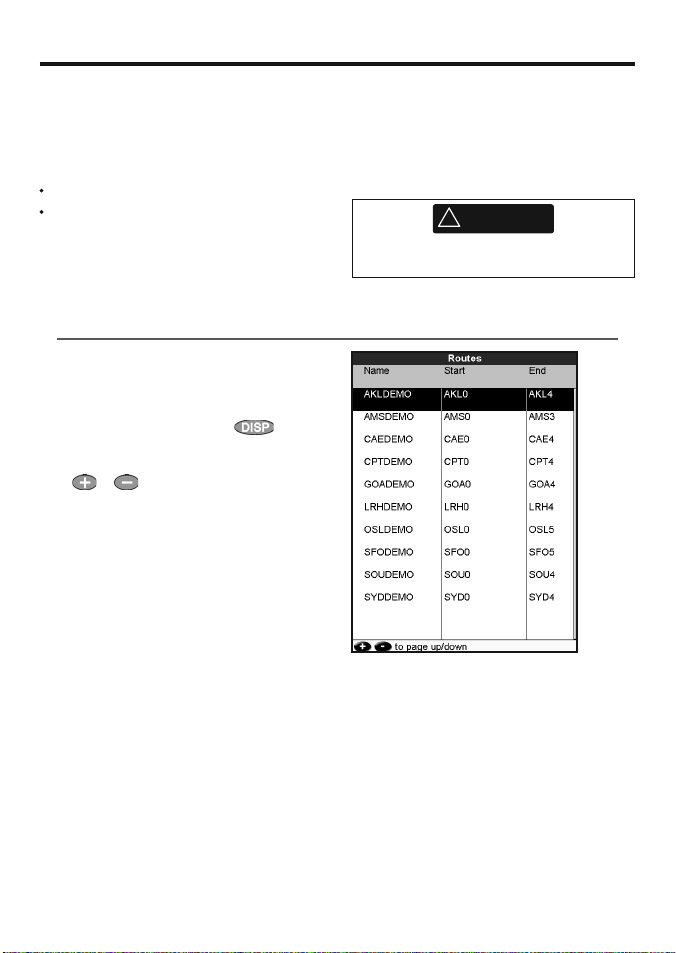

The routes window is a list of the routes that have been entered, each with route name, start waypoint, end waypoint, number of legs and total distance.

To go to the routes window, press

More, then select Routes.

If there are more routes than will fit on the display, press

or to scroll up or down a page at

a time.

, select

The 557/567 can navigate along a route in either direction. Waypoints on the route can be skipped.

Routes are a powerful feature when the 557/567 is connected to an autopilot, allowing the vessel to be automatically guided along the route.

WARNING

Make sure that routes do not cross land or dangerous water.

Northstar Explorer 557/567 Installation and Operation Manual

Page 28

6-2 Managing routes

WARNING

After creating or changing a route, display the route on the chart and check that it does not cross land or dangerous water.

6-2-1 Creating a new route

A. Creating a new route from the chart window

While creating the route:

Press

or to change the range; scroll the chart by moving the cursor to the edge of the chart.

A data box at the bottom left of the display shows the route name and total distance. If the cursor is near a leg, it shows the length and bearing of the leg as well.

The legs of a route must start and end at waypoints. If a leg does not start or end at an existing waypoint then a new waypoint will be created automatically (to change the new waypoint data, see section 5-2-7).

You can not use a Danger waypoint in a route.

1 In the chart window, press

New route.

2 The route is given a default name:

i Change the name if necessary.

ii Select OK.

3 To enter the legs of the route:

i Move the cursor to the start of the route

and press

ii A waypoint is created with a default name.

to save this waypoint press enter, to edit the waypoint refer to 5-2-7

iii Press

from the cursor to the previous waypoint

iv Move the cursor to the end of the first leg

and press

v Repeat i to iv until the last waypoint in the

route is placed and saved

vi Press

Menu options while creating a route:

1 To add a waypoint to the route

i Press

a dotted leg line is displayed

to complete the route

and select Add.

Northstar Explorer 557/567 Installation and Operation Manual

and select

2 To insert a waypoint in the route by breaking

one leg into two:

i Move the cursor to the leg you want to

break.

ii Press

iii Move the cursor to where the new route

waypoint will be.

iv Press

3 To move a waypoint in the route:

i Move the cursor to the waypoint to move.

ii Press

iii Move the cursor to where the waypoint

will be.

iv Press

4 To remove a waypoint from the route:

i Move the cursor to the waypoint to

remove from the route.

ii Press

waypoint is removed from the route, but the waypoint is not deleted.

5 To start navigating the route

i Press

6 To end creating the route

i Press

7 To delete the route

i Press

ii Select yes to confirm.

Tip:

The distance and bearing calculator can also be used to enter a course and save it as a route (see section 3-3).

B. Creating a new route from the routes window

1 In the routes window, press

and select Insert.

and select Move.

and select Remove. The

and select Start

and select End

and select Delete

and select

Create.

2 A new route, with a default name and no

waypoints, is displayed.

3 To change the route name:

i Select the route name at the top of the

display and press

ii Change the name if necessary.

iii Press

Page 29

4 To insert a waypoint in the route:

i Select where the waypoint will be:

To insert the first waypoint in a new

route, select Leg 1.

To insert a waypoint at the end of the

route, select the unused leg at the end of the list of waypoints.

Otherwise, select the waypoint to

insert the new waypoint in front of.

ii Press

displayed. Select the waypoint to use.

As waypoints are inserted, the distance

and bearing of each leg is shown automatically. If the route has more waypoints than will fit on the display, press

5 To remove a waypoint from the route:

i Select the waypoint to remove.

ii Press

6 Repeat this process until the route is finished.

7 Press

8 Display the route on the chart (see section

6-2-3) and check that the route does not cross land or dangerous water.

See section 3-1-3.

. A list of waypoints is

or to see them.

and select Remove.

6-2-2 Editing a route

Editing a route from the chart

1 In the routes window, select the route to

edit. Press

chart.

2 The selected route is displayed on the chart,

with a circle around the first waypoint.

3 Edit the route as described in section 6-2-1 A,

starting at step 4.

Editing a route from the routes window

1 In the routes window, press

highlight the route to edit. Press and

Edit.

select

2 The selected route is displayed: the route

name and a list of the waypoints.

3 Edit the route as described in section 6-2-1 B,

starting at step 3.

and selec t Edit on

or to

6-2-3 Displaying a route on the char t

To view the selec ted route at the centre of the display:

1 In the routes window, press

highlight the route to display. Press and select Or, in the Chart window, press , select

Display.

or to

Find, then select Route. Select a route

from the list.

2 The 557/567 displays the selec ted route on

the chart.

6-2-4 Deleting a route

1 In the routes window, press or to

highlight the route to delete. Press and select

2 Select Yes to confirm.

Delete.

6-2-5 Deleting all routes

1 In the routes window, press and

Delete all.

select

2 Select Yes to confirm.

6-2-6 Navigating a route

See section 3-1-3.

Northstar Explorer 557/567 Installation and Operation Manual

Page 30

7 Satellites

GPS worldwide navigation

The US Government operates the GPS system. Twenty-four satellites orbit the earth and broadcast position and time signals. The positions of these satellites are constantly changing. The GPS receiver analyses the signals from the closest satellites and calculates exactly where it is on earth. This is called the GPS position.

The accurac y of the GPS position is typically better than 10 m (33 ft) for 95% of the time. A GPS antenna can receive signals from the GPS satellites when it is almost any where on earth.

DGPS

A DGPS system uses correction signals to remove some of the errors in the GPS position. The 557/567 can use one of two types of DGPS system:

WAAS and EGNOS DGPS

WAAS and EGNOS are two satellite based

DGPS systems. The correction signals are broadcast by satellites and are received by the 557/567’s standard GPS antenna. The accuracy of the corrected GPS position is typically better than 5 m (15 ft) for 95% of the time.

WAAS covers all of the USA and most of

Canada. EGNOS will cover most of Western Europe when it becomes operational.

Differential beacon DGPS

Differential beacons are land based radio

transmitters that broadcast correction signals that can be received by a special receiver on the boat. Dif ferential beacons are usually only installed near ports and important waterways, and each beacon has a limited range. The accuracy of the corrected GPS position is typically bet ter than 2 to 5 m (6 to 16 ft).

GPS receiver

Northstar GPS units have a sensitive 12-channel receiver, which tracks signals from all GPS satellites visible above the horizon and uses measurements from all satellites more than 5° above the horizon to calculate the position.

Each time a GPS receiver is turned on, it normally takes about 50 seconds before it outputs the first position. Under some circumstances it will take up to two minutes or longer.

Northstar Explorer 557/567 Installation and Operation Manual

Page 31

7-1 Satellite window

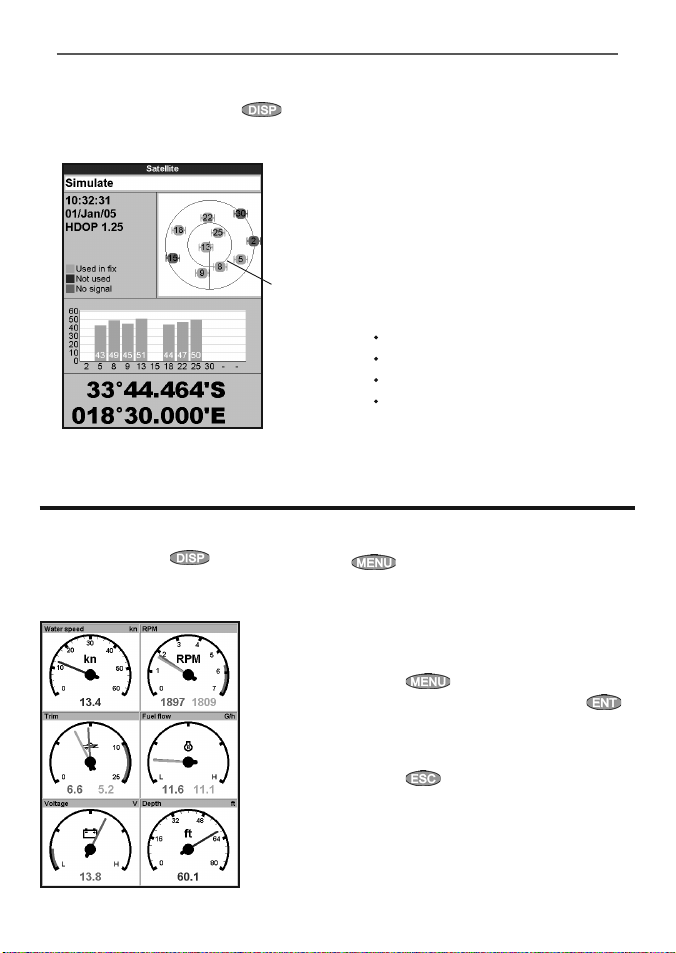

The satellite window has information about the GPS satellites and GPS position.

To go to the satellite window, press

More, then select Satellite.

select

The satellite window shows:

B C

8 Gauges window

The Gauges window shows boat data, such as water speed, as analog gauges. To select the Gauges window, press select Gauges. Before using the Gauges window, set Speed range, Max RPM and Max fuel f low (see section 15-4).

, select More, then

A Status of GPS antenna, for example Acquiring,

GPS fix, No GPS. If the unit is in Simulate mode it displays Simulate (see section 2-7)

B Time and date from GPS satellites. Time is

local time (UTC [GMT] plus local offset, see section 15-12)

C HDOP: The error in the GPS position caused

by satellite geometry. A low value indicates a more precise fix, a high value a less precise fix

D Signal strengths of up to t welve visible GPS

satellites. T he higher the bar the stronger the signal

E Boat position

F Positions of visible GPS satellites:

Outer circle is horizon

Inner circle is 45° elevation

Centre is directly above

North is at top of display

G If the boat is moving, COG is a line from

centre

Selecting a gauges layout

To select a layout from the Gauges window, press

, select Layout, then select a layout from the list.

Changing a gauge layout

You can change the data displayed on each gauge in a layout.

1 Select the layout to change (see above).

2 Press

3 Highlight the gauge to change. Press

and select Gauge setup.

and selec t the data to display in the gauge.

4 Repeat the above step to change other

gauges.

5 Press

Northstar Explorer 557/567 Installation and Operation Manual

Page 32

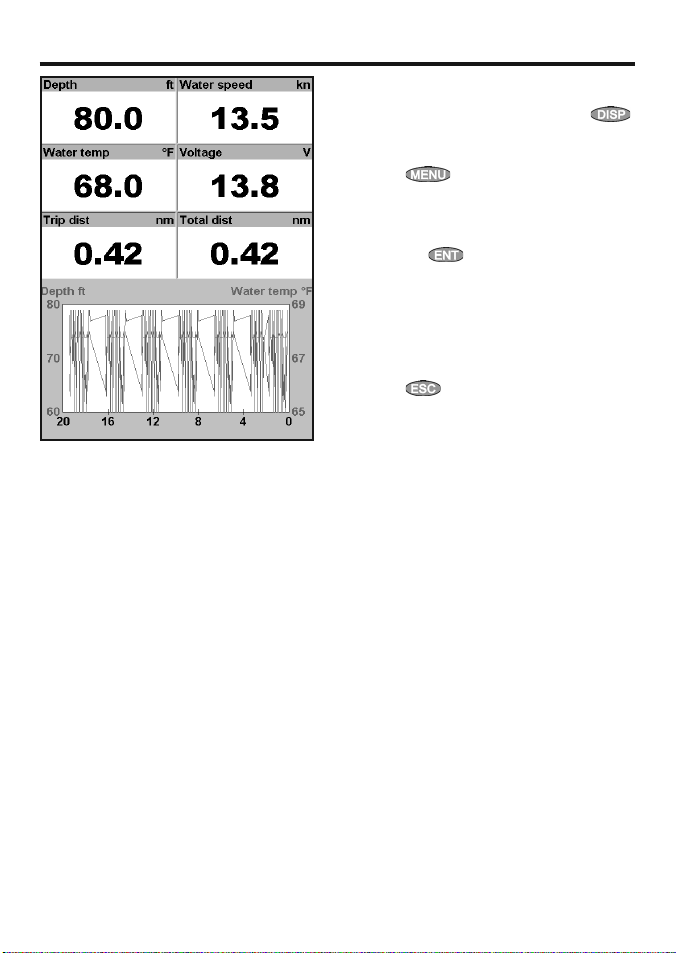

9 Data window

The data window has large numeric data fields and a graph of depth and water temperature if available. To go to the data window, press , select More, then select Data.

To select what data is displayed:

1 Press

2 Change a data field:

i Press the cursor keys to highlight the

ii Press

iii Select a data item that is available on your

3 Repeat the above step to set the other data

fields.

4 Press

and selec t Data setup.

field.

items.

system or select empty.

to display a menu of data

None to leave the field

Northstar Explorer 557/567 Installation and Operation Manual

Page 33

10 Fuel functions and display

The Fuel functions require optional petrol/gasoline, diesel or SmartCraft™ fuel sensors to be installed and set up.

10-1 What the fuel compute r does

Each engine has a f low sensor installed to measure the engine’s fuel flow.

The 557/567 uses these flows, together with boat speed and engine RPM if available to estimate the fuel remaining in the tank(s), fuel used, range and fuel economy. This data is displayed on the fuel window (see section 10-2).

You c an:

display the fuel used during a trip

(see section 10-2)

set low fuel alarms (see section 10-4)

make fuel consumption curves - graphs

of fuel consumption and boat speed as a function of engine RPM - to monitor and optimise boat performance. (see section 10-6)

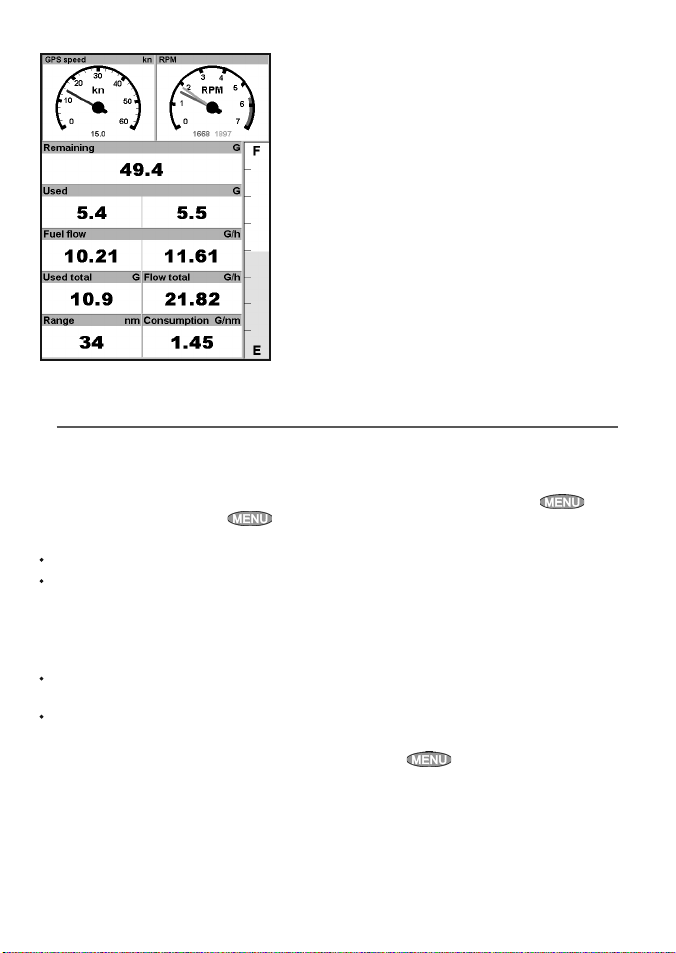

10-2 Fuel window

To go to the Fuel window, press , select More, then select Fuel.

The display differs according to the number of engines and tanks. If engine RPM is available and if you have made and selected a Fuel Consumption Cur ve (see section 10- 6), press to switch between a Summar y or a Fuel curve display.

The Fuel window sho ws

Speed

To select a bo at speed s ensor, see section 10-5-1.

RPM (if available)

If engine RPM is not available, the display shows depth.

Remaining

The fuel remaining in the tank(s) is shown as a vertical gauge on the right of the display. The height of the yellow bar(s) show how much fuel remains in the tank(s). If you have set a low fuel alarm (see section 10- 4), a red bar shows the level at which the alarm will trigger. If there are two tanks, the left bar shows the port tank, the right bar shows the starboard tank.

Northstar Explorer 557/567 Installation and Operation Manual

To ensure the fuel data is accurate:

When you add or remove fuel from a

If the boat has petrol/gasoline sensors,

Choose an appropriate type of boat

If the boat uses a paddlewheel sensor

Used

The fuel used during a trip. On a multi-engine boat, the data for the por t engine is on the left of the display.

When you want to start measuring how much fuel is used, go to the Fuel window and:

In a single engine boat, press and

select Clear used .

In a multi-engine boat, the fuel used by each

engine and the total fuel used are shown. Press , select Clear u sed and select:

Port or Starboard to clear the fuel used

by one engine

Both to clear the total fuel used.

Fuel flow

The fuel f low for the engine(s). On a multi engine boat, the data for the por t engine is on the left of the display. Use the f lows to check the load of each engine.

WARNING

tank, tell the 557/567 (see section 10-3)

calibrate them during installation or if the fuel readings seem inaccurate (see section 10-7)

speed sensor to calculate economy, range and the fuel consumption curve (see sec tion 10-5)

to measure speed, calibrate it during installation or if the speed readings seem inaccurate.

Page 34

Fuel window Range

The estimated boat range at the current fuel flow. The value can depend on the type of speed sensor (see section 10-5).

Economy

The distance travelled per unit of fuel used. The value can depend on the type of speed sensor (see section 10-5). The larger the value, the better the fuel economy. Adjust the throttle and trim to achieve the best economy.

Fuel consumption curve

A graph of fuel consumption and boat speed as a function of engine RPM. Use the cur ve to monitor and optimise boat performance (see section 10-6).

10-3 When you add or remove f uel

When you add or remove fuel, you must tell the 557/567, otherwise the fuel data will be meaningless.

A When you completely fill a tank

Go to the fuel window and press

Then:

On a single-tank boat, select Fill tank.

On a multi-tank boat, select Fill ta nk,

then selec t the tank you have filled.

Note: Underf loor fuel tanks are often dif ficult to refill to the same level twice, due to air pockets.

With underfloor fuel tanks:

Trim the boat to the same angle in the water

each time you follow procedure A .

Mostly use procedure B below when adding fuel, but completely fill the tank and follow procedure A about every tenth time you add fuel.

B When you partially fill a tank

1 Add fuel to a tank and write down how much

fuel you add.

2 From the Fuel window, press

select Add fuel.

3 On a multi-tank boat, select the tank that you

have added fuel to.

4 Change the number to the amount of fuel

that you added.

Note: If you follow procedure B ever y time you add fuel, then a small error will accumulate, because it is hard to measure exactly how much fuel you add. To avoid this, completely fill the tank and follow procedure A about every tenth time you add fuel.

C When you remove fuel

1 Before removing fuel, go to the Fuel window,

press

2 On a multi-tank boat, select the tank that you

are removing fuel from.

3 Write down the value of Remaining for the

tank; this is the amount of fuel originally in the tank.

and

and selec t Set remaining.

Northstar Explorer 557/567 Installation and Operation Manual

Page 35

4 Remove fuel from the tank and write down

how much fuel you remove.

5 Subtract the amount of fuel you removed

from the amount of fuel originally in the tank to calculate the amount of fuel now in the tank.

6 Change the number on the Set Remaining

menu to the amount of fuel that you calculated was now in the tank.

7 Press

10-4 Low fuel ala rm

To set a low fuel alarm for a tank:

1 Press

Setup tanks.

2 On a multi-tank boat, select the tank to set

the alarm for.

3 Select Tank

trigger the low fuel alarm.

twice, select Fuel then select

alarm and enter a fuel level to

10-5 Boat speed sensor s

10-5-1 Selectin g a boat speed sensor

The fuel calculations can use boat speeds from the GPS, or from a paddlewheel sensor or pitot sensor if these optional sensors are installed:

Paddlewheel and pitot sensors measure the

speed through the water; GPS speed is speed over ground; these sensors can give different values for Range, Economy and the fuel consumption curves (see section 10-5-2).

A pitot sensor is more accurate than a

paddlewheel sensor at high speeds but is not accurate at low speeds. A paddlewheel sensor is more accurate than a pitot sensor at low speeds.

Note: You can also use this procedure when you add fuel to a tank. In this case, add the fuel you have added to the amount of fuel originally in the tank to calculate the amount of fuel now in the tank.

When a low fuel alarm is set, the alarm’s fuel level is shown on the fuel window tank levels as a red bar. The alarm can also be set using the Alarms setup menu (see section 15-8)

To select an optional speed sensor

1 Press

Speed source.

2 To use a paddlewheel or pitot sensor, select

Water speed, otherwise select Grou nd speed to use GPS speed.

3 If you selected Water speed and you have

both a paddlewheel sensor and a pitot sensor:

i Press

ii Select Paddlewheel or Pitot.

Tip: You can select a different speed sensor

during a trip.

twice, select Fuel and select

, select SmartCraft and

select Speed type

Northstar Explorer 557/567 Installation and Operation Manual

Page 36

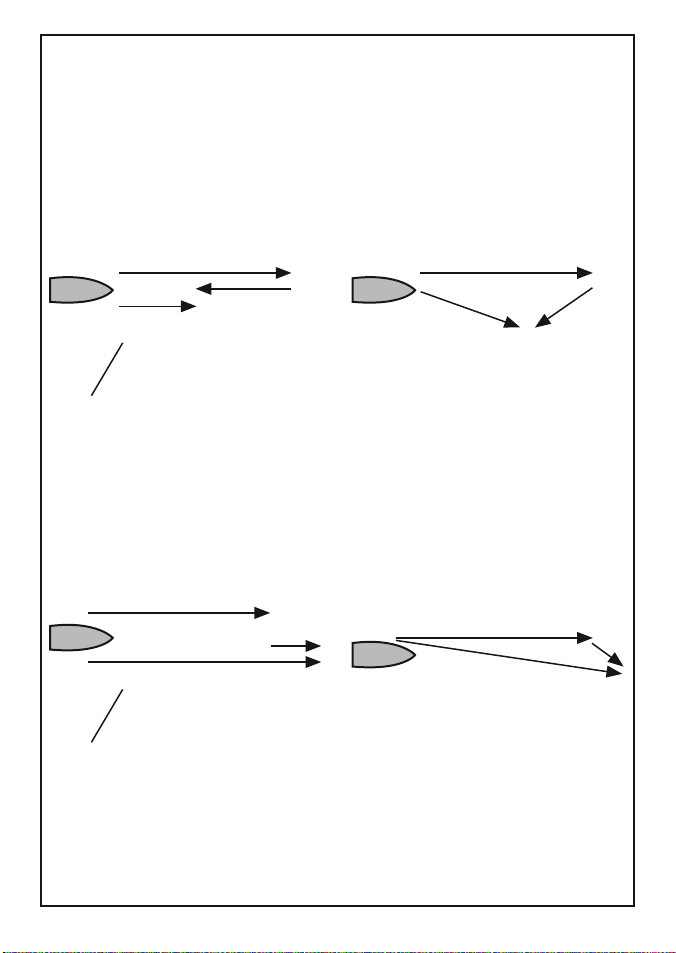

10-5-2 Water speed and groun d speed

A paddlewheel sensor and a pitot sensor measure water speed, the boat speed through the water. A GPS measures ground speed, the boat speed over the bot tom of the water. If there is a current, then these speeds will be different, and the log, trip log, economy and range will be different, as shown below.

When the current is from ahead, ground sp eed is less than water speed

Water speed 10 knots

Water speed is better for measuring the boat’s potential performance, Ground speed is bet ter for going to a destination because it takes currents into account. To select a speed sensor, see section 10-5-1.

Water speed 10 knots

Current 4 knots

Gives a ground speed of 6 knots

For this example:

If the boat travels for one hour, uses 3 gallons of fuel per hour and has 50 gallons of fuel left:

Speed Log Economy Range

Using water speed: 10 knots 10 nm 3.3 nm / gal 165 nm

Using ground speed: 6 knots 6 nm 2.0 nm / gal 100 nm

When the current is from behind, ground speed i s more than water speed

Water speed 10 knots

Current

4 knots

Gives a ground speed of 14 knots

For this example:

If the boat travels for one hour, uses 3 gallons of fuel and has 50 gallons of fuel lef t:

Speed Log Economy Range

Using water speed: 10 knots 10 nm 3.3 nm / gal 165 nm

Using ground speed: 14 knots 14 nm 4.7 nm / gal 235 nm

Gives a ground speed of about 8 knots Current 4 knots at 45º

Water speed 10 knots

Gives a ground speed of about 13 knots

Current 4

knots at 45º

Northstar Explorer 557/567 Installation and Operation Manual

Page 37

10-6 Fuel consum ption curves

A fuel consumption curve shows fuel consumption (fuel used per unit of distance travelled) and boat speed as a function of engine RPM. Fuel consumption cur ves require engine RPM, which requires SmartCraft™ to be installed. Fuel consumption cur ves are powerful tools for assessing boat performance in different conditions and for helping you to run at the most economical speed and trim for the conditions.

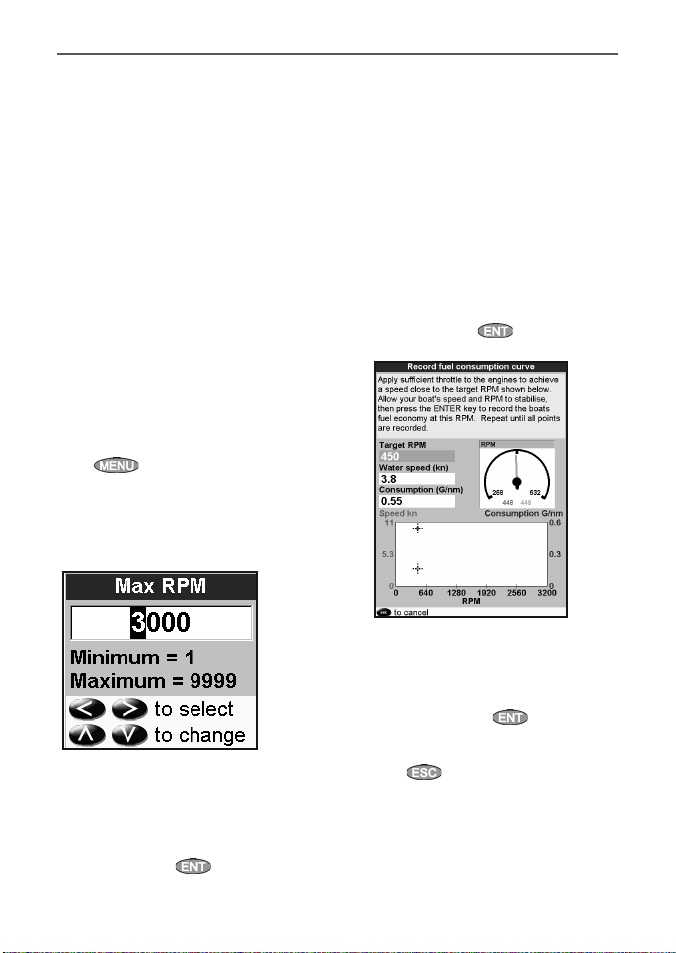

10-6-1 Making a fuel co nsumption curve

To make a fuel consumption curve you will need to run the boat in a straight line for about 15 minutes using the engine’s full RPM range. For your first curve, choose a calm day with light wind and little current; have a typical load and a freshly cleaned hull. Later, you can make fuel consumption cur ves for different boat, weather or sea conditions. Compare these with your first cur ve to see how your boat’s per formance changes with conditions.

Making a curve

1 Start running the boat in a straight line.

2 Choose a speed source for the curve (see

section 10-5-1). Normally choose Water speed to measure the boat ’s potential per formance.

3 Press

4 Select Fuel consum ption cur ve, then

select New.

5 Enter the comfor table maximum RPM you

know you can achieve for the engine rather than the maker’s value.

6 The 557/567 then asks you to set the

minimum RPM. Set the throttle to idle; on a multi engine boat set all engines to about the same idle RPM. Now, do not change the engine speed. Wait for about 60 seconds for the boat to stabilise, then press . Wait while the fuel computer records the data.

twice, then select Fuel.

7 The 557/567 then asks you to set the throttle

to achieve a vessel RPM. On a multi engine boat set all engines to about the vessel RPM. When the engine RPMs are correct, the Vessel RPM box will turn green. Now, do not change the engine speed. Wait for about 60 seconds for the boat to stabilise, ensuring the Vessel RPM box stays green. Then press computer records the data.

8 The 557/567 repeats the above step to record

data up to the maximum RPM. Then the 557/567 asks if you want to save the curve. Select Yes. The fuel computer asks for a name for the curve. Change the def ault name if required. Then press . The 557/567 stores the new curve.

Note To interrupt making the curve at any time,

press

. Wait while the fuel

Northstar Explorer 557/567 Installation and Operation Manual

Page 38

10-6-2 Managing f uel consumption cur ves

Renaming a curve

1 Press

2 Select Fuel consum ption cur ve.

Select Name and select the name of the curve to rename.

3 Select Rename and press

the name.

twice, then select Fuel.

. Change

10-6-3 Using fuel con sumption curves

Deleting a curve

1 Press

2 Select Fuel consum ption cur ve.

Select Name and select the name of the curve to delete.

3 Select Delete.

Selecting a curve

1 You must make a fuel consumption curve

before you can use it (see section 10- 6-1).

2 On the Fuel window, press

Fuel consumption curve and select the name of the curve to use.

3 On the fuel window, press

to select Fuel curve and display the fuel consumption curve.

Note

a On a multi engine boat, keep the RPM of all

engines similar while using a curve.

b The shape of the curve depends on the type

of speed sensor you selected when making the curve (see sections 10-5-1 and 10-5).

twice, then select Fuel.

, select

if necessary

Using a curve

Compare your boat’s performance now, at the current RPMs, with the boat’s performance when you made the curve. You can compare your boat’s per formance now with a curve made under ideal conditions or with a curve made under similar conditions.

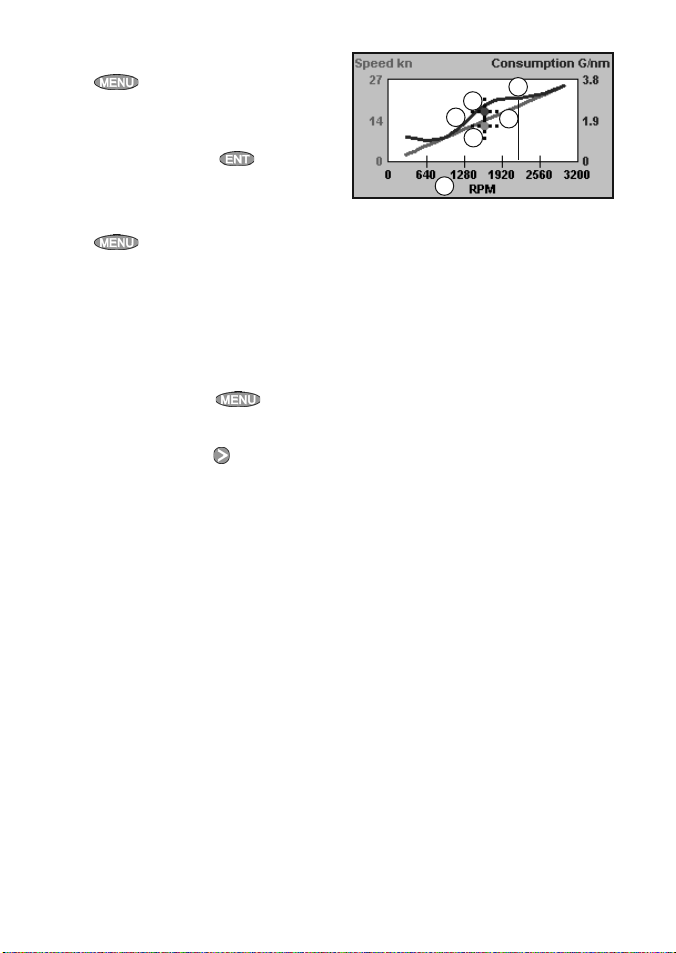

Inform ation in a curve

A RPM of the boat now. For a twin engine boat,

the RPM is the average of the two RPMs.

B Red curve: boat speeds at different

RPMs recorded when you made this fuel consumption curve.

C Red marker: the boat speed now. This marker

is below the red curve, showing that the boat speed now at this RPM is less than when you recorded the curve.

D Blue curve: fuel consumption at different

RPMs recorded when you made this fuel consumption curve.

E Blue marker: the fuel consumption now. This

marker is below the blue curve, showing that the fuel consumption now at this RPM is better than when you recorded the cur ve.

F If the blue curve has a dip, then running the

boat at this RPM will give the best speed for the least fuel consumption.

Northstar Explorer 557/567 Installation and Operation Manual

Page 39

10-7 C ali brat ion

Calibrate petrol/gasoline fuel flow sensors during installation, or if the fuel readings seem inaccurate and the other troubleshooting suggestions do not help (see appendix B troubleshooting).

Note

SmartCraft™ fuel sensors are factory

calibrated and should never need recalibrating.

On a multi engine boat, calibrate each

engine’s sensor. This can be done at the same time with a portable tank for each engine or at different times using one portable tank.

Calibrating a sensor requires accurate

measurement of the fuel consumption. This is best done using a small por table tank. At least 4 gallons (15 litres) of fuel should be used to ensure an accurate calibration.

It is often very dif ficult to fill underf loor tanks

to the same level t wice due to air pockets, so the more fuel used, the more accurate the calibration.

To calibrate the sensor(s):

1 Record the level of the fuel in the tank(s).

2 Connect the portable tank(s) to the engine

through the fuel sensor(s).

3 Run the engine at normal cruising speed until

at least 4 gallons (15 litres) of fuel has been used per engine.

4 Check the actual amount of fuel used per

engine by refilling the por table tank(s) to the original level and noting the reading(s) of the fuel dispenser’s gauge.

5 Press

Setup engines.

6 On a single engine boat, select Calibrate

and change the displayed value to be equal to the reading of the fuel dispenser’s gauge, then press

On a multi-engine boat select the engine.

Select Calibrate and change the displayed value to be equal to the reading of the fuel dispenser’s gauge, then press Repeat for the other engines.

twice, select Fuel then select

Northstar Explorer 557/567 Installation and Operation Manual

Page 40

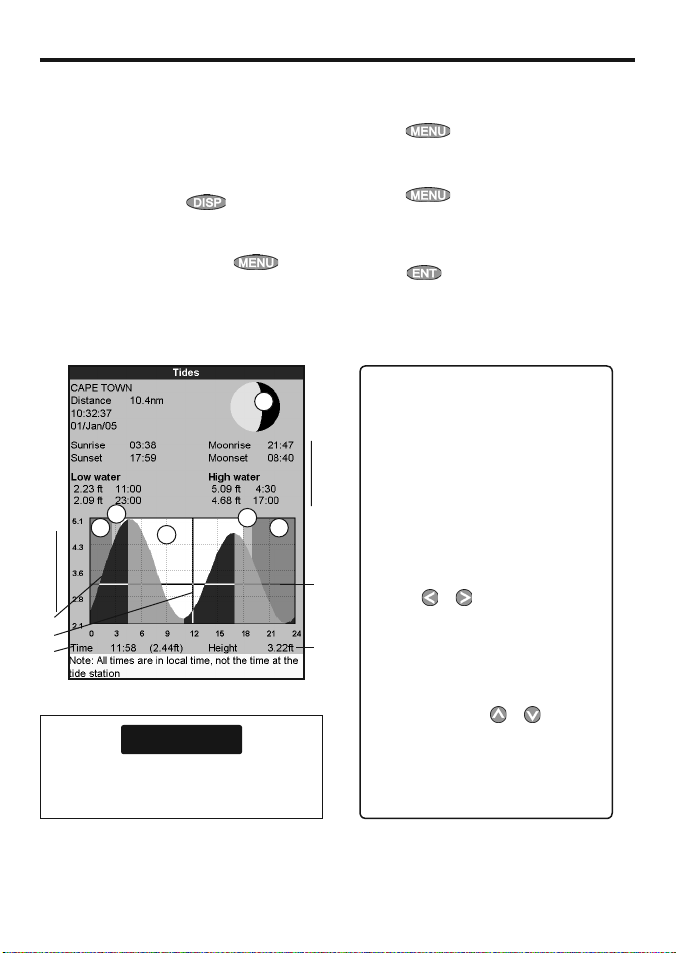

11 Tides window

The tides window is available on C-MAP charts. The tides window shows tide information at a tide station for the selected date.

Note: The tides window requires the local time offset to be set to work correctly (see section 15-12)

To show the tides window for the tide station nearest to the boat, press then select

To go to the tides window for any tide station:

1 From the chart window, press

2 Select Tide stations.

The tides window shows data for the chosen date

H I

Tides.

Find.

select

D D

CAUTION

The tides window requires the local time offset to be set to work correctly (see section 15-12 )

, select More,

and

3 A list of tide stations are displayed. Select the

tide station to display. The chart redraws with the tide station centred.

4 Press

5 Select Tide height.

Choosing the dat e of the tide char t

1 Press

2 Select

To choose a different date from these, select

and selec t Char t info.

Today, Next day or Prev d ay.

Set date, edit the date,

press

A Tide station name and distance from

B Current time and chosen date for

C Tide chart

D Night

E Dawn

F Day

G Dusk

H Tide height

I Time cursor, a vertical dot ted line.

J T ime of cursor and tide height at that

K Data for the chosen date

L Tide height cursor, a horizontal

M Height of cursor on the tide chart

N Moon phase for moon at the current

boat

display

Press

or to move cursor

sideways

time

dotted line. Press cursor up and down.

time on the chosen date

or to move

Northstar Explorer 557/567 Installation and Operation Manual

Page 41

12 User card window

A C-MAP™ user card is an optional plug-in card that can store data files (see section 1-3). There are three types of files: waypoints, routes or a track.

To go to the user card window, press

More, then select User card.

select

Note:

1 Before using a user card, remove any chart

card and plug the user card in. When you have finished with the user card, remove the user card and replace the chart card (see section 1-3).

2 The older 5 volt cards are not supported.

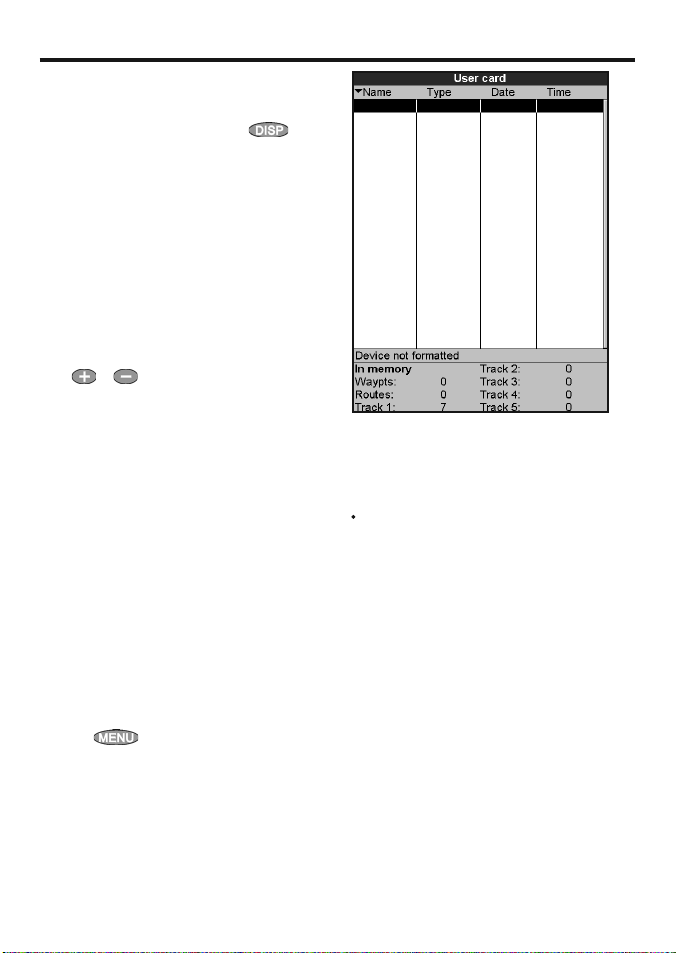

The user card window has:

File list

A list of the files on any user card in the 557/567. If there are more files than will fit on the display, press

or to scroll up or down a page at

a time.

Waypts, Routes

The number of waypoints and routes currently in the 557/567.

Track 1 to Track 5

The number of points in tracks 1 to 5 currently in the 557/567.

Note:

1 To save 557/567 data onto the user card, use

the Save command (see below).

2 Data stored on the user card and shown on

the file list is not available to be used by the 557/567 until loaded into the 557/567 with the LOAD command (see below).

Saving data to the user card

This saves all the 557/567’s waypoints, all the 557/567’s routes or one of the 557/567’s tracks to one file on the user card.

1 Press

2 Select Waypts, Routes or Tracks.

3 For

save.

4 The new file is created. Change the name if

required. The new file appears in the file list.

and select Save.

Tracks, select the track number to

Loading data from the user card to the 557/567

This loads one file from the user card to the 557/567:

A waypoints file: The new waypoints are

added to any existing waypoints in the 557/567. If a new waypoint has the same name as an existing waypoint but has different data, the 557/567 displays both waypoints. Select:

Skip: Do not load the new waypoint.

Replace: Load the new waypoint and

replace the existing one.

Skip all: Do not load any new

waypoints which have the same names as existing waypoints.

Rplc. all: Load all new waypoints

which have the same names as existing waypoints; the new waypoints replace the existing waypoints.

Northstar Explorer 557/567 Installation and Operation Manual

Page 42

A routes file: The new routes are added to any

existing routes in the 557/567. If a new route has the same name as an existing route but has different data then the 557/567 asks which route to keep.

A track file: The new track will replace the

existing track in the 557/567.

To load a file to the 557/567:

1 Select the file to load.

2 Press

Deleting a file from the user card

1 Select the file to delete.

2 Press

3 Select Yes to confirm.

Reading the file information

This reads the file names from the user card and displays them. Reading does not load any file data into the 557/567.

1 Press

2 Select Read.

and select Load.

and select Delete.

and select Card.

13 AIS

AIS is short for Automatic Identification System. The International Convention for Safety of Life At Sea (SOLAS) requires all vessels greater than 300 tons and all passenger vessels to be equipped with AIS Transponders. All vessels equipped with AIS permanently broadcast via one or more of the two dedicated VHF channels. This transmission may include information about the vessels MMSI number, its call sign, name, position, course, heading, speed, rate of turn and type of vessel.

This unit can receive and display AIS information when connected to an AIS receiver. Available AIS vessels transmitting in the local area are show on the chart when this feature is enabled.

Formatting the user card

Formatting prepares a user card for use. Format the card if there is an error message saying that the card is not formatted. Any data files on the card are deleted.

1 Press

2 Select Format.

3 Select Yes to confirm.

Sorting the file names

This sorts the displayed file names.

1 Press

2 Select sort by Name, Type or Time.

and select Card.

and select Sort.

CAUTION

Before using a user card, remove any chart card and plug the user card in. When you have finished with the user card, remove the user card and replace the chart card (see section 1-3).

The following AIS receivers are suppor ted by this unit:

• Comar SLR20 0 (external GPS).

• Weatherdock Two Channel AIS Receiver “EASY

AIS”, Part No. 5-A-013 (external GPS).

• NASA Marine AIS Engine 2 channel Receiver

(external GPS).

Other AIS receivers may work but have not been tested with this unit.

To enable AIS from the system menu check the AIS box. (see section 15-1)

Northstar Explorer 557/567 Installation and Operation Manual

Page 43

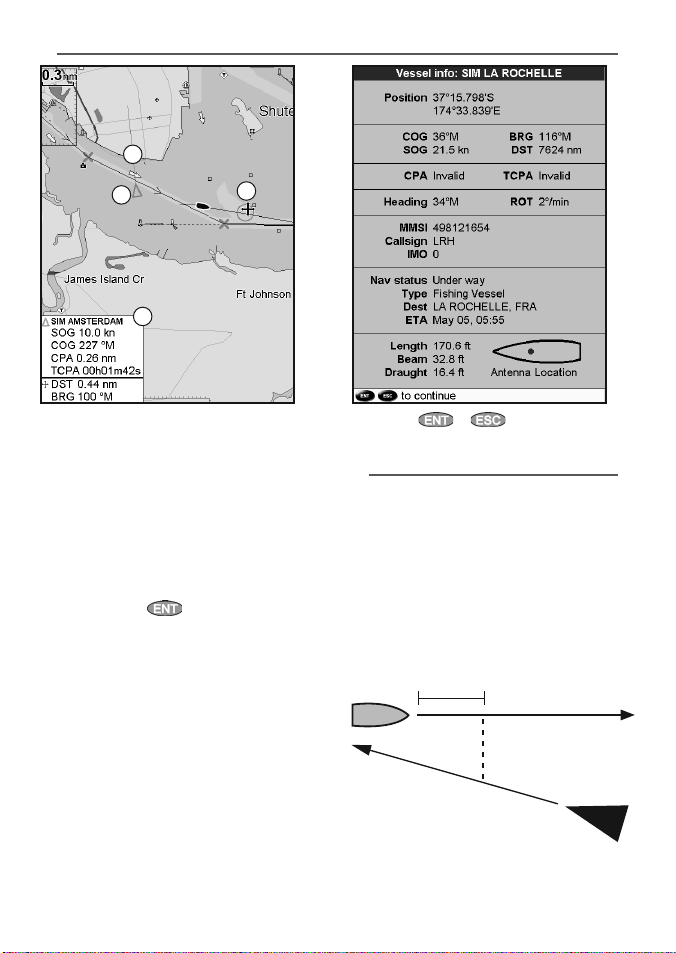

13-1 Viewing AIS Vessel s

A AIS Vessel

B Dangerous Vessel

C Projected Course

D Data Box

When the cursor is placed over an AIS vessel for at least two seconds, a data box appears at the bottom of the window with information about the AIS vessel.

For complete AIS information on the AIS vessel place the cursor over an AIS vessel for at least two seconds and press

Press either or to clear the information.

13-2 Dangerous Vessels

The 557/567 calculates the time of closest point of approach ( TCPA) and closest point of approach (CPA) for each AIS vessel.

This is used to determine potential dangerous vessels. If the TCPA and the CPA is below the trigger values then it will be considered dangerous. (See section 15-8 for setting the dangerous vessel alarm)

A dangerous vessel is indicated on the chart by a red circle around the icon.

TCPA 15 min

CPA 0.5 nm

Northstar Explorer 557/567 Installation and Operation Manual

Page 44

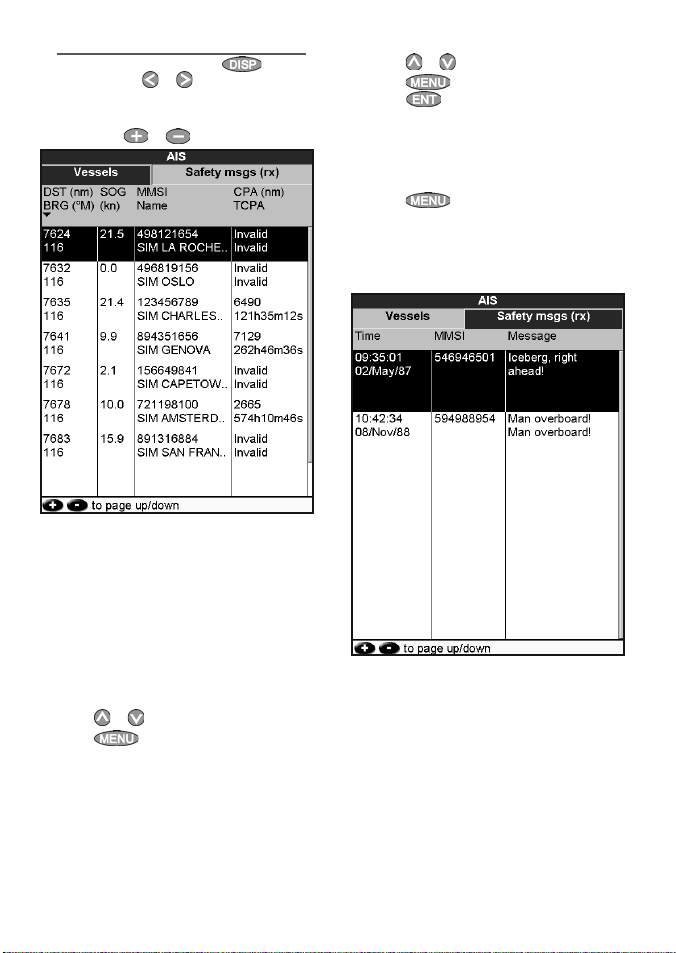

13-3 AIS Windows

To go to the AIS windows, press , select

More, then press or to select one of the

two windows: Vessels or Safety msgs (rx).

If there are more items than will fit on the window, press

or to see the others.

Vessels

This is a sorted list of vessels currently being received by the AIS receiver. The maximum number of vessels that the system will support is

250. Once maximum is reached, vessels furthest away from the current location will be replaced. A vessel will be removed from the list if no information is received within 6 minutes from the last message.

Displaying a n AIS vessel on the chart

1 Press

2 Press

to select a vessel.

Instrument switches to char t window, with the selected vessel position in the middle.

and selec t Display. The

Displaying Ful l AIS Details

1 Press

2 Press

This window displays all information for

to select a vessel.

press .

the selected AIS vessel provided by the AIS receiver.

and select More Info or

Sorting Vessel s

Press , select Sort and select one of

the options.

This sorts the list based on the chosen

category.

Safety msgs (rx)

Safety msgs (rx) are broadcasted messages received by the AIS receiver. This window displays the date and time of message received, MMSI of AIS vessel that broadcasted the message, and the message itself. Safety msgs (rx) list will store up to 10 messages. The oldest message is replaced when the list is full.

Northstar Explorer 557/567 Installation and Operation Manual

Page 45

14 DSC/Buddy track windows

Buddy track requires an optional Northstar DSC VHF radio (with NavBus functionality) to be installed. Buddy track tracks other boats which have DSC radios connected to their GPS receivers by NavBus and are in VHF range. For information on setting up and using the VHF radio for buddy track, see the radio’s operation manual.

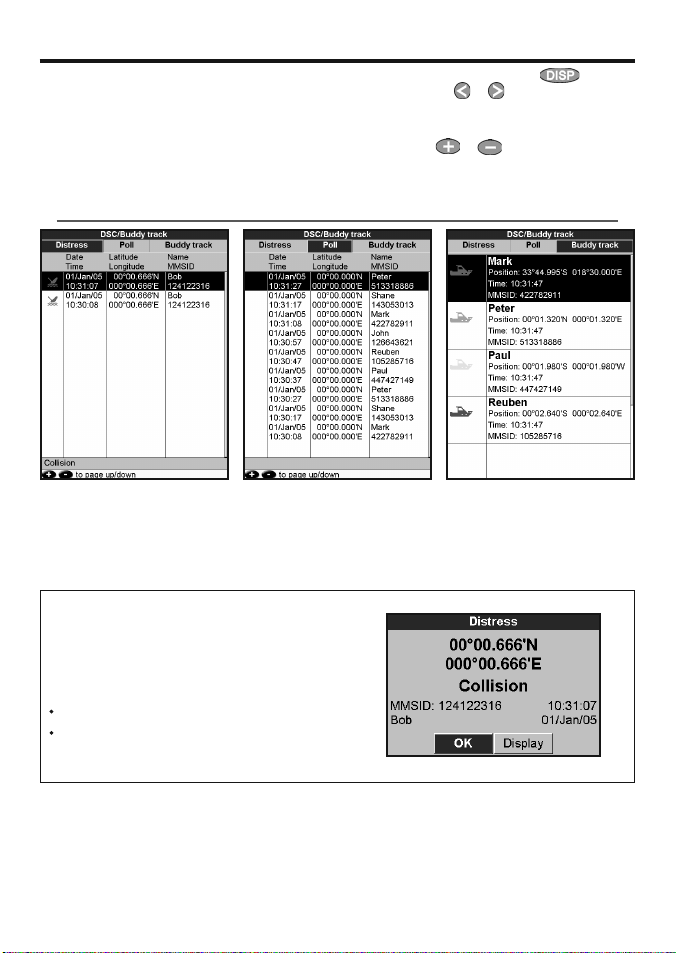

14-1 The windows

To go to the DSC windows, press

More, then press or to select one of the

three windows: Distress, Poll or Buddy track.

If there are more items than will fit on the window, press

or to see the others.

, select

Distress

Boats that have sent DSC distress messages and their positions.

When your DSC radio receives a distress message, the Instrument creates a distress waypoint at the boat position. Distress waypoints have default names like DSTRSS01. The Instrument displays a Distress warning.

Select:

OK to return to what you were doing.

Display to switch to Chart and display the

position of the boat sending the distress message.

Poll

Boats you have manually polled on the VHF radio, and their position at that time.

Boat positio ns

The boat positions on the Instrument can differ from the true boat positions:

Distress: The position is the distress waypoint,

which is where the boat was when it sent the distress message.

Northstar Explorer 557/567 Installation and Operation Manual

Buddy track

Buddy boats from your DSC radio. The radio regularly calls the boats and updates their positions.

Polled boats: The position is where the boat

was when you last polled the boat.

Buddy track: The position is where the boat

was when your radio last polled the boat.

Page 46

14-2 Using the windows

Displaying a bo at on the chart

1 Press

2 Press

to select a boat.

Instrument switches to char t window, with the selec ted boat position in the middle (see Boat positions above).

and selec t Display. The

Going to a boat

1 Press

2 Press

to select a boat.

Instrument starts navigating to the boat’s position (see Boat positions above).

and selec t Goto. The

Creating a waypoint

Polled and buddy tr ack boats are not waypoints. To create a waypoint at the position of a polled boat (see Boat positions above):

1 Press

2 Press

to select a boat.

waypoint. Edit the waypoint data if required (see section 5-2-7).

and selec t Create

Editing a waypo int

A distress message creates a waypoint for the boat or you can create a waypoint at a polled boat’s position. To change the data of these waypoints:

1 Press

2 Press

to select a boat.

Edit the waypoint data if required (see section 5-2-7).

and selec t Edit waypoint.

Deletin g a boat

At the Distress or Poll windows:

1 Press

2 Press

Buddy track boats automatically disappear from the Buddy track window when your DSC radio can not pick up their signal.

to select a boat.

is deleted from that window. Delete any boat waypoint manually (see section 5-2-5).

and selec t Delete. The boat

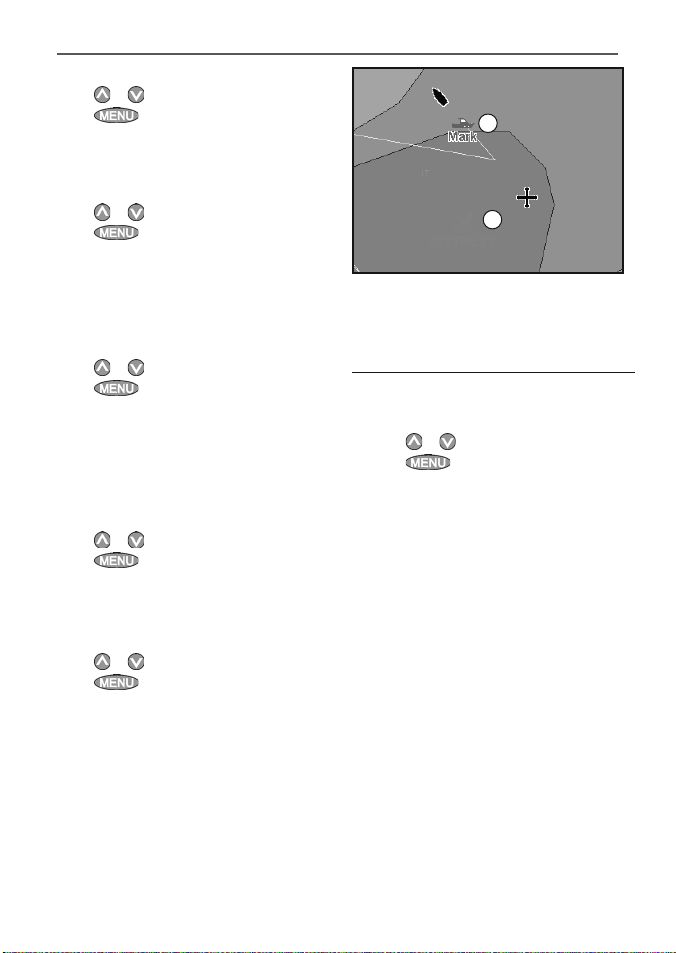

On a chart window:

A Distress boats are distress waypoints

B Buddy track boats are buddy symbols

Deletin g all boats

At the Distress or Poll windows:

1 Press

2 Press

to select a boat.

boats are deleted from that window and any boat waypoints are deleted.

and select Delete all. All

Northstar Explorer 557/567 Installation and Operation Manual

Page 47

15 Setting up the 557/567

The 557/567 has a number of advanced features which are set up through the setup menu. We recommend that you become f amiliar with the operation of the unit using the default settings before making any changes to the data in these menus.

To go to a setup option menu, press twice, then select an option.

Note:

1 The Setup menu options are explained in the

following sections.

2 Section 2-1 describes how to set or change

data in the setup menus.

3 The setup data available will depend on the

optional sensors and instruments installed.

Northstar Explorer 557/567 Installation and Operation Manual

Page 48

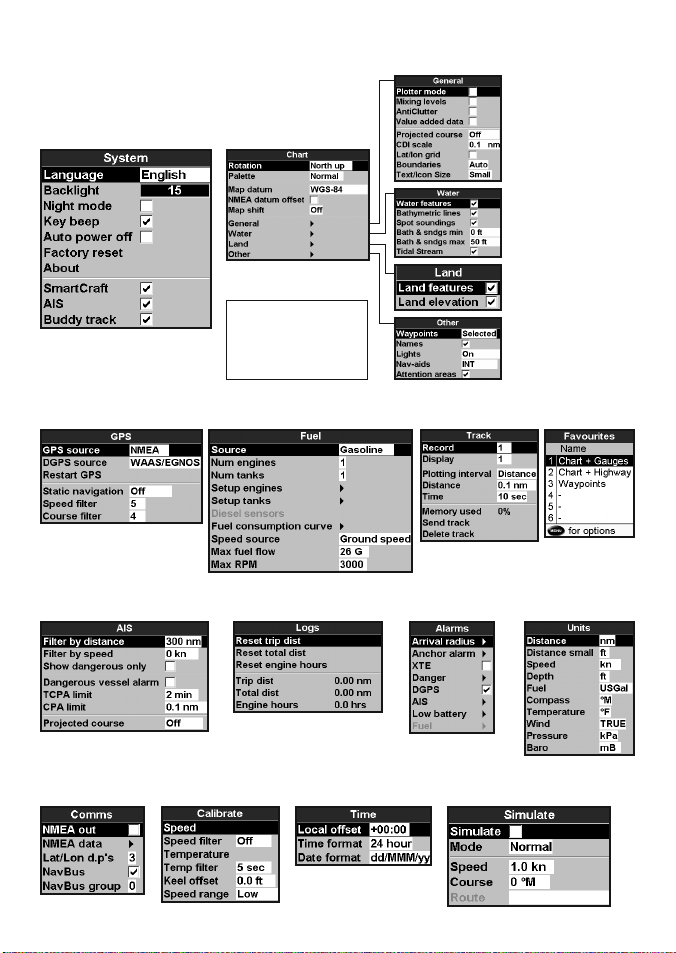

Setup option menus

Factory def ault settings are shown. The setup data available will depend on the optional sensors and instruments installed.

General (see 15-2)

System

(see 15-1)

GPS

(see 15-3)

AIS

(see 15-6)

Chart

(see 15-2)

SmartCraft™

(see the SmartCraft™

Gateway Installation

and Operation Manual)

Fuel

(see 15-4)

Logs

(see 15-7)

Track

(see 15-5)

Alarms

(see 15-8)

Water (see 15-2)

Land (see 15-2)

Other (see 15-2)

Favo rite s

(see 15-13)

Units

(see 15-9)

(see 15-10)

Comms

Calibrate

(see 15-11)

Northstar Explorer 557/567 Installation and Operation Manual

Time

(see 15-12)

Simulate

(see 15-14)

Page 49

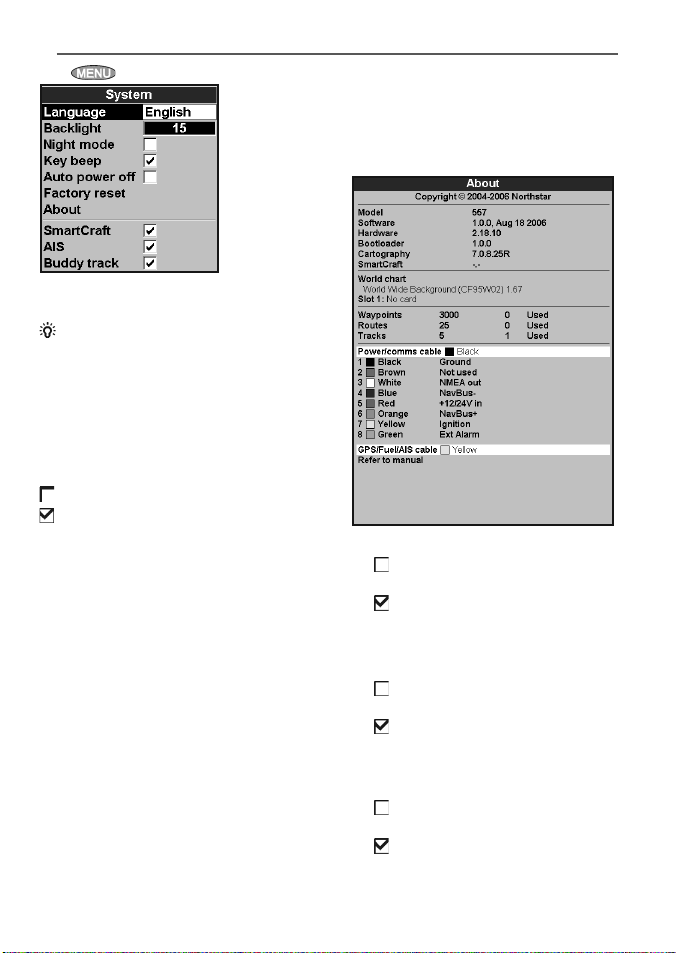

15-1 Setup > System

Press

twice, then select System:

Language

Select the language for the displays.

Tip: In case you can’t read the current language, the language setting is found at the top of the system menu.

Backlight

Select the backlight level for the keys and display (see also section 2-4).

Night mode

Night mode sets the palette for all displays.

Normal palette, for daytime.

All displays have a palette optimised for night

time.

See also section 2-4. To change only the chart palette, see section 14-2.

Key beep

Enables or disables the beep when a key is pressed.

Auto power off

See section 2-3.

Factory reset

This option returns all of the 557/567 settings (except the language, waypoints and routes) to the default factory settings shown on the setup menus.

About window

The about window shows:

• The versions and dates.

• The world chart version.

• Any card fitted.

Northstar Explorer 557/567 Installation and Operation Manual

• The number of waypoints, routes and tracks you have stored.

• Connec tor wiring information.

In the unlikely event of having to contact a Northstar dealer for service, quote the software version number and date.

SmartCraft™

No SmartCraft™ gateway is fitted. Disable

SmartCraft™ functions.

SmartCraft™ gateway is fitted. Enable

SmartCraft™ operation.

See section 16-7.

AIS

No appropriate AIS receiver is fitted.

Disable AIS.

An appropriate AIS receiver is fitted.

Enable AIS.

See section 16-10.

Buddy track

No appropriate Northstar DSC VHF radio is

fitted. Disable Buddy track.

An appropriate Northstar DSC VHF radio is

fitted. Enable Buddy track.

See section 14.

Page 50

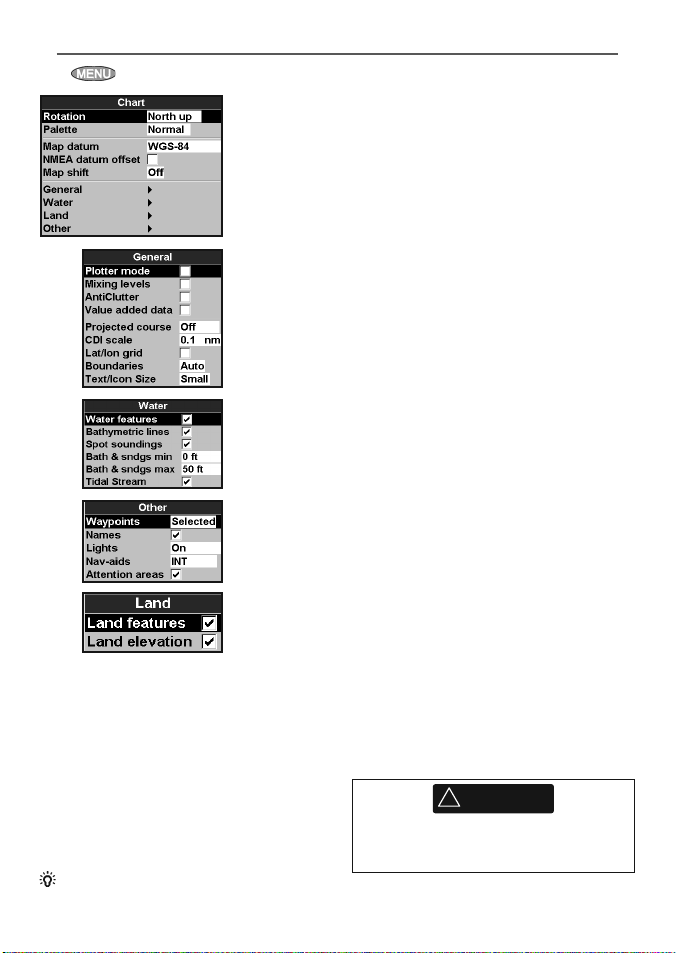

15-2 Setup > Chart

Press twice, then select Char t:

Rotation

The options for chart rotation are:

North up: North is always at the top of

the chart window.

Track up: The chart is rotated so that

the boat direction is to the top of the display. This option is useful for navigating narrow harbours or rivers. The 557/567 asks for a course deviation; this is how much the boat direction needs to change to make the chart redraw.

Tip: If the chart redraws too frequently,

increase the course deviation setting.

Northstar Explorer 557/567 Installation and Operation Manual

Course up: This option is only available

if the boat is navigating to a destination. The chart is rotated so that the plotted course to the destination is vertical.

Palette

Select the color scheme for the LCD display. The options are:

Normal: For viewing in normal conditions.

Sunlight: Brighter colors, more visible in

sunlight.

Night: Reversed colors for night, to

preserve night vision.

Map datum

557/567 GPS positions are based on a worldwide reference (datum) known as WGS 84. Most paper charts are based on WGS 84. However, some paper char ts are based on other datums In these cases, the latitude and longitude coordinates of objects on the 557/567 chart window are different to the latitude and longitude coordinates of these objects on the paper chart. This applies to all objects, such as the boat, waypoints, tracks, lines of latitude and longitude and cartographic features such as land, rocks, buoys and depth contours.

Use

Map datu m to select the 557/567 map

datum to match the datum of the paper chart. Then, the latitude and longitude coordinates of object s displayed on the 557/567 will change to match the corresponding coordinates on the paper char t.

Setting map datum

1 In the Chart setup menu, select

Map

datum.

2 Select the map datum for the paper chart you

are using.

3 If you select a datum other than WGS 84 the

557/567 asks if you want to apply the NMEA datum offset (see below).

WARNING

When you change to a chart with a different datum, change the 557/567 map datum again.

Page 51

NMEA datum of fset

If you selec t a map datum other than WGS 84, the map datum of fset can be applied to latitude and longitude coordinates sent on the 557/567 NMEA output:

Latitude and longitude coordinates

displayed on any NMEA repeater do not match the coordinates on the 557/567. Latitude and longitude coordinates broadcast on any NMEA VHF transmitter will be the same as the coordinates on a WGS 84 chart.

Latitude and longitude coordinates displayed on any NMEA repeaters match the coordinates on the 557/567. However, latitude and longitude coordinates broadcast on any NMEA VHF transmitter will be slightly offset

from coordinates on a WGS 84 chart.

Map shif t

WARNING

Map shift is for eliminating minor offsets. It should not be used if the correct datum is available. Use map shift with caution: incorrect application will cause incorrect boat positions.

Some charts have consistent position errors. To correct this, apply a map shif t. After a map shift:

The positions of cartographic features (such

as land, rock s, buoys and depth contours) move on the 557/567 chart window to where they should be.

The positions of the boat, waypoints, track s,

and lines of latitude and longitude on the 557/567 chart window remain unchanged.

Applying a map shift

1 Move the boat to a known point on the chart,

for example a marina ber th.

2 In the Chart setup menu, select

Map

shift.

3 Move the cursor to the position on the chart

where the boat actually is.

4 Press

5 Press to set the new map shift. The

boat will now be displayed at its actual location.

Clearing the map shift

Clearing the map shift removes any map shift from the car tographic features on the 557/567 chart window.

1 In the Chart setup menu, select

and selec t Set.

Map

shift.

2 Press and select Clear.

3 Press

Northstar Explorer 557/567 Installation and Operation Manual

Page 52

General submenu

Plotter mode

Anticlutter

Value added data

Projected course

CDI scale S ee Appendix C. T he options are 0.05, 0 .1, 0.2, 0.5, 1.0, 2.0, 4. 0 and 10.0 distance uni ts.

Lat/lon grid

Boundaries Displays boun daries around areas wh ere more detailed cha rt coverage is availab le: Auto

Text/icon size Selec t the size of chart tex t and icons.

Water submenu

Water features

Bathymetrics Display s underwater dep th contours betwe en Bath & sndgs mi n and max.

Spot soundings Di splays depth soundi ngs between Bath & s ndgs mi n and max.

Bath & sndgs min The minimum depth fo r Bathymetrics and Spot soundings.

Bath & sndgs max The maxim um depth for Bathymetrics and Spot soundings.

Tidal flow

Other submenu

Waypoints Displays waypoints: Hide all only displays way points on any selec ted route; Selected

Names

Lights Displays lighthouses: No sector hides any light sec tors; On shows all data.

Nav-aids Displays s ignals (fog, radar, rad io stations) and bou ys. Int and US select the icon f ormat;

Attention areas

Land submenu

Land features

Land elevation

Normal: only scales available on the chart card can be displayed.

If you press or to select a chart scale which is not available, on the chart card, the chart window will change to this scale but will only display the boat position and track (if enabled). The rest of the display is white with black crosshatch lines and no chart information is displayed. This is useful to zoom to a small scale to track small boat movements or if there is no detailed chart for an area.

Names and icons shown. Note: this is independent of the change in detail shown at diﬀ erent

zoom levels.

Hides some less important names and icons to make the chart clearer.

Non mari ne chart data sh own

The 557/567 can estimate the course after a given time, based on the current speed and heading (see section 3-4). The options are 2 minutes, 10 minutes, 30 minutes, 1 hour, 2 hours or Off.

Displays a la titude and longit ude grid.

shows the ne xt four detail le vels; On shows all.

Displays marine sediment labels (for example, M shows areas of mud) and tide station icons

Displays d ynamic tide flow s: arrows on a chart sho wing the present tide s tream and

orientation (requires a GPS ﬁ x and an NT-MAX card)

displays way points with their d isplay option set to Icon o r I+N (Icon and Name) (se e section 5).

Displays p lace names.

Smpl draws simpler icon s.

Displays at tention area boundar ies and information i cons ; at tention areas are impor tant areas, such as re stricted anch orages or shallow are as.

Displays land features, for example regions, rivers, roads, railways, airports.

Displays land contours, shaded like depths (requires an NT Max card)

Northstar Explorer 557/567 Installation and Operation Manual

Page 53

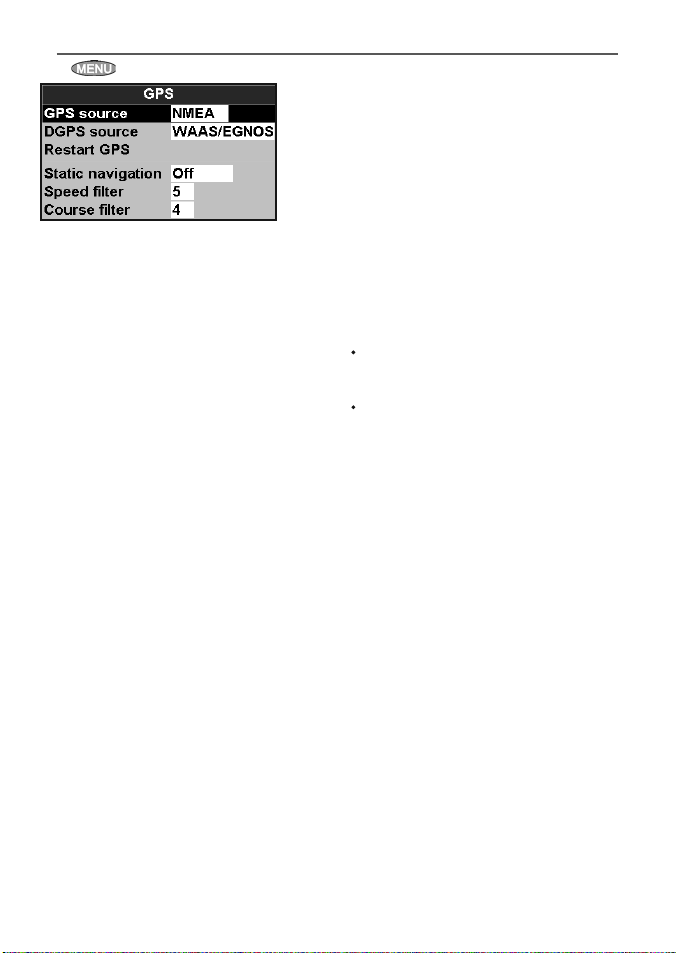

15-3 Setup > GPS

Press

twice, then select GPS:

GPS Source

• NMEA: Use an external GPS or DGPS source connected via NMEA (see section 16-10).

•

NavBus: Use an external GPS or DGPS

source connected via NavBus (see section 16- 8).

DGPS Source

Enables or disables the satellite based DGPS correction (see section 7). The options are or WAAS/EGNOS. Do not enable WAAS/EGNOS outside their coverage areas or the accurac y of the position might be degraded.

WAAS covers all of the USA and most of Canada. To use WAAS, the GPS antenna must have a clear view of the sk y towards the equator. EGNOS will cover most of Western Europe when it becomes operational.

None

Restart GPS

Restar ts the internal GPS receiver for servicing or troubleshooting. The GPS receiver takes up to three minutes to restart. The satellite window shows the status of the GPS receiver (see sec tion

7). Restart the GPS if the receiver has not been

used for some time and is taking a long time to get a GPS fix.

Static Navigation

When the boat stops or moves ver y slowly, the calculated GPS speed and course become erratic. Static navigation is a number, and the options are:

•

0.01 to 99.9:If the boat speed is slower

than this, the speed is displayed as zero and the course stays unchanged.

•

0(Off): The calculated speed and course

are always used.

Speed and Cou rse Filter

Waves and wind cause the boat speed and course to fluctuate slightly. To give stable readings, the 557/567 calculates these values by taking several measurements and averaging them.

A lower value averages measurements over

a shorter period of time. This gives the most accurate value but has the most fluctuations.

A higher value averages measurements over

a longer period of time. This gives the most stable value but will ignore some true speed changes.

Set the Speed and Course filters to the lowest values which give stable readings. The range of each filter is 1 to 60 seconds or Off (0).

Northstar Explorer 557/567 Installation and Operation Manual

Page 54

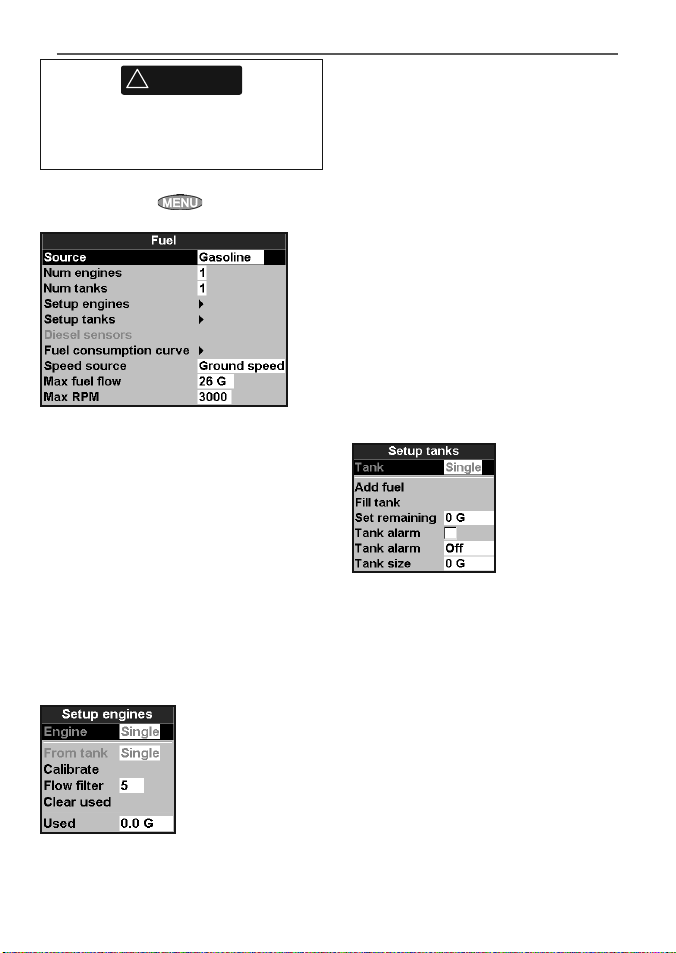

15-4 Setup > Fuel

WARNING

Fuel consumption can change drastically depending upon the boat loading and the sea conditions. Always carry adequate fuel for the journey, plus a reserve.

Fuel functions require optional fuel flow sensors to be installed. Press Fuel:

Source

Select the fuel flow sensors to use if the boat has more than one set of fuel sensors. Normally select Auto.

Num engines

Set the number of engines, or select 0 to disable the fuel functions. If there are two engines they are called port and starboard.

Num tanks

Set the number of fuel tanks. If there are two tanks they are called port and starboard.

Setup engines

If the boat has more than one engine, selec t Engine and select each engine in turn.

For the selected engine, you can enter:

twice, then select

From tank: The fuel tank the engine is connected to.

Flow filter: Most engines do not draw fuel from the tank at a steady rate. To give a stable fuel flow reading, the 557/567 calculates the f low by taking several measurements and averaging them. Use the Flow filter to set the period over which the fuel flow is averaged.

The Flow filter can be set from 0 to 30 seconds. Use the lowest value which gives a stable f low. Usually a value of 5 to 10 seconds will give a satisfac tory result for two-stroke carburettor engines. Fuel injected or four-stroke engines may require a larger value.

This setting affects the Fuel flow and Fuel economy reading on the Fuel window but it does not affect the Fuel used reading.

Setup tanks

If the boat has more than one tank, select Tank and selec t each tank in turn.

For the selected tank , you can enter:

Add fuel, Fill tank, Set remaining:

See section 10-3.

Tank alarm: See section 10-4.

Tank size: The tank capacity. Nor thstar

recommends measuring tank size by draining the fuel tank, filling it to capacit y and using the fuel dispenser’s reading. Beware of air pockets, especially in underfloor tanks.

Fuel consumption curve

See section 10-6.

Northstar Explorer 557/567 Installation and Operation Manual

Page 55

Speed source

If both water speed and ground speed are available, select which to use for fuel calculations (see section 10-5-1).

Max fuel flow

The maximum fuel flow from a fuel tank to be displayed on an analog fuel flow gauge (see section 8)

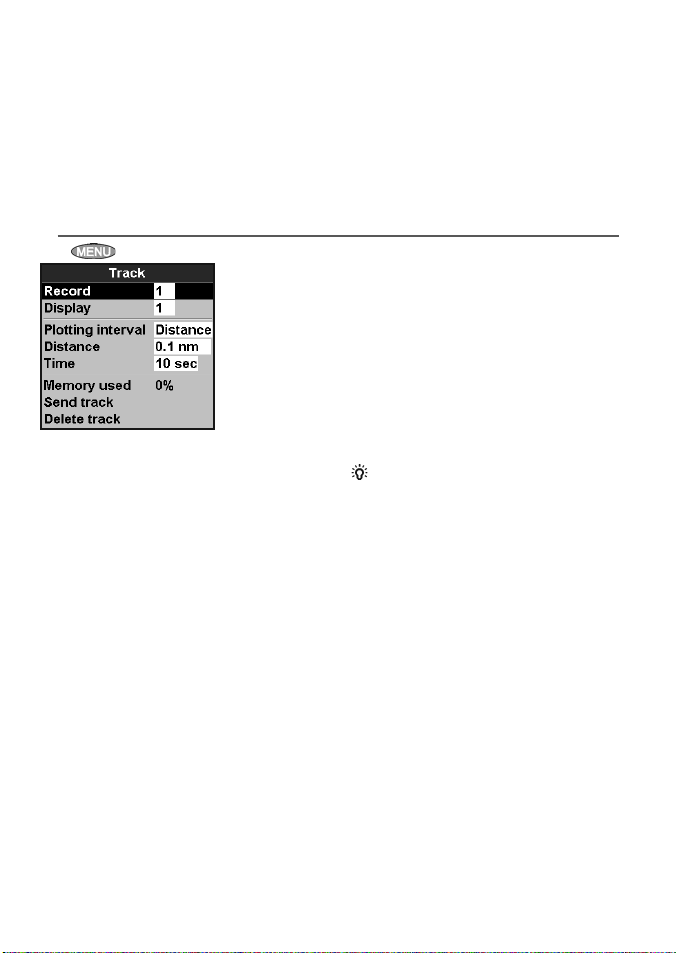

15-5 Setup > Track

Press twice, then select Track:

Tracking records and displays the boat’s course on the chart (see section 3-5). Five different tracks can be recorded: track 1 has up to 2000 points and tracks 2, 3, 4 and 5 have up to 500 points each.

Record

Off: The 557/567 stops recording a track.

1 to 5 (select a track number): The 557/567

starts recording the boat’s course into the selected track.

Display

Off: No track is shown on the char t.

1 to 5 (select a track number): The

selected track is shown on the chart.

Plotting Interval

The options are Distance or

Distance

Select the distance plotting interval: 0.01, 0.05, 0.1,

0.5, 1.0, 2.0, 5.0 or 10.0 distance units.

Time

Select the time plot ting interval: 1, 5, 10 or 30 seconds or 1 minute.

Memory used

The percentage of memor y used in the track being recorded.

Tip: Use the user card window to check the number of points recorded in each track (see section 12).

Send track

This option is included for compatibilit y with older units. For information, see your Northstar dealer.

Delete track

The data in the track selected for Record (see above) is deleted.

Tim e.

Northstar Explorer 557/567 Installation and Operation Manual

Page 56

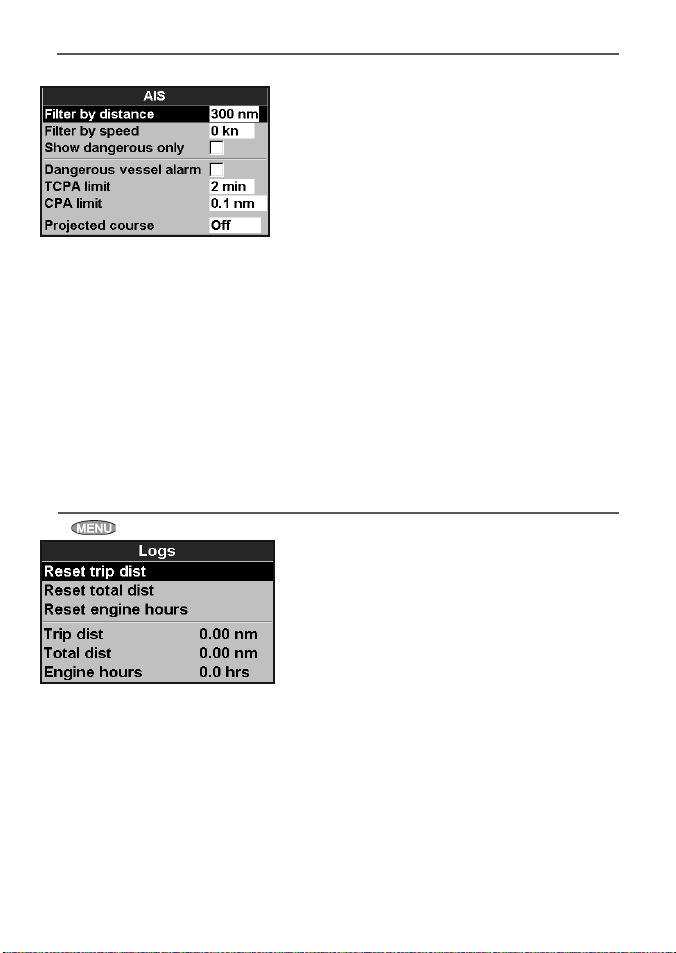

15-6 Setup > AIS

Note: This feature requires an AIS receiver.

There are multiple methods to filter AIS vessels that are displayed onto the charts.

Filte r by dista nce

Vessels outside the radius selected from our current position is filtered off the chart. Default value is set to 300 nm allowing all vessels to be displayed onto the chart within that distance.

Filter by spee d

Vessels with speed below value selected by user is filtered off the charts. Default is set to 0 kn allowing all vessels to be displayed onto the chart.

15-7 Setup > Logs

Press twice, then select Logs:

Show Dange rous Only

Show vessels that have a TCPA/CPA below the trigger values. This filter will override any other filter option.

Dangerous Vessel Alarm

When enabled an alarm will activate when both the TCPA and CPA is less than the trigger values. Even when this set ting is disabled the dangerous vessels will still be indicated on the char t.

TCPA Limit

Set the Time of Closest Point of Approach limit.

CPA Limit

Set the Closest Point of Approach limit.

Projecte d Course

Show the estimated course of all vessels based on their current SOG and COG.

The values can be changed independently of each other. These log values are saved when the unit is turned off.

Reset trip dist

This resets the trip distance to zero.

Reset total dist

This option resets the total distance to zero.

Reset engine hours

Use this option to reset the engine hours to zero. This can be useful after an engine ser vice or to count the engine hours between service intervals.

Northstar Explorer 557/567 Installation and Operation Manual

Page 57

15-8 Setup > Alarms

Press twice, then select Alarms:

Symbol Alarm Alarm sounds when it is on and the:

Arrival radius

Anchor alarm boat moves by more than the alarm trigger value

boat is closer to the destination or to a waypoint than the alarm trigger value

All alarms except Loss of GPS fix can be turned on (enabled) or off (disabled).

For all alarms select select to turn the alarm off.

For most alarms there is a trigger value. The alarm will sound each time the alarm value equals the trigger value. For example, the alarm will sound if the boat comes closer to a danger waypoint than the trigger value and the

Anchor alarm will sound if the boat moves by

more than the trigger value.

Icons for alarms that are on can be displayed in the data header (see sec tion 2-8-2). An alarm icon is normally black and turns red when the alarm sounds.

to turn the alarm on or

Danger

XTE

Danger

Loss of DGPS ﬁ x

Loss of GPS ﬁ x 557/567 can not receive the GPS signal (this alarm is always on)

Loss of AIS receiver communication

Dangerous vessel

Low battery Battery voltage is less than the alarm trigger value

Low fuel

boat moves oﬀ course by more than the CDI scale (see section 15-2)

boat comes closer to a danger waypoint than the alarm trigger value

557/567 can not receive the DGPS signal (beacon, WAAS or EGNOS)

557/567 is no longer receiving communication from the AIS receiver (Alarm is on when AIS is enabled)

The TCPA/CPA of another vessel is less than the trigger values (see section 13)

Low fuel remaining equals the alarm trigger value; on a multitank boat you can set separate alarms for each tank (see section 10-4)

Northstar Explorer 557/567 Installation and Operation Manual

Page 58

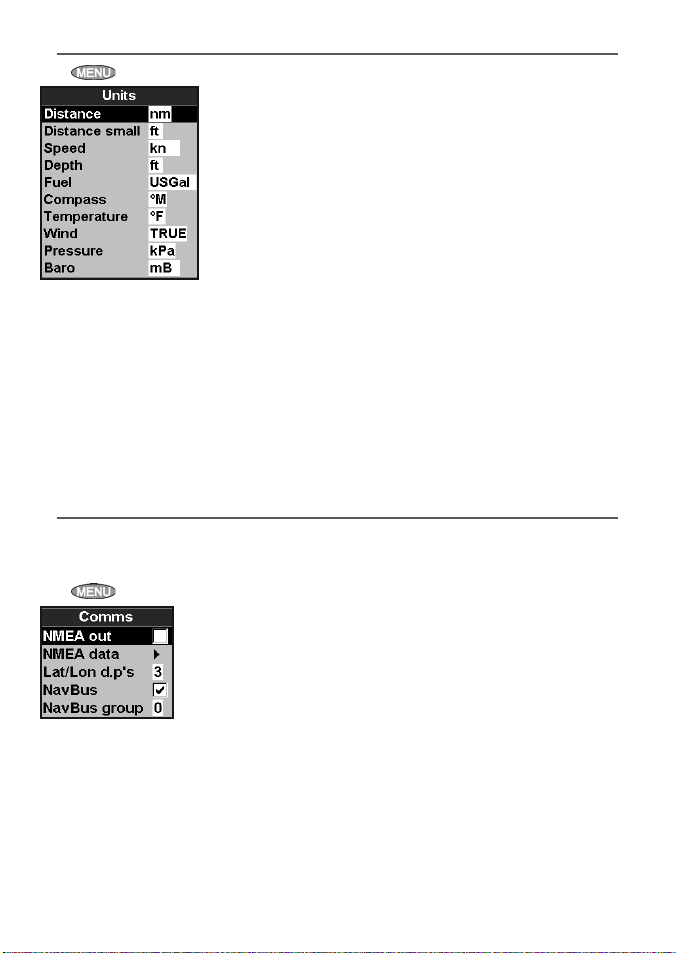

15-9 Setup > Units

Press twice, then select Units:

The default units are shown above.

Distance

nm (nautical miles), mi (miles) or km (kilometres)

Distance small

ft (feet) or m (metres)

Speed

kn (knots), mph (miles per hour) or kph (kilometres per hour)

15-10 Setup > Comms

Use this feature when the 557/567 is connected to other Northstar instruments through NavBus or any compatible NMEA instrument.

Press

twice, then select Comms:

NMEA out

NMEA is generally used with third party instruments (see section 16-10). Selec t this to transmit NMEA sentences, for example to an autopilot.

NMEA data

Use this to specify which NMEA sentences will be transmitted (see section 16-9 and Appendix A).

Depth

ft (feet), m (metres) or fa (fathoms)

Fuel

Litres, USGal (US gallons) or ImpGal (Imperial Gallons)

Compa ss

°T (True north) or °M (Magnetic north)

Tem per atu re

°F (Fahrenheit) or °C (Celsius)

Wind (optional)

Requires a wind instrument: True or App (Apparent)

Note: that the units for wind speed are the speed units.

Pressure

Requires Smar tCraf t™: kPa or psi

Baro (Baromet ric pressure)

Requires a Northstar VHF receiver connected by NavBus: InHg or mB.

Lat/lon d ps

Select the number of decimal points used for latitude and longitude transmit ted in NMEA sentences.

NavBus

NavBus is the preferred method for connec ting the 557/567 to other Northstar instruments. Select this if the instruments are connected using NavBus.

NavBus Group

Use this when a group of Northstar instruments are connected together using NavBus, to specify a group of instruments for backlighting, if required. Then, if the backlight set ting on one instrument in the group is adjusted, the other instruments change automatically. Otherwise, select 0. See section 16-8.

Northstar Explorer 557/567 Installation and Operation Manual

Page 59

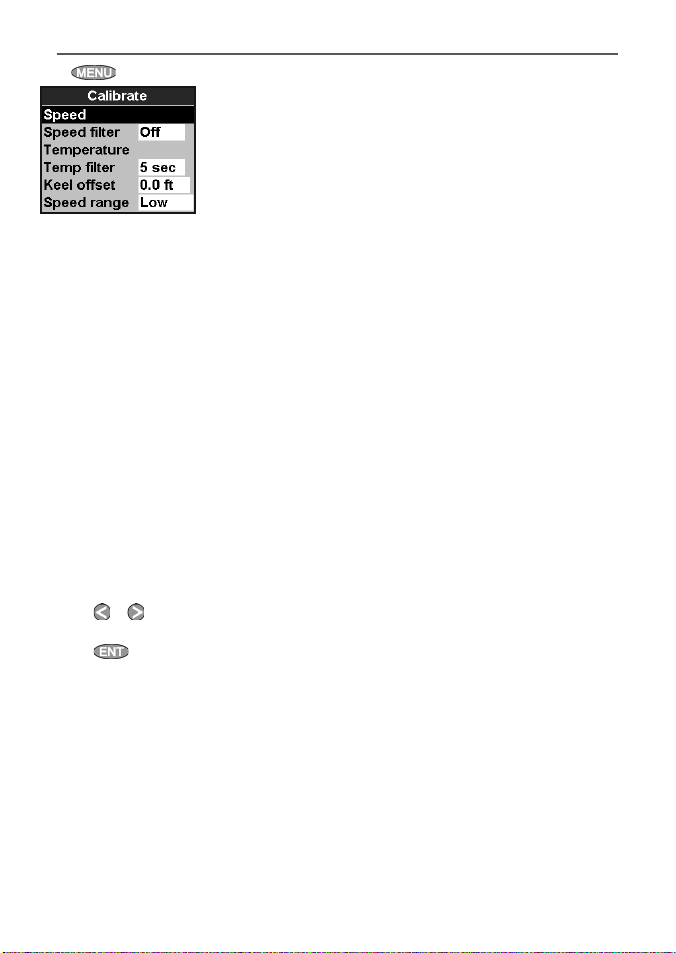

15-11 Setup > Calibrate

Press twice, then select Calibrate:

Speed

This calibrates the speed from a paddlewheel sensor connected to the Instrument. Calibration may be required because different hull shapes have different flow characteristics. Obtain an accurate measurement of the boat’s speed from a GPS receiver; or by following another boat travelling at a known speed; or by making a timed run over a known distance.

Note: for accurate calibration:

• The speed from a GPS receiver should be greater than 5 knots.

• The speed from another paddlewheel transducer should be between 5 and 20 knots.

• Best results are achieved in calm conditions where there is minimal current (best at high or low tide).

Calibrating speed:

1 Travel at a constant, known speed.

2 In the Calibrate menu, select Speed.

3 Press

4 Press

or to change the displayed speed

to the true value.

Speed filter

Waves and wind cause the boat speed from the paddlewheel transducer to fluctuate slightly. To give stable readings, the Instrument calculates these values by taking several measurements and averaging them. Set the Speed filter to the lowest value which gives stable readings. The range is 1 to 30 seconds or Off (0).

Temperature

The factory settings should be sufficiently accurate for normal usage. To calibrate the temperature readout, first measure the water temperature with a thermometer known to be accurate.

Use the cursor keys to display the temperature readout box, then increase or decrease the value to match the measured temperature. The temperature can be set from 32° to 99.9°F (0° to

37.7°C) with a resolution of 0.1° unit.

To change the units between °F (Fahrenheit) or °C (Celsius), see section 15-9.

Temperature filter

Water turbulence and currents cause the water temperature to fluctuate slightly. To give stable readings, the Instrument calculates these values by taking several measurements and averaging them. Set the Temperature filter to the lowest value which gives stable readings. The range is 1 to 30 seconds or Off (0).

Northstar Explorer 557/567 Installation and Operation Manual

Page 60

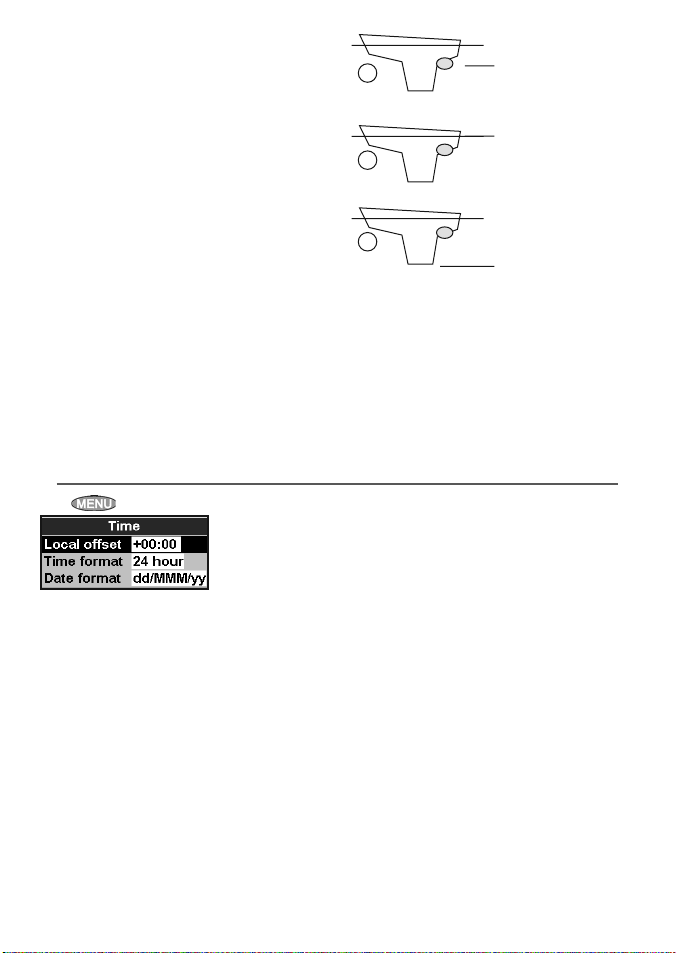

Keel Offset

A depth transducer measures depths below where the transducer is mounted on the boat, usually the bottom of the boat. The Instrument calculates the depths to display by adding the keel offset to all measured depths.

A Have a zero keel offset to display depths

below the transducer.

B Enter a positive keel offset to increase the

displayed depth. For example to display the total depths below the surface, enter the depth of the transducer below the surface.

C Enter a negative keel offset to decrease the

displayed depth. For example, to display the depths of clear water below the boat, enter minus the depth of the deepest part of the boat below the transducer.

15-12 Setup > Time

Press

twice, then select Tim e:

Local offset

The difference bet ween local time and UTC (GMT). Change local offset when daylight saving time star ts and ends. The range is 0 to ± 13 hours, in 30 minute steps.

Tra nsd uce r;

depths measured below here

Depths measured below here

Speed range

The maximum reading to display on an analog boat speed gauge (see section 10-7). Choose a range suitable for your boat.

Fuel

See section 10-7, Calibration

Time format

The options are 24 hour or 12 hour.

Date format

The options are dd/MMM/yy, MMM/dd/yy, dd/MM/yy or MM/dd/yy.

Northstar Explorer 557/567 Installation and Operation Manual

Page 61

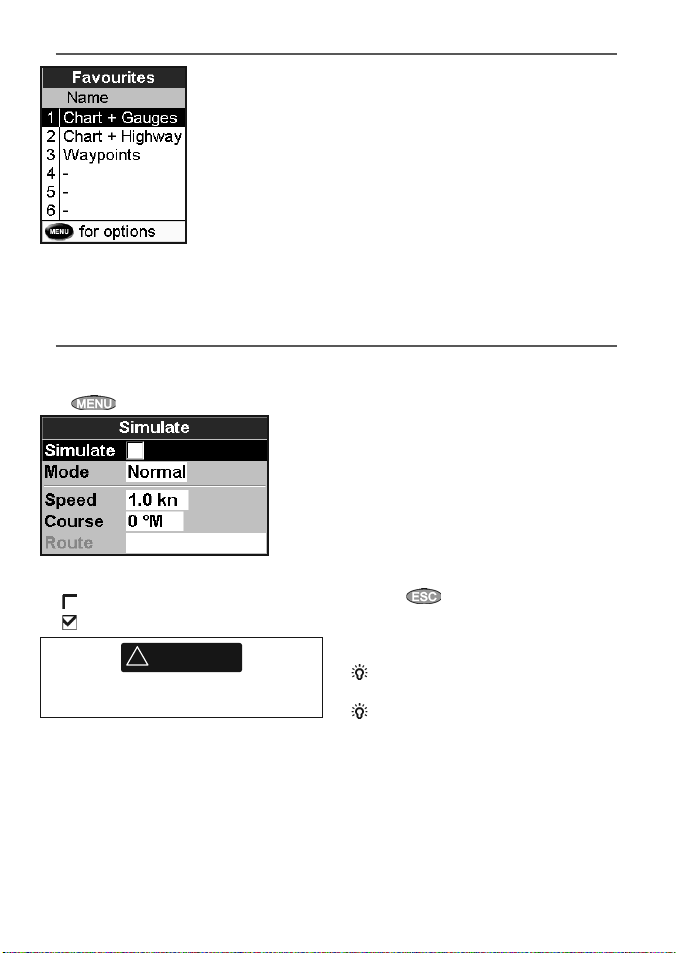

15-13 Setup > Favorites

See section 2-8-2.

15-14 Setup > Simulate

Simulate mode is a way of becoming familiar with the 557/567 (see section 2-7).

Press

twice, then select Sim ulate:

Simulate

Turn simulate mode off.

Turn simulate mode on.

WARNING

Never have simulate mode on when the 557/567 is navigating on the water.

Mode

There are two choices for Mode:

1 Normal

Simulates the boat moving from the selec ted start point at the given speed and heading. The options required for Normal are:

Speed: The simulated boat speed to use.

Course: The simulated bearing for the boat

to follow.

Note: To select the start point, go to the char t window before starting the simulation. Then:

• To start the simulation from the boat position, press mode.

• To start the simulation from a different point, move the cursor to that point on the chart.

Tip: To calculate a course, use the cursor (see

section 3-3).

Tip: As the boat moves, vary Course to

simulate the boat moving of f course.

2 Demo

Simulates a boat moving along a route and automatically displays dif ferent 557/567 functions.

The options required for Demo are:

Speed: The simulated boat speed to use.

Route: The route to follow.

to switch to centre on boat

Northstar Explorer 557/567 Installation and Operation Manual

Page 62

16 Installation

Correct installation is critical to the performance of the unit. It is vital to read the entire installation section of this manual and the documentation that comes with the antenna and any other units before starting installation.

16-1 Installation: Wha t comes with the 557/567

557/567 display unit

Dust cover fo r display unit

Blanking caps for unused connectors

Power cabl e

Mounting b racket (screws includ ed)

Flush mounting kit

Norths tar 124 GPS antenna for 557 and 567

Warrant y registration c ard

This Inst allation and Oper ation Manual

16-2 Installation: Opti ons and Accessories

• C-MAP™ NT-MAX, NT+ or NT char t cards.

• C-MAP™ user cards (3 V) for storing data. (The older 5 volt cards are not supported)

• Northstar carry bag.

• Northstar NavBus junction boxes simplif y wiring, particularly if several instruments are connec ted. For more information, see the NavBus Installation Manual.

Northstar Explorer 557/567 Installation and Operation Manual

Page 63

Optional se nsors and instrument s

Fuel se nsors: These optional fuel flow sensors can be fit ted to up to two engines:

• Northstar petrol/gasoline sensors (see section 16-6).

Engine types supported:

Outboard carburetted two stroke and EFI

petrol/gasoline engines: 50 hp to 300 hp.

Outboard four stroke petrol/gasoline

engines: 90 hp to 300 hp.

Inboard petrol/gasoline engines: 70 hp to

400 hp.

Flow rate (per engine):

Minimum: 5 litres per hour (1.3 U.S.

gallons per hour).

Maximum: 130 litres per hour (34 U.S.

gallons per hour).

• SmartCraft™ fuel sensors (see section 16-9)

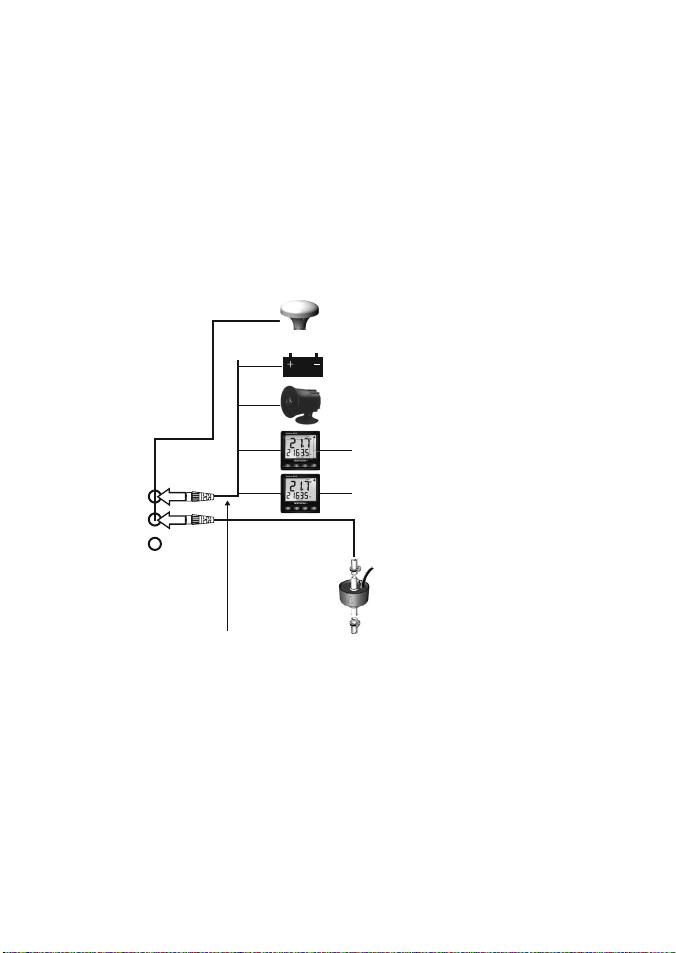

Conne ctions

GPS antenna (16-5)

Power (16-4)

Display unit

(16-3)

Black

Yellow

Power/data cable

Pin Wire Function

1 Black Ground: - power in, NMEA ground. (The cable has two black wires which are

connected inside the cable and it does not matter which black wire you use)

2 Brown Not used

3 White NMEA out

4 Blue NavBus-

5 Red Power in, +10.5 to +30.5 V DC

6 Orange NavBus+

7 Yellow Auto power in

8 Green External alarm out, 30 V DC 200 mA maximum.

Northstar Explorer 557/567 Installation and Operation Manual

External alarms (16-4)

NavBus instruments (16-10)

NMEA out to instruments (16-9)

Petrol/gasoline sensors (16-6), NMEA in (16-9)

Page 64

16-3 Installation: Th e display unit

Select a position for the display unit:

• At least 4” (100 mm) away from the compass,

at least 12” (300 mm) away from any radio transmitter and at least 4 f t (1.2 m) away from any antenna.

• Easy to read and operate. If possible, mount

the display unit in front of the navigator or to the right of the navigator because the LCD display is more readable from these positions.

There are two mounting arrangements:

1 Flush Mounti ng

Requires a solid panel with access behind for wiring and mounting screws. After flush mounting, the display unit cannot be tilted or moved after installation to reduce any unwanted glare or reflections. Carefully select the best viewing position before installation. This would generally be in a shaded area.

1 Cut a hole in the bulkhead for the display unit

using the flush mount template.

2 Drill four holes for the mounting studs using

the flush mount template.

3 Screw the four studs into the brass inserts in

the back of the display unit.

4 Sit the display unit in place and fit the

washers and nuts to the studs.

• Not exposed to the direct sun or water and

protected from physical damage during rough sea passages.

• Easy to access the 12/24 V DC power source

and convenient to route the transducer cables.

2 Bracket Mount ing

Requires a panel for mounting the bracket. Ensure that the panel is not likely to deform and is not subject to excessive vibration. The bracket can be tilted and rotated. The display unit can be removed when it is not in use.

1 Hold the bracket in place and mark the screw

holes.

2 Drill the screw holes and screw the bracket in

place. Do not overtighten the screws or the display unit might not rotate.

3 Hold the display unit in place on the

mounting bracket shaft. Hand tighten the knob on the mounting bracket.

Knob

Northstar Explorer 557/567 Installation and Operation Manual

Mounting bracket

Page 65

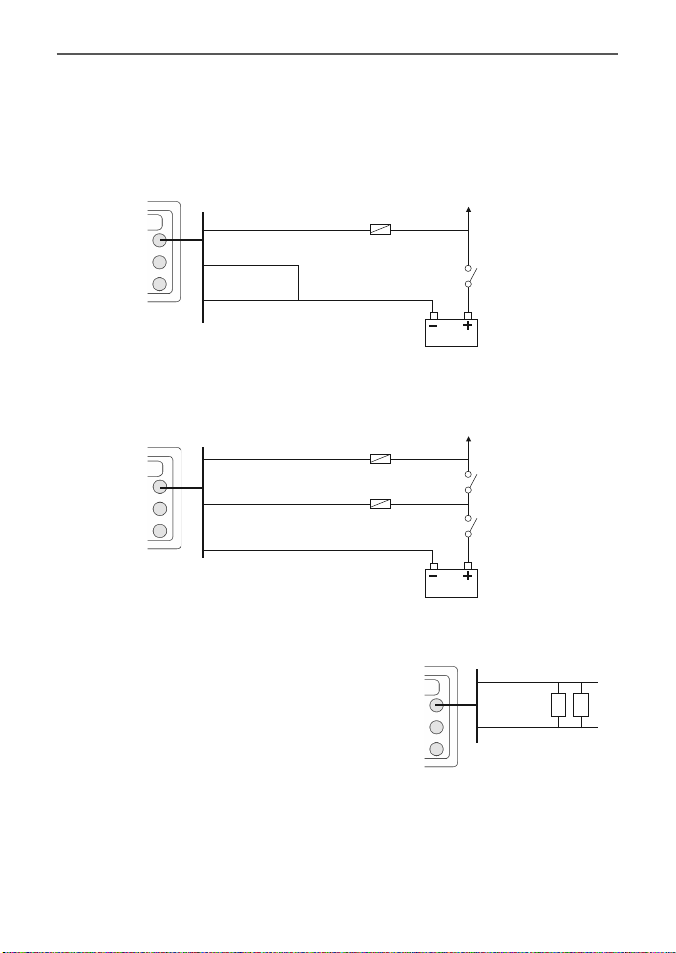

16-4 Installation: Power/Data cable

The power/data cable has a black locking collar and flying leads.

1 Wire the 557/567 for auto power to have the 557/567 turn on with the boat ’s ignition switch or

to record engine hours or to record the total fuel used. Other wise wire for basic power (for more information, see section 2-3).

Basic power

Power/data cable

BlackBlack

Auto power

During setup, set up Auto power off (see sections 2-2 turning on and of f and 14-1 Setup system)

BlackBlack

Red

Yellow

Black

Power/data cable

Yellow

Red

Black

Fuse 2A

Fuses 2A

Main switch

12 /24V DC

Ignition

Ignition switch

Main switch

12/24 V DC

2 Wire any external alarm beepers or lights.

The alarm output switches to ground to sound the alarm. If the current is more than 200 mA, fit a relay.

3 Connect the power/data cable to the black

display unit connector; turn the collar to lock the connector.

Northstar Explorer 557/567 Installation and Operation Manual

BlackBlack

Power/data cable

Red

Green

External beepers or

lights

Page 66

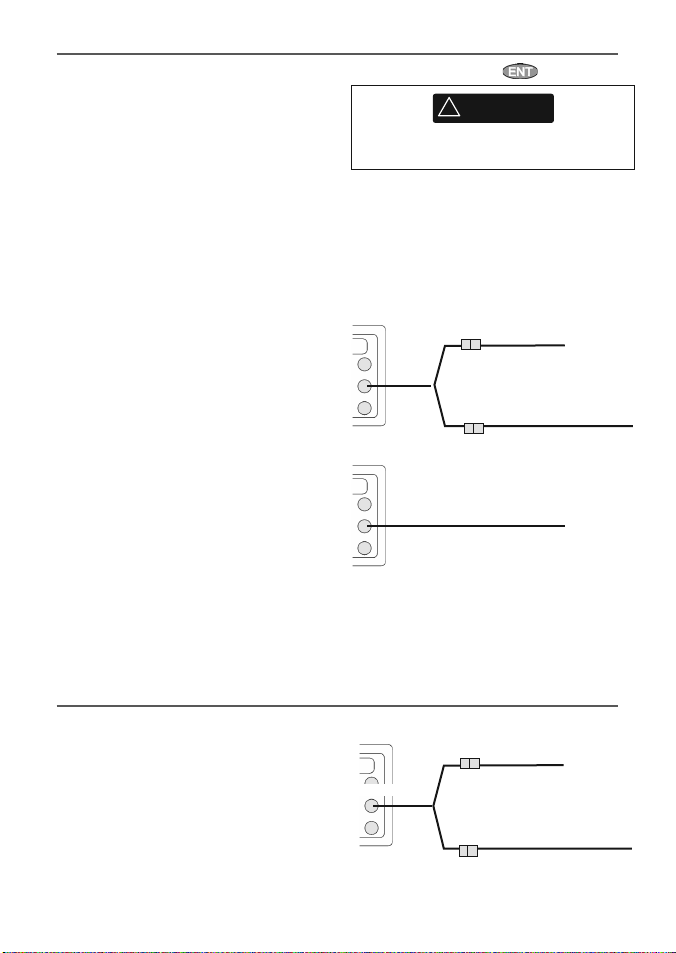

16-5 Installation: GPS a ntenna

Selecting an antenna

Fit one of these GPS antennas:

• Normally use the GPS antenna supplied.

• An optional differential beacon DGPS antenna

to give enhanced accuracy within range of land based differential beacons in areas where WAAS or EGNOS are not available. Such a DGPS antenna has both a GPS receiver and a beacon receiver, and it automatically applies the beacon correction to the GPS position.

• A compatible GPS or DGPS instrument or

antenna connected by NavBus (see section 16-8) or NMEA (see section 16-9). In this case, the 557/567 does not need its own antenna.

Note:

• To configure the 557/567 for different antenna options, see section 16-5.

For more information, contact your Northstar dealer.

DGPS Source:

Enables or disables the satellite based DGPS correction (see section 7). The options are None or WAAS/EGNOS. Do not Enable WAAS/EGNOS outside their coverage areas or the accuracy of the position might be degraded.

WAAS covers all of the USA and most of Canada. To use WAAS, the GPS antenna must have a clear view of the sky towards the equator. EGNOS will cover most of Western Europe.

Restart GPS:

Restarts the GPS receiver, satellite reception will be lost until the receiver completes its restart and acquires the satellites.

Select restart GPS and press

WARNING

MOB will not work if the Instrument does not have a GPS fix.

Installing an antenna

If an external antenna is required, install the antenna and fit the antenna cable back to the display unit. Follow the instructions in the manual supplied with the antenna. Fit an optional Northstar extension cable if required.

If a SmartCraft™ system or Nor thstar petrol/gasoline sensors are fitted as well, fit a AIS cable:

Yel low

Otherwise:

Yellow

During setup, configure the 557/567 for the chosen antenna, see section 16-5.

Yellow

GPS/fuel AIS cable

White

GPS antenna

Other connections

16-6 Installat ion: Northstar petr ol/gasoline sensors

Fit the optional petrol/gasoline fuel kit following the instructions supplied with the kit.

Note:

• Fit one kit for each engine, up to two engines.

• SmartCraft™ engines have fuel flow sensors, therefore Northstar fuel sensors are not required as well.

• Wire for auto power (see section 16-4).

During setup enter fuel setup data (see section 15-4)

Northstar Explorer 557/567 Installation and Operation Manual

Yellow

GPS antenna (optional)

Yellow

GPS/fuel AIS cable

White

Fuel sensor cable

Page 67

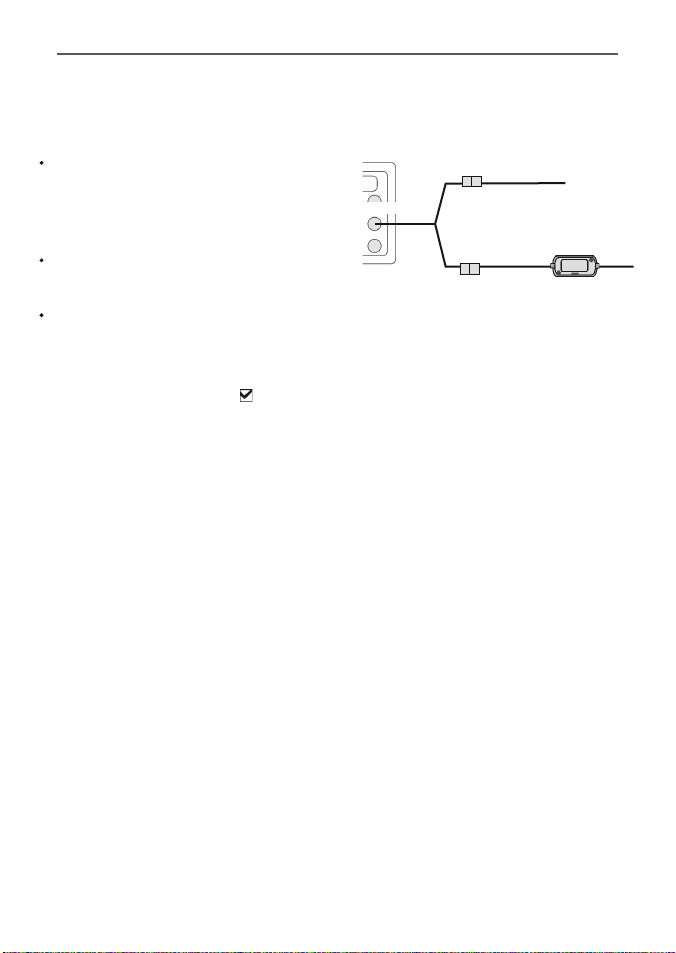

16-7 Installation: SmartCraft™

The 557/567 can be connected to up to two SmartCraft™ capable Mercur y petrol/gasoline engines. The 557/567 can display engine data and trim and can control troll speed.

Note:

Connect the 557/567 to the SmartCraft™

engines with a Northstar SmartCraft™ gateway:

i For single engine fit a single gateway

ii For dual engines fit a dual gateway

SmartCraft™ engines have fuel flow sensors,

therefore Nor thstar fuel sensors are not required as well.

Wire the unit for auto power (see section

16- 4).

During setup

a Enter fuel setup data (see section 15-4)

b Set NavBus and SmartCraft™ to

15-1 )

c Enter SmartCraft™ setup data (see the

SmartCraft™ Gateways Installation and Operation Manual)

(see section

For information on installing, setting up and using SmartCraft™, see the SmartCraft™ Gateways Installation and Operation Manual.

GPS antenna (optional)

Yellow

GPS/fuel AIS cable

White

SmartCraft™ Gateway

Northstar Explorer 557/567 Installation and Operation Manual

Page 68

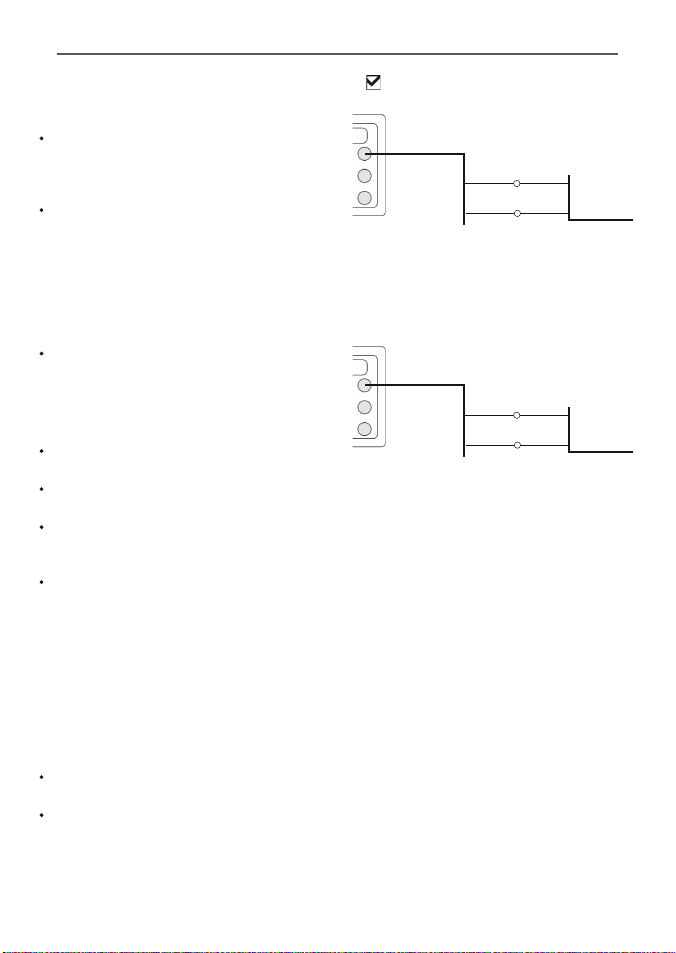

16-8 Installatio n: Other NavBus instrume nts

NavBus is Northstar’s system for connecting instruments together to interchange data and share transducers. When instruments are connected by NavBus:

If the units, alarms or calibration are changed

in one instrument, then the values will automatically change in all other instruments of the same type.

Each instrument can be assigned to a group

of instruments. If the backlight is changed in an instrument in group 1, 2, 3 or 4 then the backlight will automatically change in the other instruments in the same group.

If the backlight is changed in an instrument

in group 0 then no other instruments are affected.

If an alarm sounds, mute it by clearing the

alarm on any instrument which can display that alarm.

NavBus and the 557/567

The 557/567 can:

Display wind speed and direction from an

optional Northstar Wind instrument.

Receive and display depth from an optional

Northstar depth instrument.

Receive and display boat speed and water

temperature from a paddlewheel sensor on an optional Speed instrument.

Receive data from an optional Northstar VHF

radio (with NavBus functionality). The 557/567 can display:

Baro: barometric pressure

Baro history: barometer history

Weather: a predication, based on changes in

barometric pressure

Fish forecaster: a prediction based on

changes in barometric pressure

DSC/Buddy Track: (see section 14)

Receive data from an optional GPS or

GPS/DGPS source.

Send data to optional Northstar instruments,

for example to a repeater.

During setup for NavBus instruments, set NavBus

and assign the instrument a NavBus

to group number (see section 15-10)

BlackBlack

Power/data cable

Orange

Blue

Other NavBus instrument

16-8-1 Installation: Nor thstar VHF radio

Fit and set up the optional Nor thstar VHF radio (with NavBus functionalit y) following the instructions supplied with the radio.

BlackBlack

Power/data cable

Orange Blue

Blue Grey

Radio data cable

Northstar Explorer 557/567 Installation and Operation Manual

Page 69

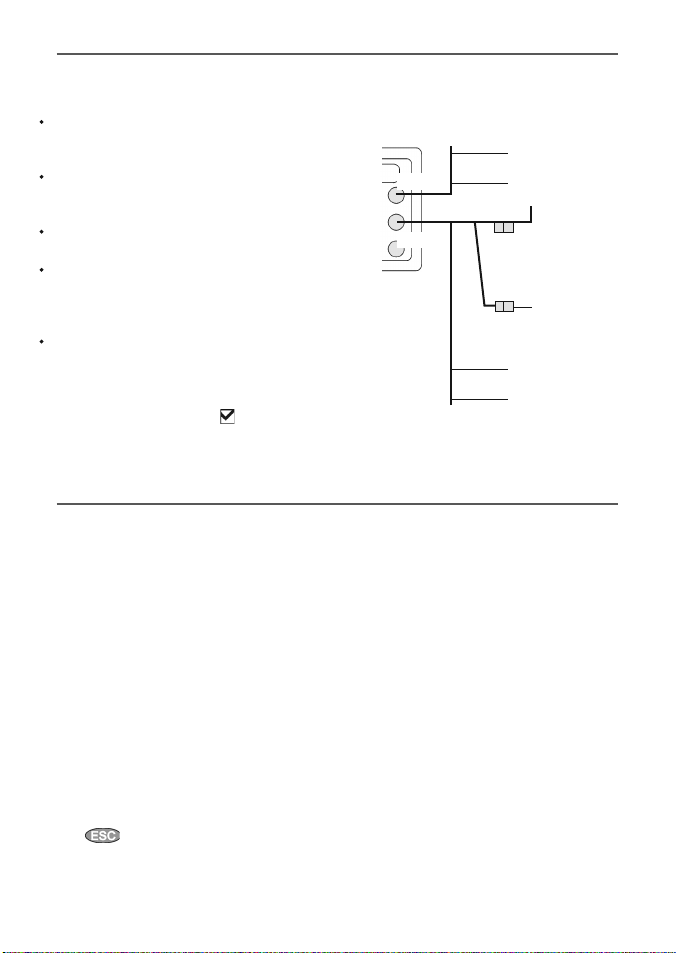

16-9 Installation: O ther NMEA instruments

NMEA is an industry standard for interconnecting instruments. It is not as flexible or as easy to install as NavBus. The 557/567 can:

Receive and display wind sp eed and

direction from an optional compatible wind instrument.

Receive and display depth, paddlewheel

boat speed and water temperature from an optional compatible instrument.

Receive data from an optional compatible

GPS or GPS/DGPS source.

Send GPS position and other navigation

data to an autopilot or other instrument. An autopilot requires APB, APA and VTG sentences (see section 15-10).

Receive data from an optional AIS receiver.

For information on sending NMEA data to the 557/567, see your Nor thstar dealer.

During setup to send NMEA data to other instruments, set NMEA out to the NMEA data to send (see section 15-10).

and specif y

16-10 Installation : Setup and test

Setup and test

1 Put a blanking cap on any unused connector

on the back of the display unit. Ensure all connectors are plugged in and the display unit is in place.

2 If the display unit is bracket mounted, adjust

tilt and rotation for best viewing and hand tighten the knob.

3 Insert any required C-MAP chart card (see

section 1-3).

4 Turn the instrument on (see section 2-3).

When the 557/567 is turned on for the first time, it displays an installation menu:

i Select the language to use.

ii Change the data if necessary

(see section 2-1)

iii When the setup data is correct, press

This data can be changed later

(see section 15).

Power/data cable

White NMEA out

Black

Yellow

5 Enter setup data to set up the 557/567 to

your requirements and to set up any optional sensors or instruments (see section 15).

6 At the satellite window, check that it picks up

GPS satellites. Wait for the GPS receiver to start up and the fix type to change from ‘Acquiring’ to ‘GPS fix’. This should take less than two minutes (see section 7).

7 Go on a test run to check that the navigation

equipment works correctly, particularly when a radio trans mitter or radar is used.

Black NMEA ground

GPS antenna

Yellow

GPS/fuel AIS cable

White

White NMEA in (requires Special Fuel Cable)

Red AIS data in

Black and Shield Ground

Northstar Explorer 557/567 Installation and Operation Manual

Page 70

Appendix A - Specifications

GENERAL

Size:

557: 5.9” H x 6.5” W x 2.6” D

(150 mm H x 164 mm W x 65 mm D)

567: 7” H x 7.7” W x 2.1” D

(179 mm H x 195 mm W x 54 mm D)

Display:

557: 5” diagonal, TFT color, 480 x 640 pixels

567: 6.4” diagonal, TFT color, 480 x 640 pixels

Backlight: Display and keys

Supply voltage

10.5 to 32 V DC.

Supply current: at 13.8 V

300 mA min - no backlighting

550 mA max - full backlighting

External beeper or light output: Switched

to ground to sound alarm, 30 V DC, 200 mA maximum.

Operating temperature

32°F to 122°F (0°C to 50°C)

ALARMS:

User set: Arrival radius, anchor, XTE, danger,

dangerous AIS vessels, low fuel (optional), loss of DGPS fix

Fixed: Loss of GPS fix

GPS NAVIGATION

Chart card: C-MAP™ NT-MAX, NT+ or NT

User card: 3.3 V C-MAP™

Waypoints: Up to 3000, with default or

user-defined alphanumeric names up to eight characters.

Routes: 25 Routes, with up to 50 points each

Tracks: By time or distance, one track of 2000

points and four of 500 points.

Chart datums

121 Chart datums (see next page)

One user-defined map shift.

Chart scale: 0.05 to 4096 nm for chart (chart

dependent) down to 0.01 nm in plotter mode.

COMMUNICATIONS

NavBus

Connection to other Northstar instruments.

NMEA

NMEA 0183 ver 2 4800 baud

• Inputs from compatible instruments: DBT, DPT (preferred), GGA, GLL, GSA, GSV, MTW, MWV, RMC, VHW, VTG

Outputs, for compatible instruments: APA, APB,

BWR, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE

STANDARDS COMPLIANCE

EMC:

USA: FCC Part 15 Class B.

Europe: (CE) EN301843-1:2004-06.

New Zealand and Australia: (C Tick) EN60945

9.2 & 9.3.

Environment: IPx6/IPx7/CFR46 (with card holder

and connections in place).

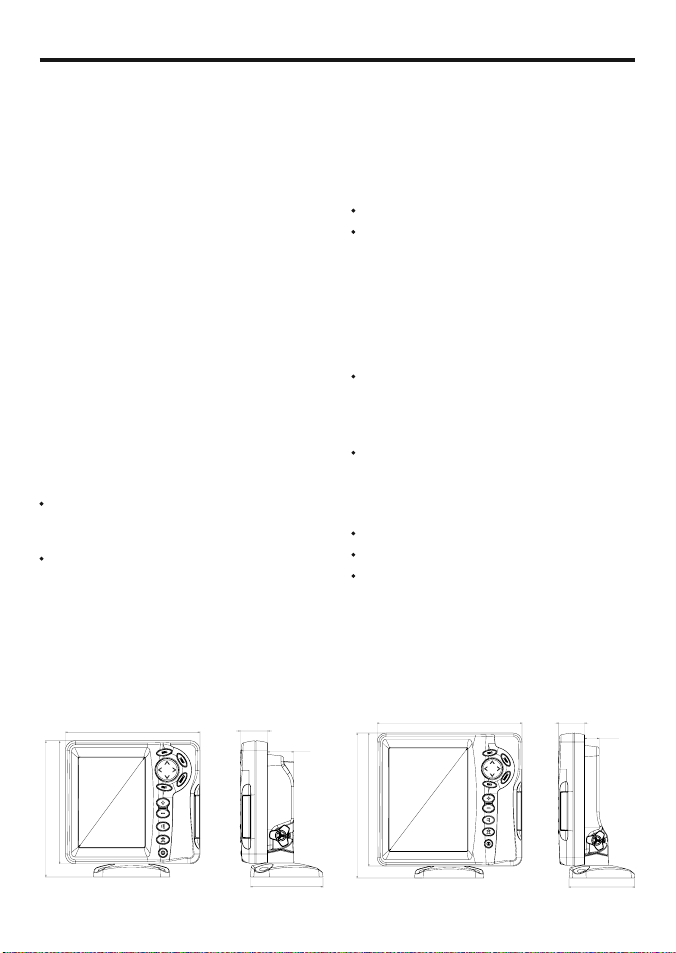

TRACKER 557 TRACKER 567

195.0

33.1

164.0

mm ( 6.5 ")

)"9.5 ( mm

)"5.6 ( mm

0.661

)" 5

(

0.051

Northstar Explorer 557/567 Installation and Operation Manual

mm ( 1.3 ")

32.0

mm ( 1.3 ")

)" 7 ( mm

)" 7.7 ( mm

0.971

0.591

88.5

mm ( 3.5 ")

mm ( 7.7 ")

(

m 3 6

35.2

mm ( 1.4 ")

19.5

mm ( 0.8 ")

88.5

mm ( 3.5 ")

Page 71

List of datums

Adindan Afgooye AIN EL ABD 1970 American Samoa 1962 Anna 1 Astro 1965 Antigua Island Astro 1943 ARC 1950 ARC 1960 Ascension Island 1958 Astro Beacon ‘E’ 1945 Astro DOS 71/4 Astro Station 1952 Astro Tern Island (Frig) 1961 Australian Geodetic 1966 Australian Geodetic 1984 Ayabelle Lighthouse Bellevue (IGN) Bermuda 1957 Bissau Bogota Observatory Bukit Rimpah Camp Area Astro Campo Inchauspe 1969 Canton Astro 1966 Cape Cape Canaveral Carthage Chatham Island Astro 1971 Chua Astro Co-ord. Sys.1937 Estonia Corrego Alegre Dabola Deception Island Djakarta (Batavia) DOS 1968 Easter Island 1967 European 1950 European 1979 Fort Thomas 1955 Gan 1970 Geodetic Datum 1949 Graciosa Base Sw 1948 Guam 1963 Gunung Segara GUX 1 Astro Herat North Hermannskogel Hjorsey 1955 Hong Kong 1963 Hu-Tzu-Shan Indian Indian 1954 Indian 1960 Indian 1975 Indonesian 1974 Ireland 1965 ISTS 061 Astro 1968 ISTS 073 Astro 1969 Johnston Island 1961 Kandawala Kerguelen Island 1949 Kertau 1948 Kusaie Astro 1951 L. C. 5 Astro 1961 Leigon Liberia 1964 Luzon M’Poraloko Mahe 1971 Massawa Merchich Midway Astro 1961 Minna Montserrat Island Astro 1958 Nahrwan Masirah Is. Oman Nahrwan United Arab Emirates Nahrwan Saudi Arabia Naparima, BWI North American 1927 North American 1983 North Sahara 1959 Observatorio Meteorolog. 1939 Old Egyptian 1907 Old Hawaiian Oman Ord. Survey Great Britain 1936 Pico de las Nieves Pitcairn Astro 1967 Point 58 Pointe Noire 1948 Porto Santo 1936 Provis. South American 1956 Provis. South Chilean 1963 Puerto Rico Pulkovo 1942 Qatar National Qornoq Reunion Rome 1940 S-42 (Pulkovo 1942) Santo (DOS) 1965 Sao Braz Sapper Hill 1943 Schwarzeck Selvagem Grande 1938 Sierra Leone 1960 S-JTSK South American 1969 South Asia Tananarive Observatory 1925 Timbalai 1948 Tokyo Tristan Astro 1968 Viti Levu 1916 Voirol 1874 Voirol 1960 Wake Island Astro 1952 Wake-Eniwetok 1960 WGS 84 Yacare Zanderij

Appendix B - Troubleshooting

This troubleshooting guide is written with the assumption that the user has read and understood the relevant sections in this manual.

It is possible in many cases to solve difficulties without having to send the display unit back to the manufacturer for repair. Please follow this troubleshooting sec tion before contacting the nearest Nor thstar dealer.

There are no user serviceable parts. Specialized methods and testing equipment are required

Northstar Explorer 557/567 Installation and Operation Manual

to ensure that the display unit is reassembled correctly and is waterproof. Users who service the product themselves will void the warranty.

Repairs to the product may only be carried out by a service centre approved by Northstar. If the product must be sent into a service centre for repair, it is essential to send in the transducer(s) at the same time.

More information can be found on our Website: www.northstarnav.com.

Page 72

B-1 General Problems

1-1 The 557/567 won’t turn on:

a The 557/567 is designed to operate on a

12/24 volt battery system, where the voltage may vary from 10.5 to 32 volts. If an excessive voltage is supplied, a fuse will be tripped, turning the display unit off. Check the fuse.

b Check that the power cable connec tor at the

back of the display unit is securely plugged in and the collar is locked in place. The collar must be secure for water tight connection.

c Measure the batter y voltage while the battery

is under load - turn on some lights, radio or other electrical equipment connected to the battery. If the voltage is less than 10 volts:

- the batter y terminals or wiring on the terminals may be corroded.

- the battery may not be charging correctly or may need replacing.

d Inspect the power cable from end to end for

damage such as cuts, breaks, squashed or trapped sections.

e Ensure that the red wire is connected to the

positive bat tery terminal and the black wire to the negative battery terminal. If wired for

B-2 GPS navigation proble ms

2-1 No GPS fix or long time to get fix at startup:

a May occur occasionally if the antenna does

not have a clear view of the sky. The satellite positions are constantly changing.

b Antenna cable not connected to display unit.

c Restart the GPS (see section 15-3).

2-2 557/567 GPS position different from true position by more than 10 m (33 ft):

a 557/567 in simulate mode. Turn simulate

mode of f (see section 15-12).

b The normal error in GPS position will exceed

10 m (33 ft) for about 5% of the time.

c Under special circumstances the US

Department of Defence may introduce a deliberate and changing error in the GPS positions of up to 300 m (1000 ft).

Northstar Explorer 557/567 Installation and Operation Manual

the Auto Power option, ensure the yellow wire is connec ted to the ignition circuit. Also check the boat’s main switch circuit (see section 16-4).

f Check for corrosion on the power cable

connector and clean or replace if required.

g Check fuses that are placed in line with the

power cable. A fuse can be blown despite appearing to be good or the fuse may be corroded. Test the fuse or replace it with a fuse known to be good.

1-2 The 557/567 won’t turn off:

The 557/567 may have been wired for Auto

power. In this case, the 557/567 cannot be turned of f while the ignition power is on (see section 2-3).

1-3 If the 557/567 beeps when turned on but nothing is displayed:

The 557/567 may be operating, but the

backlight settings may have been set too low (see section 2-4).

1-4 The wrong language is displayed:

See section 15-1.

2-3 557/567 position different from same position on local charts:

a 557/567 in simulate mode. Turn simulate

mode of f (see section 15-12).

b Incorrect chart datum. Select the correc t

chart datum (see section 15-2).

c Map shift has been applied wrongly. Clear map

shift, then reapply if necessary (see section 15-2).

2-4 Can not see boat on chart:

Press

mode (see section 3-2-1).

2-5 The time or date on the satellite windows wrong or off:

a No GPS fix.

b In simulate mode. Turn simulate mode off

(see section 15-12).

c Local time offset is wrong (see section 15-11).

The Local Time Of fset must be changed when daylight saving time starts or ends.

to switch to centre on boat

Page 73

2-6 Autopilot not responding to 557/567; no NMEA output:

a NMEA output disabled or the re quired NMEA

sentences are not turned on. Check NMEA settings (see section 15-10).

b Check that the instrument is connected

correctly.

2-7 No DGPS fix or loss of DGPS fix:

a To receive a DGPS fix, WAAS/EGNOS must be

enabled or an optional DGPS antenna fitted (see section 7).

B-3 Fuel consumption p roblems

3-1 Number of engines or tanks is wrong

Check that the number of engines and tanks

is correct (see section 15-4).

3-2 Fuel flow(s) seem inaccurate:

a Check that the fuel setup data is correc t (see

section 15-4).

b Check that the fuel cable connectors are

securely plugged in and the collar is locked in place. Check the fuel cable is not damaged or pinched.

c A fuel sensor may be blocked.

A fuel filter must be installed bet ween the fuel transducer and the fuel tank as described in the sensor installation manual. Otherwise the warranty is void.

d Recalibrate the fuel f low sensor(s) (see

section 10-7).

e Check that the fuel filter is clean.

f In rough seas, fuel may surge back and

forth through the fuel sensor(s), resulting in incorrect readings. Try installing a one-way valve between the fuel sensor(s) and the fuel tank.

3-3 Fuel remaining seems inaccurate:

a The 557/567 is not wired for auto power (see

section 15-4).

b You added or removed fuel but did not tell

the 557/567 (see section 10-3).

c The fuel tank may not refill to the same

capacity each time due to air pockets. This is a particular problem with underfloor tanks.

b With WAAS/EGNOS: Boat out of coverage

area (see sec tion 7).

c With WAAS: GPS antenna does not have a

clear view of the horizon towards the equator.

b With beacon DGPS: boat out of range of a

DGPS beacon.

3-4 Erratic fuel flow readings:

a The Flow filter value is not suitable for the

engine. Check that the value is not set to zero, then try increasing the value until a steady flow rate is shown (see section 15-4).

b The fuel flow sensor(s) may be too close to

the fuel pump or may be subject to excessive vibration. Refer to the fuel sensor installation manual.

c Check for leaks in the fuel line or in the fuel

pickup in the tank.

3-5 There is no reading for fuel economy:

a The boat must be travelling through the

water to have a reading.

b If you selected a paddlewheel sensor (see

section 10-5-1), check that the paddlewheel spins freely.

Northstar Explorer 557/567 Installation and Operation Manual

Page 74

Appendix C - Glossary and navigation data

Glossary

Attenti on Area - An important area on a chart, such as a restric ted anchorage or a shallow area (see section 15-2).

AIS - Automatic Identification System. A System where vessel information (location, course, speed, etc.) is broadcast by VHF radio, for use by other vessels in navigation and collision avoidance.

Bathymetric line - A depth contour line on the chart.

Chart card - A plug-in card that stores chart data for a region (see section 1-3).

C-MAP™ char t card - See Chart card.

C-MAP™ user card - See User card.

CPA - Closest Point of Approach. The closest

distance two vessels will come to each other based on their current course and speed.

Cursor - A 3-2).

DGPS - Differential Global Positioning System. A navigation tool based on GPS with some errors corrected (see section 7).

DSC - Digital Selective Calling. A feature of marine radios enabling communication between specific vessels, as well as distress alerts.

Goto - A simple way of navigating straight to a waypoint or to the cursor position (see section 3-1).

GPS - Global Positioning System. A satellite based navigation tool (see section 7).

Leg - The straight segments of a route between waypoints. A route with four waypoints has three legs.

symbol on the display (see section

MMSI - Maritime Mobile Service Identity. Unique identification number for a vessel, for use in Digital Selective Calling.

MOB - Man overboard.

MOB function - Starts navigating back to the

place where someone fell overboard (see sec tion 2-5).

NavBus - A way of connecting Northstar instruments together to share data (see section 16-8).

NMEA - National Marine Electronics Association.

NMEA 0183 - A standard for interfacing marine

electronic devices (see sec tion 16-10).

Route - Two or more waypoints linked in sequence to form a course for the boat (see section 6).

SmartCraft - A feature of Mercury Marine engines for monitoring engine performance.

TCPA - Time to Closest Point of Approach. Time until the closest point of approach for two vessels.

User card - A plug-in card that stores waypoints, routes and tracks (see section 12).

UTC - Universal Time Coordinated or Coordinated Universal Time, which is a standard world time, formerly called Greenwich Mean Time (GMT).

VHF - Very High Frequency. The frequency range used by marine radios.

Waypoint - A position that you can set on the 557/567 chart, for example a fishing spot or a point on a route (see section 5).

Northstar Explorer 557/567 Installation and Operation Manual

Page 75

Navigation data

BRG Bearing to Destination: Bearing to the destination from the boat.

BRG Bearing to cursor: Bearing to cursor from boat (cursor mode, see section 3-2)

CDI Course Deviation Indicator: When the boat is navigating to a point, the chart and highway

windows show a parallel line on either side of the plotted course. These two lines are called the Course Deviation Indicator (CDI) lines . The distance from the plotted course to a CDI line is the CDI scale.

Set the CDI scale (see section 15-2) to the maximum distance that the boat should deviate

from the plotted course. The chart and highway windows show the CDI lines, which are like a highway over the water where t he boat will move. The windows show ho w far the boat has deviated f rom the plotted cour se and if the boat is app roaching a CDI line. If the XTE alarm is enabled (see section 15-7) an alarm will sound if the boat reaches a CDI line.

COG Course Over Ground: Direction in which the boat is moving over the ground.

CTS Course To Steer: Optimum course to steer to return to the plotted course.

DTG Distance To Go: Distance from the boat to the destination.

ETA Expected Time of Arrival: At the destination, assuming that SOG and COG remain constant.

RNG Range to cursor: Distance from boat to cursor (cursor mode, see sec tion 3-2)

SOG Speed O ver Ground: Current b oat speed over the gro und. This is not necess arily the same as

the boat speed through the water nor the speed at which it is approaching the destination.

STR Steering: The diﬀ erence between COG and CTS.

TTG Time To Go: The estimated time to reach the destination.

XTE Cross Track Error: The distance from the boat to the nearest p oint of the plotted course. XTE

may have a lette r: R means steer to the right to return to th e plotted course, L m eans steer to the left.

VMG Velocit y Made Good: The speed at which the boat is approaching the destination.

Destination

SOG (speed)

STR

Plotted course

Start

Destination

DTG (distance)

VMG (speed)

BRG

COG

CTS

Boat position

Northstar Explorer 557/567 Installation and Operation Manual

Plotted course

CDI line

CDI scale (distance)

XTE (distance)

Boat position

CDI line

CDI scale (distance)

Start

Page 76

AMERICAS

30 Sudbury Road,

Acton, MA 01720, USA

Ph: +1 978.897.6600

Ph: +1 800.628.4487

Fax: +1 978.897.7241

[email protected]

EUROPE

Unit 2, Ocean Quay,

Belvidere Rd, Southampton,

SO14 5QY, ENGLAND

Ph: +44 2380 339922

Fax: +44 2380 330345

[email protected]

AUSTRALIA

PO Box 479,

Gladesville, NSW 2111,

AUSTRALIA

Ph: +61 2 9879 9060

Fax: +61 2 9879 9009

[email protected]

www.northstarnav.com

NEW ZEALAND

PO Box 68 155,

Newton, Auckland

Auckland, NEW ZEALAND

Ph: +64 9 481 0500

Fax: +64 9 481 0590

[email protected]

Made in New Zealand MN000655A-G
