Nokia Asha 309 User Manual

25.09.2012

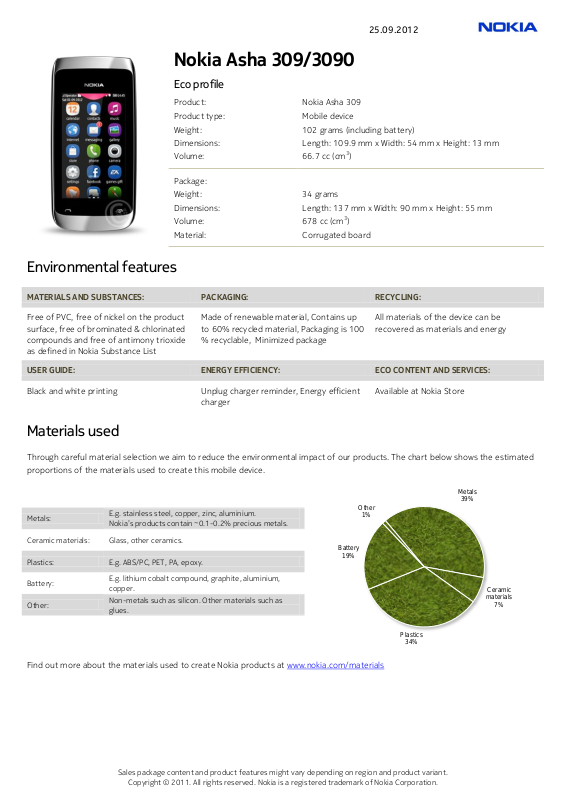

Nokia Asha 309/3090

Eco profile

Product:

Nokia Asha 309

Product type:

Mobile device

Weight:

102 grams (including battery)

Dimensions:

Length: 109.9 mm x Width: 54 mm x Height: 13 mm

Volume:

66.7 cc (cm3)

Package:

Weight:

34 grams

Dimensions:

Length: 137 mm x Width: 90 mm x Height: 55 mm

Volume:

678 cc (cm3)

Material:

Corrugated board

MATERIALS AND SUBSTANCES:

PACKAGING:

RECYCLING:

Free of PVC, free of nickel on the product surface, free of brominated & chlorinated compounds and free of antimony trioxide as defined in Nokia Substance List

Made of renewable material, Contains up to 60% recycled material, Packaging is 100 % recyclable, Minimized package

All materials of the device can be recovered as materials and energy

USER GUIDE:

ENERGY EFFICIENCY:

ECO CONTENT AND SERVICES:

Black and white printing

Unplug charger reminder, Energy efficient charger

Available at Nokia Store

Metals:

E.g. stainless steel, copper, zinc, aluminium. Nokia’s products contain ~0.1-0.2% precious metals.

Ceramic materials:

Glass, other ceramics.

Plastics:

E.g. ABS/PC, PET, PA, epoxy.

Battery:

E.g. lithium cobalt compound, graphite, aluminium, copper.

Other:

Non-metals such as silicon. Other materials such as glues.

Metals

39%

Ceramic

materials

Plastics

34%

Battery

19%

Other

Environmental features

Materials used

Through careful material selection we aim to reduce the environmental impact of our products. The chart below shows the estimated

proportions of the materials used to create this mobile device.

Find out more about the materials used to create Nokia products at www.nokia.com/materials

Sales package content and product features might vary depending on region and product variant.

25.09.2012

The EU RoHS Directive 2002/95/EC

“Management Methods on the Prevention and Control of Pollution caused by Electronic Information Products” commonly known as “China RoHS”

European REACH Regulation 1907/2006/EC

The Montreal Protocol on Substances That Deplete the Ozone Layer

The surface of this device does not contain nickel in the platings.

This product does not contain Brominated or Chlorinated compounds or Antimony trioxide as specified in Nokia Substance List requirement and definition.

Polyvinylchloride (PVC) is not used in this product or its packaging Call (GSM):

470

Idle mode:

5 mW

Charger no-load power consumption:

AC-11

<0.03

Charger weight:

grams

Battery capacity:

BL-4U

1110

mAh

Battery weight:

grams

Restricted substances

Nokia is an industry leader in substance management. We proactively manage and keep track of all the substances in our products, not just those that raise concerns. We have strict requirements for substances that are not allowed in Nokia products.

These are defined in the Nokia Substance list, which is available at www.nokia.com/substances This product fully complies with all relevant global regulations, for example:

Additionally, Nokia has voluntarily restricted the use of many other harmful substances, and calls attention to substances such as skin

sensitizers and substances that might cause harm to the environment or to the user during the lifecycle of the phone. Some details of such substances for this product are listed below:

Energy consumption 1

The supplied battery complies with the EU Battery Directive 2006/66/EC and does not contain cadmium, lead, or mercury in concentrations higher than those defined in the directive.

The supplied charger meets EU ErP directive and regulation 278/2009 and EU Code of Conduct on Energy Efficiency of external power supplies.

More information on chargers and the Charger Energy label at www.nokia.com/chargerenergy

Packaging

We work to minimize the environmental impact of our packaging by selecting sustainable materials, reducing the packaging size,

reducing the volume of material we use, and considering what happens to the package when it is no longer needed. Nokia’s packaging contains no hazardous or restricted substances, and is fully compliant with the EU directive 94/62/EC. Find out more about our packaging at www.nokia.com/packaging

The measured values are dependent on several factors, e.g. measurement environment, frequency and operator network settings. The

measurements are made @ 1800 MHz according to reference document: GSM Association Official Document: DG.09, ‘Battery Life Measurement Technique’ www.gsmworld.com/documents

Sales package content and product features might vary depending on region and product variant.
