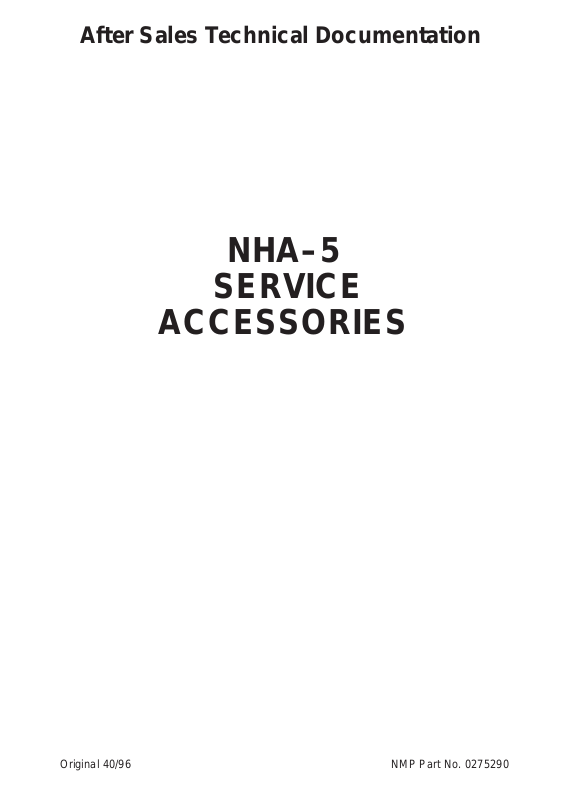

After Sales Technical Documentation
NHA–5
SERVICE
ACCESSORIES
Original 40/96
NMP Part No. 0275290
Service Accessories
After Sales
NHA–5
Amendment
Number
Technical Documentation
AMENDMENT RECORD SHEET
Date Inserted By Comments
Page 2
Original 40/96
After Sales
Service Accessories
Technical Documentation
NHA–5
NHA–5 SERVICE ACCESSORIES
Contents
NO TAG List of Service Accessories NO TAG
Service Box JBU–4 Page 4
Product Code Page 4
View of JBU–4 Page 4
MBUS Cable DAU–4S Page 5
Product code Page 5
View of DAU–4S Page 5
NO TAG Service Cables SCS–4 NO TAG
Product code Page 6
View of SCS–4 Page 6
Audio Cable ADS–1 Page 7
Product code Page 7
View of ADS–1 Page 7
Power Connector PCS–1 Page 8
Product code Page 8
View of PCS–1 Page 8
Dummy Battery BTD–4 Page 9
Product code Page 9
View of BTA–1 Page 9
SW Security Device ”Dongle” PKD–1 Page 10
Product Code Page 10
View of SW Security Device Page 10
Test Frame JBA–5 Page 11
Product code Page 11
View of JBA–5 Page 11
Test Adapter AAM–2 Page 12
Product code Page 12
View of AAM–2 Page 12
Antenna Test Adapter AAT–6 Page 13
Product code Page 13
View of AAT–6 Page 13
Original 40/96
Page 3
Service Accessories
After Sales
NHA–5
List of Service Accessories
Service Box JBU–4
Service box provides convenient test environment (regulated power supply,
M2BUS, preset battery reference voltage, external RF connection, audio test
loops) in one box.
Product Code
Service Box JBU–4: 0770041
View of JBU–4
Technical Documentation
Page 4
Original 40/96
After Sales
Service Accessories
Technical Documentation
MBUS Cable DAU–4S
DAU–4S is connected between the phone and the serial (COM) port of the PC.
It matches the MBUS data bus signals to the serial data bus of the computer.
Product code
MBUS Cable DAU–4S: 0730057
View of DAU–4S
NHA–5
Original 40/96
Page 5
