NEC WT615 User Manual

Projector

WT615/WT610

User’s Manual

The WT615 projector is not distributed in the U.S.A or Canada.

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC WT615/WT610 Projector and keep the manual handy for
future reference. Your serial number is located on the right side of your projector. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet.
The power outlet socket should be installed as near to the equipment as possible, and should be easily
accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical
shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this
unit has been provided.
The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS
CAN BE FULLY INSERTED.
DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST
BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Acoustic Noise Information Ordinance-3. GSGV (for Germany only):

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

CAUTION

Do not look into the laser pointer while it is on and do not point the
laser beam at a person. Serious injury could result.

This label is underneath the remote control.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.

© NEC Viewtechnology, Ltd. 2005

i

Important Information

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by
NEC Solutions (America), Inc. in this manual. Failure to comply with this government regulation could void your right to operate
this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment.
If a power cable is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them
carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture.

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal components.

5. Handle your projector carefully. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:
a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the

risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the projector and the installation must be in accor-

dance with any local building codes.

d. Please consult your dealer for more information.

Place the projector in a horizontal position

The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than
the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

10°

10°

10°

10°

10°

10°

ii

Important Information

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside

your projector. Allow at least 4 inches (10 cm) of space between your projector and a wall.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector.

Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as
a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately
and have the object removed by a qualified NEC service personnel.

3. Do not place any liquids on top of your projector.

4. Do not look into the mirror or the light source while the projector is on. Serious damage to your eyes could

result.

5. Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the

mirror is extensive, therefore any kind of abnormal objects that can redirect light coming out of the mirror, can
cause unpredictable outcome such as fire or injury to the eyes.

6. Do not block the light path between the light source and the final mirror with any objects. Doing so could cause

the object to catch on fire.

7. The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power

supply fits this requirement before attempting to use your projector.

8. Handle the power cable carefully and avoid excessive bending.

A damaged cord can cause electric shock or fire.

9. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

10. Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

11. Do not handle the power plug with wet hands.

12. When using a LAN cable:

For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.

CAUTION

• Do not try to touch the ventilation openings on the both sides as it can become heated while the projector is
turned on.

• Do not attempt to move or carry the projector using the mirror cover.
Doing so can result in the projector overturning and causing injury. Using the two side handles is the proper

way to move the projector.
When carrying or transporting the projector, close and lock the mirror cover with the mirror cover lock switch.

• The carrying handles are designed for the purpose of carrying the projector. Do not hang from the projector by
the carrying handles in a ceiling mounted installation. Doing so may result in the carrying handles separating
from the unit or the projector may separate from the mount resulting in personal injury.

• Select [High] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select
[Setup] → [Options] → [Fan Mode] → [High].)

• Do not unplug the power cable from the wall outlet under any one of the following circumstances.
Doing so can cause damage to the projector:

* While the projector's lamp is on.
* While the cooling fans are running. (The cooling fans continue to work for 90 seconds after the projector is

turned off).

* While the PC CARD Access Indicator lights. Doing so can damage your PC memory card.

iii

Important Information

Lamp Replacement

•To replace the lamp, follow all instructions provided on page 134.

• Be sure to replace the lamp when the message “The lamp has reached the end of its usable life. Please
replace the lamp.” appears. If you continue to use the lamp after the lamp has reached the end of its usable
life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the
pieces of glass may cause injury.

If this happens, contact your NEC dealer for lamp replacement.

• Allow a minimum of 90 seconds to elapse after turning off the projector. Then turn off the main power switch,
disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.

iv

Table of Contents

Important Information ...........................................................................i

1. Introduction ...................................................................................... 1

 What's in the Box? ........................................................................................................ 2

 Introduction to the Projector ......................................................................................... 3

 Part Names of the Projector ......................................................................................... 5

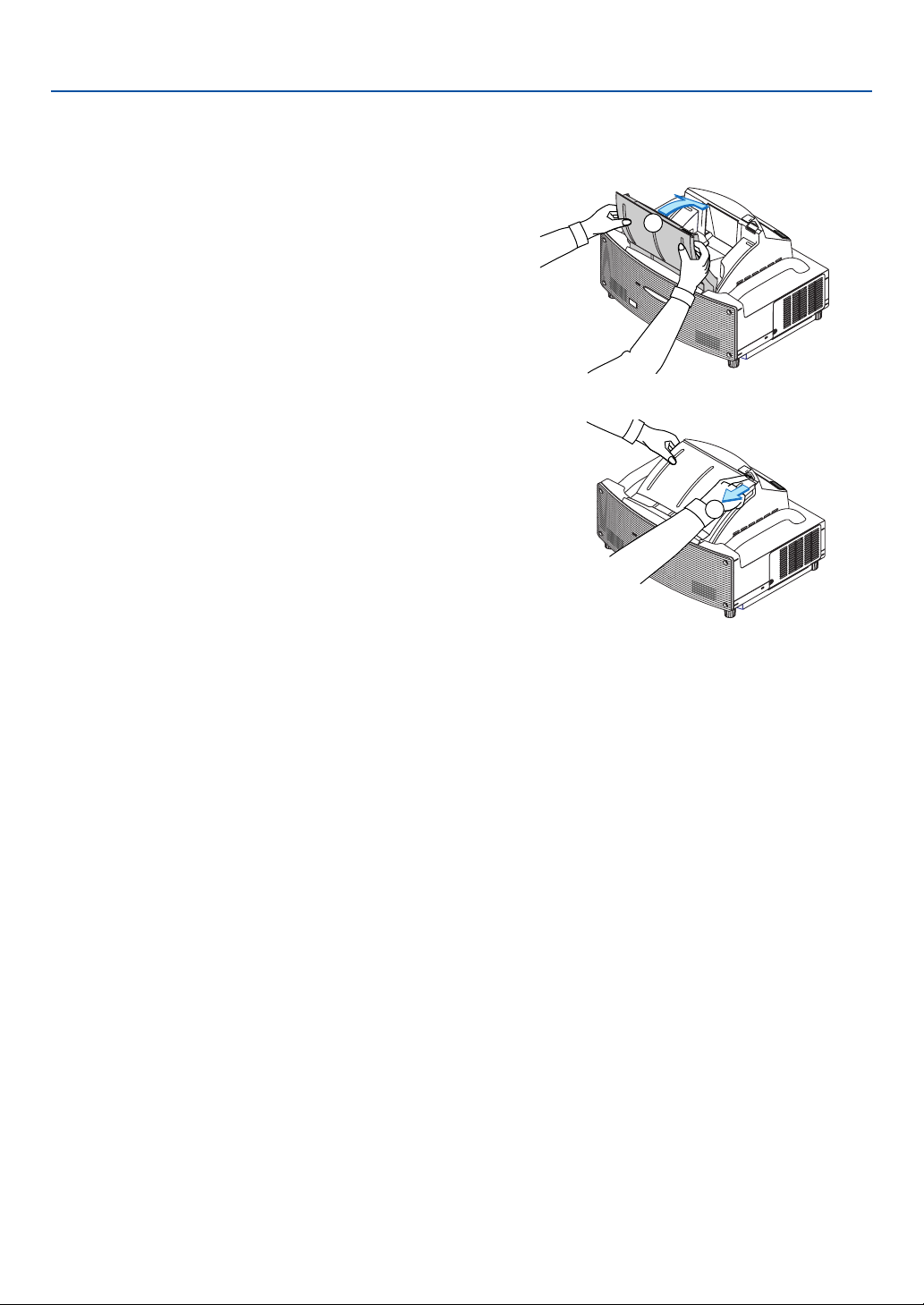

Opening and Closing the Mirror Cover ................................................................... 6

Top Features ........................................................................................................... 7

Te r minal Panel Features ......................................................................................... 8

 Part Names of the Remote Control ............................................................................ 10

Battery Installation ................................................................................................ 12

Operating Range for Wireless Remote Control..................................................... 12

Remote Control Precautions ................................................................................. 12

Using the Remote Control in Wired Operation...................................................... 12

 Part Names and Functions of the Supplied Electronic Pen (WT615 only) ................. 13

Battery Installation ................................................................................................ 13

Electronic Pen Precautions ................................................................................... 13

2. Installation and Connections ....................................................... 14

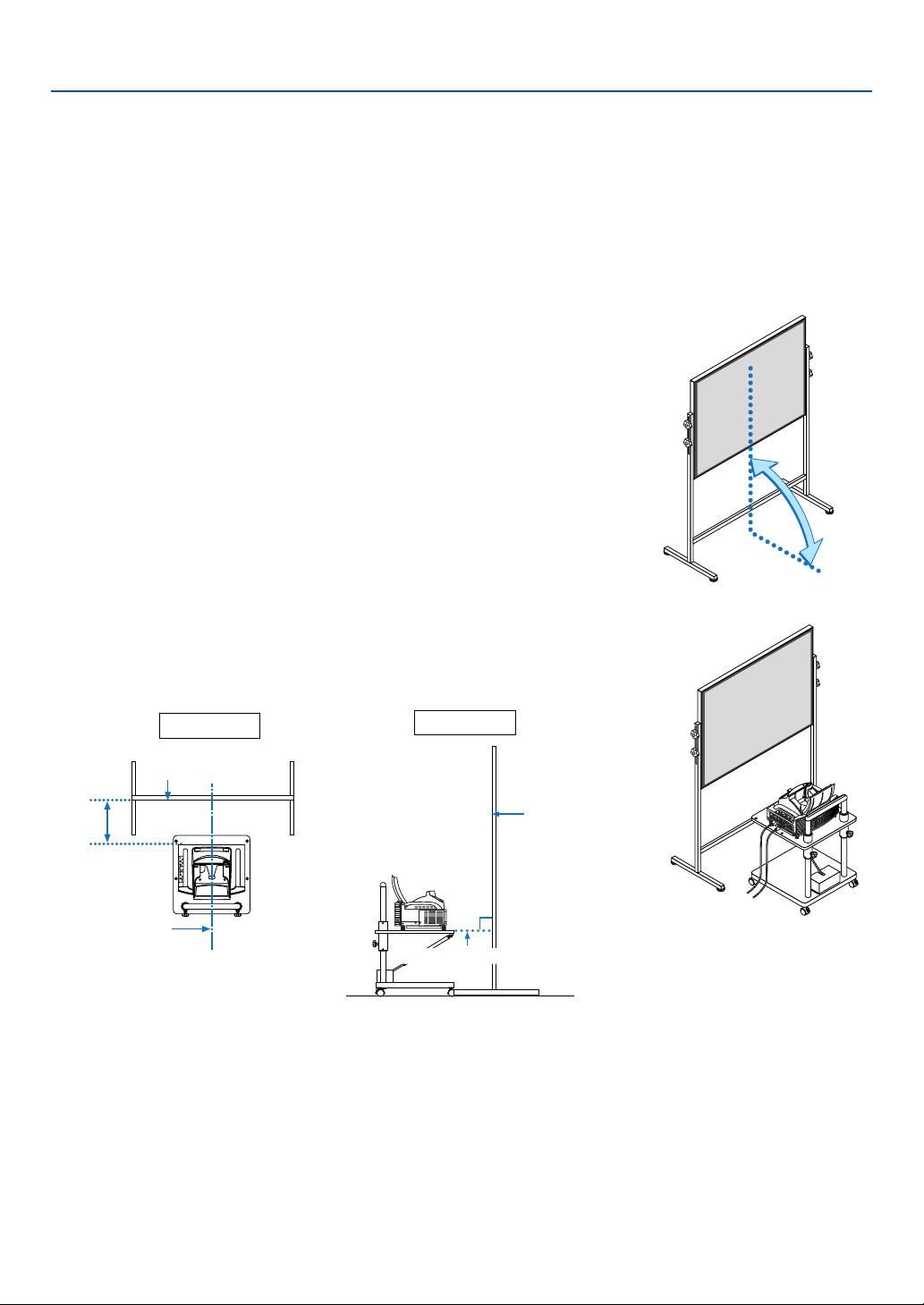

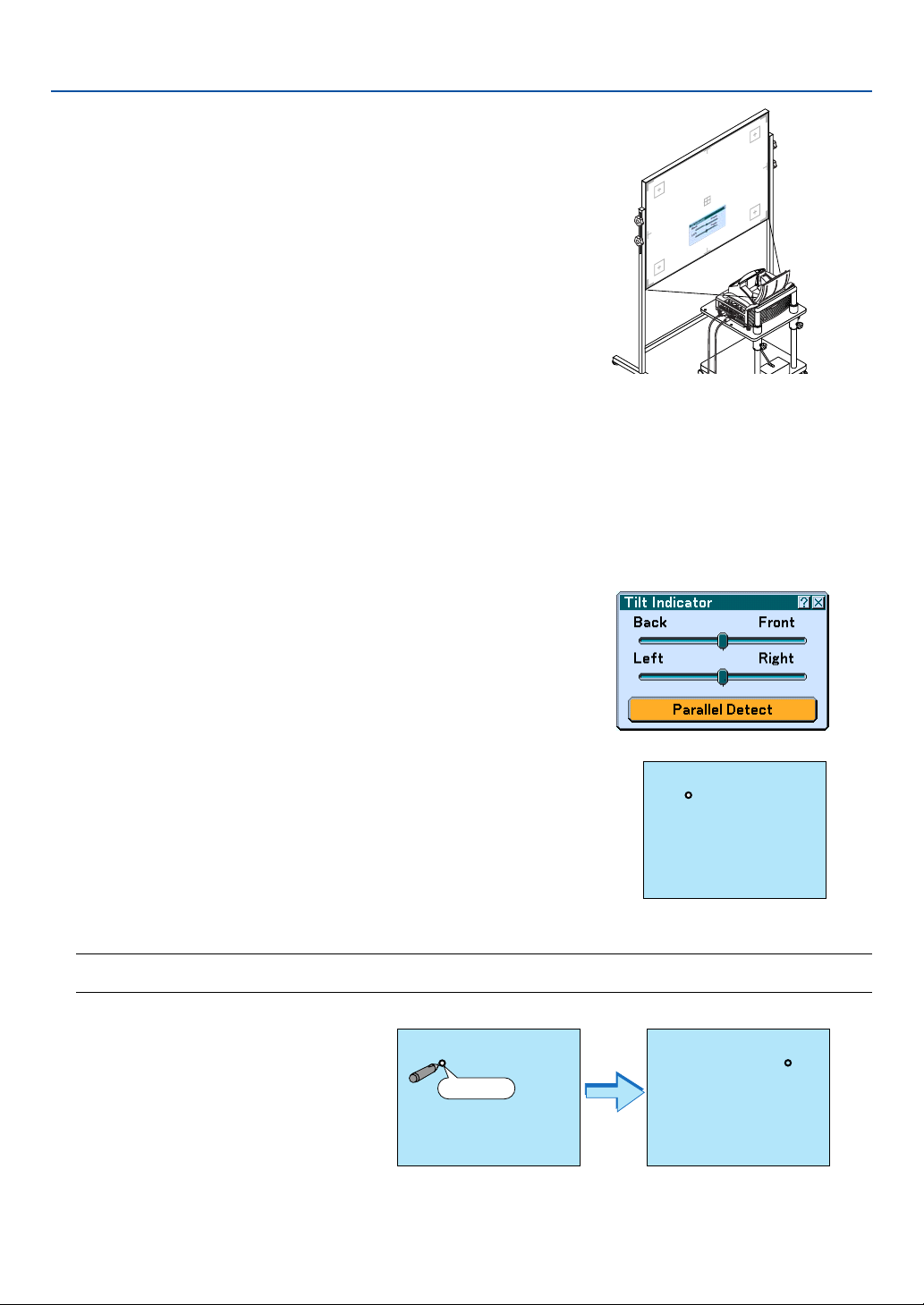

 Setting Up the Screen and the Projector .................................................................... 16

 Making Connections ................................................................................................... 19

When Viewing a DVI Digital Signal ....................................................................... 19

Connecting Your PC or Macintosh Computer........................................................ 19

To connect SCART output (RGB) ......................................................................... 20

Using two Analog COMPUTER inputs simultaneously ......................................... 21

Connecting an External Monitor ........................................................................... 22

Connecting Your DVD Player................................................................................. 23

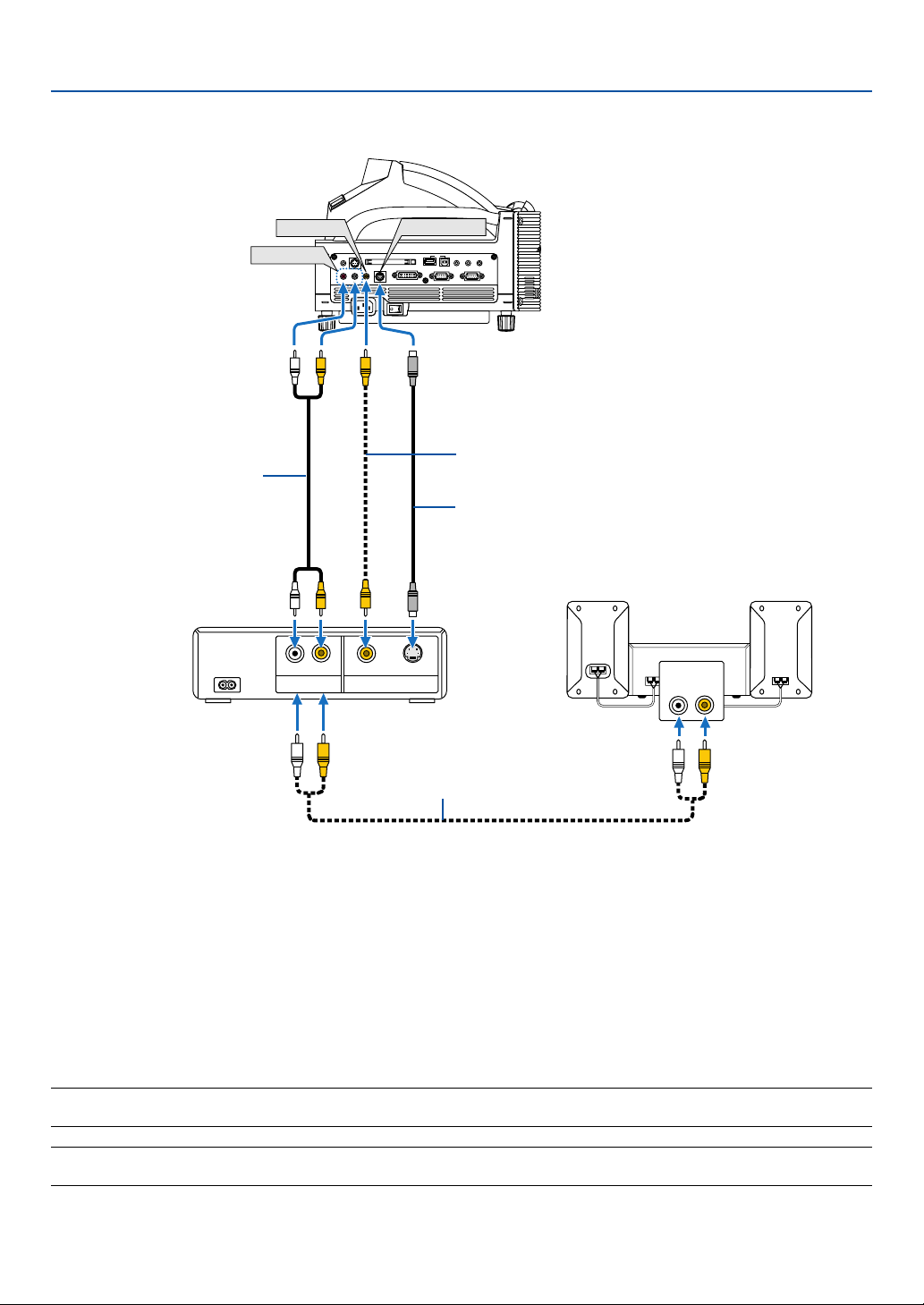

Connecting Your VCR or Laser Disc Player .......................................................... 24

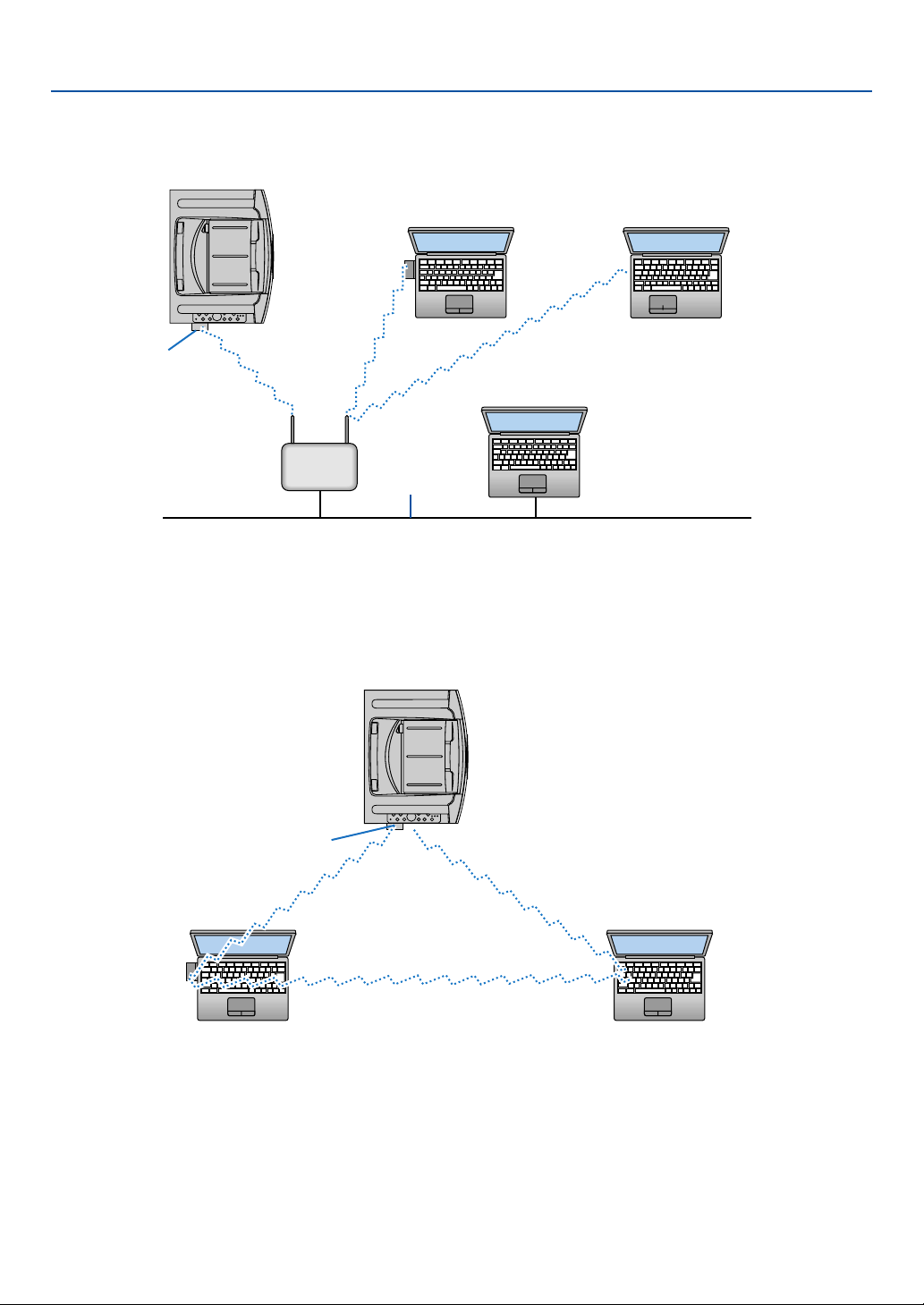

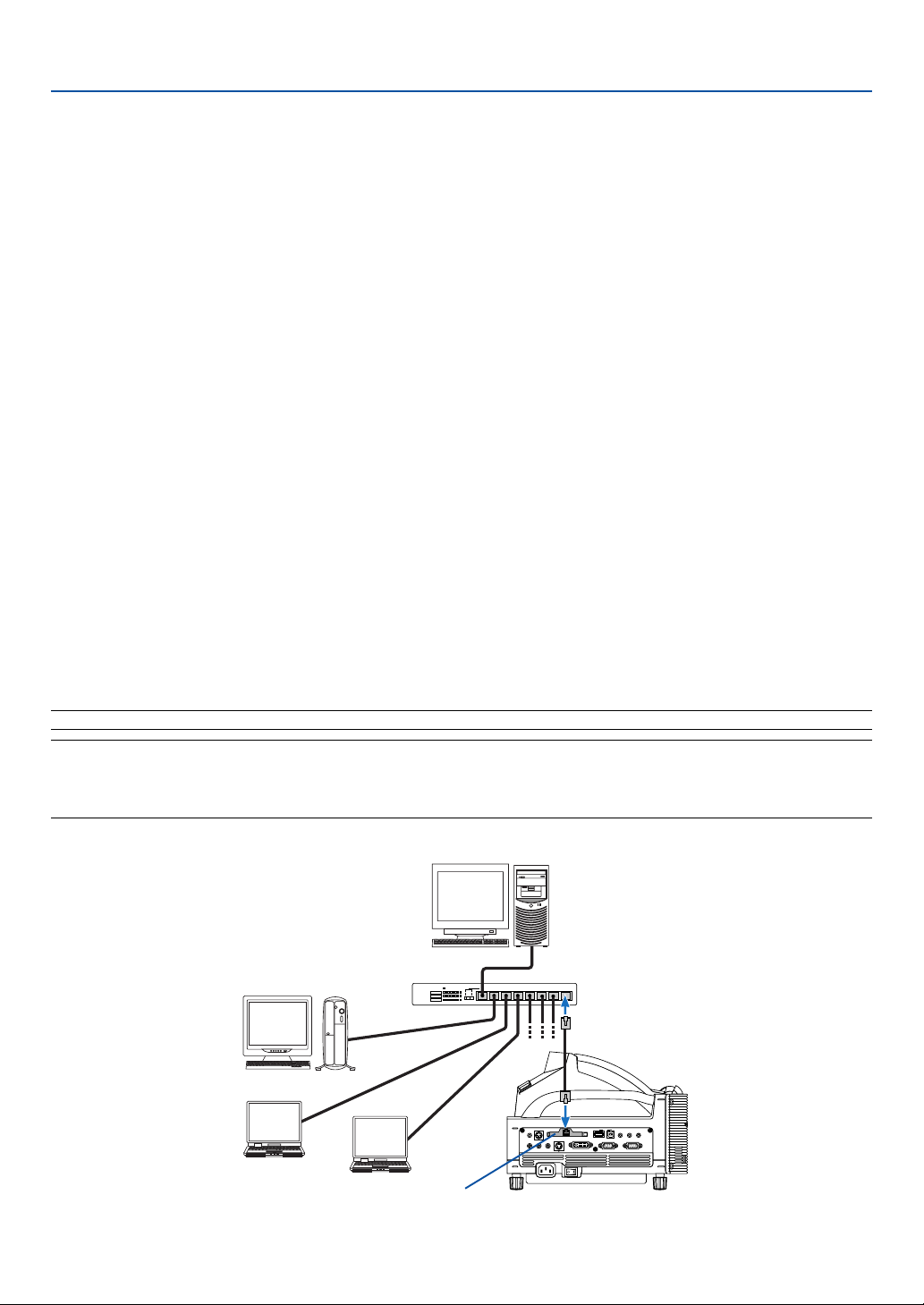

Connecting to a Network....................................................................................... 25

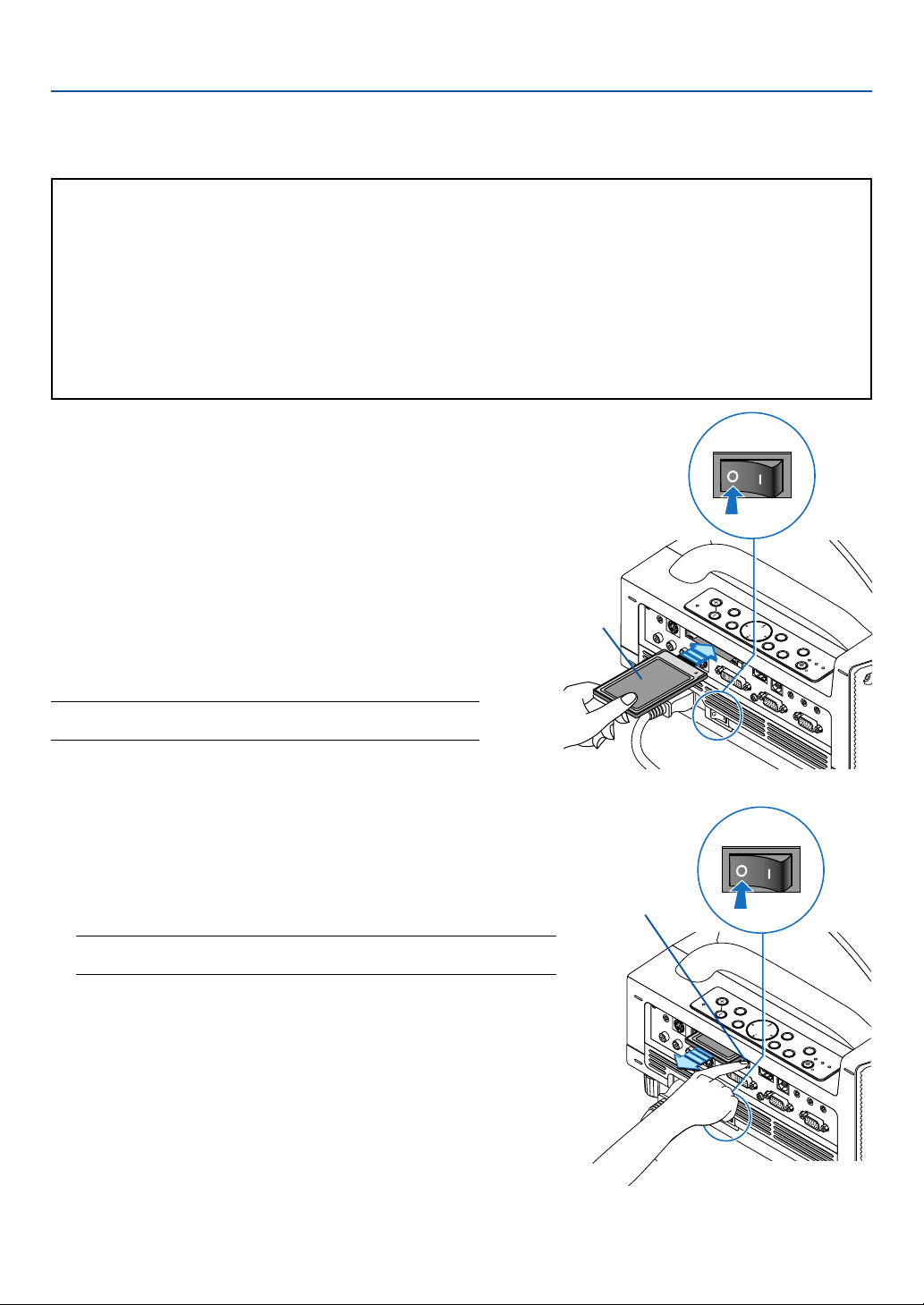

Inserting and Removing a PC Card ...................................................................... 27

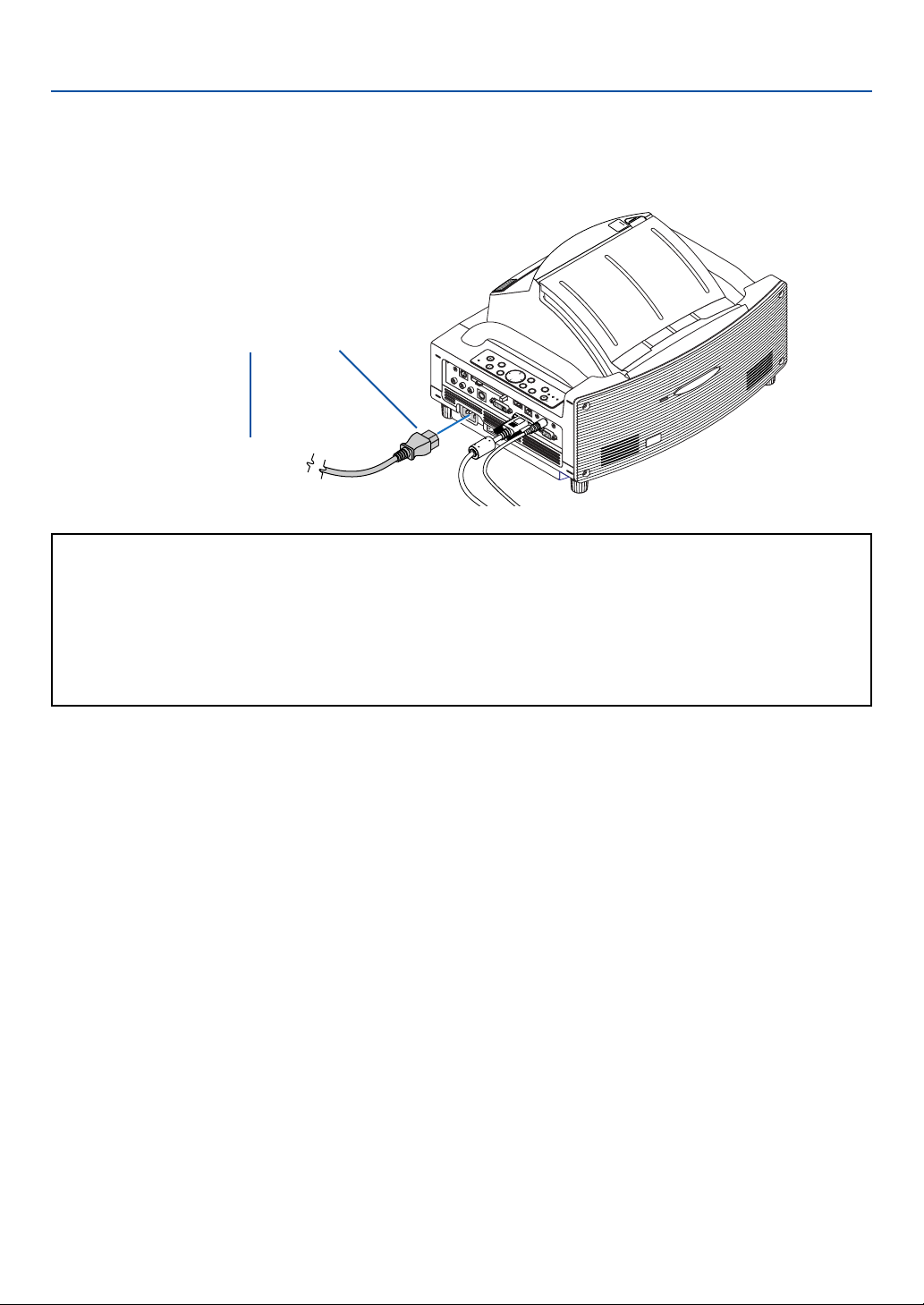

Connecting the Supplied Power Cable ................................................................. 29

3. Projecting an Image (Basic Operation)...................................... 30

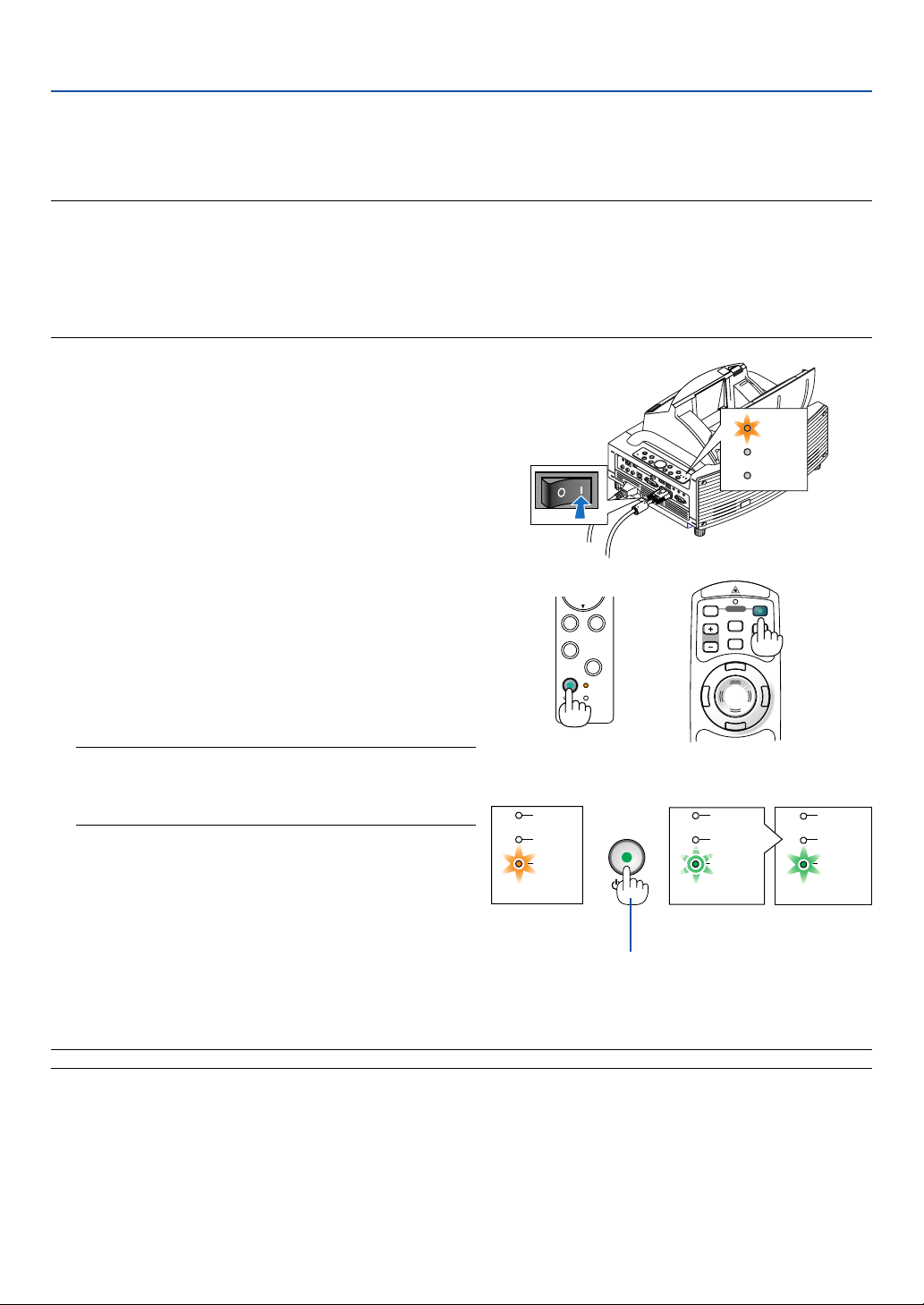

 Tur ning on the Projector ............................................................................................. 31

 Adjusting the Position and Size of the Projected Image (Focus Adjustments) ........... 33

 Selecting a Source ..................................................................................................... 40

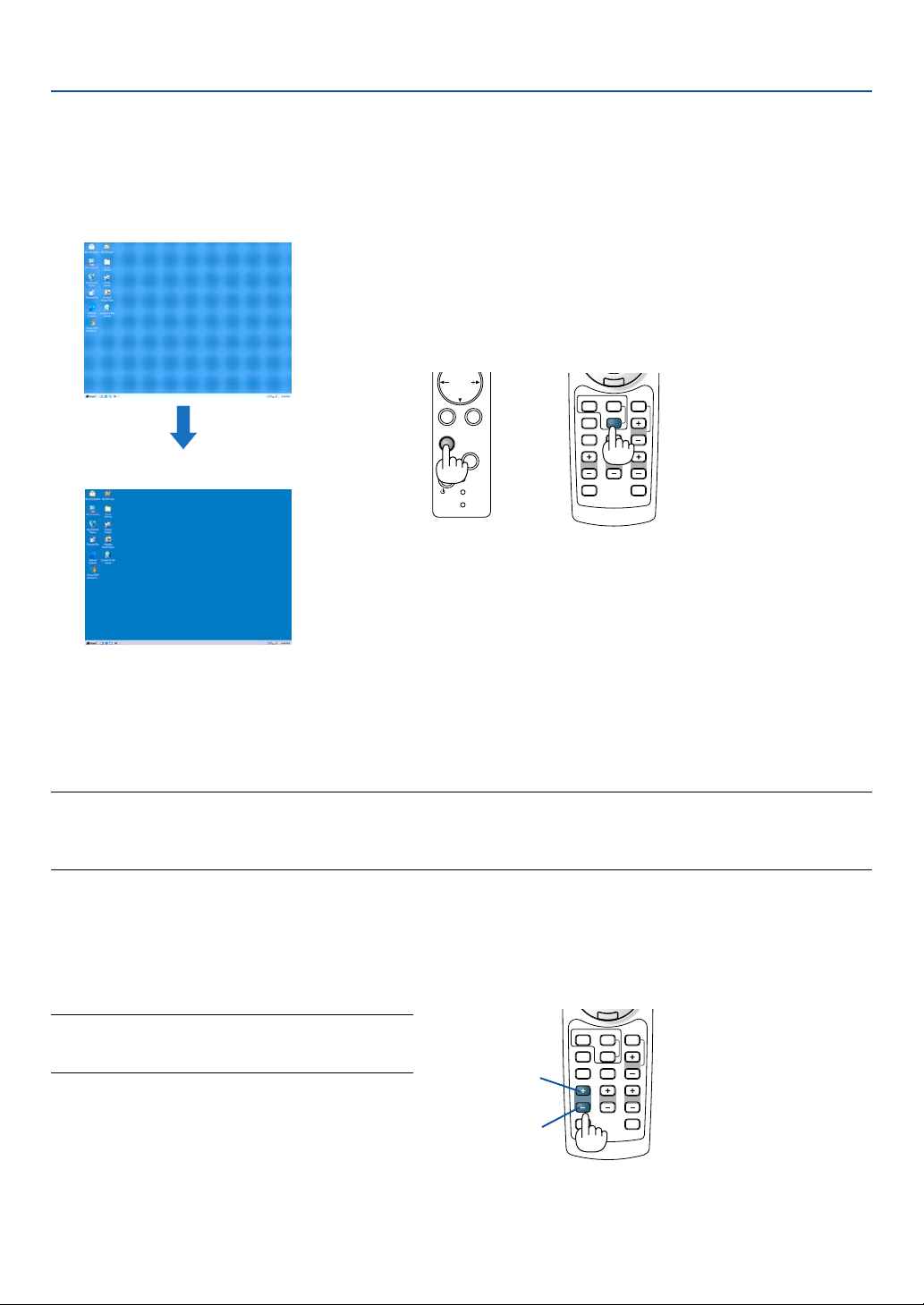

 Optimizing an RGB Image Automatically ................................................................... 41

 Tur ning Up or Down Volume ....................................................................................... 41

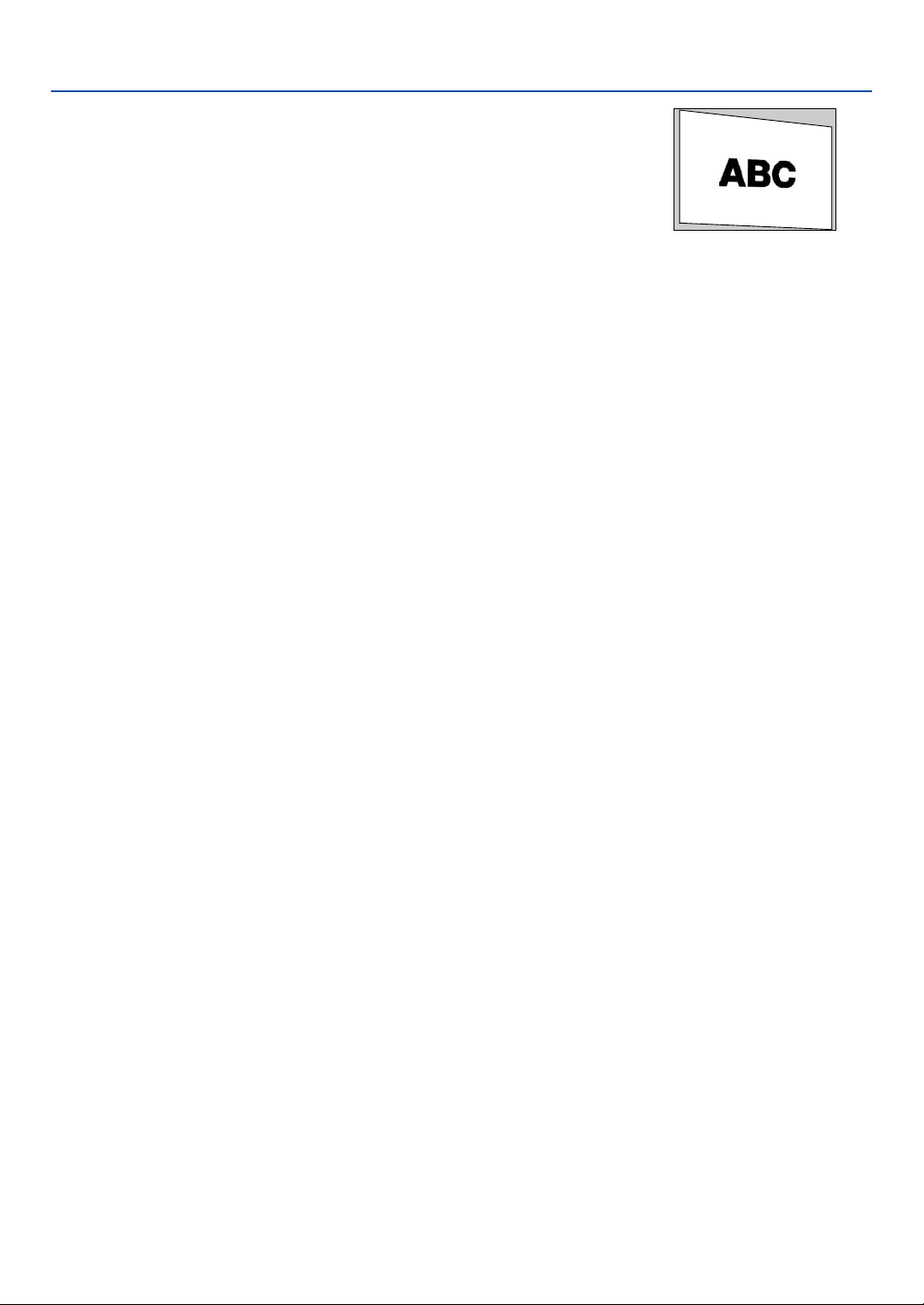

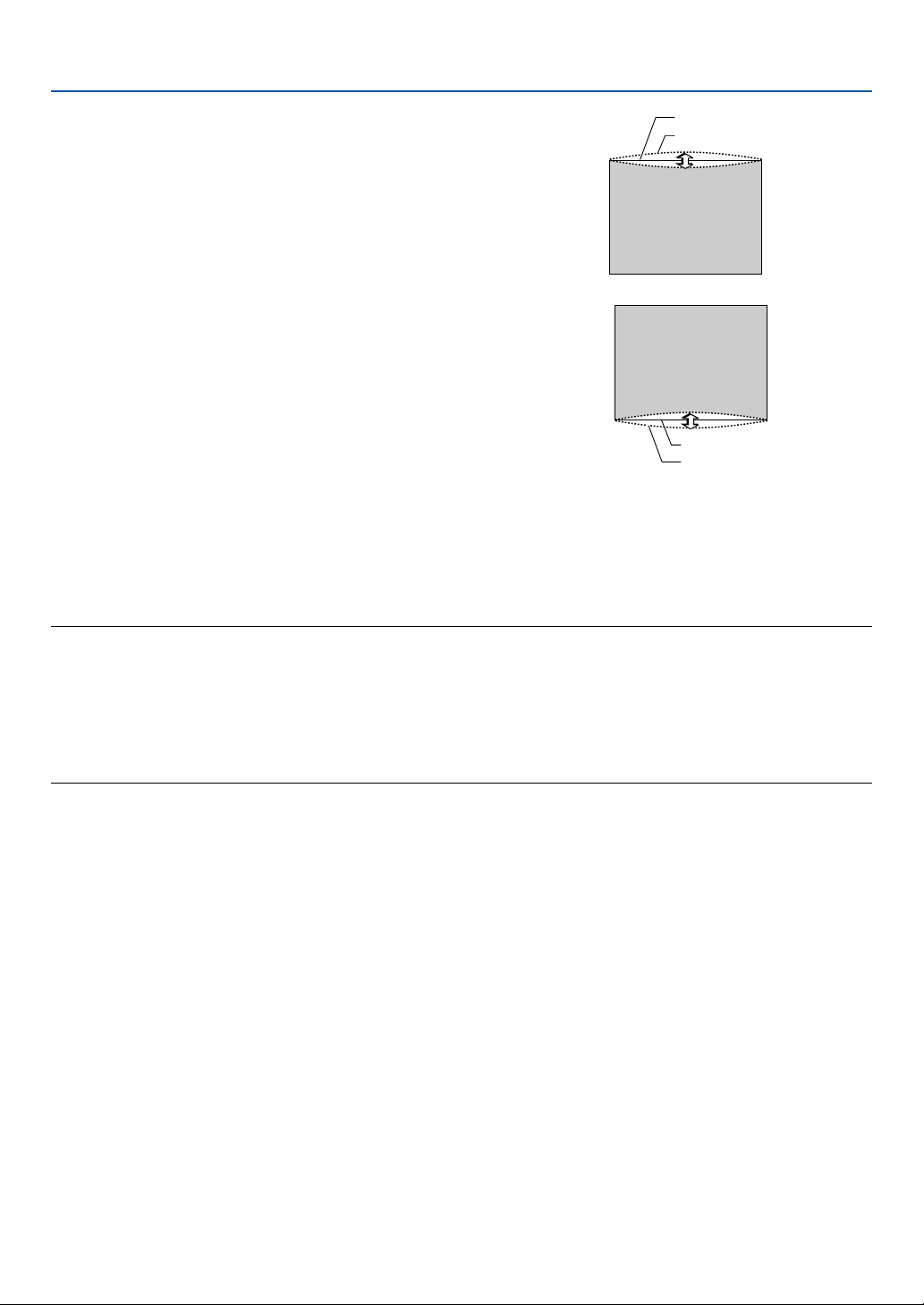

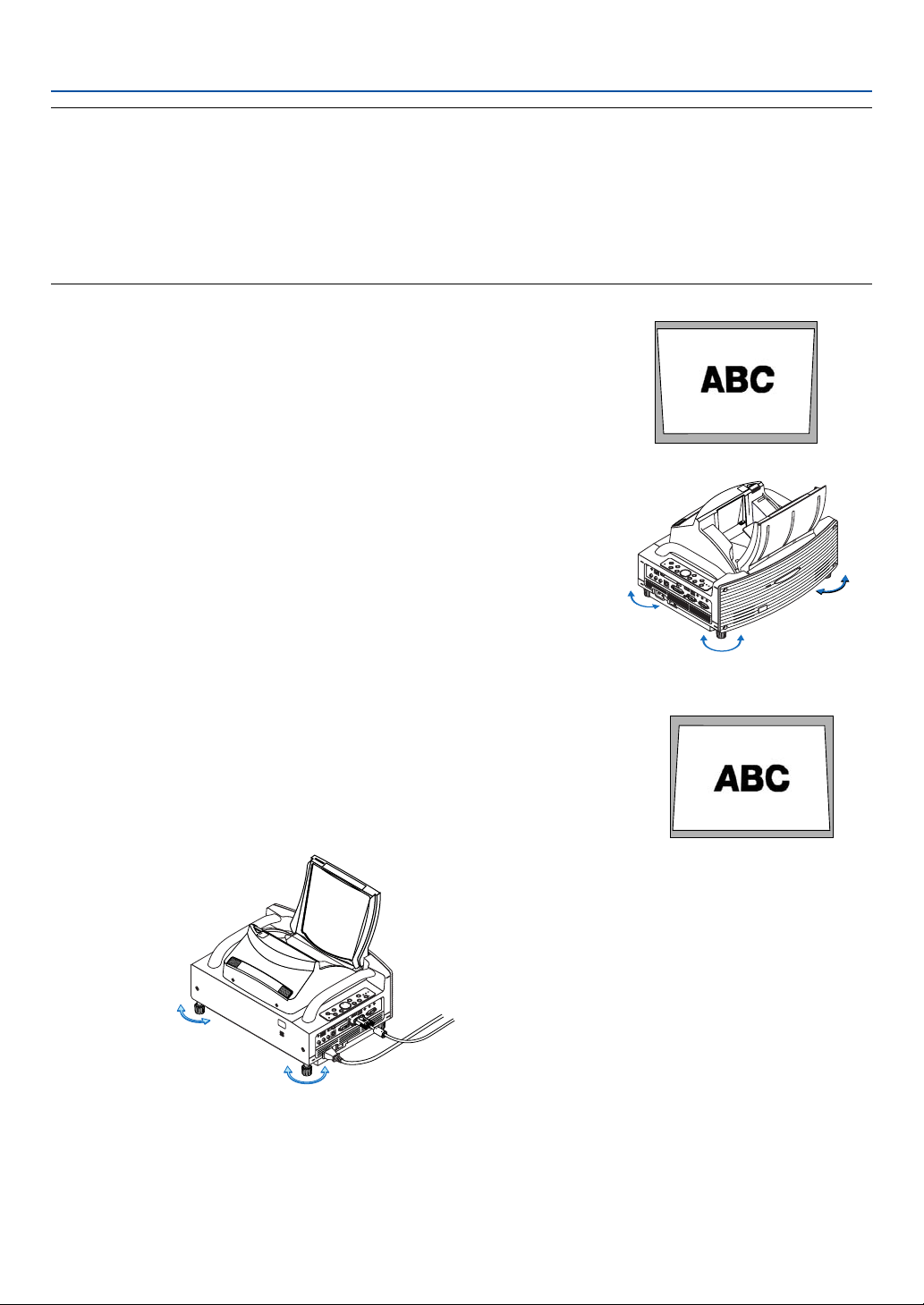

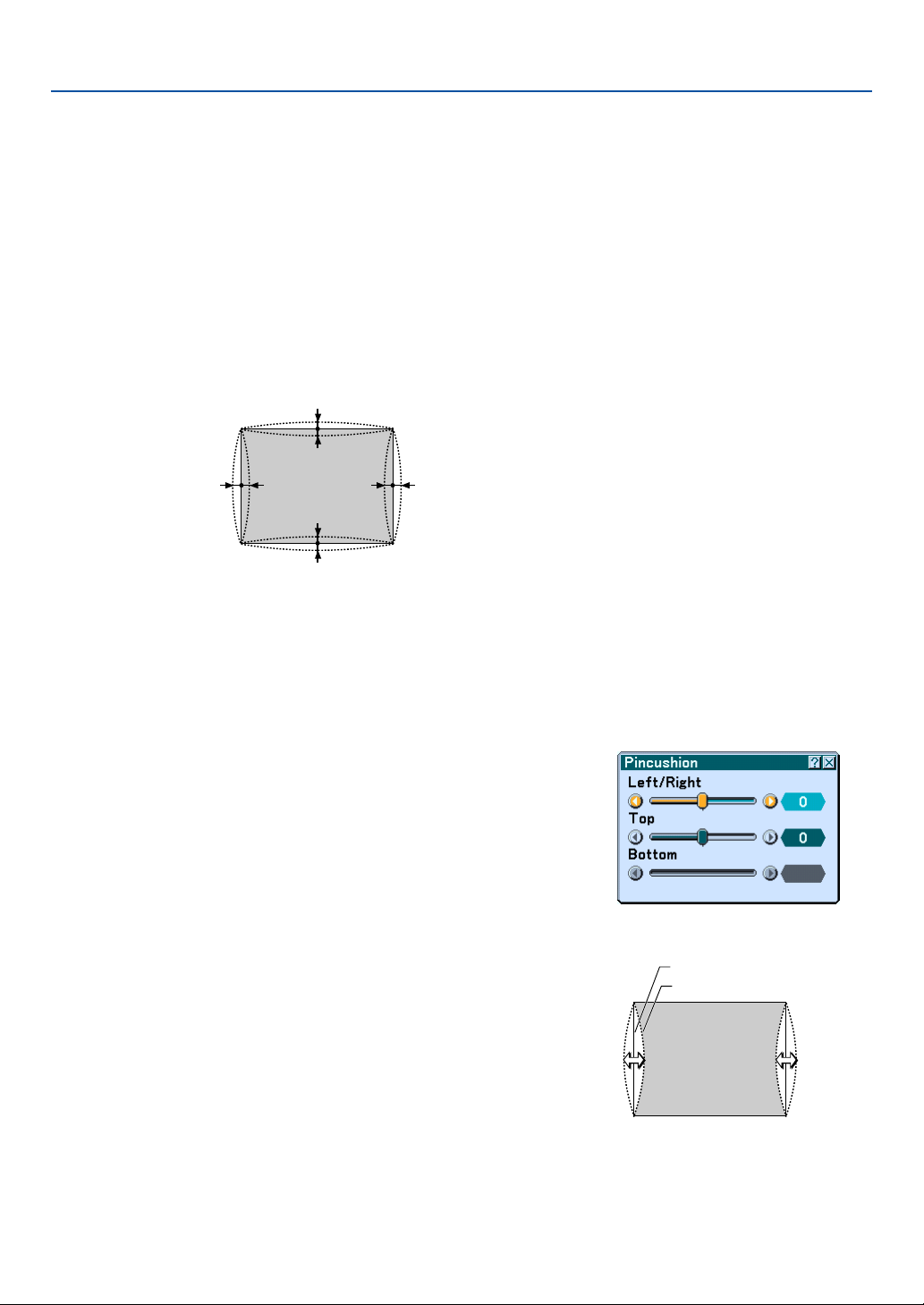

 Adjusting Pincushion or Barrel Distortion (Pincushion) .............................................. 42

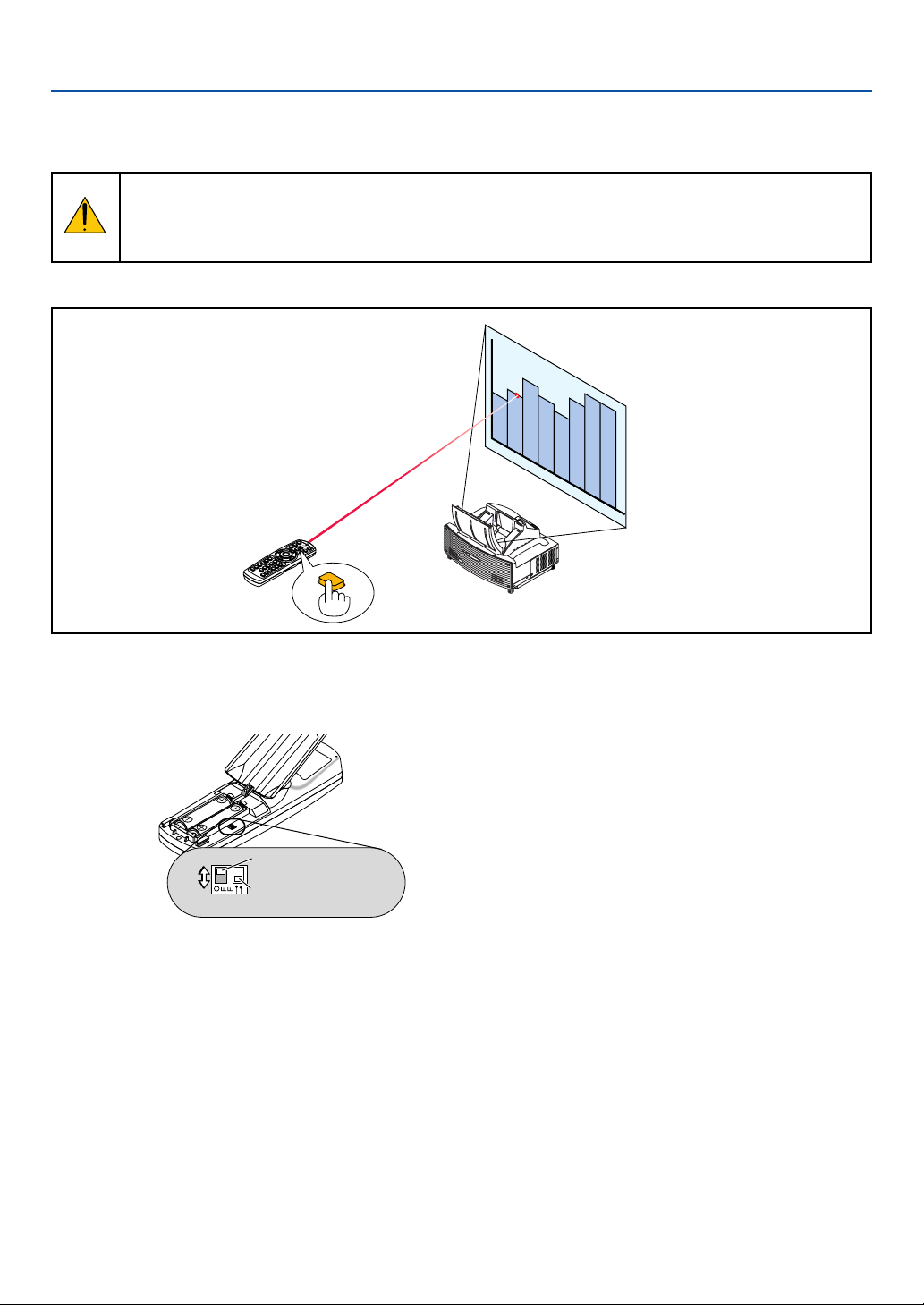

 Using the Laser Pointer .............................................................................................. 44

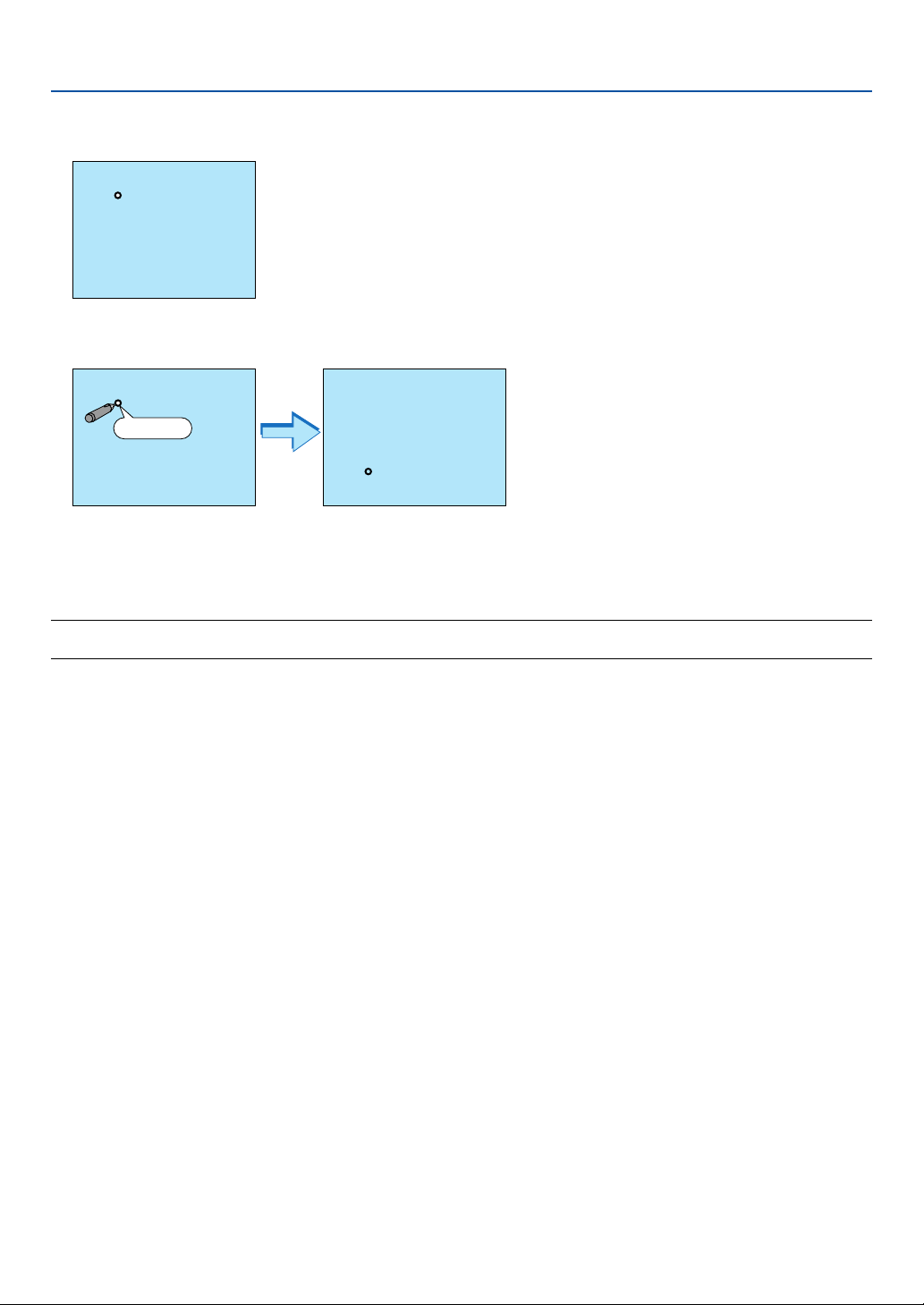

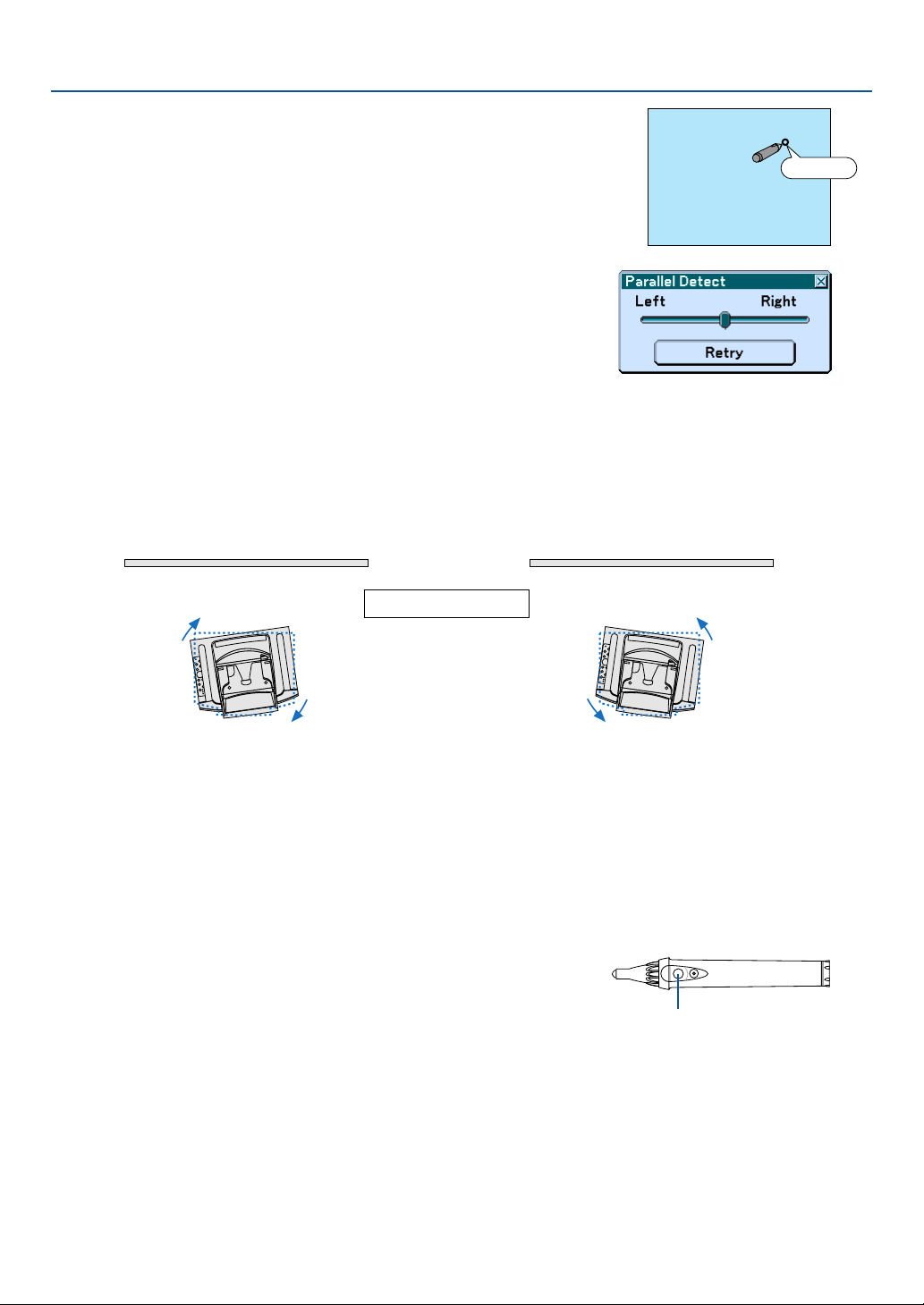

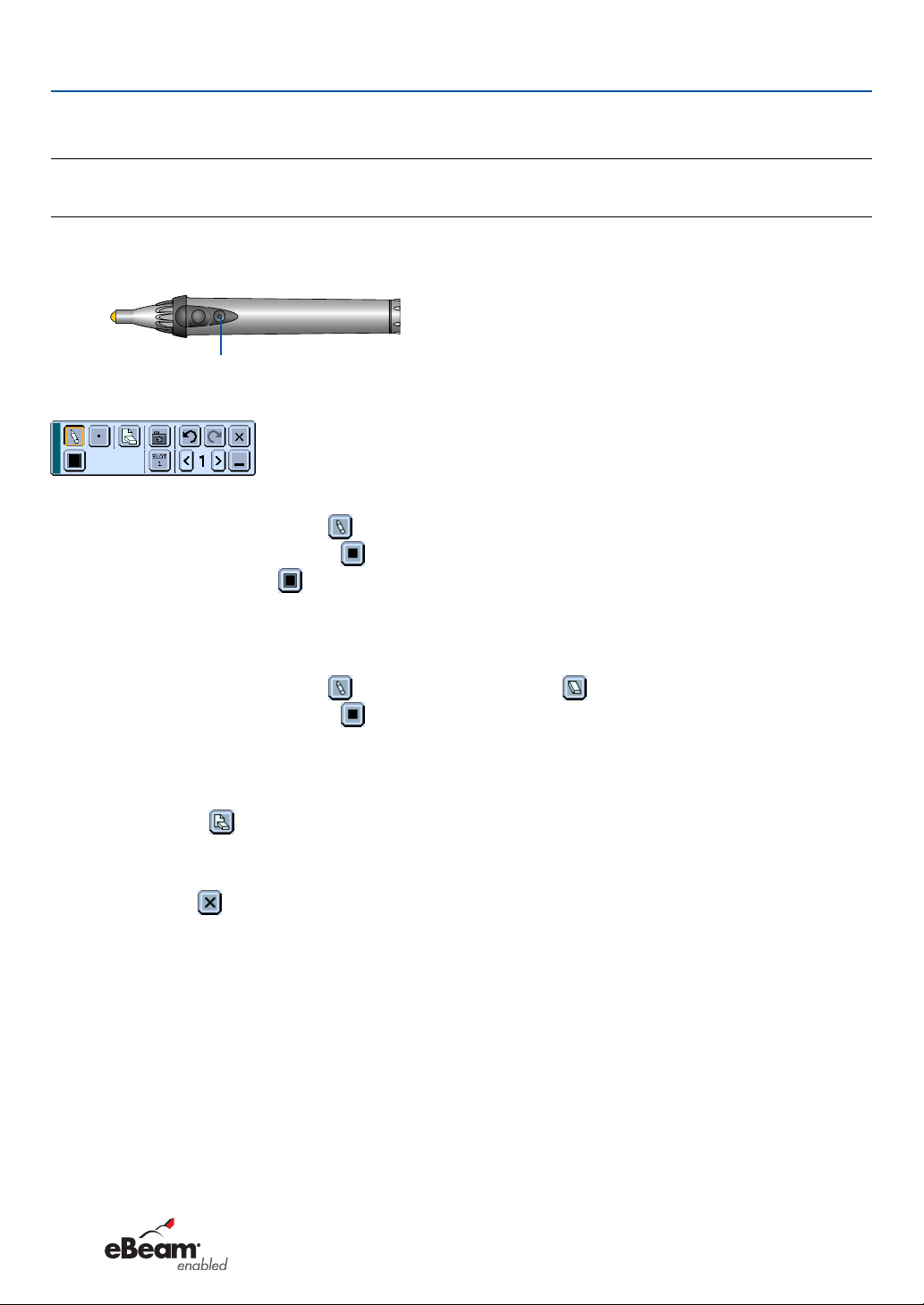

쐊 Using the Electronic Pen (WT615 only)...................................................................... 45

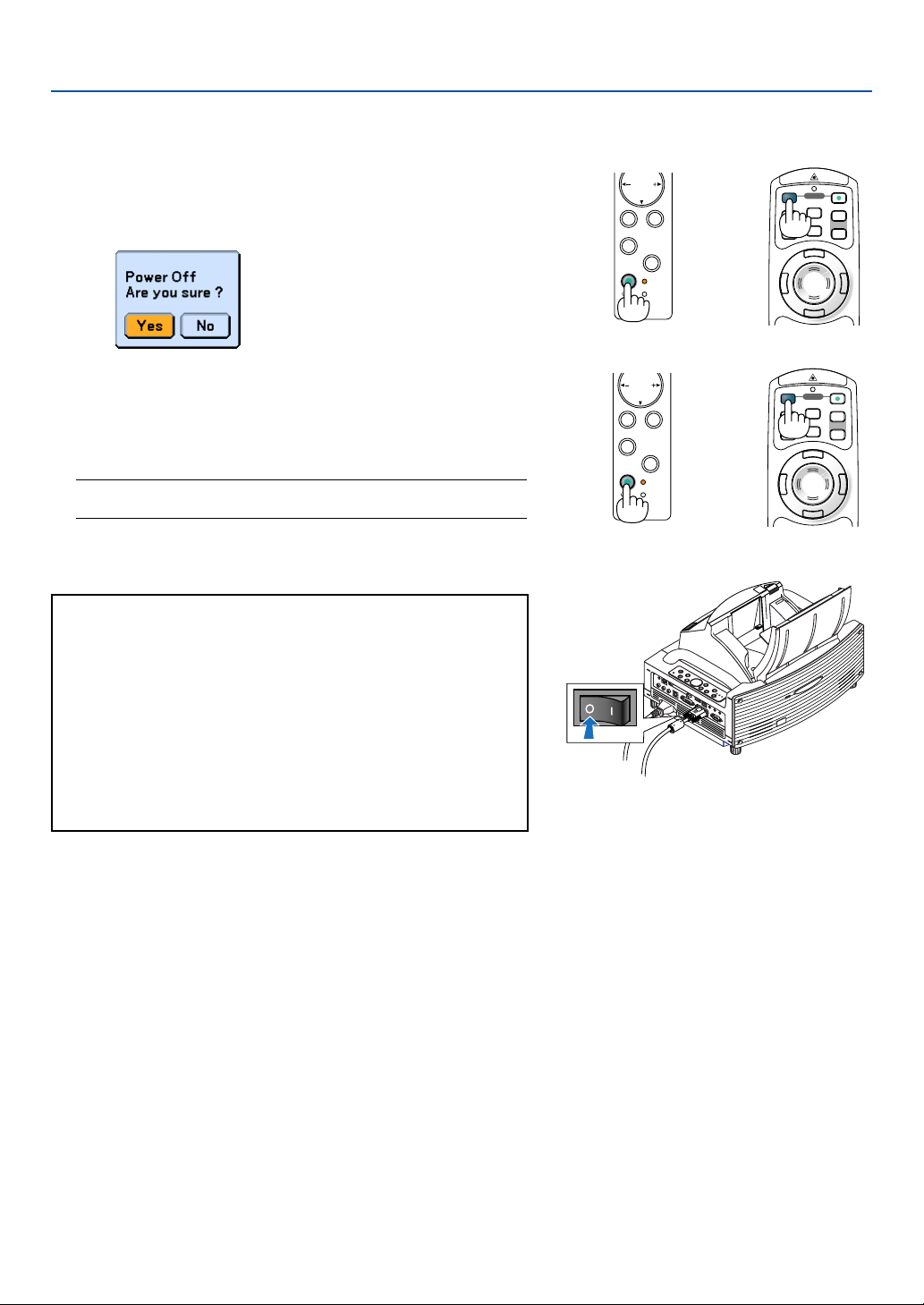

쐎 Tur ning off the Projector ............................................................................................. 48

쐅 After Use..................................................................................................................... 49

v

Table of Contents

4. Convenient Features ...................................................................... 50

 Tur ning Off the Image and Sound............................................................................... 51

 Freezing a Picture....................................................................................................... 51

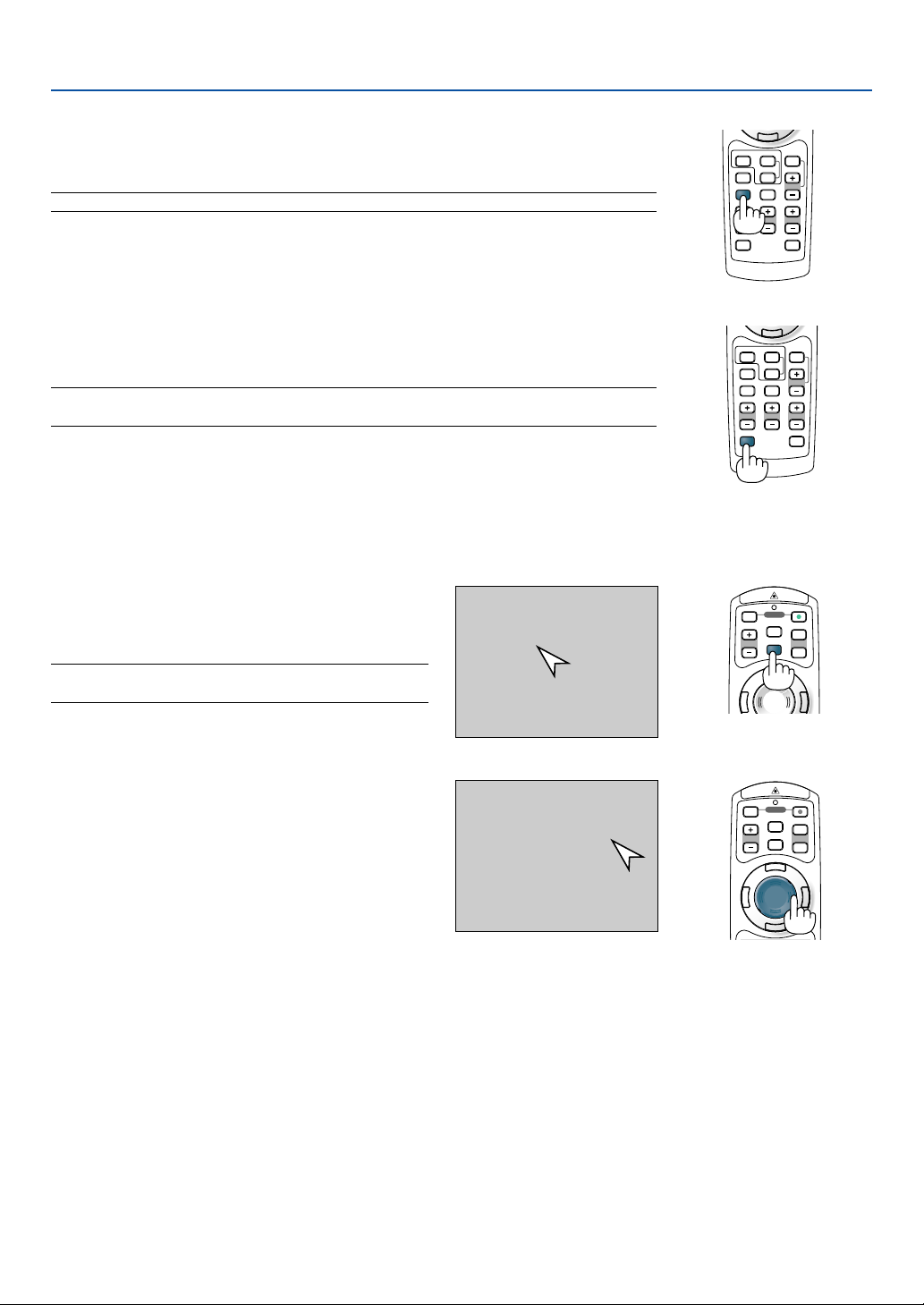

 Using the Pointer ........................................................................................................ 51

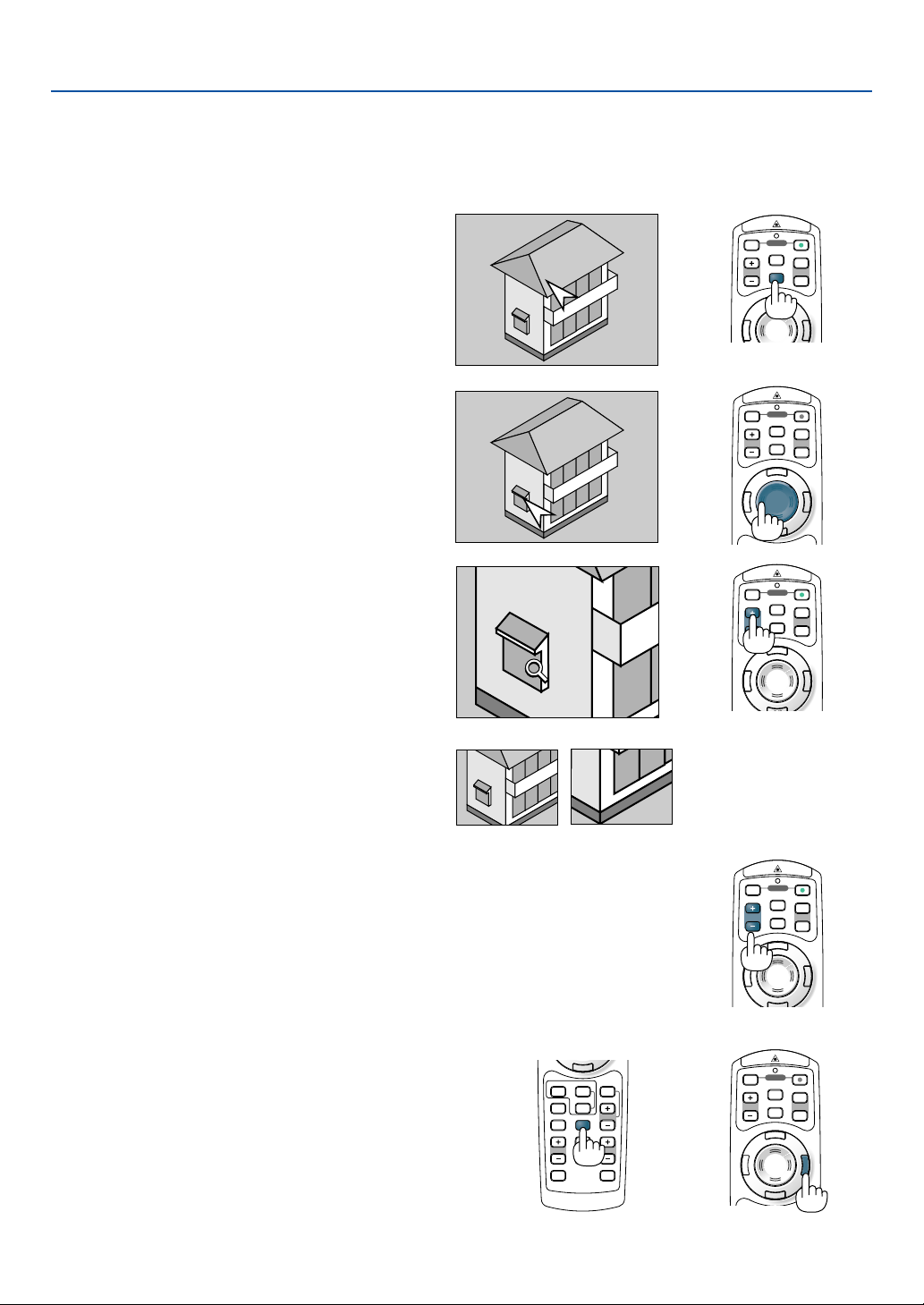

 Enlarging and Moving a Picture.................................................................................. 52

 Getting Integrated Help .............................................................................................. 52

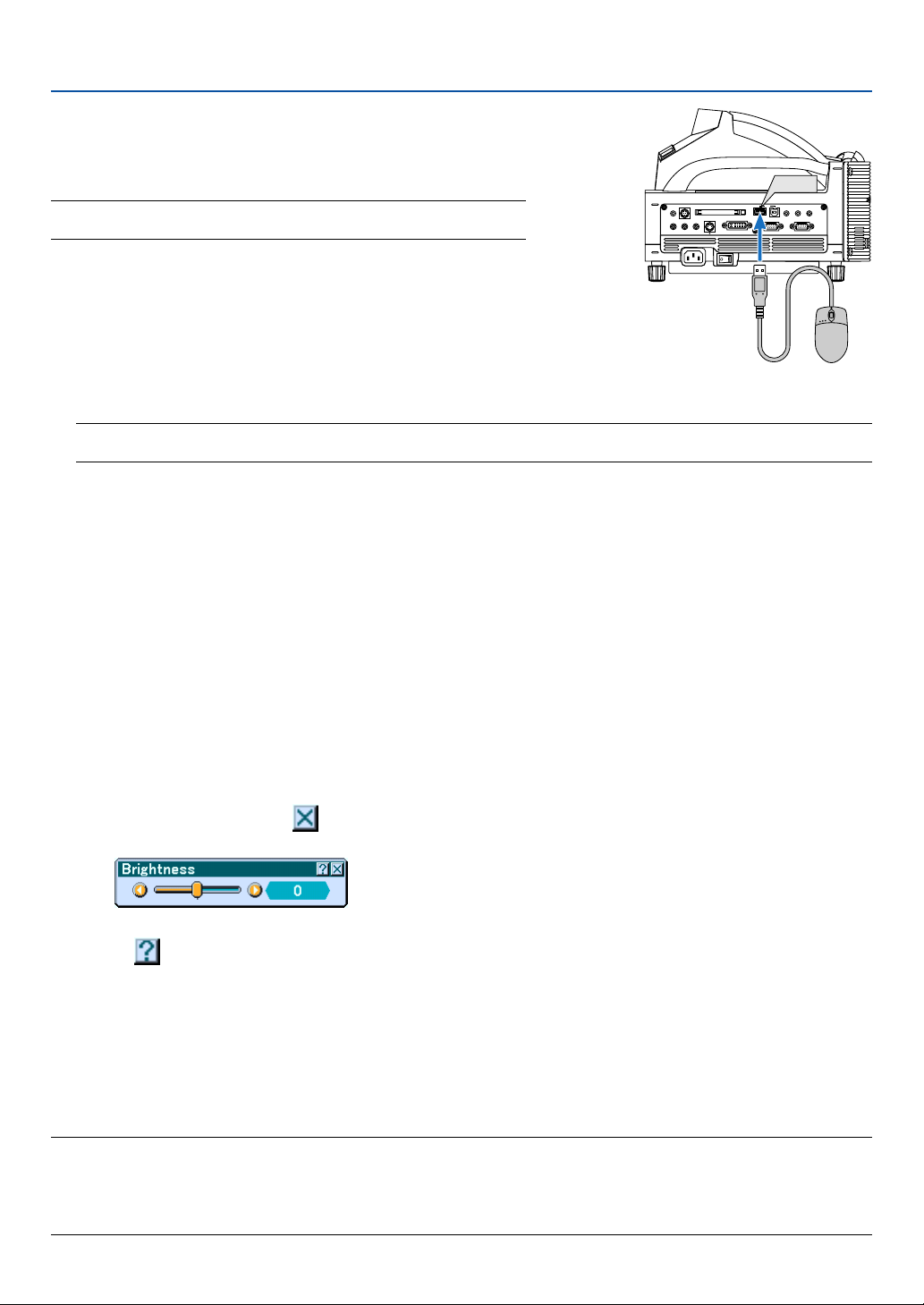

 Using a USB Mouse ................................................................................................... 53

 Using the Remote Mouse Function ............................................................................ 54

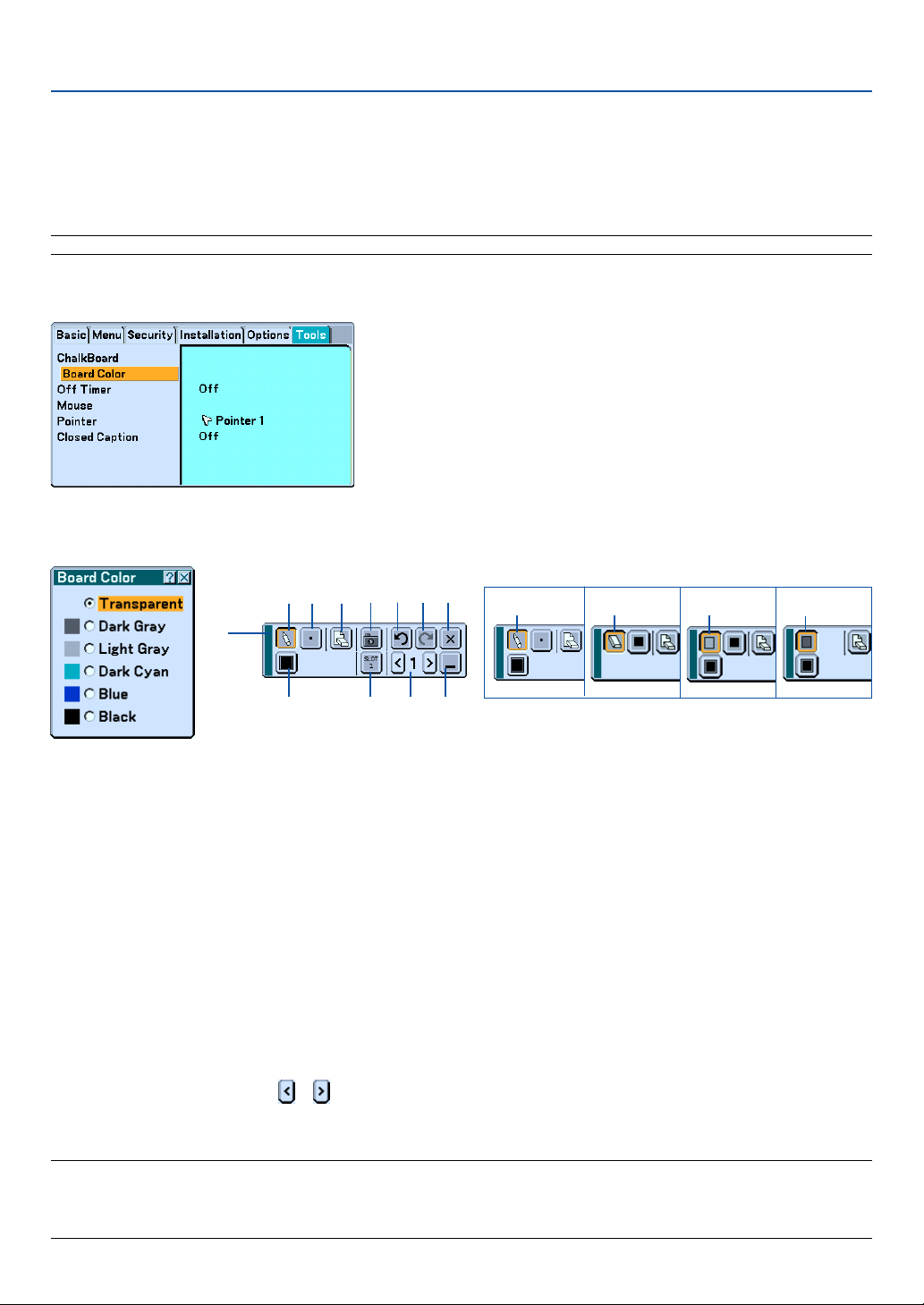

 Making Freehand Drawings on a Projected Image (ChalkBoard) .............................. 55

쐎

Storing Images Displayed on the Projector on the PC card or USB memory (Capture)

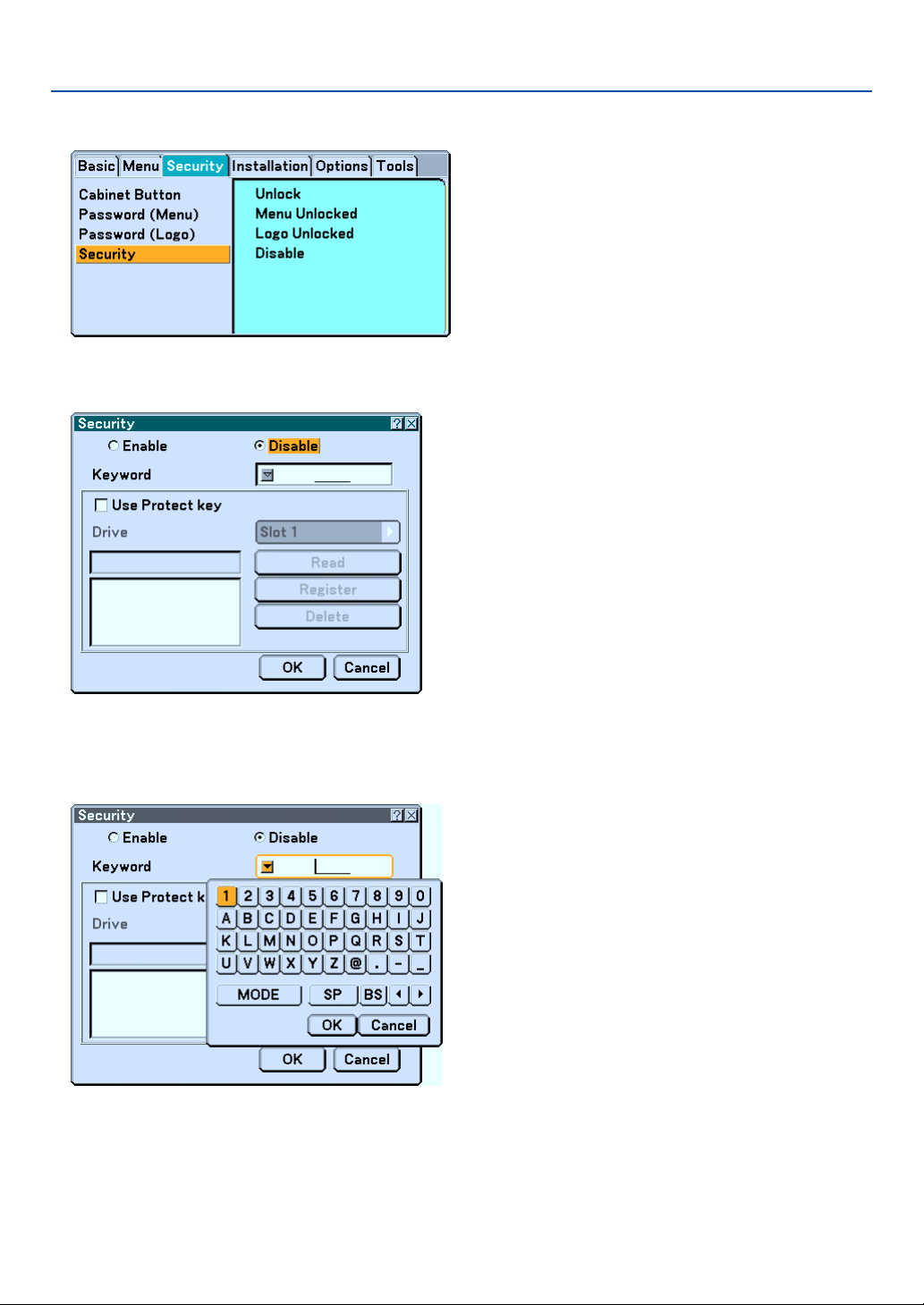

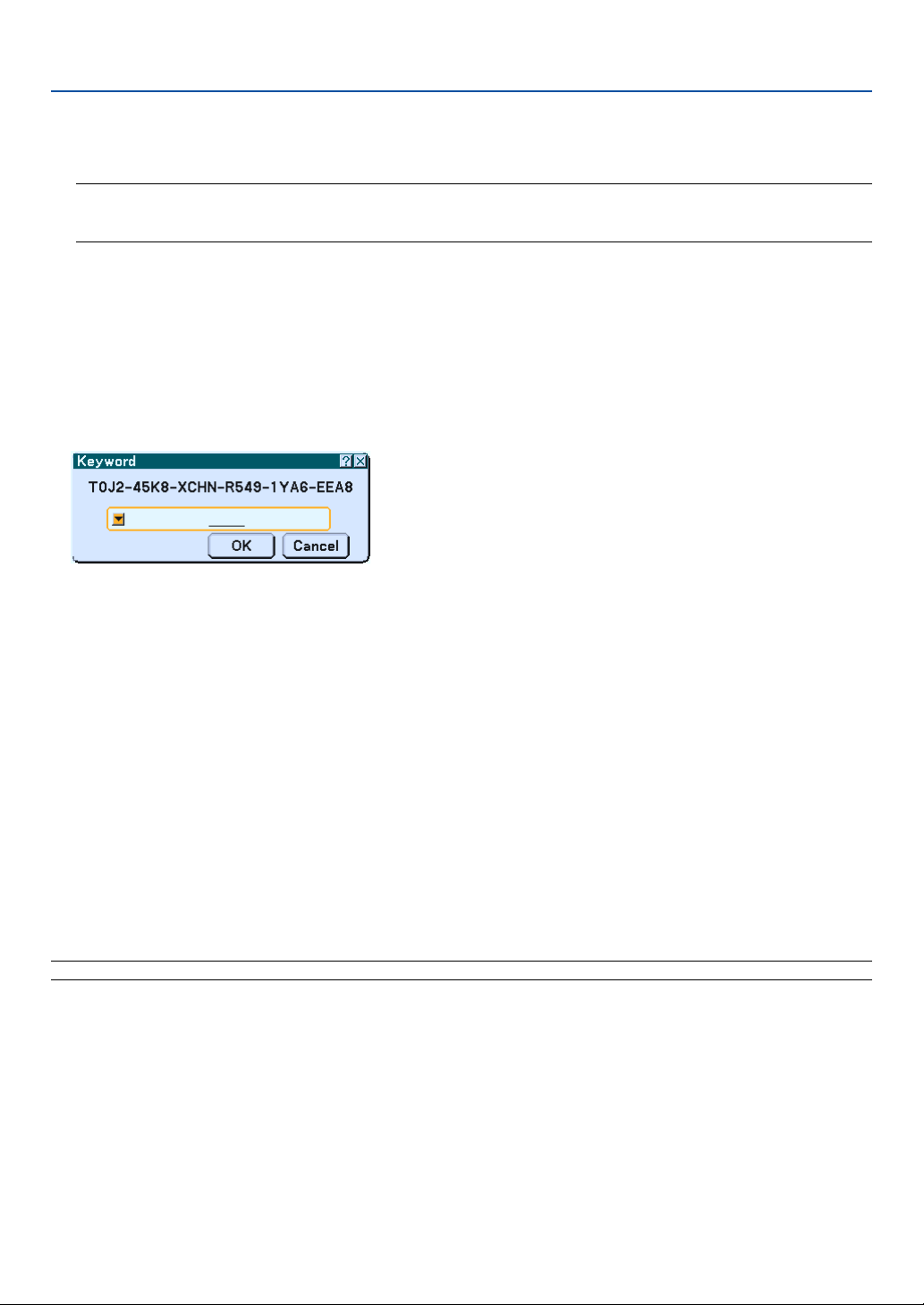

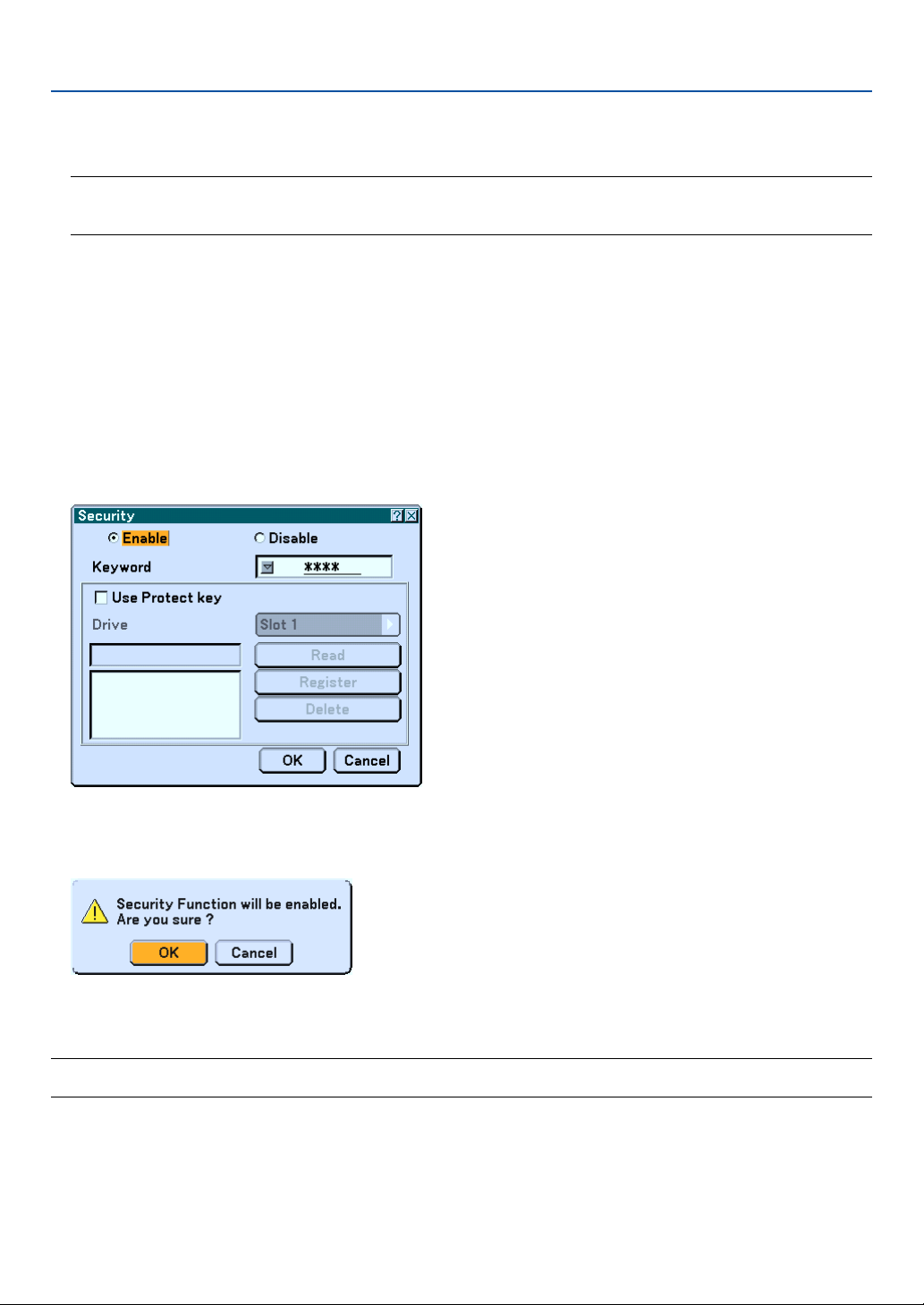

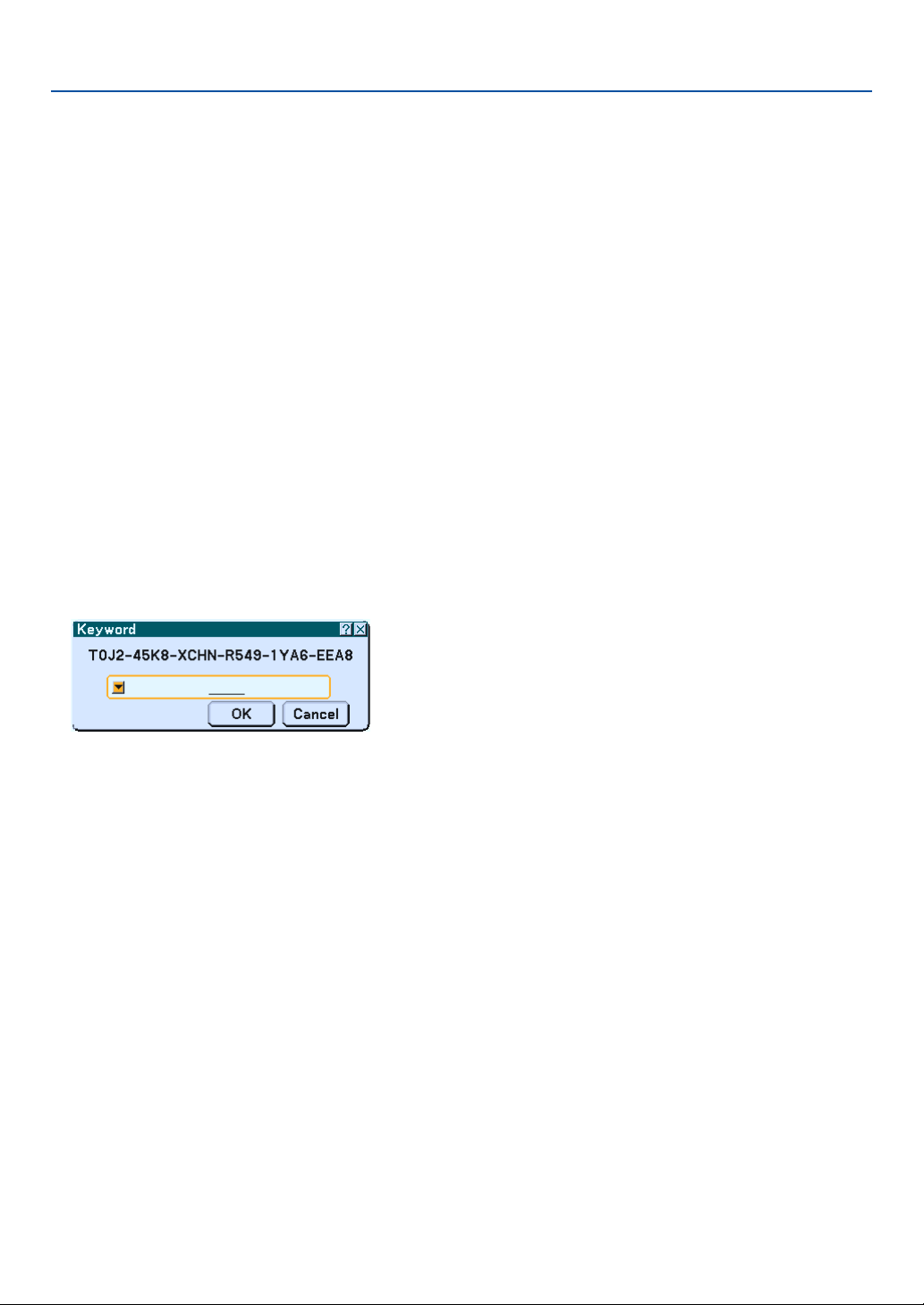

쐅 Preventing Unauthorized Use of the Projector ........................................................... 57

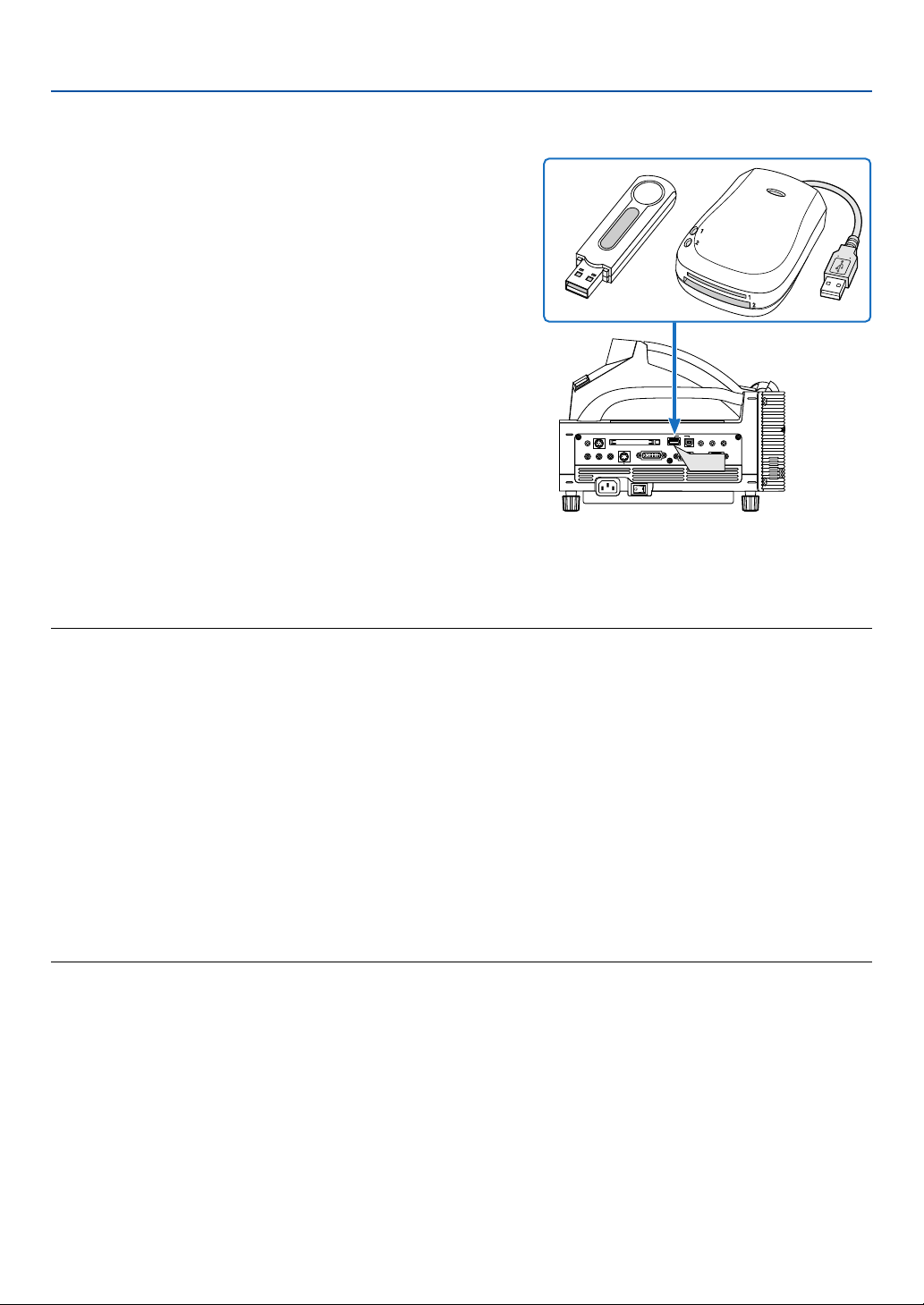

쐈 Using a USB Memory Device or USB Memory Card Reader ..................................... 62

쐉 Operation Using an HTTP Browser ............................................................................ 63

씈

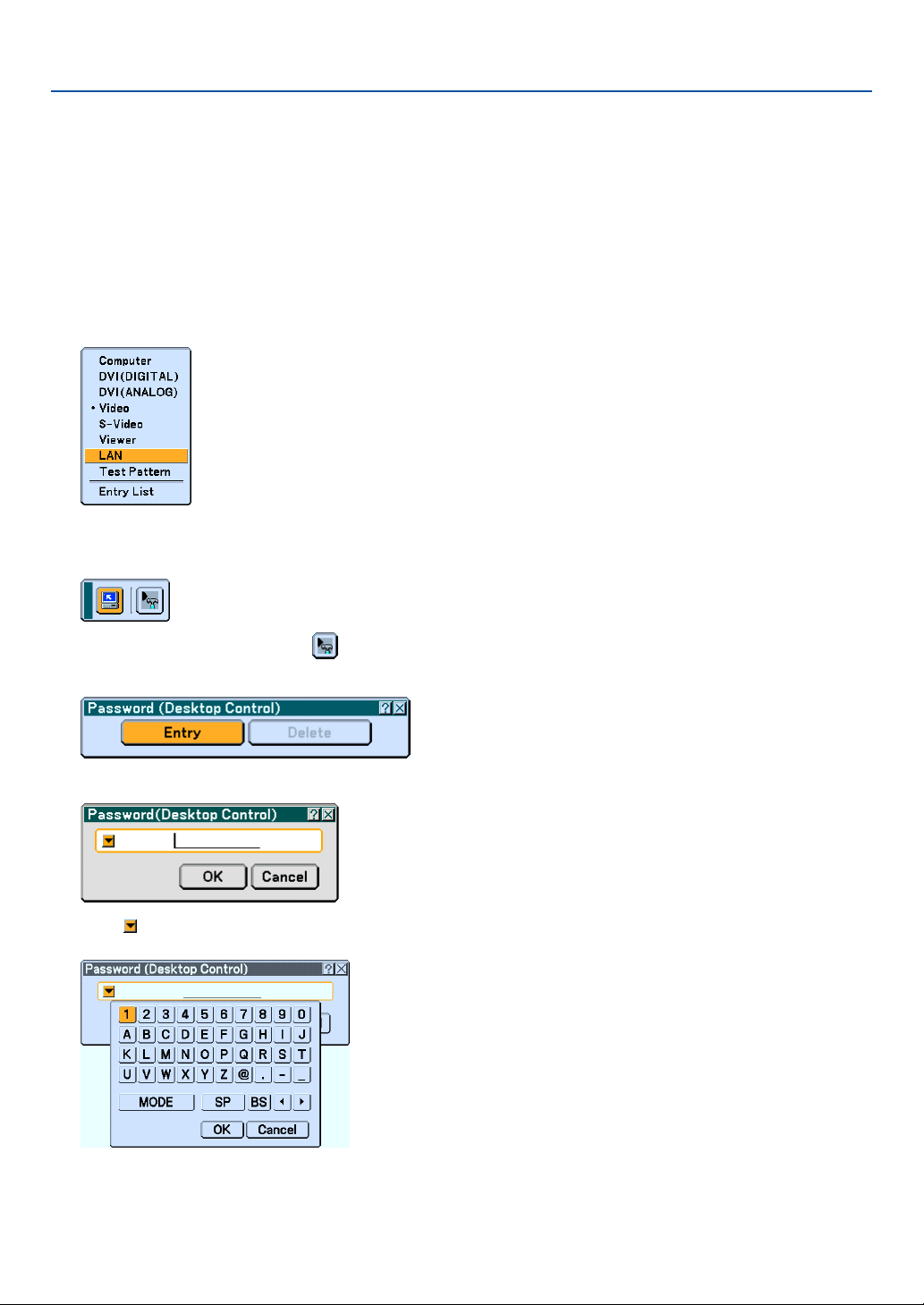

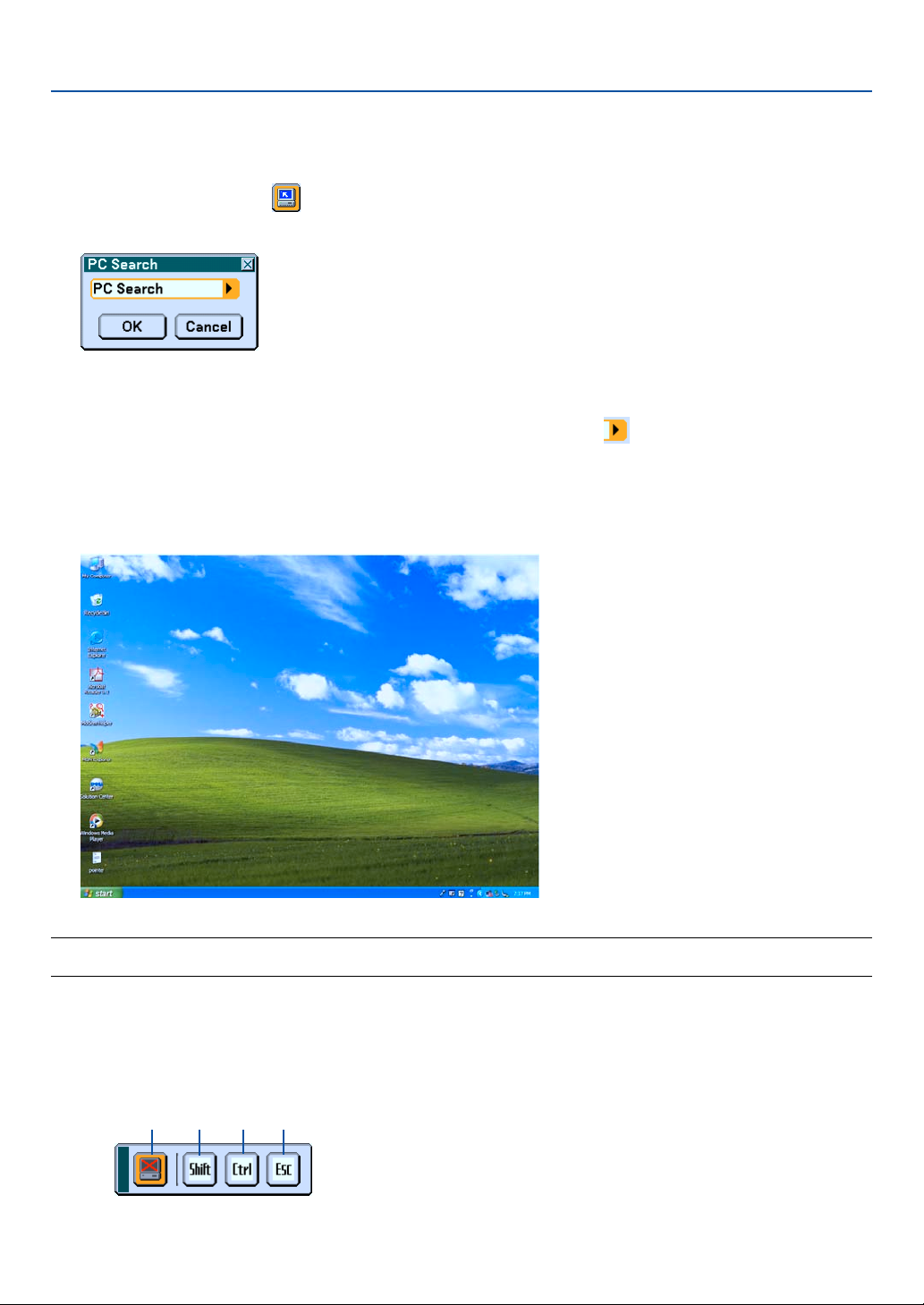

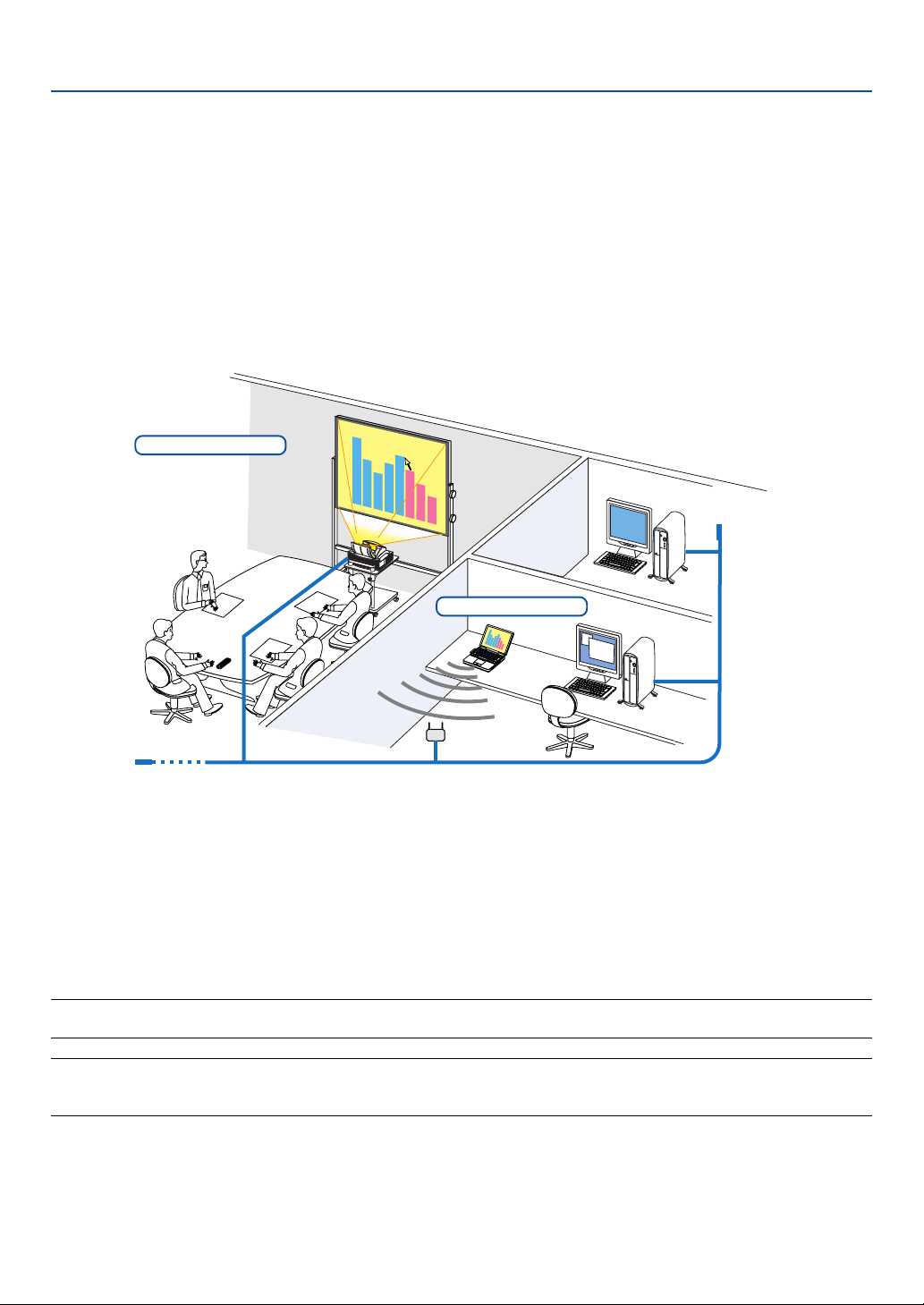

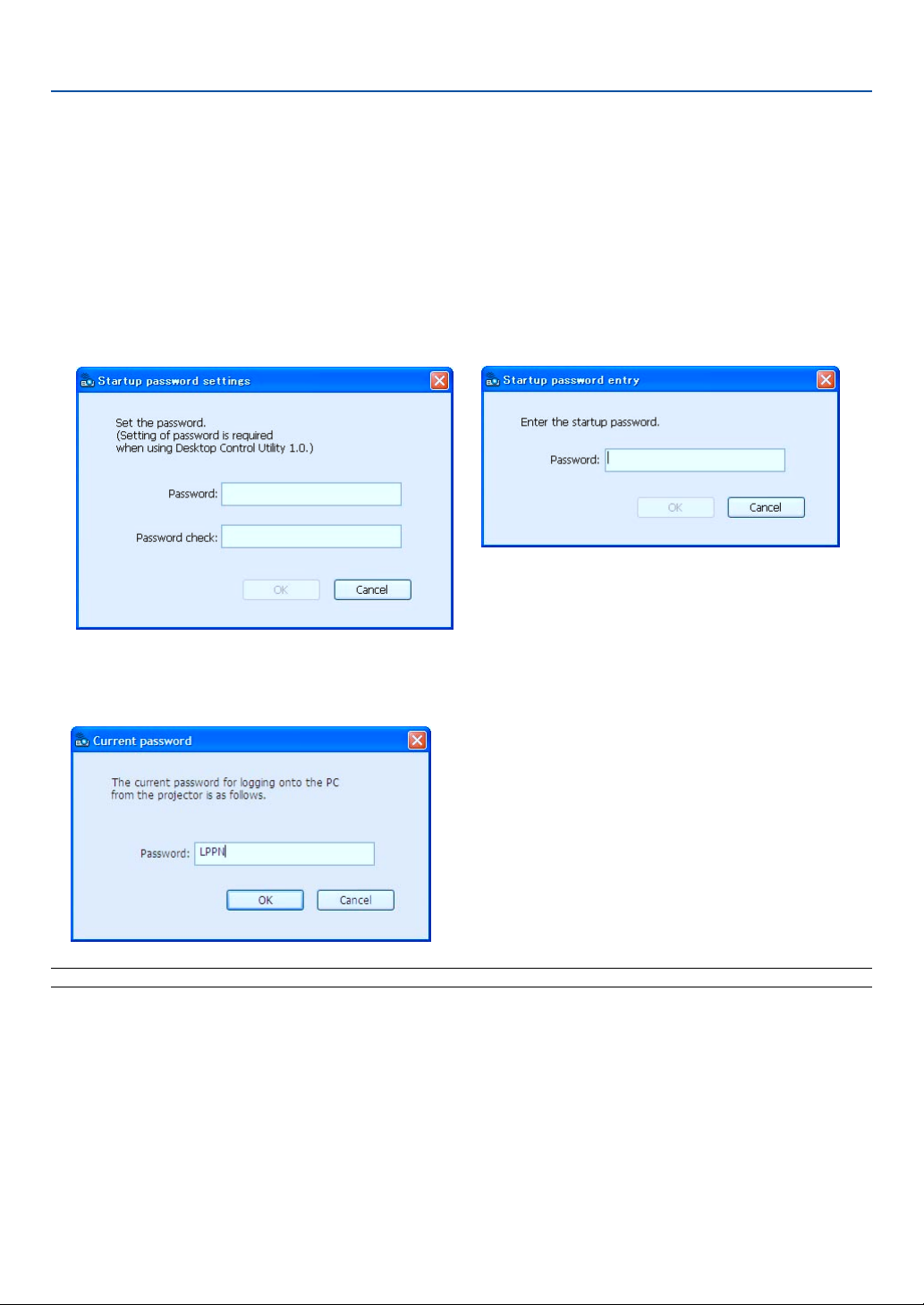

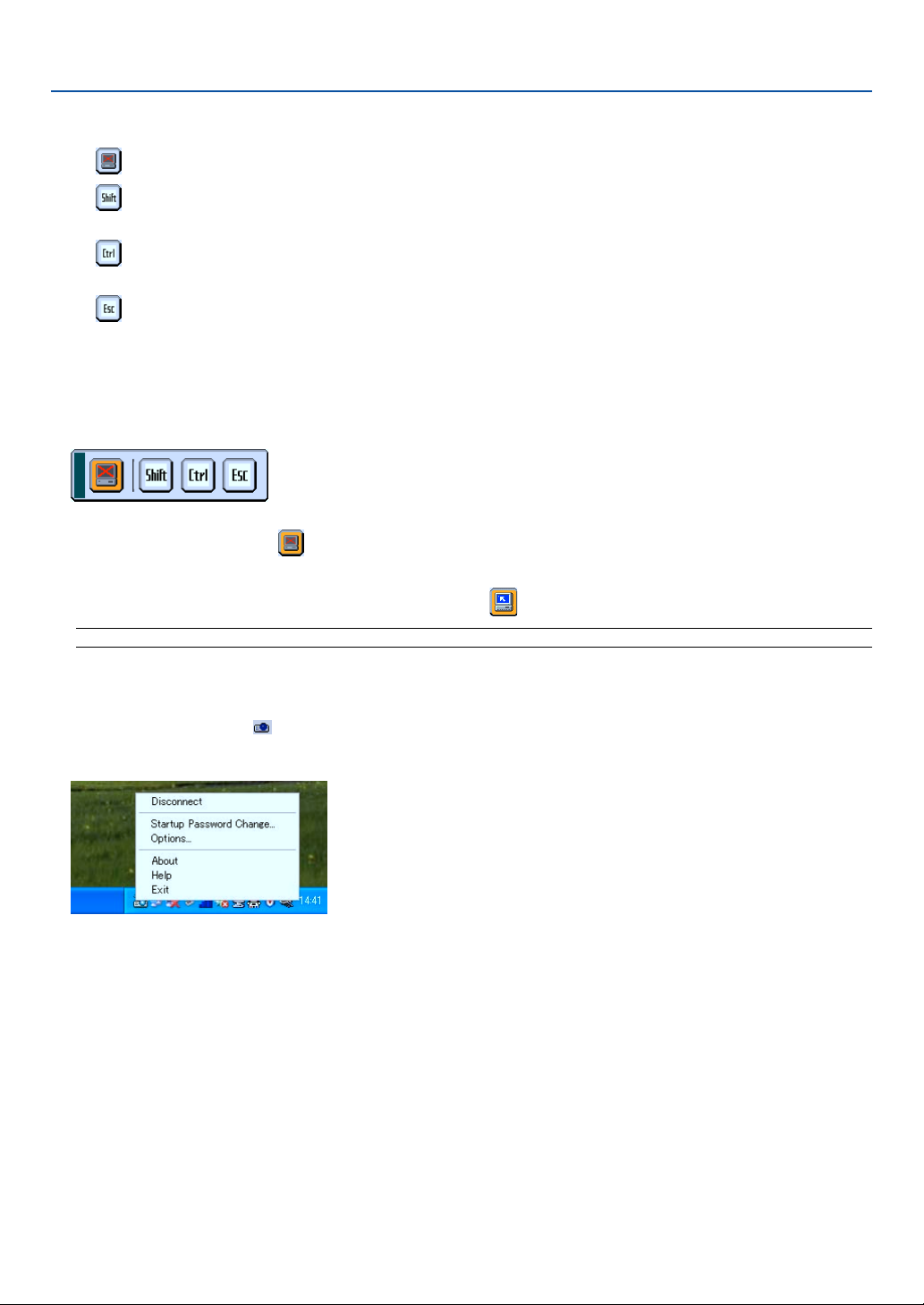

Using the Projector to Operate a Computer Connected on a Network (Desktop Control Utility 1.0)

.......... 56

........ 66

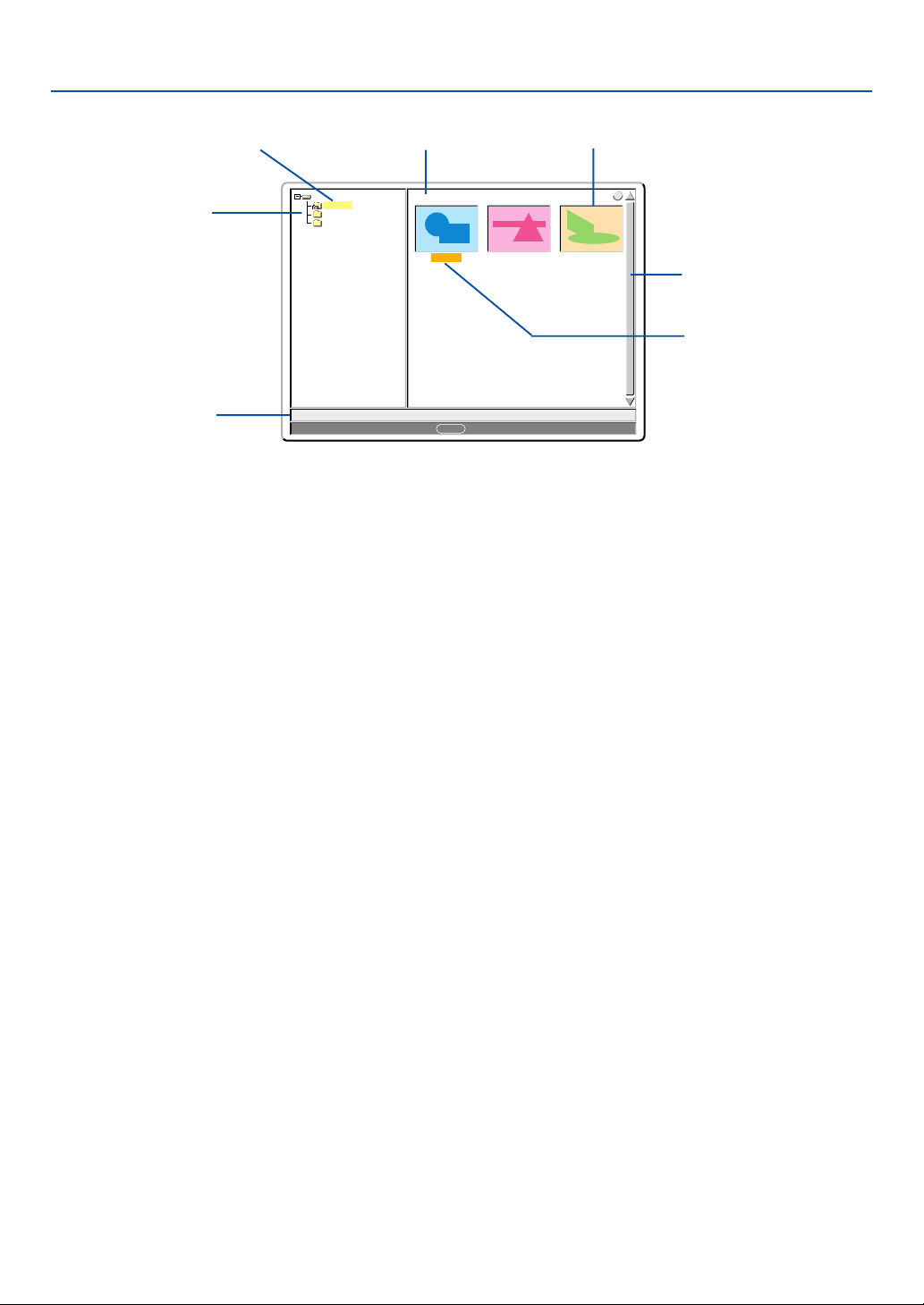

5. Using the Viewer ............................................................................. 71

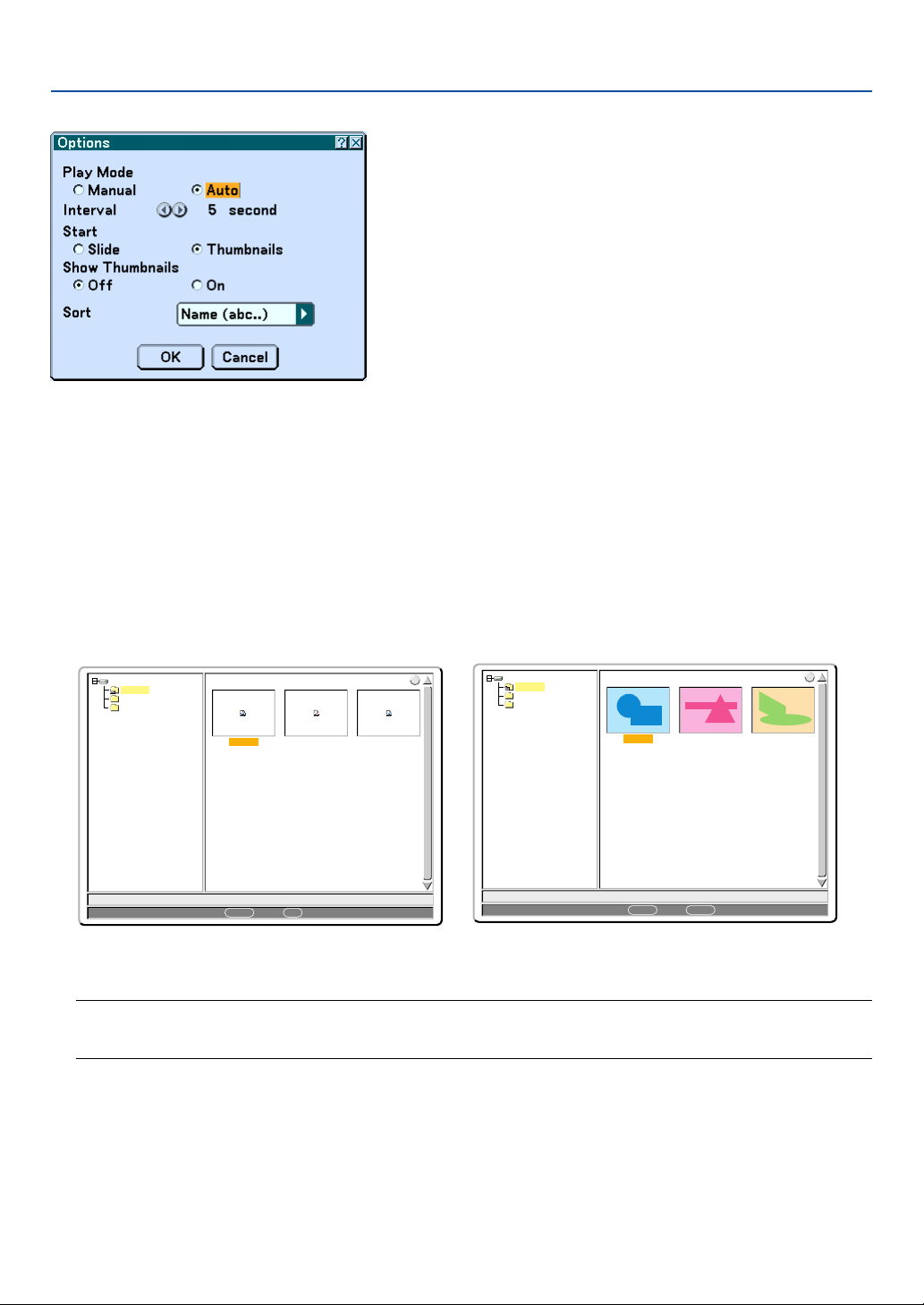

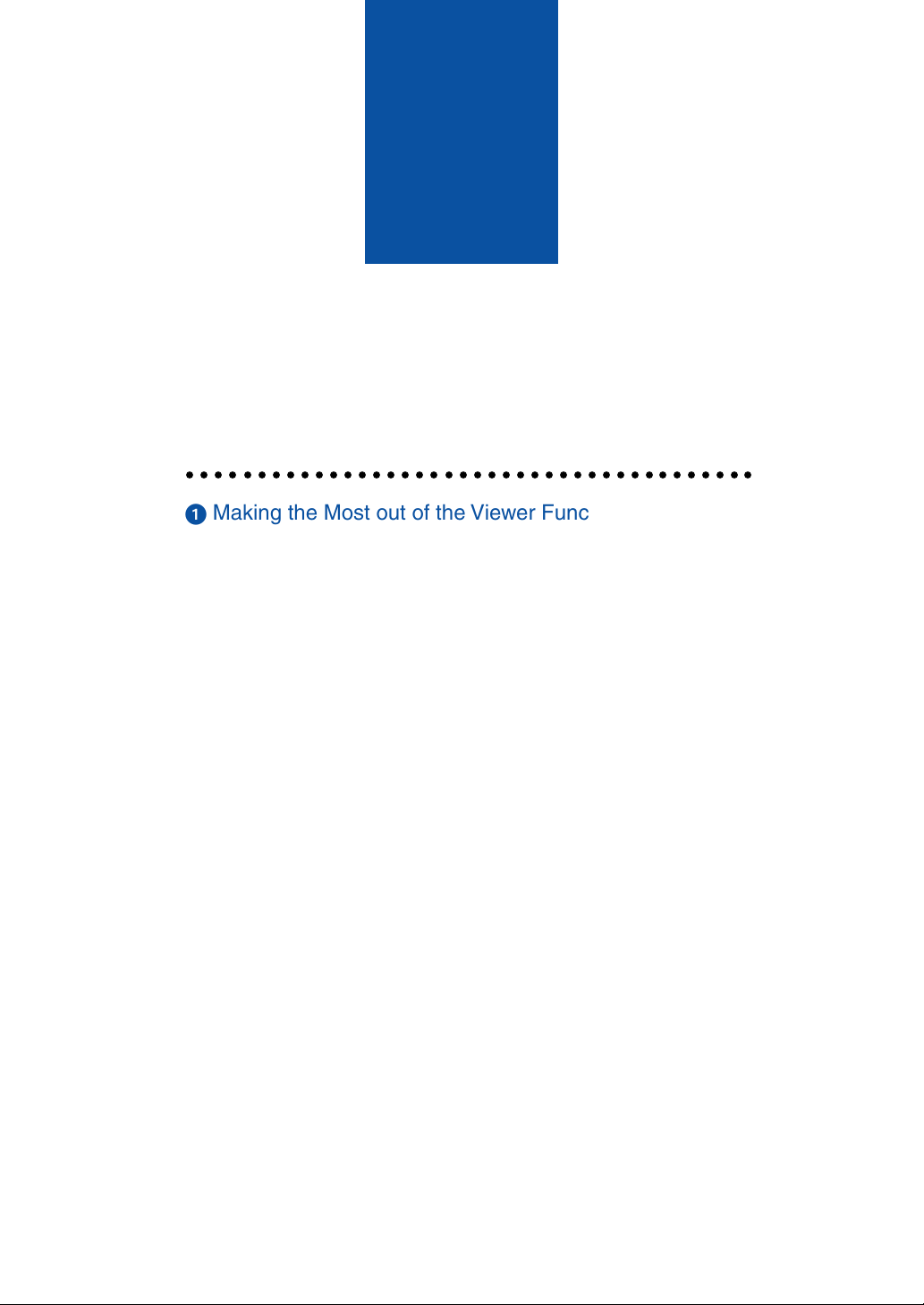

 Making the Most out of the Viewer Function ............................................................... 72

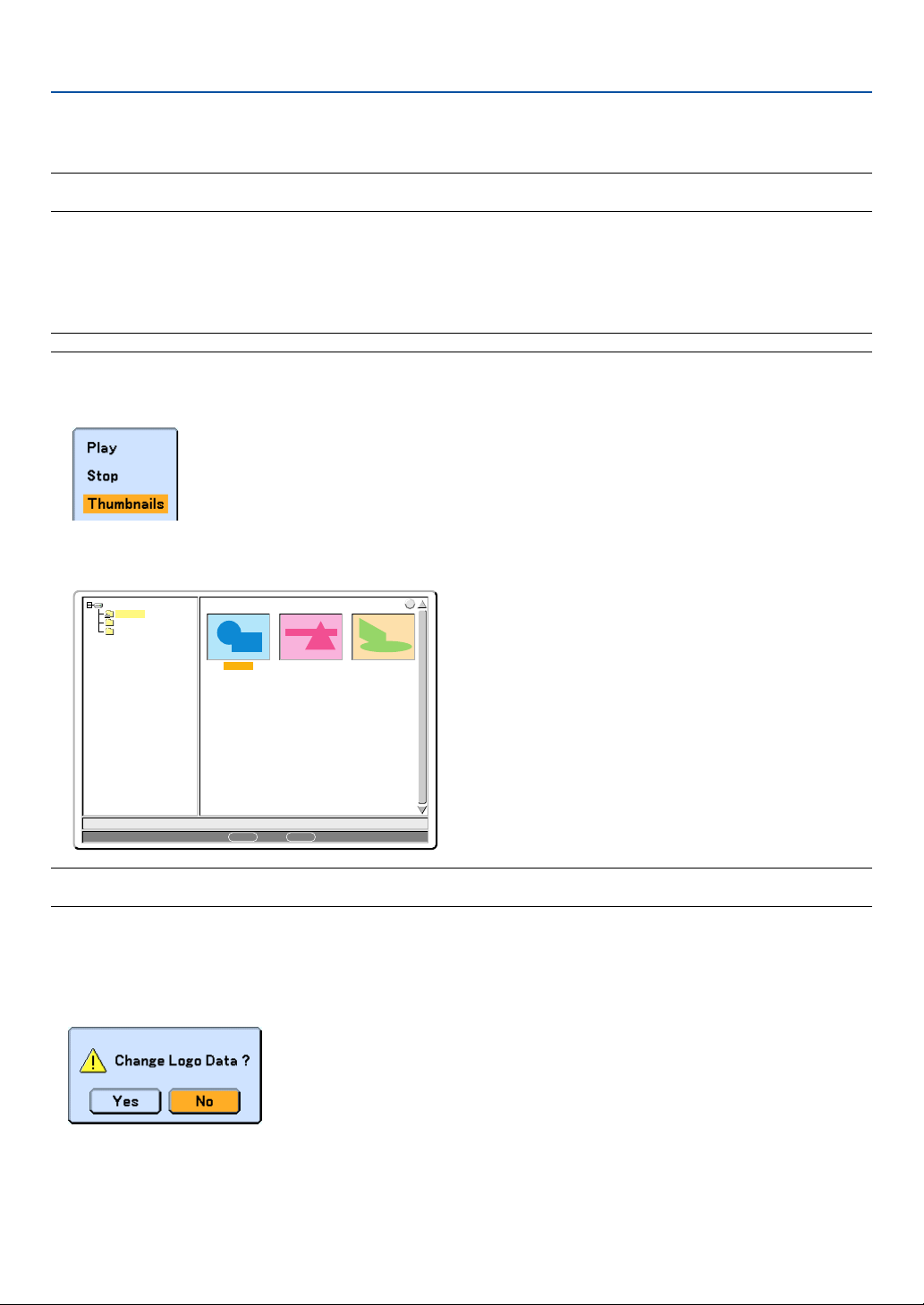

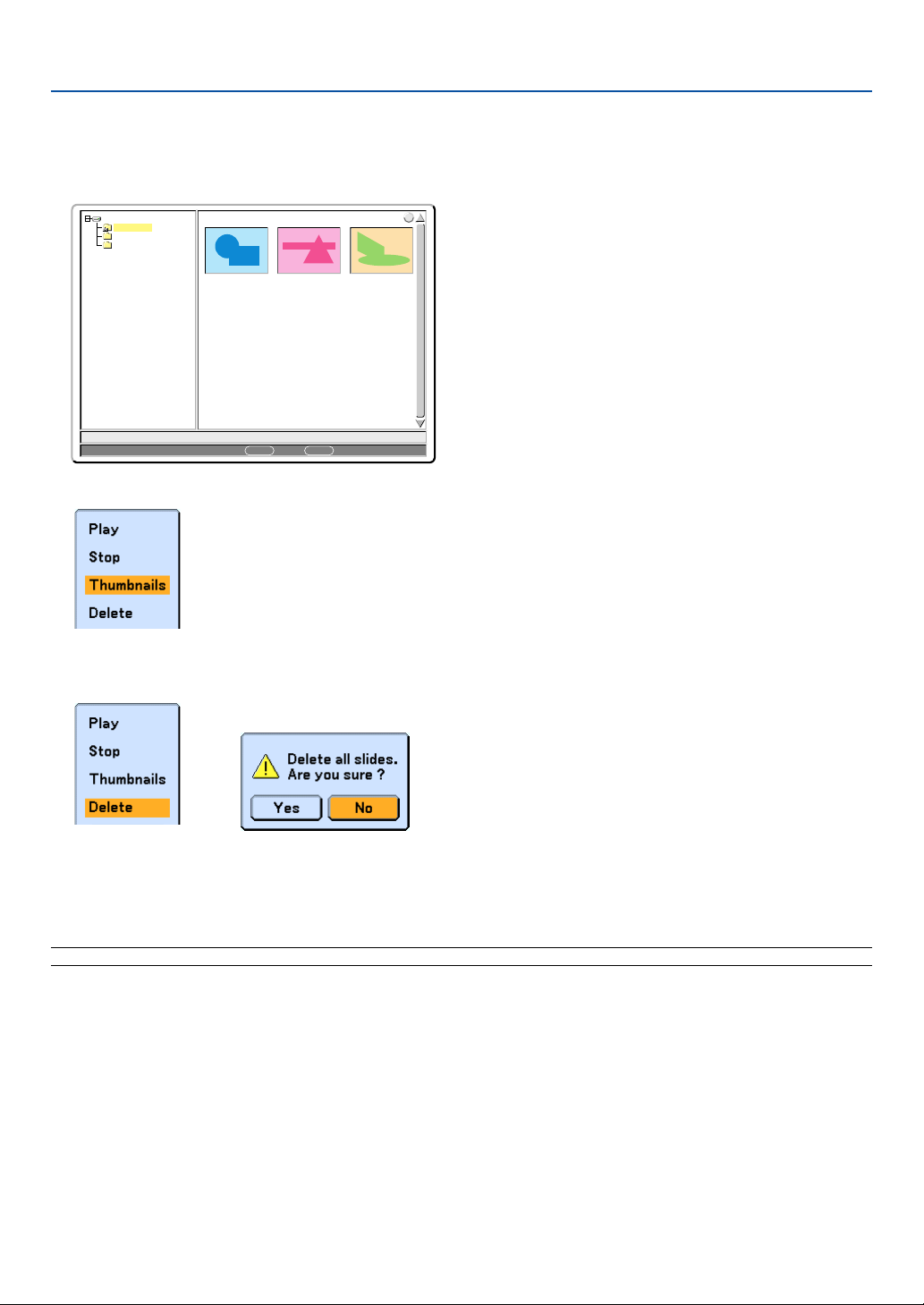

 Operating the Viewer Function from the Projector (playback) .................................... 73

쐋 Changing Background Logo ....................................................................................... 79

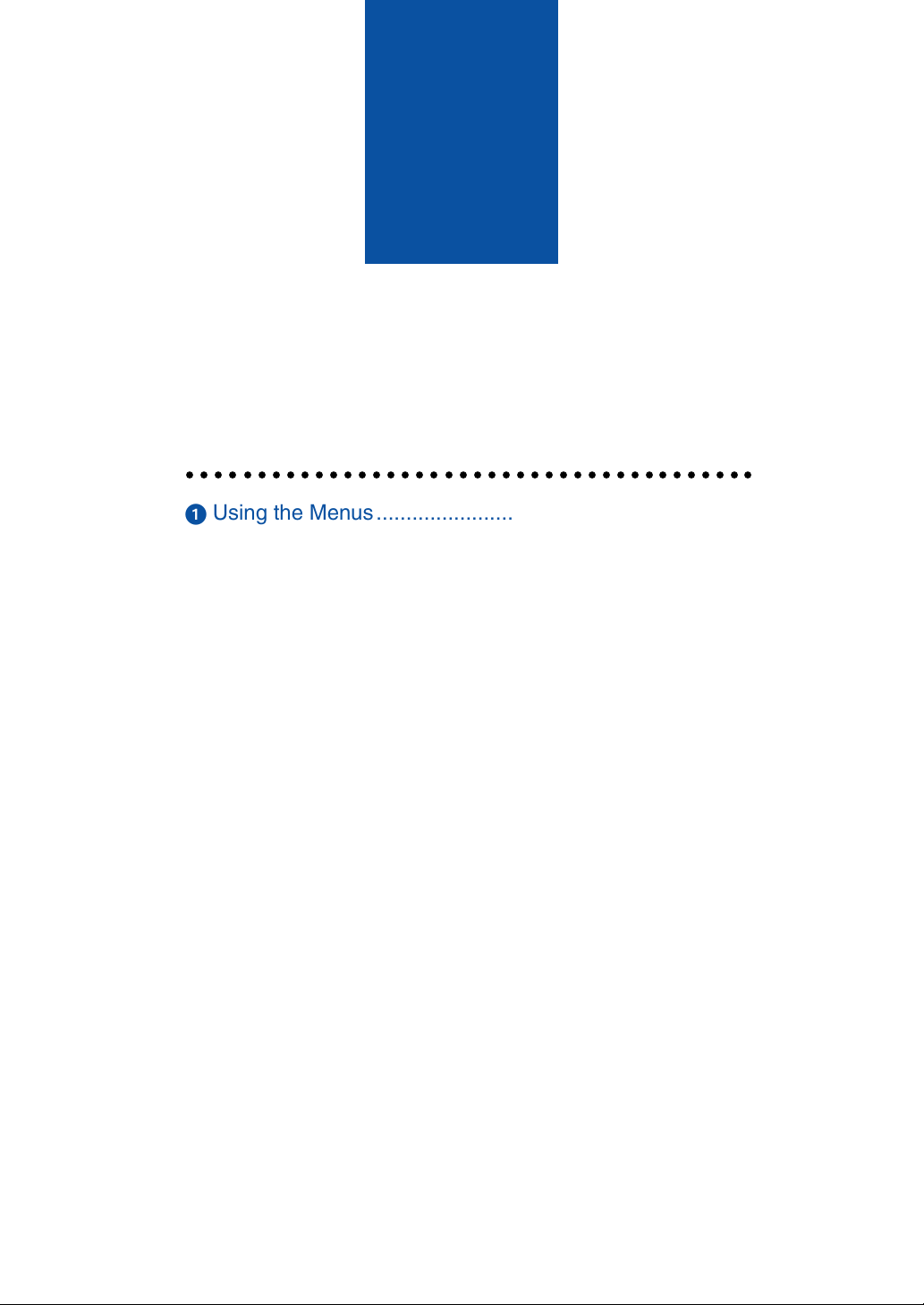

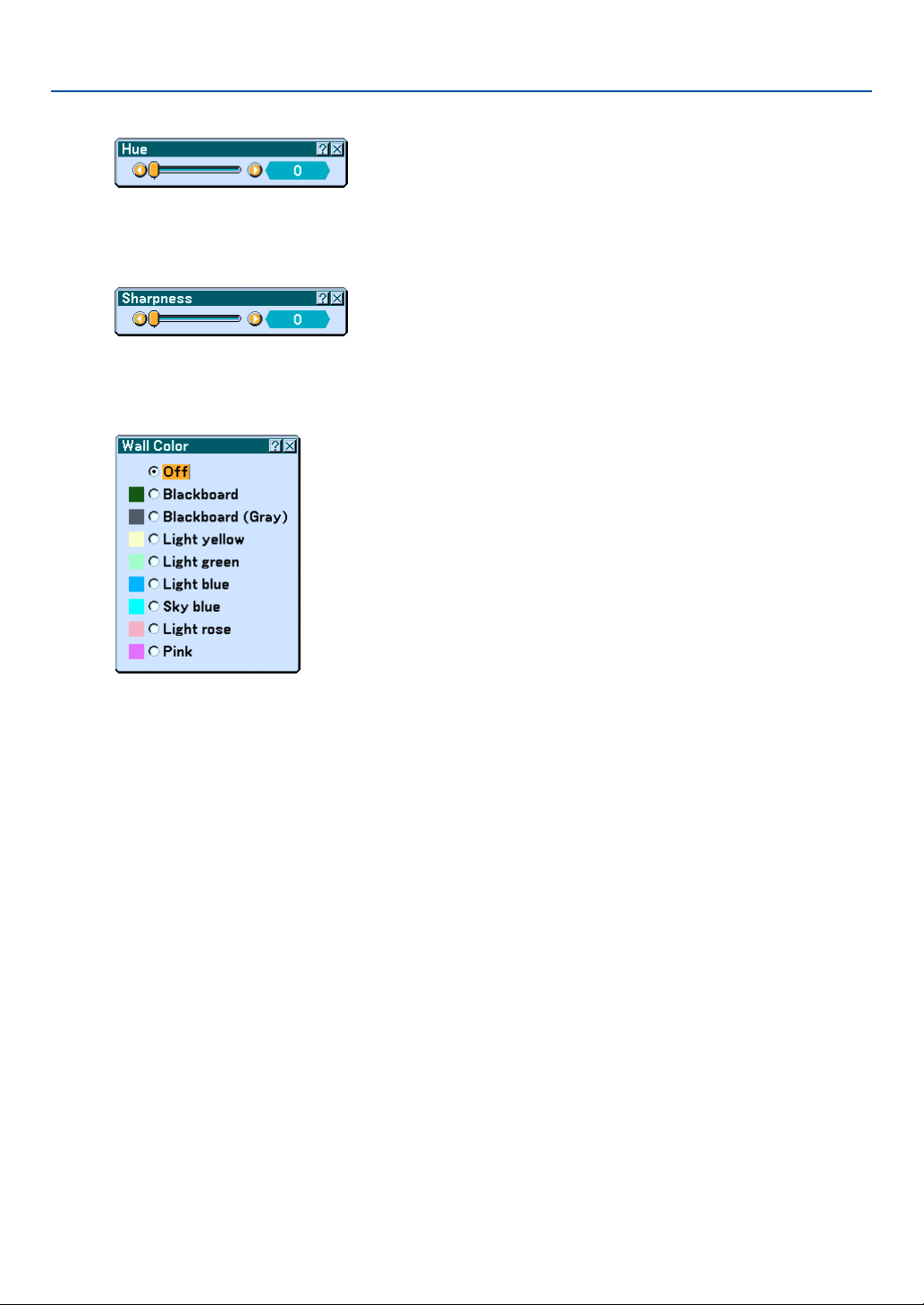

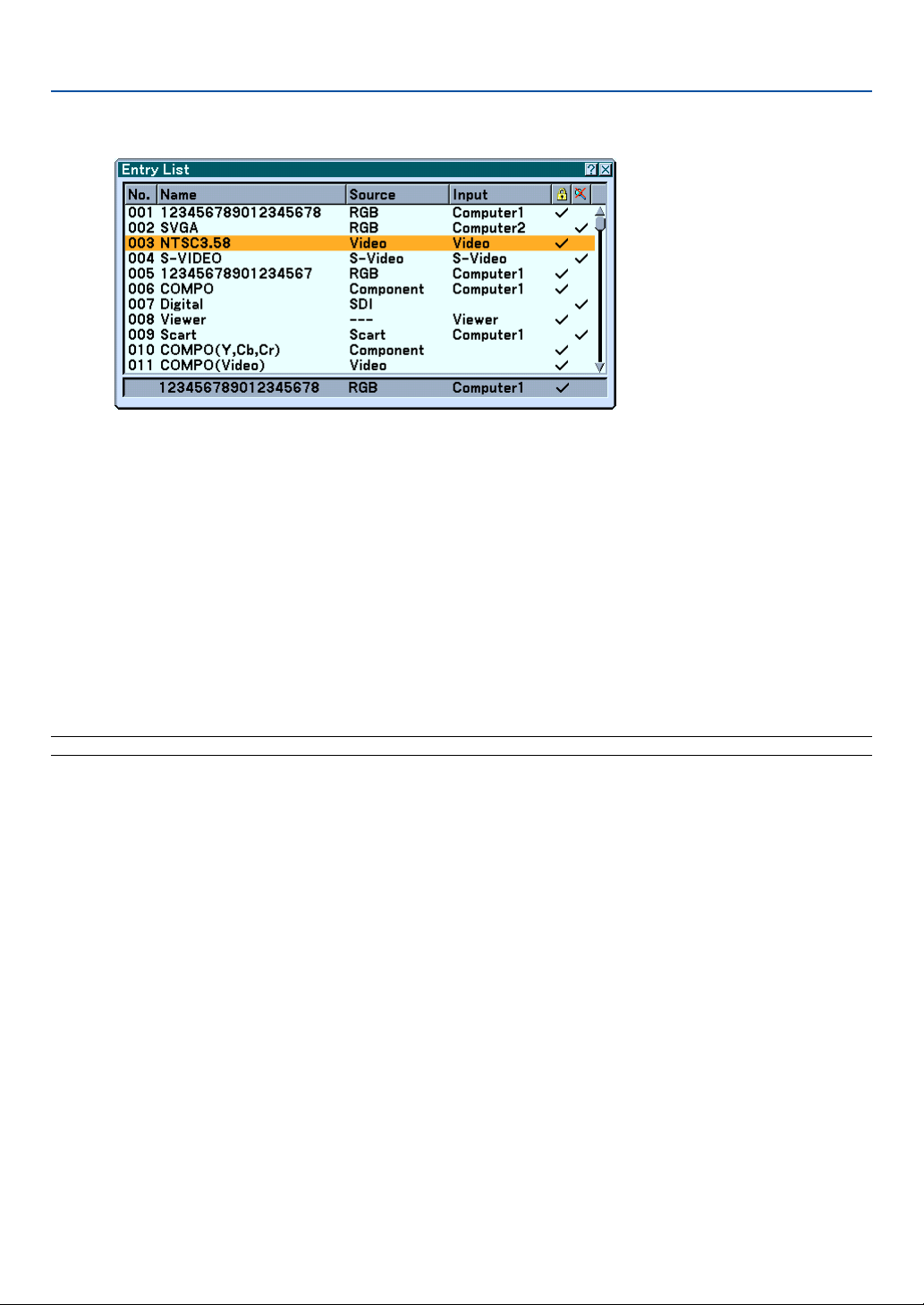

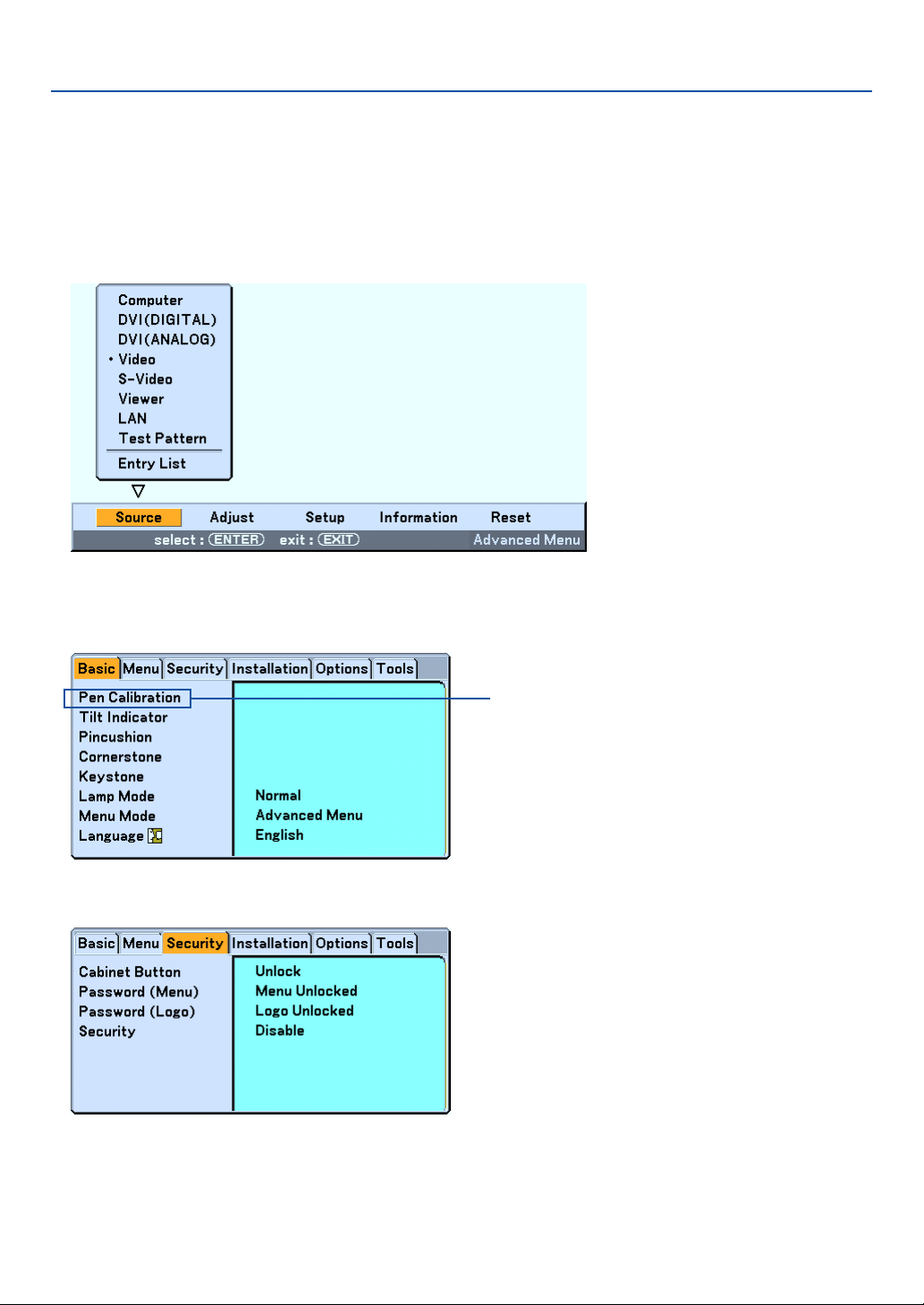

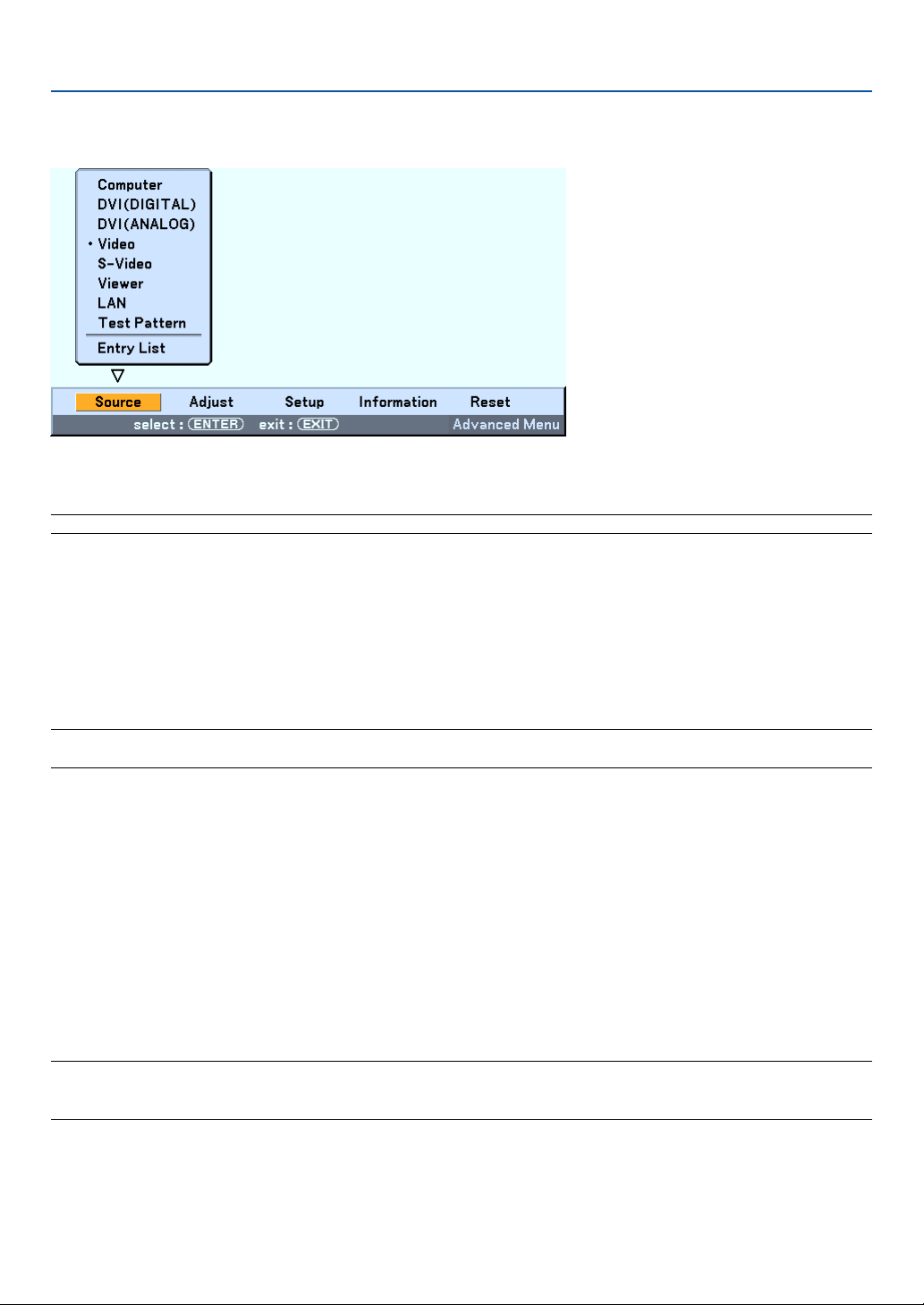

6. Using On-Screen Menu ................................................................. 80

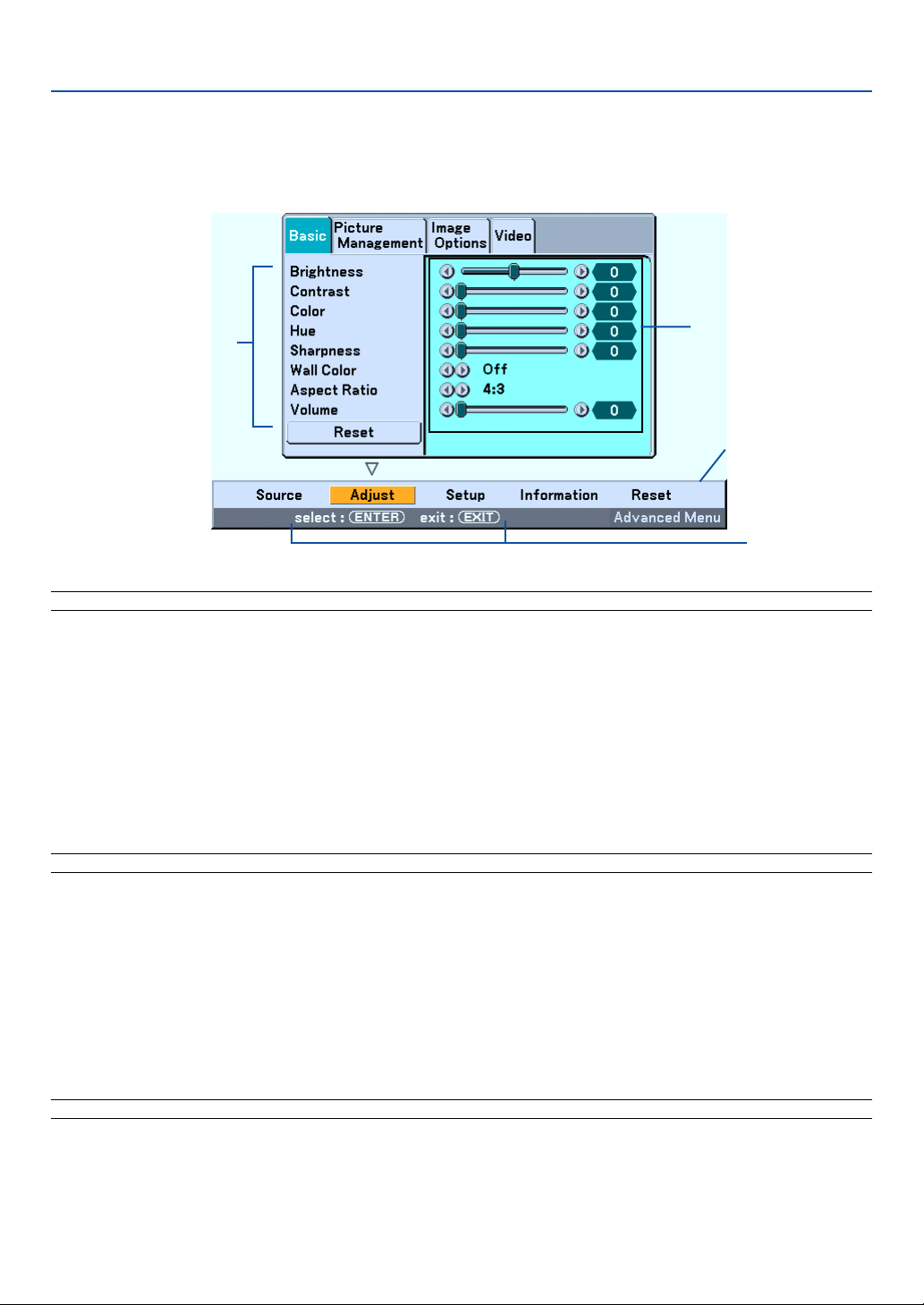

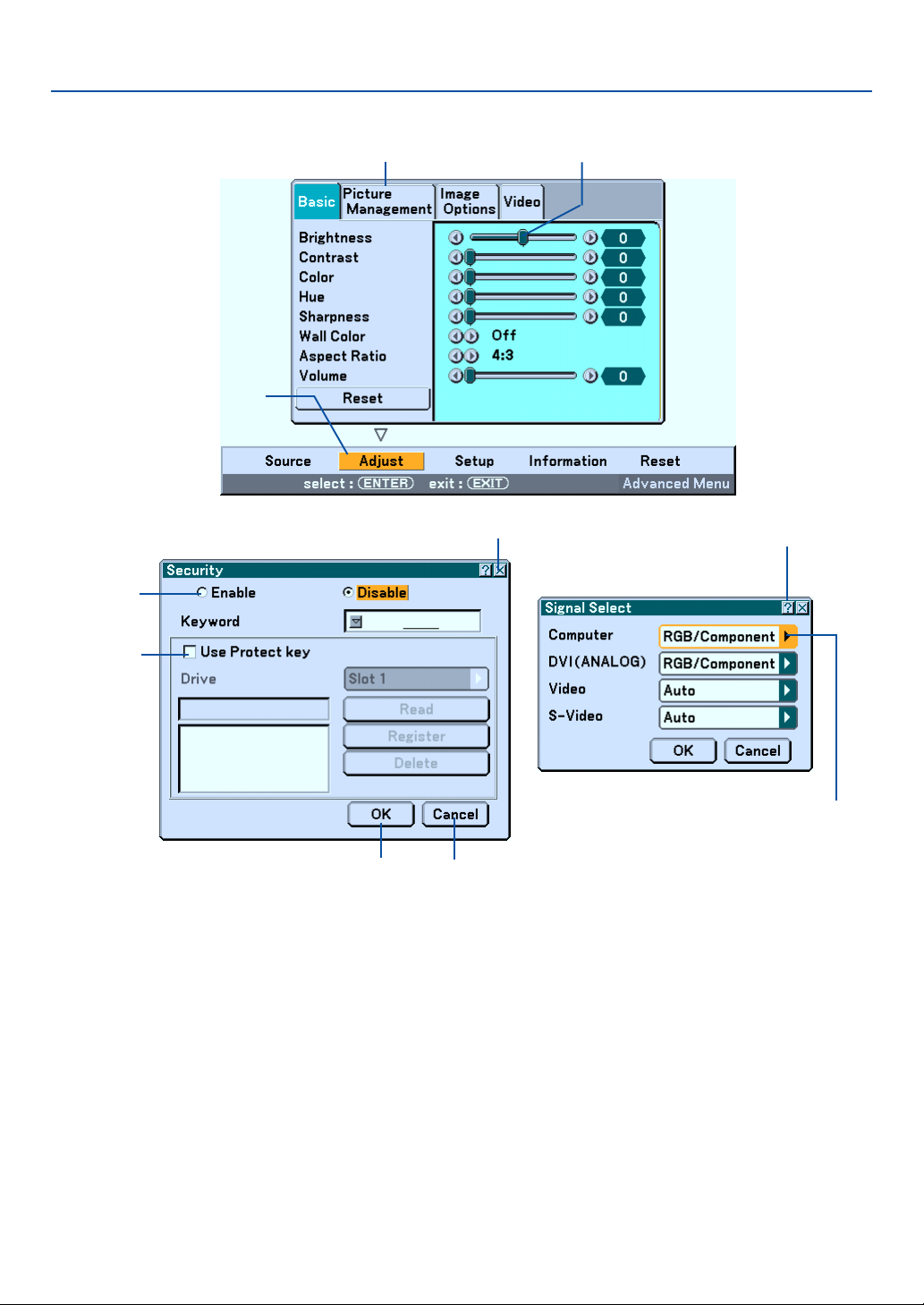

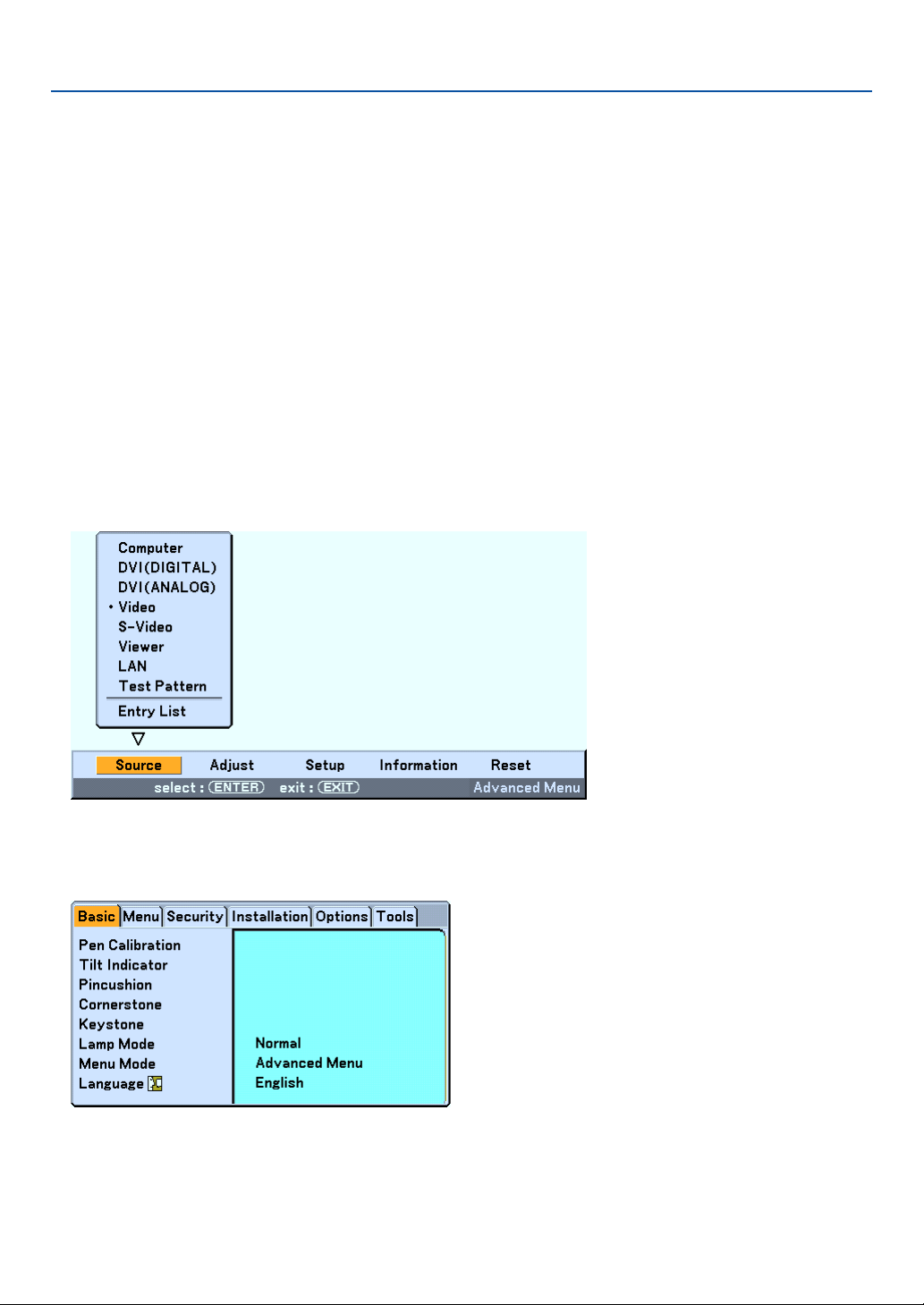

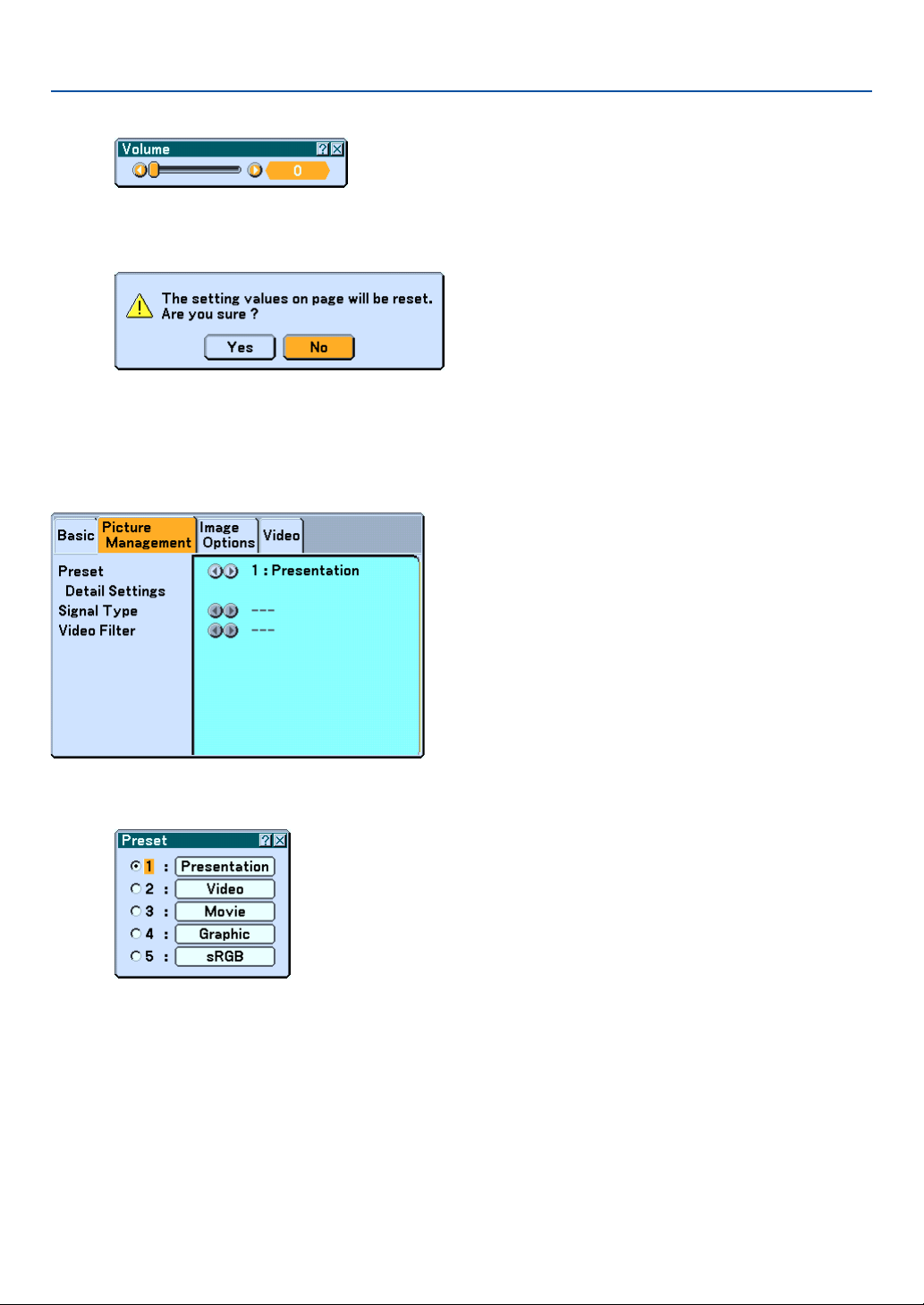

 Using the Menus......................................................................................................... 81

 Menu tree ................................................................................................................... 82

 Menu Elements........................................................................................................... 84

 Menu Descriptions & Functions [Source] ................................................................... 85

쐄 Menu Descriptions & Functions [Adjust] ..................................................................... 88

쐂 Menu Descriptions & Functions [Setup] ..................................................................... 98

쐆 Menu Descriptions & Functions [Information] ........................................................... 126

쐊 Menu Descriptions & Functions [Reset] ................................................................... 129

7. Maintenance .................................................................................. 131

 Handling and Care of Mirror Surface ........................................................................ 132

쐇 Cleaning the Cabinet ................................................................................................ 133

쐋 Replacing the Lamp................................................................................................. 134

8. Appendix ......................................................................................... 137

 Troubleshooting ........................................................................................................ 138

 Specifications ........................................................................................................... 142

 Cabinet Dimensions ................................................................................................. 144

 Pin Assignments of D-Sub COMPUTER Input Connector ....................................... 145

 Compatible Input Signal List ..................................................................................... 146

 PC Control Codes and Cable Connection ................................................................ 147

 Using Software Keyboard ......................................................................................... 148

 Troubleshooting Check List....................................................................................... 149

vi

1

Introduction

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 What's in the Box? ....................................................... 2

 Introduction to the Projector ........................................ 3

 Part Names of the Projector ........................................ 5

Opening and Closing the Mirror Cover ................................................................... 6

Top Features........................................................................................................... 7

Te r minal Panel Features......................................................................................... 8

 Part Names of the Remote Control ........................... 10

Battery Installation ................................................................................................ 12

Operating Range for Wireless Remote Control .................................................... 12

Remote Control Precautions ................................................................................ 12

Using the Remote Control in Wired Operation ..................................................... 12

 Part Names and Functions of

the Supplied Electronic Pen (WT615 only) ............ 13

Battery Installation ................................................................................................ 13

Electronic Pen Precautions .................................................................................. 13

1

 What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your Projector.

UNL

M

OCK

IRROR

LOCK

1. Introduction

Power cable
(7N080204) US
(7N080008) EU

Important

Information

For North America only

Registration card
Limited warranty

For Europe only

Guarantee policy

Setup

Guide

NEC

Network

Setup Guide

Projector

Remote Control
Cable
(7N520019)

CD-ROM
User’s manual and User Supportware 2

WT615 only

• Electronic pen and battery

(7N900611)

Remote control
(7N900501)

USB cable
(7N520045)

(AA⳯1)

Batteries (AAA ⳯ 2)

RGB/VGA signal cable
(7N520032)

• Security sticker

• Mirror cleaning cloth (24BS7251)

• Dust-proof cover (24BS7272)

• USB memory device (7N960201)

See page 62.

• CD-ROM
User Supportware 2 Plus
(eBeam Interactive Software)

2

• eBeam Interactive Software Setup Guide

1. Introduction

 Introduction to the Projector

This section introduces you to the WT615/WT610 Projector and describes key features and controls.

Congratulations on Your Purchase of the WT615/WT610 Projector

The WT615/WT610 is a sophisticated four aspherical mirror XGA projector that produces an enhanced display. With
the WT615/WT610 you will be able to project images up to 100” (measured diagonally). Enjoy crisp and sharp large
screen display from your PC, workstation or Macintosh computer, DVD player, VCR, satellite hookup, HDTV source, )
and images from your digital camera PC Card, compact flash memory or USB storage device. The WT615/WT610
provides for enhanced security options to help deter projector theft and provides for full projector control through the
PC control port (mini DIN 8Pin) and LAN support. With input and output flexibility and a full function remote, the
WT615/WT610 lets you enjoy larger than life viewing from a compact and easy to setup and use projector.

Features you’ll enjoy on the WT615/WT610:

• Extremely short focal length

• 40" to 100" diagonal image display from 26 inches (66 cm) or less to the screen

• The electronic pen and the projector can be used to convert your whiteboard into a virtual touchscreen. (WT615
only)

• Built-in Wall Color Correction presets provide for adaptive color correction when projecting onto non-white
screen material (or a wall).

• USB memory or PC card interfaces provide for computer-free presentations.

• Enhanced smart security settings for password protection, cabinet control panel lock, menu lock and PC card
protection key to help prevent unauthorized access, adjustments and theft deterrence.

• High resolution display - up to UXGA compatible, XGA native resolution.

•Variable audio out control of external amplified speakers via the projector remote.

• Extensive user adjustable picture and color management settings.

• Display 16:9 or 4:3 aspect ratio sources and fill the screen.

• HDTV (1080i, 720p) and SDTV (480p/576p, 480i/576i) compatibility.

• Digital photo viewer to display larger than life images from your digital cameras PC card, compact flash card or
USB storage device.

• Wireless networking capable.
Present from anywhere in the room when using as a wireless LAN projector, no physical signal cable connec-

tion to a PC is required.
* The NEC optional wireless LAN card is required (NWL-100A or NWL-100E See page 25.).

• Supplied User Supportware 2 CD-ROM containing five software utilities allowing you to make the most of your
NEC projector.

• Eco-mode lamp technology for increased lamp life, reduced energy consumption and overall total cost of
ownership savings.

• Built-in laser pointer on the supplied remote control allows you to draw your audience's attention in a presenta­tion.

3

1. Introduction

About this user's manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to
review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an
overview. If the section doesn't apply, you can skip it.

• IBM is a trademark or registered trademark of International Business Machines Corporation.

• Mac, Macintosh and PowerBook are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.

• Windows, Windows 98, Windows Me, Windows XP or Windows 2000 are trademarks or registered trademarks
of Microsoft Corporation.

• Digital Light Processing and DLP are trademarks of Texas Instruments.

• Ulead is a trademark and/or registered trademark of Ulead Systems, Inc.

• eBeam and the eBeam logo are trademarks or registered trademarks of Luidia, Inc.

• Other product and company names mentioned in this user’s manual may be the trademarks or registered
trademarks of their respective holders.

4

 Part Names of the Projector

P

C

C

A

R

D

R

-A

U

D

IO

IN

-L

/M

O

N

O

V

ID

E

O

IN

S

-V

ID

E

O

IN

D

V

I-I IN

D

V

I-I

A

U

D

IO

IN

A

U

D

IO

O

U

T

P

C

C

O

N

T

R

O

L

R

E

M

O

T

E

IN

C

O

M

P

U

T

E

R

IN

M

O

N

IT

O

R

O

U

T

C

O

M

P

U

T

E

R

U

S

B

1. Introduction

Front indicator
Lights blue to indicate that
the projector is turned on
or in the Standby mode.

NOTE: When [Standby Mode]

U

N

M

L
O

IR

C

R

K

O

R

L

O

C

K

Mirror cover

Mirror cover lock switch

is set to “Power-saving”, this
indicator lights blue only with
power on.

Speaker

Ventilation (outlet)

Foot

Remote sensor

Foot

Lamp cover

Lamp cover screw

Built-in Security Slot ( )*

Speaker

Foot

* This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of

Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

Carrying handle

K

C

LO

R

O

CK

IRR

LO

M

UN

Sensor for Electronic pen

Controls

(WT615 only)

LAMP

STATUS

POWER

ON/

STAND BY

3D

REFORM

EXIT

ADJUST

AUTO

ENTEER

SELECT

SOURCE

MENU

FOCUS

PC CARD

Te r minal panel

Ventilation (outlet)

Ventilation (inlet)

Main Power Switch

AC Input

Remote sensor

5

Opening and Closing the Mirror Cover

1. Introduction

To open the mirror cover:

1. Slide the mirror cover lock switch to the unlock position.

U
NL

M

O

I

RR

C

K
O
R

L
O

C

K

1

2. Slowly open the mirror cover holding both ends.

U
N

M

L

O
I
R

C

R

K
O
R

L
O

C

K

2

NOTE:

• Do not release your hold of the mirror cover until the mirror cover
is fully open.

• Do not apply excessively strong pressure against the mirror cover
or mirror surface while opening it.

• Keep finger prints off the mirror surface. Leaving finger prints in
the mirror surface might cause an unwanted shadow and poor
picture quality.

To close the mirror cover:

1. Slowly close the mirror cover while holding both ends.

U

N

M

LO

IR

CK
R
O
R

LO

C

1

K

NOTE:

• Do not release your hold of the mirror cover until the mirror cover
is fully closed.

• Do not apply excessively strong pressure against the mirror cover
or mirror surface while closing it.

• Keep finger prints off the mirror surface. Leaving finger prints in
the mirror surface might cause an unwanted shadow and poor
picture quality.

2. Slide the mirror cover lock switch to the lock position.

U
N

M

L
O

IR

C

R

K

O

R
L
O

C
K

2

NOTE:

• The projector cannot be turned on when the mirror cover is closed.

• Keep any items out of the light path or the mirror. Failure to do so
may cause objects to catch on fire in unexpected places.

• The projector has a sensor which detects an object in front of the
largest mirror or in the light path. If the sensor detects any object,
the projector will not turn on. If this happens while the projector is
turned on, the image is muted. In either case the STATUS indicator
lights in red.

• The projector has a temperature sensor which detects heat. If the
sensor detects excessive heat in the bottom of the mirror or in the
light path, the projector will not turn on. If this happens while the
projector is turned on, the projector will turn off (Standby mode).
In either case the STATUS indicator flashes in red.

6

1. Introduction

Top Features

FOCUS

MENU

PC CARD

SOURCE

5

13

8

9

10

11

6

1

1. POWER Button (ON / STAND BY)

Use this button to turn the power on and off when the
main power is supplied and the projector is in standby
mode.

NOTE: To turn on the projector, press and hold this button
for a minimum of two seconds. To turn off the projector,
press this button twice.

2. POWER Indicator ( )

When this indicator is green, the projector is on; when
this indicator is orange, it is in standby mode. See the
Power Indicator section on page 138 for more details.

3. STATUS Indicator

If this light blinks red rapidly, it indicates that an error
has occurred, the lamp cover is not attached properly
or the projector has overheated. If this light remains
orange, it indicates that you have pressed a cabinet
key while the Cabinet Button is locked. See the Sta­tus Indicator section on page 138 for more details.

4. LAMP Indicator

If this light blinks red rapidly, it's warning you that the
projection lamp has exceeded 2000 hours (up to 4000
hours in Eco mode) of service. After this light appears,
replace the lamp as soon as possible. (See page 134).
If this is lit green continually, it indicates that the lamp
mode is set to Eco. See the Lamp Indicator section
on page 138 for more details.

SELECT

ENTER

AUTO

ADJUST

ON/

STAND BY

EXIT

3D

REFORM

POWER

STATUS

LAMP

12

7
2

3
4

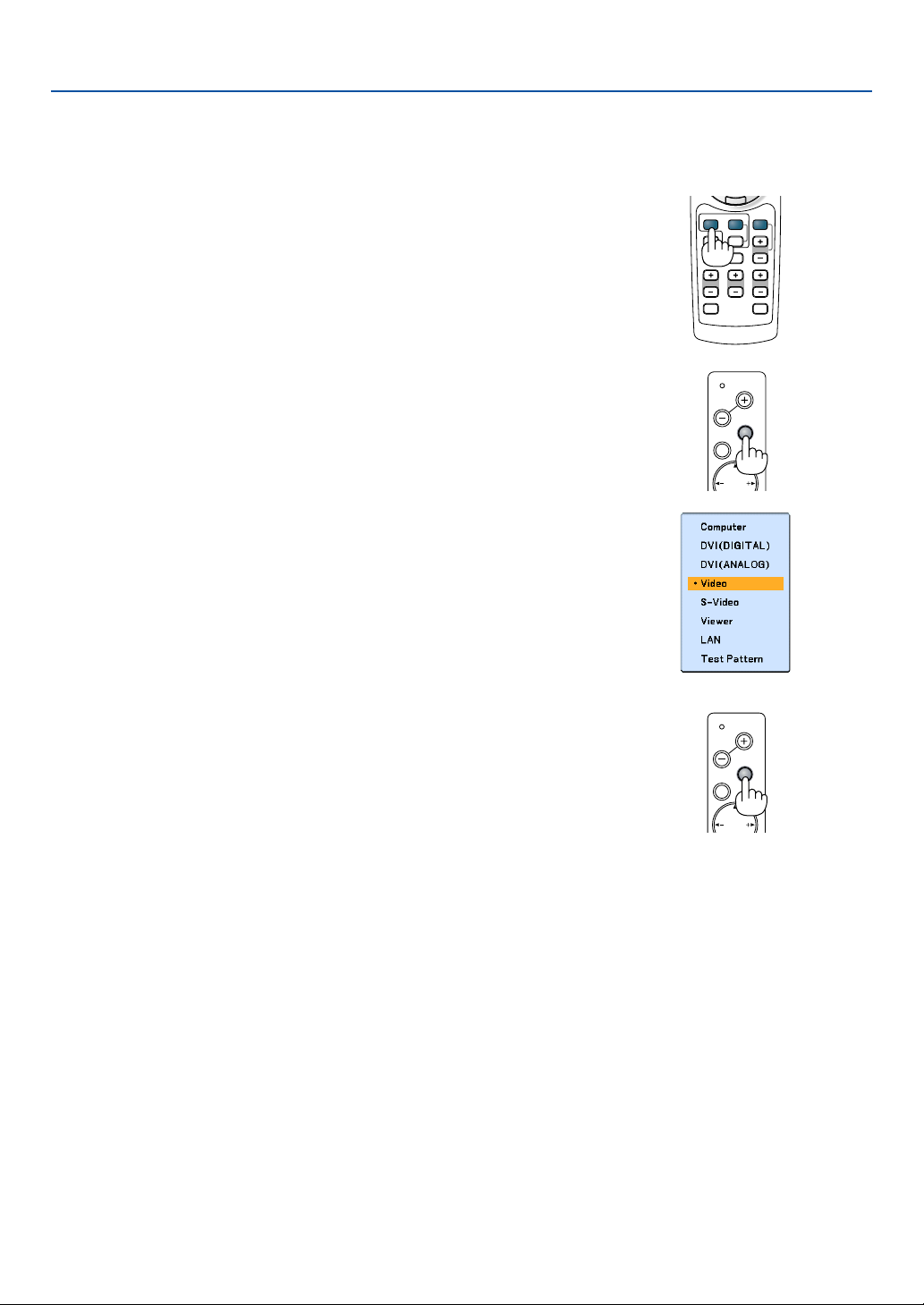

5. SOURCE Button

Use this button to select a video source such as a PC,
VCR, DVD player or Viewer (PC card).
Press and release this button quickly to display the
Source List.

Each time this button is pressed for a minimum of ONE
second, the input source will change as follows:

Computer → DVI (DIGITAL) → DVI (ANALOG) →
Video → S-Video → Viewer → Computer → ...

If no input signal is present, the input will be skipped.

6. AUTO ADJUST Button

Use this button to adjust an RGB source for an opti­mal picture. See page 41.

7. 3D REFORM Button

Press this button to enter 3D Reform mode to correct
the distortion, and make the image square.
Each time this button is pressed, the item will change
as follows:
Pincushion → Cornerstone → Keystone → ... (the
three items are available only when no adjustment is
made)

8. FOCUS (+) (–) Buttons

Adjusts the focus.

9. MENU Button

Displays the menu.

10. SELECT 왖왔왗왘 (+) (–) / Volume Buttons

왖왔 : Use these buttons to select the menu of the

item you wish to adjust.

왗왘 : Use these buttons to change the level of a

selected menu item. When no menus appear,
these buttons work as a volume control.

When the pointer is displayed, these 왖왔왗왘 buttons
move the pointer.

11. ENTER Button

Executes your menu selection and activates items
selected from the menu.

12. EXIT Button

Pressing this button will return to the previous menu
with saving changes.
While you are in the main menu, pressing this button
will close the menu.

13. PC CARD Access Indicator

Lights while accessing a PC card.

7

Te r minal Panel Features

1. Introduction

REMOTE

IN

PCCONTROL

AUDIO IN

R

L

/MONO

VIDEO IN

PC CARD

S-VIDEO IN DVI-I IN

1. COMPUTER IN / Component Input Connector
(Mini D-Sub 15 Pin)

Connect your computer or other analog RGB equip­ment such as IBM compatible or Macintosh comput­ers. Use the supplied RGB/VGA signal cable to con­nect to your computer. This also serves as a compo­nent input connector that allows you to connect a com­ponent video output of component equipment such
as a DVD player. This connector also supports SCART
output signal. See page 20 for more details.

2. COMPUTER AUDIO IN Mini Jack (Stereo Mini)

This is where you connect audio output from your com­puter or DVD player. A commercially available audio
cable is required.

3. DVI-I IN Connector (DVI-I 29 Pin)

Connect a computer with a DVI output using a com­mercially available DVI-D cable.
This connector can be used to accept digital and ana­log signal output from a computer with a DVI connec­tor.

4. DVI-I AUDIO IN Mini Jack (Stereo Mini)

This is where you connect the audio output from your
computer when connected to the DVI input. A com­mercially available audio cable is required.

5. MONITOR OUT Connector (Mini D-Sub 15 Pin)

You can use this connector to loop your computer
image to an external monitor from the COMPUTER
or the DVI-I input source.
The RGB analog signal set on “OUT Terminal” is out­put during Standby mode. See pages 22 and 122.

12131514

USB

COMPUTER IN MONITOR OUT

3789

1 5

2410 11

AUDIO IN AUDIO OUT

DVI-I COMPUTER

6

6. AUDIO OUT Mini Jack (Stereo Mini)

Connect an additional audio equipment here to listen
to audio coming from your COMPUTER, DVI-I, VIDEO
or S-VIDEO input.

7. S-VIDEO IN Connector (Mini DIN 4 Pin)

Here is where you connect the S-Video input from an
external source like a VCR.

NOTE: S-Video provides more vivid color and higher
resolution than the traditional composite video format.

8. VIDEO IN Connector (RCA)

Connect a VCR, DVD player, laser disc player, or docu­ment camera here to project video.

9. VIDEO AUDIO IN Jacks (RCA)

L: This is your left channel audio input for stereo

sound coming from the VIDEO source.

R: This is your right channel audio input for stereo

sound from the VIDEO source.

10. REMOTE IN Jack (Mini Jack)

Connect your remote control cable here for wired op­eration.

11. PC CONTROL Port (Mini DIN 8 Pin)

Use this port to connect your PC or control system to
control your projector via a serial cable. This enables
you to control the projector using serial communica­tion protocol. An optional serial cable (CA03D: 9Pin
D-Sub to 8 Pin Mini DIN) is required for this port. You
can also control the projector by using PC Control
Utility 3.0 contained on the supplied User Supportware
2 CD-ROM.
To do so you must first have PC Control Utility 3.0
installed on your PC. If you are writing your own pro­gram, typical PC control codes are on page 147.

8

Te r minal Panel Features

1. Introduction

REMOTE

IN

PCCONTROL

AUDIO IN

R

L

/MONO

VIDEO IN

PC CARD

S-VIDEO IN DVI-I IN

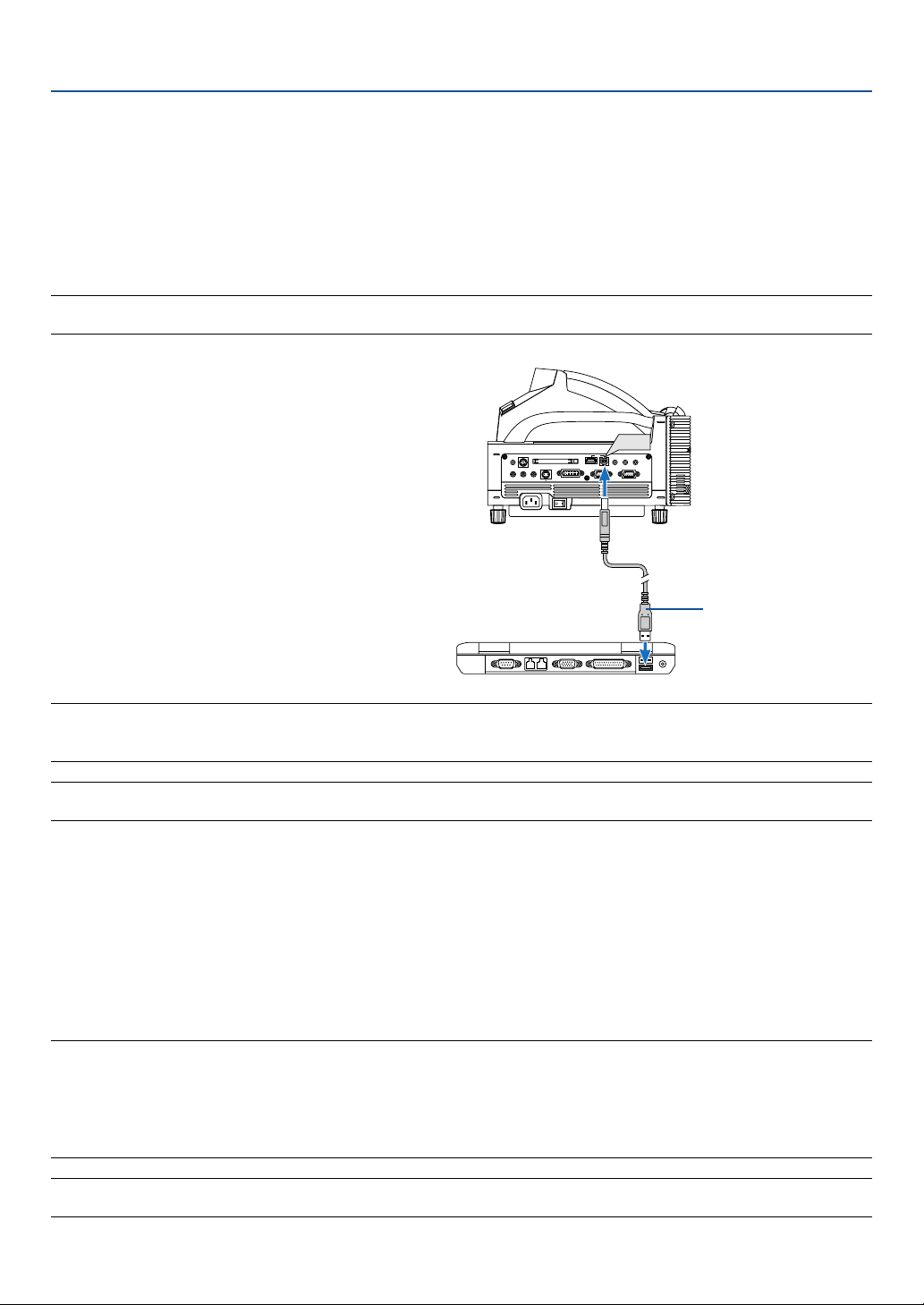

12. USB Port (Type B)

Connect this port to the USB port (type A) of your PC
using the supplied USB cable. You can operate your
computer's mouse functions from the remote control.

13. USB Port (Type A)

Connect a commercially available USB memory de­vice or mouse that supports USB. You can operate
the menu or Viewer with the USB mouse via this port.
Note that this port should not be connected to a com­puter and that there may be some brands of USB
mouse that the projector does not support.

12131514

USB

COMPUTER IN MONITOR OUT

3789

14. PC CARD Slot

15. PC CARD Eject Button

1 5

Insert a PC card, commercially available LAN card or
NEC optional wireless LAN card here.

NOTE: A dummy card is inserted into each slot at the time
of shipment. First remove the dummy cards before use.

Press to eject a PC card partially.

2410 11

AUDIO IN AUDIO OUT

DVI-I COMPUTER

6

9

쐏 Part Names of the Remote Control

1. Introduction

5

6

10
11

12

2

1

3

6. MAGNIFY (+) (–) Buttons

Use these buttons to adjust the image size.
The image can be magnified about the center of the
screen up to 400%. See page 52.

OFF

MAGNIFY

R

E

T

N

E

VIDEO

ASPECT

PIC-MUTE

VOLUME

FREEZE

COMPUTER

POWER

LASER

POINTER

N

U

E

M

R

K

-

C

C

I

L

AUTO ADJ.

HELP

ON

PAGE

UP

DOWN

E

X

I

T

VIEWER

SLIDE

ZOOMFOCUS

3D REFORM

4

7

9

8

13

14

7. LASER Button

Press and hold this button to activate the laser pointer.
When lit, you can use the laser to draw your audience's
attention to a red dot that you can place on any ob­ject. See page 44.

8. POINTER Button

Press this button to display the projector pointer. You
can move your pointer icon to the area you want on
the screen using the SELECT 왖왔왗 or 왘 button. See
page 51.

9. PAGE (UP) (DOWN) Buttons

Use these buttons to scroll the viewing area of the
window or to move to the previous or next slide in
PowerPoint on your computer when the supplied USB
cable is connected with your computer.

10. MENU Button

Displays the menu for various settings and adjust­ments.

1. Infrared Transmitter/Laser Pointer

Tr ansmits an infrared signal when any button other
than LASER is pressed.
Direct the remote control toward the remote sensor
on the projector cabinet.
Beams a laser light when the Laser button is pressed.

CAUTION:

* Do not look into the laser pointer while it is on.
* Do not point the laser beam at a person.

2. Remote Jack

Connect your remote control cable here for wired op­eration.

3. LED

Flashes when any button is pressed.

4. POWER ON Button

When the main power is on, you can use this button
to turn your projector on.

NOTE: To turn on the projector, press and hold the
POWER ON button for a minimum of two seconds.

5. POWER OFF Button

You can use this button to turn your projector off.

NOTE: To turn off the projector, press the POWER OFF
button twice.

11. SELECT 왖왔왗왘 Button

This button is used for projector’s menu operation and
moving the magnified image.
This button also works as a computer mouse when
the supplied USB cable is connected with your com­puter.

12. ENTER Button

Executes your menu selection and activates items
selected from the menu.

13. EXIT Button

Returns to the previous menu.
While you are in the main menu, pressing this button
will close the menu.

14. R-CLICK Button

Works as the mouse right button when the supplied
USB cable is connected with your computer.

10

1. Introduction

15. L-CLICK Button

Works as the mouse left button when the supplied
USB cable is connected with your computer.

16
21

22
23

24

27

OFF

MAGNIFY

R

E

T

N

E

VIDEO

ASPECT

PIC-MUTE

VOLUME

FREEZE

COMPUTER

POWER

LASER

POINTER

N

U

E

M

R

K

-

C

C

I

L

AUTO ADJ.

HELP

ON

PAGE

UP

DOWN

E

X

I

T

VIEWER

SLIDE

ZOOMFOCUS

3D REFORM

17

19
18

20

26

28

25

15

20. SLIDE (+) (–) Buttons

Press (+) to select the next folder or slide and press
(–) to select the previous folder or slide.

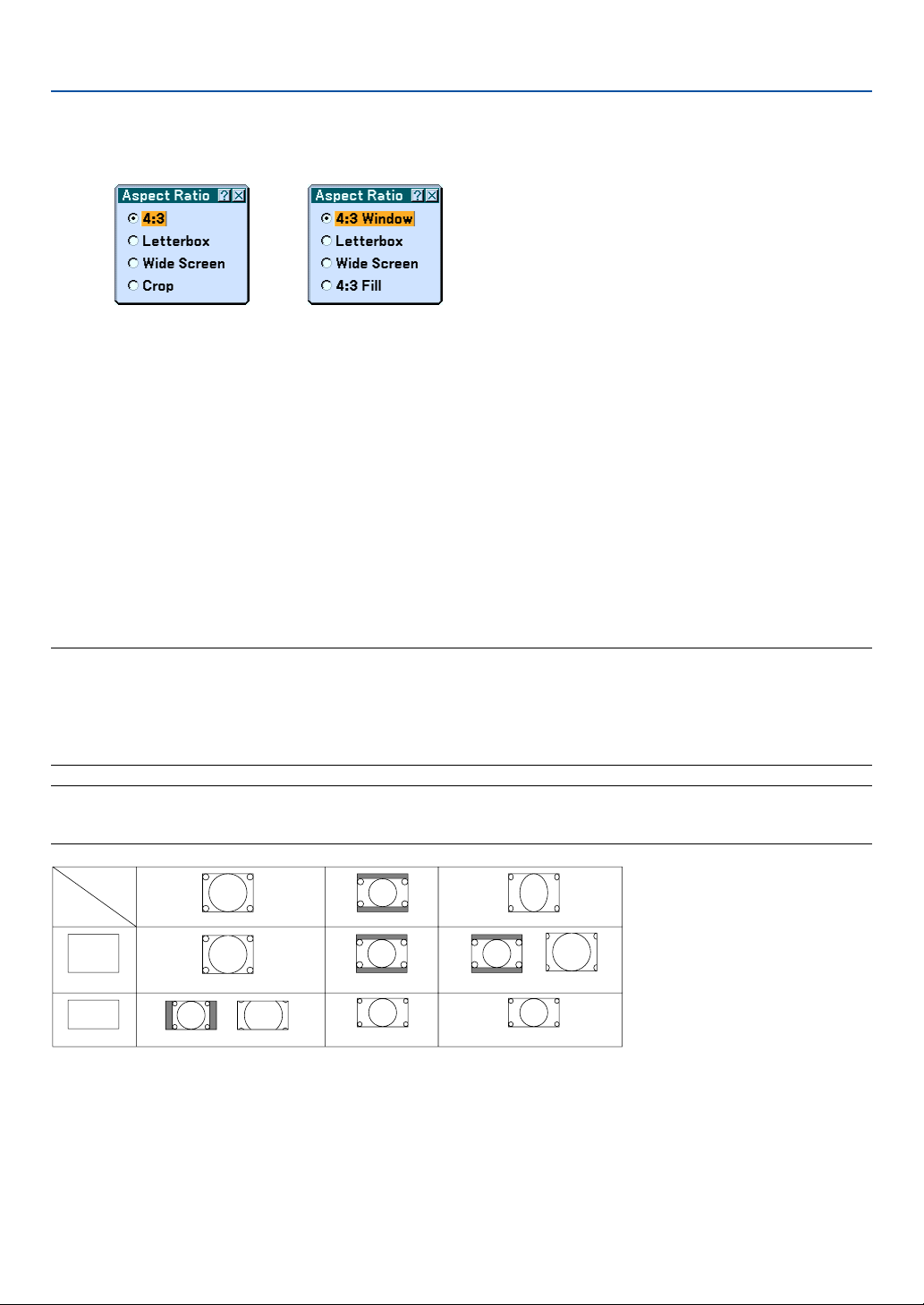

21. ASPECT Button

Press this button to display the Aspect Ratio select
menu. See page 90.

22. PIC-MUTE Button

This button turns off the image and sound for a short
period of time. Press again to restore the image and
sound. See page 51.

23. HELP Button

Provides the online help. See page 52.

24. VOLUME (+) (–) Buttons

Press (+) to increase the volume and (–) to decrease
it. See page 41.

25. FOCUS (+) (–) Buttons

Adjust the focus.

26. ZOOM (+) (–) Buttons

Reduces the image size between 80% and 100%.

27. FREEZE Button

This button will freeze a picture. Press again to re­sume motion. See page 51.

28. 3D REFORM Button

Press this button to enter 3D Reform to correct the
pincushion, the cornerstone or the keystone distor­tion, and make the image square. See pages 42 and

99 - 102.

16. VIDEO Button

Press this button to toggle between Video and S-Video
inputs.

17. COMPUTER Button

Press this button to select the COMPUTER, DVI (DIGI­TAL) or DVI (ANALOG) input.

18. AUTO ADJ. Button

Use this button to adjust an RGB source (COM­PUTER) for an optimal picture. See page 41.

19. VIEWER Button

Press this button to select the Viewer source. See page

71.

11

Battery Installation

1. Introduction

1

Remove the battery cover.

NOTE: Do not pull the battery
cover by force. Doing so can
result in its complete removal.

2

Remove both old batteries and
install new ones (AAA). Ensure
that you have the batteries' po­larity (+/ –) aligned correctly.

3

Slip the cover back over the bat­teries until it snaps into place.

NOTE: Do not mix different types of
batteries or new and old batteries.

2

2

1

1

Operating Range for Wireless Remote Control

7m/22 feet

Remote control

7m/22 feet

30°

30°

Remote control

• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of

the remote sensor on the projector cabinet.

• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls

on the sensor.
Weak batteries will also prevent the remote control from properly operating the projector.

Remote sensor on the projector cabinet

30°

30°

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

•Avoid excessive heat and humidity.

• If you will not be using the remote control for a long time, remove the batteries.

• Do not place the batteries upside down.

• Do not use new and old batteries together, or use different types of batteries together.

• Dispose of used batteries according to your local regulations.

Using the Remote Control in Wired Operation

Connect one end of the supplied remote cable to the REMOTE mini jack and the other end to the remote jack on the
remote control.

REMOTE

IN

PCCONTROL

PC CARD

REMOTE

IN

S-VIDEO IN DVI-I IN

AUDIO IN

VIDEO IN

L

R

/MONO

AUDIO IN AUDIO OUT

USB

DVI-I COMPUTER

COMPUTER IN MONITOR OUT

NOTE: Inserting the remote cable into the REMOTE IN jack will
automatically change the projector’s Standby mode to Normal
mode even if Power-saving mode has been selected.

12

1. Introduction



Part Names and Functions of the Supplied Electronic Pen (WT615 only)

The WT615 comes with an electronic pen.
The electronic pen works as a USB mouse connected to the projector. See page 53 for connecting a USB mouse.
The electronic pen and the projector’s sensors can be used to convert your whiteboard into a virtual touchscreen which
allows you to operate your projector’s menu or use the ChalkBoard feature. See “ Using the Electronic Pen” on page 45.

Important

Before you use the electronic pen or when you have changed the position of the projector or the screen size, be sure
to use [Calibration] to calibrate the electronic pen and the screen.

Button B

Pen tip

Button A

The buttons work as computer mouse buttons.

Pen tip ................... Left click button

Button A ................ Right-click button

Button B ................ Button to turn on or off the ChalkBoard toolbar.

NOTE:

• Button A or B must be pressed and held for a minimum of 0.5 second.

• Pressing and holding the buttons A and B at the same time for a minimum of 0.5 second will change to “Pen Calibration”

mode. See also page 47.

Requirements for the Electronic Pen Function

• Screen size: 40” to 80”

• Projector orientation: “Desktop Front” and “Ceiling Front”

• [Screen Type]: “4:3”

• [Aspect Ratio]: “4:3”

• Digital Zoom: 100%

• [Cornerstone] and [Keystone]: Not performed

• Operating temperature: 59 to 95°F (15 to 35°C)

• [Resolution]: "Auto"

NOTE: Do not hold this part. Otherwise, the electronic pen
may not work properly.

Battery Installation

123

Electronic Pen Precautions

• Handle the electronic pen carefully.

• If the electronic pen gets wet, wipe it dry immediately.

•Avoid excessive heat and humidity.

• If you will not be using the electronic pen for a long time, remove the battery.

• Dispose of a used battery according to your local regulations.

13

2

Installation and Connections

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 Setting Up the Screen and the Projector ................... 16

 Making Connections .................................................. 19

When Viewing a DVI Digital Signal ....................................................................... 19

Connecting Your PC or Macintosh Computer ....................................................... 19

To connect SCART output (RGB)......................................................................... 20

Using two Analog COMPUTER inputs simultaneously ........................................ 21

Connecting an External Monitor ........................................................................... 22

Connecting Your DVD Player ................................................................................ 23

Connecting Your VCR or Laser Disc Player .......................................................... 24

Connecting to a Network ...................................................................................... 25

Inserting and Removing a PC Card ...................................................................... 27

Connecting the Supplied Power Cable ................................................................. 29

14

2. Installation and Connections

This section describes how to set up your projector and how to connect video and audio sources.

When installing the projector for the first time, read the WT615/WT610 Setup Guide carefully.

Your projector is simple to set up and use.
But before you get started you must first:

1. Set up a screen and the projector.

NOTE: Using a warped screen can cause an image to appear distorted.

2. Connect your computer or video equipment to the projector. See page 19 to 28.

NOTE: To connect a network, see page 25.

3. Connect the supplied power cable. See page 29.

NOTE: Ensure that the power cable and any other cables are disconnected before moving the projector. When moving the
projector or when it is not in use, close the mirror cover on the top cabinet.

15

2. Installation and Connections

 Setting Up the Screen and the Projector

1. Refer to "Throw Distance (C)" in the diagram and use a distance between the screen and projector that corre­sponds to the screen size.

As an example, when projecting to a 60" screen, set the projector with a separation of approximately 10.4"/26.3
cm from the screen.

2. Refer to "Height (D)" below and adjust the screen height, or adjust the height of the projector stand.
As an example, when projecting to a 60" screen, adjust the height from the feet of the projector to the lower

edge of the screen to approximately 19.0"/48.2 cm.

Screen size

(inch)

40
45
50
55
60
65
67
70
72
75
78
80
84
85
90
95
96

100

Height (B)

mm inch

659
729
799
869

939
1010
1037
1080
1107
1149
1191
1219
1275
1289
1359
1428
1443
1499

25.9

28.7

31.5

34.2

37.0

39.7

40.8

42.5

43.6

45.2

46.9

48.0

50.2

50.7

53.5

56.2

56.8

59.0

Throw distance (C)

mm inch

64
114
164
214
263
313
332
362
381
412
441
461
500
510
559
609
619
659

Screen center

B

D

Back of projector

C

Projector foot

NOTE

• There is a tolerance of +/–5% because of design values.

• The projection distance and the lower edge of the screen
are calculated using a 4:3 aspect ratio.

Height (D)

2.5

4.5

6.4

8.4

10.4

12.3

13.1

14.3

15.0

16.2

17.4

18.1

19.7

20.1

22.0

24.0

24.4

25.9

120

100

80

60

40

Screen size (inch)

20

mm inch

354
386
418
450
482
514
526
546
558
577
596
609
635
641
673
704
711
737

0

0 100 200 300 400 500 600 700

13.9

15.2

16.5

17.7

19.0

20.2

20.7

21.5

22.0

22.7

23.5

24.0

25.0

25.2

26.5

27.7

28.0

29.0

Throw distance C (mm)

120

100

80

60

40

Screen size (inch)

20

0

051015 20 25 30

Throw distance C (inch)

16

2. Installation and Connections

Screens Suited

• The projector can accommdate screen sizes from 40” (81.3 cm/32.0” W ⳯ 61.0 cm/24.0” H)
to 100 inch (203.2 cm/80.0” W ⳯ 152.4 cm/60.0” H).

40"-100"

• Use a panel or tension type screen that has a flat surface.

Recommended

Do not use roll type screens and other screens that bend or form a wavy
surface easily. Doing so will result in increased distortion of the projected
image.

• View the screen directly from the side so that it is perfectly vertical.

Recommended

A slanted screen will result in increased keystone distortion.

90˚

• In using this projector, increasing the screen size will move the projection position upward. To
accommodate this, please use a screen that can be raised and lowered to a given screen
position. See page 16 for information about the positioning relationships between the screen
and this projector.

• High gain type screens are not optimal for use with this projector. The lower the screen gain
(i.e., screen gain on the order of 1), the better the appearance of the projected image.
For more information about screen gain, consult catalogs from screen manufacturers.

• Screen frames or pen shelves that protrude from the front of the screen surface may block
some of the light from the projector.

• Due to the projection angle of the projector, many standard rear projection screens may pro­duce uneven brightness, hot spotting or not produce maximum brightness to the viewer. For
more details utilizing rear projection screens and their applications with this projector, please
contact your NEC dealer.

Not recommended

Not recommended

Recommended

Not recommended

Not recommended

Not optimal

• Controlled ambient light environments will allow for an image of higher contrast and depth to
be displayed.

• Screens with a soiled, scratched, or discolored area will not produce a clean image. Care
should be used in the handling of the screen.

Stands Suited

• In using this projector, increasing the screen size will move the projection position upward. To
accommodate this, please use a stand that has a height positioning adjustment. See page 16
for information about the positioning relationships between the screen and this projector.

• Use a stand that will allow this projector to be set up in a level condition. Adjust the feet of the
stand to make sure it is level.

17

Not recommended

Not recommended

Recommended

Recommended

Level

2. Installation and Connections

Ambient environmental condition

• Do not place the screen near vents.
Air movement hitting the screen, causing the projected image to ripple.

• Do not illuminate the projector with strong light sources such as halogen lamp.
Doing so can cause the object detection sensor to malfunction, resulting in the projector not turning on.

Precautions for using the electronic pen (WT615 only)

• Use a hard-surface screen because you tap the screen using the electronic pen. Supported screen sizes are 40
to 80" (101.6 to 203.2 cm).

•Keep in mind that the electronic pen tip can cause scratches on the screen surface as the pen tip is made of
hard material.

• Do not use the electronic pen under the following conditions. Otherwise, the electronic pen may not work
properly.

- Near a device such as a CRT monitor or a TV set.

- In a room with the ceiling and walls made of metal which is prone to reflect sound waves.

- In a noisy place or a place where loud sounds can be heard

- In direct sunlight or near an inverter fluorescent lamp.

- Near an air conditioner or air blower

• Do not hold any part ahead of the black ring part of the electronic pen. Otherwise, the electronic pen may not
work properly.

• Do not use two or more electronic pens and projectors at the same time in the same room. Be sure to use the
electronic pen and the projector on a one-to-one basis.

• Operational temperature for electronic pen is 59° to 95°F (15° to 35°C).

18

2. Installation and Connections

 Making Connections

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the
power to the notebook PC. In most cases signal cannot be output from the RGB output unless the notebook PC is turned on after
connecting with the projector.

* If the screen goes blank while using your notebook PC, it may be the result of the computer's screen-saver or power manage-

ment software.

When Viewing a DVI Digital Signal

To project a DVI digital signal, be sure to connect the PC and the projector using a DVI cable (not supplied) before
turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu before
turning on your PC.
Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should
this happen, restart your PC.
Do not disconnect the DVI cable while the projector is running. If the signal cable has been disconnected and then re­connected, an image may not be correctly displayed. Should this happen, restart your PC.

NOTE:

• Use a DVI cable or the one compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0
standard. The DVI cable should be within 5 m (196") long. Both single and dual types of DVI cable can be used.

• The DVI (DIGITAL) connector accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768) and SXGA (1280x1024 @
up to 60Hz).

Connecting Your PC or Macintosh Computer

IBM PC or Compatibles (Desktop type)
or Macintosh (Desktop type)

DVI cable (not supplied)

PHONE

COMPUTER IN

PCCONTROL

REMOTE

DVI-I IN

IN

VIDEO IN

AUDIO IN

L

R

/MONO

PC CARD

S-VIDEO IN DVI-I IN

AUDIO IN AUDIO OUT

USB

DVI-I COMPUTER

COMPUTER IN MONITOR OUT

Audio cable (not supplied)

AUDIO IN DVI-I

AUDIO IN COMPUTER

Audio cable (not supplied)

RGB/VGA signal cable
(supplied)
To mini D-Sub 15-pin
connector on the projector.
It is recommended that
you use a commercially
available distribution
amplifier if connecting a
signal cable longer than
the one supplied.

PHONE

IBM VGA or Compatibles (Notebook type)
or Macintosh (Notebook type)

NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

NOTE: The WT615/WT610 is not compatible with video decoded outputs of either the NEC ISS-6020 or ISS-6010.

19

2. Installation and Connections

To connect SCART output (RGB)

Before connecting: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are re­quired for this connection.

NOTE: Audio signal is not available for this connection.

Video equipment such as DVD player

Projector

PCCONTROL

REMOTE

PC CARD

IN

S-VIDEO IN DVI-I IN

AUDIO IN

VIDEO IN

L

R

/MONO

COMPUTER IN

AUDIO IN AUDIO OUT

USB

DVI-I COMPUTER

COMPUTER IN MONITOR OUT

To COMPUTER IN

Commercially available SCART cable

Female

ADP-SC1

1. Turn off the power to the projector and your video equipment.

2. Use the NEC ADP-SC1 SCART adapter and a commercially available SCART cable to connect the
COMPUTER input of your projector and a SCART output (RGB) of your video equipment.

3. Turn on the power to the projector and your video equipment.

4. Use the COMPUTER button on the remote control to select the COMPUTER input.

5. Press the MENU button on the remote control to display the menu.

6. From the Advanced menu, select [Setup]

→

[Options] → [Signal Select] → [Computer] → [Scart].

SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred
to as Euro-connector.

NOTE: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more
information.

20

2. Installation and Connections

Using two Analog COMPUTER inputs simultaneously

If you need to use two analog COMPUTER inputs simultaneously, connect a DVI-A to VGA cable as shown below.

IBM PC or Compatibles (Desktop
type) or Macintosh (Desktop type)

DVI-I IN

PCCONTROL

REMOTE

IN

AUDIO IN

L

R

/MONO

DVI-A to VGA cable
(not supplied)

VIDEO IN

PC CARD

S-VIDEO IN DVI-I IN

COMPUTER IN

AUDIO IN AUDIO OUT

USB

DVI-I COMPUTER

COMPUTER IN MONITOR OUT

RGB/VGA signal cable
(supplied)

IBM PC or Compatibles (Notebook type)
or Macintosh (Notebook type)

21

Connecting an External Monitor

2. Installation and Connections

PCCONTROL

PC CARD

REMOTE

IN

S-VIDEO IN DVI-I IN

AUDIO IN

VIDEO IN

L

R

/MONO

RGB/VGA signal cable
(supplied)
To mini D-Sub 15-pin
connector on the projector.
It is recommended that you
use a commercially
available distribution
amplifier if connecting a
signal cable longer than the
supplied one.

AUDIO IN AUDIO OUT

USB

DVI-I COMPUTER

COMPUTER IN MONITOR OUT

MONITOR OUT

RGB/VGA signal cable (commercially
available or supplied with an external
monitor)

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
image you're projecting. To do so:

1. Turn off the power to your projector, monitor and computer.

2. Use a 15-pin cable to connect your monitor to the MONITOR OUT (Mini D-Sub 15 pin) connector on your
projector.

3. Turn on the projector, monitor and the computer.

NOTE:

• When the projector is in the Standby mode, the image may not be correctly displayed while the cooling fans are running

immediately after turning on or off the power. Note that the MONITOR OUT connector will not output an RGB signal during
Power-saving mode (See page 119 for enabling the Power-saving mode).

• Daisy chain connection is not possible.

22

Connecting Your DVD Player

2. Installation and Connections

Optional 15-pin-to-RCA
(female)

⳯

3 cable (ADP-CV1)

Component video RCA
(not supplied)

Audio Equipment

AUDIO IN

LR

COMPUTER IN

⳯

3 cable

AUDIO IN COMPUTER

PCCONTROL

PC CARD

REMOTE

IN

S-VIDEO IN DVI-I IN

AUDIO IN

VIDEO IN

L

R

/MONO

AUDIO IN AUDIO OUT

USB

DVI-I COMPUTER

COMPUTER IN MONITOR OUT

Audio cable
(not supplied)

DVD player

YCbCr

Component

L R

AUDIO OUT

Audio cable (not supplied)

You can connect your projector to a DVD player with component output or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component
video cable (RCA⳯3) and the optional 15-pin-to-RCA (female)⳯3 cable to connect your DVD player to
the COMPUTER IN connector on the projector.

For a DVD player without component video (Y,Cb,Cr) output, use an S-Video cable (not provided) to
connect the S-Video output of the DVD player to the S-Video Input of the projector.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.

NOTE: Normally switching between RGB and component signals will be performed automatically, but if it fails, from the menu
select [Setup] → [Options] → [Signal Select] → [Component] for the RGB signal.

23
