NEC PD Comms Tool User's Guide
Version
1.3.00
NEC PD Comms Tool
User’s Guide
2 | NEC PD COMMS TOOL - USER’S GUIDE
Software Updates
Occasionally updates and enhancements to the NEC PD Comms Tool software will be made available. Use the
Check for updates feature in the software to automatically see if a newer version is available.
Technical Support and Feedback
For technical support with the NEC PD Comms Tool product, please check for any Frequently Asked Questions
that may help to solve the issue.
Trademarks and Copyright
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
Apple, Macintosh, Mac and the Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.
Copyright © 2010-15 NEC Display Solutions, Ltd.
The content of this manual is furnished for informational use only, is subject to change without notice, and should
not be construed as a commitment by NEC Display Solutions. NEC Display Solutions assumes no responsibility
or liability for any errors or inaccuracies that may appear in this manual.
All rights reserved. Your rights of ownership are subject to the limitations and restrictions imposed by the copyright
laws as outlined below.
It is against the law to copy, reproduce or transmit, including without limitation electronic transmission over any
network, any part of the manual except as permitted by the Copyright Act of the United States, Title 17, United
States Code. Under the law, copying includes translation into another language or format.
The above is not an inclusive statement of the restrictions imposed on you under the Copyright Act.
For a complete statement of the restrictions imposed on you under the copyright laws of the United States of
America, see Title 17, United States Code.
USA and Canada: www.necdisplay.com
Europe: www.nec-display-solutions.com
Revision 150224
3 | NEC PD COMMS TOOL - USER’S GUIDE Table of Contents
Contents
Precautions: . . . . . . . . . . . . . . . . 5
Note: . . . . . . . . . . . . . . . . . . . 5
Supported Display Monitors . . . . . . . . . . . 6
System Requirements . . . . . . . . . . . . . 7
What’s new in this version . . . . . . . . . . . 7
Introduction 8
Overview . . . . . . . . . . . . . . . . . . 8
Main Features and Benets . . . . . . . . . . 8
Example Usage Scenarios . . . . . . . . . . . 8
Controls and Functions 9
Main NEC PD Comms Tool window . . . . . . . . 9
Communications Interface . . . . . . . . . . . 10
Display List . . . . . . . . . . . . . . . . . 11
Communications Send/Receive Log . . . . . . . 11
Main Window - Function List . . . . . . . . . .12
Controls - By OpCode panel . . . . . . . . . . 12
Controls - Power panel . . . . . . . . . . . . 13
Controls - Power Save Mode panel . . . . . . . 14
Controls - Video & Color panel . . . . . . . . . 15
Controls - Size & Position panel . . . . . . . . . 16
Controls - Tile Matrix panel . . . . . . . . . . . 17
Controls - Cooling Fans panel . . . . . . . . .18
Status panel . . . . . . . . . . . . . . . .19
IR Remote panel . . . . . . . . . . . . . . . 20
Commands - Clock & Schedule panel . . . . . . 21
Commands - Daylight Savings panel . . . . . . . 22
Commands - Firmware Version panel . . . . . .23
Commands - LAN MAC Address panel . . . . . . 24
Commands - TV Tuner Channel panel . . . . . . 25
Commands - Security panel . . . . . . . . . . 26
Commands - Input Name panel . . . . . . . . . 27
Commands - Auto ID panel . . . . . . . . . .28
Commands - Auto Tile Matrix panel . . . . . . .29
Commands - Proof Of Play panel . . . . . . . . 30
Commands - Simple Commands panel . . . . . . 31
Advanced - Analog Video panel . . . . . . . . . 32
Advanced - Scripting panel . . . . . . . . . . . 33
Advanced - Scripting - OpCode Info panel . . . . . 34

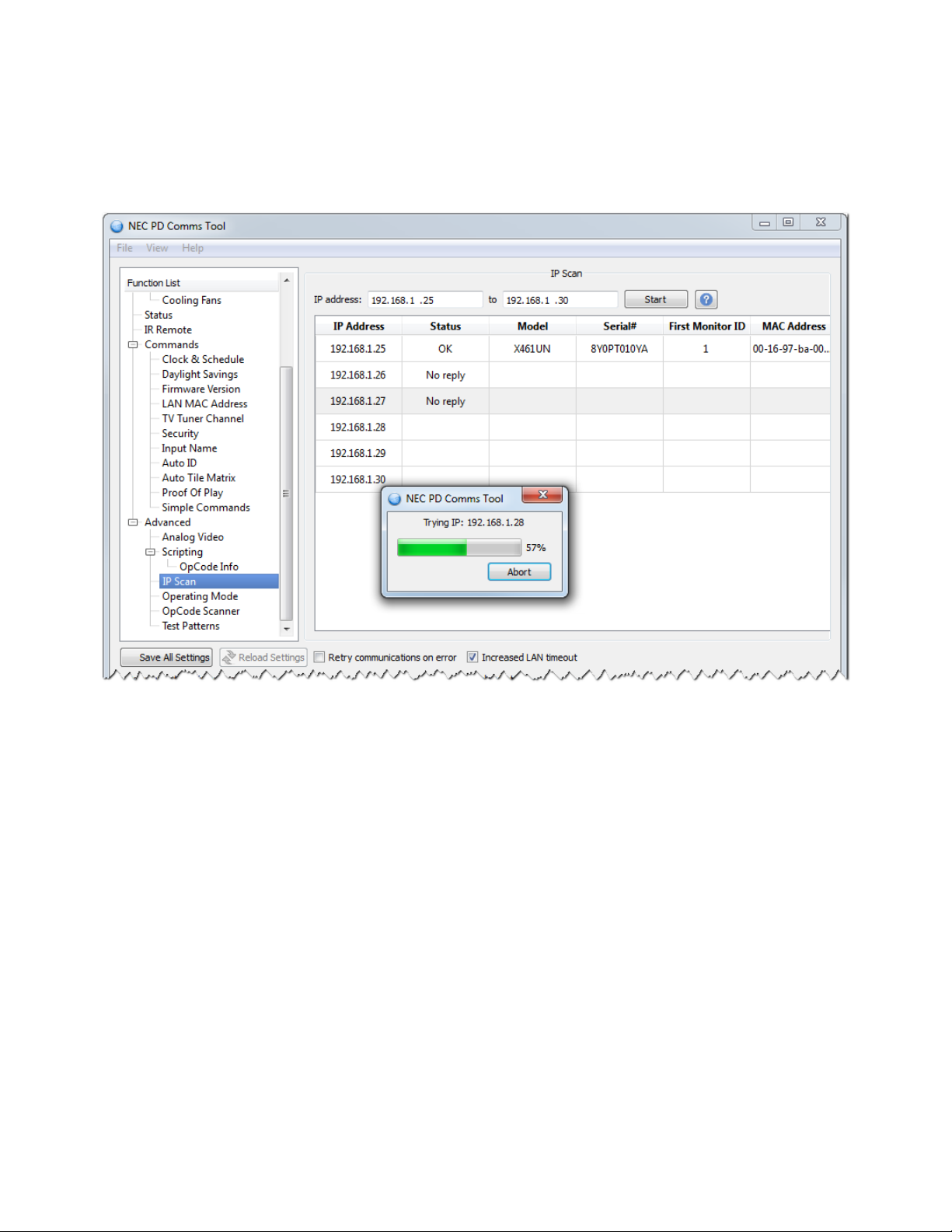

Advanced - IP Scan panel . . . . . . . . . . . 36
Advanced - Operating Mode panel. . . . . . . . 37
Advanced - OpCode Scanner panel . . . . . . . 38
Advanced - Test Patterns panel . . . . . . . . . 39
Frequently Asked Questions 40
Troubleshooting 41
Scripting Language 42
SETPORT command . . . . . . . . . . . . . 42
FOREACHPORT command . . . . . . . . . . 42
SETMONITORID command . . . . . . . . . . 43
SETPOWER command . . . . . . . . . . . . 43
SETDATETIME command . . . . . . . . . . . 43
4 | NEC PD COMMS TOOL - USER’S GUIDE Table of Contents
SETOPCODE command . . . . . . . . . . .44
WAIT command . . . . . . . . . . . . . . . 44
SENDIR command . . . . . . . . . . . . . . 45
SCHEDULE command . . . . . . . . . . . . 45
Further Script Examples . . . . . . . . . . . . 48
Example Display Connections 49
Conguring Connections . . . . . . . . . . . . 49
About Monitor IDs . . . . . . . . . . . . . . 49
Direct LAN . . . . . . . . . . . . . . . . . 50
RS232 Daisy-chain. . . . . . . . . . . . . . 50
LAN Daisy-chain . . . . . . . . . . . . . . . 51
Using the Auto ID function with a LAN daisy-chain . . 52
Example: Daisy-chained RS232 with one COM port . 53
Example: Daisy-chained RS232 with multiple COM ports 54
Example: Direct Multi IP LAN . . . . . . . . . . 56
Example: Multi IP LAN using LAN daisy-chain. . . . 57
Example: RS232 using LAN daisy-chain . . . . . . 58
Connecting to displays wirelessly . . . . . . . .59
Assigning an IP address 60
5 | NEC PD COMMS TOOL - USER’S GUIDE
Precautions:
• This software application allows many advanced features of the display to be adjusted.
Care should be taken when making any adjustments to avoid misadjustment.
Important Notes:
• This document covers both the Mac OS and Windows versions of the NEC PD Comms Tool
software. The features and functions of both versions are identical unless noted otherwise.
• This document is intended to be used together with the display’s User Manual and
optionally the display’s External Control specication document. It is not intended as a
replacement for either.
• It is very important to note that not all displays support all of the OpCodes, commands,
and functions provided in this software. Refer to the individual model’s External Control
specication document to see what is supported.
• The External Control specication document for each model is available on the NEC
Display Solutions websites and is typically located on the product’s Downloads page.
6 | NEC PD COMMS TOOL - USER’S GUIDE
Supported Display Monitors
NEC PD Comms Tool supports the following NEC display monitor models:
• NEC P Series (P401, P461, P521 etc.)
• NEC X Series (X461UN, X461HB, X431BT etc.) including UHD models such as the X841UHD
• NEC S Series (S401, S461, S521 etc.)
• NEC M Series (M401, M461 etc.)
• NEC Exx2 series (E322, E422, E462, E552 etc.) and newer including the Exx5 series
• NEC Multeos M40 and M46 [RS232 connection only]
• NEC MultiSync LCD20 Series (LCD4020, LCD4620 etc.) [RS232 connection only]
7 | NEC PD COMMS TOOL - USER’S GUIDE
System Requirements
NEC PD Comms Tool has the following system requirements:
ÿ
Mac OS
Operating System Apple Mac OS X v10.5 or higher. Microsoft Windows XP, XP x64,
Windows Server 2003,
Windows Vista (32 or 64 bit),
Windows 7 (32 or 64 bit),
Windows 8 or 8.1 (32 or 64 bit).
LAN (for supported
display models)
RS232 A USB to RS232 adapter can be used
Included on all Macs Standard TCP/IP LAN interface (optional if
using RS232 or Wireless LAN)
One or more RS232 COM Ports (optional
if connecting the Mac to displays via
RS232 instead of via LAN.
Null modem cables to connect devices.
if using LAN).
Null modem cables to connect devices.
A USB to RS232 adapter can be used if
necessary.
Microsoft Windows
What’s new in this version
This version of NEC PD Comms Tool has the following new features and functionality since the previous version of
1.2.xx:
• Redesigned layout - The design has been changed to allow for more controls and commands to be added.
A function list control lists all of the controls and commands available within the application. Each selected
function displays a panel with function specic controls.
• New commands - Support for commands on newer display models has been added. These commands include
items such as Proof Of Play, Firmware Version, and Input Naming.
• New OpCode Control Names - Control names for new controls have been added to allow them to be used
in scripting and for easy identication. The main list of OpCode Control Names can be optionally grouped by
category, or listed alphabetically.
8 | NEC PD COMMS TOOL - USER’S GUIDE
Chapter
Introduction
1
Overview
NEC PD Comms Tool (NEC Public Display Communications Tool) is a software application that can be used to congure,
control, and test supported NEC large screen LCD display models via either RS232 or LAN connections. It can also be
used to assist with developing and debugging external control systems by showing the communications protocol for
commands exchanged between the software and displays.
Main Features and Benets
NEC PD Comms Tool provides a simple, intuitive interface to perform the following functions:
• Provides easy remote access to many common controls.
• Access to advanced controls.
• Assists with diagnosing connection and conguration related problems.
• Displays and logs all commands exchanged via RS232 or LAN.
• Shows a breakdown of how commands are constructed from the input parameters and monitor protocol.
• Powerful scripting command language allows complex control sequences to be performed on multiple displays.
Example Usage Scenarios
• Finding command codes for programming into an external controller.
• Conguring the settings on multiple displays to custom values with one click via a script. This would be useful
when deploying many displays.
• Using a script to quickly switch the TileMatrix settings on a video wall between multiple layouts.
• Making adjustments to displays when it is not physically possible or convenient to use the IR Remote control.
9 | NEC PD COMMS TOOL - USER’S GUIDE
Chapter
Controls and Functions
2
Main NEC PD Comms Tool window
The NEC PD Comms Tool window has a list of selectable functions on the left side. The right side shows the panel for
the currently selected function. At the bottom of the window are the Communications Interface settings which specify
how to connect to a display, such as via LAN or RS232.
Function Panel
Function List
Selects the function panel
shown on the right
Panel with controls for the
currently selected function.
Communications Interface
Congures the connection to
the display(s) and Monitor ID
Display List
Easy access to
Communications Interface
settings for multiple displays
10 | NEC PD COMMS TOOL - USER’S GUIDE
Communications Interface
The Communications Interface section on the main window is used to specify the connection interface to a display.
Displays can be connected either by RS232 or LAN (if supported).
When connecting to a display via LAN, select LAN and enter the IP address of the display.
When connecting via RS232, select RS232 and select the COM port on the host PC. COM ports that are currently
available on the system are shown with a green check mark.
When connecting to displays that are daisy chained via RS232, but the rst display is connected via LAN, select LAN
and enter the IP address of the rst display.
See the example display connections section for examples of various congurations when multiple displays are used.
An additional option, Dummy Interface, is provided to allow some limited functionality of the application without the
need to have a display connected. This can be useful for example to determine the data to send to perform a particular
command, using the View - Communications Log feature, even when a display is not physically connected. Only the
data to send to perform a command will be shown, and it does not mimic the expected reply from a display.
Select the Monitor ID of the display or group of displays to control. The Monitor ID can also be automatically detected
by clicking Auto Detect. In the case of multiple displays being daisy-chained, the lowest Monitor ID being used will be
detected.
Click the Test button to try communicating with the display. If this is successful, a message will be shown at the bottom
of the window. An error message will be shown if an error occurred. See the troubleshooting guide for suggestions.
The Retry communications on error setting will force the application to re-send a command up to 3 times if it fails.
This can be useful in some environments if the connection is unreliable due to noise etc.
The Increased LAN timeout setting increases the time that the software will wait for a reply. This can be useful if a
display is connected via a high-latency LAN connection such as a cellular link.
11 | NEC PD COMMS TOOL - USER’S GUIDE
Display List
The Display List allows Communications Interface settings for multiple displays to be stored for easy access by
selecting from a list.
This is useful for example when there are multiple displays in use, as it allows the communications conguration for
each to be stored, and accessed quickly by selecting from the list.
When selecting a display from the list, the Communications Interface settings will automatically change to the selected
display’s settings.
To add the current Communications Interface settings to the Display List, click the Add to Display List button.
To save the current Display List to a le for later use, click the Save le… button.
To load a previously saved Display List, click on the Open le… button.
To delete the currently selected item in the Display List, click the Delete Selected button.
Communications Send/Receive Log
The Communications Send/Receive Log window is accessed from the View menu. When opened, the window shows
the actual data that is transmitted to and received from a display for each command.
This feature is particularly useful to help understand the format of the command protocol when making custom
applications. It can also be used to quickly determine the command sequence for a particular operation which can then
be programmed into another control device – thus avoiding having to understand the details of the communications
protocol. It is expected to be used in conjunction with the communications protocol specication document available for
each model from NEC.
In addition to showing the actual data send and received, a breakdown of most commands can also be shown by
selecting Show message decoding. This feature helps in understanding how each message is encoded from the input
parameters by providing much more detail.
The log text in the widow can be copied to the system clipboard by clicking Copy.
Clicking Clear will clear the log contents.
12 | NEC PD COMMS TOOL - USER’S GUIDE
Main Window - Function List
Controls - By OpCode panel
The Controls - By OpCode panel provides access for Get (reading) and Set (writing) control settings. Each control has
an Op Code number assigned. See the protocol specication document for your model of display for a list of supported
controls and Op Codes.
Controls can accessed either by selecting the Op Code by name from the Op Code Control Name list, or by entering
the hexadecimal Op Code value directly into the Op Code setting. The Op Code Control Name list can be ordered
alphabetically, or by functional category by selecting List by category.
Clicking Get will attempt to read the current value of the selected Op Code control. The monitor will reply with the status
of if the Op Code is supported, the current value, and the maximum possible value.
The value of the Op Code returned from the display will be shown. For some controls, such as Input, where each value
has discrete setting, the value will be shown in the Value Setting list. For other controls such as Brightness which have
a continuous range, the value will be shown on the Value Setting slider control.
The setting value for the Op Code control can be updated in the monitor by either:
• Editing the Value setting, and clicking Set.
• Selecting an item from the Value Setting list.
• Adjusting the Value Setting slider control.
Note: When completed making adjustments, it is good practice to click the Save All Settings button which will force the monitor
to save the changes.
13 | NEC PD COMMS TOOL - USER’S GUIDE
Controls - Power panel
The Controls - Power panel controls the power settings of the displays.
Clicking the On button will turn the display or displays on.
Clicking the Off button will turn the display or displays off.
The Current State of the display is shown.
The Power On Delay time control sets the time delay is seconds for the display to when the main display circuits are
switched on after power on.
By staggering the delay time between displays, a sudden large power rush can be avoided when many displays are
turned on.
14 | NEC PD COMMS TOOL - USER’S GUIDE
Controls - Power Save Mode panel
The Controls - Power Save Mode panel controls the power settings of the displays.
Power Saving Mode (Legacy) can be enabled and disabled for the currently selected video input using Enable and
Disable.
On some display models the type of Power Save Mode can be selected, as well as the delay time for entering power
save after loss of video signal. The Reply Status shows the reply from the display for this command.
15 | NEC PD COMMS TOOL - USER’S GUIDE
Controls - Video & Color panel
The Controls - Video & Color panel controls the video signal and color adjustments.
The Brightness, Contrast, Sharpness, Black Level, Tint, Color, Gamma, Picture Mode and Red Green and Blue
Gains controls adjust the settings for the respective video controls in the display.
16 | NEC PD COMMS TOOL - USER’S GUIDE
Controls - Size & Position panel
The Controls - Size & Position panel has controls used to congure the various video size and position settings in the
display.
17 | NEC PD COMMS TOOL - USER’S GUIDE
Controls - Tile Matrix panel
The Controls - Tile Matrix panel has controls used to congure the tile Matrix settings for dividing and expanding a
video source over multiple displays.
Enable Tile Matrix - Is used to enable the Tile Matrix feature in the display.
Matrix size - Is used the set the matrix size in rows and columns.
Use Tile Comp - Enables the Tile Comp feature to compensate for the display bezel width when the video is divided.
The position in the TileMatrix can be selected by clicking the relevant display on the matrix diagram.
18 | NEC PD COMMS TOOL - USER’S GUIDE
Controls - Cooling Fans panel
The Controls - Cooling Fans panel has controls used to adjusts the cooling fan settings such as fan speed, temperature
trigger point, and forced on or automatic operation.
19 | NEC PD COMMS TOOL - USER’S GUIDE
Status panel
The Status panel reports various aspects about the display.
Model Name - Shows the model name read from the display.
Serial Number - Shows the serial number read from the display.
Operating Hours On - Shows the number of hours that the display has been power on (LCD panel active).
Total Operating Hours - Shows the total number of hours that the display has had AC power applied.
Firmware version - Shows the main version number of the rmware in the display.
Firmware 2, 3, and 4 version - Shows the sub-system version numbers of the rmware in the display.
Fan 1, 2, and 3 - Shows the current operating status of the internal cooling fans of the display. On, Off and Error
conditions are reported. The fan settings can be adjusted on the Power tab.
Temperature Sensor 1, 2, and 3 - Shows the current internal temperature sensor readings of the display.
Diagnostics - Shows the diagnostic condition reported by the display, as well as various failure conditions such as
power supply, fan, and temperature abnormalities.
Horizontal, Vertical Video Frequency, Video Sync - Shows the video frequency and sync polarity of the current video
input signal.
MAC Address - Shows the LAN IP address if available (Note: Not available on Mac OS version).
Asset Data Tag - Shows the customizable text that can be stored in the display for asset tracking purposes (up to 64
characters). Click Update to store text in the display.
Clicking the Copy button will copy the current information to the system clipboard.
Loading...
