NEC PD6120D, PD6120D /U1B Service Manual

Download

Service

PD6120D /U1B

Manual

INPUT SELECT VOLUME

Plasma Monitor

POWER/STANDBY

REMARK : The PD6120D is a same product as the PX-61XM1A except the brand indications and accessories. Please refer to the PX-61XM1A service manual (PART No. 007A) except following parts.

POS.

NO.

Following spare parts are different from PX-61XM1A ones. (refer page 9-1 )

PK21 ZK334W0010 RC5010DPD (03S120012) PK30 02AW851210 USER GUIDE for PD6120D (07S900024)

M21 02AW248010 FRONT PANEL ASSY (029DS0221)

Please use this service manual with referring to the user guide (D.F.U) without fail.

VERS. PART NO. DESCRIPTION

PD6120D

Printed in Japan

PD6120D

02AW855010 SIG First Issue:

2001.08

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original it is famous. Parts for your

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified. The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which

MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.

USAUSA

MARANTZ AMERICA, INCMARANTZ AMERICA, INC. 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301

AMERICAS AMERICAS

SUPERSCOPE TECHNOLOGIES, INC.SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103

AUSTRALIAAUSTRALIA

QualiFi Pty Ltd,QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677

NEW ZEALANDNEW ZEALAND

WILDASH AUDIO SYSTEMS NZWILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554

EUROPE / TRADING EUROPE / TRADING

MARANTZ EUROPE B.V.MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578

AUSTRALIA AUSTRALIA

TECHNICAL AUDIO GROUP PTY, LTDTECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355

THAILANDTHAILAND

MRZ STANDARD CO.,LTDMRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795

TAIWANTAIWAN

PAI- YUING CO., LTD.PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415

BRAZILBRAZIL

PHILIPS DA AMAZONIA IND. ELET. ITDAPHILIPS DA AMAZONIA IND. ELET. ITDA

CENTRO DE INFORMACOES AO

CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123 FAX : +55 11 534. 8988

(Discagem Direta Gratuita)

CANADACANADA

LENBROOK INDUSTRIES LIMITEDLENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936

SINGAPORESINGAPORE

WO KEE HONG DISTRIBUTION PTE LTDWO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078

MALAYSIAMALAYSIA

WO KEE HONG ELECTRONICS SDN. BHD.WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180

JAPANJAPAN

MARANTZ JAPAN, INC.MARANTZ JAPAN, INC.

Technical

35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190

KOREAKOREA

MK ENTERPRISES LTD.MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC

cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 1492.

In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address.

010620 SIG

PlasmaSync™ Multimedia Monitor

MODEL PX-61XM1A

PX-61XM1G PX-61XM1U-S1

SERVICE MANUAL

Better Service

No. 007A

Better Reputation

Better Profit

SAFETY CAUTION:

Before servicing this chassis, it is important that the service technician read and follow the “Safety Precautions” and “Product Safety Notice” in this Service Manual.

WARNING:

SHOCK HAZARD - Use an isolation transformer when servicing.

CONTENTS

SAFETY PRECAUTIONS .................................................................................................................................. 2-1

USER’S MANUAL .............................................................................................................................................. 3-1

TROUBLESHOOTING ....................................................................................................................................... 4-1

METHOD OF ADJUSTMENTS .......................................................................................................................... 5-1

CIRCUIT DESCRIPTION ................................................................................................................................... 6-1

METHOD OF DISASSEMBLY ........................................................................................................................... 7-1

PACKAGING...................................................................................................................................................... 8-1

PARTS LIST....................................................................................................................................................... 9-1

CONNECTION DIAGRAMS............................................................................................................................. 10-1

BLOCK DIAGRAMS......................................................................................................................................... 11-1

SCHEMATIC DIAGRAMS................................................................................................................................ 12-1

1-1

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN REAR COVER. NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

ATTENTION

RISQUE D'ELECTROCUTION

NE PAS OUVRIR

ATTENTION: POUR EVITER LES RISQUES D' ELECTROCUTION, NE PAS ENLEVER LE CONVERCLE ARRÈRE. AUCUN DES

ELEMENTS INTERNES NE DOIT ETRE REPARE PAR L'UTILISATEUR. NE CONFIER L' ENTRETIEN QU'A UN PERSONNEL QUALIFIE.

L'éclair fléché dans un triangle équilatéral est destiné à avertir l'utilisateur de la présence, dans l'appareil, d'une zone non-isolée soumise à une haute tension dont l'intensité est suffisante pour constituer un risque d'électrocution.

Le point d'exclamation dans un triangle équilatéral est destiné à attirer l' attention de l'utilisateur sur la présence d'informations de founctionnement et d'entretien importantes dans la brochure accompagnant l'appareil.

WARNING

HEATSINK MAY BE ENERGIZED. TEST BEFORE TOUCHING.

2-1

SAFETY PRECAUTIONS

1. Before returning an instrument to the customer , al- ways make a safety check of the entire instrument, in-

cluding, but not limited to, the following items. a. Be sure that no built-in protective devices are

defective and/or have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including,but not limited to, nonmetallic control knobs,insulating fishpapers,adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this

instrument or permit it to be operated without all protective devices correctly installed and functioning.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such opening include,but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Leakage Current Hot Check — With the instru-

ment completely reassembled,plug the AC line cord directly into a 240V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards Institutes (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories(UL)

1950. With the instrument AC switch first in the ON position and then in the OFF position, measure from a known earth ground (metal waterpipe, conduit,etc.) to all exposed metal parts of the instrument(antennas, handle bracket, metal cabinet, screwheads, metallic overlays, control shafts,etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 3.5 milliamp. Reverse the instrument power cord plug in the outlet and repeat test.ANY MEASUREMENTS NOT WITHIN

THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER.

AC Leakage Test

(READING SHOULD NOT BE ABOVE

DEVICE UNDER

TEST

TEST ALL EXPOSED METAL SURFACES

3-WIRE CORD

ALSO TEST WITH PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

LEAKAGE CURRENT

TESTER

+–

3.5 mA)

EARTH

GROUND

2. Read and comply with all caution and safety-related notes on or inside the Monitor cabinet, on the Projection Monitor chassis, or on the picture tube.

3. Design Alteration Warning — Do not alter or add to the mechanical or electrical design of this unit. Design alterations and additions, including, but not limited to, circuit modifications and the addition of the items such as auxiliary audio and/or video output connections might alter the safety characteristics of this Monitor and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and will make you,the servicer,responsible for personal injury or property damage resulting therefrom.

4. Hot Chassis Warning — a. Some MultiSync Monitor chassis are electrically connected directly to one conductor of the AC power cord and may be safely serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter measure between the chassis and a known earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground. b. Some Plasma chassis normally have 85V AC (RMS), between chassis and earth ground regardless of the AC plug polarity. These chassis can be safely serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection. c. Some Plasma chassis have a secondary ground systems in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground system are electrically separated by insulating material that must not be defeated or altered.

2-2

SAFETY PRECAUTIONS

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts— be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and e. antenna wiring. Always inspect in all areas for pinched, out-of-place, or frayed wiring. Do not change spacing between components, and between components and the printed-circuit board. Check AC power cord for damage.

6. Components,parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally,determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. PRODUCT SAFETY NOTICE —Many MultiSync

Monitor electrical and mechanical parts have spe-

cial safety-related characteristics some of which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified in this service data by shading with a mark on schematics and by shading or a mark in the parts list. Use of a substitute replacement part that does not have the same safety characteristics as the recommended replacement part in this service data parts list might create shock, fire, and/or other hazards.

2-3

PRECAUTIONS DE SECURITE

1. Avant de remettre un appareil à un client, faire

toujours d'abord un examen de sécurité de l'appareil en entier comprenant, mais ne s'y limitant pas les points cités ci-dessous: a. Vérifier qu' aucun des dispositifs de protection ne

soit défectueux ou n' ait été endommagé pendant les travaux. (1) Les volets protecteurs sur ce châssis ont été montés pour protéger aussi bien le technicien que le client. Remplacer correctement tous les volets protecteurs manquants, aussi bien que ceux qui ont pu être enlevés pour la commodité des travaux. (2) Quand vous remettez le châssis ou d'autres assemblages ensemble dans le coffret, vérifier qu' ont été remis à leur place tous les dispositifs de protection, comprenant mais ne s' y limitant point, les boutons de contrôle non-métalliques, les feuilles d'isolation, les couverture/volets de l'ajustement et du compartiment, et l'isolation des réseaux résistance/condensateur. Ne pas

travailler sur cet appareil ni permettre qu'y soit effectué un travail sans que tous les dispositifs de protection n' y soient correctement installés fonctionnants.

b. Bien vérifier qu'il n'y ait aucune ouverture sur le

coffret qui ne puisse permettre à un adulte ou à un enfant d'y faire pénétrer ses doigts et attraper une décharge électrique. De telles ouvertures comprendraient sans pour autant s'y limiter (1) l'espace entre le tube à images et le coffret de l'eppareil, (2) les espaces excessivement ouverts pour la ventilation et (3) la couverture arrière du coffret improprement fixée ou incorrectement protegée.

c. Vérification de courant de fuite

L'appareil ayant été complètement réassemblé, brancher-le à une prise de courant de 240V. (Ne pas se servir d'un transformateur

d'isolation pendant ce test). Se servir d'un vérificateur de courant d'excitation ou d'un système de mesure conforme aux normes ANSI (American National Standards Institute) C101.1 Leakage Current for Appliances et U. L (Underwriters Laboratories) 1950. Le bouton de l'appareil en position "Marche" et ensuite en position "Arrêt", mesurer à partir d'une prise de terre (métallique tuyauterie, conduite, etc...) à toutes les pièces métalliques de l'appareil exposées (antennes, poignet métalliques, coffren métallique, tête des vis, surfaces métalliques, traits de contrôle, etc.) surtout à toutes les pièces métalliques exposées qui peuvent reconduire le courant au châssis. En aucun cas, la mesure du

courant ne doit dépasser 3.5 milliamp. Inverser la fiche de courant de l'appareil dans la prise et répéter le test. Tout mesurage ne s'arrêtant

pas aux limites spécifiées icicomporte un risque de décharge électrique dangereux, qui doit être éliminé, avant que l'appareil ne soit remis au client.

EXAMEN DE COURANT D'EXCITATION

(LA MESURE DU COURANT NE DOIT PAS DEPASSER

3.5 MILLIAMP)

DISPOSIT IF

SOUS

L ' EXAMEN

EXAMINER TOUTES LES PIECES METALLIQUES DEL' APPAREIL EXPOSEE

3-CORDES DE FIL

EXAMINER AVEC LA FICHE DE COURANT INVERSEE

(SE SERVIR DE LA FICHE DE COURANT DE L' A DAPTATEUR COMME DEMANDEE)

+–

VERIFICATEUR DE CORANT DE FUITE

PRISE DE TERRE

2. Lire et respecter toutes les mises en garde et notes de sécurité à l'intérieur ou à l'extérieur du coffret du rétro-projecteur, sur le châssis du rétro-projecteur ou sur le tube à images.

3. Mise en garde contre la modification du dessin

Ne pas modifier ni ajouter à la pièce mécanique ou électrique du modèle. Des modifications ou additions, comportant, mais ne s'y limitant pas, des modifications des circuits et l'addition d'éléments tels que des auxilliairs audio et/ou des branchements pour la prise de vidéo, pourrait éprouver la sécurité de ce rétro-projecteur et créer un risque pour l'utilisateur. Tout changement ou addition accomplie annulera la garantie du fabricant et va rendre votre service d'entretien, responsable des

dommages corporels ou de biens en résultant.

4. Mise en garde contre le châssis sous tension

a. Certains châssis de rétro-projecteur sont

électriquement reliés à un conducteur du fil de courant et ainsi peuvent ne comporter aucun risque sans un transformateur d'isolation seulement si la prise de courant est branchée, de manière que le châssis est relié à la prise de terre de la source de courant. Pour s'assurer que la prise de courant est correctement insérée, relever les mesures avec un voltmètre de courant entre le châssis et un point de prise de terre bien connu. Si le voltage indiqué est supérieur à 1,0V, débrancher et reinsérer la prise de courant dans la polarité contraire et une fois de plus remesurer le voltage potentiel entre le câssis et la prise de terre.

2-4

PRECAUTIONS DE SECURITE

b. Certains châssis de moniteur ont habituellement

85V (RMS) entre le châssis et la prise de terre, en fonction de la polarité de la prise de courant. Ces châssis peuvent ne comporter aucun risque seulement avec un transformateur d'isolation inséré dans la ligne de puissance située entre de rétro-projecteur et la source d'électricité, cela pour la protection aussi bien du personnel que du matériel de vérfication.

c. Certains châssis de rétro-projecteur ont un

système secondaire de masse en addition avec le système principal de masse du châssis. Ce système secondaire de masse n'est pas isolé du courant électrique. Les deux systèmes sont électriquement séparés par du matériel d'isolation qu' on vérifiera bien qu'il ne soit ni altéré ni défectueux.

5. Vérifier la couverture originale en plomb. Accorder la plus grande attention à la couverture de plomb notamment aux endroits ci-dessous indiqués. a. Près des bords aigus b. près des parties très chaudes

Vérifier que les composants et les plombs ne

touchent pas les parties très chaudes telles que: c. l'alimentation du courant d. la haute tension e. Ies fils de l'antenne Pousser l'inspection, à tous les endroits, à la recherche des cordes pincées, déplacées ou effilochées. Ne pas changer l'écartement entre composants, et entre composants et le tableau de circuit imprimé. Vérifier que le fil de conduite électrique est en bon état.

6. Les composants, parts (pièces) et/ou fils qui ont été trouvés surchauffés devraient être remplacés avec les composants, pièces et fils s'y reliant avec d'autre qui ont les mêmes spécifications que les originales. De plus, rechercher la cause du surchauffement et/ ou des dommages et si nécessaire, prendre les mesures propres pour prévenir tout risque potentiel.

7. Note sur sûreté de l'appareil

Beaucoup de pièce de rétro-projecteur, qu'elles soient électriques ou mécaniques, ont des dispositions de sécurité qui ne sont pas toujours évidentes d'une simple inspection visuelle et la protection qu'elles donnent nécessairement ne pourront être pas obtenues par les remplaçants avec des composants aux voltages ou watts plus élevés. Les pièces qui ont des caractéristiques particulières de sécurité sont identifiées avec un trait marqué sur les schémas et sont ombragés ou comportent un trait sur la liste des pièces. L'utilisation d'un produit substitutif qui n'aurait pas les mêmes caractéristiques comme il est recommandé dans ces données d'entretien pourrait provoquer une décharge électrique, un feu, et/ou d'autres dangers.

2-5

SAFETY PRECAUTIONS

1 . Cautions for disassembly

(1)For the suspension-type set (No. of workers: 3

to 5 including assistants)

• Take adequate measures in order not to damage the surface of the set or the filter, using a protection mat (vinyl sheet or blanket).

• When relieving the set from the condition of suspension from the ceiling, do not tilt its main body too much by supporting its both sides, while the mounting hooks (top and bottom) are released. (Reasons: If the main body is positioned slantwise, a load is applied to its upper part and there can be danger of making the set fall down carelessly when the set is unhooked.)

• During disassembly, the allocation of personnel should be such that suitable stands or platforms are assuredly arranged to enable the personnel to support the set, standing on both sides of the set. For safety, it is preferable to provide for assistant personnel who can receive the removed set.

• During this removal work, support the set at its frame with hands. Never touch the filter or glass surface. Assistant personnel on the front side should apply hands to the lower part of the casing. [If the casing is strongly hit with a wooden hammer or the like, the unseen side area of the module panel glass may be broken even though the module itself does not seem to have been broken . Therefore , support the frame by hand in order not to drop it.]

The least minimum caut ions for product disassembly

• Secure a working space, arranged as wide as possible.

• Prior to disassembling the set, protect the acrylic surface with an air mat or the like.

• To prevent the thread ridges from being damaged, use an adequate screwdriver.

• Many screws are actually used. Therefore, use two or three containers where these screws can be kept . Never disassemble the inner parts of the module (pipes, etc.).

• When lifting the module from the set, two persons should stand on both sides of the module to hold the stable parts of the junction while they lift the module upright. (If dust or such foreign substance enters in between the module and the filter, moir* or similar problems can arise. In addition, once it enters, it is necessary to take careful measures not to damage the contamination area while removing contaminants.) [Please understand that the replacement of the module may call for an air-blast treatment (air brush) in a clean room.] Complementary caution) In particular, if a conductive foreign matter (such as a metallic chip) is attached to the flexible cable of the module, there can be danger of the occurrence of a phenomenon like wire breakage that is caused by partition breakdown in the module. For this reason, it is necessary to bear in mind that the flow of air blast should be directed only in the predetermined direction at all times.

(2)For the wall-hang type, corner type, or pole unit

mounting set (No. of workers: 2 <generally>)

• Examining a good timing, release the mounting hooks (top and bottom) from the right and the left.

• If the set is installed in an elevated place, provide for firm scaffolds in advance. It is preferable to ask for the support of assistant personnel as in the case of the suspension type.

• During this removal work, try to support the set at its frame with hands. Never touch the filter or glass surface. Assistant personnel on the front side should apply hands to the lower part of the casing. [If the casing is strongly hit with a wooden hammer or the like, the unseen side area of the module panel glass may be broken even though the module itself does not seem to have been broken. Therefore, support the frame by hand in order not to drop it.]

3. Method of returning the set (when returning the set to the manufacturing base in Japan)

• When returning the set, put the set in the speci-

fied package box. Otherwise, swinging and vibration Ioads may be applied to the set during transportation, and this may give rise to destruction of a mounting section, such as gas-hermetically-sealed pipe (glass) of the moduIe.

• When optional parts are also put in the box for

returning, a list of options (accessories) should also be produced and returned, if possible. This arrangement is effective to confirm the owner of the returned items.

• To confirm the user-oriented problem, and for the

purpose of future improvements, a report of reasons for malfunction should also be packed. A definite address should be specified so that the repaired set can be returned and faulty phenomena can be confirmed .

2-6

SAFETY PRECAUTIONS

(Notes)

The component by the name of “module” used in this product is defined as a section that is provided with a digital circuit board (including highvoltage parts) used to emit light in the glass panel part, excluding the surface acrylic fiIter or the tempered glass fiIter. It must be noted that it does never mean the glass panel part only.

2-7

USER’S MANUAL

3-1

PlasmaSync Plasma Monitor

User’s Manual

NEC Technologies

Important Information

Precautions

Please read this manual carefully before using your NEC plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Warnings and Safety Precaution

The NEC plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Never use solvents such as alcohol or thinner to clean the panel surface. The plasma display panel consists of fine picture elements (cells). Although NEC produces the plasma display panels with more than 99.99 percent active cells, there may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. The unit is equipped with cooling fans. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for the monitor to cool for 60 minutes. If the problem persists, contact your NEC dealer for service.

2. Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the unit during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. NEC is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized NEC Service Centers.

NOTE: When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not comform to mandatory FCC standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the DVI cable.

DVI cable (not supplied)

band

core (small)

Power cable (supplied)

core (large)

band

Connector

core (small)

core (large)

To avoid damage and prolong operating life:

1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the unit and have it serviced by an authorized NEC Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained,authorized NEC dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

Recommendations to avoid or minimize phosphor burn-in

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. To protect your investment in this NEC plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished

using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability. * Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible. * Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

Contact NEC Technologies at 1-800-836-0655 for other recommended procedures that will best suit your particular application needs.

Précautions

Veuillez lire ce manuel avec attention avant d’utiliser votre moniteur PlasmaSync NEC et conserver ce manuel à portée de la main pour une consultation ultérieure.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

MISE EN GARDE:AFIN DE REDUIRE LES RISQUES D’ELECTRO-

CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.

AVERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET, DES COMPOSANTS HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET

APPAREIL.

DOC avis de conformation

Cet appareil numérigue de la classe A respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.

Mises en garde et précautions de sécurité

Le moniteur PlasmaSync NEC a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Utiliser un chiffon doux et sec pour nettoyer la surface de l’écran. Ne jamais utiliser de solvant comme l’alcool ou le diluant. Le panneau à affichage plasma est constitué de fines particules d’images ou pixels (cellules). Bien que NEC produise des panneaux à affichage plasma avec plus de 99,99 % de cellules actives, il peut y avoir des cellules qui ne produisent pas de lumière ou qui restent allumées. Pour des raisons de sécurité et pour é viter d’endommager l’appareil, lire attentivement les instructions suivantes. Pour éviter les risques d’éléctrocution et d’incendie:

1. Laisser suffisament d’espace autour de l’appareil pour

la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou l’installer dans un endroit trop exigu. L’appareil est équipé de ventilateurs de refroidissement. Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle le moniteur est installé est particulièrement excessive, déplacer l’appareil dans un endroit plus frais et le laisser refroidir 60 minutes. Si le problème persiste, prendre contact avec le revendeur NEC pour le service après-vente.

2. Ne pas utiliser la fiche polarisée du cordon d’alimentation

avec des prolongateurs ou des prises de courant, sauf si les lames peuvent être insérées à fond.

3. Ne pas exposer à L’eau ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas

modifier le cordon d’alimentation.

5. Débrancher l’appareil pendant les tempêtes ou si

l’appareil n’est pas utilisé pendant une longue période.

6. Ne pas ouvrir le coffret. Des composants de haute

tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer de réparer ou entretenir l’appareil

soimême. NEC ne saura être tenu pour responsable pour toute blessure ou dommage causé par des personnes non qualifiées qui essayent de réparer ou d’ouvrir le couvercle arrière. Confier toute réparation à un centre de service agréé NEC.

REMARQUE: Lorsque vous branchez un micro-ordinateur sur ce moniteur, fixez les noyaux en ferrites fournis. Si vous ne le faîtes, le moniteur ne sera pas en conformité avec les exigences des standards FCC. Fixation des noyaux en ferrite. Monter les tores en ferrite aux deux extrêmités du câble DVI (non fourni) et aux deux extrêmités du câble d’alimentation électrique (fourni). Fermez doucement le couvercle jusqu’à ce que les crans se clipsent. Fixer le tore en ferrite (fourni) au câble DVI à l’aide d’un collier.

Pour éviter le risque de combustion au phosphore, les mesures suivantes sont recommandées :

Comme tous les appareils d’affichage à base de phosphore et tous les autres affichages à gaz plasma, les moniteurs Plasmasync peuvent être sujets à la combustion au phosphore dans certaines circonsatnces. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer des brûlures au phophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur PlasmaSync NEC, veuillez suivre les directives et les recommandations suivantes pour minimiser l’occurence de brûlure d’image :

Câble DVI (non fourni)

Collier Collier

noyau (petit)

Câble d'alimentation électrique (fourni)

noyau (large)

noyau (petit)

noyau (large)

Connecteur

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 120 V 50/ 60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 120 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3. Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’accident, débrancher l’appareil et le confier à un centre de service agréé NEC.

5. Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6. Pour effectuer une installation et un montage corrects, il est recommandé de faire appel au concessionnaire NEC autorisé et spécialisé.

7. Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d’Affichage à Plasma.

• Assurez-vous de mettre en marche et d’utliser l’économisateur d’écran chaque fois que c’est possible lorsque vous l’utilisez avec une source d’entrée d’ordinateur.

• Affichez une image en mouvement aussi souvent que possible.

• Changer la position de l’affichage de menu de temps à autre.

• Coupez toujours l’alimentation lorsque vous avez terminé d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’éviter l’occurence de combustion au phosphore :

• Abaissez le niveau de l’image (contraste, luminosité) autant que possible, sans faire perdre la lisibilité de l’image.

• Affichez une image avec de nombreuses couleurs et graduations de couleur (par ex. des images photographiques ou photo-réalistes).

• Créez un contenu d’image avec un contraste minimal entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

• Évitez d’afficher des images avec peu de couleurs et des limites nettes et clairement définies entre les couleurs.

Contactez NEC Technologies au 1-800-836-0655 pour d’autres procédures recommandées qui conviendront le mieux au besoin de votre appareil.

Limited Warranty Plasma Monitors

NEC Technologies, Inc. (hereinafter NECTECH) warrants this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at NECTECH’s sole option) any part of the enclosed unit which proves defective. Replacement parts or products may be new or refurbished and will meet specifications of the original parts or products.

HOW LONG IS THE WARRANTY?

Parts and labor are warranted for (1) one year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A., Canada or Mexico by NECTECH or which is not purchased in the U.S.A., Canada or Mexico from an authorized NECTECH dealer.

2. Any product of which the serial number has been defaced, modified or removed.

3.Damage, deterioration or malfunction resulting from: a. Accident, misuse, abuse, neglect, fire, water, lightning

or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b.Repair or attempted repair by anyone not authorized by

NECTECH.

c. Any shipment of the product (claims must be presented

to the carrier). d.Removal or installation of the product. e. Any other cause which does not relate to a product defect. f. Burns or residual images upon the phosphor of the panel.

4.Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

5.Service outside of the U.S.A. and Canada.

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items, but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including

adjustment of user controls. These costs are the responsibility of the NECTECH dealer from whom the product was purchased.

3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1.To obtain service on your product, consult the dealer from whom you purchased the product.

2.Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please also include in any mailing your name, address and a description of the problem(s).

3. For the name of the nearest NECTECH authorized service center, call NECTECH at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the possibility of such damages. This warranty is in lieu of all other warranties expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

EXCLUSION OF DAMAGES

NECTECH’ s liability for any defective product is limited to the repair or replacement of the product at our option. NECTECH shall not be liable for:

1.Damage to other property caused by any defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or

2.Any other damages whether incidental, consequential or otherwise. Some states do not allow limitation on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

HOW STATE LAW RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

FOR MORE INFORMATION, TELEPHONE 800-836-0655 NEC TECHNOLOGIES, INC. 1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

Note:

All products returned to NECTECH for service MUST have prior approval. To get approval, call NEC Technologies at 800-836-0655.

Contents

How to Attach Options to the Plasma Monitor .... 1

Introduction ..................................................... 2

Introduction to the PlasmaSync 61MP1

Plasma Monitor........................................................ 2

The features you’ll enjoy include:............................... 2

Contents of the Package ........................................... 2

Options .................................................................. 2

Part Names and Function .................................. 3

Front View............................................................... 3

Rear View / Terminal Board ...................................... 4

Remote Control ........................................................ 5

Battery Installation and Replacement .......................... 6

Using the wired remote control mode ......................... 7

Operating Range ..................................................... 7

Handling the remote control ...................................... 7

Installation ...................................................... 8

Connecting Your PC or Macintosh Computer ............... 9

Connections with Equipment that has a Digital Interface ...

Connecting Your Document Camera ........................... 9

Connecting Your VCR or Laser Disc Player .................. 9

Connecting Your DVD Player ..................................... 9

External Speaker Connections.................................. 10

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) ......................................... 11

Pin Configuration and Signal

of the RGB 3 IN Connector (DVI Connector) .............. 11

Basic Operations ............................................. 12

POWER ................................................................ 12

To turn the unit ON and OFF: .................................... 12

VOLUME .............................................................. 12

To adjust the volume:................................................ 12

MUTE ................................................................... 12

To cancel the sound:.................................................. 12

DISPLAY ................................................................ 12

To check the settings: ................................................. 12

DIGITAL ZOOM ..................................................... 12

AUTO ADJUST ...................................................... 12

To adjust the size or quality of the picture

automatically: ............................................................ 12

OFF TIMER ........................................................... 13

To set the off timer: ................................................... 13

To check the remaining time: ..................................... 13

To cancel the off timer ............................................... 13

OSM Controls ................................................. 17

Menu Operations ................................................... 17

Picture Settings Menu ............................................. 19

Adjusting the picture ................................................. 19

Setting the picture mode according to the

brightness of the room ............................................... 20

Setting the color temperature .................................... 21

Adjusting the color to the desired quality ................... 22

Reducing noise in the picture ..................................... 23

Sound Settings Menu .............................................. 24

Adjusting the treble, bass and left/right balance ........ 24

Screen Settings Menu ............................................. 25

Adjusting the Position, Size, Fine Picture,

Picture Adj ................................................................ 25

Function Settings Menu .......................................... 26

Setting the on-screen menu ....................................... 26

Adjusting the position of the menu display ................ 27

Setting the power management for computer images . 28

POWER/STANDBY indicator ................................... 29

Setting the gray level for the sides of the screen ......... 30

Setting the picture to suit the movie ........................... 30

Setting RGB3 ADJ..................................................... 31

Reducing burn-in of the screen................................... 31

Resetting to the default values .................................... 32

Option Settings Menu ............................................. 33

Setting the allocation of the audio connectors ........... 33

Setting the BNC connectors ...................................... 33

Setting a computer image to the correct RGB

select screen ............................................................. 34

Setting high definition images to the suitable

screen size ............................................................... 35

Setting the picture size for RGB input signals ............ 36

Information Menu ................................................. 36

Checking the frequencies, polarities of input signals,

and resolution ........................................................... 36

Setting the language for the menus............................. 37

Setting the video signal format .................................. 37

External Control ............................................. 39

Table of Signals Supported .............................. 47

Supported resolution .............................................. 47

Troubleshooting ............................................. 49

Specifications ................................................. 50

WIDE Operations ............................................. 14

Watching with a wide screen (manual) .................... 14

When watching videos or digital video discs............. 14

When watching high definition video source ............. 14

Watching computer images with a wide screen ......... 15

When “PICTURE SIZE” is set to “OFF” ................... 15

MULTI SCREEN Operations ............................... 16

Showing a couple of pictures on the screen

at the same time ................................................... 16

Selecting the input signals to be displayed ................. 16

Adjusting the OSM controls...................................... 16

How to Attach Options to the Plasma Monitor

50mm (2")

1580

(62.2")

990

(39.0")

50mm (2")

(2") 50

(2")

Wall

50mm (2")

You can attach your optional mounts or stand to the plasma monitor in the following way:

* Unpack the plasma monitor. (See Drawing A.) * Take it out, put your hand in the handy-grip recess at the

rear, and move it to an appropriate place. Then attach the optional mounts or stand. (See Drawing B.)

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page 2.

• For correct installation and mounting it is strongly recommended to use a trained, authorized NEC dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Introduction

Introduction to the PlasmaSync 61MP1 Plasma Monitor

NEC’s PlasmaSync™ is a seamless blend of cutting-edge visual technology and sophisticated design. At 61-inches, with a 16:9 aspect ratio, the PlasmaSync 61MP1 certainly makes a big impression. However, at a mere 4.7 inches/ 119 mm thin, the monitor’s sleek techno-art lines blend in well with your environment. PlasmaSync’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. And weighing only 134.5 lbs/ 61 kg, it actually can be hung almost anywhere. NEC has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the PlasmaSync™ monitor.

The features you’ll enjoy include:

• 61-inch screen

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering system where Accucrimson™ is combined with our special CCF.

• 4.7 inch / 119 mm thin

• 134.5 lbs/ 61 kg light

• High-resolution screen: 1365768 pixels

• 160-degrees of off-axis viewing, horizontally and vertically.

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA, computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source compatibility

• AccuBlend™ scan conversion automatically converts VGA, SVGA and SXGA signals to the panel’s native resolution

• Advanced Mass Area Sampling Progressive Scan method is employed.

• RGB input (3*), Video input (3), DVD/HD input (2*), Audio input (3), External Control input (1)

• AccuColor control system provides user selectable onscreen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz (Y, C

B, CR )

• Digital broadcasting source compatibitly

• NEC’s OSM™ menu-driven on screen control system that makes image adjustments a snap

• Seven languages (English, German, French, Italian, Spanish, Swedish, and Japanese)

• A handy-grip recess is provided to facilitate installation and movement.

* You can select RGB source or Component source for

the 5BNC terminal. When selecting an RGB input, the source is switched to the RGB input (3); when selecting a component input, the source is switched to the DVD/ HD input (2).

Contents of the Package

 PlasmaSync™ 61MP1 plasma monitor

 Power cord

 RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-

pin connector)

 Remote control with two AAA Batteries

 User’s manual

 Remote cable

 Safety metal fittings*

 Ferrite core (small2, large2), band

* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand (option). Screw the safety fittings to the holes in the back of the monitor.

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Tabletop stand

• Speakers

• Others

Part Names and Function

Front View

POWER/STANDBY

INPUT SELECT

VOLUME

PROCEED

DOWN UP LEFT/

RIGHT/+/EXIT

PROCEED

VOLUME

DOWN UP LEFT/

qPROCEED

Sets the On-Screen Menu (OSM) mode and displays the main menu.

w VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

e LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the



CURSOR (

/ ) buttons in the On-Screen Menu

(OSM) mode.

r INPUT SELECT / EXIT

Switches the input, in the following order:

RIGHT/+/EXIT

INPUT SELECT

POWER/STANDBY

t Power

Turns the monitor’s power on and off.

y POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

u Remote sensor window

Receives the signals from the remote control.

→ VIDEO1 → VIDEO2 → VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1←

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

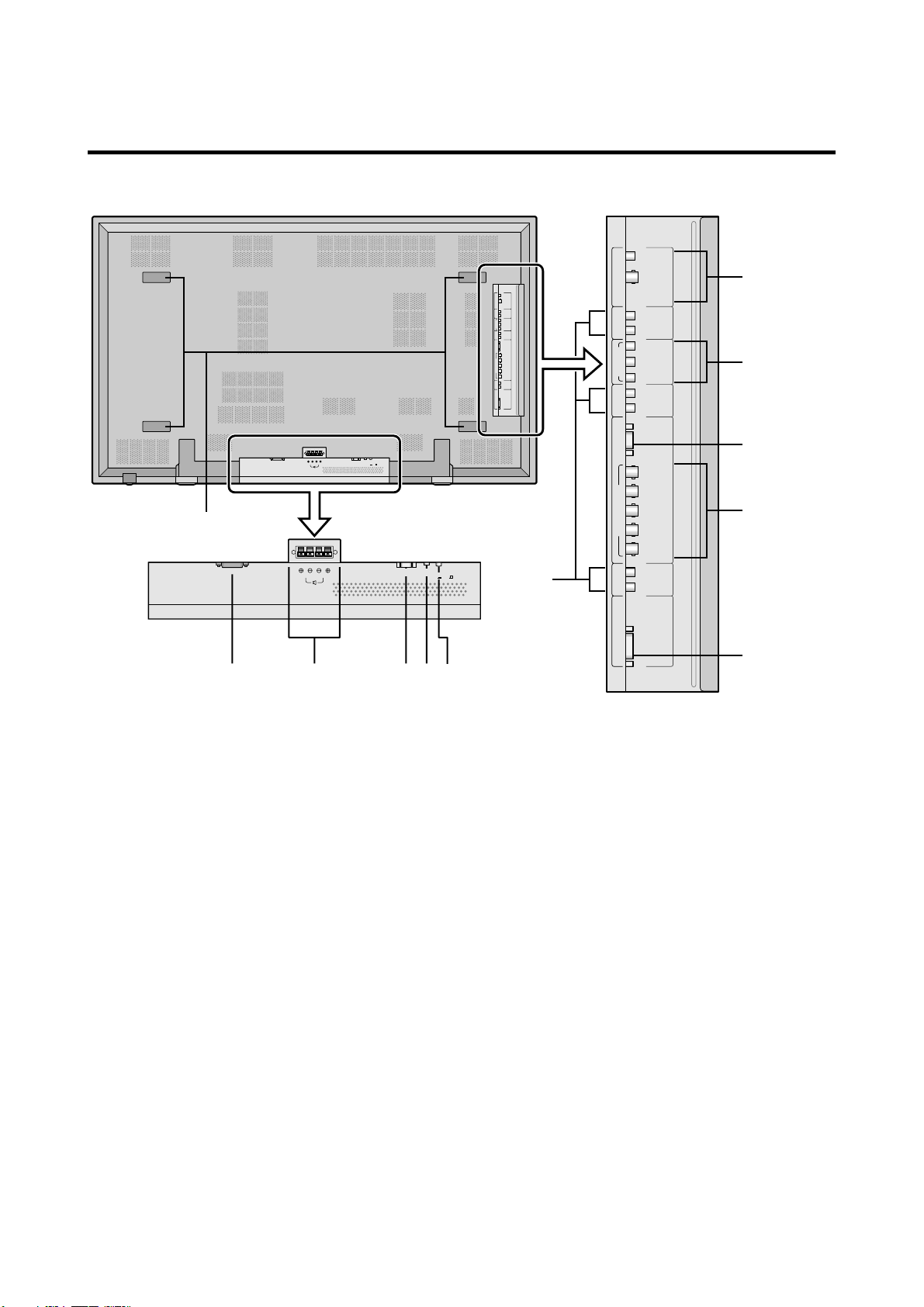

Rear View/ Terminal Board

VIDEO 1

VIDEO 2

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 1

R/C

R/PR

G/Y

B/CB/PB

)

L(MONO

RGB 3

(

)

Digital RGB

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2

SPEAKERS MUST HAVE

CONTROL

REMOTE

AC IN

EXTERNAL

MORE THAN 7WATT RATING

LOCK

CONTROL

RIGHT LEFT

IMPEDANCE 6 OHM

ON/ OFF

AC IN

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers here. Maintain the correct polarity.

C EXTERNAL CONTROL

This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page 39 for external control.

D REMOTE CONTROL

Connect the supplied remote cable here.

E CONTROL LOCK

When “CONTROL LOCK” is set “ON”, the buttons on the set’s control panel do not function.

F VIDEO1, 2, 3

Connect VCR’s, DVD’s or Laser Discs, etc. here.

SPEAKERS MUST HAVE

MORE THAN 7WATT RATING

RIGHT LEFT

IMPEDANCE 6 OHM

BCDE

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK

ON/ OFF

G AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them to on the menu screen.

H DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

I RGB1

Inputs the analog RGB signal of personal computer, etc.

J RGB2/ DVD2/ HD2

RGB2: Inputs the analog RGB signal. DVD2/ HD2: Connect DVD’s, High Definition or

Laser Discs, etc. here.

K RGB3

(DVI 29pin)

Inputs a digital RGB signal (TMDS).

L Handy-Grip recess

Use the recesses (as shown) when you need to carry the display.

RGB 1

R/C

G/Y

B/CB/PB

L(MONO

RGB 3

(

Digital RGB

R/PR

)

Remote Control

w RGB/PC

Press this button to select RGB/PC as the source.

→ RGB/PC1 → RGB/PC2 → RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

→ VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

e DVD / HD

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

→ VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

r VIDEO

Press this button to select VIDEO as the source.

→ VIDEO1 → VIDEO2 → VIDEO3

VIDEO can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

→ VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

q POWER ON/OFF

Switches Power ON/OFF. (This does not operate when POWER/STANDBY indicator of the main unit is off.)

t PROCEED

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.



y CURSOR (▲ / ▼ /

/ )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the main menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the volume.

!1 MUTE

Mutes the sound.

!2 WIDE

The type of broadcast is detected automatically, and the recommended wide screen is set.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 MULTI

Press this button to select a screen mode from among single mode, side by side, and picture in picture.

!6 SELECT

Press this button to select the active picture in a multi screen mode.

!7 AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically, or to switch the screen size to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

!8 Remote control signal transmitter

Transmits the remote control signals.

!9 Remote Jack

Insert the plug of the supplied remote cable here when using the supplied remote control in the wired condition.

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

Using the wired remote control mode

Connect the supplied remote cable to the remote control’s remote jack and the “REMOTE CONTROL” terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 1

R/PR

R/C

G/Y

B/CB/PB

)

L(MONO

EXTERNAL CONTROL

RIGHT LEFT

SPEAKERS MUST HAVE

MORE THAN 7WATT RATING

IMPEDANCE 6 OHM

AC IN

CONTROL

REMOTE

EXTERNAL

LOCK

CONTROL

ON/ OFF

REMOTE CONTROL

CONTROL LOCK

RGB 3

(

)

Digital RGB

ON / OFF

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

POWER/STANDBY

INPUT SELECT

VOLUME

PROCEED

DOWN UP LEFT/-RIGHT/+/EXIT

Remote Control Cable

To Remote Jack

Approx. 7m/ 23ft

30˚ 30˚

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.

Installation

VCR or Laser Disc Player

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/P

)

L(MONO

AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/DVD2 /HD2

RGB 1

R/PR

R/C

G/Y

B/CB/P

)

L(MONO

To video inputs on the plasma monitor

Document Camera

IBM VGA or

Macintosh or Compatibles

(Desk top type)

Monitor adapter for Macintosh

Compatibles

Signal cable (supplied)

RGB 3

(

Digital RGB

)

To Mini D-Sub 15 pin connector on the plasma monitor

DVD Player

Personal computer with a digital RGB output

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page 47. To connect a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer.

2. If your PC does not support XGA/SVGA/VGA you will need to install an XGA/SVGA/VGA graphics board. Consult your computer’s owner’s manual for your XGA/ SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.

3. The plasma monitor provides signal compatibility up to VESA 16001200 (UXGA). However, it is not recommended to use this resolution due to image readability on the monitors 1365768 native pixel resolution panel.

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document camera.

2. Use a standard video cable to connect your document camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

Note:

for more information about your camera’s video output requirements.

Refer to your document camera owner’s manual

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. To make these connections, simply:

4. Use the signal cable that’s supplied to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computer’s video port.

5. Turn on the plasma monitor and the computer.

6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor.

When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode

The 19" fixed mode is recommended for the plasma monitor.

Connections with Equipment that has a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 29-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 IN (DVI) connector of the main unit. Note that the RGB3 IN(DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standards that is within 5 meters in length.

1. Turn off the power to your plasma monitor and VCR or laser disc player.

2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the plasma monitor and the VCR or laser disc player.

Note:

manual for more information about your equipment’s video output requirements.

Refer to your VCR or laser disc player owner’s

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the power to your plasma monitor and DVD player.

2. Use a standard video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-player’s S-Video output. Use a standard S-Video cable to connect to the S-Video input on the plasma monitor.

3. Turn on the plasma monitor and the DVD player.

External Speaker Connections

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 1

R/PR

R/C

G/Y

B/CB/PB

)

L(MONO

RGB 3

(

)

LEFTRIGHT

Digital RGB

AC IN

External speakers may be connected to the plasma monitor to reproduce sound from VIDEO, DVD or RGB signal sources.

External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.

CAUTION:

Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power input rating of 7 watts or more.

RIGHT LEFT

SPEAKERS MUST HAVE

MORE THAN 7WATT RATING

IMPEDANCE 6 OHM

CONTROL

REMOTE

EXTERNAL

LOCK

CONTROL

ON/ OFF

To connect external speakers directly to the plasma monitor:

1. Strip the ends of the speaker wires.

2. Press down the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:

[a] Connect the right speaker (located at right side

of the monitor when viewed from the front) positive (+) wire to RIGHT +.

[b] Connect the right speaker negative (–) wire to

RIGHT –.

[c] Connect the left speaker negative (–) wire to

LEFT–.

[d] Connect the left speaker positive (+) wire to

LEFT+.

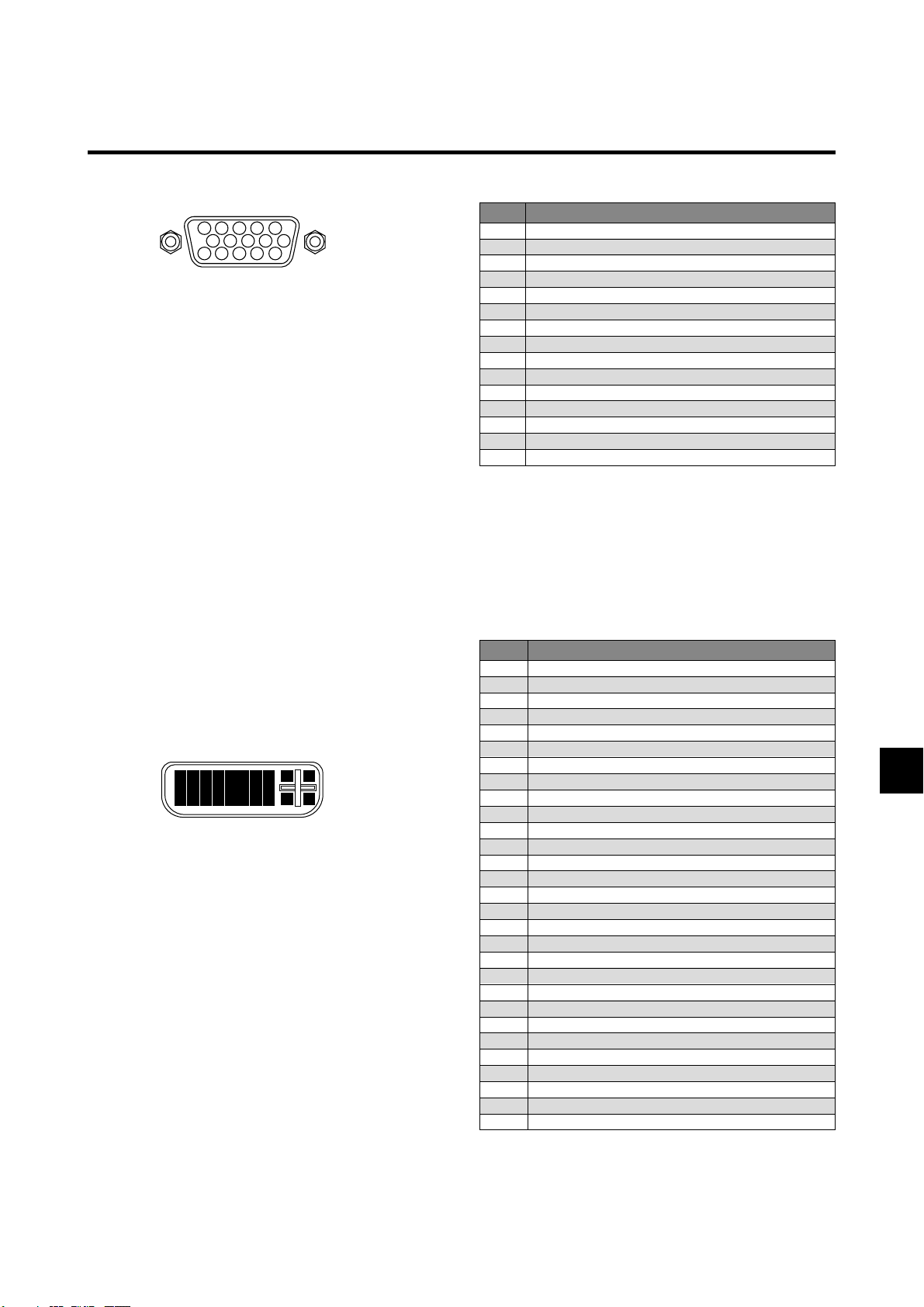

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock

Signal (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for both analog and digital. (Functionally, this cannot be used for an analog input.) (TMDS can be used for one link only.)

RGB 3

8 25 26

27 28

Pin No.

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Signal (Digital)

T.M.D.S Data 2 T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T.M.D.S Clock Shield T.M.D.S Clock + T.M.D.S Clock No connection No connection No connection No connection No connection

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

3. Press the POWER OFF button (on the remote control or the unit) to turn off the unit.

The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the POINTER button to delete the pointer.

)

 

buttons.

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUTO ADJUST button.

Information

 AUTO ADJUST ON setting

When RGB (still picture) input

is selected ...... Fine Picture, Picture ADJ, Position,

and Contrast will be adjusted automatically.

When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input

is selected ...... The screen size switches to ZOOM

mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

)

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

OFF TIMER0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power of the monitor.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER28

WIDE Operations

Watching with a wide screen

With this function, you can select one of four screen sizes.

When watching videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

→ ZOOM → NORMAL → FULL → STADIUM

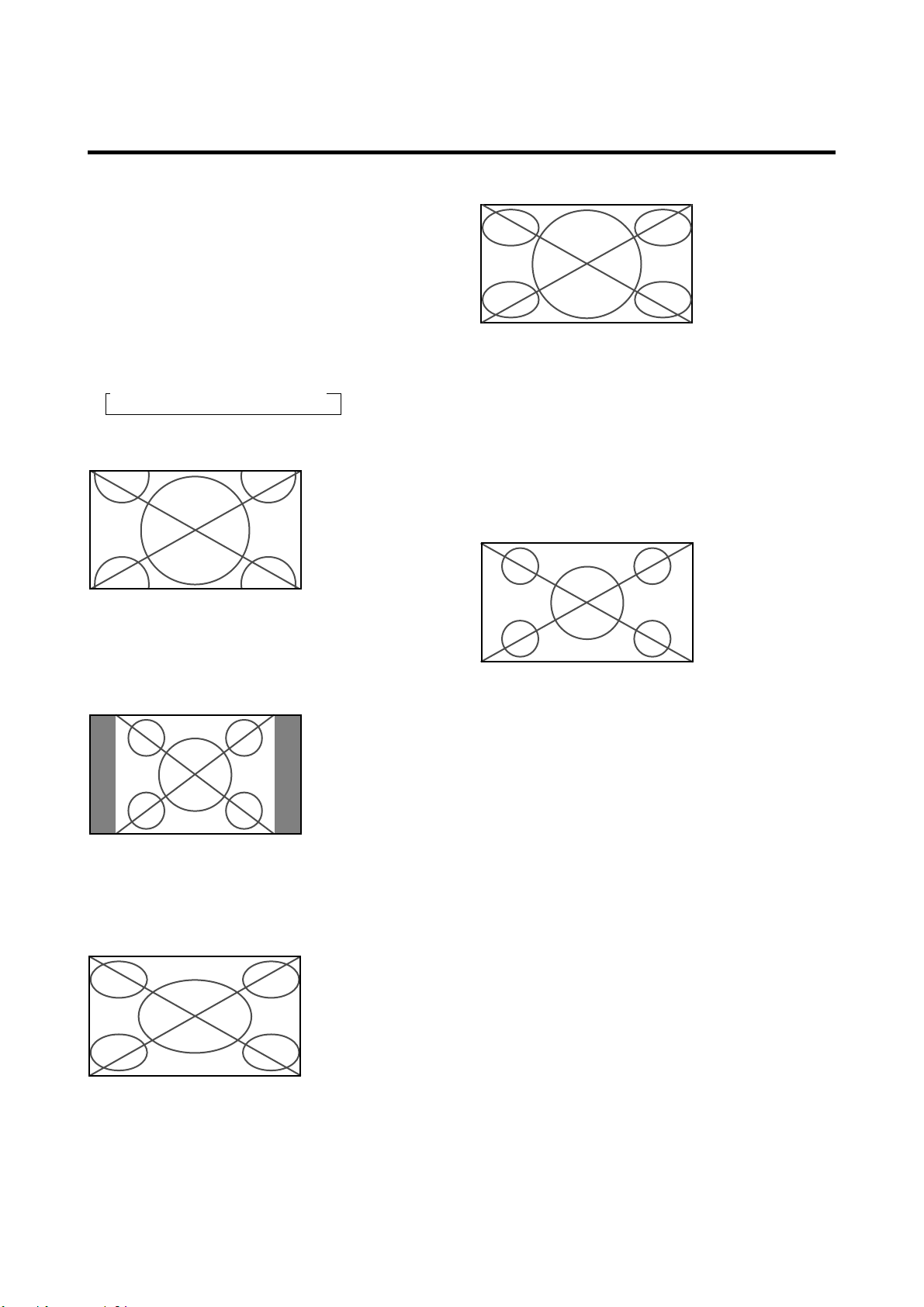

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

(manual)

STADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

When watching high definition video source

1. Press the WIDE button on the remote control.

FULL size screen (16 : 9)

NORMAL size screen (4:3)

The normal size screen is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen. (Normal images are expanded in the horizontal direction.)

The full size screen is displayed. * The picture has the same size as video pictures (16 : 9).

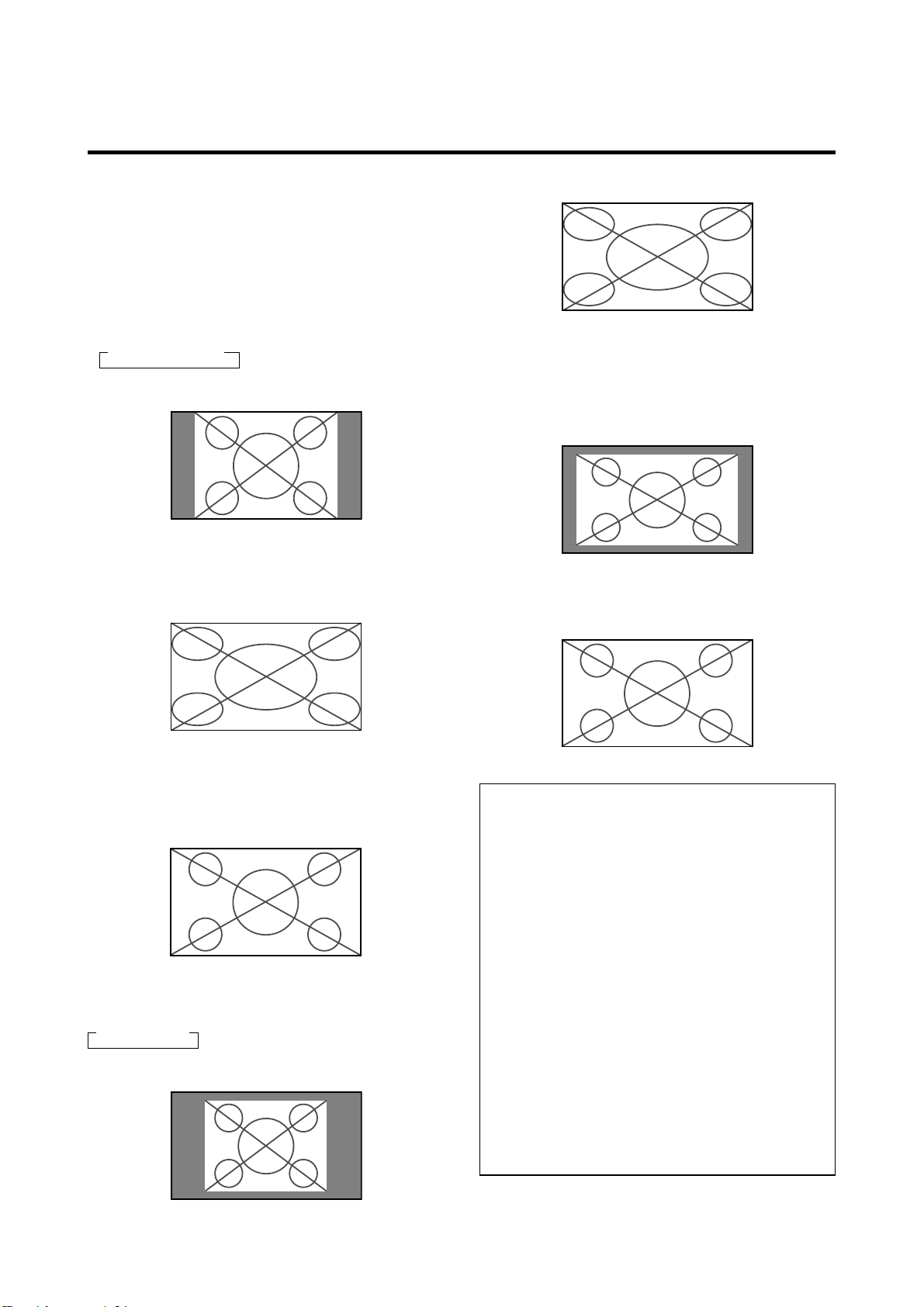

Watching computer images with a wide screen

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again. The screen size switches as follows:

→ NORMAL → FULL

FULL size screen

The image is expanded in the horizontal and vertical direction.

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

FULL size screen

The image is expanded in the horizontal direction.

When wide signals are input.

FULL size screen

When wide signals are input.

TRUE

The image is true resolution.

FULL

Information

 Supported resolution

See page 47 for details on the display output of the various VESA signal standards supported by the monitor.

When “PICTURE SIZE” is set to “OFF”

The screen size switches as follows:

→ TRUE → FULL

TRUE size screen (VGA, SVGA 4:3)

The image is true resolution.

 “PICTURE SIZE” setting

When the setting of “PICTURE SIZE” is OFF, the size of RGB-input pictures will be TRUE in place of NORMAL.

 When 852 (848) dot  480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page

47.

* “ IBM PC/AT” and “VGA” are registered trademarks

of IBM, Inc. of the United States.

MULTI SCREEN Operations

VIDEO1 RGB/PC1

Showing a couple of pictures on the screen at the same time

* An RGB-input picture may not be displayed in these modes,

depending on the input signal specifications.

1. Press the MULTI button to select a screen mode from among single mode, side by side, and picture in picture.

Side by side 1

VIDEO1 RGB/PC1

Selecting the input signals to be displayed

Press the cursor buttons   on the remote control to switch either side by side 1 (with



(with

Note:

Picture A and B on the above screen are not always of the same height.

Side by side 2

Picture in picture

Press the cursor buttons   on the remote control to switch the position of the sub screen.

Main screen

2. If you wish to switch the setting of the picture, press the SELECT button to make the desired picture active. Each press of the SELECT button changes the selection of the active picture.

VIDEO1 RGB/PC1

Sub screen

screen

Main screen

VIDEO1

Sub

VIDEO1

Main screen



) or side by side 2

RGB/PC1

Sub

screen

1. Press the SELECT button to make the desired picture active.

2. Press the RGB/PC, VIDEO, or DVD/HD button. Each press of the button changes the selection of the input signal. The INPUT SELECT button on the monitor can also be used to change the selection.

Adjusting the OSM controls

1. Press the PROCEED button to display the MAIN MENU.

2. Adjust the setting to your preference. For details, see “OSM (On Screen Menu) Controls” on page 17.

Note:

During multi mode, Auto Adjust does not affect the screen.

Information

 Positioning on the screen (for side by side)

Depending on the input-signal selection, positioning of the picture is settled as follows. Pictures displayed

on the left ........ VIDEO1, VIDEO2, VIDEO3, HD1/

DVD1/DTV1, or HD2/DVD2/ DTV2

Pictures displayed

on the right ...... RGB/PC1, RGB/PC2, RGB/PC3

 Positioning on the screen (for picture in picture)

Pictures displayed

Main screen .... RGB/PC1, RGB/PC2, RGB/PC3

Sub screen ...... VIDEO1, VIDEO 2, VIDEO 3,

HD 1/DVD 1/DTV 1, or HD 2/ DVD 2/DTV 2

 Multi screen operations may not function depending on the type of the RGB signals.

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently. In the explanation, the OSM section is shown close up.

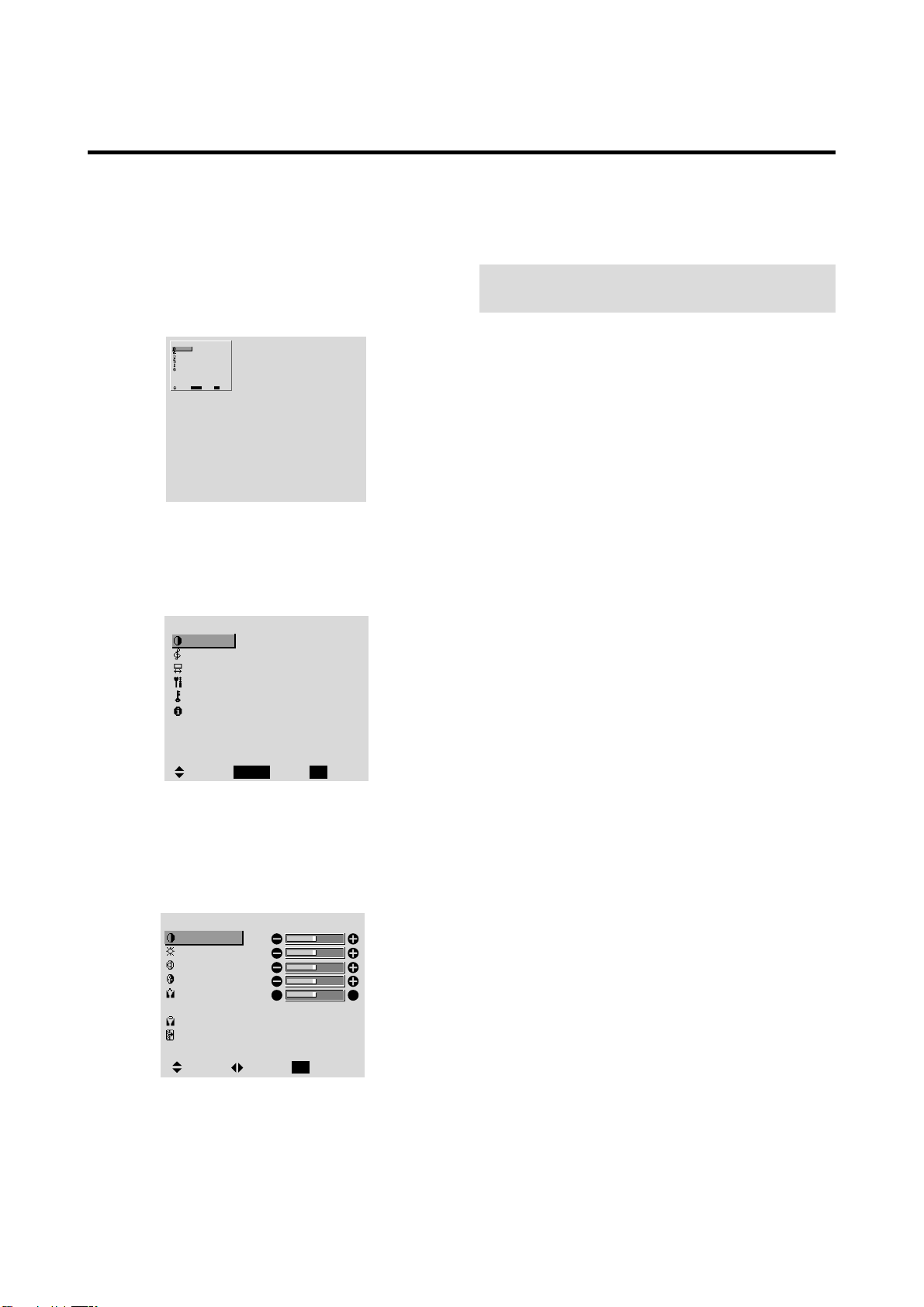

MAIN MENU

PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

SEL. OK EXIT

EXITPROCEED

The following describes how to use the menus and the selected items.

1. Press the PROCEED button on the remote control to display the MAIN MENU.

MAIN MENU

PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

5. The change is stored until you adjust it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

Note:

The main menu disappears by pressing the EXIT

button.

SEL. OK EXIT

EXITPROCEED

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the PROCEED button on the remote control to select a submenu or item.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

4. Adjust the level or change the setting of the selected item by using the cursor buttons

 

on the remote

control.

Main menu Sub menu Functions Default Reset

PICTURE CONTRAST Adjusts the contrast. Center Yes

BRIGHTNESS Adjusts the brightness. Center Yes SHARPNESS Adjusts the sharpness. Center Yes COLOR Adjusts the color. Center Yes TINT Adjusts the tint. Center Yes PICTURE MODE Sets the picture mode according to the VIDEO environment and MEMORY Yes

image software.

COLOR TEMP Adjusts the color temperature and white balance. 2*

Yes

NR Reduces noise visible in image. OFF Yes

Main menu Sub menu Functions Default Reset

SOUND BASS Sets the bass. Center Yes

TREBLE Sets the treble. Center Yes BALANCE Sets the left/right balance. Center Yes

Main menu Sub menu Functions Default Reset

SCREEN V-POSITION Adjusts the vertical position. Center Yes

H-POSITION Adjusts the horizontal position. Center Yes V-HEIGHT Adjusts the vertical size. Min Yes H-WIDTH Adjusts the horizontal size. Min Yes

AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*

and “PICTURE ADJ”.

FINE PICTURE Adjusts for flickering on the computer image. Min* PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*

Yes

Main menu Sub menu Functions Default Reset

FUNCTION OSM

Turns the on-screen menu (screen mode, etc.) off (when set to “OFF”).

ON Yes

When set to “ON”, the on-screen menu is displayed. OSM ADJ. Adjusts the vertical and horizontal positions of the menu display. 1 Yes POWER MGT Sets the monitor for use as an energy-saving display when used with a OFF Yes

computer. GRAY LEVEL In case of 4 : 3, sets the luminance of both sides. 3 Yes CINEMA MODE Sets the picture to suit the movie. ON Yes RGB3 ADJ. Adjusts the picture when the picture input from the RGB3 input 1 Yes

terminal is distorted. LONG LIFE Sets the picture to reduce burn-in of the display. *

Yes

RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION, — —

etc.) to the factory default values.

Main menu Sub menu Functions Default Reset

OPTION AUDIO INPUT Sets the allocation of the audio connectors. *

Yes BNC SELECT Sets the BNC connectors. RGB Yes RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes

RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.

HD SELECT

Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).

1080B No

PICTURE SIZE Sets the picture size for RGB input. ON Yes

Main menu Sub menu Functions Default Reset

INFORMATION FREQUENCY Used to check the frequency and synchronizing polarities of the signal — —

currently being inputted.

LANGUAGE Sets the language of the menus (Japanese, English, German, French, English No

Swedish, Italian or Spanish).

COLOR SYSTEM Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60, AUTO1 No

SECAM, 4.43 NTSC or 3.58 NTSC).

*1 RGB/PC only. *2 PLE: AUTO ORBITER: OFF INVERSE: OFF *3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

4. Once the adjustment is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Example: Adjusting the contrast

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

3. Use the  and  buttons to adjust the contrast.

Note:

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure PICTURE MODE is set to MEMORY.

Information

 Picture adjustment screen

CONTRAST .... Changes the picture’s contrast.

BRIGHTNESS . Changes the picture’s brightness. SHARPNESS .. Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR ........... Changes the color density.

TINT ................ Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “RESET” under the “PICTURE MODE” settings.

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

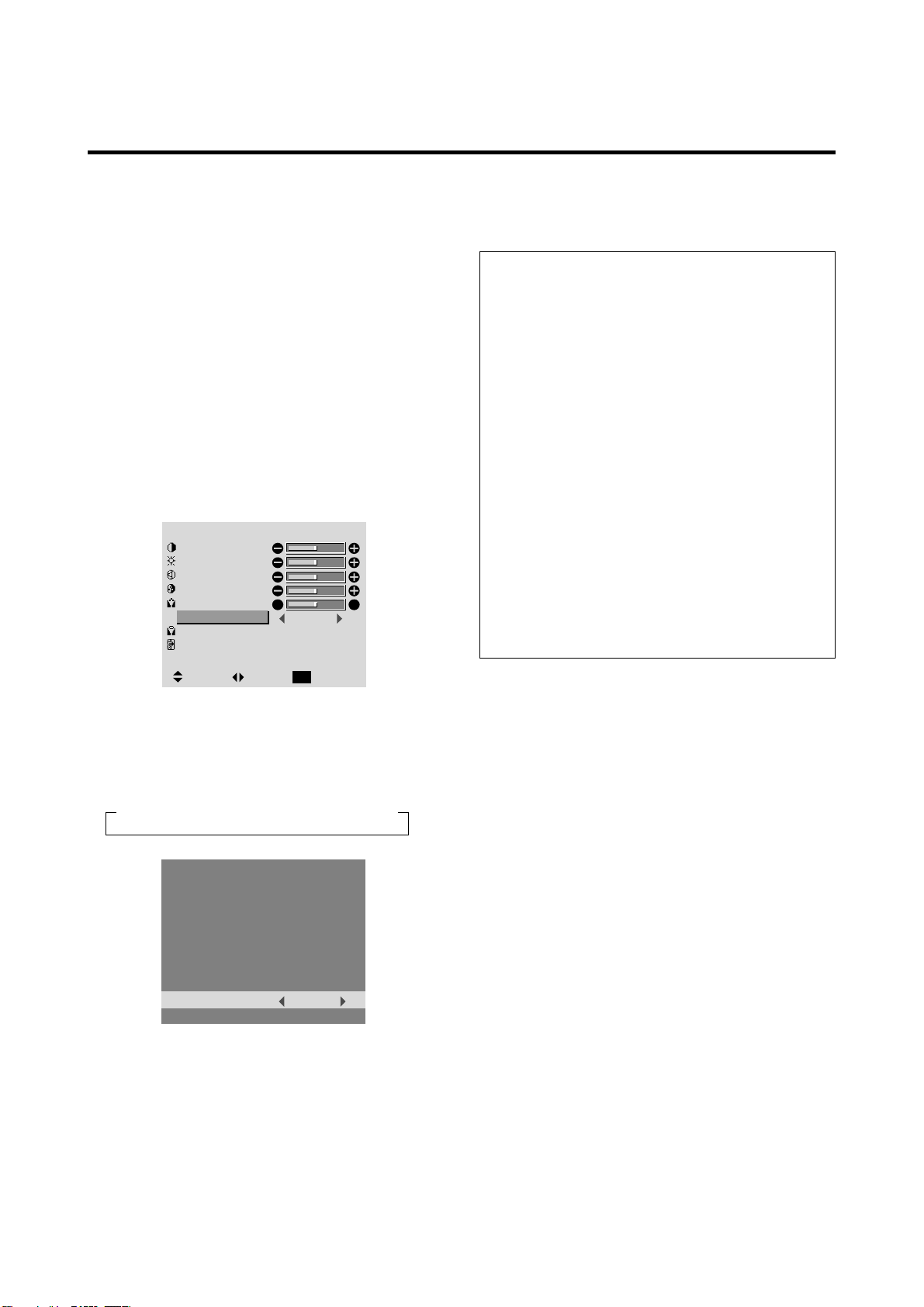

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER” mode

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button.

The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

MEMORY

OFF

4. Once the adjustment is completed ...

Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Types of picture modes

MEMORY ........ The last picture adjustments are stored

here.

THEATER ........ Set this mode when watching video in

a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. CONTRAST = 80% for RESET mode BRIGHTNESS = 95% for RESET mode

NORMAL ......... Set this mode when watching video in

a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. CONTRAST = 96% for RESET mode

RESET ............ Use this to reset the picture to the

factory default settings.

SEL. ADJ. RETURN

EXIT

3. To set to “THEATER” ...

Use the

The mode switches as follows when the



and  buttons to select “THEATER”.



and

buttons are pressed:

→ MEMORY ↔ THEATER ↔ NORMAL ↔ RESET ←

PICTURE MODE

THEATER:

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.



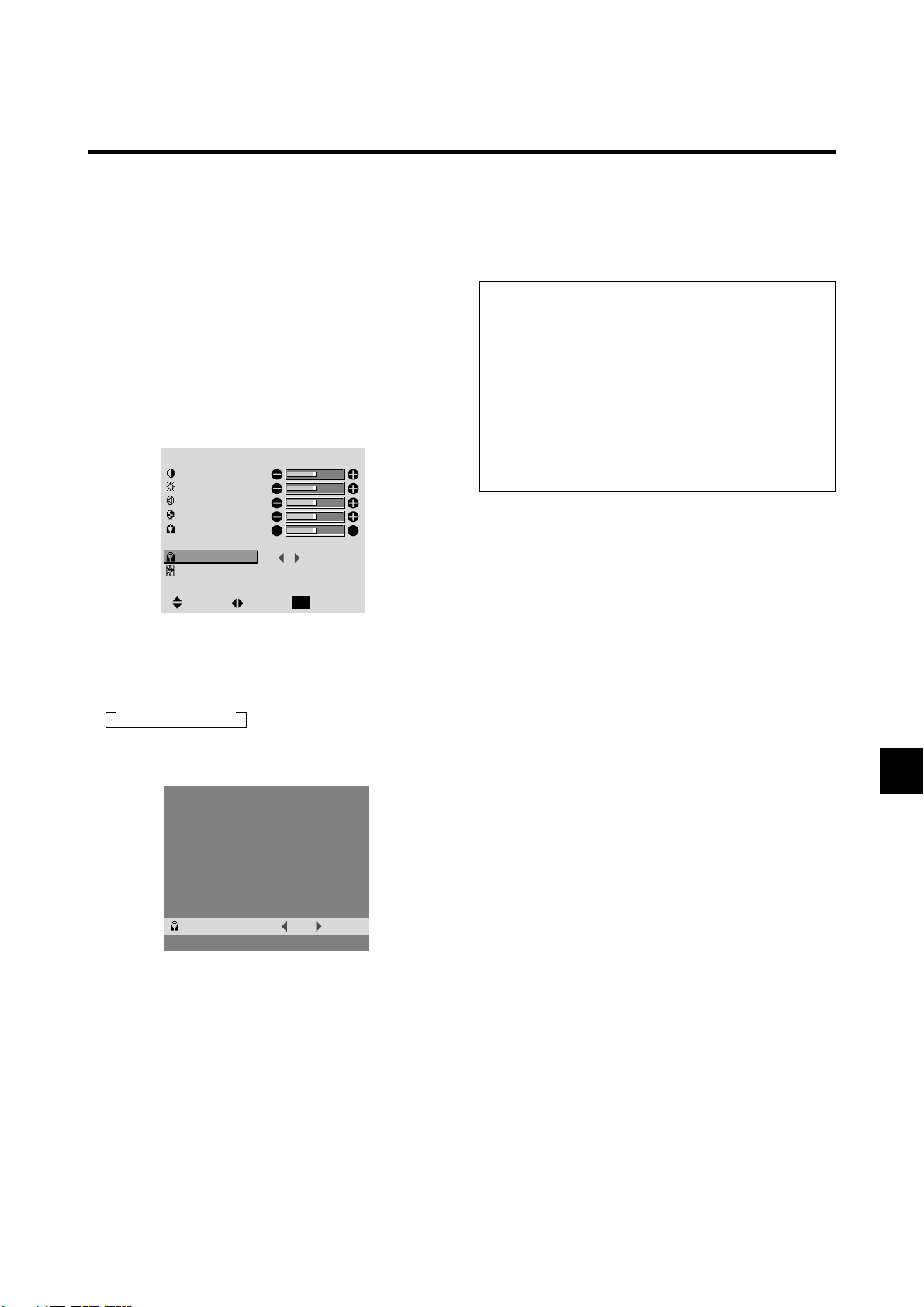

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “1”

4. Once the setting is completed...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

3. Use the  and  buttons to select “1”.

The mode switches as follows when the



and



buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

Information

 Setting the color temperature

1 ...................... High (bluer)

2 ......................... Middle (Standard)

3 ...................... Low (redder)

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

* See page 22 to set “PRO”.

COLOR TEMP.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

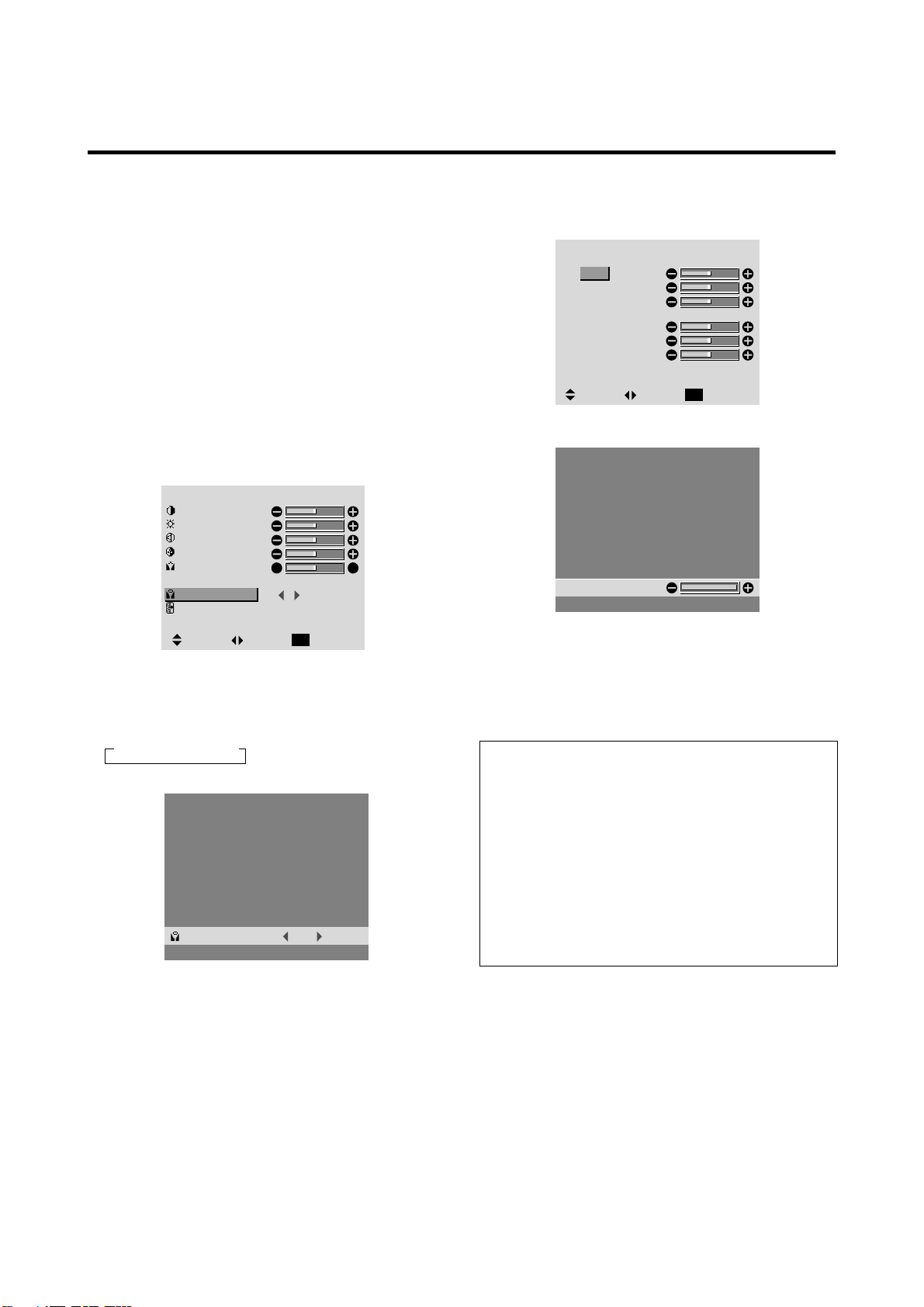

Adjusting the color to the desired quality

Use this procedure to adjust the white balance for bright pictures and dark pictures to achieve the desired color quality.

Example: Adjusting the “WHITE BALANCE”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

4. Press the PROCEED button. The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “RED-GAIN”.

WHITE BALANCE GAIN RED GREEN BLUE BIAS RED GREEN BLUE

SEL. ADJ. RETURN

EXIT

6. Adjust the white balance using the  and  buttons.

R-GAIN

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

3. Use the  and  buttons to select “PRO”.

The mode switches as follows when the



and

buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

PRO:COLOR TEMP.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

7. Once the adjustment is completed...



Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Adjusting the white balance

RGB-GAIN ....... White balance adjustment for signal

level

RGB-BIAS ....... White balance adjustment for black

level

 Restoring the factory default settings Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Example: Setting “NR-3”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “NR”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

3. Use the  and  buttons to select “NR-3”. The mode switches as follows when the



and



buttons are pressed:

→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←

Information

 NR

* “NR” stands for Noise Reduction. * This function reduces noise in the picture.

 Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction. The effect becomes stronger as the number increases

(in the order NR-1 → NR-2 → NR-3).

OFF ...............Turns the noise reduction function off.

NR-3

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

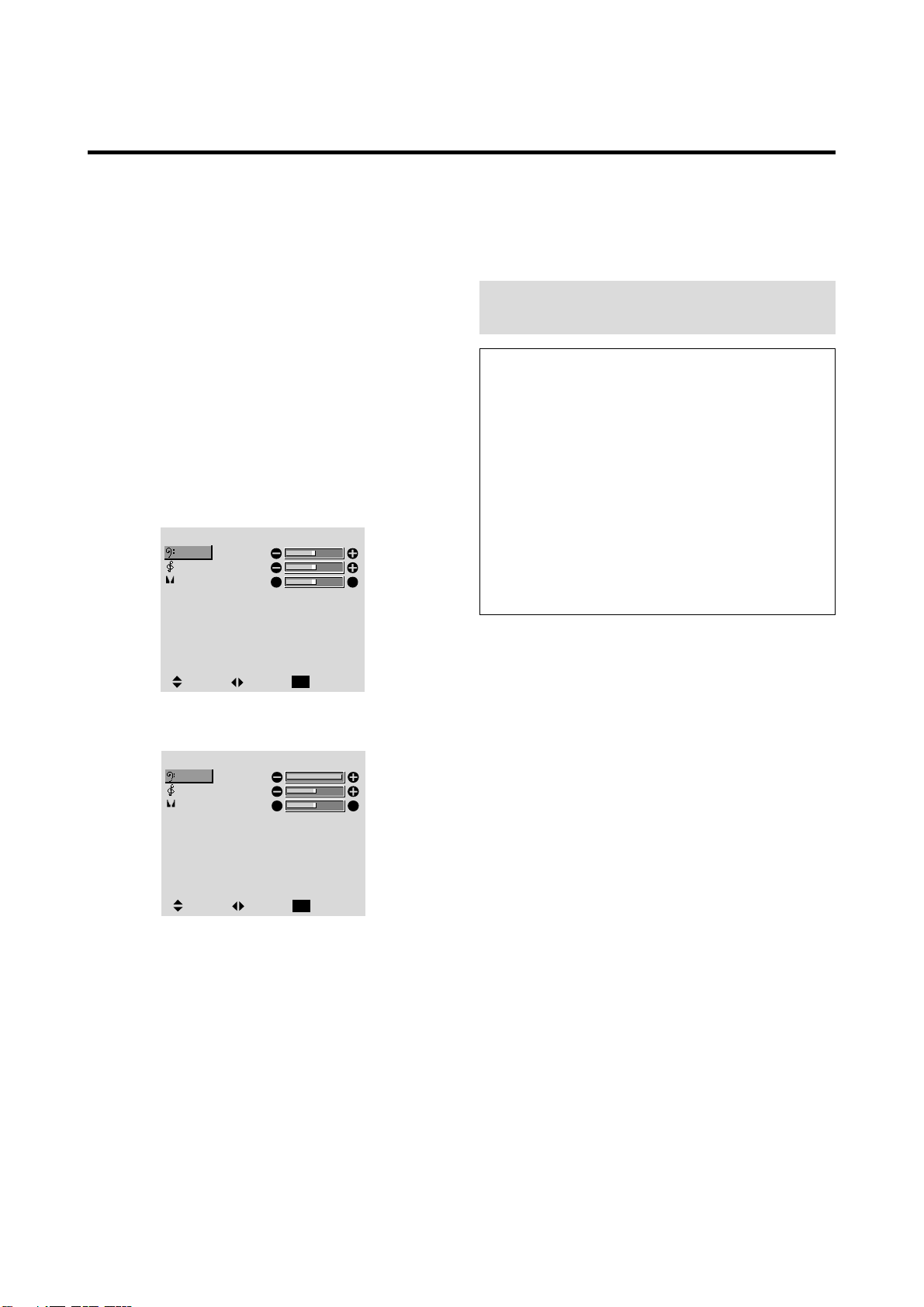

Sound Settings Menu

Adjusting the treble, bass and left/right balance

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

To continue adjusting the sound ...

Repeat from step 2.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the OPTION menu correctly.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SOUND”, then

press the PROCEED button. The “SOUND” screen appears.

2. To adjust the bass ...

Use the ▲ and ▼ buttons to select “BASS”.

SOUND

BASS TREBLE BALANCE

SEL. ADJ. RETURN

EXIT

3. Adjust the bass using the  and  buttons.

SOUND

BASS TREBLE BALANCE

Information

 Sound settings menu

BASS .............. Changes the level of low frequency

sound.

TREBLE ..........Changes the level of high frequency

sound.

BALANCE ....... Changes the balance of the left and

right channels.

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

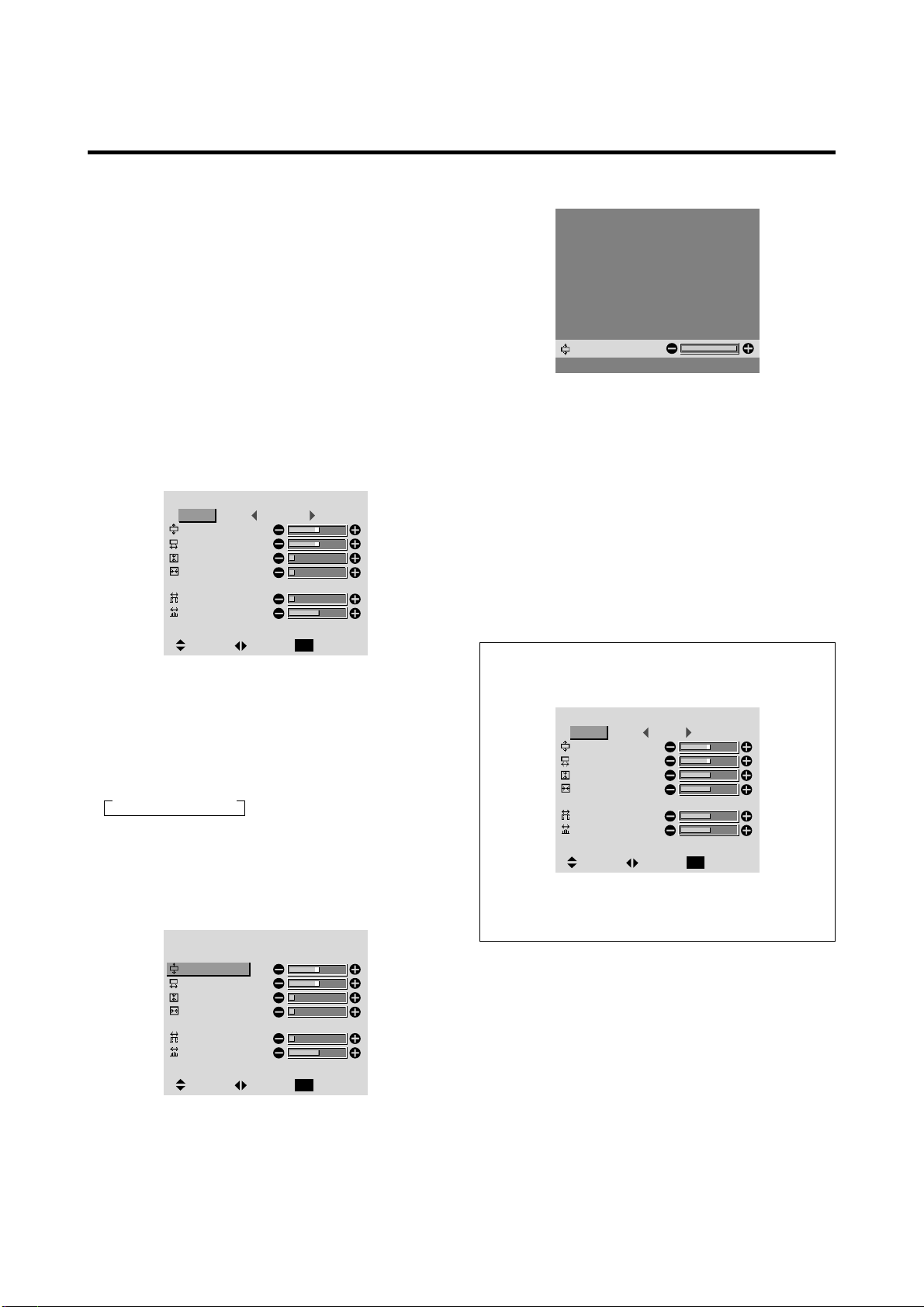

Screen Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

3. Adjust using the 䊴 and 䊳 buttons.

V–POSITION

1. Use the ▲ and ▼ buttons to select “SCREEN”, then

press the PROCEED button. The “SCREEN” menu appears.

Default settings (when RGB/PC is selected)

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

NORMAL:

OFF:

EXIT

* The settings on the SCREEN menu are not preset at the

factory.

To select a mode ...

䊴

Use the The mode switches as follows when the

and 䊳 buttons to select a mode.

䊴

and

䊳

buttons are pressed:

→ NORMAL ↔ FULL ←

* The mode can also be switched by pressing the “WIDE”

button on the remote control.

2. To adjust the vertical position ...

Use the ▲ and ▼ buttons to select “V-POSITION”.

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

NORMAL:

OFF:

* If neither the 䊴 or 䊳 button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

To continue making other computer image adjustments ...

Repeat from step 2.

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 When “AUTO PICTURE” is “OFF”

SCREEN

MODE V–POSITION H–POSITION V–HEIGHT H–WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL. ADJ. RETURN

FULL:

OFF:

EXIT

When Auto Picture is off, the Fine Picture and the Picture ADJ items are displayed so that you can adjust them.

SEL. ADJ. RETURN

EXIT

Information

䡵 Adjusting the Auto Picture

ON ................... The Picture ADJ and Fine Picture

adjustments are made automatically.

OFF .................The Picture ADJ and Fine Picture

adjustments are made manually.

䡵 Adjusting the position of the image

V-POSITION ... Adjusts the vertical position of the

image.

H-POSITION ... Adjusts the horizontal position of the

image.

V-HEIGHT ....... Adjusts the vertical size of the image.

(Except for STADIUM mode)

H-WIDTH ......... Adjusts the horizontal size of the

image. (Except for STADIUM mode)

FINE PICTURE

PICTURE ADJ* ....

* .. Adjusts for flickering.

Adjusts for striped patterns on the image.

* The Picture ADJ and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are not available for VIDEO and HD/ DVD source.

Function Settings Menu

Setting the on-screen menu

When using the monitor for presentations, etc., the monitor can be set so that the input source, screen mode, etc., do not appear.

Example: Turning the on-screen menu mode off

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “OSM”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE RGB3 ADJ. LONG LIFE RESET

OFF

ON 1:

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

SEL. ADJ. RETURN

EXIT

3. To turn the on-screen menu mode off ... Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “OFF”.

䊴

button is pressed:

ON ↔ OFF

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

: :

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䊳

䡵 OSM modes

ON ................... The on-screen menu appears.

OFF .................The on-screen menu does not appear.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Adjusting the position of the menu display

Use these operations to adjust the position of the menus that appear on the screen.

Example: Adjusting the position of the menu display

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”,

then press the PROCEED button. The “FUNCTION” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM ADJ.”

3. To adjust the position... Adjust using the

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

䊴

and 䊳 buttons.

FUNCTION

OFF

EXIT

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ.

OFF

1: LONG LIFE RESET

SEL. ADJ. RETURN

FUNCTION

OSM

OSM ADJ.

POWER MGT

OFF

GRAY LEVEL

CINEMA MODE

RGB3 ADJ.

: LONG LIFE RESET

SEL. ADJ. RETURN

EXIT

FUNCTION

OSM

OSM ADJ.

POWER MGT

OFF

GRAY LEVEL

CINEMA MODE

RGB3 ADJ.

LONG LIFE

RESET

SEL. ADJ. RETURN

EXIT

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 Adjusting the position of the menu display

The position can be set

123

between 1 and 9.

456

789

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “POWER MGT”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

OFF

Information

䡵 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer conforming to the VESA DPMS format.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating instructions.

䡵 Power management settings

ON ................... In this mode the power management

function is turned on.

OFF .................In this mode the power management

function is turned off.

SEL. ADJ. RETURN

EXIT

3. To turn the power management function on ... Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “ON”.

䊴

button is pressed:

ON ↔ OFF

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

䡵 Power management function and POWER/ STANDBY indicator

The POWER/STANDBY indicator indicates the status

䊳

of the power management function. See page 29 for indicator status and description.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

POWER/STANDBY indicator

Power management

mode

Standby

Suspend

Off

POWER/STANDBY

indicator

Green

Orange

Red

Power management

operating status

Not activated.

Activated.

Horizontal and vertical synchronizing signals are present from the computer.

No horizontal synchronizing signals are sent from the computer.

No vertical synchronizing signals are sent from the computer.

No horizontal or vertical synchronizing signals are sent from the computer.

Description

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears immediately.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode.

Operate the keyboard or mouse. The picture reappears, but more time is required than from the standby mode or suspend mode.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, 480I (60Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Adjusting the “GRAY LEVEL”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button.

The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

EXIT

3. To adjust the “GRAY LEVEL”... Use the

䊴

and 䊳 buttons to adjust the GRAY LEVEL.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 GRAY LEVEL

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

Example: Setting the “CINEMA MODE” to “OFF”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

EXIT

3. To set the CINEMA MODE to “OFF” ...

䊴

Use the The mode switches as follows each time the

and 䊳 buttons to select “OFF”.

䊴

button is pressed:

→ ON ↔ OFF ←

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 CINEMA MODE

ON ................... Automatic discrimination of the

image and projection in cinema mode.

OFF ................... Cinema mode does not function.

䊳

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

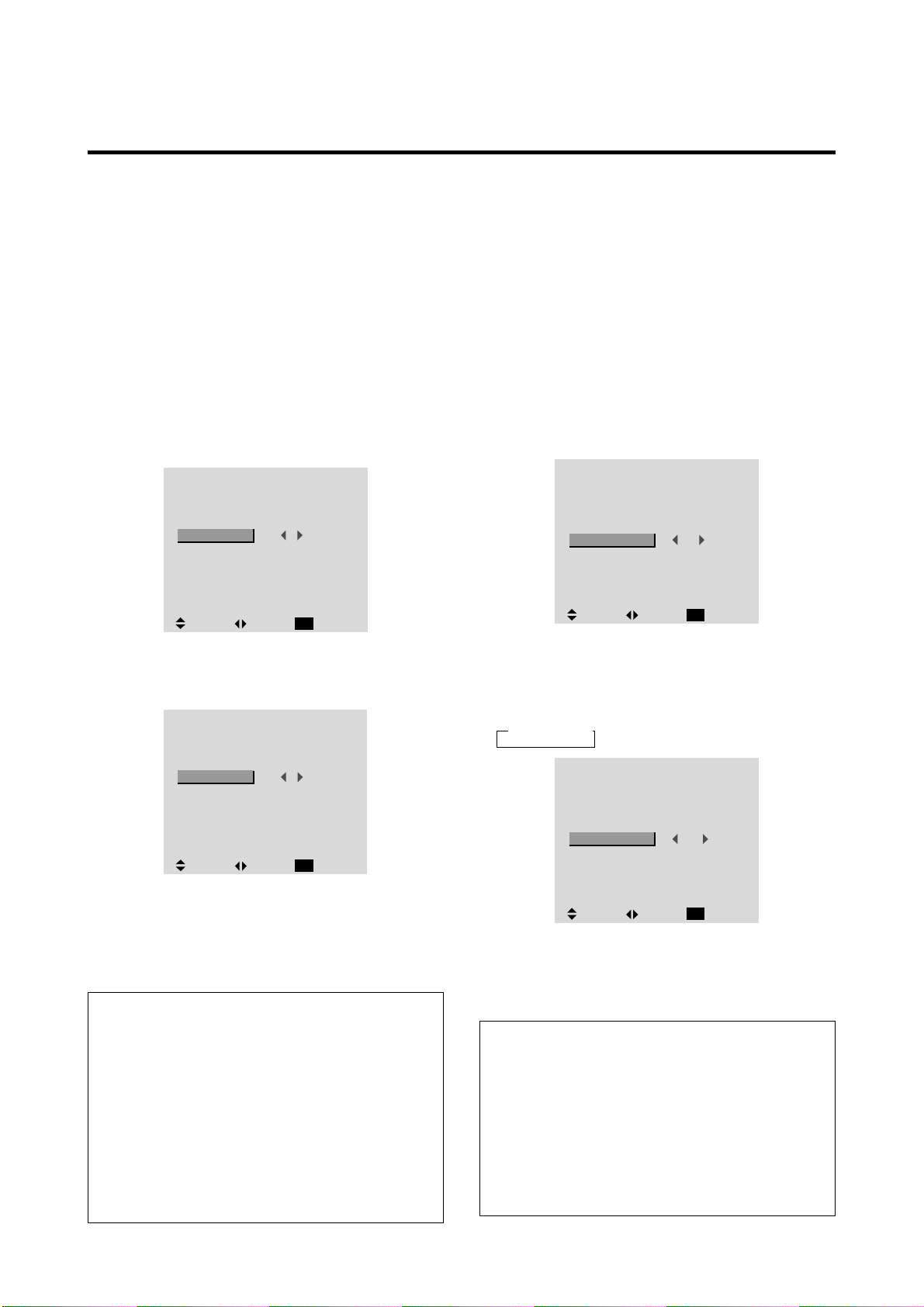

Setting RGB3 ADJ.

When the picture input from the RGB3 input terminal is distorted, select the most appropriate setting from among “1”, “2”, and “3”.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, and positive/negative mode are adjusted to reduce burnin of the screen.

Example: Setting “2”

Press the PROCEED button on the remote control to display MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”,

then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB3 ADJ.”.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

3 ON

EXIT

3. To select “2”... Use the The mode switches as follows each time the

䊴 and 䊳 buttons to select “2”.

䊴 or 䊳

buton is pressed:

→ 1 ↔ 2 ↔ 3 ←

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

RGB3 ADJ. LONG LIFE RESET

SEL. ADJ. RETURN

OFF

3 ON

EXIT

Example: Setting “PLE” to “LOCK”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then proceed as follows.

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then

press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then

press the PROCEED button.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

LONG LIFE RESET

PROCEED

SEL. RETURN

OFF

1:RGB3 ADJ.

EXIT

The “LONG LIFE” screen appears.

3. Use the ▲ and ▼ buttons to select “PLE”, then use the

䊴

and 䊳 buttons to select “LOCK”. The mode switch changes as follows each time the or 䊳 button is pressed:

AUTO ↔ LOCK

LONG LIFE

PLE ORBITER INVERSE

: : :

LOCK

OFF OFF

䊴

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 When you adjust the RGB3 ADJ.

The position of the menu display will change. In such a case, be sure to adjust the position.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

SEL. ADJ. RETURN

EXIT

4. Once the setting is completed... Press the EXIT button to return to the FUNCTION menu. To exit the main menu, press the EXIT button twice.

Information

䡵 PLE

AUTO .............. The brightness of the screen is

adjusted automatically to suit the picture quality.

LOCK .............. The brightness level is set to

minimum.

䡵 ORBITER

ON ................... The picture moves around the screen

intermittently.

OFF .................Orbiter mode does not function.

䡵 INVERSE

ON ..................... The picture is displayed alternately

between positive image and negative image.

OFF .................Inverse mode does not function.

WT .................. The entire screen turns white.

䡵 Restoring the factory default settings

Select “RESET” from the function menu. Note that this also restores other settings to the factory defaults.

Resetting to the default values

Use these operations to restore all the picture adjustments, audio settings, to the factory default values. Refer to page 18 for items to be reset.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “FUNCTION”, then press the PROCEED button. The “FUNCTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RESET”, then press the PROCEED button.

FUNCTION

OSM OSM ADJ. POWER MGT GRAY LEVEL CINEMA MODE

LONG LIFE RESET

SEL. RETURN

PROCEED

OFF

1:RGB3 ADJ.

EXIT

The “RESET” screen appears.

3. Use the ▲ and ▼ buttons to select “RESET”, then press the PROCEED button.

RESET

RESET RETURN

OK RETURN

EXITPROCEED

RESET

SETTING NOW

When the “SETTING NOW” screen disappears, the screen will be restored to the previous “RESET” mode, then all the settings are restored to the default values.

4. Once the setting is completed ... Press the EXIT button. To delete the main menu, press the EXIT button once more.

Option Settings Menu

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB or component.

Example: Set the BNC SELECT mode to “COMP.”

Example: Setting “AUDIO 1” to “VIDEO 2”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then

press the PROCEED button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “AUDIO 1”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1

: :

HD/DVD1 RGB1

RGB

: :

AUTO

1080B

EXIT

3. To set the AUDIO1 to “VIDEO2”... Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “VIDEO2”.

䊴

䊳

button is pressed:

→

VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ↔ RGB/PC1 ↔ RGB/PC2 ↔ RGB/PC3

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

VIDEO2

HD/DVD1

RGB1

RGB

AUTO

1080B

←

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then

press the PROCEED button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “BNC SELECT”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1 HD/DVD1

RGB1

: :

RGB

AUTO

1080B

EXIT

3. To set the BNC SELECT mode to “COMP.”...

䊴

Use the The mode switches as follows each time the

and 䊳 buttons to select “COMP.”.

䊴

button is pressed:

RGB ↔ COMP.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1

HD/DVD1

RGB1

COMP.

AUTO

1080B

EXIT

䊳

SEL. ADJ. RETURN

EXIT

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 BNC SELECT

RGB ................ Uses the 5BNC terminal for RGB

input.

COMP. .............Use the 3BNC terminal for component

input.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the “RGB SELECT” mode to “MOTION ”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then press the PROCEED button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB SELECT”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

VIDEO1

HD/DVD1

RGB1

RGB

AUTO

: :

1080B

SEL. ADJ. RETURN

EXIT

3. To set the RGB select mode to “MOTION” ...

䊴

Use the The mode switches as follows each time the

and 䊳 buttons to select “MOTION”.

䊴

button is pressed:

→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1 HD/DVD1

RGB1

RGB

: :

MOTION

1080B

: :

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

䊳

Information

䡵 RGB SELECT modes

One of these 6 modes must be selected in order to display the following signals correctly.

AUTO .............. Select the suitable mode for the

specifications of input signals as listed in the table “Computer input signals supported by this system” on page 47.

STILL ..............To display VESA standard signals.

(Use this mode for a still image from a computer.)

MOTION.......... The video signal (from a scan

converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1............. When an 852 dot⳯ 480 line signal

with a horizontal frequency of

31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2............. When an 848 dot⳯ 480 line signal

with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

DTV ................. Set this mode when watching digital

broadcasting (480P).

See page 47 for the details of the above settings.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the “1080B” mode to “1035I”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then press the PROCEED button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “HD SELECT”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1

HD/DVD1

RGB1

RGB

AUTO

1080B

EXIT

3. To set the HD SELECT mode to “1035I” ... Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “1035I”.

䊴

䊳

button is pressed:

→1080A ↔ 1080B ↔ 1035I ←

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1

HD/DVD1

RGB1

RGB

AUTO

1035I

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080A ............... Special Digital broadcasts (for

example : DTC100)

1080B ............... Standard digital broadcasts

1035I ...............Japanese “High Vision” signal format

Setting the picture size for RGB input signals

Use this procedure to switch the setting to “ON” or “OFF”.

Example: Setting the “ON” mode to “OFF”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION”, then

press the PROCEED button. The “OPTION” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE SIZE”.

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

VIDEO1

HD/DVD1

RGB1

RGB

AUTO

1080B

: :

Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMATION”, then press the PROCEED button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “FREQUENCY”, then press the PROCEED button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

SEL. ADJ. RETURN

EXIT

3. To set PICTURE SIZE mode to “OFF”... Use the The mode switches as follows when the

䊴

and 䊳 buttons to select “OFF”.

䊴

or 䊳 buttons

are pressed:

ON ↔ OFF

OPTION

AUDIO INPUT AUDIO1 AUDIO2 AUDIO3 BNC SELECT RGB SELECT HD SELECT

PICTURE SIZE

SEL. ADJ. RETURN

VIDEO1

HD/DVD1

RGB1

RGB

AUTO

1080B

OFF

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 PICTURE SIZE

ON ..................... For RGB Input: “NORMAL” and

“FULL” can be selected for Wide-

Screen switching.

OFF ................... For RGB Input: “TRUE” and

“FULL” can be selected for WideScreen switching.

RETURN

EXIT

PROCEED

SEL.

3. The frequency is displayed.

FREQUENCY

H. FREQ V. FREQ

H. POL V. POL

MODE RESOLUTION

37.5KHz

75.0Hz

NEG.

640⳯480

EXIT

RETURN

* Press the EXIT button to return to the previous screen.

4. Once you have checked the frequency ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

䡵 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

Setting the language for the menus

The menu display can be set to one of seven languages: Japanese, English, German, French, Swedish, Italian or Spanish.

Example: Setting the menu display to “DEUTSCH”

Setting the video signal format

Use these operations to set the video signal format.

Example: Setting the video signal format to “3.58 NTSC”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMATION”,

then press the PROCEED button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “LANGUAGE”,

then press the PROCEED button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

EXIT

SEL.

PROCEED

RETURN

The “LANGUAGE” screen appears.

3. To select “ DEUTSCH ” ... Use the The mode switches as follows when the

䊴

and 䊳 buttons to select “ DEUTSCH ”.

䊴

and

䊳

buttons are pressed:

→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ← →

↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←

LANGUAGE

DEUTSCH:

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “INFORMATION”,

then press the PROCEED button. The “INFORMATION” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR SYSTEM”,

then press the PROCEED button.

INFORMATION

FREQUENCY LANGUAGE COLOR SYSTEM

RETURN

EXIT

PROCEED

SEL.

The “COLOR SYSTEM” screen appears.

COLOR SYSTEM

AUTO1:

EXIT

ADJ.

PROCEED

RETURN

4. Press the PROCEED button. The display language is switched to Deutsch.

5. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 Language settings

ENGLISH ........ English

DEUTSCH....... German

FRANÇAIS ...... French

ESPAÑOL ....... Spanish

ITALIANO ........ Italian

SVENSKA .......Swedish

.............. Japanese

ADJ. RETURN

EXIT

3. To select “3.58 NTSC” ... Use the

䊴

and 䊳 buttons to select “3.58 NTSC”. The mode switches as follows when the buttons are pressed:

→ AUTO1 ↔ AUTO2 ↔ 3.58NTSC ↔ 4.43NTSC ← → SECAM ↔ PAL-M ↔ PAL-N ↔ PAL60 ↔ PAL ←

COLOR SYSTEM

3.58NTSC:

ADJ. RETURN

EXIT

䊴

and

䊳

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

The color system is set to “3.58 NTSC”.

Information

䡵 Video signal formats

Different countries use different formats for video signals. Set to the format used in your current country.

AUTO1/2 ......... The video signals are automatically

detected and the format is set accordingly.

AUTO1: 3.58NTSC, 4.43NTSC, PAL, SECAM,

PAL60

AUTO2: PAL-M, PAL-N, 3.58NTSC

PAL (B, G) .......This is the standard format used

mainly in the United Kingdom and Germany.

SECAM............. This is the standard format used

mainly in France and Russia.

4.43 NTSC,

PAL60 .............. This format is used for videos in

countries using PAL and SECAM video signals.

3.58 NTSC ...... This is the standard format used

mainly in Japan and the United States.

PAL-M ............. This is the standard format used

mainly in Brazil.

PAL-N ..............This is the standard format used

mainly in Argentina.

External Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

plasma monitor

1) Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Type of connector: D-Sub 9-pin male

No. Pin Name 1 No Connection 2 RXD (Receive data) 3 TXD (Transmit data) 4 DTR (DTE side ready) 5 GND 6 DSR (DCE side ready) 7 RTS (Ready to send) 8 CTS (Clear to send) 9 No Connection

External equipment e.g., Personal computer

Communication Parameters

(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600 bps (4) Data length 8 bits (5) Parity Odd (6) Stop bit 1 bit (7) Communication code Hex

2) Connector on the external equipment side: Serial port (RS-232C) connector. See the specifications of the equipment that is to be connected for the type of connector and the pin assignment.

3) Wiring

Use a crossed (reverse) cable.

Wire the cable so that each pair of data lines cross between the two devices. These data line pairs are RXD (Receive data) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send).

Communication Format

8 bit 8 bit 8 bit 8 bit 8 bit 8 bit 8 bit

8 bit

Command 1

Unit ID 1

Unit ID 2

Command 2

Data length

Data

Check sum

Command 1

Command 1, along with command 2, is a number used to distinguish each command. In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the supported equipment have been received. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that unsupported commands and data have been received.

Check Sum Example

DFH 80H 60H 47H 01H 01H 08H Command 1 Unit ID 1 Unit ID 2 Command 2 Data Length Data Check Sum

▲

Total 208H

2) Error Processing

• When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If, at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data).

• An ACK will not be returned unless the receive data error, the check sum error, and the receive data are all taken in.

Unit ID 1 and Unit ID 2

Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected. 60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer.

1) Unit ID 1: Indicates the equipment sending the signal

2) Unit ID 2: Indicates the equipment receiving the signal

Command 2

Command 2, along with command 1, is a number used to distinguish each command.

Check Sum (CKS), Error Processing, and ACK

1) The check sum described below and RS-232C odd parity are used together for a check of the received data. The check sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and 2, Command 2, Data Length, and Data.

Command Reference List

CMD1 CMD2 LEN

01. Power ON 9FH 4EH 00H

02. Power OFF 9FH 4FH 00H

03. Input Switch Change DFH 47H 01H

04. VOLUME Gain Data DFH 7FH 03H

05. SCREEN MODE Select DFH 51H 01H

06. AUDIO Mute On 9FH 3EH 00H

07. AUDIO Mute Off 9FH 3FH 00H

08. OSM Select DFH 58H 01H

09. Color Gain Data DFH 7FH 03H

10. TINT Gain Data DFH 7FH 03H

11. SHARPNESS Gain Data DFH 7FH 03H

12. CONTRAST Gain Data DFH 7FH 03H

13. BRIGHT Gain Data DFH 7FH 03H

14. Input MODE Request 1FH 41H 00H

15. RESET 1FH 54H 00H

16. COLOR TEMP SELECT DFH 00H 01H

17. RED Gain Data DFH 7FH 04H

18. GREEN Gain Data DFH 7FH 04H

19. BLUE Gain Data DFH 7FH 04H

20. Multi Screen Select DFH 07H 01H

21. VIDEO ADJ Request 1FH 45H 00H

22. Audio Select Set DFH 70H 02H

23. Audio Select Request 1FH 6FH 00H

24. LONG LIFE Set DFH 6BH 03H

25. Failure Mode Request 1FH 3FH 00H

03. Input Switch Change

Function

The external control equipment switches the input of the plasma monitor.

Transmission Data

DFH 80H 60H 47H 01H DATA00 CKS

DATA00 : Input Select 01H: Video1

02H: Video2

03H: Video3

05H: HD (HD1 or DTV or DTV1)

06H: HD2 (DTV2)

07H: RGB1/PC1

08H: RGB2/PC2

0CH: RGB3/PC3

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 47H 00H CKS

04. VOLUME Gain Data

Function

The external control equipment changes the VOLUME gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00 USER SOUND Gain Flag 05H

DATA01 VOLUME Gain Flag 01H

DATA02 VOLUME Gain 00H: Step 0

DATA00 DATA01 DATA02 CKS

01. Power ON

Function

The external control equipment switches on the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4EH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched on.

3FH 60H 80H 4EH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

02. Power OFF

Function

The external control equipment switches off the power of the plasma monitor.

Transmission Data

9FH 80H 60H 4FH 00H CKS

ACK

The plasma monitor returns the following ACK when the power is switched off.

3FH 60H 80H 4FH 00H CKS

NOTE: Do not set the Power ON or Power OFF command continuously.

0AH: Step 10 (Default)

2AH: Step 42

ACK

7FH 60H 80H 7FH 02H

DATA00 USER SOUND Gain Flag 05H DATA01 VOLUME Gain Flag 01H

DATA00 DATA01

CKS

05. SCREEN MODE Select

Function

The external control equipment switches the screen mode of the plasma monitor.

Transmission Data

DFH 80H 60H 51H 01H DATA00 CKS

DATA00 02H : STADIUM

03H : ZOOM 04H : NORMAL 05H : FULL 06H : TRUE (REAL)

ACK

7FH 60H 80H 51H 01H DATA00 CKS

DATA00 02H : STADIUM

03H : ZOOM 04H : NORMAL 05H : FULL

06H : TRUE (REAL)

06. AUDIO Mute On

Function

The external control equipment switches on AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3EH 00H CKS

ACK

3FH 60H 80H 3EH 00H CKS

07. AUDIO Mute Off

Function

The external control equipment switches off AUDIO Mute of the plasma monitor.

Transmission Data

9FH 80H 60H 3FH 00H CKS

ACK

3FH 60H 80H 3FH 00H CKS

08. OSM Select

Function

The external control equipment switches on or off the on-screen menu (OSM) of the plasma monitor.

Transmission Data

DFH 80H 60H 58H 01H DATA00 CKS

DATA00 01H : On-Screen menu On

02H : On-Screen menu Off

ACK

7FH 60H 80H 58H 01H DATA00 CKS

DATA00 01H : On-Screen menu On

02H : On-Screen menu Off

On-Screen menu On/Off is equivalent to the On-screen menu On/Off

function of the convenient function settings.

*Operation is as described in the table below.

09. COLOR Gain Data

Function

The external control equipment changes the COLOR gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: COLOR Gain Flag 04H DATA02: COLOR Gain E0H: -32 * COLOR Gain is from -22 (EAH) to

+22 (16H) only during video. FFH: -01

DATA00 DATA01 DATA02

00H: 0 01H: +01

20H: +32

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: COLOR Gain Flag 04H

DATA00 DATA01

CKS

10.TINT Gain Data

Function

The external control equipment changes the TINT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: TINT Gain Flag 05H DATA02: TINT Gain E0H: -32 * TINT Gain is from -22 (EAH) to

+22 (16H) only during video. FFH: -01

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: TINT Gain Flag 05H

DATA00 DATA01 DATA02

00H: 0 01H: +01

20H: +32

DATA00 DATA01 CKS

CKS

Operation

Remote control operation

Personal computer control operation

On-Screen Menu (OSM)

Display of items and adjustments on the menu

When screen menu is ON

Yes Yes Yes No

No No Yes No

When screen menu is OFF When screen menu is ON When screen menu is OFF

Volume display, input display, and screen size display

11. SHARPNESS Gain Data

Function

The external control equipment changes the SHARPNESS gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: SHARPNESS Gain Flag 06H DATA02: SHARPNESS Gain F0H: -16

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: SHARPNESS Gain Flag 06H

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

10H:+16

DATA00 DATA01

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: BRIGHT Gain Flag 08H

DATA00 DATA01

CKS

14. Input MODE Request

Function

The display returns the current input information by the external control equipment’ s request.

Transmission Data

1FH 80H 60H 41H 00H CKS

ACK

7FH 60H 80H 41H 01H DATA00 CKS

DATA00: Input Select

01H: Video1 02H: Video2 03H: Video3 04H: HD (HD1 or DTV or DTV1) 05H: RGB1/PC1 06H: RGB2/PC2 0AH:DVD (DVD1) 0CH:HD2 (DTV2) 0DH:DVD2 0EH:RGB3/PC3

12. CONTRAST Gain Data

Function

The external control equipment changes the CONTRAST gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: CONTRAST Gain Flag 07H DATA02: CONTRAST Gain CCH: -52

DATA00 DATA01 DATA02

FFH: -01 00H: 0 01H: +01

14H: +20

CKS

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: CONTRAST Gain Flag 07H

DATA00 DATA01

CKS

13. BRIGHT Gain Data

Function

The external control equipment changes the BRIGHT gain data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 03H

DATA00: USER PICTURE Gain Flag 01H DATA01: BRIGHT Gain Flag 08H DATA02: BRIGHT Gain E0H: -32

DATA00 DATA01 DATA02

CKS

15. RESET

Function

The external control equipment resets the user adjustment of the plasma monitor.

Transmission Data

1FH 80H 60H 54H 00H CKS

ACK

3FH 60H 80H 54H 00H CKS

16. COLOR TEMP SELECT

Function

The external control equipment changes the COLOR TEMP of the plasma monitor.

Transmission Data

DFH 80H 60H 00H 01H DATA00 CKS

DATA00

00H: 1 01H: 2 02H: 3 03H: PRO

ACK

7FH 60H 80H 00H 01H DATA00 CKS

DATA00:

00H: 1 01H: 2 02H: 3 03H: PRO

FFH: -01 00H: 0 01H: +01

20H: +32

NOTE: Set so that at the selection of 1, 2, or 3 of COLOR TEMP change of the following R/G/B GAIN data cannot be accepted.

17. RED Gain Data

Function

The external control equipment changes the RED Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: RED Gain Flag 01H DATA02: RED Gain 1 (Bias) D8H: -40

19. BLUE Gain Data

Function

The external control equipment changes the BLUE Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: BLUE Gain Flag 03H DATA02: BLUE Gain1(Bias) D8H:-40

FFH: -1 00H: 0

IEH: +30

DATA03: RED Gain 2 (Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: RED Gain Flag 01H

DATA00 DATA01

CKS

18. GREEN Gain Data

Function

The external control equipment changes the GREEN Gain Data of the plasma monitor.

Transmission Data

DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS

DATA00: USER PICTURE Gain Flag 01H DATA01: GREEN Gain Flag 02H DATA02: GREEN Gain 1 (Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA03: GREEN Gain2 (Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: GREEN Gain Flag 02H

DATA00 DATA01

CKS

FFH:-1 00H: 0

IEH: +30

DATA03: BLUE Gain2(Drive) D8H: -40

FFH:-1 00H: 0

IEH:+30

ACK

7FH 60H 80H 7FH 02H

DATA00: USER PICTURE Gain Flag 01H DATA01: BLUE Gain Flag 03H

DATA00 DATA01

CKS

20. Multi Screen Select

Function

The external control equipment selects single screen mode or multi screen mode of the display.

Transmission Data

DFH 80H 60H 07H 01H DATA00 CKS

DATA00: Multi Screen

00: Single screen 01: Side by side 1 (Left screen bigger) 02: Side by side 2 (Left screen smaller) 03: Picture in Picture sub screen L 04: Picture in Picture sub screen R

ACK

The display returns the following ACK.

7FH 60H 80H 07H 01H DATA00 CKS

DATA00: Multi Screen

00: Single screen 01: Side by side 1 (Left screen bigger) 02: Side by side 2 (Left screen smaller) 03: Picture in Picture sub screen L 04: Picture in Picture sub screen R

When other commands (except POWER OFF) are sent while the screens are switching with this command, the other command will be returned as “Not Available” until screen switching is finished.

21. VIDEO ADJ Request

Function

The display returns the video adjustments information by the external control equipment’s request.

Transmission Data

1FH 80H 60H 45H 00H CKS

ACK

7FH 60H 80H 45H 0CH DATA00 to DATA0B CKS

DATA00: RED Gain(Bias) D8H: -40

FFH: -1 00H: 0

DATA05: SHARPNESS Gain F0H: -16

FFH: -01 00H: 0 01H: +01

10H: +16

DATA06: CONTRAST Gain CCH: -52

FFH: -01 00H: 0 01H: +01

IEH: +30

DATA01: GREEN Gain(Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA02: BLUE Gain(Bias) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA03: COLOR Gain E0H: -32

* COLOR Gain is from -22 (EAH) to FFH: -01

+22 (16H) only during video. 00H: 0

01H: +01

20H: +32

DATA04: TINT Gain E0H: -32

14H: +20

DATA07: BRIGHT Gain E0H: -32

FFH: -01 00H: 0 01H: +01

20H: +32

DATA08: RED Gain(Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA09: GREEN Gain(Drive) D8H: -40

FFH: -1 00H: 0

IEH: +30

DATA0A: BLUE Gain(Drive) D8H: -40

* TINT Gain is from -22 (EAH) to FFH: -01

+22 (16H) only during video. 00H: 0

01H: +01

20H: +32

FFH: -1 00H: 0

IEH: +30

DATA0B: COLOR TEMP 00H: 1

01H: 2 02H: 3 03H: PRO

22. Audio Select Set

Function

The external control equipment sets combinations of audio and video inputs for the plasma monitor.

Transmission Data

DFH 80H 60H 70H 02H

DATA00: AUDIO INPUT

01H: AUDIO 1 02H: AUDIO 2 03H: AUDIO 3

DATA01: VISUAL INPUT

01H: Video 1 02H: Video 2 03H: Video 3 05H: HD (HD1 or DTV or DTV1) 06H: HD2 (DTV2) 07H: RGB 1/ PC 1 08H: RGB 2/ PC 2 0CH: RGB 3/ PC 3

DATA00 DATA01

CKS

ACK

The plasma monitor returns the following ACK when the input is switched.

3FH 60H 80H 70H 00H CKS

* The plasma monitor returns “Not Available” when selecting the

video input same as the one set at one of the AUDIO 01 to 3.

Example:

The plasma monitor returns “Not Available” when selecting the VIDEO1 for AUDIO2 or VIDEO3 after VIDEO1 has been set to AUDIO1.

23. Audio Select Request

Function

The external control equipment inquires the current combinations of audio and video inputs for the plasma monitor.

Transmission Data

1FH 80H 60H 6FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 6FH 03H

DATA00: AUDIO 1

01H - 0CH: VISUAL INPUT DATA

DATA01: AUDIO 2

01H - 0CH: VISUAL INPUT DATA

DATA02: AUDIO 3

01H - 0CH: VISUAL INPUT DATA VISUAL INPUT DATA 01H: Video 1 02H: Video 2 03H: Video 3 05H: HD (HD1 or DTV or DTV 1) 06H: HD2 (DTV2) 07H: RGB 1 /PC 1 08H: RGB 2 /PC 2 0CH: RGB 3 /PC 3

DATA00 DATA01 DATA02

CKS

24. LONG LIFE Set

Function

The external control equipment sets the PLE, ORBITER, and INVERSE (inverse of image brightness) of the plasma monitor.

Transmission Data

DFH 80H 60H 6BH 03H

DATA00 : PLE

01H: AUTO 02H: LOCK

DATA01 : INVERSE

01H: ON 02H: OFF 03H: WHITE

DATA02 : ORBITER (PICTURE SHIFT)

01H: ON 02H: OFF

DATA00 DATA01 DATA02

CKS

ACK

The plasma monitor returns the following ACK when setting the PLE, ORBITER, and INVERSE (inverse of image brightness):

3FH 60H 80H 6BH 00H CKS

25. Failure Mode Request

Function

The external control equipment inquires the detection of failures of the plasma monitor.

Transmission Data

1FH 80H 60H 3FH 00H CKS

ACK

The plasma monitor returns the following ACK:

7FH 60H 80H 3FH 02H

DATA00: FAILURE MODE 1

Bit 0 : PDP MODULE

0: Abnormal

1: Normal Bit 1 : 1: fixed (backup) Bit 2 : TEMPERATURE

0: Abnormal

1: Normal Bit 3 : FAN

0: Abnormal

1: Normal Bit 4 : 1: fixed (backup) Bit 5 : 1: fixed (backup) Bit 6 : 1: fixed (backup) Bit 7 : 1: fixed (backup)

DATA01:FILURE MODE 2

Bit 0–7 : 1: fixed (backup)

DATA00 DATA01

CKS

Table of Signals Supported

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 1024 dots⳯768 lines signal. (Except for *

• When the screen mode is TRUE, the picture is displayed in the original resolution.

• When the screen mode is FULL, each signal is converted to a 1364 dots⳯768 lines signal. (Except for *

Computer input signals supported by this system

Model

Signal Type

*IBM PC/AT compatible computers

*Apple Macintosh*

Work Station (EWS4800)

Work Station (HP) Work Station (SUN)

Work Station (SGI) IDC-3000G

PAL625P

NTSC525P

Dots ⳯ lines

640⳯400 640⳯480

848⳯480

852⳯480*

800⳯600

1024⳯768

1152⳯864 1280⳯768 1360⳯765 1360⳯768 1376⳯768

1280⳯1024

1600⳯1200

640⳯480

832⳯624 1024⳯768 1152⳯870

1280⳯1024

1152⳯900

1280⳯1024

1024⳯768

1280⳯1024

768⳯576

640⳯480

Vertical frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

60.0

59.9

60.0

75.0

85.0

60.0

65.0

70.0

75.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

47.7

48.3

64.0

80.0

91.1

75.0

81.3

87.5

93.8

35.0

49.7

60.2

68.7

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

Sync Polarity

Horizontal

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS POS NEG POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS POS POS POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Presence

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES

– –

YES YES

Vertical

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES

– –

YES YES

Screen mode

NORMAL

(4:3)

YES*

YES YES YES YES YES YES

– –

– – YES YES YES YES YES YES YES

YES*

YES

– –

YES*

YES YES YES YES YES YES

YES*

YES

YES*

YES YES

YES*

TRUE

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

– – YES YES

– –

YES* YES*

FULL (16:9)

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES YES YES YES YES

)

RGB

select*

– –

STILL

– –

STILL

– – – –

– – WIDE2 WIDE1

STILL STILL

– –

STILL

– –

STILL

– –

STILL

WIDE1

WIDE1 WIDE2

STILL

– –

MOTION

2, 3, 4

)

DVI

NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

NO YES

NO YES YES

NO YES

NO YES YES

*1 Only when using a graphic accelerator board that is capable of displaying 852⳯480. *2 This signal is converted to a 1228 dots ⳯ 768 lines signal. *3 The picture is displayed in the original resolution. *4 The aspect ratio is 5:4. This signal is converted to a 960 dot⳯768 line signal. *5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the

RGB mode prepared for the input signals listed in the table above.

*6 To connect the monitor to Macintosh computer, use the supplied monitor adapter (D-Sub 15-pin) to your computer's video

port. If your computer has a mini D-Sub 15-pin connector, you may have to use the supplied RGB cable.

*7 Other screen modes (ZOOM and STADIUM) are available as well.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size

of the picture or the fine picture because of errors in synchronization of your computer.

• When a 1280 dot ⳯ 1024 line signal or 1600 dot ⳯ 1200 line signal is input to the monitor, the picture will be

compressed.

⳯

• This monitor has a resolution of 1365 dot

XGA, or equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

* “IBM PC/AT” and “VGA” are registered trademarks of IBM, Inc. of the United States. * “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

768 line. It is recommended that the input signal should be XGA, wide

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Picture is disturbed. Sound is noisy. Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on when the remote control’s power button is pressed.

Monitor does not operate when the remote control’s buttons are pressed.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak. Nothing appears on screen.

Part of picture is cut off or picture is not centered.

Image is too large or too small.

Picture is unstable.

POWER/STANDBY indicator is lighted in orange or red.

POWER/STANDBY indicator is blinking in red.

POWER/STANDBY indicator is blinking in green.

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens., turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your NEC dealer for service.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized NEC Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit or, one or more fans have been damaged.

• Is a connected component set directly in front or at the side of the display?

• Are the remote control’s batteries worn out?

• Is the monitor’s power cord plugged into a power outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn

out?

• Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?

• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?

• Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired).

• The front panel buttons of the main unit do not function.

• Is the monitor’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting.

Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the

standby or off mode?

• Is the position adjustment appropriate?

• Is the screen size adjustment

appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

Checks

——————

Remedy

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Plug the monitor’s power cord into a power

outlet.

• Press the power button on the monitor to turn on the power.

• Replace both batteries with new ones.

• Point the remote control at the monitor’s

remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplung the remote cable from the monitor.

• The front panel buttons do not function

during Control Lock.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

•

Press the remote control’s MUTE button.

• Connect the speakers properly.

• Set AUDIO INPUT on the OPTION menu

correctly.

• Adjust picture control as needed. Try another location for the monitor. Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under “PICTURE”).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse,

etc.).

• Adjust the “SCREEN” properly.

• Press the “WIDE” button on the remote

control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main

unit and wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See *2.

Specifications

Product Name PlasmaSync™ 61MP1 Plasma Monitor Product Code PX- 61XM1A Screen Size 53.2"(H)⳯29.9"(V) inches

1351(H)⳯760(V) mm diagonal 61"

Aspect Ratio 16 : 9 Resolution 1365(H)⳯768(V) pixels Pixel Pitch 0.039"(H)⳯0.039"(V) inches

0.987(H)⳯0.987(V) mm

Color Reproduction 256 levels, 16,770,000 colors Signals

Synchronization Range Horizontal : 15.5 to 93.8 kHz

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

Input Terminals

RGB

Visual 1 (Analog) mini D-sub 15-pin⳯1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)⳯1* Visual 3 (Digital) DVI-I 29-pin⳯1*

Video

Visual 1 RCA-pin⳯1 Visual 2 BNC⳯1 Visual 3 S

DVD/HD/DTV

Visual RCA-pin (Y, PB[CB], PR[CR])*

Audio Stereo RCA⳯3(selectable)

External Control D-sub 9-pin⳯1(RS-232C) Sound output 7W+7W at 6 ohm Power Supply AC120V 50/60Hz Current Rating 6.9A (maximum) Power Consumption 660W (typical) Dimensions 58.3 (W)⳯35.0 (H)⳯4.7 (D) inches

Weight 134.5 lbs / 61.0 kg Environmental Considerations

Operating Temperature 0°C to 35°C / 32°F to 95°F

Humidity 20 to 80%

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90%

Front Panel User Controls Power on/off, Input source select,

Remote Control Functions

OSM Functions

(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)

PAL60, SECAM, HD*

, DVD*1 , DTV*

(Not compatible with analog input)

2-Video: DIN 4-pin⳯1

1480 (W)⳯890 (H)⳯119(D) mm

Volume up/down, OSM control

Power on/off, Input source select, OSM control,Volume up/down, Cursor (UP, DOWN,LEFT, RIGHT), Pointer, Zoom up/ down, Off timer, Wireless/ Wired remote control

Picture (Contrast / Brightness / Sharpness/ Color / Tint / Picture mode / Color temperature/ Noise reductions), Sound (Bass / Treble/ Balance),Screen (V-Position / HPosition/ V-Height / H-Width /Auto Picture / Fine picture/ Picture adjustment), Function (OSM/ OSM adjustment/ Power management/ Gray level/ Cinema mode/ RGB3 Adjustment, Long Life (PLE, Orbiter, Inverse, White)/ Reset)/Option (Audio input/ BNC select/ RGBselect/ HD select/ Picture Size), Information (Frequency / Language / Color system)

1.8"

2.9"

58.3" (1480)

53.9" (1380)

30.7" (790)

(45)

(74)

35.0" (890)

4.7"

(119)

Units are in inch

(mm)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this

system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz)

1080I (60 Hz)

It doesn’t cope with copy protection.

A change of DVD2/HD2 can be performed with

RGB2.

Other Features 3D motion adaptive Scan Converter

(with 2-3 pull down Converter), Digital Zoom function (100-300% Selectable) (Tentative), Self Diagnosis, Anti Image Burn, Color Temperature Select, Control Lock, Power management, Plug and play (DDC1, DDC2b, RGB3: DDC2b only), Multi screen operation

Accessories Remote control with two AAA batteries,

Remote cable, RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin connector), Power cord, User’s Manual, Safety metal fittings, Ferrite cores, Bands

Regulations UL Approved (UL 1950/ CSA 950)

DOC Canada requirements Meets FCC class A requirements

echnologies

igh

ois

1248

echnologies

ngton

tasca,n

Printed on recycled paper

Printed in Japan 7S800261

PlasmaSync Plasma Monitor

User's Manual

Bedienungshandbuch

Manuel de l'utilisateur

Manual del Usuario

Manuale d'uso

Bruksanvisning

User’s Manual

Bedienungshandbuch

Manuel de l’utilisateur

Manual del Usuario

Manuale d’uso

Bruksanvisning

Important Information

Precautions

Please read this manual carefully before using your NEC plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Warnings and Safety Precaution

2. Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the unit during electrical storms or if the unit will not be used over a long period.

NOTE: When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not comform to mandatory CE or C-Tick standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the DVI cable.

Recommendations to avoid or minimize phosphor burn-in

DVI cable (not supplied)

band

core (small)

Power cable (supplied)

core (large)

band

Connector

core (small)

core (large)

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the unit and have it serviced by an authorized NEC Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained,authorized NEC dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

* Always enable and use your computer’s screen saver

using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability. * Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible. * Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

Contact an NEC affiliate or authorized dealer for other recommended procedures that will best suit your particular application needs.

Contents

How to Attach Options to the Plasma Monitor .. E-1

Introduction ................................................... E-2

Introduction to the PlasmaSync 61MP1

Plasma Monitor..................................................... E-2

The features you’ll enjoy include:............................. E-2

Contents of the Package ......................................... E-2

Options ............................................................... E-2

Part Names and Function ................................ E-3

Front View ........................................................... E-3

Rear View / Terminal Board ................................... E-4

Remote Control ..................................................... E-5

Battery Installation and Replacement ....................... E-6

Using the wired remote control mode ...................... E-7

Operating Range .................................................. E-7

Handling the remote control ................................... E-7

Installation .................................................... E-8

Connecting Your PC or Macintosh Computer ............ E-9

Connections with Equipment that has

a Digital Interface .............................................. E-9

Connecting Your Document Camera ........................ E-9

Connecting Your VCR or Laser Disc Player ................ E-9

Connecting Your DVD Player .................................. E-9

External Speaker Connections ...............................E-10

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) .......................................E-11

Pin Configuration and Signal

of the RGB 3 IN Connector (DVI Connector) ............ E-11

Basic Operations ........................................... E-12

POWER ..............................................................E-12

To turn the unit ON and OFF: ................................ E-12

VOLUME ............................................................ E-12

To adjust the volume: ............................................. E-12

MUTE .................................................................E-12

To cancel the sound:............................................... E-12

DISPLAY ..............................................................E-12

To check the settings: ............................................. E-12

DIGITAL ZOOM ...................................................E-12

AUTO ADJUST .................................................... E-12

To adjust the size or quality of the picture

automatically: ........................................................ E-12

OFF TIMER ..........................................................E-13

To set the off timer: ................................................ E-13

To check the remaining time: ................................. E-13

To cancel the off timer ........................................... E-13

OSM Controls ................................................ E-17

Menu Operations .................................................E-17

Picture Settings Menu ............................................E-19

Adjusting the picture .............................................. E-19

Setting the picture mode according to the

brightness of the room ........................................... E-20

Setting the color temperature ................................. E-21

Adjusting the color to the desired quality ............... E-22

Reducing noise in the picture ................................. E-23

Sound Settings Menu ............................................E-24

Adjusting the treble, bass and left/right balance ..... E-24

Screen Settings Menu ........................................... E-25

Adjusting the Position, Size, Fine Picture,

Picture Adj ............................................................. E-25

Function Settings Menu .........................................E-26

Setting the on-screen menu .................................... E-26

Adjusting the position of the menu display ............ E-27

Setting the power management

for computer images .............................................. E-28

POWER/STANDBY indicator ............................... E-29

Setting the gray level for the sides of the screen ..... E-30

Setting the picture to suit the movie ....................... E-30

Setting RGB3 ADJ................................................. E-31

Reducing burn-in of the screen .............................. E-31

Resetting to the default values ................................ E-32

Option Settings Menu ...........................................E-33

Setting the allocation of the audio connectors ........ E-33

Setting the BNC connectors ................................... E-33

Setting a computer image to the correct RGB

select screen ......................................................... E-34

Setting high definition images to the suitable

screen size ............................................................ E-35

Setting the picture size for RGB input signals ........ E-36

Information Menu ................................................E-36

Checking the frequencies, polarities of input signals,

and resolution ........................................................ E-36

Setting the language for the menus ......................... E-37

Setting the video signal format ............................... E-37

External Control ...........................................E-39

Table of Signals Supported ............................ E-47

Supported resolution ............................................E-47

Troubleshooting ............................................ E-49

Specifications ............................................... E-50

WIDE Operations ........................................... E-14

Watching with a wide screen (manual) ...................E-14

When watching videos or digital video discs .......... E-14

When watching high definition video source ......... E-14

Watching computer images with a wide screen ....... E-15

When “PICTURE SIZE” is set to “OFF” ............... E-15

MULTI SCREEN Operations .............................. E-16

Showing a couple of pictures on the screen

at the same time ................................................. E-16

Selecting the input signals to be displayed ............. E-16

Adjusting the OSM controls .................................. E-16

How to Attach Options to the Plasma Monitor

50mm (2")

1580

(62.2")

990

(39.0")

50mm (2")

(2") 50

(2")

Wall

50mm (2")

You can attach your optional mounts or stand to the plasma monitor in the following way:

* Unpack the plasma monitor. (See Drawing A.) * Take it out, put your hand in the handy-grip recess at the

rear, and move it to an appropriate place. Then attach the optional mounts or stand. (See Drawing B.)

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page E-2.

• For correct installation and mounting it is strongly recommended to use a trained, authorized NEC dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

E-1

Introduction

Introduction to the PlasmaSync 61MP1 Plasma Monitor

NEC’s PlasmaSync is a seamless blend of cutting-edge visual technology and sophisticated design. At 61-inches, with a 16:9 aspect ratio, the PlasmaSync 61MP1 certainly makes a big impression. However, at a mere 4.7 inches/ 119 mm thin, the monitor’s sleek techno-art lines blend in well with your environment. PlasmaSync’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. And weighing only 134.5 lbs/ 61 kg, it actually can be hung almost anywhere. NEC has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the PlasmaSync monitor.

The features you’ll enjoy include:

• 61-inch screen

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering system where Accucrimson is combined with our special CCF.

• 4.7 inch / 119 mm thin

• 134.5 lbs/ 61 kg light

• High-resolution screen: 1365768 pixels

• 160-degrees of off-axis viewing, horizontally and vertically.

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA, computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source compatibility

• AccuBlend scan conversion automatically converts VGA, SVGA and SXGA signals to the panel’s native resolution

• Advanced Mass Area Sampling Progressive Scan method is employed.

• RGB input (3*), Video input (3), DVD/HD input (2*), Audio input (3), External Control input (1)

• AccuColor control system provides user selectable onscreen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz (Y, C

B, CR )

• Digital broadcasting source compatibitly

• NEC’s OSM menu-driven on screen control system that makes image adjustments a snap

• Seven languages (English, German, French, Italian, Spanish, Swedish, and Japanese)

• A handy-grip recess is provided to facilitate installation and movement.

* You can select RGB source or Component source for

the 5BNC terminal. When selecting an RGB input, the source is switched to the RGB input (3); when selecting a component input, the source is switched to the DVD/ HD input (2).

Contents of the Package

 PlasmaSync 61MP1 plasma monitor

 Power cord

 RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-

pin connector)

 Remote control with two AAA Batteries

 User’s manual

 Remote cable

 Safety metal fittings*

 Ferrite core (small2, large2), band

* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand (option). Screw the safety fittings to the holes in the back of the monitor.

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Tabletop stand

• Speakers

• Others

E-2

Part Names and Function

Front View

POWER/STANDBY

INPUT SELECT

VOLUME

PROCEED

DOWN UP LEFT/

RIGHT/+/EXIT

PROCEED

VOLUME

DOWN UP LEFT/

q PROCEED

Sets the On-Screen Menu (OSM) mode and displays the main menu.

w VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

e LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the



CURSOR (

/ ) buttons in the On-Screen Menu

(OSM) mode.

r INPUT SELECT / EXIT

Switches the input, in the following order:

→ VIDEO1 → VIDEO2 → VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1←

RIGHT/+/EXIT

INPUT SELECT

POWER/STANDBY

t Power

Turns the monitor’s power on and off.

y POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

u Remote sensor window

Receives the signals from the remote control.

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

E-3

Rear View/ Terminal Board

VIDEO 1

VIDEO 2

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 1

R/PR

R/C

G/Y

B/CB/PB

)

L(MONO

RGB 3

(

)

Digital RGB

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1 /HD1AUDIO 3 AUDIO 1RGB2/ DVD2/HD2

SPEAKERS MUST HAVE

CONTROL

REMOTE

AC IN

EXTERNAL

MORE THAN 7WATT RATING

LOCK

CONTROL

RIGHT LEFT

IMPEDANCE 6 OHM

ON/ OFF

AC IN

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers here. Maintain the correct polarity.

C EXTERNAL CONTROL

This terminal is used when power ON/OFF, input selection and AUDIO MUTE and other controls are operated externally (by external control). See also page E-39 for external control.

D REMOTE CONTROL

Connect the supplied remote cable here.

E CONTROL LOCK

When “CONTROL LOCK” is set “ON”, the buttons on the set’s control panel do not function.

F VIDEO1, 2, 3

Connect VCR’s, DVD’s or Laser Discs, etc. here.

SPEAKERS MUST HAVE

MORE THAN 7WATT RATING

RIGHT LEFT

IMPEDANCE 6 OHM

BCDE

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK

ON/ OFF

H DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

I RGB1

Inputs the analog RGB signal of personal computer, etc.

J RGB2/ DVD2/ HD2

RGB2: Inputs the analog RGB signal. DVD2/ HD2: Connect DVD’s, High Definition or

K RGB3

Inputs a digital RGB signal (TMDS).

L Handy-Grip recess

Use the recesses (as shown) when you need to carry the display.

Laser Discs, etc. here.

(DVI 29pin)

RGB 1

R/C

G/Y

B/CB/PB

L(MONO

RGB 3

(

Digital RGB

R/PR

)

G AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them to on the menu screen.

E-4

Remote Control

w RGB/PC

Press this button to select RGB/PC as the source.

→ RGB/PC1 → RGB/PC2 → RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

→ VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

e DVD / HD

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

→ VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

r VIDEO

Press this button to select VIDEO as the source.

→ VIDEO1 → VIDEO2 → VIDEO3

VIDEO can also be selected using the INPUT SELECT button on the monitor. The input switches as follows each time the button is pressed:

→ VIDEO1 → VIDEO2→ VIDEO3→ DVD/HD RGB/PC3 ← RGB/PC2 ← RGB/PC1 ←

q POWER ON/OFF

Switches Power ON/OFF. (This does not operate when POWER/STANDBY indicator of the main unit is off.)

t PROCEED

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.



y CURSOR (▲ / ▼ /

/ )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the main menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the volume.

!1 MUTE

Mutes the sound.

!2 WIDE

The type of broadcast is detected automatically, and the recommended wide screen is set.

E-5

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 MULTI

Press this button to select a screen mode from among single mode, side by side, and picture in picture.

!6 SELECT

Press this button to select the active picture in a multi screen mode.

!7 AUTO ADJUST

!8 Remote control signal transmitter

Transmits the remote control signals.

!9 Remote Jack

Insert the plug of the supplied remote cable here when using the supplied remote control in the wired condition.

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

E-6

Using the wired remote control mode

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1/HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 1

R/PR

R/C

G/Y

B/CB/PB

)

L(MONO

EXTERNAL CONTROL

REMOTE CONTROL

CONTROL LOCK

RGB 3

(

)

Digital RGB

ON / OFF

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

RIGHT LEFT

SPEAKERS MUST HAVE

MORE THAN 7WATT RATING

IMPEDANCE 6 OHM

AC IN

CONTROL

REMOTE

EXTERNAL

LOCK

CONTROL

ON/ OFF

PROCEED

DOWN UP LEFT/-RIGHT/+/EXIT

POWER/STANDBY

INPUT SELECT

VOLUME

Approx.

Remote Control

7m/ 23ft

Cable

To Remote Jack

30˚ 30˚

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE CONTROL terminal on the monitor.

E-7

Installation

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/P

)

L(MONO

AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/DVD2 /HD2

RGB 1

R/C

R/PR

G/Y

B/CB/P

)

L(MONO

RGB 3

(

)

Digital RGB

To video inputs on the plasma monitor

VCR or Laser Disc Player

Document Camera

IBM VGA or

Compatibles

Macintosh or Compatibles

(Desk top type)

Monitor adapter for

Signal cable (supplied) To Mini D-Sub 15 pin connector on the plasma monitor

Macintosh

DVD Player

• For Y/CB/Cr, connect to the DVD1 or DVD2 terminals.

• For RGB + composite sync., connect to the DVD2 terminals. For composite sync., connect to the HD terminals.

Personal computer with a digital RGB output

Note:

This PlasmaSync monitor has the sapasity to display images when connected to European DVD players with a SCART output signal, which is RGB with composite sync. NEC can supply a special SCART cable, which will enable you to use the RGB with composite sync signal. To obtain the special cable as well as for further information, please contact NEC help desk 0181 752 3535. Please refer to page E-33 for selection of the correct mode in the on-screen manager.

E-8

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page E-47. To connect a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer.

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document camera.

2. Use a standard video cable to connect your document camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

4. Use the signal cable that’s supplied to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computer’s video port.

5. Turn on the plasma monitor and the computer.

6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor.

When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode

The 19" fixed mode is recommended for the plasma monitor.

Note:

for more information about your camera’s video output requirements.

Refer to your document camera owner’s manual

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. To make these connections, simply:

1. Turn off the power to your plasma monitor and VCR or laser disc player.

3. Turn on the plasma monitor and the VCR or laser disc player.

Note:

manual for more information about your equipment’s video output requirements.

Refer to your VCR or laser disc player owner’s

Connections with Equipment that has a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 29-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 IN (DVI) connector of the main unit. Note that the RGB3 IN(DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standards that is within 5 meters in length.

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the power to your plasma monitor and DVD player.

3. Turn on the plasma monitor and the DVD player.

E-9

External Speaker Connections

VIDEO 1

VIDEO 2

VIDEO 3

)

L(MONO

B/PB

CR/PR

)

L(MONO

AUDIO 2 DVD1/ HD1AUDIO 3 AUDIO 1RGB2/DVD2/HD2

RGB 1

R/PR

R/C

G/Y

B/CB/PB

)

L(MONO

RGB 3

(

)

LEFTRIGHT

Digital RGB

AC IN

External speakers may be connected to the plasma monitor to reproduce sound from VIDEO, DVD or RGB signal sources.

External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the audio outputs.

CAUTION:

Unplug the plasma monitor and all connected components before connecting external speakers. Use only speakers with 6-ohm impedance and a power input rating of 7 watts or more.

RIGHT LEFT

SPEAKERS MUST HAVE

MORE THAN 7WATT RATING

IMPEDANCE 6 OHM

CONTROL

REMOTE

EXTERNAL

LOCK

CONTROL

ON/ OFF

To connect external speakers directly to the plasma monitor:

1. Strip the ends of the speaker wires.

2. Press down the tabs below the SPEAKERS terminals, insert the speaker wire and release the tab to secure the speaker wire connection:

[a] Connect the right speaker (located at right side

of the monitor when viewed from the front) positive (+) wire to RIGHT +.

[b] Connect the right speaker negative (–) wire to

RIGHT –.

[c] Connect the left speaker negative (–) wire to

LEFT–.

[d] Connect the left speaker positive (+) wire to

LEFT+.

E-10

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Signal (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for both analog and digital. (Functionally, this cannot be used for an analog input.) (TMDS can be used for one link only.)

RGB 3

8 25 26

27 28

Pin No.

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Signal (Digital)

E-11

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

3. Press the POWER OFF button (on the remote control or the unit) to turn off the unit.

The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the POINTER button to delete the pointer.

)

 

buttons.

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUTO ADJUST button.

Information

 AUTO ADJUST ON setting

When RGB (still picture) input

is selected ...... Fine Picture, Picture ADJ, Position,

and Contrast will be adjusted automatically.

When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input

is selected ...... The screen size switches to ZOOM

mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

)

E-12

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

OFF TIMER0

Note:

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER28

E-13

WIDE Operations

Watching with a wide screen

With this function, you can select one of four screen sizes.

When watching videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

→ ZOOM → NORMAL → FULL → STADIUM

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

(manual)

STADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

When watching high definition video source

1. Press the WIDE button on the remote control.

FULL size screen (16 : 9)

NORMAL size screen (4:3)

The normal size screen is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen. (Normal images are expanded in the horizontal direction.)

The full size screen is displayed. * The picture has the same size as video pictures (16 : 9).

E-14

Watching computer images with a wide screen

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again. The screen size switches as follows:

→ NORMAL → FULL

FULL size screen

The image is expanded in the horizontal and vertical direction.

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

FULL size screen

The image is expanded in the horizontal direction.

When wide signals are input.

FULL size screen

When wide signals are input.

TRUE

The image is true resolution.

FULL

Information

 Supported resolution

See page E-47 for details on the display output of the various VESA signal standards supported by the monitor.

When “PICTURE SIZE” is set to “OFF”

The screen size switches as follows:

→ TRUE → FULL

TRUE size screen (VGA, SVGA 4:3)

The image is true resolution.

 “PICTURE SIZE” setting

When the setting of “PICTURE SIZE” is OFF, the size of RGB-input pictures will be TRUE in place of NORMAL.

 When 852 (848) dot  480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page E-47.

* “ IBM PC/AT” and “VGA” are registered trademarks

of IBM, Inc. of the United States.

E-15

MULTI SCREEN Operations

VIDEO1 RGB/PC1

Showing a couple of pictures on the screen at the same time

* An RGB-input picture may not be displayed in these modes,

depending on the input signal specifications.

1. Press the MULTI button to select a screen mode from among single mode, side by side, and picture in picture.

Side by side 1

VIDEO1 RGB/PC1

Selecting the input signals to be displayed

Press the cursor buttons   on the remote control to switch either side by side 1 (with



(with

Note:

Picture A and B on the above screen are not always of the same height.

Side by side 2

Picture in picture

Press the cursor buttons   on the remote control to switch the position of the sub screen.

Main screen

2. If you wish to switch the setting of the picture, press the SELECT button to make the desired picture active. Each press of the SELECT button changes the selection of the active picture.

VIDEO1 RGB/PC1

Sub screen

screen

Main screen

VIDEO1

Sub

VIDEO1

Main screen



) or side by side 2

RGB/PC1

Sub

screen

1. Press the SELECT button to make the desired picture active.

2. Press the RGB/PC, VIDEO, or DVD/HD button. Each press of the button changes the selection of the input signal. The INPUT SELECT button on the monitor can also be used to change the selection.

Adjusting the OSM controls

1. Press the PROCEED button to display the MAIN MENU.

2. Adjust the setting to your preference. For details, see “OSM (On Screen Menu) Controls” on page E-17.

Note:

During multi mode, Auto Adjust does not affect the screen.

Information

 Positioning on the screen (for side by side)

Depending on the input-signal selection, positioning of the picture is settled as follows. Pictures displayed

on the left ........ VIDEO1, VIDEO2, VIDEO3, HD1/

DVD1/DTV1, or HD2/DVD2/ DTV2

Pictures displayed

on the right ...... RGB/PC1, RGB/PC2, RGB/PC3

 Positioning on the screen (for picture in picture)

Pictures displayed

Main screen .... RGB/PC1, RGB/PC2, RGB/PC3,

HD 1/DVD 1/DTV 1, or HD 2/ DVD 2/DTV 2

Sub screen ...... VIDEO1, VIDEO 2, VIDEO 3, HD1/

DVD1/DTV1, or HD2/DVD2/DTV2

 Multi screen operations may not function depending on the type of the RGB signals.

E-16

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently. In the explanation, the OSM section is shown close up.

MAIN MENU

PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

SEL. OK EXIT

EXITPROCEED

The following describes how to use the menus and the selected items.

1. Press the PROCEED button on the remote control to display the MAIN MENU.

MAIN MENU

PICTURE SOUND SCREEN FUNCTION OPTIONS INFORMATION

5. The change is stored until you adjust it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

Note:

The main menu disappears by pressing the EXIT

button.

SEL. OK EXIT

EXITPROCEED

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the PROCEED button on the remote control to select a submenu or item.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

4. Adjust the level or change the setting of the selected item by using the cursor buttons

 

on the remote

control.

E-17

Main menu Sub menu Functions Default Reset

PICTURE CONTRAST Adjusts the contrast. Center Yes

image software.

COLOR TEMP Adjusts the color temperature and white balance. 2*

Yes

NR Reduces noise visible in image. OFF Yes

Main menu Sub menu Functions Default Reset

SOUND BASS Sets the bass. Center Yes

TREBLE Sets the treble. Center Yes BALANCE Sets the left/right balance. Center Yes

Main menu Sub menu Functions Default Reset

SCREEN V-POSITION Adjusts the vertical position. Center Yes

H-POSITION Adjusts the horizontal position. Center Yes V-HEIGHT Adjusts the vertical size. Min Yes H-WIDTH Adjusts the horizontal size. Min Yes

AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*

and “PICTURE ADJ”.

FINE PICTURE Adjusts for flickering on the computer image. Min* PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*

Yes

Main menu Sub menu Functions Default Reset

FUNCTION OSM

Turns the on-screen menu (screen mode, etc.) off (when set to “OFF”).

ON Yes

terminal is distorted. LONG LIFE Sets the picture to reduce burn-in of the display. *

Yes

RESET Resets all the settings (PICTURE, SOUND, SCREEN, FUNCTION, — —

etc.) to the factory default values.

Main menu Sub menu Functions Default Reset

OPTION AUDIO INPUT Sets the allocation of the audio connectors. *

Yes BNC SELECT Sets the BNC connectors. RGB Yes RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes

RGB (VGA signals), VIDEO (Moving picture), WIDE (WIDE VGA) DTV.

HD SELECT

Sets the digital broadcasting (1080A,1080B) or the High Vision (1035I).

1080B No

PICTURE SIZE Sets the picture size for RGB input. ON Yes

Main menu Sub menu Functions Default Reset

INFORMATION FREQUENCY Used to check the frequency and synchronizing polarities of the signal — —

currently being inputted.

LANGUAGE Sets the language of the menus (Japanese, English, German, French, English No

Swedish, Italian or Spanish).

COLOR SYSTEM Sets the VIDEO format (AUTO1, AUTO2, PAL, PAL-M, PAL-N, PAL60, AUTO1 No

SECAM, 4.43 NTSC or 3.58 NTSC).

E-18

*1 RGB/PC only. *2 PLE: AUTO ORBITER: OFF INVERSE: OFF *3 AUDIO1: VIDEO1 AUDIO2: HD/DVD1 AUDIO3: RGB1

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

4. Once the adjustment is completed ...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Example: Adjusting the contrast

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

3. Use the  and  buttons to adjust the contrast.

Note:

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure PICTURE MODE is set to MEMORY.

Information

 Picture adjustment screen

CONTRAST .... Changes the picture’s contrast.

BRIGHTNESS . Changes the picture’s brightness. SHARPNESS .. Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR ........... Changes the color density.

TINT ................ Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “RESET” under the “PICTURE MODE” settings.

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

E-19

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEATER” mode

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button.

The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE MODE”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

MEMORY

OFF

4. Once the adjustment is completed ...

Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Types of picture modes

MEMORY ........ The last picture adjustments are stored

here.

THEATER ........ Set this mode when watching video in

a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. CONTRAST = 80% for RESET mode BRIGHTNESS = 95% for RESET mode

NORMAL ......... Set this mode when watching video in

a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. CONTRAST = 96% for RESET mode

RESET ............ Use this to reset the picture to the

factory default settings.

SEL. ADJ. RETURN

EXIT

3. To set to “THEATER” ...

Use the

The mode switches as follows when the



and  buttons to select “THEATER”.



and

buttons are pressed:

→ MEMORY ↔ THEATER ↔ NORMAL ↔ RESET ←

PICTURE MODE

THEATER:

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.



E-20

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “1”

4. Once the setting is completed...

Press the EXIT button to return to the main menu.

To delete the main menu, press the EXIT button once more.

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

3. Use the  and  buttons to select “1”.

The mode switches as follows when the



and



buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

Information

 Setting the color temperature

1 ...................... High (bluer)

2 ......................... Middle (Standard)

3 ...................... Low (redder)

 Restoring the factory default settings

Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

* See page E-22 to set “PRO”.

COLOR TEMP.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

E-21

Adjusting the color to the desired quality

Use this procedure to adjust the white balance for bright pictures and dark pictures to achieve the desired color quality.

Example: Adjusting the “WHITE BALANCE”

Press the PROCEED button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the PROCEED button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.


CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE COLOR TEMP. NR

SEL. ADJ. RETURN

MEMORY

OFF

EXIT

4. Press the PROCEED button. The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “RED-GAIN”.

WHITE BALANCE GAIN RED GREEN BLUE BIAS RED GREEN BLUE

SEL. ADJ. RETURN

EXIT

6. Adjust the white balance using the  and  buttons.

R-GAIN

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

3. Use the  and  buttons to select “PRO”.

The mode switches as follows when the



and

buttons are pressed:

→ 1 ↔ 2 ↔ 3 ↔ PRO ←

PRO:COLOR TEMP.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

7. Once the adjustment is completed...



Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Adjusting the white balance

RGB-GAIN ....... White balance adjustment for signal

level

RGB-BIAS ....... White balance adjustment for black

level

 Restoring the factory default settings Select “RESET” under the function menu. Note that this also restores other settings to the factory defaults.

E-22

NEC PD6120D, PD6120D /U1B Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

How to Attach Options to the Plasma Monitor

Introduction

Introduction to the PlasmaSync 61MP1 Plasma Monitor

Contents of the Package

Options

Part Names and Function

Front View

Rear View/ Terminal Board

Remote Control

Battery Installation and Replacement

Using the wired remote control mode

Operating Range

Handling the remote control

Installation

Connecting Your PC or Macintosh Computer

Connecting Your Document Camera

Connecting Your VCR or Laser Disc Player

Connections with Equipment that has a Digital Interface

Connecting Your DVD Player

External Speaker Connections

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

Pin Configuration and Signal of the RGB 3 IN Connector (DVI Connector)

Basic Operations

POWER

To turn the unit ON and OFF:

VOLUME

To adjust the volume:

MUTE

To cancel the sound:

DISPLAY

To check the settings:

DIGITAL ZOOM

AUTO ADJUST

To adjust the size or quality of the picture automatically:

OFF TIMER

To set the off timer:

To cancel the off timer:

To check the remaining time:

WIDE Operations

When watching videos or digital video discs

When watching high definition video source

Watching computer images with a wide screen

MULTI SCREEN Operations

Showing a couple of pictures on the screen at the same time

Selecting the input signals to be displayed

Adjusting the OSM controls

Menu Operations

Picture Settings Menu

Adjusting the picture

Setting the picture mode according to the brightness of the room

Setting the color temperature

Adjusting the color to the desired quality

Reducing noise in the picture

Sound Settings Menu

Adjusting the treble, bass and left/right balance

Screen Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

Function Settings Menu

Setting the on-screen menu

Adjusting the position of the menu display

Setting the power management for computer images

POWER/STANDBY indicator

Setting the gray level for the sides of the screen

Setting the picture to suit the movie

Setting RGB3 ADJ.

Reducing burn-in of the screen

Resetting to the default values

Option Settings Menu

Setting the allocation of the audio connectors

Setting the BNC connectors

Setting a computer image to the correct RGB select screen

Setting high definition images to the suitable screen size

Setting the picture size for RGB input signals

Information Menu

Checking the frequencies, polarities of input signals, and resolution

Setting the language for the menus
