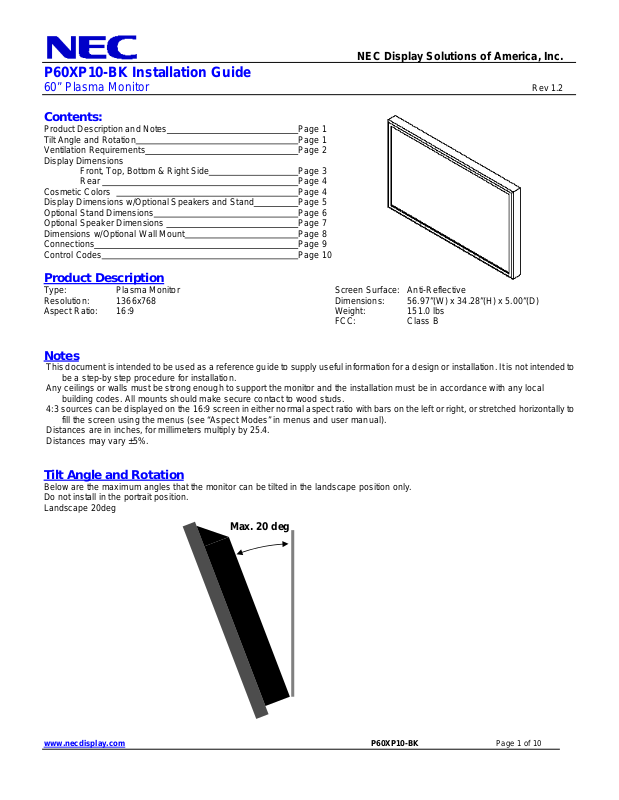

NEC P60XP10-BK User Manual
NEC Display Solutions of America, Inc.
P60XP10-BK Installation Guide
60” Plasma Monitor Rev 1.2
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation
Ventilation Requirements
Display Dimensions
Front, Top, Bottom & Right Side Page 3
Rear
Cosmetic Colors
Display Dimensions w/Optional Speakers and Stand
Optional Stand Dimensions
Optional Speaker Dimensions

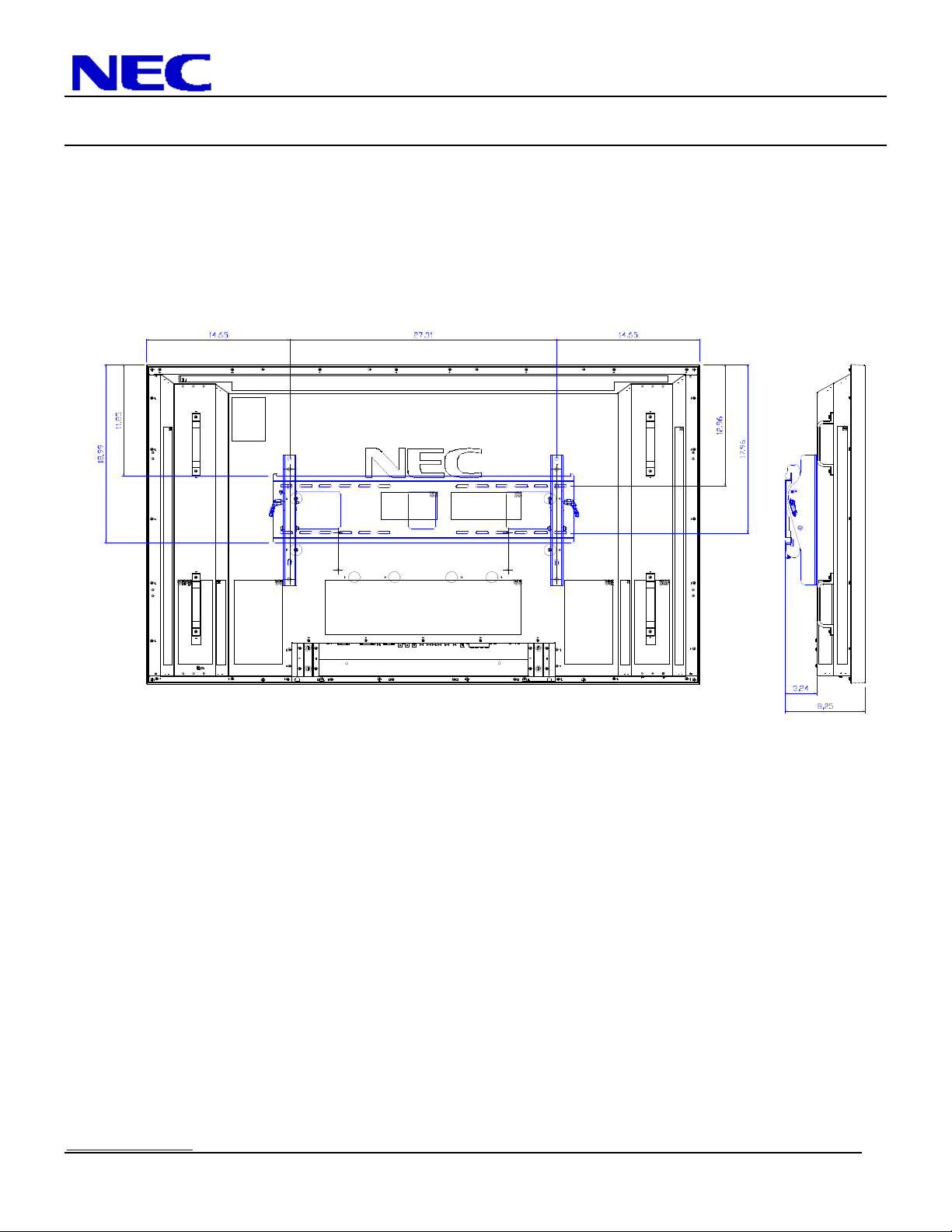

Dimensions w/Optional Wall Mount
Connections
Control Codes
Product Description
Type: Plasma Monitor Screen Surface: Anti-Reflective
Resolution: 1366x768 Dimensions: 56.97”(W) x 34.28”(H) x 5.00”(D)
Aspect Ratio: 16:9 Weight: 151.0 lbs
FCC: Class B
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Do not install in the portrait position.
Landscape 20deg
Page 1
Page 2
Page 4
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
www.necdisplay.com
Max. 20 deg
P60XP10-BK Page 1 of 10
NEC Display Solutions of America, Inc.
P60XP10-BK Installation Guide
60” Plasma Monitor Rev 1.2
Ventilation Requirements (all models)
Dimensions below are minimum required for proper ventilation.
WALL
0 to 40 degC
50mm
2”
50mm
2”
32 to 104 degF
WALL WALL
2”
50mm
2”
50mm
2”
NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the
opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for
50mm
design review and recommendations.
www.necdisplay.com
P60XP10-BK Page 2 of 10
NEC Display Solutions of America, Inc.
P60XP10-BK Installation Guide
60” Plasma Monitor Rev 1.2
Display dimensions
1.40
1.34
0.87
FILTER PANEL SURFACE
1.85 53.27
51.95 (PANEL DISPLAY AREA)
0
8
.
1
)
A
E
R
A
Y
0
A
6
L
.
0
P
3
S
I
D
L
E
N
A
P
(
1
2
.
9
2
0
8
.
1
54.13
51.30
46.85
42.91
40.20
56.97
1.40
1.34
0
0
.
8
5
2
.
3
2
1
.
0
TOP VIEW
27.62
LED
IR
1.85
4
5
.
1
0
0
.
2
0
1
.
4
1
8
2
.
4
3
7
2
.
3
1
0.51
0
4
.
3
5
.
4
1
4
RIGHT SIDE VIEW
3
5
.
2
POWER SWITCH
www.necdisplay.com
3.23
0.50 0.33
2.37
7
6
4
9
.
.
0
0
AC IN
23.72
22.89
18.50 (TERMINAL PANEL)
BOTTOM VIEW
P60XP10-BK Page 3 of 10
