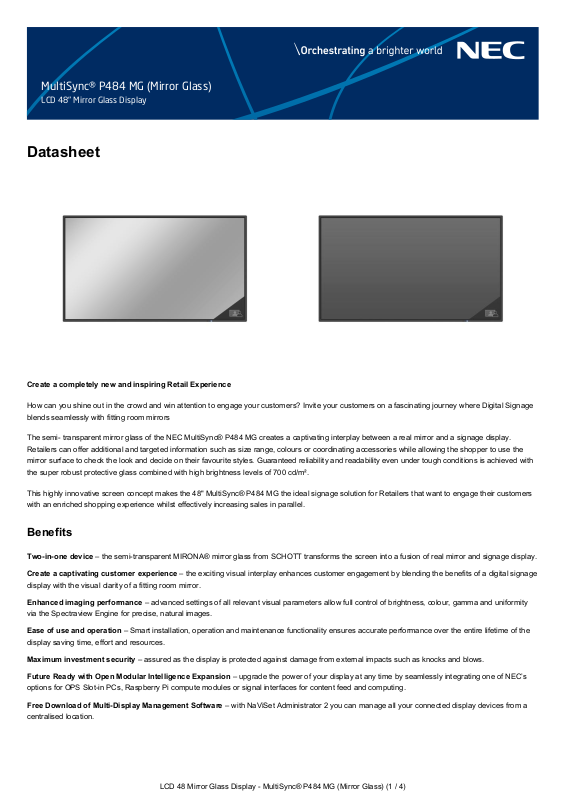

NEC P484 MG Data sheet

Datasheet

MultiSync® P484 MG (Mirror Glass)

LCD 48" Mirror Glass Display

Create a completely new and inspiring Retail Experience

How can you shine out in the crowd and win attention to engage your customers? Invite your customers on a fascinating journey where Digital Signage
blends seamlessly with fitting room mirrors

The semi- transparent mirror glass of the NEC MultiSync® P484 MG creates a captivating interplay between a real mirror and a signage display.
Retailers can offer additional and targeted information such as size range, colours or coordinating accessories while allowing the shopper to use the
mirror surface to check the look and decide on their favourite styles. Guaranteed reliability and readability even under tough conditions is achieved with
the super robust protective glass combined with high brightness levels of 700 cd/m².

This highly innovative screen concept makes the 48" MultiSync® P484 MG the ideal signage solution for Retailers that want to engage their customers
with an enriched shopping experience whilst effectively increasing sales in parallel.

Benefits

Two-in-one device – the semi-transparent MIRONA® mirror glass from SCHOTT transforms the screen into a fusion of real mirror and signage display.

Create a captivating customer experience – the exciting visual interplay enhances customer engagement by blending the benefits of a digital signage

display with the visual clarity of a fitting room mirror.

Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity
via the Spectraview Engine for precise, natural images.

Ease of use and operation – Smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the
display saving time, effort and resources.

Maximum investment security – assured as the display is protected against damage from external impacts such as knocks and blows.

Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s

options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.

Free Download of Multi-Display Management Software – with NaViSet Administrator 2 you can manage all your connected display devices from a
centralised location.

LCD 48 Mirror Glass Display - MultiSync® P484 MG (Mirror Glass) (1 / 4)

Product Information

Product Name MultiSync®P484 MG (Mirror Glass)

Product Group LCD 48" Mirror Glass Display

Order Code 60004425

Display

Panel Technology S-PVA with edge LED backlights

Active Screen Area (W x H) [mm] 1,054.1 x 592.9

Screen Size [inch/cm] 48 / 120.9

Brightness [cd/m²] 700, 500 Eco (shipment setting)

Contrast Ratio (typ.) 4000:1

Viewing Angle [°] 178 / 178 (at contrat ratio > 10:1)

Colour Depth [bn] 1.073 (10bit)

Response Time (typ.) [ms] 8 (grey-to-grey)

Haze Level [%] Pro (25)

Supported Orientation Landscape, Portrait, Face Up, Face Down

Synchronisation Rate

Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz] 24 - 85

Resolution

Native Resolution 1920 x 1080

Supported Resolutions 4096 x 2160; 3840 x 2160; 1920 x 2160; 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 900;

1400 x 1050; 1366 x 768; 1360 x 768; 1280 x 1024; 1280 x 960; 1280 x 800; 1280 x 720; 1024 x 768; 800 x
600; 640 x 480

Connectivity

Input Video Analogue 1 x VGA

Input Video Digital 1 x DVI-D (with HDCP); 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)

Input Audio Analogue 2 x 3,5 mm jack

Input Audio Digital 2 x DisplayPort; 2 x HDMI

Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232

Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer); 1 x USB 2.0 (Service); 1 x USB Type-B (Upstream);

2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)

Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)

Output Audio Analogue 1 x 3,5 mm jack

Output Control 1 x LAN 100Mbit

Open Modular Intelligence

OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)

OPS Max. Current / Power
Consumption [A / W]

Compute Module Slot Slot Technology: Compute Module Slot (NEC proprietary standard)

10 / 61

Sensors

Ambient Light Sensor Integrated, triggered actions programmable

Human Sensor Optional, external, 4-5m range, triggered actions programmable

Temperature Sensor Integrated, 3 sensors, triggered actions programmable

LCD 48 Mirror Glass Display - MultiSync® P484 MG (Mirror Glass) (2 / 4)
